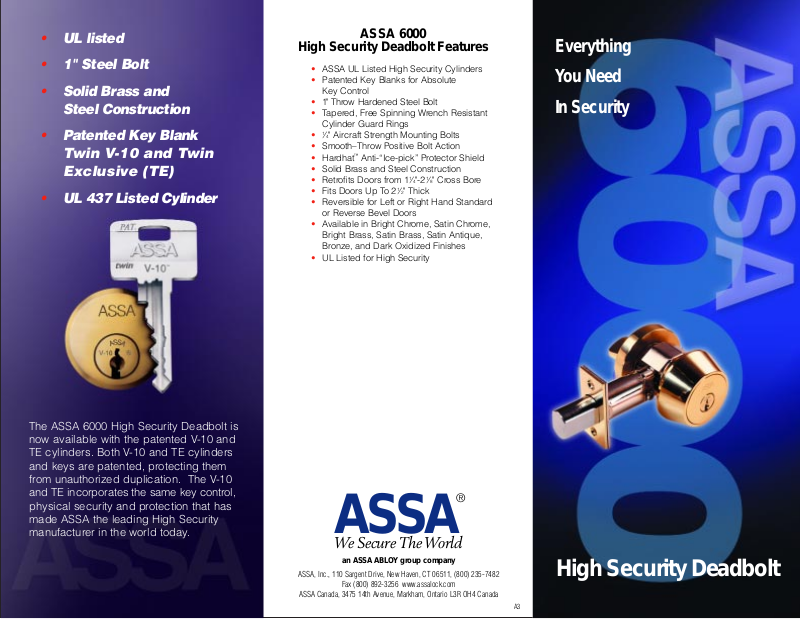

Assa High Security Deadbolt 6000 User Manual

ASSA 6000

High Security Deadbolt Features

• ASSA UL Listed High Security Cylinders

• Patented Key Blanks for Absolute

Key Control

• 1" Throw Hardened Steel Bolt

• Tapered, Free Spinning Wrench Resistant

Cylinder Guard Rings

•

1

⁄4" Aircraft Strength Mounting Bolts

• Smooth–Throw Positive Bolt Action

• Hardhat

™

Anti-“Ice-pick” Protector Shield

• Solid Brass and Steel Construction

• Retrofits Doors from 1

1

⁄4"-21⁄8" Cross Bore

• Fits Doors Up To 2

1

⁄2" Thick

• Reversible for Left or Right Hand Standard

or Reverse Bevel Doors

• Available in Bright Chrome, Satin Chrome,

Bright Brass, Satin Brass, Satin Antique,
Bronze, and Dark Oxidized Finishes

• UL Listed for High Security

• UL listed

• 1" Steel Bolt

• Solid Brass and

Steel Construction

• Patented Key Blank

Twin V-10 and Twin
Exclusive (TE)

• UL 437 Listed Cylinder

ASSA

®

We Secure The World

an ASSA ABLOY group company

HighSecurityDeadbolt

The ASSA 6000 High Security Deadbolt is
now available with the patented V-10 and
TE cylinders. Both V-10 and TE cylinders
and keys are patented, protecting them
from unauthorized duplication. The V-10
and TE incorporates the same key control,
physical security and protection that has
made ASSA the leading High Security
manufacturer in the world today.

Everything
YouNeed
In Security

ASSA, Inc., 110 Sargent Drive, New Haven, CT 06511, [phone]

Fax [phone] www.assalock.com

ASSA Canada, 3475 14th Avenue, Markham, Ontario L3R OH4 Canada

A3

A

B

C

D

E

F

G

H

I

J

T

he ASSA 6000 is designed to withstand
any form of physical attack including

drilling, prying, driving or pulling. Its free
spinning guard collars protect it from pipe
wrenching while its hardened inserts guard
against drilling. The 6000 comes equipped with
the ASSA Hardhat

™

to protect it from outside
through-the-door attacks known as “ice picking.”
Its solid brass and steel construction guarantees
its ruggedness and defies any form of physical
assault.

MANIPULATION

The ASSA 6000 High Security Deadbolt
incorporates the patented ASSA High Security
Cylinders. Our unique dual locking mechanism
renders the lock virtually pick proof. The ASSA
High Security Cylinder lists six separate United
States patents which protect the unique features
that eliminate any form of manipulation. The
deadlocking bolt assures a positive close when
thrown to engage the strike.

UNDERWRITERS LABORATORIES

The ASSA 6000 High Security Deadbolt has
been listed by Underwriters Laboratories and
has passed the UL 437 tests. These
widely acclaimed tests measure
effectiveness against picking, drilling
and physical resistance. In addition,
the ASSA High Security Cylinder is
also listed by UL for High Security.

KEY CONTROL

Unauthorized key duplication remains the single
most violated security policy in today’s lock
business. Most keys stamped “do not duplicate”
or “restricted” mean little or nothing to the non­professional key cutter, and duplicates are easily
made. Each ASSA 6000 High Security Deadbolt
comes with ASSA’s unique patented Key Control
System. ASSA High Security Cylinders

incorporate a double-locking mechanism
which prevents all forms of manipulation or
compromise. ASSA keys carry several U.S.
patents independent of the cylinder patent:

Patent No. 274,302
Patent No. 278,880
Patents pending

This assures the ASSA key owner that
unauthorized manufacturers cannot produce
the key blank and make it available to key
cutters. ASSA strictly controls the distribution
of its key blanks.

THE ALPHA SYSTEM

ASSA has introduced the
ALPHA SYSTEM to meet
the specific security
requirements of the
customer.

• Dealer controlled–Keys
and cylinders are available
locally from one of many ASSA
authorized dealers.

• Distributor controlled–With
the use of a plastic authorization
card, keys and cylinders are
available through dealers from
a regional service center.

• Factory Controlled–A pre-
arranged authorized signature
is necessary to obtain additional
keys. All keys are cut at the ASSA
factory and supplied through
the dealer network.

Bright Chrome

Product Finishes

Satin Chrome

Bright Brass

Satin Brass

Antique Brass

Bronze

Dark Oxide

A. Cylinder and Thumb-turn Cap
B. Ball Bearing Insert
C. Cylinder (DC) Mounting

Bolts (21⁄4")
D. Inside Cylinder
E. Cylinder Ring
F. Faceplate Bolt
G. Wood/Metal Combination Screws
H. Screws for Hardhat
I. Hardhat
J. Outside Cylinder
