X570S PG Riptide
Chapter 1 Introduction
ank you for purchasing ASRock X570S PG Riptide motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
In this documentation, Chapter 1 and 2 contains the introduction of the
motherboard and step-by-step installation guides. Chapter 3 contains the operation
guide of the soware and utilities. Chapter 4 contains the conguration guide of
the BIOS setup.
Becau se the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any modications of this documentation occur, the updated version will be available on ASRock’s
website w ithout further notice. If you require technical support related to this motherboard, please visit our website for specic information about the model you are using. You
may nd the l atest VGA cards and CPU suppor t list on ASRock’s website a s well. ASRock
website http://www.asrock.com.
1.1 Package Contents
ASRock X570S PG Riptide Motherboard (ATX Form Factor)
•
ASRock X570S PG Riptide Quick Installation Guide
•
ASRock X570S PG Riptide Support CD
•
1 x I/O Panel Shield
•
2 x Serial ATA (SATA) Data Cables (Optional)
•
1 x Graphics Card Holder (Optional)
•
3 x Screws for M.2 Socket (Optional)
•
1 x Stando for M.2 Socket (Optional)
•
English
1
English
1.2 Specications
Platform
CPU
Chipset
Memory
•
•
•
•
•
•
•
•
•
•
•
•
•
ATX Form Factor
Solid Capacitor design
2oz Copper PCB
Supports AMD AM4 Socket RyzenTM 2000, 3000, 4000
G-Series and 5000 Series Desktop Processors
Digi Power design
10 Power Phase design
AMD X570
Dual Channel DDR4 Memory Technology
4 x DDR4 DIMM Slots
AMD Ryzen series CPUs (Vermeer) support DDR4
5000+(OC)/4933(OC)/4866(OC)/4800(OC)/4733(OC)/4666
(OC)/4600(OC)/4533(OC)/4466(OC)/4400(OC)/4333(OC)/4
266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800
(OC)/3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/
2400/2133 ECC & non-ECC, un-buered memory*
AMD Ryzen series CPUs (Matisse) support DDR4 5000+
(OC)/4933(OC)/4866(OC)/4800(OC)/4733(OC)/4666(OC)/
4600(OC)/4533(OC)/4466(OC)/4400(OC)/4333(OC)/4266
(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/
3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/2400/2133
ECC & non-ECC, un-buered memory*
AMD Ryzen series APUs (Renoir) support DDR4 5000+
(OC)/4933(OC)/4866(OC)/4800(OC)/4733(OC)/4666(OC)/
4600(OC)/4533(OC)/4466(OC)/4400(OC)/4333(OC)/4266
(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/
3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/2400/2133
ECC & non-ECC, un-buered memory*
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4
3600+(OC)/3466(OC)/3200(OC)/2933/2667/2400/2133 ECC
& non-ECC, un-buered memory*
2
X570S PG Riptide
AMD Ryzen series APUs (Picasso) support DDR4 3466+
•
(OC)/3200(OC)/2933/2667/2400/2133 non-ECC, un-buered
memory*
* For Ryzen Series APUs (Picasso), ECC is only supported with
PRO CPUs.
* Please refer to Memory Support List on ASRock’s website for
more information. (http://www.asrock.com/)
* Please refer to page 24 for DDR4 UDIMM maximum
frequency support.
Max. capacity of system memory: 128GB
•
Supports Extreme Memory Prole (XMP) memory modules
•
15μ Gold Contact in DIMM Slots
•
Expansion
Slot
Graphics
AMD Ryzen series CPUs (Vermeer, Matisse)
1 x PCI Express 4.0 x16 Slot (x16 (PCIE1))*
•
AMD Ryzen series CPUs (Renoir, Pinnacle Ridge)
1 x PCI Express 3.0 x16 Slot (x16 (PCIE1)*
•
AMD Ryzen series APUs (Picasso)
1 x PCI Express 3.0 x16 Slot (x8 (PCIE1))*
•
AMD X570 Chipset
2 x PCI Express 4.0 x16 Slots (x4 (PCIE4) / x2 (PCIE6))*
•
* Supports NVMe SSD as boot disks
3 x PCI Express 4.0 x1 Slots
•
Supports AMD Quad CrossFireXTM and CrossFireXTM
•
15μ Gold Contact in VGA PCIe Slot (PCIE1)
•
1 x M.2 Socket (Key E), supports ty pe 2230 WiFi/BT PCIe
•
WiFi module
Integrated AMD RadeonTM Vega Series Graphics in Ryzen
•
Series APU*
* Actual support may vary by CPU
DirectX 12, Pixel Shader 5.0
•
Shared memory default 2GB. Max Shared memory supports
•
up to 16GB.
* e Max shared memory 16GB requires 32GB system memory
installed.
Supports HDMI 2.1 with max. resolution up to 4K x 2K
•
(4096x2160) @ 60Hz
English
3
English
Audio
LAN
Rear Panel
I/O
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and
•
HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant
HDMI monitor is required)
Supports HDR (High Dynamic Range) with HDMI 2.1
•
Supports HDCP 2.3 with HDMI 2.1 Port
•
Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
•
Supports Microso PlayReady®
•
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
•
Supports Surge Protection
•
Gold Audio Jacks
•
Nahimic Audio
•
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
•
1 x Killer® E3100G (PCIE x1 Gigabit LAN 10/100/1000/2500
•
Mb/s)
Supports Killer LAN Soware
•
Supports Wake-On-LAN
•
Supports Lightning/ESD Protection
•
Supports Energy Ecient Ethernet 802.3az
•
Supports PXE
•
1 x Antenna Bracket
•
1 x PS/2 Mouse/Keyboard Port
•
1 x HDMI Port
•
1 x Optical SPDIF Out Port
•
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD
•
Protection)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD
•
Protection)
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
•
* USB3_2 and USB31_TA_1 are the Lightning Gaming Ports.
2 x USB 2.0 Ports (Supports ESD Protection)
•
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
•
LED)
1 x BIOS Flashback Button with LED
•
HD Audio Jacks: Rear Speaker / Centra l / Bass / Line in /
•
Front Speaker / Microphone (Gold Audio Jacks)
4
Storage
RAID
X570S PG Riptide
6 x SATA3 6.0 Gb/s Connectors
•
1 x Hyper M.2 Socket (M2_1), supports M Key ty pe
•
2230/2242/2260/2280 M.2 PCI Express module up to
Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4
(32 Gb/s) (with Renoir, Pinnacle Ridge and Picasso)*
1 x Hyper M.2 Socket (M2_ 2), supports M Key type
•
2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2
PCI Express module up to Gen4x4 (64 Gb/s)*
* If M2_2 is occupied by a PCIE-ty pe M.2 device, SATA3_5_6
will be disabled.
* If underbolt support is enabled, SATA type M.2 will be
disabled.
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
Supports RAID 0, RAID 1 and R AID 10 for SATA storage
•
devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage
•
devices
Connector
1 x Power LED and Speaker Header
•
2 x RGB LED Headers
•
* Support in total up to 12V/3A, 36W LED Strip
2 x Addressable LED Headers
•
* Support in total up to 5V/3A, 15W LED Strip
1 x CPU Fan Connector (4-pin)
•
* e CPU Fan Connector supports the CPU fan of ma ximum
1A (12W) fan power.
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
•
Speed Control)
* e CPU/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.
5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
•
Speed Control)
* e Chassis/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.
* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_
FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto
detect if 3-pin or 4-pin fan is in use.
English
5
BIOS
Feature
1 x 24 pin ATX Power Connector (Hi-Density Power
•
Connector)
1 x 8 pin 12V Power Connector (Hi-Density Power
•
Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power
•
Connector)
1 x Front Panel Audio Connector
•
1 x underbolt AIC Connector (5-pin) (Supports ASRock
•
underbolt 4 AIC Card only)
* Please visit ASRock’s website for more information on the
limitations of this connector. (http://www.asrock.com/)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports
•
ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
•
(Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD
•
Protection)
1 x Clear CMOS Button
•
AMI UEFI Legal BIOS with GUI support
•
Supports “Plug and Play”
•
ACPI 5.1 compliance wake up events
•
Supports jumperfree
•
SMBIOS 2.3 support
•
CPU, VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO,
•
PERM VDDCR_ SOC, +1.8V, VDDP Voltage Multi-adjust-
ment
English
6
Hardware
Monitor
Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water
•
Pump Fans
Quiet Fan (Auto adjust chassis fan speed by CPU tempera-
•
ture): CPU, CPU/Water Pump, Chassis/Water Pump Fans
Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/
•
Water Pump Fans
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VD-
•
DCR_SOC, DRAM, VPPM, PREM VDDCR _SOC, +1.8V,
VDDP
Microso® Windows® 10 64-bit
OS
Certications
* For detailed product information, please visit our website: http://www.asrock .com
Please realiz e that the re is a certain r isk involved with o verclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technolog y, or using third-party
overclocking to ols. O verclocking may aect your system’s stability, or even c ause damage to
the components and devices of your system. It should be don e at your ow n risk and expense.
We are not responsibl e for possible damage caused by overclo cking.
•
FCC, CE
•
ErP/EuP ready (ErP/EuP ready power supply is required)
•
CEC Tier II ready
•
X570S PG Riptide
English
7
DDR 4_A2 (6 4 bit, 28 8-pin m odule )
DDR 4_A1 (6 4 bit, 28 8-pin m odule )
DDR 4_B2 (6 4 bit, 28 8-pin m odule )
DDR 4_B1 (6 4 bit, 28 8-pin m odule )
ATXP WR 1
PCIE1
USB 3.2 Gen1
T: USB3_3
B: USB3_4
HDLED RESET
PLED PWRBTN
PANEL1
1
1
1
SPK_PLED1
1
HD_AUDIO1
USB_3_4
CLRCBTN1
1
CPU_FAN1
M2_1
CHA_FAN1/WP
CPU_FAN2/WP
RoHS
Top:
RJ-45
AMD
Premium
X570
SOCKETAM4
CHA_FAN2/WP
HDMI1
TB1
1
ATX12V1
CMOS
Battery
CHA_FAN4/WP
USB3_5_6
SATA3_2
SATA3_1
SATA3_4
SATA3_3
SATA3_6
SATA3_5
PCIE4
PCIE3
M2_2
ATX12V2
RGB_LED2
1
ADDR_LED2
1
RGB_LED1
1
ADDR_LED1
1
USB_5_6
1
F_USB31_TC_1
1
USB3_7 _8
Top:
Central/Bass
Cente r:
REAR SP K
Top:
LINE IN
Cente r:
FRONT
Botto m:
Optic al
SPDIF
Botto m:
MIC IN
USB 3.2 Gen2
T: USB31_TA_1
B: USB31_TC_1
BIOS
_FB1
9
11
15
13
14
16
17
22
23
1
8
7
18
24
10
5
20
19
26
27
25
4
2
12
29
28
CPU
DRAM
VGABOOT
63
21
CHA_FAN3/WP
PCIE5
BIOS
ROM
M2_WIFI
AUDIO
CODEC
USB 2.0
T: USB1
B: USB2
PS2
Keyb oard
/Mou se
USB 3.2 Gen1
T: USB3_1
B: USB3_2
CHA_FAN5/WP
30
PCIE6
X5 7 0 S P G
R I P T I D E
PCIE2
1.3 Motherboard Layout
English
8
X570S PG Riptide
No. Description
1 8 pin 12V Power Connector (ATX12V1)
2 4 pin 12V Power Connector (ATX12V2)
3 CPU Fan Connector (CPU_FAN1)
4 CPU / Waterpump Fan Connector (CPU_FAN2/WP)
5 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
6 Post Status Checker (PSC)
7 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)
8 Addressable LED Header (ADDR_LED2)
9 RGB LED Header (RGB_LED2)
10 ATX Power Connector (ATXPWR1)
11 Front Panel Type C USB 3.2 Gen2 Header (F_USB31_TC_1)
12 USB 3.2 Gen1 Header (USB3_7_8)
13 Chassis / Waterpump Fan Connector (CHA_FAN4/WP)
14 SATA3 Connector (SATA3_2) (Upper), SATA3 Connector (SATA3_1) (Lower)
15 SATA3 Connector (SATA3_4) (Upper), SATA3 Connector (SATA3_3) (Lower)
16 SATA3 Connector (SATA3_6) (Upper), SATA3 Connector (SATA3_5) (Lower)
17 Clear CMOS Button (CLRCBTN1)
18 USB 3.2 Gen1 Header (USB3_5_6)
19 System Panel Header (PANEL1)
20 Power LED and Speaker Header (SPK_PLED1)
21 Chassis / Waterpump Fan Connector (CHA_FAN3/WP)
22 USB 2.0 Header (USB_5_6)
23 USB 2.0 Header (USB_3_4)
24 Chassis / Waterpump Fan Connector (CHA_FAN2/WP)
25 Addressable LED Header (ADDR_LED1)
26 RGB LED Header (RGB_LED1)
27 Front Panel Audio Header (HD_AUDIO1)
28 underbolt AIC Header (TB1)
29 Chassis / Waterpump Fan Connector (CHA_FAN1/WP)
30 Chassis / Waterpump Fan Connector (CHA_FAN5/WP)
English
9
1.4 I/O Panel
5
21
15
16
14
No. Description No. Description
1 USB 2.0 Ports (USB12) 9 USB 3.2 Gen1 Ports (USB3_34)
2 2.5G LAN RJ-45 Port* 10 USB 3.2 Gen2 Type-A Port (USB31_TA_1)***
3 Central / Bass (Orange) 11 USB 3.2 Gen2 Type-C Port (USB31_TC_1)
4 Rear Speaker (Black) 12 USB 3.2 Gen1 Ports (USB3_12)***
5 Line In (Light Blue) 13 PS/2 Mouse/Keyboard Port (PS2_KB1)
6 Front Speaker (Lime)** 14 HDMI Port
7 Microphone (Pink) 15 Antenna Bracket
8 Optical SPDIF Out Port 16 BIOS Flashback Button
13
11
912
436
7810
English
10
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED
SPEED LED
LAN Por t
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection
On Link Green 2.5Gbps connection
X570S PG Riptide
** If you use a 2- channel speaker, plea se connect the speake r’s plug into “Front Spea ker Jack”. See the table below
for connection d etails in accordance w ith the type of speaker you use.
Audio Output
Channels
2 V -- -- --
4 V V -- --
6 V V V --
8 V V V V
*** USB3_2 and USB31_TA_1 are the Lightning Gaming Ports.
Front Speaker
(No. 6)
Rear Speaker
(No. 4)
Central / Bass
(No. 3)
Line In
(No. 5)
11
English
1.5 Graphics Card Holder
Installing the Graphics Card Holder
Before installing the Graphic s Card Holder , please make sure that your motherboard is
properly installed into a PC case.
Step 1
Secure the Graphics Card Holder to the chassis
with 2 screws.
*ere are two types of screws in the package.
Please use the appropriate type based on the
Type A Ty pe B
standos on the motherboard tray of your PC
case.
English
12
Step 2
Aer installing your graphics card, place the
bracket in the proper position to make sure that
it holds your graphics card in place.
en secure the bracket to the Graphics Card
Holder with 1 screw.
X570S PG Riptide
Chapter 2 Installation
is is an ATX form factor motherboard. Before you install the motherboard, study
the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
Make sure to unplug the power cord before installing or removing the motherboard.
•
Failure to do so may cause physical injuries to you and damages to motherboard
components.
In order to avoid damage from static electricity to the motherboard’s components,
•
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
Hold components by the edges and do not touch the ICs.
•
Whenever you uninstall any components, place them on a grounded anti-static pad or
•
in the bag that comes with the components.
When placing screws to secure the motherboard to the chassis, please do not over-
•
tighten the screws! Doing so may damage the motherboard.
13
English
2.1 Installing the CPU
Unplug all power cables be fore installing the CPU.
1
English
14
2
X570S PG Riptide
3
15
English
2.2 Installing the CPU Fan and Heatsink
Aer you install the CPU into this motherboard, it is necessary to install a larger
heatsink and cooling fan to dissipate heat. You also need to spray thermal grease
between the CPU and the heatsink to improve heat dissipation. Ma ke sure that the
CPU and the heatsink are securely fastened and in good contact with each other.
Please turn o the power or remove th e power cord before changing a CPU or heatsink.
Installing the CPU Box Cooler SR1
1
English
16
2
X570S PG Riptide
3
4
1
N
FA
_
U
P
C
English
17
Installing the AM4 Box Cooler SR2
1
2
English
18
X570S PG Riptide
3
19
English
4
1
N
FA
_
U
P
C
*e diagrams shown here are for reference only. e headers might be in a dierent position on
your motherboard.
English
20
Installing the AM4 Box Cooler SR3
1
X570S PG Riptide
2
English
21
3
4
English
22
X570S PG Riptide
5
FAN1
CPU_
6
2
D
E
L
_
B
RG
+12V
*e diagrams shown here are for reference only. e headers might be in a dierent position
on your motherboard.
English
23
2.3 Installing Memory Modules (DIMM)
is motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots,
and supports Dual Channel Memory Technology.
1. For dual channel cong uration , you always need to in stall identical (the same
brand, speed , size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Du al Channel Memory Technology with only one or three
memory module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4
slot; otherwise, this motherboard and DIMM may be damaged.
4. We suggest that you install the memory modules on DDR4_A 2 and DDR4_B2 rst
for better DRAM compatibility on 2 DIMM s conguration.
AMD non-XMP Memory Frequency Support
Ryzen Series CPUs (Vermeer):
English
24
UDIMM Memory Slot
Frequency
A1 A2 B1 B2
- SR - - 3200
- DR - - 3200
- SR - SR 3200
- DR - DR 3200
SR SR SR SR 2933
SR/DR DR SR/DR DR 2667
SR/DR SR/DR SR/DR SR/DR 2667
Ryzen Series CPUs (Matisse):
UDIMM Memory Slot
A1 A2 B1 B2
- SR - - 3200
- DR - - 3200
- SR - SR 3200
- DR - DR 3200
SR SR SR SR 2933
SR/DR DR SR/DR DR 2667
SR/DR SR/DR SR/DR SR/DR 2667
Frequency
(Mhz)
(Mhz)
Ryzen Series APUs (Renoir):
X570S PG Riptide
UDIMM Memory Slot
A1 A2 B1 B2
- SR - - 3200
- DR - - 3200
- SR - SR 3200
- DR - DR 3200
SR SR SR SR 2933
SR/DR DR SR/DR DR 2667
SR/DR SR/DR SR/DR SR/DR 2667
Frequency
(Mhz)
Ryzen Series CPUs (Pinnacle Ridge):
UDIMM Memory Slot
A1 A2 B1 B2
- SR - - 2933
- DR - - 2933
- SR - SR 2933
- DR - DR 2933
SR SR SR SR 2933
SR/DR DR SR/DR DR 2667
SR/DR SR/DR SR/DR SR/DR 2133-2400
Frequency
(Mhz)
25
English
Ryzen Series APUs (Picasso):
UDIMM Memory Slot
A1 A2 B1 B2
- SR - - 2933
- DR - - 2667
- SR - SR 2667
- DR - DR 2400
SR SR SR SR 2133
SR/DR DR SR/DR DR 1866
SR/DR SR/DR SR/DR SR/DR 1866
SR: Single rank DIMM, 1Rx4 or 1R x8 on DIMM module label
DR: Dua l rank DIMM, 2Rx4 or 2R x8 on DIMM module label
Frequency
(Mhz)
English
26
e DIMM only ts in one correct orie ntation. It will cause permanent dam age to
the motherboard and the DIMM if you force the DIMM into the slot at incor rect
orientation.
1
2
X570S PG Riptide
3
English
27
2.4 Expansion Slots (PCI Express Slots)
ere are 6 PCI Express slots on the motherboard.
Before installing an ex pansion card, please make sure that the power supply is switched o
or the power cord is unplug ged. Pl ease re ad the documentation of the expansion card and
make necessary hardware settings for the card before you start the installation.
PCIe slots:
PCIE1 (PCIe 4.0 x16 slot) is used for PCI Express x16 lane width graphics cards.
PCIE2 (PCIe 4.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIE3 (PCIe 4.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIE4 (PCIe 4.0 x16 slot) is used for PCI Express x4 lane width graphics cards.
PCIE5 (PCIe 4.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIE6 (PCIe 4.0 x16 slot) is used for PCI Express x2 lane width graphics cards.
PCIe Slot Congurations
Ryzen series CPUs (Vermeer, Matisse):
PCIE1 PCIE4
Single Graphics Card Gen4x16 N/A
English
28
Two Graphics Cards in
CrossFireXTM Mode
Gen4x16 Gen4x4
Ryzen series CPUs (Renoir, Pinnacle Ridge):
PCIE1 PCIE4
Single Graphics Card Gen 3x16 N/A
Two Graphics Cards in
CrossFireXTM Mode
Gen3x16 Gen4x4
Ryzen series APUs (Picasso)
PCIE1 PCIE4
Single Graphics Card Gen3x8 N/A
X570S PG Riptide
Two Graphics Cards in
CrossFireXTM Mode
For a better ther mal environme nt, ple ase connect a ch assis fan to the motherboard’s
chassis fan connector (CHA_ FAN1/WP~CH A_FAN5/WP ) when using multiple graphic s
cards.
Gen3x8 Gen4x4
29
English
2.5 Onboard Headers and Connectors
1
Onboard headers and connectors are NOT jump ers. Do NOT place jumper caps over these
heade rs and connectors. Placing jumper caps over the headers and connectors will cause
permanent damage to the motherboard.
System Panel Header
(9-pi n PANEL1)
(see p.8, No. 19)
PWRBTN (Power Button):
Connec t to the power button on the ch assi s front panel. You may congure the way to tur n
o your system using the power button.
RESET (Reset B utton):
Connec t to the reset button on the ch assi s front panel. P ress the reset button to re start the
computer if the computer f reezes and fails to per form a normal restar t.
PLED (Syste m Power LED):
Connec t to the power status indicator on the chas sis front panel. e LED i s on when the
system is operating. e LED keeps blinking when the system is in S1/S3 sleep state. e
LED is o when the system is in S4 slee p state or powered o (S5).
HDLED (Ha rd Drive Activity LED):
Connec t to the hard drive ac tivity LED on the chassis front panel. e LED is on when the
hard drive is reading or wr iting data.
e front panel de sign may dier by chassis. A front panel module mainly consists of powe r
button, reset button , power LED, hard dr ive activity LED, speaker and etc. When connecting your ch assi s front panel module to thi s header, make sure the wire a ssignments and the
pin assignments are matched correctly.
PLED+
PLED-
HDLED-
HDLED+
PWRBTN#
GND
RESET#
GND
GND
Connect the power
button, reset button and
system status indicator on
the chassis to this header
according to the pin
assignments below. Note
the positive and negative
pins before connecting
the cables.
English
30
X570S PG Riptide
1
+5V
DUMMY
PLED+
PLED+
PLED-
DUMMY
SPEAKER
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
1
ID
IntA_P_D+
IntA_P_SSRX-
Power LED and Speaker
Header
(7-pin SPK_PLED1)
(see p.8, No. 20)
Serial ATA3 Connectors
(SATA3_1:
see p.8, No. 14) (Lowe r)
(SATA3_ 2:
see p.8, No. 14) (Upper)
(SATA3_ 3:
see p.8, No. 15) (L ower)
(SATA3_4:
see p.8, No. 15) (Upper)
(SATA3_ 5:
see p.8, No. 16) (L ower)
(SATA3_6:
see p.8, No. 16) (Upper)
USB 2.0 Headers
(9-pin USB_3_4)
(see p.8, No. 23)
(9-pin USB_5_6)
(see p.8, No. 22)
SATA3_2
SATA3_4
SATA3_6
Please connect the
chassis power LED and
the chassis speaker to this
header.
ese six SATA3
connectors support SATA
SATA3_1
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
SATA3_3
* If M2_2 is occupied by
a PCIE-type M.2 device,
SATA3_5_6 will be
SATA3_5
disabled.
ere are two headers
on this motherboard.
Each USB 2.0 header can
support two ports.
USB 3.2 Gen1 Headers
(19-pin USB3_5_6)
(see p.8, No. 18)
IntA_P_D-
GND
IntA_P_D-
IntA_P_D+
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSTX-
IntA_P_SSTX+
GND
IntA_P_SSRX+
IntA_P_SSRX-
Vbus
IntA_P_SSRX+
GND
ere are two headers on
this motherboard. Each
USB 3.2 Gen1 header can
support two ports.
Vbus
English
31
(19-pin USB3_7_8)
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
(see p.8, No. 12)
IntA_PA_SSRX-
IntA_PA_SSRX+
IntA_PA_SSTX-
IntA_PA_SSTX+
IntA_PA_D-
IntA_PA_D+
Vbus
GND
GND
VbusVbus
IntA_PB_SSRX-
IntA_PB_SSRX+
GND
IntA_PB_SSTX-
IntA_PB_SSTX+
GND
IntA_PB_D-
IntA_PB_D+
Dummy
1
Front Panel Type C USB
3.2 Gen2 Header
(20-pin F_USB31_TC_1)
(see p.8, No. 11)
ere is one Front
Panel Type C USB 3.2
Gen2 Header on this
motherboard. is header
is used for connecting a
USB Type-C Cable
USB 3.2 Gen2 module for
additional USB 3.2 Gen2
ports.
Front Panel Audio Header
(9-pin HD_ AUDIO1)
(see p.8, No. 27)
1. High Denition Audio support s Jack Sensing, but the panel wire on the cha ssis must sup port HDA to function correctly. Ple ase fol low the instructions in our manual and chassis
manual to install your system.
2. If you use an AC’97 audio panel , please install it to th e front panel audio header by the
steps below:
A. Connect Mic_IN (MIC) to MIC2_ L.
B. Conne ct Audio_R (RIN) to OUT2_R and Audio_ L (LIN) to OUT2_ L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_ RET and OUT_RET are for the HD audio panel only. You don’t ne ed to conn ect
them for the AC’97 audio panel .
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel and
adjust “Recording Volume”.
is header is for
connecting audio devices
to the front audio panel.
English
32
X570S PG Riptide
FAN_SPEED_CONTROL
1 2 3 4
FAN_SPEED_CONTROL
4
FAN_VOLTAGE
F
4 3 2 1
F
4 3 2 1
FAN_SPEED_CONTROL
4 3 2 1
FAN_SPEED_CONTROL
4 3 2 1
Chassis Water Pump Fan
Connectors
(4-pin CHA_FAN1/WP)
(see p.8, No. 29)
(4-pin CHA_FAN2/WP)
(see p.8, No. 24)
(4-pin CHA_FAN3/WP)
(see p.8, No. 21)
(4-pin CHA_FAN4/WP)
(see p.8, No. 13)
(4-pin CHA_FAN5/WP)
(see p.8, No. 30)
CPU Fan Connector
(4-pin CPU_FAN1)
(see p.8, No. 3)
AN_SPEED_CONTROL
CHA_FAN_SPEED
CPU_FAN_SPEED
FAN_VOLTAGE
GND
CHA_FAN_SPEED
FAN_VOLTAGE
AN_SPEED_CONTROL
CHA_FAN_SPEED
FAN_VOLTAGE
GND
+12V
CPU_F
AN_SPEED
GND
is motherboard
provides ve 4-Pin water
cooling
chassis
fan
connectors. If you plan to
connect a 3-Pin
chassis
water cooler fan, please
connect it to Pin 1-3.
3
2
1
is motherboard pro-
vides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.
CPU Water Pump Fan
Connector
(4-pin CPU_FAN2/WP)
(see p.8, No. 4)
GND
FAN_VOLTAGE
CPU_F
AN_SPEED
is motherboard
provides a 4-Pin water
cooling CPU fan
connector. If you plan
to connect a 3-Pin CPU
water cooler fan, please
connect it to Pin 1-3.
English
33
ATX Power Connector
4
1
8 5
(24-p i n ATX PWR1)
(see p.8, No. 10)
12
24
is motherboard pro-
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
1
13
13.
ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.8, No. 1)
ATX 12V Power
Connector
(4-pin ATX12V2)
(see p.8, No. 2)
is motherboard pro-
vides an 8-pin ATX 12V
power connector. To use a
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.
*Warning: Please make
sure that the power cable
connected is for the CPU
and not the graphics
card. Do not plug the
PCIe power cable to this
connector.
Please connect an ATX
12V power supply to this
connector.
*e power supply plug
ts into this connector in
only one orientation.
*Connecting an ATX 12V
4-pin cable to ATX12V2
is optional. For advanced
overclocking, we suggest
using this connector
together with ATX12V1.
English
34
X570S PG Riptide
1
1
1
underbolt AIC
Connector
(5-p i n TB1)
(see p.8, No. 28)
RGB LED Headers
(4-p i n RGB_LED1)
(see p.8, No. 26)
(4-pi n RGB _LED2)
(see p.8, No. 9)
Addressable LED Headers
(3-pin A DDR_LE D1)
(see p.8, No. 25)
(3-pin A DDR_LE D2)
(see p.8, No. 8)
+12V GRB
DO_ADDR
VOUT
GND
Please connect a underbolt™
add-in card (AIC) to the
underbolt AIC connector via
the GPIO cable.
*Please install the underbolt™
AIC card to PCIE3 (default
slot).
*For the further information,
please visit ww w.asrock.com.
ese two RGB headers are used
to connect RGB LED extension
cable which allows
users to choose from various LED
lighting eects.
Caution: Never install the RGB
LED cable in the wrong orienta-
tion; otherwise, the cable may
be damaged.
*Please refer to page 62 for
further instructions on these two
headers.
ese two
are used to connect
Addressable
Addressable
headers
LED extension cable which
allows users to choose from
various LED lighting eects.
Caution: Never install the
Addressable LED cable in the
wrong orientation; otherwise,
the cable may be damaged.
*Please refer to page 63 for
further instructions on this
header.
English
35
2.6 Smart Buttons
e motherboard has two smart buttons: Clear CMOS Button and BIOS Flashback
Button, allowing users to quickly clear the CMOS values or ash the BIOS.
Clear CMOS Button
(CLRCBTN1)
(see p.8, No. 17)
is function i s workable only when you power o your computer and unplug the powe r
supp ly.
BIOS Flashback Button
(BIOS_FB1)
Clear CMOS Button
allows users to quickly
clear the CMOS values.
BIOS Flashback Button allows
users to ash the BIOS.
(see p.10, No. 16)
ASRock BIOS Flashback feature allows you to update BIOS without poweri ng on the system, even
without CPU.
To use the USB BIOS Flashback function, Plea se follow the steps below.
1. Download the latest BIOS le from ASRock's website : http://www.asrock.com.
2. Copy t he BIOS le to your USB ash drive. Please make sure the le system of
your USB ash drive must be FAT32.
3. Extract BIOS le from the zip le.
4. Rename the le to “creative.rom” and save it to the root director y of X: USB ash drive.
5. Plug the 24 pin power connector to t he motherboard. en turn on the power supply's AC
switch.
*ere is no need to power on t he system.
6. en plug your USB drive to the USB BIOS Flashback port.
7. Press the BIOS Flashback Switch for about three seconds. en the LED starts to blink.
8. Wait unti l the LED stops blink ing, i ndicating that BIOS ashing has been completed.
*If the LED light turns solid green, this means that the BIOS Flashback is not
operating properly. Please make sure that you plug t he USB drive to the USB BIOS Flashback
port.
**If the LED does not light up at all then please disconnect power f rom the system and remove/
disconnect t he CMOS battery f rom the motherboard for several minutes. Reconnect power
and battery and try again.
English
36
USB BIOS Flashback port
X570S PG Riptide
37
English
2.7 Post Status Checker
Post Status Checker (PSC) diagnoses the computer when users power on the
machine. It emits a red light to indicate whether the CPU, memory, VGA or storage
is dysfunctional. e lights go o if the four mentioned above are functioning
normally.
English
38
X570S PG Riptide
2.8 CrossFireXTM and Quad CrossFireXTM Operation Guide
is motherboard supports CrossFireXTM and Quad CrossFireXTM that allows you
to install up to three identical PCI Express x16 graphics cards.
1. You should only use identical CrossFireXTM-ready g raphics cards that are AM D
certied.
2. Make sure that your graphics card driver s uppor ts AMD CrossFireXTM technology.
Download the drivers from the A MD’s website: www.amd.com
3. Make sure that your power supply unit (PSU) can provide at least the minimum
power your syste m require s. It is recommended to use a AMD certied PSU. Plea se
refer to the AMD’s website for d etail s.
4. If you pair a 12-pipe CrossFireXTM Edition card with a 16-pipe card, both cards will
operate a s 12-pipe cards while in CrossFireXTM mode.
5. Dierent CrossFireXTM cards may require dierent method s to enable CrossFireXTM. Please refer to A MD graphics card manuals for de tailed installation guide.
2.8.1 Installing Two CrossFireXTM-Ready Graphics Cards
CrossFire Bridge
Step 1
Insert one graphics card into PCIE1 slot
and the other graphics card to PCIE4 slot.
Make sure that the cards are properly
seated on the slots.
Step 2
Connect two graphics cards by installing
a CrossFire Bridge on the CrossFire Bridge
Interconnects on the top of the graphics
cards. (e CrossFire Bridge is provided
with the graphics card you purchase, not
bundled with this motherboard. Please
refer to your graphics card vendor for
deta ils .)
English
39
Step 3
Connect a VGA/DVI/DP/HDMI cable from
the monitor to the corresponding port on the
graphics card installed to the PCIE1 slot.
English
40
2.8.2 Driver Installation and Setup
Step 1
Power on your computer and boot into OS.
Step 2
Remove the AMD drivers if you have any VGA drivers installed in your system.
e Catalyst Unins talle r is an optional do wnload. We recommend us ing this utility
to uninstall any previously installed Catalyst drivers prior to installation. Pl ease
check A MD’s website for AMD driver update s.
Step 3
Install the required drivers and CATALYST Control Center then restart your
computer. Please check AMD’s website for details.
Step 4
Double-click the AMD Catalyst Control
AMD Catalyst Control Center
Center icon in the Windows® sy stem tray.
X570S PG Riptide
Step 5
In the le pane, click Performance and
then AMD CrossFireXTM. en select
Enable AMD CrossFireX and click Apply.
Select the GPU number according to your
graphics card and click Apply.
English
41
2.9 M.2 2230 WiFi/BT PCIe WiFi module Installation
Guide (M2_WIFI)
e M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module.
Installing the 2230 WiFi/BT PCIe WiFi module
Step 1
Prepare a type 2230 WiFi/BT PCIe
WiFi module and the screw.
Step 2
Find the nut location to be used.
PCB Length: 3cm
Module Type: Type2230
A
English
42
Step 3
Align and gently insert the 2230
WiFi/BT PCIe WiFi module into the
M.2 slot. Please be aware that the
module only ts in one orientation.
A
20
o
A
X570S PG Riptide
Step 4
Tighten the screw with a screwdriver
to secure the module into place.
Please do not overtighten the screw as
this might damage the module.
A
43
English
2.10 M.2_SSD (NGFF) Module Installation Guide (M2_1)
4
The M.2, a lso known as the Next Generation Form Factor (NGFF), is a sma ll size a nd
versatile card edge connector that aims to replace mPCIe and mSATA. e Hy per M.2
Socket (M2_1) supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up
to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Renoir, Pinnacle
Ridge and Picasso).
Installing the M.2_SSD (NGFF) Module
Step 1
Prepare a M.2_SSD (NGFF) module
and the screw.
Step 2
3
2
1
A
BCD
Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, nd the corresponding nut
location to be used.
English
44
No. 1 2 3 4
Nut Location A B C D
PCB Length 3cm 4.2cm 6cm 8cm
Module Type Type 223 0 Type 224 2 Ty pe2260 Ty pe 2 28 0
X570S PG Riptide
1
Step 3

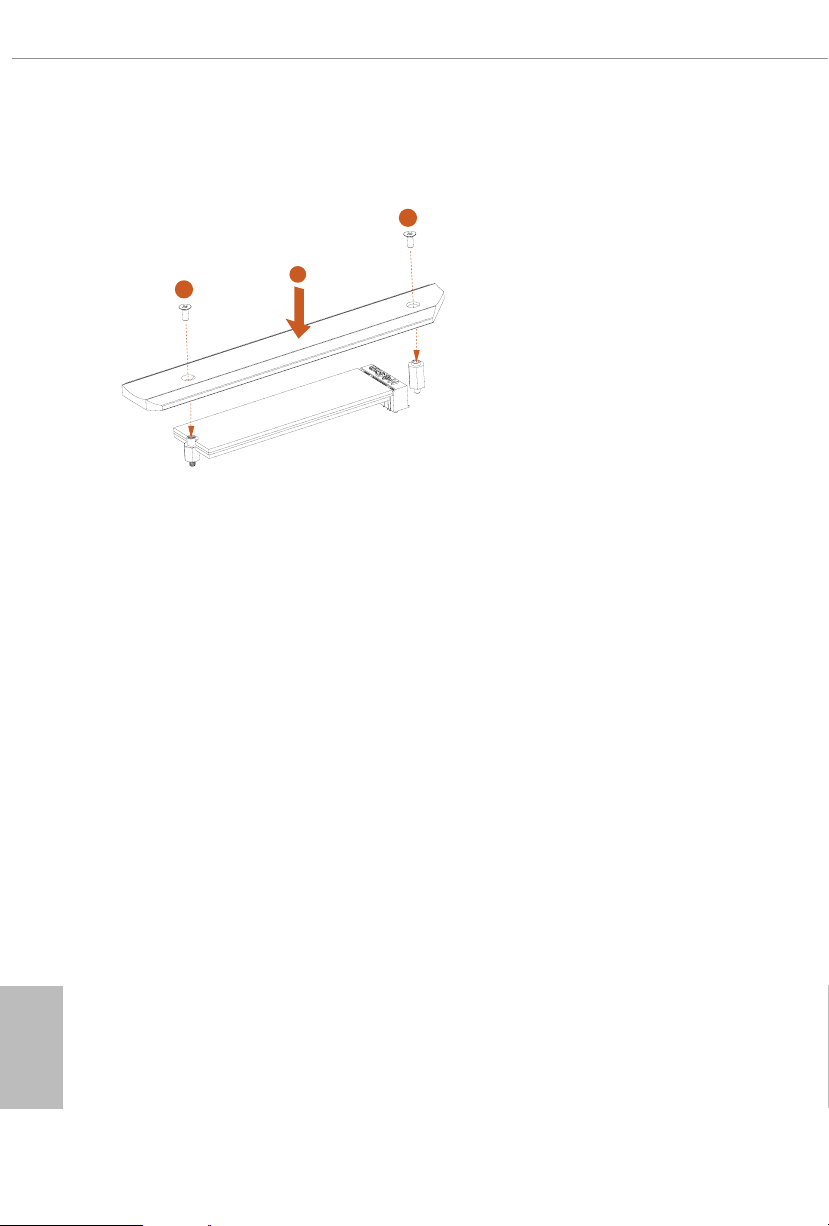

Before installing a M.2 (NGFF) SSD
1
2
ABCD
module, please loosen the screws to
remove the M.2 heatsink.
*Please remove the protective lms
on the bottom side of the M.2
heatsink before you install a M.2
SSD module.
Step 4
Prepare the M.2 stando that comes
with the package. en hand tighten
the stando into the desired nut
location on the motherboard. Align
and gently insert the M.2 (NGFF)
SSD module into the M.2 slot. Please
be aware that the M.2 (NGFF) SSD
module only ts in one orientation.
o
ABCD
20
Step 5
Tighten the screw that come with the
package with a screwdriver to secure
the module into place.
NUT1NUT2
English
45
Step 6
2
2
1
Tighten the screw with a screwdriver
to secure the module and M.2
heatsink into place. Please do
not overtighten the screw as this
might damage the module and M.2
heatsink.
English
46
X570S PG Riptide
M.2_SSD (NGFF) Module Support List (M2_1)
Vendor Interface P/N
SanDisk PCIe SanDisk-SD6PP4M-128G( Gen2 x2)
Intel PCIe INTEL 6000P-SSDPEKKF256G7 (nvme)
Intel PCIe INTEL 6000P-SSDPEKKF512G7 (nvme)
Intel PCIe SSDPEKKF512G7 NVME / 512GB
Kingston PCIe Kingston SHPM2280P2 / 240G (Gen2 x4)
Samsung PCIe Samsung XP941-MZHPU512HCGL(Gen2x4)
Samsung PCIe SM951 (NVME) / 512GB
Samsung PCIe SM951 (M ZHPV512HDGL) / 512GB
ADATA PCIe ASX8000NP-512GM-C / 512GB
ADATA PCIe ASX7000NP-512GT-C / 512GB
Kingston PCIe SKC1000/480G
Kingston PCIe SKC1000/960GB NVME
PLEXTOR PCIe PX-512M8Pe G/ 512GB
WD PCIe WDS512G1X0C-0 0ENX0 ( NVM E) / 512GB
For the latest updates of M.2_SSD (NFGG) module support list, please visit our website
for details: http://www.asrock.com
47
English
2.11 M.2_SSD (NGFF) Module Installation Guide (M2_2)
4
The M.2, a lso known as the Next Generation Form Factor (NGFF), is a sma ll size a nd
versatile card edge connector that aims to replace mPCIe and mSATA. e Hy per M.2
Socket (M2_2) supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module
and M.2 PCI Express module up to Gen4x4 (64 Gb/s).
* If M2_2 is occupied by a PCIE-ty pe M.2 device, SATA3_5_6 will be disabled.
Installing the M.2_SSD (NGFF) Module
Step 1
Prepare a M.2_SSD (NGFF) module
and the screw.
Step 2
English
48
3
Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, nd the corresponding nut
location to be used.
2
1
A
BCD
No. 1 2 3 4
Nut Location A B C D
PCB Length 3cm 4.2cm 6cm 8cm
Module Type Type 223 0 Type 224 2 Ty pe2260 Ty pe 2 28 0
X570S PG Riptide
Step 3
Move the stando based on the
module type and length.
e stando is placed at the nut
A
BCD
A
BCD
ABCD
location C by default. Skip Step 3
and 4 and go straight to Step 5 if you
are going to use the default nut.
Otherwise, release the stando by
hand.
Step 4
Peel o the yellow protective lm on
the nut to be used. Hand tighten the
stando into the desired nut location
on the motherboard.
Step 5
Align and gently insert the M.2
(NGFF) SSD module into the M.2
slot. Please be aware that the M.2
(NGFF) SSD module only ts in one
orientation.
o
ABCD
20
Step 6
Tighten the screw with a screwdriver
to secure the module into place.
Please do not overtighten the screw
NUT1NUT2D
as this might damage the module.
English
49
M.2_SSD (NGFF) Module Support List (M2_2)
Vendor Interface P/N
SanDisk PCIe SanDisk-SD6PP4M-128G( Gen2 x2)
Intel PCIe INTEL 6000P-SSDPEKKF256G7 (nvme)
Intel PCIe INTEL 6000P-SSDPEKKF512G7 (nvme)
Intel PCIe SSDPEKKF512G7 NVME / 512GB
Intel SATA 540S-SSDSCKKW240H6 / 240GB
Kingston PCIe Kingston SHPM2280P2 / 240G (Gen2 x4)
Samsung PCIe Samsung XP941-MZHPU512HCGL(Gen2x4)
Samsung PCIe SM951 (NVME) / 512GB
Samsung PCIe SM951 (M ZHPV512HDGL) / 512GB
ADATA SATA ADATA - AXNS381E-128GM-B
ADATA PCIe ASX8000NP-512GM-C / 512GB
ADATA PCIe ASX7000NP-512GT-C / 512GB
ADATA SATA ASU800NS38-512GT-C / 512GB
Crucial SATA Crucial-CT240M500SSD4-240GB
ezlink SATA ezlink P51B-80-120GB
Intel SATA INTEL 540S-SSDSCKKW240H6-240GB
Kingston SATA Kingston SM2280S3G2/120G - Win8.1
Kingston SATA Kingston-RBU-SNS8400S3 / 180GD
Kingston PCIe SKC1000/480G
Kingston PCIe SKC1000/960GB NVME
LITEON SATA LITEON LJH-256V2G-256GB (22 60)
PLEXTOR SATA PLEXTOR PX-128M6G-2260-128GB
PLEXTOR SATA PLEXTOR PX-128M7VG-128GB
PLEXTOR PCIe PX-512M8Pe G/ 512GB
SanDisk SATA SanDisk X400-SD8SN8U-128G
SanDisk SATA Sandisk Z400s-SD8SNAT-128G-1122
SanDisk SATA SanDisk-SD6SN1M-128G
Tra nscend SATA Transcend TS256GMTS800-256GB
Tra nscend SATA TS512GMTS800 / 512GB
V-Col or SATA V-Colo r 12 0G
V-Col or SATA V-Colo r 240G
WD SATA WD GREEN WDS240G1G0B-00RC30
WD PCIe WDS512G1X0C-0 0ENX0 ( NVM E) / 512GB
English
50
For the latest updates of M.2_SSD (NFGG) module support list, please visit our website
for details: http://www.asrock.com
X570S PG Riptide
Chapter 3 Software and Utilities Operation
3.1 Installing Drivers
e Support CD that comes with the motherboard contains necessary drivers and
useful utilities that enhance the motherboard’s features.
Running The Support CD
To begin using the support CD, insert the CD into your CD-ROM drive. e CD
automatically displays the Main Menu if “AUTORUN” is enabled in your computer.
If the Main Menu does not appear automatically, locate and double click on the le
“ASRSETUP.EXE” in the Support CD to display the menu.
Drivers Menu
e drivers compatible to your system will be auto-detected and listed on the
support CD driver page. Please click Install All or follow the order from top to
bottom to install those required drivers. erefore, the drivers you install can work
properly.
Utilities Menu
e Utilities Menu shows the application soware that the motherboard supports.
Click on a specic item then follow the installation wizard to install it.
51
English
3.2 ASRock Motherboard Utility (Phantom Gaming Tuning)
ASRock Motherboard Utility (Phantom Gaming Tuning) is ASRock’s multi pur-
pose soware suite with a new interface, more new features and improved utilities.
3.2.1 Installing ASRock Motherboard Utility (Phantom
Gaming Tuning)
ASRock Motherboard Utility (Phantom Gaming Tuning) can be downloaded from
ASRock Live Update & APP Shop. Aer the installation, you will nd the icon “AS-
Rock Motherboard Utility (Phantom Gaming Tuning)“ on your desktop. Double-
click the “ASRock Motherboard Utility (Phantom Gaming Tuning)“ icon,
ASRock Motherboard Utility (Phantom Gaming Tuning) main menu will pop up.
3.2.2 Using ASRock Motherboard Utility (Phantom Gaming Tuning)

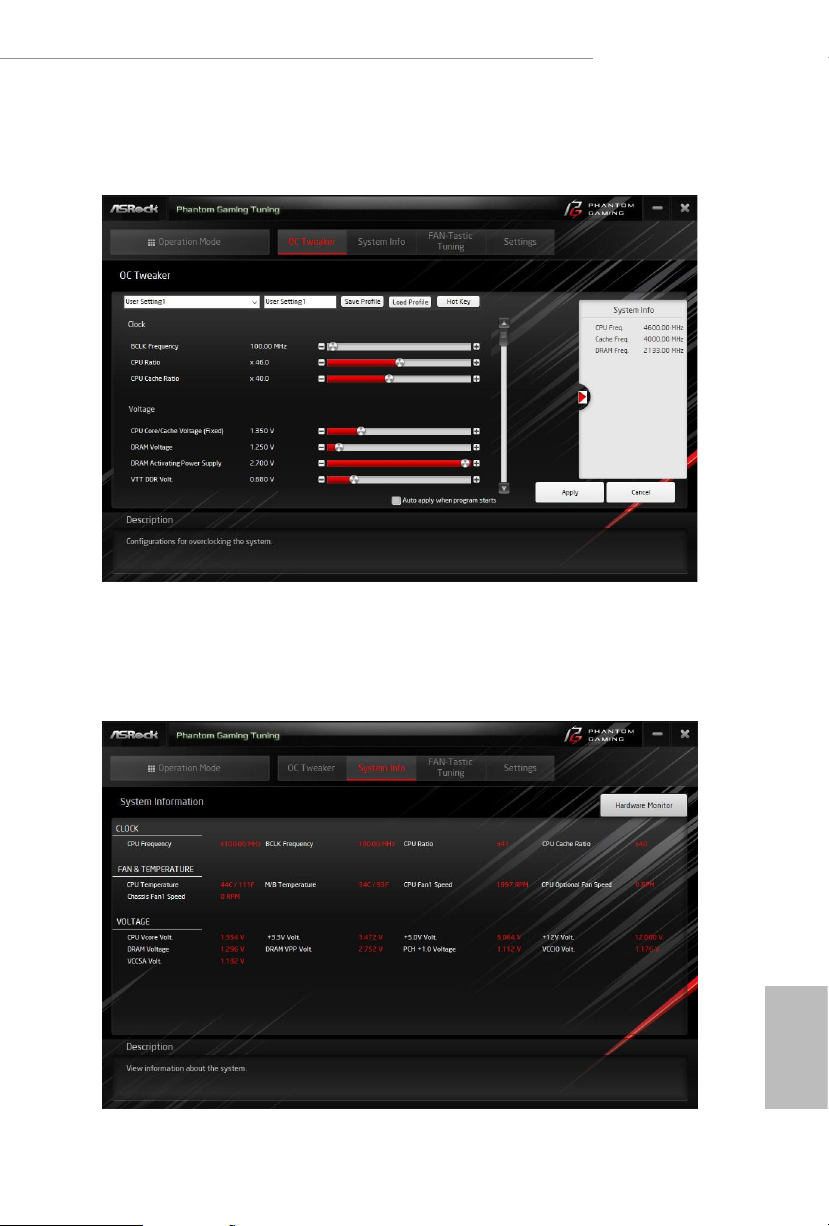

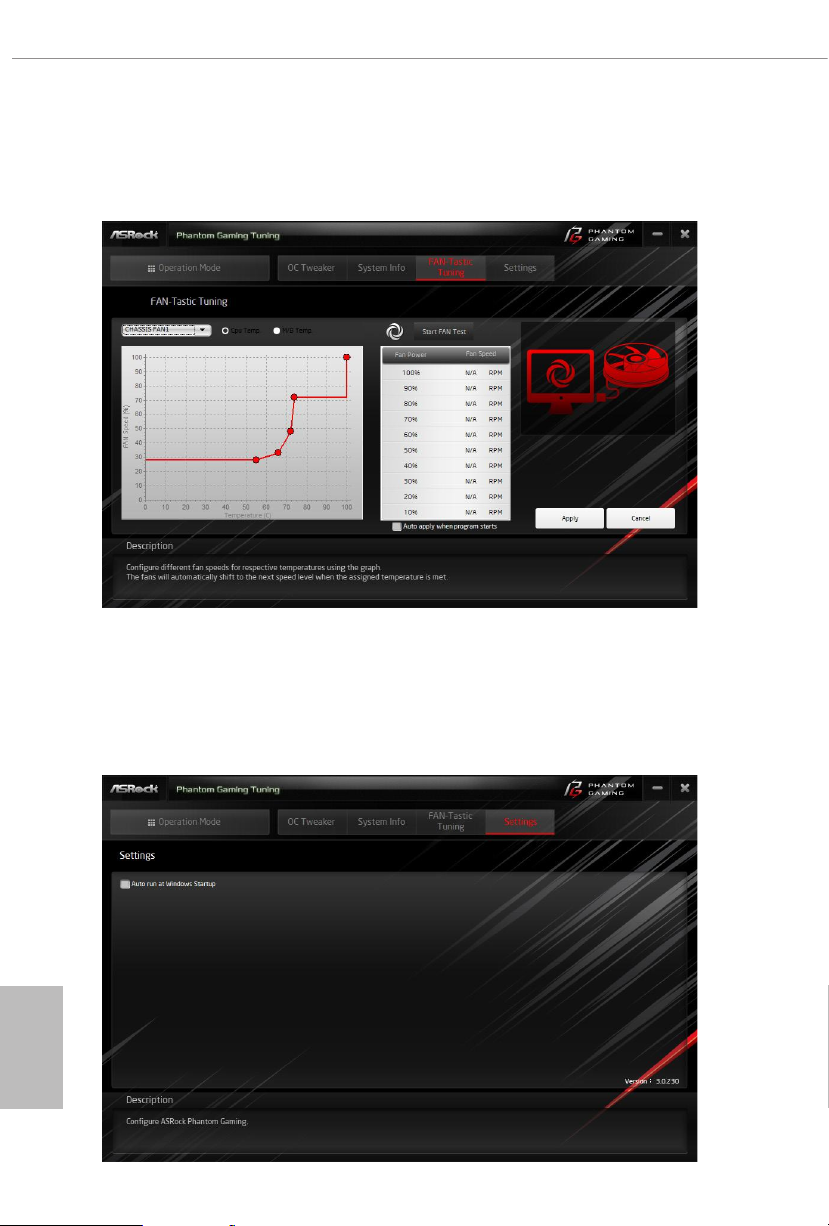

ere are ve sections in ASRock Motherboard Utility (Phantom Gaming Tuning)
main menu: Operation Mode, OC Tweaker, System Info, FAN-Tastic Tuning and
Settings.
Operation Mode
Choose an operation mode for your computer.
English
52
OC Tw eaker
Congurations for overclocking the system.
X570S PG Riptide
System Info
View information about the system.
*e System Browser tab may not appear for certain models.
English
53
FAN-Tastic Tuning
Congure up to ve dierent fan speeds using the graph. e fans will automatically shi
to the next speed level when the assigned temperature is met.
Settings
Congure ASRock ASRock Motherboard Utility (Phantom Gaming Tuning).
Click to select "Auto run at Windows Startup" if you want ASRock Motherboard
Utility (Phantom Gaming Tuning) to be launched when you start up the Windows
operating system.
English
54
X570S PG Riptide
3.3 ASRock Live Update & APP Shop
e ASRock Live Update & APP Shop is an online store for purchasing and
downloading soware applications for your ASRock computer. You can quickly and
easily install various apps and support utilities. With ASRock Live Update & APP
Shop, you can optimize your system and keep your motherboard up to date simply
with a few clicks.
Double-click on your desktop to access ASRock Live Update & APP Shop
utility.
*You need to be connected to the Internet to download apps f rom the ASRock Live Update & APP Shop.
3.3.1 UI Overview
Category Panel
Hot News
Information Panel
Category Panel: e category panel contains several category tabs or buttons that
when selected the information panel below displays the relative information.
Information Panel: e information panel in the center displays data about the
currently selected category and allows users to perform job-related tasks.
Hot News: e hot news section displays the various latest news. Click on the image
to visit the website of the selected news and know more.
English
55
3.3.2 Apps
When the "Apps" tab is selected, you will see all the available apps on screen for you
to download.
Installing an App
Step 1
Find the app you want to install.
e most recommended app appears on the le side of the screen. e other various
apps are shown on the right. Please scroll up and down to see more apps listed.
English
56
You can check the price of the app and whether you have already intalled it or not.
- e red icon displays the price or "Free" if the app is free of charge.
- e green "Installed" icon means the app is installed on your computer.
Step 2
Click on the app icon to see more details about the selected app.
X570S PG Riptide
Step 3
If you want to install the app, click on the red icon to start downloading.
Step 4
When installation completes, you can nd the green "Installed " icon appears on the
upper right corner.
To uninstall it, simply click on the trash can icon .
*e trash icon may not appear for certain apps.
English
57
Upgrading an App
You can only upgrade the apps you have already installed. When there is an
available new version for your app, you will nd the mark of "New Version"
appears below the installed app icon.
Step 1
Click on the app icon to see more details.
Step 2
Click on the yellow icon to start upgrading.
English
58
3.3.3 BIOS & Drivers
Installing BIOS or Drivers
When the "BIOS & Drivers" tab is selected, you will see a list of recommended or
critical updates for the BIOS or drivers. Please update them all soon.
X570S PG Riptide
Step 1
Please check the item information before update. Click on to see more details.
Step 2
Click to select one or more items you want to update.
Step 3
Click Update to start the update process.
English
59
3.3.4 Setting
In the "Setting" page, you can change the language, select the server location, and
determine if you want to automatically run the ASRock Live Update & APP Shop
on Windows startup.
English
60
X570S PG Riptide
3.4 Nahimic Audio
Nahimic audio soware provides an incredible high denition sound technology which
boosts the audio and voice performance of your system. Nahimic Audio interface is
composed of four tabs: Audio, Microphone, Sound Tracker and Settings.
ere are four functions in Nahimic audio :
No. Function Description
From this tab, you can mute the current audio device, choose
1
Microphone
2
3
4
Audio
Sound
Tracker
Settings
between four factory audio proles, turn all audio eects
on/o, restores the current prole to its default settings and
access Surround Sound and various features.
From this tab, you can mute the current mic device, choose
between two factory mic proles, turn/o all microphone
eects, restore the current prole to its default settings, and
access Static Noise Suppression and various features.
e Sound Tracker provides a visual indication localizing
the sources of the sounds while in a game. ese are
represented by dynamic segments pointing the direction
of the sounds: the more opaque they are, the stronger the
sounds are.
From this tab, you can access all settings and information of
the soware.
English
61
3.5 ASRock Polychrome SYNC
1
1
ASRock Polychrome SYNC is a lighting control utility specically designed for unique indi-
viduals with sophisticated tastes to build their own stylish colorful lighting system. Simply by
connecting the LED strip, you can customize various lighting schemes and patterns, including
Static, Breathing, Strobe, Cycling, Music, Wave and more.
Connecting the LED Strip
Connect your RGB LED strips to the
motherboard.
RGB LED Headers (RGB_LED1, RGB_LED2)
PG
X57 0S
RGB_LED2
+12V GRB
RGB_LED1
on the
1
B
R
G
V
2
1
English
62
+12V GRB
1. Never install the RGB LED cable in the wrong orientation ; otherwise , the cable may be
damaged.
2. Before installing or removing your RGB LED cable , please power o your system and
unplug the power cord from the power supply. Failure to do so may c ause damages to
motherboard components.
1. Please note that the RGB LED strips do not come with the package.
2. e RGB LED heade r supports standard 5050 RGB LED strip (12V/G/R/B), with a
maximum power rating of 3A (12V) and length within 2 meters.
Connecting the Addressable RGB LED Strip
D
1
D
1
Connect your
ADDR _LED2)
Addressable RGB LED
on the motherboard.
PG
X57 0S
strips to the
Addressable LED Headers (ADDR_LED1,
ADDR_LED2
GN
DO_ADDR
VOUT
ADDR_LED1
GN
DO_ADDR
VOUT
X570S PG Riptide
1. Never install the RGB LED cable in the wrong orientation ; otherwise , the cable may be
damaged.
2. Before installing or removing your RGB LED cable , please power o your system and
unplug the power cord from the power supply. Failure to do so may c ause damages to
motherboard components.
1. Please note that the RGB LED strips do not come with the package.
2. e RGB LED heade r supports WS2812B addres sable RGB L ED strip (5V/Data/
GND), with a ma ximum power rating of 3A (5V) and length within 2 meters.
English
63
ASRock Polychrome SYNC Utility
Now you can adjust the RGB LED color through the ASRock Polychrome SYNC Utility.
Download this utility from the ASRock Live Update & APP Shop and start coloring your
PC style your way!
Drag the tab to customize your
preference.
Toggle on/o the
RGB LED switch
Sync RGB LED eects
for all LED regions of
the motherboard
Select a RGB LED light eect
from the drop-down menu.
English
64
X570S PG Riptide
Chapter 4 UEFI SETUP UTILITY
4.1 Introduction
is section explains how to use the UEFI SETUP UTILITY to congure your
system. You may run the UEFI SETUP UTILITY by pressing <F2> or <Del> right
aer you power on the computer, other wise, the Power-On-Self-Test (POST) will
continue with its test routines. If you wish to enter the UEFI SETUP UTILITY aer
POST, restart the system by pressing <Ctl> + <Alt> + <Delete>, or by pressing the
reset button on the system chassis. You may also restart by turning the system o
and then back on.
Becau se the UEFI soware is constantly being upd ated, the following UEFI setup
screens and de scriptions are for refe rence purpose only, and they may not exactly
match what you see on your scre en.
4.1.1 UEFI Menu Bar
e top of the screen has a menu bar with the following selections:
Main
OC Tweaker
Advanced
Tool
H/W Monitor
Security
Boot
Exit
For setting system time/date information
For overclocking congurations
For advanced system congurations
Useful tools
Displays current hardware status
For security settings
For conguring boot settings and boot priority
Exit the current screen or the UEFI Setup Utility
English
65
4.1.2 Navigation Keys
Use < > key or < > key to choose among the selections on the menu bar, and
use < > key or < > key to move the cursor up or down to select items, then
press <Enter> to get into the sub screen. You can also use the mouse to click your
required item.
Please check the following table for the descriptions of each navigation key.
Navigation Key(s) Description
+ / -
<Tab>
<PGUP>
<PGDN>
<HOME>
<END>
<F1>
<F7>
<F9>
<F10>
<F12>
<ESC>
To change option for the selected items
Switch to next function
Go to the previous page
Go to the next page
Go to the top of the screen
Go to the bottom of the screen
To display the General Help Screen
Discard changes and exit the SETUP UTILITY
Load optimal default values for all the settings
Save changes and exit the SETUP UTILITY
Print screen
Jump to the Exit Screen or exit the current screen
English
66
4.2 Main Screen
When you enter the UEFI SETUP UTILITY, the Main screen will appear and
display the system overview.
X570S PG Riptide
67
English
4.3 OC Tweaker Screen
In the OC Tweaker screen, you can set up overclocking features.
Becau se the UEFI soware is constantly being upd ated, the following UEFI setup
screens and de scriptions are for refe rence purpose only, and they may not exactly
match what you see on your scre en.
English
68
Overclock Mode(Bus Speed)
Select the overclock mode. Warning! When overclocking also the PCIe, PCI, SATA and
USB busses will be overcloked which may cause instability or failure. Please install an
operating system and the drivers required before overclocking, or else your HDD's may be
undetectable. Overclocking is not supported if the monitor is connected via the onboard
D-Bus/VGA connector.
SB Clock Spread Spectrum
Enable Spread Spectrum to reduce electromagnetic interference for passing EMI
tests. Disable to achieve higher clock speeds when overclocking.
CPU Frequency and Voltage(VID) Change
If this item is set to [Manual], the multiplier and voltage will be set based on user
selection. Final result is depending on the CPU's capability.
X570S PG Riptide
SoC/Uncore OC Voltage(VID)
Specify the SoC/Uncore voltage (VDD_SOC) in mV to support memory and Innity Fabric
overclocking. VDD_SOC also determines the GPU voltage on processors with integrated
graphics. “SoC/Uncore OC Mode” needs to be enabled to force this voltage.
CLD0 VDDP Voltage Control
AMD Overclocking Setup VDDP is a voltage for the DDR4 bus signaling (PHY), and it is
derived from your DRAM Voltage (VDDIO_Mem). As a result, VDDP voltage in mV can
approach but not exceed your DRAM Voltage.
CLD0 VDDG CCD Voltage Control
AMD Overclocking Setup VDDG CCD represents voltage for the data portion of the Innity
Fabric. It is derived from the CPU SoC/Uncore Voltage (VDD_SOC). VDDG can approach
but not exceed VDD_SOC.
CLD0 VDDG IOD Voltage Control
AMD Overclocking Setup VDDG IOD represents voltage for the data portion of the Innity
Fabric. It is derived from the CPU SoC/Uncore Voltage (VDD_SOC). VDDG can approach
but not exceed VDD_SOC.
DRAM Information
Browse the serial presence detect (SPD) for DDR4 modules.
Load XMP Setting
Load XMP settings to overclock the memory and perform beyond standard
specications.
DRAM Frequency
If [Auto] is selected, the motherboard will detect the memory module(s) inserted
and assign the appropriate frequency automatically.
DRAM Voltage
Congure the voltage for the DRAM Voltage.
Innity Fabric Frequency and Dividers
AMD Overclocking Setup Set Innity Fabric frequency (FCLK). Auto: FCLK = MCLK.
Manual: FCLK must be less than or equal to MCLK for best performance in most cases.
Latency penalties are incurred if FCLK and MCLK are mismatched, but suciently high
MCLK can negate or overcome this penalty.
English
69
GFX Clock Frequency
is item allows you to alter the frequency for the GFX clock frequency. Aer you
alter the GFX Clock Frequency settings, make sure to adjust the GFX Core Voltage
settings.
*e adjustable range is dependent on the CPU being installed.
(Only for processor with integrated graphics)
GFX Core Voltage
is item allows you to alter the voltage for the GFX Core Voltage.
*e adjustable range is dependent on the CPU being installed.
(Only for processor with integrated graphics)
DRAM Timing Conguration
External Voltage Settings and Load-line Calibration
CPU Vcore Voltage
Congure the voltage for the CPU Vcore.
CPU Load-Line Calibration
CPU Load-Line Calibration helps prevent CPU voltage droop when the system is under
heavy loading.
VDDCR_SOC Voltage
Congure the voltage for the VID-requested VDDCR_SOC supply level.
VDDCR_SOC Load-Line Calibration
CPU VDDCR_SOC Load-Line Calibration helps prevent VDDCR_SOC voltage droop when
the system is under heavy loading.U
VPPM
Congure the voltage for the VPPM.
English
70
CPU VDD 1.8 Voltage
Congure the voltage for the CPU VDD 1.8 PROM.
VDDP
Congure the voltage for the VDDP.
PREM VDD_CLDO Voltage
Use this to select PREM VDD_CLDO Voltage. e default value is [Auto].
PREM VDDCR_SOC Voltage
Use this to select PREM VDDCR_SOC Voltage. e default value is [Auto].
Save User Default
Type a prole name and press enter to save your settings as user default.
Load User Default
Load previously saved user defaults.
Save User UEFI Setup Prole to Disk
Save current UEFI settings as an user default prole to disk.
Load User UEFI Setup Prole to Disk
Load previously saved user defaults from the disk.
X570S PG Riptide
71
English
4.4 Advanced Screen
In this section, you may set the congurations for the following items: CPU
Conguration, PCI Conguration, Onboard Devices Conguration, Storage
Conguration, ACPI Conguration, Trusted Computing , AMD PBS, AMD
Overclocking and AMD CBS.
Setting wrong values in this sec tion may cause the system to malfunction.
English
72
UEFI Conguration
Active Page on Entry
Select the default page when entering the UEFI setup utility.
Full HD UEFI
When [Auto] is selected, the resolution will be set to 1920 x 1080 if the monitor
supports Full HD resolution. If the monitor does not support Full HD resolution,
then the resolution will be set to 1024 x 768. When [Disable] is selected, the
resolution will be set to 1024 x 768 directly.
4.4.1 CPU Conguration
PSS Support
Use this to enable or disable the generation of ACPI_PPC, _PSS, and _PCT objects.
X570S PG Riptide
PCC Adjustment
Use this to adjust PState.
NX Mode
Use this to enable or disable NX mode.
SVM Mode
When this is set to [Enabled], a VMM (Virtual Machine Architecture)can utilize the
additional hardware capabilities provided by AMD-V. e default value is [Enabled].
Coniguration options: [Enabled] and [Disabled].
SMT Mode
is item can be used to disable symmetric multithreading. To re-enable SMT, a
power cycle is needed aer selecting [Auto].
Warning: S3 is not supported on systems where SMT is disabled.
AMD fTPM Switch
Use this to enable or disable AMD CPU fTPM.
English
73
4.4.2 PCIConguration
Above 4G Decoding
Enable or disable 64bit capable Devices to be decoded in Above 4G Address Space (only if
the system supports 64 bit PCI decoding).
Re-Size BAR Support
English
74
If the system has Re-Sizable BAR capable PCIe devices, this option enable or disable the
Re-Sizable BAR support.
SR-IOV Support
Enable/disable the SR-IOV (Single Root IO Virtualization Support) if the system has SR-
IOV capable PCIe devices.
4.4.3 Onboard Devices Conguration
Turn On Onboard LED in S5
Turn on/o the LED in the ACPI S5 state.
X570S PG Riptide
Restore Onboard LED Default
Restore Onboard LED default value.
RGB LED On/O
is option enables/disables the RGB LED.
UMA Frame buer Size
is item allows you to set the size of the UMA frame buer.
(Only for processor with integrated graphics)
Gnb Hd Audio
Enable/disable onboard HD audio. Set to Auto to enable onboard HD audio and
automatically disable it when a sound card is installed.
Front Panel
Enable/disable front panel HD audio.
English
75
Restore on AC/Power Loss
Select the power state aer a power failure. If [Power O] is selected, the power will
remain o when the power recovers. If [Power On] is selected, the system will start
to boot up when the power recovers.
Onboard LAN
Enable or disable the onboard network interface controller
PS2 Y- Cable
Enable the PS2 Y-Cable or set this option to Auto..
English
76
4.4.4 Storage Conguration
SATA Controller(s)
AHCI: Supports new features that improve performance.
X570S PG Riptide
RAID: Combine multiple disk drives into a logical unit.
Chipset SATA Conguration
Use this item to congure chipset SATA.
English
77
4.4.5 ACPI Conguration
Suspend to RAM
It is recommended to select auto for ACPI S3 power saving.
Deep Sleep
Congure deep sleep mode for power saving when the computer is shut down. We
recommend disabling Deep Sleep for better system compatibility and stability.
English
78
PS/2 Keyboard S4/S5 Wakeup Support
Allow the system to be waked up by a PS/2 Keyboard in S4/S5.
PCIE Devices Power On
Allow the system to be waked up by a PCIE device and enable wake on LAN.
RTC Alarm Power On
Allow the system to be waked up by the real time clock alarm. Set it to By OS to let
it be handled by your operating system.
USB Power Delivery in Soft O State (S5)
If this option is enabled, the USB port will provide power to your devices even when
the system is in Power State S5.
4.4.6 Trusted Computing
Security Device Support
Enable or disable BIOS support for security device.
X570S PG Riptide
79
English
4.4.7 AMD PBS
e AMD PBS menu accesses AMD specic features.
English
80
X570S PG Riptide
4.4.8 AMD Overclocking
e AMD Overclocking menu accesses options for conguring CPU frequency and
voltage.
81
English
4.4.9 AMD CBS
e AMD CBS menu accesses AMD specic features.
English
82
X570S PG Riptide
4.5 Tools
RGB LED
ASRock Polychrome SYNC allows you to adjust the RGB LED color to your liking.
Easy RAID Installer
Easy R AID Installer helps you to copy the R AID driver from the support CD to
your USB storage device. Aer copying the drivers please change the SATA mode to
RAID, then you can start installing the operating system in RAID mode.
SSD Secure Erase Tool
Use this tool to securely erase SSD.
NVME Sanitization Tool
Aer you Sanitize SSD, all user data will be permanently destroyed on the SSD and
cannot be recovered.
Instant Flash
Save UEFI les in your USB storage device and run Instant Flash to update your
UEFI.
English
83
4.6 Hardware Health Event Monitoring Screen
is section allows you to monitor the status of the hardware on your system,
including the parameters of the CPU temperature, motherboard temperature, fan
speed and voltage.
CPU_FAN1 Setting
Select a fan mode for CPU Fan 1, or choose Customize to set 5 CPU temperatures
and assign a respective fan speed for each temperature.
English
84
CPU_FAN2 and Chassis Fan Conguration
CPU_FAN2 / WP Switch
Select CPU Water Pump mode.
CPU Fan 2 Control Mode
Select PWM mode or DC mode for CPU Fan 2.
CPU Fan 2 Setting
Select a fan mode for CPU Fan 2, or choose Customize to set 5 CPU temperatures
and assign a respective fan speed for each temperature.
CPU Fan 2 Temp Source
Select a fan temperature source for CPU Fan 2.
X570S PG Riptide
CHA_FAN1 / WP Switch
Select CHA_FAN1 or Water Pump mode.
Chassis Fan 1 Control Mode
Select PWM mode or DC mode for Chassis Fan 1.
Chassis Fan 1 Setting
Select a fan mode for Chassis Fan 1, or choose Customize to set 5 CPU temperatures
and assign a respective fan speed for each temperature.
Chassis Fan 1 Temp Source
Select a fan temperature source for Chassis Fan 1.
CHA_FAN2 / WP Switch
Select CHA_FAN2 or Water Pump mode.
Chassis Fan 2 Control Mode
Select PWM mode or DC mode for Chassis Fan 2.
Chassis Fan 2 Setting
Select a fan mode for Chassis Fan 2, or choose Customize to set 5 CPU temperatures
and assign a respective fan speed for each temperature.
Chassis Fan 2 Temp Source
Select a fan temperature source for Chassis Fan 2.
CHA_FAN3 / WP Switch
Select CHA_FAN3 or Water Pump mode.
Chassis Fan 3 Control Mode
Select PWM mode or DC mode for Chassis Fan 3.
Chassis Fan 3 Setting
Select a fan mode for Chassis Fan 3, or choose Customize to set 5 CPU temperatures
and assign a respective fan speed for each temperature.
Chassis Fan 3 Temp Source
Select a fan temperature source for Chassis Fan 3.
English
85
CHA_FAN4 / WP Switch
Select CHA_FAN4 or Water Pump mode.
Chassis Fan 4 Control Mode
Select PWM mode or DC mode for Chassis Fan 4.
Chassis Fan 4 Setting
Select a fan mode for Chassis Fan 4, or choose Customize to set 5 CPU temperatures
and assign a respective fan speed for each temperature.
Chassis Fan 4 Temp Source
Select a fan temperature source for Chassis Fan 4.
CHA_FAN5 / WP Switch
Select CHA_FAN5 or Water Pump mode.
Chassis Fan 5 Control Mode
Select PWM mode or DC mode for Chassis Fan 5.
Chassis Fan 5 Setting
Select a fan mode for Chassis Fan 5, or choose Customize to set 5 CPU temperatures
and assign a respective fan speed for each temperature.
Chassis Fan 5 Temp Source
English
86
Select a fan temperature source for Chassis Fan 5.
Fan-Tastic
Select a fan mode for Fan, or choose Customize to set 5 CPU temperatures and assign a
respective fan speed for each temperature.
FanTuni n g
Detect the lowest fan speed in the system. Iy may take 3-5 minutes to complete.
X570S PG Riptide
4.7 Security Screen
In this section you may set or change the supervisor/user password for the system.
You may also clear the user password.
Supervisor Password
Set or change the password for the administrator account. Only the administrator
has authority to change the settings in the UEFI Setup Utility. Leave it blank and
press enter to remove the password.
User Password
Set or change the password for the user account. Users are unable to change the
settings in the UEFI Setup Utility. Leave it blank and press enter to remove the
password.
Secure Boot
Enable to support Secure Boot.
English
87
4.8 Boot Screen
is section displays the available devices on your system for you to congure the
boot settings and the boot priority.
Boot From Onboard LAN
Allow the system to be waked up by the onboard LAN.
Setup Prompt Timeout
Congure the number of seconds to wait for the setup hot key.
English
88
Bootup Num-Lock
Select whether Num Lock should be turned on or o when the system boots up.
Full Screen Logo
Enable to display the boot logo or disable to show normal POST messages.
Fast Boot
Fast Boot minimizes your computer's boot time. In fast mode you may not boot
from an USB storage device.
X570S PG Riptide
CSM (Compatibility Support Module)
CSM
Enable to launch the Compatibility Support Module. Please do not disable unless
you’re running a WHCK test.
Launch PXE OpROM Policy
Select UEFI only to run those that support UEFI option ROM only. Select Legacy
only to run those that support legacy option ROM only. Select Do not launch to not
execute both legacy and UEFI option ROM.
Launch Storage OpROM Policy
Select UEFI only to run those that support UEFI option ROM only. Select Legacy
only to run those that support legacy option ROM only. Select Do not launch to not
execute both legacy and UEFI option ROM.
English
89
4.9 Exit Screen
Save Changes and Exit
When you select this option the following message, “Save conguration changes
and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP
UTILITY.
Discard Changes and Exit
When you select this option the following message, “Discard changes and exit
setup?” will pop out. Select [OK] to exit the UEFI SETUP UTILITY without saving
any changes.
English
90
Discard Changes
When you select this option the following message, “Discard changes?” will pop
out. Select [OK] to discard all changes.
Load UEFI Defaults
Load UEFI default values for a ll options. e F9 key can be used for this operation.
Launch EFI Shell from lesystem device
Copy shellx64.e to the root directory to launch EFI Shell.
Contact Information
If you need to contact ASRock or want to know more about ASRock, you’re welcome
to visit ASRock’s website at http://ww w.asrock.com; or you may contact your dealer
for further information. For technical questions, please submit a support request
form at https://event.asrock.com/tsd.asp
ASRock Incorporation
2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,
Taipei City 112, Taiwan (R.O.C.)
ASRock EUROPE B.V.
Bijsterhuizen 11-11
6546 AR Nijmegen
e Netherlands
Phone: +31-24-345-44-33
Fax: +31-24-345-44-38
ASRock America, Inc.
13848 Magnolia Ave, Chino, CA91710
U.S.A.
Phone: +1-909-590-8308
Fax: +1-909-590-1026
DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2.1077(a)
Responsible Party Name: ASRock Incorporation
Address:
Phone/FaxNo:
hereby declares that the product
Product Name : Motherboard
13848 Magnolia Ave, Chino, CA91710
+1-909-590-8308/+1-909-590-1026
Model Number :
Conforms to the following specications:
FCC Part 15, Subpart B, Unintentional Radiators
Supplementary Information:
X570S PG Riptide
is device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) is device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
James
Representative Person’s Name:
Signature :
Date :
May 12, 2017
EU Declaration of Conformity
EMC —Directive 2014/30/EU (from April 20th, 2016)
ڛ
☐
For the following equipment:
Motherboard
(Product Name)
X570S PG Riptide / ASRock
(Model Designation / Trade Name)
ASRock Incorporation
(Manufacturer Name)
2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.)
(Manufacturer Address)
☐ EN 55022:2010/AC:2011 Class B EN 55024:2010/A1:2015
ڛ EN 55032:2012+AC:2013 Class B ڛڛ EN 61000-3-3:2013
ڛ EN 61000-3-2:2014
☐
LVD —Directive 2014/35/EU (from April 20th, 2016)
EN 60950-1 : 2011+ A2: 2013 ☐
ڛ RoHS — Directive 2011/65/EU
ڛ CE marking
EN 60950-1 : 2006/A12: 2011
(EU conformity marking)
ASRock EUROPE B.V.
(Company Name)
Bijsterhuizen 1111 6546 AR Nijmegen e Netherlands
(Company Address)
Person responsible for making this declaration:
(Name, Surname)
A.V.P
(Position / Title)
May 29, 2021
(Date)
P/N: 15G062309000AK V1.0
Loading...
