X470D4U2-2T
User Manual
Version 1.0
Published January 2019
Copyright©2019 ASRock Rack INC. All rights reserved.
Version 1.0
Published January 2019
Copyright©2019 ASRock Rack Inc. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or translated
in any language, in any form or by any means, except duplication of documentation by the
purchaser for backup purpose, without written consent of ASRock Rack Inc.
Products and corporate names appearing in this documentation may or may not be
registered trademarks or copyrights of their respective companies, and are used only for
identication or explanation and to the owners’ benet, without intent to infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock Rack. ASRock Rack assumes no responsibility
for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock Rack does not provide
warranty of any kind, either expressed or implied, including but not limited to the implied
warranties or conditions of merchantability or tness for a particular purpose.
In no event shall ASRock Rack, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for loss of
prots, loss of business, loss of data, interruption of business and the like), even if ASRock
Rack has been advised of the possibility of such damages arising from any defect or error
in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see ww w.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Rack’s Website: www.ASRockRack.com
Contact Information
If you need to contact ASRock Rack or want to know more about ASRock Rack, you’re
welcome to visit ASRock Rack’s website at www.ASRockRack.com; or you may contact
your dealer for further information.
ASRock Rack Incorporation
6F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,
Taipei City 112, Taiwan (R.O.C.)
Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Unique Features 5
1.4 Motherboard Layout 6
1.5 Onboard LED Indicators 8
1.6 I/O Panel 10
1.7 Block Diagram 12
Chapter 2 Installation 13
2.1 Screw Holes 13
2.2 Pre-installation Precautions 13
2.3 Installing the CPU 14
2.4 Installing the CPU Fan and Heatsink 16
2.5 Installing Memory Modules (DIMM) 19
2.6 Expansion Slots (PCI Express Slots) 21
2.7 Jumpers Setup 22
2.8 Onboard Headers and Connectors 24
2.9 Dr. Debug 29
2.10 Unit Identication purpose LED/Switch 30
2.11 Driver Installation Guide 30
2.12 M.2_SSD (NGFF) Module Installation Guide 31
Chapter 3 UEFI Setup Utility 33
3.1 Introduction 33
3.1.1 UEFI Menu Bar 33
3.1.2 Navigation Keys 34
3.2 Main Screen 35
3.3 Advanced Screen 36
3.3.1 CPU Conguration 37
3.3.2 Chipset Conguration 38
3.3.3 Storage Conguration 40
3.3.4 ACPI Conguration 41
3.3.5 USB Conguration 42
3.3.6 Super IO Conguration 43
3.3.7 Serial Port Console Redirection 44
3.3.8 H/W Monitor 48
3.3.9 AMD CBS 50
3.3.10 AMD PBS 51
3.3.11 Instant Flash 54
3.4 Server Mgmt 55
3.4.1 System Event Log 56
3.4.2 BMC Network Conguration 57
3.5 Security 59
3.5.1 Key Management 60
3.6 Boot Screen 63
3.6.1 CSM Parameters 65
3.7 Exit Screen 67
Chapter 4 Software Support 68
4.1 Install Operating System 68
4.2 Support CD Information 68
4.2.1 Running The Support CD 68
4.2.2 Drivers Menu 68
4.2.3 Utilities Menu 68
4.2.4 Contact Information 68
Chapter 5 Troubleshooting 69
5.1 Troubleshooting Procedures 69
5.2 Technical Support Procedures 71
5.3 Returning Merchandise for Service 71
X470D4U2-2T
Chapter 1 Introduction
ank you for purchasing ASRock Rack X470D4U2-2T motherboard, a reliable
motherboard produced under ASRock Rack’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock Rack’s
commitment to quality and endurance.
In this manual, chapter 1 and 2 contains introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contains the conguration
guide to BIOS setup and information of the Support CD.
Becau se the motherboard specications and the BIOS soware might be updated, the content of thi s manual will be subject to change without notice. In case any modic ations of
this manual occ ur, the updated version will be avail able on ASRock Rack website without
further notice. You may nd the latest memor y and CPU support lists on ASRock Ra ck
website a s well. ASRock Rack’s Website: www.ASRockRack.com
If you require technical support related to this motherboard, please visit our website for
specic information about the model you are using.
http://www.asrockrack.com/support/
1.1 Package Contents
ASRock Rack X470D4U2-2T Motherboard
•
(micro-ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm)
Quick Installation Guide
•
1 x I/O Shield
•
1 x SATA3 Cable (60cm)
•
2 x Screws for M.2 Sockets
•
If any items are missing or appear damaged, contac t your authoriz ed dealer.
English
English
1.2 Specications
X470D4U2-2T
MB Physical Status
Form Factor micro -ATX
Dimension 9.6'' x 9.6'' (24.4 cm x 24.4 cm)
Processor System
CPU AMD AM4 Socket Ryzen Series CPUs (Raven R idge and
Pinnacle Ridge) and Ryzen 7nm CPUs
Socket AM4 PGA 1331
Chipset AMD X470
System Memory
Capacity - 4 x 288-pin DDR4 DIMM slots
- Support up to 64GB DDR4 ECC/UDIMM
- One DIMM: 1R DIMM @2667MT/s; 2R/2DR DIMM
@240 0M T/s
- Two DIMMs: (2) 1R DIMM @2133 MT/s; (2) 2R/2DR DIMM
@1866MT/s; 1R and 2R/2DR DIMM each @1866MT/s
Type - Dual Channel DDR4 memory technology
- Support DDR4 ECC/UDIMM
DIMM Size Per
DIMM
DIMM Frequency - ECC/UDIMM: 2666/2400/2133 MHz
Vol t age 1.2V
Expansion Slot
PCIe 3.0 x 16 PCIE6: Gen3 x16 link (splittable in x4/4/4/4); auto switch to x8
PCIe 2.0 x 1 PCIE5: Gen2 x1 link
Storage
SATA Controller 6 x SATA3 6.0 Gb/s (1x SATA DOM port), support RAID 0, 1,
M.2 Slot 2 (2242/2260/2280/22110, supports SATA3 and PCIe 3.0 x2 or
Ethernet
Interface 10000/1000 /100 /10 Mbps
LAN Controller - 2 x RJ45 10G base-T by Intel® X550-AT2
- ECC/UDIMM: 64GB, 32GB, 16GB, 8GB
link when PCIE4 is occupied.
PCIE4: Gen3 x8 link
10
supports PCIe 2.0 x4 only)
- 1 x RJ45 Dedicated IPMI LAN port by RTL8211E
- Supports Wake-On-LAN
- Supports Energy Ecient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
2 3
- LAN3 supports NCSI
Management
BMC Controller ASPEED AST2500
IPMI Dedicated
GLAN
Features Watch Dog
Graphics
Controller ASPEED AST2500
VRAM DDR4 256MB
Rear Panel I/O
VGA Port 1 x D-Sub
Serial Port 1 x COM port
USB 3.1 (Gen1)
Port
LAN Port - 2 x RJ45 10 Gigabit Ethernet LAN ports
UID 1
Internal Connector
Auxiliary Panel
Header
TPM Header 1
IPMB Header 1
Fan Header 6 Fans x 4-pin (FAN1(CPU)/FAN2~FAN6(5Front))
ATX Power 1 x (24-pin) + 1 x (8-pin)
USB 3.1 Gen1
Header
M.2 2(M2_1: 2242/2260/2280/22110, PCIE(X4);
SATA DOM 1
BMC _SMB1 1
PSU_SMB1 1
80 debug port LED 1
Buzzer 1
Clear CMOS 1 (short pad)
OH/FanFail LED 6 (only Fan Fail LED)
Front Panel 1 (RST, PWRBTN, HDDLED, PWRLED)
System BIOS
BI O S Ty p e 16MB AMI UEFI Legal BIOS
BIOS Features - Plug and Play (PnP)
1 x Realtek RTL8211E for dedicated management GLAN
2
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
1 (includes chassis intrusion, location button & LED, front
LAN LED, system fault, and BMC alert)
1 (supports 2 USB 3.1 Gen1 ports)
M2_2:2242/2260/2280/22110, SATA/PCIE(X2))
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8 Support
- ASRock Rack Instant Flash
X470D4U2-2T
English
Hardware Monitor
Temperature - CPU/DDR/LAN Temperature Sensing
- MB/Card Side Temperature Sensing
Fan - Fan Tachometer
- Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU
Temperature)
- Fan Multi-Speed Control
Vol t age Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,
1.05V_PCH, +BAT, 3VSB, 5VSB
Support OS
OS Microso® Windows®:
Windows 10 (64 bit)
Linux®:
- UBuntu 16.04.4 (64 bit)
- RedHat Enterprise Linux Server 7.3 (64bit) / 7.4 (64bit)
* Please refer to our website for the latest OS s uppor t list.
* e Linux s ystem doesn’t support Raid mode.
* Suppor ts UEFI BOOT only.
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation
temperature: -40°C ~ 70°C
NOTE: Please refer to our website for the latest specications.
is motherboard suppor ts Wake from on Board LAN. To use this function, please make
sure that the “Wake on Mag ic Packe t from power o state” is enabled in Device Manager
> Intel® Ethernet Connection > Power Management. And the “PCI Devices Power On” is
enabled in UEFI SETUP UTILITY > Advance d > ACPI Conguration. A er that , onboard
LAN3&4 c an wake up S5 under OS.
If you install Intel® LAN utility or Marvell SATA utility, thi s motherboard may fail Windows® Hardware Quality Lab (WHQL) certication tests . If you install the drivers only, it
will pa ss the WHQL tests.
English
4 5
X470D4U2-2T
1.3 Unique Features
ASRock Rack Instant Flash is a BIOS ash utility embedded in Flash ROM. is con-
venient BIOS update tool allows you to update system BIOS without entering operat-
ing systems rst like MS-DOS or Windows®. With this utility, you can press the <F6>
key during the POST or the <F2> key to enter into the BIOS setup menu to access
ASRock Rack Instant Flash. Just launch this tool and save the new BIOS le to your
USB ash drive, oppy disk or hard drive, then you can update your BIOS only in a
few clicks without preparing an additional oppy diskette or other complicated ash
utility. Please be noted that the USB ash drive or hard drive must use FAT32/16/12
le system.
English
24.4cm (9.6 in)
24.4c m (9 .6 i n)
ATXPWR1
VGA1
COM1
DDR4_A2 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module)
DDR4_B2 (64 bit, 288-pin module)
DDR4_B1 (64 bit, 288-pin module)
ATX12V1
USB 3. 1
Gen1
T: USB2
B: USB 1
IPMI _LAN
UID1
USB3_3_4
PCIE5
PCIE6
PCIE4
M2_2
M2_1
NUT42_2
NUT60_2
NUT80_2
1
SATAPWR1
SATA3_1
ASPEED
2500
X470D4U2-2T
BMC
F/W
Socket
AM4 PGA 1331
1
PSU_SMB1
NUT110_2
FAN4
FAN3
FAN2
FAN1
NUT42_1
NUT60_1
NUT80_1
NUT110_1
SATA3_0
SATA3_3
SATA3_2
SATA3_5
SATA3_4
CLRCMOS1
1
AUX_PANEL1
HDLED RESET
PLED PWRBTN
PANEL1
1
Dr.
Debug
BAT1
1
TPMS1
FAN5
FAN6
1
CHASSIS_ID1
1
CHASSIS_ID2
1
CHASSIS_ID3
1
1
IPMB_1
BMC_SMB_1
BUZZER1
RoHS
231 4
8
7
9
10
11
12
13
14
16
17
18
19
20
21
15
222324252627282930
5
6
31
LAN3
LAN4
1.4 Motherboard Layout
English
6 7
X470D4U2-2T
No. Description
1 ATX 12V Power Connector (ATX12V1)
2 2 x 288-pin DDR4 DIMM Slots (DDR4_ A1, DDR4_B1, Blue)*
3 PSU SMBus Header (PSU_SMB1)
4 ATX Power Connector (ATXPWR1)
5 Front Fan Connector (FAN3)
6 Front Fan Connector (FAN4)
7 Front Fan Connector (FAN2)
8 2 x 288-pin DDR4 DIMM Slots (DDR4_ A2, DDR4_B2, White)*
9 CPU Fan Connector (FAN1)
10 AM4 PGA 1331 Socket
11 M.2 Socket (M2 _2) (Type 2242 / 2260 / 2280 / 22110)
12 M.2 Socket (M2_1) (Type 2242 / 2260 / 2280 / 22110)
13 SATA3 Connector (SATA3_1)
14 SATA3 DOM Connector (SATA3_0), Red
15 SATA DOM Power Jumper (SATAPWR1)
16 USB 3.1 Gen1 Header (USB3_3_4)
17 SATA3 Connector (SATA3_2)
18 SATA3 Connector (SATA3_3)
19 SATA3 Connector (SATA3_5)
20 SATA 3 C on nector (SATA3_4)
21 Clear CMOS Pad (CLRMOS1)
22 System Panel Header (PANEL1)
23 Auxiliary Panel Header (AUX_PANEL1)
24 TPM Header (TPMS1)
25 Front Fan Connector (FAN5)
26 Front Fan Connector (FAN6)
27 Chassis ID3 Jumper (CHASSIS_ID3)
28 Chassis ID1 Jumper (CHASSIS_ID1)
29 Chassis ID2 Jumper (CHASSIS_ID2)
30 BMC SMBus Header (BMC_SMB_1)
31 Intelligent Platform Management Bus header (IPMB1)
*For DIMM in stallation and conguration instructions, ple ase see p.19 (Installation of Me mory Modules
(DIMM)) for more detail s.
English
1.5 Onboard LED Indicators
DDR4_A2 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module)
DDR4_B2 (64 bit, 288-pin module)
DDR4_B1 (64 bit, 288-pin module)
ATX12V1
USB3_3_4
M2_2
M2_1
NUT42_2
NUT60_2
NUT80_2
1
SATAPWR1
SATA3_1
ASPEED
2500
BMC
F/W
1
PSU_SMB1
NUT110_2
FAN4
FAN3
FAN2
FAN1
NUT42_1
NUT60_1
NUT80_1
NUT110_1
SATA3_0
1
AUX_PANEL1
HDLED RESET
PLED PWRBTN
PANEL1
1
Dr.
Debug
BAT1
1
TPMS1
FAN5
FAN6
1
CHASSIS_ID1
1
CHASSIS_ID2
1
CHASSIS_ID3
1
1
IPMB_1
BMC_SMB_1
RoHS
2
3
1
4
5
67
8
SATA3_3
SATA3_2
SATA3_5
SATA3_4
X470D4U2-2T
English
8 9
No. Item Status Description
1 SB_PWR1 Green STB PWR ready
2 FAN _LE D4 Amber FAN4 fa i led
3 FAN _LE D3 Amber FAN3 f a ile d
4 FAN _LE D2 Amber FAN2 f a ile d
5 FAN _LE D1 Amber FAN1(CPU) f aile d
6 FAN _LE D5 Amber FAN5 f a i le d
7 FAN _LE D6 Amber FAN6 failed
8 BMC _LED1 Green BMC heartbeat LED
X470D4U2-2T
English
1.6 I/O Panel
3
1
No. Description No. Description
1 UID Switch (UID1) 5 LAN RJ-45 Port (IPMI_LAN1)*
2 VGA Por t ( VGA1) 6 10G LAN RJ-45 Port (LAN3)**
3 Serial Port (COM1) 7 10G LAN RJ-45 Port (LAN4)**
4 USB 3.1 Gen1 Ports (USB3_1_2)
*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
2
ACT/LINK LED
SPEED LED
5
4
7
6
LAN Por t
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M bps connection or no
link
Blinking Yellow Data Activity Yellow 100M bps connection
On Link Green 1Gbps connection
English
10 11
X470D4U2-2T
**ere are two LEDs on each LAN port. Please refer to the table below for the LAN port
LED indications.
ACT/LINK LE D
SPEED LE D
ACT/LINK LE D
LAN Port
SPEED LE D
10G LAN Port (LAN3, LAN4) LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M/10 0M bps
connection or no link
Blinking Yellow Data Activity Orange 1Gbps connection
On Link Green 10Gbps connection
English
1.7 Block Diagram
10
PCIe
8
SLOT 6 x16
SLOT 4 x8
English
PCIe3.0 x2/SATAIII
2x SAT AIII
4x SAT AIII
AMD
X470
PCIe2.0x1
PCIe2.0 x4
2xUSB3.0,
2xUSB2.0
LPC/eSPI
USB2.0
PCIe2.0 x1
NCT6779D-R
Sw itch
BIOS
MUX
PCIe3.0x8
PCIe3.0x8
AMD AM4 Socket
TDP: max. 105W
PGA 1331
PCIe3.0x4
2xUSB3.0,
2xUSB2.0
2nd Generation
AMD Ryzen™
Processor
DDR4
DDR4
A
B
SLOT 5 x1
X550
LPC
PCIeUSB
SPI
AST2500
ASPEED
UAR T
MAC
VGA
RGMII
8211E
RTL
COM port
D-Sub
-AT2
NCSI
10GbE
MAC
IPMI
10GbE
12 13
X470D4U2-2T
Chapter 2 Installation
This is a micro-ATX form factor (9.6” x 9.6”, 24.4 cm x 24.4 cm) motherboard. Before
you install the motherboard, study the conguration of your chassis to ensure that the
motherboard ts into it.
Make sure to unplug the power c ord before installing or re moving the mothe rboard. Failure
to do so may cause physical injurie s to you and d amages to motherboard components.
2.1 Screw Holes
Place screws into the holes indicated by circles to secure the motherboard to the chassis.
Attention! Before installing this moth erboard, be sure to unscrew and remove the stando s
at the marked location, under the motherboard, from the chassis, in order to avoid elec trical shor t circuit and damage to your motherboard.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you insta ll motherboard components or
change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any components.
2. To avoid damaging the motherboard ’s components due to static electricity, NEVER
place your motherboard directly on the carpet or the like. Also remember to use a
grounded wrist strap or touch a safety grounded object before you handle the compo-
nents.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded anti-static pad or in
the bag that comes with the component.
5. When placing screws into the screw holes to secure the motherboard to the chassis,
please do not over-tighten the screws! Doing so may damage the motherboard.
Before you install or remove any component, ensure that the power is switched o or the
power cord is detached f rom the power supply. Failure to d o so may cause severe damage to
the motherboard, peripherals, and/or components.
English
2.3 Installing the CPU
Unplug all power cables be fore installing the CPU.
1
2
English
14 15
X470D4U2-2T
3
English
2.4 Installing the CPU Fan and Heatsink
Aer you install the CPU into this motherboard, it is necessary to install a larger
heatsink and cooling fan to dissipate heat. You also need to spray thermal grease
between the CPU and the heatsink to improve heat dissipation. Ma ke sure that the
CPU and the heatsink are securely fastened and in good contact with each other.
Please be aware of the maximum dimensions of the heatsink to be used i s 116 * 83.65mm.
Please turn o the power or remove th e power cord before changing a CPU or heatsink .
Installing the CPU Box Cooler SR1
1
English
16 17
X470D4U2-2T
2
3
English
4
English
18 19
X470D4U2-2T
2.5 Installing Memory Modules (DIMM)
is motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots,
and supports Dual Channel Memory Technology.
1. For dual channel cong uration , you always need to in stall identical (the same
brand, speed , size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Du al Channel Memory Technology with only one or three
memory module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4
slot; otherwise, this motherboard and DIMM may be damaged.
DDR4 UDIMM Maximum Frequency Support
Ryzen Series CPUs (Pinnacle Ridge):
UDIMM Memory Slot
A2 A1 B2 B1
- SR - - 2666
- DR - - 2400
- SR - SR 2666
- DR - DR 2400
SR SR SR SR 2133
SR/DR DR SR/DR DR 1866
Frequency
(Mhz)
English
1
2
3
English
e DIMM only ts in one correct orientation. It will cause permanent dam age to the
motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.
20 21
X470D4U2-2T
2.6 Expansion Slots (PCI Express Slots)
ere are 3 PCI Express slots on this motherboard.
PCIE slot:
PCIE4 (PCIE 3.0 x16 slot, from CPU) is used for PCI Express x8 lane width cards.
PCIE5 (PCIE 2.0 x1 slot, from promontory) is used for PCI Express x1 lane width cards.
PCIE6 (PCIE 3.0 x16 slot, from CPU) is used for PCI Express x16 lane width cards.
Slot Generation Mechanical Electrical Source
PCIE6 3.0 x16 x16 CPU
PCIE5 2.0 x1 x1 Promontory
PCIE4 3.0 x16 x8 CPU
PCIe Slot Congurations
PCIE4 PCIE6
Single PCIE Card N/A x16
Two PCIE Cards x8 x8
Installing an expansion card
Step 1. Before installing an expansion card, please make sure that the power
supply is switched o or the power cord is unplugged. Please read the
documentation of the expansion card and make necessar y hardware
settings for the card before you start the installation.
Step 2. Remove the system unit cover (if your motherboard is already installed
in a chassis).
Step 3. Remove the bracket facing the slot that you intend to use. Keep the
screws for later use.
Step 4. Align the card connector with the slot and press rmly until the card is
completely seated on the slot.
Step 5. Fasten the card to the chassis with screws.
Step 6. Replace the system cover.
English
2.7 Jumpers Setup
e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper
is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”
when a jumper cap is placed on these 2 pins.
Chassis ID1 Jumper
(3-p in CH ASSI S _ ID1)
(see p.7, No. 28)
Chassis ID2 Jumper
(3-pin CHAS SI S _ID 2)
(see p.7, No. 29)
Chassis ID3 Jumper
(3-pin CHAS SI S _ID3)
(see p.7, No. 27)
Board Level SKU (Default) Reserved for system level
use
Chassis ID1 Jumper
(3-p in CH ASSI S _ ID1)
(see p.7, No. 28)
Chassis ID2 Jumper
(3-pin CHAS SI S _ID 2)
(see p.7, No. 29)
Chassis ID3 Jumper
(3-pin CHAS SI S _ID3)
(see p.7, No. 27)
Reserved for system level
use
Reserved for system level
use
English
22 23
Chassis ID1 Jumper
(3-p in CH ASSI S _ ID1)
(see p.7, No. 28)
Chassis ID2 Jumper
(3-pin CHAS SI S _ID 2)
(see p.7, No. 29)
Chassis ID3 Jumper
(3-pin CHAS SI S _ID3)
(see p.7, No. 27)
Chassis ID1 Jumper
(3-p in CH ASSI S _ ID1)
(see p.7, No. 28)
Chassis ID2 Jumper
(3-pin CHAS SI S _ID 2)
(see p.7, No. 29)
Chassis ID3 Jumper
(3-pin CHAS SI S _ID3)
(see p.7, No. 27)
Reserved for system level
use
Reserved for system level
use
X470D4U2-2T
Reserved for system level
use
Reserved for system level
use
SATA DOM Power Jumper
(3-pin SATA PWR1)
(see p.7, No. 15)
Consult the documentation that comes with your SATA DOM and check whether or not
Pin 7 requires 5V power supply.
If the connected SATA DOM requires 5V power supply, move the jumper c aps placed on the
SATA DOM Power Jumper (SATAPWR1) from pins 2-3 (default) to pins 1-2.
If the connected SATA DOM does NOT require 5V powe r supply, connect the SATA DOM
power cable to the SATA DOM power header (SATAPWR1) and there is no need to change
the default jumper setting of the SATA DOM Power Jumpe r (pins 2-3).
Warning! Incorrec t setting of the SATA DOM Power Jumper (SATAPWR1) may cause damage to the motherboard or your SATA DOM.
SATA DOM (SATA3_0)
requires 5V power supply
SATA DOM (SATA3_0)
does NOT require 5V power
supply (Default)
English
2.8 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these
heade rs and connectors. Placing jumper caps over the headers and connectors will cause
permanent damage to the motherboard.

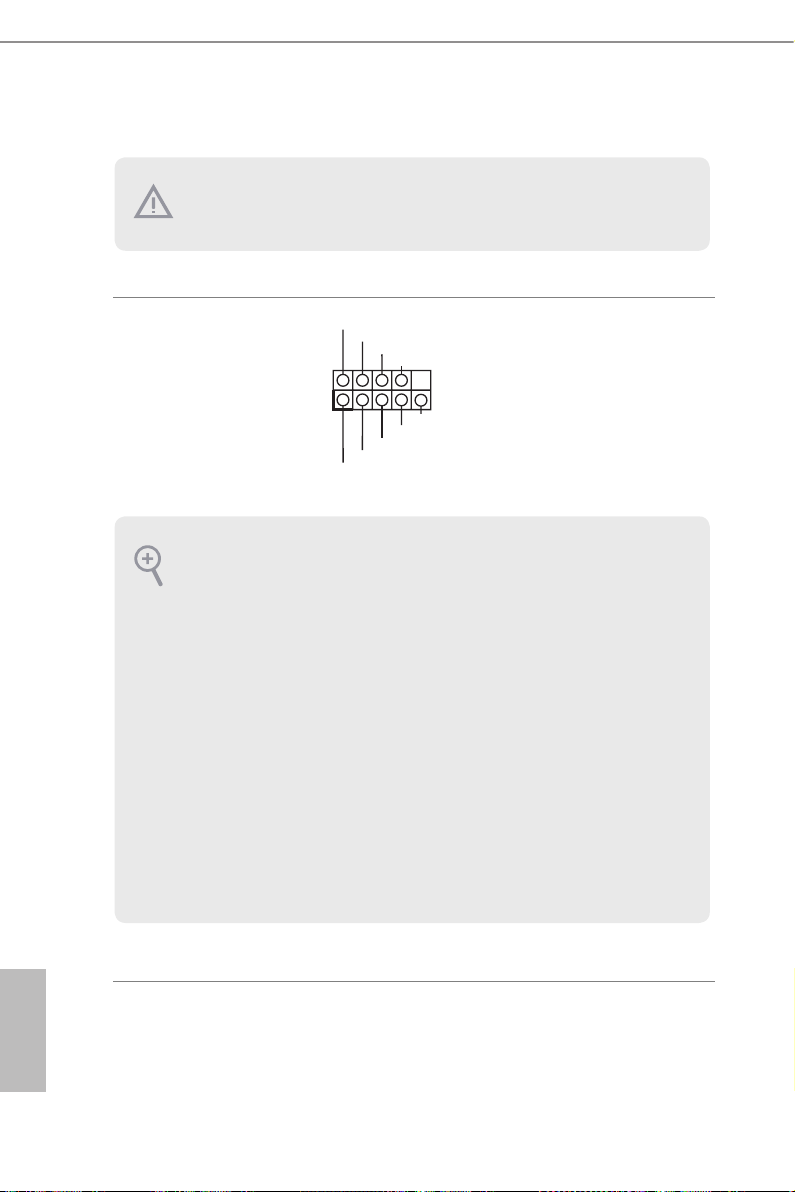

System Panel Header
(9-pi n PANEL1)
(see p.7, No. 22)
PWRBTN (Power Switch):
Connec t to the power switch on the chassi s front panel. You may congure the way to tur n
o your system using the power switch.
RESET (Reset Switch):
Connec t to the reset switch on the chassi s front panel. P ress the reset sw itch to restart the
computer if the computer f reezes and fails to perform a normal restar t.
PLED (Syste m Power LED):
Connec t to the power status indicator on the chassis front panel. e LED i s on when the
system is operating. e LED is o when the system is in S4 sleep state or powered o (S5).
HDLED (Ha rd Drive Activity LED):
Connec t to the hard drive ac tivity LED on the chassis front panel. e LED is on when the
hard drive is reading or wr iting data.
e front panel de sign may dier by chassis. A front pane l module mainly consists of power
switch, reset switch , power LED, hard dr ive activity LED, speaker and etc. When connecting your ch assi s front panel module to thi s header, make sure the wire a ssignments and the
pin assignments are matched correctly.
1
PLED+
PLED-
HDLED-
HDLED+
PWRBTN#
GND
RESET#
GND
GND
Co n nec t t h e pow er swit ch,
reset switch and system status
indicator on the chassis to this
he ader a ccording t o t he pi n
assignments. Particularly note
the positive and negative pins
before connecting the cables.
English
24 25
X470D4U2-2T
Auxiliary Panel Header
(18-pin AUX_PANEL1)
(see p.7, No. 23)
A. Front panel SMBus connecting pin (6-1 pin FPSMB)
is hea der allows you to connec t SMBus (System Management Bus) equipment. It can
be used for communication between peripheral equipment in the system, which ha s slower
transmission rates, and power manage ment equipment.
B. Internet status indicator (2-pin LAN3_ LED, LAN4_ LED)
ese two 2-pin headers allow you to use the Gigabit internet indicator cable to connect
to the LAN statu s indicator. When this indicator ickers, it mean s that the internet is properly connected.
C. Cha ssis intrusion pin (2-pin CHASSIS)
is hea der is p rovided for host computer chassis with chassis intrusion detection designs.
In addition, it mu st also work with e xternal detection equipment, such as a chassi s intrusion detection sensor or a microswitch. When this function is activated, if any cha ssis
component movement occ urs, the sensor will immediately detect it and send a signal to this
heade r, and the system will then record this chassis intrusion event . e default setting is
set to the CASEOPEN and GND pin; this function i s o.
D. Locator LED (4-pin LOCATOR)
is hea der is for the locator sw itch and L ED on the front pane l.
E. Syste m Fault LED (2-pin LOCATOR)
is hea der is for the Fault LED on the system .
A
B
is header supports multiple
functions on the front panel,
SMB _Aler t
SMB _CLK
1
+5V SB
CAS EOPEN
C
LAN 3_LIN K
+3V SB
GND
SMB _DATA
GND
LOC ATORBTN #
LOC ATORLED 1-
LOC ATORLED 1+
D
including the front panel SMB,
LED _PWR
LED _PWR
LAN 4_LIN K
internet status indicator and
chassis intrusion pin.
GND
E
Sys tem F ault LED+
Sys tem F ault LED-
Serial ATA3 DOM
Connector
(SATA3_0)
(see p.7, No. 14)
SATA3_0
e SATA3 DOM
connector supports
both a SATA DOM
(Disk-On-Module) and
a SATA data cable for
internal storage device.
English
Serial ATA3 Connectors
FAN_SPEED_CONTROL
4 3 2 1
ID
(SATA3_1:
see p.7, No. 13)
(SATA3_ 2:
see p.7, No. 17)
(SATA3_ 3:
see p.7, No. 18)
(SATA3_4:
see p.7, No. 20)
(SATA3_ 5:
see p.7, No. 19)
SATA3_1
SATA3_3
SATA3_5
SATA3_2
SATA3_4
ese connectors
support SATA data
cables for internal
storage devices with up
to 6.0 Gb/s data transfer
rate.
English
USB 3.1 Gen1 Header
(19-pin USB3_3_4)
(see p.7, No. 16)
Front Fan Connectors
(4- pi n FAN2)
(see p.7, No. 7)
(4- pi n FAN3)
(see p.7, No. 5)
(4- pi n FAN4)
(see p.7, No. 6)
(4- pi n FAN5)
(see p.7, No. 25)
(4-pin FAN6)
(see p.7, No. 26)
IntA_P_SSRX +
IntA_P_SSRX -
Vbu s
Vbu s
IntA_P_SSRX -
IntA_P_SSRX +
IntA_P_SSTX+
IntA_P_SSTX-
GN D
GN D
IntA_P_SSTX-
IntA_P_SSTX+
FAN_VOLTAGE
FAN_SPEED
IntA_P_D +
IntA_P_D -
GN D
GN D
IntA_P_D -
IntA_P_D +
GND
Be sid e s t wo de fau l t US B 3.1
Gen1 por ts on the I/O panel,
the re is o ne USB 3.1 Gen 1
header on this motherboard.
Thi s USB 3 .1 G e n1 he ader
can support two USB 3.1 Gen1
1
ports.
Please connect fan cables to the
fan connectors and match the
black wire to the ground pin.
All fans support Fan Control.
26 27
X470D4U2-2T
ALERT
CPU Fan Connector
(4-p i n FAN1)
(see p.7, No. 9)
ATX Power Connector
(24-p i n ATX PWR1)
(see p.7, No. 4)
ATX 12V Power
Connectors
(8-pin ATX12V1)
(see p.7, No. 1)
TPM Header
(17-pi n TP MS1)
(see p.7, No. 24)
1
2
3
4
GND
FAN_VOLTAGE
CPU_FAN_SPEED
FAN_SPEED_CONTROL
one 4-P i n CPU f a n (Qu i et
Fan) co nnector s. If you pla n
to con ne ct a 3-Pin C PU f an,
please connect it to Pin 1-3.
Thi s mothe rboa rd provide s
*For mo re details, p lea se re fer t o the
Cooler QVL list on the A SRock Rack
website.
PWROK_PS
GND
3V
3V
5V
13
3V
-12V
GND
PSON#
1
5
SMB _D ATA_M AI N
SMB _C LK _MA IN
GND
5VSB
GND
GND
12V
5V
GND
GND
GND
N/A
GND
4
8
12V
S_P WR DW N#
LAD 1_ L
LAD 2_ L
GND
is motherboard provides a
12V
3V
24-pin ATX power connector.
121
To use a 20-pin ATX power
supply, please plug it along Pin
24
5V5V5V
GND
1 and Pin 13.
is motherboard provides
one 8-pin ATX 12V power
connector.
is connector supports
SER IR Q#
Trusted Platform Module
(TPM) system, which can
securely store keys, digital
certicates, passwords, and
1
LAD 3_ L
CK_ 33 M_ TPM
LFR AM E# _L
+3V
TPM _R ST #
LAD 0_ L
data. A TPM system also helps
GNDF_C LKR UN #
+3V SB
enhance network security,
protects digital identities, and
ensures platform integrity.
PSU SMBus Header
(5-pin PSU_SMB1)
(see p.7, No. 3)
SMBCLK
1
SMBDATA
GND
+3V
PSU SMBus monitors the
status of the power supply, fan
and system temperature.
English
Intelligent Platform
IPMB_SDA
Management Bus Header
(4-pin IPMB_1)
(see p.7, No. 31)
IPMB_SCL
GND
No Connect
This 4-pin connector is used
to provide a cabled base-board
or front panel connection for
value added features and 3rd-
party add-in cards, such as
Emergency Management cards,
that provide management
features using the IPMB.
Baseboard Management
Controller SMBus Header
(5-pin BMC_SMB _1)
(see p.7, No. 30)
Clear CMOS Pad
(CLRMO S1)
(see p.7, No. 21)
Power
BMC_SMBCLK
GND
BMC_SMBDATA
BMC_SMB_PRESENT_1_N
e header is used for the
SMBUS devices.
is allows you to clear the
data in CMOS. To clear CMOS,
take out the CMOS battery and
short the Clear CMOS Pad.
English
28 29
2.9 Dr. Debug
Dr. Debug is used to provide code information, which makes troubleshooting even
easier. Please see the diagrams below for reading the Dr. Debug codes.
Code Description
00 Please check if the CPU is installed correctly and then clear CMOS.
Problem related to memory, VGA card or other devices. Please clear
0d
CMOS, re-install the memory and VGA card, and remove other USB, PCI
devices.
X470D4U2-2T
01 - 54
(except 0d),
5A- 60
55
61 - 91 Chipset initialization error. Please press reset or clear CMOS.
92 - 99
A0 - A7
b0
b4 Problem related to USB devices. Please try removing all USB devices.
b7
d6
Problem related to memory. Please re-install the CPU and memory then
clear CMOS. If the problem still exists, please install only one memor y
module or try using other memory modules.
e Memory could not be detected. Please re-install the memory and CPU.
If the problem still exists, please install only one memory module or try
using other memory modules.
Problem related to PCI-E devices. Please re-install PCI-E devices or try
installing them in other slots. If the problem still exists, please remove all
PCI-E devices or try using another VGA card.
Problem related to IDE or SATA devices. Please re-install IDE and SATA
devices. If the problem still exists, please clear CMOS and try removing all
SATA devices.
Problem related to memory. Please re-install the CPU and memory. If the
problem still exists, please install only one memory module or try using
other memory modules.
Problem related to memory. Please re-install the CPU and memory then
clear CMOS. If the problem still exists, please install only one memor y
module or try using other memory modules.
e VGA could not be recognized. Please clear CMOS and try re-installing
the VGA card. If the problem still exists, please try installing the VGA card
in other slots or use other VGA cards.
d7
d8 Invalid Password.
FF Please check if the CPU is installed correctly and then clear CMOS.
e Keyboard and mouse could not be recognized. Please try re-installing
the keyboard and mouse.
English
2.10 Unit Identication purpose LED/Switch
With the UID button, You are able to locate the server you’re working on from behind
a rack of servers.
Unit Identication
purpose LED/Switch
(U ID1)
When the UID button on the
front or rear panel is pressed,
the front/rear UID blue LED
indicator will be truned on.
Press the UID button again to
turn o the indicator.
2.11 Driver Installation Guide
To install the drivers to your system, please insert the support CD to your optical
drive rst. en, the drivers compatible to your system can be auto-detected and listed
on the support CD driver page. Please follow the order from top to bottom to install
those required drivers. erefore, the drivers you install can work properly.
English
30 31
X470D4U2-2T
2.12 M.2_SSD (NGFF) Module Installation Guide
The M.2, a lso known as the Next Generation Form Factor (NGFF), is a small size and
versatile c ard edge connector t hat aims to replace mPCIe a nd mSATA. The M.2_SSD
(NGFF) Socket 3 (M2_1) can accommodate either a M.2 PCI Express module up to Gen 2
x4 (20Gb/s). e M.2_SSD (NGFF) Socket 3 (M2_2) can accommodate either a M.2 SATA3
6.0 Gb/s module or a M.2 PCI Express module up to Gen 3 x2 (16Gb/s).
Installingg the M.2_SSD (NGFF) Module
Step 1
Prepare a M.2_SSD (NGFF) module
and the screw.
4
3
Step 2
Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, nd the corresponding nut
2
1
A
BCD
location to be used.
No. 1 2 3 4
Nut Location A B C D
PCB Length 4.2cm 6cm 8cm 10cm
Module Type Typ e 22 42 Type2260 Ty pe 228 0 Typ e 22110
English
Step 3
Move the stando based on the
module type and length.
e stando is placed at the nut
A
BCD
location D by default. Skip Step 3
and 4 and go straight to Step 5 if you
are going to use the default nut.
Otherwise, release the stando by
hand.
Step 4
Peel o the yellow protective lm on
the nut to be used. Hand tighten the
A
BCD
stando into the desired nut location
on the motherboard.
Step 5
Align and gently insert the M.2
(NGFF) SSD module into the M.2
ABCD
slot. Please be aware that the M.2
(NGFF) SSD module only ts in one
orientation.
o
ABCD
20
Step 6
Tighten the screw with a screwdriver
to secure the module into place.
NUT1NUT2D
Please do not overtighten the screw
as this might damage the module.
English
For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for
details: http://www.asrockrack.com
32 33
X470D4U2-2T
Chapter 3 UEFI Setup Utility
3.1 Introduction
is section explains how to use the UEFI SETUP UTILITY to con gure your system. e
UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI
SETUP UTILITY when you start up the computer. Please press <F2> or <Del> during the
Power-On-Self-Test (POST) to enter the UEFI SETUP UTILITY; otherw ise, POST will
continue with its test routines.
If you wish to enter the UEFI SETUP UTILITY a er POST, restart the system by pressing
<Ctrl> + <Alt> + <Delete>, or by pressing the reset button on the system chassis. You may
also restart by turning the system o and then back on.
Becau se the UEFI so ware is constantly being updated , the following UEFI setup screens
and descriptions are for reference purpose only, and they may not ex actly match what you
see on your screen .
3.1.1 UEFI Menu Bar
e top of the screen has a menu bar with the following selections:
Item Description
Main To set up the system time/date information
Advanced To set up the advanced UEFI features

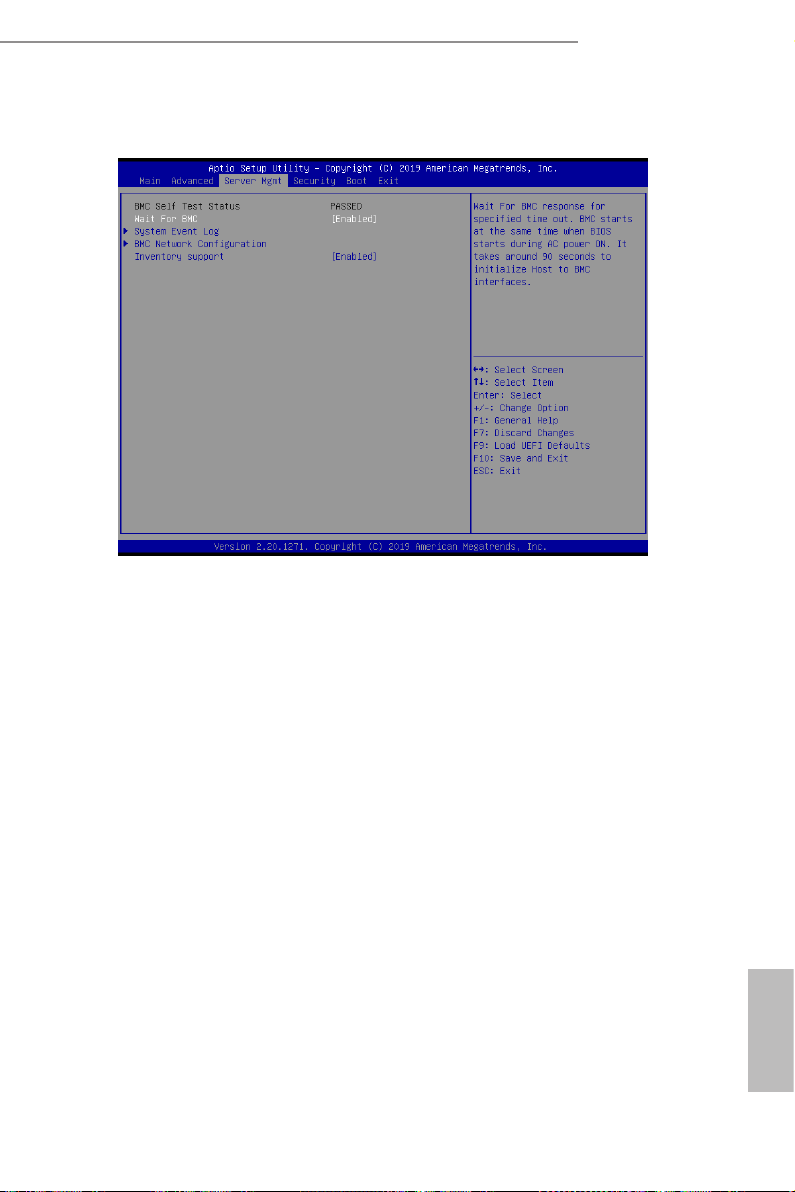

Server Mgmt To manage the server
Security To set up the security features

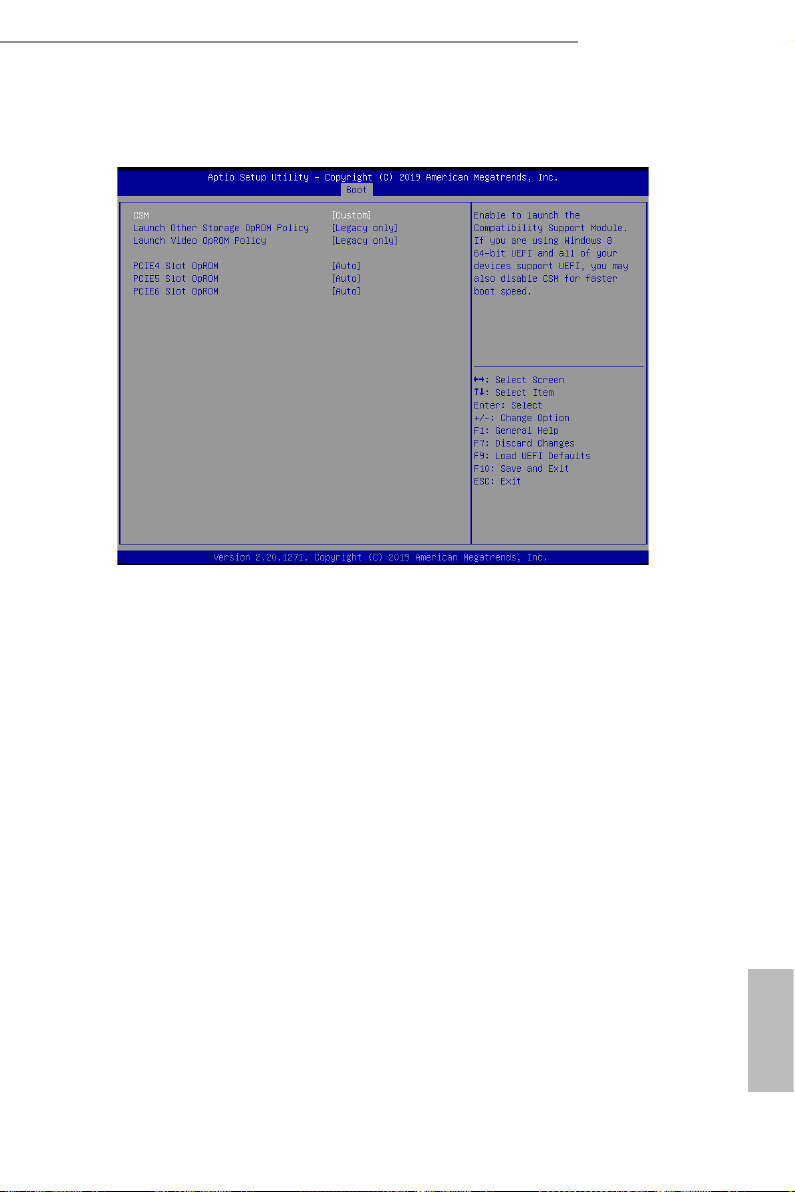

Boot
Event Logs For event log con guration
Exit To exit the current screen or the UEFI SETUP UTILITY
Use < > key or < > key to choose among the selections on the menu bar, and
then press <Enter> to get into the sub screen.
To set up the default system device to locate and load the
Operating System
English
3.1.2 Navigation Keys
Please check the following table for the function description of each navigation key.
Navigation Key(s) Function Description
/ Moves cursor le or right to select Screens
/ Moves cursor up or down to select items
+ / - To change option for the selected items
<Ta b> Switch to next function
<Enter> To bring up the selected screen
<PGUP> Go to the previous page
<PGDN> Go to the next page
<HOME> Go to the top of the screen
<END> Go to the bottom of the screen
<F1> To display the General Help Screen
<F7> Discard changes and exit the UEFI SETUP UTILITY
<F9> Load optimal default values for a ll the settings
<F10> Save changes and exit the UEFI SETUP UTILITY
<F12> Print screen
<ESC> Jump to the Exit Screen or exit the current screen
English
34 35
X470D4U2-2T
3.2 Main Screen
Once you enter the UEFI SETUP UTILITY, the Main screen will appear and display the
system over view. e Main screen provides system over view information and allows you
to set the system time and date.
English
3.3 Advanced Screen
In this section, you may set the congurations for the following items: CPU Conguration,
Chipset Conguration, Storage Conguration, ACPI Conguration, USB Conguration,
Super IO Conguration, Serial Port Console Redirection, H/W Monitor, AMD CBS, AMD
PBS and Instant Flash.
Setting wrong values in this sec tion may cause the system to malfunction.
English
36 37
3.3.1 CPU Conguration
PSS Support
Enable/disable the generation of ACPI _PPC, _PSS, and _PCT objects.
X470D4U2-2T
AMD fTPM Switch
To select .0: Auto (Depend on Tcg module). 1: Disabled fTPM. 2: OnBoard SPI TPM2.0
SVM Mode
Enable/disable CPU Virtualization.
CPB Mode
Enable/disable CPB.
C6 Mode
Enable/disable C6.
Node 0 Information
View Memory Information related to Node 0.
English
3.3.2 Chipset Conguration
Onboard VGA
To enable or disable Onboard VGA.
Above 4G Decoding
Globally Enables or Disables 64bit capable Devices to be Decoded in Above 4G Address
Space (Only if System Supports 64 bit PCI Decoding).
SR-IOV Support
If system has SR-IOV capable PCIe Devices, this option Enables or Disables Single Root IO
Virtualization Support.
Restore AC Power Loss
is allows you to set the power state aer a power failure. If [Power O] is selected, the
power will remain o when the power recovers. If [Power On] is selected, the system will
start to boot up when the power recovers.
English
Restore AC Power Current State
is allows you to restore AC Power Current State.
Onboard Debug Port LED
Enable or disable the onboard Dr. Debug LED.
38 39
Onboard X550 LAN3
To enable or disable Onabord LAN.
Onboard X550 LAN4
To enable or disable Onabord LAN.
X470D4U2-2T
English
3.3.3 Storage Conguration
PT SATA Port Enable
Enable/disable the SATA controllers.
PT SATA Mode
Select Promontory SATA Type.
SATA Hot Plug
Enable/disable the SATA Hot Plug Function.
English
40 41
3.3.4 ACPI Conguration
PCIE Devices Power On
Allow the system to be waked up by a PCIE device and enable wake on LAN.
X470D4U2-2T
RTC Alarm Power On
Use this item to enable or disable RTC (Rea l Time Clock) to power on the system.
English
3.3.5 USB Conguration
Legacy USB Support
Use this option to enable or disable legacy support for USB devices. e default value is
[Enabled].
English
42 43
3.3.6 Super IO Conguration
Serial Port 1 Conguration
Use this item to set parameters of Serial Port 1 (COM1).
X470D4U2-2T
Serial Port
Use this item to enable or disable the serial port.
Serial Port Address
Use this item to select an optimal setting for Super IO device.
SOL Conguration
Use this item to set parameters of SOL.
SOL Port
Use this item to set parameters of SOL.
Serial Port Address
Use this item to select an optimal setting for Super IO device.
English
3.3.7 Serial Port Console Redirection
COM1 / SOL
Console Redirection
Use this option to enable or disable Console Redirection. If this item is set to Enabled, you
can select a COM Port to be used for Console Redirection.
Console Redirection Settings
Use this option to congure Console Redirection Settings, and specify how your computer
and the host computer to which you are connected exchange information.
Terminal Type
Use this item to select the preferred terminal emulation type for out-of-band management.
It is recommended to select [VT-UTF8].
Option Description
VT10 0 ASCII character set
English
44 45
VT10 0+ Extended VT100 that supports color and function keys
VT-U TF8 UTF8 encoding is used to map Unicode chars onto 1 or more bytes
ANSI Extended ASCII character set
X470D4U2-2T
Bits Per Second
Use this item to select the serial por t transmission speed. The speed used in the host
computer and the client computer must be the same. Long or noisy lines may require lower
transmission speed. e options include [9600], [19200], [57600] and [115200].
Data Bits
Use this item to set the data transmission size. e options include [7] and [8] (Bits).
Parity
Use this item to select the parity bit. e options include [None], [Even], [Odd], [Mark] and
[Space].
Stop Bits
e item indicates the end of a serial data packet. e standard setting is [1] Stop Bit. Select
[2] Stop Bits for slower devices.
Flow Control
Use this item to set t he f low control to prevent data loss from buf fer overflow. When
sending data, if the receiving buers are full, a "stop" signal can be sent to stop the data
ow. Once the buers are empty, a "start" signal can be sent to restart the ow. Hardware
ow uses two wires to send start/stop signals. e options include [None] and [Hardware
RTS/CTS].
VT-UTF8 Combo Key Support
Use this item to enable or disable the VT-UTF8 Combo Key Support for ANSI/VT100
terminals.
Recorder Mode
Use this item to enable or disable Recorder Mode to capture terminal data and send it as
text messages.
Resolution 100x31
Use this item to enable or disable extended terminal resolution support.
Legacy OS Redirection Resolution
Use this item to select the number of rows and columns used in legacy OS redirection.
Putty Keypad
Use this item to select Function Key and Keypad on Putty.
Redirection Aer BIOS POST
If the [LoadBooster] is selected, legacy console redirection is disabled before booting to
legacy OS. If [Always Enabled] is selected, legacy console redirection is enabled for legacy
OS. e default value is [Always Enabled].
English
Legacy Console Redirection
Legacy Console Redirection Settings
Use this option to congure Legacy Console Redirection Settings, and specify how your
computer and the host computer to which you are connected exchange information.
Redirection COM Port
Select a COM port to display redirection of Legacy OS and Legacy OPROM Messages.
Resolution
On Legacy OS, the Number of Rows and Columns supported redirection.
Redirect Aer POST
When Bootloader is selected, then Legacy Console Redirection is disabled before booting
to legacy OS. When Always Enable is selected, then Legacy Console Redirection is enabled
for legacy OS. Default setting for this option is set to Always Enable.
Serial Port for Out-of-Band Management/Windows Emergency
Management Services (EMS)
Console Redirection
Use this option to enable or disable Console Redirection. If this item is set to Enabled, you
can select a COM Port to be used for Console Redirection.
Console Redirection Settings
Use this option to congure Console Redirection Settings, and specify how your computer
and the host computer to which you are connected exchange information.
Terminal Type
Use this item to select the preferred terminal emulation type for out-of-band management.
It is recommended to select [VT-UTF8].
Option Description
VT10 0 ASCII character set
VT10 0+ Extended VT100 that supports color and function keys
VT-U TF8 UTF8 encoding is used to map Unicode chars onto 1 or more bytes
ANSI Extended ASCII character set
English
Bits Per Second
Use this item to select the seria l port t ra nsmission speed. The speed used in the host
computer and the client computer must be the same. Long or noisy lines may require lower
transmission speed. e options include [9600], [19200], [57600] and [115200].
46 47
X470D4U2-2T
Flow Control
Use this item to set the f low cont rol to prevent data loss from buf fer over f low. When
sending data, if the receiving buers are full, a "stop" signal can be sent to stop the data
ow. Once the buers are empty, a "start" signal can be sent to restart the ow. Hardware
ow uses two wires to send start/stop signals. e options include [None], [Hardware RTS/
CTS], and [Soware Xon/Xo].
Data Bits
Parity
Stop Bits
English
3.3.8 H/W Monitor
In this section, it allows you to monitor the status of the hardware on your system, includ-
ing the parameters of t he CPU temperature, motherboard temperature, CPU fan speed,
chassis fan speed, and the critical voltage.
Fan Control
If [Auto] is selected, the fan speed will controlled by BMC.
If [Manual] is selected, congure the items below.
FAN1
is allows you to set the CPU fan1’s speed. e default value is [Smart Fan].
FAN 2
is allows you to set the front fan 2’s speed. e default value is [Smart Fan].
FAN 3
is allows you to set the front fan 3’s speed. e default value is [Smart Fan].
English
FAN 4
is allows you to set the front fan 4’s speed. e default value is [Smart Fan].
FAN 5
is allows you to set the front fan 5’s speed. e default value is [Smart Fan].
48 49
FAN 6
is allows you to set the front fan 6’s speed. e default value is [Smart Fan].
Smart Fan Control
is allows you to set the Smart fan’s level speed.
Smart Fan Duty Control
Smart Fan Duty x (x means 1 to 11 stage)
is allows you to set duty cycle for each stage.
Smart Fan Temp Control
Smart Fan Temp x (x means 1 to 11 stage)
is allows you to set temperature for each stage.
X470D4U2-2T
English
3.3.9 AMD CBS
Zen Common Options
Use this item to congure Zen Common options.
DF Common Options
Use this item to congure DF Common options.
UMC Common Options
Use this item to congure UMC Common options.
NBIO Common Options
Use this item to congure NBIO Common options.
FCH Common Options
Use this item to congure FCH Common options.
English
50 51
3.3.10 AMD PBS
AMD Firmware Version
Show all of AMD Firmware Version.
X470D4U2-2T
Special Display Features
Enable/Disable PowerXpress HybridGraphics.
Primary Video Adaptor
Select Internal/External Graphics.
BIOS PSP Support
Enable/Disable BIOS PSP driver execution (including all C2P/P2C mailbox, Secu re S3,
fTPM Support).
MITT/WITT Selection
Use this item to congure MITT/WITT Selection.
LAN Power Enable
Enable or disable LAN Power.
Unused GPP Clocks O
Turn Unused GPP Clocks O.
English
Clock Power Management (CLKREQ#)
Enable or disable CLKREQ#.
Clear CMA at warm rst
Enable or disable clearing MCA errors at warm reset. If Enabled, just clear MCA status
including that MC0: MSR0000_0401, MC1: MSR0000_0405, MC2: MSR0000_0409, MC4:
MSR0000_0411 and MC5: MSR0000_0415.
Win7 USB Wake Support
is option enables USB devices to wake up the system (work with Win7 only).
Adjust MEM VDDIO
Adjust MEM VDDIO, stepping is 4mV. VddIo = 1.2V +/- N * 4 mV, input range is 0-31.
Tuning range is 13mV on Turpan.
Adjust APU VDDP
Adjust APU VDDP.
Adjust V1.8
Adjust V1.8, stepping is 3mV. V1.8 = 1.8V +/- N * 3 mV, input range is 0-33. Tuning range
is +/- 100 mV.
Adjust VTT MEM
Adjust VTT MEM, stepping is VDDIO * (1/256). VTT_MEM = VDDIO * (N / 256), input
range is 113-143.
AddCmd MemVref Adjust
AddCmd MemeVref Adjust, stepping is VDDIO * (1/256). MEM_VREF = VDDIO * (N /
256), input range is 114-142.
Adjust VRM SVI2 - VDDCR_CPU
Oset Mode: +/- based on VID; Gamer Mode: Set VID Directly All the value limit is for
test; there's no guarantee that these options are safe.
External Clock Gen - SATA DISP0
Enable External Clock Gen - SATA DISP0.
English
SATA Redriver Tuning
Enable or disable SATA Redriver Tuning.
AMD KVM Mouse Protocol
Switch KVM Mouse Protocol between Absolut/Simple.
52 53
Above 4GB MMIO Enable
Enable or disable Above 4GB MMIO.
NVMe RAID mode
Enable or disable NVMe RAID mode.
X470D4U2-2T
English
3.3.11 Instant Flash
Instant Flash is a UEFI ash utility embedded in Flash ROM. is convenient UEFI
update tool allows you to update system UEFI without entering operating systems
rst like MS-DOS or Windows®. Just save the new UEFI le to your USB ash drive,
oppy disk or hard drive and launch this tool, then you can update your UEFI only
in a few clicks without preparing an additional oppy diskette or other compli-
cated ash utility. Please be noted that the USB ash drive or hard drive must use
FAT32/16/12 le system. If you execute Instant Flash utility, the utility will show the
UEFI les and their respective information. Select the proper UEFI le to update
your UEFI, and reboot your system aer the UEFI update process is completed.
English
54 55
X470D4U2-2T
3.4 Server Mgmt
Wait For BMC
Wai t Fo r BM C re sponse for s pec i f ied t ime o ut . BMC star t s at the same t i me when
BIOS starts during AC power ON. It takes around 90 seconds to initialize Host to BMC
interfaces.
English
3.4.1 System Event Log
SEL Components
Change this to enable ro disable event logging for error/progress codes during boot.
Erase SEL
Use this to choose options for earsing SEL.
When SEL is Full
Use this to choose options for reactions to a full SEL .
Log EFI Status Codes
Use this item to disable the logging of EFI Status Codes or log only error code or only
progress code or both.
English
56 57
3.4.2 BMC Network Conguration
Lan Channel (Failover)
X470D4U2-2T
Manual Setting IPMI LAN
If [No] is selected, t he IP address is assigned by DHCP. If you prefer using a static IP
address, toggle to [Yes], and the changes take eect aer the system reboots. e default
value is [No].
Conguration Address Source
Select to congure BMC network parameters statically or dynamically(by BIOS or BMC).
Conguration options: [Static] and [DHCP].
Static: Manually enter the IP Address, Subnet Mask and Gateway Address in the BIOS for
BMC LAN channel conguration.
DHCP: IP address, Subnet Mask and Gateway Address are automatically assigned by the
network 's DHCP server.
When [DHCP] or [Static] is selected , do NOT modify the BMC network settings on the
IPMI web page.
English
e default login information for the IPMI web interface is:
Username: admin
Password: admin
For more instructions on how to set up remote control environment and u se the IPMI management platform, please refer to the IPMI Conguration User Guide or go to the Support
website at: http://www.asrockrack.com/support/faq.asp
Inventory Support
is will execute inventor y function for system. Enabling this item will take some time at
system boot.
English
58 59
X470D4U2-2T
3.5 Security
In this section, you may set or change the supervisor/user password for the system. For the
user password, you may also clear it.
Supervisor Password
Set or change the password for the administrator account. Only the administrator
has authority to change the settings in the UEFI Setup Utility. Leave it blank and
press enter to remove the password.
User Password
Set or change the password for the user account. Users are unable to change the
settings in the UEFI Setup Utility. Leave it blank and press enter to remove the
password.
Secure Boot
Use this to enable or disable Secure Boot Control. e default value is [Disabled].
Enable to support Windows Server 2012 R2 or later versions Secure Boot.
Secure Boot Mode
Secure Boot mode selector: Standard/Custom. In Custom mode Secure Boot Vari-
ables can be congured without authentication.
English
3.5.1 Key Management
In this section, expert users can modify Secure Boot Policy variables without full authenti-
cation.
Factory Key Provision
Allow to provision factory default Secure Boot keys when System is in Setup Mode.
Install Default Secure Boot Keys
Please install default secure boot keys if it’s the rst time you use secure boot.
Enroll E Image
Allow the image to run in Secure Boot mode. Enroll SHA256 hash of the binary into
Authorized Signature Database (db).
Restore DB Defaults
Restore DB variable to factory defaults.
English
Platform Key(PK)
Enroll Factory Defaults or load certicates from a le:
1. Public Key Certicate in:
a) EF I_SIGNATUR E _LIST
b) EFI_CERT_X509 (DER encoded)
60 61
c) EFI_CERT_RSA2048 (bin)
d) EFI_CERT_SHA256, 384, 512
2. Authenticated UEFI Variable
3. EFI PE/COFF Image(SHA256)
Key Source: Default, External, Mixed, Test
Key Exchange Keys
Enroll Factory Defaults or load certicates from a le:
1. Public Key Certicate in:
a) EF I_SIGNATUR E _LIST
b) EFI_CERT_X509 (DER encoded)
c) EFI_CERT_RSA2048 (bin)
d) EFI_CERT_SHA256, 384, 512
2. Authenticated UEFI Variable
3. EFI PE/COFF Image(SHA256)
X470D4U2-2T
Key Source: Default, External, Mixed, Test
Authorized Signatures
Enroll Factory Defaults or load certicates from a le:
1. Public Key Certicate in:
a) EF I_SIGNATUR E _LIST
b) EFI_CERT_X509 (DER encoded)
c) EFI_CERT_RSA2048 (bin)
d) EFI_CERT_SHA256, 384, 512
2. Authenticated UEFI Variable
3. EFI PE/COFF Image(SHA256)
Key Source: Default, External, Mixed, Test
Forbidden Signatures
Enroll Factory Defaults or load certicates from a le:
1. Public Key Certicate in:
English
a) EF I_SIGNATUR E _LIST
b) EFI_CERT_X509 (DER encoded)
c) EFI_CERT_RSA2048 (bin)
d) EFI_CERT_SHA256, 384, 512
2. Authenticated UEFI Variable
3. EFI PE/COFF Image(SHA256)
Key Source: Default, External, Mixed, Test
Authorized TimeStamps
Enroll Factory Defaults or load certicates from a le:
1. Public Key Certicate in:
a) EF I_SIGNATUR E _LIST
b) EFI_CERT_X509 (DER encoded)
c) EFI_CERT_RSA2048 (bin)
d) EFI_CERT_SHA256, 384, 512
2. Authenticated UEFI Variable
3. EFI PE/COFF Image(SHA256)
Key Source: Default, External, Mixed, Test
OsRecovery Signatures
Enroll Factory Defaults or load certicates from a le:
1. Public Key Certicate in:
a) EF I_SIGNATUR E _LIST
b) EFI_CERT_X509 (DER encoded)
c) EFI_CERT_RSA2048 (bin)
d) EFI_CERT_SHA256, 384, 512
English
2. Authenticated UEFI Variable
3. EFI PE/COFF Image(SHA256)
Key Source: Default, External, Mixed, Test
62 63
X470D4U2-2T
3.6 Boot Screen
In this section, it will display the available devices on your system for you to congure the
boot settings and the boot priority.
Boot Option #1
Use this item to set the system boot order.
Boot Option Filter
is option controls Legacy/UEFI ROMs priority.
Fast Boot
Enables/Disables fast boot which skips memory training and attempts to boot using last
known good conguration.
Boot From Onboard LAN
Use this item to enable or disable the Boot From Onboard LAN feature.
Setup Prompt Timeout
Congure the number of seconds to wait for the UEFI setup utility.
Bootup Num-Lock
If this item is set to [On], it will automatically activate the Numeric Lock function aer
boot-up.
English
Boot Beep
Select whether the Boot Beep should be turned on or o when the system boots up. Please
note that a buzzer is needed.
Full Screen Logo
Use this item to enable or disable OEM Logo. e default value is [Enabled].
AddOn ROM Display
Use this option to adjust AddOn ROM Display. If you enable the option “Full Screen Logo”
but you want to see the AddOn ROM information when the system boots, please select
[Enabled]. Conguration options: [Enabled] and [Disabled]. e default value is [Enabled].
English
64 65
3.6.1 CSM Parameters
CSM
X470D4U2-2T
Enable to launch the Compatibility Support Module. Please do not disable unless
you’re running a WHCK test. If you are using Windows Server 2012 R2 or later ver-
sions 64-bit UEFI and all of your devices support UEFI, you may also disable CSM
for faster boot speed.
Launch Other Storage OpROM Policy
Select UEFI only to run those that support UEFI option ROM only. Select Legacy only to
run those that support legacy option ROM only. Select Do not launch to not execute both
legacy and UEFI option ROM.
Launch Video OpROM Policy
Select UEFI only to run those that support UEFI option ROM only. Select Legacy only to
run those that support legacy option ROM only. Select Do not launch to not execute both
legacy and UEFI option ROM.
PCIE4 Slot OpROM
Use this item to select slot storage and Network Option ROM policy. In Auto option, the
default is Disabled with NVMe device, but it is Legacy with other devices. (is item can't
select Video Option ROM policy.)
English
PCIE5 Slot OpROM
Use this item to select slot storage and Network Option ROM policy. In Auto option, the
default is Disabled with NVMe device, but it is Legacy with other devices. (is item can't
select Video Option ROM policy.)
PCIE6 Slot OpROM
Use this item to select slot storage and Network Option ROM policy. In Auto option, the
default is Disabled with NVMe device, but it is Legacy with other devices. (is item can't
select Video Option ROM policy.)
English
66 67
X470D4U2-2T
3.7 Exit Screen
Save Changes and Exit
When you select this option, the following message “Save conguration changes and exit
setup?” will pop-out. Press <F10> key or select [Yes] to save the changes and exit the UEFI
SETUP UTILITY.
Discard Changes and Exit
When you select this option, the following message “Discard changes and exit setup?” will
pop-out. Press <ESC> key or select [Yes] to exit the UEFI SETUP UTILITY without saving
any changes.
Discard Changes
When you select this option, the following message “Discard changes?” will pop-out. Press
<F7> key or select [Yes] to discard all changes.
Load UEFI Defaults
Load UEFI default values for a ll the setup questions. F9 key can be used for this operation.
Boot Override
ese items displays the available devices. Select an item to start booting from the selected
device.
English
Chapter 4 Software Support
4.1 Install Operating System
is motherboard supports various Microso® Windows® / Linux compliant. Because
motherboard settings and hardware options vary, use the setup procedures in this chapter
for general reference only. Refer to your OS documentation for more information.
*Please download the Intel® SATA Floppy Image driver from the ASRock R ack’s website (www.asrockrack.com)
to your USB drive or simply install the SATA driver from the Support CD while installing OS in SATA RAID
mode.
4.2 Support CD Information
e Support CD that came with the motherboard contains necessary drivers and useful
utilities that enhance the motherboard’s features.
4.2.1 Running The Support CD
To be g in usi n g t he su ppor t C D, i n s ert the C D i nto y our CD -ROM driv e. The CD
automatically displays the Main Menu if “AUTORUN” is enabled in your computer. If the
Main Menu does not appear automatically, locate and double click on the le “ASRSetup.
exe” from the root folder in the Support CD to display the menu.
4.2.2 Drivers Menu
The Drivers Menu shows the available device’s drivers if the system detects installed
devices. Please insta ll the necessary drivers to activate the devices.
4.2.3 Utilities Menu
e Utilities Menu shows the application sowares that the motherboard supports. Click
on a specic item then follow the installation wizard to install it.
4.2.4 Contact Information
If you need to contact ASRock Rack or want to know more about ASRock Rack, welcome
to visit ASRock Rack’s website at http://www.ASRockRack.com; or you may contact your
dealer for further information.
English
68 69
X470D4U2-2T
Chapter 5 Troubleshooting
5.1 Troubleshooting Procedures
Follow the procedures below to troubleshoot your system.
Always unplug the power cord before adding, removing or changing any hardware component s. Failure to do so may cause physical injurie s to you and damage s to motherboard
components.
1. Disconnect the power cable and check whether the PWR LED is o.
2. Unplug all cables, connectors and remove all add-on cards from the motherboard.
Make sure that the jumpers are set to default settings.
3. Conrm that there are no short circuits between the motherboard and the chassis.
4. Install a CPU and fan on the motherboard, then connect the chassis speaker and power
LED.
If there is no power...
1. Conrm that there are no short circuits between the motherboard and the chassis.
2. Make sure that the jumpers are set to default settings.
3. Check the settings of the 115V/230V switch on the power supply.
4. Verify if the battery on the motherboard provides ~3VDC. Install a new batter y if it
does not.
If there is no video...
1. Try replugging the monitor cables and power cord.
2. Check for memory errors.
If there are memory errors...
1. Verify that the DIMM modules are properly seated in the slots.
2. Use recommended DDR4 ECC/UDIMMs.
3. If you have installed more than one DIMM modules, they should be identical with the
same brand, speed, size and chip-type.
4. Try inserting dierent DIMM modules into dierent slots to identif y fault y ones.
5. Check the settings of the 115V/230V switch on the power supply.
English
Unable to save system setup congurations...
1. Verify if the battery on the motherboard provides ~3VDC. Install a new batter y if it
does not.
2. Conrm whether your power supply provides adaquate and stable power.
Other problems...
1. Try searching keywords related to your problem on ASRock Rack’s FAQ page:
http://www.asrockrack.com/support
English
70 71
X470D4U2-2T
5.2 Technical Support Procedures
If you have tried the troubleshooting procedures mentioned above and the problems
are still u nsolved, please contact ASRock Rack ’s technica l suppor t with the followi ng
information:
1. Your contact information
2. Model name, BIOS version and problem type.
3. System conguration.
4. Problem description.
You may contact ASRock Rack’s technical support at:
http://www.asrockrack.com/support/tsd.asp
5.3 Returning Merchandise for Service
For w arr ant y ser vice, t he receipt or a co py of your i nvoice marked w it h t he d at e of
purchase is required. By calling your vendor or going to our RMA website (http://event.
asrockrack.com/tsd.asp) you may obtain a Returned Merchandise Authorization (RMA)
number.
The R MA number should be displayed on the outside of the shipping car ton which is
mailed prepaid or hand-carried when you return the motherboard to the manufacturer.
Shipping and handling charges will be applied for all orders that must be mailed when
service is complete.
Th is wa rranty does not c over d a mages i ncu rred in shippi ng or from fa i lu re due to
alteration, misuse, abuse or improper maintenance of products.
Contact your distributor rst for any product related problems during the warranty period.
English
Loading...
