Chapter 1 Introduction

ank you for purchasing ASRock X370 Taichi motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

In this documentation, Chapter 1 and 2 contains the introduction of the

motherboard and step-by-step installation guides. Chapter 3 contains the operation

guide of the soware and utilities. Chapter 4 contains the conguration guide of

the BIOS setup.

Becau se the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any modi­cations of this documentation occur, the updated version will be available on ASRock’s
website w ithout further notice. If you require technical support related to this mother­board, please visit our website for specic information about the model you are using. You
may nd the l atest VGA cards and CPU suppor t list on ASRock’s website a s well. ASRock
website http://www.asrock.com.

X370 Taichi

1.1 Package Contents

ASRock X370 Taichi Motherboard (ATX Form Factor)

•

ASRock X370 Taichi Quick Installation Guide

•

ASRock X370 Taichi Support CD

•

1 x I/O Panel Shield

•

4 x Serial ATA (SATA) Data Cables (Optional)

•

1 x ASRock SLI_HB_Bridge_2S Card (Optional)

•

2 x ASRock WiFi 2.4/5 GHz Antennas

•

2 x Screws for M.2 Socket (Optional)

•

English

1

1.2 Specications

Platform

CPU

Chipset

Memory

Expansion
Slot

•

•

•

•

•

•

•

•

•

* Please refer to page 23 for DDR4 UDIMM maximum

frequency support.

•

•

•

* Supports NVMe SSD as boot disks

•

* If PCIE5 slot is occupied, M2 _2 will be disabled

•

•

•

•

•

ATX Form Factor

Supports AMD AM4 Socket Ryzen CPUs (Summit Ridge)

IR Digital PWM

16 Power Phase design

Supports ASRock Hyper BCLK Engine II

AMD Promontory X370

Dual Channel DDR4 Memory Technology

4 x DDR4 DIMM Slots

Supports DDR4 2667/2400/2133 ECC & ECC & non-ECC,

un-buered memory*

Max. capacity of system memory: 64GB

15μ Gold Contact in DIMM Slots

2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE3: x8

mode)*

1 x PCI Express 2.0 x16 Slot (PCIE5 @ x4 mode)

2 x PCI Express 2.0 x1 Slots

Supports AMD Quad CrossFireXTM and CrossFireXTM

Supports NVIDIA® Quad SLITM and SLI

1 x Vertical M.2 Socket (Key E) with the bundled WiFi-

802.11ac module (on the rear I/O)

15μ Gold Contact in VGA PCIe Slot (PCIE2)

TM

English

2

Audio

7.1 CH HD Audio with Content Protection (Realtek

•

ALC1220 Audio Codec)

Premium Blu-ray Audio support

•

Supports Surge Protection

•

LAN

Supports Purity SoundTM 4

•

- Nichicon Fine Gold Series Audio Caps

- 120dB SNR DAC with Dierential Amplier

- TI® NE5532 Premium Headset Amplier for Front Panel

Audio Connector (Supports up to 600 Ohm headsets)

- Pure Power-In

- Direct Drive Technology

- PCB Isolate Shielding

- Impedance Sensing on Line Out port

- Individual PCB Layers for R/L Audio Channel

- Gold Audio Jacks

- 15μ Gold Audio Connector

Supports DTS Connect

•

Gigabit LAN 10/100/10 00 Mb/s

•

GigaLAN Intel® I211AT

•

Supports Wake-On-LAN

•

Supports Lightning/ESD Protection

•

Supports Energy Ecient Ethernet 802.3az

•

Supports PXE

•

X370 Taichi

Wireless
LAN

Rear Panel
I/O

Intel® 802.11ac WiFi Module (Free Bundle)

•

Supports IEEE 802.11a/b/g/n/ac

•

Supports Dual-Band (2.4/5 GHz)

•

Supports high speed wireless connections up to 433Mbps

•

Supports Bluetooth 4.2 / 3.0 + High speed class II

•

2 x Antenna Ports

•

1 x PS/2 Mouse/Keyboard Port (with Y-cable support)

•

1 x Optical SPDIF Out Port

•

1 x USB 3.1 Type-A Port (10 Gb/s) (Supports ESD Protection)

•

1 x USB 3.1 Type-C Port (10 Gb/s) (Supports ESD Protection)

•

6 x USB 3.0 Ports (Supports ESD Protection)

•

2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED

•

LED)

1 x Clear CMOS Switch

•

HD Audio Jacks: Rear Speaker / Centra l / Bass / Line in /

•

Front Speaker / Microphone (Gold Audio Jacks)

English

3

English

Storage

Connector

8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

•

RAID 1 and RAID 10), NCQ, AHCI and Hot Plug

2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, sup-

•

port NCQ, AHCI and Hot Plug

1 x Ultra M.2 Socket (M2_1), supports ty pe 2242/2260/2280

•

M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module

up to Gen3 x4 (32 Gb/s)*

1 x M.2 Socket (M2_2), supports type 2230/2242/2260/2280

•

M.2 PCI Express module up to Gen2 x4 (20 Gb/s)*

* If M2_2 is occupied, PCIE5 slot will be disabled

* Supports NVMe SSD as boot disks

* Supports ASRock U.2 Kit

1 x Power LED and Speaker Header

•

1 x AMD Fan LED Header

•

2 x RGB LED Headers

•

* Supports up to 12V/3A, 36W LED Strip

1 x CPU Fan Connector (4-pin)

•

* e CPU Fan Connector supports the CPU fan of ma ximum

1A (12W) fan power.

1 x CPU Optional/Water Pump Fan Connector (4-pin)

•

(Smart Fan Speed Control)

* e CPU Optional/Water Pump Fan supports the water cooler

fan of maximum 1.5A (18W) fan power.

2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed

•

Control)

1 x Chassis Optional/Water Pump Fan Connector (4-pin)

•

(Smart Fan Speed Control)

* e Chassis Optiona l/Water Pump Fan supports the water

cooler fan of maximum 1.5A (18W) fan power.

* CPU_FAN1, CHA_FAN1, CHA_FAN2 can auto detect if 3-pin

or 4-pin fan is in use.

1 x 24 pin ATX Power Connector (Hi-Density Power

•

Connec tor)

1 x 8 pin 12V Power Connector (Hi-Density Power

•

Connec tor)

1 x Front Panel Audio Connector (15μ Gold Audio

•

Connec tor)

4

BIOS
Feature

Hardware
Monitor

1 x AMD LED Fan USB Header

•

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports

•

ESD Protection)

2 x USB 3.0 Headers (Support 4 USB 3.0 ports) (Supports

•

ESD Protection)

1 x Dr. Debug with LED

•

AMI UEFI Legal BIOS with multilingual GUI support

•

Supports “Plug and Play”

•

ACPI 5.1 compliance wake up events

•

Supports jumperfree

•

SMBIOS 2.3 support

•

CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V,

•

VDDP, PROM 2.5V, Voltage Multi-adjustment

Temperature Sensing: CPU, CPU Optional/Water Pump,

•

Chassis, Chassis Optional/Water Pump Fans

Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis,

•

Chassis Optional/Water Pump Fans

Quiet Fan (Auto adjust chassis fan speed by CPU tempera-

•

ture): CPU, CPU Optional/Water Pump, Chassis, Chassis

Optional/Water Pump Fans

Fan Multi-Speed Control: CPU, CPU Optional/Water Pump,

•

Chassis, Chassis Optional/Water Pump Fans

Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_

•

NB, DRAM, PCH 1.05V, +1.8V, VDDP

X370 Taichi

Microso® Windows® 10 64-bit

OS

Certica­tions

* For detailed product information, please visit our website: http://www.asrock .com

•

* For the updated Windows® 10 driver, please visit ASRock ’s

website for details: http://ww w.asrock.com

FCC, CE, WHQL

•

ErP/EuP ready (ErP/EuP ready power supply is required)

•

English

5

Please realiz e that the re is a certain r isk involved with o verclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technolog y, or using third-party
overclocking to ols. O verclocking may aect your system’s stability, or even c ause damage to
the components and devices of your system. It should be don e at your ow n risk and expense.
We are not responsibl e for possible damage caused by overclo cking.

English

6

DDR4 _A2 (64 b it, 288 -pin mo dule)

DDR4 _A1 (64 b it, 288 -pin mo dule)

DDR4 _B2 (64 b it, 288 -pin mo dule)

DDR4 _B1 (64 b it, 288 -pin mo dule)

ATXP WR 1

PCIE2

USB 3.0
T: USB5
B: USB6

USB 3.0
T: USB3
B: USB4

Top:

Central/Bass

Center:

REAR SPK

Top:

LINE IN

Center:

FRONT

Bottom:

Optical

SPDIF

Bottom:

MIC IN

PCIE3

HDLED RESET

PLED PWRBTN

PANEL1

1

1

SPK_PLED1

1

HD_AUDIO1

PCIE5

SATA3_3_4

SATA3_5_6

PCIE1

6

8

10

9

12

11

13

14

17

USB_1_2

1

19

USB_3_4

1

20

25

26

SATA3_1_2

1

5

4

Dr.

Debug

18

USB 3.0

T: USB1

B: USB2

PS2

Keybo ard

/Mous e

CMOS

Battery

M2_1

M2_2

USB3_7_ 8

1

21

CPU_FAN1

7

USB 3.1
T: USB31_TA_1
B: USB31_TC_1

Ultra M.2

PCIe Gen3x4

CHA_FAN1

CPU_OPT/W_PUMP

3

2

USB3_9_ 10

1

AMD_FAN_LED1

1

CLRMOS1

1

LAN

LAN

BIOS
ROM

RoHS

PCIE4

ATX12V1

CHA_FAN3/W_PUMP

CHA_FAN2

M2_WIFI_1

24

23

CLRC
BTN1

1

USB_5

RGB_LED1

1

Top:
RJ-45

Super

I/O

AMD

Promontory

X370

SOCKETAM4

Purity

Sound 4

TM

X370

Taichi

22

RGB_LED2

1

SATA3_A1_ A2

SATA3_7_8

15

16

1.3 Motherboard Layout

X370 Taichi

English

7

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 CPU Fan / Waterpump Fan Connector (CPU_OPT/W_PUMP)

3 CPU Fan Connector (CPU_FAN1)

4 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

5 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

6 ATX Power Connector (ATXPWR1)

7 USB 3.0 Header (USB3_9_10)

8 USB 3.0 Header (USB3_7_8)

9 AMD LED Fan USB Header (USB_5)

10 AMD Fan LED Header (AMD_FAN_LED1)

11 Chassis Fan Connector (CHA_FAN1)

12 SATA3 Connectors (SATA3_1_2)

13 SATA3 Connectors (SATA3_3_4)

14 SATA3 Connectors (SATA3_5_6)

15 SATA3 Connectors (SATA3_7_8)

16 SATA3 Connectors (SATA3_A1_A2)

17 Clear CMOS Jumper (CLRMOS1)

18 System Panel Header (PANEL1)

19 USB 2.0 Header (USB_1_2)

20 USB 2.0 Header (USB_3_4)

21 Power LED and Speaker Header (SPK_PLED1)

22 Chassis Fan Connector (CHA_FAN2)

23 RGB LED Header (RGB_LED1)

24 RGB LED Header (RGB_LED2)

25 Front Panel Audio Header (HD_AUDIO1)

26 Chassis Fan / Waterpump Fan Connector (CHA_FAN3/W_PUMP)

English

8

1.4 I/O Panel

1

X370 Taichi

5

2

436

14 915

No. Description No. Description

1 PS/2 Mouse/Keyboard Port (PS2_KB1) 9 USB 3.0 Ports (USB3_5_6)

2 LAN RJ-45 Port* 10 USB 3.0 Ports (USB3_3_4)

3 Central / Bass (Orange) 11 USB 3.1 Type-A Port (USB31_TA_1)

4 Rear Speaker (Black) 12 USB 3.1 Type-C Port (USB31_TC_1)

5 Line In (Light Blue) 13 Antenna Ports

6 Front Speaker (Lime)** 14 USB 3.0 Port (USB3_1_2)

7 Microphone (Pink) 15 Clear CMOS Switch

8 Optical SPDIF Out Port

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK LED

SPEED LED

LAN Por t

13 10

12

7811

Activity / Link LED Speed LED

Status Description Status Description

O No Link Orange 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection

English

9

** ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK LED

SPEED LED

LAN Por t

Activity / Link LED Speed LED

Status Description Status Description

O No Link Orange 100Mbps/1Gbps/2.5Gbps
Blinking Data Activity

connection

On Link Green 5Gbps connection

** If you use a 2- channel speaker, plea se connect the speake r’s plug into “Front Spea ker Jack”. See the table below

for connection d etails in accordance w ith the type of speaker you use.

English

Audio Output

Channels

Front Speaker

(No. 6)

Rear Speaker

(No. 4)

Central / Bass

(No. 3)

2 V -- -- --
4 V V -- --
6 V V V --
8 V V V V

To enable Multi-Streaming, you need to connect a front panel audio cable to the front
panel au dio header. Aer re starting your computer, you will nd the “Mixe r” tool on your
system. Plea se sele ct “Mixe r ToolBox” , click “Enable playback multi-streaming”, and
click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are a llowed to select
“Realtek HDA Primary output” to u se the Rear Speaker, Central/Ba ss, and Front Speaker,
or select “Realtek HDA Audio 2nd output” to use the front panel audio.

Line In

(No. 5)

10

Chapter 2 Installation

is is a ATX form factor motherboard. Before you install the motherboard, study

the conguration of your chassis to ensure that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard.

•

Failure to do so may cause physical injuries to you and damages to motherboard

components.

In order to avoid damage from static electricity to the motherboard’s components,

•

NEVER place your motherboard directly on a carpet. Also remember to use a grounded

wrist strap or touch a safety grounded object before you handle the components.

Hold components by the edges and do not touch the ICs.

•

Whenever you uninstall any components, place them on a grounded anti-static pad or

•

in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not over-

•

tighten the screws! Doing so may damage the motherboard.

X370 Taichi

11

English

2.1 Installing the CPU

Unplug all power cables be fore installing the CPU.

1

English

12

2

X370 Taichi

3

13

English

2.2 Installing the CPU Fan and Heatsink

Aer you install the CPU into this motherboard, it is necessary to install a larger

heatsink and cooling fan to dissipate heat. You also need to spray thermal grease

between the CPU and the heatsink to improve heat dissipation. Ma ke sure that the

CPU and the heatsink are securely fastened and in good contact with each other.

Please turn o the power or remove th e power cord before changing a CPU or heatsink.

Installing the CPU Box Cooler SR1

1

English

14

2

X370 Taichi

3

4

1

N

FA

_

U

P

C

English

15

Installing the AM4 Box Cooler SR2

1

2

English

16

X370 Taichi

3

17

English

4

1

N

FA

_

U

P

C

5

4-pin FAN cable

English

18

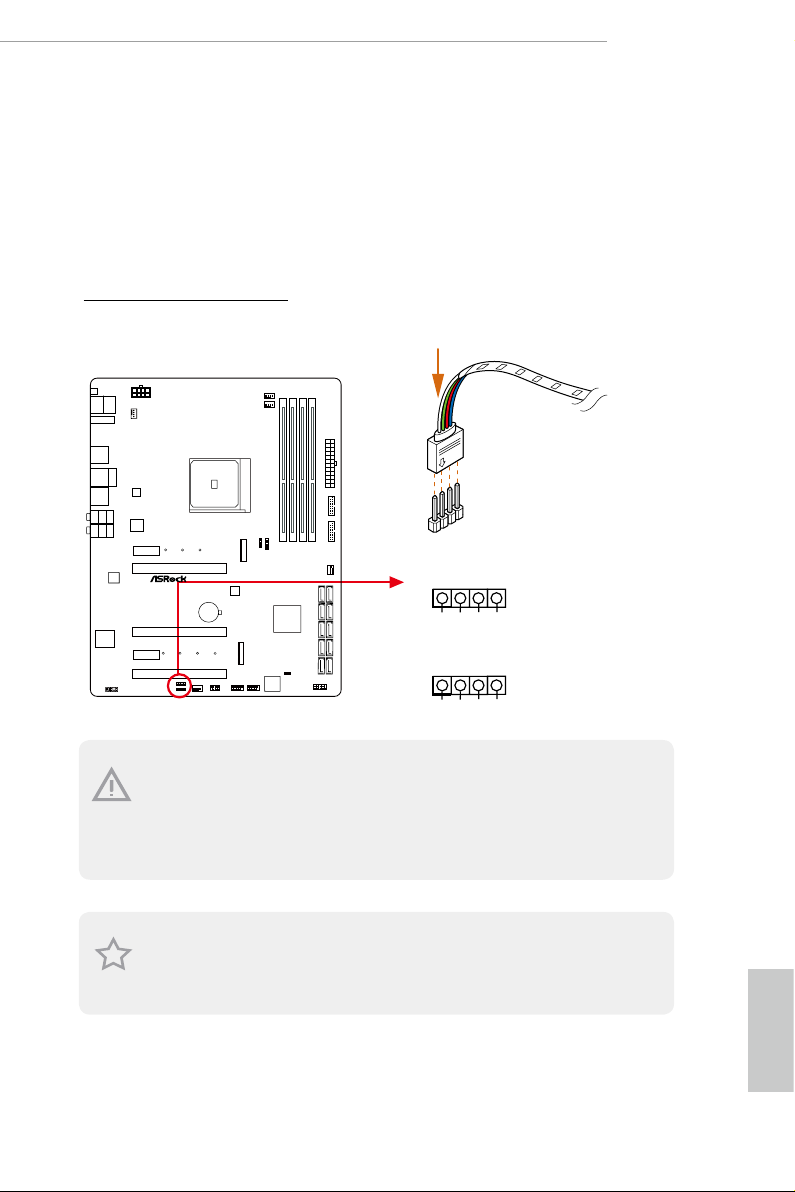

RGB LED Cable

1

FAN

CPU_

1

D

LE

_

N

FA

_

D

AM

+12V

*e diagram shown here are for reference only. Please refer to page 31 for the orientation of

AMD Fan LED Header (AMD_FAN_LED1).

Installing the AM4 Box Cooler SR3

1

X370 Taichi

2

English

19

3

4

English

20

X370 Taichi

5

FAN1

CPU_

21

English
