ASRock B75M-ITX User Manual [en, ru, de, es, fr, it]

Copyright Notice:
No part of this installation guide may be reproduced, transcribed, transmitted, or trans­lated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc. Products and corporate names appearing in this guide may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identica­tion or explanation and to the owners’ benet, without intent to infringe.
Disclaimer:
Specications and information contained in this guide are furnished for informational use
only and subject to change without notice, and should not be constructed as a commit­ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this guide. With respect to the contents of this guide, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or condi-
tions of merchantability or tness for a particular purpose. In no event shall ASRock, its directors, ofcers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of prots, loss of business, loss of
data, interruption of business and the like), even if ASRock has been advised of the pos­sibility of such damages arising from any defect or error in the guide or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. “Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate”
ASRock Website: http://www.asrock.com
Published June 2013
Copyright©2013 ASRock INC. All rights reserved.
ASRock B75M-ITX Motherboard

English

1
Motherboard Layout
English
2
1 SPI Flash Memory (64Mb) 2 SATA2 Connector (SATA_1, Black) 3 SATA3 Connector (SATA_0, Gray) 4 SATA2 Connector (SATA_2, Black) 5 SATA2 Connector (SATA_3, Black) 6 Intel B75 Chipset 7 USB 2.0 Header (USB4_5, Black) 8 System Panel Header (PANEL1, Black) 9 ATX Power Connector (ATXPWR1) 10 Consumer Infrared Module Header (CIR1, Gray)
ASRock B75M-ITX Motherboard
11 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1, Black) 12 USB 3.0 Header (USB3_3_4, Black) 13 1155-Pin CPU Socket 14 PCI Express 3.0 x16 Slot (PCIE1, Black) 15 Front Panel Audio Header (HD_AUDIO1, Black) 16 CPU Fan Connector (CPU_FAN1) 17 Chassis Fan Connector (CHA_FAN1) 18 Clear CMOS Jumper (CLRCMOS1) 19 ATX 12V Power Connector (ATX12V1)
I/O Panel
1
2
3
4
5
7
6
8
9
15
1 USB 2.0 Ports (USB01) 2 D-Sub Port (VGA1) 3 USB 2.0 Ports (USB23) * 4 LAN RJ-45 Port 5 Central / Bass (Orange) 6 Rear Speaker (Black) 7 Line In (Light Blue) ** 8 Front Speaker (Lime)
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED indications.
Activity/Link LED SPEED LED
Status Description Status Description
14
LAN Port LED Indications
13
12
9 Microphone (Pink) 10 Optical SPDIF Out Port 11 USB 3.0 Ports (USB3_12) 12 eSATA2 Connector 13 HDMI Port (HDMI1) 14 DVI-D Port (DVI1) 15 PS/2 Keyboard Port (Purple)
11
ACT/LINK LED
10
SPEED LED
Off No Link Off 10Mbps connection Blinking Data Activity Orange 100Mbps connection On Link Green 1Gbps connection
LAN Port
If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.
**
See the table below for connection details in accordance with the type of speaker you use.
TABLE for Audio Output Connection
Audio Output Channels Front Speaker Rear Speaker Central / Bass Line in (No. 8) (No. 6) (No. 5) (No. 7)
2 V -- -- -­4 V V -- -­6 V V V -­8 V V V V
ASRock B75M-ITX Motherboard
English
3
To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. After restarting your computer, you will nd “Mixer” tool on your system.
Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click
“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio.
English
4
ASRock B75M-ITX Motherboard
1. Introduction
Thank you for purchasing ASRock B75M-ITX motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance. This Quick Installation Guide contains introduction of the motherboard and step-by­step installation guide. More detailed information of the motherboard can be found in the user manual presented in the Support CD.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version will be available on ASRock website without further notice. You may nd
the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.asrock.com/support/index.asp
1.1 Package Contents
ASRock B75M-ITX Motherboard (Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm) ASRock B75M-ITX Quick Installation Guide ASRock B75M-ITX Support CD
2 x Serial ATA (SATA) Data Cables (Optional) 1 x I/O Panel Shield
ASRock Reminds You...
To get better performance in Windows® 7 / 7 64-bit / Vista
bit, it is recommended to set the BIOS option in Storage Conguration to
AHCI mode. For the BIOS setup, please refer to the “User Manual” in our support CD for details.
TM
/ VistaTM 64-
ASRock B75M-ITX Motherboard
English
5
English
1.2 Specifications
Platform - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- All Solid Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors) CPU - Supports 3rd and 2nd Generation Intel® CoreTM i7 / i5 / i3 in LGA1155 Package
- Digi Power Design
- 4 + 2 Power Phase Design
- Supports Intel® Turbo Boost 2.0 Technology
- Supports Intel® K-Series unlocked CPU (see CAUTION 1)
- Supports Hyper-Threading Technology (see CAUTION 2)
- Supports Intel® Rapid Start Technology and Smart Connect Technology with Intel® Ivy Bridge CPU Chipset - Intel® B75
- Supports Intel® Small Business Advantage (see CAUTION 3)
Memory - Dual Channel DDR3 Memory Technology (see CAUTION 4)
- 2 x DDR3 DIMM slots
- Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory (DDR3 1600 with Intel® Ivy Bridge CPU, DDR3 1333 with Intel® Sandy Bridge CPU)
- Max. capacity of system memory: 16GB (see CAUTION 5)
- Supports Intel® Extreme Memory Prole (XMP)1.3/1.2 Expansion Slot - 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode) (see CAUTION 6) * PCIE 3.0 is only supported with Intel® Ivy Bridge CPU. With Intel® Sandy Bridge CPU, it only supports PCIE 2.0.
Graphics * Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
- Supports Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video 2.0, Intel® InTruTM 3D, Intel® Clear Video HD Technology, Intel® InsiderTM, Intel® HD Graphics 2500/4000
- Pixel Shader 5.0, DirectX 11 with Intel® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel® Sandy Bridge CPU.
- Max. shared memory 1760MB (see CAUTION 7)
- Three VGA Output options: D-Sub, DVI-D and HDMI (see CAUTION 8)
- Supports HDMI 1.4a Technology with max. resolution up to 1920x1200 @ 60Hz
6
ASRock B75M-ITX Motherboard
- Supports DVI with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required) (see CAUTION 9)
- Supports HDCP function with DVI and HDMI ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Premium Blu-ray audio support LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efcient Ethernet 802.3az
- Supports PXE Rear Panel I/O I/O Panel
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x eSATA2 Connector
- 2 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Rear Speaker/Central/Bass/Line in/Front Speaker/Microphone (see CAUTION 10) SATA3 - 1 x SATA3 6.0 Gb/s connector, supports NCQ, AHCI and Hot Plug functions USB3.0 - 2 x Rear USB 3.0 ports, support USB 1.0/2.0/3.0 up to 5Gb/s
- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports), supports USB 1.0/2.0/3.0 up to 5Gb/s
English
ASRock B75M-ITX Motherboard
7
English
Connector - 3 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
- 1 x CIR header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 1 x USB 2.0 header (supports 2 USB 2.0 ports)
- 1 x USB 3.0 header (supports 2 USB 3.0 ports) BIOS Feature - 64Mb AMI UEFI Legal BIOS with GUI support
- Supports “Plug and Play”
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - OEM Unique Feature - ASRock Extreme Tuning Utility (AXTU) (see CAUTION 11)
- ASRock Instant Boot
- ASRock Instant Flash (see CAUTION 12)
- ASRock APP Charger (see CAUTION 13)
- ASRock SmartView (see CAUTION 14)
- ASRock XFast USB (see CAUTION 15)
- ASRock XFast LAN (see CAUTION 16)
- ASRock XFast RAM (see CAUTION 17)
- ASRock Crashless BIOS (see CAUTION 18)
- ASRock OMG (Online Management Guard) (see CAUTION 19)
- ASRock Internet Flash (see CAUTION 20)
- ASRock On/Off Play Technology (see CAUTION 21)
- Hybrid Booster:
- ASRock U-COP (see CAUTION 22)
- Boot Failure Guard (B.F.G.)
- Good Night LED Hardware - CPU Temperature Sensing Monitor - Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- 1 x SATA3 6.0Gb/s connector
8
ASRock B75M-ITX Motherboard
- CPU/Chassis Quiet Fan (Allows Chassis Fan Speed Auto­ Adjust by CPU Temperature)
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore OS - Microsoft® Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP / XP 64-bit compliant (see CAUTION 23) Certications - FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required) (see CAUTION 24)
* For detailed product information, please visit our website: http://www.asrock.com
WARNING
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system’s stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
CAUTION!
1. Due to chipset limitations, overclocking is not supported.
2. About the settings of “Hyper Threading Technology”, please check page 43 of the “User Manual” in the support CD.
3. Intel® Small Business Advantage is a customizable platform integrated with IT tools, which helps maximize employee productivity, PC perfor­mance, and data security. There are applications including Software Monitor, PC Health Center, Data Backup & Restore, Energy Saver and USB Blocker.
4. This motherboard supports Dual Channel Memory Technology. Before you implement Dual Channel Memory Technology, make sure to read the installation guide of memory modules on page 17 for proper installation.
5. Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 7 / VistaTM / XP. For Windows® OS with 64-bit CPU, there is no such limita­tion. You can use ASRock XFast RAM to utilize the memory that Win-
dows® cannot use.
6. To run the PCI Express in Gen 3 speed, please install an Ivy Bridge CPU. If you install a Sandy Bridge CPU, the PCI Express will run only at PCI Express Gen 2 speed.
English
ASRock B75M-ITX Motherboard
9
English
7. The maximum shared memory size is dened by the chipset vendor and
is subject to change. Please check Intel® website for the latest informa­tion.
8. You can choose to use two of the three monitors only. D-Sub, DVI-D and HDMI monitors cannot be enabled at the same time. Besides, with the DVI-to-HDMI adapter, the DVI-D port can support the same features as HDMI port.
9. xvYCC and Deep Color are only supported under Windows® 7 64-bit /
7. Deep Color mode will be enabled only if the display supports 12bpc in EDID. HBR is supported under Windows® 7 64-bit / 7 / VistaTM 64-bit / VistaTM.
10. For microphone input, this motherboard supports both stereo and mono
modes. For audio output, this motherboard supports 2-channel, 4-chan­nel, 6-channel, and 8-channel modes. Please check the table on page 3 for proper connection.
11. ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to ne-tune dif-
ferent system functions in a user-friendly interface, which includes Hard­ware Monitor, Fan Control, Overclocking, OC DNA and IES. In Hardware Monitor, it shows the major readings of your system. In Fan Control, it shows the fan speed and temperature for you to adjust. In Overclocking, you are allowed to overclock CPU frequency for optimal system per-
formance. In OC DNA, you can save your OC settings as a prole and share it with your friends. Your friends then can load the OC prole to
their own system to get the same OC settings. In IES (Intelligent Energy Saver), the voltage regulator can reduce the number of output phases to
improve efciency when the CPU cores are idle without sacricing
computing performance. Please visit our website for the operation proce-
dures of ASRock Extreme Tuning Utility (AXTU).
ASRock website: http://www.asrock.com
12. ASRock Instant Flash is a BIOS ash utility embedded in Flash ROM.
This convenient BIOS update tool allows you to update system BIOS
without entering operating systems rst like MS-DOS or Windows®. With
this utility, you can press the <F6> key during the POST or the <F2> key to enter into the BIOS setup menu to access ASRock Instant Flash.
Just launch this tool and save the new BIOS le to your USB ash drive, oppy disk or hard drive, then you can update your BIOS only in a few clicks without preparing an additional oppy diskette or other complicated ash utility. Please be noted that the USB ash drive or hard drive must use FAT32/16/12 le system.
13. If you desire a faster, less restricted way of charging your Apple devices,
such as iPhone/iPad/iPod Touch, ASRock has prepared a wonderful so­lution for you - ASRock APP Charger. Simply install the APP Charger
driver, it makes your iPhone charge much quickly from your computer
and up to 40% faster than before. ASRock APP Charger allows you to quickly charge many Apple devices simultaneously and even supports
continuous charging when your PC enters into Standby mode (S1), Sus-
10
ASRock B75M-ITX Motherboard
pend to RAM (S3), hibernation mode (S4) or power off (S5). With APP
Charger driver installed, you can easily enjoy the marvelous charging experience.
ASRock website: http://www.asrock.com/Feature/AppCharger/index.asp
14. ASRock SmartView, a new function for internet browsers, is the smart start page for IE that combines your most visited web sites, your history, your Facebook friends and your real-time newsfeed into an enhanced view for a more personal Internet experience. ASRock motherboards are exclusively equipped with the ASRock SmartView utility that helps you keep in touch with friends on-the-go. To use ASRock SmartView feature, please make sure your OS version is Windows® 7 / 7 64 bit / VistaTM / VistaTM 64 bit, and your browser version is IE8.
ASRock website: http://www.asrock.com/Feature/SmartView/index.asp
15. ASRock XFast USB can boost USB storage device performance. The performance may depend on the properties of the device.
16. ASRock XFast LAN provides a faster internet access, which includes the benets listed below. LAN Application Prioritization: You can cong­ure your application’s priority ideally and/or add new programs. Lower Latency in Game: After setting online game’s priority higher, it can lower
the latency in games. Trafc Shaping: You can watch Youtube HD videos
and download simultaneously. Real-Time Analysis of Your Data: With the status window, you can easily recognize which data streams you are transferring currently.
17. ASRock XFast RAM is a new function that is included into ASRock Ex­treme Tuning Utility (AXTU). It fully utilizes the memory space that cannot be used under Windows® OS 32-bit CPU. ASRock XFast RAM shortens
the loading time of previously visited websites, making web surng faster
than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifes­pan.
18. ASRock Crashless BIOS allows users to update their BIOS without fear of failing. If power loss occurs during the BIOS update process, ASRock
Crashless BIOS will automatically nish the BIOS update procedure after regaining power. Please note that BIOS les need to be placed in the
root directory of your USB disk. Only USB2.0 ports support this feature.
19. Administrators are able to establish an internet curfew or restrict internet
access at specied times via OMG. You may choose from [Everyday], [Day of the week] or [Weekdays and weekends], then schedule the starting
and ending hours of internet access granted to other users. In order to prevent users from bypassing OMG, guest accounts without permission to modify the system time are required.
English
ASRock B75M-ITX Motherboard
11
20. ASRock Internet Flash searches for available UEFI firmware updates
from our servers. In other words, the system can auto-detect the latest
UEFI from our servers and ash them without entering Windows® OS.
Please note that you must be running on a DHCP congured computer in
order to enable this function.
21. ASRock On/Off Play Technology allows users to enjoy the great audio
experience from the portable audio devices, such like MP3 player or
mobile phone to your PC, even when the PC is turned off (or in ACPI S5
mode)! This motherboard also provides a free 3.5mm audio cable (op­tional) that ensures users the most convenient computing environment.
22. While CPU overheat is detected, the system will automatically shutdown.
Before you resume the system, please check if the CPU fan on the moth­erboard functions properly and unplug the power cord, then plug it back again. To improve heat dissipation, remember to spray thermal grease between the CPU and the heatsink when you install the PC system.
23. ASRock XFast RAM is not supported by Microsoft® Windows® XP / XP
64-bit. Intel® Smart Connect Technology and Intel® USB 3.0 ports are not supported by Microsoft® Windows® VistaTM / VistaTM 64-bit / XP / XP 64­bit.
24. EuP stands for Energy Using Product, was a provision regulated by the
European Union to define the power consumption for the completed system. According to EuP, the total AC power of the completed system should be under 1.00W in off mode condition. To meet EuP standards, an EuP ready motherboard and an EuP ready power supply are required. According to Intel’s suggestion, the EuP ready power supply must meet
the standard of 5v, and the standby power efciency should be higher
than 50% under 100 mA current consumption. For EuP ready power sup­ply selection, we recommend you to check with the power supply manu­facturer for more details.
English
12
ASRock B75M-ITX Motherboard
2. Installation
This is a Mini-ITX form factor (6.7” x 6.7”, 17.0 x 17.0 cm) motherboard. Before you
install the motherboard, study the conguration of your chassis to ensure that the motherboard ts into it.
motherboard. Failure to do so may cause physical injuries to you and damages to motherboard components.
Make sure to unplug the power cord before installing or removing the
2.1 Screw Holes
Place screws into the holes indicated by circles to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any components.
2. To avoid damaging the motherboard’s components due to static electricity, NEVER place your motherboard directly on the carpet or the like. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded anti­static pad or in the bag that comes with the component.
5. When placing screws into the screw holes to secure the mother­board to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.
Before you install or remove any component, ensure that the power is
switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, and/or components.
ASRock B75M-ITX Motherboard
English
13
2.3 CPU Installation
For the installation of Intel 1155-Pin CPU, please follow the steps below.
Load Plate
Load Lever
Before you insert the 1155-Pin CPU into the socket, please check if the CPU surface is unclean or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.
Step 1. Open the socket:
Step 1-1. Disengage the lever by pressing it
down and sliding it out of the hook.
Step 1-2. Keep the lever positioned at about
135 degrees in order to flip up the load plate.
Contac tArray
Socket Body
1155-Pin Socket Overview
English
Step 2. Remove the PnP Cap (Pick and Place Cap).
1. It is recommended to use the cap tab to handle and avoid kicking off the PnP cap.
2. This cap must be placed if returning the motherboard for after service.
14
ASRock B75M-ITX Motherboard
Step 3. Insert the 1155-Pin CPU:
Step 3-1. Hold the CPU by the edge which is
marked with a black line.
Step 3-2. Orient the CPU with the IHS (Inte-
grated Heat Sink) up. Locate Pin1 and the two orientation key notches.
orientation key notch
Pin1
orientation key notch 1155-Pin Socket
1155-Pin CPU
For proper inserting, please ensure to match the two orientation key notches of the CPU with the two alignment keys of the socket.
Step 3-3. Car efu lly place the CPU int o the
socket by using a purely vertical mo­tion.
Step 3-4. Verify that the CPU is within the sock-
et and properly mated to the orient keys.
black line
alignment key
Pin1
alignment key
Step 4. Close the socket:
Step 4-1. Flip the load plate onto the IHS. Step 4-2. Press down the load lever, and se-
cure it with the load plate tab under the retention tab.
ASRock B75M-ITX Motherboard
English
15
2.4 Installation of CPU Fan and Heatsink
Appl yT herma l Inte rface Ma teria l
Fan ca bles on si de clos est to MB he ader
Fast ener slo ts poin ting str aight o ut
Pres s Down (4 Pla ces)
This motherboard is equipped with 1155-Pin socket that supports Intel 1155-Pin CPUs. Please adopt the type of heatsink and cooling fan compliant with Intel 1155­Pin CPU to dissipate heat. Before you install the heatsink, you need to spray ther­mal interface material between the CPU and the heatsink to improve heat dissipa­tion. Ensure that the CPU and the heatsink are securely fastened and in good con­tact with each other. Then connect the CPU fan to the CPU_FAN connector (CPU_ FAN1, see page 2, No. 16).
For proper installation, please kindly refer to the instruction manuals of your CPU fan and heatsink.
Below is an example to illustrate the installation of the heatsink for 1155-Pin CPUs. Step 1. Apply thermal interface material onto the cen-
ter of the IHS on the socket’s surface.
Step 2. Place the heatsink onto the socket. Ensure
that the fan cables are oriented on side closest to the CPU fan connector on the motherboard (CPU_FAN1, see page 2, No. 16).
Step 3. Align fasteners with the motherboard through-
holes.
Step 4. Rotate the fastener clockwise, then press
down on fastener caps with thumb to install and lock. Repeat with remaining fasteners.
English
If you press down the fasteners without rotating them clockwise, the heatsink cannot be secured on the motherboard.
Step 5. Connect fan header with the CPU fan connector on the motherboard. Step 6. Secure redundant cable with tie-wrap to ensure the cable does not interfere with fan operation or contact other components.
16
ASRock B75M-ITX Motherboard
2.5 Installation of Memory Modules (DIMM)
This motherboard provides two 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel Memory Technology. For dual channel configuration, you always need to install two identical (the same brand, speed, size and chip­type) memory modules in the DDR3 DIMM slots to activate Dual Channel Memory Technology. Otherwise, it will operate at single channel mode.
1. It is not allowed to install a DDR or DDR2 memory module into DDR3 slot;otherwise, this motherboard and DIMM may be damaged.
2. If you install only one memory module or two non-identical memory modules, it is unable to activate the Dual Channel Memory Technology.
3. Some DDR3 1GB double-sided DIMMs with 16 chips may not work on this motherboard. It is not recommended to install them on this motherboard.
Installing a DIMM
Please make sure to disconnect power supply before adding or removing DIMMs or the system components.
Step 1. Unlock a DIMM slot by pressing the retaining clips outward. Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot.
not ch bre ak
not ch
bre ak
The DIMM only ts in one correct orientation. It will cause permanent
damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.
Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully snap back in place and the DIMM is properly seated.
ASRock B75M-ITX Motherboard
English
17
2.6 Expansion Slot (PCI Express Slot)
There is 1 PCI Express slot on this motherboard. PCIE slots: PCIE1 (PCIE 3.0 x16 slot) is used for PCI Express x16 lane width
graphics cards.
To run the PCI Express in Gen 3 speed, please install an Ivy Bridge
CPU. If you install a Sandy Bridge CPU, the PCI Express will run only at PCI Express Gen 2 speed.
Installing an expansion card
Step 1. Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation. Step 2. Remove the system unit cover (if your motherboard is already installed in a chassis). Step 3. Remove the bracket facing the slot that you intend to use. Keep the screws for later use.
Step 4. Align the card connector with the slot and press rmly until the card is
completely seated on the slot. Step 5. Fasten the card to the chassis with screws. Step 6. Replace the system cover.
English
18
ASRock B75M-ITX Motherboard
2.7 Dual Monitor and Surround Display Features
Dual Monitor Feature
This motherboard supports dual monitor feature. With the internal VGA output sup-
port (DVI-D, D-Sub and HDMI), you can easily enjoy the benets of dual monitor
feature without installing any add-on VGA cards to this motherboard. This mother­board also provides independent display controllers for DVI-D, D-Sub and HDMI to support dual VGA output so that DVI-D, D-sub and HDMI can drive same or different display contents. To enable dual monitor feature, please follow the steps below:
1. Connect a DVI-D monitor cable to the DVI-D port on the I/O panel, connect a D-Sub monitor cable to the D-Sub port on the I/O panel and connect a HDMI monitor cable to the HDMI port on the I/O panel.
D-Sub port
DVI-D port
2. If you have already installed the onboard VGA driver from our support CD to your
system, you can freely enjoy the benets of dual monitor function after your
system boots. If you haven’t installed the onboard VGA driver yet, please install the onboard VGA driver from our support CD to your system and restart your computer.
D-Sub, DVI-D and HDMI monitors cannot be enabled at the same time. You can only choose the combination: DVI-D + HDMI, DVI-D + D-Sub, or HDMI + D-Sub.
HDMI port
ASRock B75M-ITX Motherboard
English
19
English
Surround Display Feature
This motherboard supports surround display upgrade. With the internal VGA output support (DVI-D, D-Sub and HDMI) and external add-on PCI Express VGA cards,
you can easily enjoy the benets of surround display feature.
Please refer to the following steps to set up a surround display environment:
1. Install the PCI Express VGA cards on PCIE1 slot. Please refer to page 18 for proper expansion card installation procedures.
2. Connect a DVI-D monitor cable to the DVI-D port on the I/O panel, connect a D-Sub monitor cable to the D-Sub port on the I/O panel and connect a HDMI monitor cable to the HDMI port on the I/O panel. Then connect other monitor cables to the corresponding connectors of the add-on PCI Express VGA cards on PCIE1 slot.
3. Boot your system. Press <F2> or <Del> to enter UEFI setup. Enter “Share
Memory” option to adjust the memory capability to [32MB], [64MB], [128MB], [256MB] or [512MB] to enable the function of D-sub. Please make sure that the
value you select is less than the total capability of the system memory. If you do
not adjust the UEFI setup, the default value of “Share Memory”, [Auto], will
disable D-Sub function when an add-on VGA card is inserted to this motherboard.
4. Install the onboard VGA driver and the add-on PCI Express VGA card driver to your system. If you have installed the drivers already, there is no need to install them again.
5. Set up a multi-monitor display.
For Windows® XP / XP 64-bit OS:
Right click on desktop, choose “Properties”, and select the “Settings” tab so that you can adjust the parameters of the multi-monitors according to the steps below. A. Click the “Identify” button to display a large number on each monitor. B. Right-click the display icon in the Display Properties dialog that you wish to be your primary monitor, and then select “Primary”. When you use multiple monitors with your card, one monitor will always be Primary, and all additional monitors will be designated as Secondary.
C. Select the display icon identied by the number 2.
D. Click “Extend my Windows desktop onto this monitor”. E. Right-click the display icon and select “Attached”, if necessary. F. Set the appropriate “Screen Resolution” and “Color Quality” for the second monitor. Click “Apply” or “OK” to apply these new values.
G. Repeat steps C through E for the display icon identied by the
numbers three to four.
20
ASRock B75M-ITX Motherboard
For Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit OS:
Right click the desktop, choose “Personalize”, and select the “Display Settings” tab so that you can adjust the parameters of the multi-monitors according to the steps below. A. Click the number ”2” icon. B. Click the items “This is my main monitor” and “Extend the desktop onto this monitor”. C. Click “OK” to save your change.
D. Repeat steps A through C for the display icons identied by the number
three to four.
6. Use Surround Display. Click and drag the display icons to positions representing the physical setup of your monitors that you would like to use. The placement of display icons determines how you move items from one monitor to another.
HDCP Function HDCP function is supported on this motherboard. To use HDCP function with this motherboard, you need to adopt a monitor that supports HDCP function as well. Therefore, you can enjoy
the superior display quality with high-denition HDCP
encryption contents. Please refer to the instructions below for more details about HDCP function.
What is HDCP?
HDCP stands for High-Bandwidth Digital Content Protection, a
specication developed by Intel® for protecting digital
entertainment content that uses the DVI interface. HDCP is a copy protection scheme to eliminate the possibility of intercepting digital data midstream between the video source, or transmitter - such as a computer, DVD player or set-top box - and the digital display, or receiver - such as a monitor, television
or projector. In other words, HDCP specication is designed to
protect the integrity of content as it is being transmitted.
Products compatible with the HDCP scheme such as DVD players, satellite and cable HDTV set-top-boxes, as well as few entertainment PCs requires a secure connection to a compliant display. Due to the increase in manufacturers employing HDCP in their equipment, it is highly recommended that the HDTV or LCD monitor you purchase is compatible.
ASRock B75M-ITX Motherboard
English
21
2.8 ASRock Smart Remote Installation Guide
ASRock Smart Remote is only used for ASRock motherboards with CIR header. Please refer to below procedures for the quick installation and usage of ASRock Smart Remote.
Step1. Find the CIR header located next to the USB 2.0 header on ASRock motherboard.
USB 2.0 header (9-pin, black)
CIR header (4-pin, gray)
English
Step2. Connect the front USB cable to the USB 2.0 header (as below, pin 1-5) and the CIR header. Please make
USB_PWR
P-
P+
GND
DUMMY
sure the wire assignments and the pin assignments are matched correctly.
1
ATX+5VSB
2
IRRX
3
IRTX
4
GND
5
Step3. Install Multi-Angle CIR Receiver to the front USB port. If Multi-Angle CIR Receiver cannot successfully receive the infrared signals from MCE Remote Controller, please try to install it to the other front USB port.
3 CIR sensors in different angles
1. Only one of the front USB port can support CIR function. When the CIR function is enabled, the other port will remain USB function.
2. Multi-Angle CIR Receiver is used for front USB only. Please do not use the rear USB bracket to connect it on the rear panel. Multi-Angle CIR Receiver can receive the multi-direction infrared signals (top, down and front), which is compatible with most of the chassis on the market.
3. The Multi-Angle CIR Receiver does not support Hot-Plug function. Please install it before you boot the system.
* ASRock Smart Remote is only supported by some of ASRock's motherboards. Please refer to ASRock's website for the motherboard support list: http://www.asrock.com
22
ASRock B75M-ITX Motherboard
2.9 Jumpers Setup
The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short” when jumper cap is placed on these 2 pins.
Jumper Setting Description
Clear CMOS Jumper
(CLRCMOS1) (see p.2, No. 18)
Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot up the system rst, and then shut it down before you do the clear-CMOS ac­tion. Please be noted that the password, date, time, user default prole, 1394
GUID and MAC address will be cleared only if the CMOS battery is removed.
Clear CMOSDefault
ASRock B75M-ITX Motherboard
English
23
2.10 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard!
English

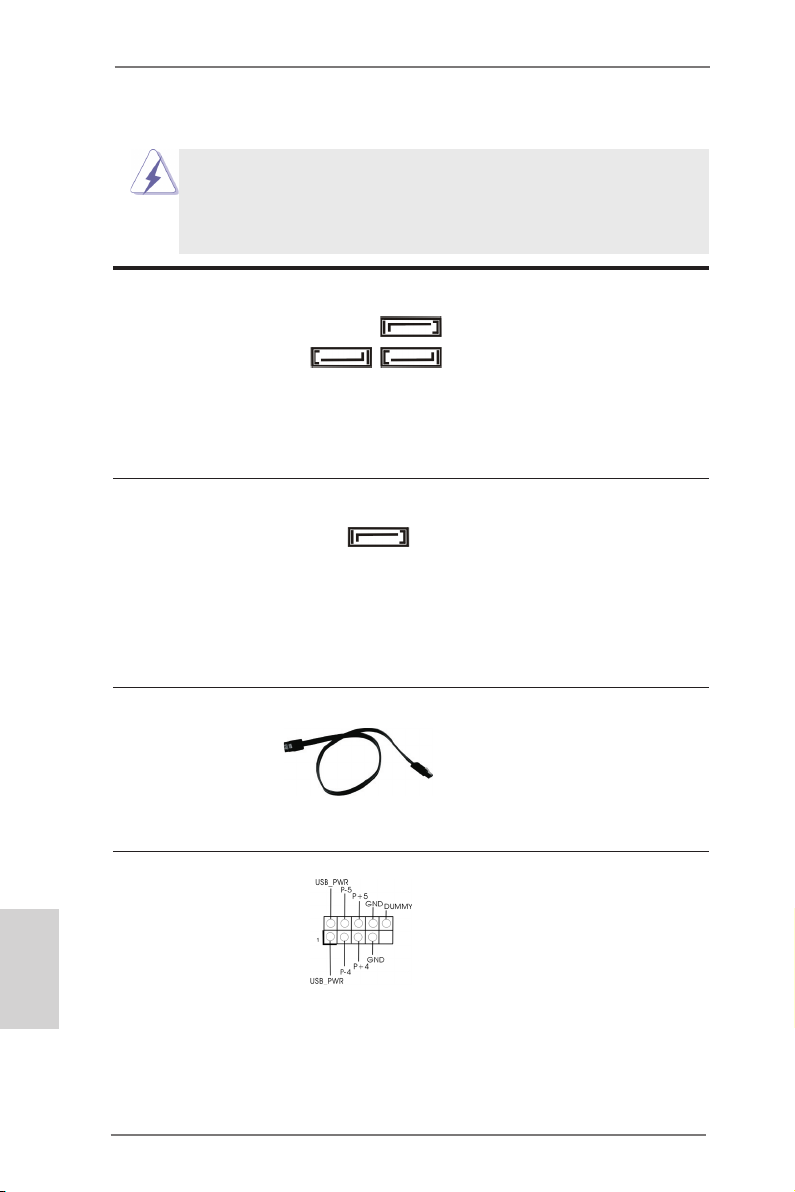

Serial ATA2 Connectors These three Serial ATA2
(SATA_1: see p.2, No. 2)
(SATA_2: see p.2, No. 4)
(SATA_3: see p.2, No. 5)
SATA2 interface allows up to
(SATA2) connectors support SATA data cables for internal storage devices. The current
SATA_1 SATA_3
SATA_2
3.0 Gb/s data transfer rate.
Serial ATA3 Connector This Serial ATA3 (SATA3)
(SATA_0: see p.2, No. 3)
connector supports SATA data
SATA_0
cables for internal storage devices. The current SATA3 interface allows up to 6.0 Gb/s data transfer rate.
Serial ATA (SATA) Either end of the SATA data Data Cable cable can be connected to the
(Optional)
SATA / SATA2 / SATA3 hard disk or the SATA2 / SATA3 connector on this motherboard.
USB 2.0 Headers Besides four default USB 2.0
(9-pin USB4_5)
(see p.2, No. 7)
ports on the I/O panel, there is
one USB 2.0 header on this motherboard. This USB 2.0 header can support two USB 2.0 ports.
24
ASRock B75M-ITX Motherboard
USB 3.0 Header Besides two default USB 3.0
1
Int A_P1_ D+
Int A_P1_ D-
GND
Int A_P1_ SSTX +
Int A_P1_ SSTX -
GND
Int A_P1_ SSRX +
Int A_P1_ SSRX -
Vbu s
Int A_P0_ D+
Int A_P0_ D-
GND
Int A_P0_ SSTX +
Int A_P0_ SSTX -
GND
Int A_P0_ SSRX +
Int A_P0_ SSRX -
Vbu s
(19-pin USB3_3_4)
(see p.2, No. 12)
ports on the I/O panel, there is
one USB 3.0 header on this motherboard. This USB 3.0 header can support two USB 3.0 ports.
Consumer Infrared Module Header This header can be used to
(4-pin CIR1)
(see p.2 No. 10)
connect the remote
controller receiver.

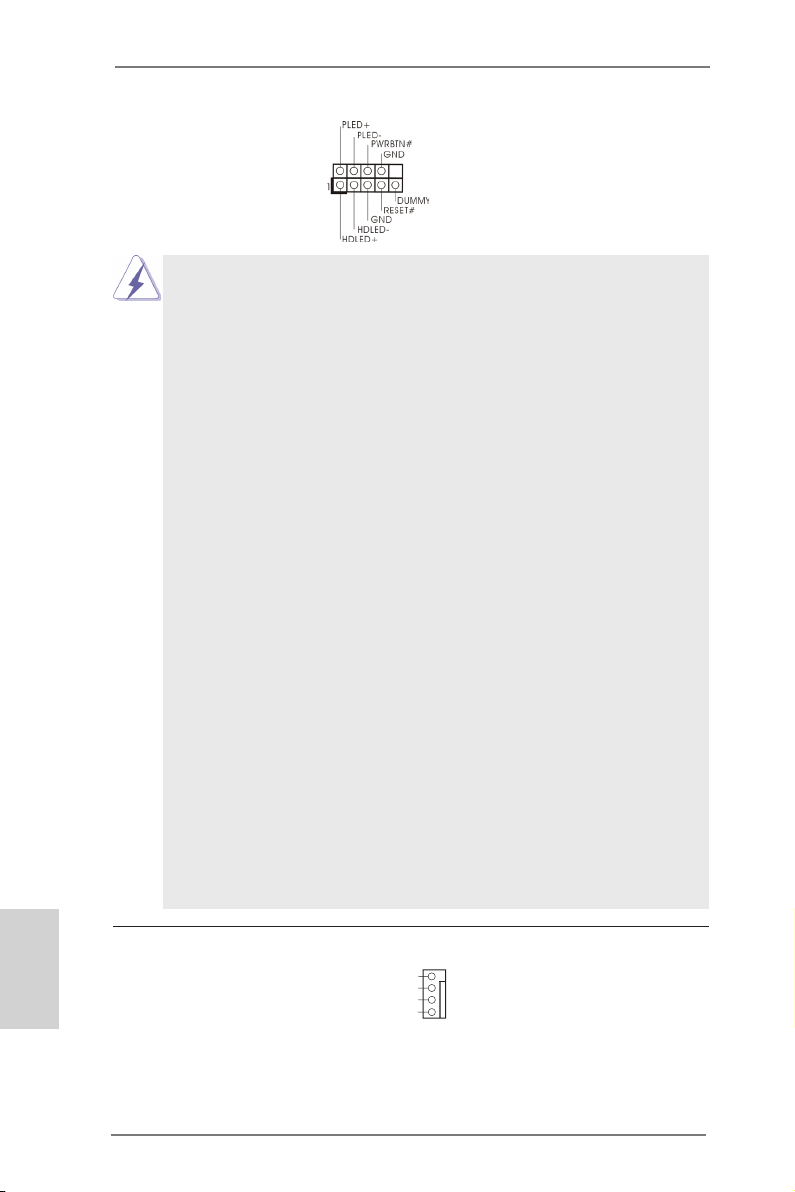

Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1)
(see p.2, No. 15)
panel audio cable that allows
convenient connection and control of audio devices.
1
GND
PRE SENC E#
MIC 2_R
MIC 2_L
MIC _RET
J_S ENSE
OUT 2_R
OUT _RET
OUT 2_L
1. High Denition Audio supports Jack Sensing, but the panel wire on the
chassis must support HDA to function correctly. Please follow the instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio header as below: A. Connect Mic_IN (MIC) to MIC2_L. B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L. C. Connect Ground (GND) to Ground (GND). D. MIC_RET and OUT_RET are for HD audio panel only. You don’t need to connect them for AC’97 audio panel. E. To activate the front mic. For Windows® XP / XP 64-bit OS: Select “Mixer”. Select “Recorder”. Then click “FrontMic”.
For Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit OS: Go to the “FrontMic” Tab in the Realtek Control panel. Adjust “Recording Volume”.
ASRock B75M-ITX Motherboard
English
25

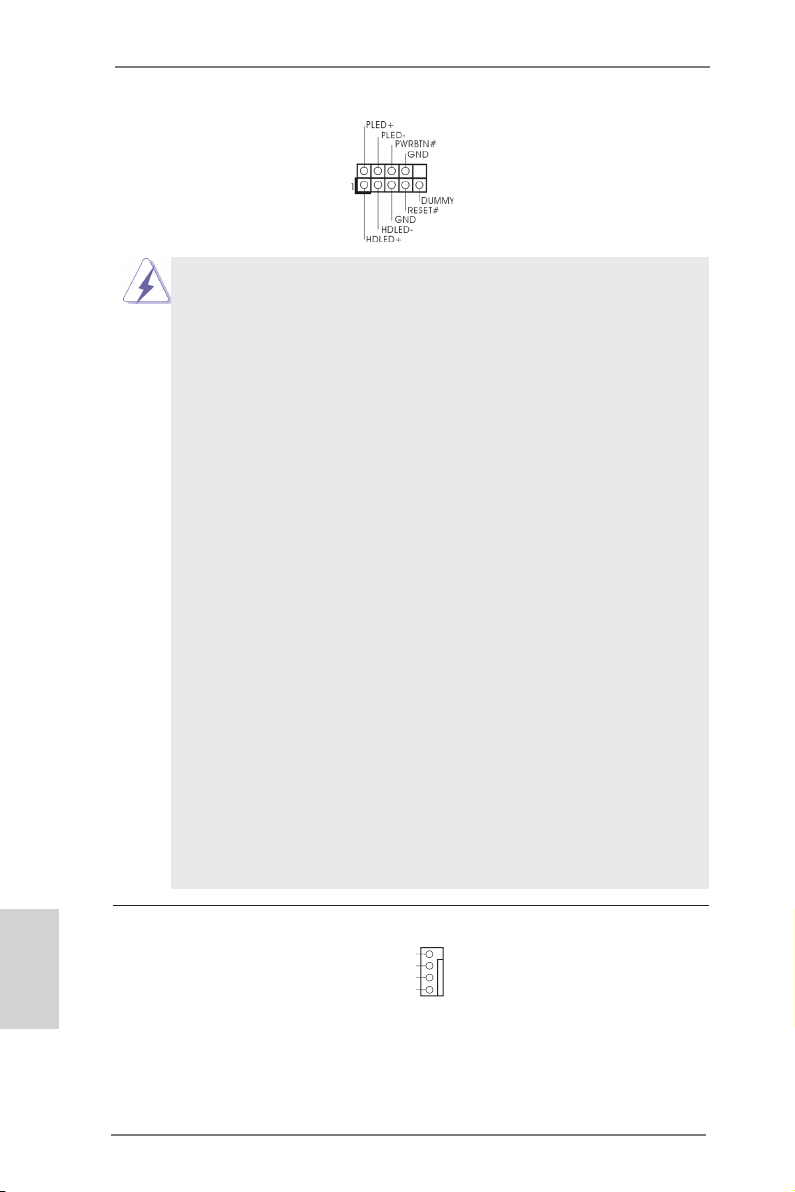

System Panel Header This header accommodates
(9-pin PANEL1)
(see p.2, No. 8)
several system front panel
functions.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn off your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a normal restart.
PLED (System Power LED): Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys­tem is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).
HDLED (Hard Drive Activity LED): Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assign-ments are matched correctly.
English

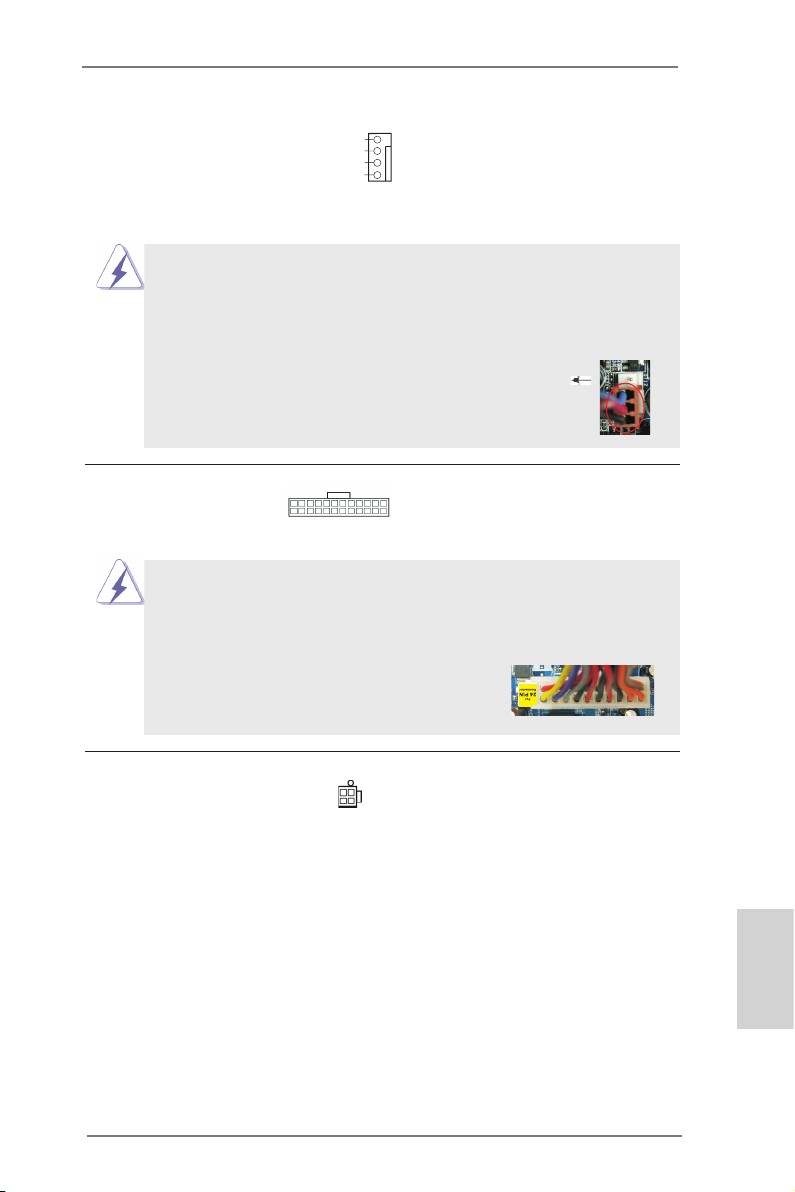

Chassis Fan Connector Please connect the chassis fan
(4-pin CHA_FAN1)
(see p.2, No. 17)
cable to the connector and
match the black wire to the
FAN _SPE ED_C ONTR OL
CHA _FAN _SPE ED
+12 V
GND
ground pin.
CPU Fan Connectors Please connect the CPU fan
(4-pin CPU_FAN1)
(see p.2, No. 16)
cable to the connector and
match the black wire to the
FAN_ SPEE D_CO NTRO L
CPU _FAN_ SPEE D
+12 V
GND
4 3 2 1
ground pin.
26
ASRock B75M-ITX Motherboard
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin CPU fan still can work successfully even without the fan speed control function. If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this motherboard, please connect it to Pin 1-3.
Pin 1-3 Connected
3-Pin Fan Installation
ATX Power Connector Please connect an ATX power
(24-pin ATXPWR1)
(see p.2, No. 9)
supply to this connector.
24 13
12 1
Though this motherboard provides 24-pin ATX power connector, it can still work if you adopt a traditional 20-pin ATX power supply. To use the 20-pin ATX power supply, please plug your power supply along with Pin 1 and Pin 13.
24 13
20-Pin ATX Power Supply Installation
12 1
ATX 12V Power Connector Please connect an ATX 12V
(4-pin ATX12V1)
(see p.2, No. 19)
power supply to this connector.
ASRock B75M-ITX Motherboard
English
27
2.11 Driver Installation Guide
To install the drivers to your system, please insert the support CD to your optical
drive rst. Then, the drivers compatible to your system can be auto-detected and
listed on the support CD driver page. Please follow the order from up to bottom side to install those required drivers. Therefore, the drivers you install can work properly.
2.12 Installing Windows® 7 / 7 64-bit / Vista
TM
/ Vista
TM
64-bit / XP /
XP 64-bit Without RAID Functions
If you want to install Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP / XP 64­bit OS on your SATA / SATA2 / SATA3 HDDs without RAID functions, please follow below procedures according to the OS you install.
2.12.1 Installing Windows® XP / XP 64-bit Without RAID Functions
If you want to install Windows® XP / XP 64-bit OS on your SATA / SATA2 / SATA3 HDDs without RAID functions, please follow below steps.
AHCI mode is not supported under Windows® XP / XP 64-bit.
Using SATA / SATA2 / SATA3 HDDs without NCQ function
STEP 1: Set Up UEFI.
A. Enter UEFI SETUP UTILITY Advanced screen Storage Conguration. B. Set the option “SATA Mode Selection” to [IDE].
STEP 2: Install Windows® XP / XP 64-bit OS on your system.
English
28
ASRock B75M-ITX Motherboard
2.12.2 Installing Windows® 7 / 7 64-bit / Vista
TM
/ Vista
TM
64-bit
Without RAID Functions
If you want to install Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit OS on your SATA / SATA2 / SATA3 HDDs without RAID functions, please follow below steps.
Using SATA / SATA2 / SATA3 HDDs without NCQ function
STEP 1: Set Up UEFI.
A. Enter UEFI SETUP UTILITY Advanced screen Storage Conguration. B. Set the option “SATA Mode Selection” to [IDE].
STEP 2: Install Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit OS on your system.
Using SATA / SATA2 / SATA3 HDDs with NCQ function
STEP 1: Set Up UEFI.
A. Enter UEFI SETUP UTILITY Advanced screen Storage Conguration. B. Set the option “SATA Mode Selection” to [AHCI].
STEP 2: Install Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit OS on your system.
ASRock B75M-ITX Motherboard
English
29
3. BIOS Information
The Flash Memory on the motherboard stores BIOS Setup Utility. When you start up the computer, please press <F2> or <Del> during the Power-On-Self-Test (POST) to enter BIOS Setup utility; otherwise, POST continues with its test routines. If you wish to enter BIOS Setup after POST, please restart the system by pressing <Ctl> + <Alt> + <Delete>, or pressing the reset button on the system chassis. The BIOS Setup program is designed to be user-friendly. It is a menu-driven program, which allows you to scroll through its various sub-menus and to select among the prede­termined choices. For the detailed information about BIOS Setup, please refer to the
User Manual (PDF le) contained in the Support CD.
4. Software Support CD information
®
This motherboard supports various Microsoft 64-bit / VistaTM / Vista motherboard contains necessary drivers and useful utilities that will enhance moth­erboard features. To begin using the Support CD, insert the CD into your CD-ROM drive. It will display the Main Menu automatically if “AUTORUN” is enabled in your computer. If the Main Menu does not appear automatically, locate and double-click
on the le “ASSETUP.EXE” from the BIN folder in the Support CD to display the
menus.
TM
64-bit / XP / XP 64-bit. The Support CD that came with the
Windows® operating systems: 7 / 7
English
30
ASRock B75M-ITX Motherboard
1. Einführung
Wir danken Ihnen für den Kauf des ASRock B75M-ITX Motherboard, ein zuver­lässiges Produkt, welches unter den ständigen, strengen Qualitätskontrollen von ASRock gefertigt wurde. Es bietet Ihnen exzellente Leistung und robustes Design, gemäß der Verpflichtung von ASRock zu Qualität und Halbarkeit. Diese Schnel­linstallationsanleitung führt in das Motherboard und die schrittweise Installation
ein. Details über das Motherboard nden Sie in der Bedienungsanleitung auf der
Support-CD.
Da sich Motherboard-Spezikationen und BIOS-Software verändern können,
kann der Inhalt dieses Handbuches ebenfalls jederzeit geändert werden. Für den Fall, dass sich Änderungen an diesem Handbuch ergeben, wird eine neue Version auf der ASRock-Website, ohne weitere Ankündigung, verfügbar sein.
Die neuesten Grakkarten und unterstützten CPUs sind auch auf der ASRock-
Website aufgelistet. ASRock-Website: http://www.asrock.com Wenn Sie technische Unterstützung zu Ihrem Motherboard oder spezische
Informationen zu Ihrem Modell benötigen, besuchen Sie bitte unsere Webseite:
www.asrock.com/support/index.asp
1.1 Kartoninhalt
ASRock B75M-ITX Motherboard (Mini-ITX-Formfaktor: 17.0 cm x 17.0 cm; 6.7 Zoll x 6.7 Zoll) ASRock B75M-ITX Schnellinstallationsanleitung ASRock B75M-ITX Support-CD Zwei Serial ATA (SATA) -Datenkabel (optional) Ein I/O Shield
ASRock erinnert...
Zur besseren Leistung unter Windows® 7 / 7, 64 Bit / Vista
64 Bit empfehlen wir, die Speicherkonguration im BIOS auf den AHCI­Modus einzustellen. Hinweise zu den BIOS-Einstellungen nden Sie in
der Bedienungsanleitung auf der mitgelieferten CD.
TM
/ VistaTM
ASRock B75M-ITX Motherboard
Deutsch
31
Deutsch
32
1.2 Spezifikationen
Plattform - Mini-ITX-Formfaktor: 17.0 cm x 17.0 cm; 6.7 Zoll x 6.7 Zoll
- Alle Feste Kondensatordesign (100 % hochwertige japanische Fertigung leitfähiger Polymerkondensatoren) CPU - Unterstützt Intel® CoreTM i7- / i5- / i3-Prozessoren der 3ten und 2ten Generation im LGA1155-Package
- Digi Power-Design
- 4 + 2-Stromphasendesign
- Unterstützt Intel® Turbo Boost 2.0-Technologie
- Unterstützt freigegebene CPU der K-Serie (siehe VORSICHT 1)
- Unterstützt Hyper-Threading-Technologie (siehe VORSICHT 2)
- Unterstützt Intel® Rapid Start Technology und Smart Connect Technology mit Intel® Ivy Bridge-Prozessor Chipsatz - Intel® B75
- Unterstützt Intel® Small Business Advantage (siehe VORSICHT 3) Speicher - Dual-Kanal DDR3 Speichertechnologie (siehe VORSICHT 4)
- 2 x Steckplätze für DDR3
- Unterstützt DDR3 1600/1333/1066 non-ECC, ungepufferter Speicher (DDR3 1600 mit Intel® Ivy Bridge-Prozessor, DDR3 1333 mit Intel® Sandy Bridge-Prozessor)
- Max. Kapazität des Systemspeichers: 16GB (siehe VORSICHT 5)
- Unterstützt Intel® Extreme Memory Prole (XMP)1.3/1.2 Erweiterungs- - 1 x PCI Express 3.0 x16-Steckplätze (PCIE1: x16-Modus) steckplätze (siehe VORSICHT 6) * PCIE 3.0 wird nur mit Intel® Ivy Bridge-Prozessor unterstützt. Mit Intel® Sandy Bridge-Prozessor wird nur PCIE 2.0 unterstützt. Onboard-VGA * Integrierte Intel® HD-Grakdarstellungen und die VGA-
Ausgänge können nur durch GPU-integrierte Prozessoren
unterstützt werden.
- Unterstützt hochauösende integrierte Intel®-Graklösungen:
Intel® Quick-Sync-Video 2.0, Intel® InTruTM 3D, Intel® Clear­ Video-Technik (HD), Intel® InsiderTM, Intel® HD Graphics 2500/4000
- Pixel Shader 5.0, DirectX 11 mit Intel® Ivy Bridge-Prozessor, Pixel Shader 4.1, DirectX 10.1 mit Intel® Sandy Bridge­ Prozessor
ASRock B75M-ITX Motherboard
- Maximal gemeinsam genutzter Speicher 1760MB
(siehe VORSICHT 7)
- Drei VGA-Ausgangsoptionen: D-Sub, DVI-D sowie HDMI (siehe VORSICHT 8)
- Unterstützt HDMI 1.4a mit einer maximalen Auösung von
1920 x 1200 bei 60 Hz
- Unterstützt DVI mit einer maximalen Auösung von 1920 x
1200 bei 60 Hz
- Unterstützt D-Sub mit einer maximalen Auösung von 2048
x 1536 bei 75 Hz
- Unterstützt Auto Lip Sync, Deep Color (12bpc), xvYCC und HBR (High Bit Rate-Audio) mit HDMI (kompatibler HDMI­ Bildschirm erforderlich) (siehe VORSICHT 9)
- Unterstützt HDCP-Funktion mit DVI- und HDMI-Ports
- Unterstutzt 1080p Blu-ray (BD) / HD-DVD-Wiedergabe mit DVI- und HDMI-Ports Audio - 7.1 CH HD Audio mit dem Inhalt Schutz (Realtek ALC892 Audio Codec)
- Premium Blu-ray-Audio-Unterstützung LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Unterstützt Wake-On-LAN
- Unterstützt LAN-Kabelerkennung
- Unterstützt energieefzientes Ethernet 802.3az
- Unterstützt PXE
E/A-Anschlüsse I/O Panel an der Rückseite - 1 x PS/2-Tastaturanschluss
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x HDMI port
- 1 x optischer SPDIF-Ausgang
- 4 x Standard-USB 2.0-Anschlüsse
- 1 x eSATA2-Anschluss
- 2 x Standard-USB 3.0-Anschlüsse
- 1 x RJ-45 LAN Port mit LED (ACT/LINK LED und SPEED LED)
- HD Audiobuchse: Lautsprecher hinten / Mitte / Bass / Audioeingang / Lautsprecher vorne / Mikrofon (siehe VORSICHT 10) SATA3 - 1 x SATA 3-Anschlüsse (6,0 Gb/s); unterstützt NCQ-, AHCI­ und Hot Plug Funktionen
Deutsch
ASRock B75M-ITX Motherboard
33
Deutsch
USB3.0 - 2 x USB 3.0-Ports an der Rückseite, unterstützt USB
1.0/2.0/3.0 mit bis zu 5 Gb/s
- 1 x USB 3.0-Header (unterstützt zwei USB 3.0-Ports) an der Vorderseite, unterstützt USB 1.0/2.0/3.0 mit bis zu 5 Gb/s Anschlüsse - 3 x SATA2 3,0 GB/s-Anschlüsse, unterstützen NCQ-, AHCI- und Hot Plug Funktionen
- 1 x SATA3 6,0 GB/s-Anschlüsse
- 1 x Consumer Infrared-Modul-Header
- CPU/Gehäuse lüfter-Anschluss
- 24-pin ATX-Netz-Header
- 4-pin anschluss für 12V-ATX-Netzteil
- Anschluss für Audio auf der Gehäusevorderseite
- 1 x USB 2.0-Anschlüsse (Unterstützung 2 zusätzlicher USB 2.0-Anschlüsse)
- 1 x USB 3.0-Anschlüsse (Unterstützung 2 zusätzlicher USB 3.0-Anschlüsse) BIOS - 64Mb AMIs Legal BIOS UEFI mit GUI-Unterstützung
- Unterstützung für “Plug and Play”
- ACPI 1.1-Weckfunktionen
- JumperFree-Modus
- SMBIOS 2.3.1
- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Stromspannung Multianpassung CD d’assistance - Treiber, Dienstprogramme, Antivirussoftware (Probeversion), CyberLink MediaEspresso 6.5-Testversion, ASRock MAGIX-Multimedia-Suite - OEM Einzigartige - ASRock Extreme Tuning Utility (AXTU) Eigenschaft (siehe VORSICHT 11)
- ASRock Sofortstart
- ASRock Instant Flash (siehe VORSICHT 12)
- ASRock APP Charger (siehe VORSICHT 13)
- ASRock SmartView (siehe VORSICHT 14)
- ASRock XFast USB (siehe VORSICHT 15)
- ASRock XFast LAN (siehe VORSICHT 16)
- ASRock XFast RAM (siehe VORSICHT 17)
- ASRock Crashless BIOS (siehe VORSICHT 18)
- ASRock OMG (Online Management Guard) (siehe VORSICHT 19)
- ASRock Internet Flash (siehe VORSICHT 20)
- ASRock ein/aus-Wiedergabetechnologie (siehe VORSICHT 21)
34
ASRock B75M-ITX Motherboard
- Hybrid Booster:
- ASRock U-COP (siehe VORSICHT 22)
- Boot Failure Guard (B.F.G. – Systemstartfehlerschutz)
- Gute Nacht-LED Hardware Monitor - Überwachung der CPU-Temperatur
- Motherboardtemperaturerkennung
- Drehzahlmessung für CPU lüfter
- Drehzahlmessung für Gehäuse lüfter
- Geräuscharmer CPU-/Gehäuselüfter (ermöglicht die au
tomatische Anpassung der Gehäuselüftergeschwindigkeit durch CPU-Temperatur)
- Mehrstuge Geschwindigkeitssteuerung für CPU/Gehäuse lüfter
- Spannungsüberwachung: +12V, +5V, +3.3V, Vcore
®
Betriebssysteme - Unterstützt Microsoft Vista
TM
64-Bit / XP / XP 64-Bit (siehe VORSICHT 23)
Windows® 7 / 7 64-Bit / VistaTM /
Zertizierungen - FCC, CE, WHQL
- Gemäß Ökodesign-Richtlinie (ErP/EuP) (Stromversorgung gemäß Ökodesign-Richtlinie (ErP/EuP) erforderlich) (siehe VORSICHT 24)
* Für die ausführliche Produktinformation, besuchen Sie bitte unsere Website: http://www.asrock.com
WARNUNG
Beachten Sie bitte, dass Overclocking, einschließlich der Einstellung im BIOS, Anwenden der Untied Overclocking-Technologie oder Verwenden von Overclocking­ Werkzeugen von Dritten, mit einem gewissen Risiko behaftet ist. Overclocking kann sich nachteilig auf die Stabilität Ihres Systems auswirken oder sogar Komponenten und Geräte Ihres Systems beschädigen. Es geschieht dann auf eigene Gefahr und
auf Ihre Kosten. Wir übernehmen keine Verantwortung für mögliche Schäden, die
aufgrund von Overclocking verursacht wurden.
VORSICHT!
1. Übertaktung wird aufgrund von Chipsatzbeschränkungen nicht unter­stützt.
2. Die Einstellung der “Hyper-Threading Technology”, nden Sie auf Seite
43 des auf der Support-CD enthaltenen Benutzerhandbuches beschrie­ben.
3. Intel® Small Business Advantage ist eine in die IT-Werkzeuge integrierte, anpassbare Plattform, die maximale Produktivität, PC-Leistung und Da­tensicherheit unterstützt. Hier stehen Ihnen Anwendungen wie Software Monitor, PC Health Center, Data Backup & Restore, Energy Saver und USB Blocker.
ASRock B75M-ITX Motherboard
Deutsch
35
Deutsch
4. Dieses Motherboard unterstützt Dual-Kanal-Speichertechnologie. Vor
Implementierung der Dual-Kanal-Speichertechnologie müssen Sie die In­stallationsanleitung für die Speichermodule auf Seite 17 zwecks richtiger Installation gelesen haben.
5. Durch Betriebssystem-Einschränkungen kann die tatsächliche Speicher-
größe weniger als 4 GB betragen, da unter Windows® 7 / Vista™ / XP
etwas Speicher zur Nutzung durch das System reserviert wird. Unter Windows® OS mit 64-Bit-CPU besteht diese Einschränkung nicht. Sie
können ASRock XFast RAM zur Nutzung des Speichers, den Windows®
nicht verwenden kann, einsetzen.
6. Damit Sie PCI Express mit der Geschwindigkeit der 3ten Generation nut-Damit Sie PCI Express mit der Geschwindigkeit der 3ten Generation nut-
zen können, müssen Sie einen Ivy Bridge-Prozessor installieren. Wenn
Sie einen Sandy Bridge-Prozessor installieren, läuft PCI Express nur bei der Geschwindigkeit der 2ten Generation.
7. Die Maximalspeichergröße ist von den Chipshändler deniert und umge-
tauscht. Bitte überprüfen Sie Intel® website für die neuliche Information.
8. Sie können nur die Nutzung von zwei von drei Bildschirmen auswählen.
Die D-Sub-, DVI-D- und HDMI-Bildschirme können nicht gleichzeitig
aktiviert werden. Zudem kann der DVI-D-Port mit DVI-zu-HDMI-Adapter dieselben Funktionen wie der HDMI-Port unterstützen.
9. xvYCC und Deep Color werden nur unter Windows® 7 64-Bit / 7 unter-
stützt. Der Deep Color-Modus wird nur aktiviert, wenn der Bildschirm 12bpc in EDID unterstützt. HBR wird unter Windows® 7 64 Bit / 7 / VistaTM 64 Bit / VistaTM unterstützt.
10. Der Mikrofoneingang dieses Motherboards unterstützt Stereo- und Mono-
Modi. Der Audioausgang dieses Motherboards unterstützt 2-Kanal-, 4-Kanal-, 6-Kanal- und 8-Kanal-Modi. Stellen Sie die richtige Verbindung anhand der Tabelle auf Seite 3 her.
11. ASRock Extreme Tuning Utility (AXTU) ist ein Alles-in-einem-
Werkzeug zur Feineinstellung verschiedener Systemfunktionen an einer benutzerfreundlichen Schnittstelle; diese beinhaltet Hardware­Überwachung, Lüftersteuerung, Übertaktung, OC DNA und IES. Über die
Hardware-Überwachung können Sie die Hauptsystemdaten einsehen.
Die Lüftersteuerung zeigt Ihnen zur Anpassung Lüftergeschwindigkeit
und Temperatur an. Bei der Übertaktung können Sie die CPU-Frequenz
zur Erzielung optimaler Systemleistung übertakten. OC DNA ermöglicht
Ihnen die Speicherung Ihrer OC-Einstellungen als Prol, welches Sie mit Freunden teilen können. Ihre Freunde können das OC-Prol dann
in ihrem System laden und so die gleichen OC-Einstellungen erzielen. Per IES (Intelligent Energy Saver) kann der Spannungsregulator bei Inaktivität der CPU-Kerne die Anzahl an Ausgangsphasen zur Steigerung
der Efzienz reduzieren – ohne die Rechenleistung zu beeinträchtigen.
Hinweise zur Bedienung der ASRock Extreme Tuning Utility (AXTU)
nden Sie auf unserer Webseite.
ASRock-Webseite: http://www.asrock.com
36
ASRock B75M-ITX Motherboard
12. ASRock Instant Flash ist ein im Flash-ROM eingebettetes BIOS-Flash­Programm. Mithilfe dieses praktischen BIOS-Aktualisierungswerkzeugs können Sie das System-BIOS aktualisieren, ohne dafür zuerst Betriebs­systeme wie MS-DOS oder Windows® aufrufen zu müssen. Mit diesem Programm bekommen Sie durch Drücken der <F6>-Taste während des POST-Vorgangs oder durch Drücken der <F2>-Taste im BIOS-Setup­Menü Zugang zu ASRock Instant Flash. Sie brauchen dieses Werkzeug
einfach nur zu starten und die neue BIOS-Datei auf Ihrem USB-Flash-
Laufwerk, Diskettenlaufwerk oder der Festplatte zu speichern, und schon
können Sie Ihr BIOS mit nur wenigen Klickvorgängen ohne Bereitstellung
einer zusätzlichen Diskette oder eines anderen komplizierten Flash-Pro-
gramms aktualisieren. Achten Sie darauf, dass das USB-Flash-Laufwerk oder die Festplatte das Dateisystem FAT32/16/12 benutzen muss.
13. Wenn Sie nach einer schnelleren, weniger eingeschränkten Möglich­keit zur Auadung Ihrer Apple-Geräte (z. B. iPhone/iPad/iPod touch) suchen, bietet ASRock Ihnen eine wunderbare Lösung – den ASRock
APP Charger. Installieren Sie einfach den ASRock APP Charger-Treiber; dadurch lädt sich Ihr iPhone wesentlich schneller über einen Computer­auf – genaugenommen bis zu 40 % schneller als zuvor. Der ASRock APP
Charger ermöglicht Ihnen die schnelle Auadung mehrerer Apple-Geräte
gleichzeitig; der Ladevorgang wird sogar dann fortgesetzt, wenn der PC den Ruhezustand (S1), Suspend to RAM-Modus (S3) oder Tiefschlafmo­dus (S4) aufruft oder ausgeschaltet wird (S5). Nach der Installation des
APP Charger-Treibers können Sie im Handumdrehen das großartigste
Ladeerlebnis überhaupt genießen. ASRock-Webseite: http://www.asrock. com/Feature/AppCharger/index.asp
14. SmartView, eine neue Internetbrowserfunktion, ist eine intelligente IE­Startseite, die meist besuchte Internetseiten, Ihren Browserverlauf, Facebook-Freunde und Nachrichten in Echtzeit miteinander kombiniert: In einer speziellen Ansicht, die das Internet noch angenehmer und aufre­gender macht. ASRock-Motherboards werden exklusiv mit der Smart­View-Software geliefert, die auch dafür sorgt, dass Sie immer mit Ihren
Freunden in Verbindung bleiben. Die SmartView-Funktionen können Sie
mit den Windows®-Betriebssystemen 7 / 7, 64 Bit / VistaTM / VistaTM 64 Bit und dem Internet Explorer ab Version 8 nutzen.
ASRock-Website: http://www.asrock.com/Feature/SmartView/index.asp
15. ASRocks XFast USB dient der Steigerung der Leistungsfähigkeit Ihrer USB-Speichergeräte. Die Leistung kann je nach Eigenschaften des Gerätes variieren.
16. ASRock XFast LAN bietet einen schnelleren Internetzugang mit den nachfolgenden Vorteilen. LAN-Anwendungspriorisierung: Hiermit kon-
gurieren Sie auf ideale Weise Ihre Anwendungspriorität und/oder fügen
neue Programme hinzu. Niedrigere Latenzzeit bei Spielen: Nach Einstel
lung einer höheren Online-Gamepriorität kann hiermit die Latenzzeit bei Spielen herabgesetzt werden. Datenverkehrsgestaltung: Sie können
Youtube-Videos in HD anzeigen und gleichzeitig Dateien herunterladen.
Deutsch
ASRock B75M-ITX Motherboard
37
Deutsch
Echtzeitanalyse Ihrer Daten: Über das Statusfenster können Sie schnell
ermitteln, welche Datenströme zur Zeit übertragen werden.
17. ASRock XFast RAM ist eine neue Funktion, die beim ASRock Extreme
Tuning Utility (AXTU) integriert ist. Sie ermöglicht die vollständige Nut­zung des Speicherplatzes, der unter Windows®-Betriebssystemen mit 32-Bit-CPU nicht verwendet werden kann. ASRock XFast RAM verkürzt die Ladezeit zuvor besuchter Webseiten, was das Surfen im Internet mehr denn je beschleunigt. Auch die Arbeit mit Adobe Photoshop erfolgt
fünfmal schneller. Ein weiterer Vorteil von ASRock XFast RAM liegt in der
Reduzierung der Häugkeit des Zugriffs auf SSDs bzw. HDDs zur Verlän
gerung deren Lebenszeit.
18. ASRock Crashless BIOS ermöglicht Benutzern die Aktualisierung ihres
BIOS, ohne dass diese Fehler fürchten müssen. Falls während der BIOS­Aktualisierung ein Stromausfall auftritt, setzt ASRock Crashless BIOS die BIOS-Aktualisierung automatisch fort, sobald die Stromversorgung wiederhergestellt ist. Bitte beachten Sie, dass alle BIOS-Dateien zuerst im Stammverzeichnis Ihres USB-Datenträgers platziert werden müssen. Diese Funktion wird nur von USB 2.0-Ports unterstützt.
19. Mit OMG können Administratoren den Internetzugriff zu bestimmten
Zeiten sperren oder einschränken. Sie kön nen zwischen [Täglich], [Wochentag] und [Wochentage und Wochenende] auswählen, dann
legen Sie die Anfangs- und Endzeiten fest, zu denen anderen Nutzern der Internetzugang gewährt werden soll. Damit OMG nicht von Nutzern umgangen werden kann, dürfen Gästekonten keine Rechte zur Änderung der Systemzeit eingeräumt werden.
20. Die Internet Flash sucht nach verfügbaren UEFI-Aktualisierungen auf
unseren Servern. Mit anderen Worten: Das System erkennt aktuellste UEFI-Firmware auf unseren Servern automatisch und aktualisiert die Geräte-Firmware ohne Zutun von Windows. Bitte beachten Sie, dass
diese Funktion nur mit DHCP-kongurierten Computern möglich ist.
21. Durch die ASRock ein/aus-Wiedergabetechnologie können Sie großar-
tige Klangerlebnisse von portablen Audiogeräten, wie z. B. MP3-Playern oder Mobiltelefonen, an Ihrem PC genießen – selbst wenn der PC ausge-
schaltet ist (oder sich im ACPI S5-Modus bendet)! Dieses Motherboard
wird zudem mit einem kostenlosen Audiokabel (3,5 mm, Klinke) (optional)
geliefert, was eine IT-Umgebung von höchster Benutzerfreundlichkeit
gewährleistet.
22. Wird eine Überhitzung der CPU registriert, führt das System einen au-
tomatischen Shutdown durch. Bevor Sie das System neu starten, prüfen Sie bitte, ob der CPU-Lüfter am Motherboard richtig funktioniert, und stecken Sie bitte den Stromkabelstecker aus und dann wieder ein. Um
die Wärmeableitung zu verbessern, bitte nicht vergessen, etwas Wärmel-
eitpaste zwischen CPU und Kühlkörper zu sprühen.
23. ASRock XFast RAM wird von Microsoft® Windows® XP / XP 64 Bit nicht
unterstützt. Intel® Smart Connect-Technologie und Intel® USB 3.0-Ports wird von Microsoft® Windows® VistaTM / VistaTM 64 Bit / XP / XP 64 Bit nicht unterstützt.
38
ASRock B75M-ITX Motherboard
24. EuP steht für Energy Using Product und kennzeichnet die Ökodesign-Richt­linie, die von der Europäischen Gemeinschaft zur Festlegung des Ener­gieverbrauchs von vollständigen Systemen in Kraft gesetzt wurde. Gemäß dieser Ökodesign-Richtlinie (EuP) muss der gesamte Netzstromverbrauch von vollständigen Systemen unter 1,00 Watt liegen, wenn sie ausgeschal­tet sind. Um dem EuP-Standard zu entsprechen, sind ein EuP-fähiges Motherboard und eine EuP-fähige Stromversorgung erforderlich. Gemäß einer Empfehlung von Intel muss eine EuP-fähige Stromversorgung dem Standard entsprechen, was bedeutet, dass bei einem Stromverbrauch von
100 mA die 5-Volt-Standby-Energieefzienz höher als 50% sein sollte. Für
die Wahl einer EuP-fähigen Stromversorgung empfehlen wir Ihnen, weitere Details beim Hersteller der Stromversorgung abzufragen.
1.3 Einstellung der Jumper
Die Abbildung verdeutlicht, wie Jumper gesetzt werden. Werden Pins durch Jumperkappen verdeckt, ist der Jumper “Gebrückt”. Werden keine Pins durch Jumperkappen verdeckt, ist der Jumper “Offen”. Die Abbildung zeigt einen 3-Pin Jumper dessen Pin1 und Pin2 “Ge-
brückt” sind, bzw. es bendet sich eine
Jumper-Kappe auf diesen beiden Pins.
Jumper Einstellun Beschreibung
CMOS löschen
(CLRCMOS1, 3-Pin jumper) (siehe S.2, No. 18)
Hinweis:
CLRCMOS1 ermöglicht Ihnen die Löschung der Daten im CMOS. Zum
Default­Einstellung
CMOS
löschen
Löschen und Zurücksetzen der Systemparameter auf die Standardeinrichtung
schalten Sie den Computer bitte aus und trennen das Netzkabel von der Stromversorgung. Warten Sie 15 Sekunden, schließen Sie dann Pin2 und Pin3 am CLRCMOS1 über einen Jumper fünf Sekunden lang kurz. Sie sollten das CMOS allerdings nicht direkt nach der BIOS-Aktualisierung
löschen. Wenn Sie das CMOS nach Abschluss der BIOS-Aktualisierung löschen müssen, fahren Sie zuerst das System hoch. Fahren Sie es dann vor der CMOS-Löschung herunter. Bitte beachten Sie, dass Kennwort, Datum, Uhrzeit, benutzerdeniertes Prol, 1394 GUID und MAC-Adresse nur gelöscht werden, wenn die CMOS-Batterie entfernt wird.
ASRock B75M-ITX Motherboard
Deutsch
39
1.4 Integrierte Header und Anschlüsse
Integrierte Header und Anschlüsse sind KEINE Jumper. Setzen Sie KE­INE Jumperkappen auf diese Header und Anschlüsse. Wenn Sie Jump­erkappen auf Header und Anschlüsse setzen, wird das Motherboard unreparierbar beschädigt!
Seriell-ATA2-Anschlüsse Diese drei Serial ATA2-
(SATA_1: siehe S.2 - No. 2)
(SATA_2: siehe S.2 - No. 4)
(SATA_3: siehe S.2 - No. 5)
Massenspeichergeräte. Die
(SATA2-)Verbínder unterstützten SATA-Datenkabel für interne
SATA_1 SATA_3
aktuelle SATA2- Schnittstelle
ermöglicht eine
Datenübertragungsrate bis 3,0 Gb/s.
Seriell-ATA3-Anschlüsse Dies Serial ATA3-
(SATA_0: siehe S.2 - No. 3)
(SATA3-)Verbínder unterstützten SATA-Datenkabel für interne Massenspeichergeräte. Die aktuelle SATA3- Schnittstelle
ermöglicht eine
Datenübertragungsrate bis 6,0 Gb/s.
SATA_2
SATA_0
Deutsch
40
Serial ATA- (SATA-) SJedes Ende des SATA Datenkabel Datenkabels kann an die SATA
(Option)
/ SATA2 / SATA3 Festplatte oder das SATA2 / SATA3 Verbindungsstück auf dieser Hauptplatine angeschlossen werden.
USB 2.0-Header Neben vier Standard-USB
(9-pol. USB4_5)
(siehe S.2 - No. 7)
2.0-Ports am E/A-Panel
bendet sich ein USB 2.0-
Header an diesem Motherboard. Dieser USB 2.0­ Header kann zwei USB 2.0­ Ports unterstützen.
ASRock B75M-ITX Motherboard

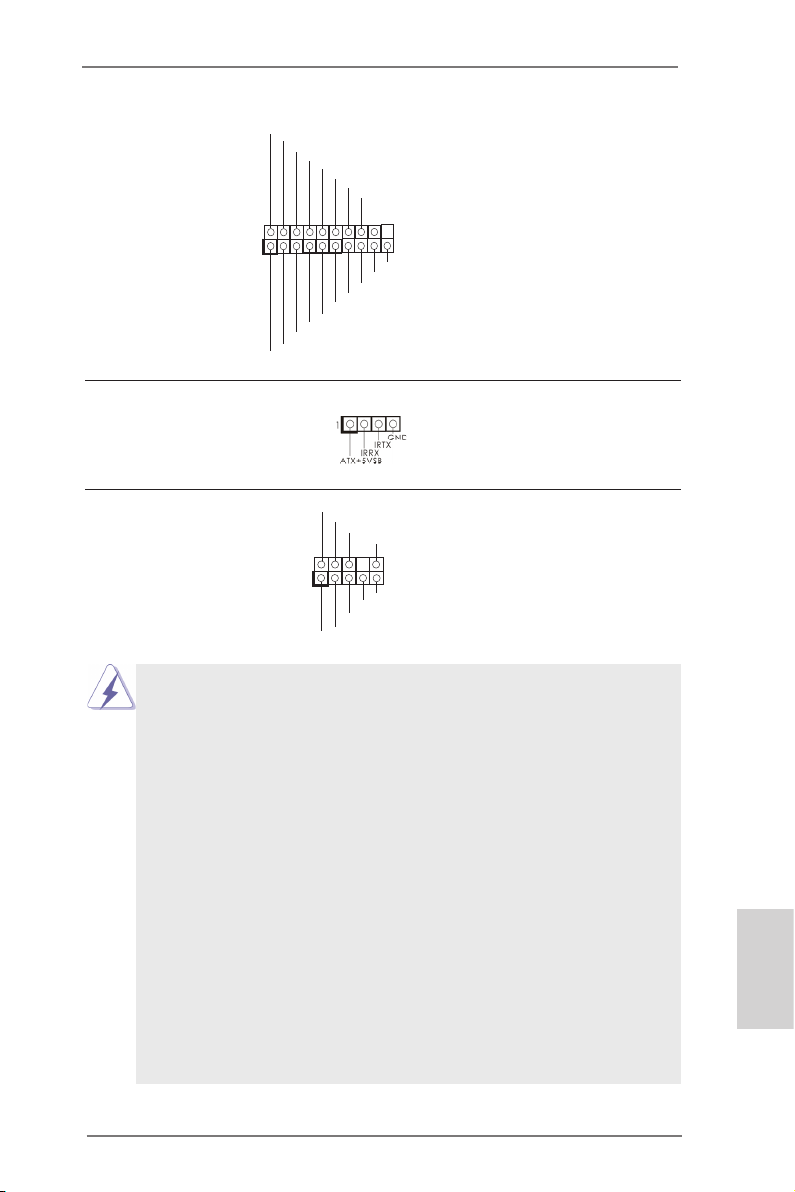

USB 3.0-Header Neben zwei Standard-USB
1
Int A_P1_ D+
Int A_P1_ D-
GND
Int A_P1_ SSTX +
Int A_P1_ SSTX -
GND
Int A_P1_ SSRX +
Int A_P1_ SSRX -
Vbu s
Int A_P0_ D+
Int A_P0_ D-
GND
Int A_P0_ SSTX +
Int A_P0_ SSTX -
GND
Int A_P0_ SSRX +
Int A_P0_ SSRX -
Vbu s
(19-pol. USB3_3_4)
(siehe S.2 - No. 12)
3.0-Ports am E/A-Panel
bendet sich ein USB 3.0-
Header an diesem Motherboard. Dieser USB 3.0­ Header kann zwei USB 3.0­ Ports unterstützen.
Consumer Infrared-Modul-Header Dieser Header kann zum
(4-pin CIR1)
(siehe S.2 - No. 10)
Anschließen Remote-
Empfänger.
Anschluss für Audio auf Dieses Interface zu einem der Gehäusevorderseite Audio-Panel auf der Vorder
(9-Pin HD_AUDIO1)
(siehe S.2 - No. 15)
seite Ihres Gehäuses,
ermöglicht Ihnen eine bequeme
Anschlussmöglichkeit und
Kontrolle über Audio-Geräte.
1
GND
PRE SENC E#
MIC 2_R
MIC 2_L
MIC _RET
J_S ENSE
OUT 2_R
OUT _RET
OUT 2_L
1. High Denition Audio unterstützt Jack Sensing (automatische Erkennung falsch
angeschlossener Geräte), wobei jedoch die Bildschirmverdrahtung am Gehäuse HDA unterstützen muss, um richtig zu funktionieren. Beachten Sie bei der Installation im System die Anweisungen in unserem Handbuch und im Gehäusehandbuch.
2. Wenn Sie die AC’97-Audioleiste verwenden, installieren Sie diese wie nachstehend beschrieben an der Front-Audioanschlussleiste: A. Schließen Sie Mic_IN (MIC) an MIC2_L an. B. Schließen Sie Audio_R (RIN) an OUT2_R und Audio_L (LIN) an OUT2_L an. C. Schließen Sie Ground (GND) an Ground (GND) an. D. MIC_RET und OUT_RET sind nur für den HD-Audioanschluss gedacht. Diese Anschlüsse müssen nicht an die AC’97-Audioleiste angeschlossen werden.
E. So aktivieren Sie das Mikrofon an der Vorderseite.
Bei den Betriebssystemen Windows® XP / XP 64 Bit: Wählen Sie „Mixer“. Wählen Sie „Recorder“ (Rekorder). Klicken Sie dann auf „FrontMic“ (Vorderes Mikrofon). Bei den Betriebssystemen Windows® 7 / 7 64 Bit / VistaTM / VistaTM 64 Bit: Wählen Sie im Realtek-Bedienfeld die „FrontMic“ (Vorderes Mikrofon)­ Registerkarte. Passen Sie die „Recording Volume“ (Aufnahmelautstärke) an.
ASRock B75M-ITX Motherboard
Deutsch
41
System Panel-Header Dieser Header unterstützt
(9-pin PANEL1)
(siehe S.2 - No. 8)
Schließen Sie die Ein-/Austaste, die Reset-Taste und die Systemstatusanzeige am Gehäuse an diesen Header an; befolgen Sie dabei die nachstehenden Hinweise zur Pinbelegung. Beachten Sie die positiven und negativen Pins, bevor Sie die Kabel anschließen.
PWRBTN (Ein-/Ausschalter):
RESET (Reset-Taste):
PLED (Systembetriebs-LED):
HDLED (Festplattenaktivitäts-LED):
mehrere Funktion der
Systemvorderseite.
Zum Anschließen des Ein-/Ausschalters an der Frontblende des Gehäu
ses. Sie können kongurieren, wie das System mit Hilfe des Ein-/Ausschalters ausgeschaltet werden können soll.
Zum Anschließen der Reset-Taste an der Frontblende des Gehäuses.
Mit der Reset-Taste können Sie den Computer im Falle eines Absturzes
neu starten.
Zum Anschließen der Betriebsstatusanzeige an der Frontblende des Gehäuses. Die LED leuchtet, wenn das System in Betrieb ist. Die LED
blinkt, wenn sich das System im Ruhezustand S1/S3 bendet. Die LED schaltet sich aus, wenn sich das System in den Modi S4 bendet
oder ausgeschaltet ist (S5).
Zum Anschließen der Festplattenaktivitäts-LED an der Frontblende des Gehäuses. Die LED leuchtet, wenn die Festplatte Daten liest oder schreibt.
Deutsch
42
Das Design der Frontblende kann je nach Gehäuse variiere. Ein Frontblendenmodul besteht hauptsächlich aus einer Ein-/Austaste, einer Reset-Taste, einer Betriebs-LED, einer Festplattenaktivitäts-LED, Lautsprechern, etc. Stellen Sie beim Anschließen des Frontblendenmoduls Ihres Gehäuses an diesem Header sicher, dass die Kabel- und Pinbelegung korrekt übereinstimmen.

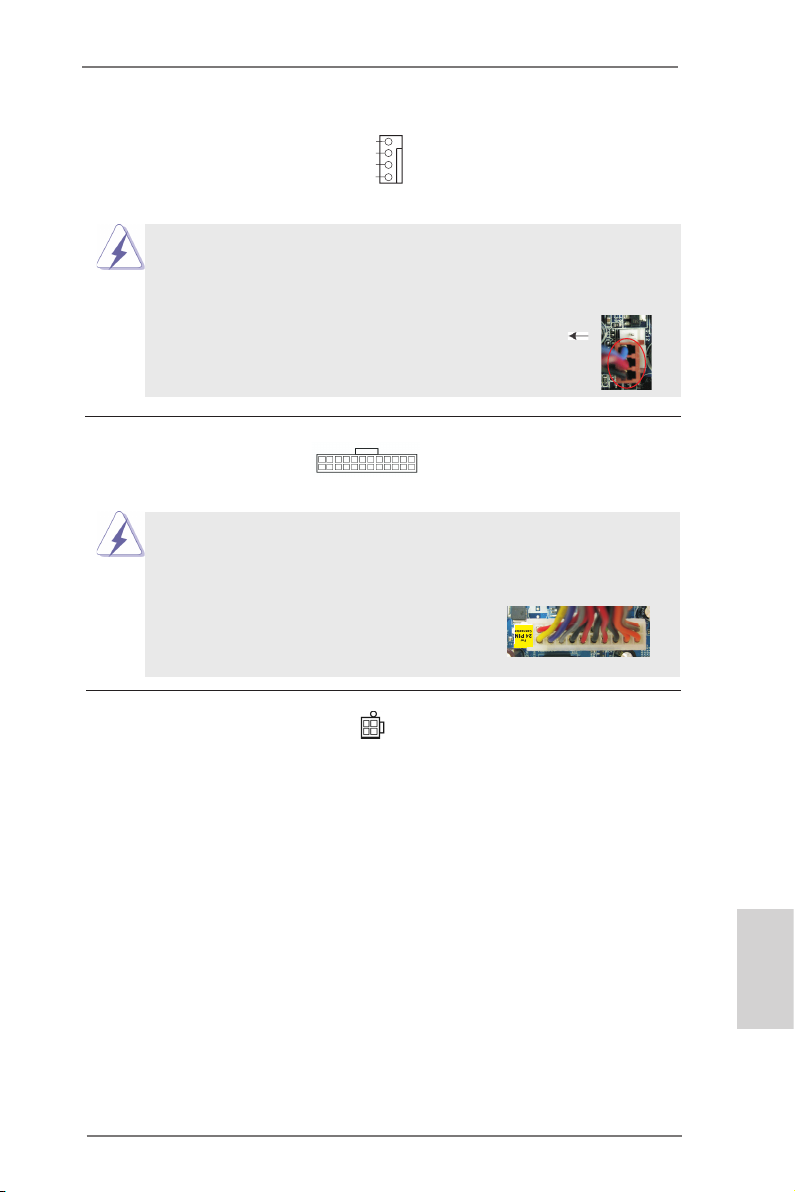

Gehäuse lüfteranschlüsse Verbinden Sie die Lüfterkabel
(4-pin CHA_FAN1)
(siehe S.2, No. 17)
den Schutzleiterstift
mit den Lüfteranschlüssen, wobei der schwarze Draht an
FAN _SPE ED_C ONTR OL
CHA _FAN _SPE ED
+12 V
GND
angeschlossenwird.
ASRock B75M-ITX Motherboard
CPU-Lüfteranschluss Verbinden Sie das CPU -
(4-pin CPU_FAN1)
(siehe S.2 - No. 16)
Lüfterkabel mit diesem Anschluss und passen Sie den
FAN_ SPEE D_CO NTRO L
CPU _FAN_ SPEE D
+12 V
GND
4 3 2 1
schwarzen Draht dem Erdungsstift an.
Obwohl dieses Motherboard einen vierpoligen CPU-Lüfteranschluss
(Quiet Fan) bietet, können auch CPU-Lüfter mit dreipoligem Anschluss
angeschlossen werden; auch ohne Geschwindigkeitsregulierung. Wenn Sie einen dreipoligen CPU-Lüfter an den CPU-Lüferanschluss dieses
Motherboards anschließen möchten, verbinden Sie ihn bitte mit den
Pins 1 – 3.
Lüfter mit dreipoligem Anschluss installieren
Pins 1–3 anschließen
ATX-Netz-Header Verbinden Sie die ATX-
(24-pin ATXPWR1)
(siehe S.2 - No. 9)
Stromversorgung mit diesem
Header.
24 13
12 1
Obwohl dieses Motherboard einen 24-pol. ATX-Stromanschluss bietet,
kann es auch mit einem modizierten traditionellen 20-pol. ATX-Netzteil
verwendet werden. Um ein 20-pol. ATX-Netzteil zu verwenden, stecken Sie den Stecker mit Pin 1 und Pin 13 ein.
24 13
Installation eines 20-pol. ATX-Netzteils
12 1
ATX 12V Anschluss Bitte schließen Sie an diesen
(4-pin ATX12V1)
(siehe S.2 - No. 19)
Anschluss die ATX 12V
Stromversorgung an.
Deutsch
ASRock B75M-ITX Motherboard
43
2. BIOS-Information
Das Flash Memory dieses Motherboards speichert das Setup-Utility. Drücken Sie <F2> oder <Del> während des POST (Power-On-Self-Test) um ins Setup zu gelan­gen, ansonsten werden die Testroutinen weiter abgearbeitet. Wenn Sie ins Setup gelangen wollen, nachdem der POST durchgeführt wurde, müssen Sie das System über die Tastenkombination <Ctrl> + <Alt> + <Delete> oder den Reset-Knopf auf
der Gehäusevorderseite, neu starten. Natürlich können Sie einen Neustart auch
durchführen, indem Sie das System kurz ab- und danach wieder anschalten. Das Setup-Programm ist für eine bequeme Bedienung entwickelt worden. Es ist ein menügesteuertes Programm, in dem Sie durch unterschiedliche Untermenüs
scrollen und die vorab festgelegten Optionen auswählen können. Für detaillierte
Informationen zum BIOS-Setup, siehe bitte das Benutzerhandbuch (PDF Datei) auf der Support CD.
3. Software Support CD information
Dieses Motherboard unterstützt eine Reiche von Microsoft® Windows® Betriebssy­stemen: 7 / 7 64-Bit / VistaTM / Vista beigefügte Support-CD enthält hilfreiche Software, Treiber und Hilfsprogramme, mit
denen Sie die Funktionen Ihres Motherboards verbessern können Legen Sie die
Support-CD zunächst in Ihr CD-ROM-Laufwerk ein. Der Willkommensbildschirm mit den Installationsmenüs der CD wird automatisch aufgerufen, wenn Sie die “Autorun”-Funktion Ihres Systems aktiviert haben. Erscheint der Wilkommensbildschirm nicht, so “doppelklicken” Sie bitte auf das File ASSETUP.EXE im BIN-Verzeichnis der Support-CD, um die Menüs aufzurufen.
Das Setup-Programm soll es Ihnen so leicht wie möglich machen. Es ist menüges­teuert, d.h. Sie können in den verschiedenen Untermenüs Ihre Auswahl treffen und
die Programme werden dann automatisch installiert.
TM
64-Bit / XP / XP 64-Bit. Die Ihrem Motherboard
Deutsch
44
ASRock B75M-ITX Motherboard
1. Introduction
Merci pour votre achat d’une carte mère ASRock B75M-ITX, une carte mère très
able produite selon les critères de qualité rigoureux de ASRock. Elle offre des performances excellentes et une conception robuste conformément à l’engagement d’ASRock sur la qualité et la abilité au long terme. Ce Guide d’installation rapide présente la carte mère et constitue un guide d’installation pas à pas. Des informations plus détaillées concernant la carte mère pourront être trouvées dans le manuel l’utilisateur qui se trouve sur le CD
d’assistance.
Les spécications de la carte mère et le BIOS ayant pu être mis à jour, le contenu de ce manuel est sujet à des changements sans notication. Au cas où n’importe qu’elle modication intervenait sur ce manuel, la version mise à jour serait disponible sur le site web ASRock sans nouvel avis.
Vous trouverez les listes de prise en charge des cartes VGA et CPU
également sur le site Web ASRock.
Site web ASRock, http://www.asrock.com Si vous avez besoin de support technique en relation avec cette carte mère, veuillez consulter notre site Web pour de plus amples informations particulières au modèle que vous utilisez. www.asrock.com/support/index.asp
1.1 Contenu du paquet
Carte mère ASRock B75M-ITX (Facteur de forme Mini-ITX: 6.7 pouces x 6.7 pouces, 17.0 cm x 17.0 cm) Guide d’installation rapide ASRock B75M-ITX CD de soutien ASRock B75M-ITX
Deux câbles de données de série ATA (SATA) (en option)
Un I/O Panel Shield
ASRock vous rappelle...
Pour bénécier des meilleures performances sous Windows® 7 / 7 64 bits
TM
/ Vista
/ VistaTM 64 bits, il est recommandé de paramétrer l'option BIOS
dans Conguration de stockage en mode AHCI. Pour plus de détails sur l'installation BIOS, référez-vous au "Mode d'emploi" sur votre CD de sup-
port.
ASRock B75M-ITX Motherboard
Français
45
Français
1.2 Spécifications
Format - Facteur de forme Mini-ITX:
6.7 pouces x 6.7 pouces, 17.0 cm x 17.0 cm
- Conception à condensateur robuste (condensateurs polymère conducteur de qualité supérieure 100% fabriqués
au Japon) CPU - Prend en charge les processeurs Intel® CoreTM i7 / i5 / i3
2ème et 3ème génération sur socket LGA1155
- Conception Digi Power
- 4 + 2 Power Phase conception
- Prend en charge la technologie Intel® Turbo Boost 2.0
- Prise en charge des unités centrales non verrouillées de série K (voir ATTENTION 1)
- Prise en charge de la technologie Hyper-Threading (voir ATTENTION 2)
- Prend en charge les technologies Intel® Rapid Start et Smart Connect avec processeur Intel® Ivy Bridge CPU Chipsets - Intel® B75
- Supports Intel® Small Business Advantage (voir ATTENTION 3)
Mémoire - Compatible avec la Technologie de Mémoire à Canal
Double (voir ATTENTION 4)
- 2 x slots DIMM DDR3
- Supporter DDR3 1600/1333/1066 non-ECC, sans
amortissement mémoire (DDR3 1600 avec CPU Intel® Ivy
Bridge, DDR3 1333 avec CPU Intel® Sandy Bridge)
- Capacité maxi de mémoire système: 16GB
(voir ATTENTION 5)
- Prend en charge le prol de mémoire extrême Intel® (XMP)
1.3/1.2 Slot d’extension - 1 x slot PCI Express 3.0 x16 (PCIE1 : mode x16) (voir ATTENTION 6) * PCIE 3.0 n’est pris en charge qu’avec le processeur Intel® Ivy Bridge. Avec le processeur Intel® Sandy Bridge, seul PCIE 2.0 est pris en charge. VGA sur carte * Intel® HD Graphics avec visuels intégrés (Built-in Visuals) et les sorties VGA sont uniquement pris en charge par les
processeurs à GPU intégré.
- Supporte Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video 2.0, Intel® InTruTM 3D, Intel® Clear Video HD
46
ASRock B75M-ITX Motherboard
Technology, Intel® InsiderTM, Intel® HD Graphics 2500/4000
- Pixel Shader 5.0, DirectX 11 avec CPU Intel® Ivy Bridge, Pixel Shader 4.1, DirectX 10.1 avec CPU Intel® Sandy Bridge
- Mémoire partagée max 1760MB (voir ATTENTION 7)
- Trois options de sortie VGA: D-Sub, DVI-D et HDMI (voir ATTENTION 8)
- Prend en charge le HDMI 1.4a avec une résolution maximale jusqu’à 1920x1200 @ 60Hz
- Prend en charge le DVI avec une résolution maximale jusqu’à 1920x1200 @ 60Hz
- Prend en charge le D-Sub avec une résolution maximale jusqu’à 2048x1536 @ 75Hz
- Prend en charge Lip Sync, Deep Color (12bpc), xvYCC et
HBR (High Bit Rate Audio : Audio à haut débit binaire) avec
HDMI (Moniteur compatible HDMI requis) (voir ATTENTION 9)
- Prise en charge de la fonction HDCP avec ports DVI et HDMI
- Supporter 1080p Blu-ray(BD)/ lecteur de HD-DVD avec ports DVI et HDMI Audio - 7,1 CH HD Audio avec protection de contenu (Realtek ALC892 Audio Codec)
- Prise en charge de l’audio Premium Blu-ray LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Support du Wake-On-LAN
- Prise en charge de la détection de câble LAN
- Prend en charge la norme Energy Efcient Ethernet
(Ethernet à efcacité énergétique) 802.3az
- Supporte PXE
Panneau arrière I/O Panel
- 1 x port clavier PS/2
- 1 x port D-Sub
- 1 x port DVI-D
- 1 x port HDMI
- 1 x Port de sortie optique SPDIF
- 4 x ports USB 2.0 par défaut
- 1 x Connecteur eSATA2
- 2 x ports USB 3.0 par défaut
- 1 x port LAN RJ-45 avec LED (ACT/LED CLIGNOTANTE et
Français
ASRock B75M-ITX Motherboard
47
Français
LED VITESSE)
- Prise HD Audio: Haut-parleur arrière / Central /Basses /
Entrée Ligne / Haut-parleur frontal / Microphone
(voir ATTENTION 10) SATA3 - 1 x connecteurs SATA3 6,0 Gb/s, prennent en charge les
fonctions NCQ, AHCI et Hot Plug
USB 3.0 - 2 x ports USB3.0 à l’arrière, prennent en charge USB
1.0/2.0/3.0 jusqu’à 5 Gb/s
- 1 x barrette USB3.0 en façade (prend en charge 2 ports
USB 3.0), prend en charge USB 1.0/2.0/3.0 jusqu’à 5 Gb/s
Connecteurs - 3 x connecteurs SATA2, prennent en charge un taux de
transfert de données pouvant aller jusqu’à 3.0Go/s, supporte NCQ, AHCI et Hot Plug (Branchement à chaud)
- 1 x connecteurs SATA3, prennent en charge un taux de
transfert de données pouvant aller jusqu’à 6.0Go/s
- 1 x Barrette pour module à infrarouges grand public
- Connecteur pour ventilateur de CPU/Châssis Ventilateur
- br. 24 connecteur d’alimentation ATX
- br. 4 connecteur d’alimentation 12V ATX
- Connecteur audio panneau avant
- 1 x En-tête USB 2.0 (prendre en charge 2 ports USB 2.0
supplémentaires)
- 1 x En-tête USB 3.0 (prendre en charge 2 ports USB 3.0
supplémentaires)
BIOS - 64Mb AMI UEFI Legal BIOS avec support GUI
- Support du “Plug and Play”
- Compatible pour événements de réveil ACPI 1.1
- Gestion jumperless
- Support SMBIOS 2.3.1
- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Tension Multi-ajustement
CD d’assistance - Pilotes, utilitaires, logiciel anti-virus (version d’évaluation), CyberLink MediaEspresso 6.5 Trial, Suite multimédia
ASRock MAGIX - OEM Caractéristique - Utilitaire ASRock Extreme Tuning (AXTU) unique (voir ATTENTION 11)
- ASRock l’Instant Boot
- ASRock Instant Flash (voir ATTENTION 12)
- Chargeur ASRock APP (voir ATTENTION 13)
- ASRock SmartView (voir ATTENTION 14)
- ASRock XFast USB (voir ATTENTION 15)
48
ASRock B75M-ITX Motherboard
- ASRock XFast LAN (voir ATTENTION 16)
- ASRock XFast RAM (voir ATTENTION 17)
- ASRock Crashless BIOS (voir ATTENTION 18)
- ASRock OMG (Online Management Guard) (voir ATTENTION 19)
- ASRock Internet Flash (voir ATTENTION 20)
- Technologie Lecture Marche/Arrêt ASRock (voir ATTENTION 21)
- L’accélérateur hybride:
- ASRock U-COP (voir ATTENTION 22)
- Garde d’échec au démarrage (B.F.G.)
- DEL veilleuse Surveillance - Détection de la température de l’UC
système - Mesure de température de la carte mère
- Tachéomètre ventilateur processeur ventilateur
- Tachéomètre ventilateur châssis ventilateur
- Ventilateur silencieux pour unité centrale/châssis (permet le réglage automatique de la vitesse du ventilateur pour châssis, selon la température de l’unité centrale)
- Commande de ventilateur CPU/Châssis à plusieurs
vitesses
- Monitoring de la tension: +12V, +5V, +3.3V, Vcore OS - Microsoft® Windows® 7 / 7 64-bit / VistaTM / Vista
TM
64-bit
/ XP / XP 64-bit (voir ATTENTION 23) Certications - FCC, CE, WHQL
- Prêt pour ErP/EuP (alimentation Prêt pour ErP/EuP requise) (voir ATTENTION 24)
* Pour de plus amples informations sur les produits, s’il vous plaît visitez notre site web: http://www.asrock.com
ATTENTION
Il est important que vous réalisiez qu’il y a un certain risque à effectuer l’overclocking, y compris ajuster les réglages du BIOS, appliquer la technologie
Untied Overclocking, ou utiliser des outils de tiers pour l’overclocking. L’overclocking
peut affecter la stabilité de votre système, ou même causer des dommages aux composants et dispositifs de votre système. Si vous le faites, c’est à vos frais et
vos propres risques. Nous ne sommes pas responsables des dommages possibles
causés par l’overclocking.
ASRock B75M-ITX Motherboard
Français
49
Français
ATTENTION!
1. A cause des limitations de la puce, l’overclocking n’est pas supporté.
2. En ce qui concerne le paramétrage “Hyper-Threading Technology”,
veuillez consulter la page 43 du manuel de l’utilisateur sur le CD tech­nique.
3. Intel® Small Business Advantage est une plateforme personnalisable
intégrant des outils IT et permettant d’optimiser la productivité des em­ployés, les performances PC et la sécurité des données. Parmi les appli-
cations disponibles se trouvent Software Monitor, PC Health Center, Data Backup & Restore, Energy Saver et USB Blocker.
4. Cette carte mère supporte la Technologie de Mémoire à Canal Double. Avant d’intégrer la Technologie de Mémoire à Canal Double, assurez­vous de bien lire le guide d’installation des modules mémoire en page 17 pour réaliser une installation correcte.
5. Du fait des limites du système d’exploitation, la taille mémoire réelle réservée au système pourra être inférieure à 4 Go sous Windows® 7 /
VistaTM / XP. Avec Windows® OS avec CPU 64 bits, il n’y a pas ce genre
de limitation. Vous pouvez utiliser ASRock XFast RAM pour accéder à la mémoire que Windows® ne peut pas utiliser.
6. Pour pouvoir utiliser PCI Express en vitesse Gen 3, vous devez installer le processeur Ivy Bridge. Si vous installez le processeur Sandy Bridge, PCI Express ne fonctionnera qu’en vitesse PCI Express Gen 2.
7. La dimension maximum du memoire partage est denie par le vendeur de jeu de puces et est sujet de changer. Veuillez verier la Intel® website
pour les informations recentes SVP.
8. Vous pouvez choisir de n’utiliser que deux moniteurs sur trois. Les
moniteurs D-Sub, DVI-D et HDMI ne peuvent pas être activés en même
temps. En outre, avec l’adaptateur DVI-HDMI, le port DVI-D peut prendre en charge les mêmes fonctions que le port HDMI.
9. xvYCC et Deep Color ne sont pris en charge que sous Windows® 7 64-
bit / 7. Le mode Deep Color ne sera activé que si le moniteur prend en
charge 12bpc en EDID. HBR est pris en charge sous Windows® 7 64-bit / 7 / VistaTM 64-bit / VistaTM.
10. Pour l’entrée microphone, cette carte mère supporte les deux modes stéréo et mono. Pour la sortie audio, cette carte mère supporte les modes 2-canaux, 4-canaux, 6-canaux et 8-canaux. Veuillez vous référer
au tableau en page 3 pour effectuer la bonne connexion.
11. ASRock Extreme Tuning Utility (AXTU) est un utilitaire tout-en-un qui
permet de régler précisément différentes fonctions du système, via une interface facile à utiliser, incluant Moniteur de périphériques, Contrôle du
ventilateur, Overclocking, OC DNA et IES. Dans Moniteur de
périphériques, il afche les valeurs principales de votre système. Dans Contrôle du ventilateur, il afche la vitesse du ventilateur et la
température, que vous pouvez ajuster. Dans Overclocking, vous pouvez
overclocker la fréquence du CPU pour améliorer les performances du système. Dans OC DNA, vous pouvez enregistrer vos réglages OC dans
50
ASRock B75M-ITX Motherboard
un prol et les partager avec vos amis. Vos amis pourront alors installer le prol OC sur leur système pour utiliser les mêmes réglages OC. Dans IES (Intelligent Energy Saver – Fonction intelligente d’économie
d’énergie), le contrôleur de la tension peut réduire le nombre de phases de sortie pour améliorer le fonctionnement lorsque les cores du CPU ne
sont pas utilisées, sans diminuer les performances de l’ordinateur.
Veuillez visiter notre site Web pour plus d’informations sur l’utilisation des
fonctions de l’utilitaire ASRock Extreme Tuning Utility (AXTU).
Site Web de ASRock : http://www.asrock.com
12. O ASRock Instant Flash é um utilitário de ash do BIOS incorporado na memória Flash ROM. Esta prática ferramenta de actualização do
BIOS permite-lhe actualizar o BIOS do sistema sem necessitar de entrar nos sistemas operativos, como o MS-DOS ou o Windows®. Com este
utilitário, poderá premir a tecla <F6> durante o teste de arranque POST ou premir a tecla <F2> para exibir o menu de conguração do BIOS para
aceder ao ASRock Instant Flash. Execute esta ferramenta para guardar
o novo cheiro de BIOS numa unidade ash USB, numa disquete ou num disco rígido, em seguida, poderá actualizar o BIOS com apenas
alguns cliques sem ter de utilizar outra disquete ou outro complicado
utilitário de ash. Note que a unidade ash USB ou a unidade de disco rígido devem utilizar o sistema de cheiros FAT32/16/12.
13. Si vous désirez un moyen plus rapide et moins contraignant de recharger vos appareils Apple tels que iPhone/iPad/iPod Touch, ASRock a préparé pour vous la solution idéale - le chargeur ASRock APP. Il suft d’installer
le pilote du chargeur APP, et vous pourrez recharger rapidement votre
iPhone à partir de votre ordinateur, jusqu’à 40% plus vite qu’avant. Le
chargeur ASRock APP vous permet de charger rapidement et simulta-
nément plusieurs appareils Apple, et le chargement continu est même pris en charge lorsque le PC passe en mode Veille (S1), Suspension à
la RAM (S3), hibernation (S4) ou hors tension (S5). Lorsque le pilote du
chargeur APP est installé, vous découvrez un mode de mise en charge tout à fait inédit.
Site web ASRock : http://www.asrock.com/Feature/AppCharger/index.asp
14. SmartView, une nouvelle fonction du navigateur Internet, est une page
de démarrage intelligente de IE, comportant à la fois vos sites Internet les plus visités, votre historique, vos amis Facebook et l’actualité en temps réel, le tout sur une vue optimisée pour une expérience de l’Internet encore plus personnelle. Les cartes mères ASRock sont équipées en
exclusivité de l’utilitaire SmartView, ce qui vous permet de garder le
contact avec vos amis itinérants. Pour utiliser la fonction SmartView,
veuillez vous assurez que votre version de système d’exploitation est Windows® 7 / 7 64 bits / VistaTM / VistaTM 64 bits, et que vous utilisez le navigateur IE8. Site Internet ASRock : http://www.asrock.com/Feature/ SmartView/index.asp
15. ASRock XFast USB permet d’améliorer les performances de votre péri­phérique de stockage USB. Les performances réelles dépendent des propriétés du périphérique.
Français
ASRock B75M-ITX Motherboard
51
Français
16. ASRock XFast LAN fournit un accès Internet plus rapide, avec les avan-
tages suivants. Priorisation d’application LAN : Vous pouvez congurer votre priorité d’application idéalement et/ou ajouter des nouveaux pro­grammes. Latence plus basse dans les jeux : Après avoir réglé la priorité de jeux en ligne plus haute, cela peut réduire la latence dans les jeux.
Forme du trac : Vous pouvez regarder des vidéos HD YouTube et té-
lécharger simultanément des chiers. Analyse en temps réel de vos don­nées : Avec la fenêtre d’état, vous pouvez facilement reconnaître les ux de données que vous êtes en train de transférer.
17. ASRock XFast RAM est une nouvelle fonction intégrée à l’utilitaire
ASRock Extreme Tuning Utility (AXTU). Il utilise à sa pleine capacité l’espace mémoire que les processeurs du système d’exploitation Win-
dows OS 32-bit ne peuvent pas utiliser. ASRock XFast RAM diminue
le temps de chargement des sites Internet précédemment visités, ren­dant la navigation sur le web plus rapide que jamais. Il rend également
l’utilisation de Adobe Photoshop 5 fois plus rapide. Un autre avantage
indéniable de ASRock XFast RAM est qu’il réduit la fréquence d’accès à vos SSD ou HDD an d’accroitre leur durée de vie utile.
18. ASRock Crashless BIOS permet aux utilisateurs de mettre à jour leur
BIOS sans qu’ils aient à craindre un plantage ou une défaillance. Si l’alimentation venait à être coupée durant la mise à jour du BIOS, AS­Rock Crashless BIOS terminera automatiquement la mise à jour du BIOS une fois le courant rétabli. Veuillez noter que les chiers BIOS doivent être placés dans le répertoire racine de votre disque USB. Seuls les
ports USB2.0 sont compatibles avec cette fonction.
19. Grâce à OMG, les administrateurs ont la possibilité de créer un couvre-
feu Internet ou de limiter l’accès à Internet à des périodes spéciques. Choisissez entre les options [Quotidien], [Jour de la semaine] ou [Jours de la semaine et week-ends], puis programmez l’heure de début et de n de l’accès Internet accordé à d’autres utilisateurs. An d’éviter tout contournement du système OMG par les utilisateurs, des comptes invité sans autorisation d’accès à la modication de l’heure système sont req-
uis.
20. La fonction Internet Flash recherche les mises à jour disponibles pour le
microprogramme UEFI sur nos serveurs. En d’autres termes, le système
est capable de détecter automatiquement la mise à jour UEFI la plus récente sur nos serveurs et la transmet sans avoir à accéder au système
d’exploitation Windows. Veuillez noter que le service DHCP doit être ac-
tivé sur votre ordinateur pour pouvoir utiliser cette fonction.
21. La Technologie Lecture Marche/Arrêt ASRock permet aux utilisateurs
d’expériencer l’audio incroyable à partir d’appareils audio portables comme un lecteur MP3 ou un téléphone portable, sur votre PC, même lorsque le PC est éteint (ou en mode ACPI S5)! Cette carte mère fournie
aussi un câble audio 3,5mm gratuit (optionnel) qui facilite beaucoup dans
les environnements informatiques.
22. Lorsqu’une surchauffe du CPU est détectée, le système s’arrête automa-
tiquement. Avant de redémarrer le système, veuillez vérier que le ven
52
ASRock B75M-ITX Motherboard
tilateur d’UC sur la carte mère fonctionne correctement et débranchez le
cordon d’alimentation, puis rebranchez-le. Pour améliorer la dissipation
de la chaleur, n’oubliez pas de mettre de la pâte thermique entre le CPU le dissipateur lors de l’installation du PC.
23. ASRock XFast RAM n’est pas pris en charge par Microsoft® Windows® XP / XP 64-bit. Les technologie Intel® Smart Connect et ports Intel® USB
3.0 n’est pas pris en charge par Microsoft® Windows® VistaTM / VistaTM 64­bit / XP / XP 64-bit.
24. EuP, qui signie Energy Using Product (Produit Utilisant de l’Energie), est une disposition établie par l’Union Européenne pour dénir la con­sommation de courant pour le système entier. Conformément à la norme EuP, le courant CA total du système entier doit être inférieur à 1 W en mode d’arrêt. Pour être conforme à la norme EuP, une carte mère EuP
et une alimentation EuP sont requises. Selon les suggestions d’Intel’,
l’alimentation électrique EuP doit correspondre à la norme, qui est que
l’efcacité électrique de 5v en mode de veille doit être supérieure à 50%
pour 100 mA de consommation de courant. Pour choisir une alimentation
électrique conforme à la norme EuP, nous vous recommandons de con­sulter votre fournisseur de courant pour plus de détails.
1.3 Réglage des cavaliers
L’illustration explique le réglage des cava­liers. Quand un capuchon est placé sur les
broches, le cavalier est « FERME ». Si au­cun capuchon ne relie les broches,le cava­lier est « OUVERT ». L’illustration montre un
cavalier à 3 broches dont les broches 1 et 2
sont « FERMEES » quand le capuchon est
placé sur ces 2 broches.
Le cavalier Description
Effacer la CMOS
(CLRCMOS1)
(voir p.2 g. 18)
Remarque :
Paramètres
par défaut
CLRCMOS1 vous permet d’effacer les données du CMOS. Pour effacer
Effacer la CMOS
et réinitialiser les paramètres du système à la conguration originale, veuillez éteindre l’ordinateur et débrancher le cordon d’alimentation de
la prise de courant. Après 15 secondes, utilisez un couvercle de jumper pour court-circuiter les broches pin2 et pin3 de CLRCMOS1 pendant
secondes. Veuillez cependant ne pas effacer le CMOS immédiatement
a
près avoir mis à jour le BIOS. Si vous avez besoin d’effacer le CMOS
ASRock B75M-ITX Motherboard
Français
5
53
a p rès a voir mis à jo ur le BIOS, vous devez allu mer e n pr emie r le
système, puis l’éteindre avant de continuer avec l’opération d’effacement du CMOS. Veuillez noter que le mot de passe, la date, l’heure, le prol par défaut de l’utilisateur, 1394 GUID et l’adresse MAC seront effacés seulement si la batterie du CMOS est enlevée.
1.4 En-têtes et Connecteurs sur Carte
Les en-têtes et connecteurs sur carte NE SONT PAS des cavaliers. NE PAS placer les capuchons de cavalier sur ces en-têtes et con­necteurs. Le fait de placer les capuchons de cavalier sur les en-têtes
et connecteurs causera à la carte mère des dommages irréversibles!
Connecteurs Série ATA2 Ces trois connecteurs Série
(SATA_1: voir p.2 No. 2)
(SATA_2: voir p.2 No. 4)
(SATA_3: voir p.2 No. 5)
internes. L’interface SATA2 actuelle permet des taux
transferts de données pouvant
aller jusqu’à 3,0 Gb/s.
Connecteurs Série ATA3 Cette connecteur Série
(SATA_0: voir p.2 No. 3)
charge les câbles SATA pour
les périphériques de stockage
internes. L’interface SATA3 actuelle permet des taux
transferts de données pouvant
aller jusqu’à 6,0 Gb/s.
ATA2 (SATA2) prennent en
SATA_2
charge les câbles SATA pour
les périphériques de stockage
SATA_1 SATA_3
ATA3 (SATA3) prennent en
SATA_0
Français
Câble de données Tout e cot e du cable de data Série ATA (SATA) SATA peut etre connecte au
(en option)
disque dur SATA / SATA2 /
SATA3 ou au connecteur SATA2 / SATA3 sur la carte mere.
En-tête USB 2.0 En plus des quatre ports USB
(USB4_5 br. 9)
(voir p.2 No. 7)
2.0 par défaut sur le panneau
E/S, il y a une barrette USB 2.0 sur la carte mère. Cette barrette USB 2.0 peut prendre en charge deux ports USB 2.0.
54
ASRock B75M-ITX Motherboard
En-tête USB 3.0 En plus des deux ports USB
1
Int A_P1_ D+
Int A_P1_ D-
GND
Int A_P1_ SSTX +
Int A_P1_ SSTX -
GND
Int A_P1_ SSRX +
Int A_P1_ SSRX -
Vbu s
Int A_P0_ D+
Int A_P0_ D-
GND
Int A_P0_ SSTX +
Int A_P0_ SSTX -
GND
Int A_P0_ SSRX +
Int A_P0_ SSRX -
Vbu s
(USB3_3_4 br. 19)
(voir p.2 No. 12)
3.0 par défaut sur le panneau
E/S, il y a une barrette USB 3.0 sur la carte mère. Cette barrette USB 3.0 peut prendre en charge deux ports USB 3.0.
Barrette pour module à infrarouges grand public Cette barrette peut être utilisée
(CIR1 br.4)
(voir p.2 No. 10)
pour connecter des récepteur.
Connecteur audio panneau C’est une interface pour un
(HD_AUDIO1 br. 9)
(voir p.2 No. 15)
câble avant audio en façade qui
permet le branchement et le
contrôle commodes de périphériques audio.
1
1
GND
GND
PRE SENC E#
PRE SENC E#
MIC 2_R
MIC 2_R
MIC 2_L
MIC 2_L
MIC _RET
MIC _RET
J_S ENSE
J_S ENSE
OUT 2_R
OUT 2_R
OUT _RET
OUT _RET
OUT 2_L
OUT 2_L
1. L’audio à haute dénition (HDA) prend en charge la détection de che, mais le l
de panneau sur le châssis doit prendre en charge le HDA pour fonctionner correctement. Veuillez suivre les instructions dans notre manuel et le manuel de
châssis an installer votre système.
2. Si vous utilisez le panneau audio AC’97, installez-le sur l’adaptateur audio
du panneau avant conformément à la procédure ci-dessous: A. Connectez Mic_IN (MIC) à MIC2_L. B. Connectez Audio_R (RIN) à OUT2_R et Audio_L (LIN) à OUT2_L. C. Connectez Ground (GND) à Ground (GND). D. MIC_RET et OUT_RET sont réservés au panneau audio HD. Vous
n’avez pas besoin de les connecter pour le panneau audio AC’97. E. Pour activer le micro avant. Pour les systèmes d’exploitation Windows® XP / XP 64 bits :
Sélectionnez “Mixer”. Sélectionnez “Recorder” (Enregistreur). Puis
cliquez sur “FrontMic” (Micro avant). Pour les systèmes d’exploitation Windows® 7 / 7 64 bits / VistaTM / VistaTM 64 bits :
Allez sur l’onglet “FrontMic” (Micro avant) sur le Panneau de contrôle
Realtek. Ajustez “Recording Volume” (Volume d’enregistrement).
ASRock B75M-ITX Motherboard
Français
55
En-tête du panneau système Cet en-tête permet d’utiliser
(PANEL1 br. 9)
(voir p.2 No. 8)
Connectez l’interrupteur d’alimentation, l’interrupteur de réinitialisation et l’indicateur d’état du système du châssis sur cette barrette en respectant l’affectation des broches décrite ci-dessous. Faites attention aux broches positives et négatives avant de connecter les câbles.
PWRBTN (Interrupteur d’alimentation):
RESET (Interrupteur de réinitialisation):
PLED (DEL alimentation système):
HDLED (DEL activité du disque dur):
Le design du panneau avant peut varier en fonction du châssis. Un module de panneau avant consiste principalement en : interrupteur
d’alimentation, interrupteur de réinitialisation, voyant DEL d’alimentation, voyant DEL d’activité du disque dur, haut-parleur, etc. Lorsque vous connectez le panneau avant de votre châssis sur cette barrette, vériez bien à faire correspondre les ls et les broches.
plusieurs fonctions du panneau
système frontal.
Connectez ici le connecteur d’alimentation sur le panneau avant du
châssis. Vous pouvez congurer la façon de mettre votre système hors
tension avec l’interrupteur d’alimentation.
Connectez ici le connecteur de réinitialisation sur le panneau avant du châssis. Appuyez sur l’interrupteur de réinitialisation pour redémarrer l’ordinateur s’il se bloque ou s’il n’arrive pas à redémarrer normalement.
Connectez ici l’indicateur d’état de l’alimentation sur le panneau avant du châssis. Ce voyant DEL est allumé lorsque le système est en marche.
Le voyant DEL clignote lorsque le système est en mode veille S1/S3. Le
voyant DEL est éteint lorsque le système est en mode veille S4 ou lorsqu’il est éteint (S5).
Connectez ici le voyant DEL d’activité du disque dur sur le panneau avant du châssis. Ce voyant DEL est allumé lorsque le disque dur est en train de lire ou d’écrire des données.
Français
Connecteur pour châssis ventilateur Branchez les câbles du
(CHA_FAN1 br. 4)
(voir p.2 No. 17)
correspondre le l noir à la
ventilateur aux connecteurs
pour ventilateur et faites
FAN _SPE ED_C ONTR OL
CHA _FAN _SPE ED
+12 V
GND
broche de terre.
56
ASRock B75M-ITX Motherboard
Connecteur du ventilateur Veuillez connecter le câble de de l’UC ventilateur d’UC sur ce
(CPU_FAN1 br. 4)
(voir p.2 No. 16)
connecteur et brancher le l
noir sur la broche de terre.
FAN_ SPEE D_CO NTRO L
CPU _FAN_ SPEE D
+12 V
GND
4 3 2 1
Bien que cette carte mère offre un support de (Ventilateur silencieux
ventilateur de CPU à 4 broches , le ventilateur de CPU à 3 broches peut
bien fonctionner même sans la fonction de commande de vitesse du
ventilateur. Si vous prévoyez de connecter le ventilateur de CPU à 3
broches au connecteur du ventilateur de CPU sur cette carte mère, veuillez le connecter aux broches 1-3.
Installation de ventilateur à 3 broches
Broches 1-3 connectées
En-tête d’alimentation ATX Veuillez connecter l’unité
(ATXPWR1 br. 24)
(voir p.2 No. 9)
d’alimentation ATX sur cet en-
tête.
24 13
12 1
Bien que cette carte mère fournisse un connecteur de courant ATX 24 broches, elle peut encore fonctionner si vous adopter une alimentation traditionnelle ATX 20 broches. Pour utiliser une alimentation ATX 20
broches, branchez à l’alimentation électrique ainsi qu’aux broches 1 et
13.
20-Installation de l’alimentation électrique ATX
24 13
12 1
Connecteur ATX 12V Veuillez connecter une unité
(ATX12V1 br.4)
(voir p.2 No. 19)
d’alimentation électrique ATX
12V sur ce connecteur.
Français
ASRock B75M-ITX Motherboard
57
2. Informations sur le BIOS
La puce Flash Memory sur la carte mère stocke le Setup du BIOS. Lorsque vous démarrez l’ordinateur, veuillez presser <F2> ou <Del> pendant le POST (Power-On­Self-Test) pour entrer dans le BIOS; sinon, le POST continue ses tests de routine. Si
vous désirez entrer dans le BIOS après le POST, veuillez redémarrer le système en
pressant <Ctl> + <Alt> + <Suppr>, ou en pressant le bouton de reset sur le boîtier
du système. Vous pouvez également redémarrer en éteignant le système et en le
rallumant. L’utilitaire d’installation du BIOS est conçu pour être convivial. C’est un
programme piloté par menu, qui vous permet de faire déler par ses divers sous­menus et de choisir parmi les choix prédéterminés. Pour des informations détaillées sur le BIOS, veuillez consulter le Guide de l’utilisateur (chier PDF) dans le CD
technique.
3. Informations sur le CD de support
Cette carte mère supporte divers systèmes d’exploitation Microsoft® Windows®: 7 / 7 64 bits / VistaTM / Vista
cette carte mère contient les pilotes et les utilitaires nécessaires pour améliorer les fonctions de la carte mère. Pour utiliser le CD technique, insérez-le dans le lecteur de CD-ROM. Le Menu principal s’afche automatiquement si “AUTORUN” est activé
dans votre ordinateur. Si le Menu principal n’apparaît pas automatiquement, locali-
sez dans le CD technique le chier “ASSETUP.EXE” dans le dossier BIN et double­cliquez dessus pour afcher les menus.
TM
64 bits / XP / XP 64 bits. Le CD technique livré avec
Français
58
ASRock B75M-ITX Motherboard
1. Introduzione
Grazie per aver scelto una scheda madre ASRock B75M-ITX, una scheda madre
afdabile prodotta secondo i severi criteri di qualità ASRock. Le prestazioni
eccellenti e il design robusto si conformano all’impegno di ASRock nella ricerca
della qualità e della resistenza.
Questa Guida Rapida all’Installazione contiene l’introduzione alla motherboard e la guida passo-passo all’installazione. Informazioni più dettagliate sulla motherboard si possono trovare nel manuale per l’utente presente nel CD di supporto.
Le speciche della scheda madre e il software del BIOS possono essere
aggiornati, pertanto il contenuto di questo manuale può subire variazioni senza preavviso. Nel caso in cui questo manuale sia
modicato, la versione aggiornata sarà disponibile sul sito di ASRock
senza altro avviso. Sul sito ASRock si possono anche trovare le più recenti schede VGA e gli elenchi di CPU supportate. ASRock website http://www.asrock.com Se si necessita dell’assistenza tecnica per questa scheda madre, visitare
il nostro sito per informazioni speciche sul modello che si sta usando.
www.asrock.com/support/index.asp
1.1 Contenuto della confezione
Scheda madre ASRock B75M-ITX (Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm) Guida di installazione rapida ASRock B75M-ITX CD di supporto ASRock B75M-ITX Due cavi dati Serial ATA (SATA) (opzionali) Un I/O Shield
ASRock vi ricorda...
Per ottenere migliori prestazioni in Windows® 7 / 7 64-bit / Vista
64-bit, si consiglia di impostare l'opzione BIOS in Storage Conguration (Congurazione di archiviazione) sulla modalità AHCI. Per l'impostazione
BIOS, fare riferimento a “User Manual” (Manuale dell'utente) nel CD di supporto per dettagli.
TM
/ VistaTM
ASRock B75M-ITX Motherboard
Italiano
59
Italiano
1.2 Specifiche
Piattaforma - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- Design condensatore robusto (condensatori a polimeri conduttivi di altissima qualità 100% made in Japan) Processore - Supporta Intel® CoreTM i7 / i5 / i3 di 3a e 2a generazione in un pacchetto LGA1155
- Design Digi Power
- Struttura di fase con alimentazione 4 + 2
- Supporto della tecnologia Intel® Turbo Boost 2.0
- Supporta CPU unlocked serie K (vedi ATTENZIONE 1)
- Supporto tecnologia Hyper Threading (vedi ATTENZIONE 2)
- Supporta tecnologia Intel® Rapid Start Technology e Smart Connect Technology con CPU Intel® Ivy Bridge Chipset - Intel® B75
- Supporta Intel® Small Business Advantage (vedi ATTENZIONE 3) Memoria - Supporto tecnologia Dual Channel Memory (vedi ATTENZIONE 4)
- 2 x slots DDR3 DIMM
- Supporto DDR3 1600/1333/1066 non-ECC, momoria senza buffer (DDR3 1600 con CPU Intel® Ivy Bridge, DDR3 1333 con CPU Intel® Sandy Bridge)
- Capacità massima della memoria di sistema: 16GB
(vedi ATTENZIONE 5)
- Supporto di Intel® XMP (Extreme Memory Prole)1.3/1.2 Slot di - 1 x Alloggio PCI Express 3.0 x16 (PCIE1 : modalità x16) espansione (vedi ATTENZIONE 6) * PCIE 3.0 è supportato soltanto con la CPU Intel® Ivy Bridge. Con la CPU Intel® Sandy Bridge, supporta solamente PCIE
2.0. VGA su scheda * Le uscite Intel® HD Graphics Built-in Visuals e VGA possono essere supportate solo con processori dotati di GPU integrata.
- Supporta Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video 2.0, Intel® InTruTM 3D, Intel® Clear Video HD Technology, Intel® InsiderTM, Intel® HD Graphics 2500/4000
- Pixel Shader 5.0, DirectX 11 con CPU Intel® Ivy Bridge, Pixel Shader 4.1, DirectX 10.1 con CPU Intel® Sandy Bridge
- Memoria massima condivisa 1760MB (vedi ATTENZIONE 7)
- Tre opzioni d’output VGA: D-Sub, DVI-D e HDMI (vedi ATTENZIONE 8)
60
ASRock B75M-ITX Motherboard
- Supporta HDMI 1.4a con risoluzione massima no a
1920x1200 @ 60Hz
- Supporta DVI con risoluzione massima no a 1920x1200 @
60Hz
- Supporta D-Sub con risoluzione massima no a 2048x1536 @
75Hz
- Supporto delle funzioni Auto Lip Sync, Deep Color (12bpc), xvYCC e HBR (High Bit Rate Audio) con HDMI (è necessario un monitor compatibile HDMI) (vedi ATTENZIONE 9)
- Supporto della funzione HDCP con le porte DVI e HDMI
- Supporto 1080p Blu-ray (BD) / HD-DVD riproduzione con le porte DVI e HDMI Audio - 7.1 CH HD Audio con protezioni contenuti (Realtek ALC892 Audio Codec)
- Supporto audio Blu-ray Premium LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supporta Wake-On-LAN
- Supporta il rilevamento cavo LAN
- Supporto di Energy Efcient Ethernet 802.3az
- Supporta PXE Pannello I/O Panel posteriore I/O - 1 x porta PS/2 per tastiera
- 1 x Porta D-Sub
- 1 x Porta DVI-D
- 1 x Porta HDMI
- 1 x Porta ottica SPDIF Out
- 4 x porte USB 2.0 già integrate
- 1 x Connettore eSATA2
- 2 x porte USB 3.0 già integrate
- 1 x porte LAN RJ-45 con LED (LED azione/collegamento e
LED velocità)
- Connettore HD Audio: cassa posteriore / cassa centrale / bassi / ingresso linea / cassa frontale / microfono (vedi ATTENZIONE 10) SATA3 - 1 x Connettori SATA3 6,0Gb/s, supporto e delle funzioni NCQ, AHCI e Hot Plug USB 3.0 - 2 x porte USB 3.0 posteriori amministrate dal controller,
supporto di USB 1.0/2.0/3.0 no a 5Gb/s
- 1 x header USB 3.0 frontale (supporta 4 porte USB 3.0)
amministrato dal controller, supporto di USB 1.0/2.0/3.0 no a
Italiano
ASRock B75M-ITX Motherboard
61
Italiano
5Gb/s Connettori - 3 x connettori SATA2 3.0Go/s, sopporta e delle funzioni NCQ, AHCI e Hot Plug
- 1 x connettori SATA3 6.0Go/s
- 1 x Connettore modulo infrarosso consumer
- Connettore CPU/Chassis Alimentazione ventola
- 24-pin collettore alimentazione ATX
- 4-pin connettore ATX 12V
- Connettore audio sul pannello frontale
- 1 x Collettore USB 2.0 (supporta 2 porte USB 2.0)
- 1 x Collettore USB 3.0 (supporta 2 porte USB 3.0) BIOS - 64Mb AMI UEFI Legal BIOS con interfaccia di supporto
- Supporta “Plug and Play”
- Compatibile con ACPI 1.1 wake up events
- Supporta jumperfree
- Supporta SMBIOS 2.3.1
- Regolazione multi-voltaggio CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA
CD di - Driver, Utilità, Software AntiVirus (versione di prova), supporto CyberLink MediaEspresso 6.5 Trial, Suite multimediale
ASRock MAGIX - OEM Caratteristica - ASRock Extreme Tuning Utility (AXTU) speciale (vedi ATTENZIONE 11)
- ASRock Instant Boot
- ASRock Instant Flash (vedi ATTENZIONE 12)
- Caricatore ASRock APP Charger (vedi ATTENZIONE 13)
- ASrock SmartView (vedi ATTENZIONE 14)
- ASRock XFast USB (vedi ATTENZIONE 15)
- ASRock XFast LAN (vedi ATTENZIONE 16)
- ASRock XFast RAM (vedi ATTENZIONE 17)
- ASRock Crashless BIOS (vedi ATTENZIONE 18)
- ASRock OMG (Online Management Guard) (vedi ATTENZIONE 19)
- ASRock Internet Flash (vedi ATTENZIONE 20)
- Tecnologia ASRock On/Off Play (vedi ATTENZIONE 21)
- Booster ibrido:
- ASRock U-COP (vedi ATTENZIONE 22)
- Boot Failure Guard (B.F.G.)
- LED notturno Monitoraggio - Sensore per la temperatura del processore Hardware - Sensore temperatura scheda madre
- Indicatore di velocità per la ventola del CPU Alimentazione
62
ASRock B75M-ITX Motherboard
- Indicatore di velocità per la ventola del Chassis Alimentazione
- Ventola CPU/Chassis silenziosa (permette la regolazione automatica della ventola dello chassis in base alla temperatura della CPU)
- Ventola CPU/chassis con controllo di varie velocità
- Voltaggio: +12V, +5V, +3.3V, Vcore Compatibilità - Microsoft® Windows® 7 / 7 64 bit / VistaTM / Vista
TM
64 bit / XP /
SO XP 64 bit (vedi ATTENZIONE 23) Certicazioni - FCC, CE, WHQL
- Predisposto ErP/EuP (è necessaria l’alimentazione predisposta per il sistema ErP/EuP) (vedi ATTENZIONE 24)
* Per ulteriori informazioni, prego visitare il nostro sito internet: http://www.asrock.com
AVVISO
Si prega di prendere atto che la procedura di overclocking implica dei rischi, come anche la regolazione delle impostazioni del BIOS, l’applicazione della tecnologia Untied Overclocking Technology, oppure l’uso di strumenti di overclocking forniti da
terzi. L’overclocking può inuenzare la stabilità del sistema, ed anche provocare
danni ai componenti ed alle periferiche del sistema. La procedura è eseguita a pro prio rischio ed a proprie spese. Noi non possiamo essere ritenuti responsabili per possibili danni provocati dall’overclocking.
ATTENZIONE!
1. A causa dei limiti di chipset, non è supportato l’overclocking.
2. Per il settaggio della “Tecnologia Hyper-Threading”, per favore controllare pagina 43 del Manuale dell’utente all’interno del CD di supporto.
3. Intel® Small Business Advantage è una piattaforma personalizzabile
integrata con strumenti IT, che aiuta a massimizzare la produttività dei
dipendenti, le prestazioni del PC e la sicurezza dei dati. Ci sono applica­zioni che includono Software Monitor, PC Health Center, Data Backup & Restore, Energy Saver ed USB Blocker.
4. Questa scheda madre supporta la tecnologia Dual Channel Memory. Prima di implementare la tecnologia Dual Channel Memory, assicurarsi di leggere la guida all’installazione dei moduli di memoria, a pagina 17, per seguire un’installazione appropriata.
5. A causa delle limitazioni del sistema operativo, le dimensioni effettive della memoria possono essere inferiori a 4GB per l’accantonamento riservato all’uso del sistema sotto Windows® 7 / VistaTM / XP. Per Windows® OS con CPU 64-bit, non c’è tale limitazione. Si può usare ASRock XFast RAM per fare uso della memoria che Windows® non può utilizzare.
6. Per utilizzare PCI Express a velocità Gen 3, bisogna installare la CPU Ivy
Bridge. Se si installa la CPU Sandy Bridge, PCI Express opererà soltanto a velocità Gen 2 PCI Express.
Italiano
ASRock B75M-ITX Motherboard
63
Italiano
7. La dimensione massima della memoria condivisa viene stabilita dal ven-
ditore del chipset ed e‘ soggetta a modicazioni. Prego fare riferimento al
sito internet Intel® per le ultime informazioni.
8. Si può solo scegliere di usare due dei tre monitor. I monitor D-Sub, DVID
e HDMI non possono essere abilitati contemporaneamente. Inoltre, usando l’adattatore DVI a HDMI la porta DVI-D può supportare le stesse funzioni della porta HDMI.
9. Le funzioni xvYCC e Deep Color sono supportate solo sotto Windows®
7 64-bit / 7. La modalità Deep Color sarà abilitata solo se lo schermo
supporta la funzione 12bpc in EDID. La funzione HBR è supportata sotto Windows® 7 64-bit / 7 / VistaTM 64-bit / VistaTM.
10. Questa scheda madre supporta l’ingresso stereo e mono per il microfono.
Questa scheda madre supporta le modalità 2 canali, 4 canali, 6 canali e
8 canali per l’uscita audio. Controllare la tavola a pagina 3 per eseguire il collegamento appropriato.
11. L’utilità AXTU (ASRock Extreme Tuning Utility) è uno strumento tutto
in uno per regolare varie funzioni del sistema in un’interfaccia facile da usare che include monitoraggio hardware, controllo ventola, overclocking, OC DNA ed IES. Hardware Monitor (Monitoraggio hardware) mostra le letture principali del sistema. Fan Control (Controllo ventola) mostra la
velocità e la temperatura che possono essere regolate. Overclocking
permette di eseguire l’overclocking della frequenza della CPU per ottenere le prestazioni ottimali del sistema. OC DNA permette di salvare
le impostazioni OC come un prolo da condividere con gli amici! Gli amici possono scaricare il prolo OC sul loro sistema operativo per ottenere le
stesse impostazioni OC Il regolatore di tensione di IES (Intelligent Energy
Saver) può ridurre il numero di fasi d’uscita per migliorare l’efcienza quando i core CPU sono inattivi senza sacricare le prestazioni di
computazione. Vistare il nostro per informazioni sulle procedure operative
dell’utilità AXTU (ASRock Extreme Tuning Utility).
Sito ASRock: http://www.asrock.com
12. ASRock Instant Flash è una utilità Flash BIOS integrata nella Flash
ROM. Questo comodo strumento d’aggiornamento del BIOS permette di aggiornare il sistema BIOS senza accedere a sistemi operativi come MS-DOS or Windows®. Con questa utilità, si può premere il tasto <F6> durante il POST, oppure il tasto <F2> nel menu BIOS per accedere ad
ASRock Instant Flash. Avviare questo strumento e salvare il nuovo le
BIOS nell’unità Flash USB, dischetto (disco oppy) o disco rigido; poi si
può aggiornare il BIOS con pochi clic, senza preparare altri dischetti (dischi
oppy) o altre complicate utilità Flash. Si prega di notare che l’unità Flash
USB o il disco rigido devono usare il File System FAT32/16/12.
13. Se vuoi un modo rapido e indipendente per caricare i dispositivi Apple,
come iPhone/iPad/iPod Touch, ASRock ha preparato una soluzione mera­vigliosa: ASRock APP Charger. Basta installare il driver APP Charger per
caricare l’iPhone più rapidamente rispetto al computer, con una velocità
maggiore del 40%. ASRock APP Charger permette di caricare
64
ASRock B75M-ITX Motherboard
simultaneamente molti dispositivi Apple in modo rapido e supporta anche il
caricamento continuato quando il PC accede alla modalità di Standby (S1), Sospensione su RAM (S3), Ibernazione (S4) o Spegnimento (S5). Una
volta installato il driver APP Charger si otterranno prodigi e comodità mai
avuti prima.
Sito ASRock: http://www.asrock.com/Feature/AppCharger/index.asp
14. SmartView, una nuova funzione di browser Internet, è la pagina iniziale intelligente di IE che unisce i siti web più visitati, la cronologia, gli amici di Facebook e il newsfeed in tempo reale in una visione migliorata per una esperienza Internet più personale. Le schede madri ASRock sono dotate in modo esclusivo dell’utility SmartView, che consente di mantenersi sempre in contatto con gli amici. Per utilizzare la funzione SmartView, as­sicurarsi che la versione del sistema operativo sia Windows® 7 / 7 64 bit / VistaTM / VistaTM 64 bit e che la versione del browser sia IE8. Sito web ASRock: http://www.asrock.com/Feature/SmartView/index.asp
15. ASRock XFast USB può accelerare le prestazioni del dispositivo d’archi-
viazione USB. Le prestazioni dipendono dalle proprietà del dispositivo.
16. ASRock XFast LAN offre un accesso a Internet più veloce, che compren-
de i seguenti beneci. Priorità alle applicazioni LAN: è possibile congu­rare la priorità assegnata alle applicazioni in modo ideale e/o aggiungere
nuovi programmi. Minore latenza nei giochi: dopo avere impostato la
priorità dei giochi su un livello più alto, la latenza dei giochi può essere minore. Congurazione del trafco: è possibile seguire video HD su
Youtube e scaricare le contemporaneamente. Analisi in tempo reale dei dati: grazie alla nestra di stato, è possibile riconoscere con facilità quali
dati si stanno trasferendo in streaming.
17. ASRock XFast RAM è una nuova funzione inclusa in AXTU (ASRock Extreme Tuning Utility). Utilizza completamente lo spazio che non può essere utilizzato da CPU Windows® 32-bit. ASRock XFast RAM accorcia i tempi di caricamento dei siti visitati in precedenza, rendendo la naviga-
zione più veloce che mai. Inoltre accelera di 5 volte la velocità di Adobe
Photoshop. Un altro vantaggio di ASRock XFast RAM è che riduce la
frequenza d’accesso alle unità SSD o HDD per allungare la loro durata.
18. ASRock Crashless BIOS permette agli utenti di aggiornare il BIOS senza
paura di commettere errori. Se si verica un blackout durante la proce­dura di aggiornamento del BIOS, ASRock Crashless BIOS terminerà
automaticamente la procedura di aggiornamento del BIOS quando è
ripristinata la corrente. Notare che i le del BIOS devono essere collocati
nella directory principale del disco USB. Questa funzione è supportata solo dalle porte USB2.0.
19. Con OMG, gli amministratori sono in grado di stabilire un coprifuoco
Internet, oppure di limitare l’accesso ad Internet in determinati orari. Si
può scegliere tra [Ogni giorno], [Feriali] o [Feriali e festivi], e poi piani­care l’ora d’inizio e di ne che denisco l’intervallo durante il quale ad
altri utenti è garantito l’accesso ad Internet. Per impedire agli utenti di bypassare l’OMG, sono necessari account ospite senza autorizzazione a
modicare l’ora del sistema.
Italiano
ASRock B75M-ITX Motherboard
65
20. Internet Flash ricerca aggiornamenti rmware UEFI disponibili dai nostri
server. In altre parole, il sistema è in grado di rilevare automaticamente i più recenti UEFI dai nostri server e li aggiorna senza accedere al sistema operativo Windows. È necessario eseguire un computer configurato DHCP per attivare questa funzione.
21. La tecnologia ASRock On/Off Play consente agli utenti di godere di una
esperienza audio eccezionale tramite i dispositivi audio portatili come i lettori MP3 o il cellulare sul proprio PC, anche quando il PC è spento (op-
pure in modalità ACPI S5)! Questa scheda madre fornisce inoltre un cavo
audio libero da 3,5 mm (opzionale) che garantisce agli utenti l’ambiente di elaborazione più comodo.
22. Se il processore si surriscalda, il sistema si chiude automaticamente. Pri-
ma di riavviare il sistema, assicurarsi che la ventolina CPU della scheda madre funzioni correttamente; scollegare e ricollegare il cavo d’alimen­tazione. Per migliorare la dissipazione del calore, ricordare di applicare l’apposita pasta siliconica tra il processore e il dissipatore quando si installa il sistema.
23. ASRock XFast RAM non è supportato da Microsoft® Windows® XP / XP
64-bit. Tecnologia Intel® Smart Connect e porte Intel® USB 3.0 non è sup­portato da Microsoft® Windows® VistaTM / VistaTM 64-bit / XP / XP 64-bit.
24. EuP, che sta per Energy Using Product (Prodotto che consuma energia) ,
era una normativa emanata dall’Unione Europea che deniva il consumo
energetico del sistema completo. In base all’EuP, l’alimentazione totale del sistema completo deve essere inferiore a 1,00 W quando è spento. Per soddisfare la norma EuP sono necessari un alimentatore e una sche­da elettrica predisposti EuP. In base ai suggerimenti Intel l’alimentatore
predisposto EuP deve soddisfare lo standard secondo cui l’efcienza
energetica in standby di 5 v è più alta del 50% con un consumo di corren­te di 100 mA. Per la scelta di un’alimentatore predisposto EuP consiglia-
mo di vericare ulteriori dettagli con il produttore.
Italiano
66
ASRock B75M-ITX Motherboard
1.3 Setup dei Jumpers
L’illustrazione mostra come sono settati i jump­er. Quando il ponticello è posizionato sui pin, il jumper è “CORTOCIRCUITATO”. Se sui pin non ci sono ponticelli, il jumper è “APERTO”. L’illustrazione mostra un jumper a 3 pin in cui il pin1 e il pin2 sono “CORTOCIRCUITATI” quan­do il ponticello è posizionato su questi pin.
Jumper Settaggio del Jumper
Resettare la CMOS
(CLRCMOS1) (vedi p.2 Nr. 18)
Nota:
CLRCMOS1 permette si azzerare i dati nella CMOS. Per cancellare e ripristinare i
parametri del sistema sulla congurazione iniziale, spegnere il computer e
Impostazione
predenita
scollegare il cavo d’alimentazione dalla presa di corrente. Attendere 15 secondi, poi usare un cappuccio jumper per cortocircuitare il pin 2 ed il pin 3 su CLRCMOS1 per 5 secondi. Tuttavia, si consiglia di non cancellare la CMOS subito dopo avere aggiornato il BIOS. Se si deve azzerare la CMOS quando si è completato l’aggiornamento del BIOS, è necessario per prima cosa avviare il sistema e poi spegnerlo prima di eseguire l’azzeramento della CMOS. No-
tare che password, data, ore, prolo utente predenito, 1394 GUID e indirizzo
MAC saranno cancellati solo se è rimossa la batteria della CMOS.
Azzeramen-
to CMOS
ASRock B75M-ITX Motherboard
Italiano
67
1.4 Collettori e Connettori su Scheda
I collettori ed i connettori su scheda NON sono dei jumper. NON instal­lare cappucci per jumper su questi collettori e connettori. L’installazione
di cappucci per jumper su questi collettori e connettori provocherà
danni permanenti alla scheda madre!
Connettori Serial ATA2 Questi tre connettori Serial
(SATA_1: vedi p.2 Nr. 2)
(SATA_2: vedi p.2 Nr. 4)
(SATA_3: vedi p.2 Nr. 5)
L’interfaccia SATA2 attuale
ATA2 (SATA2) supportano cavi dati SATA per dispositivi di immagazzinamento interni.
SATA_1 SATA_3
permette velocità di trasferimento dati no a 3.0
Gb/s.
SATA_2
Italiano
Connettori Serial ATA3 Questo connettore Serial
(SATA_0: vedi p.2 Nr. 3)
ATA3 (SATA3) supportano cavi
SATA_0
dati SATA per dispositivi di immagazzinamento interni. L’interfaccia SATA3 attuale
permette velocità di trasferimento dati no a 6.0
Gb/s.
Cavi dati Serial ATA (SATA) Una o altra estremità del cavo
(Opzionale)
di dati SATA può essere collegata al disco rigido SATA / SATA2 / SATA3 o al connettore di SATA2 / SATA3 su questa cartolina base.
Collettore USB 2.0 Oltre alle quattro porte USB 2.0
(9-pin USB4_5)
(vedi p.2 Nr. 7)
standard del pannello I/O,
questa scheda madre è dotata di un header USB 2.0 che supporta due porte USB 2.0.
68
ASRock B75M-ITX Motherboard
Collettore USB 3.0 Oltre alle due porte USB 3.0
1
Int A_P1_ D+
Int A_P1_ D-
GND
Int A_P1_ SSTX +
Int A_P1_ SSTX -
GND
Int A_P1_ SSRX +
Int A_P1_ SSRX -
Vbu s
Int A_P0_ D+
Int A_P0_ D-
GND
Int A_P0_ SSTX +
Int A_P0_ SSTX -
GND
Int A_P0_ SSRX +
Int A_P0_ SSRX -
Vbu s
(19-pin USB3_3_4)
(vedi p.2 Nr. 12)
standard del pannello I/O,
questa scheda madre è dotata di un header USB 3.0 che supporta due porte USB 3.0.
Connettore modulo infrarosso consumer Questo connettore può essere
(4-pin CIR1)
(vedi p.2 Nr. 10)
utilizzato per collegare
ricevitore remoto.
Connettore audio sul È un’interfaccia per il cavo del pannello frontale pannello audio. Che consente
(9-pin HD_AUDIO1)
(vedi p.2 Nr. 15)
connessione facile e controllo
dei dispositivi audio.
1
GND
PRE SENC E#
MIC 2_R
MIC 2_L
MIC _RET
J_S ENSE
OUT 2_R
OUT _RET
OUT 2_L
1. La caratteristica HDA (High Denition Audio) supporta il rilevamento dei
connettori, però il pannello dei cavi sul telaio deve supportare la funzione HDA
(High Denition Audio) per far sì che questa operi in modo corretto. Attenersi alle
istruzioni del nostro manuale e del manuale del telaio per installare il sistema.
2. Se si utilizza un pannello audio AC’97, installarlo nell’intestazione audio del pannello anteriore, come indicato di seguito:
A. Collegare Mic_IN (MIC) a MIC2_L. B. Collegare Audio_R (RIN) a OUT2_R e Audio_L (LIN) ad OUT2_L. C. Collegare Ground (GND) a Ground (GND).
D. MIC_RET e OUT_RET sono solo per il pannello audio HD. Non è necessario collegarli per il pannello audio AC’97.
E. Per attivare il microfono frontale. Sistema operativo Windows® XP / XP 64-bit: Selezionare “Mixer”. Selezionare “Recorder” (Registratore). Poi, fare clic su “FrontMic” (Microfono frontale). Sistema operativo Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit: Andare alla scheda “FrontMic” (Microfono frontale) del pannello di controllo Realtek. Regolare la voce “Recording Volume” (Volume registrazione).
ASRock B75M-ITX Motherboard
Italiano
69
Collettore pannello di sistema Questo collettore accomoda
(9-pin PANEL1)
(vedi p.2 Nr. 8)
Collegare l’interruttore d’alimentazione, l’interruttore di ripristino, l’indicatore di stato del sistema del pannello frontale del telaio a questo
header in base all’assegnazione dei pin denita di seguito. Determinare i
pin positivi e negativi prima di collegare i cavi.
PWRBTN (interruttore d’alimentazione):
RESET (interruttore di ripristino):
PLED (LED alimentazione del sistema):
HDLED (LED attività disco rigido):
diverse funzioni di sistema pannello frontale.
Va collegato all’interruttore d’alimentazione del pannello frontale del
telaio. Usando l’interruttore d’alimentazione si può congurare il modo in
cui si spegne il sistema.
Va collegato all’interruttore di ripristino del pannello frontale del telaio. Premere l’interruttore di ripristino per riavviare il sistema se il computer si blocca e non riesce ad eseguire un normale riavvio.
Va collegato all’indicatore di stato d’alimentazione del pannello frontale del telaio. Il LED è acceso quando il sistema è operativo. Il LED continua a lampeggiare quando il sistema è in stato di standby S1/S3. Il LED è spento quando il sistema è in stato di sospensione /ibernazione S4 oppure spento (S5).
Va collegato al LED attività disco rigido del pannello frontale del telaio. Il
LED è acceso quando disco rigido legge e scrive i dati.
Italiano
Il design del pannello frontale può variare in base ai telai. Il modulo di un pannello frontale può consistere di: interruttore d’alimentazione,
interruttore di ripristino, LED d’alimentazione, LED attività disco rigido,
casse, eccetera. Quando si collega il modulo del pannello frontale a
questo header, assicurarsi che l’assegnazione dei li e dei pin sia fatta
corrispondere in modo appropriato.
Collettori Chassis ventola Collegare i cavi della ventola ai
(4-pin CHA_FAN1)
(vedi p.2 Nr. 17)
corrispondenti connettori
facendo combaciare il cavo
nero col pin di terra.
FAN _SPE ED_C ONTR OL
CHA _FAN _SPE ED
+12 V
GND
70
ASRock B75M-ITX Motherboard
Connettore ventolina CPU Collegare il cavo della ventolina
(4-pin CPU_FAN1)
(vedi p.2 Nr. 16)
CPU a questo connettore e far
combaciare il lo nero al pin
FAN_ SPEE D_CO NTRO L
CPU _FAN_ SPEE D
+12 V
GND
4 3 2 1
terra.
Sebbene la presente scheda madre disponga di un supporto per ventola CPU a 4 piedini (ventola silenziosa), la ventola CPU a 3 piedini è in grado di funzionare
anche senza la funzione di controllo della velocità della ventola. Se si intende
collegare la ventola CPU a 3 piedini al connettore della ventola CPU su questa scheda madre, collegarla ai piedini 1-3.
Installazione della ventola a 3 piedini
Piedini 1-3 collegati
Connettore alimentazione ATX Collegare la sorgente
(24-pin ATXPWR1)
(vedi p.2 Nr. 9)
d’alimentazione ATX a questo
connettore.
24 13
12 1
Con questa scheda madre, c’è in dotazione un connettore elettrico ATX a 24 pin, ma può funzionare lo stesso se si adotta un alimentatore ATX a 20 pin. Per usare l’alimentatore ATX a 20 pin, collegare l’alimentatore con il Pin 1 e il Pin 13.
Installazione dell’alimentatore ATX a 20 pin
24 13
12 1
Connettore ATX 12 V Collegare un alimentatore ATX
(4-pin ATX12V1)
(vedi p.2 Nr. 19)
12 V a questo connettore.
Italiano
ASRock B75M-ITX Motherboard
71
2. Informazioni sul BIOS
La Flash Memory sulla scheda madre contiene le Setup Utility. Quando si avvia il computer, premi <F2> o <Del> durante il Power-On-Self-Test (POST) della Setup utility del BIOS; altrimenti, POST continua con i suoi test di routine. Per entrare il BIOS Setup dopo il POST, riavvia il sistema premendo <Ctl> + <Alt> + <Delete>, o premi il tasto di reset sullo chassis del sistema. Per informazioni più dettagliate circa
il Setup del BIOS, fare riferimento al Manuale dell’Utente (PDF le) contenuto nel cd
di supporto.
3. Software di supporto e informazioni su CD
Questa scheda madre supporta vari sistemi operativi Microsoft® Windows®: 7 / 7 64-bit / VistaTM / Vista
scheda madre contiene i driver e utilità necessari a potenziare le caratteristiche
della scheda. Inserire il CD di supporto nel lettore CD-ROM. Se la funzione “AUTORUN” è attivata
nel computer, apparirà automaticamente il Menù principale. Se il Menù principale non appare automaticamente, posizionarsi sul le “ASSETUP.EXE” nel CESTINO
del CD di supporto e cliccare due volte per visualizzare i menù.
TM
64-bit / XP / XP 64-bit. Il CD di supporto a corredo della
Italiano
72
ASRock B75M-ITX Motherboard
1. Introducción
Gracias por su compra de ASRock B75M-ITX placa madre, una placa de conanza producida bajo el control de calidad estricto y persistente. La placa madre provee realización excelente con un diseño robusto conforme al compromiso de calidad y resistencia de ASRock.
Esta Guía rápida de instalación contiene una introducción a la placa base y una guía de instalación paso a paso. Puede encontrar una información más detallada
sobre la placa base en el manual de usuario incluido en el CD de soporte.
Porque las especicaciones de la placa madre y el software de BIOS
podrían ser actualizados, el contenido de este manual puede ser cambiado
sin aviso. En caso de cualquier modicación de este manual, la versión actualizada estará disponible en el website de ASRock sin previo aviso. También encontrará las listas de las últimas tarjetas VGA y CPU soportadas en la página web de ASRock.
Website de ASRock http://www.asrock.com Si necesita asistencia técnica en relación con esta placa base, visite nuestra
página web con el número de modelo especíco de su placa.
www.asrock.com/support/index.asp
1.1 Contenido de la caja
Placa base ASRock B75M-ITX (Factor forma Mini-ITX: 17,0 cm x 17,0 cm, 6,7” x 6,7”)
Guía de instalación rápida de ASRock B75M-ITX
CD de soporte de ASRock B75M-ITX Dos cables de datos Serial ATA (SATA) (Opcional) Una protección I/O
ASRock le recuerda...
Para mejorar el rendimiento en Windows® 7 / 7 64 bits / Vista 64 bits, es recomendable establecer la opción del BIOS de la congura­ción de almacenamiento en el modo AHCI. Para obtener detalles sobre la conguración del BIOS, consulte el “Manual del usuario” que se en­cuentra en nuestro CD de soporte.
TM
/ VistaTM
ASRock B75M-ITX Motherboard
Español
73
Español
1.2 Especificación
Plataforma - Factor forma Mini-ITX: 17,0 cm x 17,0 cm, 6,7” x 6,7”
- Todo diseño de Capacitor Sólido (condensadores de polímero conductor de alta calidad de fabricación 100% japonesa) Procesador - Admite procesadores Intel® CoreTM i7 / i5 / i3 de la 3ª y 2ª generación en el paquete LGA1155
- Diseño de alimentación digital
- Diseño de fases de potencia 4 + 2
- Admite la tecnología Intel® Turbo Boost 2.0 Technology
- Admite procesador desbloqueado de la serie K (ver ATENCIÓN 1)
- Admite tecnología Hyper Threading (ver ATENCIÓN 2)
- Admite las tecnologías Intel® Rapid Start y Smart Connect con la CPU Intel® Ivy Bridge Chipset - Intel® B75
- Soporte Intel® Small Business Advantage (ver ATENCIÓN 3) Memoria - Soporte de Tecnología de Memoria de Doble Canal (ver ATENCIÓN 4)
- 2 x DDR3 DIMM slots
- Apoya DDR3 1600/1333/1066 non-ECC, memoria de un-buffered (DDR3 1600 con CPU Intel® Ivy Bridge, DDR3 1333 con CPU Intel® Sandy Bridge)
- Máxima capacidad de la memoria del sistema: 16GB
(vea ATENCIÓN 5)
- Compatible con Intel® Extreme Memory Prole (XMP)1.3/1.2 Ranuras de - 1 x ranura PCI Express 3.0 x16 (PCIE1: modo x16) Expansión (vea ATENCIÓN 6) * PCIE 3.0 solamente se admite con una CPU Intel® Ivy Bridge. Con una CPU Intel® Sandy Bridge, solamente admite PCIE 2.0. VGA OnBoard * Los efectos visuales incorporados con grácos de alta
denición Intel® y las salidas VGA sólo se soportan con
procesadores con GPU integrada.
- Admite Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video 2.0, Intel® InTruTM 3D, Intel® Clear Video HD Technology, Intel® InsiderTM, Intel® HD Graphics 2500/4000
- Pixel Shader 5.0, DirectX 11 con CPU Intel® Ivy Bridge, Pixel Shader 4.1, DirectX 10.1 con CPU Intel® Sandy Bridge
- 1760MB de Memoria máxima compartida (vea ATENCIÓN 7)
74
ASRock B75M-ITX Motherboard
- Tres opciones de salida VGA: D-Sub, DVI-D y HDMI (vea ATENCIÓN 8)
- Admite HDMI 1.4a con una resolución máxima de 1920x1200
a 60 Hz
- Admite DVI con una resolución máxima de 1920x1200 a 60
Hz
- Admite D-Sub con una resolución máxima de 2048x1536 a
75 Hz
- Admite Sincronización automática entre audio y vídeo, Deep
Color (12 bpc), xvYCC y HBR (audio de alta tasa de bits) con HDMI (se necesita un monitor compatible con HDMI) (ver ATENCIÓN 9)
- Admite la función HDCP con puertos DVI y HDMI
- Apoya la reproducción de Blu-rayo de 1080p (BD) / HD-DVD con puertos DVI y HDMI Audio - 7.1 CH HD Audio con Protección de Contenido (Realtek ALC892 Audio Codec)
- Compatible con audio Blu-ray de alta calidad LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Soporta Wake-On-LAN
- Admite detección de conexión de cable LAN
- Compatible con Ethernet 802.3az de bajo consumo
energético
- Compatible con PXE Entrada/Salida de I/O Panel Panel Trasero - 1 x puerto de teclado PS/2
- 1 x puerto D-Sub
- 1 x puerto DVI-D
- 1 x puerto HDMI
- 1 x puerto de salida óptica SPDIF
- 4 x puertos USB 2.0 predeterminados
- 1 x Conector eSATA2
- 2 x puertos USB 3.0 predeterminados
- 1 x Puerto LAN RJ-45 con LED (LED de ACCIÓN/ENLACE y LED de VELOCIDAD)
- Conexión de audio: Altavoz trasero / Central / Bajos / Entrada de línea / Altavoz frontal / Micrófono (ver ATENCIÓN 10) SATA3 - 1 x conectores SATA3 de 6,0 Gb/s con funciones NCQ, AHCI y de Hot Plug (conexión en caliente)
Español
ASRock B75M-ITX Motherboard
75
Español
USB 3.0 - 2 x puertos USB 3.0 traseros, compatible con USB 1.0/2.0/3.0 de hasta 5 GB/s
- 1 x cabecera USB 3.0 delantera (compatible con 2 puertos USB 3.0), compatible con USB 1.0/2.0/3.0 de hasta 5 GB/s Conectores - 3 x conexiones SATA2, admiten una velocidad de transferencia de datos de hasta 3,0Gb/s, soporta NCQ, AHCI y de Hot Plug (conexión en caliente)
- 1 x conexiones SATA3, admiten una velocidad de transferencia de datos de hasta 6,0Gb/s
- 1 x Base de conexiones del módulo de infrarrojos para el consumidor
- Conector de ventilador de CPU / chasis
- 24-pin cabezal de alimentación ATX
- 4-pin conector de ATX 12V power
- Conector de audio de panel frontal
- 1 x Cabezal USB 2.0 (admite 2 puertos USB 2.0 adicionales)
- 1 x Cabezal USB 3.0 (admite 2 puertos USB 3.0 adicionales) BIOS - 64Mb AMI BIOS legal UEFI AMI compatible con GUI
- Soporta “Plug and Play”
- ACPI 1.1 compliance wake up events
- Soporta “jumper free”
- Soporta SMBIOS 2.3.1
- Múltiple ajuste de CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage CD de soport - Controladores, utilidades, software de antivirus (versión de prueba), Prueba de CyberLink MediaEspresso 6.5, Conjunto multimedia ASRock MAGIX - OEM
Característica - ASRock Extreme Tuning Utility (AXTU) (vea ATENCIÓN 11) Única - ASRock Instant Boot
- ASRock Instant Flash (vea ATENCIÓN 12)
- ASRock APP Charger (vea ATENCIÓN 13)
- ASRock SmartView (vea ATENCIÓN 14)
- ASRock XFast USB (vea ATENCIÓN 15)
- ASRock XFast LAN (vea ATENCIÓN 16)
- ASRock XFast RAM (vea ATENCIÓN 17)
- ASRock Crashless BIOS (vea ATENCIÓN 18)
- ASRock OMG (Online Management Guard) (vea ATENCIÓN 19)
- ASRock Internet Flash (vea ATENCIÓN 20)
- Tecnología de activación y desactivación de la reproducción de ASRock (vea ATENCIÓN 21)
76
ASRock B75M-ITX Motherboard
- Amplicador Híbrido:
- ASRock U-COP (vea ATENCIÓN 22)
- Protección de Falla de Inicio (B.F.G..)
- Indicador LED nocturno Monitor - Sensibilidad a la temperatura del procesador Hardware - Sensibilidad a la temperatura de la placa madre
- Taquímetros de los ventiladores del procesador y del CPU
- Taquímetros de los ventiladores del procesador y del chasis
- Ventilador silencioso del procesador y el chasis (ajuste
automático de la velocidad del ventilador del chasis en
función de la temperatura del procesador)
- Control de ajuste de la velocidad del ventilador de la CPU / chasis
- Monitor de Voltaje: +12V, +5V, +3.3V, Vcore OS - En conformidad con Microsoft® Windows® 7 / 7 64 bits / VistaTM / VistaTM 64 bits / XP / XP 64 bits (vea ATENCIÓN 23) Certicaciones - FCC, CE, WHQL
- Cumple con la directiva ErP/EuP (se requiere una fuente de alimentación que cumpla con la directiva ErP/EuP) (vea ATENCIÓN 24)
* Para más información sobre los productos, por favor visite nuestro sitio web:
http://www.asrock.com
ADVERTENCIA
Tenga en cuenta que hay un cierto riesgo implícito en las operaciones de aumento de la velocidad del reloj, incluido el ajuste del BIOS, aplicando la tecnología de aumento de velocidad liberada o utilizando las herramientas de aumento de velocidad de otros fabricantes. El aumento de la velocidad puede afectar a la estabilidad del sistema e, incluso, dañar los componentes y dispositivos del sistema. Esta operación se debe realizar bajo su propia responsabilidad y Ud. debe asumir los costos. No asumimos ninguna responsabilidad por los posibles daños causados por el aumento de la velocidad del reloj.
ASRock B75M-ITX Motherboard
Español
77
Español
ATENCIÓN !
1. Debido a las limitaciones del conjunto de chips, no se admite la sob­reaceleración.
2. Por favor consulte página 43 del Manual del Usuario en el soporte CD sobre la conguración de Hyper-Threading Technology.
3. Intel® Small Business Advantage es una plataforma personalizable inte­grada con herramientas de TI que ayuda a maximizar la productividad de los empleados, el rendimiento de su PC y la seguridad de los datos. Es­tas aplicaciones son las siguientes: Software Monitor, PC Health Center, Data Backup & Restore, Energy Saver y USB Blocker.
4. Esta placa base soporta Tecnología de Memoria de Doble Canal. Antes
de implementar la Tecnología de Memoria de Doble Canal, asegúrese de leer la guía de instalación de módulos de memoria en la página 17 para
su correcta instalación.
5. Debido a las limitaciones del sistema, el tamaño real de la memoria debe ser inferior a 4GB para que el sistema pueda funcionar bajo Windows® 7 / VistaTM / XP. Para equipos con Windows® OS con CPU de 64-bit, no existe dicha limitación. Puede usar ASRock XFast RAM para utilizar la memoria que no puede usar Windows®.
6. Para conseguir que PCI Express funcione a una velocidad Gen 3, debe instalar la CPU Ivy Bridge. Si instala la CPU Sandy Bridge, PCI Express
solamente funcionará a velocidad PCI Express Gen 2.
7. El tamaño de la memoria compartido máximo es denido por el vendedor del chipset y está conforme al cambio. Por favor compruebe el Web site
de Intel® para la información más última.
8. Puede elegir entre dos de los tres monitores solamente. Los monitores
D-Sub, DVI-D y HDMI no se pueden habilitar al mismo tiempo. Además,
con el adaptador DVI a HDMI, el puerto DVI-D puede admitir las mismas funciones que el puerto HDMI.
9. Las funciones xvYCC y Deep Color solamente se admiten con el sistema operativo Windows® 7 de 64 bits/ 7. El modo Deep Color solamente se habilitará si la pantalla admite 12 bpc en EDID. HBR se admite en Win­dows® 7 64 bits / 7 / VistaTM 64 bits / VistaTM.
10. Para la entrada de micrófono, esta placa madre ofrece soporte para
modos estéreo y mono. Para salida de audio, este placa madre ofrece
soporte para modos de 2 canales, 4 canales, 6 canales y 8 canales.
Consulte la tabla en la página 3 para una conexión correcta.
11. ASRock Extreme Tuning Utility (AXTU) es una herramienta todo en uno que permite realizar ajustes precisos en diferentes funciones del sistema mediante una interfaz sencilla, que incluye supervisión de hardware, control de ventiladores, función de aumento de la velocidad del reloj, DNA OC y IES. La función de supervisión de hardware, muestra las
principales lecturas del sistema. La función de control de los ventiladores, muestra la velocidad y la temperatura de los ventiladores y
permite ajustarlas. La función de aumento de la velocidad del reloj,
permite aumentar la frecuencia de la CPU para conseguir un rendimiento
78
ASRock B75M-ITX Motherboard
óptimo del sistema. La función DNA OC permite guardar la conguración
OC como un perl y compartirla con sus amigos. Después, sus amistados pueden cargar el perl OC en sus propios sistemas para obtener la misma conguración OC. En el protector de energía
inteligente (IES, Intelligent Energy Saver), el regulador de voltaje puede
reducir el número de fases de salida para mejorar la eciencia cuando
los núcleos de la CPU están inactivos sin que el rendimiento de cálculo
disminuya. Visite nuestro sitio Web para obtener los procedimientos de funcionamiento de ASRock Extreme Tuning Utility (AXTU). Sitio Web de ASRock: http://www.asrock.com
12. ASRock Instant Flash es una utilidad de programación del BIOS que se encuentra almacenada en la memoria Flash ROM. Esta sencilla her-
ramienta de actualización de BIOS le permitirá actualizar el BIOS del sistema sin necesidad de acceder a ningún sistema operativo, como
MS-DOS o Windows®. Gracias a esta utilidad, sólo necesitará pulsar
<F6> durante la fase POST o pulsar <F2> para acceder al menú de conguración del BIOS y a la utilidad ASRock Instant Flash. Ejecute esta
herramienta y guarde el archivo correspondiente al sistema BIOS nuevo
en su unidad ash USB, unidad de disco exible o disco duro para poder
actualizar el BIOS con sólo pulsar un par de botones, sin necesidad de
preparar un disco exible adicional ni utilizar complicadas utilidades de programación. Recuerde que la unidad ash USB o disco duro utilizado
debe disponer del sistema de archivos FAT32/16/12.
13. Si desea una forma más rápida y menos limitada de cargar sus disposi­tivos de Apple; como por ejemplo iPhone, iPad o iPod Touch, ASRock
ha creado una fantástica solución para usted: ASRock APP Charger.
Simplemente mediante la instalación del controlador de APP Charger,
podrá cargar su iPhone de forma mucho más rápida que antes, hasta un
40%, desde su equipo. ASRock APP Charger le permite cargar de forma
rápida muchos dispositivos de Apple simultáneamente e incluso podrá
continuar la carga cuando su PC entre en modo de espera (S1), suspen­dido en RAM (S3), modo de hibernación (S4) o se apague (S5). Una vez
instalado el controlador de APP Charger, podrá disfrutar fácilmente de una fantástica carga sin precedentes.
Sitio web de ASRock: http://www.asrock.com/Feature/AppCharger/index.
asp
14. SmartView, una nueva función el explorador de Internet, es la página de
inicio inteligente para IE que combina los sitios Web más visitados, su
historial, sus amigos de Facebook y su fuente de noticias en una vista
mejorada para disfrutar de una experiencia en Internet más personal. Las placas base ASRock están exclusivamente equipadas con la utilidad
SmartView que le ayuda a seguir en contacto con sus amigos sobre la
marcha. Para utilizar la función SmartView asegúrese de que la versión
de su sistema operativo es Windows® 7 / 7 64 bits / VistaTM / VistaTM 64
bits y que la versión de su explorador es IE8. Sitio Web de ASRock: http://www.asrock.com/Feature/SmartView/index.asp
Español
ASRock B75M-ITX Motherboard
79
Español
15. ASRock XFast USB puede aumentar el rendimiento de los dispositivos
de almacenamiento USB. El rendimiento depende de las propiedades del dispositivo.
16. ASRock XFast LAN proporciona un acceso a Internet más rápido, que
incluye las ventajas que se indican a continuación. Priorización de
aplicaciones LAN: Puede congurar la prioridad de las aplicaciones de
forma ideal y/o agregar nuevos programas. Menor latencia en los juegos:
Después de aumentar la prioridad de los juegos en línea, se puede re­ ducir la latencia en los mismos. Gestionar el tráco: Puede ver vídeo en
alta denición de Youtube y descargar archivos simultáneamente. Análi-
sis de sus datos en tiempo real: Con la ventana de estado, puede
reconocer fácilmente qué transmisiones en secuencias se están trans­riendo actualmente.
17 ASRock XFast RAM es una nueva función incluida en ASRock Extreme
Tuning Utility (AXTU). Utiliza completamente el espacio de memoria que no se puede utilizar con procesadores de 32 bits en sistemas operativos Windows®. ASRock XFast RAM acorta el tiempo de carga de los sitios Web visitados con anterioridad, lo que permite navegar por Internet
mucho más rápido que nunca. Además, también aumenta la velocidad
de Adobe Photoshop 5 veces. Otra ventaja de ASRock XFast RAM es que reduce la frecuencia de acceso a las unidades de estado sólido (SSD) o las unidades de disco duro (HDD), lo que prolonga el período de vida
útil de las mismas.
18. ASRock Crashless BIOS le permite a los usuarios actualizar su BIOS sin
miedo de que ocurra un fallo. Si ocurre una interrupción en el suministro de energía durante el proceso de actualización del BIOS, ASRock Crash-
less BIOS nalizará de manera automática el proceso de actualización
una vez se restablezca en suministro de energía. Tome en cuenta que los archivos del BIOS deben colocarse en el directorio raíz de su disco USB. Sólo los puertos USB 2.0 soportan esta función.
19. Los administradores pueden establecer cortes de acceso a Internet o
acceso restringido a Internet en horarios especicados mediante OMG. Puede elegir entre las opciones [Diariamente], [Día de la semana] o [En­tre semana y Fines de semana] y, a continuación, programar las horas de inicio y nalización del acceso a Internet concedido a otros usuarios.
Para impedir que los usuarios no eviten OMG, se necesitan cuentas de
invitado sin permiso para modicar la fecha y hora del sistema.
20. Internet Flash busca actualizaciones de rmware de UEFI disponibles
en nuestro servidores. En otras palabras, el sistema puede detectar automáticamente la última versión de UEFI existente en nuestros servi­dores y copiarla sin entrar en el sistema operativo Widows. Para poder
habilitar esta función, debe trabajar en un equipo congurado con DHCP.
21. La tecnología de activación y desactivación de la reproducción de ASRock permite a los usuarios disfrutar de una excelente experiencia
de audio de los dispositivos de audio portátiles, como por ejemplo repro­ductores MP3 o teléfonos móviles, en su PC, ¡incluso cuando su PC está apagado (o en el modo ACPI S5)! Esta placa base también proporciona
80
ASRock B75M-ITX Motherboard
un cable de audio de 3,5 mm (opcional) que garantiza a los usuarios el
entorno de cálculo más práctico.
22. Cuando la temperatura de CPU está sobre-elevada, el sistema va a
apagarse automaticamente. Antes de reanudar el sistema, compruebe si el ventilador de la CPU de la placa base funciona apropiadamente y desconecte el cable de alimentación, a continuación, vuelva a conec-
tarlo. Para mejorar la disipación de calor, acuérdese de aplicar thermal
grease entre el procesador y el disipador de calor cuando usted instala el sistema de PC.
23. ASRock XFast RAM no se admite en Microsoft® Windows® XP / XP 64 bits. Las tecnologías Intel® Smart Connect y puertos Intel® USB 3.0 no se admite en Microsoft® Windows® VistaTM / VistaTM 64 bits / XP / XP 64 bits.
24. EuP, siglas de Energy Using Product (Producto que Utiliza Energía), es una disposición regulada por la Unión Europea para establecer el
consumo total de energía de un sistema. Según la disposición EuP, la ali-
mentación de CA total para el sistema completo ha de ser inferior a 1,00W
en modo apagado. Para cumplir con el estándar EuP, se requieren una
placa base y una fuente de alimentación que cumplan con la directiva
EuP. Según las directrices de Intel, una fuente de alimentación que cum­pla con la directiva EuP debe satisfacer el estándar, es decir, la eciencia
de energía de 5v en modo de espera debería ser mayor del 50% con un consumo de corriente de 100mA. Para seleccionar una fuente de alimen­tación que cumpla la directiva EuP, le recomendamos que consulte con
el fabricante de la fuente de alimentación para obtener más detalles.
1.3 Setup de Jumpers
La ilustración muestra como los jumpers
son congurados. Cuando haya un jumper-
cap sobre los pins, se dice gue el jumper
está “Short”. No habiendo jumper cap sobre los pins, el jumper está “Open”. La ilus-
tración muesta un jumper de 3 pins cuyo
pin 1 y pin 2 están “Short”.
Jumper Setting
Limpiar CMOS
(CLRCMOS1, jumper de 3 pins) (ver p.2, N. 18)
Nota:
CLRCMOS1 permite borrar los datos de la memoria CMOS. Para borrar los
Valor predetermi­nado
Restablecimiento de
la CMOS
parámetros del sistema y restablecer la conguración predeterminada de los mismos, apague el equipo y desenchufe el cable de alimentación de la toma de corriente eléc­trica. Deje que transcurran 15 segundos y, después, utilice un puente
para
ASRock B75M-ITX Motherboard
Español
81
cortocircuitar los contactos 2 y 3 de CLRCMOS1 durante 5 segundos. No borre
la memoria CMOS justamente después de actualizar el BIOS. Si necesita borrar la memoria CMOS justamente después de actualizar el BIOS, debe iniciar primero
el sistema y, a continuación, cerrarlo antes de llevar a cabo el borrado de dicha memoria. Tenga en cuenta que la contraseña, la fecha, la hora, el perl predeterminado del usuario, el GUID 1394 y la dirección MAC solamente se
borrará si la batería CMOS se quita.
1.4 Cabezales y Conectores en Placas
Los conectores y cabezales en placa NO son puentes. NO coloque las cubiertas de los puentes sobre estos cabezales y conectores. El colocar cubiertas de puentes sobre los conectores y cabezales provo-
cará un daño permanente en la placa base.
Conexiones de serie ATA2 Estas tres conexiones de
(SATA_1: vea p.2, N. 2)
(SATA_2: vea p.2, N. 4)
(SATA_3: vea p.2, N. 5)
interfaz SATA2 actual permite
serie ATA2 (SATA2) admiten cables SATA para dispositivos de almacenamiento internos. La
SATA_1 SATA_3
una velocidad de transferencia de 3.0 Gb/s.
SATA_2
Español
82
Conexiones de serie ATA3 Este conector de
(SATA_0: vea p.2, N. 3)
serie ATA3 (SATA3) admiten
SATA_0
cables SATA para dispositivos de almacenamiento internos. La interfaz SATA2 / SATA3 actual permite una velocidad de transferencia de 6.0 Gb/s.
Cable de datos de Cualquier extremo del cable de serie ATA (SATA) los datos de SATA puede ser
(Opcional)
conectado con el disco duro de
SATA / SATA2 / SATA3 o el conectador de SATA2 / SATA3 en esta placa base.
ASRock B75M-ITX Motherboard
1
Int A_P1_ D+
Int A_P1_ D-
GND
Int A_P1_ SSTX +
Int A_P1_ SSTX -
GND
Int A_P1_ SSRX +
Int A_P1_ SSRX -
Vbu s
Int A_P0_ D+
Int A_P0_ D-
GND
Int A_P0_ SSTX +
Int A_P0_ SSTX -
GND
Int A_P0_ SSRX +
Int A_P0_ SSRX -
Vbu s
Cabezal USB 2.0 Además de cuatro puertos 2.0
(9-pin USB4_5)
(vea p.2, N. 7)
predeterminados situados en el
panel E/S, encontrará una
cabecera USB 2.0 en esta placa base. Esta cabecera USB
2.0 admiten dos puertos USB
2.0.
Cabezal USB 3.0 Además de dos puertos 3.0
(19-pin USB3_3_4)
(vea p.2, N. 12)
predeterminados situados en el
panel E/S, encontrará una
cabecera USB 3.0 en esta placa base. Esta cabecera USB
3.0 admiten dos puertos USB
3.0.
Base de conexiones del módulo de Esta base de conexiones se infrarrojos para el consumidor puede utilizar para conectar
(4-pin CIR1)
(vea p.2, N. 10)
receptor remoto.
Conector de audio de Este es una interface para panel frontal cable de audio de panel frontal
(9-pin HD_AUDIO1)
(vea p.2, N. 15)
que permite conexión y control
conveniente de apparatos de
Audio.
1
GND
PRE SENC E#
MIC 2_R
MIC 2_L
MIC _RET
J_S ENSE
OUT 2_R
OUT _RET
OUT 2_L
1. El Audio de Alta Denición soporta la detección de conector, pero el
cable de panel en el chasis debe soportar HDA para operar correctamente. Por favor, siga las instrucciones en nuestro manual y en el manual de chasis para instalar su sistema.
2. Si utiliza el panel de sonido AC’97, instálelo en la cabecera de sonido
del panel frontal de la siguiente manera: A. Conecte Mic_IN (MIC) a MIC2_L. B. Conecte Audio_R (RIN) a OUT2_R y Audio_L (LIN) en OUT2_L. C. Conecte Ground (GND) a Ground (GND).
D. MIC_RET y OUT_RET son sólo para el panel de sonido HD. No
necesitará conectarlos al panel de sonido AC’97.
ASRock B75M-ITX Motherboard
Español
83
Español
E. Activación del micrófono frontal. En sistemas operativos Windows® XP / XP 64-bit: Seleccione “Mixer” (Mezclador). Seleccione “Recorder” (Grabadora). A continuación, haga clic en “FrontMic” (Micrófono frontal). En sistemas operativos Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit:
Acceda a la cha “FrontMic” (Micrófono frontal) del panel de control
Realtek. Ajuste la posición del control deslizante “Recording Volume” (Volumen de grabación).
Cabezal de panel de sistema Este cabezar acomoda varias
(9-pin PANEL1)
(vea p.2, N. 8)
Conecte el interruptor de alimentación, el interruptor de restablecimiento y el indicador de estado del sistema situados en el chasis con esta cabecera en función de las siguientes asignaciones de contacto. Preste atención a los contactos positivos y negativos antes de conectar los cables.
PWRBTN (interruptor de alimentación):
RESTABLECER (interruptor de restablecimiento):
PLED (LED de alimentación del sistema):
HDLED (LED de actividad del disco duro):
dunciones de panel frontal de sistema.
Conecte el interruptor de encendido situado en el panel frontal del
chasis. Puede congurar la forma de apagar su sistema mediante el
interruptor de alimentación.
Conecte el interruptor de restablecimiento situado en el panel frontal del chasis. Pulse el interruptor de restablecimiento para restablecer el equipo si se bloquea y no se reinicia con normalidad.
Conecte el indicador de estado de alimentación situado en el panel
frontal del chasis. El LED se enciende cuando el sistema esté en
funcionamiento. El LED parpadea cuando el sistema se encuentre en estado de suspensión S1/S3. El LED se apaga cuando el sistema se encuentre en estado de suspensión S4 o se apaga (S5).
Conecte el LED de actividad de disco duro situado en el panel frontal
del chasis. El LED se enciende cuando el disco duro esté leyendo o
escribiendo datos.
Es posible que el diseño del panel frontal varíe en función del chasis. Un módulo del panel frontal consiste principalmente de interruptor de alimentación, interruptor de restablecimiento, LED de alimentación, LED de actividad del disco duro, altavoz, etc. Al conectar el módulo del panel
frontal del chasis a esta cabecera, asegúrese de que las asignaciones
de cables y las asignaciones de contactos coincidan correctamente.
84
ASRock B75M-ITX Motherboard
Conectores de ventilador de chasis Por favor, conecte los cables
(4-pin CHA_FAN1)
(vea p.2, N. 17)
del ventilador a los conectores
FAN _SPE ED_C ONTR OL
CHA _FAN _SPE ED
+12 V GND
de ventilador, haciendo coincidir el cable negro con la patilla de masa.
Conector del ventilador Conecte el cable del ventilador de la CPU de la CPU a este conector y
(4-pin CPU_FAN1)
(vea p.2, N. 16)
haga coincidir el cable negro
con el conector de tierra.
FAN_ SPEE D_CO NTRO L
CPU _FAN_ SPEE D
+12 V
GND
4 3 2 1
Aunque esta placa base proporciona compatibilidad para un ventilador (silencioso)
de procesador de 4 contactos, el ventilador de procesador de 3 contactos seguirá
funcionando correctamente incluso sin la función de control de velocidad de ventilador. Si pretende enchufar el ventilador de procesador de 3 contactos en el
conector del ventilador de procesador de esta placa base, conéctelo al contacto
1-3.
Contacto 1-3 conectado
Instalación del ventilador de 3 contactos
Cabezal de alimentación ATX Conecte la fuente de
(24-pin ATXPWR1)
(vea p.2, N. 9)
alimentación ATX a su cabezal.
24 13
12 1
A pesar de que esta placa base incluye in conector de alimentación ATX
de 24 pins, ésta puede funcionar incluso si utiliza una fuente de
alimentación ATX de 20 pins tradicional. Para usar una fuente de alimentación ATX de 20 pins, por favor, conecte su fuente de alimentación usando los Pins 1 y 13.
Instalación de una Fuente de Alimentación ATX de 20 Pins
24 13
12 1
Cabezal de alimentación ATX 12V Conecte la fuente de
(4-pin ATX12V1)
(vea p.2, N. 19)
alimentación ATX 12V a su cabezal.
ASRock B75M-ITX Motherboard
Español
85
2. BIOS Información
El Flash Memory de la placa madre deposita SETUP Utility. Durante el Power-Up (POST) apriete <F2> o <Del> para entrar en la BIOS. Sí usted no oprime ninguna
tecla, el POST continúa con sus rutinas de prueba. Si usted desea entrar en la BIOS después del POST, por favor reinicie el sistema apretando <Ctl> + <Alt> +
<Borrar>, o apretando el botón Reset en el panel del ordenador. Para información
detallada sobre como congurar la BIOS, por favor reérase al Manual del Usuario
(archivo PDF) contenido en el CD.
3. Información de Software Support CD
Esta placa-base soporta diversos tipos de sistema operativo Windows®: 7 / 7 64 bits / VistaTM / Vista
la placa-base trae todos los drivers y programas utilitarios para instalar y congurar
la placa-base. Para iniciar la instalación, ponga el CD en el lector de CD y se des-
plegará el Menú Principal automáticamente si «AUTORUN» está habilitado en su
computadora. Si el Menú Principal no aparece automáticamente, localice y doble-pulse en el ar­chivo “ASSETUP.EXE” para iniciar la instalación.
TM
64 bits / XP / XP 64 bits. El CD de instalación que acompaña
Español
86
ASRock B75M-ITX Motherboard
1. Введение
Благодарим вас за покупку материнской платы ASRock B75M-ITX надежной материнской платы, изготовленной в соответствии с постоянно предъявляемыми ASRock жесткими требованиями к качеству. Она обеспечивает превосходную производительность и отличается отличной конструкцией, которые отражают приверженность ASRock качеству и долговечности. Данное руководство по быстрой установке включает вводную информацию о материнской плате и пошаговые инструкции по ее установке. Более подробные сведения о плате можно найти в руководстве пользователя на компакт-диске поддержки.
Спецификации материнской платы и программное обеспечение BIOS иногда изменяются, поэтому содержание этого руководства может обновляться без уведомления. В случае любых модификаций руководства его новая версия будет размещена на веб-сайте ASRock без специального уведомления. Кроме того, самые свежие списки поддерживаемых модулей памяти и процессоров можно найти на сайте ASRock. Адрес веб-сайта ASRock http://www.asrock.com При необходимости технической поддержки по вопросам данной материнской платы посетите наш веб-сайт для получения информации об используемой модели.
www.asrock.com/support/index.asp
1.1 Комплектность
Материнская плата ASRock B75M-ITX (форм-фактор Mini-ITX: 6,7 x 6,7 дюйма / 17,0 x 17,0 см) Руководство по быстрой установке ASRock B75M-ITX Компакт-диск поддержки ASRock B75M-ITX 2 x кабель данных Serial ATA (SATA) (дополнительно) 1 x I/O Щит Группы ввода / вывода
ASRock напоминает...
Для обеспечения максимальной производительности ОС Windows
7 / 7 64-bit / Vista
параметра Storage Configuration (Конфигурация запоминающего устройства) режим AHCI. Подробные сведения о настройке BIOS см. в руководстве пользователя на прилагаемом компакт-диске.
TM
/ VistaTM 64-bit рекомендуется в BIOS выбрать для
ASRock B75M-ITX Motherboard
®
Русский
87
Русский
1.2 Спецификации
Платформа - форм-фактор Mini-ITX: 6,7 x 6,7 дюйма / 17,0 x 17,0 см
- Весь Твердый Конденсаторный проект (100% японские высококачественные конденсаторы на основе проводящих полимеров) Процессор - Поддержка процессора Intel® CoreTM i7 / i5 / i3 3-го и 2-го поколения с помощью разъема для процессоров LGA 1155
- Дизайн системы питания DigiPower
- 4 + 2 проектирование фаз питания
- Поддержка технологии Intel® Turbo Boost 2.0
- Поддержка разблокированного ЦП серии K (см. ОСТОРОЖНО, пункт 1)
- Поддержка технологии Hyper-Threading (см. ОСТОРОЖНО, пункт 2)
- Поддержка технологии Intel® Rapid Start Technology и Smart Connect Technology с помощью процессора Intel® Ivy Bridge
Набор микросхем - Intel® B75
- Поддержка Intel® Small Business Advantage (см. ОСТОРОЖНО, пункт 3) Память - Поддержка технологии Dual Channel DDR3 Memory Technology (см. ОСТОРОЖНО, пункт 4)
- 2 x гнезда DDR3 DIMM
- Поддержите DDR3 1600/1333/1066 не- ECC, безбуферная память (DDR3 1600 с процессором Intel® Ivy Bridge, DDR3 1333 с процессором Intel® Sandy Bridge)
- Максимальный объем системной памяти: 16 ГБ (см. ОСТОРОЖНО, пункт 5)
- поддержка профиля Intel® Extreme Memory Prole (XMP)1.3/1.2 Гнезда - 1 x слота PCI Express 3.0 x16 (PCIE1: режим x16)
расширения (см. ОСТОРОЖНО, пункт 6) * PCIE 3.0 поставляется только в комплекте с ЦП Intel® Ivy Bridge. В
комплекте с ЦП Intel® Sandy Bridge поставляется только модель
PCIE 2.0. Графика * Встроенный видеоадаптер Intel® HD Graphics и выходы VGA
поддерживаются только с процессорами, оснащенными интегрированным графическим процессором.
- Поддержка функций встроенных видеоадаптеров Intel® HD: Intel®
Quick Sync Video 2.0, Intel® InTruTM 3D, технологии Intel® Clear Video HD, Intel® InsiderTM, Intel® HD Graphics 2500/4000
- Pixel Shader 5.0, DirectX 11 с процессором Intel® Ivy Bridge, Pixel Shader 4.1, DirectX 10.1 с процессором Intel® Sandy Bridge
- Макс. объем разделяемой памяти 1760Мб (см. ОСТОРОЖНО, пункт 7)
- три VGA-выхода: D-Sub, DVI-D и HDMI (см. ОСТОРОЖНО, пункт 8)
- Поддержка HDMI 1.4a с максимальным разрешением до 1920х1200 @ 60 Гц
88
ASRock B75M-ITX Motherboard
- Поддержка DVI с максимальным разрешением до 1920х1200 @ 60 Гц
- Поддержка D-Sub с максимальным разрешением до 2048х1536 @ 75 Гц
- Поддержка Auto Lip Sync, Deep Color (12 бит на цветовой канал), xvYCC и HBR (High Bit Rate Audio) через HDMI (необходим монитор с разъемом HDMI) (см. ОСТОРОЖНО, пункт 9)
- Поддержка функции HDCP через разъемы DVI и HDMI
- Подержат Blu-луч 1080p (КОММУТАЦИОННАЯ ДОСКА) / воспроизведение HD-DVD через разъемы DVI и HDMI Аудиосистема - 7.1 CH HD Аудио HD с Довольной Защитой (Кодер-декодер Аудио Realtek ALC892)
- Поддержка Premium Blu-ray audio
ЛВС - PCIE x 1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- поддержка Wake-On-LAN
- Поддержка определения кабеля ЛВС
- Поддержка энергосберегающего интерфейса Ethernet 802.3az
- Поддержка PXE
Разъемы ввода- I/O Panel вывода на задней - 1 x порт клавиатуры PS/2 панели - 1 x D-Sub порт
- 1 x DVI-D порт
- 1 x HDMI порт
- 1 x порт Optical SPDIF Out
- 4 x порта USB 2.0 на задней панели в стандартной конфигурации
- 1 x eSATA2 порт
- 2 x порта USB 3.0 на задней панели в стандартной конфигурации
- 1 x Разъем RJ-45 LAN с светодиодным индикатором (индикатор ACT/LINK и индикатор SPEED)
- Соединитель звуковой подсистемы: тыльная колонка / центральная / субвуфер / линейный вход / передняя колонка / микрофон (см. ПРЕДУПРЕЖДЕНИЕ 10) SATA3 - 1 x порта SATA3 со скоростью передачи данных 6,0 Гбит/с, с аппаратной поддержкой функций NCQ, AHCI и горячего подключения USB 3.0 - 2 x задних порта USB 3.0 на контроллере с поддержкой интерфейсов USB 1.0/2.0/3.0 и скорости передачи данных до 5 Гбит/с
- 1 x передний разъем USB 3.0 (поддерживает 2 порта USB 3.0) с поддержкой интерфейсов USB 1.0/2.0/3.0 и скорости передачи данных до 5 Гбит/с Колодки и - 3 x разъема SATA2 3,0 Гбит/с, поддержка функций NCQ, AHCI и плате горячего подключения
- 1 x разъема SATA3 6,0 Гбит/с
- 1 x Датчик пользовательского инфракрасного модуля
Русский
ASRock B75M-ITX Motherboard
89
Русский
- соединитель: CPU/Chassis FAN
- 24-контактный Колодка питания ATX
- 4-контактный Разъем ATX 12 В
- Аудиоразъем передней панели
- 1 x Колодка USB 2.0 (одна колодка для поддержки 2) дополнительных портов USB 2.0
- 1 x Колодка USB 3.0 (одна колодка для поддержки 2 дополнительных портов USB 3.0) BIOS - 64Mb AMI UEFI Legal BIOS с поддержкой rpaфичеckoro интеpфeйca поль зователя
- поддержка “Plug and Play”
- ACPI 1.1, включение по событиям
- поддержка режима настройки без перемычек
- поддержка SMBIOS 2.3.1
- Регулировка напряжений CPU Core, IGPU, DRAM, 1.8V PLL, VTT,
VCCSA Компакт- диск - Драйверы, служебные программы, антивирусное программное поддержки обеспечение (пробная версия), Пробная версия программы CyberLink MediaEspresso 6.5, ASRock MAGIX Multimedia Suite -
поставщик
Уникальная - Средство ASRock Extreme Tuning Utility (AXTU) Особенность (см. ОСТОРОЖНО, пункт 11)
- ASRock Instant Boot
- ASRock Instant Flash (см. ОСТОРОЖНО, пункт 12)
- ASRock APP Charger (см. ОСТОРОЖНО, пункт 13)
- ASRock SmartView (см. ОСТОРОЖНО, пункт 14)
- ASRock XFast USB (см. ОСТОРОЖНО, пункт 15)
- ASRock XFast LAN (см. ОСТОРОЖНО, пункт 16)
- ASRock XFast RAM (см. ОСТОРОЖНО, пункт 17)
- ASRock Crashless BIOS (см. ОСТОРОЖНО, пункт 18)
- ASRock OMG (Online Management Guard)
(см. ОСТОРОЖНО, пункт 19)
- ASRock Internet Flash (см. ОСТОРОЖНО, пункт 20)
- Технология ASRock для воспроизведения звука во включенном и выключенном состоянии (см. ОСТОРОЖНО, пункт 21)
- Hybrid Booster:
- ASRock U-COP (см. ОСТОРОЖНО, пункт 22)
- Защита от сбоев загрузки Boot Failure Guard (B.F.G)
- Ночное LED-освещение
Контроль - Датчики температуры процессора оборудо-вания - Датчики температуры корпуса
- Тахометры вентиляторов процессора FAN
- Тахометры вентиляторов корпуса FAN
- Бесшумный вентилятор ЦП/системного блока (возможность авто матической настройки скорости вентилятора системного блока в соответствии с температурой центрального процессора)
- Мультиконтроль скорости вентилятора ЦП/Шасси
- Контроль= напряжения: +12V, +5V, +3.3V, Vcore
90
ASRock B75M-ITX Motherboard
Операцион - Совместимость с Microsoft® Windows® 7 / 7 64-bit / Vista Поддержка 64-разрядной версии VistaTM / XP / XP 64-bit (см. ОСТОРОЖНО, пункт 23)
ные системы - FCC, CE, WHQL Сертификаты - Совместимость с ErP/EuP Ready (требуется блок питания
совместимый с ErP/EuP) (см. ОСТОРОЖНО, пункт 24) * Для детальной информации продукта, пожалуйста посетите наш вебсайт:
http://www.asrock.com
ВНИМАНИЕ
Следует понимать, что с оверклокингом связан определенный риск во всех случаях, включая изменение установок BIOS, применение технологии Untied Overclocking или использование инструментов оверклокинга сторонних производителей. Оверклокинг может повлиять на стабильность работы системы и даже вызвать повреждение входящих в нее компонентов и устройств. Приступая к оверклокингу, вы полностью берете на себя все связанные с ним риски и расходы. Мы не будем нести ответственность за любые возможные повреждения в результате оверклокинга.
TM
/
ОСТОРОЖНО!
1. Из-за ограничений процессора разгон не поддерживается.
2. Информацию об установке параметров гиперпоточной технологии (Hyper­Threading Technology) вы найдете на стр. 43 Руководства пользователя на компакт-диске поддержки.
3. Int el® Small B usin es s A dvan ta ge являе тся на стра иваем ой
платформой, встроенной в ИТ-инструменты, которая позволяет максимально повысить эффективность работы, производительность ПК и безопасность данных. Данные приложения включают Software Monitor, PC Health Center, Data Backup & Restore, Energy Saver и USB
Blocker.
4. Данная материнская плата поддерживает технологию двухканальной памяти Dual Channel Memory Technology. Перед ее использованием не забудьте прочитать инструкции по правильной установке модулей памяти в руководстве по установке (стр. 17).
5. В силу ограничения операционной системы фактическая емкость памяти может быть меньше 4Гб для обеспечения резервного места для использования системой Windows® 7 / VistaTM / XP. Таких ограничений нет для Windows® OS с 64-bit центральным процессором. Технология ASRock XFast RAM помогает использовать память, которая не используется ОС
Windows®.
6. Для работы PCI Express на скорости Gen 3 обязательно установите
ЦП Ivy Bridge. При установке ЦП Sandy Bridge работа PCI Express осуществляется только на скорости PCI Express Gen 2.
7. Максимальная совместная емкость памяти определена продавцем микропроцессорного набора и может измениться. Входите в Intel® веб­сайт за последние информации, пожалуйста.
Русский
ASRock B75M-ITX Motherboard
91
Русский
8. Вы можете использовать только два разъема из трех для вывода
изображения одновременно. Задействовать сразу три подключения ­D-Sub, DVI-D и HDMI - невозможно. При помощи адаптера DVI-to-HDMI порт DVI-D будет поддерживать те же функции, что и HDMI.
9. Функции xvYCC и Deep Color поддерживаются только в Windows® 7 64-
бит / 7. Функция Deep Color будет включена только в том случае, если монитор поддерживает функцию EDID (12-битные цветовые каналы). Функция HBR поддерживается только в Windows® 7 64-бит / 7 / VistaTM 64­бит / VistaTM.
10. Поддерживается работа микрофонного входа в режимах моно и
стерео. Поддерживаются 2-, 4-, 6- и 8-канальный режимы вывода звука. Соответствующие схемы подключения описаны на стр. 3.
11. Служебная программа ASRock Extreme Tuning Utility (AXTU) – это
универсальное средство тонкой настройки различных функций системы с удобным и понятным интерфейсом, включающая разделы Hardware Monitor (Наблюдение за оборудованием), Fan Control (Управление вентилятором), Overclocking («Разгон» процессора), OC DNA (Параметры «разгона») and IES (Автоматическое энергосбережение). В разделе Hardware Monitor (Наблюдение за оборудованием) отображаются основные характеристики аппаратных средств системы. В разделе Fan Control (Управление вентилятором) отображается скорость вентилятора и температура, которые можно регулировать. В разделе Overclocking («Разгон» процессора) можно увеличить рабочую частоту ЦПУ, чтобы добиться оптимальной производительности системы. В разделе OC DNA (Параметры «разгона») можно сохранить настройки «разгона» процессора в виде профиля, который потом можно предложить для использования своим друзьям. Друзья смогут загрузить профиль
«разгона» на свои компьютеры и получить аналогичный результат. В разделе IES (Автоматическое энергосбережение) можно настроить регулятор напряжения так, что он будет уменьшать количество
работающих линий питания, чтобы поднять КПД системы без ущерба для
ее производительности во время простоя ядер ЦПУ. Чтобы узнать, как
работать с программой ASRock Extreme Tuning Utility (AXTU), посетите
наш сайт в Интернете. Адрес сайта ASRock: http://www.asrock.com
12. ASRock Instant Flash – программа для прошивки BIOS, встроенная в Flash
ROM. Данное средство для обновления BIOS умеет работать без входа в
операционные системы, вроде MS-DOS или Windows®. Чтобы запустить
программу достаточно нажать <F6> во время самотестирования системы
(POST) или войти в BIOS при помощи кнопки <F2> и выбрать пункт AS-
Rock Instant Flash через меню. Запустите программу и сохраните новый
BIOS на USB-флэшку, дискету или жесткий диск. После этого вы сможете оперативно обновить BIOS, без необходимости подготовки
дополнительной дискеты, без установки программы прошивки. Имейте в
виду, что USB-флэшка или винчестер должны использовать файловую
систему FAT32/16/12.
92
ASRock B75M-ITX Motherboard
13. Если вы хотите быстрее и без ограничений заряжать свои устройства Apple, например iPhone, iPad и iPod Touch, компания ASRock приготовила отличное решение для вас – ASRock APP Charger. Просто установив драйвер APP Charger, вы сможете заряжать iPhone от компьютера намного быстрее, ускорение составит до 40%. ASRock
APP Charger позволяет быстро заряжать несколько устройств Apple
одновременно и даже поддерживает непрерывную зарядку, когда компьютер переходит в режим ожидания (S1), режим ожидания с сохранением данных в ОЗУ (S3), режим гибернации (S4) или режим выключения (S5). Установив драйвер APP Charger, вы испытаете небывалое удобство зарядки.
Веб-сайт ASRock: http://www.asrock.com/Feature/AppCharger/index.asp
14. SmartView — это интеллектуальная стартовая страница для браузера IE, на которой отображаются наиболее посещаемые веб-сайты, история посещений, друзья в Facebook и обновляемые потоки новостей. Эта новая функция обеспечивает более удобное использование возможностей Интернета. Системные платы ASRock эксклюзивно снабжаются программой SmartView, помогающей поддерживать связь с друзьями. Программа SmartView работает в ОС Windows® 7 / 7 64 bit /
VistaTM / VistaTM 64 bit и браузере IE8.
Веб-сайт ASRock: http://www.asrock.com/Feature/SmartView/index.asp
15. Функция ASRock XFast USB увеличивает скорость работы устройств USB. Рост скорости зависит от устройства.
16. ASRock XFast LAN обеспечивает более быстрый доступ к сети Интернет, который даст описанные далее преимущества. Установка приоритетов приложений ЛВС: можно задать оптимальный приоритет для своего приложения и/или добавить новые программы. Более низкая латентность в игре: после установки более высокого приоритета игре в режиме онлайн, может снизиться латентность в игре. Формирование трафика: можно одновременно просматривать видео высокого разрешения на Youtube и загружать файлы. Анализ данных в реальном времени: в окне состояния можно легко определить, какие потоки данных передаются в данный момент времени.
17. ASRock XFast RAM – новая функция, входящая в состав утилиты ASRock Extreme Tuning Utility (AXTU). Благодаря ей, используется область памяти, использование которой не возможно на процессоре с 32-битной ОС Windows®. ASRock XFast RAM сокращает время загрузки истории посещения веб-сайтов, существенно ускоряя навигацию по сети Интернет. Кроме того, скорость работы Adobe Photoshop 5 увеличивается в пять раз. В числе преимуществ ASRock XFast RAM - сокращение частоты обращений к SSD-накопителям и жестким дискам и продление срока их эксплуатации.
18. ASRock Crashless BIOS позволяет пользователям обновлять BIOS,
не боясь отказа. В случае отключения электроэнергии в процессе обновления BIOS ASRock Crashless BIOS автоматически завершает процедуру обновления BIOS после возобновления подачи энергии.
Русский
ASRock B75M-ITX Motherboard
93
Русский
Обратите внимание на то, что BIOS размещается в корневом каталоге
вашего USB диска. Данная функция доступна только для портов USB2.0.
19. Администраторы могут установить «комендантский час» или ограничить доступ к Интернету в определенное время с помощью OMG. Можно выбрать [Ежедневно], [День недели] или [Будни и выходные дни],
затем указать время начала и окончания интернет-доступа для
других пользователей. Чтобы не допустить обхода пользователями системы OMG, необходимы учетные записи гостей без разрешения на модификацию системного времени.
20. Internet Flash осуществляет поиск доступных обновлений прошивки UEFI на наших серверах. Иными словами, система автоматически находит последние версии UEFI на наших серверах и выполняет пе реп рог рам мир овани е, не входя в ОС Win dow s. Об рат ите внимание на то, что активация данной функции возможна только на компьютерах, настроенных как DHCP клиент.
21. Технология ASRock для воспроизведения звука во включенном и выключенном состоянии позволяет пользователям портативных аудиоустройств, таких как MP3-плееры и мобильные телефоны,
прослушивать с них высококачественный звук через компьютер,
даже когда компьютер выключен (или находится в режиме ACPI S5)! Кроме того, к данной материнской плате бесплатно (дополнительно) прилагается аудиокабель с 3,5-мм штекерами, который обеспечивает наиболее удобное подключение аудиоустройств к компьютеру.
22. При обнаружении перегрева процессора работа системы автоматически завершается. Прежде чем возобновить работу системы, убедитесь в нормальной работе вентилятора процессора на материнской плате и отсоедините шнур питания, а затем снова подключите его. Чтобы улучшить отвод тепла, не забудьте при сборке компьютера нанести термопасту между процессором и радиатором.
23. ОС Mi cros oft® Win d ows® XP / XP 64-р азря дно й верс ией , не по дде ржи вае т ASR ock XF ast RA M. ОС Micr oso ft® Win dow s®
VistaTM / VistaTM 64-разрядной / XP / XP 64-разрядной версией, не
поддерживает Intel® Smart Connect Technology и Intel® порта USB 3.0.
24. EuP расшифровывается как Energy Using Product. Стандарт был разработан Европейским Союзом для определения энергопотребления готовых систем. По требованию EuP система в выключенном состоянии должна потреблять менее 1 Вт энергии. Для соответствия стандарту EuP нужны соответствующие материнская плата и блок питания. Компания Intel предложила, что совместимый с EuP блок питания должен обеспечивать 50% эффективность линии питания 5V при потреблении 100 мА (в режиме ожидания). Сверьтесь с информацией производителей блоков питания, чтобы выбрать модель с поддержкой EuP.
94
ASRock B75M-ITX Motherboard
1.3 Установка перемычек
Конфигурация перемычек иллюстрируется на рисунке. Когда перемычка надета на контакты, они называются “замкнутыми” (short). Если на контактах перемычки нет, то они называются “разомкнутыми” (open). На иллюстрации показана 3-контактная перемычка, у которой контакты 1 и 2 замкнуты.
Перемычка Установка Описание
Очистка CMOS
(CLRCMOS1,
3-контактная перемычка) (см. стр. 2, п. 18)
Стандартные Очистка CMOS
Примечание.
Контактная колодк а CLRCMOS1 позволяет очистить данн ые CMOS . Для очистки данных и восстановления заводских системных параметров сначала вы кл ючите компьютер и отсоедините сетевую вилку кабел я пи та ни я от электророзетки. Выждите не менее 15 секунд и колпачковой перемычкой на 5 секунд перемкните штырьки 2 и 3 контактной колодки CLRCMOS1. Однако не производите очистку CMOS непосредственно после обновления BIOS. Если необходимо очистить CMOS сразу же после окончания обновления BIOS, то, перед очисткой CMOS, необходимо сначала выполнить загрузку системы, а затем завершить ее работу. Примите во внимание, что пароль, дата, время, профиль пользователя по умолчанию, идентификатор 1394 GUID и MAC-адрес будут очищены только тогда, когда будет извлечена из своего гнезда батарейка
CMOS.
Русский
ASRock B75M-ITX Motherboard
95
1.4 Колодки и разъемы на плате
Имеющиеся на плате колодки и разъемы НЕ ЯВЛЯЮТСЯ контактами для перемычек. НЕ УСТАНАВЛИВАЙТЕ перемычки на эти колодки и разъемы – это приведет к необратимому повреждению материнской платы!
Разъемы Serial ATA2 три соединителя Serial ATA2
(SATA_1, см. стр. 2, п. 2) (SATA_2, см. стр. 2, п. 4) (SATA_3, см. стр. 2, п. 5)
использованием интерфейсных
кабелей SATA2. В настоящее
предназначаются для подключения внутренних устройств хранения с
SATA_1 SATA_3
SATA_2
время интерфейс SATA допускает скорость передачи данных до \ 3,0 Гбит/с.
Разъемы Serial ATA3 один соединителя Serial ATA3
(SATA_0, см. стр. 2, п. 3)
предназначаются для
SATA_0
подключения внутренних устройств хранения с использованием нтерфейсных кабелей SATA3. В настоящее
время интерфейс SATA допускает скорость передачи данных до \ 6,0 Гбит/с.
Информационный Информационный кабель кабель Serial ATA (SATA) интерфейса SATA / SATA2 / SATA3
(дополнительно)
не является направленным. Любой из его соединителей может быть подключен либо к жесткому диску интерфейса SATA2 / SATA3 либо к материнской плате.
Русский
Колодка USB 2.0 Помимо четыре стандартных
(9-контактный USB4_5) (см. стр. 2, п. 7)
портов USB 2.0 на панели ввода-
вывода, на данной материнской плате предусмотрен один разъем USB 2.0. Этот разъем USB 2.0 поддерживает два порта USB 2.0.
96
ASRock B75M-ITX Motherboard
Колодка USB 3.0 Помимо два стандартных
1
Int A_P1_ D+
Int A_P1_ D-
GND
Int A_P1_ SSTX +
Int A_P1_ SSTX -
GND
Int A_P1_ SSRX +
Int A_P1_ SSRX -
Vbu s
Int A_P0_ D+
Int A_P0_ D-
GND
Int A_P0_ SSTX +
Int A_P0_ SSTX -
GND
Int A_P0_ SSRX +
Int A_P0_ SSRX -
Vbu s
(19-контактный USB3_3_4) (см. стр. 2, п. 12)
портов USB 3.0 на панели ввода-
вывода, на данной материнской плате предусмотрен один разъем USB 3.0. Этот разъем USB 3.0 поддерживает два порта USB 3.0.
Датчик пользовательского инфракрасного модуля Датчик можно использовать для
(4-контактный CIR1) (см. стр. 2, п. 10)
подключения дистанционный
приемник.
Аудиоразъем передней Этот интерфейс предназначен панели для присоединения аудиокабеля
(9-контактный HD_AUDIO1) (см. cтр. 2, п. 15)
обеспечивающего удобное
передней панели,
подключение аудиоустройств и управление ими.
1
GND
PRE SENC E#
MIC 2_R
MIC 2_L
MIC _RET
J_S ENSE
OUT 2_R
OUT _RET
OUT 2_L
1. Система High Denition Audio поддерживает функцию автоматического обнаружения разъемов (Jack Sensing), однако для ее правильной pаботы кабель панели в корпусе должен поддерживать HDA. При сборке системы следуйте инструкциям, приведенным в нашем руководстве и руководстве пользователя для корпуса.
2. Если вы используете аудиопанель AC’97, подключите ее к колодке аудиоинтерфейса передней панели следующим образом: A. Подключите выводы Mic_IN (MIC) к контактам MIC2_L. B. Подключите выводы Audio_R (RIN) к контактам OUT2_R, а выводы Audio_L (LIN) к контактам OUT2_L. C. Подключите выводы Ground (GND) к контактам Ground (GND). D. Контакты MIC_RET и OUT_RET предназначены только для аудиопанели HD. При использовании аудиопанели AC’97 подключать их не нужно.
E. Процедура активации микрофона приведена ниже. Для ОС Windows® XP / XP 64-бита: Выберите «Mixer» (Микшер). Выберите «Recorder» (Устройство записи). Затем щелкните «FrontMic» (Передний микрофон). Для ОС Windows® 7 / 7 64-бита, VistaTM / VistaTM 64-бита: Перейдите к вкладке «FrontMic» (Передний микрофон) в панели управления Realtek. Отрегулируйте уровень «Recording Volume» (Громкость записи).
ASRock B75M-ITX Motherboard
Русский
97
Колодка системной панели Данная колодка обеспечивает
(9-контактный PANEL1) (см. стр. 2, п. 8)
работу нескольких функций
передней панели системы.
Подключите к этому разъему кнопку питания, кнопку сброса и индикатор состояния системы на корпусе в соответствии с указанным ниже назначением контактов. При подключении кабелей необходимо соблюдать полярность положительных и отрицательных контактов.
PWRBTN (кнопка питания):
Подключите к этим контактам кнопку питания на передней панели корпуса. Способ выключения системы с помощью кнопки питания можно настроить.
RESET (кнопка сброса):
Подключите к этим контактам кнопку сброса на передней панели корпуса. Нажмите кнопку сброса для перезагрузки компьютера, если компьютер «завис» и нормальную перезагрузку выполнить не удается.
PLED (индикатор питания системы):
Подключите к этим контактам индикатор состояния питания на передней панели корпуса. Этот индикатор светится, когда система работает. Индикатор мигает, когда система находится в режиме ожидания S1/S3. Этот индикатор не светится, когда система находится в режиме ожидания S4, либо выключена (S5).
HDLED (индикатор активности жесткого диска):
Подключите к этим контактам индикатор активности жесткого диска на передней панели корпуса. Этот индикатор светится, когда осуществляется считывание или запись данных на жестком диске.
Русский
Конструкция передней панели может различаться в зависимости от корпуса. Модуль передней панели в основном состоит из кнопки питания, кнопки сброса, индикатора питания, индикатора активности жесткого диска, динамика и т.п. При подключении к этому разъему модуля передней панели корпуса удостоверьтесь, что провода подключаются к соответствующим контактам.
Chassis Fan-соединители Подключите кабели вентилятора к
(4-контактный CHA_FAN1) (см. стр. 2, п. 17)
FAN _SPE ED_C ONTR OL
соединителям и присоедините
CHA _FAN _SPE ED
+12 V
GND
черный шнур к штырю заземления.
98
ASRock B75M-ITX Motherboard
Разъем вентилятора Подключите к этому разъему процессора кабель вентилятора процессора
(4-контактный CPU_FAN1) (см. стр. 2, п. 16)
соответствовал контакту земли.
FAN_ SPEE D_CO NTRO L
так, чтобы черный провод
CPU _FAN_ SPEE D
+12 V
GND
4 3 2 1
Данная материнская плата поддерживает вентиляторы процессора с 4-контактным разъемом (функция тихого режима вентилятора), однако вентиляторы с 3-контактным разъемом также будут успешно работать, хотя функция управления скоростью вращения вентилятора окажется недоступной. Если вы хотите подключить вентилятор процессора с 3-контактным разъемом к разъему вентилятора процессора на данной материнской плате, для этого следует использовать контакты 1-3.
Контакты 1-3 подключены
Установка вентилятора с 3-контактным разъемом
Колодка питания ATX Подключите к этой колодке
(24-контактный ATXPWR1) (см. стр. 2, п. 9)
24 13
кабель питания ATX.
12 1
Несмотря на то, что эта материнская плата предусматр-ивает 24-штыревой разъем питания ATX, работа будет продолжаться, даже если адаптируется традиционный 20-штыревой разъем питания ATX. Для использования 20-штыревого разъема питания ATX вставьте источник питания вместе со штекером 1 и штекером 13.
24 13
Установка 20-штыревого разъема питания ATX
12 1
Колодка питания 12V-ATX Подключите к этой колодке
(4-контактный ATX12V1) (см. стр. 2, п. 19)
кабель питания ATX 12V.
Русский
ASRock B75M-ITX Motherboard
99
2. Информация о BIOS
Утилита настройки BIOS (BIOS Setup) хранится во флэш-памяти на материнской плате. Чтобы войти в программу настройки BIOS Setup, при запуске компьютера нажмите <F2> или <Del> во время самопроверки при включении питания (Power-On-Self-Test – POST). Если этого не сделать, то процедуры тестирования POST будут продолжаться обычным образом. Если вы захотите вызвать BIOS Setup уже после POST, перезапустите систему с помощью клавиш <Ctrl> + <Alt> + <Delete> или нажатия кнопки сброса на корпусе системы. Подробную информацию о программе BIOS Setup вы найдете в Руководстве пользователя (в формате PDF) на компакт-диске поддержки.
3. Информация о компакт-диске поддержки с программным обеспечением
Данная материнская плата поддерживает различные операционные системы Microsoft®
Windows®: 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP / XP 64-bit. Поставляемый вместе с ней
компакт-диск поддержки содержит необходимые драйверы и полезные утилиты, которые расширяют возможности материнской платы. Чтобы начать работу с компакт-диском поддержки, вставьте его в дисковод CD-ROM. Если в вашем компьютере включена функция автозапуска (AUTORUN), то на экране автоматически появится главное меню компакт-диска (Main Menu). Если этого не произошло, найдите в папке BIN на компакт-диске поддержки файл ASSETUP.EXE и дважды щелкните на нем, чтобы открыть меню.
Русский
100
ASRock B75M-ITX Motherboard
Loading...
