Asrock B550M PG Riptide User Manual

Version 1.0

Published October 2021

Copyright©2021 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.

Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see ww w.dtsc.ca.gov/hazardouswaste/
perchlorate”

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and
compensation for any other reasonably foreseeable loss or damage caused by our
goods. You are also entitled to have the goods repaired or replaced if the goods fail
to be of acceptable quality and the failure does not amount to a major failure. If
you require assistance please call ASRock Tel : [phone] ext.123 (Standard
International call charges apply)

e terms HDMI® and HDMI High-Denition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Motherboard Layout 7

1.4 I/O Panel 9

Chapter 2 Installation 11

2.1 Installing the CPU 12

2.2 Installing the CPU Fan and Heatsink 14

2.3 Installing Memory Modules (DIMM) 22

2.4 Expansion Slots (PCI Express Slots) 26

2.5 Jumpers Setup 28

2.6 Onboard Headers and Connectors 29

2.7 Post Status Checker 34

2.8 CrossFireXTM and Quad CrossFireXTM Operation Guide 35

2.8.1 Installing Two CrossFireXTM-Ready Graphics Cards 35

2.8.2 Driver Installation and Setup 37

2.9 M.2 WiFi/BT Module Installation Guide 38

2.10 M.2_SSD (NGFF) Module Installation Guide (M2_1) 40

2.11 M.2_SSD (NGFF) Module Installation Guide (M2_2) 43

Chapter 3 Software and Utilities Operation 46

3.1 Installing Drivers 46

3.2 ASRock Motherboard Utility (Phantom Gaming Tuning) 47

3.2.1 Installing ASRock Motherboard Utility (Phantom Gaming
Tuning) 47

3.2.2 Using ASRock Motherboard Utility (Phantom Gaming
Tuning) 47

3.3 ASRock Live Update & APP Shop 50

3.3.1 UI Overview 50

3.3.2 Apps 51

3.3.3 BIOS & Drivers 54

3.3.4 Setting 55

3.4 Nahimic Audio 56

3.5 ASRock Polychrome SYNC 57

Chapter 4 UEFI SETUP UTILITY 60

4.1 Introduction 60

4.1.1 UEFI Menu Bar 60

4.1.2 Navigation Keys 61

4.2 Main Screen 62

4.3 OC Tweaker Screen 63

4.4 Advanced Screen 67

4.4.1 CPU Conguration 68

4.4.2 PCI Conguration 69

4.4.3 Onboard Devices Conguration 70

4.4.4 Storage Conguration 72

4.4.5 ACPI Conguration 73

4.4.6 Trusted Computing 74

4.4.7 AMD PBS 75

4.4.8 AMD Overclocking 76

4.4.9 AMD CBS 77

4.5 Tools 78

4.6 Hardware Health Event Monitoring Screen 79

4.7 Security Screen 82

4.8 Boot Screen 83

4.9 Exit Screen 85

B550M PG Riptide

Chapter 1 Introduction

ank you for purchasing ASRock B550M PG Riptide motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

In this documentation, Chapter 1 and 2 contains the introduction of the

motherboard and step-by-step installation guides. Chapter 3 contains the operation

guide of the soware and utilities. Chapter 4 contains the conguration guide of

the BIOS setup.

Becau se the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website w ithout f urther notice. If you require technical support relate d to
this motherboard, please vi sit our website for s pecic information about the model
you are using. You may nd the l atest VGA cards and CPU suppor t list on ASRock’s
website a s well. ASRock website ht tp://www.a srock.com.

1.1 Package Contents

ASRock B550M PG R iptide Motherboard (Micro ATX Form Factor)

•

ASRock B550M PG R iptide Quick Installation Guide

•

ASRock B550M PG R iptide Support CD

•

2 x Serial ATA (SATA) Data Cables (Optional)

•

3 x Screws for M.2 Sockets (Optional)

•

1 x Stando for M.2 Socket (Optional)

•

1 x I/O Panel Shield

•

English

1

English

1.2 Specications

Platform

CPU

Chipset

Memory

•

•

•

* Not compatible with AMD AthlonTM Processors.

•

•

•

•

•

•

•

•

•

•

Micro ATX Form Factor

Solid Capacitor design

Supports AMD AM4 Socket RyzenTM 3000, 3000 G-Series,

4000 G-Series, 5000 and 5000 G-Series Desktop Processors*

Digi Power design

8 Power Phase design

AMD B550

Dual Channel DDR4 Memory Technology

4 x DDR4 DIMM Slots

AMD Ryzen series CPUs (Vermeer) support DDR4

4600+(OC)/4533(OC)/4466(OC)/4400(OC)/4333(OC)/4266

(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/

3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/2400/2133

ECC & non-ECC, un-buered memory*

AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC

)/4533(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200

(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/

3600(OC)/3466(OC)/3200/2933/2667/2400/2133 ECC &

non-ECC, un-buered memory*

AMD Ryzen series APUs (Cezanne) support DDR4

4733+(OC)/4666(OC)/4600(OC)/4533(OC)/4466(OC)/

4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/

4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/

3466(OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-

buered memory*

AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC

)/4666(OC)/4600(OC)/4533(OC)/4466(OC)/4400(OC)

/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/

3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/

3200/2933/2667/2400/2133 ECC & non-ECC, un-buered

memory*

AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC

)/3200(OC)/2933/2667/2400/2133 non-ECC, un-buered

memory*

2

B550M PG Riptide

* For Ryzen Series APUs (Picasso, Cezanne and Renoir), ECC is

only supported with PRO CPUs.

* Please refer to Memory Support List on ASRock’s website for

more information. (http://www.asrock.com/)

* Please refer to page 22 for AMD non-XMP memory frequency

support. For more details, please refer to the QVL on ASRock 's

website.

Max. capacity of system memory: 128GB

•

Supports Extreme Memory Prole (XMP) memory modules

•

15μ Gold Contact in DIMM Slots

•

Expansion
Slot

Graphics

AMD Ryzen series CPUs (Vermeer and Matisse)

2 x PCIe x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3x4

•

mode)*

AMD Ryzen series APUs (Cezanne and Renoir)

2 x PCIe x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3x4

•

mode)*

AMD Ryzen series APUs (Picasso)

2 x PCIe x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3x4

•

mode)*

* Supports NVMe SSD as boot disks

1 x PCIe Gen3x1 Slot

•

Supports AMD Quad CrossFireXTM and CrossFireX

•

1 x M.2 Socket (Key E), supports ty pe 2230 WiFi/BT PCIe

•

WiFi module

15μ Gold Contact in VGA PCIe Slot (PCIE1)

•

Integrated AMD RadeonTM Vega Series Graphics in Ryzen

•

Series APU*

* Actual support may vary by CPU

DirectX 12, Pixel Shader 5.0

•

Shared memory default 2GB. Max Shared memory supports

•

up to 16GB.

* e Max shared memory 16GB requires 32GB system memory

installed.

Dual graphics output: support HDMI and DisplayPort 1.4

•

ports by independent display controllers

Supports HDMI 2.1 with max. resolution up to 4K x 2K

•

(4096x2160) @ 60Hz

Supports DisplayPort 1.4 with max. resolution up to 5K

•

(5120x2880)@120Hz

TM

English

3

Audio

LAN

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

•

HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant

HDMI monitor is required)

Supports HDR (High Dynamic Range) with HDMI 2.1

•

Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4

•

Ports

* Picasso supports HDCP 2.2 with HDMI 2.0 Port

Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and

•

DisplayPort 1.4 Ports

Supports Microso PlayReady®

•

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

•

Supports Surge Protection

•

Nahimic Audio

•

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

•

Dragon RTL8125BG

•

Supports Phantom Gaming LAN Soware

•

- Smart Auto Adjust Bandwidth Control

- Visual User Friendly UI

- Visual Network Usage Statistics

- Optimized Default Setting for Game, Browser, and

Streaming Modes

- User Customized Priority Control

Supports Wake-On-LAN

•

Supports Lightning/ESD Protection

•

Supports Energy Ecient Ethernet 802.3az

•

Supports PXE

•

English

4

Rear Panel
I/O

2 x Antenna Mounting Points

•

1 x PS/2 Mouse/Keyboard Port

•

1 x HDMI Port

•

1 x DisplayPort 1.4

•

1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD

•

Protection)

1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD

•

Protection)

4 x USB 3.2 Gen1 Ports (Supports ESD Protection)

•

2 x USB 2.0 Ports (Supports ESD Protection)*

•

* USB12 are the Lightning Gaming Ports.

Storage

RAID

Connector

B550M PG Riptide

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

•

LED)

HD Audio Jacks: Line in / Front Speaker / Microphone

•

4 x SATA3 6.0 Gb/s Connectors

•

1 x Hyper M.2 Socket (M2_1, Key M), supports t ype

•

2260/2280 PCIe Gen4x4 (64 Gb/s) mode (with Vermeer,

Matisse) or Gen3x4 (32 Gb/s) mode (with Cezanne, Renoir

and Picasso)*

1 x M.2 Socket (M2_2, Key M), supports type 2260/2280

•

SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*

* Supports NVMe SSD as boot disks

* Supports ASRock U.2 Kit

Supports RAID 0, RAID 1 and R AID 10 for SATA storage

•

devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage de-

•

vices

1 x SPI TPM Header

•

1 x Power LED and Speaker Header

•

2 x RGB LED Headers

•

* Support in total up to 12V/3A, 36W LED Strip

2 x Addressable LED Headers

•

* Support in total up to 5V/3A, 15W LED Strip

1 x CPU Fan Connector (4-pin)

•

* e CPU Fan Connector supports the CPU fan of ma ximum

1A (12W) fan power.

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan

•

Speed Control)

* e CPU/Water Pump Fan supports the water cooler fan of

maximum 2A (24W) fan power.

4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan

•

Speed Control)

* e Chassis/Water Pump Fan supports the water cooler fan of

maximum 2A (24W) fan power.

* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_

FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin

fan is in use.

English

5

BIOS
Feature

Hardware
Monitor

1 x 24 pin ATX Power Connector

•

1 x 8 pin 12V Power Connector

•

1 x Front Panel Audio Connector

•

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports

•

ESD Protection)

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

•

(Supports ESD Protection)

1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD

•

Protection)

AMI UEFI Legal BIOS with GUI support

•

Supports “Plug and Play”

•

ACPI 5.1 compliance wake up events

•

Supports jumperfree

•

SMBIOS 2.3 support

•

CPU, CPU VDDCR_SOC, DRAM, +1.8VSB, VPPM Voltage

•

Multi-adjustment

Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water

•

Pump Fans

Quiet Fan (Auto adjust chassis fan speed by CPU tempera-

•

ture): CPU, CPU/Water Pump, Chassis/Water Pump Fans

Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/

•

Water Pump Fans

Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU

•

VDDCR_SOC, DRAM, VPPM, +1.8V

English

6

Microso® Windows® 10 64-bit / 11 64-bit

OS

Certica­tions

* For detailed product information, please visit our website: http://ww w.asrock.com

Please realize that the re is a certain r isk involved with overclo cking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technol ogy, or using
third-party overclocking tool s. Overclocking may aect your system’s stability, or
even cause dam age to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for poss ible damage caused by
overclocking.

•

FCC, CE

•

ErP/EuP ready (ErP/EuP ready power supply is required)

•

1.3 Motherboard Layout

B550M PG Riptide

English

7

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 CPU/Water Pump Fan Connector (CPU_FAN2/WP)

4 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

5 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

6 RGB LED Header (RGB_LED1)

7 Addressable LED Header (ADDR_LED1)

8 ATX Power Connector (ATXPWR1)

9 Front Panel Type C USB 3.2 Gen1 Header (F_USB3_TC_1)

10 USB 3.2 Gen1 Header (F_USB3_1_2)

11 SPI TPM Header (SPI_TPM_J1)

12 SATA3 Connector (SATA3_4) (Upper), SATA3 Connector (SATA3_3) (Lower)

13 SATA3 Connector (SATA3_2) (Upper), SATA3 Connector (SATA3_1) (Lower)

14 System Panel Header (PANEL1)

15 Power LED and Speaker Header (SPK_PLED1)

16 Chassis/Water Pump Fan Connector (CHA_FAN4/WP)

17 Post Status Checker (PSC)

18 USB 2.0 Header (USB_3_4)

19 USB 2.0 Header (USB_5_6)

20 Clear CMOS Jumper (CLRCMOS1)

21 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)

22 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)

23 Addressable LED Header (ADDR_LED2)

24 RGB LED Header (RGB_LED2)

25 Front Panel Audio Header (HD_AUDIO1)

26 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)

English

8

1.4 I/O Panel

B550M PG Riptide

3

1 2 4

8

9

6 57101112

No. Description No. Description

1 USB 2.0 Ports (USB12)* 7 USB 3.2 Gen1 Ports (USB3_12)

2 2.5G LAN RJ-45 Port** 8 USB 3.2 Gen2 Type-A Port (USB31_TA_1)

3 Line In (Light Blue)*** 9 USB 3.2 Gen2 Type-C Port (USB31_TC_1)

4 Front Speaker (Lime)*** 10 PS/2 Mouse/Keyboard Port

5 Microphone (Pink)*** 11 DisplayPort 1.4

6 USB 3.2 Gen1 Ports (USB3_34) 12 HDMI Port

* Please note that the USB1 consumes au xiliary powe r (+5VSB) while the other USB ports consume DUAL Powe r
(+5VDUAL). e USB1 is optimal for connecting the USB Type speaker and headset.

USB12 are the Lightning Gaming Port s.

** ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK L ED

SPEED LE D

LAN Por t

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection

On Link Green 2.5Gbps connection

English

9

*** Functi on of the Audio Por ts in 7.1-channel Con guration:

Port Function

Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out

English

10

B550M PG Riptide

Chapter 2 Installation

is is a Micro ATX form factor motherboard. Before you install the motherboard,

study the conguration of your chassis to ensure that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard.

•

Failure to do so may cause physical injuries to you and damages to motherboard

components.

In order to avoid damage from static electricity to the motherboard’s components,

•

NEVER place your motherboard directly on a carpet. Also remember to use a grounded

wrist strap or touch a safety grounded object before you handle the components.

Hold components by the edges and do not touch the ICs.

•

Whenever you uninstall any components, place them on a grounded anti-static pad or

•

in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not over-

•

tighten the screws! Doing so may damage the motherboard.

11

English

2.1 Installing the CPU

Unplug all power cables be fore installing the CPU.

1

English

12

2

B550M PG Riptide

3

13

English

2.2 Installing the CPU Fan and Heatsink

Aer you install the CPU into this motherboard, it is necessary to install a larger

heatsink and cooling fan to dissipate heat. You also need to spray thermal grease

between the CPU and the heatsink to improve heat dissipation. Ma ke sure that the

CPU and the heatsink are securely fastened and in good contact with each other.

Please turn o the power or remove the power cord before changing a CPU or heatsink.

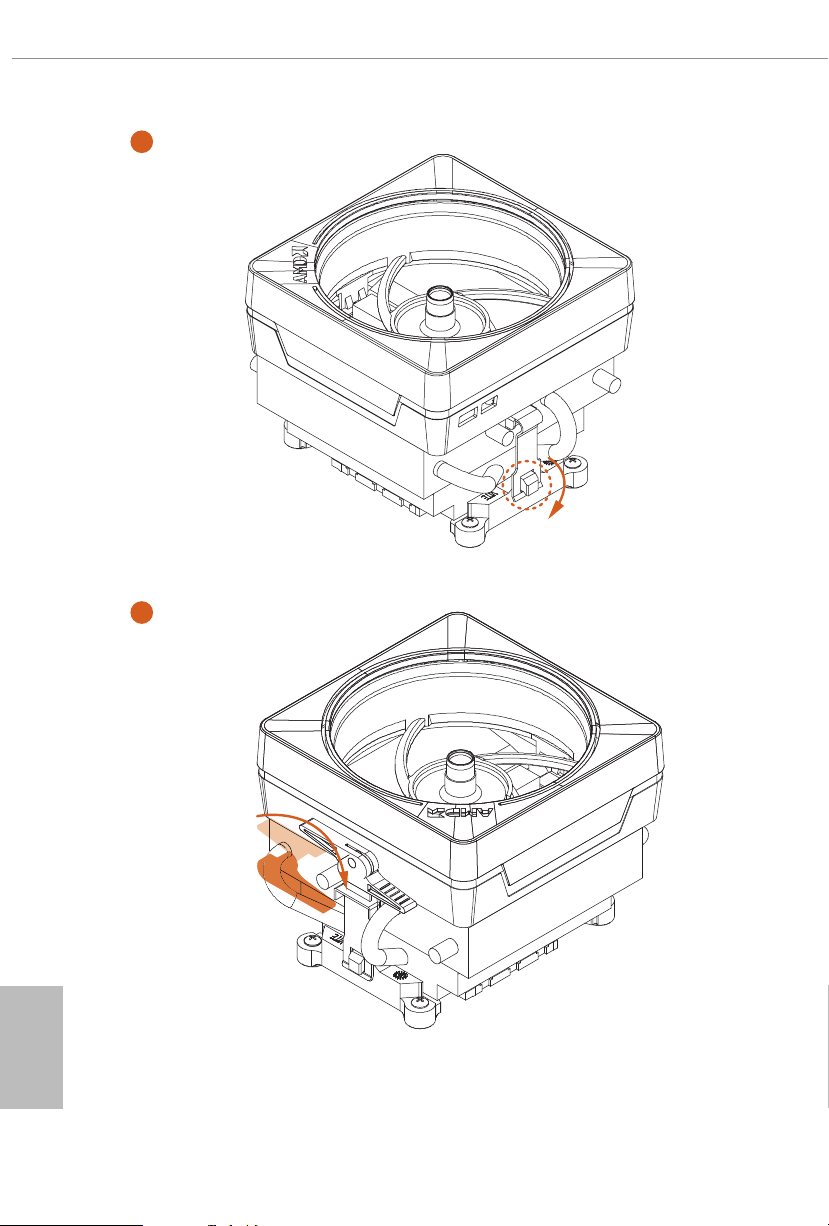

Installing the CPU Box Cooler SR1

1

English

14

2

B550M PG Riptide

3

4

1

N

FA

_

U

P

C

English

15

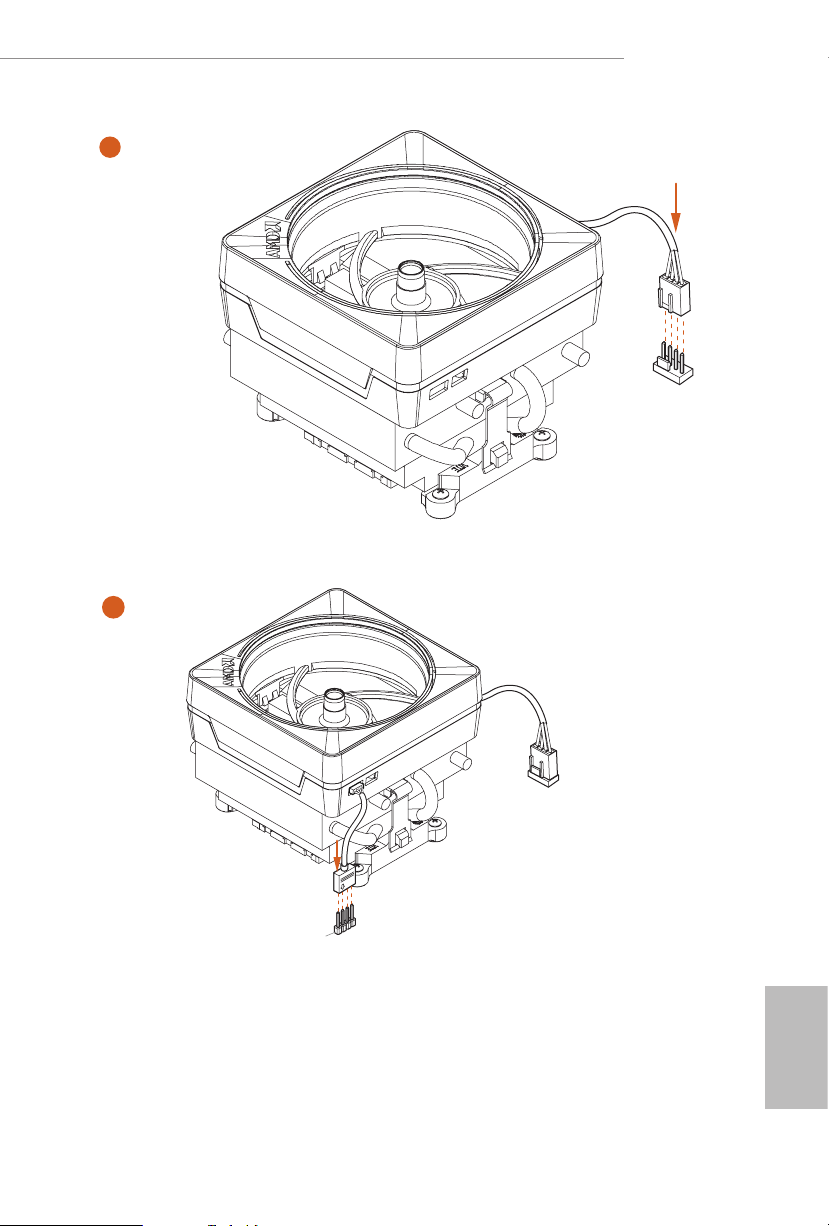

Installing the AM4 Box Cooler SR2

1

2

English

16

B550M PG Riptide

3

17

English

4

1
N

FA

_

U

P

C

*e diagrams shown here are for reference only. e headers might be in a dierent position on

your motherboard.

English

18

Installing the AM4 Box Cooler SR3

1

B550M PG Riptide

2

English

19

3

4

English

20

B550M PG Riptide

5

CPU_FAN1

6

1

N

FA

_

U

P

C

2

D

E

L

_

B

RG

+12V

*e diagrams shown here are for reference only. e headers might be in a dierent position

on your motherboard.

English

21

2.3 Installing Memory Modules (DIMM)

is motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots,

and supports Dual Channel Memory Technology.

1. For dual channel conguration, you always need to install identica l (the same

brand, speed , size and chip-type) DDR4 DIMM pairs.

2. It is unable to activate Dual Channel Memor y Technology with only one or three
memor y module installed.

3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4
slot; otherwise, this motherboard and DIMM may be damaged.

4. We suggest that you instal l the memory modules on DDR4_A2 and DDR4_ B2 rst
for better DRAM compatibility on 2 DIMM s conguration.

AMD non-XMP Memory Frequency Support

Ryzen Series CPUs (Vermeer):

English

22

UDIMM Memory Slot

Frequency

A1 A2 B1 B2

- SR - - 3200

- DR - - 3200

- SR - SR 3200

- DR - DR 3200

SR SR SR SR 2933

SR/DR DR SR/DR DR 2667

SR/DR SR/DR SR/DR SR/DR 2667

Ryzen Series CPUs (Matisse):

UDIMM Memory Slot

A1 A2 B1 B2

- SR - - 3200

- DR - - 3200

- SR - SR 3200

- DR - DR 3200

SR SR SR SR 2933

SR/DR DR SR/DR DR 2667

SR/DR SR/DR SR/DR SR/DR 2667

Frequency

(Mhz)

(Mhz)

Ryzen Series APUs (Cezanne):

UDIMM Memory Slot

A1 A2 B1 B2

- SR - - 3200

- DR - - 3200

- SR - SR 3200

- DR - DR 3200

SR SR SR SR 2933

SR/DR DR SR/DR DR 2667

SR/DR SR/DR SR/DR SR/DR 2667

Frequency

Ryzen Series APUs (Renoir):

UDIMM Memory Slot

A1 A2 B1 B2

- SR - - 3200

- DR - - 3200

- SR - SR 3200

- DR - DR 3200

SR SR SR SR 2933

SR/DR DR SR/DR DR 2667

SR/DR SR/DR SR/DR SR/DR 2667

Frequency

B550M PG Riptide

(Mhz)

(Mhz)

23

English

Ryzen Series APUs (Picasso):

UDIMM Memory Slot

A1 A2 B1 B2

- SR - - 2933

- DR - - 2667

- SR - SR 2667

- DR - DR 2400

SR SR SR SR 2133

SR/DR DR SR/DR DR 1866

SR/DR SR/DR SR/DR SR/DR 1866

SR: Single rank DIMM, 1Rx4 or 1R x8 on DIMM module label

DR: Dua l ran k DIMM, 2Rx4 or 2R x8 on DIMM module label

Frequency

(Mhz)

English

24

e DIMM only ts in one correct orientation. It will cause permanent dam age to
the mothe rboard and the DIMM if you force the DIMM into the slot at incor rect
orientation .

1

2

B550M PG Riptide

3

English

25

2.4 Expansion Slots (PCI Express Slots)

ere are 3 PCI Express slots on the motherboard.

Before installing an ex pansion card, please make sure that the power supply is
switched o or the power cord is unplugged. Plea se read the documentation of the
expan sion card and mak e necessary hardware settings for the card before you start
the installation.

PCIe slots:

PCIE1 (PCIe 4.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

PCIE2 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE3 (PCIe 3.0 x16 slot) is used for PCI Express x4 lane width graphics cards.

PCIe Slot Congurations

Ryzen series CPUs (Vermeer and Matisse):

PCIE1 PCIE3

Single Graphics Card Gen4x16 N/A

English

26

Two Graphics Cards in

CrossFireXTM Mode

Gen4x16 Gen3x4

Ryzen series APUs (Cezanne and Renoir):

PCIE1 PCIE3

Single Graphics Card Gen3x16 N/A

Two Graphics Cards in

CrossFireXTM Mode

Gen3x16 Gen3x4

Ryzen series APUs (Picasso):

PCIE1 PCIE3

Single Graphics Card Gen3x8 N/A

B550M PG Riptide

Two Graphics Cards in

CrossFireXTM Mode

For a better ther mal environment, ple ase connect a ch assi s fan to the motherboard’s
chassis fan connector (CHA_ FAN1/WP, CHA_ FAN2/WP, CHA_FAN3/WP or
CHA_ FAN4/WP) whe n using multiple graphics card s.

Gen3x8 Gen3x4

27

English

2.5 Jumpers Setup

e illustration shows how jumpers are setup. When the jumper cap is placed on

the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is

“Open”.

English

Clear CMOS Jumper

(CLRCMOS1)

(see p.7, No. 20)

CLRCMOS1 allows you to clear the data in CMOS. e data in CMOS includes

system setup information such as system password, date, time, and system setup

parameters. To clear and reset the system parameters to default setup, please

turn o the computer and unplug the power cord, then use a jumper cap to short

the pins on CLRCMOS1 for 3 seconds. Please remember to remove the jumper

cap aer clearing the CMOS. If you need to clear the CMOS when you just nish

updating the BIOS, you must boot up the system rst, and then shut it down

before you do the clear-CMOS action.

2-pin Jumper

Short: Clear CMOS

Open: Default

28

2.6 Onboard Headers and Connectors

PLE D-

SPE AK ER

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over
these header s and connectors. Placing jumper caps over the headers and connectors
will cause permanent damage to the motherboard.

B550M PG Riptide

System Panel Header

(9-pin PANEL1)

(see p.7, No. 14)

PWRBTN (Power Button):

Connec t to the power button on the chassi s front panel. You may congure the way
to turn o your system using the powe r button.

RESET (Reset Button):

Connec t to the reset button on the chassi s front panel. Press the reset button to
restar t the computer if the computer freezes and fails to perform a nor mal restart.

PLED (Syste m Power LED):

Connec t to the power status indicator on the chassis front panel. e LED i s on when
the system is ope rating. e LED keeps blinking when the system i s in S1/S3 sleep
state. e LED is o when the system is in S4 sleep state or powered o (S5).

HDLED (Ha rd Drive Activity LED):

Connec t to the hard drive ac tivity LED on the chassis front panel. e LED is on
when the hard drive i s reading or writing data.

e front panel de sign may dier by chassis. A front pane l module mainly consists
of power button , reset button, power LED, hard dr ive activity LED, speaker and etc.
When connecting your chassis front panel module to this head er, make sure the wire
assig nments and the pin assig nments are matched correctly.

1

PLE D+

PLE D-

HDL ED-

HDL ED+

PWR BTN #

GND

RES ET#

GND

GND

Connect the power

button, reset button and

system status indicator on

the chassis to this header

according to the pin

assignments below. Note

the positive and negative

pins before connecting

the cables.

Power LED and Speaker

Header

(7-pin SPK_PLED1)

(see p.7, No. 15)

DUM MY
+5V

1

PLE D+

DUM MY

PLE D+

Please connect the

chassis power LED and

the chassis speaker to this

header.

English

29

Serial ATA3 Connectors

Right Angle:

(SATA3_4:

see p.7, No. 12) (Upper)

(SATA3_3:

see p.7, No. 12) (Lower)

(SATA3_2:

see p.7, No. 13) (Upper)

(SATA3_1:

see p.7, No. 13) (Lower)

SATA3_4

SATA3_2

ese four SATA3

connectors support SATA

data cables for internal

SATA3_3

storage devices with up to

6.0 Gb/s data transfer rate.

SATA3_1

English

USB 2.0 Headers

(9-pin USB_3_4)

(see p.7, No. 18)

(9-pin USB_5_6)

(see p.7, No. 19)

USB 3.2 Gen1 Header

(19-pin F_USB3_1_2)

(see p.7, No. 10)

Front Panel Type C USB

3.2 Gen1 Header

(20-pin F_USB3_TC_1)

(see p.7, No. 9)

USB _PW R

P-

1

P-

USB _PW R

Vbus

IntA _PA_S SRX-

IntA _PA_S SRX+

GND

IntA _PA_S STX-

IntA _PA_S STX+

GND

IntA _PA_D -

IntA _PA_D +

USB Type-C Cable

P+

P+

GND

DUM MY

GND

VbusVbus

IntA _PB_ SSRX -

IntA _PB_ SSRX +

GND

IntA _PB_ SSTX -

IntA _PB_ SSTX +

GND

IntA _PB_ D-

IntA _PB_ D+

Dumm y

1

ere are two headers

on this motherboard.

Each USB 2.0 header can

support two ports.

ere is one header on

this motherboard. is

USB 3.2 Gen1 header can

support two ports.

ere is one Front

Panel Type C USB 3.2

Gen1 Header on this

motherboard. is header

is used for connecting a

USB 3.2 Gen1 module for

additional USB 3.2 Gen1

ports.

30

B550M PG Riptide

GND

CPU_ FAN_SP EED

FAN_S PEED_ CONTR OL

4 3 2 1

Front Panel Audio Header

(9-pin HD_AUDIO1)

(see p.7, No. 25)

1. High Denition Audio supports Jack Sensing, but the panel wire on the chassis
must support HDA to function correctly. Please follow the instructions in our
manual and chassis manual to install your system.

2. If you use an AC’97 audio panel, please install it to the front panel audio heade r by
the steps below:
A. Connect Mic_IN (MIC) to MIC2_ L.
B. Conne ct Audio_R (RIN) to OUT2_R and Audio_ L (LIN) to OUT2_ L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_ RET and OUT_RET are for the HD audio panel only. You don’t need to
connec t them for the AC’97 audio panel.
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel
and adju st “Recording Volume”.

Chassis Water Pump Fan

Connectors

(4-pin CHA_FAN1/WP)

(see p.7, No. 26)

(4-pin CHA_FAN2/WP)

(see p.7, No. 21)

(4-pin CHA_FAN3/WP)

(see p.7, No. 22)

(4-pin CHA_FAN4/WP)

(see p.7, No. 16)

1

MIC 2_L

FAN _VO LT AGE

CHA _FA N_S PE ED

1 2 3 4

GND

PRE SEN CE#

MIC _RE T

OUT _RE T

OUT 2_L

J_S ENS E

OUT 2_R

MIC 2_R

FAN _SP EED _C ONT ROL

is header is for

connecting audio devices

to the front audio panel.

is motherboard

provides four 4-Pin water

cooling chassis fan

connectors. If you plan to

connect a 3-Pin

chassis

water cooler fan, please

connect it to Pin 1-3.

CPU Fan Connector

(4-pin CPU_FAN1)

(see p.7, No. 2)

is motherboard pro-

vides a 4-Pin CPU fan

(Quiet Fan) connector.

If you plan to connect a

3-Pin CPU fan, please

connect it to Pin 1-3.

English

31

CPU Water Pump Fan

1

SPI _ DQ3

Connector

(4-pin CPU_FAN2/WP)

(see p.7, No. 3)

ATX Power Connector

(24-pin ATXPWR1)

(see p.7, No. 8)

4 3 2 1

GND

FAN_ VOLTA GE

CPU_ F

AN_S PEED

FAN_S PEED_ CONTR OL

12

24

1

13

is motherboard

provides a 4-Pin water

cooling CPU fan

connector. If you plan

to connect a 3-Pin CPU

water cooler fan, please

connect it to Pin 1-3.

is motherboard pro-

vides a 24-pin ATX power

connector. To use a 20-pin

ATX power supply, please

plug it along Pin 1 and Pin

13.

English

ATX 12V Power

Connector

(8-pin ATX12V1)

(see p.7, No. 1)

SPI TPM Header

(13-pin SPI_TPM_J1)

(see p.7, No. 11)

8 5

4

+3. 3 V

Dum m y

1

SPI _ MIS O

SPI _ CS0

SPI _ DQ2

CLK

SPI _ MOS I

GND

RSM R ST#

RST #

TPM _ PIR Q

SPI _ TPM _CS #

is motherboard

provides a 8-pin ATX 12V

power connector. To use a

4-pin ATX power supply,

please plug it along Pin 1

and Pin 5.

*Warning: Please make

sure that the power cable

connected is for the CPU

and not the graphics

card. Do not plug the

PCIe power cable to this

connector.

is connector supports SPI

Trusted Platform Module (TPM)

system, which can securely store

keys, digital certicates, pass-

words, and data. A TPM system

also helps enhance network

security, protects digital

identities, and ensures platform

integrity.

32

B550M PG Riptide

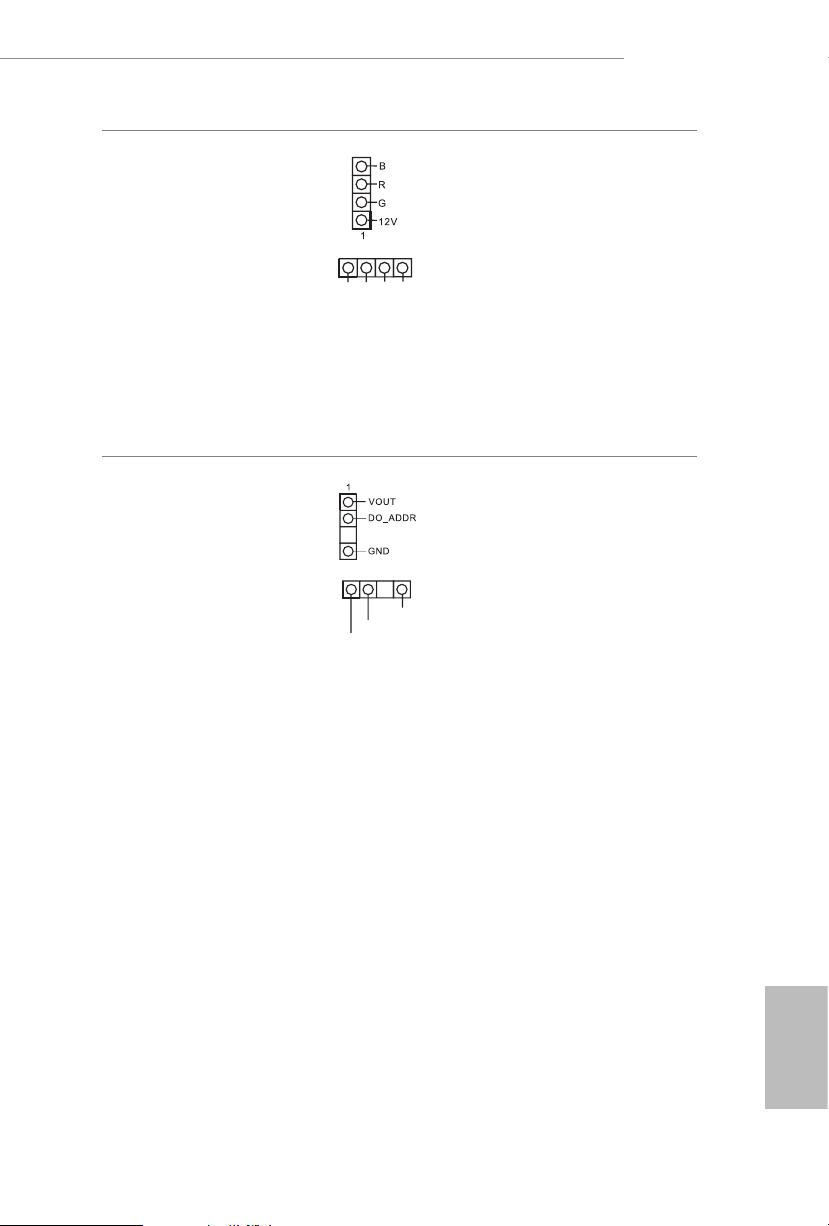

RGB LED Headers

(4-pin RGB_LED1)

(see p.7, No. 6)

(4-pin RGB_LED2)

(see p.7, No. 24)

Addressable LED Headers

(3-pin ADDR_LED1)

(see p.7, No. 7)

(3-pin ADDR_LED2)

(see p.7, No. 23)

1

12V G R B

1

DO_ ADD R

VOU T

GND

ese two RGB headers are used

to connect RGB LED extension

cable which allows

users to choose from various LED

lighting eects.

Caution: Never install the RGB

LED cable in the wrong orienta-

tion; otherwise, the cable may

be damaged.

*Please refer to page 57 for

further instructions on these two

headers.

ese two

are used to connect

Addressable

Addressable

headers

LED extension cable which

allows users to choose from

various LED lighting eects.

Caution: Never install the

Addressable LED cable in the

wrong orientation; otherwise,

the cable may be damaged.

*Please refer to page 58 for

further instructions on this

header.

33

English

2.7 Post Status Checker

Post Status Checker (PSC) diagnoses the computer when users power on the

machine. It emits a red light to indicate whether the CPU, memory, VGA or stor-

age is dysfunctional. e lights go o if the four mentioned above are functioning

normally.

English

34

2.8 CrossFireXTM and Quad CrossFireXTM Operation Guide

is motherboard supports CrossFireXTM and Quad CrossFireXTM that allows you

to install up to three identical PCI Express x16 graphics cards.

1. You should only use ide ntical CrossFireXTM-ready g raphics cards that are AM D
certied.

2. Make sure that your g raphics card driver supports AMD CrossFireXTM technology.
Download the drivers from the A MD’s website: www.amd.com

3. Make sure that your power supply unit (PSU) can provide at least th e minimum
power your syste m require s. It is recommended to use a AMD certied PSU. Plea se
refer to the AMD’s website for d etail s.

4. If you pair a 12-pipe CrossFireXTM Edition card with a 16-pipe card, both cards will
operate a s 12-pipe cards while in CrossFireXTM mode.

5. Dierent CrossFireXTM cards may require dierent method s to enable CrossFi­reXTM. Please refer to A MD graphics card manuals for de tailed installation guide.

2.8.1 Installing Two CrossFireXTM-Ready Graphics Cards

Step 1

Insert one graphics card into PCIE1 slot

and the other graphics card to PCIE3 slot.

Make sure that the cards are properly

seated on the slots.

B550M PG Riptide

CrossFire Bridge

Step 2

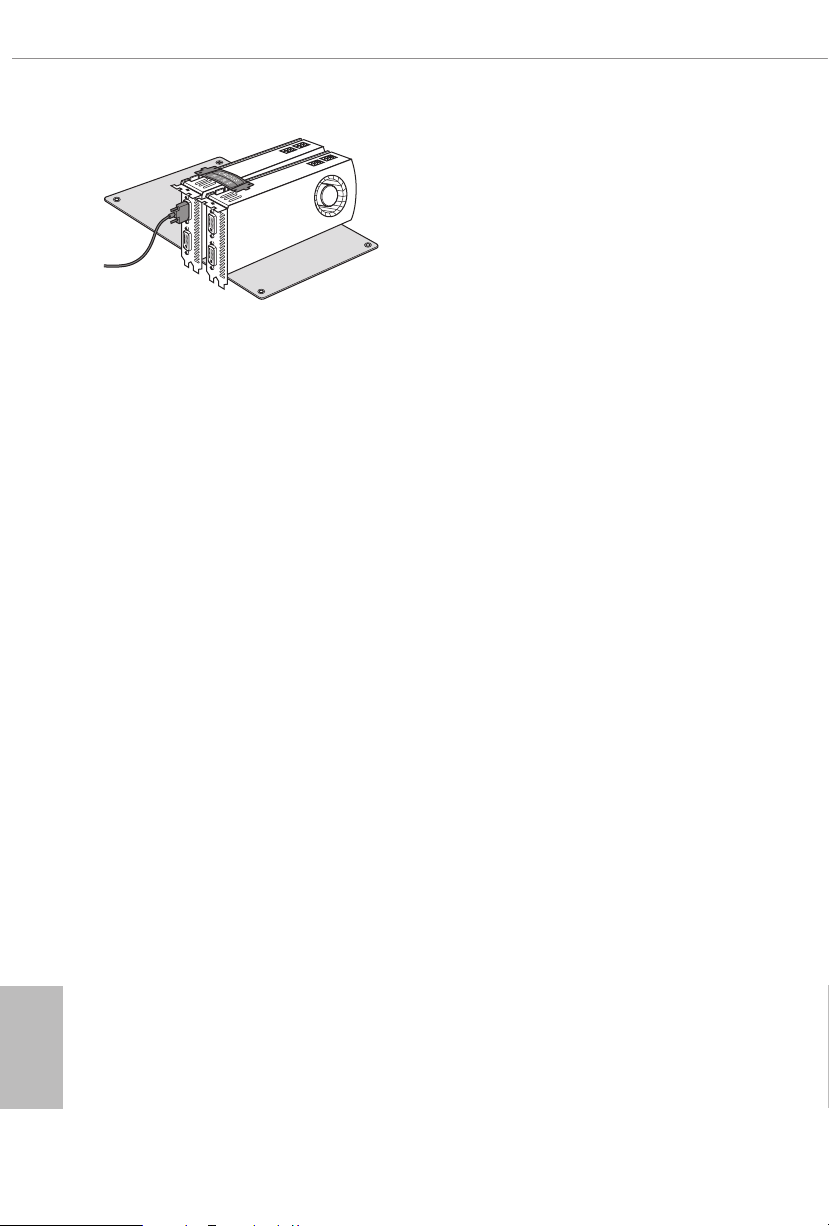

Connect two graphics cards by installing

a CrossFire Bridge on the CrossFire Bridge

Interconnects on the top of the graphics

cards. (e CrossFire Bridge is provided

with the graphics card you purchase, not

bundled with this motherboard. Please

refer to your graphics card vendor for

details.)

English

35

Step 3

Connect a VGA/DVI/DP/HDMI cable

from the monitor to the corresponding

port on the graphics card installed to the

PCIE1 slot.

English

36

2.8.2 Driver Installation and Setup

Step 1

Power on your computer and boot into OS.

Step 2

Remove the AMD drivers if you have any VGA drivers installed in your system.

e Catalyst Unins talle r is an optional download. We recommend using this utility
to uninstall any previously installed Catalyst drivers prior to installation. Pl ease
check A MD’s website for AMD driver update s.

Step 3

Install the required drivers and CATALYST Control Center then restart your

computer. Please check AMD’s website for details.

Step 4

Double-click the AMD Catalyst Control

AMD Catalyst Control Center

Center icon in the Windows® system tray.

B550M PG Riptide

Step 5

In the le pane, click Performance and

then AMD CrossFireXTM. en select

Enable AMD CrossFireX and click Apply.

Select the GPU number according to your

graphics card and click Apply.

English

37

2.9 M.2 WiFi/BT PCIe WiFi Module Installation Guide

e M.2, also known as the Next Generation Form Factor (NGFF), is a small size and

versatile card edge connector that aims to replace mPCIe and mSATA. e M.2 Socket (Key

E) supports type 2230 WiFi/BT PCIe WiFi module.

* e M.2 socket does not support SATA M.2 SSDs.

Installing the WiFi/BT module

Step 1

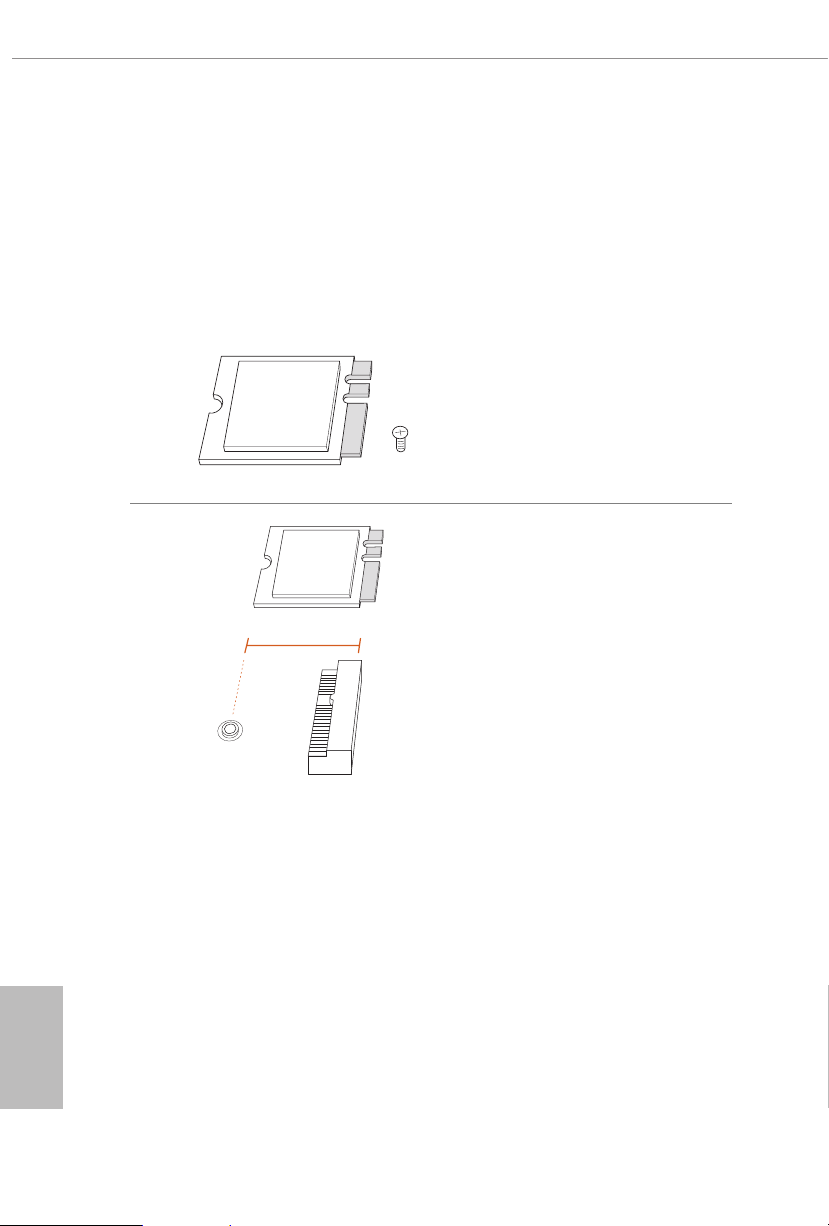

Prepare a type 2230 WiFi/BT PCIe

WiFi module and the screw.

Step 2

Find the nut location to be used.

PCB Length: 3cm
Module Type: Type2230

English

38

A

B550M PG Riptide

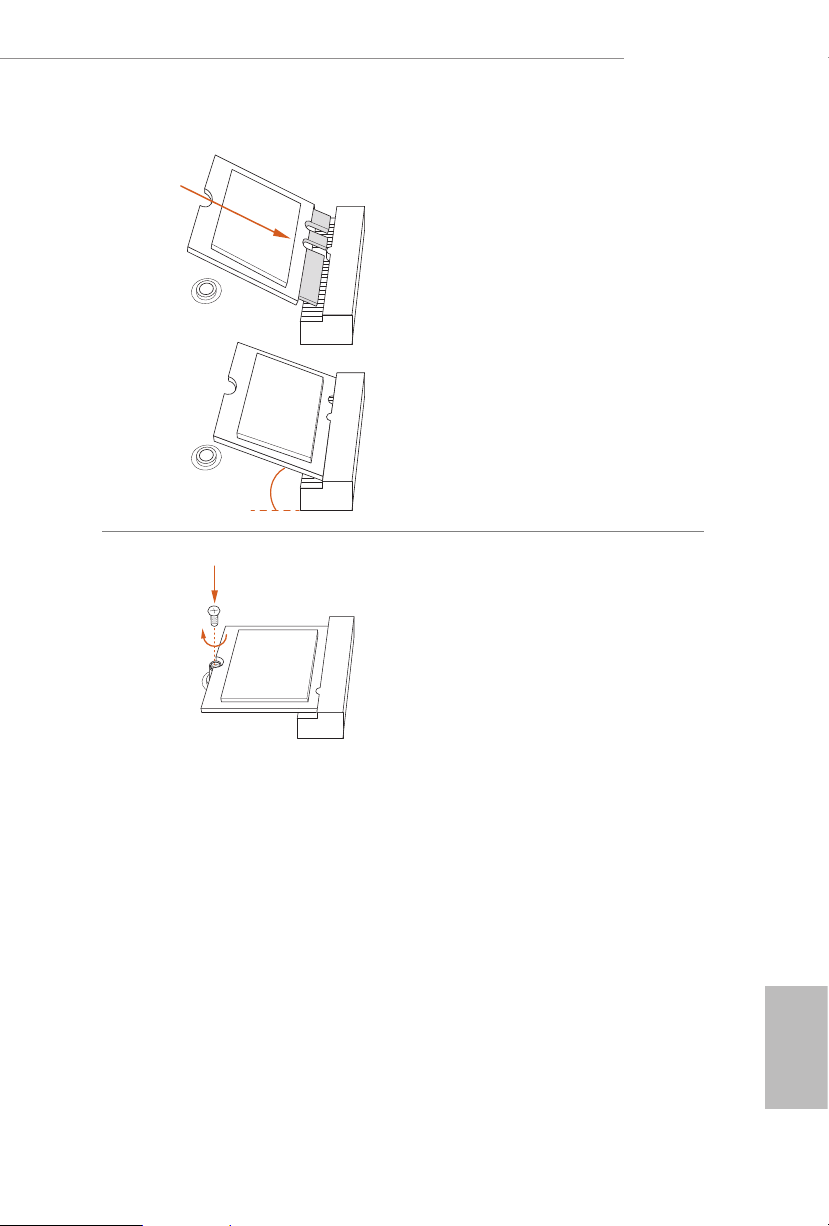

Step 3

Gently insert the WiFi/BT module

into the M.2 slot. Please be aware

that the module only ts in one

orientation.

A

o

A

20

Step 4

Tighten the screw with a screwdriver

to secure the module into place.

Please do not overtighten the screw as

this might damage the module.

A

39

English

2.10 M.2_SSD (NGFF) Module Installation Guide (M2_1)

The M.2, also known as the Next Generat ion Form Factor (NGFF), is a small size and

versatile card edge connector that aims to replace mPCIe and mSATA. e Hy per M.2

Socket (M2_1, Key M), supports type 2260/22 80 PCIe Gen4x4 (64 Gb/s) mode (with

Vermeer, Matisse) or Gen3x4 (32 Gb/s) mode (with Cezanne, Renoir and Picasso).

Installing the M.2_SSD (NGFF) Module

Step 1

Prepare a M.2_SSD (NGFF) module

and the screw.

Step 2

Depending on the PCB type and

length of your M.2_SSD (NGFF)

module, nd the corresponding nut

location to be used.

English

40

No. 1 2

Nut Location A B

PCB Length 6cm 8cm

Module Type Type2260 Type 2280

B550M PG Riptide

1

Step 3

2

1

Before installing a M.2 (NGFF) SSD

module, please loosen the screws to

remove the M.2 heatsink.

*Please remove the protective lms

on the bottom side of the M.2

heatsink before you install a M.2

SSD module.

Step 4

Prepare the M.2 stando that comes

with the package. en hand tighten

the stando into the desired nut

location on the motherboard. Align

AB

o

20

and gently insert the M.2 (NGFF)

SSD module into the M.2 slot. Please

be aware that the M.2 (NGFF) SSD

module only ts in one orientation.

en tighten the screw that comes

with the package to secure the

modules into place.

AB

2

Step 5

1

2

Tighten the screw with a screwdriver

to secure the M.2 heatsink into

place. Please do not overtighten the

screw as this might damage the M.2

heatsink.

English

41

M.2_SSD (NGFF) Module Support List

Vendor Interface P/N

SanDisk PCIe SanDisk-SD6PP4M-128G( Gen2 x2)
Intel PCIe INTEL 6000P-SSDPEKKF256G7 (nvme)
Intel PCIe INTEL 6000P-SSDPEKKF512G7 (nvme)
Intel PCIe SSDPEKKF512G7 NVME / 512GB
Kingston PCIe Kingston SHPM2280P2 / 240G (Gen2 x4)
Samsung PCIe Samsung XP941-MZHPU512HCGL(Gen2x4)
Samsung PCIe SM951 (NVME) / 512GB
Samsung PCIe SM951 (MZHPV512HDGL) / 512GB
ADATA PCIe ASX8000NP-512GM-C / 512GB
ADATA PCIe ASX7000NP-512GT-C / 512GB
Kingston PCIe SKC1000/480G
Kingston PCIe SKC1000/960GB NVME
PLEXTOR PCIe PX-512M8PeG/ 512GB
WD PCIe WDS512G1X0C-00ENX0 (NVME) / 512GB

For the latest updates of M.2 _SSD (NFGG) module support list, please visit our website

for details: http://www.asrock.com

English

42

B550M PG Riptide

2.11 M.2_SSD (NGFF) Module Installation Guide (M2_2)

The M.2, also known as the Next Generat ion Form Factor (NGFF), is a small size and

versatile card edge connector that aims to replace mPCIe and mSATA. e M.2 Socket

(M2_2, Key M), supports ty pe 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes.

Installing the M.2_SSD (NGFF) Module

Step 1

Prepare a M.2_SSD (NGFF) module

and the screw.

Step 2

Depending on the PCB type and

length of your M.2_SSD (NGFF)

module, nd the corresponding nut

location to be used.

No. 1 2

Nut Location A B

PCB Length 6cm 8cm

Module Type Type2260 Type 2280

English

43

Step 3

Move the stando based on the

module type and length.

e stando is placed at the nut

location B by default. Skip Step 3 and

4 and go straight to Step 5 if you are

going to use the default nut.

Otherwise, release the stando by

hand.

Step 4

Peel o the yellow protective lm on

the nut to be used. Hand tighten the

stando into the desired nut location

on the motherboard.

Step 5

Gently insert the M.2 (NGFF) SSD

module into the M.2 slot. Please

be aware that the M.2 (NGFF) SSD

module only ts in one orientation.

AB

o

20

English

44

AB

Step 6

Tighten the screw with a screwdriver

to secure the module into place.

Please do not overtighten the screw as

NUT1NUT2B

this might damage the module.

M.2_SSD (NGFF) Module Support List

Vendor Interface P/N

SanDisk PCIe SanDisk-SD6PP4M-128G( Gen2 x2)
Intel PCIe INTEL 6000P-SSDPEKKF256G7 (nvme)
Intel PCIe INTEL 6000P-SSDPEKKF512G7 (nvme)
Intel PCIe SSDPEKKF512G7 NVME / 512GB
Intel SATA 540S-SSDSCKKW240H6 / 240GB
Kingston PCIe Kingston SHPM2280P2 / 240G (Gen2 x4)
Samsung PCIe Samsung XP941-MZHPU512HCGL(Gen2x4)
Samsung PCIe SM951 (NVME) / 512GB
Samsung PCIe SM951 (MZHPV512HDGL) / 512GB
ADATA SATA ADATA - AXNS381E-128GM-B
ADATA PCIe ASX8000NP-512GM-C / 512GB
ADATA PCIe ASX7000NP-512GT-C / 512GB
ADATA SATA ASU800NS38-512GT-C / 512GB
Crucial SATA Crucial-CT240M500SSD4-240GB
ezlink SATA ezlink P51B-80-120GB
Intel SATA INTEL 540S-SSDSCKKW240H6-240GB
Kingston SATA Kingston SM2280S3G2/120G - Win8.1
Kingston SATA Kingston-RBU-SNS8400S3 / 180GD
Kingston PCIe SKC1000/480G
Kingston PCIe SKC1000/960GB NVME
LITEON SATA LITEON LJH-256V2G-256GB (2260)
PLEXTOR SATA PLEXTOR PX-128M6G-2260-128GB
PLEXTOR SATA PLEXTOR PX-128M7VG-128GB
PLEXTOR PCIe PX-512M8PeG/ 512GB
SanDisk SATA SanDisk X400-SD8SN8U-128G
SanDisk SATA Sandisk Z400s-SD8SNAT-128G-1122
SanDisk SATA SanDisk-SD6SN1M-128G
Transcend SATA Transcend TS256GMTS800-256GB
Transcend SATA TS512GMTS800 / 512GB
V-Color SATA V-Color 120G
V-Color SATA V-Color 240G
WD SATA WD GREEN WDS240G1G0B-00RC30
WD PCIe WDS512G1X0C-00ENX0 (NVME) / 512GB

B550M PG Riptide

For the latest updates of M.2 _SSD (NFGG) module support list, please visit our website

for details: http://www.asrock.com

English

45

Chapter 3 Software and Utilities Operation

3.1 Installing Drivers

e Support CD that comes with the motherboard contains necessary drivers and

useful utilities that enhance the motherboard’s features.

Running The Support CD

To begin using the support CD, insert the CD into your CD-ROM drive. e CD

automatically displays the Main Menu if “AUTORUN” is enabled in your computer.

If the Main Menu does not appear automatically, locate and double click on the le

“ASRSETUP.EXE” in the Support CD to display the menu.

Drivers Menu

e drivers compatible to your system will be auto-detected and listed on the

support CD driver page. Please click Install All or follow the order from top to

bottom to install those required drivers. erefore, the drivers you install can work

properly.

Utilities Menu

e Utilities Menu shows the application soware that the motherboard supports.

Click on a specic item then follow the installation wizard to insta ll it.

English

46

B550M PG Riptide

3.2 ASRock Motherboard Utility (Phantom Gaming Tuning)

ASRock Motherboard Utilit y (Phantom Gaming Tuning) is ASRock’s multi pur-

pose soware suite with a new interface, more new features and improved utilities.

3.2.1 Installing ASRock Motherboard Utility (Phantom
Gaming Tuning)

ASRock Motherboard Utilit y (Phantom Gaming Tuning) can be downloaded from

ASRock Live Update & APP Shop. Aer the installation, you will nd the icon “AS-

Rock Motherboard Utility (Phantom Gaming Tuning)“ on your desktop. Double-

click the “ASRock Motherboard Utility (Phantom Gaming Tuning)“ icon,

ASRock Motherboard Utilit y (Phantom Gaming Tuning) main menu will pop up.

3.2.2 Using ASRock Motherboard Utility (Phantom Gam­ing Tuning)

ere are ve sections in ASRock Motherboard Utility (Phantom Gaming Tuning)

main menu: Operation Mode, OC Tweaker, System Info, FAN-Tastic Tuning and

Settings.

Operation Mode

Choose an operation mode for your computer.

47

English

OC Tweaker

Congurations for overclocking the system.

System Info

View information about the system.

*e System Browser tab may not appear for certain models.

English

48

B550M PG Riptide

FAN-Tastic Tuning

Congure up to ve dierent fan speeds using the graph. e fans will automatically shi

to the next speed level when the assigned temperature is met.

Settings

Congure ASRock ASRock Motherboard Utility (Phantom Gaming Tuning).

Click to select "Auto run at Windows Startup" if you want ASRock Motherboard

Utility (Phantom Gaming Tuning) to be launched when you start up the Windows

operating system.

English

49

3.3 ASRock Live Update & APP Shop

e ASRock Live Update & APP Shop is an online store for purchasing and

downloading soware applications for your ASRock computer. You can quick ly and

easily insta ll various apps and support utilities. With ASRock Live Update & APP

Shop, you can optimize your system and keep your motherboard up to date simply

with a few clicks.

Double-click on your desktop to access ASRock Live Update & APP Shop
utility.

*You need to be connected to the Internet to download apps f rom the ASRock Live Update & APP Shop.

3.3.1 UI Overview

Category Panel

Hot News

English

50

Information Panel

Category Panel: e category panel contains several category tabs or buttons that

when selected the information panel below displays the relative information.

Information Panel: e information panel in the center displays data about the

currently selected category and allows users to perform job-related tasks.

Hot News: e hot news section displays the various latest news. Click on the image

to visit the website of the selected news and know more.

3.3.2 Apps

When the "Apps" tab is selected, you will see all the available apps on screen for you

to download.

Installing an App

Step 1

Find the app you want to install.

B550M PG Riptide

e most recommended app appears on the le side of the screen. e other various

apps are shown on the right. Please scroll up and down to see more apps listed.

You can check the price of the app and whether you have already intalled it or not.

- e red icon displays the price or "Free" if the app is free of charge.

- e green "Installed" icon means the app is installed on your computer.

Step 2

Click on the app icon to see more details about the selected app.

English

51

Step 3

If you want to install the app, click on the red icon to start downloading.

Step 4

When installation completes, you can nd the green "Installed " icon appears on the

upper right corner.

English

52

To uninstall it, simply click on the trash can icon .
*e trash icon may not appear for certain apps.

Upgrading an App

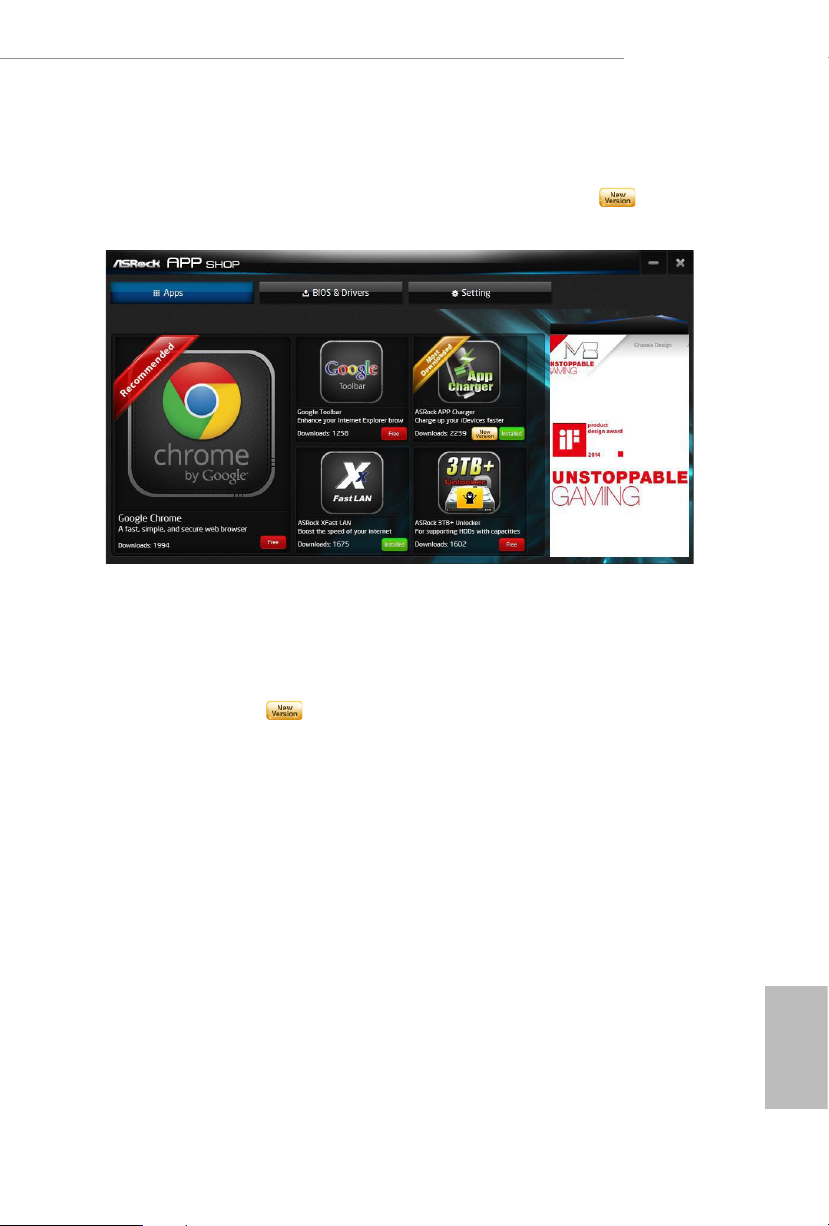

You can only upgrade the apps you have already installed. When there is an

available new version for your app, you will nd the mark of "New Version"

appears below the installed app icon.

Step 1

Click on the app icon to see more details.

B550M PG Riptide

Step 2

Click on the yellow icon to start upgrading.

English

53

3.3.3 BIOS & Drivers

Installing BIOS or Drivers

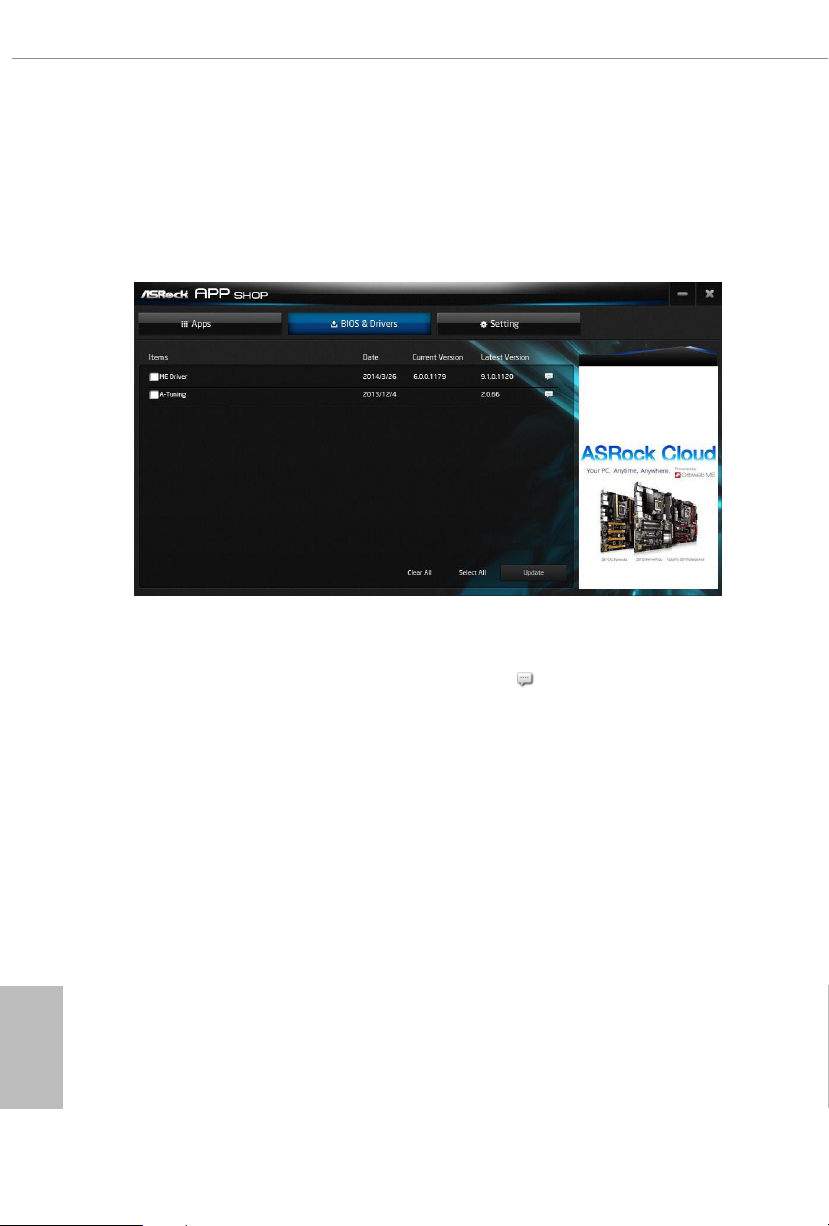

When the "BIOS & Drivers" tab is selected, you will see a list of recommended or

critical updates for the BIOS or drivers. Please update them all soon.

Step 1

Please check the item information before update. Click on to see more details.

Step 2

English

54

Click to select one or more items you want to update.

Step 3

Click Update to start the update process.

3.3.4 Setting

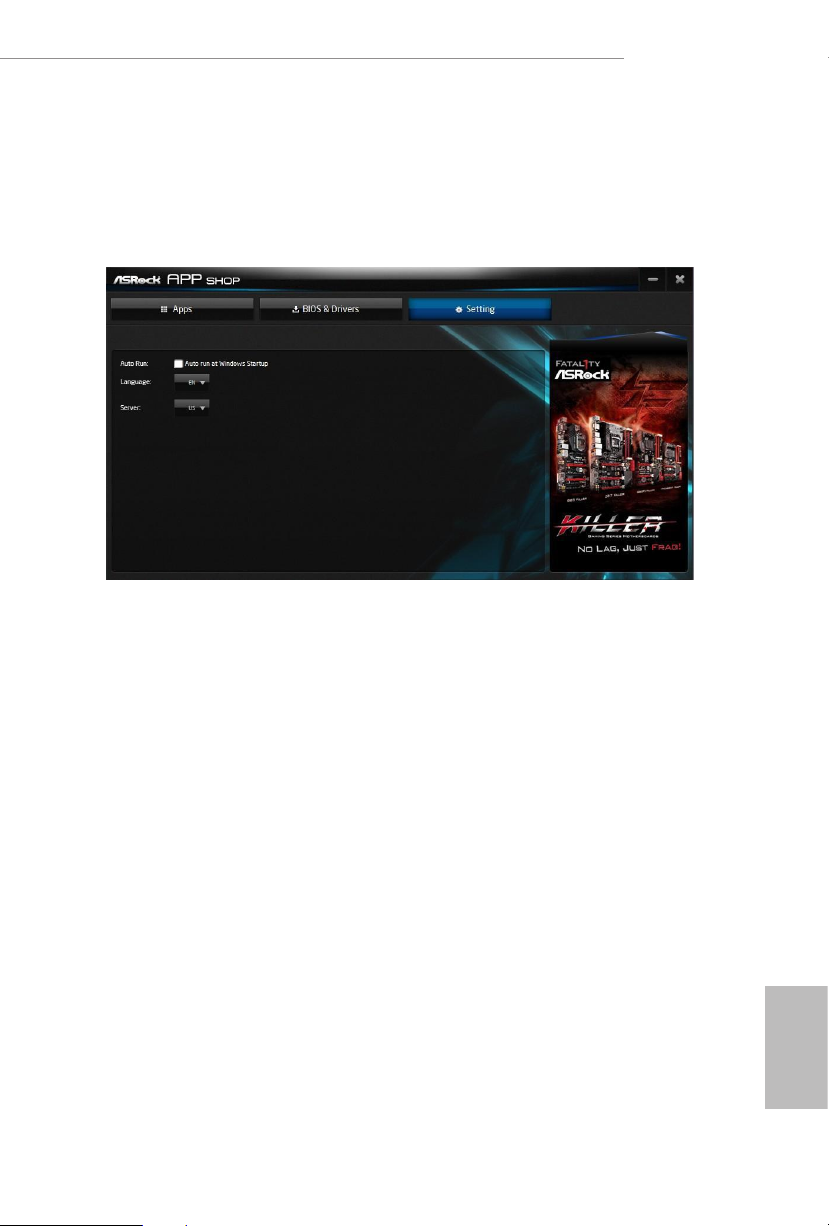

In the "Setting" page, you can change the language, select the server location, and

determine if you want to automatically run the ASRock Live Update & APP Shop

on Windows startup.

B550M PG Riptide

55

English

3.4 Nahimic Audio

Nahimic audio soware provides an incredible high denition sound technology which

boosts the audio and voice performance of your system. Nahimic Audio interface is

composed of four tabs: Audio, Microphone, Sound Tracker and Settings.

ere are four functions in Nahimic audio :

No. Function Description

From this tab, you can mute the current audio device, choose

Audio

1

between four factory audio proles, turn all audio eects
on/o, restores the current prole to its default settings and
access Surround Sound and various features.

English

56

Microphone

2

3

4

Sound

Tracker

Settings

From this tab, you can mute the current mic device, choose
between two factory mic proles, turn/o all microphone
eects, restore the current prole to its default settings, and
access Static Noise Suppression and various features.

e Sound Tracker provides a visual indication localizing
the sources of the sounds while in a game. ese are
represented by dynamic segments pointing the direction
of the sounds: the more opaque they are, the stronger the
sounds are.

From this tab, you can access all settings and information of
the soware.

B550M PG Riptide

3.5 ASRock Polychrome SYNC

ASRock Polychrome SYNC is a lighting control utility specically designed for unique indi-

viduals with sophisticated tastes to build their own stylish colorful lighting system. Simply by

connecting the LED strip, you can customize various lighting schemes and patterns, including

Static, Breathing, Strobe, Cycling, Music, Wave and more.

Connecting the LED Strip

Connect your RGB LED strips to the

motherboard.

RGB LED Headers (RGB_LED1, RGB_LED2)

RGB_LED1

1

B

R

G

V

2

1

on the

RGB_LED2

1

12V G R B

1. Never in stall the RGB LED cable in the w rong orientation; otherwi se, the cable
may be damaged.

2. Before installing or removing your RGB LED cable, pl ease power o your system
and unplug the powe r cord from the power supply. Failure to do so m ay cause dam­ages to motherboard components.

1. Please note that the RGB LED strips do not come with the package.

2. e RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a
maximum power rating of 3A (12V) and length within 2 meters.

English

57

Connecting the Addressable RGB LED Strip

Connect your

ADDR_LED2)

Addressable RGB LED

strips to the

Addressable LED Headers (ADDR_LED1,

on the motherboard.

ADDR_LED2

1

GND

DO_ ADD R

VOU T

1. Never in stall the RGB LED cable in the w rong orientation; otherwi se, the cable
may be damaged.

2. Before installing or removing your RGB LED cable, pl ease power o your system
and unplug the powe r cord from the power supply. Failure to do so m ay cause dam­ages to motherboard components.

ADDR_LED1

1

B

R

G

V

2

1

English

58

1. Please note that the RGB LED strips do not come with the package.

2. e RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/
GND), with a ma ximum power rating of 3A (5V) and length w ithin 2 meters.

ASRock Polychrome SYNC Utility

Now you can adjust the RGB LED color through the ASRock Polychrome SYNC Utility.

Download this utility from the ASRock Live Update & APP Shop and start coloring your

PC style your way!

Drag the tab to customize your

preference.

Toggle on/o the

RGB LED switch

Sync RGB LED eects

for all LED regions of

the motherboard

Select a RGB LED light eect

from the drop-down menu.

B550M PG Riptide

59

English

Chapter 4 UEFI SETUP UTILITY

4.1 Introduction

is section explains how to use the UEFI SETUP UTILITY to congure your

system. You may run the UEFI SETUP UTILITY by pressing <F2> or <Del> right

aer you power on the computer, other wise, the Power-On-Self-Test (POST) will

continue with its test routines. If you wish to enter the UEFI SETUP UTILITY aer

POST, restart the system by pressing <Ctl> + <Alt> + <Delete>, or by pressing the

reset button on the system chassis. You may also restart by turning the system o

and then back on.

Becau se the UEFI soware is constantly being upd ated, the following UEFI setup
screens and de scriptions are for reference purpose only, and they may not exactly
match what you see on your scre en.

4.1.1 UEFI Menu Bar

e top of the screen has a menu bar with the following selections:

English

60

Main

OC Tweaker

Advanced

Tool

H/W Monitor

Security

Boot

Exit

For setting system time/date information

For overclocking congurations

For advanced system congurations

Useful tools

Displays current hardware status

For security settings

For conguring boot settings and boot priority

Exit the current screen or the UEFI Setup Utility

4.1.2 Navigation Keys

Use < > key or < > key to choose among the selections on the menu bar, and

use < > key or < > key to move the cursor up or down to select items, then

press <Enter> to get into the sub screen. You can also use the mouse to click your

required item.

Please check the following table for the descriptions of each navigation key.

Navigation Key(s) Description

B550M PG Riptide

+ / -

<Tab>

<PGUP>

<PGDN>

<HOME>

<END>

<F1>

<F7>

<F9>

<F10>

<F12>

<ESC>

To change option for the selected items

Switch to next function

Go to the previous page

Go to the next page

Go to the top of the screen

Go to the bottom of the screen

To display the General Help Screen

Discard changes and exit the SETUP UTILITY

Load optimal default values for all the settings

Save changes and exit the SETUP UTILITY

Print screen

Jump to the Exit Screen or exit the current screen

61

English

4.2 Main Screen

When you enter the UEFI SETUP UTILITY, the Main screen will appear and

display the system overview.

English

62

4.3 OC Tweaker Screen

In the OC Tweaker screen, you can set up overclocking features.

B550M PG Riptide

Becau se the UEFI soware is constantly being upd ated, the following UEFI setup
screens and de scriptions are for reference purpose only, and they may not exactly
match what you see on your scre en.

Overclock Mode(Bus Speed)

Select the overclock mode. Warning! When overclocking also the PCIe, PCI, SATA and

USB busses will be overcloked which may cause instability or failure. Please install an

operating system and the drivers required before overclocking, or else your HDD's may be

undetectable. Overclocking is not supported if the monitor is connected via the onboard

D-Bus/VGA connector.

CPU Frequency and Voltage(VID) Change

If this item is set to [Manual], the multiplier and voltage will be set based on user

selection. Final result is depending on the CPU's capability.

CPU Core (Per CCX)

CPU Voltage

Species a custom CPU core voltage (mV), Should be combined with a custom CPU

core frequency. Power saving features for idle cores (e.g. cc6 sleep) remain active.

English

63

CCD0

CCX0 Frequency (MHz)

Use this item to adjust CCX0 Frequency.

CCX1 Frequency (MHz)

Use this item to adjust CCX1 Frequency.

CCD1

CCX0 Frequency (MHz)

Use this item to adjust CCX0 Frequency.

CCX1 Frequency (MHz)

Use this item to adjust CCX1 Frequency.

SoC/Uncore OC Voltage(VID)

Specify the SoC/Uncore voltage (VDD_SOC) in mV to support memory and Innity Fabric

overclocking. VDD_SOC also determines the GPU voltage on processors with integrated

graphics. “SoC/Uncore OC Mode” needs to be enabled to force this voltage.

CLD0 VDDP Voltage Control

AMD Overclocking Setup VDDP is a voltage for the DDR4 bus signaling (PHY), and it is

derived from your DRAM Voltage (VDDIO_Mem). As a result, VDDP voltage in mV can

approach but not exceed your DRAM Voltage.

English

64

CLD0 VDDG CCD Voltage Control

AMD Overclocking Setup VDDG CCD represents voltage for the data portion of the Innity

Fabric. It is derived from the CPU SoC/Uncore Voltage (VDD_SOC). VDDG can approach

but not exceed VDD_SOC.

CLD0 VDDG IOD Voltage Control

AMD Overclocking Setup VDDG IOD represents voltage for the data portion of the Innity

Fabric. It is derived from the CPU SoC/Uncore Voltage (VDD_SOC). VDDG can approach

but not exceed VDD_SOC.

DRAM Information

Load XMP Setting

Load XMP settings to overclock the memory and perform beyond standard

specications.

B550M PG Riptide

DRAM Frequency

If [Auto] is selected, the motherboard will detect the memory module(s) inserted and assign

the appropriate frequency automatically. Setting DRAM Frequency can adjust DRAM

Timing.

DRAM Voltage

Congure the voltage for the DRAM Voltage.

Innity Fabric Frequency and Dividers

AMD Overclocking Setup Set Innity Fabric frequency (FCLK). Auto: FCLK = MCLK.

Manual: FCLK must be less than or equal to MCLK for best performance in most cases.

Latency penalties are incurred if FCLK and MCLK are mismatched, but suciently high

MCLK can negate or overcome this penalty.

DRAM Timing Conguration

External Voltage Settings and Load-line Calibration

Voltage Mode

[OC]

If this option is selected, there is larger range voltage for overclocking.

[Normal]

If this option is selected, there is smaller range voltage for normal system.

CPU Vcore Voltage

Input voltage for the processor by the external voltage refulator.

CPU Load-Line Calibration

CPU Load-Line Calibration helps prevent CPU voltage droop when the system is under

heavy loading.

VDDCR_SOC Voltage

Congure the voltage for the VID-requested VDDCR_SOC supply level.

VDDCR_SOC Load-Line Calibration

VDDCR_SOC Load-Line Calibration helps prevent VDDCR_SOC voltage droop when the

system is under heavy loading.

VPPM

Congure the voltage for the VPPM.

English

65

2.50V Voltage

Congure the voltage for the 2.50V.

CPU VDD 1.8 Voltage

Congure the voltage for the CPU VDD 1.8 PROM.

VDDP

Congure the voltage for the VDDP.

Chipset 1.05V Voltage

Congure the voltage for the chipset 1.05V.

Save User Default

Type a prole name and press enter to save your settings as user default.

Load User Default

Load previously saved user defaults.

Save User UEFI Setup Prole to Disk

Save current UEFI settings as an user default prole to disk.

Load User UEFI Setup Prole to Disk

Load previously saved user defaults from the disk.

English

66

4.4 Advanced Screen

In this section, you may set the congurations for the following items: CPU

Conguration, PCI Conguration, Onboard Devices Conguration, Storage Con-

guration, ACPI Conguration, Trusted Computing , AMD PBS, AMD Overclock-

ing and AMD CBS.

B550M PG Riptide

Setting wrong values in this sec tion may cause the system to malfunction.

UEFI Conguration

Active Page on Entry

Select the default page when entering the UEFI setup utility.

Full HD UEFI

When [Auto] is selected, the resolution will be set to 1920 x 1080 if the monitor

supports Full HD resolution. If the monitor does not support Full HD resolution,

then the resolution will be set to 1024 x 768. When [Disable] is selected, the

resolution will be set to 1024 x 768 directly.

English

67

4.4.1 CPU Conguration

PSS Support

Use this to enable or disable the generation of ACPI_PPC, _PSS, and _PCT objects.

NX Mode

Use this to enable or disable NX mode.

English

68

SVM Mode

When this is set to [Enabled], a VMM (Virtual Machine Architecture)can utilize the

additional hardware capabilities provided by AMD-V. e default value is [Enabled].

Coniguration options: [Enabled] and [Disabled].

SMT Mode

is item can be used to disable symmetric multithreading. To re-enable SMT, a

power cycle is needed aer selecting [Auto].

Warning: S3 is not supported on systems where SMT is disabled.

AMD fTPM Switch

Use this to enable or disable AMD CPU fTPM.

B550M PG Riptide

4.4.2 PCI Conguration

Above 4G Decoding

Enable or disable 64bit capable Devices to be decoded in Above 4G Address Space (only if the

system supports 64 bit PCI decoding).

Re-Size BAR Support

If the system has Re-Sizable BAR capable PCIe devices, this option enable or disable the Re-

Sizable BAR support.

SR-IOV Support

Enable/disable the SR-IOV (Single Root IO Virtualization Support) if the system has SR-IOV

capable PCIe devices.

English

69

4.4.3 Onboard Devices Conguration

Turn On Onboard LED in S5

Turn on/o the LED in the ACPI S5 state.

Restore Onboard LED Default

Restore Onboard LED default va lue.

RGB LED On/O

is option enables/disables the RGB LED.

English

70

UMA Frame buer Size

is item allows you to set the size of the UMA frame buer.

(Only for processor with integrated graphics)

Hd Audio Controller

Enable/disable onboard HD audio. Set to Auto to enable onboard HD audio and

automatically disable it when a sound card is installed.

Front Panel

Enable/disable front panel HD audio.

Restore on AC/Power Loss

Select the power state aer a power failure. If [Power O] is selected, the power will

remain o when the power recovers. If [Power On] is selected, the system will start

to boot up when the power recovers.

Onboard LAN

Enable or disable the onboard network interface controller.

PS2 Y-Cable

Enable the PS2 Y-Cable or set this option to Auto.

B550M PG Riptide

71

English

4.4.4 Storage Conguration

SATA Mode

AHCI: Supports new features that improve performance.

RAID: Combine multiple disk drives into a logical unit.

SATA Hot Plug

Enable/disable the SATA Hot Plug function.

English

72

4.4.5 ACPI Conguration

Suspend to RAM

It is recommended to select auto for ACPI S3 power saving.

B550M PG Riptide

Deep Sleep

Congure deep sleep mode for power saving when the computer is shut down. We

recommend disabling Deep Sleep for better system compatibility and stability.

PS/2 Keyboard S4/S5 Wakeup Support

Allow the system to be waked up by a PS/2 Keyboard in S4/S5.

PCIE Devices Power On

Allow the system to be waked up by a PCIE device and enable wake on LAN.

RTC Alarm Power On

Allow the system to be waked up by the rea l time clock alarm. Set it to By OS to let

it be handled by your operating system.

USB Power Delivery in Soft O State (S5)

If this option is enabled, the USB port will provide power to your devices even when

the system is in Power State S5.

English

73

4.4.6 Trusted Computing

Security Device Support

Enable or disable BIOS support for security device.

English

74

4.4.7 AMD PBS

e AMD PBS menu accesses AMD specic features.

B550M PG Riptide

75

English

4.4.8 AMD Overclocking

e AMD Overclocking menu accesses options for conguring CPU frequency and

voltage.

English

76

4.4.9 AMD CBS

e AMD CBS menu accesses AMD specic features.

B550M PG Riptide

77

English

4.5 Tools

RGB LED

ASRock Polychrome SYNC allows you to adjust the RGB LED color to your liking.

Easy RAID Installer

Easy R AID Installer helps you to copy the R AID driver from the support CD to

your USB storage device. Aer copying the drivers please change the SATA mode to

RAID, then you can start installing the operating system in RAID mode.

English

78

SSD Secure Erase Tool

All the SSD's listed that supports Secure Erase function.

NVME Sanitization Tool

Aer you Sanitize SSD, all user data will be permanently destroyed on the SSD and

cannot be recovered.

Instant Flash

Save UEFI les in your USB storage device and run Instant Flash to update your

UEFI.

4.6 Hardware Health Event Monitoring Screen

is section allows you to monitor the status of the hardware on your system,

including the parameters of the CPU temperature, motherboard temperature, fan

speed and voltage.

B550M PG Riptide

CPU FAN1 Setting

Select a fan mode for CPU Fan 1, or choose Customize to set 5 CPU temperatures

and assign a respective fan speed for each temperature.

FAN Conguration

CPU_FAN2/WP Switch

Select CPU Water Pump mode.

CPU Fan 2 Control Mode

Select PWM mode or DC mode for CPU Fan 2.

CPU Fan 2 Setting

Select a fan mode for CPU Fan 2, or choose Customize to set 5 CPU temperatures

and assign a respective fan speed for each temperature.

CPU Fan 2 Temp Source

Select a fan temperature source for CPU Fan 2.

English

79

CHA_FAN1/WP Switch

Select CHA_FAN1 or Water Pump mode.

Chassis Fan 1 Control Mode

Select PWM mode or DC mode for Chassis Fan 1.

Chassis Fan 1 Setting

Select a fan mode for Chassis Fan 1, or choose Customize to set 5 CPU temperatures

and assign a respective fan speed for each temperature.

Chassis Fan 1 Temp Source

Select a fan temperature source for Chassis Fan 1.

CHA_FAN2/WP Switch

Select CHA_FAN2 or Water Pump mode.

Chassis Fan 2 Control Mode

Select PWM mode or DC mode for Chassis Fan 2.

Chassis Fan 2 Setting

Select a fan mode for Chassis Fan 2, or choose Customize to set 5 CPU temperatures

and assign a respective fan speed for each temperature.

Chassis Fan 2 Temp Source

English

80

Select a fan temperature source for Chassis Fan 2.

CHA_FAN3/WP Switch

Select CHA_FAN3 or Water Pump mode.

Chassis Fan 3 Control Mode

Select PWM mode or DC mode for Chassis Fan 3.

Chassis Fan 3 Setting

Select a fan mode for Chassis Fan 3, or choose Customize to set 5 CPU temperatures

and assign a respective fan speed for each temperature.

Chassis Fan 3 Temp Source

Select a fan temperature source for Chassis Fan 3.

B550M PG Riptide

CHA_FAN4/WP Switch

Select CHA_FAN4 or Water Pump mode.

Chassis Fan 4 Control Mode

Select PWM mode or DC mode for Chassis Fan 4.

Chassis Fan 4 Setting

Select a fan mode for Chassis Fan 4, or choose Customize to set 5 CPU temperatures

and assign a respective fan speed for each temperature.

Chassis Fan 4 Temp Source

Select a fan temperature source for Chassis Fan 4.

Fan-Tastic

Select a fan mode for Fan, or choose Customize to set 5 CPU temperatures and assign a

respective fan speed for each temperature.

FanTuning

Detect the lowest fan speed in the system. Iy may ta ke 3-5 minutes to complete.

81

English

4.7 Security Screen

In this section you may set or change the supervisor/user password for the system.

You may also clear the user password.

Supervisor Password

Set or change the password for the administrator account. Only the administrator

has authority to change the settings in the UEFI Setup Utility. Leave it blank and

press enter to remove the password.

English

82

User Password

Set or change the password for the user account. Users are unable to change the

settings in the UEFI Setup Utility. Leave it blank and press enter to remove the

password.

Secure Boot

Enable to support Secure Boot.

4.8 Boot Screen

is section displays the available devices on your system for you to congure the

boot settings and the boot priority.

Boot From Onboard LAN

Allow the system to be waked up by the onboard LAN.

B550M PG Riptide

Setup Prompt Timeout

Congure the number of seconds to wait for the setup hot key.

Fast Boot

Fast Boot minimizes your computer's boot time. In fast mode you may not boot

from an USB storage device.

Bootup Num-Lock

Select whether Num Lock should be turned on or o when the system boots up.

Full Screen Logo

Enable to display the boot logo or disable to show normal POST messages.

English

83

CSM (Compatibility Support Module)

CSM

Enable to launch the Compatibility Support Module. Please do not disable unless

you’re running a WHCK test.

Launch PXE OpROM Policy

Select UEFI only to run those that support UEFI option ROM only. Select Legacy

only to run those that support legacy option ROM only. Select Do not launch to not

execute both legacy and UEFI option ROM.

English

84

Launch Storage OpROM Policy

Select UEFI only to run those that support UEFI option ROM only. Select Legacy

only to run those that support legacy option ROM only. Select Do not launch to not

execute both legacy and UEFI option ROM.

B550M PG Riptide

4.9 Exit Screen

Save Changes and Exit

When you select this option the following message, “Save conguration changes

and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP

UTILITY.

Discard Changes and Exit

When you select this option the following message, “Discard changes and exit

setup?” will pop out. Select [OK] to exit the UEFI SETUP UTILITY without saving

any changes.

Discard Changes

When you select this option the following message, “Discard changes?” will pop

out. Select [OK] to discard all changes.

Load UEFI BIOS Defaults

Load UEFI BIOS Default values for all the setup questions. e F9 key can be used

for this operation.

Launch EFI Shell from lesystem device

Copy shellx64.e to the root directory to launch EFI Shell.

English

85

Contact Information

If you need to contact ASRock or want to know more about ASRock, you’re welcome

to visit ASRock’s website at http://ww w.asrock.com; or you may contact your dealer

for further information. For technical questions, please submit a support request

form at http://www.asrock.com/support/tsd.asp

ASRock Incorporation

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

ASRock EUROPE B.V.

Bijsterhuizen 11-11

6546 AR Nijmegen

e Netherlands

Phone: [phone]

Fax: [phone]

ASRock America, Inc.

13848 Magnolia Ave, Chino, CA91710

U.S.A.

Phone: [phone]

Fax: [phone]

DECLARATION OF CONFORMITY

Responsible Party Name:

Phone/Fax No:

hereby declares that the product

Product Name : Motherboard

Per FCC Part 2 Section 2.1077(a)

ASRock Incorporation

Address:

13848 Magnolia Ave, Chino, CA91710

[phone]/[phone]

Model Number :

Conforms to the following specications:

FCC Part 15, Subpart B, Unintentional Radiators

Supplementary Information:

B550M PG Riptide

is device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) is device may not cause harmful interference,

and (2) this device must accept any interference received, including interference

that may cause undesired operation.

James

Representative Person’s Name:

Signature :

Date :

May 12, 2017

EU Declaration of Conformity

EMC Directive - 2014/30/EU

For the following equipment:

Motherboard

(Product Name)

B550M PG Riptide / ASRock

(Model Designation / Trade Name)

ASRock Incorporation

(Manufacturer Name)

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.)

(Manufacturer Address)

■ EN 55032:2015/A11:2020

■ EN 61000-3-2:2014

■ EN 61000-3-3:2013

Low Voltage Directive - 2014/35/EU

□ EN 62368-1:2014
□ EN 62368-1:2014/A11:2017

RoHS Directive - 2011/65/EU

■ (EU) 2015/863 □ EN 50581:2012

CE marking

ASRock EUROPE B.V.

(Company Name)

Bijsterhuizen 1111 6546 AR Nijmegen e Netherlands

(Company Address)

Person responsible for making this declaration:

■ EN 55024:2010/A1:2015
□ EN 55035:2017/A11:2020

■ EN 61000-4-2:2009

■ EN 61000-4-3:2006/A1:2008/A2:2010

■ EN 61000-4-4:2012

■ EN 61000-4-5:2014/A1:2017

■ EN 61000-4-6:2014/AC:2015

■ EN 61000-4-8:2010

■ EN 61000-4-11:2004/A1:2017

(EU conformity marking)

(Name, Surname)

A.V.P

(Position / Title)

November 12, 2021

(Date)

P/N: 15G062325001AK V1.0b
