ASRock B450 PRO4 User Manual

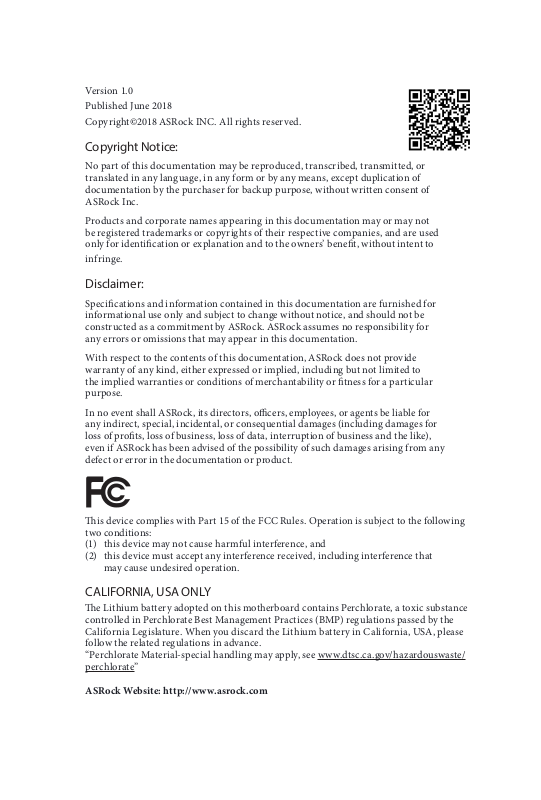

Version 1.0 Published June 2018 Copyright©2018 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or tness for a particular purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of prots, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. “Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/ perchlorate”
ASRock Website: http://www.asrock.com
AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel
: +886-2-28965588 ext.123 (Standard International call charges apply)
e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
Motherboard Layout
ATXPWR1
Supe r
I/O
CLRCMOS2
1
1
USB_3_4
HD_AUDIO1
1
Top:
LINE IN
Center :
FRONT
Bottom :
MIC IN
RJ- 45 LAN
SOCKETAM4
1
COM1
HDM I1
CMOS
Battery
ATX12V1
M2_ 1
Ultra M.2
PCIe Gen3x4
USB3_5 _6
1
CHA_FAN1/WP
HDLED RESET
PLED PWRBTN
PANEL1
1
RoHS
SPK_PLED1
1
DDR 4_A1 (6 4 bit, 28 8-pin m odule )
DDR 4_A2 (6 4 bit, 28 8-pin m odule )
DDR 4_B1 (6 4 bit, 28 8-pin m odule )
DDR 4_B2 (6 4 bit, 28 8-pin m odule )
PCIE1
M2_ 2
AMD
Promontory
B450
USB 3.1 Gen1
T: USB1 B: USB2
USB 3.1 Gen1
T: USB3 B: USB4
AMD_FAN_LED1
1
1
USB_1_2
TPMS1
1
SATA3_1
SATA3_2
SATA3_A1
B450 Pro4
PCIE2
PCIE3
PCIE5
PCIE6
PCIE4
CHA_FAN2/WP CHA_FAN3/WP
SATA3_A2
SATA3_3
SATA3_4
USB 3.1 Gen2 T: USB31_TA_1 B:USB31_TC_1
USB 2. 0
T: USB5
B: USB 6
PS2
Keyb oard
/Mou se
26
27
VGA 1
DISP LAY1
CPU_FAN2/WP
CPU_FAN1
1
ADDR_LED1
1
RGB_LED1
9
23
24
B450 Pro4
1
2
4
3
5
6
BIOS ROM
7
8
10
11
12
13
25
22
21
17
18
20
19
15
16
14
English
1
No. Description
1 ATX 12V Power Connector (ATX12V1)
2 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
3 AMD Fan LED Header (AMD_FAN_LED1)
4 CPU Fan / Waterpump Fan Connector (CPU_FAN2/WP)
5 CPU Fan Connector (CPU_FAN1)
6 ATX Power Connector (ATXPWR1)
7 USB 3.1 Gen1 Header (USB3_5_6)
8 SATA3 Connector (SATA3_2)
9 SATA3 Connector (SATA3_1)
10 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)
11 SATA3 Connector (SATA3_A1)
12 SATA3 Connector (SATA3_A2)
13 SATA3 Connector (SATA3_3)
14 SATA3 Connector (SATA3_4)
15 Power LED and Speaker Header (SPK_PLED1)
16 System Panel Header (PANEL1)
17 Chassis Fan / Waterpump Fan Connector (CHA_FAN3/WP)
18 Chassis Fan / Waterpump Fan Connector (CHA_FAN2/WP)

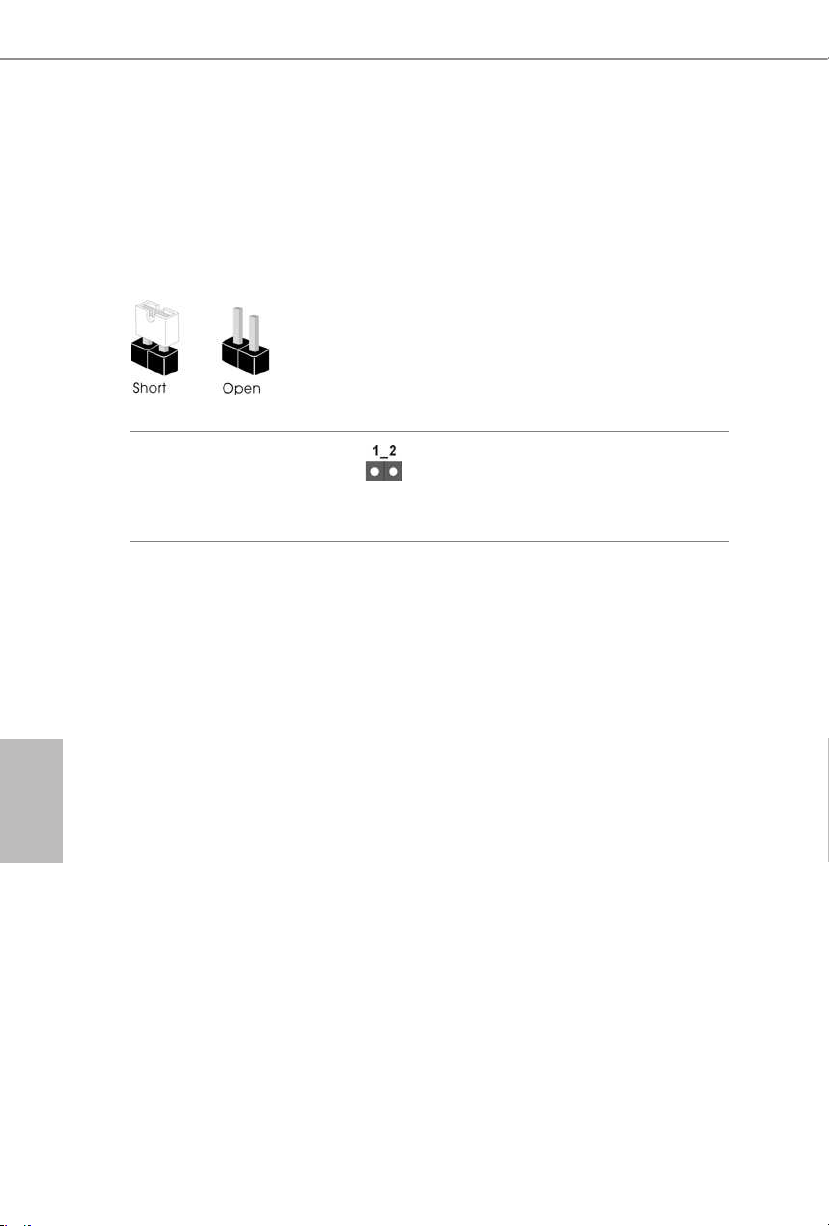

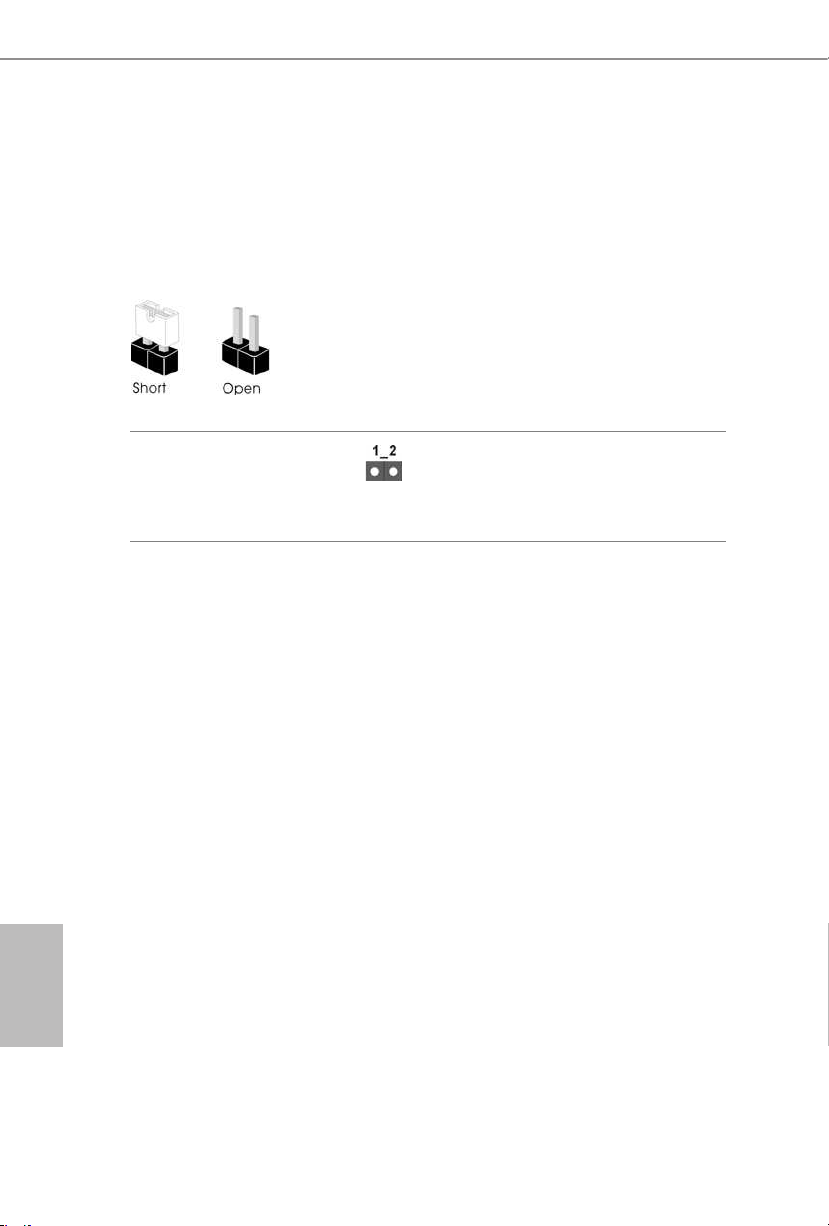

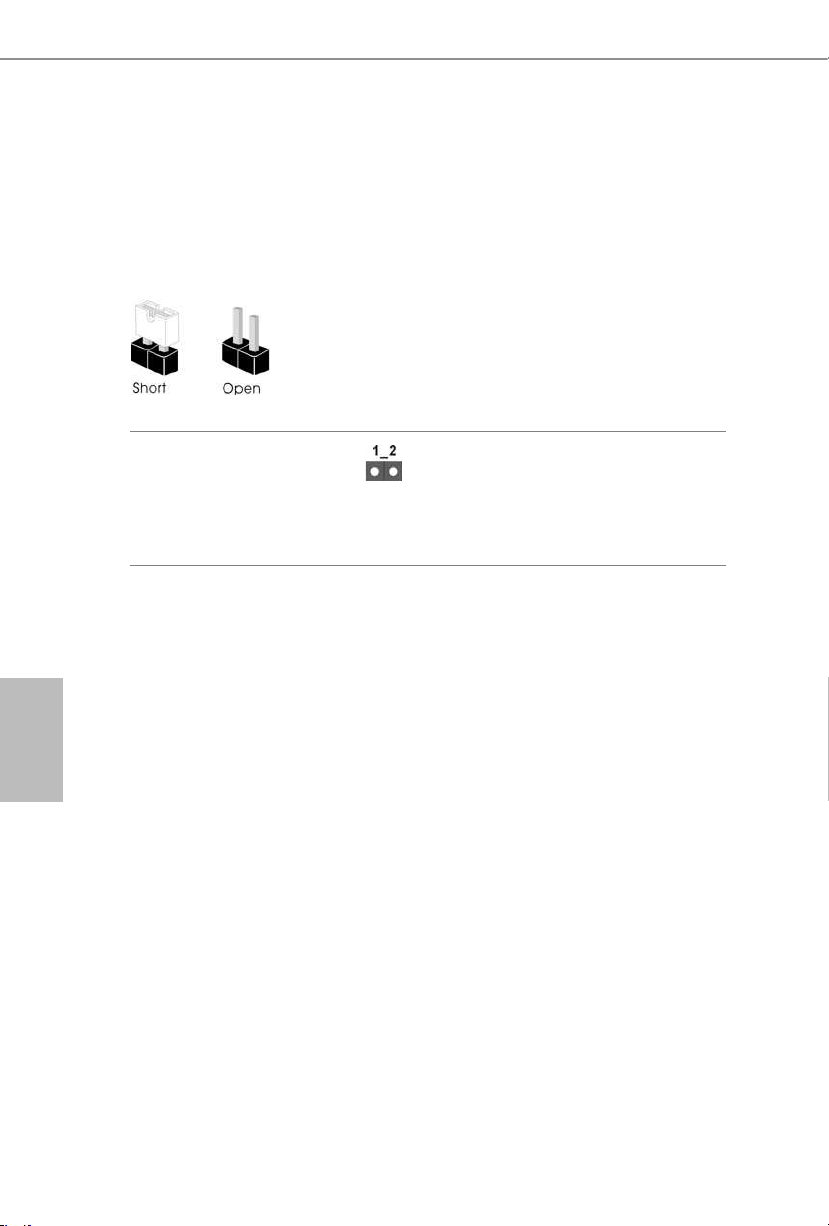

19 Clear CMOS Jumper (CLRCMOS2)
20 Addressable LED Header (ADDR_LED1)
21 USB 2.0 Header (USB_3_4)
22 USB 2.0 Header (USB_1_2)
23 COM Port Header (COM1)
24 RGB LED Header (RGB_LED1)
25 TPM Header (TPMS1)
26 Front Panel Audio Header (HD_AUDIO1)
27 Chassis Fan / Waterpump Fan Connector (CHA_FAN1/WP)
English
2
I/O Panel
1
B450 Pro4
4
2
3
5
12
No. Description
USB 2.0 Ports (USB56)
1
2 DisplayPort 1.2
3 LAN RJ-45 Port*
4 Line In (Light Blue)**
5 Front Speaker (Lime)**
6 Microphone (Pink)**
1113
9
10
No. Description
8 USB 3.1 Gen1 Ports (USB3_12)
9 USB 3.1 Gen2 Type-A Port (USB31_TA_1)
10 USB 3.1 Gen2 Type-C Port (USB31_TC_1)
11 HDMI Port
12 D-Sub Port
13 PS/2 Mouse/Keyboard Port
8 7
7 USB 3.1 Gen1 Ports (USB3_34)
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED
SPEED LED
LAN Por t
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection Blinking Data Activity Orange 100Mbps connection On Link Green 1Gbps connection
6
English
3
** To congure 7.1 CH HD Audio, it i s required to use an HD front panel audio module and enable the multi­channel audio feature through the audio driver.
Please set Speaker Conguration to “7.1 Speaker”in the Realtek HD Audio Manager.
Function of the Audio Ports in 7.1-channel Conguration:
English
4
Port Function
Light Blue (Rear panel) Rear Speaker Out Lime (Rear panel) Front Speaker Out Pink (Rear panel) Central /Subwoofer Speaker Out Lime (Front panel) Side Speaker Out
Chapter 1 Introduction
ank you for purchasing ASRock B450 Pro4 motherboard, a reliable motherboard produced under ASRock ’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock ’s commitment to quality and endurance.
Becau se the motherboard specications and the BIOS soware might be updated, the content of this manual will be subject to change without notice. In ca se any modica­tions of this manual occur, the updated version will be available on ASRock’s website without further notice. If you require technical suppor t related to this motherboard, please visit our website for spe cic information about the model you are using. You may nd the l atest VGA cards and CPU support list on ASRock’s website a s well. ASRock website http://www.asrock.com.
1.1 Package Contents
ASRock B450 Pro4 Motherboard (ATX Form Factor)
•
ASRock B450 Pro4 Quick Installation Guide
•
ASRock B450 Pro4 Support CD
•
1 x I/O Panel Shield
•
2 x Serial ATA (SATA) Data Cables (Optional)
•
2 x Screws for M.2 Sockets (Optional)
•
B450 Pro4
English
5
1.2 Specications
Platform
CPU
Chipset
Memory
* For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs. * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) * Please refer to page 23 for DDR4 UDIMM maximum frequency support.
ATX Form Factor
•
Solid Capacitor design
•
AMD AM4 Socket
•
Digi Power design
•
9 Power Phase design
•
Supports 105W Water Cooling (Pinnacle Ridge); Supports
•
95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)
AMD Promontory B450
•
Dual Channel DDR4 Memory Technology
•
4 x DDR4 DIMM Slots
•
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4
•
3200+(OC)/2933/2667/2400/2133 ECC & non-ECC, un­buered memory* AMD Ryzen series CPUs (Summit Ridge) support DDR4
•
3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un­buered memory* AMD Ryzen series CPUs (Raven Ridge) support DDR4
•
3200+(OC)/2933(OC)/2667/2400/2133 non-ECC, un-buered memory*
Max. capacity of system memory: 64GB
•
15μ Gold Contact in DIMM Slots
•
English
6
B450 Pro4
Expansion Slot
Graphics
AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)
2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4
•
mode)*
AMD Ryzen series CPUs (Raven Ridge)
2 x PCI Express 3.0 x16 Slots (PCIE2: x8 mode; PCIE4: x4
•
mode)*
* Supports NVMe SSD as boot disks * If M2_1 is occupied, PCIE4 will be disabled.
4 x PCI Express 2.0 x1 Slots
•
Supports AMD Quad CrossFireXTM and CrossFireXTM**
•
** is feature is only supported with Ryzen Series CPUs (Summit Ridge, Pinnacle Ridge and Raven Ridge).
TM
Integrated AMD Radeon
•
Series APU*
* Actual support may vary by CPU
DirectX 12, Pixel Shader 5.0
•
Max. shared memory 2GB
•
Three graphics output options: D-Sub, HDMI and
•
DisplayPort 1.2 Supports Triple Monitor
•
Supports HDMI with max. resolution up to 4K x 2K
•
(4096x2160) @ 24Hz / (3840x2160) @ 30Hz Supports DisplayPort 1.2
•
(4096x2160) @ 60Hz Supports D-Sub with max. resolution up to 1920x1200 @
•
60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and
•
HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HDCP with HDMI and DisplayPort 1.2 Ports
•
Supports 4K Ultra HD (UHD) playback with HDMI and
•
DisplayPort 1.2 Ports
Vega Series Graphics in Ryzen
with max. resolution up to 4K x 2K
English
7
Audio
LAN
Rear Panel I/O
7.1 CH HD Audio with Content Protection (Realtek ALC892
•
Audio Codec) * To congure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Premium Blu-ray Audio support
•
Supports Surge Protection
•
ELNA Audio Caps
•
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
•
Realtek RTL8111H
•
Supports Wake-On-LAN
•
Supports Lightning/ESD Protection
•
Supports Energy Ecient Ethernet 802.3az
•
Supports PXE
•
1 x PS/2 Mouse/Keyboard Port
•
1 x D-Sub Port
•
1 x HDMI Port
•
1 x DisplayPort 1.2
•
2 x USB 2.0 Ports (Supports ESD Protection)
•
1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Pro-
•
tec tion)
1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Pro-
•
tec tion)
4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
•
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
•
LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
•
English
8
Storage
4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,
•
RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, sup-
•
port NCQ, AHCI and Hot Plug * M2_2, SATA3_3 and SATA3_4 share lanes. If either one of them is in use, the others will be disabled.
Connector

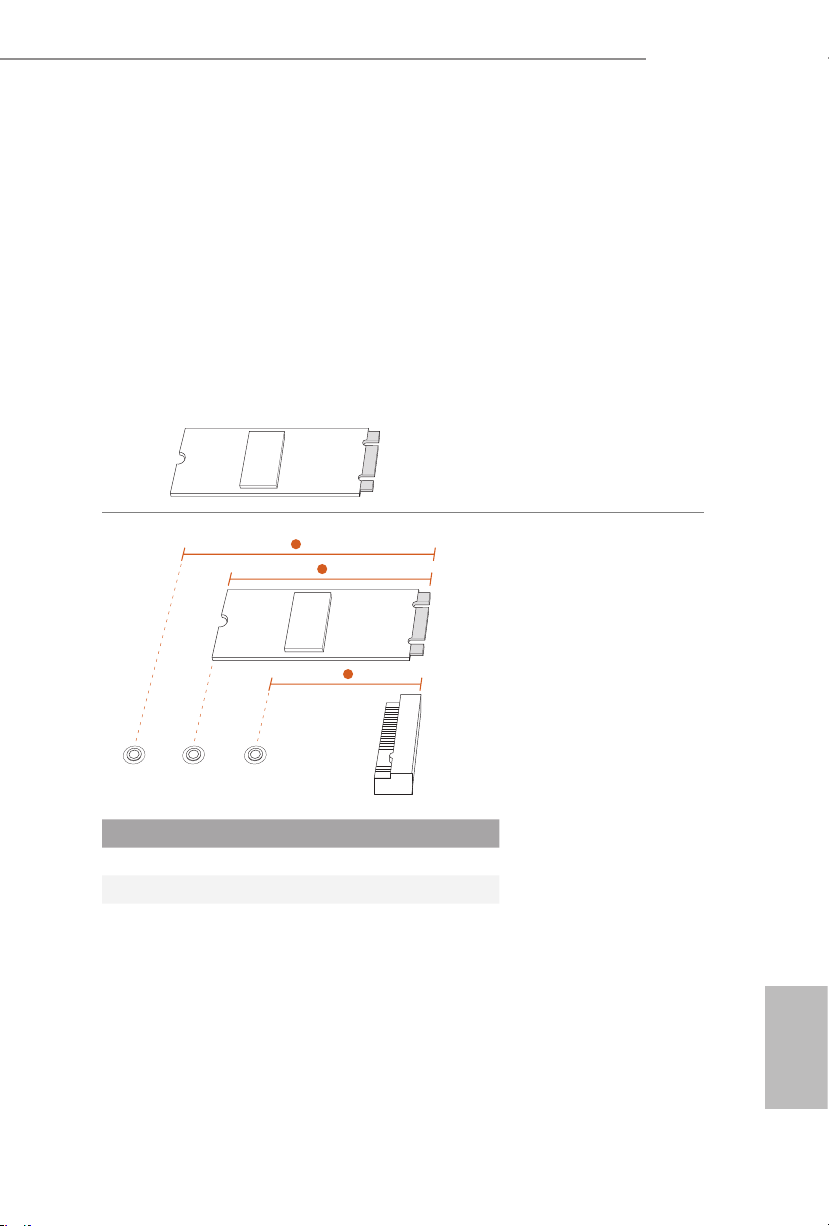

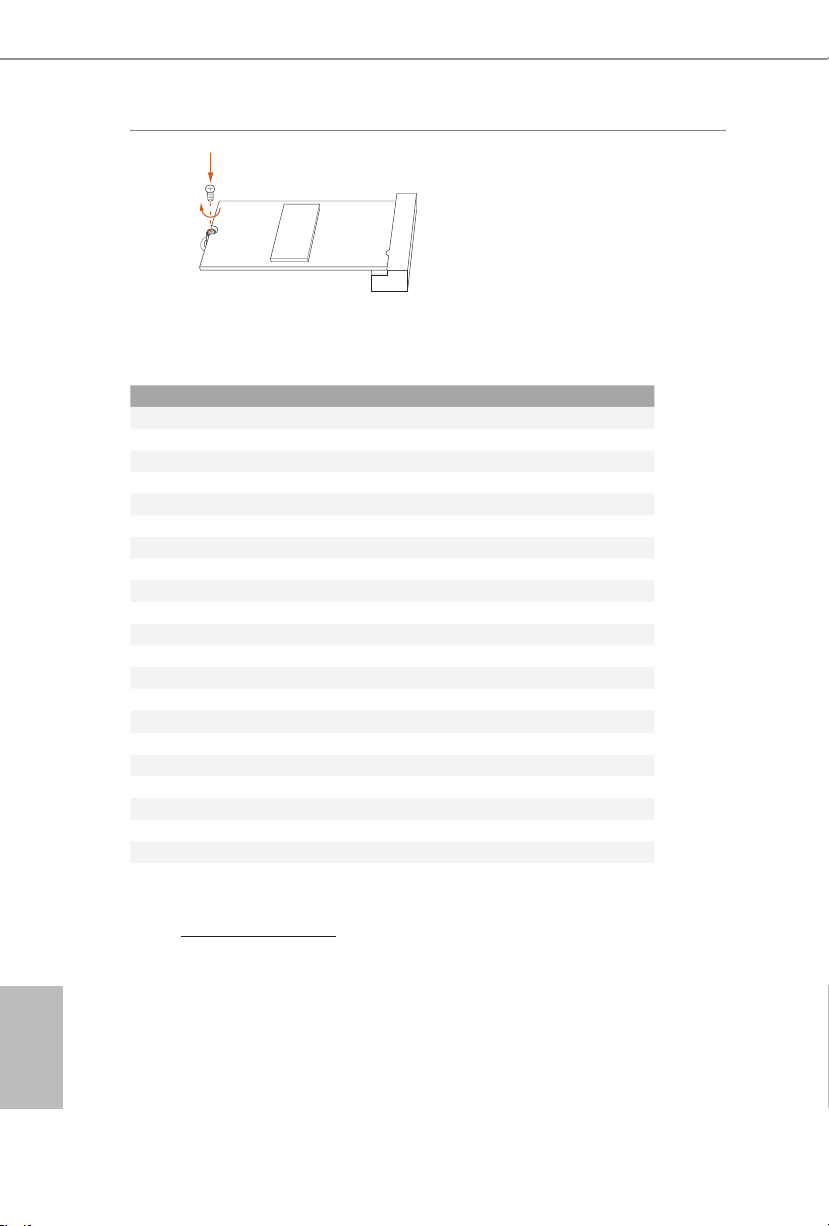

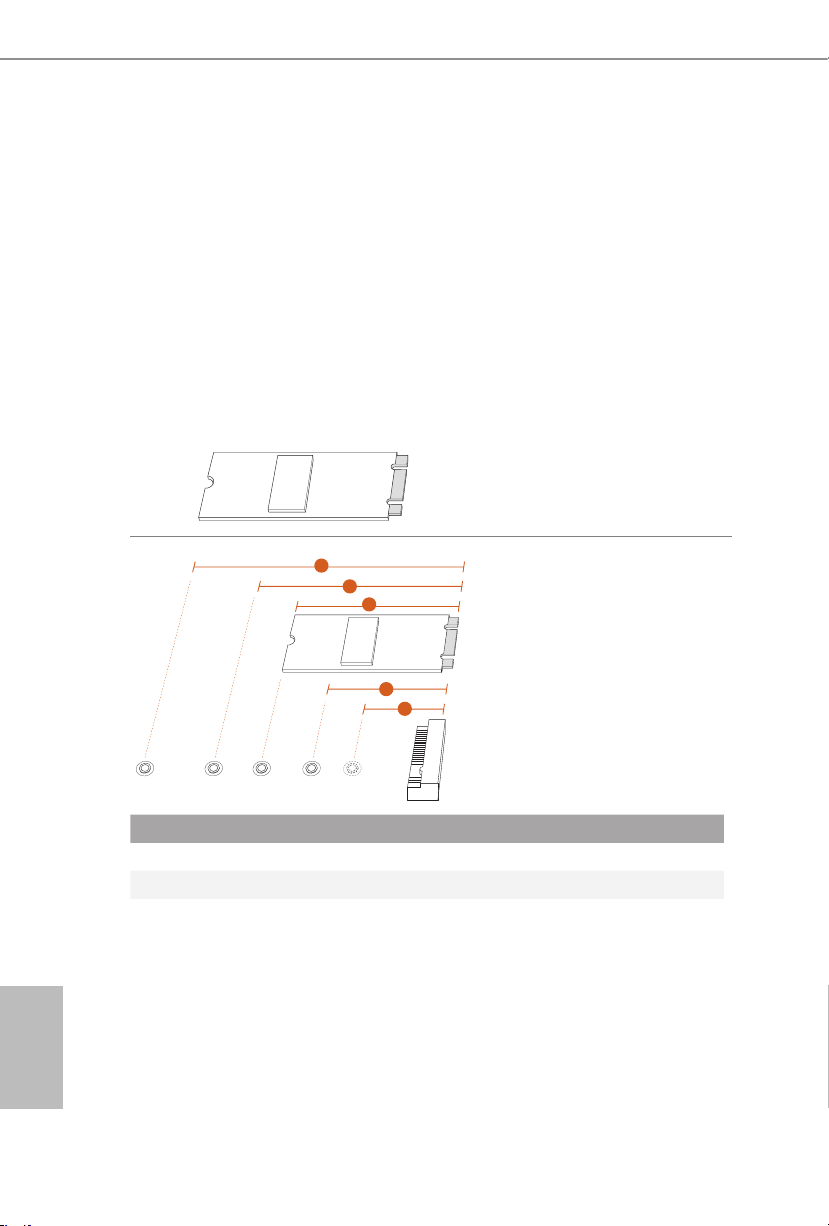

1 x Ultra M.2 Socket (M2_1), supports M Key type
•
2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge)** 1 x M.2 Socket (M2_2), supports M Key type
•
2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and
M.2 PCI Express module up to Gen3 x2 (16 Gb/s) ** ** If M2_1 is occupied, PCIE4 will be disabled. ** Supports NVMe SSD as boot disks ** Supports ASRock U.2 Kit
1 x COM Port Header
•
1 x TPM Header
•
1 x Power LED and Speaker Header
•
1 x RGB LED Header
•
* Supports in total up to 12V/3A, 36W LED Strip
1 x Addressable LED Header
•
* Supports in total up to 5V/3A, 15W LED Strip
1 x AMD Fan LED Header
•
*e AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.
1 x CPU Fan Connector (4-pin)
•
* e CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
•
Speed Control) * e CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
•
Speed Control) * e Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

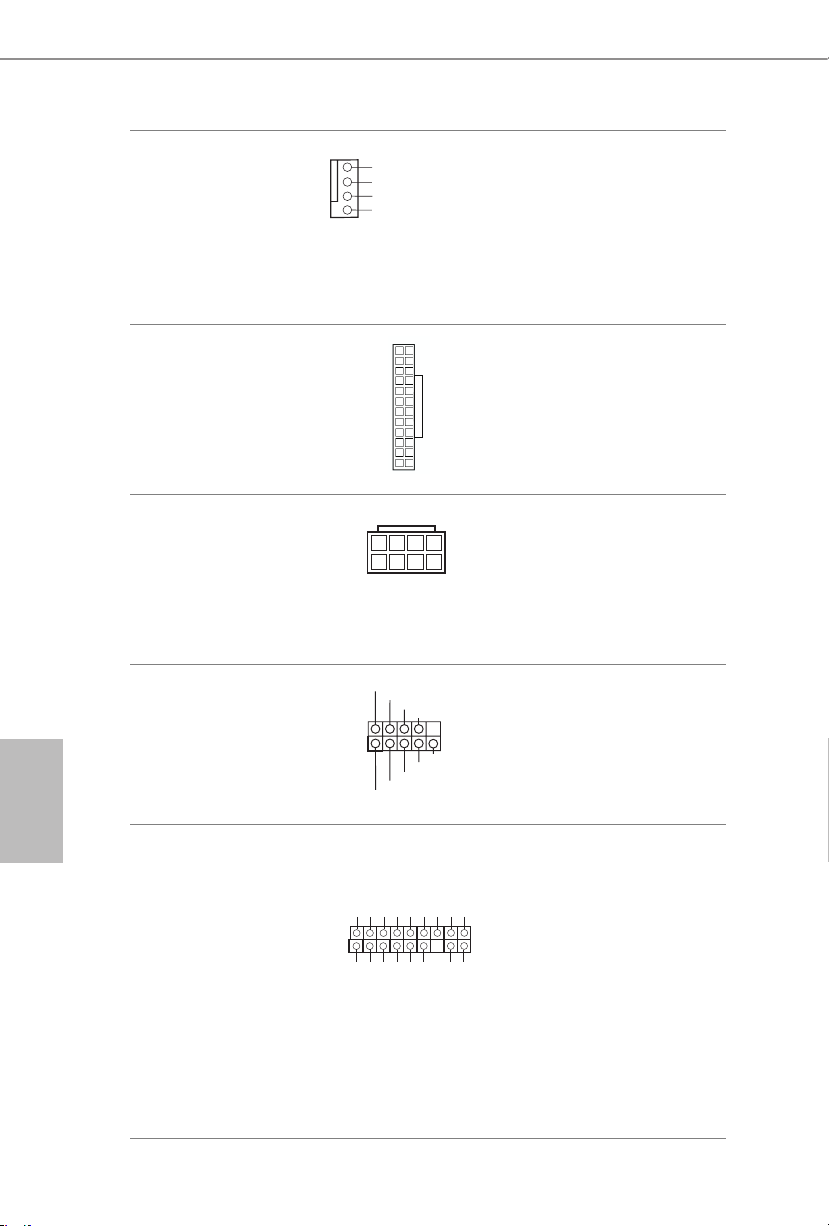

1 x 24 pin ATX Power Connector
•
1 x 8 pin 12V Power Connector
•
B450 Pro4
English
9
BIOS Feature
Hardware Monitor
OS
1 x Front Panel Audio Connector
•
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD
•
Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports)
•
(Supports ESD Protection)
AMI UEFI Legal BIOS with multilingual GUI support
•
Supports “Plug and Play”
•
ACPI 5.1 compliance wake up events
•
Supports jumperfree
•
SMBIOS 2.3 support
•
DRAM Voltage multi-adjustment
•
Temperature Sensing: CPU, MB
•
Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water
•
Pump Fans Quiet Fan (Auto adjust chassis fan speed by CPU tempera-
•
ture): CPU, CPU/Water Pump, Chassis/Water Pump Fans Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/
•
Water Pump Fans Voltage monitoring: +12V, +5V, +3.3V, Vcore
•
Microso® Windows® 10 64-bit
•
English
10
FCC, CE
Certica­tions
* For detailed product information, please visit our website: http://www.asrock .com
Please realize that the re is a certain risk involved with overclocking, including adjust­ing the setting in the BIOS, applying Untied Ove rclocking Technology, or using third­party overclocking tools. Overclocking may aect your system’s stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage cau sed by overclocking.
•
ErP/EuP ready (ErP/EuP ready power supply is required)
•
Chapter 2 Installation
is is an ATX form factor motherboard. Before you install the motherboard, study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components or change any motherboard settings.
Make sure to unplug the power cord before installing or removing the motherboard.
•
Failure to do so may cause physical injuries to you and damages to motherboard components. In order to avoid damage from static electricity to the motherboard’s components,
•
NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components. Hold components by the edges and do not touch the ICs.
•
Whenever you uninstall any components, place them on a grounded anti-static pad or
•
in the bag that comes with the components. When placing screws to secure the motherboard to the chassis, please do not over-
•
tighten the screws! Doing so may damage the motherboard.
B450 Pro4
11
English
2.1 Installing the CPU
Unplug all power cables be fore installing the CPU.
1
English
12
2
B450 Pro4
3
13
English
2.2 Installing the CPU Fan and Heatsink
Aer you install the CPU into this motherboard, it is necessary to install a larger heatsink and cooling fan to dissipate heat. You also need to spray thermal grease between the CPU and the heatsink to improve heat dissipation. Make sure that the CPU and the heatsink are securely fastened and in good contact with each other.
Please turn o the power or remove the power cord before changing a CPU or heatsink.
Installing the CPU Box Cooler SR1
1
English
14
2
B450 Pro4
3
4
1
N
FA
_
U
P
C
English
15
Installing the AM4 Box Cooler SR2
1
2
English
16
B450 Pro4
3
17
English
4
1
N
FA
_ U
P
C
5
4-pin FAN cable
English
18
RGB LED Cable
1
N
FA
CPU_
1
D
E
L
_
N FA
_
D
AM
+12V
*e diagram shown here are for reference only. Please refer to page 32 for the orientation of AMD Fan LED Header (AMD_FAN_LED1).
Installing the AM4 Box Cooler SR3
1
B450 Pro4
2
English
19
3
4
English
20
B450 Pro4
5
CPU_FAN1
21
English
6
1
N
FA
_ U P
C
1
D
E
L
_
N
FA
_
D
AM
+12V
or
7
English
22
1
N
FA
_ U P
C
1
D
E
L
_
N
FA
_
D
AM
5
_
B
S
U
Please note that only one cable should be used at a time in this step. If you select AMD_FAN_LED1, please install ASRock utility "ASRock Polychrome LED". If you select USB connector, please install AMD utility "SR3 Settings Soware".
*e diagram shown here are for reference only. Please refer to page 32 for the orientation of AMD Fan LED Header (AMD_FAN_LED1).
2.3 Installing Memory Modules (DIMM)
is motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology.
1. For dual channel conguration, you always need to install identical (the same brand, speed , size and chip-type) DDR4 DIMM pairs.
2. It i s unable to activate Dual Channel Memory Technology with only one or three memory module installed.
3. It i s not allowed to install a DDR , DDR2 or DDR3 memor y module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged.
DDR4 UDIMM Maximum Frequency Support
Ryzen Series CPUs (Pinnacle Ridge):
B450 Pro4
UDIMM Memory Slot
A1 A2 B1 B2
- SR - - 2667
- DR - - 2400
- SR - SR 2667
- DR - DR 2400
SR SR SR SR 2133
SR/DR DR SR/DR DR 1866
Frequency
(Mhz)
Ryzen Series CPUs (Summit Ridge):
UDIMM Memory Slot
A1 A2 B1 B2
- SR - - 2667
- DR - - 2667
- SR - SR 2667
- DR - DR 2400-2667
SR SR SR SR 2133-2400
SR/DR DR SR/DR DR 1866-2133
Frequency
(Mhz)
English
23
Ryzen Series CPUs (Raven Ridge):
UDIMM Memory Slot
A1 A2 B1 B2
- SR - - 2933
- DR - - 2667
- SR - SR 2667
- DR - DR 2400
SR SR SR SR 2133
SR/DR DR SR/DR DR 1866
SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
DR: Dual rank DIMM, 2Rx4 or 2R x8 on DIMM module label
Frequency
(Mhz)
English
24
B450 Pro4
e DIMM only ts in one correct orientation. It will cause permanent damage to the mothe rboard and the DIMM if you force the DIMM into the slot at incor rect orientation.
1
2
3
English
25
2.4 Expansion Slots (PCI Express Slots)
ere are 6 PCI Express slots on the motherboard.
Before installing an ex pansion card, please make sure that the power supply is switched o or the power cord is unplugged. Plea se read the documentation of the expan sion card and make necessary hardware settings for the card before you start the installation.
PCIe slots:
PCIE1 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width cards. PCIE2 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards. PCIE3 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width cards. PCIE4 (PCIe 3.0 x16 slot) is used for PCI Express x4 lane width graphics cards.* PCIE5 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width cards. PCIE6 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width cards. * If M2_1 is occupied, PCIE4 will be disabled.
PCIe Slot Congurations
PCIE2 PCIE4
Ryzen Series CPUs (Pinnacle Ridge) x16 x4
English
26
Ryzen Series CPUs (Summit Ridge) x16 x4
Ryzen Series CPUs (Raven Ridge) x8 x4

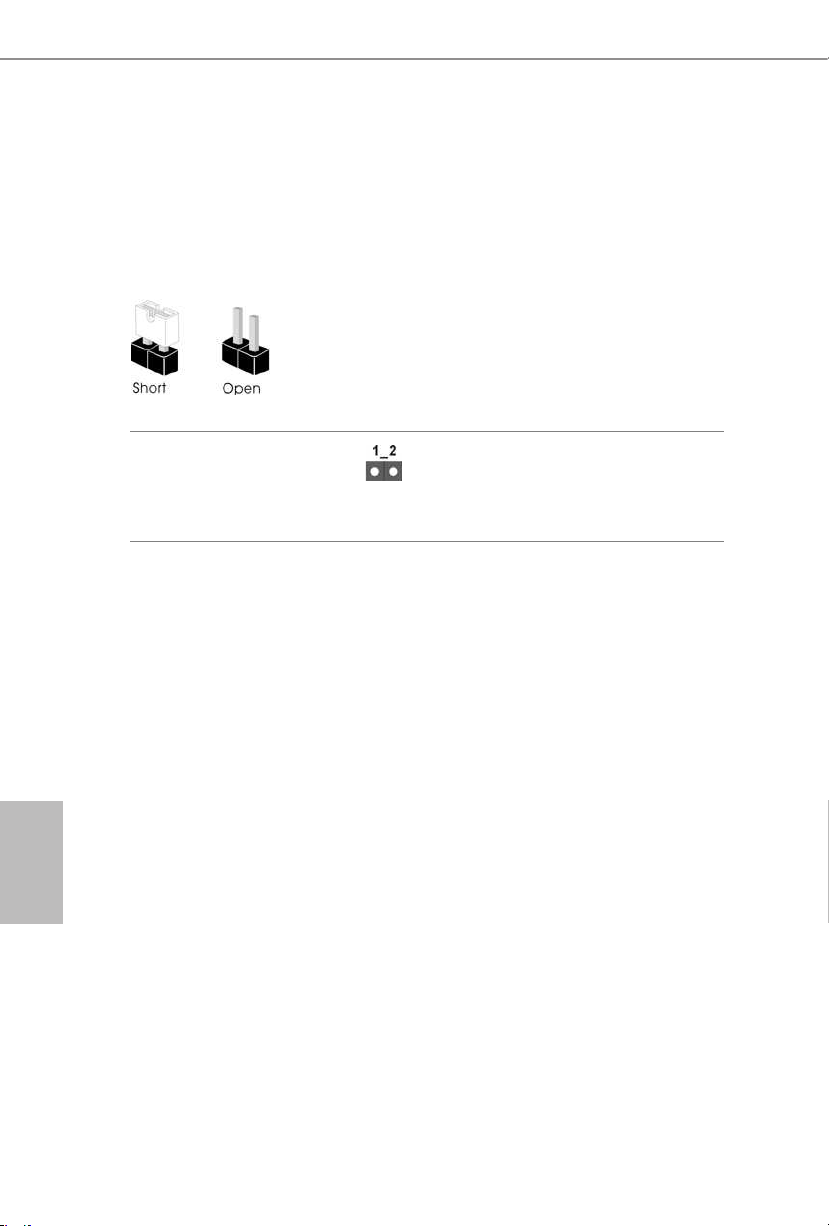

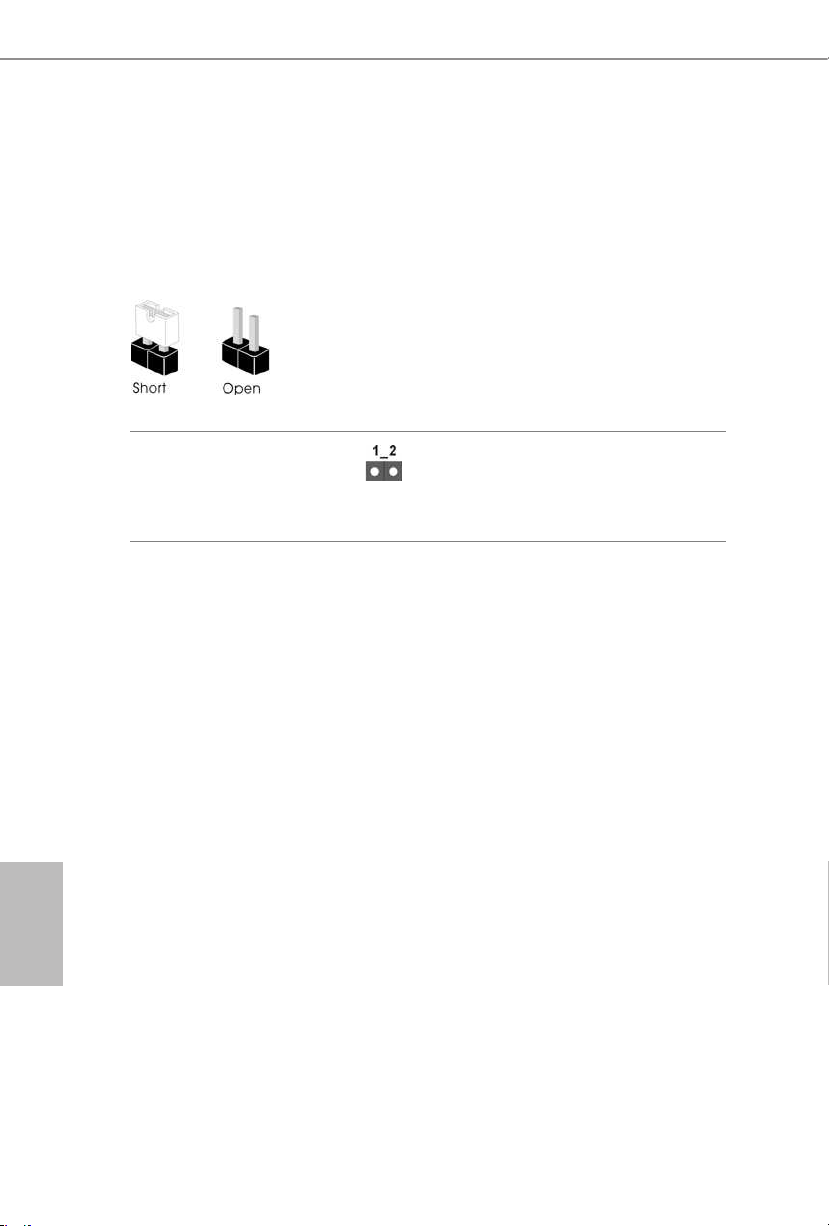

2.5 Jumpers Setup
e illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is
“Open”.
Clear CMOS Jumper (CLRCMOS2) (see p.1, No. 19)
CLRCMOS2 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn o the computer and unplug the power cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to short the pins on CLRMOS2 for 5 seconds. However, please do not clear the CMOS right aer you update the BIOS. If you need to clear the CMOS when you just nish updating the BIOS, you must boot up the system rst, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default prole will be cleared only if the CMOS battery is removed. Please remember toremove the jumper cap aer clearing the CMOS.
2-pin Jumper
B450 Pro4
27
English
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.
System Panel Header (9-pi n PANEL1) (see p.1, No. 16)
PWRBTN (Power Switch):
Connec t to the power switch on the chassi s front panel. You may congure the way to turn o your system using the power switch.
RESET (Reset Switch): Connec t to the reset switch on the chassis front panel. Press the reset sw itch to restart the computer if the compute r freezes and fails to perform a normal restart.
PLED (Syste m Power LED): Connec t to the power status indicator on the chassis front panel. e LED i s on when the system is ope rating. e LED keeps blinking when the system i s in S3 sleep state. e LED is o when the system is in S4 sleep state or powered o (S5).
HDLED (Ha rd Drive Activity LED): Connec t to the hard drive activity LED on the chassis front panel. e LED is on when the hard dr ive is reading or writing data.
e front panel design may dier by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard dr ive activity LED, speak er and etc. When connecting your chassis front panel module to this head er, make sure the wire assig nments and the pin assig nments are matched correctly.
1
PLED+
PLED-
HDLED-
HDLED+
PWRBTN#
GND
RESET#
GND
GND
Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.
English
28
B450 Pro4
SPEAKER

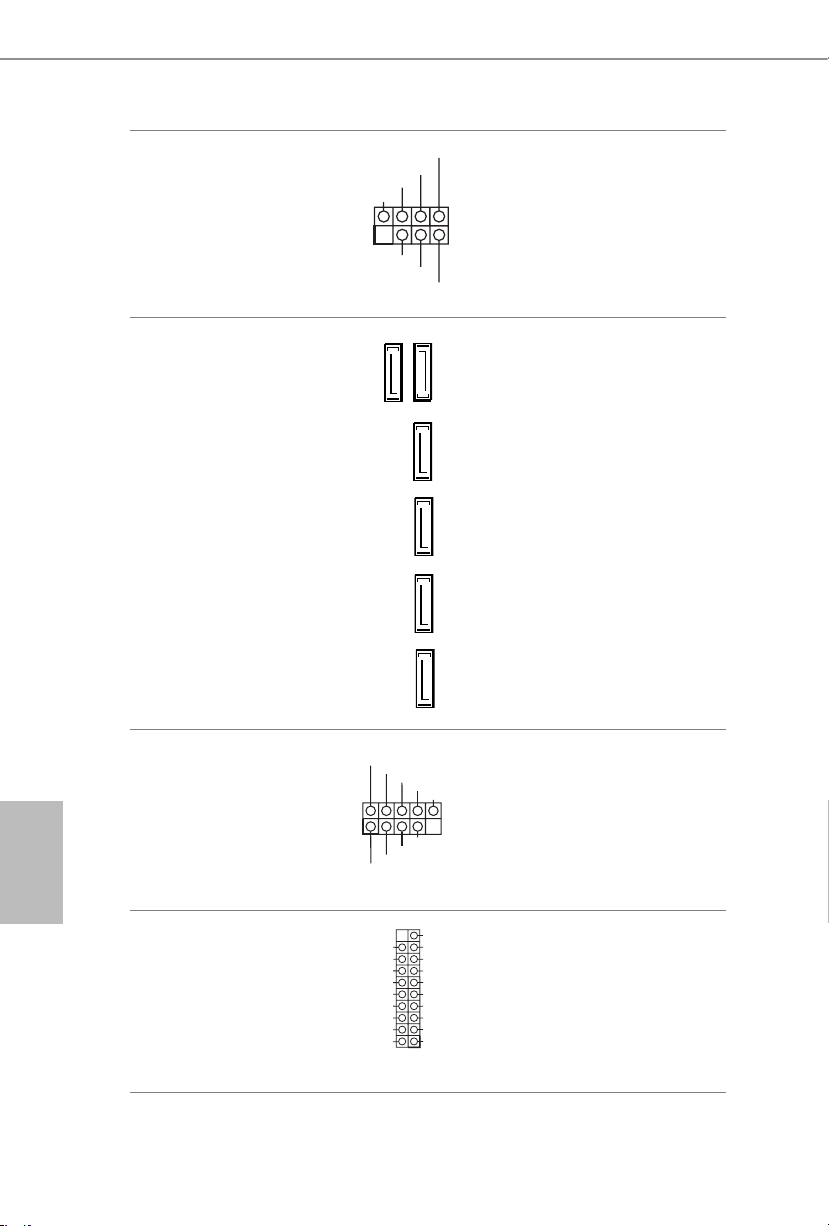

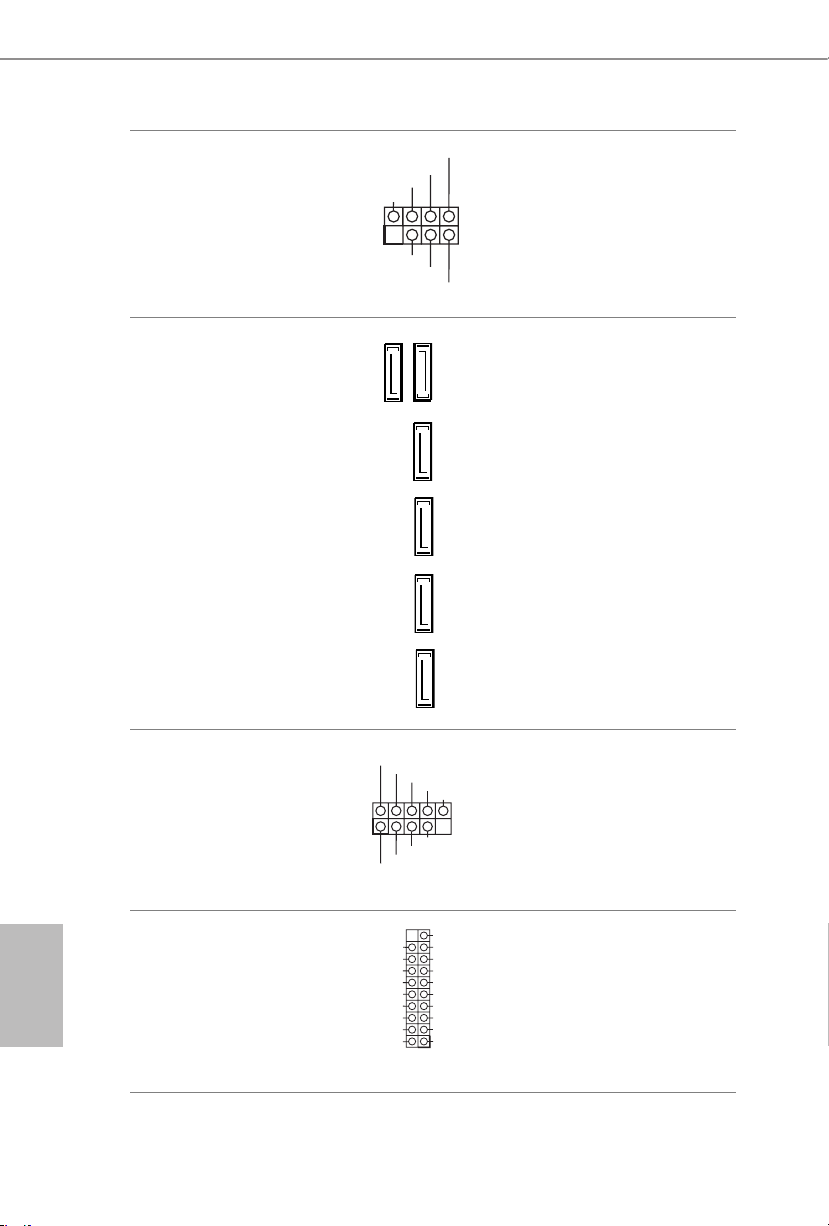

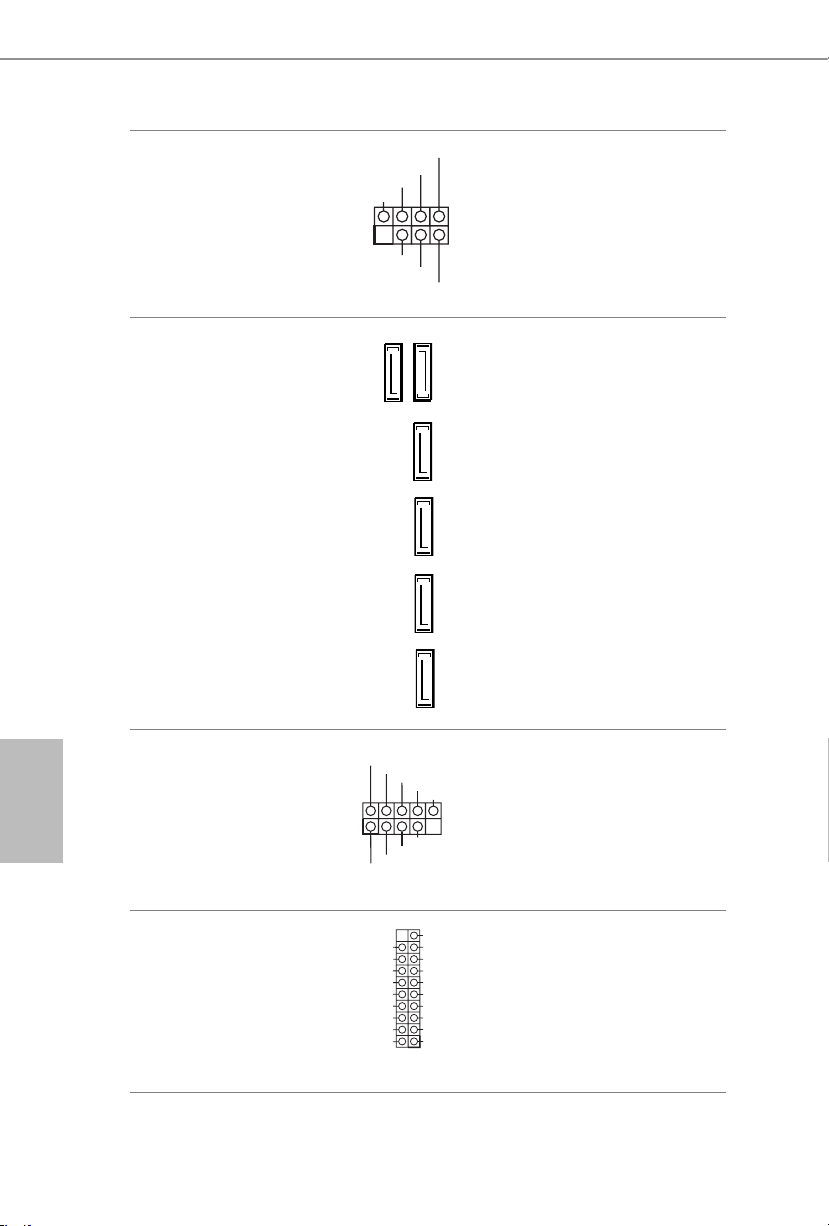

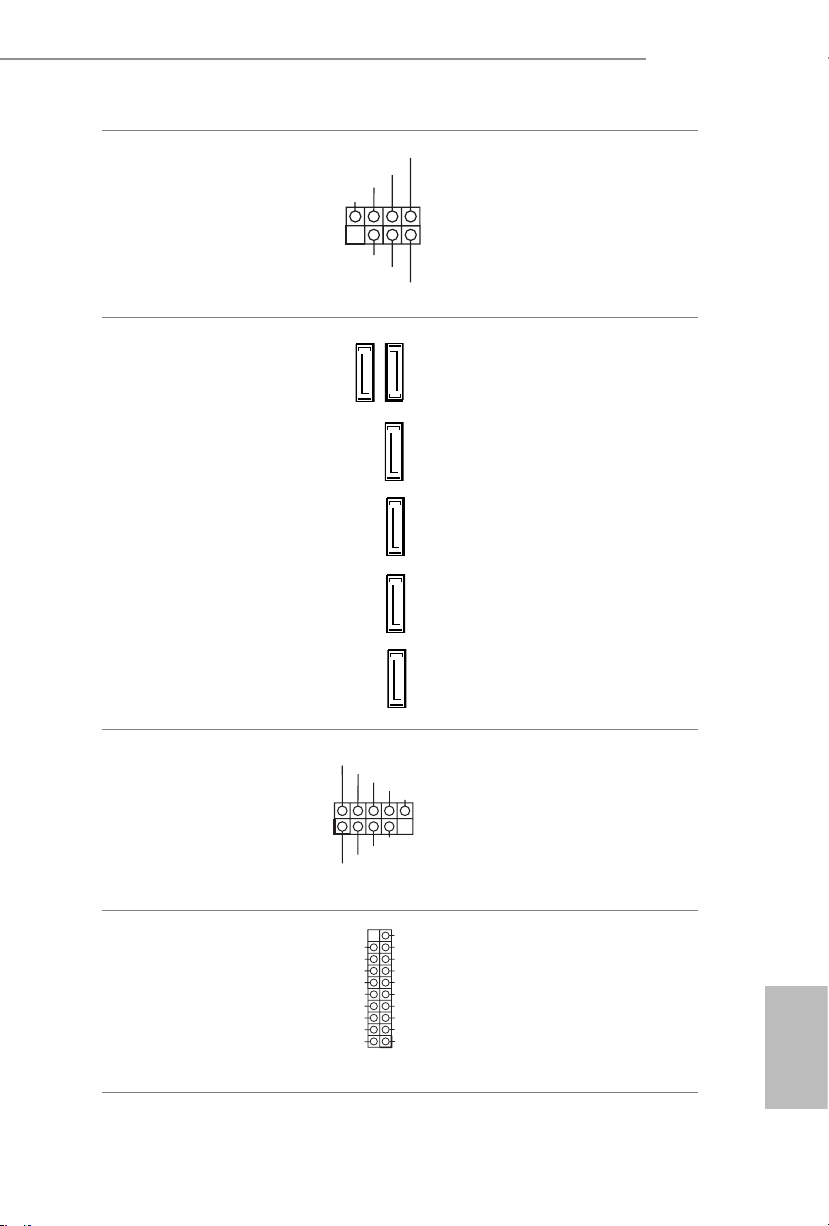

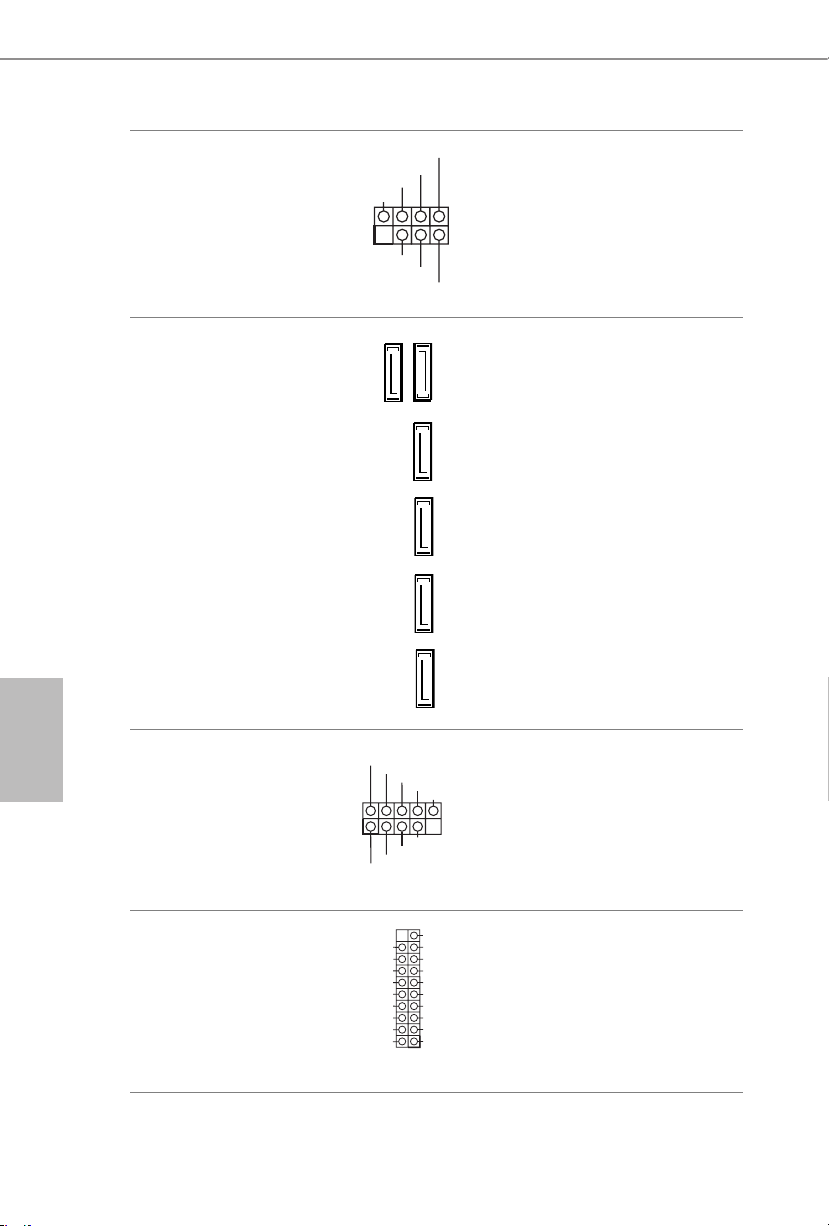

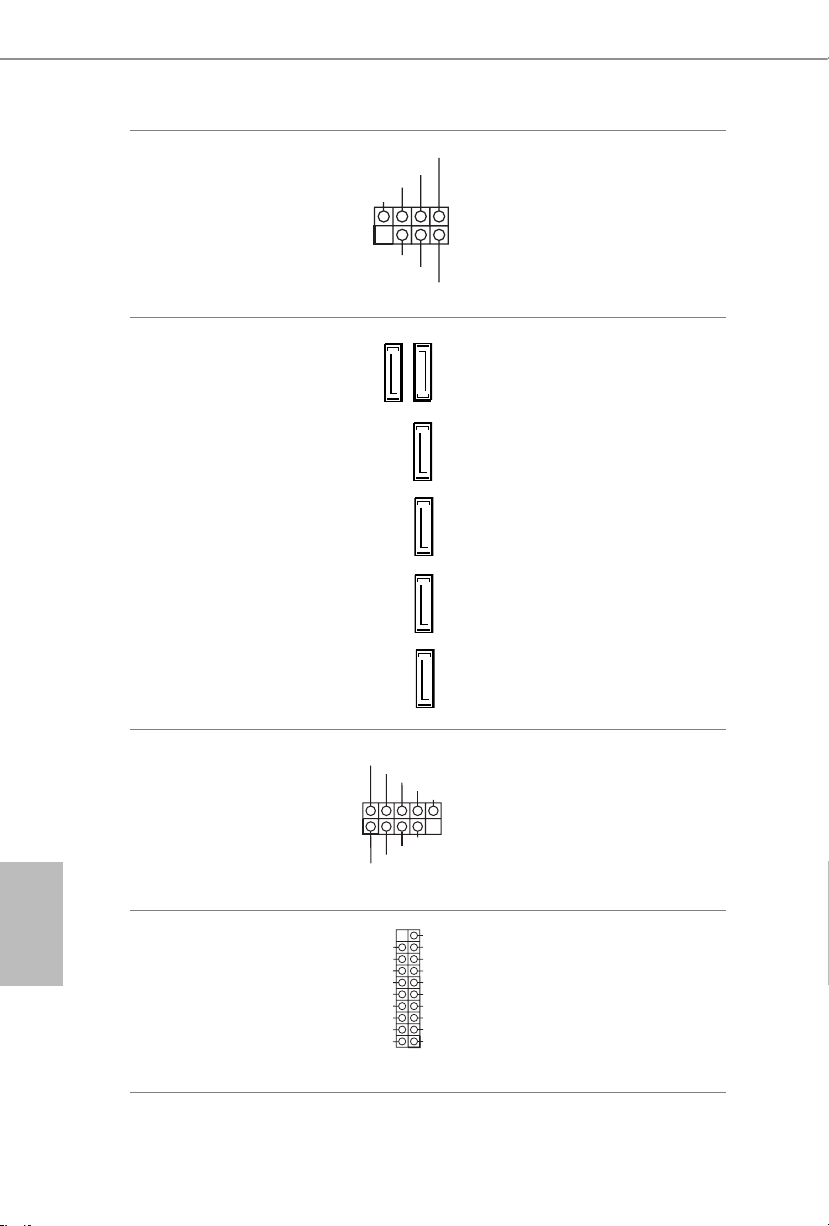

Power LED and Speaker Header (7-pin SPK_PLED1) (see p.1, No. 15)
Serial ATA3 Connectors (SATA3_1: see p.1, No. 9) (SATA3_2: see p.1, No. 8) (SATA3_3: see p.1, No. 13) (SATA3_4: see p.1, No. 14) (SATA3_A1: see p.1, No. 11) (SATA3_A2: see p.1, No. 12)
DUMMY +5V
1
PLED+
SATA3_1
DUMMY
PLED+
PLED-
Please connect the chassis power LED and the chassis speaker to this header.
ese six SATA3 connectors support SATA data cables for internal
SATA3_2SATA3_A1
storage devices with up to
6.0 Gb/s data transfer rate. * M2_2, SATA3_3 and SATA3_4 share lanes. If either one of them is in use, the others will be
SATA3_A2
disabled.
* To minimize the boot time, use AMD SATA
SATA3_3
ports (SATA3_1~4) for your bootable devices.
SATA3_4

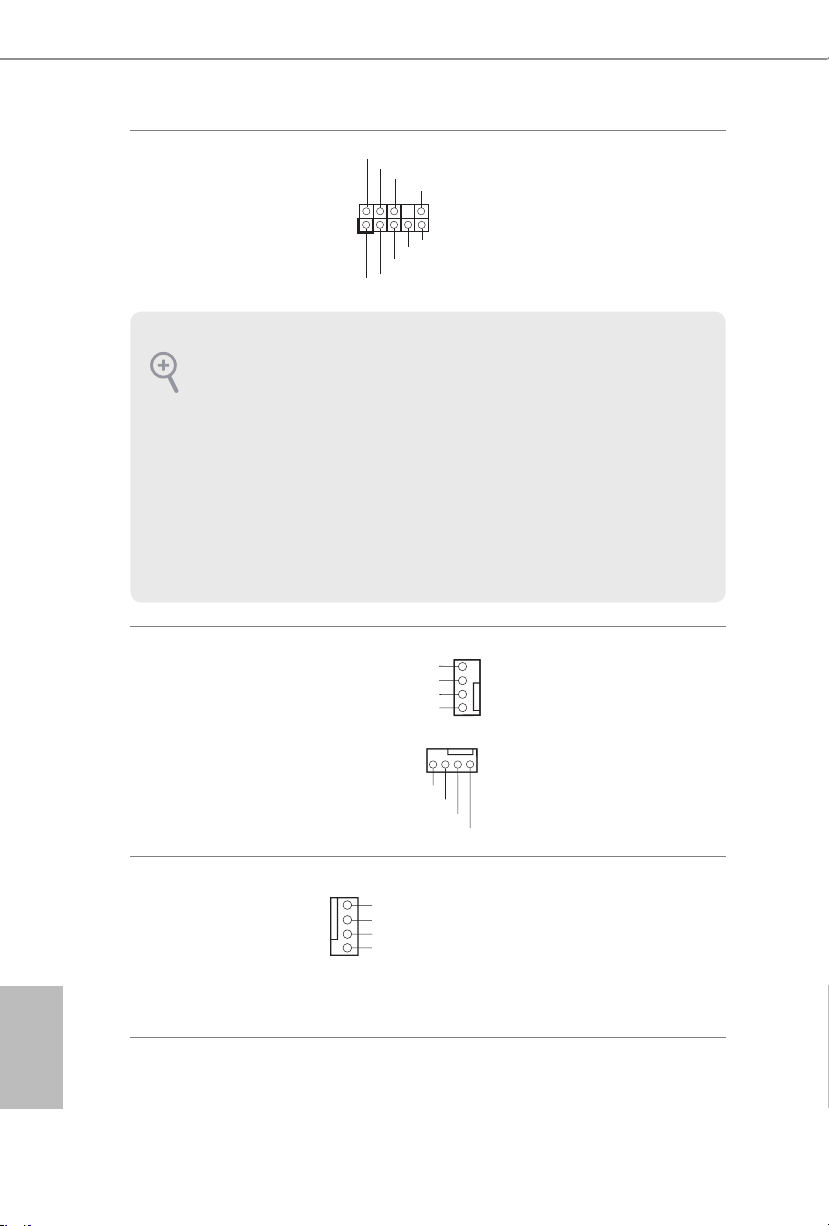

USB 2.0 Headers (9-pin USB_1_2) (see p.1, No. 22) (9-pin USB_3_4) (see p.1, No. 21)
USB 3.1 Gen1 Header (19-pin USB3_5_6) (see p.1, No. 7)
USB_PWR
1
USB_PWR
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
P-
P+
GND
DUMMY
GND
P+
P-
VbusVbus
IntA_PB_SSRX-
IntA_PB_SSRX+
GND
IntA_PB_SSTX-
IntA_PB_SSTX+
GND
IntA_PB_D-
IntA_PB_D+
Dummy
1
ere are two headers on this motherboard. Each USB 2.0 header can support two ports.
ere is one header on this motherboard. Each USB 3.1 Gen1 header can support two ports.
English
29

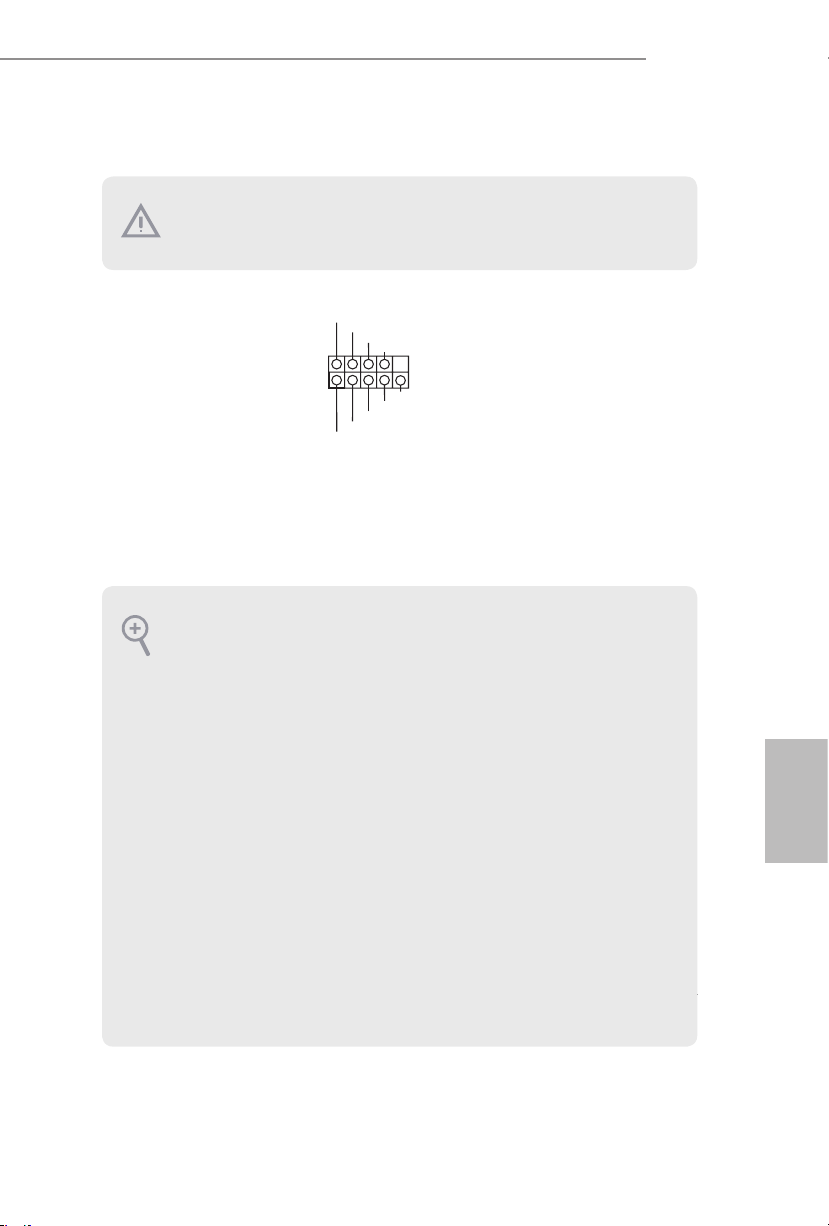

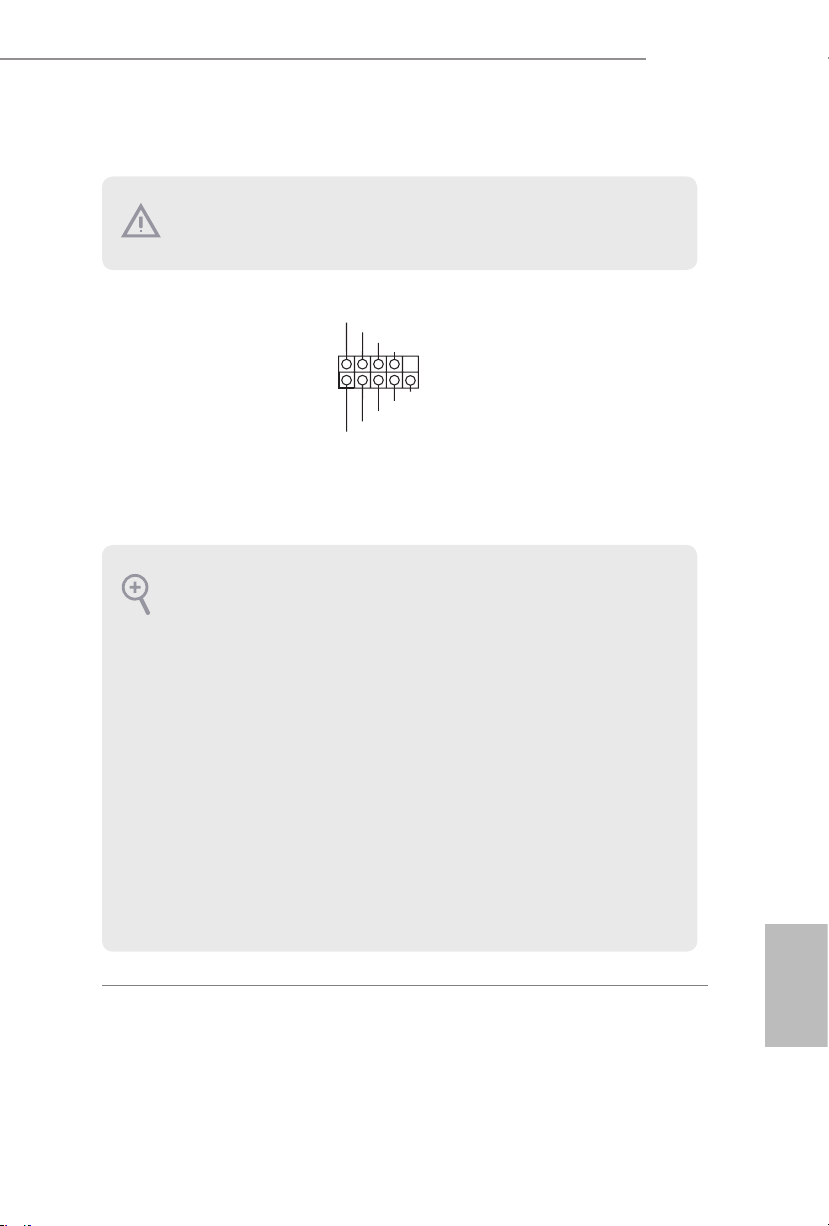

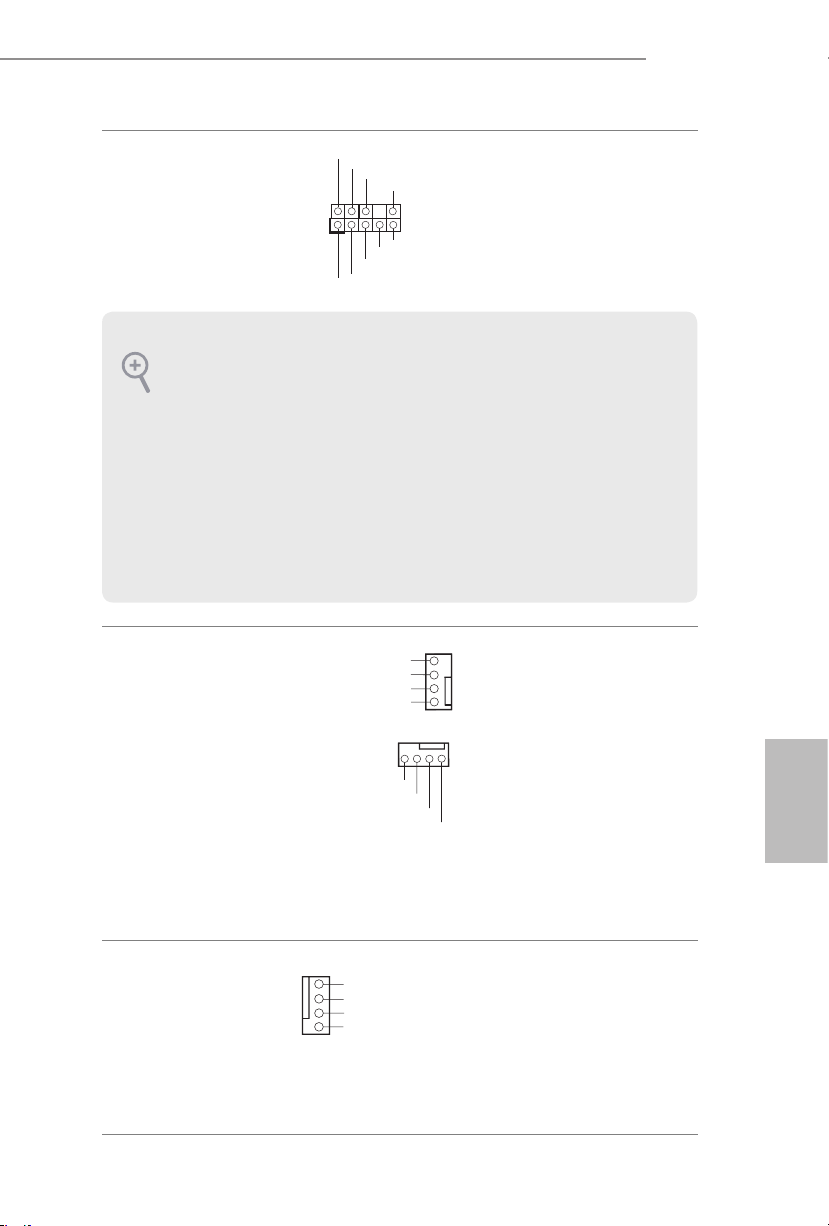

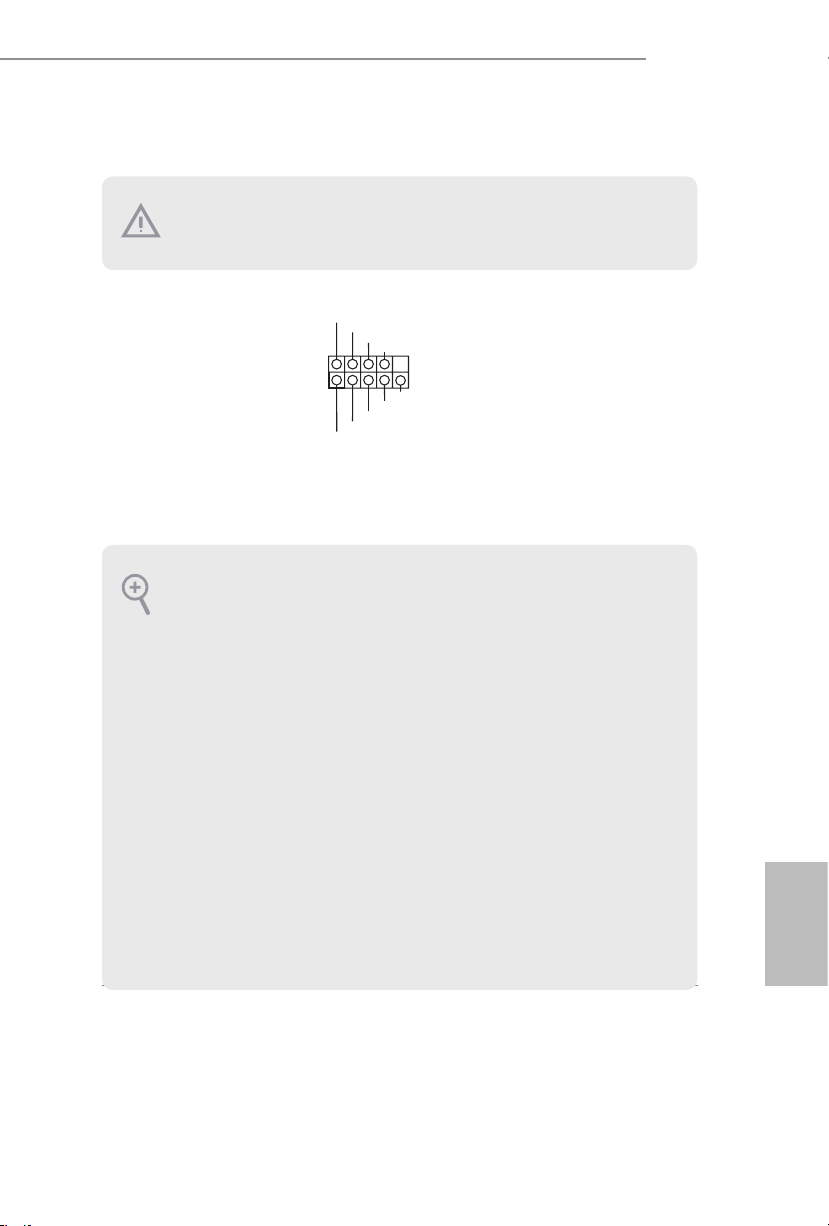

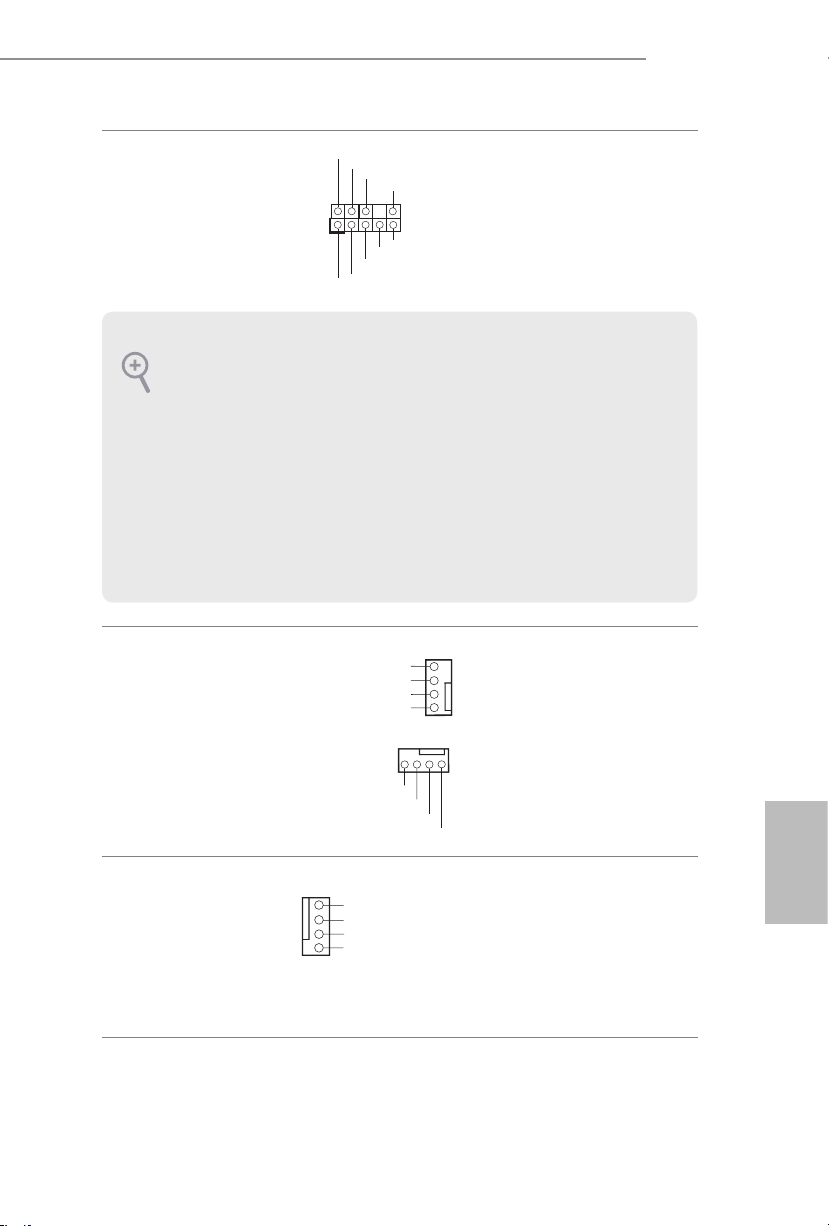

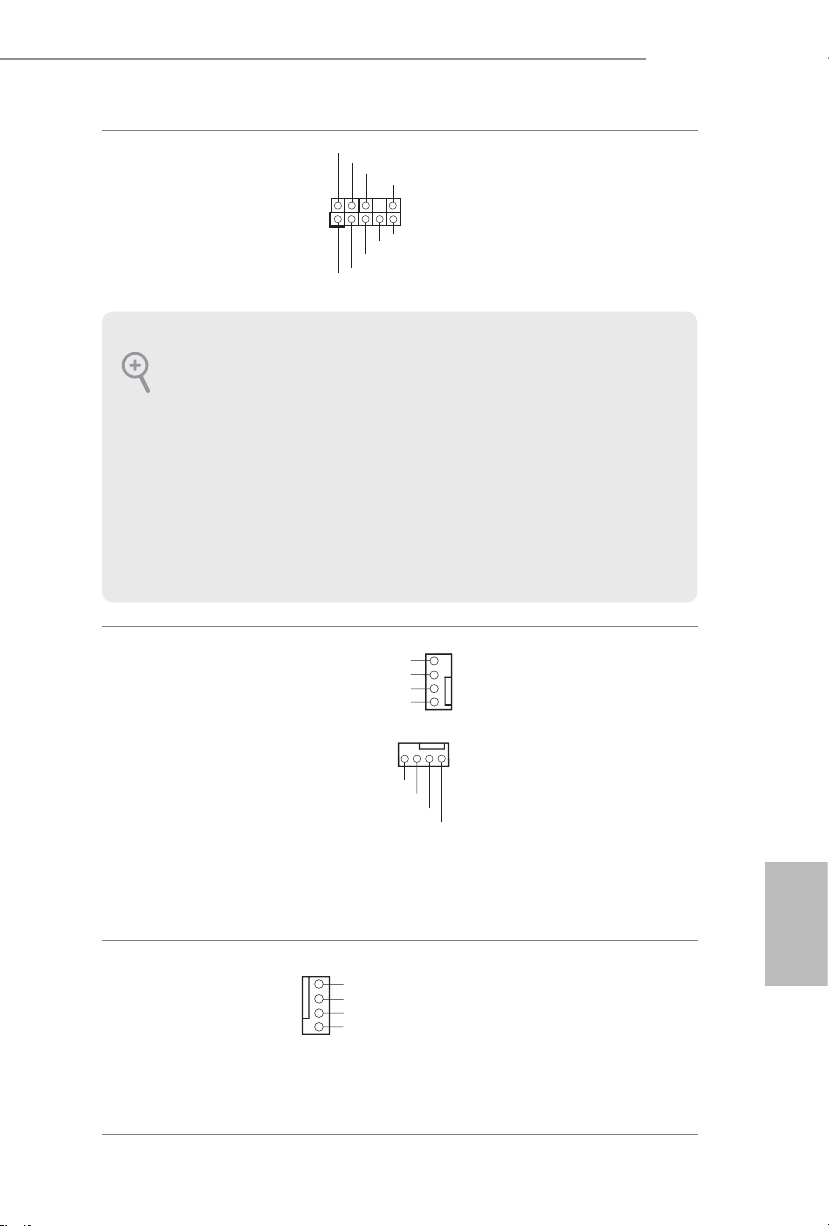

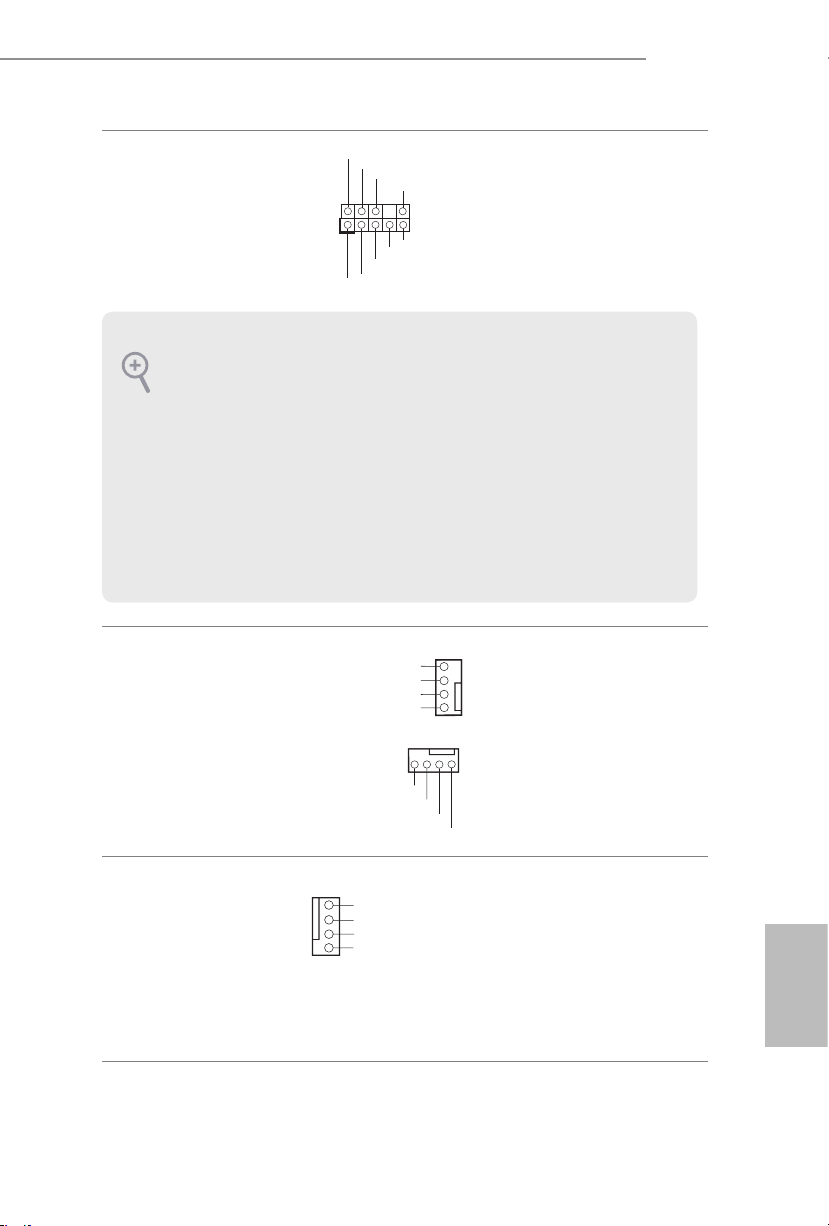

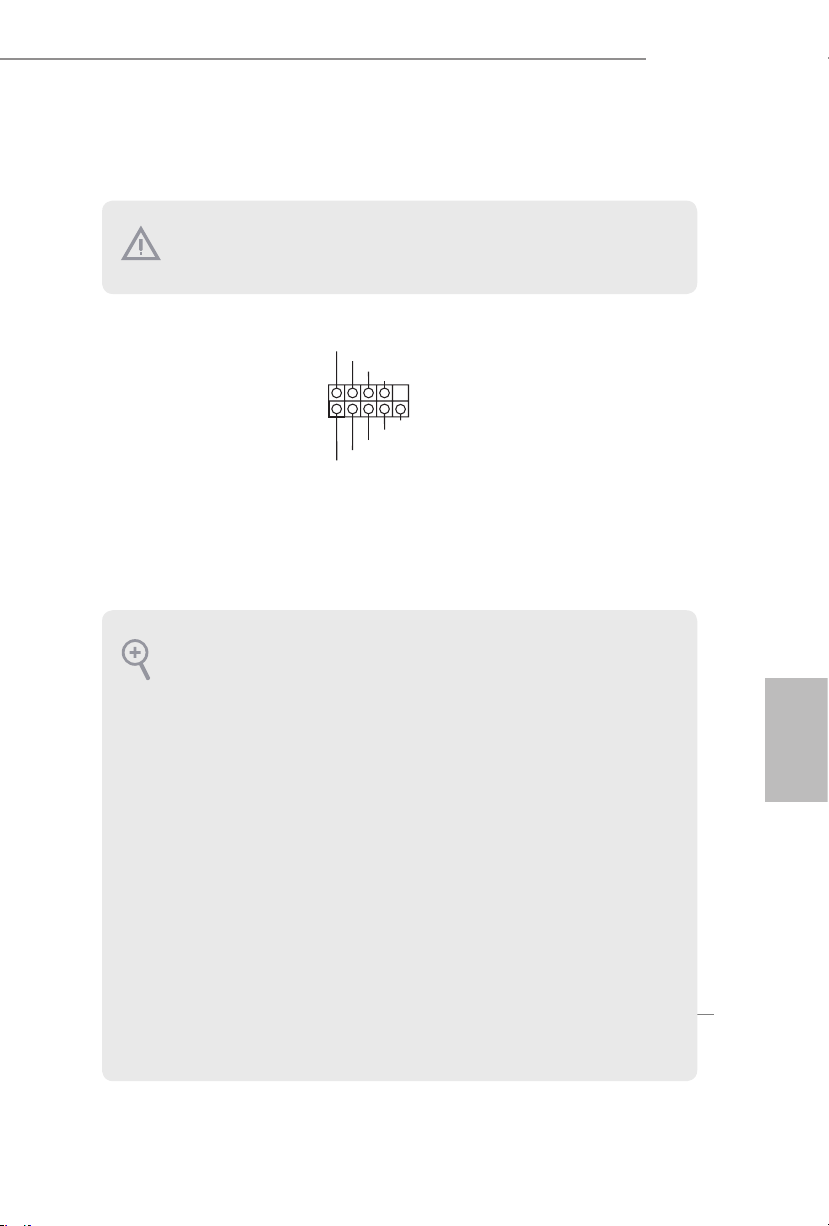

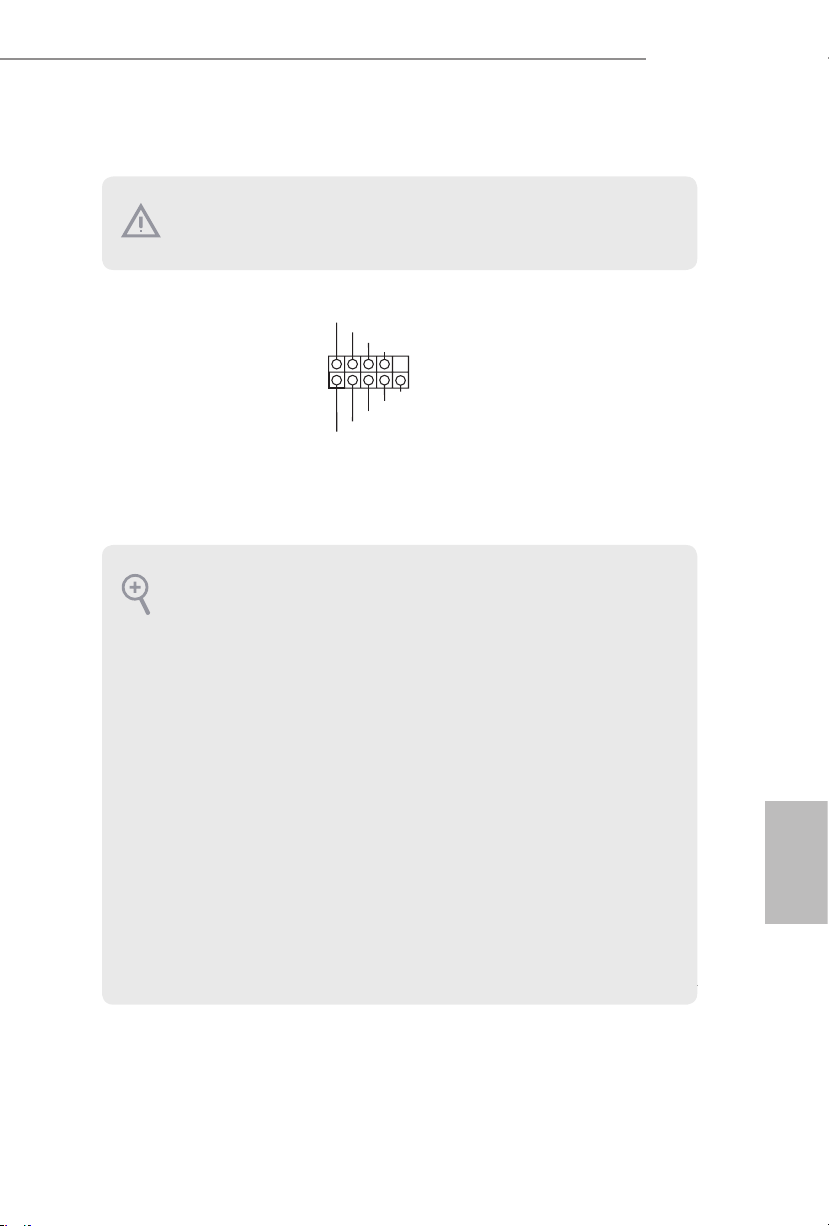

Front Panel Audio Header (9-pin HD_ AUDIO1) (see p.1, No. 26)
1. High Denition Audio support s Jack Sensing, but the panel wire on the chassis must suppor t HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
2. If you use an AC’97 audio panel , please install it to the front panel audio header by the steps below: A. Connect Mic_IN (MIC) to MIC2_ L. B. Conne ct Audio_R (RIN) to OUT2_R and Audio_ L (LIN) to OUT2_ L. C. Connect Ground (GND) to Ground (GND). D. MIC_ RET and OUT_RET are for the HD audio panel only. You don’t need to connect them for the AC’97 audio panel. E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel and adjust “Recording Volume”.
1
GND
PRESENCE#
MIC2_R
MIC2_L
MIC_RET
J_SENSE
OUT2_R
OUT_RET
OUT2_L
is header is for connecting audio devices to the front audio panel.
English
30
Chassis Fan / Waterpump Fan Connectors (4-pin CHA_FAN1/WP) (see p.1, No. 27) (4-pin CHA_FAN2/WP) (see p.1, No. 18) (4-pin CHA_FAN3/WP) (see p.1, No. 17)
CPU Fan Connector (4-pin CPU_FAN1) (see p.1, No. 5)
FAN _SPEED_CONTROL
CHA_FAN_SPEED
FAN_VOLTAGE
GND
FAN_SPEED_CONTROL
CHA_FAN_SPEED
FAN_VOLTAGE
1
GND
2
FAN_VOLTAGE
CPU_FAN_SPEED
3
FAN_SPEED_CONTROL
4
4 3 2 1
GND
Please connect fan cables
4 3
to the fan connectors and
2
match the black wire to
1
the ground pin.
is motherboard pro­vides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.
B450 Pro4
12
5
1
8
4

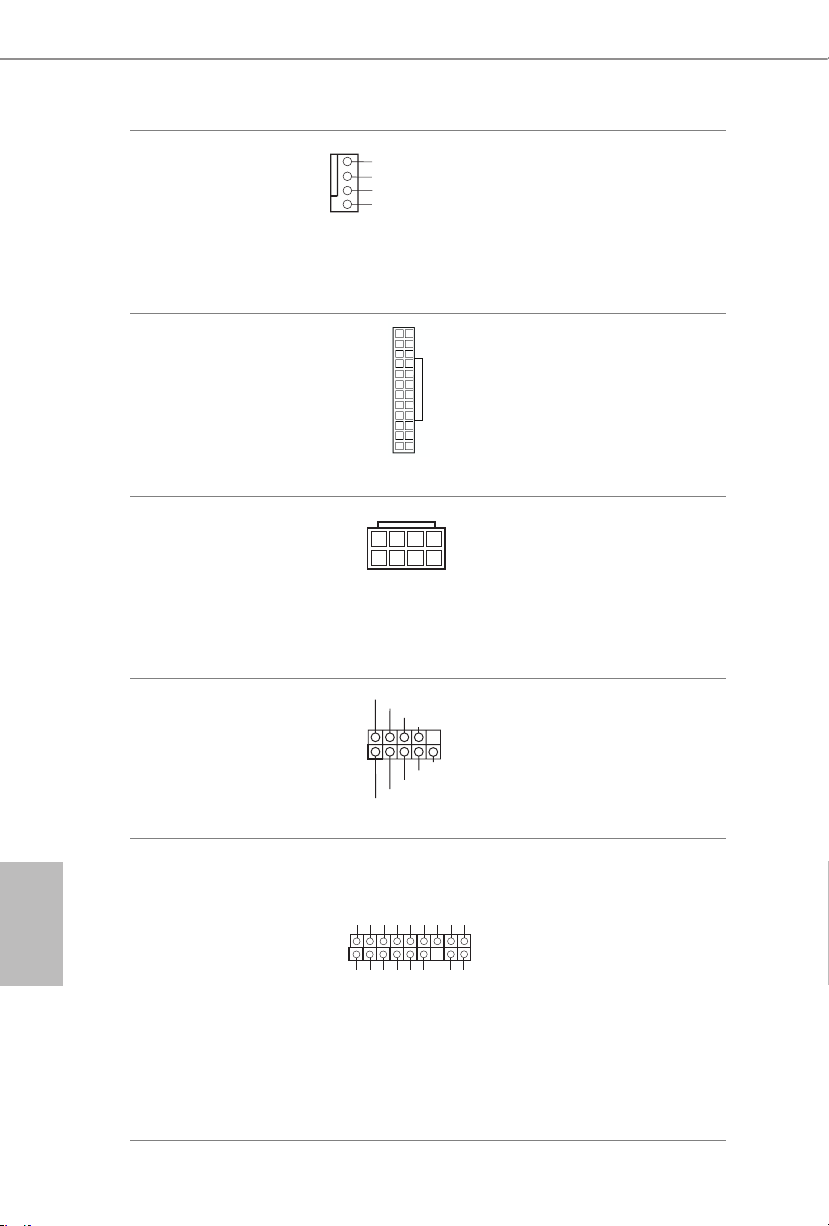

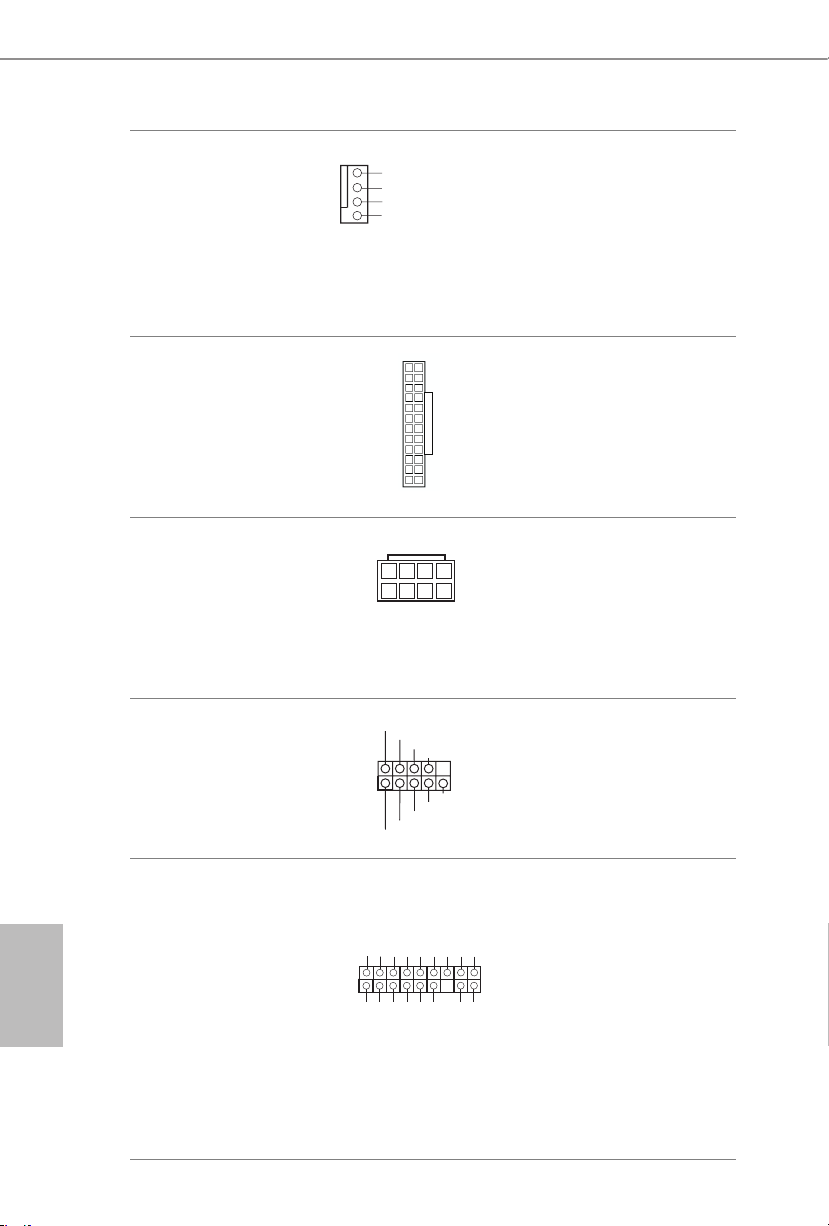

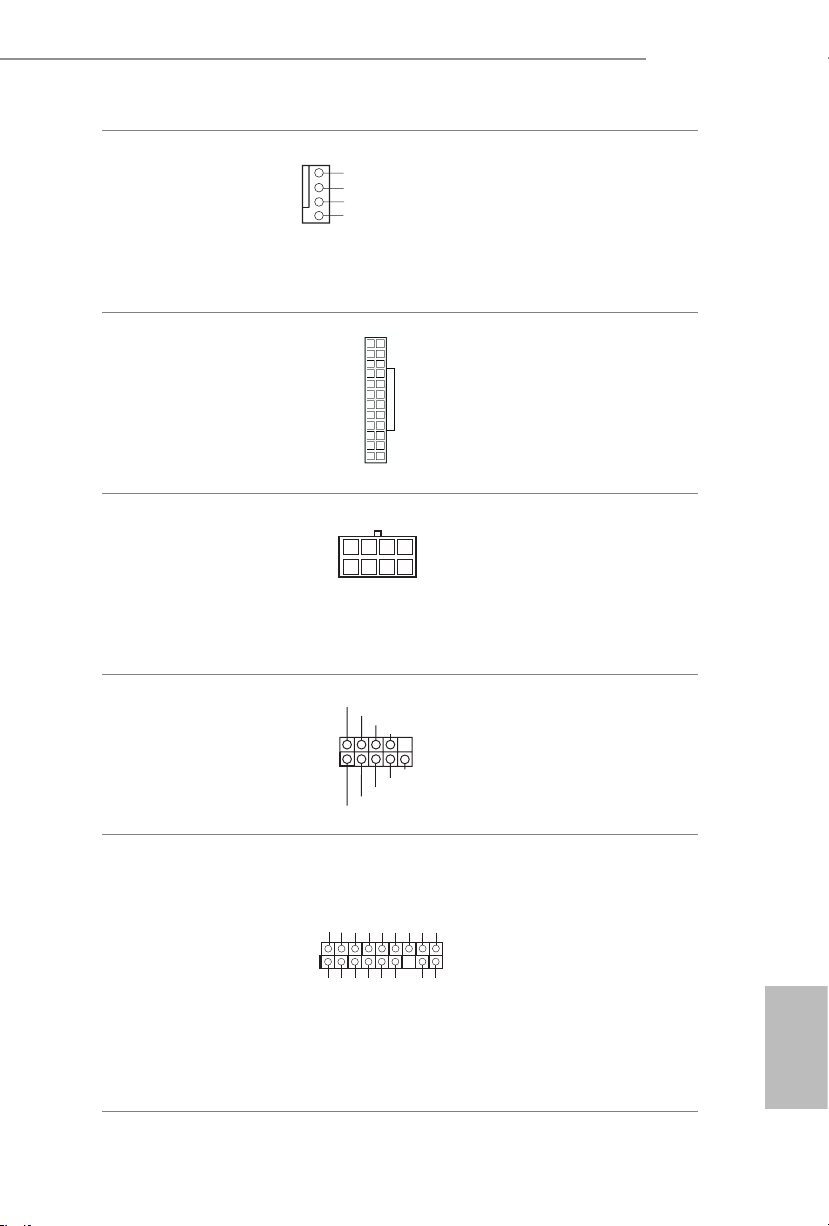

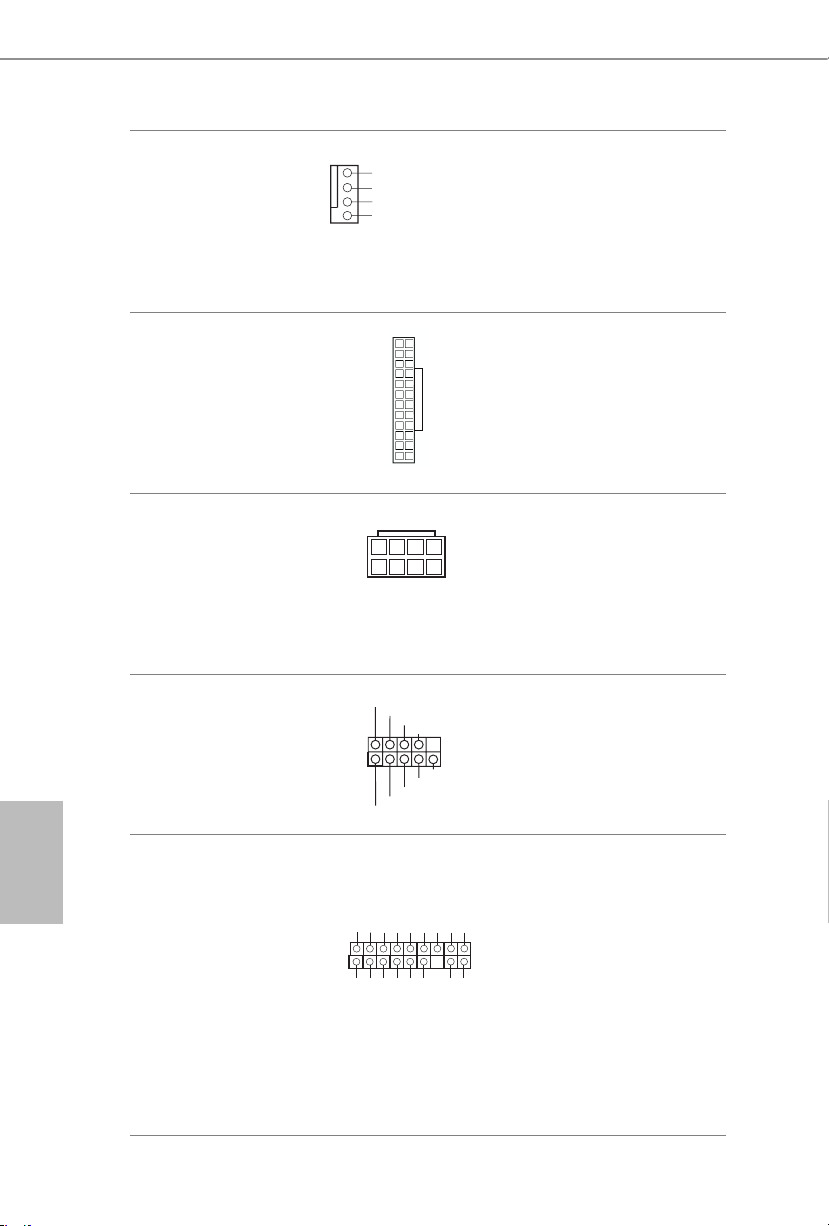

CPU Fan / Waterpump Fan Connector (4-pin CPU_FAN2/WP) (see p.1, No. 4)
ATX Power Connector (24-pin ATXPWR1) (see p.1, No. 6)
ATX 12V Power Connector (8-pin ATX12V1) (see p.1, No. 1)
Serial Port Header (9-pin COM1) (see p.1, No. 23)
1 2 3 4
GND
FAN_VOLTAGE
CPU_FAN_SPEED
FAN_SPEED_CONTROL
24
13
1
RRXD1
DDTR#1
DDSR#1
CCTS#1
1
TTXD1
DDCD#1
GND
RRI#1
RRTS#1
is motherboard pro­vides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.
is motherboard pro­vides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin
13.
is motherboard provides a 8-pin ATX 12V power connector. To use a 4-pin ATX power supply, please plug it along Pin 1 and Pin 5.
is COM1 header supports a serial port module.
TPM Header (17-pi n TPMS1) (see p.1, No. 25)
is connector supports Trusted Platform Module
SMB_ CLK _MA IN
GND
SMB_ DAT A_M AIN
LAD2
GND
LAD1
S_PW RDW N#
1
+3V
LAD3
LAD0
FRAM E
PCIC LK
PCIR ST#
(TPM) system, which can
SERI RQ#
GND
securely store keys, digital certicates, passwords, and data. A TPM system
GND
+3VS B
also helps enhance network security, protects digital identities, and ensures platform integrity.
English
31

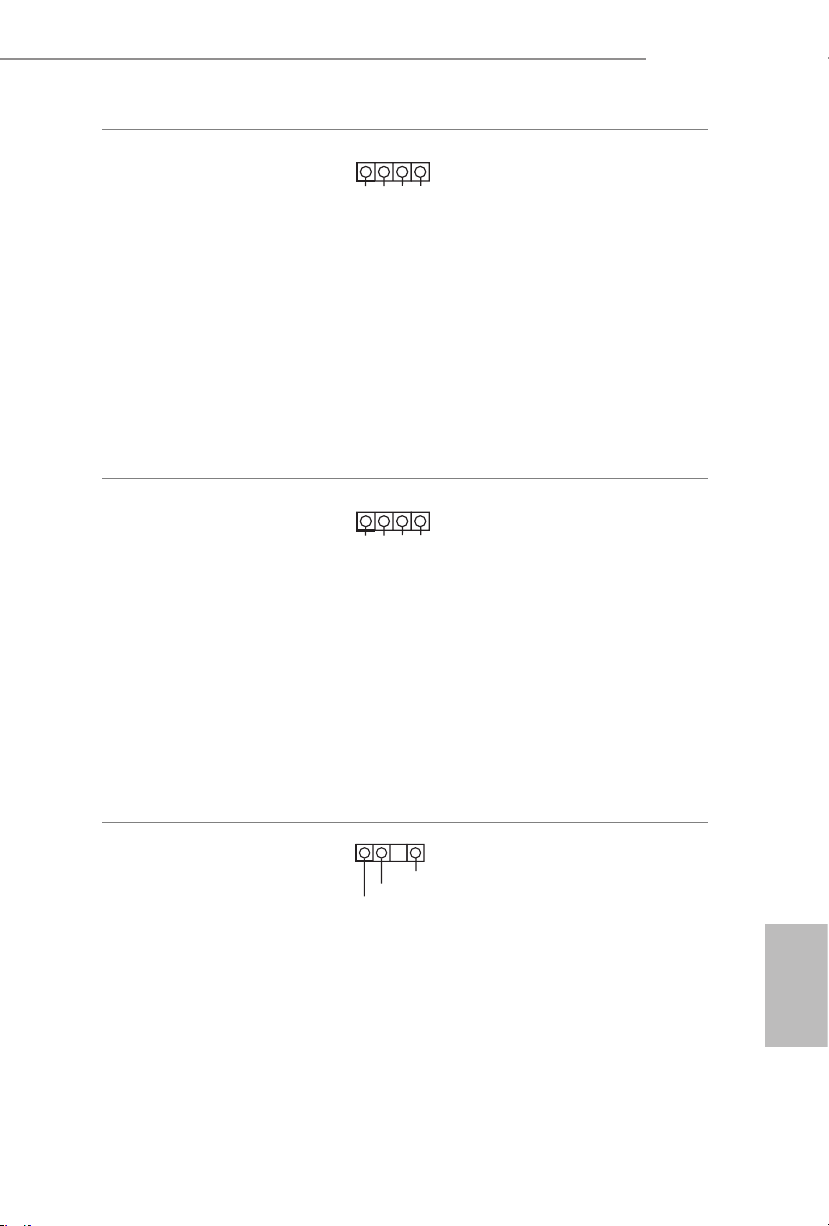

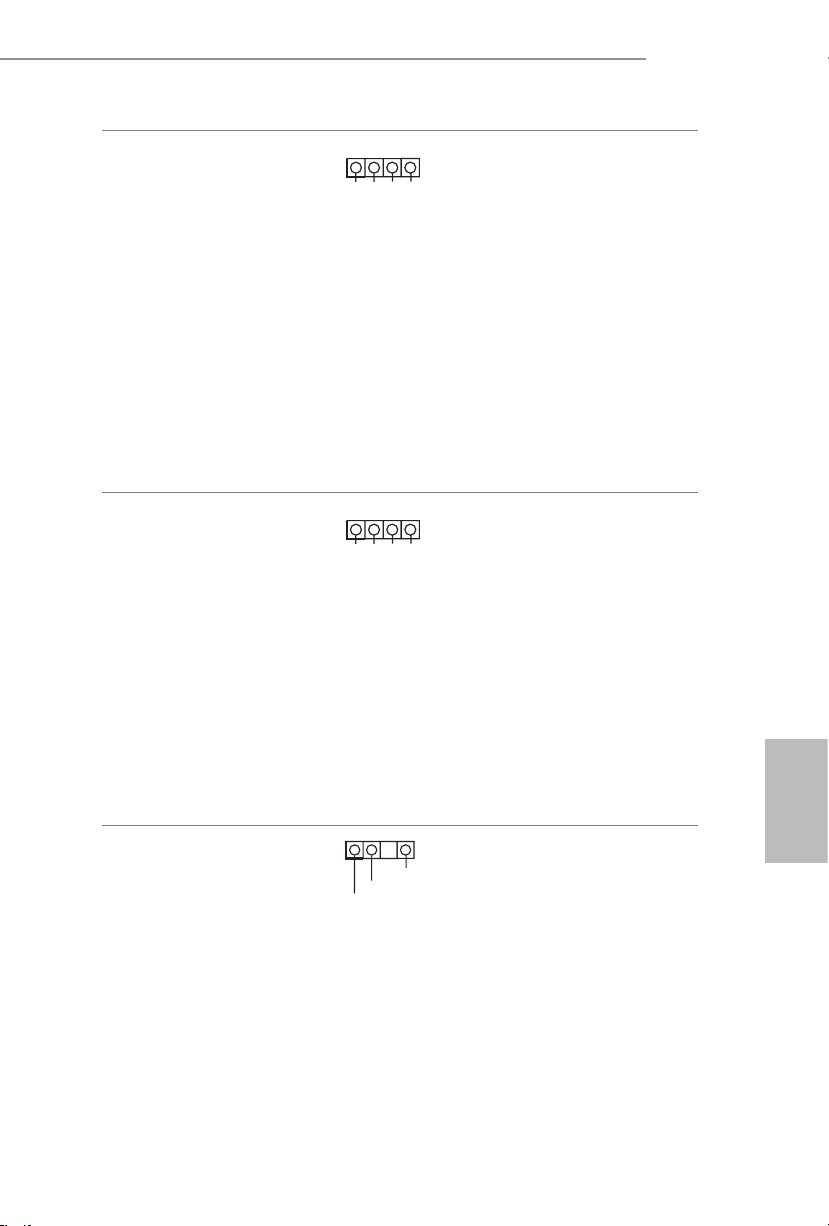

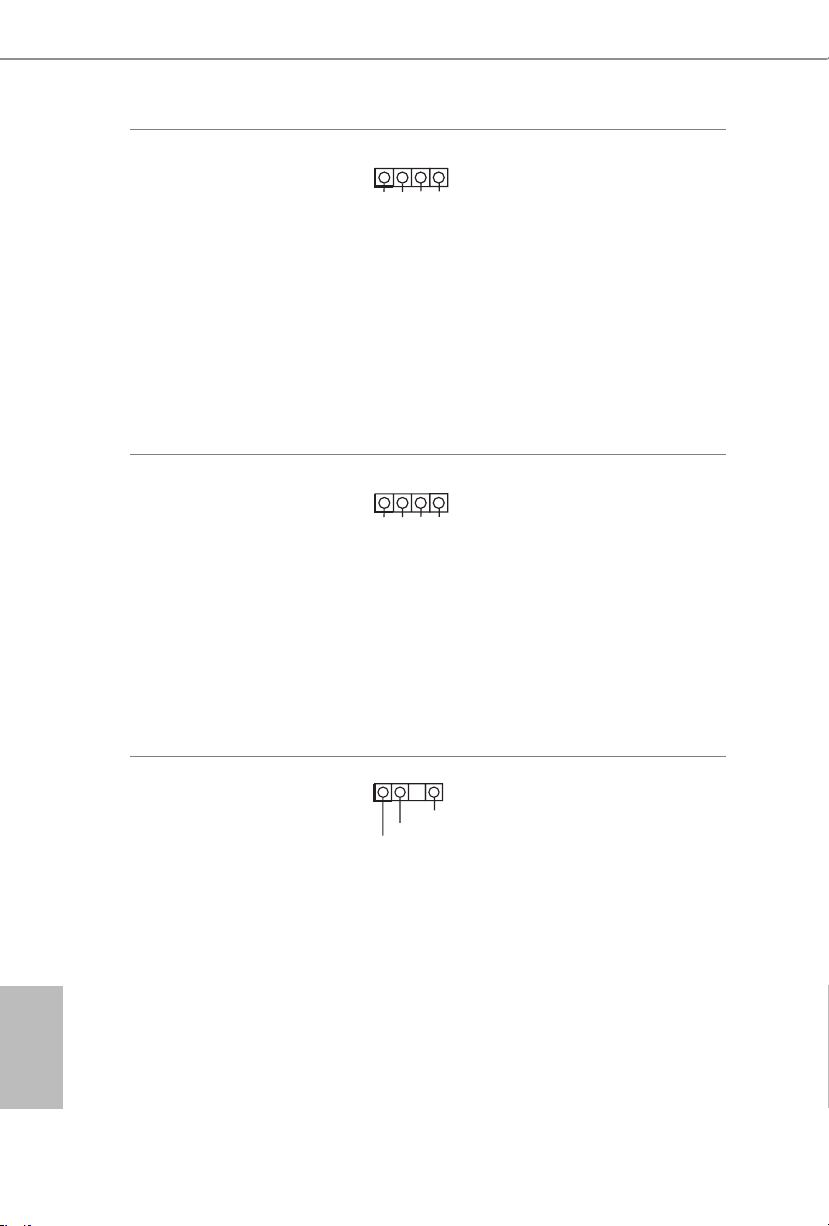

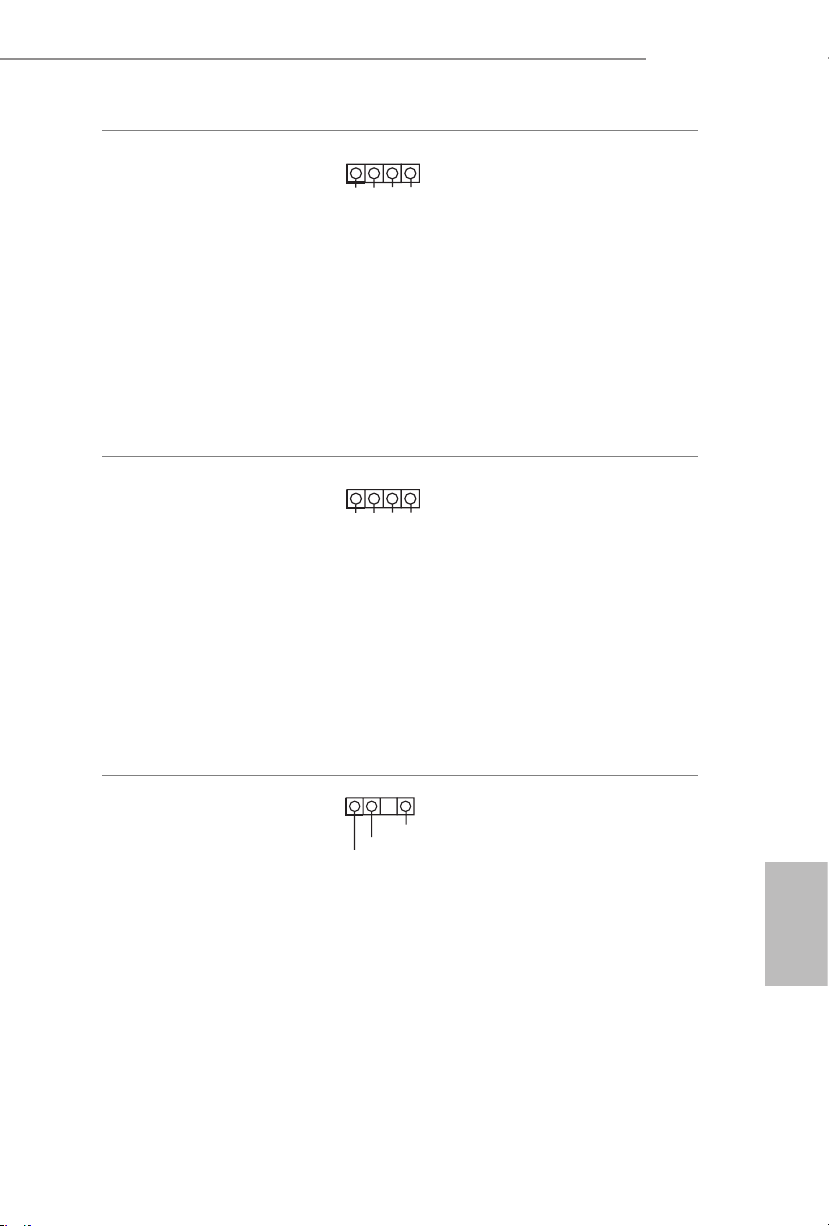

RGB LED Header (4-pin RGB_LED1) (see p.1, No. 24)
1
12V GRB
RGB LED header is used to con­nect RGB LED extension cable which allows users to choose from various LED lighting ef­fects.
Caution: Never install the RGB
LED cable in the wrong orienta-
tion; otherwise, the cable may
be damaged.
**Please refer to page 39 for further instructions on this header.
English

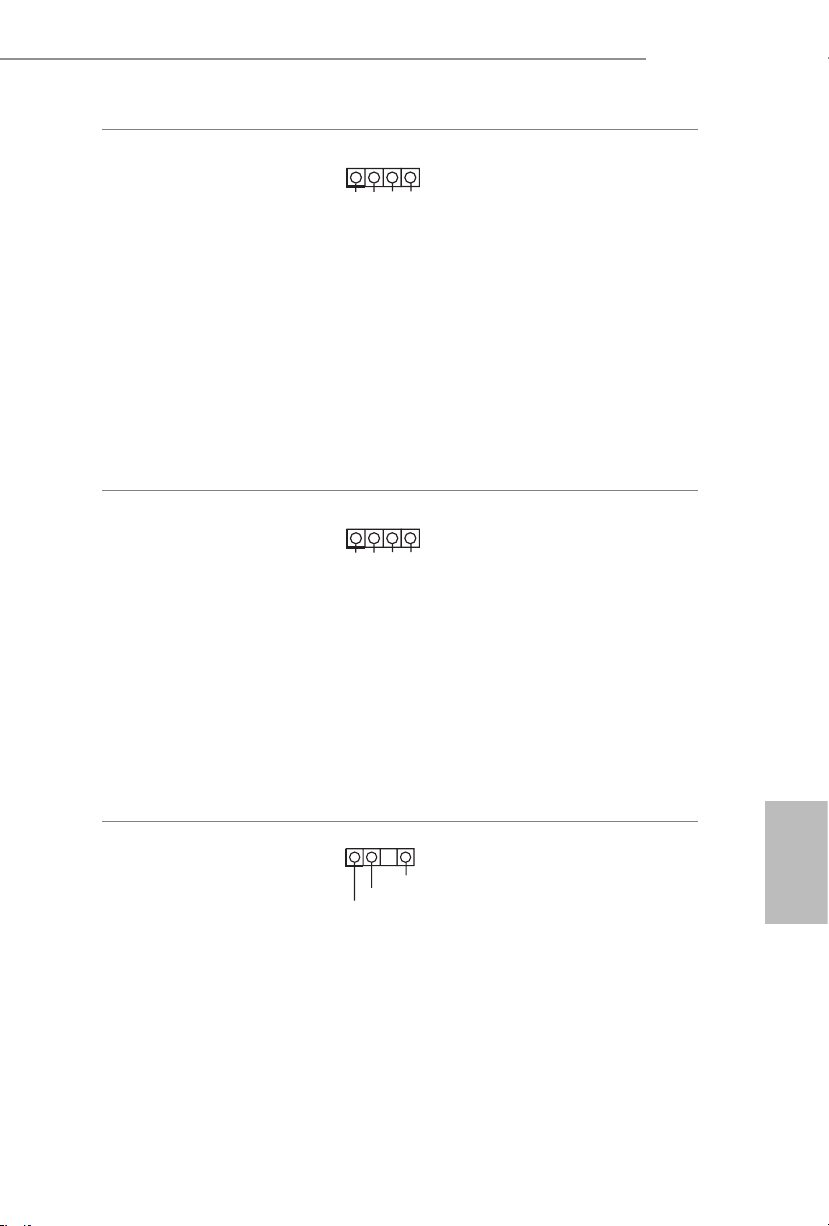

AMD FAN LED Header (4-pi n AM D_FAN _ LED1) (see p.1, No. 3)
Addressable LED Header (3-pin A DDR_LED1) (see p.1, No. 20)
1
12V GRB
1
DO_ADDR
VOUT
GND
AMD FAN LED Header is used to connect RGB LED extension cable that comes with AMD heatsink. e cable connection allows users to choose from various LED lighting eects.
Caution: Never install the FAN
LED cable in the wrong orienta-
tion; otherwise, the cable may
be damaged.
is header is used to connect Addressable
LED extension cable which allows users to choose from various LED lighting eects.
Caution: Never install the
Addressable LED cable in the
wrong orientation; otherwise,
the cable may be damaged.
*Please refer to page 40 for further instructions on this header.
32
B450 Pro4
2.7 M.2_SSD (NGFF) Module Installation Guide (M2_1)
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Socket (M2_1) supports type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge).
* If M2_1 is occupied, PCIE4 will be disabled.
Installing the M.2_SSD (NGFF) Module
Step 1
Prepare a M.2_SSD (NGFF) module and the screw.
3
2
Step 2
Depending on the PCB type and length of your M.2_SSD (NGFF) module, nd the corresponding nut location to be used.
1
ABC
No. 1 2 3
Nut Location A B C
PCB Length 4.2cm 6cm 8cm
Module Type Ty pe 2242 Type2260 Ty pe 2 280
English
33

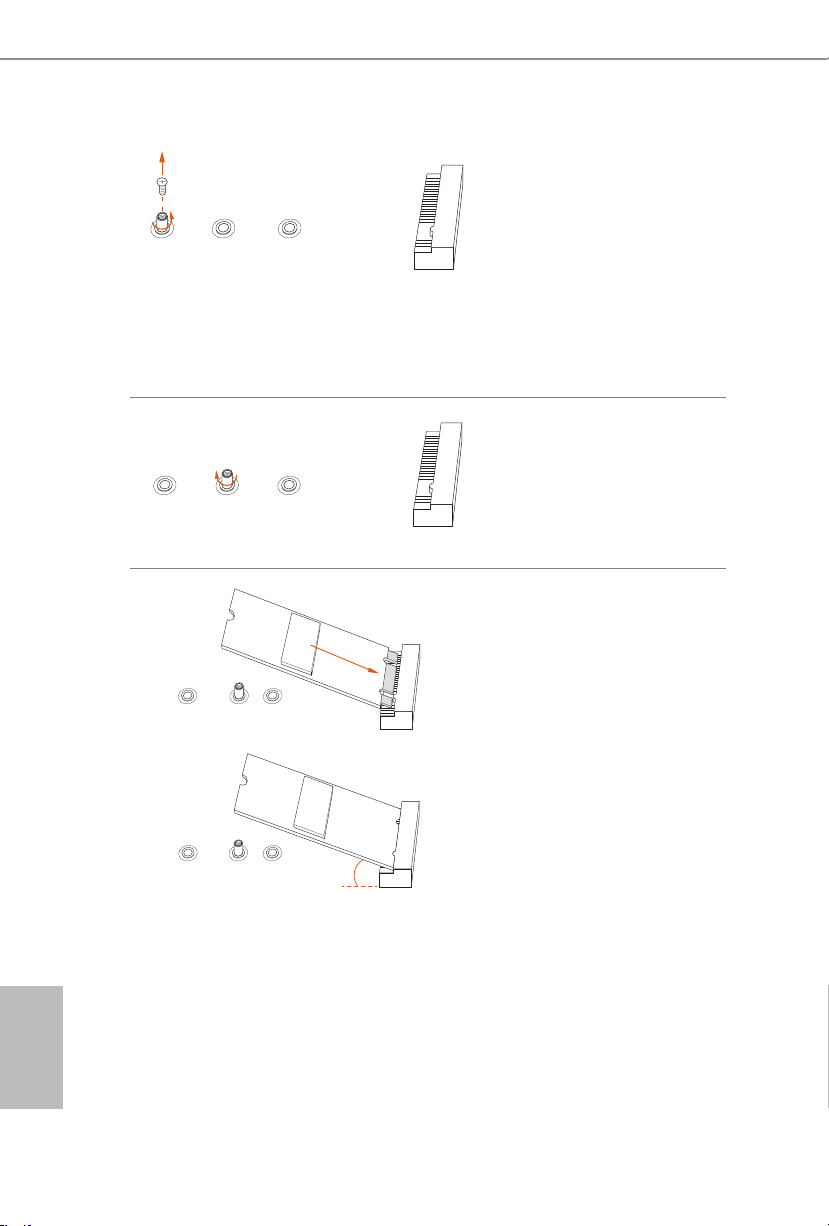

Step 3
Move the stando based on the module type and length.
ABC
e stando is placed at the nut location C by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the stando by hand.
Step 4
Peel o the yellow protective lm on
ABC
the nut to be used. Hand tighten the stando into the desired nut location on the motherboard.
Step 5
Gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD
ABC
module only ts in one orientation.
English
34
ABC
o
20
B450 Pro4

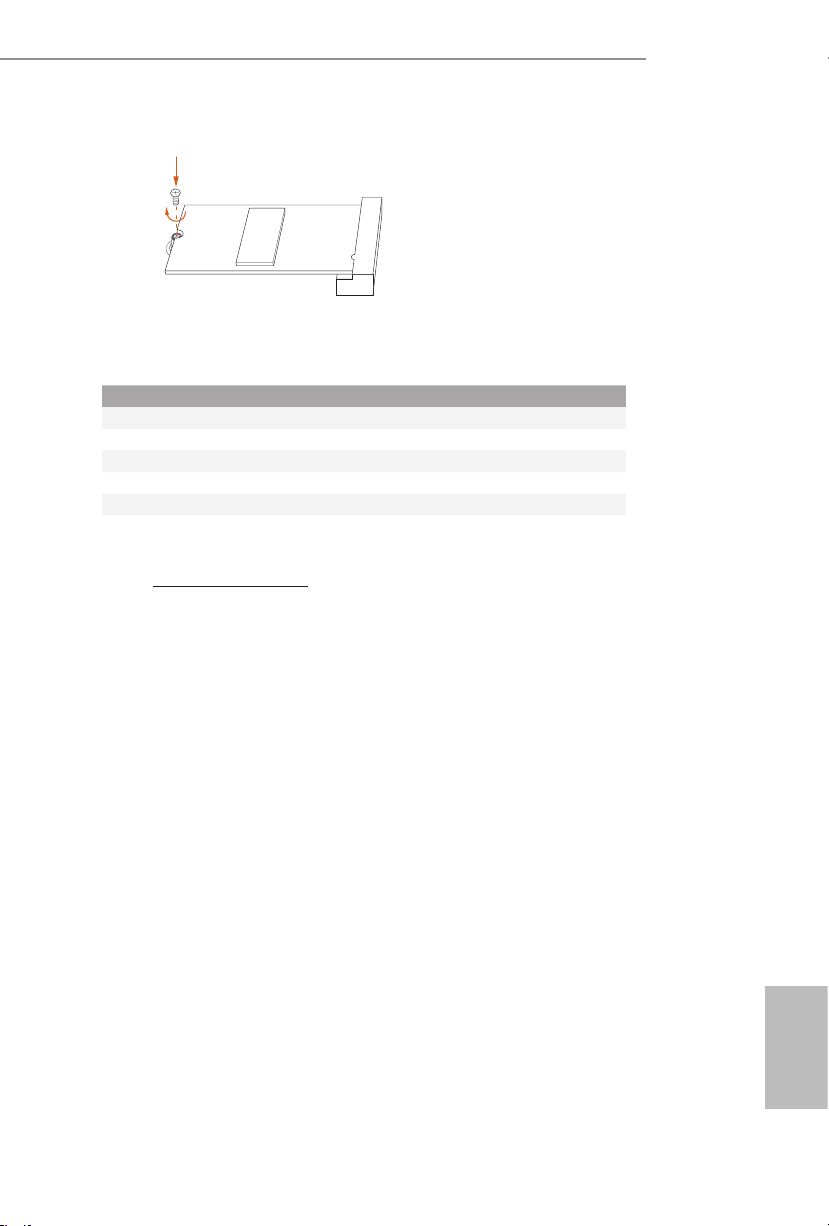

Step 6
Tighten the screw with a screwdriver to secure the module into place.
NUT1NUT2
Please do not overtighten the screw as this might damage the module.
M.2_SSD (NGFF) Module Support List
Vendor Interface P/N
Intel PCIe INTEL 6000P-SSDPEKKF256G7 (nvme) Intel PCIe INTEL 6000P-SSDPEKKF512G7 (nvme) Intel PCIe INTEL 600P-SSDPEKKW256G7-256GB (nvme) Kingston PCIe Kingston SHPM2280P2 / 240G (Gen2 x4) SanDisk PCIe SanDisk-SD6PP4M-128G(Gen2 x2) Samsung PCIe Samsung XP941-MZHPU512HCGL(Gen2x4)
For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com
35
English
2.8 M.2_SSD (NGFF) Module Installation Guide (M2_2)
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. e M.2 Socket (M2_2) supports type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s).
* M2_2, SATA3_3 and SATA3_4 share lanes. If either one of them is in use, the others will be disabled.
Installing the M.2_SSD (NGFF) Module
Step 1
Prepare a M.2_SSD (NGFF) module and the screw.
English
5
4
3
Step 2
Depending on the PCB type and length of your M.2_SSD (NGFF) module, nd the corresponding nut
2
1
A
BCDE
location to be used.
No. 1 2 3 4 5
Nut Location A B C D E
PCB Length 3cm 4.2cm 6cm 8cm 11cm
Module Type Type223 0 Ty pe 2242 Ty pe22 60 Ty pe 2280 Type 22110
36
B450 Pro4

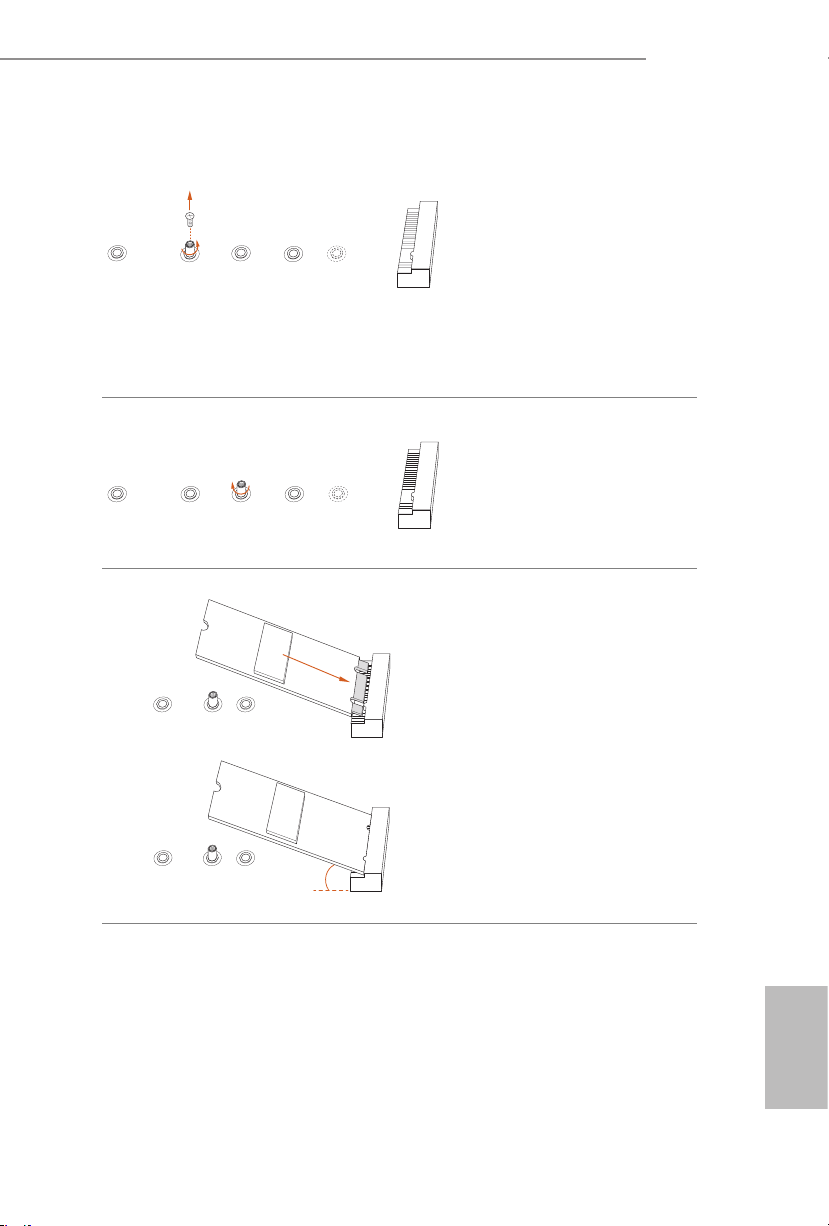

Step 3
Move the stando based on the module type and length. e stando is placed at the nut
A
BCDE
A
BCDE
ABC
location D by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the stando by hand.
Step 4
Peel o the yellow protective lm on the nut to be used. Hand tighten the stando into the desired nut location on the motherboard.
Step 5
Gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only ts in one orientation.
ABC
o
20
English
37
Step 6
Tighten the screw with a screwdriver to secure the module into place.
NUT1NUT2
Please do not overtighten the screw as this might damage the module.
M.2_SSD (NGFF) Module Support List
Vendor Interface P/N
ADATA SATA3 AXNS381E-128GM-B ADATA SATA3 AXNS381E-256GM-B ADATA SATA3 ASU800NS38-256GT-C ADATA SATA3 ASU800NS38-512GT-C Crucial SATA3 CT120M500SSD4 Crucial SATA3 CT240M500SSD4 Intel SATA3 Intel SSDSCKGW080A401/80G Kingston SATA3 SM2280S3 Kingston PCIe2 x4 SH2280S3/480G Plextor PCIe PX-G256M6e Plextor PCIe PX-G512M6e Samsung PCIe x4 XP941-512G (MZHPU512HCGL) SanDisk PCIe SD6PP4M-128G SanDisk PCIe SD6PP4M-256G Team SATA3 TM4PS4128GMC105 Team SATA3 TM4PS4256GMC105 Team SATA3 TM8PS4128GMC105 Team SATA3 TM8PS4256GMC105 Transcend SATA3 TS256GMTS400 Transcend SATA3 TS512GMTS600 Transcend SATA3 TS512GMTS800
English
38
For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com
B450 Pro4

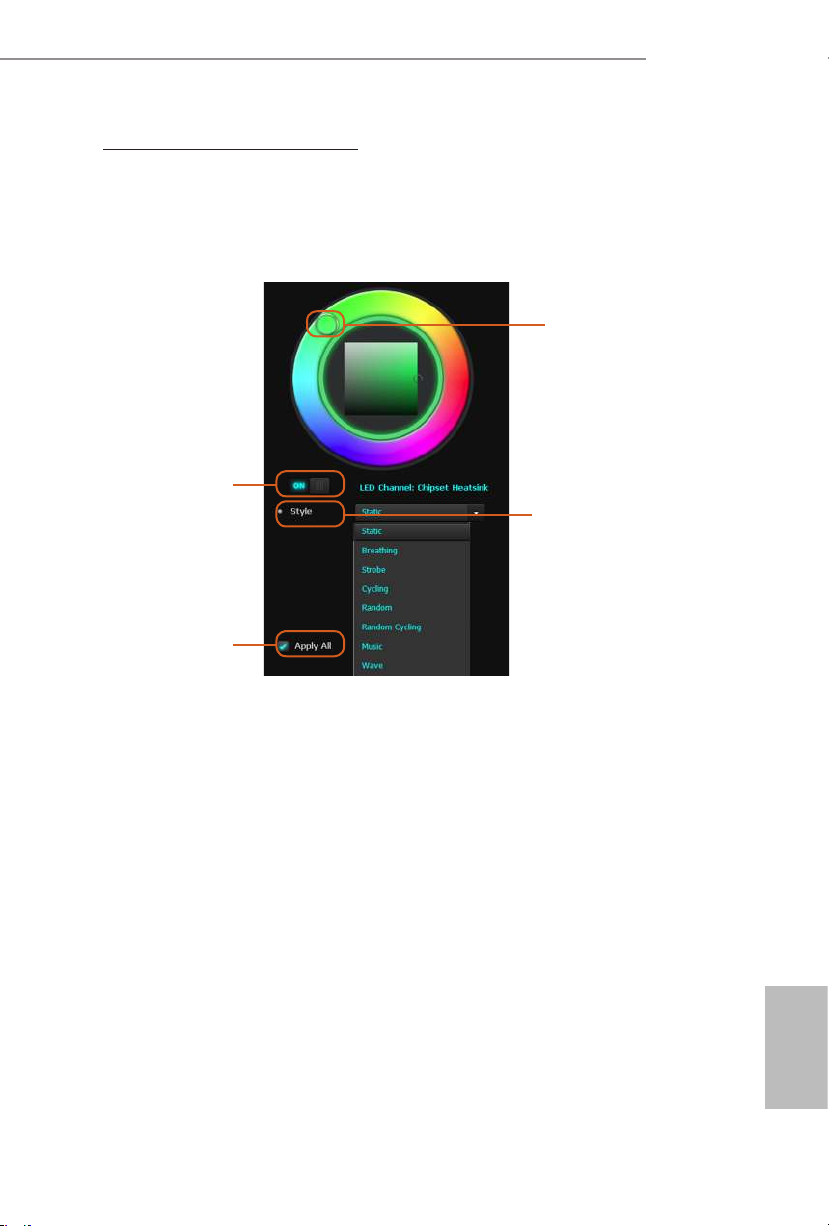

2.9 ASRock Polychrome LED
ASRock Polychrome LED is a lighting control utility specically designed for unique individuals with sophisticated tastes to build their own stylish colorful lighting system. Simply by connect­ing the LED strip, you can customize various lighting schemes and patterns, including Static,
Breathing, Strobe, Cycling, Music, Wave and more.

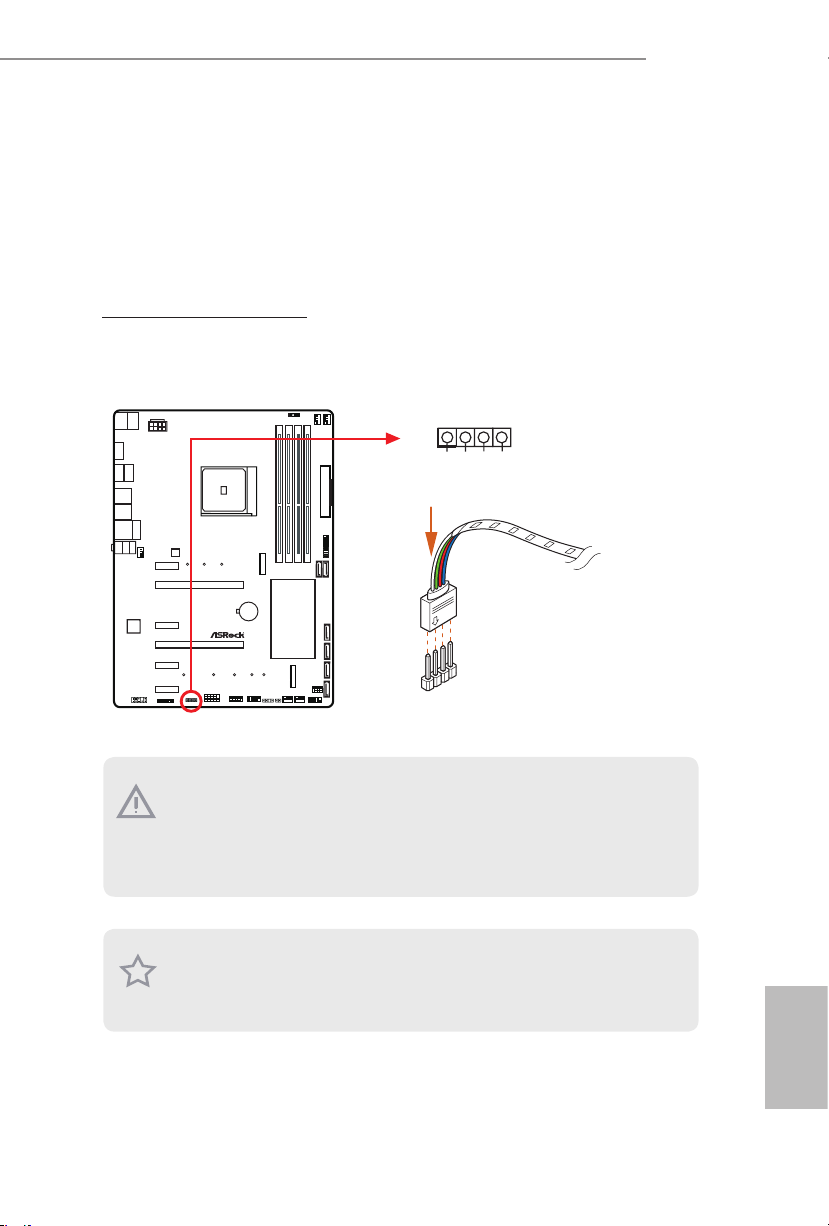

Connecting the LED Strip
Connect your RGB LED strip to the motherboard.
RGB LED Header (RGB_LED1)
RGB_LED1
1
12V GRB
on the
B450 Pro4
B450 G amin g K 4
1
B
R
G
V
2
1
Gen1
IN
1. Never install the RGB LED cable in the wrong orientation; otherw ise, the cable may be damaged.
2. Before in stalling or removing your RGB LED cable, please power o your system and unplug the power cord from the power supply. Failure to do so may cause dam­ages to motherboard components.
1. Please note that the RGB LED strips do not come with the package.
2. e RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
English
39
Connecting the Addressable RGB LED Strip
Connect your the motherboard.
Addressable RGB LED
B450 Pro4
strip to the
Addressable LED Header (ADDR_ LED1)
1
1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
2. Before installing or removing your RGB LED cable, please power o your system and unplug the power cord from the power supply. Failure to do so may cause damages to motherboard components.
ADDR_LED1
1
GND
DO_ADDR
VOUT
on
English
40
1. Please note that the RGB LED strips do not come with the package.
2. e RGB LED header suppor ts WS2812B addressable RGB LED strip (5V/Data/
GND), with a ma ximum power rating of 3A (5V) and length within 2 meters.
ASRock Polychrome LED Utility
Now you can adjust the RGB LED color through the ASRock Polychrome LED utility. Download this utility from the ASRock Live Update & APP Shop and start coloring your PC style your way!
Drag the tab to customize your preference.
Toggle on/o the RGB LED switch
Sync RGB LED eects for all LED regions of the motherboard
Select a RGB LED light eect from the drop-down menu.
B450 Pro4
41
English
1 Einleitung
Vielen Dank, dass Sie sich für das B450 Pro4 von ASRock entschieden haben – ein zuverlässiges Motherboard, das konsequent unter der strengen Qualitätskontrolle von ASRock hergestellt wurde. Es liefert ausgezeichnete Leistung mit robustem Design, das ASRock Streben nach Qualität und Beständigkeit erfüllt.
Da die technischen Daten des Motherboards sowie die BIOS-Soware aktualisiert werden können, kann der Inhalt dieser Anleitung ohne Ankündigung geändert werden. Falls diese Anleitung irgendwelchen Änderungen unterliegt, wird die aktualisierte Version ohne wei­tere Hinweise auf der ASRock-Webseite zur Verfügung gestellt. Sollten Sie technische Hilfe in Bezug auf dieses Motherboard benötigen, erhalten Sie auf unserer Webseite spezischen Informationen über das von Ihnen verwendete Modell. Auch nden Sie eine aktuelle Liste unterstützter VGA-Karten und Prozessoren auf der ASRock-Webseite: ASRock-Website http://www.asrock.com.
1.1 Lieferumfang
ASRock B450 Pro4-Motherboard (ATX-Formfaktor)
•
ASRock B450 Pro4-Schnellinstallationsanleitung
•
ASRock B450 Pro4-Support-CD
•
1 x E/A-Blendenabschirmung
•
2 x Serial-ATA- (SATA) Datenkabel (optional)
•
2 x Schrauben für M.2-Sockel (optional)
•
Deutsch
42
1.2 Technische Daten
ATX-Formfaktor
Plattform
Prozessor
Chipsatz
Speicher
•
Feststoondensator-Design
•
AMD-AM4-Sockel
•
Digi Power design
•
9-Leistungsphasendesign
•
Unterstützt 105-W-Wasserkühlung (Pinnacle Ridge);
•
unterstützt 95-W-Wasserkühlung (Summit Ridge); unterstützt 65-W-Wasserkühlung (Raven Ridge)
AMD Promontory B450
•
Dualkanal-DDR4-Speichertechnologie
•
4 x DDR4-DIMM-Steckplätze
•
Prozessoren der AMD-Ryzen-Serie (Pinnacle Ridge)
•
unterstützen DDR4 3200+(OC)/2933/2667/2400/2133 ECC und non-ECC, ungepuerter Speicher* Prozessoren der AMD-Ryzen-Serie (Summit Ridge)
•
unterstützen DDR4 3200+(OC)/2933 (OC)/2667/2400/2133 ECC und non-ECC, ungepuerter Speicher* Prozessoren der AMD-Ryzen-Serie (Raven Ridge) unterstützen
•
DDR4 3200+(OC)/2933 (OC)/2667/2400/2133 non-ECC,
ungepuerter Speicher* * Für Prozessoren der Ryzen-Serie (Raven Ridge), ECC wird nur mit PRO-Prozessoren unterstützt. * Weitere Informationen nden Sie in der Speicherkompatibilitätsliste auf der ASRock-Webseite. (http://www.asrock.com/) * Bitte beachten Sie Seite 23 für die maximal unterstützte Frequenz von DDR4-UDIMM.
Systemspeicher, max. Kapazität: 64GB
•
15-μ-Goldkontakt in DIMM-Steckplätze
•
B450 Pro4
43
Deutsch
Deutsch
Erweiter­ungssteck­platz
Grakkarte
CPUs der AMD-Ryzen-Serie (Summit Ridge und Pinnacle
Ridge)
2 x PCI-Express 3.0-x16-Steckplätze (PCIE2:x16-Modus;
•
PCIE4:x4-Modus)*
CPUs der AMD-Ryzen-Serie (Raven Ridge)
2 x PCI-Express 3.0-x16-Steckplätze (PCIE2:x8-Modus;
•
PCIE4:x4-Modus)*
* Unterstützt NVMe-SSD als Bootplatte * Wenn M2_1 belegt ist, wird PCIE4 deaktiviert.
4 x PCI-Express-2.0-x1-Steckplatz
•
Unterstützt AMD Quad CrossFireXTM und CrossFireXTM**
•
** Dieses Merkmal wird nur von CPUs der Ryzen-Serie unterstützt (Summit Ridge, Pinnacle Ridge und Raven Ridge).
TM
Integrierte Grakkarte der AMD-Radeon
•
APU der Ryzen-Serie*
* Tatsächliche Unterstützung kann je nach Prozessor variieren
DirectX 12, Pixel Shader 5.0
•
Max. geteilter Speicher 2GB
•
Drei Grafikkarten-Ausgangsoptionen: D-Sub, HDMI
•
und DisplayPort 1.2 Unterstützt drei Monitore
•
Unterstützt HDMI mit maximaler Auösung von 4K x 2K (4096
•
x 2160) bei 24 Hz / (3840 x 2160) bei 30 Hz Unterstützt DisplayPort 1.2 mit maximaler Auflösung von 4K
•
x 2K (4096 x 2160) bei 60 Hz Unterstützt D-Sub mit maximaler Auösung von 1920 x 1200
•
bei 60 Hz Unterstützt Auto-Lippensynchronizität, hohe Farbtiefe (12
•
bpc), xvYCC und HBR (Audio mit hoher Bitrate) mit HDMI­Port (konformer HDMI-Monitor erforderlich) Unterstützt HDCP mit HDMI- und DisplayPort 1.2-Ports
•
Unterstützt 4K-Ultra-HD- (UHD) Wiedergabe mit HDMI-
•
und DIsplayPort-1.2-Ports
-Vega-Serie in
44
Audio
LAN
Rückblende, E/A
7.1-Kanal-HD-Audio mit Inhaltsschutz (Realtek ALC892-
•
Audiocodec) * Zur Konguration von 7.1-Kanal-HD-Audio müssen Sie ein HD­Frontblenden-Audiomodul nutzen und den Mehrkanalton über den Audiotreiber aktivieren.
Erstklassige Blu-ray-Audiounterstützung
•
Unterstützt Überspannungsschutz
•
ELNA-Audiokondensatoren
•
PCIE-x1-Gigabit-LAN 10/100/1000 Mb/s
•
Realtek RTL8111H
•
Unterstützt Wake-On-LAN
•
Unterstützt Schutz gegen Blitzschlag/elektrostatische Entladung
•
Unterstützt energieezientes Ethernet 802.3az
•
Unterstützt PXE
•
1 x PS/2-Maus-/Tastaturanschluss
•
1 x D-Sub-Port
•
1 x HDMI-Port
•
1 x DisplayPort 1.2
•
2 x USB-2.0-Ports (unterstützt Schutz gegen elektrostatische
•
Entladung)
1 x USB 3.1-Gen2-Typ-A-Port (10 Gb/s) (unterstützt Schutz
•
gegen elektrostatische Entladung)
1 x USB 3.1-Gen2-Typ-C-Port (10 Gb/s) (unterstützt Schutz
•
gegen elektrostatische Entladung)
4 x USB-3.1-Gen1-Ports (unterstützt Schutz gegen elek-
•
trostatische Entladung)
1 x RJ-45-LAN-Port mit LED (Aktivität/Verbindung-LED und
•
Geschwindigkeit-LED)
HD-Audioanschlüsse: Line-in / Vorderer Lautsprecher / Mik-
•
rofon
B450 Pro4
45
Deutsch
Deutsch
Speicher
Anschluss
4 x SATA-III-6,0-Gb/s-Anschlüsse, unterstützt RAID (RAID 0,
•
RAID 1 und RAID 10), NCQ, AHCI und Hot-Plugging* 2 x SATA-III-6,0-Gb/s-Anschlüsse von ASMedia ASM1061,
•
unterstützt NCQ, AHCI und Hot-Plugging * M2_2, SATA3_3 und SATA3_4 nutzen Lanes gemeinsam. Wenn einer von ihnen benutzt wird, werden die anderen deaktiviert.
1 x Ultra-M.2-Sockel (M2_1), unterstützt M-Key-
•
2242/2260/2280-M.2-PCI-Express-Modul bis Gen3 x4 (32 Gb/
s) (mit Summit Ridge, Raven Ridge und Pinnacle Ridge)**
1 x M.2-Sockel (M2_2), unterstützt M-Key-Typ-2230-/2242-
•
/2260-/2280-/22110-M.2-SATA-III-6,0-Gb/s-Modul und M.2-
PCI-Express-Modul bis Gen3 x 2 (16 Gb/s)** ** Wenn M2_1 belegt ist, wird PCIE4 deaktiviert. ** Unterstützt NVMe-SSD als Bootplatte ** Unterstützt ASRock U.2-Kit
1 x COM-Anschluss-Stileiste
•
1 x TPM-Stileiste
•
1 x Betrieb-LED- und Lautsprecher-Stileiste
•
1 x RGB-LED-Stileiste
•
* Unterstützt insgesamt bis zu 12 V/3 A, 36-W-LED-Streifen
1 x Adressierbare-LED-Stileiste
•
* Unterstützt insgesamt bis zu 5 V/3 A, 15-W-LED-Streifen
1 x AMD-Lüer-LED-Stileiste
•
* Die LED-Stileiste des AMD-Lüers unterstützt LED-Streifen mit einer maximalen Last von 3 A (36 W) und einer Länge von bis zu 2,5 m.
1 x CPU-Lüeranschluss (4-polig)
•
* Der CPU-Lüeranschluss unterstützt einen CPU-Lüer mit einer maximalen Lüerleistung von 1 A (12 W).
1 x Anschluss für CPU-/Wasserpumpenlüer (4-polig)
•
(intelligente Lüergeschwindigkeitssteuerung) * Der CPU-/Wasserpumpenlüer unterstützt einen Wasserkühlerlüer mit einer maximalen Lüerleistung von 2A (24 W).
3 x Anschlusse für Gehäuse-/Wasserpumpenlüer (4-polig)
•
(intelligente Lüergeschwindigkeitssteuerung) * Der Gehäuse-/Wasserpumpenlüer unterstützt einen Wasserkühlerlüer mit einer maximalen Lüerleistung von 2A (24 W).
46
BIOS-Funk­tion
Hard­wareüberwa­chung
Betriebssys­tem
Zertizierun­gen
* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP und CHA_ FAN3/WP können automatisch erkennen, ob ein 3- oder 4-poliger Lüer verwendet wird.
1 x 24-poliger ATX-Netzanschluss
•
1 x 8-poliger 12-V-Netzanschluss
•
1 x Audioanschluss an Frontblende
•
2 x USB 2.0-Stileisten (unterstützt 4 USB 2.0-Ports)
•
(unterstützt Schutz gegen elektrostatische Entladung) 1 x USB 3.1 Gen1-Stileiste (unterstützt zwei USB 3.1 Gen1-
•
Ports) (unterstützt Schutz gegen elektrostatische Entladung)
AMI-UEFI-Legal-BIOS mit Unterstützung mehrsprachiger
•
grascher Benutzerschnittstellen Unterstützt „Plug-and-Play“
•
ACPI 5.1-konforme Aufweckereignisse
•
Unterstützt Jumper-frei
•
SMBIOS 2.3-Unterstützung
•
DRAM-Spannungsmehrfachanpassung
•
Temperaturerkennung: CPU, Motherboard
•
Lüertachometer: CPU-, CPU-/Wasserpumpen-, Gehäuse-/
•
Wasserpumpenlüer Lautloser Lüer (automatische Anpassung der Gehäuselüer-
•
geschwindigkeit durch CPU-Temperatur): CPU-, CPU-/Was­serpumpen-, Gehäuse-/Wasserpumpenlüer Mehrfachgeschwindigkeitssteuerung: CPU-, CPU-/Wasser-
•
pumpen-, Gehäuse-/Wasserpumpenlüer Spannungsüberwachung: +12 V, +5 V, +3,3 V, CPU Vcore
•
Microso® Windows® 10, 64 Bit
•
FCC, CE
•
ErP/EuP ready (ErP/EuP ready-Netzteil erforderlich)
•
B450 Pro4
* Detaillierte Produktinformationen nden Sie auf unserer Webseite: http://www.asrock.com
Bitte beachten Sie, dass mit einer Übertaktung, zu der die Anpassung von BIOS-Einstel­lungen, die Anwendung der Untied Overclocking Technology oder die Nutzung von Über­taktungswerkzeugen von Drittanbietern zählen, bestimmte Risiken verbunden sind. Eine Übertaktung kann sich auf die Stabilität Ihres Systems auswirken und sogar Komponenten und Geräte Ihres Systems beschädigen. Sie sollte auf eigene Gefahr und eigene Kosten durchgeführt werden. Wir übernehmen keine Verantwortung für mögliche Schäden, die durch eine Übertaktung verursacht wurden.
Deutsch
47
1.3 Jumpereinstellung
Die Abbildung zeigt, wie die Jumper eingestellt werden. Wenn die Jumper-Kappe auf den Kontakten angebracht ist, ist der Jumper „kurzgeschlossen“. Wenn keine Jumper­Kappe auf den Kontakten angebracht ist, ist der Jumper „oen“.
CMOS-löschen-Jumper (CLRCMOS2) (siehe S. 1, Nr. 19)
CLRCMOS2 ermöglicht Ihnen die Löschung der Daten im CMOS. Zum Löschen und Rücksetzen der Systemparameter auf die Standardeinrichtung schalten Sie den Computer bitte ab und ziehen das Netzkabel aus der Steckdose. Warten Sie 15 Sekunde, schließen Sie dann die Kontakte an CLRCMOS2 5 Sekunden lang mit einer Jumper-Kappe kurz. Löschen Sie den CMOS jedoch nicht direkt nach der BIOS-Aktualisierung. Falls Sie den CMOS direkt nach Abschluss der BIOS-Aktualisierung löschen müssen, starten Sie das System zunächst; fahren Sie es dann vor der CMOS-Löschung herunter. Bitte beachten Sie, dass Kennwort, Datum, Zeit und Benutzerstandardprol nur gelöscht werden, wenn die CMOS-Batterie entfernt wird. Bitte denken Sie daran, die Jumper-Kappe nach der CMOS-Löschung zu entfernen.
2-pin Jumper
Deutsch
48
1.4 Integrierte Stiftleisten und Anschlüsse
Integrierte Stileisten und Anschlüsse sind KEINE Jumper. Bringen Sie KEINE Jumper­Kappen an diesen Stileisten und Anschlüssen an. Durch Anbringen von Jumper-Kappen an diesen Stileisten und Anschlüssen können Sie das Motherboard dauerha beschädigen.
B450 Pro4
Systemblende-Stileiste (9-polig, PANEL1) (siehe S. 1, Nr. 16)
PWRBTN (Ein-/Austaste):
Mit der Ein-/Austaste an der Frontblende des Gehäuses verbinden. Sie können die Abschal­tung Ihres Systems über die Ein-/Austaste kongurieren.
RESET (Reset-Taste):
Mit der Reset-Taste an der Frontblende des Gehäuses verbinden. Starten Sie den Computer über die Reset-Taste neu, wenn er abstürzt oder sich nicht normal neu starten lässt.
PLED (Systembetriebs-LED):
Mit der Betriebsstatusanzeige an der Frontblende des Gehäuses verbinden. Die LED leuchtet, wenn das System läu. Die LED blinkt, wenn sich das System im S3-Ruhezustand bendet. Die LED ist aus, wenn sich das System im S4-Ruhezustand bendet oder ausge­schaltet ist (S5).
HDLED (Festplattenaktivitäts-LED):
Mit der Festplattenaktivitäts-LED an der Frontblende des Gehäuses verbinden. Die LED leuchtet, wenn die Festplatte Daten liest oder schreibt.
Das Design der Frontblende kann je nach Gehäuse variieren. Ein Frontblendenmodul besteht hauptsächlich aus Ein-/Austaste, Reset-Taste, Betrieb-LED, Festplattenaktivität­LED, Lautsprecher etc. Stellen Sie beim Anschließen Ihres Frontblendenmoduls an diese Stileiste sicher, dass Kabel- und Pinbelegung richtig abgestimmt sind.
1
PLED+
PLED-
HDLED-
HDLED+
PWRBTN#
GND
RESET#
GND
GND
Verbinden Sie Netzschalter, Reset-Taste und Systemstatusanzeige am Gehäuse entsprechend der nachstehenden Pinbelegung mit dieser Stileiste. Beachten Sie vor Anschließen der Kabel die positiven und negativen Kontakte.
49
Deutsch
Betrieb-LED- und
SPEAKER
Lautsprecher-Stileiste (7-polig, SPK_PLED1) (siehe S. 1, Nr. 15)
DUMMY +5V
1
PLED+
DUMMY
PLED+
PLED-
Bitte verbinden Sie die Betrieb­LED des Gehäuses und den Gehäuselautsprecher mit dieser Stileiste.
Serial-ATA-III-Anschlüsse (SATA3_1: siehe S. 1, Nr. 9) (SATA3_2: siehe S. 1, Nr. 8) (SATA3_3: siehe S. 1, Nr. 13) (SATA3_4: siehe S. 1, Nr. 14) (SATA3_A1: siehe S. 1, Nr. 11) (SATA3_A2: siehe S. 1, Nr. 12)
USB 2.0-Stileisten (9-polig, USB_1_2) (siehe S. 1, Nr. 22) (9-polig, USB_3_4) (siehe S. 1, Nr. 21)
SATA3_1
USB_PWR
1
USB_PWR
Diese sechs SATA-III-Anschlüsse unterstützen SATA-Datenkabel
SATA3_2SATA3_A1
für interne Speichergeräte mit einer Datenübertragungsgeschwi ndigkeit bis 6,0 Gb/s.
* M2_2, SATA3_3 und SATA3_4 nutzen Lanes gemeinsam. Wenn einer von ihnen benutzt wird,
SATA3_A2
werden die anderen deaktiviert.
* Nutzen Sie zum Minimieren der Startzeit AMD SATA-
SATA3_3
Ports (SATA3_1~4) für Ihre bootfähigen Geräte.
SATA3_4
P-
P+
GND
DUMMY
GND
P+
P-
Es gibt zwei Stileisten an diesem Motherboard. Jede USB
2.0-Stileiste kann zwei Ports unterstützen.
Deutsch
50
USB 3.1 Gen1-Stileiste (19-polig, USB3_5_6) (siehe S. 1, Nr. 7)
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
IntA_PA_SSTX-
IntA_PA_SSTX+
IntA_PA_D-
IntA_PA_D+
VbusVbus
IntA_PB_SSRX-
IntA_PB_SSRX+
GND
IntA_PB_SSTX-
GND
IntA_PB_SSTX+
GND
IntA_PB_D-
GND
IntA_PB_D+
Dummy
1
Es gibt eine Stileiste an diesem Motherboard. Jede USB
3.1 Gen1-Stileiste kann zwei Ports unterstützen.
B450 Pro4
Audiostileiste (Frontblende) (9-polig, HD_AUDIO1) (siehe S. 1, Nr. 26)
1. High Denition Audio unterstützt Anschlusserkennung, der Draht am Gehäuse muss dazu jedoch HDA unterstützt. Bitte befolgen Sie zum Installieren Ihres Systems die Anweisungen in unserer Anleitung und der Anleitung zum Gehäuse.
2. Bei Nutzung eines AC’97-Audiopanels dieses bitte anhand folgender Schritte an der Audiostileiste der Frontblende installieren: A. Mic_IN (Mikrofon) mit MIC2_L verbinden. B. Audio_R (RIN) mit OUT2_R und Audio_L (LIN) mit OUT2_L verbinden. C. Erde (GND) mit Erde (GND) verbinden. D. MIC_RET und OUT_RET sind nur für das HD-Audiopanel vorgesehen. Sie müssen sie nicht für das AC’97-Audiopanel verbinden. E. Rufen Sie zum Aktivieren des vorderen Mikrofons das „FrontMic (Vorderes Mikrofon)“-Register in der Realtek-Systemsteuerung auf und passen „Recording Volume (Aufnahmelautstärke)“ an.
Anschluss für Gehäuselüer / Wasserpumpenlüer (4-polig, CHA_FAN1/WP) (siehe S. 1, Nr. 27) (4-polig, CHA_FAN2/WP) (siehe S. 1, Nr. 18) (4-polig, CHA_FAN3/WP) (siehe S. 1, Nr. 17)
GND
PRESENCE#
MIC_RET
1
FAN _SPEED_CONTROL
CHA_FAN_SPEED
FAN_VOLTAGE
FAN_SPEED_CONTROL
OUT2_L
J_SENSE
OUT2_R
MIC2_R
MIC2_L
GND
CHA_FAN_SPEED
FAN_VOLTAGE
OUT_RET
4 3 2 1
Diese Stileiste dient dem Anschließen von Audiogeräten an der Frontblende.
Bitte verbinden Sie die
4 3
Lüerkabel mit den
2
Lüeranschlüssen; der
1
schwarze Draht gehört zum Erdungskontakt.
GND
CPU-Lüeranschluss (4-polig, CPU_FAN1) (siehe S. 1, Nr. 5)
1 2 3 4
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
Dieses Motherboard bietet einen 4-poligen CPU-Lüeran­schluss (lautloser Lüer). Falls Sie einen 3-poligen CPU-Lüer anschließen möchten, verbin­den Sie ihn bitte mit Kontakt 1 bis 3.
Deutsch
51
Anschluss für CPU-Lüer /
12
5
1
8
4
Wasserpumpenlüer (4-polig, CPU_FAN2/WP) (siehe S. 1, Nr. 4)
1 2 3 4
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
Dieses Motherboard bietet einen 4-poligen CPU-Lüer­anschluss (lautloser Lüer). Falls Sie einen 3-poligen CPU-Lüer anschließen möchten, verbinden Sie ihn bitte mit Kontakt 1 bis 3.
Deutsch
52
ATX-Netzanschluss (24-polig, ATXPWR1) (siehe S. 1, Nr. 6)
ATX-12-V-Netzanschluss (8-polig, ATX12V1) (siehe S. 1, Nr. 1)
Serieller-Port-Stileiste (9-polig, COM1) (siehe S. 1, Nr. 23)
TPM-Stileiste (17-polig, TPMS1) (siehe S. 1, Nr. 25)
24
Dieses Motherboard bietet einen 24-poligen ATX-Netzan­schluss. Bitte schließen Sie es zur Nutzung eines 20-poligen ATX-Netzteils entlang Kontakt
13
1
1 und Kontakt 13 an.
Dieses Motherboard bietet einen 8-poligen ATX-12-V­Netzanschluss. Bitte schließen Sie es zur Nutzung eines 4-poli­gen ATX-Netzteils entlang Kontakt 1 und Kontakt 5 an.
1
RRXD1
DDTR#1
TTXD1
DDCD#1
DDSR#1
CCTS#1
RRTS#1
GND
RRI#1
Diese COM1-Stileiste unterstützt ein Modul für serielle Ports.
Dieser Anschluss unterstützt das Trusted Platform Module-
SMB_ CLK _MA IN
GND
SMB_ DAT A_M AIN
LAD2
GND
LAD1
S_PW RDW N#
1
+3V
LAD3
LAD0
FRAM E
PCIC LK
PCIR ST#
(TPM) System, das Schlüssel,
SERI RQ#
GND
digitale Zertikate, Kennwörter und Daten sicher auewahren kann. Ein TPM-System hil
GND
+3VS B
zudem bei der Stärkung der Netzwerksicherheit, schützt digitale Identitäten und gewährleistet die Plattformintegrität.
B450 Pro4
RGB-LED-Stileiste (4-polig, RGB_LED1) (siehe S. 1, Nr. 24)
AMD-Lüer-LED-Stileiste (4-polig, AMD_FAN_ LED1) (siehe S. 1, Nr. 3)
1
12V GRB
1
12V GRB
RGB-LED-Stileiste dient dem Anschließen eines RGB­LED-Erweiterungskabels, das dem Nutzer die Auswahl zwischen verschiedenen LED­Lichteekten ermöglicht.
Achtung: Installieren Sie das
RGB-LED-Kabel niemals falsch
herum; andernfalls könnte das
Kabel beschädigt werden.
*Weitere Anweisungen zu diesen beiden Stileisten nden Sie auf Seite 39.
Die AMD-Lüer-LED­Stileiste dient dem Anschluss des mit dem AMD­Kühlkörpers gelieferten RGB­LED-Verlängerungskabels. Der Kabelanschluss ermöglicht Nutzern die Wahl zwischen verschiedenen LED­Lichteekten.
Achtung: Installieren Sie das
Lüer-LED-Kabel niemals falsch
herum; andernfalls könnte das
Kabel beschädigt werden.
Adressierbare-LED­Stileiste (3-polig, ADDR_LED1) (siehe S. 1, Nr. 20)
1
VOUT
GND
DO_ADDR
Diese Stileiste dient der Verbind­ung des
Adressierbare-
LED-Ver­längerungskabels, womit Nutzer zwischen verschiedenen LED­Lichteekten wählen können.
Achtung: Installieren Sie das
Adressierbare-LED-Kabel nie-
mals falsch herum; andernfalls
könnte das Kabel beschädigt
werden.
*Weitere Anweisungen zu dieser Stileiste nden Sie auf Seite 40.
Deutsch
53
1 Introduction
Nous vous remercions d’avoir acheté cette carte mère ASRock B450 Pro4, une carte mère able fabriquée conformément au contrôle de qualité rigoureux et constant appliqué par ASRock. Fidèle à son engagement de qualité et de durabilité, ASRock vous garantit une carte mère de conception robuste aux performances élevées.
Les spécications de la carte mère et du logiciel BIOS pouvant être mises à jour, le contenu de ce document est soumis à modication sans préavis. En cas de modications du présent document, la version mise à jour sera disponible sur le site Internet ASRock sans notica­tion préalable. Si vous avez besoin d’une assistance technique pour votre carte mère, veuillez visiter notre site Internet pour plus de détails sur le modèle que vous utilisez. La liste la plus récente des cartes VGA et des processeurs pris en charge est également disponible sur le site Internet de ASRock. Site Internet ASRock http://www.asrock.com.
1.1 Contenu de l’emballage
Carte mère ASRock B450 Pro4 (facteur de forme ATX)
•
Guide d’installation rapide ASRock B450 Pro4
•
CD d’assistance ASRock B450 Pro4
•
1 x panneau de protection E/S
•
2 x câbles de données Serial ATA (SATA) (Optionnel)
•
2 x vis pour sockets M.2 (Optionnel)
•
Français
54
1.2 Spécications
Plateforme
Processeur
Chipset
Mémoire
•
•
•
•
•
•
•
•
•
•
•
•
* Sur les processeurs série Ryzen (Raven Ridge), ECC est pris en charge uniquement avec les processeurs PRO. * Veuillez consulter la liste de prise en charge des mémoires sur le site Web d'ASRock pour de plus amples informations. (http://www.asrock.com/) * Veuillez consulter la page 23 pour connaître la prise en charge de la fréquence maximale de l'UDIMM DDR4.
•
•
Facteur de forme ATX Conception à condensateurs solides
Socket AMD AM4 Digi Power design Alimentation à 9 phases Prend en charge le refroidissement par eau 105W (Pinnacle Ridge); Prend en charge le refroidissement par eau 95W (Summit Ridge); Prend en charge le refroidissement par eau 65W (Raven Ridge)
AMD Promontory B450
Technologie mémoire double canal DDR4 4 x fentes DIMM DDR4 Les processeurs AMD série Ryzen (Pinnacle Ridge) prennent en charge les mémoires sans tampon* ECC et non ECC DDR4 3200+(OC)/2933/2667/2400/2133 Les processeurs AMD série Ryzen (Summit Ridge) prennent en charge les mémoires sans tampon* ECC et non ECC DDR4 3200+(OC)/2933 (OC)/2667/2400/2133 Les processeurs AMD série Ryzen (Raven Ridge) prennent en charge les mémoires sans tampon* non ECC DDR4 3200+(OC)/2933 (OC)/2667/2400/2133
Capacité max. de la mémoire système : 64Go Contacts dorés 15μ sur fentes DIMM
B450 Pro4
Français
55
Français
Fente d’expansion
Graphiques
Processeurs AMD série Ryzen (Summit Ridge et Pinnacle
Ridge)
2 x fentes PCI Express 3.0 x 16 (PCIE2:mode x16 ;
•
PCIE4:mode x4)*
Processeurs AMD série Ryzen (Raven Ridge)
2 x fentes PCI Express 3.0 x 16 (PCIE2:mode x8 ; PCIE4:mode
•
x4)*
* Prend en charge les SSD NVMe comme disques de démarrage * Si M2_1 est occupé, PCIE4 est désactivé.
4 x fentes PCI Express 2.0 x1
•
Prend en charge AMD Quad CrossFireXTM et CrossFireXTM**
•
** Cette fonction n'est prise en charge qu'avec les CPU série Ryzen (Summit Ridge, Pinnacle Ridge et Raven Ridge).
TM
Carte graphique AMD Radeon
•
APU série Ryzen*
* La prise en charge réelle peut varier selon le processeur
DirectX 12, Pixel Shader 5.0
•
Mémoire partagée max. 2 Go
•
Trois options de sortie graphique : D-Sub, HDMI et DisplayPort
•
1.2
Prend en charge la conguration à triple moniteurs
•
Prend en charge la technologie HDMI avec résolution
•
maximale de 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz Prend en charge DisplayPort 1.2 avec une résolution
•
max. jusqu'à 4K x 2K (4096x2160) @ 60Hz Prend en charge le mode D-Sub avec une résolution maximale
•
de 1920x1200 @ 60Hz Prend en charge les technologies Auto Lip Sync, Deep Color
•
(12bpc), xvYCC et HBR (High Bit Rate Audio) avec port HDMI (un moniteur compatible HDMI est requis) Prend en charge HDCP via ports HDMI et DisplayPort 1.2
•
Prend en charge la lecture 4K Ultra HD (UHD) avec les
•
ports HDMI et DisplayPort 1.2
série Vega intégrée dans
56
Audio
Réseau
Connectique du panneau arrière
Audio 7.1 CH HD avec protection du contenu (codec audio
•
Realtek ALC892) *Pour congurer l’audio 7.1 CH HD, il est nécessaire d’utiliser un module audio HD pour panneau frontal et d’activer la fonction audio multicanal via le pilote audio.
Compatible audio Blu-ray Premium
•
Prend en charge la protection contre les surtensions
•
Capuchons ELNA Audio
•
PCIE x1 Gigabit LAN 10/100/1000 Mo/s
•
Realtek RTL8111H
•
Prend en charge la fonction Wake-On-LAN
•
Prend en charge la protection contre la foudre/les décharges
•
électrostatiques
Prend en charge la fonction d’économie d’énergie Ethernet
•
802.3az
Prend en charge PXE
•
1 x port souris/clavier PS/2
•
1 x port D-Sub
•
1 x port HDMI
•
1 x DisplayPort 1.2
•
2 x ports USB 2.0 (Protection contre les décharges électrosta-
•
tiques)
1 x port USB 3.1 Gen2 type A (10 Go/s) (Protection contre les
•
décharges électrostatiques)
1 x port USB 3.1 Gen2 type C (10 Go/s) (Protection contre les
•
décharges électrostatiques)
4 x ports USB 3.1 Gen1 (Protection contre les décharges élec-
•
trostatiques)
1 x port RJ-45 LAN avec LED (LED ACT/LIEN et LED
•
VITESSE)
Connecteurs jack audio HD : Entrée ligne / haut-parleur avant
•
/ microphone
B450 Pro4
Français
57
Français
Stockage
Connecteur
4 x connecteurs SATA3 6,0 Go/s, prise en charge de RAID
•
(RAID 0, RAID 1 et RAID 10), NCQ, AHCI et «Hot Plug»* 2 x connecteurs SATA3 6,0 Go/s ASMedia ASM1061, compati-
•
bles avec NCQ, AHCI et «Hot Plug» * Lignes partagées M2_2, SATA3_3 et SATA3_4. Si vous utilisez un connecteur, les autres seront désactivés.
1 x socket Ultra M.2 (M2_1), prend en charge les modules M.2
•
PCI Express type 2242/2260/2280 touche M jusqu'à Gen3 x4 (32
Go/s) (avec Summit Ridge, Raven Ridge et Pinnacle Ridge)**
1 x socket M.2 (M2_2), prend en charge les modules M.2
•
SATA3 6,0 Go/s type 2230/2242/2260/2280/22110 et M.2 PCI
Express touche M jusqu'à Gen3 x2 (16 Go/s)** ** Si M2_1 est occupé, PCIE4 est désactivé. ** Prend en charge les SSD NVMe comme disques de démarrage ** Prend en charge le kit ASRock U.2
1 x embase pour port COM
•
1 x embase TPM
•
1 x prise DEL d’alimentation et haut-parleur
•
1 x embase LED RVB
•
* Prend en charge les rubans LED jusqu'à 12 V/3 A, 36 W au total
1 x embase LED adressable
•
* Prend en charge les rubans LED jusqu'à 5 V/3 A, 15 W au total
1 x embase LED de ventilateur AMD
•
* L'embase LED de ventilateur AMD prend en charge les rubans LED d'une charge maximale de 3A (36W) et d'une longueur maximale de 2,5m.
1 x connecteur pour ventilateur de CPU (4 broches)
•
* Le connecteur pour ventilateur de CPU prend en charge un ventilateur de CPU d'une puissance maximale de 1 A (12 W).
1 x connecteur pour ventilateur de processeur /pompe à eau (4
•
broches) (contrôle de vitesse de ventilateur intelligent) * Le ventilateur de processeur /pompe à eau prend en charge un ventilateur de refroidisseur d'eau d'une puissance maximale de 2A (24 W).
3 x connecteurs pour ventilateur de châssis /pompe à eau (4
•
broches) (contrôle de vitesse de ventilateur intelligent) * Le ventilateur de châssis /pompe à eau prend en charge un ventilateur de refroidisseur d'eau d'une puissance maximale de 2A (24 W).
58
* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP et CHA_ FAN3/WP peuvent détecter automatiquement si un ventilateur 3 broches ou 4 broches est utilisé.
1 x connecteur d’alimentation ATX 24 broches
•
1 x connecteur d’alimentation 12V 8 broches
•
1 x connecteur audio panneau frontal
•
2 x embases USB 2.0 (4 ports USB 2.0 pris en charge)
•
(Protection contre les décharges électrostatiques) 1 x embase USB 3.1 Gen1 (2 ports USB 3.1 Gen1 pris en
•
charge) (Protection contre les décharges électrostatiques)
BIOS UEFI AMI avec prise en charge d’interface graphique
Caractéri­stiques du BIOS
Surveillance du matériel
•
multilingue Prend en charge la fonction «Plug and Play»
•
Compatible ACPI 5.1 Wake Up Events
•
Prend en charge la conguration Jumpfree
•
Compatible SMBIOS 2.3
•
Réglage de la tension DRAM
•
Détection de température : CPU, Carte mère
•
Tachymètre de ventilateur : Ventilateurs de CPU, CPU /pompe
•
à eau, châssis /pompe à eau Ventilateur silencieux (réglage automatique de la vitesse du
•
ventilateur du châssis d’après la température du CPU) : Ventila­teurs de CPU, CPU /pompe à eau, châssis /pompe à eau Contrôle simultané des vitesses du ventilateur : Ventilateurs de
•
CPU, CPU /pompe à eau, châssis /pompe à eau Surveillance de la tension d’alimentation : +12V, +5V, +3,3V,
•
CPU Vcore
Microso® Windows® 10 64 bits
Système
•
d’exploitation
FCC, CE
Certications
* pour des informations détaillées de nos produits, veuillez visiter notre site: http://www.asrock.com
•
ErP/EuP Ready (alimentation ErP/EuP ready requise)
•
B450 Pro4
Français
Il est important de signaler que l’overclocking présente certains risques, incluant des modi­cations du BIOS, l’application d’une technologie d’overclocking déliée et l’utilisation d’outils d’overclocking développés par des tiers. La stabilité de votre système peut être aectée par ces pratiques, voire provoquer des dommages aux composants et aux périphériques du système. L’overclocking se fait à vos risques et périls. Nous ne pourrons en aucun cas être tenus pour responsables des dommages éventuels provoqués par l’overclocking.
59
1.3 Conguration des cavaliers (jumpers)
L’illustration ci-dessous vous renseigne sur la conguration des cavaliers (jumpers). Lorsque le capuchon du cavalier est installé sur les broches, le cavalier est «court-circuité». Si le capuchon du cavalier n’est pas installé sur les broches, le cavalier est «ouvert».
Cavalier Clear CMOS (CLRCMOS2) (voir p.1, No. 19)
CLRCMOS2 vous permet d’eacer les donnés de la CMOS. Pour eacer les paramètres du système et rétablir les valeurs par défaut, veuillez éteindre votre ordinateur et débrancher son cordon d’alimentation. Patientez 15 secondes, puis utilisez un capuchon de cavalier pour court-circuiter les broches sur CLRCMOS2 pendant 5 secondes. Toutefois, n’eacez pas la CMOS immédiatement après avoir mis à jour le BIOS. Si vous avez besoin d’eacer les données CMOS après une mise à jour du BIOS, vous devez tout d’abord redémarrer le système, puis l’éteindre avant de procéder à l’eacement de la CMOS. Veuillez noter que les paramètres mot de passe, date, heure et prol de l’utilisateur seront uniquement eacés en cas de retrait de la pile de la CMOS. N’oubliez pas de retirer le capuchon du cavalier une fois les données CMOS eacées.
2-pin Jumper
Français
60
1.4 Embases et connecteurs de la carte mère
Les embases et connecteurs situés sur la carte NE SONT PAS des cavaliers. Ne placez JAMAIS de capuchons de cavaliers sur ces embases ou connecteurs. Placer un capuchon de cavalier sur ces embases ou connecteurs endommagera irrémédiablement votre carte mère.
B450 Pro4
Embase du panneau système (PANNEAU1 à 9 broches) (voir p.1, No. 16)
PWRBTN (bouton d’alimentation):
pour brancher le bouton d’alimentation du panneau frontal du châssis. Vous pouvez cong­urer la façon dont votre système doit s’arrêter à l’aide du bouton de mise en marche.
RESET (bouton de réinitialisation):
pour brancher le bouton de réinitialisation du panneau frontal du châssis. Appuyez sur le bouton de réinitialisation pour redémarrer l’ordinateur en cas de plantage ou de dysfonc­tionnement au démarrage.
PLED (LED d’alimentation du système) :
pour brancher le témoin d’état de l’alimentation du panneau frontal du châssis. Le LED est allumé lorsque le système fonctionne. Le LED clignote lorsque le système se trouve en mode veille S3. Le LED est éteint lorsque le système se trouve en mode veille S4 ou hors tension (S5).
HDLED (LED d’activité du disque dur) :
pour brancher le témoin LED d’activité du disque dur du panneau frontal du châssis. Le LED est allumé lorsque le disque dur lit ou écrit des données.
La conception du panneau frontal peut varier en fonction du châssis. Un module de panneau frontal est principalement composé d’un bouton de mise en marche, bouton de réinitialisation, LED d’alimentation, LED d’activité du disque dur, haut-parleur etc. Lorsque vous reliez le module du panneau frontal de votre châssis sur cette embase, veillez à parfaitement faire correspondre les ls et les broches.
1
PLED+
PLED-
HDLED-
HDLED+
PWRBTN#
GND
GND
RESET#
GND
Branchez le bouton de mise en marche, le bouton de réinitialisation et le témoin d’état du système présents sur le châssis sur cette embase en respectant la conguration des broches illustrée ci-dessous. Repérez les broches positive et négative avant de brancher les câbles.
Français
61
Prise DEL d’alimentation
SPEAKER
et haut-parleur (SPK_PLED1 à 7 broches) (voir p.1, No. 15)
DUMMY +5V
1
PLED+
DUMMY
PLED+
PLED-
Veuillez brancher la DEL d'alimentation du châssis et le haut-parleur du châssis sur ce connecteur.
Français
Connecteurs Serial ATA3 (SATA3_1: voir p.1, No. 9) (SATA3_2: voir p.1, No. 8) (SATA3_3: voir p.1, No. 13) (SATA3_4: voir p.1, No. 14) (SATA3_A1: voir p.1, No. 11) (SATA3_A2: voir p.1, No. 12)
Embases USB 2.0 (USB_1_2 à 9 broches) (voir p.1, No. 22) (USB_3_4 à 9 broches) (voir p.1, No. 21)
SATA3_1
USB_PWR
1
USB_PWR
Ces six connecteurs SATA3 sont compatibles avec les câbles de données SATA pour les
SATA3_2SATA3_A1
appareils de stockage internes avec un taux de transfert maximal de 6,0 Go/s.
* Lignes partagées M2_2, SATA3_3 et SATA3_4. Si vous utilisez un connecteur, les
SATA3_A2
autres seront désactivés.
* Pour minimiser le temps au
SATA3_3
démarrage, utilisez les ports AMD SATA (SATA3_1~4) pour vos appareils démarrables.
SATA3_4
P-
P+
GND
DUMMY
GND
P+
P-
Cette carte mère comprend deux connecteurs. Chaque embase USB 2.0 peut prendre en charge deux ports.
62
Embase USB 3.1 Gen1 (USB3_5_6 à 19 broches) (voir p.1, No. 7)
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
VbusVbus
IntA_PB_SSRX-
IntA_PB_SSRX+
GND
IntA_PB_SSTX-
IntA_PB_SSTX+
GND
IntA_PB_D-
IntA_PB_D+
Dummy
1
Cette carte mère comprend un connecteur. Chaque embase USB 3.1 Gen1 peut prendre en charge deux ports.
B450 Pro4
4 3 2 1
Embase audio du panneau frontal (HD_AUDIO1 à 9 broches) (voir p.1, No. 26)
1. L’audio haute dénition prend en charge la technologie Jack Sensing (détection de la che), mais le panneau grillagé du châssis doit être compatible avec la HDA pour fonc­tionner correctement. Veuillez suivre les instructions gurant dans notre manuel et dans le manuel du châssis pour installer votre système.
2. Si vous utilisez un panneau audio AC’97, veuillez le brancher sur l’embase audio du pan­neau frontal en procédant comme suit : A. branchez Mic_IN (MIC) sur MIC2_L. B. branchez Audio_R (RIN) sur OUT2_R et Audio_L (LIN) sur OUT2_L. C. branchez la mise à terre (GND) sur mise à terre (GND). D. MIC_RET et OUT_RET sont exclusivement réservés au panneau audio HD. Il est inutile de les brancher avec le panneau audio AC’97. E. Pour activer le micro frontal, sélectionnez l’onglet «FrontMic» du panneau de contrôle Realtek et réglez le paramètre «Volume d’enregistrement».
Connecteur ventilateur châssis / ventilateur pompe à eau (CHA_FAN1/WP à 4 broches) (voir p.1, No. 27) (CHA_FAN2/WP à 4 broches) (voir p.1, No. 18) (CHA_FAN3/WP à 4 broches) (voir p.1, No. 17)
GND
PRESENCE#
MIC_RET
1
J_SENSE
OUT2_R
MIC2_R
MIC2_L
FAN _SPEED_CONTROL
CHA_FAN_SPEED
FAN_VOLTAGE
GND
FAN_SPEED_CONTROL
CHA_FAN_SPEED
FAN_VOLTAGE
OUT_RET
OUT2_L
Cette embase sert au branchement des appareils audio au panneau audio frontal.
Veuillez brancher les câbles du
4 3
ventilateur sur les connecteurs
2
du ventilateur, puis reliez le l
1
noir à la broche de mise à terre.
GND
Connecteur du ventilateur du processeur (CPU_FAN1 à 4 broches) (voir p.1, No. 5)
1 2 3 4
GND
FAN_VOLTAGE
CPU_FAN_SPEED
FAN_SPEED_CONTROL
Cette carte mère est dotée d’un connecteur pour ventilateur de processeur (Quiet Fan) à 4 broches. Si vous envisagez de connecter un ventilateur de processeur à 3 broches, veuillez le brancher sur la Broche 1-3.
Français
63
Connecteur ventilateur de
12
5
1
8
4
processeur / ventilateur pompe à eau (CPU_FAN2/WP à 4 broches) (voir p.1, No. 4)
Connecteur d’alimentation ATX (ATXPWR1 à 24 broches) (voir p.1, No. 6)
1 2 3 4
GND
FAN_VOLTAGE
CPU_FAN_SPEED
FAN_SPEED_CONTROL
24
13
1
Cette carte mère est dotée d’un connecteur pour ventilateur de processeur (Quiet Fan) à 4 broches. Si vous envisagez de connecter un ventilateur de processeur à 3 broches, veuillez le brancher sur la Broche 1-3.
Cette carte mère est dotée d’un connecteur d’alimentation ATX à 24 broches. Pour utiliser une alimentation ATX à 20 broches, veuillez eectuer les branchements sur la Broche 1 et la Broche 13.
Français
Connecteur d’alimentation ATX 12V (ATX12V1 à 8 broches) (voir p.1, No. 1)
Embase pour port série (COM1 à 9 broches) (voir p.1, No. 23)
Embase TPM (TPMS1 à 17 broches) (voir p.1, No. 25)
Cette carte mère est dotée d’un connecteur d’alimentation ATX 12V à 8 broches. Pour utiliser une alimentation ATX à 4 broches, veuillez eectuer les branchements sur la Broche 1 et la Broche 5.
1
RRXD1
DDTR#1
TTXD1
DDCD#1
DDSR#1
CCTS#1
RRTS#1
GND
RRI#1
Cette embase COM1 prend en charge un module de port série.
Ce connecteur prend en charge un module TPM (Trusted
SMB_ CLK _MA IN
GND
SMB_ DAT A_M AIN
LAD2
GND
LAD1
S_PW RDW N#
1
+3V
LAD3
LAD0
FRAM E
PCIC LK
PCIR ST#
Platform Module – Module de
SERI RQ#
GND
plateforme sécurisée), qui permet de sauvegarder clés, certicats numériques, mots de passe et
GND
+3VS B
données en toute sécurité. Le système TPM permet également de renforcer la sécurité du réseau, de protéger les identités numériques et de préserver l’intégrité de la plateforme.
64
B450 Pro4
Embase LED RVB (RGB_LED1 à 4 broches) (voir p.1, No. 24)
Embase LED de VENTI­LATEUR AMD (AMD_FAN_LED1 à 4 broches) (voir p.1, No. 3)
1
12V GRB
1
12V GRB
L'embase LED RVB sert à connecter le câble d'extension LED RVB qui permet aux utilisateurs de choisir parmi plusieurs eets lumineux LED.
Attention : N'installez jamais le
câble LED RVB dans le mauvais
sens ; dans le cas contraire, le
câble peut être endommagé.
*Veuillez consulter la page 39 pour des instructions supplémen­taires sur ces deux embases.
L'embase LED de VENTILATEUR AMD sert à connecter le câble d'extension LED RVB fourni avec un dissipateur thermique AMD. La connexion par câble permet aux utilisateurs de choisir parmi plusieurs eets lumineux LED.
Attention : N'installez jamais le
câble LED de VENTILATEUR
dans le mauvais sens ; dans le
cas contraire, le câble peut être
endommagé.
Embase LED adressable (ADDR_LED1 à 3 broches1) (voir p.1, No. 20)
1
VOUT
DO_ADDR
GND
Cette embase sert à connecter un câble de rallonge LED able
permettant aux utilisateurs
adress-
de choisir parmi diérents eets lumineux LED.
Attention : N’installez jamais
le câble LED adressable dans le
mauvais sens. Dans le cas con-
traire, le câble peut être endom-
magé.
*Veuillez consulter la page 40 pour des instructions supplémentaires sur cette embase.
Français
65
1 Introduzione
Congratulazioni per l’acquisto della scheda madre ASRock B450 Pro4, una scheda madre adabile prodotta secondo i severissimi controlli di qualità ASRock. La scheda madre ore eccellenti prestazioni con un design robusto che si adatta all'impegno di ASRock di orire sempre qualità e durata.
Dato che le speciche della scheda madre e del soware BIOS possono essere aggiornate, il contenuto di questo manuale sarà soggetto a variazioni senza preavviso. Nel caso di eventuali modiche del presente manuale, la versione aggiornata sarà disponibile sul sito Web di ASRock senza ulteriore preavviso. Per il supporto tecnico correlato a questa scheda madre, visitare il nostro sito Web per informazioni speciche relative al modello attual­mente in uso. È possibile trovare l'elenco di schede VGA più recenti e di supporto di CPU anche sul sito Web di ASRock. Sito Web di ASRock http://www.asrock.com.
1.1 Contenuto della confezione
Scheda madre ASRock B450 Pro4 (Form Factor ATX)
•
Guida all'installazione rapida di ASRock B450 Pro4
•
CD di supporto ASRock B450 Pro4
•
1 x mascherina metallica posteriore I/O
•
2 x cavi dati Serial ATA (SATA) (opzionali)
•
2 x viti per Socket M.2 (opzionali)
•
Italiano
66
1.2 Speciche
Piattaforma
CPU
Chipset
Memoria
Fattore di forma ATX
•
Design condensatore solido
•
Socket AMD AM4
•
Digi Power design
•
Potenza a 9 fasi
•
Supporto di rareddamento ad acqua 105W (Pinnacle Ridge);
•
supporto di rareddamento ad acqua 95W (Summit Ridge); supporto di rareddamento ad acqua 65W (Raven Ridge)
AMD Promontory B450
•
Tecnologia memoria DDR4 Dual Channel
•
4 x alloggi DIMM DDR4
•
CPU serie AMD Ryzen (Pinnacle Ridge) supporto di memoria
•
un-buered* DDR4 3200+(OC)/2933/2667/2400/2133 ECC e non-ECC Le CPU serie AMD Ryzen (Summit Ridge) supportano DDR4
•
3200+(OC)/2933 (OC)/2667/2400/2133 ECC e non ECC, senza buer* Le CPU serie AMD Ryzen (Raven Ridge) supportano DDR4
•
3200+(OC)/2933 (OC)/2667/2400/2133 non ECC, senza
buer* * Per le CPU serie Ryzen (Raven Ridge), è supportata solo la memoria ECC senza CPU PRO. * Per maggiori informazioni fare riferimento all'elenco dei supporti di memoria sul sito di ASRock. (http://www.asrock.com/) * Fare riferimento a pagina 23 per il supporto della frequenza massima DDR4 UDIMM.
Capacità max. della memoria di sistema: 64GB
•
Contatti d’oro 15μ negli alloggi DIMM
•
B450 Pro4
Italiano
67
Italiano
Alloggio d’espansione
Graca
CPU serie AMD Ryzen (Summit Ridge e Pinnacle Ridge)
2 x Alloggi PCI Express 3.0 x16 (PCIE2:modalità x16;
•
PCIE4:modalità x4)*
CPU serie AMD Ryzen (Raven Ridge)
2 x Alloggi PCI Express 3.0 x16 (PCIE2:modalità x8;
•
PCIE4:modalità x4)*
* Supporto di SSD NVMe come disco d’avvio * Se l'alloggio M2_1 è occupato, l'alloggio PCIE4 viene disabilitato.
4 x alloggi PCI Express 2.0 x1
•
Supporta AMD Quad CrossFireXTM e CrossFireXTM**
•
** Questa funzione è supportata solamente con CPU serie Ryzen (Summit Ridge, Pinnacle Ridge and Raven Ridge).
TM
Graca AMD Radeon
•
Ryzen*
* Il supporto eettivo può variare in base alla CPU
DirectX 12, Pixel Shader 5.0
•
Memoria condivisa max. 2GB
•
Tre opzioni di output grafico: D-Sub, HDMI e DisplayPort 1.2
•
Supporto di tre monitor
•
Supporta HDMI con risoluzione massima no a 4K x 2K
•
(4096x2160) a 24Hz / (3840x2160) a 30Hz Supporta DisplayPort 1.2
•
x 2K (4096x2160) a 60 Hz Supporta D-Sub con una risoluzione max. no a 1920 x 1200 a
•
60 Hz Supporto delle funzioni Auto Lip Sync, Deep Color (12bpc),
•
xvYCC e HBR (High Bit Rate Audio) con porta HDMI (È necessario un monitor compatibile HDMI) Supporto HDCP con le porte HDMI e DisplayPort 1.2
•
Supporto riproduzione 4K Ultra HD (UHD) sulle porte
•
HDMI e DisplayPort 1.2
serie Vega integrata nelle APU serie
con risoluzione massima fino a 4K
68
Audio
LAN
I/O pannello posteriore
Audio HD a 7.1 canali con Content Protection (codec audio
•
Realtek ALC892) * Per congurare l’audio HD 7.1 canali, è necessario utilizzare un modulo pannello frontale audio HD ed attivare la funzione audio multicanale tramite il driver audio.
Supporto audio Blu-ray Premium
•
Supporta protezione da sovratensione
•
Cappucci audio ELNA
•
1 x PCIE LAN Gigabit 10/100/1000 Mb/s
•
Realtek RTL8111H
•
Supporto WOL (Wake-On-LAN)
•
Supporta protezione da fulmini/scariche elettrostatiche
•
Supporto Energy Ecient Ethernet 802.3az
•
Supporto PXE
•
1 x porta mouse/tastiera PS/2
•
1 x porta D-Sub
•
1 x porta HDMI
•
1 x DisplayPort 1.2
•
2 x porte USB 2.0 (supporto protezione da scariche elettrostat-
•
iche)
1 x Porta USB 3.1 Gen2 di tipo A (10 Gb/s) (Supporto protezi-
•
one ESD)
1 x Porta USB 3.1 Gen2 di tipo C (10 Gb/s) (Supporto protezi-
•
one ESD)
4 x porte USB 3.1 Gen1 (supporto protezione da scariche
•
elettrostatiche)
1 x porta LAN RJ-45 con LED (ACT/LINK LED e SPEED
•
LED)
Connettori audio HD: Ingresso linea / altoparlante frontale /
•
microfono
B450 Pro4
Italiano
69
Italiano
Archiviazione
Connettore
4 x connettori SATA3 6,0 Gb/s, supporto RAID (RAID 0, RAID
•
1, e RAID 10), NCQ, AHCI e Hot Plug* 2 x Connettori SATA3 6,0 Gb/s ASMedia ASM1061,
•
supportano NCQ, AHCI e Hot Plug * M2_2, SATA3_3 e SATA3_4 condividono le corsie. Se uno di essi è utilizzato, gli altri saranno disabilitati.
1 x Ultra M.2 Socket (M2_1), supporta un modulo M.2 PCI
•
Express tipo M Key 2242/2260/2280 no a Gen3 x4 (32 Gb/s)
(con Summit Ridge, Raven Ridge and Pinnacle Ridge)**
1 x Socket M.2 (M2_2), supporta il modulo M.2 SATA3 6,0 Gb/
•
s di tipo M Key 2230/2242/2260/2280/22110 ed il modulo M.2
PCI Express no a Gen3 x2 (16 Gb/s)** ** Se l'alloggio M2_1 è occupato, l'alloggio PCIE4 viene disabili­tato. ** Supporto di SSD NVMe come disco d’avvio ** Supporta kit ASRock U.2
1 x connettore porta COM
•
1 x connettore TPM
•
1 x connettore LED alimentazione e altoparlante
•
1 x collettore LED RGB
•
* Supporto totale di no a 12V/3A, 36W strip LED
1 x Header LED indirizzabile
•
* Supporto totale di no a 5V/3A, 15W strip LED
1 x Collettore LED AMD FAN
•
* Il collettore LED ventola AMD supporta strisce LED con un carico massimo di 3A (36W) e di lunghezza massima di 2,5 m.
1 x connettore ventola CPU (4-pin)
•
* Il connettore ventola CPU supporta ventole CPU con potenza massima di 1 A (12 W).
1 x connettore ventola CPU/ventola pompa dell’acqua (4 pin)
•
(Smart Fan Speed Control) * La ventola CPU/ventola pompa dell’acqua supporta ventole di sistemi di rareddamento ad acqua di potenza massima di 2A (24W).
3 x connettori ventola telaio/ventola pompa dell’acqua (4 pin)
•
(Controllo intelligente della velocità della ventola) * La ventola Chassis/ventola pompa dell’acqua supporta ventole di sistemi di rareddamento ad acqua di potenza massima di 2A (24W).
70
Funzionalità BIOS
Hardware­Monitor
* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP e CHA_ FAN3/WP sono in grado di rilevare se è in uso una ventola a 3 pin o 4 a pin.
1 x connettore alimentazione ATX 24 pin
•
1 x connettore alimentazione 12 V 8-pin
•
1 x connettore audio pannello frontale
•
2 x connettori USB 2.0 (supporto di 4 porte USB 2.0) (supporta
•
protezione da scariche elettrostatiche) 1 x connettore USB 3.1 Gen1 (supporto di 2 porte USB 3.1
•
Gen1) (supporto protezione da scariche elettrostatiche)
AMI UEFI Legal BIOS con interfaccia di supporto multilingue
•
Supporta “Plug and Play”
•
Eventi di riattivazione conformi a ACPI 5.1
•
Supporta jumperfree
•
Supporto di SMBIOS 2.3
•
Regolazione variabile tensione DRAM
•
Sensore di temperatura: CPU, Scheda madre
•
Tachimetro ventola: Ventole CPU, CPU/pompa dell'acqua,
•
telaio/pompa dell'acqua Ventola silenziosa (regolazione automatica velocità in base alla
•
temperatura della CPU): Ventole CPU, CPU/pompa dell'acqua, telaio/pompa dell'acqua Controllo velocità ventola: Ventole CPU, CPU/pompa
•
dell'acqua, telaio/pompa dell'acqua Monitoraggio tensione: +12 V, +5 V, +3,3 V, Vcore
•
B450 Pro4
Microso® Windows® 10 64 bit
SO
Certicazioni
* Per informazioni dettagliate sul prodotto, visitare il nostro sito Web: http://www.asrock.com
Prestare attenzione al potenziale rischio previsto nella pratica di overclocking, inclusa la regolazione delle impostazioni nel BIOS, l'applicazione di tecnologia di Untied Overclock­ing o l'utilizzo di strumenti di overclocking di terze parti. L'overclocking può inuenzare la stabilità del sistema o perno provocare danni ai componenti e ai dispositivi del sistema. Occorre eseguirlo a proprio rischio e spese. Non ci riterremo responsabili per possibili danni provocati da overclocking.
•
FCC, CE
•
ErP/EuP Ready (è necessaria alimentazione ErP/EuP ready)
•
Italiano
71
1.3 Impostazione jumper
L'illustrazione mostra in che modo vengono impostati i jumper. Quando il cappuccio del jumper è posizionato sui pin, il jumper è "cortocircuitato". Se sui pin non è posizionato alcun cappuccio del jumper, il jumper è "aperto".
Jumper per azzerare la CMOS (CLRCMOS2) (vedere pag. 1, n. 19)
CLRCMOS2 permette si azzerare i dati nella CMOS. Per azzerare e reimpostare i parametri del sistema alla congurazione predenita, spegnere il computer e scollegare il cavo di alimentazione dalla rete. Attendere 15 secondi, quindi usare un cappuccio jumper per cortocircuitare i di CLRCMOS2 per 5 secondi. Tuttavia, non azzerare la CMOS subito dopo aver aggiornato il BIOS. Se è necessario azzerare la CMOS dopo l'aggiornamento del BIOS, è necessario riavviare prima il sistema e in seguito spegnerlo prima di eseguire l'operazione di azzeramento della CMOS. La password, la data, l'ora e il prolo predenito dell'utente saranno azzerati solo se viene rimossa la batteria della CMOS. Ricordarsi di rimuovere il cappuccio jumper prima di cancellare la CMOS.
2-pin Jumper
Italiano
72
1.4 Header e connettori su scheda
Gli header e i connettori sulla scheda NON sono jumper. NON posizionare cappucci del jumper su questi header e connettori. Il posizionamento di cappucci del jumper su header e connettori provocherà danni permanenti alla scheda madre.
B450 Pro4
Header sul pannello del sistema (PANEL1 a 9 pin) (vedere pag. 1, n. 16)
PWRBTN (interruttore di alimentazione):
collegare all'interruttore dell'alimentazione sul pannello anteriore dello chassis. È possibile congurare il modo in cui spegnere il sistema utilizzando l'interruttore dell'alimentazione.
RESET (interruttore di reset):
collegare all'interruttore di reset sul pannello anteriore dello chassis. Premere l'interruttore di reset per riavviare il computer se il computer si blocca e non riesce ad eseguire un nor­male riavvio.
PLED (LED alimentazione del sistema):
collegare all'indicatore di stato dell'alimentazione sul pannello anteriore dello chassis. Il LED è acceso quando il sistema è in funzione. Il LED continua a lampeggiare quando il sis­tema si trova nello stato di sospensione S3. Il LED è spento quando il sistema si trova nello stato di sospensione S4 o quando è spento (S5).
HDLED (LED di attività disco rigido):
collegare al LED di attività disco rigido sul pannello anteriore dello chassis. Il LED è acceso quando il disco rigido sta leggendo o scrivendo dati.
Il design del pannello anteriore può cambiare a seconda dello chassis. Un modulo di pan­nello anteriore è composto principalmente da interruttore di alimentazione, interruttore di reset, LED di alimentazione, LED di attività disco rigido, altoparlante, ecc. Quando si collega il modulo del pannello anteriore dello chassis a questo header, accertarsi che le assegnazioni del lo e le assegnazioni del pin corrispondano correttamente.
1
PLED+
PLED-
HDLED-
HDLED+
PWRBTN#
GND
GND
RESET#
GND
Collegare l'interruttore dell'alimentazione, l'interruttore di reset e l'indicatore dello stato del sistema sullo chassis su questo header secondo la seguente assegnazione dei pin. Annotare i pin positivi e negativi prima di collegare i cavi.
Italiano
73
Connettore LED
SPEAKER
alimentazione e altoparlante (SPK_PLED1 a 7 pin) (vedere pag. 1, n. 15)
DUMMY +5V
1
PLED+
DUMMY
PLED+
PLED-
Collegare i LED alimentazione e l’altoparlante a questo connet-l’altoparlante a questo connet-a questo connet­tore.
Italiano
Connettori Serial ATA3 (SATA3_1: vedere pag.1, n. 9) (SATA3_2: vedere pag. 1, n. 8) (SATA3_3: vedere pag. 1, n. 13) (SATA3_4: vedere pag.1, n. 14) (SATA3_A1: vedere pag.1, n. 11) (SATA3_A2: vedere pag.1, n. 12)
Header USB 2.0 (USB_1_2 a 9 pin) (vedere pag. 1, n. 22) (USB_3_4 a 9 pin) (vedere pag. 1, n. 21)
SATA3_1
USB_PWR
1
USB_PWR
Questi sei connettori SATA3 supportano cavi dati SATA per dispositivi di archiviazione
SATA3_2SATA3_A1
interna, con una velocità di trasferimento dati no a 6,0 Gb/s.
* M2_2, SATA3_3 e SATA3_4 condividono le corsie. Se uno di essi è utilizzato, gli altri saranno disabilitati.
SATA3_A2
* Per ridurre al minimo il tempo d’avvio, usare le porte
SATA3_3
SATA AMD (SATA3_1~4) per i dispositivi di’avvio.
SATA3_4
P-
P+
GND
DUMMY
GND
P+
P-
Ci sono due connettori su questa scheda madre. Ciascun header USB 2.0 può supportare due porte.
74
Header USB 3.1 Gen1 (USB3_5_6 a 19 pin) (vedere pag. 1, n. 7)
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
VbusVbus
IntA_PB_SSRX-
IntA_PB_SSRX+
GND
IntA_PB_SSTX-
IntA_PB_SSTX+
GND
IntA_PB_D-
IntA_PB_D+
Dummy
1
Su questa scheda madre c’è un connettore. Ciascun header USB 3.1 Gen1 può supportare due porte.
B450 Pro4
Header audio pannello anteriore (HD_AUDIO1 a 9 pin) (vedere pag. 1, n. 26)
1. L'audio ad alta denizione supporta le funzioni Jack sensing, ma il lo del pannello sullo chassis deve supportare HDA per funzionare correttamente. Seguire le istruzioni presenti nel nostro manuale e nel manuale dello chassis per installare il sistema.
2. Se si utilizza un pannello audio AC’97, installarlo sull'header audio del pannello anteri­ore seguendo le fasi di seguito: A. Collegare Mic_IN (MIC) a MIC2_L. B. Collegare Audio_R (RIN) a OUT2_R e Audio_L (LIN) a OUT2_L. C. Collegare Ground (GND) a Ground (GND). D. MIC_RET e OUT_RET servono soltanto per il pannello audio HD. Non è necessario collegarli per il pannello audio AC’97. E. Per attivare il microfono anteriore, andare alla scheda “FrontMic” nel pannello di controllo Realtek e regolare il “Volume di registrazione”.
Connettore ventola telaio / ventola pompa dell’acqua (CHA_FAN1/WP a 4 pin) (vedere pag. 1, n. 27) (CHA_FAN2/WP a 4 pin) (vedere pag. 1, n. 18) (CHA_FAN3/WP a 4 pin) (vedere pag. 1, n. 17)
GND
PRESENCE#
MIC_RET
1
J_SENSE
OUT2_R
MIC2_R
MIC2_L
FAN _SPEED_CONTROL
CHA_FAN_SPEED
FAN_VOLTAGE
GND
FAN_SPEED_CONTROL
CHA_FAN_SPEED
FAN_VOLTAGE
OUT_RET
OUT2_L
4 3 2 1
Questo header serve a collegare i dispositivi audio al pannello audio anteriore.
Collegare i cavi della ventola ai
4 3
connettori della ventola e far
2
corrispondere il lo nero al pin
1
di terra.
GND
Connettore ventola CPU (CPU_FAN1 a 4 pin) (vedere pag. 1, n. 5)
1 2 3 4
GND
FAN_VOLTAGE
CPU_FAN_SPEED
FAN_SPEED_CONTROL
Questa scheda madre è dotata di un connettore per la ventola della CPU (Ventola silenziosa) a 4 pin. Se si decide di collegare una ventola della CPU a 3 pin, collegarla al pin 1-3.
Italiano
75
Connettore ventola CPU /
12
5
1
8
4
ventola pompa dell’acqua (CPU_FAN2/WP a 4 pin) (vedere pag. 1, n. 4)
1 2 3 4
GND
FAN_VOLTAGE
CPU_FAN_SPEED
FAN_SPEED_CONTROL
Questa scheda madre è dotata di un connettore per la ventola della CPU (Ventola silenziosa) a 4 pin. Se si decide di collegare una ventola della CPU a 3 pin, collegarla al pin 1-3.
Italiano
Connettore di alimentazione ATX (ATXPWR1 a 24 pin) (vedere pag. 1, n. 6)
Connettore di alimentazione ATX da 12 V (ATX12V1 a 8 pin) (vedere pag. 1, n. 1)
Header porta seriale (COM1 a 9 pin) (vedere pag. 1, n. 23)
Header TPM (TPMS1 a 17 pin) (vedere pag. 1, n. 25)
24
Questa scheda madre è dotata di un connettore di alimentazi­one ATX a 24 pin. Per utiliz­zare un'alimentazione ATX a 20 pin, collegarla lungo il pin 1
13
1
e il pin 13.
Questa scheda madre è dotata di un connettore di alimen­tazione ATX da 12 V a 8 pin. Per utilizzare un'alimentazione ATX a 4 pin, collegarla lungo il pin 1 e il pin 5.
1
RRXD1
DDTR#1
TTXD1
DDCD#1
DDSR#1
CCTS#1
RRTS#1
GND
RRI#1
Questo header COM1 supporta un modulo di porta seriale.
Questo connettore supporta il sistema Trusted Platform
SMB_ CLK _MA IN
GND
SMB_ DAT A_M AIN
LAD2
GND
LAD1
S_PW RDW N#
1
+3V
LAD3
LAD0
FRAM E
PCIC LK
PCIR ST#
Module (TPM), che può
SERI RQ#
GND
archiviare in modo sicuro chiavi, certicati digitali, password e dati. Un sistema
GND
+3VS B
TPM permette anche di potenziare la sicurezza della rete, di proteggere identità digitali e di garantire l'integrità della piattaforma.
76
B450 Pro4
Collettore LED RGB (RGB_LED1 a 4 pin) (vedere pag. 1, n. 24)
Collettore LED AMD FAN (AMD_FAN_LED1 a 4 pin) (vedere pag. 1, n. 3)
1
12V GRB
1
12V GRB
Il collettore LED RGB viene utilizzato per collegare la prolunga LED RGB, che consente agli utenti di scegliere tra vari eetti di illuminazione a LED.
Attenzione: Non installare il cavo
LED RGB in senso errato; in
caso contrario, il cavo potrebbe
danneggiarsi.
*Fare riferimento a pagina 39 per ulteriori istruzioni su questi due connettori.
Il collettore LED AMD FAN viene utilizzato per collegare la prolunga LED RGB in dotazione con dissipatore di calore AMD. Il collegamento del cavo consente agli utenti di selezionare tra vari eetti di illuminazione a LED.
Attenzione: Non installare il
cavo LED FAN in senso errato; in
caso contrario, il cavo potrebbe
danneggiarsi.
Header LED indirizzabile (ADDR_LED1 a 3 pin) (vedere pag. 1, n. 20)
1
VOUT
DO_ADDR
GND
Questo header serve a collegare il cavo di estensione del LED rizzabile
che consente di scegliere
indi-
tra vari eetti luce LED.
Attenzione: Non installare mai
il cavo del LED indirizzabile
secondo un orientamento errato,
altrimento potrebbe danneg-
giarsi.
* Fare riferimento a pagina 40 per ulteriori istruzioni su questa basetta.
Italiano
77
1 Introducción
Gracias por comprar la placa base ASRock B450 Pro4, una placa base able fabricada según el rigurosísimo control de calidad de ASRock. Ofrece un rendimiento excelente con un diseño resistente de acuerdo con el compromiso de calidad y resistencia de ASRock.
Ya que las especicaciones de la placa base y el soware del BIOS podrán ser actualizados, el contenido que aparece en este manual estará sujeto a modicaciones sin previo aviso. Si este manual sufre alguna modicación, la versión actualizada estará disponible en el sitio web de ASRock sin previo aviso. Si necesita asistencia técnica relacionada con esta placa base, visite nuestro sitio web para obtener información especíca sobre el modelo que esté utilizando. Podrá encontrar las últimas tarjetas VGA, así como la lista de compatibilidad de la CPU, en el sitio web de ASRock. Sitio web de ASRock http://www.asrock.com.
1.1 Contenido del paquete
Placa base ASRock B450 Pro4 (Factor de forma ATX)
•
Guía de instalación rápida de ASRock B450 Pro4
•
CD de soporte de ASRock B450 Pro4
•
1 x escudo panel E/S
•
2 x Cables de datos Serie ATA (SATA) (Opcional)
•
2 x tornillos para sockets M.2 (Opcional)
•
Español
78
1.2 Especicaciones
Factor de forma ATX
Plataforma
CPU
Conjunto de chips
Memoria
•
Diseño de condensador sólido
•
Zócalo AMD AM4
•
Digi Power design
•
Diseño de 9 fases de alimentación
•
Admite refrigeración por agua de 105 W (Pinnacle Ridge);
•
admite refrigeración por agua de 95 W (Summit Ridge); admite refrigeración por agua de 65 W (Raven Ridge)
AMD Promontory B450
•
Tecnología de memoria DDR4 de doble canal
•
4 x ranuras DIMM DDR4
•
Las CPU de la serie AMD (Pinnacle Ridge)
•
admiten memoria sin búfer ECC y no ECC DDR4 3200+(OC)/2933/2667/2400/2133* Las CPU de la serie AMD (Summit Ridge) admiten memoria
•
sin búfer DDR4 3200+ (OC)/2933 (OC)/2667/2400/2133 ECC y no ECC* Las CPU de la serie AMD (Raven Ridge) admiten memoria sin
•
búfer DDR4 3200+ (OC)/2933 (OC)/2667/2400/2133 no ECC* * Para CPU de la serie Ryzen (Raven Ridge), ECC solamente se admite con CPU PRO. * Para obtener más información, consulte la lista de memorias compatibles en el sitio web de ASRock. (http://www.asrock.com/) * Consulte la página 23 para conocer las frecuencias máximas compatibles de DDR4 UDIMM.
Capacidad máxima de memoria del sistema: 64GB
•
Contacto 15μ Gold en ranuras DIMM
•
B450 Pro4
Español
79
Español
Ranura de expansión
Grácos
CPU de la serie AMD Ryzen (Summit Ridge y Pinnacle Ridge)
2 x Ranuras PCI Express 3.0 x16 (PCIE2:modo x16;
•
PCIE4:modo x4)*
CPU de la serie AMD Ryzen (Raven Ridge)
2 x Ranuras PCI Express 3.0 x16 (PCIE2:modo x8;
•
PCIE4:modo x4)*
* Admite unidad de estado sólido de NVMe como disco de arranque * Si M2_1 está ocupado, PCIE4 se deshabilitará.
4 x Ranuras PCI Express 2.0 x1
•
Compatible con AMD Quad CrossFireXTM y CrossFireXTM**
•
** Esta función solamente se admite con CPU de la serie Ryzen (Summit Ridge, Pinnacle Ridge y Raven Ridge).
TM
Tarjeta gráca de la serie AMD Radeon
•
APU de la serie Ryzen*
* El soporte real puede variar según la CPU
DirectX 12, Pixel Shader 5.0
•
Memoria máxima compartida de 2GB
•
Tres opciones de salida de gráficos: D-Sub, HDMI
•
y DisplayPort 1.2 Compatible con tres monitores
•
Admite la tecnología HDMI con una resolución máxima de 4K
•
x 2K (4096x2160) a 24Hz / (3840x2160) a 30Hz Compatible con DisplayPort 1.2 con una resolución máxima
•
de 4K x 2K (4096x2160) a 60Hz Admite D-Sub con una resolución máxima de 1920x1200 a 60
•
Hz Compatible con Auto Lip Sync, Deep Color (12bpc), xvYCC y
•
HBR (audio de alta velocidad de bits) con puerto HDMI (Se requiere un monitor HDMI compatible) Compatible con HDCP con puertos HDMI y DisplayPort 1.2
•
Admite reproducción 4K Ultra HD (UHD) con los
•
puertos HDMI y DisplayPort 1.2
Vega integrada en
80
Audio
LAN
E/S en panel posterior
7.1 Audio CH HD con Protección de contenido (Realtek
•
ALC892 Audio Codec) *Para congurar 7.1 Audio CH HD, deberá utilizar un módulo del panel frontal de audio HD y habilitar la característica de audio multicanal a través del controlador de audio.
Compatible con audio Blu-ray Premium
•
Admite protección contra sobretensiones
•
Tapas de audio ELNA
•
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
•
Realtek RTL8111H
•
Admite la función Reactivación de LAN
•
Admite protección contra rayos y descargas electrostáticas
•
(ESD)
Admite Ethernet 802.3az de eciencia energética
•
Admite PXE
•
1 x puerto de ratón/teclado PS/2
•
1 x puerto D-Sub
•
1 x puerto HDMI
•
1 x DisplayPort 1.2
•
2 x Puertos USB 2.0 (admite protección contra descargas elec-
•
trostáticas)
1 x Puerto USB 3.1 Gen2 Tipo A Port (10 Gb/s) (admite pro-
•
tección ESD)
1 x Puerto USB 3.1 Gen2 Tipo C Port (10 Gb/s) (admite protec-
•
ción ESD)
4 x Puertos USB 3.1 Gen1 (admite protección contra descargas
•
electrostáticas)
1 x Puerto LAN RJ-45 con LED (LED DE ACTIVIDAD/EN-
•
LACE y LED DE VELOCIDAD)
Conector de audio HD: Entrada de línea / Altavoz frontal /
•
Micrófono
B450 Pro4
Español
81
Español
Almacenami­ento
Conector
4 x Conectores SATA3 de 6,0 Gb/s, compatible con RAID
•
(RAID 0, RAID 1 y RAID 10), NCQ, AHCI y “Conexión en caliente”* 2 x Conectores SATA3 de 6,0 Gb/s de ASMedia ASM1061,
•
compatibilidad con las funciones NCQ, AHCI y “Conexión en
caliente” * M2_2, SATA3_3 y SATA3_4 comparten carriles. Si cualquiera de ellos está en uso, los otros se deshabilitan.
1 x Zócalo ultra M.2 (M2_1), admite el módulo PCI Express M.2
•
de tipo 2242/2260/2280 y clave M hasta Gen3 x4 (32 Gb/s) (con
Summit Ridge, Raven Ridge y Pinnacle Ridge)**
1 x Zócalo M.2 (M2_2) que admite el módulo SATA3 6,0 Gb/
•
s M.2 de tipo 2230/2242/2260/2280/22110 con clave M y el
módulo PCI Express M.2 hasta Gen3 x2 (16 Gb/s)** ** Si M2_1 está ocupado, PCIE4 se deshabilitará. ** Admite unidad de estado sólido de NVMe como disco de ar­ranque ** Admite el kit U.2 de ASRock
1 x Base de conexiones de puerto COM
•
1 x Conector TPM
•
1 x LED de alimentación y base de conexiones para el altavoz
•
1 x Cabezal de indicador LED RGB
•
* Admite una tira de LED de hasta 12 V/3 A (36 W) en total
1 x Base de conexiones de LED direccionable
•
* Admite una tira de LED de hasta 5 V/3 A (15 W) en total
1 x Base de conexiones de LED de ventilador AMD
•
* La base de conexiones de LED del ventilador AMD admite bandas de LED con una carga máxima de 3 A (36 W) y una longitud de hasta 2,5 m.
1 x Conector para ventilador de la CPU (4 contactos)
•
* El conector para ventilador de la CPU admite ventilador de la CPU con una potencia de ventilador de 1 A (12 W) máxima.
1 x Conector (4 contactos) para el ventilador de la bomba de
•
agua/CPU (control de velocidad de ventilador inteligente) * El ventilador de la CPU/bomba de agua admite ventilador del disipador por agua con una potencia de ventilador máxima de 2A (24 W).
3 x Conectores (4 contactos) para el ventilador de la bomba de
•
agua/chasis (control de velocidad de ventilador inteligente) * El ventilador de la bomba de agua/Chasis admite ventilador del disipador por agua con una potencia de ventilador máxima de 2A (24 W).
82
Función de la BIOS
Monitor del hardware
* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP y CHA_ FAN3/WP se pueden detectar automáticamente si se usa el ventilador de 3 o 4 contactos.
1 x conector de alimentación ATX de 24 contactos
•
1 x conector de alimentación de 12V de 8 contactos
•
1 x Conector de audio en el panel frontal
•
2 x Bases de conexiones USB 2.0 (admite 4 puertos USB 2.0)
•
(Admite protección contra descargas electrostáticas) 1 x base de conexiones USB 3.1 Gen1 (admite 2 puertos USB 3.1
•
Gen1) (Admite protección contra descargas electrostáticas)
BIOS legal UEFI AMI compatible con interfaz gráca de usu-
•
ario multilingüe Compatible con “Plug and Play”
•
Eventos de reactivación conformes con ACPI 5.1
•
Compatible con Jumper FREE
•
Admite SMBIOS 2.3
•
Miniajuste de voltaje DRAM
•
Detección de temperatura: CPU, Placa base
•
Tacómetro del ventilador: Ventiladores de la bomba de agua/
•
chasis, bomba de agua/CPU, CPU Ventilador silencioso (ajuste automático de la velocidad del
•
ventilador del chasis por temperatura de la CPU): Ventiladores de la bomba de agua/chasis, bomba de agua/CPU, CPU Control de varias velocidades del ventilador: Ventiladores de la
•
bomba de agua/chasis, bomba de agua/CPU, CPU Supervisión del voltaje: +12 V, +5 V, +3,3 V, Vcore
•
B450 Pro4
Microso® Windows® 10 64 bits
SO
Certica­ciones
•
FCC y CE
•
Preparado para ErP/EuP (se necesita una fuente de aliment-
•
ación preparada para ErP/EuP)
* Para obtener información detallada del producto, visite nuestro sitio Web: http://www.asrock.com
Tenga en cuenta que hay un cierto riesgo implícito en las operaciones de overclocking, incluido el ajuste de la BIOS, aplicando la tecnología de overclocking liberada o utilizando las herramientas de overclocking de otros fabricantes. El overclocking puede afectar a la estabilidad del sistema e, incluso, dañar los componentes y dispositivos del sistema. Esta operación se debe realizar bajo su propia responsabilidad y usted debe asumir los costos. No asumimos ninguna responsabilidad por los posibles daños causados por el overclocking.
Español
83
Español
1.3 Instalación de los puentes
La instalación muestra cómo deben instalarse los puentes. Cuando la tapa de puente se coloca en los contactos, el puente queda “Corto”. Si no coloca la tapa de puente en los contactos, el puente queda “Abierto”.
Puente de borrado de CMOS (CLRCMOS2) (consulte la pág.1, Nº 19)
CLRCMOS2 le permite borrar los datos del CMOS. Para borrar y restablecer los parámetros del sistema a los valores predeterminados de instalación, apague el ordenador y desenchufe el cable de alimentación de la toma de alimentación. Después de esperar 15 segundos, utilice una tapa de puente para acortar los contactos en el CLRCMOS2 durante 5 segundos. Sin embargo, no borre el CMOS justo después de que haya actualizado la BIOS. Si necesita borrar el CMOS cuando acabe de actualizar la BIOS, deberá arrancar el sistema primero y, a continuación, deberá apagarlo antes de que realice el borrado del CMOS. Tenga en cuenta que la contraseña, la fecha, la hora y el perl de usuario predeterminado serán eliminados únicamente si se retira la pila del CMOS. Acuérdese de retirar la tapa de puente después de borrar el CMOS.
2-pin Jumper
84
1.4 Conectores y cabezales incorporados
Los cabezales y conectores incorporados NO son puentes. NO coloque tapas de puente sobre estos cabezales y conectores. Si coloca tapas de puente sobre los cabezales y conectores dañará de forma permanente la placa base.
B450 Pro4
Cabezal del panel del sistema (PANEL1 de 9 contactos) (consulte la pág.1, Nº 16)
PWRBTN (Interruptor de alimentación):
Conéctelo al interruptor de alimentación del panel frontal del chasis. Deberá congurar la forma en la que su sistema se apagará mediante el interruptor de alimentación.
RESET (Interruptor de reseteo):
Conéctelo al interruptor de reseteo del panel frontal del chasis. Pulse el interruptor de reseteo para resetear el ordenador si éste está bloqueado y no se puede reiniciar de forma normal.
PLED (Indicador LED de la alimentación del sistema):
Conéctelo al indicador de estado de la alimentación del panel frontal del chasis. El indi­cador LED permanece encendido cuando el sistema está funcionando. El indicador LED parpadea cuando el sistema se encuentra en estado de suspensión S3. El indicador LED se apaga cuando el sistema se encuentra en estado de suspensión S4 o está apagado (S5).
HDLED (Indicador LED de actividad en el disco duro):
Conéctelo al indicador LED de actividad en el disco duro del panel frontal del chasis. El in­dicador LED permanece encendido cuando el disco duro está leyendo o escribiendo datos.
El diseño del panel frontal puede ser diferente dependiendo del chasis. Un módulo de panel frontal consta principalmente de: interruptor de alimentación, interruptor de reseteo, indicador LED de alimentación, indicador LED de actividad en el disco duro, altavoz, etc. Cuando conecte su módulo del panel frontal del chasis a este cabezal, asegúrese de que las asignaciones de los cables y los contactos coinciden correctamente.
1
PLED+
PLED-
HDLED-
HDLED+
PWRBTN#
GND
GND
RESET#
GND
Conecte el interruptor de alimentación, restablezca el interruptor y el indicador del estado del sistema del chasis a los valores de este cabezal, según los valores asignados a los contactos como se indica a continuación. Cerciórese de cuáles son los contactos positivos y los negativos antes de conectar los cables.
Español
85
LED de alimentación y
SPEAKER
base de conexiones para la altavoz (SPK_PLED1 de 7 contactos) (consulte la pág.1, Nº 15)
DUMMY +5V
1
PLED+
DUMMY
PLED+
PLED-
Conecte el LED de alimentación del chasis y el altavoz del chasis a esta base de conexiones.
Español
Conectores Serie ATA3 (SATA3_1: consulte la pág.1, N.º 9) (SATA3_2: consulte la pág.1, N.º 8) (SATA3_3: consulte la pág.1, N.º 13) (SATA3_4: consulte la pág.1, N.º 14) (SATA3_A1: consulte la pág.1, N.º 11) (SATA3_A2: consulte la pág.1, N.º 12)
Cabezales USB 2.0 (USB1_2 de 9 contactos) (consulte la pág.1, Nº 22) (USB_3_4 de 9 contactos) (consulte la pág.1, Nº 21)
SATA3_1
USB_PWR
1
USB_PWR
Estos seis conectores SATA3 son compatibles con cables de datos SATA para dispositivos
SATA3_2SATA3_A1
de almacenamiento interno con una velocidad de transferencia de datos de hasta 6,0 Gb/s.
* M2_2, SATA3_3 y SATA3_4 comparten carriles. Si cualquiera de ellos está en uso,
SATA3_A2
los otros se deshabilitan.
* Para reducir el tiempo de
SATA3_3
arranque, utilice puertos SATA AMD (SATA3_1~4) con sus dispositivos de arranque.
SATA3_4
P-
P+
GND
DUMMY
GND
P+
P-
Hay dos bases de conexiones en esta placa base. Cada cabezal USB 2.0 admite dos puertos.
86
Cabezal USB 3.1 Gen1 (USB3_5_6 de 19 contactos) (consulte la pág.1, Nº 7)
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
VbusVbus
IntA_PB_SSRX-
IntA_PB_SSRX+
GND
IntA_PB_SSTX-
IntA_PB_SSTX+
GND
IntA_PB_D-
IntA_PB_D+
Dummy
1
Esta placa base tiene otra base de conexiones. Cada cabezal USB 3.1 Gen1 admite dos puertos.
B450 Pro4
4 3 2 1
Cabezal de audio del panel frontal (HD_AUDIO1 de 9 contactos) (consulte la pág.1, Nº 26)
1. El Audio de Alta Denición (HDA, en inglés) es compatible con el método de sensor de conectores, sin embargo, el cable del panel del chasis deberá ser compatible con HDA para que pueda funcionar correctamente. Siga las instrucciones que se indican en nuestro manual y en el manual del chasis para instalar su sistema.
2. Si utiliza un panel de audio AC’97, colóquelo en el cabezal de audio del panel frontal siguiendo los pasos que se describen a continuación: A. Conecte Mic_IN (MIC) a MIC2_L. B. Conecte Audio_R (RIN) a OUT2_R y Audio_L (LIN) a OUT2_L. C. Conecte Ground (Conexión a tierra) (GND) a Ground (GND). D. MIC_RET y OUT_RET se utilizan únicamente con el panel de audio HD. No es necesario que los conecte en el panel de audio AC’97. E. Para activar el micrófono frontal, vaya a la cha “micrófono frontal” (Front Mic) en el panel de control de Realtek y ajuste el “Volumen de grabación” (Recording Volume).
Ventilador de chasis / Conectar para el ventilador de la bomba de agua (CHA_FAN1/WP de 4 contactos) (consulte la pág.1, N.º 27) (CHA_FAN2/WP de 4 contactos) (consulte la pág.1, N.º 18) (CHA_FAN3/WP de 4 contactos) (consulte la pág.1, N.º 17)
GND
PRESENCE#
MIC_RET
1
J_SENSE
OUT2_R
MIC2_R
MIC2_L
FAN _SPEED_CONTROL
CHA_FAN_SPEED
FAN_VOLTAGE
GND
FAN_SPEED_CONTROL
CHA_FAN_SPEED
FAN_VOLTAGE
OUT_RET
OUT2_L
Este cabezal se utiliza para conectar dispositivos de audio al panel de audio frontal.
Conecte los cables del
4 3
ventilador a los conectores del
2
ventilador y haga coincidir el
1
cable negro con el contacto de conexión a tierra.
GND
Español
Conector del ventilador de la CPU (CPU_FAN1 de 4 contactos) (consulte la pág.1, N.º 5)
1 2 3 4
GND
FAN_VOLTAGE
CPU_FAN_SPEED
FAN_SPEED_CONTROL
Esta placa base contiene un conector de ventilador (venti­lador silencioso) de CPU de 4 contactos. Si tiene pensando conectar un ventilador de CPU de 3 contactos, conéctelo al contacto 1-3.
87
Ventilador de la CPU /
12
24
5
1
8
4
Conectar para el ventilador de la bomba de agua (CPU_FAN2/WP de 4 contactos) (consulte la pág.1, N.º 4)
1 2 3 4
GND
FAN_VOLTAGE
CPU_FAN_SPEED
FAN_SPEED_CONTROL
Esta placa base contiene un conector de ventilador (venti­lador silencioso) de CPU de 4 contactos. Si tiene pensando conectar un ventilador de CPU de 3 contactos, conéctelo al contacto 1-3.
Español
Conector de alimentación ATX (ATXPWR1 de 24 contactos) (consulte la pág.1, Nº 6)
Conector de alimentación ATX de 12V (ATX12V1 de 8 contactos) (consulte la pág.1, Nº 1)
Cabezal de puerto serie (COM1 de 9 contactos) (consulte la pág.1, Nº 23)
Cabezal TPM (TPMS1 de 17 contactos) (consulte la pág.1, Nº 25)
Esta placa base contiene un conector de alimentación ATX de 24 contactos. Para utilizar una toma de alimentación ATX de 20 contactos, conéctela en
13
1
los contactos del 1 al 13.
Esta placa base contiene un conector de alimentación ATX de 12V y 8 contactos. Para uti­lizar una toma de alimentación ATX de 4 contactos, conéctela en los contactos del 1 al 5.
1
RRXD1
DDTR#1
TTXD1
DDCD#1
DDSR#1
CCTS#1
RRTS#1
GND
RRI#1
Este cabezal COM1 admite un módulo de puerto serie.
Este conector es compatible con el sistema Módulo de
SMB_ CLK _MA IN
GND
SMB_ DAT A_M AIN
LAD2
GND
LAD1
S_PW RDW N#
1
+3V
LAD3
LAD0
FRAM E
PCIC LK
PCIR ST#
Plataforma Segura (TPM,
SERI RQ#
GND
en inglés), que puede almacenar de forma segura claves, certicados digitales,
GND
+3VS B
contraseñas y datos. Un sistema TPM también ayuda a aumentar la seguridad en la red, protege las identidades digitales y garantiza la integridad de la plataforma.
88
B450 Pro4
Cabezal de LED RGB (RGB_LED1 de 4 contactos) (consulte la pág.1, Nº 24)
Base de conexiones de LED de VENTILADOR AMD (AMD_FAN_LED1 de 4 contactos) (consulte la pág.1, Nº 3)
Base de conexiones de LED direccionable (ADDR_LED1 de 3 contactos) (consulte la pág.1, Nº 20)
1
12V GRB
1
12V GRB
1
DO_ADDR
VOUT
GND
La base de conexiones de LED RGB se utiliza para conectar el alargador de LED RGB que permite a los usuarios elegir entre varios efectos de iluminación de LED.
Precaución: Nunca instale
el cable de LED RGB con la
orientación incorrecta ya que,
de lo contrario, el cable puede
dañarse.
*Consulte la página 39 para ob­tener más instrucciones sobre estas dos bases de conexiones.
La base de conexiones de LED de VENTILADOR AMD se utiliza para conectar el alagador de LED RGB incluido con el disipador AMD. La conexión del cable permite a los usuarios elegir entre diferentes efectos de iluminación de LED.
Precaución: Nunca instale el
cable de LED del VENTILADOR
con la orientación incorrecta
ya que, de lo contrario, el cable
puede dañarse.
La base de conexiones se usa para conectar el alargador de LED direccionable
que permite a los usuarios elegir entre varios efectos de iluminación LED.
Precaución: Nunca instale el
cable de LED direccionable con
la orientación incorrecta ya que,
de lo contrario, el cable puede
dañarse.
*Consulte la página 40 para ob­tener más instrucciones sobre esta base de conexiones.
Español
89
Русский
1. Введение
Благодарим вас за приобретение надежной материнской платы ASRock B450 Pro4, выпускаемой под постоянным строгим контролем компании ASRock. Эта материнская плата обеспечивает великолепную производительность и отличается надежной конструкцией в соответствии с требованиями компании ASRock в отношении качества и долговечности.
По причине обновления спецификации на материнскую платформу и программного обеспечения BIOS содержимое настоящего руководства может быть изменено без предварительного уведомления. При изменении содержимого настоящего руководства его обновленная версия будет доступна на веб-сайте ASRock без предварительного уведомления. При необходимости технической поддержки, связанной с материнской платой, посетите веб-сайт и найдите на нем информацию о модели используемой вами материнской платы. На веб-сайте ASRock также можно найти самый последний перечень поддерживаемых VGA-карт и ЦП. Веб-сайт ASRock http://www.asrock.com.
1.1 Комплект поставки
Материнская плата ASRock B450 Pro4 (форм-фактор ATX)
•
Краткое руководство по установке ASRock B450 Pro4
•
Диск с ПО для ASRock B450 Pro4
•
1 экран панели с портами ввода-вывода
•
2 кабеля передачи данных Serial ATA (SATA) (приобретаются отдельно)
•
2 Винт для гнезда M.2 (приобретаются отдельно)
•
90
1.2 Технические характеристики
Форм-фактор ATX
Платформа
ЦП
Чипсет
Память
•
Схема на основе твердотельных конденсаторов
•
Сокет AMD AM4
•
Digi Power design
•
Система питания 9
•
Поддерживается водяное охлаждение, 105Вт (Pinnacle
•
Ridge); Поддерживается водяное охлаждение, 95Вт (Summit Ridge); Поддерживается водяное охлаждение, 65Вт (Raven Ridge)
AMD Promontory B450
•
Двухканальная память DDR4
•
4 x гнезда DDR4 DIMM
•
Процессоры AMD серии Ryzen (Pinnacle
•
Ridge) поддерживают модули памяти DDR4 3200+(OC)/2933/2667/2400/2133, ECC, non-ECC и Unbuered* Процессоры AMD серии Ryzen (Summit Ridge)
•
поддерживают модули памяти DDR4 3200+(OC)/2933 (OC)/2667/2400/2133, ECC, non-ECC и Unbuered* Процессоры AMD серии Ryzen (Raven Ridge)
•
поддерживают модули памяти DDR4 3200+(OC)/2933
(OC)/2667/2400/2133, non-ECC и Unbuered* *Для процессоров серии Ryzen (Raven Ridge) модуль памяти ECC поддерживается только процессорами PRO. * Дополнительная информация представлена в Списке совместимой памяти (Memory Support List ) на веб-сайте ASRock. (http://www.asrock.com/) * Максимальные поддерживаемые частоты DDR4 UDIMM см на стр. 23.
Максимальный объем ОЗУ: 64 Гб
•
Позолоченные (15мкм) контакты слотов DIMM
•
B450 Pro4
Русский
91
Русский
Слоты расширения
Графическая подсистема
ЦП серии AMD Ryzen (Summit Ridge и Pinnacle Ridge)
2 x Слоты PCI Express 3.0 x16 (PCIE2:режим x16;
•
PCIE4:режим x4)*
ЦП серии AMD Ryzen (Raven Ridge)
2 x Слоты PCI Express 3.0 x16 (PCIE2:режим x8;
•
PCIE4:режим x4)*
* Поддерживаются в качестве загрузочных SSD-диски типа NVMe. * Если занят слот M2_1, отключается слот PCIE4.
4 слота PCI Express 2.0 x1
•
Поддержка AMD Quad CrossFireX
•
TM
и CrossFireXTM** ** Этот режим поддерживается только при использовании ЦП серии Ryzen (Summit Ridge, Pinnacle Ridge и Raven Ridge).
TM
Встроенный видеоадаптер AMD Radeon
•
серии Vega
в процессорах APU серии Ryzen*
*Фактическая поддержка зависит от процессора
DirectX 12, пиксельные шейдеры 5.0
•
Максимальный объем общей памяти: 2ГБ
•
Три видеовыхода: D-Sub, HDMI и DisplayPort 1.2
•
Поддержка работы с тремя мониторами
•
Поддерживается HDMI с максимальным разрешением
•
до 4K x 2K (4096x2160) при частоте обновления 24 Гц (3840x2160 при 30Гц) Поддерживается DisplayPort 1.2 с максимальным
•
разрешением до 4K x 2K (4096x2160) при 60 Гц Поддерживается D-Sub с максимальным разрешением
•
до 1920x1200 при 60 Гц Поддержка Auto Lip Sync, Deep Color (12bpc), xvYCC и
•
HBR (High Bit Rate Audio) по HDMI (необходим HDMI-совместимый монитор) Поддерживается функция HDCP через порты HDMI и
•
DisplayPort 1.2 Поддержка вывода видео с разрешением 4K Ultra HD
•
(UHD) на порты HDMI и DisplayPort 1.2
92
Звук
LAN
Порты ввода­вывода на задней панели
7.1-канальный звук высокой четкости HD Audio с
•
защитой данных (аудиокодек Realtek ALC892) *Для настройки 7.1-канального звук высокой четкости HD Audio используйте переднюю аудиопанель HD и активируйте функцию многоканального звука в аудиодрайвере.
Поддержка Premium Blu-ray Audio
•
Защита от перепадов напряжения в электрической сети
•
Конденсаторы для аудиосистем ELNA
•
PCIE x1 Gigabit LAN 10/100/1000 Мбит/с
•
Realtek RTL8111H
•
Поддерживается пробуждение по ЛВС
•
Молниезащита и защита от электростатических
•
разрядов
Поддерживается Energy Ecient Ethernet 802.3az
•
Поддерживается PXE
•
1 порт PS/2 для мыши/клавиатуры
•
1 порт D-Sub
•
1 порт HDMI
•
1 порт DisplayPort 1.2
•
2 порта USB 2.0 (с защитой от электростатических
•
разрядов)
1 порт USB 3.1 Gen2 Type-A (10 Гбит/с) (с защитой от
•
электростатических разрядов)
1 порт USB 3.1 Gen2 Type-C (10 Гбит/с) (с защитой от
•
электростатических разрядов)
4 портов USB 3.1 Gen1 (с защитой от электростатических
•
разрядов)
1 порт ЛВС RJ-45 с индикаторами («Активность/
•
Соединение» и «Скорость»)
Разъемы HD Audio: линейный вход / фронтальные АС /
•
микрофон
B450 Pro4
Русский
93
Русский
Запоминающие устройства
Разъемы
4 порта SATA3 со скоростью передачи данных 6,0Гбит/с,
•
поддержка RAID (RAID 0, RAID 1 и RAID 10), NCQ, AHCI и «горячего подключения».* 2 порта SATA3 6,0Гбит/с ASMedia ASM1061, поддержка
•
функций NCQ, AHCI и «горячего подключения» замены * Общие каналы M2_2, SATA3_3 и SATA3_4. Если используется один из них, остальные будут отключены.
1 слот Ultra M.2 (M2_1), поддерживает модуль M.2 PCI
•
Express типа 2242/2260/2280 вплоть до Gen3 x4 (32Гбит/с)
(с Summit Ridge, Raven Ridge и Pinnacle Ridge).**
1 слот M.2 (M2_2), поддерживает модуль M.2 SATA3 типа
•
2230/2242/2260/2280/22110 с пропускной способностью
6,0Гбит/с и модуль M.2 PCI Express до версии Gen3 x2
(16Гбит/с)** ** Если занят слот M2_1, отключается слот PCIE4. ** Поддерживаются в качестве загрузочных SSD-диски типа NVMe ** Поддерживается комплект ASRock U.2.
1 колодка СОМ-порта
•
1 колодка ТРМ
•
1 колодка светодиодного индикатора питания и
•
корпусного динамика
1 колодка светодиодной RGB-подсветки
•
* Поддерживается светодиодная лента (максимум 12В/3А, суммарной мощностью до 36Вт).
1 колодка адресуемой светодиодной подсветки
•
* Поддерживается светодиодная лента (максимум 5В/3А, суммарной мощностью до 15Вт).
1 колодка для подключения светодиодной подсветки
•
вентилятора AMD. * Колодка для подключения светодиодной подсветки вентилятора AMD поддерживает светодиодные ленты мощностью не более 36 Ватт (3 А) и длиной до 2,5 м.
1 разъем для вентилятора охлаждения ЦП, 4-контактный
•
* Разъем процессорного вентилятора поддерживает вентилятор с потребляемым током не более 1А (12Вт).
1 разъем для вентилятора или водяной помпы водяного
•
охлаждения ЦП (4-контактный) (смарт-регулятор
скорости вентилятора) * Разъем для процессорного корпусного вентилятора или водяной помпы поддерживает вентилятор с потребляемым током не более 2А (24Вт)
3 разъемы для корпусного вентилятора или водяной
•
помпы (4-контактный) (смарт-регулятор скорости
вентилятора) * Разъем для процессорного корпусного вентилятора или водяной помпы поддерживает вентилятор с потребляемым током не более 2А (24Вт).
94
* Для разъемов CPU_FAN2/WP, CHA_FAN1/WP, CHA_ FAN2/WP и CHA_FAN3/WP автоматически определяется тип подключенного вентилятора: 3- или 4-контактный.
1 разъем питания АТХ, 24-контактный
•
1 разъем питания 12 В, 8-контактный
•
1 аудиоразъем для передней панели
•
2 колодки USB 2.0 (4 порта USB 2.0, с защитой от
•
электростатических разрядов) 1 колодка USB 3.1 Gen1 (2 порта USB 3.1 Gen1)
•
(с защитой от электростатических разрядов)
AMI UEFI Legal BIOS с поддержкой многоязычного
Параметры BIOS
•
графического интерфейса Поддержка технологии «Plug and Play»
•
Совместимость с управлением энергопотреблением по
•
ACPI 5.1 Поддержка функции JumperFree
•
Поддерживается SMBIOS 2.3.
•
Регулировка напряжений DRAM
•
Контроль температуры: ЦП; Материнская плата
Контроль оборудования
•
Тахометр: Вентилятор ЦП; Вентилятор или помпа
•
водяного охлаждения ЦП; Вентилятор или помпа водяного охлаждения корпуса Бесшумная работа (с автоматической регулировкой
•
скорости вращения в зависимости от температуры ЦП): Вентилятор ЦП; Вентилятор или помпа водяного охлаждения ЦП; Вентилятор или помпа водяного охлаждения корпуса Регулировка скорости вращения: Вентилятор ЦП;
•
Вентилятор или помпа водяного охлаждения ЦП; Вентилятор или помпа водяного охлаждения корпуса Контроль напряжений: +12 В, +5 В, +3,3 В, Vcore
•
Microso® Windows® 10 (64-разрядная)
Операционные
•
системы
FCC, CE
Сертификация
•
Совместимость с ErP/EuP (необходим блок питания,
•
соответствующий стандарту ErP/EuP)
* С дополнительной информацией об изделии можно ознакомиться на веб-сайте: http://www.asrock.com
B450 Pro4
Русский
Следует учитывать, что разгон процессора, включая изменение настроек BIOS, применение технологии Untied Overclocking и использование инструментов разгона независимых производителей, сопряжен с определенным риском. Разгон процессора может снизить стабильность системы или даже привести к повреждению ее компонентов и устройств. Разгон процессора осуществляется пользователем на собственный риск и за собственный счет. Мы не несем ответственность за возможный ущерб, вызванный разгоном процессора.
95
Русский
1.3 Установка перемычек
Установка перемычек показана на рисунке. При установке перемычки-колпачка на контакты перемычка «замкнута». Если перемычка-колпачок на контакты не установлена, перемычка «разомкнута».
Перемычка сброса настроек CMOS (CLRCMOS2) (см. стр. 1, № 19)
CLRCMOS2 используется для удаления данных CMOS. Чтобы сбросить и обнулить параметры системы на настройки по умолчанию, выключите компьютер и извлеките отключите кабель питания от источника питания. Выждите 15 секунд и накидной перемычкой замкните контакты разъема CLRCMOS2 на 5 секунд. Не сбрасывайте настройки CMOS сразу после обновления BIOS. При необходимости сбросить настройки CMOS сразу после обновления BIOS сначала перезагрузите систему, а затем выключите компьютер перед сбросом настроек CMOS. Учтите, что пароль, дата, время и профиль пользователя по умолчанию сбрасываются только в том случае, если извлечь батарею CMOS. После сброса настроек CMOS не забудьте снять накидную перемычку.
2-pin Jumper
96
1.4 Колодки и разъемы, расположенные на системной плате
Расположенные на системной плате колодки и разъемы НЕ являются перемычками. НЕ устанавливайте на эти колодки и разъемы перемычки­колпачки. Установка перемычек-колпачков на эти колодки и разъемы может вызвать неустранимое повреждение системной платы.
B450 Pro4
Колодка системной панели (9-контактная, PANEL1) (см. стр. 1, № 16)
PWRBTN (кнопка питания):
Подключение кнопки питания, расположенной на передней панели корпуса. Можно настроить порядок выключения системы с использованием кнопки питания.
RESET (кнопка перезагрузки):
Подключение кнопки перезагрузки системы, расположенной на передней панели корпуса. Нажмите кнопку перезагрузки, чтобы перезапустить компьютер, если он завис и нормальный запуск невозможен.
PLED (светодиодный индикатор питания системы):
Подключение индикатора состояния, расположенного на передней панели корпуса. Светодиодный индикатор горит, когда система работает. Когда система находится в режиме ожидания S3, светодиод мигает. Когда система находится в режиме ожидания S4 или выключена (S5), светодиод не горит.
HDLED (светодиодный индикатор работы жесткого диска):
Подключение светодиодного индикатора работы жесткого диска, расположенного на передней панели. Светодиодный индикатор горит, когда жесткий диск выполняет считывание или запись данных.
Передняя панель может быть разной на разных корпусах. В основном передняя панель включает в себя кнопку питания, кнопку перезагрузки, светодиодный индикатор питания, светодиодный индикатор работы жесткого диска, динамик и т. д. При подключении передней панели к этой колодке правильно подключайте провода к контактам.
1
PLED+
PLED-
HDLED-
HDLED+
PWRBTN#
GND
GND
RESET#
GND
Подключите расположенные на корпусе выключатель питания, кнопку перезагрузки и индикатор состояния системы к этой колодке в соответствии с распределением контактов, приведенным ниже. Перед подключением кабелей определите положительный и отрицательный контакты.
Русский
97
Колодка светодиодного
SPEAKER
индикатора питания и динамика корпуса (7-контактная, SPK_PLED1) (см. стр. 1, № 15)
DUMMY +5V
1
PLED+
DUMMY
PLED+
PLED-
Предназначена для подключения светодиодного индикатора питания и динамика корпуса.
Русский
Разъемы Serial ATA3 (SATA3_1: см. стр.1,№ 9) (SATA3_2: см. стр. 1, № 8) (SATA3_3: см. стр. 1, № 13) (SATA3_4: см. стр.1,№ 14) (SATA3_A1: см. стр.1,№ 11) (SATA3_A2: см. стр.1,№ 12)
Колодки USB 2.0 (9-контактная, USB_1_2) (см. стр. 1, № 22) (9-контактная, USB_3_4) (см. стр. 1, № 21)
SATA3_1
USB_PWR
1
USB_PWR
Эти шесть разъемов SATA3 предназначены для подключения кабелей SATA внутренних
SATA3_2SATA3_A1
запоминающих устройств для передачи данных со скоростью до 6,0 Гб/с.
* Общие каналы M2_2, SATA3_3 и SATA3_4. Если используется один из них, остальные будут
SATA3_A2
отключены.
* Для минимизации времени
SATA3_3
загрузки используйте порты AMD SATA (SATA3_1~4) для самозагружаемых устройств.
SATA3_4
P-
P+
GND
DUMMY
GND
P+
P-
На материнской плате имеется две колодки. Каждая колодка USB 2.0 поддерживает два порта.
98
Колодка USB 3.1 Gen1 (19-контактная, USB3_5_6) (см. стр. 1, № 7)
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
VbusVbus
IntA_PB_SSRX-
IntA_PB_SSRX+
GND
IntA_PB_SSTX-
IntA_PB_SSTX+
GND
IntA_PB_D-
IntA_PB_D+
Dummy
1
На материнской плате имеется одна колодка. Каждая колодка USB 3.1 Gen1 поддерживает два порта.
Loading...
