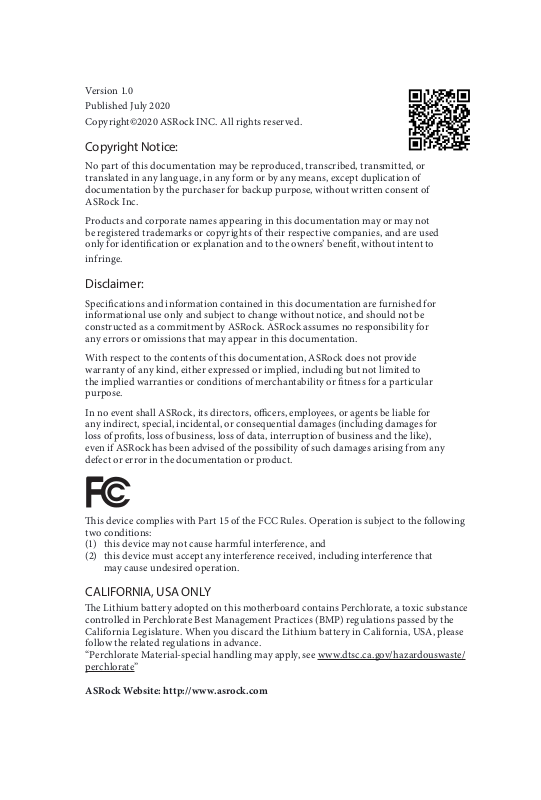

Asrock B360M-ITX Quick Installation Guide

Version 1.0

Published July 2020

Copyright©2020 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.

Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see ww w.dtsc.ca.gov/hazardouswaste/
perchlorate”

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. If you require assistance please call ASRock Tel

: [phone] ext.123 (Standard International call charges apply)

PCIE1

DDR4_ A1 ( 64 b it , 28 8- pi n mo dule)

DDR4_ B1 ( 64 b it , 28 8- pi n mo dule)

CPU_FAN1

CHA_FAN1/WP

RoHS

B360M-ITX

3

6

8

7

PS2

Keyb oard

/Mou se

16

15

14

AUDIO

CODEC

5

1

HD_AUDIO1

1

SPEAKE R1

Intel

B360

ATXPW R1

USB3_ 3_4

1

4

2

PANEL1

HDLED RESET

PLED PWRBTN

1

Top:

LINE I N

Cent er:

FRON T

Bott om:

MIC IN

SATA3_3

SATA3_2

1

CLRMOS1

SATA3_1

SATA3_0

1

USB_3_4

M2_ 1

C 1

T

Top:
RJ-45

USB 3.2 Gen2

T: USB1
B: USB2

USB 3.2 Gen1

T: USB1
B: USB2

1

9

10

11

12

BIOS
ROM

DISPLAY1

17

Ultra M.2

PCIe Gen3 x4

DVI 1

CI1

1

BAT1

CHA_FA N2

13

Motherboard Layout

B360M-ITX

English

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 Chassis Fan / Waterpump Fan Connector (CHA_FAN1/WP)

3 CPU Fan Connector (CPU_FAN1)

4 2 x 288-pin DDR4 DIMM Slots (DDR4_ A1, DDR4_B1)

5 ATX Power Connector (ATXPWR1)

6 USB 3.2 Gen1 Header (USB3_3_4)

7 SATA3 Connector (SATA3_1)

8 SATA3 Connector (SATA3_0)

9 SATA3 Connector (SATA3_3)

10 SATA3 Connector (SATA3_2)

11 System Panel Header (PANEL1)

12 USB 2.0 Header (USB_3_4)

13 Chassis Fan Connector (CHA_FAN2)

14 Clear CMOS Jumper (CLRMOS1)

15 Chassis Intrusion Header (CI1)

16 Chassis Speaker Header (SPEAKER1)

17 Front Panel Audio Header (HD_AUDIO1)

English

2 3

I/O Panel

B360M-ITX

9

4

6

8

1

2

3

5

7

No. Description No. Description

1 DVI-I Port (DVI1) 6 LAN RJ-45 Port*

2 DisplayPort 1.2 (DISPLAY1) 7 Microphone (Pink)

3 USB 3.2 Gen1 Ports (USB_1_2) 8 Front Speaker (Lime)

4 PS/2 Mouse/Keyboard Port 9 Line In (Light Blue)

5 USB 3.2 Gen2 Type-A Ports (USB3_1_2)

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications .

ACT/LINK LED

SPEED LED

LAN Por t

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection

English

Chapter 1 Introduction

ank you for purchasing ASRock B360M-ITX motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

Becau se the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any modi­cations of this documentation occur, the updated version will be available on ASRock’s
website w ithout further notice. If you require technical support relate d to this mother­board, please visit our website for specic information about the model you are using. You
may nd the l atest VGA cards and CPU support list on ASRock ’s website a s well. ASRock
website http://www.asrock.com.

1.1 Package Contents

ASRock B360M-ITX Motherboard (Mini-ITX Form Factor)

•

ASRock B360M-ITX Quick Installation Guide

•

ASRock B360M-ITX Support CD

•

2 x Serial ATA (SATA) Data Cables (Optional)

•

1 x I/O Panel Shield

•

English

4 5

1.2 Specications

Platform

CPU

Chipset

Memory

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

B360M-ITX

Mini-ITX Form Factor

Solid Capacitor design

Supports 9th and 8th Gen Intel® CoreTM Processors (Socket

1151)

Supports CPU up to 95W

Digi Power design

5 Power Phase design

Supports Intel® Turbo Boost 2.0 Technology

Intel® B360

Dual Channel DDR4 Memory Technology

2 x DDR4 DIMM Slots

Supports DDR4 2666/2400/2133 non-ECC, un-buered

memory

Supports ECC UDIMM memory modules (operate in non-

ECC mode)

Max. capacity of system memory: 64GB

Supports Intel® Extreme Memory Prole (XMP) 2.0

15μ Gold Contact in DIMM Slots

Expansion
Slot

Graphics

1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)

•

* Supports NVMe SSD as boot disks

* Intel® UHD Graphics Built-in Visuals and the VGA outputs

can be supported only with processors which are GPU

integrated.

Supports Intel® UHD Graphics Built-in Visuals : Intel®

•

Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® UHD Graphics

DirectX 12

•

English

Audio

LAN

HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit,

•

HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode

only), MPEG2, MJPEG, VC-1

Dual graphics output: Support DVI-I and DisplayPort 1.2 by

•

independent display controllers

Supports DisplayPort 1.2 with max. resolution up to 4K x 2K

•

(4096x2304) @ 60Hz

Supports DVI-I with ma x. resolution up to 1920x1200 @

•

60Hz

Supports HDCP 2.2 with DVI-I and DisplayPort 1.2 Ports

•

Supports 4K Ultra HD (UHD) playback with DisplayPort 1.2

•

Port

7.1 CH HD Audio (Realtek ALC887 Audio Codec)

•

Supports Surge Protection

•

ELNA Audio Caps

•

Gigabit LAN 10/100/10 00 Mb/s

•

Giga PHY Intel® I219V

•

Supports Wake-On-LAN

•

Supports Lightning/ESD Protection

•

Supports Energy Ecient Ethernet 802.3az

•

Supports PXE

•

1 x PS/2 Mouse/Keyboard Port

Rear Panel
I/O

•

1 x DVI-I Port

•

1 x DisplayPort 1.2

•

2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)

•

2 x USB 3.2 Gen1 Ports (Supports ESD Protection)

•

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

•

LED)

HD Audio Jacks: Line in / Front Speaker / Microphone

•

English

6 7

Storage

Connector

4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and

•

Hot Plug*

* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will

be disabled.

1 x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3

•

6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4

(32 Gb/s)**

** Supports Intel® OptaneTM Tech nolo gy

** Supports NVMe SSD as boot disks

** Supports ASRock U.2 Kit

1 x Chassis Intrusion Headers

•

1 x CPU Fan Connector (4-pin)

•

* e CPU Fan Connector supports the CPU fan of ma ximum

1A (12W) fan power.

1 x Chassis Fan Connector (4-pin)

•

* e Chassis Fan Connector supports the chassis fan of maxi-

mum 1A (12W) fan power.

1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan

•

Speed Control)

* e Chassis/Water Pump Fan supports the water cooler fan of

maximum 2A (24W) fan power.

* CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

1 x 24 pin ATX Power Connector

•

1 x 8 pin 12V Power Connector

•

1 x Front Panel Audio Connector

•

1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports

•

ESD Protection)

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

•

(Supports ESD Protection)

B360M-ITX

English

BIOS
Feature

Hardware
Monitor

AMI UEFI Legal BIOS with multilingual GUI support

•

ACPI 6.0 Compliant wake up events

•

SMBIOS 2.7 Support

•

CPU, DRAM, PCH 1.0V, VCCST Voltage Multi-adjustment

•

Temperature Sensing: CPU, Chassis, Chassis/Water Pump

•

Fans

Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans

•

Quiet Fan (Auto adjust chassis fan speed by CPU tempera-

•

ture): CPU, Chassis, Chassis/Water Pump Fans

Fan Multi-Speed Control: CPU, Chassis, Chassis/Water

•

Pump Fans

CASE OPEN detection

•

Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

•

English

OS

Certica­tions

* For detailed product information, please visit our website: http://www.asrock .com

Please realize that the re is a certain r isk involved with overclo cking, including adju sting
the setting in the BIOS, applying Untied Overclocking Technolog y, or using third-par ty
overclocking to ols. O verclocking may aect your system’s stability, or even cause damage to
the components and devices of your system. It should be done at your ow n risk and expense.
We are not responsibl e for possible damage caused by overclo cking.

Microso® Windows® 10 64-bit

FCC, CE

•

ErP/EuP ready (ErP/EuP ready power supply is required)

•

8 9

Chapter 2 Installation

is is a Mini-ITX form factor motherboard. Before you install the motherboard,

study the conguration of your chassis to ensure that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard

•

components. Failure to do so may cause physical injuries and damages to motherboard

components.

In order to avoid damage from static electricity to the motherboard’s components,

•

NEVER place your motherboard directly on a carpet. Also remember to use a grounded

wrist strap or touch a safety grounded object before you handle the components.

Hold components by the edges and do not touch the ICs.

•

Whenever you uninstall any components, place them on a grounded anti-static pad or

•

in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not over-

•

tighten the screws! Doing so may damage the motherboard.

B360M-ITX

English

2.1 Installing the CPU

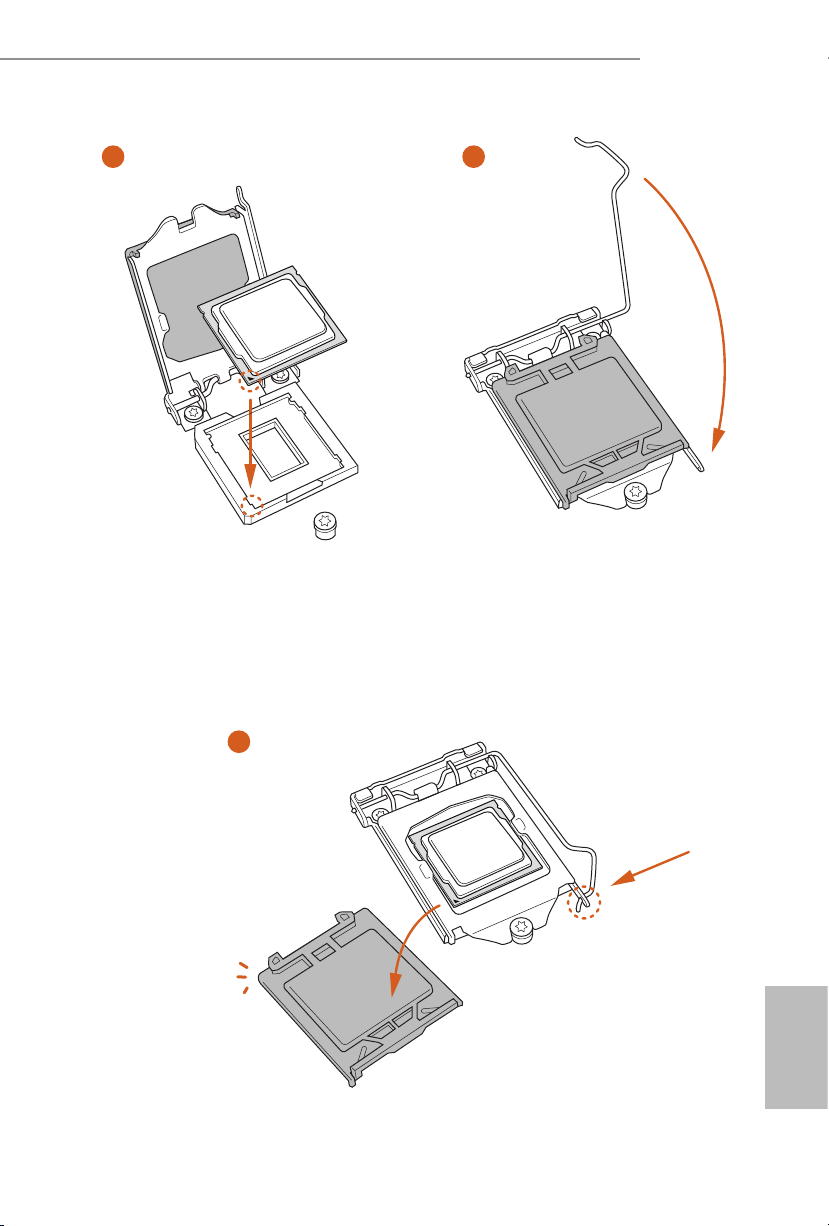

1. Before you insert the 1151-Pin CPU into the socket, please check if the PnP cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to in sert the CPU into the socket if above situation is found. Otherwise, the CPU
will be seriously damaged.

2. Unplug all power c ables before in stalling the CPU.

1

2

A

B

English

10 11

B360M-ITX

3

4

5

English

Please save and replace the cover if the processor i s removed. e cover must be placed if
you wish to return the motherboard for aer service.

English

12 13

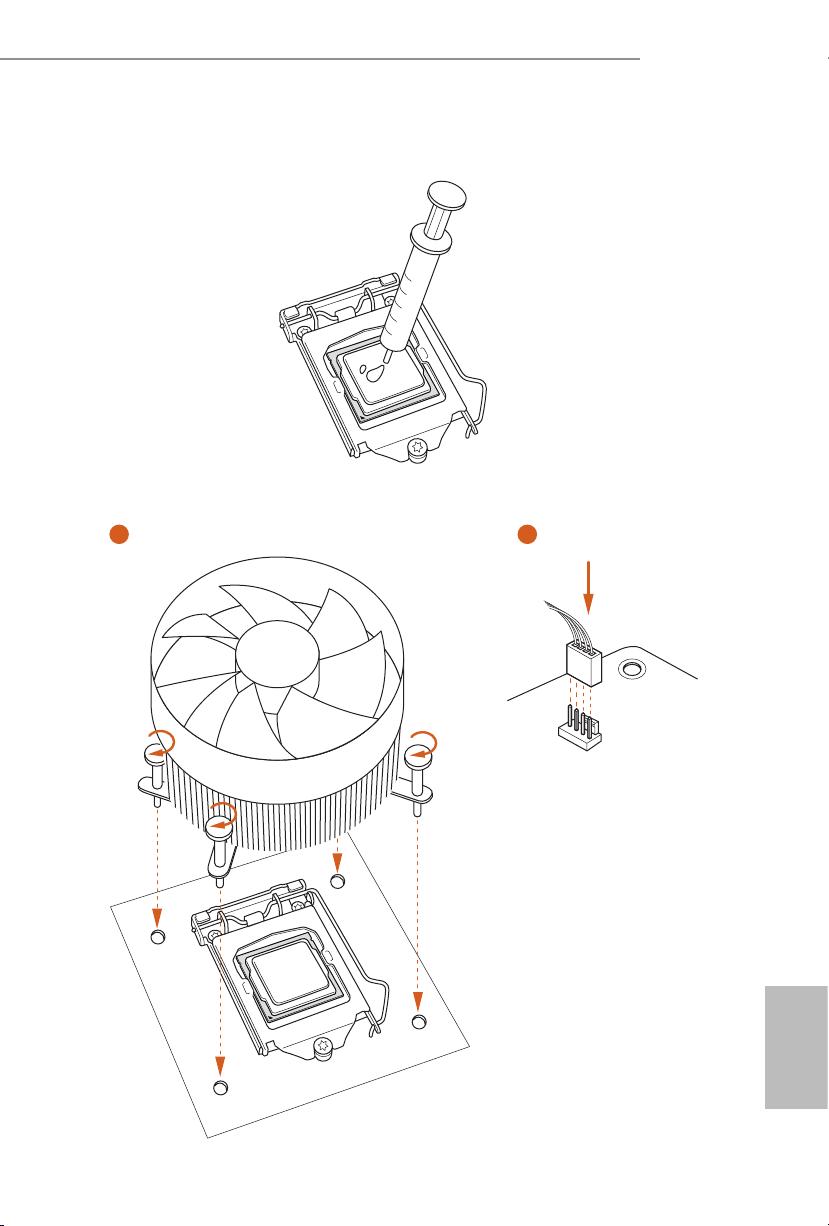

2.2 Installing the CPU Fan and Heatsink

1 2

B360M-ITX

FAN

CPU_

English

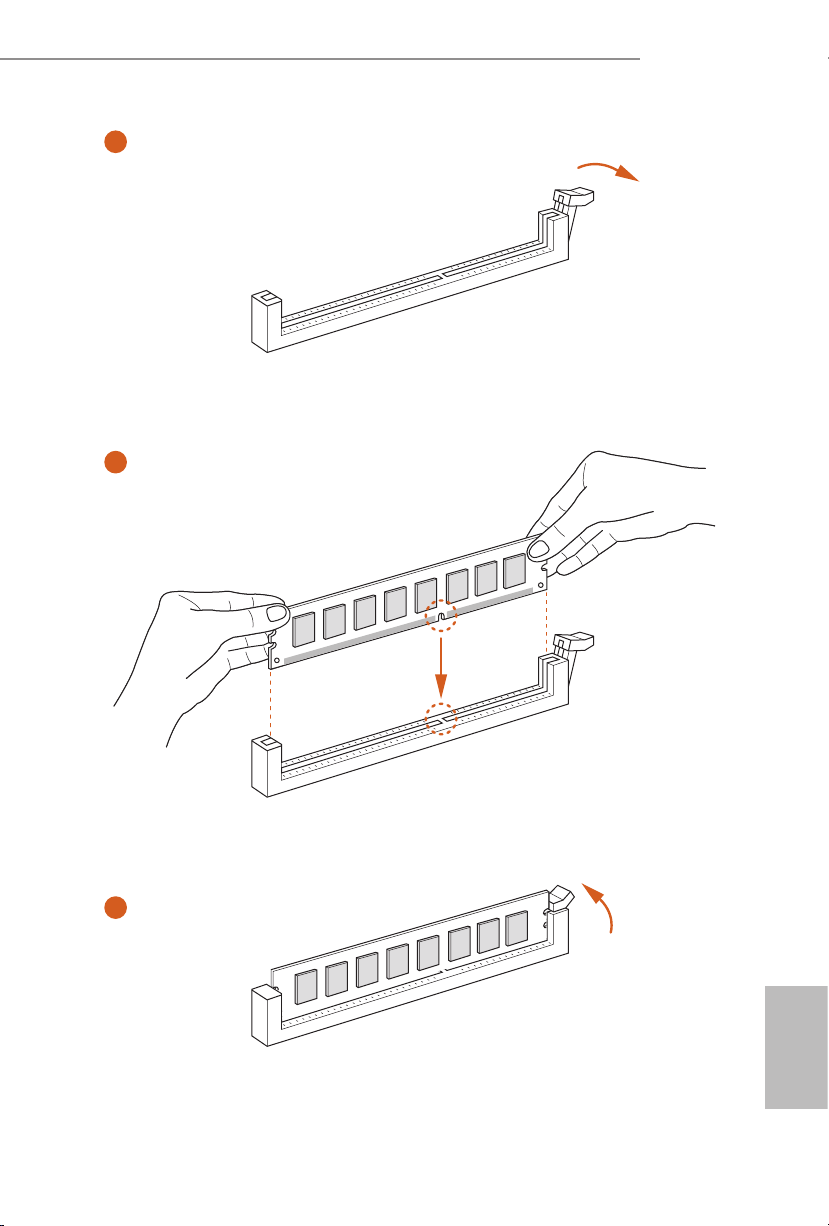

2.3 Installing Memory Modules (DIMM)

is motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots,

and supports Dual Channel Memory Technology.

1. For dual channel cong uration , you always need to in stall identical (the same b rand,
speed , size and chip-type) DDR4 DIMM pairs.

2. It is unable to activate Du al Channel Memory Technology with only one memory module
installed.

3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 sl ot;
otherwise , this motherboard and DIM M may be damaged..

e DIMM only ts in one correct orientation. It will cause permanent dam age to the
motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

English

14 15

B360M-ITX

1

2

3

English

2.4 Expansion Slot (PCI Express Slot)

ere is 1 PCI Express slot on the motherboard.

Before installing an ex pansion card, please make sure that the power supply is switched o
or the power cord is unplug ged. Pl ease read the documentation of the expansion card and
make necessary hardware settings for the card before you start the installation.

PCIe slot:

PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

English

16 17

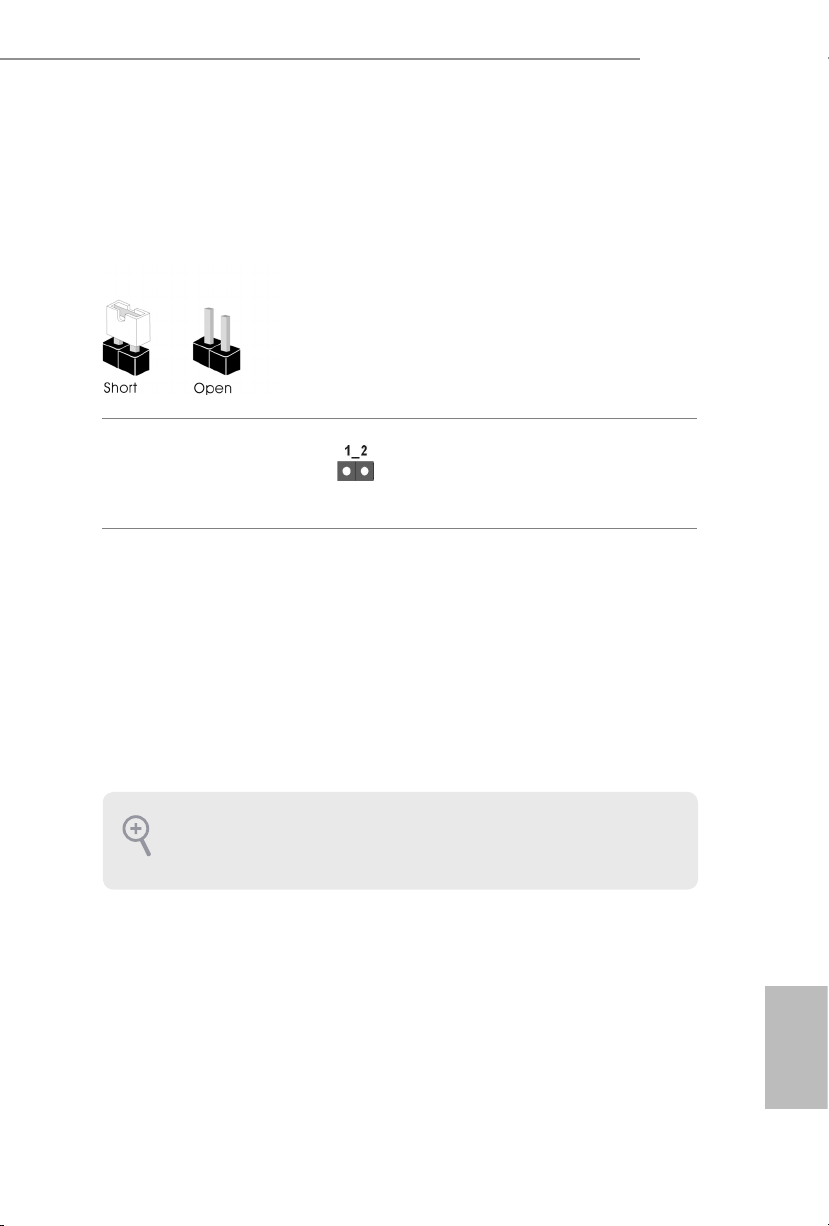

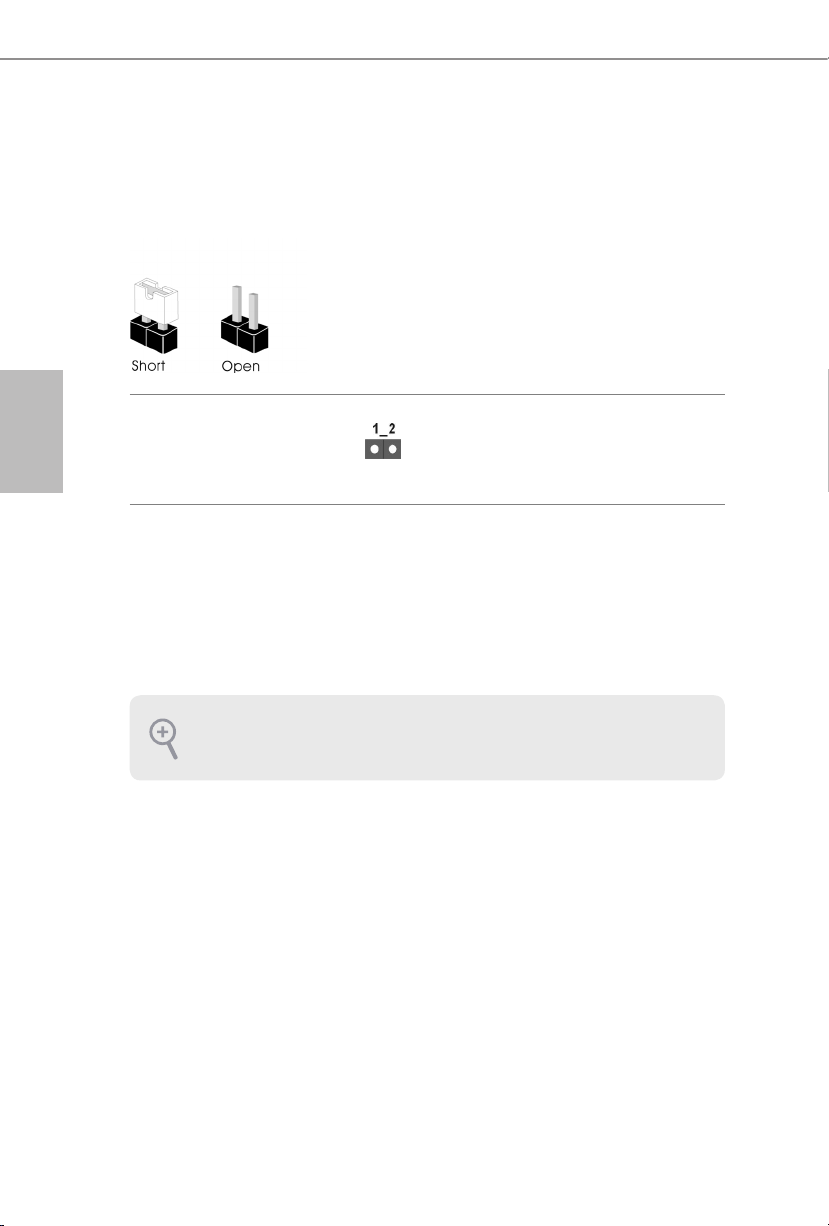

2.5 Jumpers Setup

e illustration shows how jumpers are setup. When the jumper cap is placed on

the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is

“O pen”.

Clear CMOS Jumper

(CLRMO S1)

(see p.1, No. 14)

CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system

parameters to default setup, please turn o the computer and unplug the power

cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to

short the pins on CLR MOS1 for 5 seconds. However, please do not clear the

CMOS right aer you update the BIOS. If you need to clear the CMOS when you

just nish updating the BIOS, you must boot up the system rst, and then shut it

down before you do the clear-CMOS action. Please be noted that the password,

date, time, and user default prole will be cleared only if the CMOS battery is

removed. Please remember toremove the jumper cap aer clearing the CMOS.

2-pin Jumper

B360M-ITX

If you clear the CMOS, the case open may be detec ted. Please adjust the BIOS option “Clear
Status” to clear the record of previous chassis intrusion status.

English

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these
heade rs and connectors. Placing jumper caps over the headers and connectors will cause
permanent damage to the motherboard.

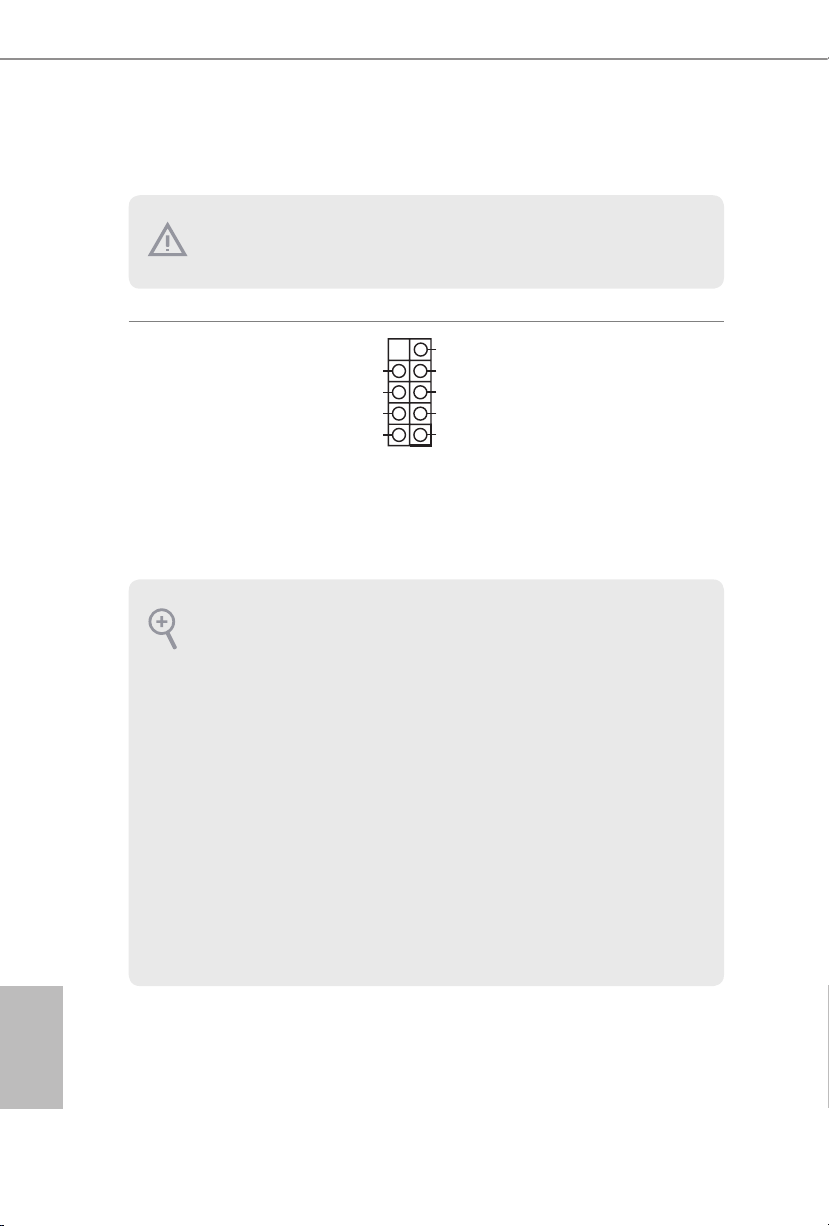

System Panel Header

(9-pi n PANEL1)

(see p.1, No. 11)

PWRBTN (Power Switch):

Connec t to the power switch on the chassi s front panel. You may congure the way to tur n
o your system using the power switch.

RESET (Reset Switch):
Connec t to the reset switch on the chassi s front panel. P ress the reset sw itch to restart the
computer if the computer f reezes and fails to perform a normal restar t.

PLED (Syste m Power LED):
Connec t to the power status indicator on the chassis front panel. e LED i s on when the
system is operating. e LED keeps blinking when the system is in S1/S3 sleep state. e
LED is o when the system is in S4 sleep state or powered o (S5).

HDLED (Ha rd Drive Activity LED):
Connec t to the hard drive ac tivity LED on the chassis front panel. e LED is on when the
hard drive is reading or wr iting data.

e front panel de sign may dier by chassis. A front pane l module mainly consists of power
switch, reset switch , power LED, hard dr ive activity LED, speaker and etc. When connect­ing your ch assi s front panel module to thi s header, make sure the wire a ssignments and the
pin assignments are matched correctly.

GND

PWRBTN#

PLED-

PLED+

GND

RESET#

GND

HDLED-

HDLED+

1

Connect the power

switch, reset switch and

system status indicator on

the chassis to this header

according to the pin

assignments below. Note

the positive and negative

pins before connecting

the cables.

English

18 19

B360M-ITX

1

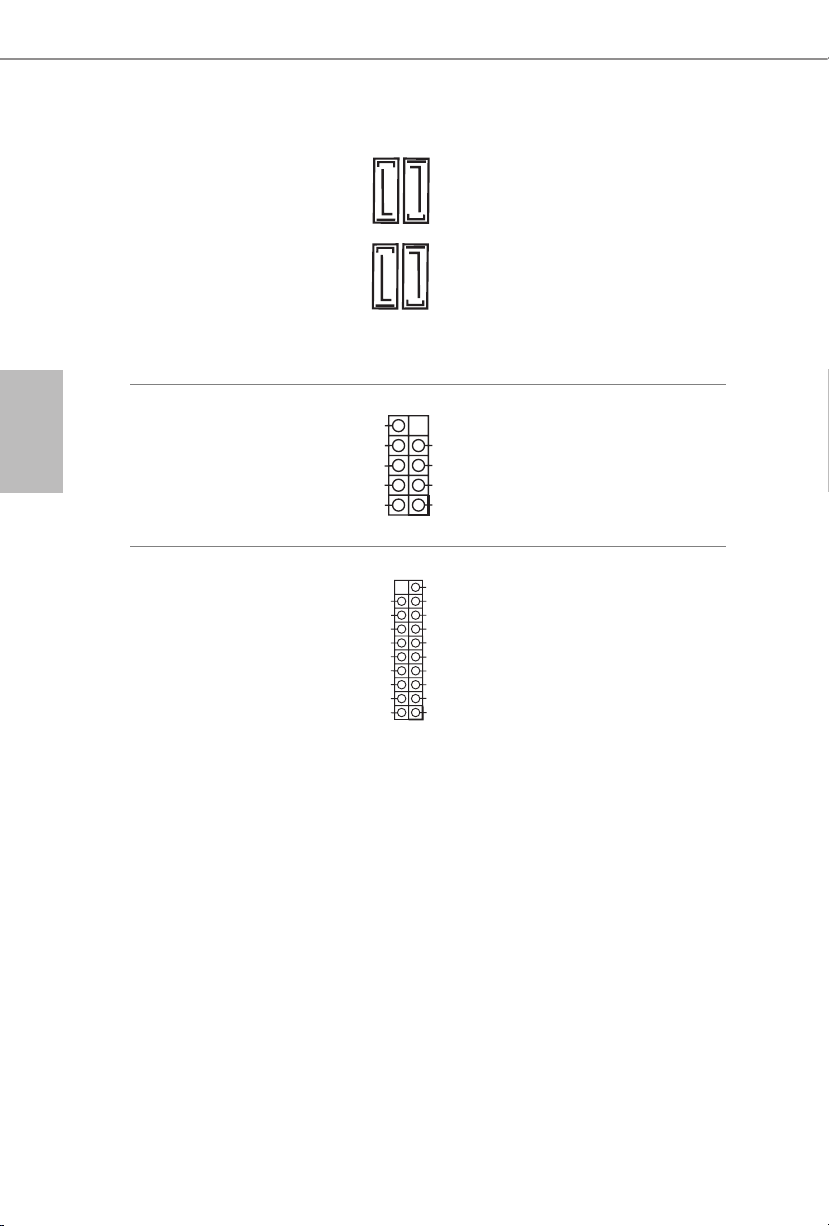

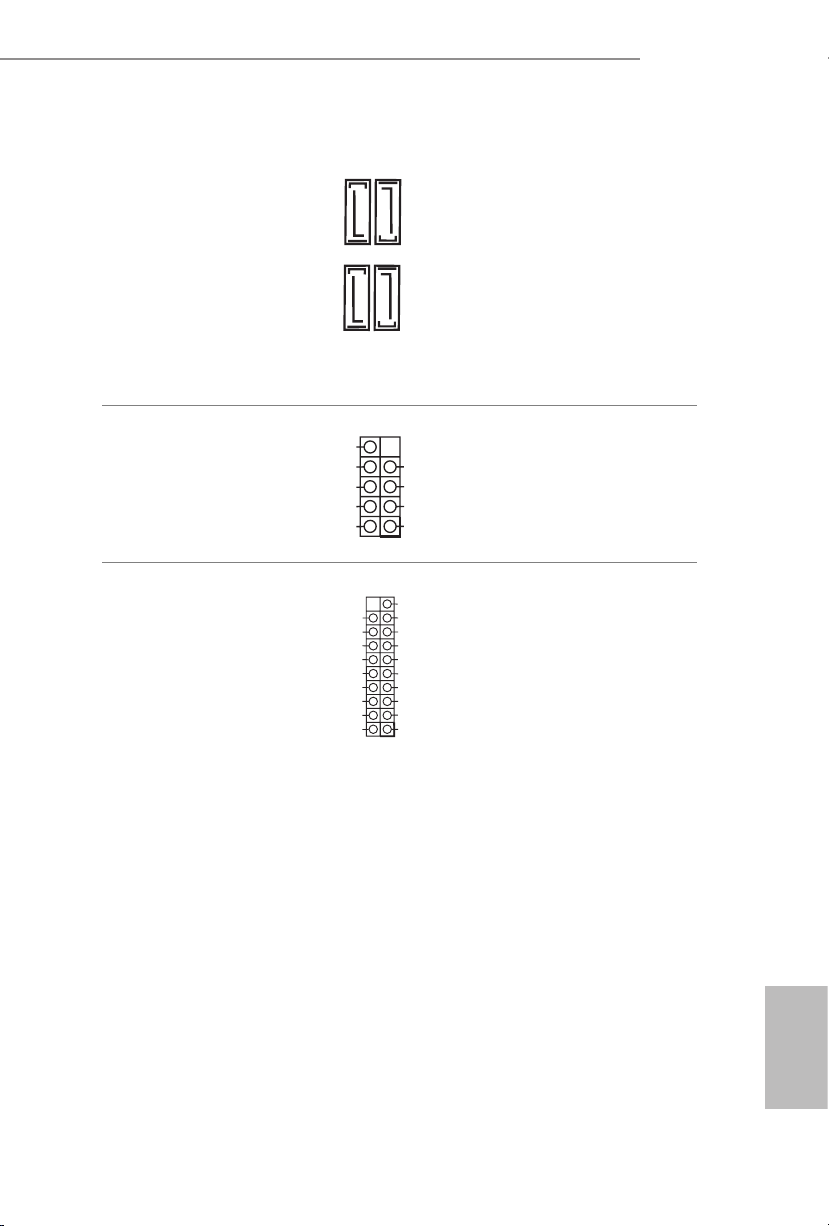

Serial ATA3 Connectors

(SATA3_0:

see p.1, No. 8)

(SATA3_1:

see p.1, No. 7)

(SATA3_ 2:

see p.1, No. 10)

(SATA3_ 3:

see p.1, No. 9)

USB 2.0 Header

(9-pin USB_3_4)

(see p.1, No. 12)

USB 3.2 Gen1 Header

(19-pin USB3_3_4)

(see p.1, No. 6)

SA T A3_ 1

SA T A3_ 3

DUMMY

GNDGND

P+4

P-4

USB_PWR

Vbus

IntA_PA_SSRX-

IntA_PA_SSRX+

GND

IntA_PA_SSTX-

IntA_PA_SSTX+

GND

IntA_PA_D-

IntA_PA_D+

SA T A3_ 0

SA T A3_ 2

P+3

P-3

USB_PWR

VbusVbus

IntA_PB_SSRX-

IntA_PB_SSRX+

GND

IntA_PB_SSTX-

IntA_PB_SSTX+

GND

IntA_PB_D-

IntA_PB_D+

Dummy

1

ese four SATA3

connectors support SATA

data cables for internal

storage devices with up to

6.0 Gb/s data transfer rate.

*If M2_1 i s occupied by a SATA­type M.2 device, SATA3_ 0 will
be disabled.

ere is one USB2.0

header on this

motherboard. is USB

2.0 header can support

two ports.

ere is one header on

this motherboard. is

USB 3.2 Gen1 header can

support two ports.

English

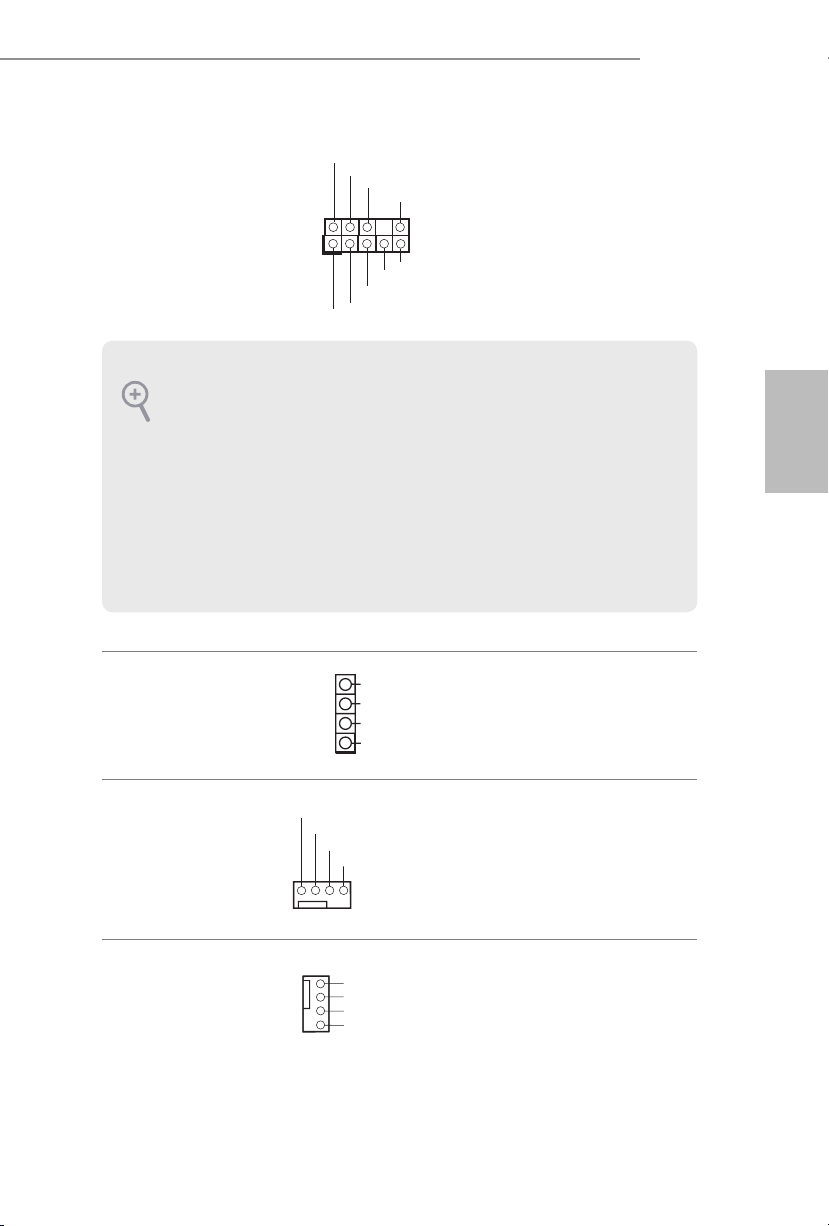

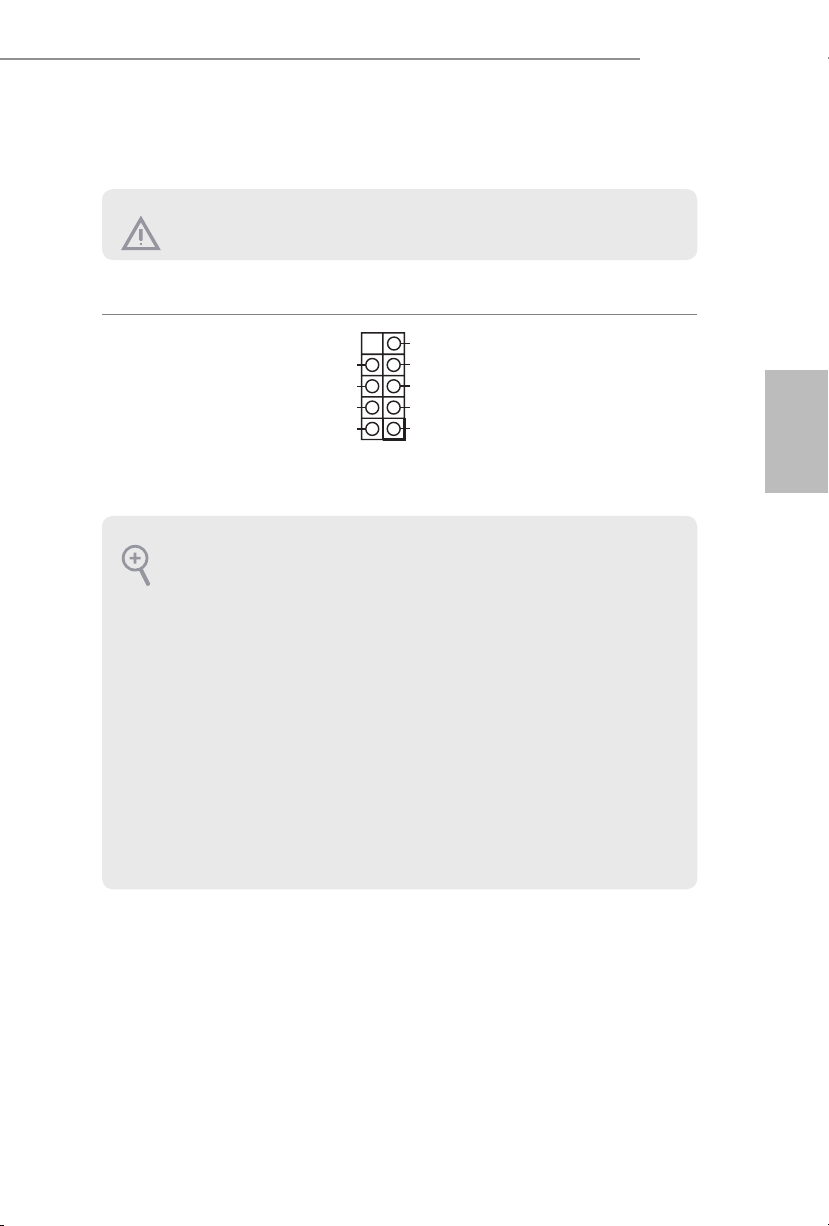

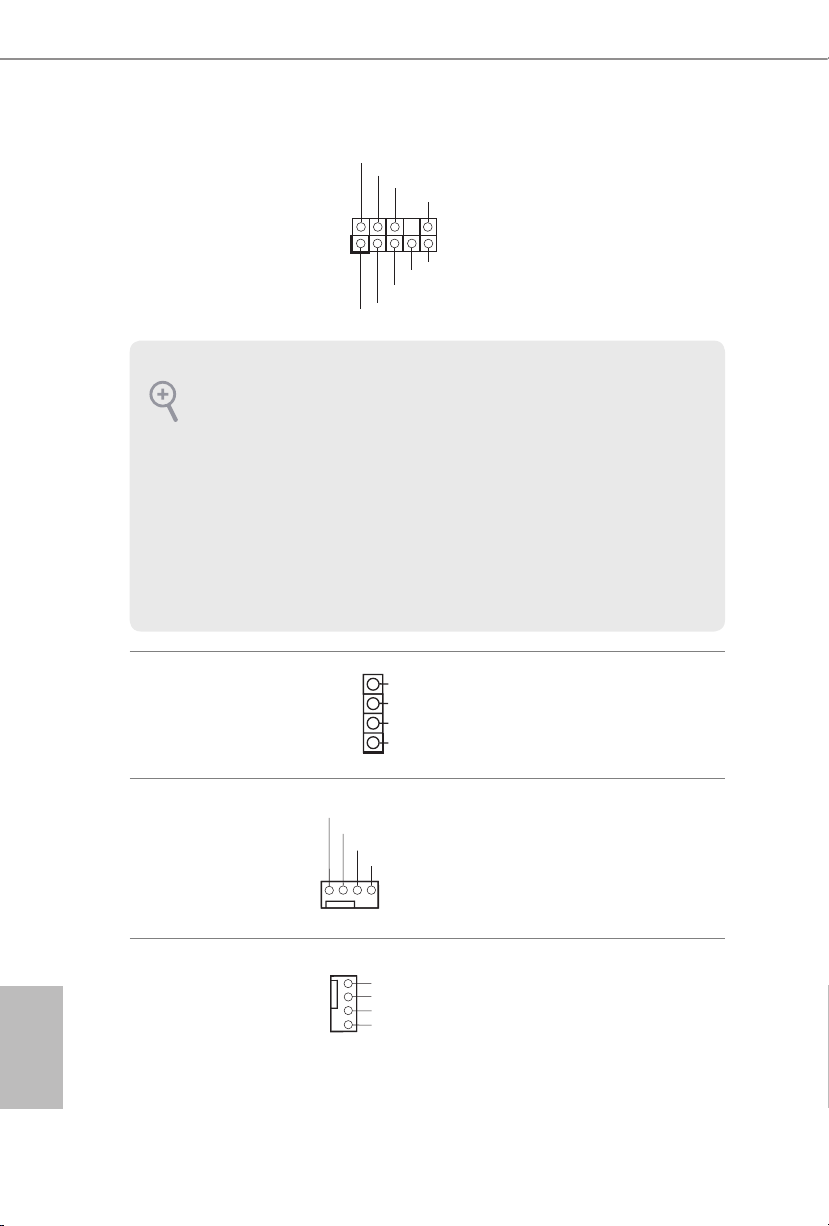

Front Panel Audio Header

OL

(9-pin HD_ AUDIO1)

(see p.1, No. 17)

GND

PRESENCE#

MIC_RET

OUT_RET

is header is for

connecting audio devices

to the front audio panel.

1

MIC2_L

1. High Denition Audio support s Jack Sensing , but the panel wire on the cha ssis must sup ­port HDA to function correctly. Ple ase fol low the instructions in our manual and chassis
manual to install your system.

2. If you use an AC’97 audio panel , please install it to th e front panel audio header by the
steps below:
A. Connect Mic_IN (MIC) to MIC2_ L.
B. Conne ct Audio_R (RIN) to OUT2_R and Audio_ L (LIN) to OUT2_ L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_ RET and OUT_RET are for the HD audio panel only. You don’t need to conn ect
them for the AC’97 audio panel .
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel and
adjust “Recording Volume”.

Chassis Speaker Header

(4-p i n SPEAKER1)

(see p.1, No. 16)

Chassis Fan / Waterpump

Fan Connector

(4-pin CHA_FAN1/WP)

GND

FAN_VOLTAGE

CHA_FAN_SPEED

FAN_SPEED_CONTR

(see p.1, No. 2)

OUT2_R

MIC2_R

SPEAKER

DUMMY

DUMMY

+5V

1

OUT2_L

J_SENSE

Please connect the chassis

speaker to this header.

Please connect fan cables

to the fan connectors and

match the black wire to

the ground pin.

1 2 3 4

English

Chassis Fan Connector

(4-pin CHA_FAN2)

(see p.1, No. 13)

1

2

3

4

GND
FAN_VOLTAGE
CHA_FAN_SPEED
FAN_SPEED_CONTROL

Please connect fan cables

to the fan connectors and

match the black wire to

the ground pin.

20 21

B360M-ITX

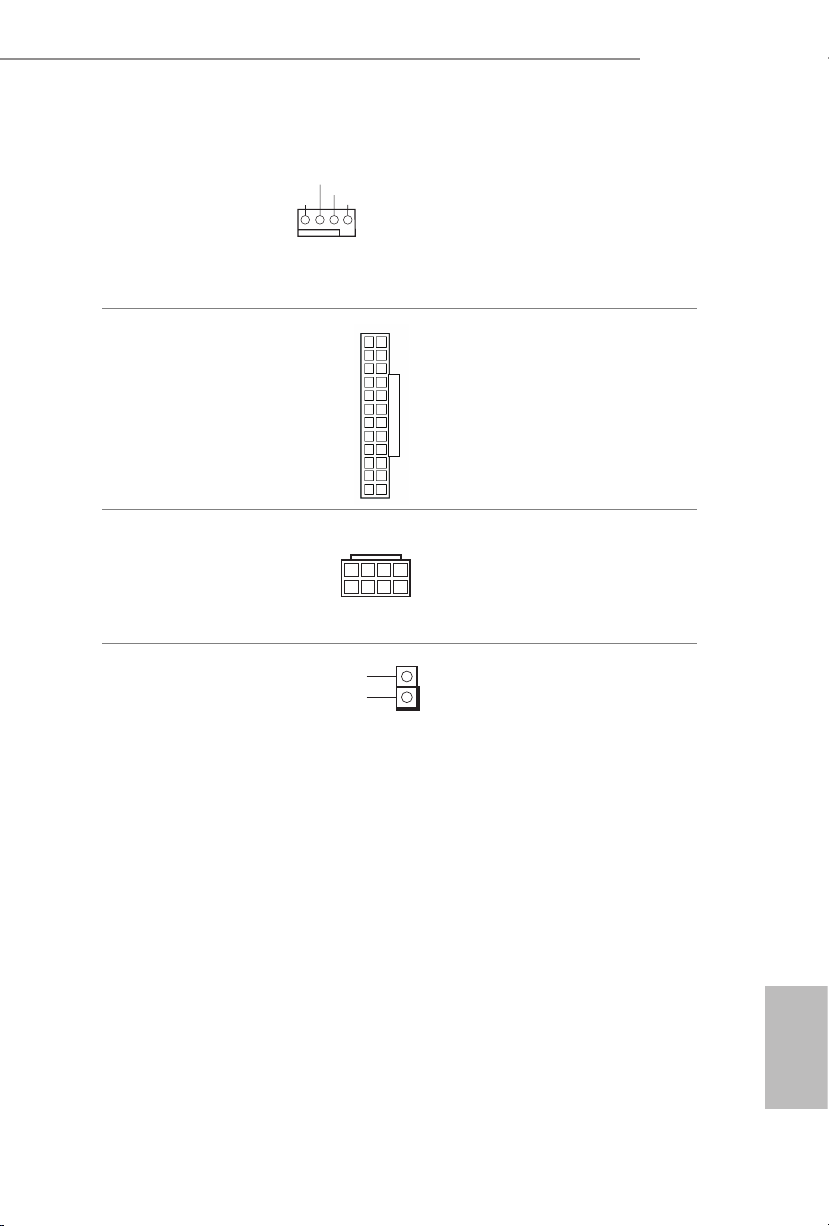

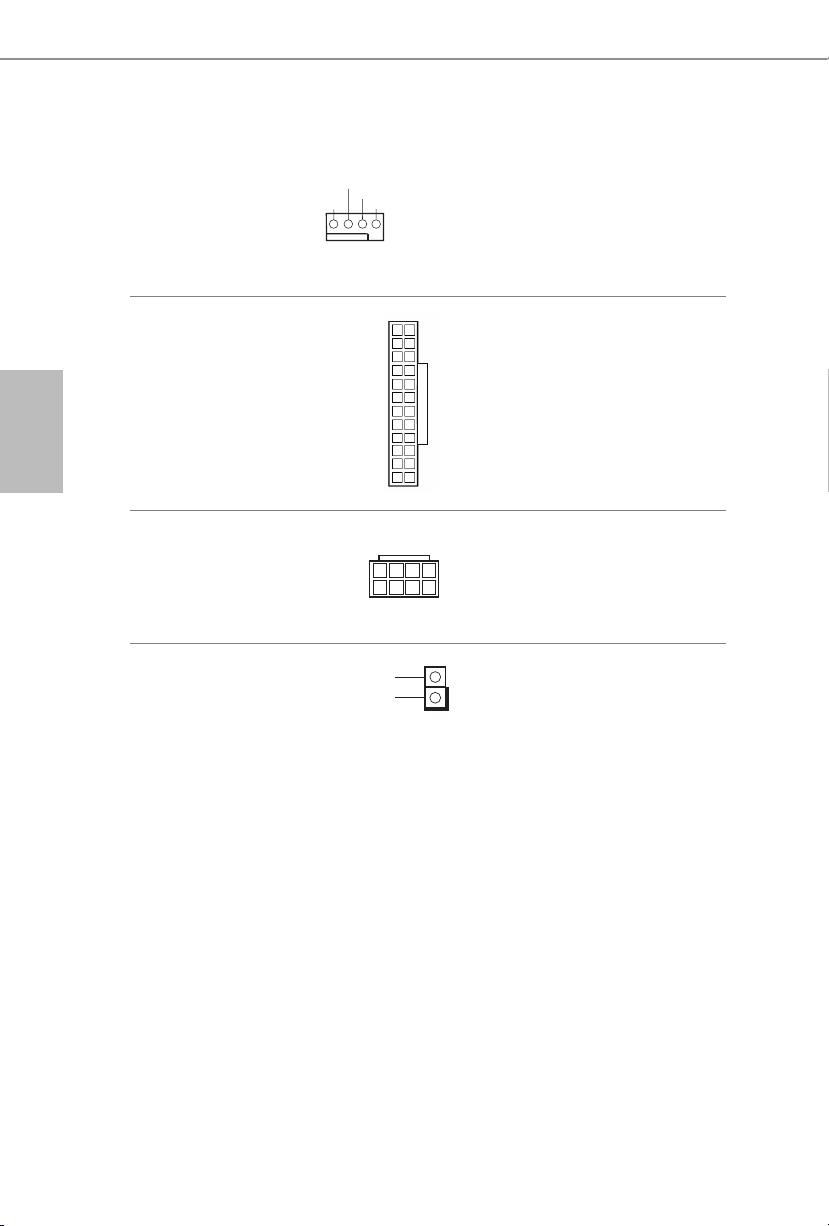

CPU Fan Connector

(4-pin CPU_FAN1)

(see p.1, No. 3)

ATX Power Connector

(24-p i n ATX PWR1)

(see p.1, No. 5)

ATX 12V Power

Connector

(4-pin ATX12V1)

(see p.1, No. 1)

Chassis Intrusion Header

(2-pin CI1)

(see p.1, No. 15)

FAN_VOLTAGE

CPU_FAN_SPEED

GND

1 2 3 4

Signal

FAN_SPEED_CONTROL

12

24

13

1

8

4

GND

5

1

is motherboard pro-

vides a 4-Pin CPU fan

(Quiet Fan) connector.

If you plan to connect a

3-Pin CPU fan, please

connect it to Pin 1-3.

is motherboard pro-

vides a 24-pin ATX power

connector.

Please connect an ATX

12V power supply to this

connector.

is motherboard

supports CASE OPEN

1

detection feature that

detects if the chassis cove

has been removed. is

feature requires a chassis

with chassis intrusion

detection design.

English

2.7 M.2_SSD (NGFF) Module Installation Guide (M2_1)

The M.2, a lso known as the Next Generation Form Factor (NGFF), is a small size and

versatile card edge connector that aims to replace mPCIe and mSATA. e Socket (M2_1)

supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s).

* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

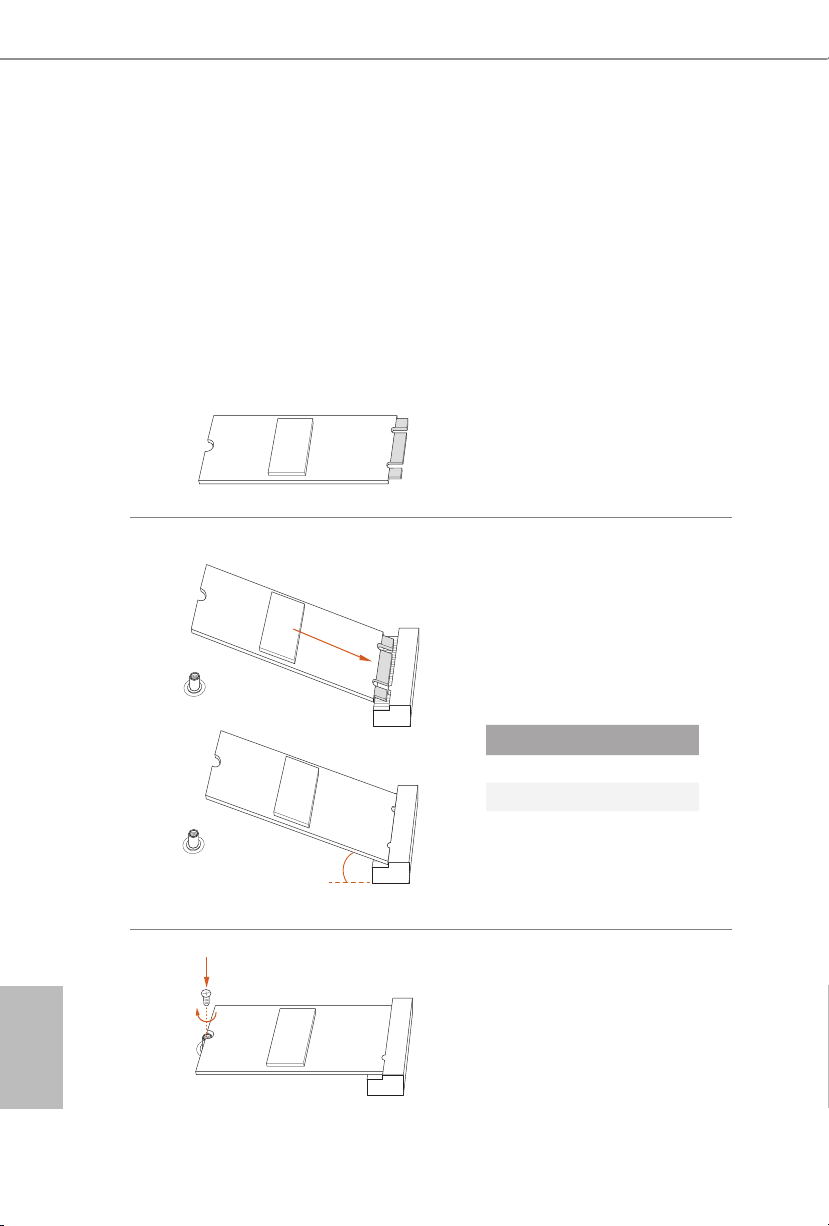

Installing the M.2_SSD (NGFF) Module

Step 1

Prepare a M.2_SSD (NGFF) module

and the screw.

Step 2

Gently insert the M.2 (NGFF) SSD

module into the M.2 slot. Please

be aware that the M.2 (NGFF) SSD

module only ts in one orientation.

A

No. 1

Nut Location A

PCB Length 8cm

Module Type Type 228 0

A

o

20

Step 3

English

Tighten the screw with a screwdriver

to secure the module into place.

Please do not overtighten the screw as

NUT1NUT2

this might damage the module.

22 23

M.2_SSD (NGFF) Module Support List

Vendor Interface P/N

ADATA SATA3 AXNS381E-128GM-B
ADATA SATA3 AX NS381E -25 6G M-B
ADATA SATA3 ASU800NS38-256GT-C
ADATA SATA3 ASU800NS38-512GT-C
ADATA PCIe3 x4 ASX7000NP-128GT-C
ADATA PCIe3 x4 ASX8000NP-256GM-C
ADATA PCIe3 x4 ASX7000NP-256GT-C
ADATA PCIe3 x4 ASX8000NP-512GM-C
ADATA PCIe3 x4 ASX7000NP-512GT-C
Apacer PCIe3 x4 AP240GZ280
Corsair PCIe3 x4 CSSD-F240GBMP500
Crucial SATA3 CT120M500SSD4
Crucial SATA3 CT240M500SSD4
Intel SATA3 Intel SSDSCKGW080A401/80G
Intel PCIe3 x4 SSDPEKKF256G7
Intel PCIe3 x4 SSDPEKK F512G7
Kingston SATA3 SM2280S3
Kingston PCIe2 x4 SH2280S3/480G
Kingston PCIe3 x4 SKC1000/480G
OCZ PCIe3 x4 RVD400 -M2280-512G (NVME)
PAT R IOT PCIe3 x4 PH240GPM280SSDR NVME
Plextor PCIe PX-G25 6M6e
Plextor PCIe PX-G512M6e
Plextor PCIe3 x4 PX-128M8PeG
Plextor PCIe3 x4 PX-1TM8PeG
Plextor PCIe3 x4 PX-256M8PeG
Plextor PCIe3 x4 PX-512M8Pe G
Samsung PCIe x4 XP941-512G (MZHPU512HCGL)
Samsung PCIe3 x4 SM961 MZVPW128HEGM (NVM)
Samsung PCIe3 x4 PM961 MZVLW128HEGR (NVME)
Samsung PCIe3 x4 960 EVO (MZ-V6E250) (NVME)
Samsung PCIe3 x4 960 EVO (MZ-V6E250BW) (NVME)
Samsung PCIe3 x4 SM 951 (NVM E)
Samsung PCIe3 x4 SM951 (MZHPV256HDGL)
Samsung PCIe3 x4 SM 951 (MZHPV512HDGL)
Samsung PCIe3 x4 SM 951 (NVM E)
Team SATA3 TM8PS4128GMC105
Team SATA3 TM8PS4256GMC105
TEAM PCIe3 x4 TM8FP2240G0C101
TEAM PCIe3 x4 TM8FP2480GC110
Tra nscend SATA3 TS512GMTS800
V-Col or SATA3 VLM100-120G-2280B-RD
V-Col or SATA3 VLM10 0-240G-22 80RGB

B360M-ITX

English

V-Col or SATA3 VSM100-240G-2280
V-Col or SATA3 VLM10 0-240G-22 80B-RD
WD PCIe3 x4 WDS256G1X0C-00ENX0 (NVME)
WD PCIe3 x4 WDS512G1X0 C-0 0E NX0 (NVME)
WD SATA3 WDS100T1B0B-00AS40
WD SATA3 WDS240G1G0B-00RC30
V-Col or SATA3 VSM100-240G-2280
V-Col or SATA3 VLM10 0-240G-22 80B-RD
WD SATA3 WDS100T1B0B-00AS40
WD SATA3 WDS240G1G0B-00RC30
WD PCIe3 x4 WDS256G1X0C-00ENX0 (NVME)
WD PCIe3 x4 WDS512G1X0 C-0 0E NX0 (NVME)

For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for

details: http://www.asrock.com

English

24 PB

1 简介

感谢您购买华擎 B360M-ITX 主板，这是按照华擎一贯严格质量控制标准生产的
性能可靠的主板。它提供符合华擎质量和耐久性承诺的精良设计和卓越性能。

由于主板规格和 BIOS 软件可能已更新，因此，本文档的内容可能会随时更改，恕不
另行通知。如果本文档有任何修改，则更新的版本将发布在华擎网站上，我们不会另
外进行通知。如果您需要与此主板相关的技术支持，请访问我们的网站以具体了解所
用型号的信息。您也可以在华擎网站上找到最新 VGA 卡和 CPU 支持列表。华擎网站
http://www.asrock.com。

B360M-ITX

1.1 包装清单

• 华擎 B360M-ITX 主板（Mini-ITX 规格尺寸）

• 华擎 B360M-ITX 快速安装指南

• 华擎 B360M-ITX 支持光盘

• 2 x 串行 ATA (SATA) 数据线（选购）

• 1 x I/O 面板

�简体中文

1.2 规格

�简体中文

平台

CPU

芯片集

内存

扩充槽

图形

• Mini-ITX 规格尺寸

• 稳固的电容器设计

• 支持第 8 代和第 9 代 Intel® CoreTM处理器（插座 1151）

• 支持高達 95W 的 CPU

• Digi Power design

• 5 电源相设计

• 支持 Intel® Turbo Boost 2.0 技术

• Intel® B360

• 双通道 DDR4 内存技术

• 2 x DDR4 DIMM 槽

• 支持 DDR4 2666/2400/2133 非 ECC，非缓冲内存

• 支持 ECC UDIMM 内存模块（非 ECC 模式操作）

• 支持系统内存最大容量： 64 GB

• 支持 Intel® Extreme Memory Prole (XMP) 2.0

• DIMM 插槽中 15μ 金触点

• 1 x PCI Express 3.0 x16 插槽（PCIE1：x16 模式 )

* 支持 NVMe SSD 用作启动盘

* 只有 GPU 集成的处理器才支持 Intel® UHD Graphics 内置视效
和 VGA 输出。

• 支持 Intel® UHD Graphics 内置视效 : Intel® 快速同步视频，
采用 AVC、MVC (S3D) 和 MPEG-2 Full HW Encode1、Intel®

InTruTM 3D、Intel® Clear Video HD 技术、Intel® InsiderTM、

Intel® UHD Graphics

• DirectX 12

• HWA 编码 / 解码 : AVC/H.264、HEVC/H.265 8-bit、HEVC/

H.265 10-bit、VP8、VP9 8-bit、VP9 10-bit ( 仅解码 )、
MPEG2、MJPEG、VC-1 ( 仅解码 )

26 27

B360M-ITX

• 双图形输出 : 通过独立显示控制器支持 DVI-I 和 DisplayPort

1.2

• 支持 DisplayPort 1.2，60Hz 时最大分辨率达 4K x 2K

(4096x2304)

• 支持 DVI-I，60Hz 时最大分辨率达 1920x1200

• 通过 DVI-I 和 DisplayPort 1.2 端口支持 HDCP 2.2

• 通过 DisplayPort 1.2 端口支持支持 4K 超高清 (UHD) 播放

音频

LAN

后面板 I/O

存储

• 7.1 CH 高清音频 (Realtek ALC887 音频编解码器 )

• 支持电涌保护

• ELNA 音频电容

• Gigabit LAN 10/100/1000 Mb/s

• Giga PHY Intel® I219V

• 支持 Wake-On-LAN（网上唤醒）

• 支持雷电 /ESD 保护

• 支持高能效以太网 802.3az

• 支持 PXE

• 1 x PS/2 鼠标 / 键盘端口

• 1 x DVI-I 端口

• 1 x DisplayPort 1.2

• 2 x USB 3.2 Gen2 A 类型端口 (10 Gb/s)

• 2 x USB 3.2 Gen1 端口 ( 支持 ESD 保护 )

• 1 x RJ-45 LAN 端口，带 LED（ACT/LINK LED 和 SPEED

LED）

• 高清音频插孔 : 线路输入 / 前扬声器 / 麦克风

• 4 x SATA3 6.0 Gb/s 接口，支持 NCQ、AHCI 和热插拔 *

* 如果 M2_1 被 SATA 型 M.2 设备占用，SATA3_0 将被禁用。

• 1 x 超级 M.2 接口，支持 M Key 类型 2280 M.2 SATA3 6.0 Gb/s
模块和 M.2 PCI Express 模块（最高 Gen3 x4 (32 Gb/s)）**

** 支持 Intel® OptaneTM 技术
** 支持 NVMe SSD 用作启动盘
** 支持华擎 U.2 套件

�简体中文

�简体中文

接口

• 1 x 机箱侵入接脚

• 1 x CPU 风扇接口 (4 针 )

* CPU 风扇接口支持最高 1A (12W) 功率的 CPU 风扇。

• 1 x 机箱风扇接口 (4 针 )

* 机箱风扇接口支持最高 1A (12W) 功率的机箱风扇。

• 1 x 机箱 / 水泵风扇接口（4 针）（智能风扇速度控制）
* 机箱 / 水泵风扇支持最高 2A (24W) 功率的水冷风扇。
* CHA_FAN1/WP 可以自动检测 3 针脚或 4 针脚风扇是否在使

用。

• 1 x 24 针 ATX 电源接口

• 1 x 8 针 12V 电源接口

• 1 x 前面板音频接口

• 1 x USB 2.0 接脚（支持 2 个 USB 2.0 端口，支持 ESD 保护）

• 1 x USB 3.2 Gen1 接脚（支持 2 个 USB 3.2 Gen1 端口，支持

ESD 保护）

BIOS 功能
特点

硬件监控

操作系统

认证

* 有关详细产品信息，请访问我们的网站： http://www.asrock.com

• AMI UEFI Legal BIOS，支持多语言 GUI

• ACPI 6.0 兼容唤醒事件

• SMBIOS 2.7 支持

• CPU、DRAM、 PCH 1.0V、VCCST 电压多次调整（Voltage

Multi-adjustment）

• 温度感测 : CPU、机箱、机箱 / 水泵风扇

• 风扇转速计 : CPU、机箱、机箱 / 水泵风扇

• 静音风扇（根据 CPU 温度自动调整机箱风扇速度）: CPU、

机箱、机箱 / 水泵风扇

• 风扇多种速度控制 : CPU、机箱、机箱 / 水泵风扇

• CASE OPEN（机箱打开）检测

• 电压监控： +12V、+5V、+3.3V、CPU Vcore

Microso® Windows® 10 64-bit

• FCC、CE

• ErP/EuP 支持（需要支持 ErP/EuP 的电源）

28 29

须认识到超频会有一定风险，包括调整 BIOS 设置，应用“自由超频技术”，或使用
第三方超频工具。超频可能会影响到系统的稳定性，甚至对系统的组件和设备造成损
坏。执行这项工作您应自担风险和自己承担费用。我们对由于超频而造成的损坏概不
负责。

B360M-ITX

�简体中文

�简体中文

1.3 跳线设置

此图显示如何设置跳线。将跳线帽装到这些针脚上时，跳线 “短接”。如果这
些针脚上没有装跳线帽，跳线 “开路”。

清除 CMOS 跳线
（CLRMOS1）
（见第 1 页，第 14 个）

CLRMOS1 允许您清除 CMOS 中的数据。要清除和重置系统参数到默认设
置，请关闭计算机，从电源上拔下电源线插头。等候 15 秒后，使用跳线帽将
CLRMOS1 上的针脚短接 5 秒。但是，请勿在更新 BIOS 后立即清除 CMOS。
如果您需要在刚完成 BIOS 更新后清除 CMOS，则必须先启动系统，并在关闭
后再执行清除 CMOS 操作。请注意，密码、日期、时间和用户默认配置文件
只在卸下 CMOS 电池后才会被清除。请记住在清除 CMOS 后取下跳线帽。

2 针跳线

如果您清除 CMOS，机箱打开会被检测到。请将 BIOS 选项“Clear Status”（清除状态）
调整为清除前一个机箱侵入状态的记录。

30 31

1.4 板载接脚和接口

板载接脚和接口不是跳线。不要将跳线帽装到这些接脚和接口上。将跳线帽装到这些
接脚和接口上将会对主板造成永久性损坏。

B360M-ITX

系统面板接脚
（9 针 PANEL1）
（见第 1 页， 第 11 个）

PWRBTN（电源开关）:

连接到机箱前面板上的电源开关。您可以配置使用电源开关关闭系统的方式。

RESET（重置开关）:

连接到机箱前面板上的重置开关。如果计算机死机，无法执行正常重新启动，按重置
开关重新启动计算机。

PLED（系统电源 LED）:

连接到机箱前面板上的电源状态指示灯。系统操作操作时，此 LED 亮起。系统处在
S1/S3 睡眠状态时，此 LED 闪烁。系统处在 S4 睡眠状态或关机 (S5) 时，此 LED 熄灭。

HDLED（硬盘活动 LED）:

连接到机箱前面板上的硬盘活动 LED 指示灯。硬盘正在读取或写入数据时，此 LED
亮起。

前面板设计根据机箱不同而有所差异。前面板模块主要包括电源开关、重置开关、电
源 LED、硬盘活动 LED 指示灯、扬声器等。将机箱前面板模块连接到此接脚时，确
保连线分配和针脚分配正确匹配。

GND

PWRBTN#

PLED-

PLED+

GND

RESET#

GND

HDLED-

HDLED+

1

按照下面的针脚分配，
将机箱上的电源开关、
重置开关和系统状态指
示灯连接到此接脚。在
连接线缆前请记下正负
针脚。

�简体中文

�简体中文

1

串行 ATA3 接口
（SATA3_0:
见第 1 页， 第 8 个）
（SATA3_1:
见第 1 页， 第 7 个）
（SATA3_2:
见第 1 页， 第 10 个）
（SATA3_3:
见第 1 页， 第 9 个）

这四个 SATA3 接口支持
最高 6.0 Gb/s 数据传输

SA T A3_ 1

SA T A3_ 0

速率的内部存储设备的
SATA 数据线。

* 如果 M2_1 被 SATA 型 M.2

SA T A3_ 3

SA T A3_ 2

设备占用，SATA3_0 将被禁
用。

USB 2.0 接脚
（9 针 USB_3_4）
（见第 1 页，第 12 个）

USB 3.2 Gen1 接脚
（19 针 USB3_3_4）
（见第 1 页，第 6 个）

DUMMY

GNDGND

P+4

P-4

USB_PWR

Vbus

IntA_PA_SSRX-

IntA_PA_SSRX+

GND

IntA_PA_SSTX-

IntA_PA_SSTX+

GND

IntA_PA_D-

IntA_PA_D+

P+3

P-3

USB_PWR

VbusVbus

IntA_PB_SSRX-

IntA_PB_SSRX+

GND

IntA_PB_SSTX-

IntA_PB_SSTX+

GND

IntA_PB_D-

IntA_PB_D+

Dummy

1

此主板上有一个 USB 2.0
接脚。此 USB 2.0 接脚支
持两个端口。

此主板上有一个接脚。
此 USB 3.2 Gen1 接脚可
以支持两个端口。

32 33

B360M-ITX

前面板音频接脚
（9 针 HD_AUDIO1）
（见第 1 页，第 17 个）

1.

高清音频支持插孔感测，但机箱上的面板连线必须支持 HDA 才能正常工作。请按
照我们的手册和机箱手册的说明安装系统。

2.

如果您使用 AC’97 音频面板，请按照以下步骤将它安装到前面板音频接脚：
A. 将 Mic_IN (MIC) 连接到 MIC2_L。
B. 将 Audio_R (RIN) 连接到 OUT2_R，将 Audio_L (LIN) 连接到 OUT2_L。
C. 将接地端 (GND) 连接到接地端 (GND)。
D. MIC_RET 和 OUT_RET 只用于高清音频面板。您不需要针对 AC’97 音频面板
连接它们。
E. 要启用前麦克风，请转到 Realtek 控制面板上的“FrontMic”（前麦克风）选项卡，

调整 “Recording Volume”（录音音量）。

机箱扬声器接脚
（4 针 SPEAKER1）
（见第 1 页， 第 16 个）

1

GND

PRESENCE#

MIC2_R

MIC2_L

1

MIC_RET

OUT_RET

OUT2_L

J_SENSE

OUT2_R

SPEAKER

DUMMY

DUMMY

+5V

此接脚用于将音频设备
连接到前音频面板。

�简体中文

请将机箱扬声器连接到
此接脚。

机箱风扇 / 水泵风扇
接口
（4 针 CHA_FAN1/WP）
（见第 1 页， 第 2 个）

机箱风扇接口
（4 针 CHA_FAN2）
（见第 1 页， 第 13 个）

GND

FAN_VOLTAGE

CHA_FAN_SPEED

FAN_SPEED_CONTROL

1 2 3 4

GND

1

FAN_VOLTAGE

2

CHA_FAN_SPEED

3

4

FAN_SPEED_CONTROL

请将风扇线连接到风扇
接口并使黑线匹配接地
针脚。

请将风扇线连接到风扇
接口并使黑线匹配接地
针脚。

�简体中文

5

8

CPU 风扇接口
（4 针 CPU_FAN1）
（见第 1 页， 第 3 个）

ATX 电源接口
（24 针 ATXPWR1）
（见第 1 页，第 5 个）

FAN_VOLTAGE

CPU_FAN_SPEED

GND

1 2 3 4

FAN_SPEED_CONTROL

12

24

13

1

此主板提供 4 针 CPU 风
扇（静音风扇）接口。如
果您打算连接 3 针 CPU
风扇，请将它连接到针
脚 1-3。

此主板提供 24 针 ATX 电
源接口。

ATX 12V 电源接口
（4 针 ATX12V1）
（见第 1 页，第 1 个）

机箱侵入接脚
（2 针 CI1）
（见第 1 页，第 15 个）

4

GND

Signal

请将 ATX 12V 电源连接
到此接口。

1

此主板支持 CASE OPEN
（机箱打开）检测功能 -

1

检测机箱盖是否拆下。
此功能需要采用侵入检
测设计的机箱。

34 35

电子信息产品污染控制标示

依据中国发布的「电子信息产品污染控制管理办法」及 SJ/T 11364-2006「电子
信息产品污染控制标示要求」，电子信息产品应进行标示，藉以向消费者揭露
产品中含有的有毒有害物质或元素不致发生外泄或突变从而对环境造成污染或
对人身、财产造成严重损害的期限。依上述规定，您可于本产品之印刷电路板
上看见图一之标示。图一中之数字为产品之环保使用期限。由此可知此主板之
环保使用期限为 10 年。

图一

B360M-ITX

�简体中文

有毒有害物质或元素的名称及含量说明

若您欲了解此产品的有毒有害物质或元素的名称及含量说明，请参照以下表格
及说明。

有害物质或元素

部件名称

铅 (Pb) 镉 (Cd) 汞 (Hg) 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE)
印刷电路板
及电子组件
外部信号连
接头及线材

O: 表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T 11363-2006 标准规定

的限量要求以下。
X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T 11363-2006 标准
规定的限量要求，然该部件仍符合欧盟指令 2002/95/EC 的规范。
备注 : 此产品所标示之环保使用年限，系指在一般正常使用状况下。

X O O O O O

X O O O O O

Contact Information

If you need to contact ASRock or want to know more about ASRock, you’re welcome

to visit ASRock’s website at http://ww w.asrock.com; or you may contact your dealer

for further information. For technical questions, please submit a support request

form at https://event.asrock.com/tsd.asp

ASRock Incorporation

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

ASRock EUROPE B.V.

Bijsterhuizen 11-11

6546 AR Nijmegen

e Netherlands

Phone: [phone]

Fax: [phone]

ASRock America, Inc.

13848 Magnolia Ave, Chino, CA91710

U.S.A.

Phone: [phone]

Fax: [phone]

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible Party Name: ASRock Incorporation

Address:

Phone/FaxNo:

hereby declares that the product

Product Name : Motherboard

13848 Magnolia Ave, Chino, CA91710

[phone]/[phone]

Model Number :

Conforms to the following specications:

FCC Part 15, Subpart B, Unintentional Radiators

Supplementary Information:

B360M-ITX

is device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) is device may not cause harmful interference,

and (2) this device must accept any interference received, including interference

that may cause undesired operation.

James

Representative Person’s Name:

Signature :

Date :

May 12, 2017

EU Declaration of Conformity

EMC —Directive 2014/30/EU (from April 20th, 2016)

☐

For the following equipment:

Motherboard

(Product Name)

B360M-ITX / ASRock

(Model Designation / Trade Name)

ASRock Incorporation

(Manufacturer Name)

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.)

(Manufacturer Address)

ڛ

☐ EN 55022:2010/AC:2011 Class B EN 55024:2010/A1:2015

ڛ EN 55032:2012+AC:2013 Class B ڛڛ EN 61000-3-3:2013
ڛ EN 61000-3-2:2014

☐

LVD —Directive 2014/35/EU (from April 20th, 2016)

EN 60950-1 : 2011+ A2: 2013 ☐

ڛ RoHS — Directive 2011/65/EU
ڛ CE marking

EN 60950-1 : 2006/A12: 2011

(EU conformity marking)

ASRock EUROPE B.V.

(Company Name)

Bijsterhuizen 1111 6546 AR Nijmegen e Netherlands

(Company Address)

Person responsible for making this declaration:

(Name, Surname)

A.V.P

(Position / Title)

July 31, 2020

(Date)

P/N: 15G062245000AK V1.0
