Chapter 1 Introduction

ank you for purchasing ASRock B150A-X1/Hyper motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

In this documentation, Chapter 1 and 2 contains the introduction of the

motherboard and step-by-step installation guides. Chapter 3 contains the operation

guide of the soware and utilities. Chapter 4 contains the conguration guide of

the BIOS setup.

Becau se the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website w ithout f urther notice. If you require technical support relate d to
this motherboard, please vi sit our website for s pecic information about the model
you are using. You may nd the l atest VGA cards and CPU suppor t list on ASRock’s
website a s well. ASRock website ht tp://www.a srock.com.

B150A-X1/Hyper

1.1 Package Contents

ASRock B150A-X1/Hyper Motherboard (ATX Form Factor)

•

ASRock B150A-X1/Hyper Quick Installation Guide

•

ASRock B150A-X1/Hyper Support CD

•

2 x Serial ATA (SATA) Data Cables (Optional)

•

1 x I/O Panel Shield

•

1 x Screw for M.2 Socket

•

English

1

1.2 Specications

Platform

CPU

Chipset

Memory

•

•

•

•

•

•

•

•

•

•

•

•

•

•

* Please refer to Memory Support List on ASRock's website for

more information. (http://www.asrock.com/)

•

•

•

ATX Form Factor

Solid Capacitor design

Supports 6th Generation Intel® CoreTM i7/i5/i3/Pentium®/

Celeron® Processors (Socket 1151)

Supports CPU up to 95W

Digi Power design

5 Power Phase design

Supports Intel® Turbo Boost 2.0 Technology

Supports ASRock Hyper BCLK Engine

Intel® B150

Supports Intel® Small Business Basics

Dual Channel DDR4 Memory Technology

4 x DDR4 DIMM Slots

Supports DDR4 2133 non-ECC, un-buered memory

Supports ECC UDIMM memory modules (operate in non-

ECC mode)

Max. capacity of system memory: 64GB

Supports Intel® Extreme Memory Prole (XMP) 2.0

15μ Gold Contact in DIMM Slots

English

2

Expansion
Slot

Graphics

2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4

•

mode)*

* If M2_1 slot is occupied by a PCIe-type M.2 device, PCIE4 slot

will run at x2 mode.

* Supports NVMe SSD as boot disks

3 x PCI Express 3.0 x1 Slots (Flexible PCIe)

•

Supports AMD Quad CrossFireXTM and CrossFireXTM

•

Intel® HD Graphics Built-in Visuals and the VGA outputs

•

can be supported only with processors which are GPU

integrated.

Audio

B150A-X1/Hyper

Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

•

Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® HD Graphics 510/530

Pixel Shader 5.0, DirectX 12

•

Max. shared memory 1024MB

•

* e size of ma ximum shared memory may vary from dierent

operating systems.

Supports DVI-D with ma x. resolution up to 1920x1200 @

•

60Hz

Supports Accelerated Media Codecs: HEVC, VP8, VP9

•

Supports HDCP with DVI-D Port

•

Supports Full HD 1080p Blu-ray (BD) playback with DVI-D

•

Port

7.1 CH HD Audio with Content Protection (Realtek ALC892

•

Audio Codec)

* To congure 7.1 CH HD Audio, it is required to use an HD

front panel audio module and enable the multi-channel audio

feature through the audio driver.

Premium Blu-ray Audio support

•

Supports Surge Protection (ASRock Full Spike Protection)

•

ELNA Audio Caps

•

LAN

Rear Panel
I/O

Gigabit LAN 10/100/1000 Mb/s

•

Giga PHY Intel® I219V

•

Supports Wake-On-LAN

•

Supports Lightning/ESD Protection (ASRock Full Spike

•

Protection)

Supports Energy Ecient Ethernet 802.3az

•

Supports PXE

•

1 x PS/2 Mouse Port

•

1 x PS/2 Keyboard Port

•

1 x DVI-D Port

•

2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full

•

Spike Protection))

4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full

•

Spike Protection))

English

3

Storage

Connector

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

•

LED)

HD Audio Jacks: Line in / Front Speaker / Microphone

•

6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and

•

Hot Plug

1 x Ultra M.2 Socket, supports type

•

2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module

and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*

* If PCIE4 slot is occupied, M2_1 slot will support M.2 PCI

Express module up to Gen3 x2 (16 Gb/s).

* Supports NVMe SSD as boot disks

* Supports ASRock U.2 Kit

1 x TPM Header

•

1 x Power LED and Speaker Header

•

1 x CPU Fan Connector (4-pin)

•

2 x Chassis Fan Connectors (4-pin)

•

* e CPU Fan Connector supports the CPU fan of ma ximum

1A (12W) fan power.

1 x 24 pin ATX Power Connector

•

1 x 8 pin 12V Power Connector

•

1 x Front Panel Audio Connector

•

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports

•

ESD Protection (ASRock Full Spike Protection))

1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports

•

ESD Protection (ASRock Full Spike Protection))

English

4

BIOS
Feature

Hardware
Monitor

AMI UEFI Legal BIOS with multilingual GUI support

•

ACPI 5.0 Compliant wake up events

•

SMBIOS 2.7 Support

•

CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA

•

Voltage Multi-adjustment

CPU/Chassis temperature sensing

•

CPU/Chassis Fan Tachometer

•

CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by

•

CPU temperature)

CPU/Chassis Fan multi-speed control

•

Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

•

Microso® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-

OS

•

bit

* To install Windows® 7 OS, a modied installation disk with

xHCI drivers packed into the ISO le is required. Please refer to

page 40 for more detailed instructions.

* For the updated Windows® 10 driver, please visit ASRock ’s

website for details: http://ww w.asrock.com

FCC, CE, WHQL

Certica­tions

* For detailed product information, please visit our website: http://ww w.asrock.com

Please realize that the re is a certain r isk involved with overclo cking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technol ogy, or using
third-party overclocking tool s. Overclocking may aect your system’s stability, or
even cause dam age to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for poss ible damage caused by
overclocking.

•

ErP/EuP Ready (ErP/EuP ready power supply is required)

•

B150A-X1/Hyper

English

5

Intel

B150

DDR 4_A 2 (6 4 b it, 288 -pi n mo dul e)

DDR 4_A 1 (6 4 b it, 288 -pi n mo dul e)

DDR 4_B 2 (6 4 b it, 288 -pi n mo dul e)

DDR 4_B 1 (6 4 b it, 288 -pi n mo dul e)

ATX12V 1

ATXP WR 1

PCIE 2

Top:
RJ-4 5

USB 2.0
T: USB 0
B: U SB1

PCIE 4

HDLED RESET

PLED PWR B TN

PANEL1

1

USB4_5

1

1

SPK_PLE D1

1

HD_AUD IO1

PCIE 1

CPU_FAN 1

RoH S

5

7

8
9

10
11

12

21 20 19 18 1 7 16 15 14 13

1

2

4

3

B150 A- X1/Hy pe r

CMO S

Bat te ry

CLRMOS 1

1

PCIE 3

USB3_ 4_5

1

CHA_FAN 1

CHA_FAN2

SATA3_2SATA3_4

SATA3_0

SATA3_3SATA3_5 SATA3_1

USB2_3

1

1

TPMS1

PCIE 5

Fr o nt U SB 3 .0

PCI Ex pre ss 3. 0

BIOS
ROM

USB 3 .0
T: USB0
B: US B1

USB 3 .0
T: USB2
B: US B3

DVI 1

Top:

LINE IN

Cente r:

FRONT

Botto m:

MIC IN

PS2

Keyb oar d

PS2

Mous e

6

LAN

AUDIO
CODEC

Ultr a M. 2

PCIe Gen3 x4

CT2 CT3 CT4 CT5CT1

M2_ 1

1.3 Motherboard Layout

English

6

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

4 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

5 ATX Power Connector (ATXPWR1)

6 USB 3.0 Header (USB3_4_5)

7 Chassis Fan Connector (CHA_FAN1)

8 Clear CMOS Jumper (CLRMOS1)

9 SATA3 Connector (SATA3_2)

10 Chassis Fan Connector (CHA_FAN2)

11 Power LED and Speaker Header (SPK_PLED1)

12 SATA3 Connector (SATA3_0)

13 System Panel Header (PANEL1)

14 SATA3 Connector (SATA3_1)

15 SATA3 Connector (SATA3_3)

16 SATA3 Connector (SATA3_5)

17 SATA3 Connector (SATA3_4)

18 USB 2.0 Header (USB2_3)

19 USB 2.0 Header (USB4_ 5)

20 TPM Header (TPMS1)

21 Front Panel Audio Header (HD_AUDIO1)

B150A-X1/Hyper

English

7

1.4 I/O Panel

1

10

2

6789

No. Description No. Description

1 PS/2 Mouse Port 6 USB 2.0 Ports (USB_01)

2 LAN RJ-45 Port* 7 USB 3.0 Ports (USB3_23)

3 Line In (Light Blue)** 8 USB 3.0 Ports (USB3_01)

4 Front Speaker (Lime)** 9 DVI-D Port

5 Microphone (Pink)** 10 PS/2 Keyboard Port

* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK L ED

SPEED LE D

3

4

5

English

8

LAN Por t

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection

B150A-X1/Hyper

** To congure 7.1 CH HD Audio, it i s required to use an HD front panel audio module and enable the multi­channel audio feature through the audio driver.

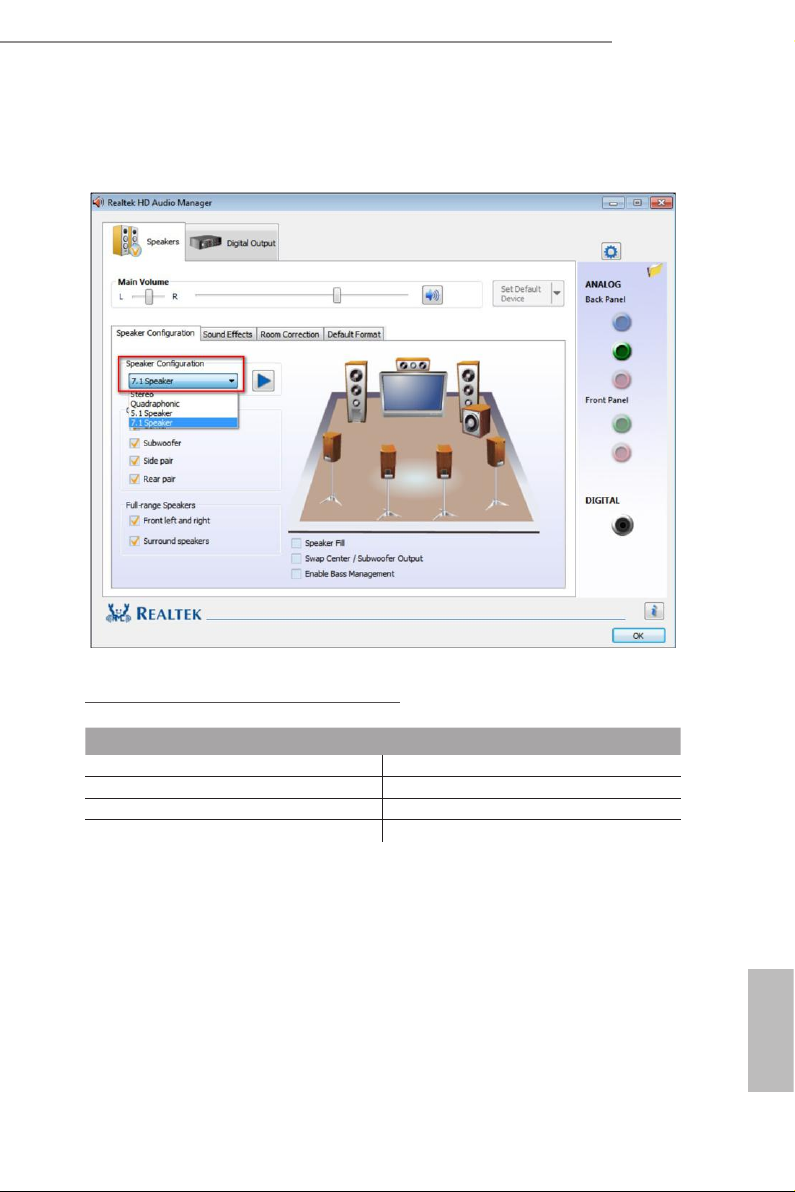

Please set Speaker Conguration to “7.1 Speaker”in the Realtek HD Audio Manager.

Function of the Audio Por ts in 7.1-channel Con guration:

Port Function

Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out

English

9

Chapter 2 Installation

is is an ATX form factor motherboard. Before you install the motherboard, study

the conguration of your chassis to ensure that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard

•

components. Failure to do so may cause physical injuries and damages to motherboard

components.

In order to avoid damage from static electricity to the motherboard’s components,

•

NEVER place your motherboard directly on a carpet. Also remember to use a grounded

wrist strap or touch a safety grounded object before you handle the components.

Hold components by the edges and do not touch the ICs.

•

Whenever you uninstall any components, place them on a grounded anti-static pad or

•

in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not over-

•

tighten the screws! Doing so may damage the motherboard.

English

10

2.1 Installing the CPU

1. Before you insert the 1151-Pin CPU into the socket, please check if the PnP ca p
is on the socket, if the CPU sur face is unclean, or if th ere are any b ent pins in the
socket. Do not force to insert the CPU into the socket if above situ ation is found.
Other wise, the CPU wil l be seriously d amaged.

2. Unplug all power cables before installing the CPU.

1

B150A-X1/Hyper

A

B

2

English

11

3

4

English

12

5

Please save and replace the cover if the processor i s removed. e cover must be
placed if you wish to return the motherboard for aer service.

B150A-X1/Hyper

13

English

2.2 Installing the CPU Fan and Heatsink

1 2

English

14

FAN

CPU_

2.3 Installing Memory Modules (DIMM)

is motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots,

and supports Dual Channel Memory Technology.

1. For dual channel conguration, you always need to install identical (the same

brand, speed , size and chip-type) DDR4 DIMM pairs.

2. It is unable to activate Dual Channel Memory Technology with only one or three
memor y module installed.

3. It is not allo wed to install a DDR, DDR2 or DDR3 memory module into a DDR4
slot; otherwise, this motherboard and DIMM may be damaged.

Dual Channel Memory Conguration

Priority DDR4_ A1 DDR4_ A2 DDR4_B1 DDR4_B2

1 Populated Populated
2 Populated Populated
3 Populated Populated Populated Populated

e DIMM only ts in one correct orientation. It will cause permanent dam age to
the mothe rboard and the DIMM if you force the DIMM into the slot at incor rect
orientation .

B150A-X1/Hyper

15

English

1

2

English

16

3

2.4 Expansion Slots (PCI Express Slots)

ere are 5 PCI Express slots on the motherboard.

Before installing an ex pansion card, please make sure that the power supply is
switched o or the power cord is unplugged. Plea se read the documentation of the
expan sion card and mak e necessary hardware settings for the card before you start
the installation.

PCIe slots:

PCIE1 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE2 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

PCIE3 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE4 (PCIe 3.0 x16 slot) is used for PCI Express x4 lane width graphics cards.

PCIE5 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIe Slot Congurations

PCIE2 PCIE4

B150A-X1/Hyper

Single Graphics Card x16 N/A

Two Graphics Cards in

CrossFireXTM Mode

For a better ther mal environment, ple ase connect a ch assi s fan to the motherboard’s
chassis fan connector (CHA_ FAN1 or CHA_ FAN2) when using multiple graphics
cards.

x16 x4

English

17

2.5 Jumpers Setup

e illustration shows how jumpers are setup. When the jumper cap is placed on

the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper

is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”

when a jumper cap is placed on these 2 pins.

Clear CMOS Jumper

(CLRMOS1)

(see p.6, No. 8)

CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system

parameters to default setup, please turn o the computer and unplug the power

cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to

short pin2 and pin3 on CLRMOS1 for 5 seconds. However, please do not clear the

CMOS right aer you update the BIOS. If you need to clear the CMOS when you

just nish updating the BIOS, you must boot up the system rst, and then shut it

down before you do the clear-CMOS action. Please be noted that the password,

date, time, and user default prole will be cleared only if the CMOS battery is

removed.

Clear CMOSDefault

English

18

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over
these header s and connectors. Placing jumper caps over the headers and connectors
will cause permanent damage to the motherboard.

B150A-X1/Hyper

System Panel Header

(9-pin PANEL1)

(see p.6, No. 13)

PWRBTN (Power Switch):

Connec t to the power switch on the chassi s front panel. You may congure the way to
turn o your system using the power switch.

RESET (Reset Switch):

Connec t to the reset switch on the chassi s front panel. P ress the reset sw itch to restart
the computer if the compute r freezes and fails to perform a normal restart.

PLED (Syste m Power LED):

Connec t to the power status indicator on the chassis front panel. e LED i s on when
the system is ope rating. e LED keeps blinking when the system i s in S1/S3 sleep
state. e LED is o when the system is in S4 sleep state or powered o (S5).

HDLED (Ha rd Drive Activity LED):

Connec t to the hard drive ac tivity LED on the chassis front panel. e LED is on
when the hard drive i s reading or writing data.

e front panel de sign may dier by chassis. A front pane l module mainly consists
of power switch , reset switch, power LED, hard dr ive activity LED, speak er and etc.
When connecting your chassis front panel module to this head er, make sure the wire
assig nments and the pin assig nments are matched correctly.

1

PLE D+

PLE D-

HDL ED-

HDL ED+

PWR BTN #

GND

RES ET#

GND

GND

Connect the power

switch, reset switch and

system status indicator on

the chassis to this header

according to the pin

assignments below. Note

the positive and negative

pins before connecting

the cables.

19

English
