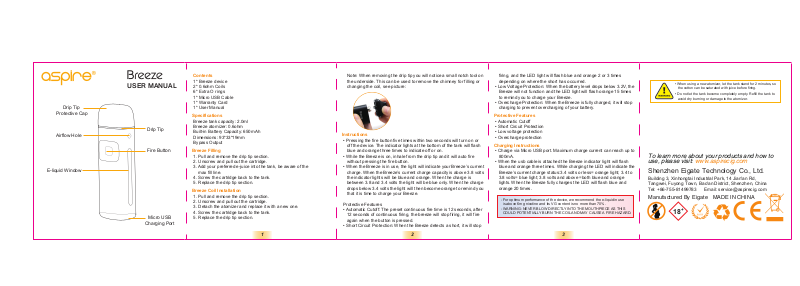

Aspire Breeze User Manual

Drip Tip

Protective Cap

Airflow Hole

E-liquid Window

USER MANUAL

Drip Tip

Fire Button

Micro USB

Charging Port

Contents

1* Breeze device
2* 0.6ohm Coils
6* Extra O rings
1* Micro USB Cable
1* Warranty Card
1* User Manual

Specifications

Breeze tank capacity: 2.0ml
Breeze atomizer: 0.6ohm
Built-in Battery Capacity: 650mAh
Dimensions: 93*33*19mm
Bypass Output

Breeze Filling

1. Pull and remove the drip tip section.

2. Unscrew and pull out the cartridge.

3. Add your preferred e-juice into the tank, be aware of the
max fill line.

4. Screw the cartridge back to the tank.

5. Replace the drip tip section.

Breeze Coil Installation

1. Pull and remove the drip tip section.

2. Unscrew and pull out the cartridge.

3. Detach the atomizer and replace it with a new one.

4. Screw the cartridge back to the tank.

5. Replace the drip tip section.

1 2 3

Note: When removing the drip tip you will notice a small notch tool on

the underside. This can be used to remove the chimney for filling or
changing the coil, see picture:

Instructions

• Pressing the fire button five times within two seconds will turn on or
off the device. The indicator lights at the bottom of the tank will flash
blue and orange three times to indicate off or on.

• While the Breeze is on, inhale from the drip tip and it will auto fire
without pressing the fire button.

• When the Breeze is in use, the light will indicate your Breeze’s current
charge. When the Breeze’s current charge capacity is above 3.8 volts
the indicator lights will be blue and orange. When the charge is
between 3.8 and 3.4 volts the light will be blue only. When the charge
drops below 3.4 volts the light will then become orange to remind you
that it is time to charge your Breeze.

Protective Features

• Automatic Cutoff: The preset continuous fire time is 12 seconds, after
12 seconds of continuous firing, the breeze will stop firing, it will fire
again when the button is pressed.

• Short Circuit Protection: When the Breeze detects a short, it will stop

firing, and the LED light will flash blue and orange 2 or 3 times

depending on where the short has occurred.

• Low Voltage Protection: When the battery level drops below 3.2V, the
Breeze will not function and the LED light will flash orange 15 times
to remind you to charge your Breeze.

• Overcharge Protection: When the Breeze is fully charged, it will stop
charging to prevent overcharging of your battery.

Protective Features

• Automatic Cutoff

• Short Circuit Protection

• Low voltage protection

• Overcharge protection

Charging Instructions

• Charge via Micro USB port. Maximum charge current can reach up to

800mA.

• When the usb cable is attached the Breeze indicator light will flash

blue and orange three times. While charging the LED will indicate the
Breeze’s current charge status:3.4 volts or less= orange light; 3.4 to

3.8 volts= blue light; 3.8 volts and above =both blue and orange
lights. When the Breeze fully charges the LED will flash blue and
orange 20 times.

- For optimum performance of the device, we recommend the e-liquid in use
is above 6mg nicotine and its VG content is no more than 70%.

- WARNING: NEVER BLOW DIRECTLY INTO THE MOUTHPIECE AS THIS
COULD POTENTIALLY BURN THE COIL AND MAY CAUSE A FIRE HAZARD.

• When using a new atomizer, let the tank stand for 2 minutes, so
the cotton can be saturated with juice before firing.

• Do not let the tank become completely empty. Refill the tank to
avoid dry burning or damage to the atomizer.

To learn more about your products and how to
use, please visit: www.aspirecig.com

Shenzhen Eigate Technology Co., Ltd.

Building 3, Xinhongtai Industrial Park, 14 Jian'an Rd,
Tangwei, Fuyong Town, Bao'an District, Shenzhen, China
Tel: [phone] Email: [e-mail]

Manufactured By Eigate MADE IN CHINA

+
