Page 1
Operating Instructions
Washing Machine
Dear ASKO customer,
Thank you for choosing this quality pr oduct from Scandinavia,
which was made in Sweden.
We want you to feel assured that the inside of your new
machine is just as good as the outside and that the ethics and
standards that went into the production of this machine are
just as high as the quality and performance that you will
receive from it. We hope that this product will give you many
years of pleasure.
To ensure that you get the most from your new machine, we
recommend that you read the operating instructions before
using the machine. The operating instructions also contain
information on how to avoid damaging the environment.
Asko W6983
Page 2
Contents
Before using your machine for
the first time
To deactivate the Child-safe start
temporarily:
Description of the washing
machine
12Washing
4
4Transport protection
4Packing material
4Washer door
4Checking water hardness
5Safety instructions
5General
5Installation
5Overflow guard function
5Transport/Winter storage
5Recycling
6Child safety
6Keep an eye on children!
6Activating the Child-safe start.
6
7
7Detergent compartment
8Front panel
9Advice and tips before washing
9Sorting your laundry
9Clothing
9Laundry labels
10Laundry label symbols
10Coloured cotton
10Delicates
10Wool and silk
11Artificial fibres and synthetic fibres
Open the washer door and load
the washing
Add detergent and fabric softener,
as required
Close the door and press the
button
You can change the following
settings:
12Sort your laundry.
12Turn on the main power switch.
12
12
13Select the program
15
15Once the program has finished[
16Selecting Options
16Temperature
16Spin
16Rinse
17High water level
17Delayed Start
18Settings
18
18How to choose the settings:
18Pre-soak
18Anti-crease function
19Clock
19Audible Volume
19Child safe start
20Automatic door opening
20Language
20Temperature
20Back
11Reducing allergic reactions
11Save time and energy
11High water level
11Economy and effciency
11Detergents
11Dyeing fabrics
2
Page 3
Contents
Checking the trap and drainage
pump
Cleaning the detergent
compartment
Cleaning the outside of the
machine
Cleaning the inside of the machine
to avoid unpleasant smells
21Care and cleaning
21
21
21
21
22Rinse holes under the agitator
22If you have hard water
23Troubleshooting
23The washer door will not open
23The machine will not start
24Error messages
25Technical information
Before contacting the service
division
25Technical data
25Standard tests
26Transport protection
27Installation
27Positioning the washing machine
27Adjusting the feet
27Connection to water supply
28Drainage connection
28Electrical installation
29Service
29
32Quick guide
32Washing
32Load the laundry
32Detergent compartment
32Select the program
32Program finished
3
Page 4
Before using your machine for the first time

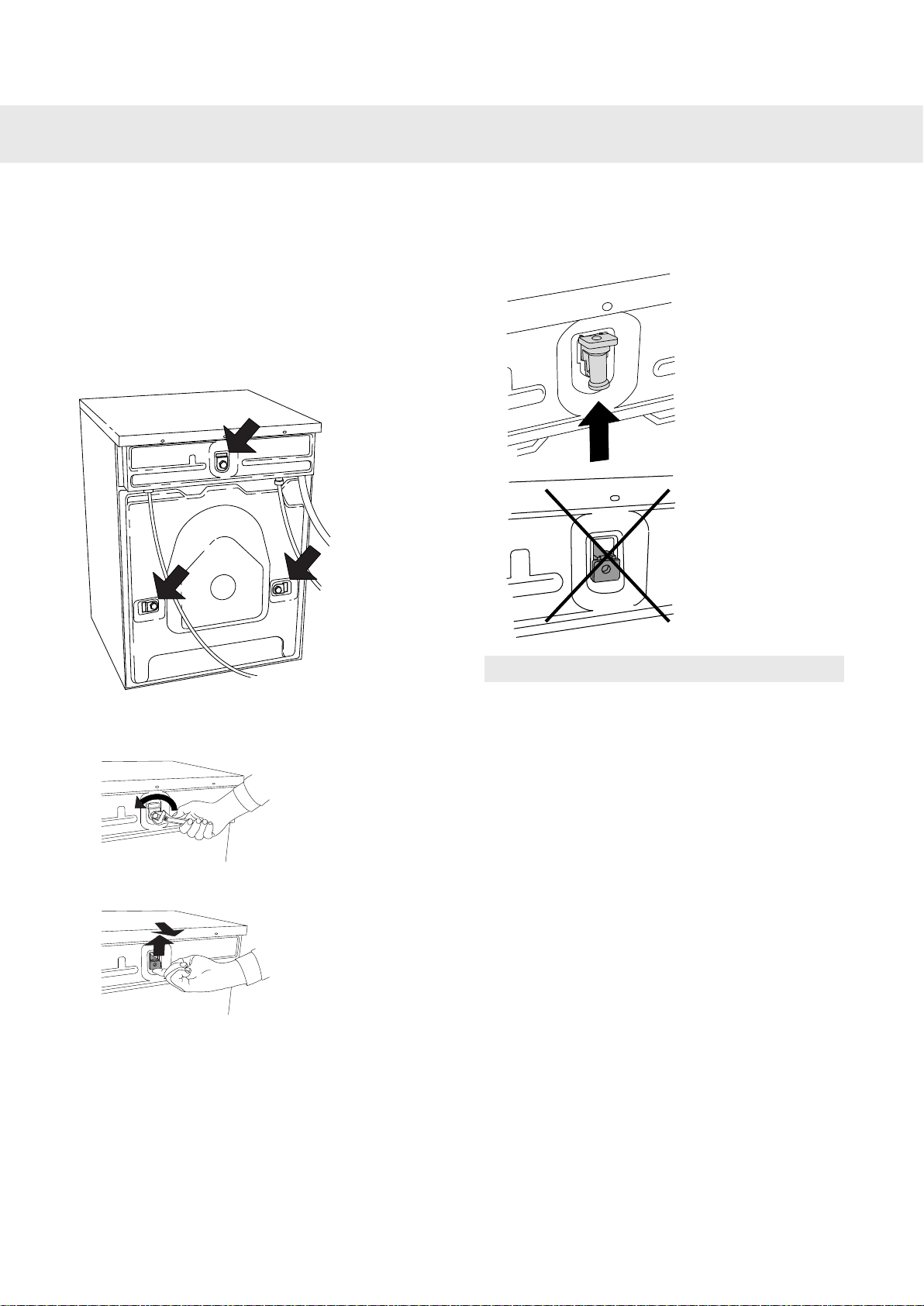

Transport protection
Has the transport protection been removed?
If not, see the “Transport protection” chapter
page 26.
Packing material
Sort waste materials in accordance with local
guidelines.
Washer door
The washer door will not open until the
machine is connected to the electricity supply.

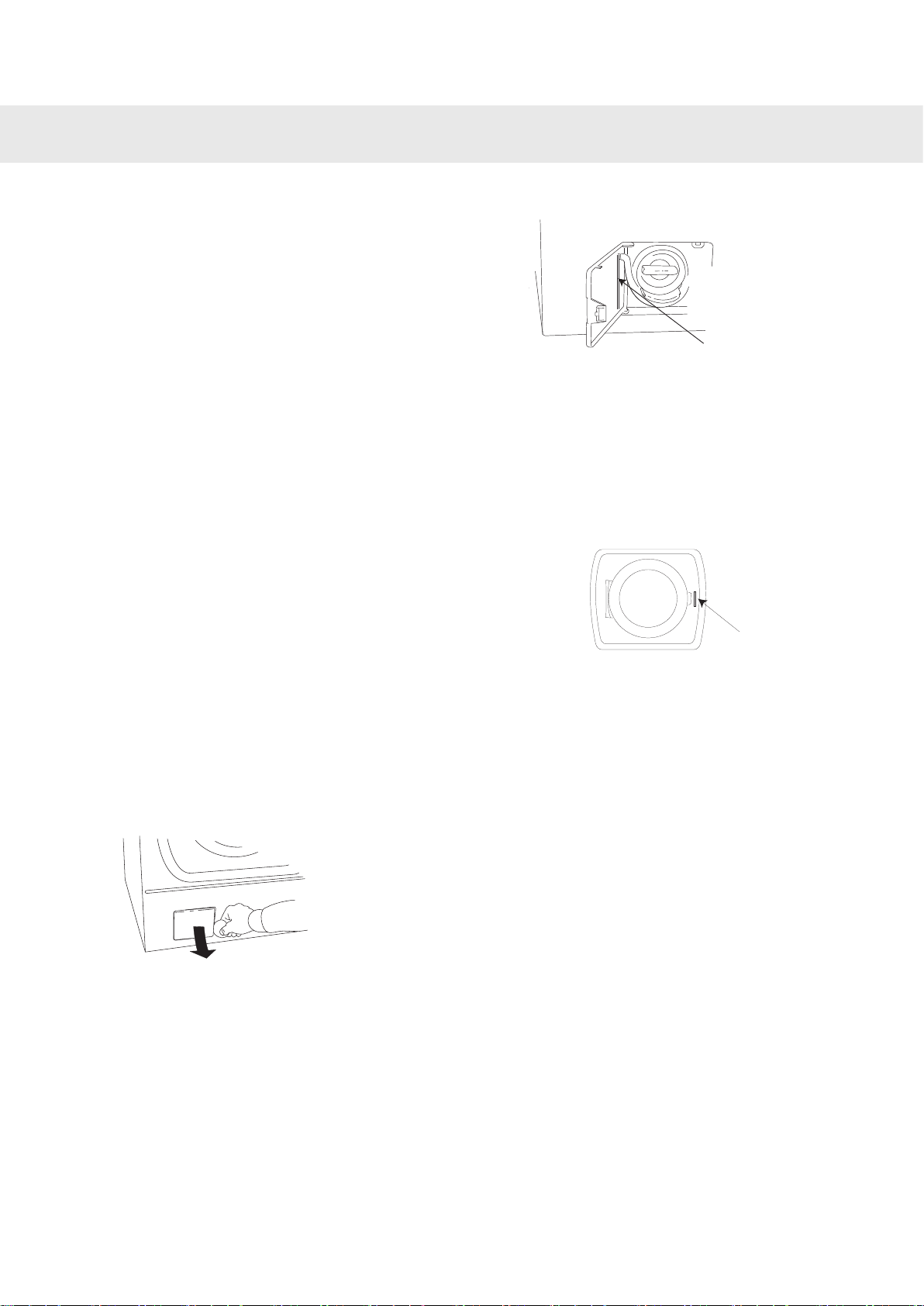

To open the door manually, see the section
"The door will not open" in the
"Troubleshooting" chapter.
It is not possible to start the machine with the
door open.
To open the washer door while a program is
running, see the section "Close the door and
press the Start/Stop button".
Checking water hardness
The quantity of detergent needed depends,
amongst other things, on how hard the water
is.
Phone your local Water Supplier to check the
water hardness in your area.
See the Quick guide on the last page.
4
Page 5
Safety instructions
General
• Read the operating instructions and keep
them in a safe place!
• Installation should be carried out by
qualified ASKO technicians.
• The machine should only be used for
washing items as described in these
instructions. It is not intended for dry
cleaning!
• Use only detergent intended for machine
washing!
• Remove any transport protection devices
before using the machine. See the
“Transport Protection” chapter.
• Repairs and maintenance must be carried
out by a qualified professional.
• Damaged mains cables must only be
replaced by a qualified electrician.
Installation
Recycling
This machine is manufactured and labelled
for recycling. to prevent injuries, the machine
must be made unusable before disposing of
it. Contact your local authority for information
about where and how your machine can be
recycled correctly.
See the “Installation” chapter.
Overflow guard function
If the machine’s water level rises above the
normal level, the overflow guard function
begins to pump water out and shuts off the
water intake. If the water level has not
dropped within 60 seconds, the program is
terminated.
Transport/Winter storage
If the machine is to be transported or stored
in unheated premises where the temperature
can fall below freezing, do as follows:
• Empty the filter and drainage pump (see
the “Care and cleaning” chapter).
• Shut off the water to the washing machine,
loosen the supply hose to the intake valve
and let the water run out from the valve and
hose.
5
Page 6
Child safety
Keep an eye on children!
• Always close the door and start the
programme immediately once you have
added detergent.
• The appliance is not intended for use by
young children or infirm persons without
supervision.
• Young children should be supervised to
ensure that they do not play with the
appliance.
• Store detergent and fabric softener out of
the reach of children!
• In order to prevent children from starting a
program or changing one that has already
started, you can activate a Child-safe start
Caution!
If this appliance is supplied from a cord
extensions set or electrical portable outlet
device, the cord extension set or electrical
portable outlet device must be positioned so
that it is not subject to splashing or ingress of
moisture.
To deactivate the Child-safe start temporarily:
• Press the Start/ Stop button for three
seconds.
Activating the Child-safe start.
Choose the settings by pressing the button
in the centre of the program selector until the
program selection menu on the left is
highlighted.
Then turn the program selector until Settings
is highlighted.
• Press the button in the centre until Childsafe start appears on the display.
• Turn the program selector to access the
alternative menu on the right of the display.
• Turn the program selector anticlockwise
to turn the Child-safe start on or clockwise
to turn it off.
• Press the button in the centre to save your
setting.
6
Page 7
2
3
4
1
Description of the washing machine
1. Main power switch
2. Detergent compartment
3. Program panel

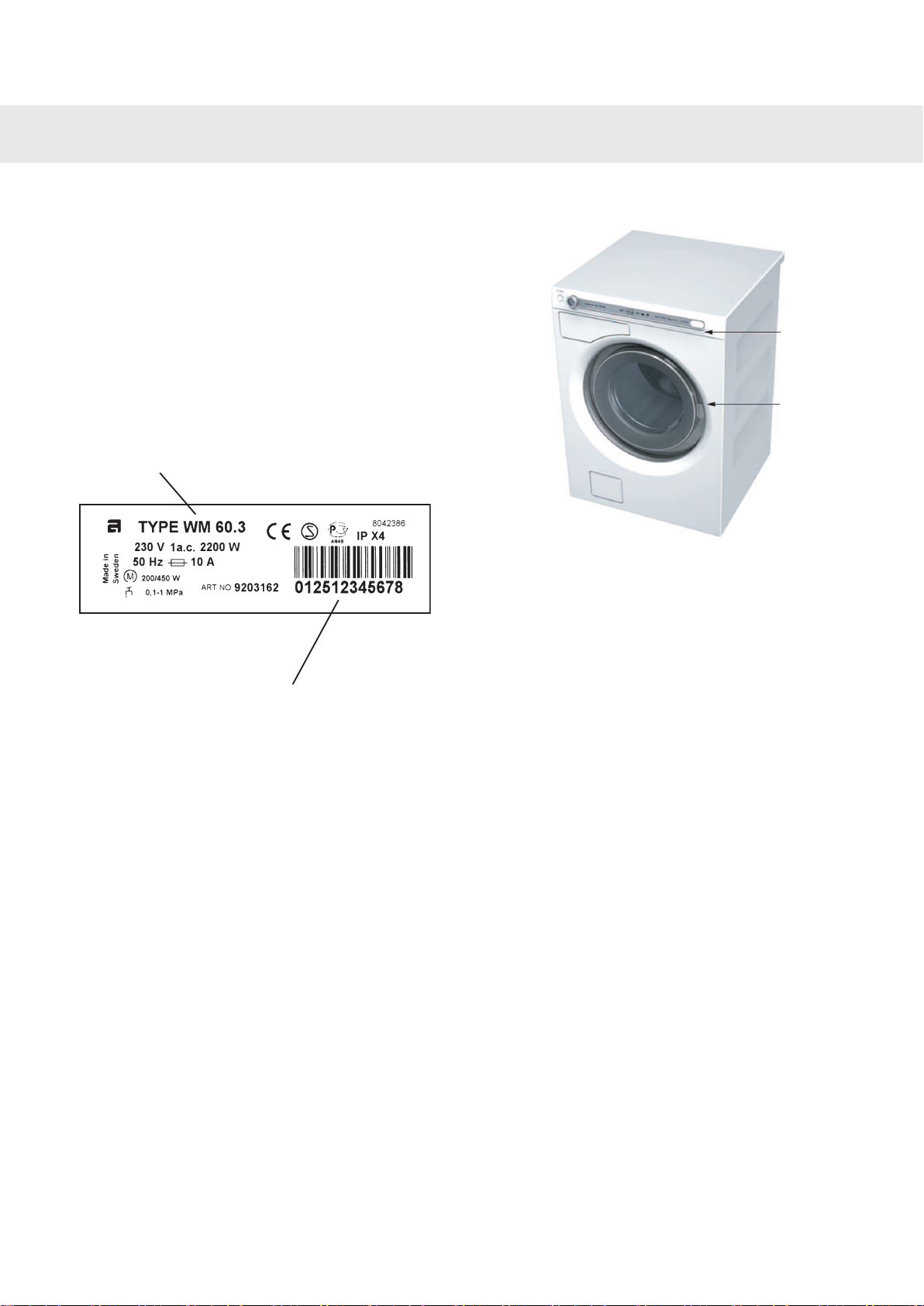

4. Serial Number (on the inside of the glass
door)
5. Hatch for drainage pump
6. Drainage pump (behind hatch)
7. Emergency opening tool (behind hatch)
8. Washer door

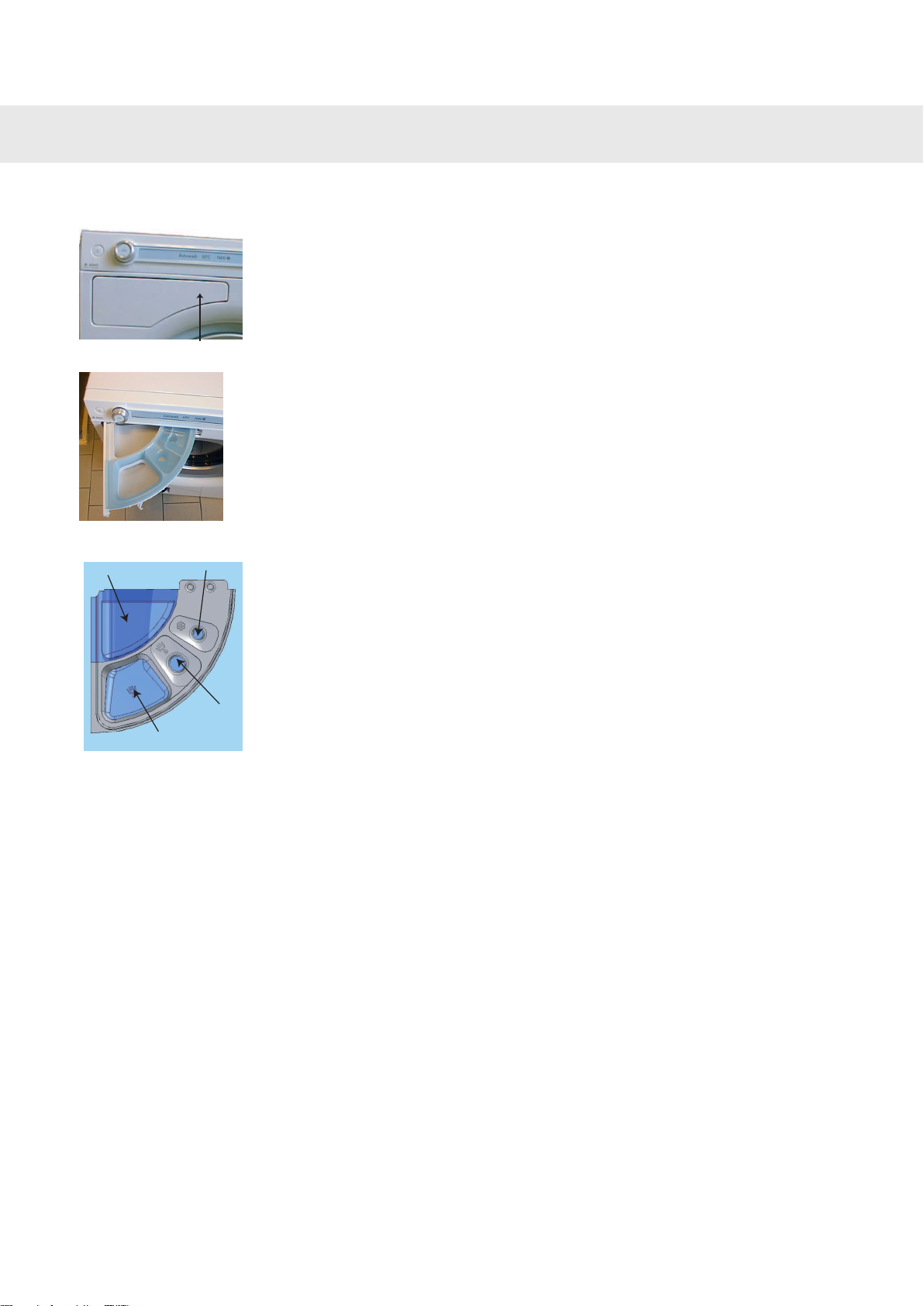

Detergent compartment
1.
Pre-wash
2.
Main wash
3.
Main wash liquid detergent.
4.
Fabric softener
7
Page 8
4
2 5
3
1

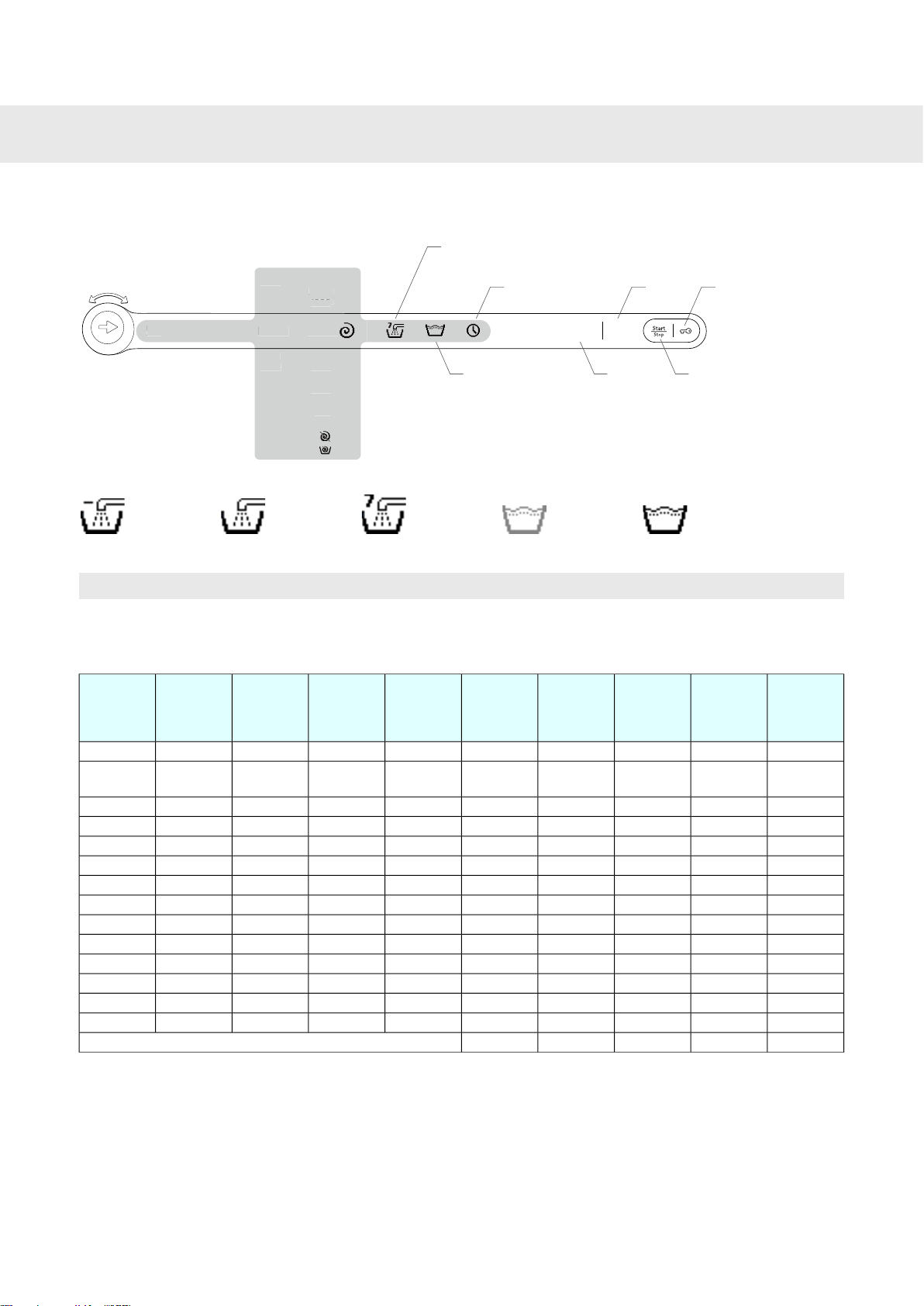

Front panel
Start/Stop4Main power switch1
Door opening5Program selector2
Display window3
8
Page 9
Advice and tips before washing
Here are some tips that may help you before
washing.
Sorting your laundry
Sort items according to:
• how soiled they are
• colour
• material
Clothing
• Do up zips so that they don’t harm fabrics.
• New coloured items may contain excess
dye and should therefore be washed
separately the first few times.
• Turn delicate items inside out. This
reduces the risk of burling and fading.
• Empty pockets and wash them inside out
if possible!
Laundry labels
Look at the item's laundry label. The table
below shows recommended wash programs
for different materials and wash loads. With
an ASKO washer in conjunction with modern
day detergents, it is a good idea to trial and
error to find out what produces the best
results.
9
Page 10
Advice and tips before washing
Coloured cotton
Coloured cotton items with the washing
instruction 60 °C should be washed at 60 °C
for the first time in order to remove any excess
dye. If you do not do so, there is a risk that
the colour will run. Use detergent without
bleach in order to preserve the colour of the
fabric.
Delicates
Unbleached linen
Unbleached linen fabrics should be washed
at 60 °C, using detergent containing no bleach
or optical whiteners. Heavily-soiled linen can
occasionally be washed at higher
temperatures, but not too often because the
heat can destroy the linen’s shine and
strength.
Wool and silk
These fabrics are sometimes labelled as
machine washable and sometimes as hand
wash. The machine's Wool/Hand program is
just as gentle as washing by hand.
Wool is especially sensitive to processes such
as washing.
If you do not wish to spin dry, you can
squeeze out the water using terry towels. In
this case select No spin.
To find out how to select this setting, see the
“Washing” chapter. However, most items can
withstand a short spin. Select short spin by
selecting a spin speed below 800 rpm.
Laundry label symbols
coloured items.
White items.
colourfast items.
Coloured items.
LoadProgramMaterialLaundry labels
1/1 drumNormal 60 °C to 95 °CCotton, linen, white and light-
1/1 drumColour 60 °CCotton, linen. Dark-coloured items.
1/2 drumSynthetic 60 °CPolyester, cotton/polyester, nylon.
1/2 drumSynthetic 40 °CRayon, acetate, acrylic. Non-
1/2 drumSynthetic 40 °CPolyester, cotton/polyester, nylon.
1/3 drumSynthetic 30 °CSilk and very delicate items
10
1/3 drumWool/hand 40 °CItems labelled with the IWS or
Superwash mark
Page 11
Advice and tips before washing
Artificial fibres and synthetic fibres
These materials require plenty of room to
prevent them from getting creased. Only fill
the drum half full when washing artificial or
synthetic fibres. Choose a short spin by
selecting a spin speed of 800 rpm or less.
Note!
Viscose and acetates are fragile when wet.
Reducing allergic reactions
The washing machine has a Super Rinse
option. Use this for people with sensitive skin,
such as those with allergies and small
children.
Save time and energy
Use the White program to save time and
energy. This program has a shorter main
wash than Heavy white wash, but it is often
long enough for normally soiled laundry.
High water level
If you want more water for the main wash and
rinses, you can use the High water level
option. This is automatically selected in the
Wool/Hand program.
Economy and effciency
You can save energy by not using higher
temperature programs than necessary.
• Select Quick if you just need to freshen up
shirts or sports clothes, for example. This
will save both water and energy.
• If you select a fast spin speed, this reduces
energy consumption when drying in a
tumble dryer or drying cabinet.
• Always wash with a fully loaded machine
when you use the Heavy wash, Heavy
white, Colour and White programs!
• Avoid washing with pre-wash. Modern
machines and detergents clean without
pre-wash. Only very heavily soiled laundry
such as overalls and similar garments are
likely to need a pre-wash.
Detergents
Eco-labelled detergents are less harmful to
the environment.
Detergent overdosing does not give better
washing results; it merely causes a greater
impact on the environment; can also hinder
the wash performance.
Try to use less detergent, and increase only
if you are not satisfied with the results.
Dyeing fabrics
If you want to dye fabrics in the machine,
select the Normal program with the Super
Rinse option On. Select temperature
according to the dye manufacturer’s
recommendations.
Choose a low spin speed if the fabric to be
dyed is a blended material such as
polyester/cotton.
Note!
Add the dye directly to the washing drum –
not to the detergent compartment. After
dyeing, you should run the machine empty
using the same program. Use the normal
amount of detergent.
Note!
Because of environmental concerns we
discourage the use of strong chemicals.
When using agents for bleaching or stain
removal, there is a risk of rust (corrosion) and
discolouration of the machine.
11
Page 12
Washing
Sort your laundry.
See the "Advice and Tips" section
1
before washing.
Note!
Empty pockets. Coins, nails and the like can
cause damage to the machine and fabrics.
See the "Advice and Tips" section before
washing.
Turn on the main power switch.
2
Open the washer door and load the washing
3
If the door is closed, press the Door
opening button (key symbol). The door will
open after a few seconds. Load the laundry.
The laundry program chart shows how much
laundry can be washed with each program.
Wash ball or net
If you use a wash ball or net, place it directly
in the drum and select a program without prewash.
Note!
Detergent overdosing does not give better
washing results; it merely causes a greater
impact on the environment; can also hinder
the wash performance.
Try using less detergent, and increase only if
you are not satisfied with the results.
Fabric softener
Pour the fabric softener into the compartment
with the symbol. Follow the
recommendations on the fabric softener
packaging.
Note!
Do not fill above the compartment’s maximum
fill level. Otherwise fabric softener will run in
too early, and will impair washing results.
Add detergent and fabric
softener, as required
4
The detergent packaging will give a
recommendation about how much detergent
you should use. The machine holds 6 kg of
laundry. If you only have a small amount of
washing in the machine, you can reduce the
amount of detergent you use.
Liquid detergent
When using liquid detergent, follow the
detergent manufacturer’s recommendations.
Powder detergent
When using liquid detergent, follow the
detergent manufacturer’s recommendations.
We recommend always using a wash ball with
very thick liquid detergent.
12
Page 13
Push here to open.
Main wash
Main wash liquid detergent.
Fabric softenerPre-wash
Washing
Detergent compartment
2. Time program
When you use this program, it is important to
remember to adjust the temperature and time
depending on how heavily soiled the washing
is. Choose a temperature up to 60 °C, set the
spin speed to a maximum of 1600 rpm and
set the time when you want the program to
finish. The machine will automatically choose
a program of the right length with the settings
you have selected.
3. Heavy
Use this program for heavily soiled laundry.
You only need to use the maximum
temperature, 95 °C, if the laundry is very
heavily soiled.
4. Normal
This program is equivalent to the Heavy
program, but without the pre-wash. It should
be used for heavily-soiled whites, where a
temperature of 60 °C is sufficient.
Select the program
You can select a program by turning the
5
program selector. The name of the
selected program is highlighted and the finish
time of the program appears on the display.
Start the program by pressing the Start/Stop
button, or press the button in the centre of the
program selector to go on and select Options.
1. Auto
This program automatically adjusts the length
of the main wash and the number of rinses
depending on the amount of washing and how
heavily soiled it is.
5. White
Normally soiled sheets, pillow cases and
towels will come clean at 60 °C.
6. Colour
Clothes worn next to the skin should be
washed at 60 °C. Lightly-soiled laundry can
be washed at 40 °C. Most modern detergents
clean even at 40 °C.
7. Quick
Lightly soiled laundry that only needs
freshening up can be washed for a short time
at40 °C.
8. Synthetic
This program is suitable for shirts and blouses
made of synthetic and blended material.
Wash white clothes at 60 °C and coloured
clothes at 40 °C.
9. Wool
This program is used for clothes labelled Wool
wash only. The maximum temperature is 40
°C and the program has a short spin.
13
Page 14
95°C
80°C
70°C
50°C
40°C
30°C
2000
*
1900
*
1700
1600
1400
1200
1000
800
400
1.
2.
3.
4.
6.
8.
7.
9.
10.
11.
12.
13.
14.
5.
10.20 09.20
60°C
1800
95°C
80°C
70°C
40°C
30°C
*
1900
1600
1400
1000
800
5.
60°C
*
*
*
*
Auto
Timed dry
Heavy
Normal
Auto
White/Colour
Quick
Synthetics
Wool
Hand
Rinse
Spin
Drain
Settings
Cold
Super rinse
Normal rinse
Economy Rinse
Delayed Start
Done
Clock
Door
opening
High water level
Normal water level
Finish time
Start/Stop
*Only applies to certain machines
Economy Rinse Normal rinse Super rinse Normal water level High water level
Washing
Menu overview
Note!
The illustration shows an example of a program.
Program chart
Water
Normal
number of
rinsesTemp. °CMain washPre-washProgram
1/160No1. Auto
program
13. Drain
14. Settings
* Program tested in accordance with AS/NZS 2040.1:1998.
14
consumption
(approx.
liter)Max. loadRPMs
Energy
consumption
( approx.
kWh)
Program
time
(approx.
min)
30-1801/1160060No2. Time
1501,0< 621/11600560LongYes3. Heavy
1351,02541/11800360LongNo4. Normal*
800,8351/21600360ShortNo5. White
700,4371/21600340ShortNo6. Colour
500,4351/21600340ShortNo7. Quick
800,4401/2800440ShortNo8. Synthetic
450,5801/3800330ShortNo9. Wool
450,5801/3800330ShortNo10. Hand
200,1151/116001No11. Rinse
150.11/1160012. Spin
Page 15
Washing
10. Hand
This program is used for garments labelled
Hand wash only. The maximum temperature
is 30 °C and the program has a short spin.
11. Rinse
This program performs one rinse cycle + spin.
Good for cleaning cloths and mops.
12. Spin or 13. Drain
To be used when you only want to spin the
load or drain the water from the machine.
Close the door and press the
Start/Stop button
6
Time remaining
The time remaining is shown in hours and
minutes. Once a program has been selected,
an estimated running time for the complete
program is displayed. This may differ from
time to time depending on the temperature of
the water entering the machine and the size
of the load. During the actual program the
time counts down in minutes. If the program
time is longer than a previous wash with the
same program, “1” will be displayed until the
program is finished.
To add or remove washing after the program starts
If you want to add or remove items after the
program has started, you can stop the
program by pressing and holding the Door
Open button (key symbol) for three seconds.
"Door" appears on the display. When you
restart the machine, add any extra detergent
needed and close the door. The machine
continues automatically from the point where
the program was interrupted.
Stopping or changing a program
You can also stop a program by pressing the
Start/Stop button for three seconds. "Stop"
appears on the display. To restart the
machine, select a new program, add new
detergent if needed and press the Start/Stop
button.
Once the program has finished[
Once a program is finished, "End"
7
appears on the display.
The door opens automatically once the
program has finished. If you want to
deactivate "automatic door opening", see the
"Selecting settings" section.
• Remove the laundry.
• Turn off the main power switch, turn
off the main power switch...and you
will save energy.
If you have small children or pets at home,
close the washer door once you have
removed the laundry.
15
Page 16
Selecting Options
You can select options to adjust the washing program to suit your own specific requirements.
The machine will remember which options you chose for each program (with the exception of
Delayed Start) the next time you select that program. Of course, you can change this if you want.
Temperature
1. Choose the temperature by pressing the program selector until a temperature is highlighted.
2. Turn the program selector until the temperature you want is displayed. You can select
temperatures between Cold and 95 °C. If you select Cold, the washing temperature will be
the same as that of the water coming into the machine. For Wool you cannot choose a
temperature higher than 40 °C and for Hand 30 °C. The maximum temperature for the Time
program is 60 °C.
3. Press the Start/Stop button to start the program or press the program selector to choose more
options.
Spin
1. Choose the spin speed by pressing the program selector until a speed is highlighted.
2. Turn the program selector until the speed you want is displayed. You can select speeds
between 400 and 1800 rpm, No spin or No drain. A spin with a speed of 400-800 rpm is always
a short spin. For the Hand/Wool and Synthetic programs you cannot choose a spin speed
higher than 800 rpm.
3. The Time program has a maximum speed of 1600 rpm.
4. No spin means that the program does not include a spin cycle and ends by draining. No drain
means that the program does not include a spin cycle and ends with the water from the final
rinse still in the machine. The washing will stay in the water from the final rinse and will therefore
not get creased.
5. In order to remove the washing from the machine, select either a Spin or Drain program or
press the Door opening button (key symbol) to drain the water from the machine.
6. Press the Start/Stop button to start the program or press the program selector to choose more
options.
Rinse
1. This option can be selected in all programs except Auto, Time program, Rinse, Spin and
Drain. Choose the number of rinses by pressing the program selector until one of the rinse
symbols, Economy Rinse (removes 1 rinse), Normal rinse or Super Rinse (adds 2 extra rinses)
appears on the display.
2. You can choose Light, Normal or Super Rinse by turning the program selector.
3. Press the Start/Stop button to start the program or press the program selector to choose more
options.
16
Page 17
Selecting Options
High water level
1. High water level means that additional water is used during the main wash and rinse cycles.
Select High water level by pressing the program selector until the high water level symbol is
highlighted.
Note!
The machine takes in the additional water for the high water level about 15 minutes after the
main wash has started.
2. You cannot choose this option with the Auto, Time, Wool, Hand, Rinse, Drain or Spin programs.
3. You can choose Normal water level or High water level by turning the program selector.
4. Press the Start/Stop button to start the programe or press the button in the centre of the
program selector to choose more options.
Delayed Start
1. When you select Delayed Start, the machine will start between 1 and 24 hours after you press
the Start/Stop button. Choose Delayed Start by pressing the program selector until the clock
symbol is highlighted and the current start and finish times appear on the right of the display.
2. This option cannot be used in the Time program.
3. Each time you turn the program selector you add half an hour to the time up to a maximum
of 24 hours.
Important!
Remember to press the Start/Stop button to start the program.
17
Page 18
Settings
You can change the following settings:
• Pre-soak
• Anti-crease function
• Clock
• Audible Volume
• Child safe start
• Automatic door opening
• Language
• Temperature °C/°F
How to choose the settings:
1. Press the program selector until the program selection menu in the display on the left is
highlighted.
2. Turn the program selector until Settings is highlighted.
3. Press the program selector.
Pre-soak
If the clothes have stains (for example blood) we recommend using the pre-soak program. The
washing will soak in cold water for two hours before the wash program starts. This option cannot
be used in the Wool and Hand program nor in the Time program.
1. Turn the program selector until Pre-soak appears in the middle of the display.
2. Press the program selector again to access the options menu on the right of the display.
3. Turn the program selector and choose Off or On.
4. Press the program selector to save your setting.
5. If you do not want to select any more settings, turn the program selector anticlockwise to the
program you want.
Anti-crease function
This option means that the drum will rotate for three seconds per minute for two hours once the
wash program has finished. The function prevents the clothes from remaining in the same position
and becoming creased.
This is a useful feature if you cannot take the washing out straight away.
1. Turn the program selector until Anti-crease appears on the right of the display.
2. Press the program selector again to access the options menu on the right of the display.
3. Turn the program selector to select Off or On.
4. Press the program selector to save your setting.
5. If you do not want to select any more settings, turn the program selector anticlockwise to the
program you want.
18
Page 19
Settings
Clock
Set to 12/24 hour or to display the remaining program time.
1. Press the program selector until Clock appears in the middle of the display.
2. Press the program selector again to access the options menu on the right of the display.
3. Turn the program selector. You can now choose the 12h or 24h clock or display the remaining
program time.
4. Press the program selector to save your setting.
5. When you have selected 12 or 24 hour, you will automatically gain access to the Clock-setting
menu.
Setting the clock
6. Turn the program selector until the right hour figure is shown.
7. Press the program selector to save your setting.
8. Turn the program selector until the right minute figure is shown.
9. Press the program selector to save your setting.
10. If you do not want to select any more settings, turn the program selector anticlockwise to the
program you want.
Audible Volume
You can choose to have the machine notify you when a program is finished or when a fault has
occurred.
1. Turn the program selector until Audible Volume appears in the middle of the display.
2. Press the program selector again to access the options menu on the right of the display.
3. Turn the program selector to choose the Audible Volume setting. Off, Low, Normal, High.
4. Press the program selector to save your setting.
5. If you do not want to select any more settings, turn the program selector anticlockwise to the
program you want.
Child safe start
You can activate the Child-safe start to prevent children from starting the machine. You can
deactivate the Child-safe start by pressing the Start/Stop button and Door opening (key symbol).
The Child-safe start will be temporarily deactivated for three minutes.
1. Turn the program selector until Child-safe start appears in the middle of the display.
2. Press the program selector again to access the options menu on the right of the display.
3. Turn the program selector and choose Off or On.
4. Press the program selector to save your setting.
5. If you do not want to select any more settings, turn the program selector anticlockwise to the
program you want.
19
Page 20
Settings
Automatic door opening
The standard setting is for the washer door to open automatically when the program has finished.
If for any reason you do not want the door to open automatically, you can program the machine
so that the door only opens when you press the Door opening button (key symbol).
1. Turn the program selector until Automatic door opening appears in the middle of the display.
2. Press the program selector again to access the options menu on the right of the display.
3. Turn the program selector and choose Off or On.
4. Press the program selector to save your setting.
5. If you do not want to select any more settings, turn the program selector anticlockwise to the
program you want.
Language
1. Turn the program selector until Language appears in the middle of the display.
2. Press the program selector again to access the options menu on the right of the display.
3. Turn the program selector to choose from: AU english, US english, svenska, dansk, norsk,
suomea, Francais, Deutsch, Italiano, espanol, Русский, nederlands.
4. Press the program selector to save your setting.
5. If you do not want to select any more settings, turn the program selector anticlockwise to the
program you want.
Temperature
1. Turn the program selector until Temperature appears in the middle of the display.
2. Press the program selector again to access the options menu on the right of the display.
3. Turn the program selector and choose °C or °F.
4. Press the program selector to save your setting.
5. If you do not want to select any more settings, turn the program selector anticlockwise to the
program you want.
Back
To return to the program menu, press the program selector.
20
Page 21
Care and cleaning
Checking the trap and drainage pump
The washing machine has a trap, where
coins, hairpins and the like can get caught.
To clean the filter and drainage pump:
1. Make sure the machine is empty of water
and that it is switched off at the mains.
2. Open the hatch for the drainage pump as
shown in the illustration.
3. Drain out the water, into a bowl, for
example, by unhooking the drainage hose
from the pin inside the hatch.
Cleaning the detergent compartment
Open the detergent compartment and lift out
the insert. Rinse it and scrub it clean with a
washing-up brush. Replace the compartment.
Note!
Do not run the detergent compartment
through a dishwasher!
Cleaning the outside of the machine
Clean the outside of the machine and the
program panel with a mild cleaner. Do not use
any solvents, as these can damage the
machine.
4. Unscrew the cover anti-clockwise and
remove.
5. Remove any foreign objects from the trap
and pump assembly. Check to see that the
pump blades, right at the back, will rotate.
6. Screw on the cover, replace the drainage
hose on the hatch pin and close the hatch.
Note!
Do not hose down or spray the machine with
water.
Cleaning the inside of the machine to avoid unpleasant smells
Modern detergents often allow clothes to be
washed at low temperatures. This means that
small deposits can build up in the machine.
These, in turn, may lead to unpleasant smells
developing; especially if constantly using cold
wash.
To avoid this, we recommend running a 95°
wash program a few times a year. When you
do this, use a small quantity of detergent. Do
not put any washing in the machine.
21
Page 22
1
2
Care and cleaning
Rinse holes under the agitator
If you think that an object, such as a nail or a
paper clip, may have fallen through the wash
drum, you should check the container under
the agitator. Objects of this kind can rust and
cause spots on clothing. Nails and other sharp
objects can make holes in fabric.
Do as follows:
1. Use a screwdriver or similar tool.
2. Insert the screwdriver into the central hole
on the agitator and turn the screwdriver
handle gently to the left.
3. With your other hand, hold the agitator and
pull it towards you as shown in the
illustration.
4. Lift the agitator.
If you have hard water
If you live in an area with hard water
(limescale), the washer drum may develop a
greyish-white coating. To remove this, empty
a sachet of citric acid, approx. 20 gram, into
the washer drum and run the Normal program
at 95 °C. Repeat if necessary.
5. Remove any objects.
6. Place the agitator in the mounting hole with
the F-mark towards you. Ensure that all the
agitator fasteners are in their holes in the
drum. Push it away from you until it
catches.
22
Page 23
Illustration 1
Illustration 2
Illustration 3
Troubleshooting
The washer door will not open
1. Check that the main power switch is on.
2. Has the power supply been cut off? Check
the house fuses (circuit breakers). The
washer door cannot be opened if the power
supply has been cut off.
If nothing else works, the washer door
can be opened as follows:
• This must only be done in an emergency
if the machine's glass door does not
open automatically when the program
has finished.
• First check that there is no water left in
the machine. If there is water left in the
machine and it is not possible to run the
Drain program, first empty the machine.
This is described under the heading
“Checking the Trap and Drainage pump”
in the “Care and Cleaning” chapter.
• Make sure that the mains power switch
is off and that the plug has been
removed from the wall socket.
• Open the hatch to the drainage pump,
bottom left. Illustration 1.
• Open the glass door by putting the
opener in the slot to the right of the lock
on the door. Push the opener up or
down and the door will open. Illustration
3.
If the machine's glass door does not open the
next time a washing program has finished,
call the service division.
The machine will not start
1. Is the washer door properly closed? Push
it firmly.
2. Is there power? Check your home’s fuses.
3. Check that you have not selected Delayed
Start.
• Remove the drainage hose and take out
the emergency opener which is behind
the hose. Illustration 2.
23
Page 24
Troubleshooting
Error messages
The display indicates if an error has occurred
during the program. After taking the measures
described below, turn off the machine to leave
error message mode.
The error messages that may be shown are:
The door is not closed
If the display shows Close the door, you tried
to start a program with the washer door open.
Close the door and the program will start.
Over flow fault
If the display indicates Over flow fault:
1. Shut off the water tap.
2. Call the service division.
Water outlet fault (Grey Hose)
If the display indicates a Water outlet fault,
check:
• that no objects are stuck in the drainage
hose outlet.
• that the drainage pump is not blocked by
foreign objects. Clean the pump (see the
“Care and cleaning” chapter).
• that there are no kinks in the drainage
hose.
Water inlet fault (White Hose)
If the display indicates a Water inlet fault,
check:
Fault with water supply. Check:
• that the tap on the water pipe is open.
• that the filter in the machine’s water inlet is
not blocked.
1. Shut off the water tap.
2. Unscrew the hose.
3. Clean the filter in the inlet valve on the
machine.
4. Screw the hose back on.
5. Turn on the tap and check for leaks.
6. Run the program again to check if the fault
is fixed.
7. If this does not resolve the problem, call
the service division.
Door opening fault
If the display indicates a Door opening fault,
call the service division.
Wash motor fault
If the display indicates a Motor fault, call the
service division.
24
Page 25
Technical information
Technical data
850 mmHeight:
595 mmWidth:
585 mmDepth:
73 (78) kg (with outer door)Weight:
50 lCylinder volume:
6 kgMax. washing capacity:
400 - 1800Spin speed:
See type plate.Rated power:
See type plate.Heater output:
Water pressure:
Outer casing material:
Standard tests
0.1-1 MPa
1 - 10 kp/cm2
10 - 100 N/cm2
Stainless steelWash drum and liquid compartment material:
Powder-coated and hot-galvanized sheet steel
or stainless steel.
1,5 m pex pipeWater connection:
1,7 m polypropylene hoseDrain:
AS/NZS 2040.1:1998Europe:
Normal, 40°C, 6 kg cottonWashing program:
Cold water 15°CConnection:
IEC-60704-2-4Test method for noise measurement:
< 0,2 WPower requirement when machine turned off
< 9,0 WPower requirement for time-delayed start
< 9,0 WPower requirement when program finished
25
Page 26
2
1
Transport protection
Before the machine is used, the three
transport protection devices should be
removed as shown below.
Each transport protection device consists of
a screw, a washer and a rubber spacer. After
the protection device has been removed, the
rubber spacer acts as a plug for the holes for
the device and also as a damper.
• Finally, the rubber spacers should be
turned over and replaced in the transport
protection device holes.
• First remove the screws and remove the
washers.
• Then remove the rubber spacers.
Important!
In order to prevent the machine from being
damaged when it is transported, use the
transport protection device, which locks the
entire inner compartment in place. If the
transport protection device is missing, you
can order one from your retailer.
Item number:
8064206 Rubber spacer
8901037 Bolt
8061767 Washer
Order three of each item!
26
Page 27

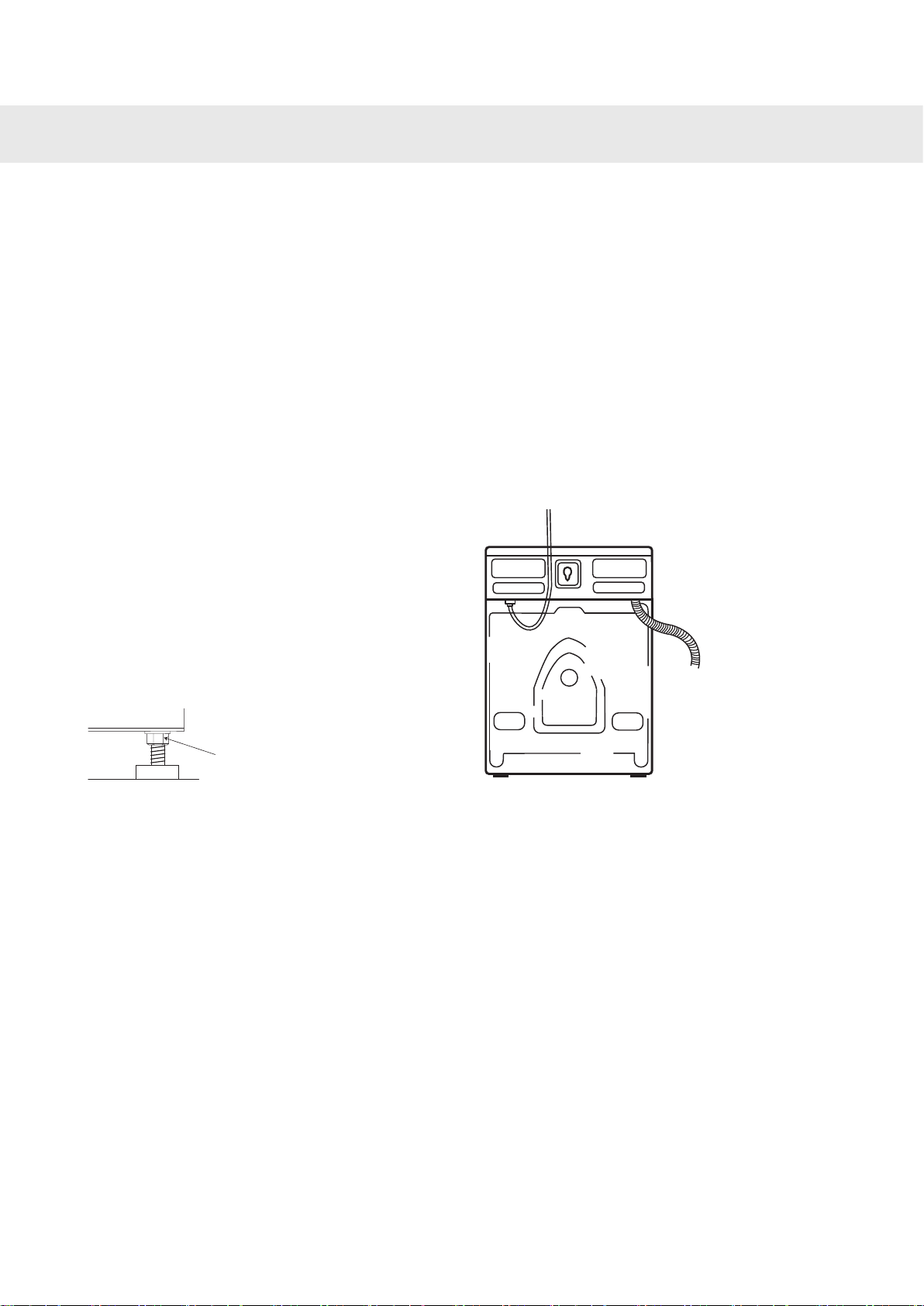

Locking nut
Installation
Positioning the washing machine
The washing machine can be installed as a
built-in or freestanding unit. Position the
machine so that the electrical plug is easily
accessible.
A. Built-in
The washing machine can be installed under
a bench top with a working height of 870 - 900
mm. Leave 20mm around the whole machine,
particularly between the rear edge of the top
cover and the wall behind it.
B. Freestanding
The washing machine can be positioned
beside or under a dryer.
Adjusting the feet
Keep the noise that the machine produces to
a minimum by adjusting the feet so that the
machine is steady and balanced on the floor.
Tighten the lock nuts.
Connection to water supply
Water connection should be carried out by a
qualified professional. Connect the machine
using the accompanying supply hose. Water
pressure should be 0.1–1MPa (approx.
1–10kp/cm2 ; 10-100N/cm2). There should
be a stopcock or tap on the water pipe.
If the pipes are newly installed, it may be wise
to flush them through so that any dirt is
washed away. Otherwise, dirt can clog the
filter in the machine’s water intake and cut off
cut off or reduce water flow to the machine.
Check for leaks.
Only use the inlet hose supplied with the
machine. Do not reuse old or other loose inlet
hoses.
27
Page 28
600-900 mm
Minimum 18 mm
Installation
Drainage connection
The machine is supplied with a connected
drainage hose that can be fastened to a
laundry sink or similar. The height must be
600 - 900 mm above floor level.
The lower position (600 mm) is always
preferable. Ensure that the drainage hose has
no kinks.
The machine can also be connected to the
drain via a spigot connection. In this case the
hose should also be 600-900 mm above the
floor. The internal diameter of the hole should
be at least 18 mm.
• Cut the nipple
• Remove burrs from the hole.
Electrical installation
Electrical connections must be via a plug
connected to an earthed wall socket or by
cable for fixed installation, with all-pole
disconnection, by a qualified professional.
Caution!
If this appliance is supplied from a cord
extensions set or electrical portable outlet
device, the cord extension ser or electrical
portable outlet device must be positioned so
that it is not subject to splashing or ingress of
moisture.
Connection on delivery
The machine is supplied as 1-fas, 230V with
a plug, heat output watt 2000W and has a
ampere 10A. Any earth fault fuses must be
type A.
Note!
Repairs and maintenance must be carried out
by a qualified professional.
See the illustration.
28
Page 29
Type
Serial number (12 digits)
Model Number
Serial Number
Service
Before contacting the service division
Before you contact the service division, make
sure that you know the model number
(located on the front panel), and serial
number.
The model designation can be found on the
panel. The type designation and serial
number can be found on the inside of the
glass door.
29
Page 30
Your notes
30
Page 31
Your notes
31
Page 32
Quick guide
Washing
•
Empty pockets and refasten zips.
1
•
Read the item’s laundry label.
•
Sorting laundry.
Note!
Place underwired bras in a laundry net.
Load the laundry
•
Press the main power switch.
2
•
If the door is closed, press the Door opening
button (key symbol) and the door will open
after a few seconds.
•
Load the laundry and close the door.
Detergent compartment
•
Pour detergent into the main wash
3
compartment, and pre-wash compartment
as well if required. Pour fabric softener into
the compartment on the right with the
-symbol.
•
If you use liquid detergent, follow the
detergent manufacturer’s
recommendations.
Select the program
•
Select a program by turning the program
4
selector.
•
Select options and settings.
•
Press the button Start/Stop.
Program finished
•
The text "END" in the display indicates that
5
the wash program has finished.
•
The washer door opens automatically once
the program has finished.
•
Remove the laundry.
•
Turn off the main power switch.
Program chart
13. Drain
14. Settings
* Program tested in accordance with AS/NZS 2040.1:1998.
Normal
number of
rinsesTemp. °CMain washPre-washProgram
If you have small children or pets at home, close the
washer door once you have removed the laundry.
Water
consumption
(approx. liter)Max. loadRPMs
1/160No1. Auto
Energy
consumption (
approx. kWh)
Program time
(approx. min)
30-1801/1160060No2. Timeprogram
1501,0< 621/11600560LongYes3. Heavy
1351,02541/11800360LongNo4. Normal*
800,8351/21600360ShortNo5. White
700,4371/21600340ShortNo6. Colour
500,4351/21600340ShortNo7. Quick
800,4401/2800440ShortNo8. Synthetic
450,5801/3800330ShortNo9. Wool
450,5801/3800330ShortNo10. Hand
200,1151/116001No11. Rinse
150.11/1160012. Spin
Art. No.: 80 810 62. Rev. 01. We reserve the right to make changes.
Printed on environmentally friendly paper that meets the requirements of MIljöförbundetand Naturskyddsföreningen.
32
Loading...
