ASKO OCM8487B User Manual

Instructions for use

OVEN

OCM8487S / BO4CM4F3-42
OCM8487B / BO4CM4F3-42
OCM8487A / BO4CM4F3-42

EN Manual EN 3 - EN 39

Pictograms used

Important information

Tip

YOUR OVEN

Your oven

Introduction 4
Control panel 5
Description 6
Guide rails/Telescopic guide rails 6
Accessories 7
Door 7
Cooling fan 8
Main functions 8
Keys 9
Navigation 10

Initial use

What to do first 12

Operation

Selecting your function 14
Functions settings mode 14
Progress mode 16
Finish display 16
Changing settings during the progress 18

Use

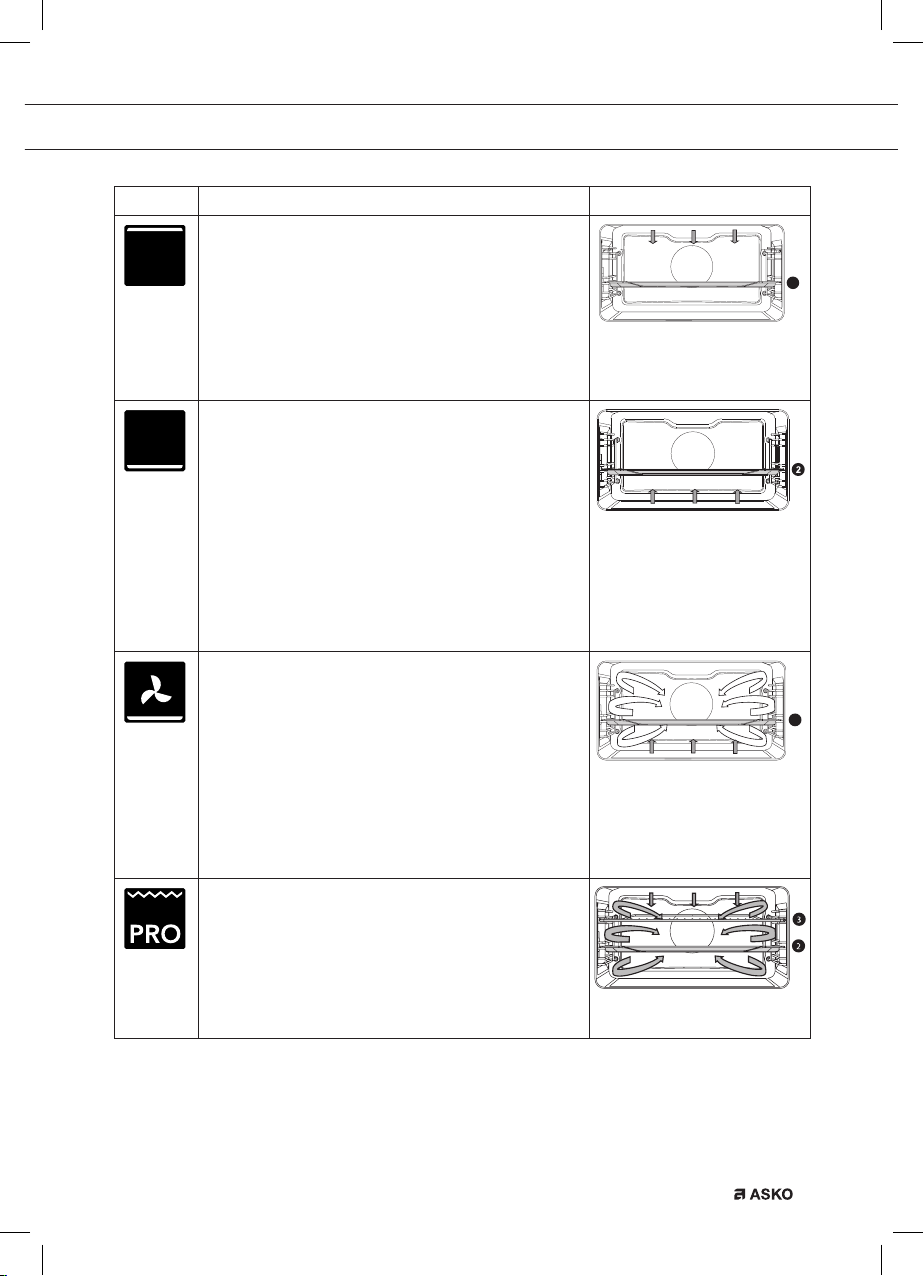

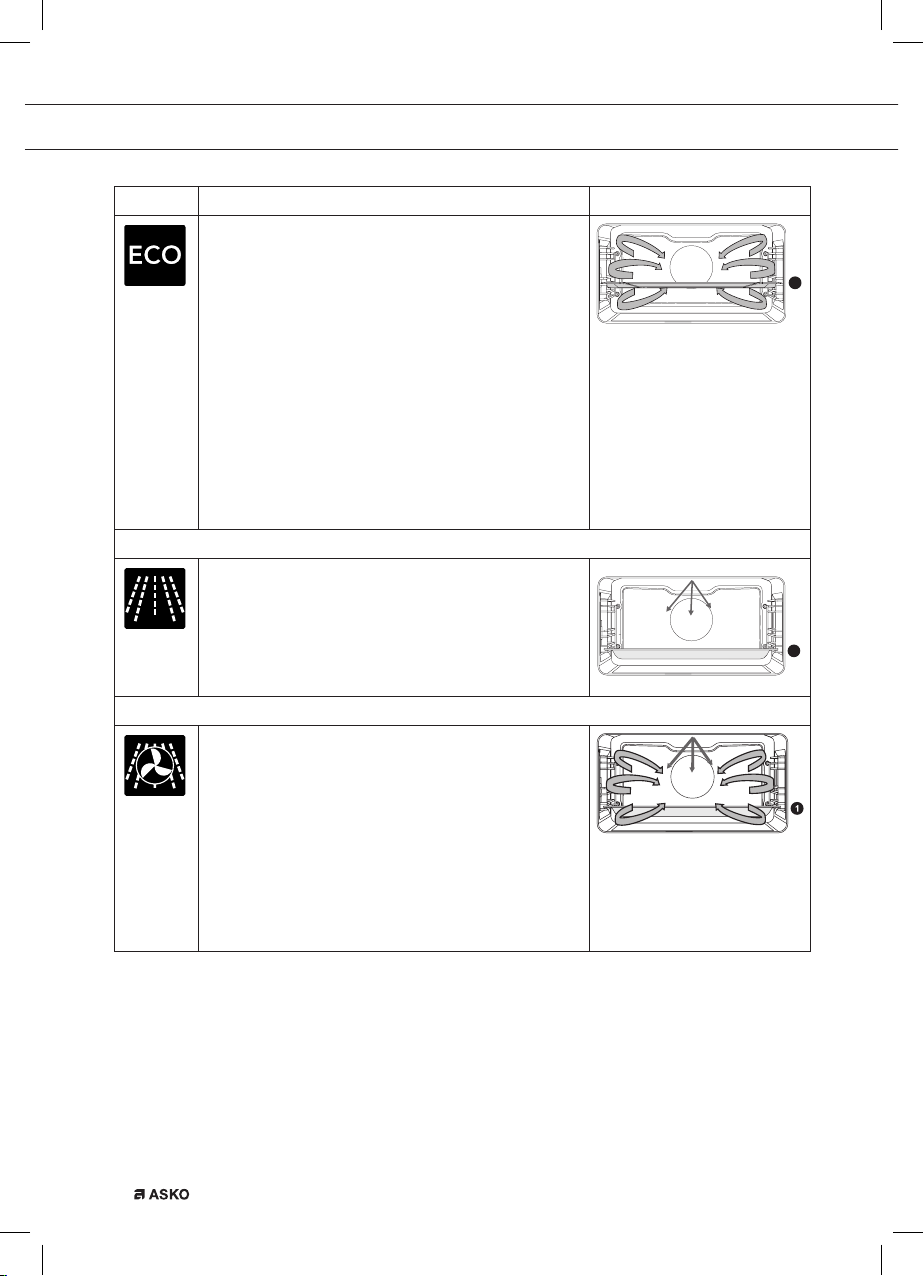

Functions table 19
Using the microwave 23
Settings menu 26
Plus menu 28
Cooking information 29
Fast preheat 29
Delayed start 30
Gratin 30
Stage cooking 30
Go to manual cooking 32
Programs and Favourites 32
Egg timer 32
Child lock 33
Warming 33
Defrost 33

Cleaning

Cleaning the appliance 34
Aqua clean 34
Removing and cleaning the guide rails 35
Replacing the oven lamp 36

Solving problems

37

Your oven and the environment

Disposing of the appliance and the packaging 39

EN 3

YOUR OVEN

Introduction

Congratulations on choosing this ASKO combi microwave oven.

This product is designed to offer simple operation and optimum

user-friendliness. The oven has a wide range of settings enabling you

to select the correct cooking method every time.

This manual shows how you can best use this oven. In addition to

information about operating the oven, you will also find background

information that may be useful when using the appliance.

Please read the separate safety instructions
carefully before using the appliance!

Read this manual before using the appliance and keep it in a safe

place for future use.

Installation instructions are supplied separately.

EN 4

YOUR OVEN

Control panel

1 10 116 7 8 95432

12 13 14 15 16 17 18 19

1. Function knob (in ‘Off’ position)

2. Defrost

3. Programs & Favourites

4. Fast preheat

5. Oven

6. Microwave

7. Combi microwave

8. Warming

9. Aqua clean

10. Display

11. Selection knob

12. On/off key and stop key (cancel)

13. Light key

14. Timer key

15. Navigation key left

16. Navigation key right

17. Plus key

18. Child lock key (lock key)

19. Confirm key (+ 30 seconds microwave (6) time)

Note:

The keys respond best if you touch them with a large area of your

fingertip. Every time you press a key during use, a short acoustic signal

will sound.

EN 5

YOUR OVEN

Description

1. Control panel

2. Oven levels

3. Oven door

4. Door handle

Level 4
Level 3

Level 2

Level 1

1

2

3

4

Guide rails/Telescopic guide rails

• The oven has four or five guide rails (Level 1 to 4/5), depending on

the model. Level 1 is mainly used in combination with bottom heat.

The two upper levels are mainly used for the grill function.

• Place the oven rack, baking tray or steam dish in the gap between

the guide rail sliders.

• A number of shelf levels can have fully-retractable telescopic guide

rails, depending on the model.

▷ Pull the telescopic guide rails out of the oven cavity completely

▷ Only close the oven door when the telescopic guide rails have

EN 6

and place the oven rack / baking tray / steam dish on them.

Then slide the oven rack / baking tray / steam dish on the

telescopic guide rails, back into the oven cavity.

been returned completely back into the oven cavity.

YOUR OVEN

Accessories

Your appliance is accompanied by a range of accessories, depending

on the model. Only use original accessories; they are specially suited

toyour appliance. Be sure that all the accessories that are being used

are able to withstand the temperature settings of the chosen oven

function.

Note: not all accessories are suitable/available for every appliance

(itmay also differ by country). When purchasing, always provide the

exact identification number of your appliance. Please see the sales

brochures or check online for more details about optional accessories.

Note: never place an accessory on the bottom of the oven!

Accessories that can be supplied with your appliance (depending on the model)

Enamelled baking tray; to be used for pastries and cakes.

• Do not use the enamelled baking tray for microwave functions!

• Suitable for pyrolysis cleaning.

Oven rack; mainly used for grilling. A steam dish or pan with food
can also be placed on the oven rack.

• The oven rack is equipped with a safety peg. Lift the rack slightly
at the front to slide it out of the oven.

• Do not use the oven rack for microwave functions!

Deep enamelled baking tray; to be used for roasting meat and
baking moist pastry.

• Do not place the deep baking tray on the lowest level during
a cooking process, except when using it as a drip tray during
grilling, roasting or roasting with a spit roast (when available).

• Do not use the deep enamelled baking tray for microwave
functions!

• Suitable for pyrolysis cleaning.

Glass baking tray; for microwave and oven use.

• NOT suitable for pyrolysis cleaning.

Door

• The door switches interrupt the operation of the oven when the door

is opened during use. The oven continues operating when the door

is closed.

• This oven has a ‘Soft close door system’. When closing the oven

door, this system dampens the movement, from a certain angle, and

silently closes the oven door.

EN 7

YOUR OVEN

Cooling fan

Main functions

• The appliance is equipped with a cooling fan that cools the casing

and control panel.

With the function knob you can select the main functions of your oven.

Setting Description

Off/standby mode

Oven

Hot air
Hot air + bottom heat
Bottom + top heat
Large grill
Grill
Large grill + fan
Upper heat
Bottom heat
Bottom heat + fan
Pro roasting
Eco hot air

Fast preheat

EN 8

Programs and favourites

Favourites
Programs

Defrost

Manual defrost

Microwave

My microwave
Microwave

YOUR OVEN

Keys

Combi microwave

Hot air + microwave
Large grill + fan + microwave

Warming

Plate warming
Keep warm

Aqua clean

In the table below you can find the discription of the different keys.

Keys Description of the keys

On/off key and stop key

- Press short: cancel operation or go one step back in
the menu.

- Press long: turn the appliance off or on.

Light key

- To turn the cavity light on or off.

Egg timer

- The egg timer can be used independently from the

oven function.

- The longest possible alarm time is 23:59.

Navigation key left

- To move the active area to the left.

Navigation key right

- To move the active area to the right.

Plus key

- To open or exit the settings menu (in standby­mode).

- To open or exit the plus menu with the extra options
possible at that moment (in on-mode).

EN 9

YOUR OVEN

Navigation

Child lock key

- Press and hold the lock key to lock the appliance.

Confirm key

- To confirm all the white settings/elements in the
screen.

- Add 30 seconds microwave time (microwave
function).

active area

stop key confirm keyfunction knob selection knobnavigation keys

By turning the function knob away from the 0-position, the icon of the

chosen main function is lit. The display will show the icon and name

of the activated function for about 1,5 seconds. Next you will see the

chosen main function and sub-function at the top of the display in the

feedback bar. Also the function settings mode will become active (grey

background). In this activated area you can select your settings using

the selection knob.

OVEN l HOT AIR 14:30

EN 10

180

Within every menu the navigation is as follows:

• Use the navigation keys or press the selection knob to move the

active area (grey background).

• The setting in the active area can be changed by turning the

selection knob (left = less, right = more). This setting will be saved

automaticallly.

°C

YOUR OVEN

• When all elements in the screen are set, confirm these settings by

pressing the confirm key (this key is blinking if it is possible to start

the program).

• Press the stop key to go one step back in the menu.

At the top of the display is a feedback bar. This bar will inform where

you are in the menu and what setting you are changing. Functions are

separated with a vertical line.

SETTINGS l GENERAL l SOUND l KEY SOUND

EN 11

INITIAL USE

What to do first

• Clean the oven interior and accessories with hot water and

washing-up liquid. Do not use aggressive cleaning agents, abrasive

sponges and similar.

• The oven will emit a strange smell when it is used for the first time;

this is normal. You should ensure that there is good ventilation

during initial use.

When the appliance is first plugged in or after connection when the

appliance was disconnected from the power mains for a long period of

time, you have to set ‘Language’, ‘Date’ and ‘Time’.

Setting the language

LANGUAGE

English

Deutsch

In case you are not comfortable with the language on the display, you

can select another language. The default setting is ‘English’.

1. Turn the selection knob and select your preferred language from the

displayed list.

2. Confirm the setting by pressing the confirm key.

The next screen will be displayed.

EN 12

Setting the date

DATE l DAY

01

02

1. Turn the selection knob and select the first setting (Day).

2. Confirm this setting by pressing the right navigation key or by

pressing the selection knob.

3. Turn the selection knob and select the next setting (Month).

4. Confirm this setting by pressing the right navigation key or by

pressing the selection knob.

5. Turn the selection knob and select the last setting (Year).

6. Confirm this setting by pressing the confirm key.

The next display will show up.

01 2015
