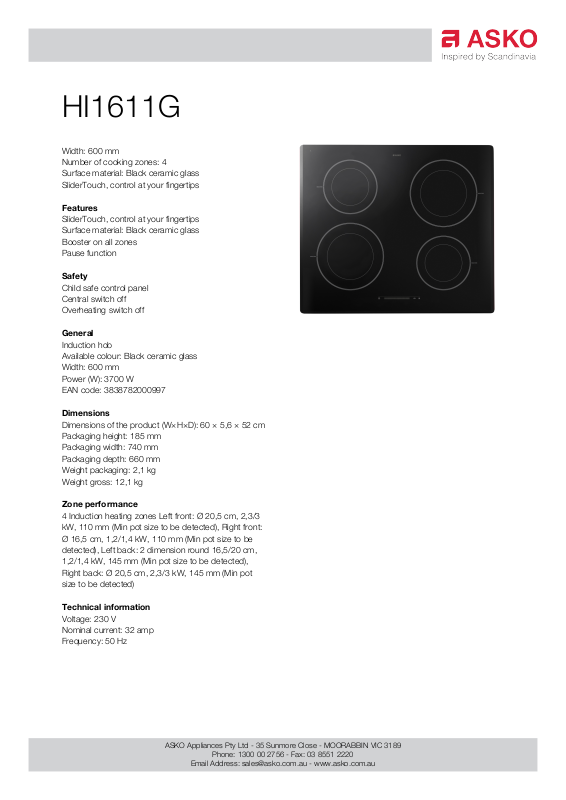

ASKO HI1611G Specifications Sheet

HI1611G

Width: 600 mm Number of cooking zones: 4 Surface material: Black ceramic glass SliderTouch, control at your fingertips 

Features

SliderTouch, control at your fingertips Surface material: Black ceramic glass Booster on all zones Pause function 

Safety

Child safe control panel Central switch off Overheating switch off 

General

Induction hob Available colour: Black ceramic glass Width: 600 mm Power (W): 3700 W EAN code: 3838782000997 

Dimensions

Dimensions of the product (W×H×D): 60 × 5,6 × 52 cm Packaging height: 185 mm Packaging width: 740 mm Packaging depth: 660 mm Weight packaging: 2,1 kg Weight gross: 12,1 kg 

Zone performance

4 Induction heating zones Left front: Ø 20,5 cm, 2,3/3 kW, 110 mm (Min pot size to be detected), Right front: Ø 16,5 cm, 1,2/1,4 kW, 110 mm (Min pot size to be detected), Left back: 2 dimension round 16,5/20 cm, 1,2/1,4 kW, 145 mm (Min pot size to be detected), Right back: Ø 20,5 cm, 2,3/3 kW, 145 mm (Min pot size to be detected) 

Technical information

Voltage: 230 V Nominal current: 32 amp Frequency: 50 Hz 
