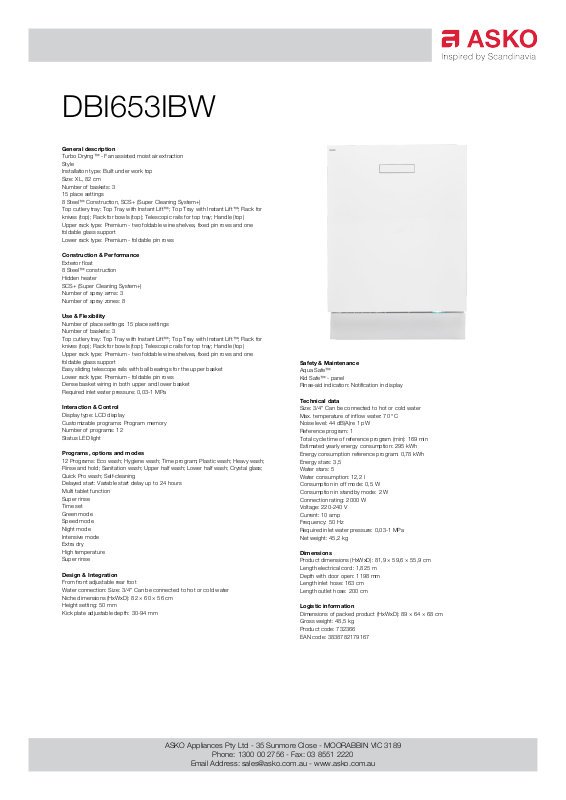

ASKO DBI653IBW Specifications Sheet
DBI653IBW
General description
Turbo Drying™ - Fan assisted moist air extraction
Style
Installation type: Built under work top
Size: XL, 82 cm
Number of baskets: 3
15 place settings
8 Steel™ Construction, SCS+ (Super Cleaning System+)
Top cutlery tray: Top Tray with Instant Lift™; Top Tray with Instant Lift™; Rack for
knives (top); Rack for bowls (top); Telescopic rails for top tray; Handle (top)
Upper rack type: Premium - two foldable wine shelves, fixed pin rows and one
foldable glass support
Lower rack type: Premium - foldable pin rows
Construction & Performance
Exterior float
8 Steel™ construction
Hidden heater
SCS+ (Super Cleaning System+)
Number of spray arms: 3
Number of spray zones: 8
Use & Flexibility
Number of place settings: 15 place settings
Number of baskets: 3
Top cutlery tray: Top Tray with Instant Lift™; Top Tray with Instant Lift™; Rack for
knives (top); Rack for bowls (top); Telescopic rails for top tray; Handle (top)
Upper rack type: Premium - two foldable wine shelves, fixed pin rows and one
foldable glass support
Easy sliding telescope rails with ball bearings for the upper basket
Lower rack type: Premium - foldable pin rows
Dense basket wiring in both upper and lower basket
Required inlet water pressure: 0,03-1 MPa
Interaction & Control
Display type: LCD display
Customizable programs: Program memory
Number of programs: 12
Status LED light
Programs, options and modes
12 Programs: Eco wash; Hygiene wash; Time program; Plastic wash; Heavy wash;
Rinse and hold; Sanitation wash; Upper half wash; Lower half wash; Crystal glass;
Quick Pro wash; Self-cleaning
Delayed start: Variable start delay up to 24 hours
Multi tablet function
Super rinse
Time set
Green mode
Speed mode
Night mode
Intensive mode
Extra dry
High temperature
Super rinse
Design & Integration
From front adjustable rear foot
Water connection: Size: 3/4" Can be connected to hot or cold water
Niche dimensions (HxWxD): 82 × 60 × 56 cm
Height setting: 50 mm
Kick plate adjustable depth: 30-94 mm
Safety & Maintenance
Aqua Safe™
Kid Safe™ - panel
Rinse-aid indication: Notification in display
Technical data
Size: 3/4" Can be connected to hot or cold water
Max. temperature of inflow water: 70 °C
Noise level: 44 dB(A)re 1 pW
Reference program: 1
Total cycle time of reference program (min): 169 min
Estimated yearly energy consumption: 295 kWh
Energy consumption reference program: 0,78 kWh
Energy stars: 3,5
Water stars: 5
Water consumption: 12,2 l
Consumption in off mode: 0,5 W
Consumption in standby mode: 2 W
Connection rating: 2000 W
Voltage: 220-240 V
Current: 10 amp
Frequency: 50 Hz
Required inlet water pressure: 0,03-1 MPa
Net weight: 45,2 kg
Dimensions
Product dimensions (HxWxD): 81,9 × 59,6 × 55,9 cm
Length electrical cord: 1,825 m
Depth with door open: 1198 mm
Length inlet hose: 163 cm
Length outlet hose: 200 cm
Logistic information
Dimensions of packed product (HxWxD): 89 × 64 × 68 cm
Gross weight: 48,5 kg
Product code: 732366
EAN code: 3838782179167
