ASKO DBI653IBBS, DBI653IBW Installation and Operation Guide

EN
Dishwasher DBI653IBOPERATING INSTRUCTIONS

Contents

Eco
Speed mode
2:00
START
STOP
Display Start/Stop
Program mode selector
Navigation buttons for selecting a program
Option Delayed Start
Option Extra Dry
Main power switch
2Front panel 3Safety instructions 4Before washing for the first time 5Loading the dishwasher
8Using the dishwasher 12Settings 14Care and cleaning
Dear Customer,
Thank you for choosing this quality product from ASKO.
We hope it will meet your expectations and fulfil your needs for many years to come. Scandinavian design combines clean lines, everyday functionality and high quality. These are key characteristics of all our products and the reason they are greatly appreciated throughout the world.
To get the most out of your new dishwasher, we recommend that you read the Operating Instructions before using the dishwasher. The last page also includes a Quick guide.
16Troubleshooting 19Technical information 20Installation 24ASKO Service 24Information for test institute 25Your notes 28Quick guide

Front panel

To switch on the dishwasher, press and hold the main power switch until the display lights up.
"Welcome to your new ASKO. This is a first time set up." is shown on the display the first time the dishwasher is switched on. It is important that you choose the right settings to ensure good dishwashing results. See page 4.
2

Safety instructions

NOTE!
Read the operating instructions and keep them in a safe place!
Number of place settings: 15
Never use the dishwasher for any purpose
other than that specified in these operating instructions.
Do not load the dishwasher door or dishwash­er baskets with anything other than dishes.
Never leave the dishwasher door open as someone may trip on it.
Use only dishwasher detergent!
This appliance is not intended for use by
persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruc­tion concerning use of the appliance by a person responsible for their safety.
If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
Damaged mains cables must only be re­placed by a qualified electrician.
Only use the dishwasher in domestic household environments for dishwashing household dishes. All other use is prohibited.
Never place dishes with solvent residues in the dishwasher due to the risk of explosion. Nor may dishes that contain ash, wax or lu­bricants be washed in the dishwasher.
WARNING!
Children must always be supervised. Do not allow children to use or play with the dishwash­er. Be especially vigilant when the door is open.
WARNING!
Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open. Seek medical attention if swal­lowed.
Check that the detergent compartment is empty after completion of the wash cycle.

Activate child lock (Kid Safe)

You can activate the child lock (button lock) to prevent children from starting the dishwasher. See the chapter Settings.

Winter storage/Transport

Store the dishwasher where the temperature remains above freezing.
Avoid long transport distances in very cold weather.
Transport the dishwasher upright or laying on its back.

Overflow guard function

The overflow protection starts pumping out the machine and turns off the water supply if thewater level in the dishwasher exceeds the normal level. If the overflow protection is triggered, turn off the water supply and call the service department.

Packing material

The packaging protects the product during transport. The packaging material is recyclable. Separate the different packaging materials to help reduce raw material use and waste. Your dealer can take the packaging for recycling or direct you to the nearest recycling centre. The packaging is comprised of:
Corrugated cardboard made from up to 100% recycled material.
Expanded polystyrene (EPS) with no added chlorine or fluorine.
Supports made from untreated wood.
Protective plastic made from polyethylene (PE).
Knives and other pointed items must be placed with the points down in the cutlery basket or horizontally in other baskets.

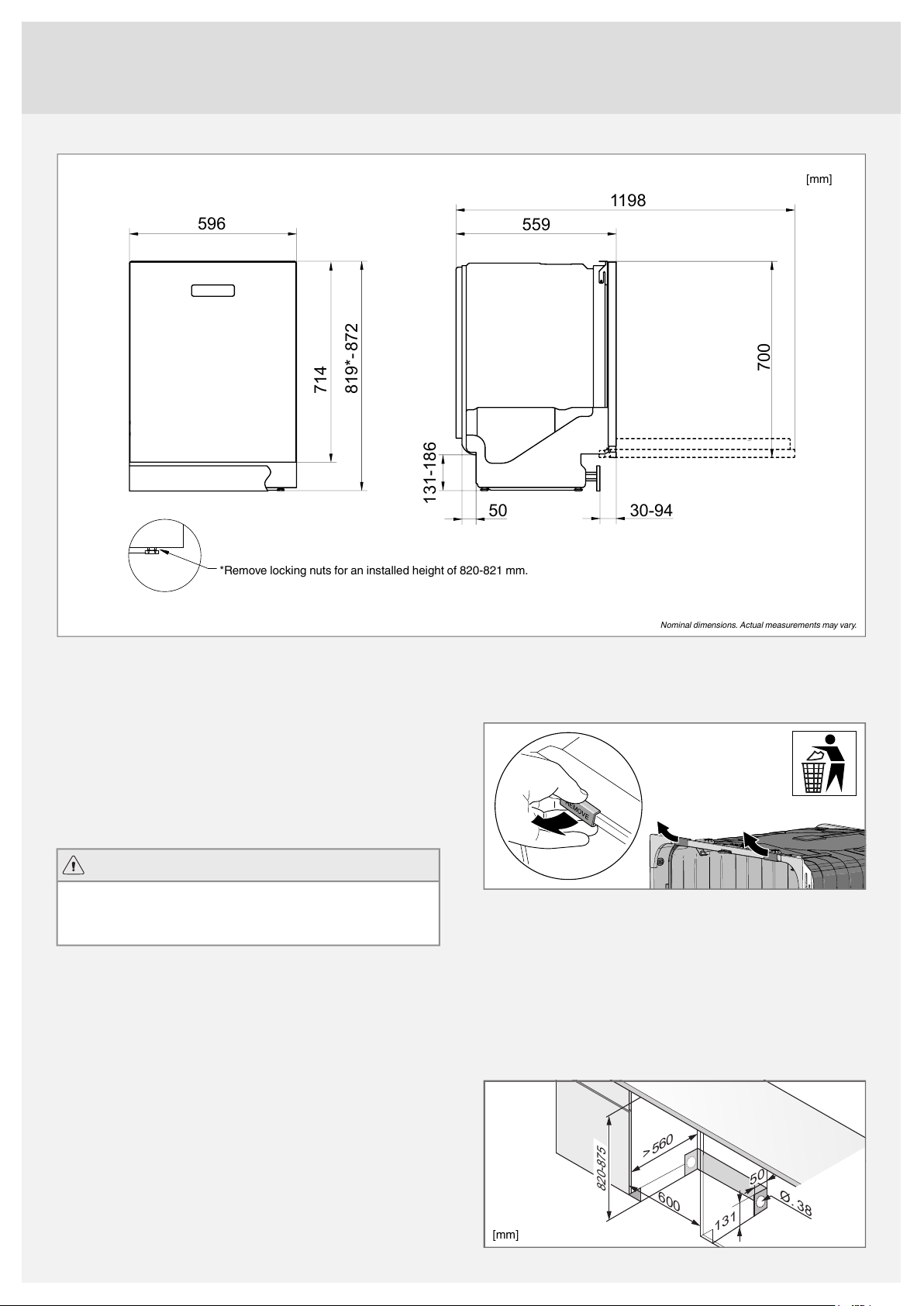

Installation

See the chapter Installation.

Child safety

Always start the dishwasher immediately after adding detergent.
Keep children away from the dishwasher when the door is open. Some detergent may remain inside!

Disposal

The dishwasher is manufactured and labelled for recycling.
When the dishwasher has reached the end of its service life and is to be disposed of, it should immediately be made unusable. Pull out the power cable and cut it as short as possible.
Contact your local authority for information about where and how your dishwasher should be correctly recycled.
3
Before washing for the
Confirm setting
Select setting
Main power switch
first time

1. Checking water hardness

Contact the local water utility to check the waterhardness in your area. This is important with regard to how much detergent and rinse aid to use.

2. Basic settings

To switch on the dishwasher, press and hold the main power switch until the display lights up.
"Welcome to your new ASKO. This is a first time set up." is shown on the display. It is important that you choose the right settings to en­sure good dishwashing results.

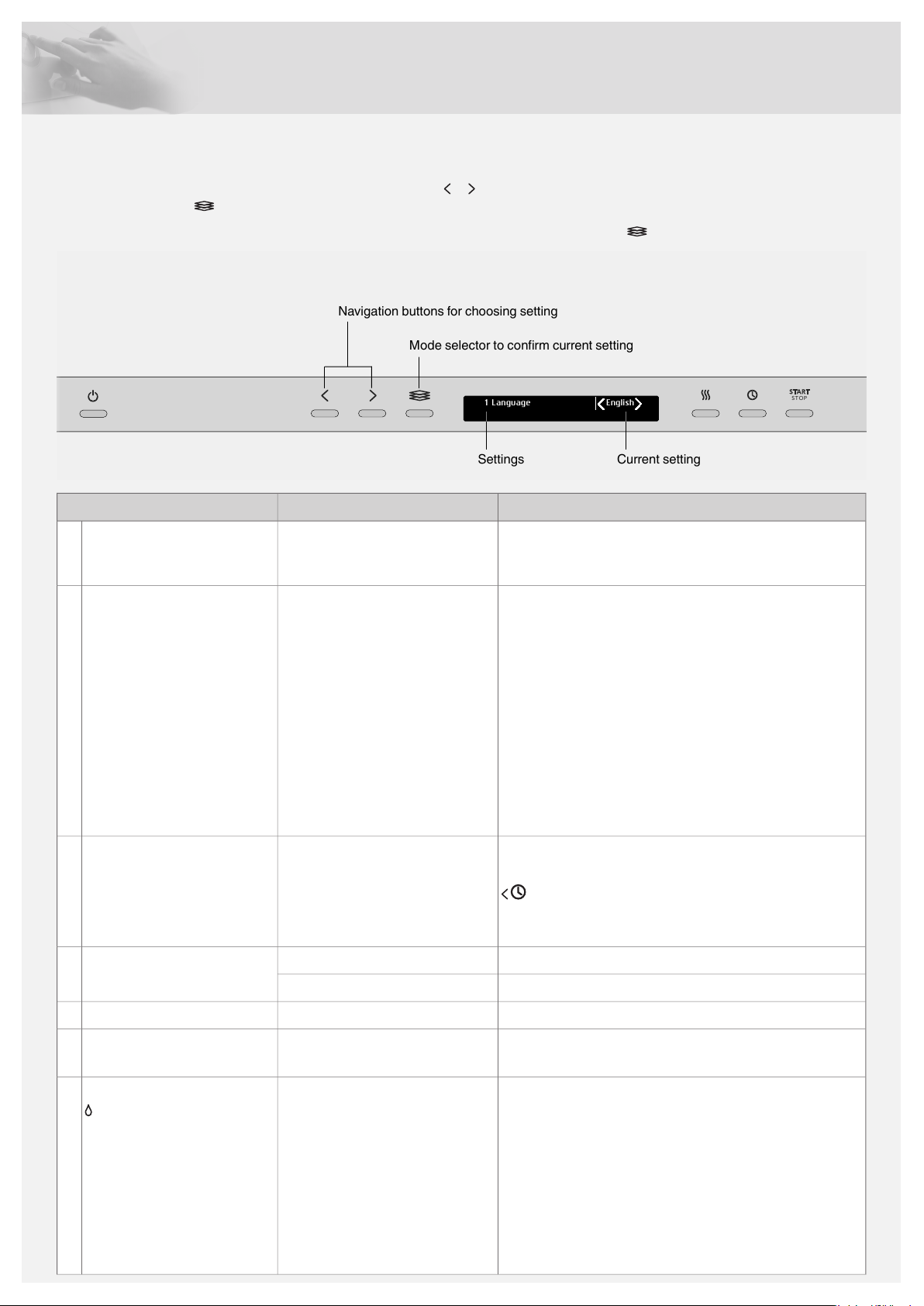

Settings
Language1
Select the language to be shown on the display.
Rinse aid 0/1/2/3/4/52
By using rinse aid you will improve your drying result. You will also achieve a better dishwashing result with glassware and dishes.
Select rinse aid dosage. The rinse aid dispenser can be adjusted between 0 (Off) and 5 (High dosage).
Pre-selected at factory: 5
To change the chosen setting, see the chapter Settings.
4
Press to open

Loading the dishwasher

3. Top up with rinse aid
By using rinse aid you will improve your drying result. You will also achieve a better dishwashing result with glassware and dishes.
1 Open the rinse aid compartment lid. 2 Carefully top up withrinse aid. Only add rinseaid to the level marked
max. 3 Wipe up any splashes of rinse aid around the compartment. 4 Close the lid firmly.

Top up rinse aid

When the rinse aid needs topping up, the above symbol lights on the display.
After topping up, it may take a while before the symbol goes out.
NOTE!

Increase the rinse aid dosage:

If the dishes have water marks.

Decrease the rinse aid dosage:

If the dishes have a sticky white/blue film.
If the dishes are streaked.
Build-up of foam. If you have very soft water, the rinse aid can be
diluted 50:50 with water.
NOTE!
For water with a hardness greater than 10–12 °dH, you ought to use rinse aid with citric acid (known as acid rinse aid).

Greener dishwashing

Do not rinse under running water

Simply scrape off large food particles before loading the dishwasher.

Choose a green detergent

Read the environmental declaration on the packaging!

Run programs only with a full load

Wait to run a program until the dishwasher is full. This way you save energy. Use the Rinse and hold program to rinse the dishes if there are any unpleasant odours while youwait for the dishwasher to become fully loaded.

Run programs at a lower temperature

If the dishes are only slightly dirty, you can select a program with a low temperature.

Select ECO wash

Use when you want to save water and energy. Fornormally soiled load, such as plates, serving dishes, cups, glasses and so on.
This dishwashing program is designed for an effective wash using as little energy and water as possible. The program washes at a low temperature for a long time.

Select Green mode

The dishwasher has different program modes. To save energy and water, use Green mode. (Available with: Heavy wash, Sanitation wash)

Open the door a little once the program has finished

Better drying results are achieved if you open the door a little once the program has ended. (If the dishwasher is built-in, the surrounding cabinets must be resistant to any condensation from the dishwasher.)

Connect to cold water

Connect the dishwasher to the cold water supply if the building is heated using oil, electricity or gas.

Connection to hot water supply

Connect the dishwasher to the hot water supply (max. 70 °C) if the building is heated using an energy-efficient means such as district heating, solar power or geothermal power. Choosing a hot water con­nection cuts dishwashing times and reduces the dishwasher's energy consumption.
NOTE!
Do not exceed the permitted water supply temperature. Certain ma­terials used in some cookware cannot withstand high heat.
5
Fragile dishes
Some cookware is not dishwasher safe. Thiscan be for several reasons. Some materials cannot withstand strong heat, others can be damaged by dishwashing detergent.
Exercise caution with, for example, handmadeitems, fragile decoration, crystal/glassware, silver, copper, tin, aluminium, wood and plastic. Look for the "Dishwasher safe" marking.

Fragile decoration

Porcelain with decoration on top of the glazing (the items feel rough) should not be washed in a dishwasher.

Crystal/Glass

Wash fragile items made of crystal/glass, such as crystal glass from Orrefors, using the gentle dishwashing programCrystal glass. Remem­ber to use only a small amount of detergent and to place items so that they do not touch each other during the wash.
By using rinse aid you will improve your drying result. You will also achieve a better dishwashing result with glassware and dishes.
Hand-painted glassware, as well as antique and very fragile items, should not be washed in a dishwasher.

Silver

Silver and stainless steel items should not come into contact, as the silver can become discoloured.

Aluminium

Aluminium can lose its shine if washed in a dishwasher. However,good quality aluminium pans can be washed in a dishwasher, even if some of the shine will be lost.

Cutlery with glued handles

Some types of glue are notdishwasher safe. In such cases, thehandles may loosen.

Points to consider

All dirty surfaces should face inwards and downwards!
Dishes should not be placed in or on each other.
Angle dishes with hollows, such as cups, so that the rinse water
will run off. This is also important for plastic items.
Make sure small items cannot fall through the dishwasher basket;
place them in the top cutlery tray.

The dishwasher's baskets

The dishwasher is equipped with a top cutlery tray, an upper basket and a lower basket with a cutlery basket.
The appearance of the baskets may differ depending on the dishwasher setup.

Top cutlery tray

The top cutlery tray has space for cutlery, ladles, whisks, serving cutlery and similar items.

Raising the top cutlery tray

1 Pull out the top cutlery tray. 2 Pull the two locking handles on either side forward to raise the top
cutlery tray.

Lowering the top cutlery tray

1 Pull out the top cutlery tray. 2 Slide the two locking handles on either side downwards and back-
wards to lower the top cutlery tray.
NOTE!
Check that the spray arms can rotate freely.
6

Upper basket

Place glasses, cups, bowls, side plates and saucers in the upper basket. All dirty surfaces should face inwards and downwards! Wine glasses are placed on the wine glass shelf and knives are placed in the knife stand on the right (if fitted).

Lower basket

2
1
Place plates, side plates, serving dishes, pots and cutlery (in the cutlery basket) in the lower basket.
Place pots or pans in the right-hand rear part of the lower basket for the best cleaning performance from the rear spray nozzle (WideSpray), which is intended for these types of dishes.
WARNING!
Knives and other pointed items must be placed with the points down in the cutlery basket or horizontally in other baskets.

Fold-down section for small items

The cutlery basket has a fold-down section in the middle for small items, or small shafts, such as electric whisk attachments.

Cutlery basket with lid

Foldable tines

Lower the foldable tines (plate supports) when washing pots andpans. Release the foldable tines bypressing the catch inwards before adjust­ing their position.

Washing large plates

Move the foldable tines and theirmounts to widen the distance between the tine rows to adapt the lower basket toplates with a diameter greater than 25 cm.

Cutlery basket

Place cutlery with the handles facing down, except for knives, and spread them out as much as possible. Ensure that spoons do not stack inside each other.
The cutlery basket is best placed in the middle at the front of the lower basket to achieve the best dishwashing performance from the unique spray nozzle (Power Zone Cutlery), which is intended for the cutlery basket.
The cutlery basket lid can be removed and used, for example, as an extra cutlery basket in the upper basket (see below).

Accessory

Buy an extra cutlery basket. The extra cutlery basket is flexible and can be dismantled and attachedto the lower basket or the large cutlery basket to make an extra large cutlery basket. This accessory is avail­able where you purchased your dishwasher.
7

Using the dishwasher

Press to open

Add detergent

1 Prewash detergent compartment 2 Main wash detergent compartment
Detergent is added according to water hardness.
Follow the instructions on the detergent packaging.
Too much detergent can result in less effective dishwashing and also entails greater environmental impact.
The detergent compartment must be dry when addingdetergent. There is one compartment for the prewash and one for the main wash. If powder or liquid dishwasher detergent is used, add a small amount
of the detergent to the prewash compartment. Contact the detergent manufacturer if you have questions about the detergent.
NOTE!
Use only dishwasher detergent! Washing up liquid must not be used as the foam that forms prevents the dishwasher from operating effec­tively.

Dishwasher tablets

Halve the tablet if it is difficult to close the dispenser lid. There is a risk that the detergent will not be released properly if the lid is tight and will not open correctly.
NOTE!
Dishwasher tablets are not recommended for short programs (less than 75 minutes). Use powder orliquid dishwasher detergent instead.

All-in-one detergent

There are many types of all-in-one detergents on the market. Read the directions for these products carefully.
NOTE!
Optimum washing and drying results are achieved by using normal dishwasher detergent together with separately dispensed rinse aid.
8
Eco

Speed mode

2:00
START
STOP
Select a program mode Select any options
Press and hold the main power switch until the display lights up.
Select the program
Starting the dishwasher

The main power switch

Press and hold the main power switch until the display turns on. Also check that the water tap is on.

Select a program

To select a program, press the Navigation button or until the desired program is shown on the display.
Select a programme to suit the type of dishes and how dirty they are.

ECO wash

Use when you want to save water and energy. Fornormally soiled load, such as plates, serving dishes, cups, glasses and so on.

Heavy wash

Use to wash normally soiledload, such as plates, serving dishes, cups, glasses and so on.

Auto wash

The dishwasher can measure how dirty the dishes are and adjustwater consumption and temperature accordingly. When newly installed, the program needs to be run five times before it is fully adapted and can provide the best results.

Sanitation wash

Program for very dirty dishes, such as pans, casserole dishes and oven dishes. If these dishes do not completely fill the dishwasher, you can add plates and the like.

Time program

The program adapts to the specified running time or finish time. With this program it is important to choose a time suited to how dirty the dishes are.
Slightly dirty dishes0:15-0:45
Normally dirty dishes1:00-1:30
Very dirty dishes2:00-2:30

Crystal glass

A gentle dishwashing program with a low temperature for washing fragile items made of crystal/glass, such as crystal glass from Orrefors. Remember to use only a small amount of detergent and to place items so that they do not touch each other during the wash. See also Fragile dishes in the chapter Loading the dishwasher. Porcelain that has just been used without dried-on leftovers can also be washed using this program.

Quick Pro wash

Shorten the dishwashing program by preheating the water. This pro­gram is not intended for dried-on leftovers. Remember to scrape off larger food particles before loading the dishwasher.
1 To initiate the timer program, press and hold Start/Stop until the
display shows "Preheating". Close the door. Wait until the status light turns green and the display shows "Preheating ready".
You can load the dishes while the water is being preheated.
2 To start the program, press and hold Start/Stop until the display
shows "Program started, close door". This indicates that the dish­washer is ready to start. Close the door properly, otherwise the dishwasher will not start.

Self-cleaning

Self-cleaning programme for hygienic cleaning of the dishwasher tub, spray arms and spray pipes.
This program should be run (with no dishes in the machine) using normal dishwasher detergent or citric acid. Special dishwasher cleaners are also available on the market. For the removal of lime scale deposits, see The dishwasher tub in Chapter Care and cleaning.

Upper half wash

You can use this program if you only have cups and glasses that need washing in the upper basket. Slightly dirty dishes can also be placed in the lower basket.

Lower half wash

You can use this program when you only want to wash plates and cutlery in the lower basket. Slightly dirty dishes can also be placed in the upper basket.
– To set the desired program time, press and hold the option
button.

Rinse and hold

Used to rinse dishes while you wait for the dishwasher to become fully loaded.

Plastic wash

A program intended for washing plastic items that are dishwasher safe. This program has an extra long drying cycle. Porcelain and glasses can also be washed.

Hygiene wash

This program is designed to meet strict hygiene demands.

Select a program mode

To select a program mode, press the program mode selector until the desired mode is shown on the display. The available program modes vary between programs.

Green mode

The dishwasher uses less energy and water. The program time is ex­tended.
Speed mode
The program time is shortened, but the dishwasher uses more energy and water.

Night mode

Lower noise level during the dishwashing program. The program time is extended.
9

Intensive mode

START
STOP
Status light
Improves the dishwashing results, but the dishwasher uses more energy and water. The program time is extended.

Select an Option

To select an option, press the option button until the desired option is shown on the display. The available options vary between programs.

Extra Dry

A higher temperature in the final rinse and a longer drying cycle im­prove the drying results if you activate this option. Energy consumption is slightly increased.

Delayed Start

When you select Delayed Start, the dishwasher will start in 1-24 hours after you have pressed the button Start/Stop and closed the door.
1 Press the button once to activate Delayed Start. Press the button
several times – or hold it in – to set the desired number of hours. 2 Press Start/Stop and close the door. The timer counts down and
the dishwasher starts after the selected delay.
If you want to cancel the Delayed Start option, open the door and press and hold the main power switch until the display turns off.

Starting the dishwasher

Press and hold Start/Stop until the display shows Program started, close door. This indicates that the dishwasher is ready to start. Close the door properly, or the dishwasher will not start.
If the dishwasher is not started or the dooris not closed within 2 minutes of the last button press, the machine switches off.

Time remaining

Once you have chosen a program, a program mode and options, the time the program took when last used is displayed.

Status light

If you want to load more dishes

Open the door. The dishwasher stops automatically. Add the dishes and close the door. After a while, the dishwasher continues the pro­gram.

If the dishwasher is turned off due to a power failure

If the dishwashing program was not finished, the interrupted program continues when power is restored.
NOTE!
During drying, the program is interrupted if the power is cut or the door is open for more than 2 minutes.

Once the program has finished

Once the program has finished andthe door is opened "END" appears on the display.
At the end of the program, you will hear a short beep. Chapter Settings describes how to change this function.
The end of the program is also indicated by the status light turning green.
The dishwasher switches off automatically after the program ends. Turn off the water tap after each use.

How to get the best drying results

Fully load the dishwasher.
Angle dishes with hollows, such as cups, so that the rinse water
will run off. This is also important for plastic items.
Top up with rinse aid or increase the rinse aid dosage level.
Activate the Extra Dry option.
Activate the High temperature setting. See the chapter Settings.
Open the door a little once the program has finished.
Allow the dishes to cool before unloading the dishwasher.
The status light at the bottom of the dishwasher provides information by means of 3 different colours.

Blue - Load more

The program has started, but you can still load more dishes.

Red - Do not load

You should not load any moredishes (risk of poorer dishwashing result).
Flashing red indicates a problem. See also Chapter Troubleshooting.

Green - Unload

The dishwashing program is finished. Standby light for 60 minutes.

Stopping or changing a program

If you want to change program after starting the dishwasher, open the door then press and hold Start/Stop for three seconds. Add more de­tergent if the lid of the detergent dispenser has opened. Then choose a new program, press Start/Stop and close the door.

Unloading the dishwasher

Hot porcelain is more fragile.Leave the dishes to coolin the dishwasher before unloading them.
Unload the lower basket first to avoid any water drops from the upper basket falling onto the dishes in the lower basket.
10
1)
Consumption values
Water cons.
(liter)
3)
Energy
Hot water
Dishwashing
2)
Energy
Cold water
Dishwashing
(approx. kWh)
time
(approx.
(approx. kWh)
time
(approx.
12.20.52:300.82:5048 °C348 °C225
hrs:min)
hrs:min)
130.62:051.22:2565 °C260 °C225Heavy wash
11-200.5-1.02:20-3:000.9-1.52:40-3:2065 °C2-350-65 °C1-325Auto wash
150.61:351.21:5565 °C260 °C225Sanitation wash
11-190.4-1.20:15-2:300.5-1.60:15-2:30<65 °C2-3<65 °C0-225Time program
30.010:070.010:07--- °C1Rinse and hold
120.62:251.12:4568 °C250 °C125Plastic wash
100.91:001.41:1070 °C270 °C25Hygiene wash
90.51:200.81:4050 °C245 °C20Crystal glass
100.60:20 + 0:200.90:30 + 0:2055 °C260 °C20Quick Pro wash
120.61:501.02:1060 °C260 °C120Upper half wash
120.61:501.02:1060 °C260 °C120Lower half wash
Final rinseNumber of rins-
es
Main washPrewashesDetergent, com-
partment 2
(ml)
Program

Program chart

4)
ECO wash
Consumption values vary depending on the temperature of the incoming water, room temperature, load size, selected additional functions and more.2)Connection to cold water, approx. 20 °C.3)Connection to hot water, approx. 60 °C.4)The energy label performance figures are based on this program which is recommended for normally soiled load (no options).
1)
11

Settings

START
STOP
1� Language
English
Mode selector to confirm current setting
Settings Current setting
Navigation buttons for choosing setting

Open the dishwasher's Settings menu

To open the dishwasher's Settings menu, press the Navigation button or until Settings menu is shown on the display and confirm your selection using the mode selector .
To exit the dishwasher's Settings menu, select Exit and confirm your selection using the mode selector .
OptionsSettings
Language1.
You can choose the language used for the display.English AU/Svenska/Français/ Deutsch/Italiano/Suomi/Español/ Norsk/Dansk/Nederlands
Select programs2.
Heavy wash On/Off ECO wash On/Off Auto wash On/Off
Programs can be shown or hidden in the menu. Choose between
On and Off.
(ECO wash cannot be hidden in the menu.) Sanitation wash On/Off
Time program On/Off Rinse and hold On/Off Plastic wash On/Off Hygiene wash On/Off Crystal glass On/Off Quick Pro wash On/Off Self-cleaning On/Off Lower half wash On/Off Upper half wash On/Off
On/OffChild lock3.
You can activate the child lock (button lock) to prevent children
from starting the dishwasher.
To temporarilydeactivateor activate the child lock, press and hold the left Navigation button and the option button Delayed Start for 3 seconds.
For adjusting the contrast of the display.Contrast top display1/2/3/4Display settings4.
Setting to hide the logo shown on the display.Logo in top display On/Off
This sound is used to confirm each button press.0/1/2/3Feedback sound5.
The buzzer indicates when a dishwashing program has ended.0/1/2/3Buzzer volume6.
Error messages are always indicated by a loud buzzer.
0/1/2/3/4/5Rinse aid7.
Setting for rinse aid dosage. The rinse aid dispenser can be adjust­ed between 0 (Off) and 5 (High dosage).
Increase the rinse aid dosage:
If the dishes have water marks.
Decrease the rinse aid dosage:
If the dishes have a sticky white/blue film.
If the dishes are streaked.
Build-up of foam. If you have very soft water, the rinse aid can
be diluted 50:50 with water.
12
OptionsSettings
Super rinse adds two extra rinses.On/OffSuper rinse8.
Activated in the following programs:
Heavy wash
ECO wash
Sanitation wash
Plastic wash
Lower half wash
Upper half wash
On/OffHigh temperature9.
Activate the setting High temperature to improve the dishwashing results. Energy consumption is slightly increased.
Activated in the following programs:
Heavy wash
ECO wash
Sanitation wash
Plastic wash
Quick Pro wash
Lower half wash
Upper half wash
13

Care and cleaning

Coarse filter
Fine filter

Coarse filter

The coarse filter traps larger food particles, which cannot get past the drainage pump. Empty the coarse filter as necessary.
1 Lift the coarse filter by the handle. 2 Empty the coarse filter. Remember to replace it!

Fine filter

Debris that collects on the fine filter is automatically rinsed away during each wash. Clean the fine filter when necessary.

Top spray arm

The upper basket must be removed before the top spray arm can be released. See section Upper spray arm.
Pull out the top cutlery tray. Press the top spray arm up and unscrew the spray arm bearings counter-clockwise to remove the spray arm.

Upper spray arm

The upper basket must be removed before the upper spray arm can be released. Pull out the upper basket and turn the basket catch on each runner outwards (see illustration). The basket can now be removed.
Pull the upper spray arm straight up to release it.

Lower spray arm

Pull the lower spray arm straight up to release it.
1 Turn the handle anticlockwise. 2 Lift the filter straight up using the handle. Free the coarse filter to
clean the fine filter.
3 Replace in reverse order. Check that the edges seal properly when
replacing the fine filter.
4 Lock the filter in place by turning the handle clockwise to the stop
position. The handle should point straight out from the dishwasher.
NOTE!
The dishwasher must not be used without the filter in place!
Diswashing efficiency can be affected if the course filter is incorrectly fitted. After cleaning ensure that filter handle is fully locked with the handle pointing out of the dishwasher.

Spray arms

Holes and bearings can sometimes become blocked. Remove any debris using a pin or something similar. The spray arms also have holes on their undersides.
To facilitate cleaning, you can remove the spray arms. Remember to fit them firmly back into place after cleaning.
14

The door and the door seal

Regularly clean the sides of the door and the door seal. Use a slightly damp cloth (with a little cleaner if necessary).

Front panel

Keep the buttons clean and free from grease. Wipe them clean with a dry or slightly damp cloth. Never use cleaners – they can scratch the surface. Use the main power switch to turn off the dishwasher before cleaning the buttons to avoid activating any buttons unintentionally.

The dishwasher tub

The dishwasher tub is madeof stainless steel and is kept clean through normal use.

Limescale deposits

If you have hard water, limescale deposits may build up in the dish­washer. If this happens, run the Self-cleaning program with two table­spoons of citric acid in the detergent compartment (with no dishes in the machine). Special dishwasher cleaners are also available on the market.

Unblocking the drainage pump

If the dishwasher still contains water after the programme hasfinished, something may be blocking the drainage pump. Such items are easily removed.
1 Turn off the machine using the main power switch and unplug it
from the wall socket.
2 Remove the coarse filter and the fine filter. 3 Scoop out the water from the dishwasher tub.
4 In order to inspect the drainage pump, remove the coloured stop
Drainage pump stop
Outer filter on inlet hose
Gasket
on the right in the bottom drain.
5 Turn the pump wheel located behind the drainage pump stop by
hand. Carefully remove any items.
6 Replace the drainage pump stop along with the fine and coarse
filters.
7 Plug the machine in again.
If the dishwasher still does not start and a whirring sound is heard, the overflow protection has been activated.
Shut off the water.
Remove the plug from the wall socket.
Call the service department.
NOTE!
Do not forget to replace the drainage pump stop.

Unblocking the inlet hose filter

If the water supply contains small particles, the outer filter on the inlet hose may become blocked, which results in Water inlet fault.
1 Turn off the machine using the main power switch and unplug it
from the wall socket.
2 Turn off the water tap. 3 Unscrew the inlet hose. 4 Carefully remove the outer filter from the inlet hose and clean it. 5 Replace the filter and check that the gasket is correctly positioned. 6 Screw the inlet hose firmly into place. 7 Plug the machine into the wall socket and turn on the water tap.
Allow the pressure to settlefor a while and checkthat the connection is watertight.
15

Troubleshooting

ActionType of fault on the display
Overfilling water 1F10
Water outlet faultF11
Water inlet faultF12
Press any button to clear the error message.
The buttons do not react when pressed.
Clear the drainage pump. See the chapter Care and cleaning. If the problem persists, call the service department.
See Water remains in the dishwasherin the table Problembelow. If the problem persists, call the service department.
Check whether dishwasher inlet hose is connected to a pressure limiting valve (some pressure limiting valves may restrict the supply of water to the dishwasher).
Check that the water tap is on. Check that the outer filter on the inlet hose is not blocked. See Unblocking the inlet hose filter in the chapter Care and cleaning. If the problem persists, call for service.
Turn off the water tap and call the service department.Inlet valve leakageF40
Call the service department.Water level faultF52
Turn off the water tap and call the service department.Overfilling water 2F54
Call the service department.Circ. pump faultF56
ActionPossible causesProblem
Wait a moment then try again.You have pressed the buttons too soon after
opening the door.
See the chapter Settings.Child lock (button lock) activated.
The door is closed.
Open the door. The buttons only react to use when the door is open.
The dishwasher does not start.
The baskets are not correctly positioned.Cannot close door.
The Start/Stop start button has not been pressed for long enough.
You have opened the dishwasher to add more dishes while a program is in progress.
A whirring sound (the drainage pump) is heard from thedishwasherand does not stop when the main power switch is turned off.
Check that the Delayed Start option has not been selected.
Clean with a dry or slightly damp cloth.The buttons are dirty.
Check that the baskets are correctly positioned horizontally.
Check that the dishes are not blocking the bas­kets from sliding properly into place.
Press and hold Start/Stop until the display shows "Program started, close door".
Check.The door is not properly closed.
Close the door and wait. After a while, the dish­washer continues the program.
Check.A fuse/circuit breaker has been tripped.
Check.The plug is not plugged into the wall socket.
Check.The water tap is turned off.
Check.Overflow/leaks
Turn off the water tap. Pull out the plug and call the service department.
Press and hold Start/Stop for three seconds if you want to cancel the Delayed Start option.
16
ActionPossible causesProblem
Spots on stainless steel or silver.
The spray arms do not rotate.The dishes are not clean.
Spray arm holes or bearings blocked.
Incorrect detergent dosage.
Dishes loaded incorrectly.
program.
The filters are not fitted correctly.
Some foodstuffs, such as mustard, mayonnaise, lemon, vinegar, salt and dressings, can mark stainless steel if left for too long.
Check that the dishes are not blocking the spray arms.
Clean the spray arms. See Chapter Care and cleaning.
Choose a longer programme.Unsuitable dishwashing program.
Dose according to water hardness. Far too much or far too little detergent results in poorer dish­washing results.
Avoid large packages.Old detergent. Detergent is a perishableproduct.
Do not cover porcelain with large bowls or the like. Avoid placing very tall glasses in the corners of the baskets.
Place dishes to sit steady.Glasses and cups have toppled over during the
Check that the filter handle is locked in the stop position. The handle should point towards the back of the dishwasher.
Rinse off these types of foodstuffs if not starting the dishwasher immediately. Use the Rinse and hold program.
Detergent residue in the detergent compartment after dishwashing.
Rattling sound when dishwashing.
All stainless steel can cause spots on silver if they come into contact during dishwashing. Aluminium can also cause spots on dishes.
Too high temperature and/or too much detergent can cause etching on crystal. Unfortunately, this cannot be repaired, only prevented.
Rinse aid dosage setting too high.The dishes have a sticky white/blue film.
The detergent compartment was damp when adding detergent.
The detergent compartment is blocked.
The dishes are not correctly placed or the spray arms are not rotating.
In order to avoid marks and tarnishing, separate dishes made from different metals, suchas silver, stainless steel and aluminium.
See the chapter Settings.Incorrect rinse aid dosage setting.Spots or films on the dishes.
Wash crystal at a low temperature and with a conservative amount of detergent. Contact the detergent manufacturer.
Reduce the dosage. See the chapter Settings. If you have very softwater, you may want todilute the rinse aid 50:50 with water.
Use a detergent with a bleaching agent.Lipstick and tea can be difficult to wash off.Spots left after washing.
The detergent compartment must be dry when adding detergent.
Check that the dishes are not preventing the detergent compartment from opening.
Check that the dishes are placed securely. Spin the spray arms to make sure they can rotate.
17
ActionPossible causesProblem
Clean the coarse and fine filters.The filters are blocked.Water remains in the dishwasher.
The dishes are not dry enough.
The filters are not fitted correctly.
Debris in the drainage pump.
Kink in drainage hose.
Blocked drainage hose.
Dirt around the seals and in corners.Bad odour in dishwasher.
Low temperature programs have been selected for a prolonged period.
cycle may be insufficient.
Rinse aid needs topping up or dosage is set too low.
Check that the filter handle is locked in the stop position. The handle should point towards the back of the dishwasher.
Clean the drainage pump. See the chapter Care and cleaning.
Check that the hose is free from kinks and sharp bends.
Disconnect thedrainagehose where it connects to the sink unit's water trap. Check that no debris has fastened and that the connection has an in­ner diameter of at least 14 mm.
Clean with washing-up brush and low foaming cleaner.
Run a program with a higher temperature once or twice a month. Or run a self-cleaning program. See Self-cleaning in Chapter Using the dishwash­er.
Activate the Extra Dry option.Depending on the load, the programme's drying
Fully load the dishwasher.The dishwasher is not fully loaded.
Top up with rinse aid or increase the rinse aid dosage level. See the chapter Settings.
Open the door a little once the program has fin­ished.
18

Technical information

Information on energy labelling

Energy labelling

AS/NZS 2007Australian standard: 15Number of place settings: ECO wash1), no optionsDishwashing programs: 2:50 hours:minutesProgram time: Cold water 20 °CConnection: IEC 60704-2-3Test method for noise measurement:
1)
This dishwashing program is the standard cleaning cycle used to compile the energy labelling information. It is intended for washing normally dirty dishes and is the most effective program in terms of combined energy and water consumption.

Technical data

819-872 mmHeight: 596 mmWidth: 559 mmDepth:
1)
Weight:
1)
Weight can vary due to different specifications.
45 kg
0.03–1.0 MPaWater pressure: See compliance plateElectrical connection: See compliance plateRated power:
19

Installation

819*- 872
559
714
596
131-186
50 30-94
1198
700
[mm]
Nominal dimensions. Actual measurements may vary.
*Remove locking nuts for an installed height of 820-821 mm.
REMOVE
Ø. 38
600
50
131
820-875
> 560
[mm]

Safety instructions

Connections to electricity, water and drainage must be performed by a qualified professional.
Always follow applicable regulations for water, drainage and elec­tricity.
Take care during installation! Wear protective gloves! There must always be two people!
Before screwing the dishwasher into place, test the dishwasher by running the Rinse and hold program. Check that the dishwasher fills with water and drains. Check also that none of the connections leak.
WARNING!
Turn off the water supply when installing the dishwasher!
The plug must be disconnected or power to the socket turned off while the work is carried out!

Transport protection for the door

Do not forget to remove the transport protection for the door when un­packing the dishwasher.

Placing the dishwasher

The dishwasher can be installed built-in, completely freestanding or partially built-in.

A. Built-in

The dishwasher is intended for installation under a worktop. The recess dimensions are illustrated. Holes for wires/cables need not be larger than 38 mm in diameter. Make sure the edges of such holes are even to prevent damage to the drainage and inlet hoses and the power ca­ble.
20

B. Freestanding

413
2x
24 mm
16 mm
A freestanding dishwasher must be fitted with anti-tip brackets. This comprises two brackets, which are screwed into place as illustrated.
The dishwasher is then pushed inso that the brackets engage the rear feet. Now the dishwasher will not topple if pressure is put on the open door. If the dishwasher is installed completely on its own, side panels and a worktop must both be fitted. Accessories can be purchased where you bought the dishwasher.

Adjust the height and slide the dishwasher into place

1 Start by measuring the height from the floor to the bottom edge of
the worktop. 2 Measure the height from the floor to the top edge of the dishwasher. 3 Lean the dishwasher forwards a little and roughly adjust the rear
foot by turning the adjustment screw at the front clockwise to raise
and anticlockwise to lower the dishwasher (see illustration below).
Use a broad screwdriver or a socket screwdriver.
WARNING!
A completely freestanding dishwasher must be fitted with anti-tip brackets.

C. Partially built-in

If the dishwasher is located so that one of its sides is visible, a side panel must be fitted. Accessories canbe purchased where you bought the dishwasher.

Affix the protective film

Attach the protective film (packed in the document bag) to the under­side of the worktop. The protective film is to protect the worktop from moisture.
NOTE!
The surface to which the protective film is affixed must be clean and dry.
4 Adjust the front feet by turning them clockwise to raiseand anticlock-
wise to lower the dishwasher.
5 Check that there is an air gap of at least 3 mm between the under-
side of the worktop and the top edge of the dishwasher. 6 Slide the dishwasher into place.
Pull through the drainage and supply hoses when the machine is slid into place.
Check that the hoses have no kinks or sharp bends, and check that there is nothing that can damage the hoses.
7 Make any final adjustments to the feet (the dishwasher may lean
no more than 5 mm) and tighten the lock nuts on the front feet.
21
Drainage connection
min.
14 mm
Max. 950 mm
This dishwasher is suitable for installing in a raised recess (to attain an ergonomic working height). This means that the dishwasher can be placed so that the drainage hose runs to a lower level than the bottom of the dishwasher, such as by routing it directly to a floor drain. The dishwasher is fitted with an integrated anti-siphon device to prevent the machine from being emptied of water during the wash cycle.

Connection to hot water supply

Connect the dishwasher to the hot water supply (max. 70 °C) if the building is heated using an energy-efficient means such as district heating, solar power or geothermal power. Choosing a hot water con­nection cuts dishwashing times and reduces the dishwasher's energy consumption.
NOTE!
Do not exceed the permitted water supply temperature. Certain ma­terials used in some cookware cannot withstand high heat. See Fragile dishes in the chapter Loading the dishwasher.
NOTE!
Connecting a dishwasher to the water supply via certain types of pressure limiting valves may restrict the water supply!
This may cause the error message Water inlet fault to be displayed.

Electrical connection

Information about the electrical connection can be found on the com­pliance plate. This specification must match the electricity supply.
The dishwasher must be connected to an earthed wall socket.
The electric wall socket must be placed outside of the installation area to be easily accessible after installing the dishwasher. Do not use an extension cord!
The drainage hose can also be connected to a connection nipple on the sink units water trap. The connection nipple must have an internal diameter of at least 14 mm.
The drainage hose may be extended by a maximum of 2.5 m (the total length of the drainage hose must not exceed 4.5 m). Any joins and connecting pipes must have an internal diameter of at least 14 mm. However, the drainage hose should ideally be replaced with a new hose without joins.
No part of the drainage hose may be more than 950 mm above the bottom of the dishwasher.
Attach the drainage hose with a hose clamp. Ensure that the drainage hose has no kinks.

Connection to water supply

Use only the inlet hose supplied with the dishwasher. Do not re-use old or other spare hoses.
The supply pipe must be fitted with a water tap (stopcock). The water tap must be easily accessible, so that the water can be shut off if the dishwasher has to be moved.
Once the installation is complete, turn on the water tap and allow the pressure to settle for a while. Check that all connections are watertight.

Connection to cold water supply

Connect the dishwasher to the cold water supply if the building is heated using oil, electricity or gas.
22
NOTE!
Repairs and maintenance must be carried out by a qualified profes­sional.
Screwing the dishwasher into place
2x
2x
KNOCK OUT
Fit the sound insulation (1-3 pieces, depending on plinth depth).
x
x
x
2x
(Applicable only to built-in dishwashers.)

Dishwasher kick panel

The dishwasher is supplied with a kick panel.
After fastening the machine, check that the front feet still touch the floor.

Screw the dishwasher into place with two extra screws

If there is an air gap of more than 3 mm between the underside of the worktop and the top of the dishwasher, the dishwasher should be screwed into place with two extra screws.

Install the sound insulation

(only certain models)

Install the kick panel

23
SERIAL NO.:
ART. NO.:
1
2
QR code
Information for test
SERIAL NO.:
ART. NO.:
1
2

ASKO Service

Information about your product

There is a QR code on the compliance plate. Scan the code to view information about your product.

Contact the service department

Read the chapter Troubleshooting before contacting the service de­partment. If you have encountered a problem that you cannot resolve, please contact your nearest dealer, see www.asko.com.
When making contact, provide the details on the serial number plate. Include the article number (1) and the serial number (2).
institute
Request test institute information via e-mail dishwashers@appliance­development.com.
The request should include the details on the products serial number plate. Include the article number (1) and the serial number (2).
24

Your notes

25
Your notes
26
Your notes
27

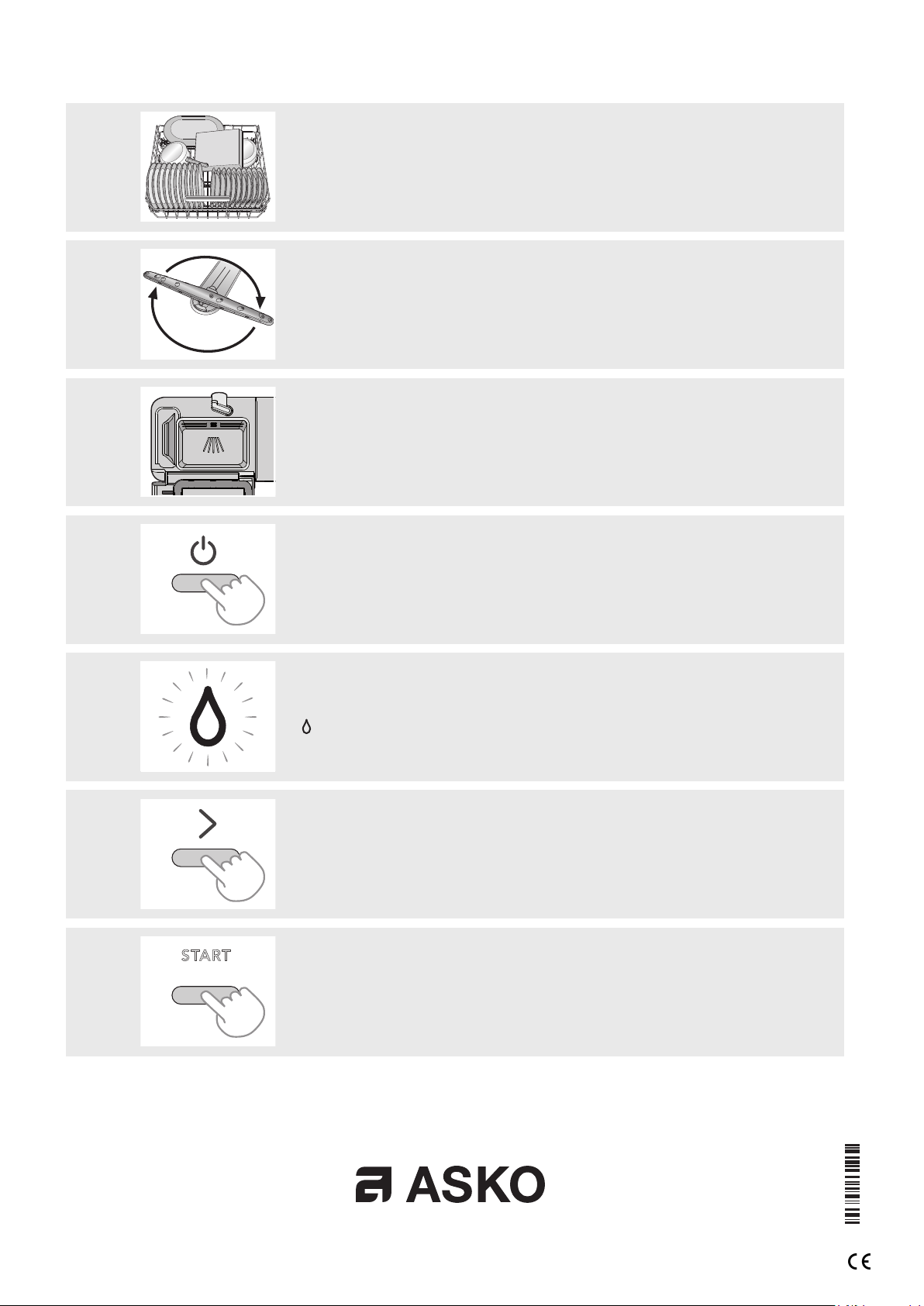

Quick guide

START
STOP
1.
2.
3.
Load the baskets
(See page 5
Do not rinse dishes under running water before loading them in the dishwasher. Simply scrape off large food particles before loading the dishwasher.
.)
Check that the spray arms can rotate freely
Check also that the water tap is on.
Don't forget! Empty the coarse filter and clean the fine filter when necessary. (See page 14
.)
Add detergent
The detergent compartment has one smaller compartment for the prewash and one for the main wash. (See page 8
.)
4.
5.
6.
Press and hold the main power switch until the display lights up
Check/Add rinse aid
Use rinse aid to achieve good washing and drying results. (See page 4
Refill rinse aid indicator.
.)
Select a program, a program mode and any options
(See page 9
.)
Press Start/Stop, close the door
28
7.
ASKO APPLIANCES SOCKERBRUKSGATAN 3, SE-531 40 LIDKÖPING, SWEDEN WWW.ASKO.COM
en (10-18)

Art. No.: 782533. Rev. 01. We reserve the right to make changes.
Loading...
