Dishwasher DBI243IBOPERATING INSTRUCTIONS
Page 2
Contents
2:15Eco
Display Start/Stop
Navigation buttons for selecting a program Option Delayed Start
Option Extra Dry
Main power switch
Program mode selector
Speed mode
Night mode
Child lock
Top up rinse aid
2Your dishwasher
3Safety instructions
4Before washing for the first time
5Loading the dishwasher
8Using the dishwasher

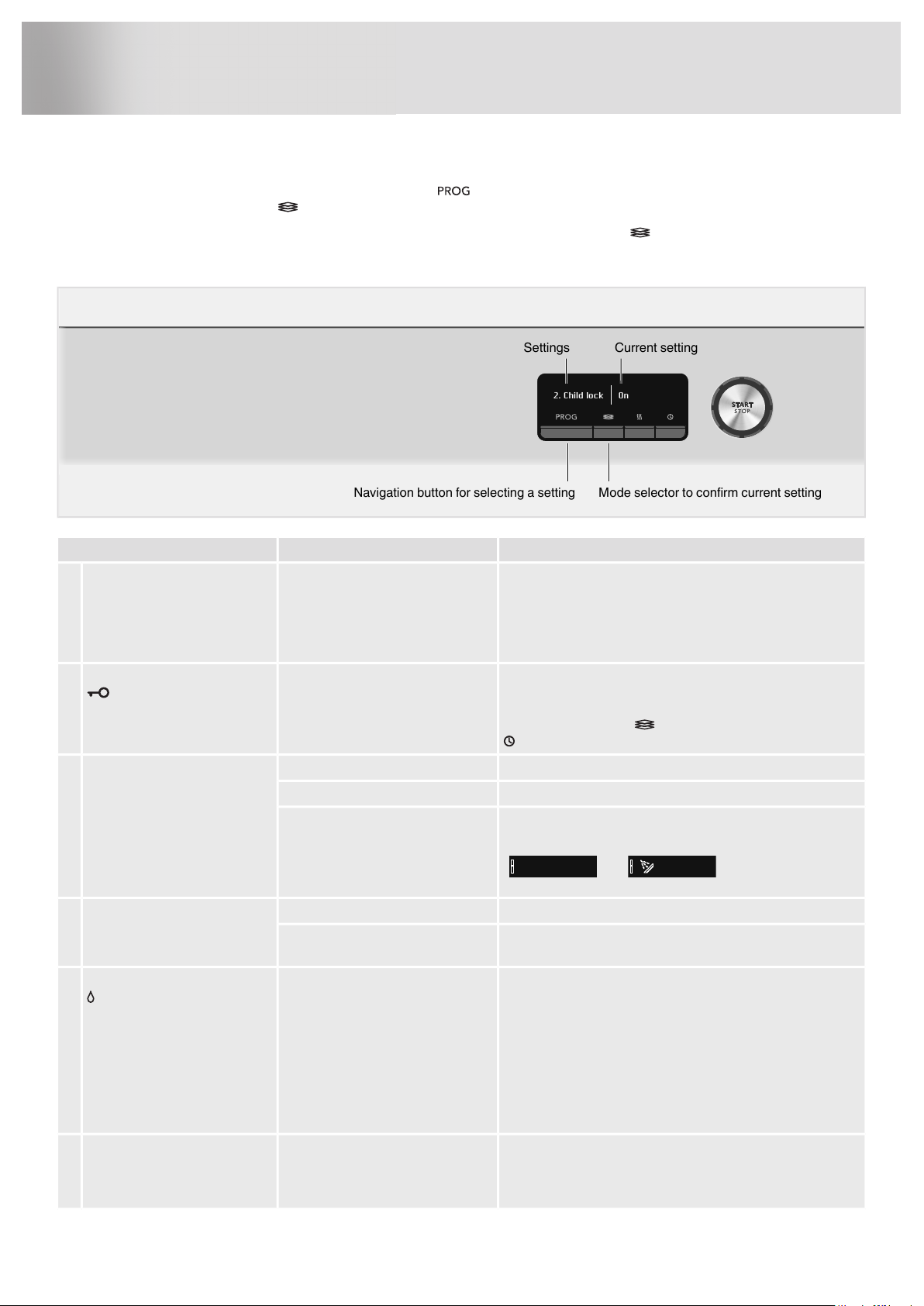

12Settings

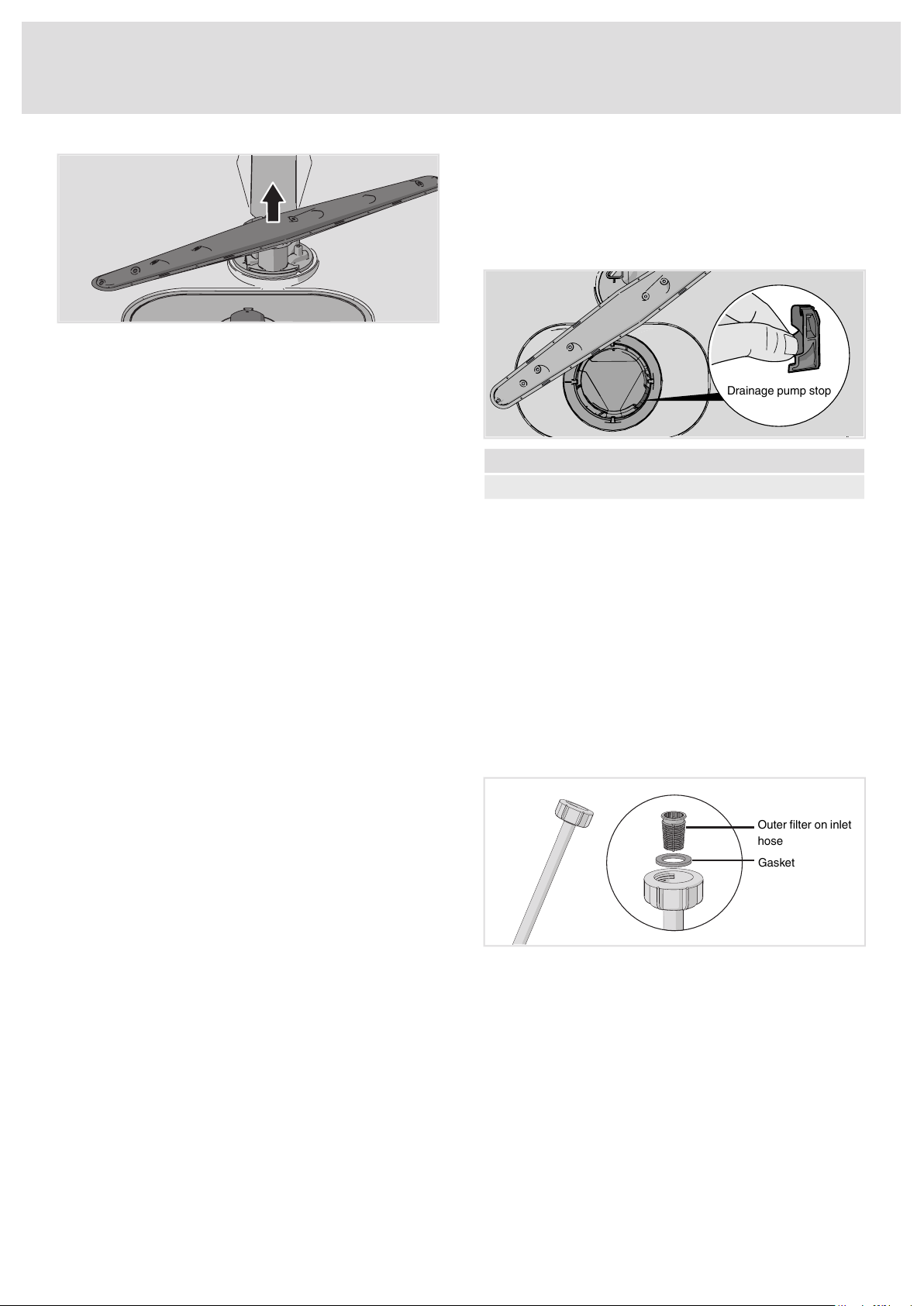

14Care and cleaning
Your dishwasher
Open the door and press the main power switch.
"Welcome to your ASKO. First time set-up." is shown on the display the first time the dishwasher is switched on. It is important that
you choose the right settings to ensure good dishwashing results. See page 4.
16Troubleshooting
19Technical information

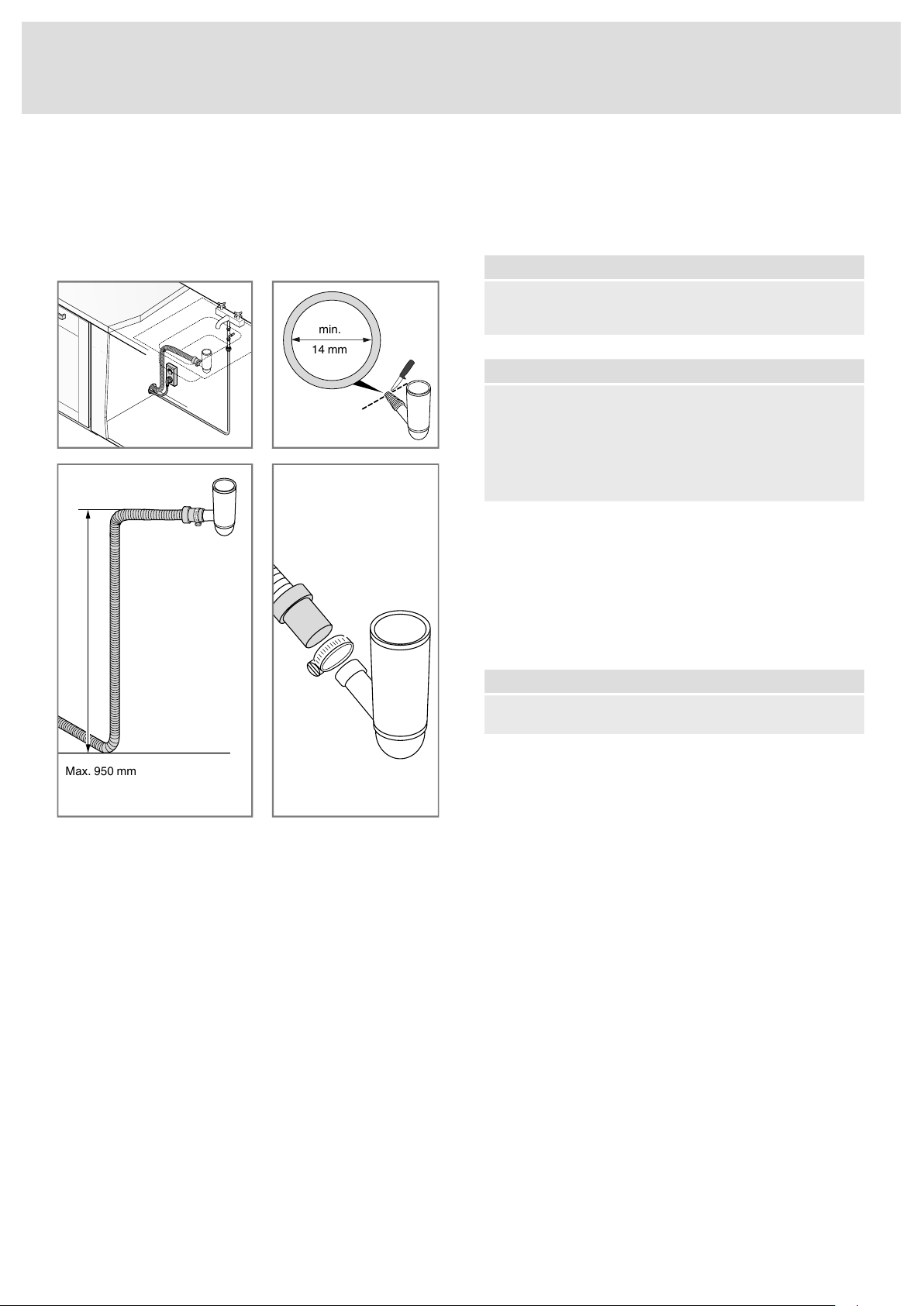

20Installation
24ASKO Service
24Information for test institute
25Your notes

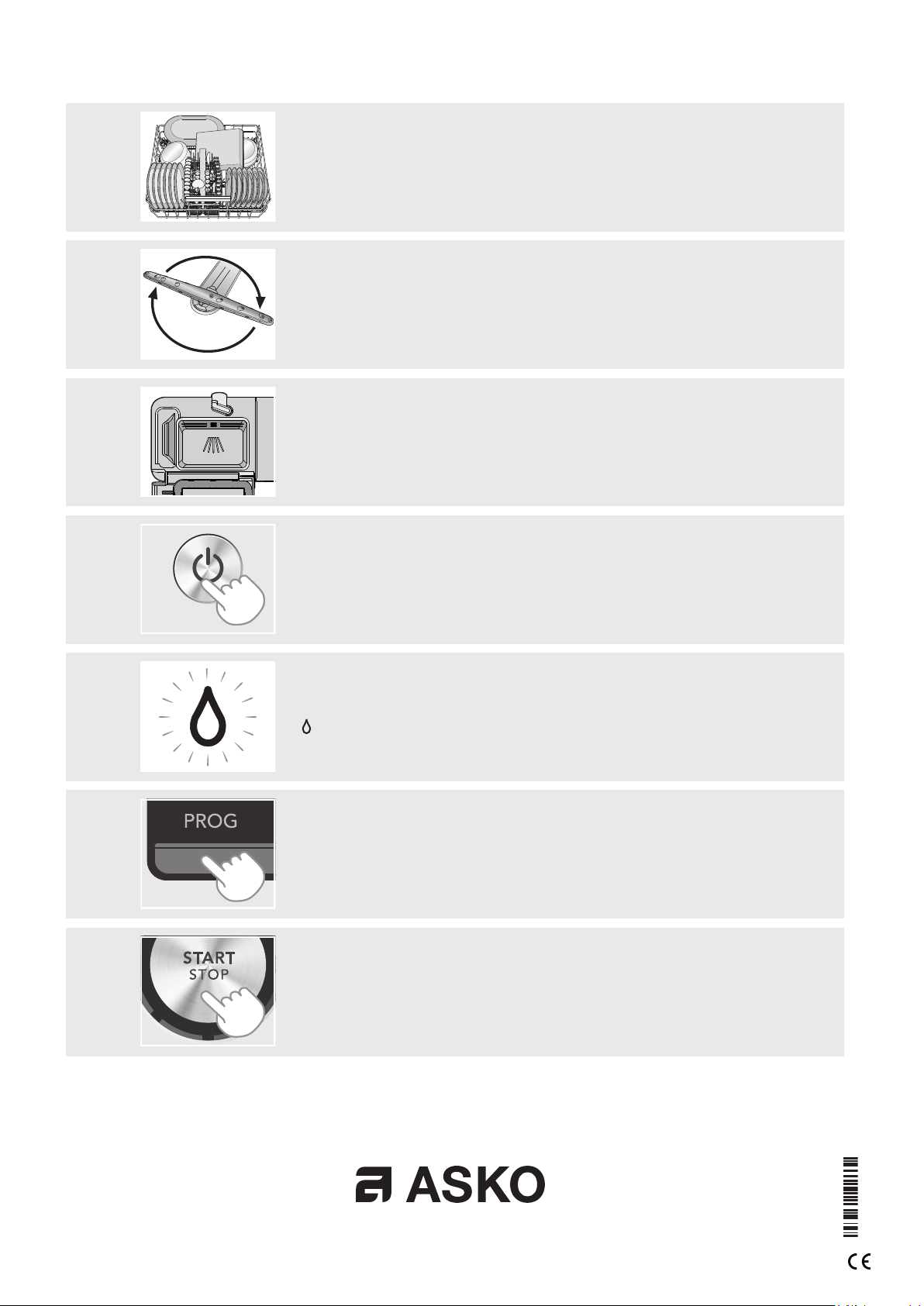

28Quick guide
2
Page 3
Safety instructions
• Read the operating instructions and keep
them in a safe place!
• Number of place settings: 14
• Never use the dishwasher for any purpose
other than that specified in these operating
instructions.
• Do not load the dishwasher door or
dishwasher baskets with anything other than
dishes.
• Never leave the dishwasher door open as
someone may trip on it.
• Use only dishwasher detergent!
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
• If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order
to avoid a hazard.
• Damaged mains cables must only be
replaced by a qualified electrician.
• This appliance is intended to be used in
household and similar applications such as:
- staff kitchen areas in shops, offices and
other working environments;
- farm houses;
- by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments.
• Never place dishes with solvent residues in
the dishwasher due to the risk of explosion.
Nor may dishes that contain ash, wax or
lubricants be washed in the dishwasher.
• Children must be watched. Do not allow
children to use or play with the dishwasher.
Be especially vigilant when the door is open.
Some detergent may remain inside! After
adding detergent, always start the
dishwasher immediately.
WARNING!
Knives and other pointed items must be placed
with the points down in the cutlery basket or
horizontally in other baskets.
WARNING!
Dishwasher detergents are strongly alkaline.
They can be extremely dangerous if swallowed.
Avoid contact with skin and eyes and keep
children away from the dishwasher when the
door is open. Seek medical attention if
swallowed.
Check that the detergent compartment is
empty after completion of the wash cycle.
Activate child lock (Kid Safe™)
You can activate the child lock (button lock) to prevent children from
starting the dishwasher. See the chapter Settings.
Installation
See the chapter Installation.
Winter storage/Transport
Store the dishwasher above freezing temperature and avoid long
transport distances in very cold weather. Transport the dishwasher
upright or laying on its back.
Overflow guard function
The overflow protection starts pumping out the machine and turns off
the water supply if the water level in the dishwasher exceeds the normal
level. If the overflow protection is triggered, turn off the water supply
and call the service department.
Packing material
The packaging protects the product during transport. The packaging
material is recyclable. Separate the different packaging materials to
help reduce raw material use and waste. Your dealer can take the
packaging for recycling or direct you to the nearest recycling centre.
The packaging is comprised of:
• Corrugated cardboard made from up to 100% recycled material.
• Expanded polystyrene (EPS) with no added chlorine or fluorine.
• Supports made from untreated wood.
• Protective plastic made from polyethylene (PE).
Disposal
The dishwasher is manufactured and labelled for recycling.
When the dishwasher has reached the end of its service life and is to
be disposed of, it should immediately be made unusable. Pull out the
power cable and cut it as short as possible.
Contact your local authority for information about where and how your
dishwasher should be correctly recycled.
3
Page 4
Before washing for the
English
Main power switch
Confirm settingSelect setting
Press to open
first time
1. Checking water hardness
Contact the local water utility to checkthe water hardness in your area.
This is important with regard to how much detergent and rinse aid to
use.
2. Basic settings
Open the door and press the main power switch.
"Welcome to your ASKO. First time set-up." is shown on the display.
It is important that you choose the right settings to ensure good
dishwashing results.
Settings
Language1.
Select the language to be shown on the display.
Set level of rinse aid 0/1/2/3/4/52.
By using rinse aid you will improve your drying result. You will also
achieve a better dishwashing result with glassware and dishes.
Select rinse aid dosage. The rinse aid dispenser can be adjusted
between 0 (Off) and 5 (High dosage).
Pre-selected at factory: 5

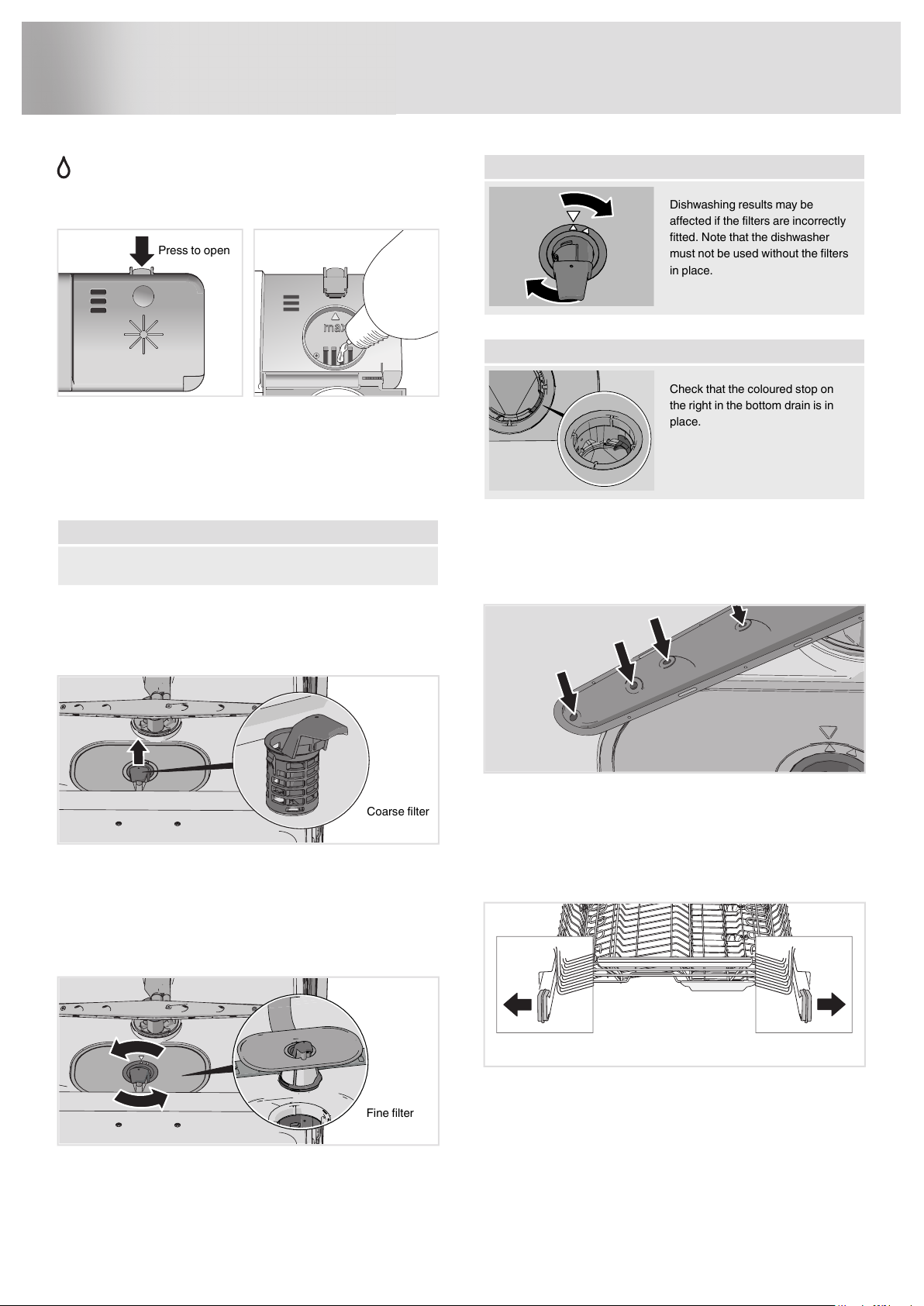

Top up rinse aid
1. Open the rinse aid compartment lid.
2. Carefully top up with rinse aid to the level marked max.
3. Wipe up any splashes of rinse aid around the compartment.
4. Close the lid firmly.
For water with a hardness greater than 10–12 °dH, you ought to use
rinse aid with citric acid (known as acid rinse aid).
To change the chosen setting, see the chapter Settings.
4
Page 5
Loading the dishwasher
Greener dishwashing
Do not rinse under running water
Simply scrape off large food particles before loading the dishwasher.
Choose a green detergent
Read the environmental declaration on the packaging!
Run programs only with a full load
Wait to run a program until the dishwasher is full. This way you save
energy. Use the Rinse & hold program to rinse the dishes if there are
any unpleasant odours while you wait for the dishwasher to become
fully loaded.
Run programs at a lower temperature
If the dishes are only slightly dirty, you can select a program with a low
temperature.
Select Eco
Use when you want to save water and energy. For normally soiled load,
such as plates, serving dishes, cups, glasses and so on.
This dishwashing program is designed for an effective wash using as
little energy and water as possible. The program washes at a low
temperature for a long time.
Open the door a little once the program has finished
Better drying results are achieved if you open the door a little once the
program has ended. (If the dishwasher is built-in, the surrounding
cabinets must be resistant to any condensation from the dishwasher.)
Connect to cold water
Connect the dishwasher to the cold water supply if the building is
heated using oil, electricity or gas.
Connection to hot water supply
Connect the dishwasher to the hot water supply (max. 70 °C) if the
building is heated using an energy-efficient means such as district
heating, solar power or geothermal power. Choosing a hot water
connection cuts dishwashing times and reduces the dishwasher's
energy consumption.
NOTE!
Do not exceed the permitted water supply temperature. Certain
materials used in some cookware cannot withstand high heat.
Fragile dishes
Some cookware is not dishwasher safe. This can be for severalreasons.
Some materials cannot withstand strong heat, others can be damaged
by dishwashing detergent.
Exercise caution with, for example, handmadeitems, fragile decoration,
crystal/glassware, silver, copper, tin, aluminium, wood and plastic.
Look for the "Dishwasher safe" marking.
Fragile decoration
Porcelain with decoration on top of the glazing (the items feel rough)
should not be washed in a dishwasher.
Crystal/Glass
By using rinse aid you will improve your drying result. You will also
achieve a better dishwashing result with glassware and dishes.
Hand-painted glassware, as well as antique and very fragile items,
should not be washed in a dishwasher.
Silver
Silver and stainless steel items should not come into contact, as the
silver can become discoloured.
Aluminium
Aluminium can lose its shine ifwashed in a dishwasher. However, good
quality aluminium pans can be washed in a dishwasher, even if some
of the shine will be lost.
Cutlery with glued handles
Some types of glue are notdishwasher safe. In such cases, the handles
may loosen.
Points to consider
• All dirty surfaces should face inwards and downwards!
• Dishes should not be placed in or on each other.
• Angle dishes with hollows, such as cups, so that the rinse water
will run off. This is also important for plastic items.
• Make sure small items cannot fall through the dishwasher basket;
place them in the cutlery basket.
NOTE!
Check that the spray arms can rotate freely.
5
Page 6
The dishwasher's baskets
The dishwasher is equipped with an upper basket and a lower basket
with a cutlery basket.
The appearance of the baskets may differ depending on the dishwasher
setup.
Upper basket
Place glasses, cups, bowls, side plates and saucers in the upper
basket. All dirty surfaces should face inwards and downwards! Wine
glasses are placed on the wine glass shelf and knives are placed in
the knife stand on the right.
Washing large plates
Move the foldable tines and their mounts to widen the distance between
the tine rows to adapt the lower basket to plates with a diameter greater
than 25 cm.
Accessory
Buy a wine glass shelf with space for six tall1)wine glasses. The wine
glass shelf is designed to ensure optimal washing and drying results
with tall wine glasses. The wine glass shelf is placed in the rear section
of the lower basket. This accessory can be purchased by calling ASKO.
Lower basket
Place plates, side plates, serving dishes, pots and cutlery (in the cutlery
basket) in the lower basket.
Place pots and pans in the rear right part of the lower basket toachieve
the best dishwashing results from the rear of the two spray nozzles
(WideSpray™), which are intended for these types of dishes.
Cutlery basket
Place cutlery with the handles facing down, except for knives, and
spread them out as much aspossible. Ensure that spoons do not stack
inside each other.
The cutlery basket is best placed in the middle at the front of the lower
basket to achieve the best dishwashing performance from the unique
spray nozzle (Power Zone Cutlery™), which is intended for the cutlery
basket.
WARNING!
Knives and other pointeditems must be placed with the points down
in the cutlery basket or horizontally in other baskets.
Fold-down section for small items
The cutlery basket has a fold-down section in the middle for small
items, or small shafts, such as electric whisk attachments.
Foldable tines
Lower the foldable tines (plate supports) when washing pots and pans.
Release the foldable tines by pressing the catch inwards before
adjusting their position.
1)
Height: max. 25 cm, Diameter: max. 7.5 cm
6
Page 7
Cutlery basket with lid
2
1
The cutlery basket lid can be removed and used, for example, as an
extra cutlery basket in the upper basket (see below).
Accessory
Buy an extra cutlery basket. The extra cutlery basket is flexible and
can be dismantled and attached to the lowerbasket or the large cutlery
basket to make an extra large cutlery basket. This accessory is
available where you purchased your dishwasher.
7
Page 8
Using the dishwasher
Press to open
Add detergent
1. Prewash detergent compartment
2. Main wash detergent compartment
Detergent is added according to water hardness.
Follow the instructions on the detergent packaging.
Too much detergent can result in less effective dishwashing and also
entails greater environmental impact.
The detergent compartment mustbe dry when adding detergent.There
is one compartment for the prewash and one for the main wash. If
powder or liquid dishwasher detergent is used, add a small amount
of the detergent to the prewash compartment. Contact the detergent
manufacturer if you have questions about the detergent.
NOTE!
Use only dishwasher detergent! Washing up liquid must not beused
as the foam that forms prevents the dishwasher from operating
effectively.
Dishwasher tablets
Halve the tablet if it is difficult to close the dispenser lid. There is a risk
that the detergent will not be released properly if the lid is tight and
will not open correctly.
NOTE!
Dishwasher tablets are not recommended for short programs (less
than 75 minutes). Use powder or liquid dishwasher detergent instead.
All-in-one detergent
There are many types of all-in-one detergents on the market. Read the
directions for these products carefully.
NOTE!
Optimum washing and drying results are achieved by using normal
dishwasher detergent together with separately dispensed rinse aid.
8
Page 9
2:15Eco
Starting the dishwasher
Select a program mode
Select any options
Press and hold the main power switch until the display lights up.
Select the program
The main power switch
START
STOP
Open the door and press the main power switch. Close the door. Also
turn on the water tap if it is turned off.
Intensive
Program for very dirty dishes, such as pans, casserole dishes and
oven dishes. If these dishes do not completely fill the dishwasher, you
can add plates and the like.
Select a program
To select a program,press the navigation button until the desired
program is shown on the display.
Select a programme to suit the type of dishes and how dirty they are.
Eco
Use when you want to save water and energy. For normally soiled load,
such as plates, serving dishes, cups, glasses and so on.
You can read moreabout greener dishwashing in the chapter Loading
the dishwasher.
Heavy
Use to wash normally soiled load, such asplates, serving dishes, cups,
glasses and so on.
Time program
The program adapts to the specified running time or finish time. With
this program it is important to choose a time suited to how dirty the
dishes are.
Slightly dirty dishes0:15-0:45
Normally dirty dishes1:00-1:30
Very dirty dishes2:00-2:30
Press the option button to set the desired program time.
Used to rinse dishes while you wait for the dishwasher to become fully
loaded.
Rinse & hold
Select a program mode
To select a program mode, press the program mode selector until the
desired mode is shown on the display. The available program modes
vary between programs.
Speed mode
The program time is shortened, but the dishwasher uses more energy.
Night mode
Lower noise level during the dishwashing program. The program time
is extended.
Select an Option
To select an option, press the option button until the desired option is
shown on the display. The available options vary between programs.
Extra Dry
A higher temperature in the final rinse and a longer drying cycle
improve the drying results if you activate this option. Energy
consumption is slightly increased.
Delayed Start
When you select Delayed Start, the dishwasher will start in 1-24 hours
after you have pressed the button Start/Stop and closed the door.
1. Press the button once to activate Delayed Start. Press the button
several times – or hold it in – to set the desired number of hours.
2. Press Start/Stop and close the door. The timer counts down and
the dishwasher starts after the selected delay.
If you want to cancel the Delayed Start option, open the door then
press and hold Start/Stop for three seconds.
Hygiene
This program is designed to meet strict hygiene demands.
Quick
A short program for slightly soiled dishes. (This program is not intended
for burnt food, such as on oven dishes.)
Starting the dishwasher
Close the door properly, otherwise the dishwasher will not start. Press
Start/Stop until the display shows "Program started".
If the dishwasher is not started within 2 minutes of the last button press,
the machine switches off.
9
Page 10
Time remaining
Once you have chosen a program, a program mode and options, the
time the program took when last used is displayed.
Once you have startedthe dishwasher, the display shows the remaining
program time. The remaining time is updated after the water for the
final rinse has been heated.
This may differ somewhat from time to time depending on the
temperature of the water supply, the amount of dishes, the ambient
temperature and other factors.
During the first run of each program, the remaining time displayed can
be slightly misleading, as the dishwasher is estimating the time. When
you run the program a second time, the dishwasher will calculate the
remaining time based on the previous duration of the program.
Stopping or changing a program
In order not to accidently press a button and cancel the current
program, you must press and hold Start/Stop for five seconds if you
want to change programs after starting the dishwasher. Add more
detergent if the lid of thedetergent dispenser has opened. Then choose
a new program and press Start/Stop.
If you want to load more dishes
Open the door. The dishwasher stops automatically. Add the dishes
and close the door. After a while, the dishwasher continues the
program.
If the dishwasher is turned off due to a power failure
If the dishwashing program was not finished, the interrupted program
continues when power is restored.
NOTE!
During drying, the program is interrupted if the power is cut or the
door is open for more than 2 minutes.
Once the program has finished
Once the program has finished, “END” appears on the display.
At the end of the program, you will hear a short beep. Chapter Settings
describes how to change this function.
The dishwasher switches off automatically after the program ends.
Turn off the water tap after each use.
How to get the best drying results
• Fully load the dishwasher.
• Angle dishes with hollows, such as cups, so that the rinse water
will run off. This is also important for plastic items.
• Top up with rinse aid or increase the rinse aid dosage level.
• Activate the Extra Dry option.
• Activate the High temperature setting. See the chapter Settings.
• Activate the Extra Dry setting. See the chapter Settings.
• Open the door a little once the program has finished.
• Allow the dishes to cool before unloading the dishwasher.
Unloading the dishwasher
Hot porcelain is more fragile. Leave the dishesto cool in the dishwasher
before unloading them.
Unload the lower basket first to avoid any water drops from the upper
basket falling onto the dishes in the lower basket.
10
Page 11
3)
1)
Consumption values
2)
Final rinseNumber
Water cons.
(liter)
Energy
Hot water
Dishwashing
Energy
Cold water
Dishwashing
(approx. kWh)
time
(approx.
(approx. kWh)
time
(approx.
12.70.42:240.72:3548 °C346 °C225
hrs:min)
hrs:min)
130.62:051.22:2565 °C260 °C225Heavy
11-190.4-1.20:15-2:300.5-1.60:15-2:30<65 °C2-3<65 °C0-225Time program
30.010:070.010:07--- °C1Rinse & hold
100.91:001.41:1070 °C270 °C25Hygiene
150.91:201.41:3065 °C365 °C125Quick
141.32:351.72:5570 °C270 °C225Intensive
of rinses
Main washPrewashesProgram mode
/ Option
Detergent,
compartment
2
(ml)
Program
Program chart
4)
Eco
Consumption values vary depending on the temperature of the incoming water, room temperature, load size, selected additional functions and more.2)Connection to cold water, approx. 20 °C.3)Connection to hot water, approx. 60 °C. (The hot water connection figures do not include the energy used to heat the inlet hot water before entering the dishwasher.)
1)
The energy label performance figures are based on this program which is recommended for normally soiled load at the rated capacity. No options.
4)
11
Page 12
Settings
2. Child lock On
Mode selector to confirm current setting
Settings Current setting
Navigation button for selecting a setting
0:07
Rinse & hold 0:07
Open the dishwasher's Settings menu
To open the dishwasher's Settings menu, press the navigation button untilSettings menu is shown on the display and confirm
your selection using the mode selector .
To exit the dishwasher's Settings menu, select Exit and confirm your selection using the mode selector .
OptionsSettings
Language1.
AU/Svenska/Dansk/Norsk/Suomi/
Nederlands/Français/Deutsch/Italiano/
Русский
/Español/Português/Sloven./
Eesti/Latviešu/Lietuvių/Hrvatski/Polish/
简体中文 / 繁體中文 / 日本語
On/OffChild lock2.
0/1/2/3/4/5Rinse aid5.
You can choose the language used for the display.English
You can activate the child lock (button lock) to prevent children
from starting the dishwasher.
To temporarily deactivate or activate the child lock, press and
hold the mode selector and the option button Delayed Start
for 3 seconds.
Setting to hide the logo shown on the display.Logotype On/OffDisplay3.
For adjusting the contrast of the display.Contrast 1/2/3/4
You can select which information is shown on the display.Prog. Info screen T/S
T-Text (Text)
This sound is used to confirm each button press.Feedback 0/1/2/3Sound4.
The buzzer indicates when a dishwashing program has ended.Volume 0/1/2/3
Error messages are always indicated by a loud buzzer.
Setting for rinse aid dosage. The rinse aid dispenser can be
adjusted between 0 (Off) and 5 (High dosage).
Increase the rinse aid dosage:
• If the dishes have water marks.
Decrease the rinse aid dosage:
• If the dishes have a sticky white/blue film.
• If the dishes are streaked.
• Build-up of foam. If you have very soft water, the rinse aid can
be diluted 50:50 with water.
Super rinse adds two extra rinses.On/OffSuper rinse6.
Activated in the following programs:
Heavy
Intensive
S-Symbol (Symbol)
12
Page 13
Exit
OptionsSettings
On/OffHigh temperature7.
Activate the setting High temperature to improve the dishwashing
results. Energy consumption is slightly increased.
Activated in the following programs:
Heavy
Intensive
To exit the dishwasher's Settings menu, select Exit and confirm
your selection using the mode selector .
13
Page 14
Care and cleaning
Press to open
Coarse filter
Fine filter
Dishwashing results may be
affected if the filters are incorrectly
fitted. Note that the dishwasher
must not be used without the filters
in place.
Check that the coloured stop on
the right in the bottom drain is in
place.
Top up rinse aid
When the rinse aid needs topping up, the above symbol lights on the
display.
1. Open the rinse aid compartment lid.
2. Carefully top up with rinse aid to the level marked max.
3. Wipe up any splashes of rinse aid around the compartment.
4. Close the lid firmly.
After topping up, it may take a while before the symbol goes out.
NOTE!
For water with a hardness greater than 10–12 °dH, you ought to use
rinse aid with citric acid (known as acid rinse aid).
NOTE!
NOTE!
Spray arms
Holes and bearings can sometimes become blocked. Remove any
debris using a pin or something similar. The spray arms also have
holes on their undersides.
Coarse filter
The coarse filter traps larger food particles, which cannot get past the
drainage pump. Empty the coarse filter when necessary.
1. Lift the coarse filter by the handle.
2. Empty the coarse filter. Remember to refit it!
Fine filter
Debris that collects on the fine filter is automatically rinsed away during
each wash. Clean the fine filter when necessary.
To facilitate cleaning, you can remove the spray arms. Remember to
fit them firmly back into place after cleaning.
Upper spray arm
• The upper basket must be removed before the upper spray arm
can be released. Pull out the upper basket and turn the basket
catch on each runner outwards (see illustration). The basket can
now be removed.
1. Turn the handle anticlockwise.
2. Lift the filter straight up using the handle. Free the coarse filter to
clean the fine filter.
3. Refit in reverse order. Check that the edges seal properly when
refitting the fine filter.
4. Lock the filter in place by turning the handle clockwise to the stop
14
position. The handle should point straight out from the dishwasher.
• Pull the upper spray arm straight up to release it.
Lower spray arm
• Pull the lower spray arm straight up to release it.
Page 15
The door and the door seal
Drainage pump stop
Outer filter on inlet
hose
Gasket
Regularly clean the sides of the door and the door seal. Use a slightly
damp cloth (with a little cleaner if necessary).
Front panel
Keep the buttons clean and free from grease. Wipe them clean with a
dry or slightly damp cloth. Never use cleaners – they can scratch the
surface. Use the main power switch to turn off the dishwasher before
cleaning the buttons to avoid activating any buttons unintentionally.
7. Plug the machine in again.
If the dishwasher still does not start and a whirring sound is heard,
the overflow protection has been activated.
• Shut off the water.
• Remove the plug from the wall socket.
• Call the service department.
NOTE!
Do not forget to refit the drainage pump stop.
The dishwasher tub
The dishwasher tub is made of stainless steeland is kept clean through
normal use.
Limescale deposits
If you have hard water, limescale deposits may build up in the
dishwasher. If this happens, run the Intensive program with two
tablespoons of citric acid in the detergent compartment(with no dishes
in the machine). Specialdishwasher cleaners are also available on the
market.
Unblocking the drainage pump
If the dishwasher still contains water after the programme hasfinished,
something may be blocking the drainage pump. Such items are easily
removed.
1. Turn off the machine using the main power switch and unplug it
from the wall socket.
2. Remove the coarse filter and the fine filter.
3. Scoop out the water from the dishwasher tub.
4. In order to inspect the drainage pump, remove the coloured stop
on the right in the bottom drain.
5. Turn the pump wheel located behind the drainage pump stop by
hand. Carefully remove any items.
6. Refit the drainage pump stop along with the fine and coarse filters.
Unblocking the inlet hose filter
If the water supply contains small particles, the outer filter on the inlet
hose may become blocked, which results in Water inlet fault.
1. Turn off the machine using the main power switch and unplug it
from the wall socket.
2. Turn off the water tap.
3. Unscrew the inlet hose.
4. Carefully remove the outer filter from the inlet hose and clean it.
5. Refit the filter and check that the gasket is correctly positioned.
6. Screw the inlet hose firmly into place.
7. Plug the machine into the wall socket and turn on the water tap.
Allow the pressure to settle for a whileand check that the connection
is watertight.
15
Page 16
Troubleshooting
Overfilling water 1F10
Water outlet faultF11
Water inlet faultF12
Water level faultF52
Press any button to clear the error message.
The buttons do not react when pressed.
The dishwasher does not start.
ActionType of fault on the display
Clear the drainage pump. See the chapter Care and cleaning. If the problem persists, call the
service department.
See “Water remains in the dishwasher” in the table “Problem” below. If the problem persists, call
the service department.
Check whether dishwasher inlet hose is connected to a pressure limiting valve (some pressure
limiting valves may restrict the supply of water to the dishwasher).
Check that the water tap is on. Check that the outer filter on the inlet hose is not blocked. See
Unblocking the inlet hose filter in the chapter Care and cleaning. If the problem persists, call for
service.
Turn off the water tap and call the service department.Inlet valve leakageF40
Clean the coarse and fine filters. Check that the outer filter on the inlet hose is not blocked. If the
problem persists, call the service department.
Turn off the water tap and call the service department.Overfilling water 2F54
Call the service department.Circ. pump faultF56
ActionPossible causesProblem
The door is closed.Pressing the main power switch has no effect.
opening the door.
The baskets are not correctly positioned.Cannot close door.
The Start/Stop start button has not been pressed
for long enough.
You have opened the dishwasher to add more
dishes while a program is in progress.
A whirring sound (the drainage pump) is heard
from the dishwasher and does not stop when
the main power switch is turned off.
Check that the Delayed Start option has not
been selected.
Open the door. The main power switch only
works when the door is open.
Wait a moment then try again.You have pressed the buttons too soon after
See the chapter Settings.Child lock (button lock) activated.
Clean with a dry or slightly damp cloth.The buttons are dirty.
Check that the baskets are correctly positioned
horizontally.
Check that the dishes are not blocking the
baskets from sliding properly into place.
Press and hold Start/Stop until thedisplay shows
"Program started".
Check.The door is not properly closed.
Close the door and wait. After a while, the
dishwasher continues the program.
Check.A fuse/circuit breaker has been tripped.
Check.The plug is not plugged into the wall socket.
Check.The water tap is turned off.
Check.Overflow/leaks
Turn off the water tap. Pull out the plug and call
the service department.
Press and hold Start/Stop for three seconds if
you want to cancel the Delayed Start option.
16
Page 17
Spots on stainless steel or silver.
Detergent residue in thedetergent compartment
after dishwashing.
Rattling sound when dishwashing.
The spray arms do not rotate.The dishes are not clean.
Spray arm holes or bearings blocked.
Incorrect detergent dosage.
product.
Dishes loaded incorrectly.
program.
The filters are not fitted correctly.
Drainage pump stop missing.
Some foodstuffs, such asmustard, mayonnaise,
lemon, vinegar, salt and dressings, can mark
stainless steel if left for too long.
All stainless steel can cause spots on silver if
they come into contact during dishwashing.
Aluminium can also cause spots on dishes.
Too high temperature and/ortoo much detergent
can cause etching on crystal. Unfortunately, this
cannot be repaired, only prevented.
Rinse aid dosage setting too high.The dishes have a sticky white/blue film.
The detergent compartment was damp when
adding detergent.
The detergent compartment is blocked.
The dishes are not correctly placed or the spray
arms are not rotating.
The program is taking longer than estimated.1 minute appears in the display.
ActionPossible causesProblem
Check that the dishes are notblocking the spray
arms.
Clean the spray arms. See Chapter Care and
cleaning.
Choose a longer programme.Unsuitable dishwashing program.
Dose according to water hardness. Far too
much or far too little detergent results in poorer
dishwashing results.
Avoid large packages.Old detergent. Detergent is a perishable
Do not cover porcelain with large bowls or the
like. Avoid placing very tall glasses in the
corners of the baskets.
Place dishes to sit steady.Glasses andcups have toppledover during the
Check that the filter handle is locked in the stop
position. The handle should point towards the
back of the dishwasher.
Check that the coloured stop on the right in the
bottom drain is in place. See the chapter Care
and cleaning.
Rinse off these types of foodstuffs if not starting
the dishwasher immediately. Use the Rinse &
hold program.
In order to avoid marks and tarnishing, separate
dishes made from different metals, such as
silver, stainless steel and aluminium.
See the chapter Settings.Incorrect rinse aid dosage setting.Spots or films on the dishes.
Wash crystal at a low temperature and with a
conservative amount of detergent. Contact the
detergent manufacturer.
Reduce the dosage. See the chapter Settings.
If you have very soft water, you may want to
dilute the rinse aid 50:50 with water.
Use a detergent with a bleaching agent.Lipstick and tea can be difficult to wash off.Spots left after washing.
The detergent compartment must be dry when
adding detergent.
Check that the dishes are not preventing the
detergent compartment from opening.
Check that the dishes are placed securely. Spin
the spray arms to make sure they can rotate.
No action. The programme time is stored and
next time the programme is run the corrected
time will be displayed.
17
Page 18
The dishes are not dry enough.
The filters are not fitted correctly.
Debris in the drainage pump.
Drainage pump stop missing.
Kink in drainage hose.
Blocked drainage hose.
Dirt around the seals and in corners.Bad odour in dishwasher.
Low temperature programs havebeen selected
for a prolonged period.
cycle may be insufficient.
Rinse aidneeds topping up or dosage is set too
low.
ActionPossible causesProblem
Clean the coarse and fine filters.The filters are blocked.Water remains in the dishwasher.
Check that the filter handle is locked in the stop
position. The handle should point towards the
back of the dishwasher.
Clean the drainage pump. See the chapter Care
and cleaning.
Check that the coloured stop on the right in the
bottom drain is in place. See the chapter Care
and cleaning.
Check that the hose is free from kinks and sharp
bends.
Disconnect the drainage hosewhere it connects
to the sink unit's water trap. Check that no debris
has fastened and that the connection has an
inner diameter of at least 14 mm.
Clean with washing-up brush and low foaming
cleaner.
Run a program with a higher temperature once
or twice a month.
Activate the Extra Dry option.Depending on the load,the programme's drying
Fully load the dishwasher.The dishwasher is not fully loaded.
Top up with rinse aid or increase the rinse aid
dosage level. See the chapter Settings.
Open the door a little once the program has
finished.
18
Page 19
Technical information
Information on energy labelling
Energy labelling
AS/NZS 2007Australian standard:
14Number of place settings:
Eco1), no optionsDishwashing programs:
2:35 hours:minutesProgram time:
Cold water 20 °CConnection:
IEC 60704-2-3Test method for noise measurement:
1)
This dishwashing program is the standard cleaning cycle used to compile the energy labelling information. It is intended for washing normally
dirty dishes and is the most effective program in terms of combined energy and water consumption.
Technical data
819-872 mmHeight:
596 mmWidth:
559 mmDepth:
1)
Weight:
1)
Weight can vary due to different specifications.
45 kg
0.03–1.0 MPaWater pressure:
See compliance plateElectrical connection:
See compliance plateRated power:
19
Page 20

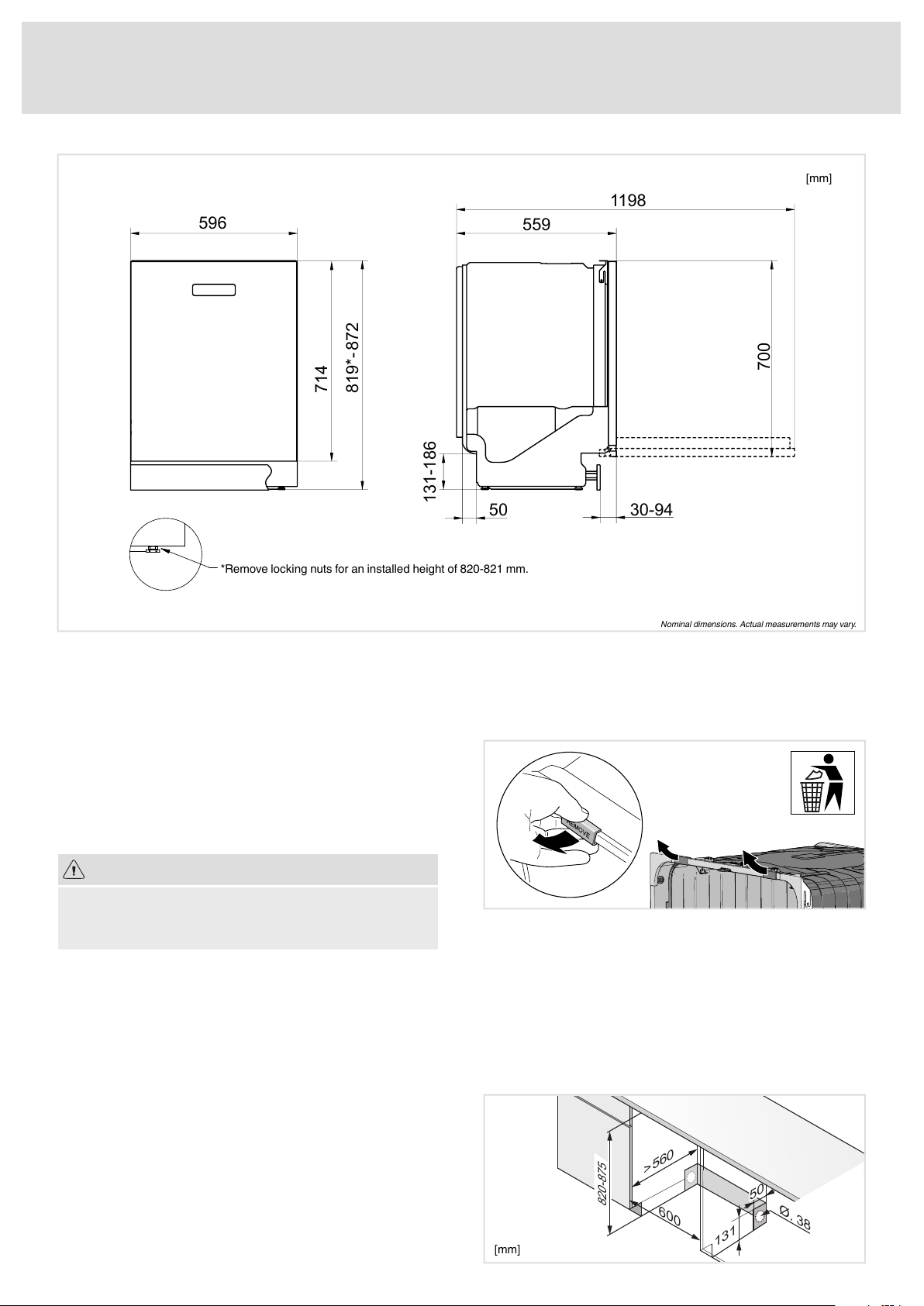

Installation
819*- 872
559
714
596
131-186
50 30-94
1198
700
[mm]
Nominal dimensions. Actual measurements may vary.
*Remove locking nuts for an installed height of 820-821 mm.
REMOVE
Ø. 38
600
50
131
820-875
> 560
[mm]
Safety instructions
• Connections to electricity, water and drainage must be performed
by a qualified professional.
• Always follow applicable regulations for water, drainage and
electricity.
• Take care during installation! Wear protective gloves! There must
always be two people!
• Before screwing the dishwasher into place, test the dishwasher by
running the Rinse & hold program. Check that the dishwasher fills
with water and drains. Check also that noneof the connections leak.
WARNING!
Turn off the water supply when installing the dishwasher!
The plug must be disconnected or power to the socket turned off
while the work is carried out!
Transport protection for the door
Do not forget to remove the transport protection for the door when
unpacking the dishwasher.
Placing the dishwasher
The dishwasher can be installed built-in, completely freestanding or
partially built-in.
A. Built-in
The dishwasher is intended for installation under aworktop. The recess
dimensions are illustrated. Holes for wires/cables need not be larger
than 38 mm in diameter. Make sure the edges of such holes are even
to prevent damage to the drainage and inlet hoses and the power
cable.
20
Page 21
If the dishwasher is built-in the surrounding cabinetry must be resistant
413
Max 0.6 Nm
2x
24 mm
16 mm
to any condensation from the dishwasher.

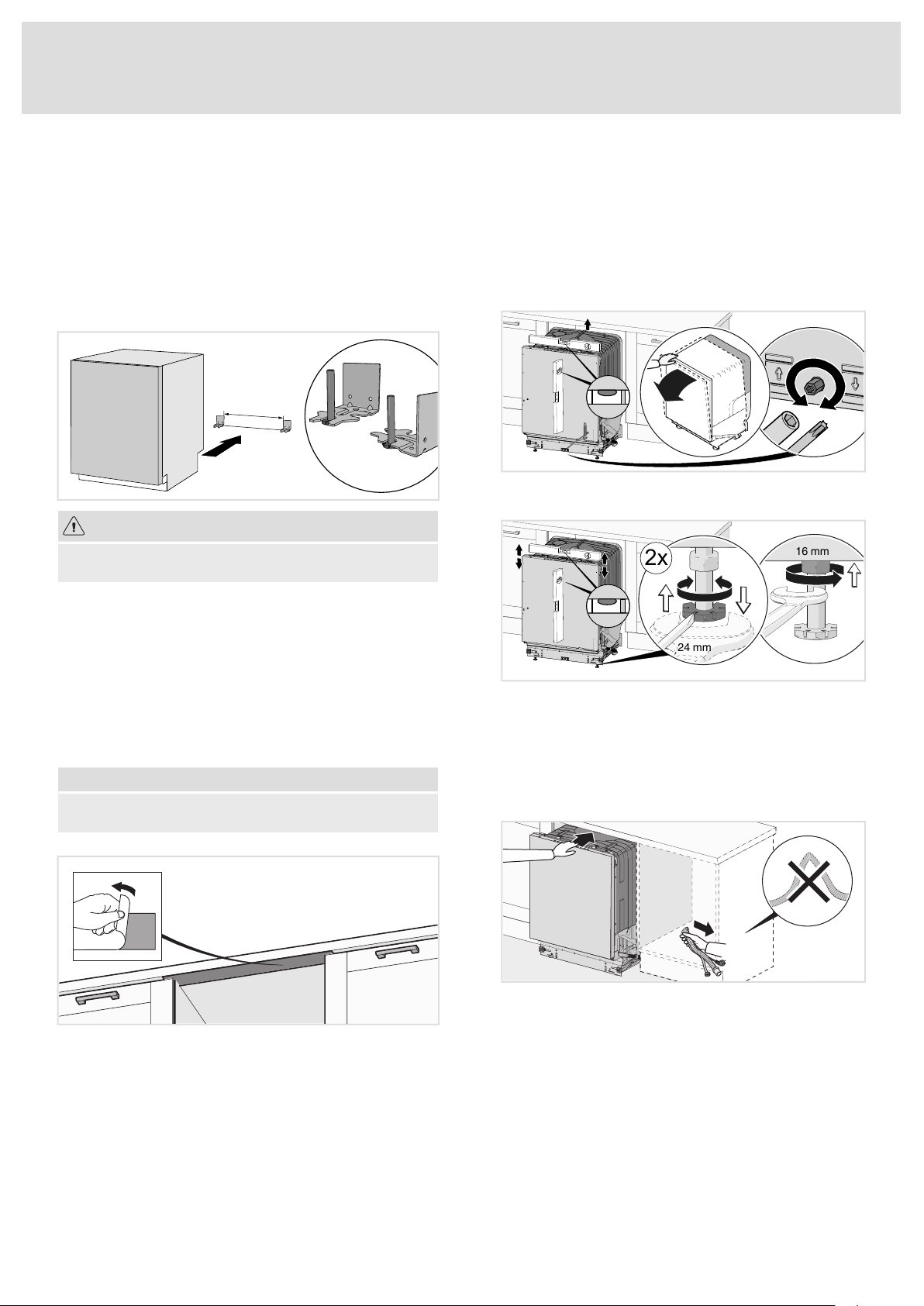

B. Freestanding
A freestanding dishwasher must be fitted with anti-tip brackets. This
comprises two brackets, which are screwed into place as illustrated.
The dishwasher is then pushed in so that the brackets engagethe rear
feet. Now the dishwasher will not topple if pressure is put on the open
door. If the dishwasher is installed completely on its own, side panels
and a worktop must both be fitted. Accessories can be purchased
where you bought the dishwasher.
WARNING!
A completely freestanding dishwasher must be fitted with anti-tip
brackets.
Adjust the height and slide the dishwasher into place
1. Start by measuring the height from the floor to the bottom edge of
the worktop.
2. Measure the height from the floor to the top edge of the dishwasher.
3. Lean the dishwasher forwards a little and adjust the rear foot with
the screw at the front of the dishwasher. Turn clockwise to lower or
anticlockwise to raise.
4.
5. Adjust the front feet by turning them clockwise to raise and
anticlockwise to lower the dishwasher.
C. Partially built-in
If the dishwasher is located so that one of its sides is visible, a side
panel must be fitted. Accessories can be purchased where you bought
the dishwasher.
Affix the protective film
Attach the protective film (packed in the document bag) to the
underside of the worktop. The protective film is to protect the worktop
from moisture.
NOTE!
The surface to which the protective film is affixed must be clean and
dry.
6. Check that there is an air gap of at least 3 mm between the
underside of the worktop and the top edge of the dishwasher.
7. Slide the dishwasher into place.
• Pull through the drainage and supply hoses when the machine
is slid into place.
• Check that the hoses have no kinks or sharp bends, and check
that there is nothing that can damage the hoses.
8. Make any final adjustments to the feet (the dishwasher may lean
no more than 5 mm) and tighten the lock nuts on the front feet.
21
Page 22
Drainage connection
min.
14 mm
Max. 950 mm
This dishwasher is suitable for installing in a raised recess (to attain
an ergonomic working height). This means that the dishwasher can be
placed so that the drainage hose runs to a lower level than the bottom
of the dishwasher, such as by routing it directly to a floor drain. The
dishwasher is fitted with an integrated anti-siphon device to prevent
the machine from being emptied of water during the wash cycle.
Connection to hot water supply
Connect the dishwasher to the hot water supply (max. 70 °C) if the
building is heated using an energy-efficient means such as district
heating, solar power or geothermal power. Choosing a hot water
connection cuts dishwashing times and reduces the dishwasher's
energy consumption.
NOTE!
Do not exceed the permitted water supply temperature. Certain
materials used in some cookware cannot withstand high heat. See
Fragile dishes in the chapter Loading the dishwasher.
NOTE!
The water pressure must be between 0.03 and 1.0 MPa.
Connecting a dishwasher to the water supply via certain types of
pressure limiting valves may restrict thewater supply! This may cause
the error message “Water inlet fault” to be displayed.
If the water pressure is higher than 1.0 MPa a pressure limiting valve
must be fitted.
Electrical connection
Information about the electrical connection can be found on the
compliance plate. This specification must match the electricity supply.
The dishwasher must be connected to an earthed wall socket.
The electric wall socket must be placed outside of the installation area
to be easily accessible after installing the dishwasher. Do not use an
extension cord!
The drainage hose can also be connected to a connection nipple on
the sink unit’s water trap. The connection nipple must have an internal
diameter of at least 14 mm.
The drainage hose may be extended by a maximum of 2.5 m (the total
length of the drainage hose must not exceed 4.5 m). Any joins and
connecting pipes must have an internal diameter of at least 14 mm.
However, the drainage hose should ideally be replaced with a new
hose without joins.
No part of the drainage hose may be more than 950 mm above the
bottom of the dishwasher.
Attach the drainage hose with a hose clamp. Ensure that the drainage
hose has no kinks.
Connection to water supply
Use only the inlet hose supplied with the dishwasher. Do not re-use
old or other spare hoses.
The supply pipe must be fitted with a water tap (stopcock). The water
tap must be easily accessible, so that the water can be shut off if the
dishwasher has to be moved.
Once the installation is complete, turn on the water tap and allow the
pressure to settle for a while. Check that all connections are watertight.
Connection to cold water supply
Connect the dishwasher to the cold water supply if the building is
heated using oil, electricity or gas.
22
NOTE!
Repairs and maintenance must be carried out by a qualified
professional.
Page 23

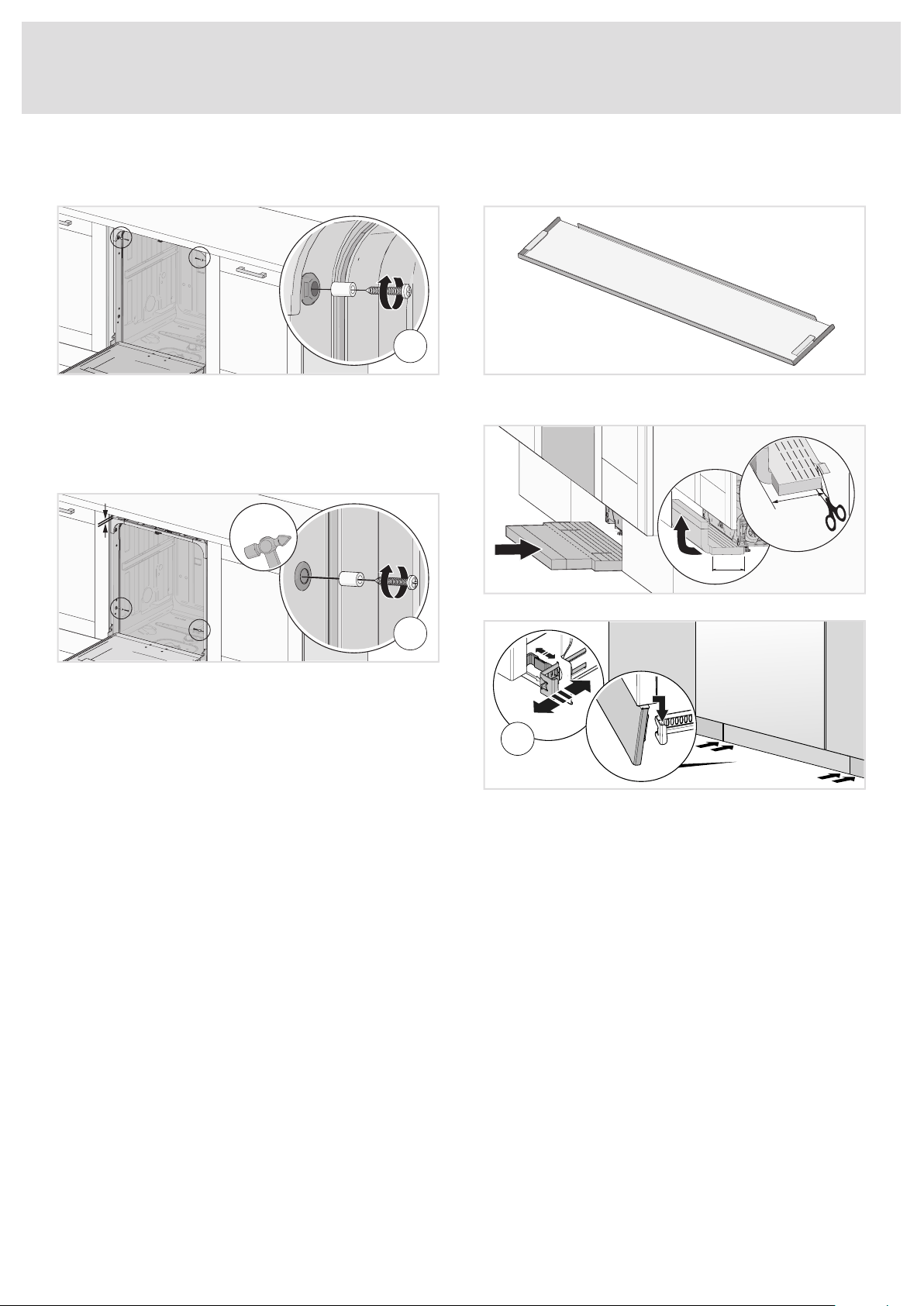

Screwing the dishwasher into place
2x
2x
KNOCK
OUT
x
x
x
2x
(Applicable only to built-in dishwashers.)
Dishwasher kick panel
The dishwasher is supplied with a kick panel.
After fastening the machine, check that the front feet still touch the
floor.
Screw the dishwasher into place with two extra screws
If there is an air gap of more than 3 mm between the underside of the
worktop and the top of the dishwasher, the dishwasher should be
screwed into place with two extra screws.
Install the sound insulation
(only certain models)
Install the kick panel
23
Page 24
SERIAL NO.:
ART. NO.:
1
2
QR code
Information for test
SERIAL NO.:
ART. NO.:
1
2

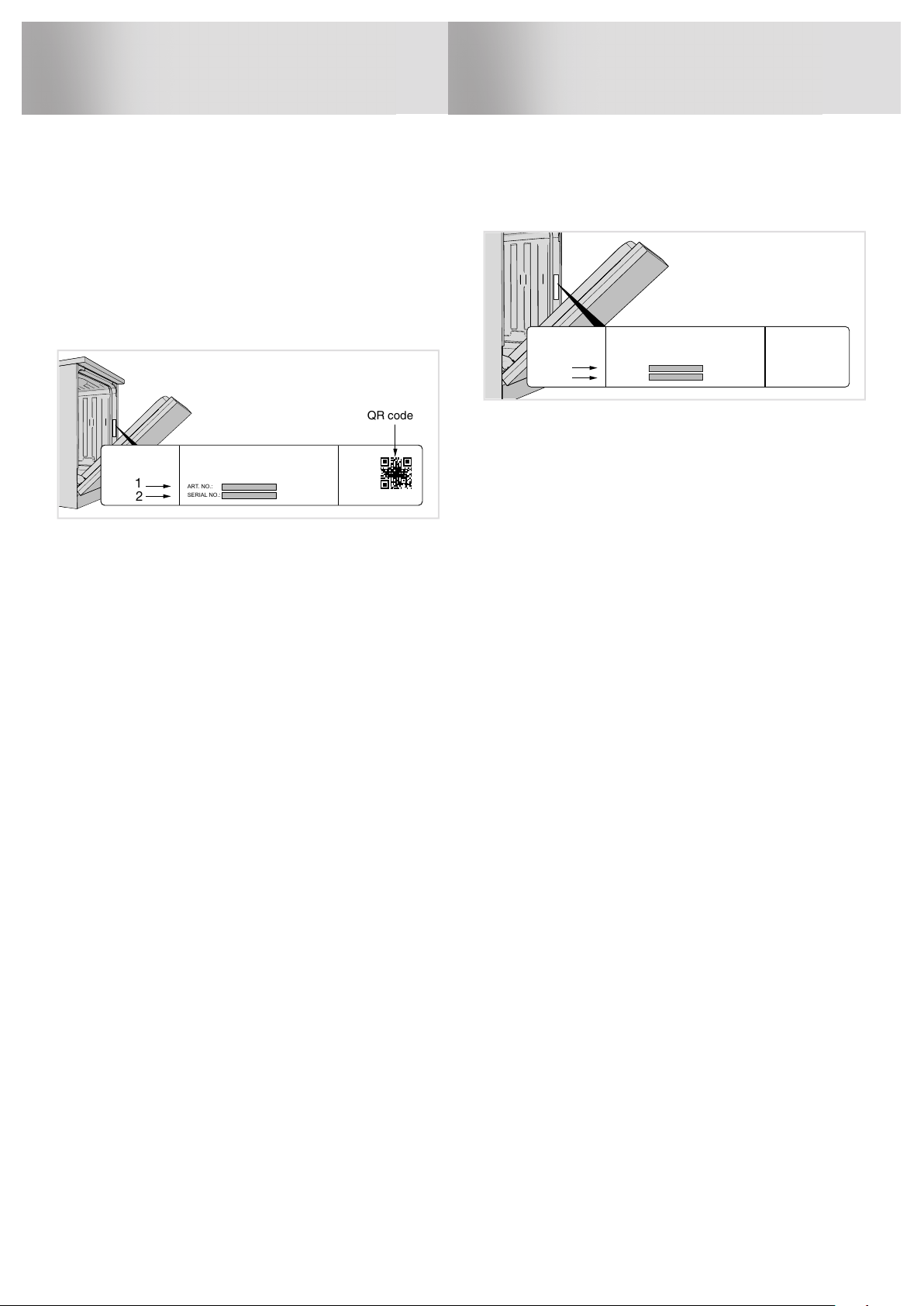

ASKO Service
Information about your product
There is a QR code on the compliance plate. Scan the code to view
information about your product.
Contact the service department
Read the chapter Troubleshooting before contacting the service
department. If you haveencountered a problem that youcannot resolve,
please contact your nearest dealer, see www.asko.com.
When making contact, provide the details on the serial number plate.
Include the article number (1) and the serial number (2).
institute
Request test institute information via e-mail
dishwashers@appliance-development.com.
The request should include the details on the product’s serial number
plate. Include the article number (1) and the serial number (2).
24
Page 25
Your notes
25
Page 26
Your notes
26
Page 27
Your notes
27
Page 28
Quick guide
1.
2.
3.
Load the baskets
(See page 5
Do not rinse dishes under running water before loading them in the dishwasher. Simply scrape off
large food particles before loading the dishwasher.
.)
Check that the spray arms can rotate freely
Check also that the water tap is on.
Don't forget! Empty the coarse filter and clean the fine filter when necessary. (See page 14
.)
Add detergent
The detergent compartment has one smaller compartment for the prewash and one for the main
wash. (See page 8
.)
4.
5.
6.
Open the door and press the main power switch, close
the door
Check/Add rinse aid
Use rinse aid to achieve good washing and drying results. (See page 4
Refill rinse aid indicator.
.)
Select a program, a program mode and any options
(See page 9
.)
Press Start/Stop
7.
en (10-19)
28
ASKO APPLIANCES • SOCKERBRUKSGATAN 3, SE-531 40 LIDKÖPING, SWEDEN • WWW.ASKO.COM
Art. No.: 793289. Rev. 02. We reserve the right to make changes.
Loading...
