Dear Customer,
Thank you for choosing this quality product from ASKO.
We hope it will meet your expectations and fulfil your needs for many years to
come. Scandinavian design combines clean lines, everyday functionality and
high quality. These are key characteristics of all our products and the reason
they are greatly appreciated throughout the world.
To get the most from your new dishwasher, we recommend that you read the
operating instructions before using the dishwasher. The operating instructions
also include information on how you can help protect the environment.
Read the instructions before using this machine.
Operating Instructions
Dishwasher
ASKO DWC5926 XL
Contents
0:25
32 321 4 75 6
Front panel
2Front panel
3Safety instructions
4Before washing for the first time
5Loading the dishwasher
7Using the dishwasher
10Settings
13Care and cleaning
15Troubleshooting
19Technical information

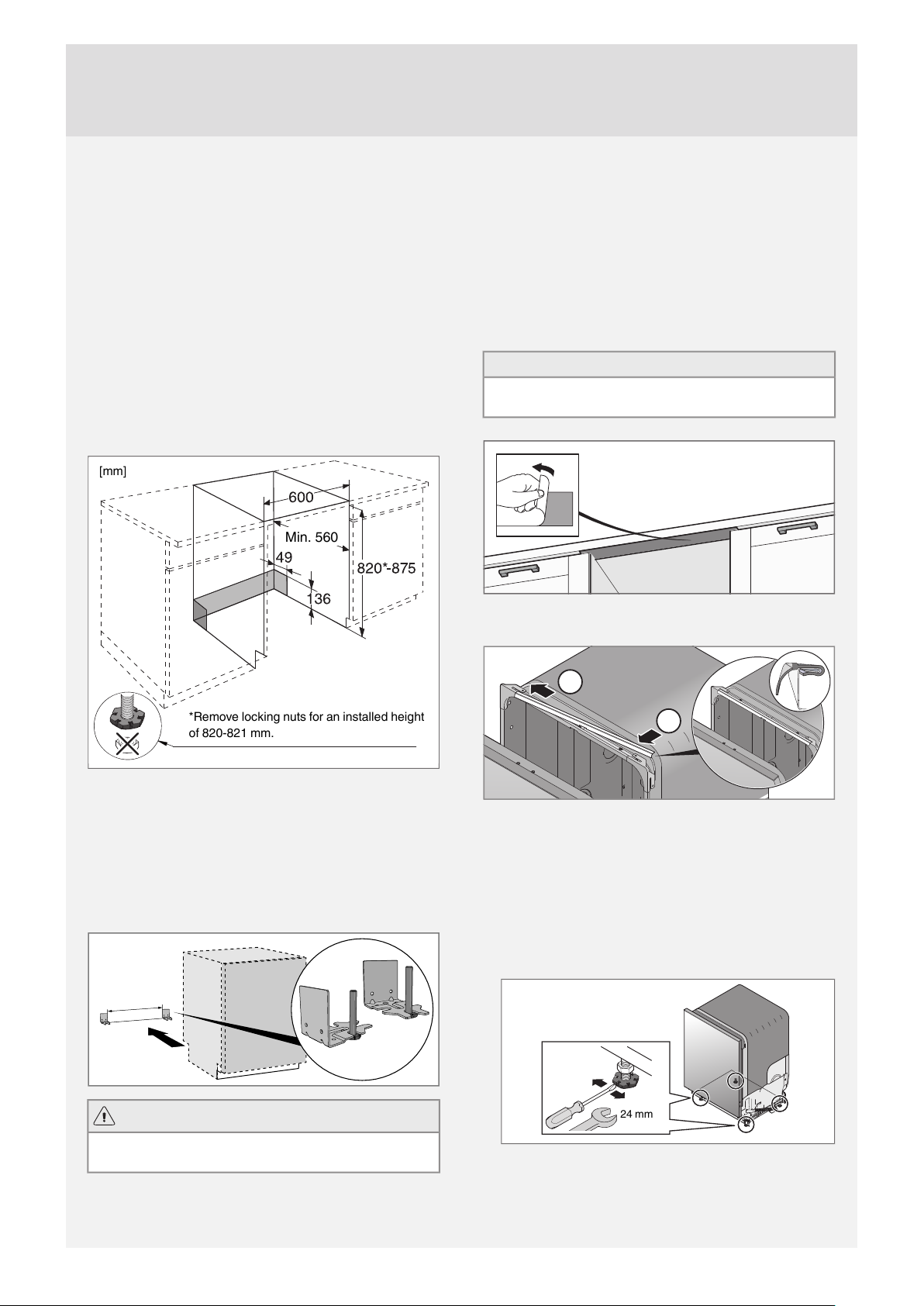

20Installation
26Service
27Program chart

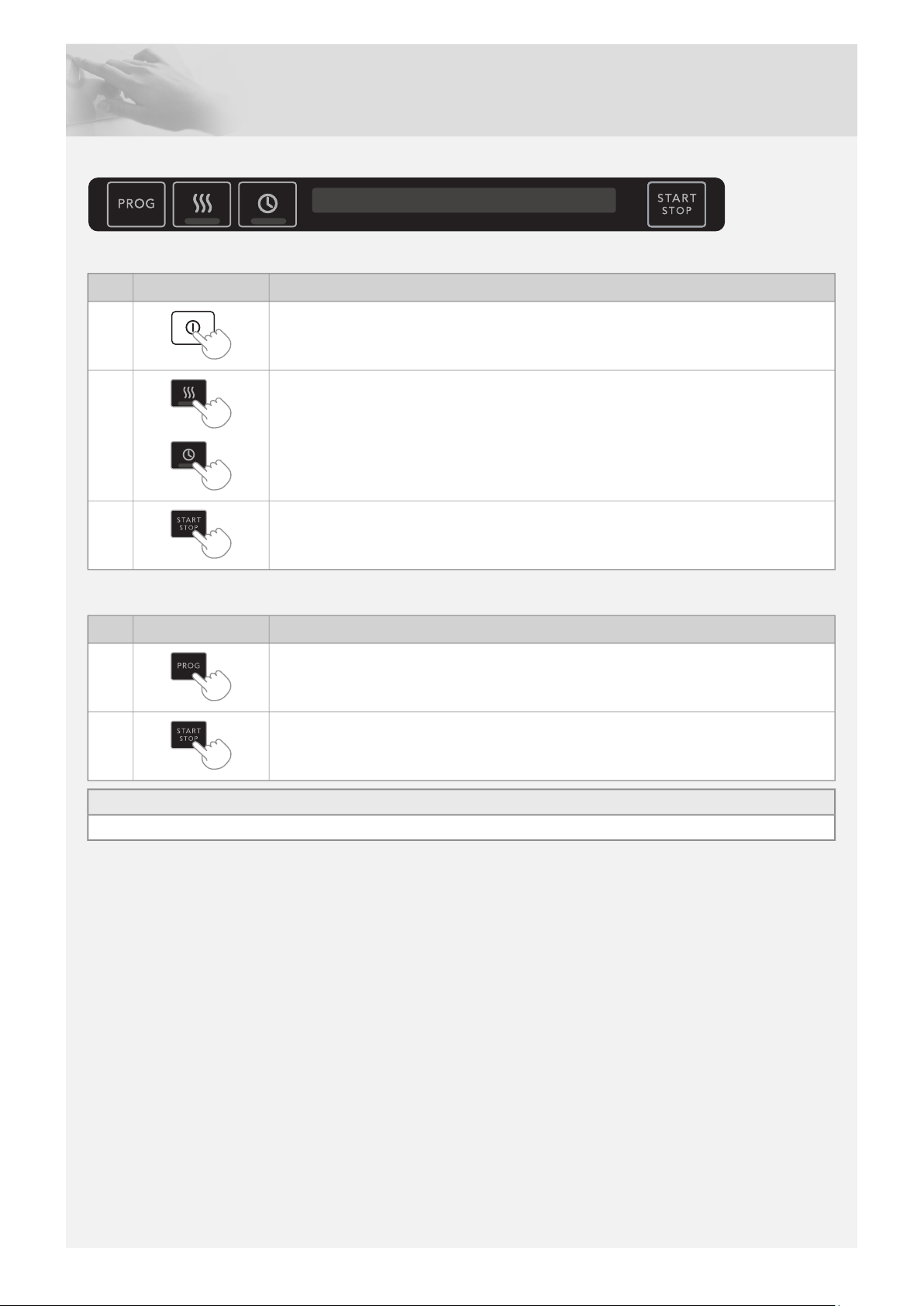

To start the machine, press and hold the main power switch until the display lights up.
1 Program selector
2 Option Drying
3 Option Delayed start
4 Display
5 Rinse aid indicator (not active if an automatic dosing system is connected)
6 Salt indicator
7 Start/Stop (Start/Stop)
The panel is fitted with touch buttons with audible feedback (see the chapter Settings).
NOTE!
• 60 minutes after the last button press, the machine will switch off to save power.
Translation of the original instructions.
2
Safety instructions
General
• Read the operating instructions and keep them in a safe place!
• Never use the dishwasher for any purpose other than that
specified in these operating instructions.
• Do not load the dishwasher door or dishwasher baskets with
anything other than dishes.
• Never leave the dishwasher door open as someone may trip
on it.
• Only use powder and liquid dishwasher detergent in the
dishwasher’s detergent compartment. (If an automatic dosing
system is connected, the dishwasher’sdetergent compartment
must not be used).
• Only use commercial detergent and rinse aid in external
compartments if an automatic dosing system is connected.
(Commercial dishwasher detergent adapted for automatic
dosing systems should notbe used in the dishwasher’s detergent dispensing compartment. Commercial rinse aid adapted
for automatic dosing systems should not be used in the dishwasher’s rinse aid dispensing compartment.)
• Follow the supplier’s safety instructions for the handling and
storage of the detergent and rinse aid.
• Place knives and other sharp items so that they cannot harm
anyone or damage the dishwasher.
• The inside of the dishwasher reaches high temperatures when
a program is in progress. Be careful when opening the door.
Let the dishes cool before unloading.
• Do not touch the heating elements in the bottom of the dishwasher, as they are very hot during and just after a dishwashing program has ended.
• This appliance is not intended for use by persons (including
children) with reduced physical,sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Damaged mains cables must only be replaced by a qualified
electrician.
• This dishwasher is for household or similar use, such as:
- staff kitchens in shops, offices and other workplaces.
- farms.
- for guests at hotels, motels and other types of accommo-
dation.
- bed & breakfast hotels.
• Never place dishes with solvent residues in the dishwasher
due to the risk of explosion. Nor may dishes that contain ash,
wax or lubricants be washed in the dishwasher.
• For repairs and maintenance, original spare parts must be
used.
WARNING!
The building’s main power switch must be switched off or
power to the socketturned off duringcleaning, maintenance
or when replacing parts!
• Do not allow children to use or play with the dishwasher. Be
especially vigilant when the door is open.
WARNING!
Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with skin and
eyes and keep children away from the dishwasher when the
door is open.
Check that the detergent compartment is empty after completion of the wash cycle.
Activate child lock (Kid Safe™)
You can activate the child lock (button lock) to prevent children
from starting the dishwasher (see the section Settings on page
10).
Winter storage/transport
• Store the dishwasher where the temperature remains above
freezing.
• Avoid long transport distances in very cold weather.
• Transport the dishwasher upright.
Overflow guard function
The overflow protection starts draining and ends any program in
progress if the water level in the dishwasher exceeds the normal
level. If the protective cap is triggered, turn off the water supply
and call the service department.
Cleaning
When cleaning the edge around the door, use only a slightly
damp cloth. Do not spray water around the edge! Moisture can
make its way into the lock, which contains electrical components.
Packing material
Sort waste materials in accordance with local guidelines.
Disposal
• When the dishwasher has reached the end of its service life
and is to be disposed of, it should immediately be made unusable. Pull out the power cable and cut it as short as possible.
• The dishwasher is manufactured and labelled for recycling.
• Contact your local authority for information about where and
how your dishwasher should be correctly recycled.
Installation
Read the safety instructions before installing. See section Installation.
Child safety
• Always close the door andstart the program immediately after
you have added the detergent.
• Keep children away from the dishwasher when the door is
open. Some detergent may remain inside!
3
Before washing for the
Salt compartment lid
first time
Automatic dosing system
The dishwasher can be connected to an automaticdosing system
for commercial detergent and rinse aid, making day-to-day use
easier and reducing the risk of overdosing. Contact your dishwasher supplier to order this accessory.
The process for connecting and activating an automatic dosing
system is described in section Installation on page 20 and in
section Settings on page 10.
Add commercial detergent and rinse aid suitable for automatic
dosing systems to their respective external compartments in good
time to prevent air getting into the system. Acidic rinse aid is
recommended forhard water (water with ahigh mineral content).
WARNING!
Note that there are risks involved in handling commercial detergent and rinse aid. Protective gloves and goggles must be
worn when handling these products.
Follow the supplier’s safety instructions for the handling and
storage of the detergent and rinse aid.
The water softener
In order to achieve good dishwashing results, the dishwasher
needs soft water (water with low mineral content). Hard water
leaves a white coating on dishes and the dishwasher.
Water hardness is specified using the following scales: the German water hardness scale (°dH) and the French water hardness
scale (°fH). A water supply with a water hardness in excess of
6°dH (9°fH) must be softened. This is done automatically with
the aid of the built-in water softener. For the water softener to
function optimally, it must be adjusted to the hardness of the
water supply. If the water hardness exceeds 20°dH (36°fH), we
recommend connecting an external water softener.
Contact the local waterworks, or measure the water hardness
using the supplied test strip, to check the water hardness in your
area. Once you have adjusted the water softener, use detergent
and rinse aid doses suitable for soft water.
How to use the test strip:
1 Turn on the water tap and let the water run for a minute or so.
2 Fill a glass with cold water.
3 Remove the test strip from its packaging.
4 Dip the test strip in the water for about one second.
5 Wait one minute. Now compare the colours of the squares
with the water hardness table.
°fH°dHTest strip
Fill up the salt
Before you begin using a dishwasher with a water softener, you
must fill the salt compartment with salt. Use large grain salt or
special dishwasher salt.
WARNING!
Top up the salt just before running a program. To avoid the risk
of rust stains, the dishwasher must be rinsed immediately after
topping up the salt.
Never pour dishwasher detergent into the salt compartment.
This destroys the water softener!
Do as follows the first time:
1 Unscrew the lid as illustrated.
2 Place the funnel supplied with the dishwasher in the salt
compartment top-up hole. First, pour in about 1 l of water.
3 Then add salt, a maximum of 1.5 kg, until the compartment is
full.
4 Wipe up any excess salt so that the lid can be screwed on
firmly.
5 Run a program to ensure that any salt in the dishwasher is
rinsed away.
Refill salt indicator
When the salt needs topping up, the above symbol lights on the
display.
When the salt runs out, unscrew the cap and fill the container
with salt. Water is only needed the first time! Wipe clean and
tighten. Run a program to ensure that any salt in the dishwasher
is rinsed away.
NOTE!
After topping up, it may take a while before the symbol goes
out.
<5<34 green
>7>41 red
>15>82 red
>25>143 red
>38>214 red
Adjusting the water softener
In section Settings on page 10 the process for setting the water
softener is described. Don't forget to put salt in the salt compartment after you have set the water softener.
4
Loading the dishwasher
Top up with rinse aid
Add rinse aid to the rinse aid compartment if the dishwasher is
not connected to an automatic dosing system for commercial
rinse aid.
Drying is faster and a better result is achieved if you use rinse
aid. You will also achieve a better dishwashing result with clear
glasses and spotless dishes. Acidic rinse aid is recommended
for hard water (water with a high mineral content).
1 Open the rinse aid compartment lid.
2 Carefully top up with rinse aid. Only add rinse aid to the level
marked max.
3 Wipe up any splashes of rinse aid around the compartment.
4 Close the lid firmly.
NOTE!
Commercial rinse aid adapted for automatic dosing systems
should not be used in the dishwasher’s rinse aid dispensing
compartment.
Refill rinse aid indicator
When the dishwasher’s rinse aid compartment needs topping
up, the above symbol lights on the display.
NOTE!
After topping up, it may take a while before the symbol goes
out.
Setting the rinse aid dosage
The section Settings describes how to set the rinse aid dosage.
Rinse aid dispensing can be set from 0 (Off) to 5 (High dose).
(Factory settings: 5)
Increase the rinse aid dosage:
• If the dishes have water marks.
• Spots or films on the dishes.
Decrease the rinse aid dosage:
• If the dishes have a sticky white/blue film.
• If the dishes are streaked.
• Build-up of foam. If you have very soft water, the rinse aid can
be diluted 50:50 with water.
Economic dishwashing
Run programs only with a full load
Wait to run a program until the dishwasher is full. This way you
save energy. Use the Rinse program to rinse the dishes if there
are any unpleasant odours while you wait for the dishwasher to
become fully loaded.
Run programs at a lower temperature
If the dishes are only slightly dirty, you can select a program with
a low temperature.
Do not rinse under running water
Simply scrape off large food particles before loading the dishwasher.
Choose a green detergent
Read the environmental declaration on the packaging!
Fragile dishes
Some cookware is not dishwasher safe. This can be for several
reasons. Some materials cannot withstand strong heat, others
can be damaged by dishwashing detergent.
Fragile decoration
Porcelain with decoration on top of the glazing (the items feel
rough) should not be washed in a dishwasher.
Crystal/Glass
Place items so that they do not touch each other during the wash.
Use a short program with the lowest possible wash temperature.
Delicate and very fragile items should not be washed in a dishwasher.
Glassware washed in a dishwasher at high temperatures can
gradually develop a grey film that cannot be removed. Wash fine
glassware at a low temperature and with a small amount of detergent.
Silver
Silver and stainless steel items should not come into contact, as
the silver can become discoloured.
Cutlery with glued handles
Some types of glue are not dishwasher safe. In such cases, the
handles may loosen.
Wood
Wooden items should only be washed in a dishwasher if marked
dishwasher safe.
Aluminium
Aluminium can lose its shine if washed in a dishwasher. However,
good quality aluminium pans can be washed in a dishwasher,
even if some of the shine will be lost.
Plastic items
Avoid washing plastic items that cannot withstand high temperatures.
Your machine is equipped with a turbo drying function (Turbo
Drying Express™), which improves the drying of plastic objects
and other items.
The dishwasher's baskets
The dishwasher is equipped with an upper basket, a middle
basket and a lower basket with cutlery basket.
The appearance of the baskets may differ depending on the
dishwasher setup.
5
Upper basket
Wire basket
Utensils basket
Place glasses, cups, bowls, side plates and saucers in the upper
basket. All dirty surfaces should face inwards and downwards!
Wine glasses are placed on the wine glass shelf and knives are
placed in the knife stand on the right (if fitted).
Middle basket

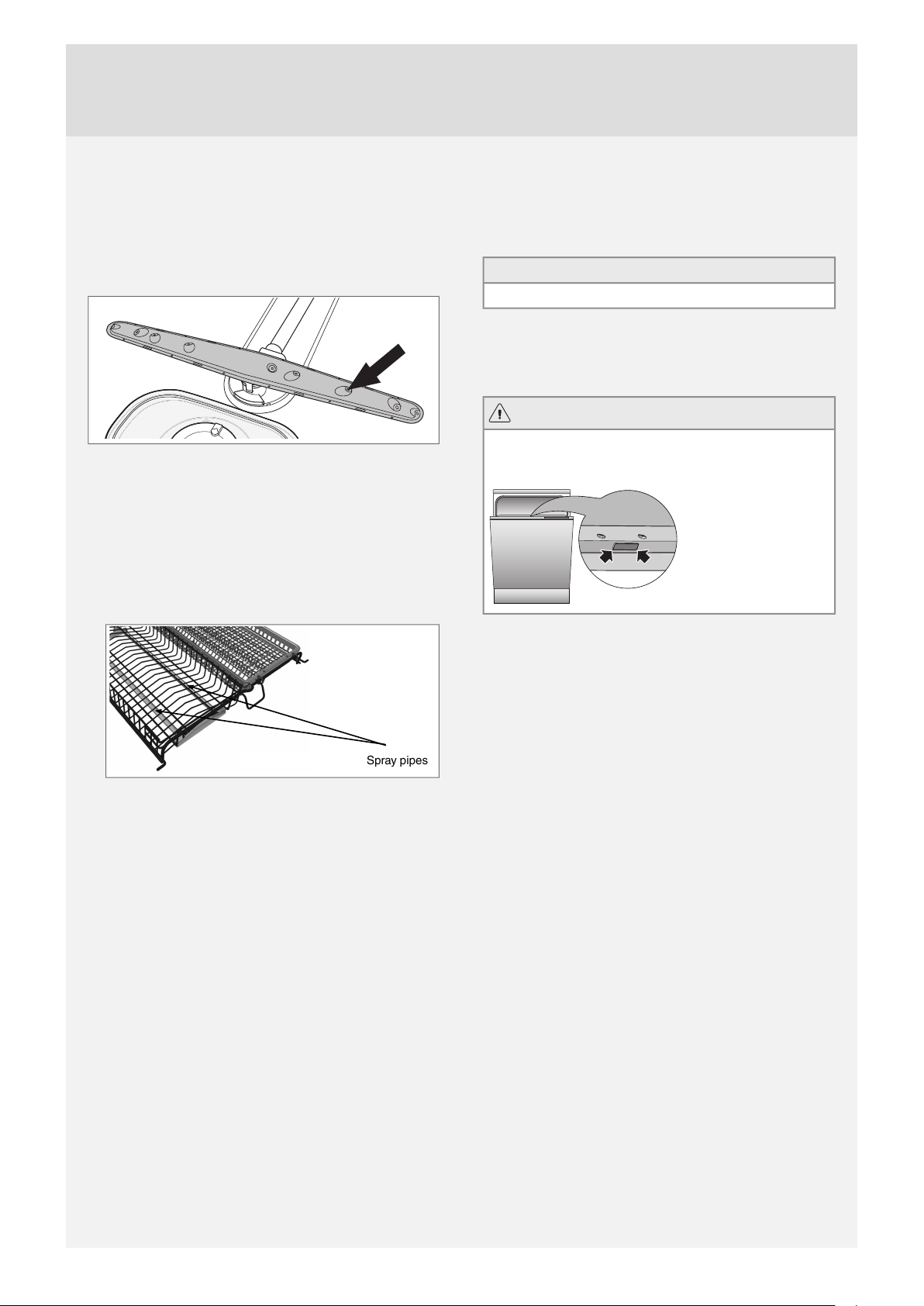

The middle basket's wire basket with spray pipes is suitable for
low objects. The middle basket's utensils basket has space for
ladles, whisks, serving cutlery and similar items.
Washing larger items
The two baskets in the middle basket can be removed, or the
entire middle basket can be removed to create more space between the upper and lower baskets if larger items are being
washed.
Lower basket
Place plates, side plates, serving dishes, pots and cutlery (in the
cutlery basket) in the lower basket.
Foldable tines
The foldable tines can be folded up or down to make it easier to
load pots, bowls and glasses. Release the foldable tines by
pressing the catch inwards before adjusting their position.
Foldable tines
Lower the foldable tines (platesupports) when washing pots and
pans. Release the foldable tines by pressing the catch inwards
before adjusting their position. In the right-hand rear part of the
lower basket, half the foldable tines can be lowered for washing
stoneware or a deep pan, for example.
Vase and bottle holder
6
a
c
b
a
c
b
a
b
Using the dishwasher
Washing large plates
Move the foldable tines and their mounts to widen the distance
between the tine rows to adapt the lower basket to plates with a
diameter greater than 25 cm.
Cutlery basket
Place cutlery with the handles facing down, except for knives,
and spread them out as much as possible. Ensure that spoons
do not stack inside each other.
The cutlery basket is placed in the lower basket.
WARNING!
Knives and other pointed items must be placed with the points
down in the cutlery basket or horizontally in other baskets.
Fold-down section for small items
The cutlery basket has a fold-down section in the middle for small
items, or small shafts, such as electric whisk attachments.
Cutlery basket with lid
Automatic dosing system
The dishwasher can be connected to an automatic dosing system
for commercial detergent and rinse aid, making day-to-day use
easier and reducing the risk of overdosing. Contact your dishwasher supplier to order this accessory.
The process for connecting and activating an automatic dosing
system is described in section Installation on page 20 and in
section Settings on page 10.
WARNING!
Note that there are risks involved in handling commercial detergent and rinse aid. Protective gloves and goggles must be
worn when handling these products.
Follow the supplier’s safety instructions for the handling and
storage of the detergent and rinse aid.
NOTE!
Powder or liquid dishwasher detergent must not be used in the
dishwasher’s detergent compartment if the dishwasher is connected to an automatic dosing system.
Add detergent
Add the detergent to the detergent compartmentif the dishwasher
is not connected to an automatic dosing system for commercial
detergent.
Positioning of cutlery basket lid (in upper basket)
The cutlery basket lid can be removed and used, for example,
as an extra cutlery basket in the upper basket (see below).
NOTE!
Check that the spray arms can rotate freely.
1 Prewash detergent compartment
2 Main wash detergent compartment
Detergent is added according to water hardness.
Follow the instructions on the detergent packaging. This dishwasher is fitted with a water softener, so use detergent and rinse aid
doses suitable for soft water.
Too much detergent can result in less effective dishwashing and
also entails greater environmental impact.
Add the detergent to the detergent compartment. There is a
compartment for the prewash and one for the main wash. Contact
the detergent manufacturer if you have any questions about the
detergent.
WARNING!
Children must be supervised – dishwasher detergent is corrosive!
7
NOTE!
Only use powder and liquid dishwasher detergent in the dishwasher’s detergent compartment. Dishwasher tablets are not
recommended. Washing up liquid must not be used as the
foam that forms prevents the dishwasher from operating effectively.
Commercial dishwasher detergent adapted for automatic dosing systems should not be used in the dishwasher’s detergent
dispensing compartment.
Detergent with high enzyme content
If a detergent with a high enzyme content is going to be used,
we recommend a program with a low temperature for the main
wash and a high temperature for the final rinse. Program A, Program B and Program C can be designed according to the business’s specific needs. Create a program with prewash, long main
wash at a low temperature (40 °C) and final rinse at a high temperature (60 °C or 70 °C). See “Create program” in section Settings on page 10.
The main power switch
Press and hold the main power switch until the display lights up.
The message “Open to unlock” is shown on the display. Open
the door to activate the panel.
Program selection
Press the Program selector one or more times until the desired
program appears on the display. (The dishwasher is equipped
with programs for different purposes. Certain programs can be
deactivated upon delivery. The process for activating and deactivating programs is described in section Settings on page 10.
See Select programs.)
Quick Wash
Short programs for lightly soiled/rinsed dishes such as glasses
and coffee cups.
Universal
Standard program for normally soiled/scraped dishes. (No dried
leftovers.)
Universal Plus
Efficient program for very dirty dishes with some dried leftovers.
(Not burnt-on food such as in gratin dishes.)
Intensive
Powerful program for very dirty dishes with dried leftovers. (Not
burnt-on food such as in gratin dishes.) This program has maximum rinsing results, and takes somewhat longer than Universal
Plus.
Wine Glasses
Gentle program for fragile items such as fine glassware.
Beer Glasses
Programe specially adapted for robust beer glasses. No rinse
aid is dispensed during the final rinse. The final rinse is automatically in cold water if connected.
Plastic wash
Program intended for washing plastic items that are dishwashersafe. Porcelain and glass can also be washed.
Normal
Use to wash normally soiled load, and even dishes with dried
leftovers, such as plates, serving dishes, cups, glasses and so
on.
For washing normally soiled mixed loads, with the best energy
and water performance, use the Normal program (no options).
If you want to improve the dishwashing anddrying result activate
the option Drying . This causes a slight increase in energy
consumption.
Pots and Pans
Program for very dirty dishes, such as pans, casserole dishes
and oven dishes. If these dishes do not completely fill the dishwasher, you can add plates and the like.
Quick Wash Sani
Short program for cleaning and disinfecting dishes. The final
rinse has a temperature of over 85 °C for 3 minutes.
Universal Sani
Program for efficient cleaning and disinfecting of dishes. The final
rinse has a temperature of over 85 °C for 3 minutes.
Rinse
Program for rinsing dishes.
Drain
Program for pumping out water, for example in the event of a
program being interrupted.
Program A / Program B / Program C
Programs that can be adapted for specific needs. See “Create
program” in section Settings on page 10.
1)
1)
Selecting Options
To make a selection, press one of the Option buttons. The field
next to the button lights up when the option is activated. The
available options depend on the selected program.
Drying
The option Drying activates a drying period of 15 minutes and
can be selected for programs Quick Wash, Universal, Universal
Plus, Intensive, Wine Glasses, Beer Glasses, Plastic wash and
Pots and Pans. This slightly increases the energy consumption.
When you start a program, the option selected is saved for the
next time you run the same program.
Delayed start
When you select Delayed start, the dishwasher will start 1–24
hours after you press the Start/Stop button.
1 Press the button once to activate Delayed start. Press several
times or hold the button down to set the desired number of
hours. Delayed start including program duration is shown on
the display.
2 Press Start/Stop and the dishwasher counts down 1 hour at
a time and starts after the selected delay.
Press and hold Start/Stop for three seconds if you want to cancel
the Delayed start option.
NOTE!
Remember to press the Start/Stop button to start the program.
1)
High setting for the water softener if the program is used frequently. See "Water hardness" in section Settings.
8
Start the dishwasher
Press and hold Start/Stop until the display shows “Program
started”. This indicates that the dishwasher is ready to start. Close
the door properly, or the dishwasher will not start.
NOTE!
If the machine does not start within 2 minutes of the last button
press, the display returns to showing the last program run.
Stopping or changing a program
A program should only be interruptedif it is absolutely necessary.
Open the door, press and hold the Start/Stop for three seconds
if you want to interrupt the program after you have started the
dishwasher. Refill the detergent if the door of the dispenser’s
detergent compartment has opened (this happens automatically
if an automatic dosing system is connected). Then select a new
program, press the Start/Stop and close the door.
Information on the front display.
The front display shows Showremaining time, Show temperature
and/or Show wash sequence. Select the information you want
displayed on the front display. See “Operating information” in
section Settings on page 10.
Show time
Once you have selected a program, the display indicates how
long the program took last time it was used. Once you have
started thedishwasher, the display indicates howmuch program
time remains.
This may differ somewhat from time to time depending on the
temperature of the water supply, the amount of dishes, the ambient temperature and other factors.
While the program is running, the time counts down and the remaining program time is shown on the display. The remaining
time is shown, for example, as 1:15, which means the program
will run for another 1 hour and 15 minutes.
NOTE!
During the first run of each program, the remaining time displayed can be slightly misleading, as the dishwasher is estimating the time. When you run the program a second time, the
dishwasher will calculate the remaining time based on the
previous duration of the program.
Show temperature
The washing water’s current temperature is shown on the display.
Show dishwashing step
The current dishwashing step is shown on the display.
WARNING!
There is a risk of burns if the dishwasher door opens while a
program is in progress. Note that the inside of the dishwasher
reaches a high temperature, especially during the final rinse.
If the dishwasher is switched off using the main power switch or during a power outage
If the dishwashing program was not finished, the interrupted
program continues when power is restored.
NOTE!
During drying, the program is interrupted if the power is cut or
the door is open for more than 2 minutes.
Once the program has finished
Once the program has finished, “END” appears on the display.
A buzzer also sounds at the end of the program. See the section
Settings, which describes how to change this function.
The dishwasherswitches off when the door is opened. If the door
does not open within 60 minutes, the dishwasher will switch off
automatically. Turn off the water tap if the dishwasher is not going
to be used for a long time.
Drying
For additional drying the door should be opened 35 mm upon
completion of the drying cycle.
WARNING!
The inside of the dishwasher reaches high temperatures when
a program is in progress. Be careful when opening the door.
Let the baskets cool before taking them out.
Do not touch the heating elements in the bottom of the dishwasher, as they are very hot during and just after a dishwashing
program has ended.
9
Loading...
