Dishwasher DBI865IGXXLOPERATING INSTRUCTIONS
Contents
Eco
Speed mode
2:00
START
STOP
Display Start/Stop
Program mode selector
Navigation buttons for selecting a program
Option Delayed Start
Option Extra Dry
Main power switch
2Front panel
3Safety instructions
4Before washing for the first time
5Loading the dishwasher

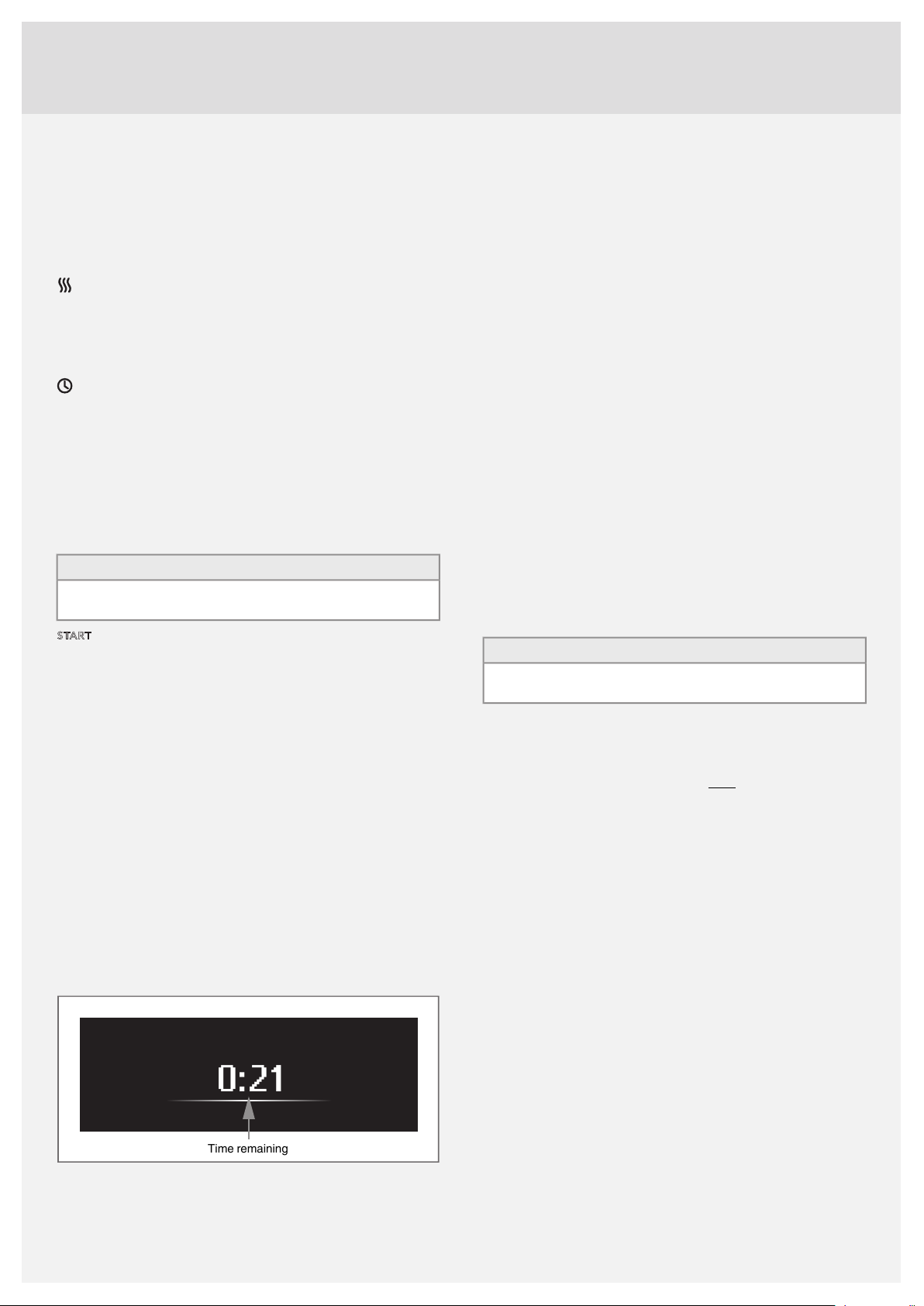

8Using the dishwasher
12Settings

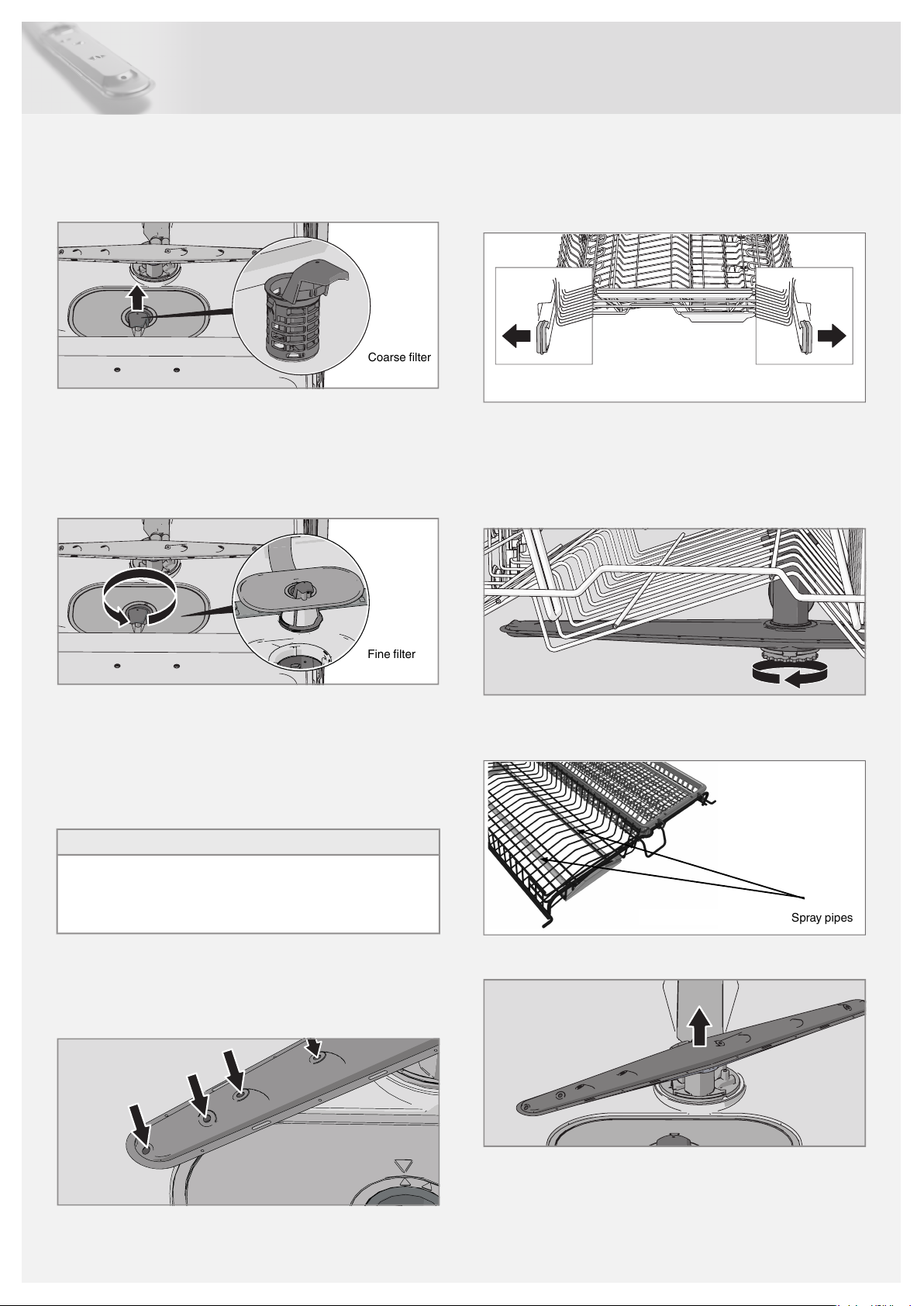

14Care and cleaning
Dear Customer,
Thank you for choosing this quality product from ASKO.
We hope it will meet your expectations and fulfil your needs for many years to come. Scandinavian design combines clean
lines, everyday functionality and high quality. These are key characteristics of all our products and the reason they are
greatly appreciated throughout the world.
To get the most out of your new dishwasher, we recommend that you read the Operating Instructions before using the dishwasher. The last page also includes a Quick guide.
16Troubleshooting
19Technical information

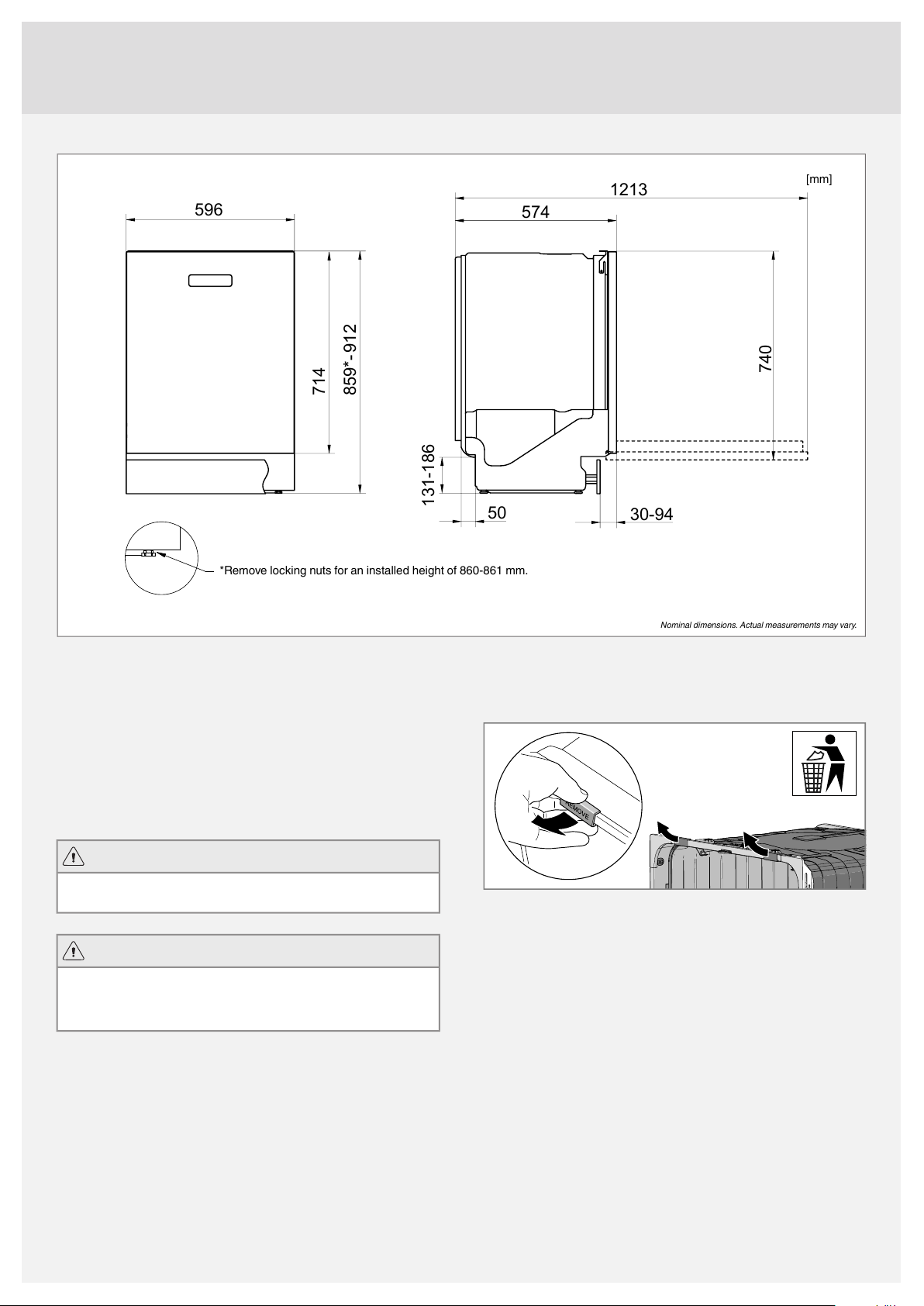

20Installation
24ASKO Service
25Information for test institute
26Your notes

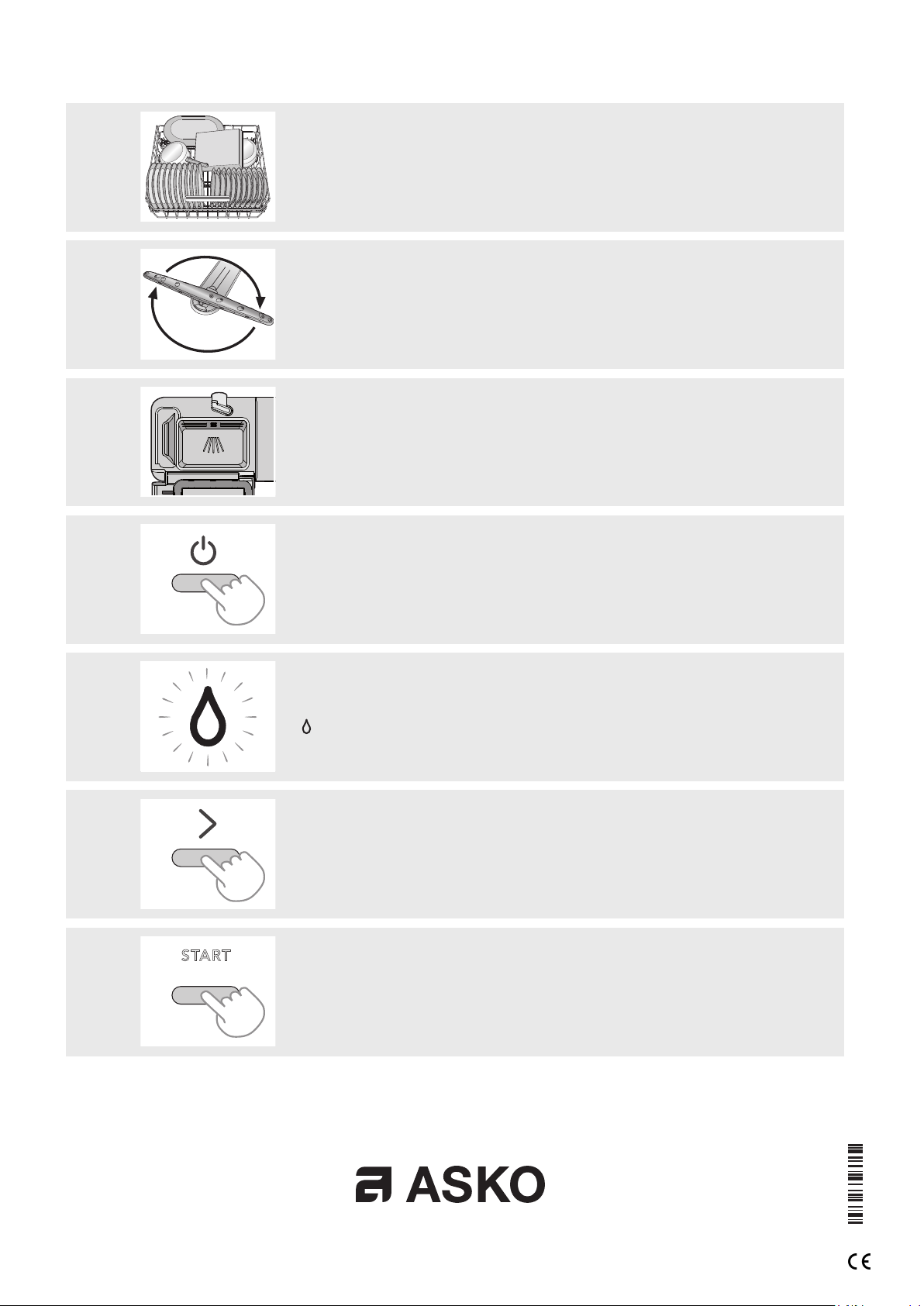

28Quick guide
Front panel
To switch on the dishwasher, press and hold the main power switch until the display lights up.
"Welcome to your new ASKO. This is a first time set up." is shown on the display the first time the dishwasher is switched on. It
is important that you choose the right settings to ensure good dishwashing results. See page 4.
2
Safety instructions
• Read the operating instructions and keep
them in a safe place!
• Number of place settings: 16
• Never use the dishwasher for any purpose
other than that specified in these operating
instructions.
• Do not load the dishwasher door or dishwasher baskets with anything other than dishes.
• Never leave the dishwasher door open as
someone may trip on it.
• Use only dishwasher detergent!
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
• If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service
agent.
• Damaged mains cables must only be replaced by a qualified electrician.
• Only use the dishwasher in domestic household environments for dishwashing household
dishes. All other use is prohibited.
• Never place dishes with solvent residues in
the dishwasher due to the risk of explosion.
Nor may dishes that contain ash, wax or lubricants be washed in the dishwasher.
WARNING!
Knives and other pointed items must be placed
with the points down in the cutlery basket or
horizontally in other baskets.
WARNING!
Dishwasher detergents are strongly alkaline.
They can be extremely dangerous if swallowed.
Avoid contact with skin and eyes and keep
children away from the dishwasher when the
door is open. Seek medical attention if swallowed.
Check that the detergent compartment is
empty after completion of the wash cycle.
Activate child lock (Kid Safe™)
You can activate the child lock (button lock) to prevent children from
starting the dishwasher. See the chapter Settings.
Winter storage/Transport
• Store the dishwasher where the temperature remains above freezing.
• Avoid long transport distances in very cold weather.
• Before transporting a used dishwasher all water must be pumped
from the machine. Run the Rinse and hold programme.
• Transport the dishwasher upright or laying on its back.
Overflow guard function
The overflow protection starts pumping out the machine and turns off
the water supply if the water levelin the dishwasher exceeds the normal
level. If the overflow protection is triggered, turn off the water supply
and call the service department.
Packing material
The packaging protects the product during transport. The packaging
material is recyclable. Separate the different packaging materials to
help reduce raw material use and waste. Your dealer can take the
packaging for recycling or direct you to the nearest recycling centre.
The packaging is comprised of:
• Corrugated cardboard made from up to 100% recycled material.
• Expanded polystyrene (EPS) with no added chlorine or fluorine.
• Supports made from untreated wood.
• Protective plastic made from polyethylene (PE).
Disposal
• When the dishwasher has reached the end of its service life and is
to be disposed of, it should immediately be made unusable. Pull
out the power cable and cut it as short as possible.
• The dishwasher is manufactured and labelled for recycling.
• Contact your local authority for information about where and how
your dishwasher should be correctly recycled.
Installation
See the chapter Installation.
Child safety
•
Always start the dishwasher immediately after
adding detergent.
•
Keep children away from the dishwasher when
the door is open. Some detergent may remain
inside!
•
Do not allow children to use or play with the
dishwasher. Be especially vigilant when the
door is open.
3
Before washing for the
Confirm setting
Select setting
Main power switch
first time
1. Checking water hardness
Contact the local water utility to check thewater hardness inyour area.
This is important with regard to how much detergent and rinse aid to
use.
2. Basic settings
To switch on the dishwasher, press and hold the main power switch
until the display lights up.
"Welcome to your new ASKO. This is a first time set up." is shown
on the display. It is important that you choose the right settings to ensure good dishwashing results.

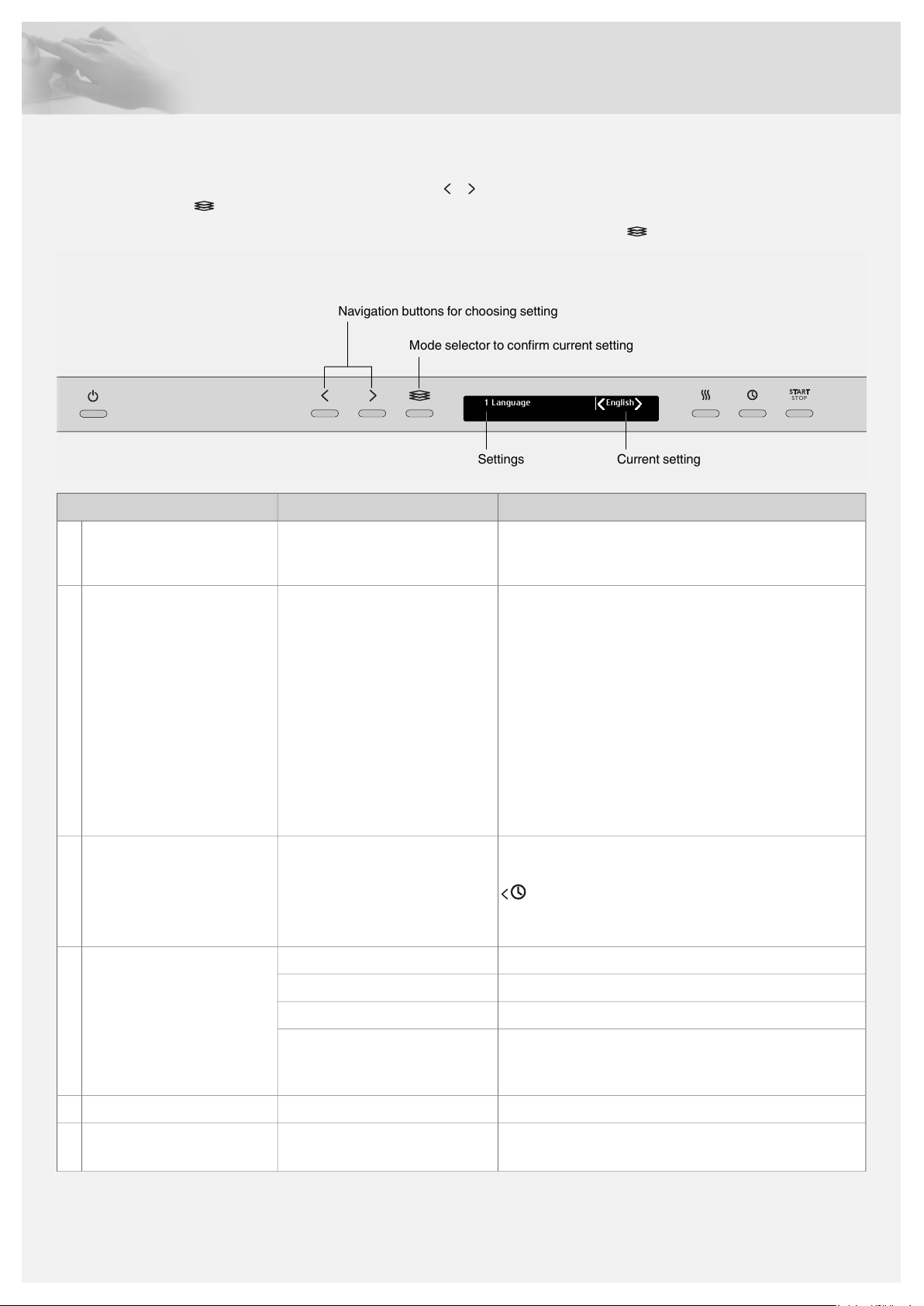

Settings
Language1
Select the language to be shown on the display.
Rinse aid 0/1/2/3/4/52
By using rinse aid you will improve your drying result. You will also
achieve a better dishwashing result with glassware and dishes.
Select rinse aid dosage. The rinse aid dispenser can be adjusted
between 0 (Off) and 5 (High dosage).
Pre-selected at factory: 5
To change the chosen setting, see the chapter Settings.
4
Press to open
Loading the dishwasher
3. Top up with rinse aid
By using rinse aid you will improve your drying result. You will also
achieve a better dishwashing result with glassware and dishes.
1 Open the rinse aid compartment lid.
2 Carefully top up with rinseaid. Only add rinse aid to thelevel marked
max.
3 Wipe up any splashes of rinse aid around the compartment.
4 Close the lid firmly.
Top up rinse aid
When the rinse aid needs topping up, the above symbol lights on the
display.
After topping up, it may take a while before the symbol goes out.
NOTE!
Increase the rinse aid dosage:
• If the dishes have water marks.
Decrease the rinse aid dosage:
• If the dishes have a sticky white/blue film.
• If the dishes are streaked.
• Build-up of foam. If you have very soft water, the rinse aid can be
diluted 50:50 with water.
Energy-efficient dishwashing
Run programs only with a full load
Wait to run a program until the dishwasher is full. This way you save
energy. Use the Rinse and hold program to rinse the dishes if there
are any unpleasant odours while you wait for the dishwasher tobecome
fully loaded.
Run programs at a lower temperature
If the dishes are only slightly dirty, you can select a program with a low
temperature.
Select Green mode
The dishwasher has different program modes. To save energy and
water, use Green mode.
Better drying results are achieved if you open the door a little once the
program has ended. (If the dishwasher is built-in, the surrounding
cabinets must be resistant to any condensation from the dishwasher.)
Do not rinse under running water
Simply scrape off large food particles before loading the dishwasher.
Choose a green detergent
Read the environmental declaration on the packaging!
Connect to cold water
Connect the dishwasher to the cold water supply if the building is
heated using oil, electricity or gas.
Connection to hot water supply
Connect the dishwasher to the hot water supply (max. 70 °C) if the
building is heated using an energy-efficient means such as district
heating, solar power or geothermal power. Choosing a hot water connection cuts dishwashing times and reduces the dishwasher's energy
consumption.
NOTE!
Do not exceed the permitted water supply temperature. Certain materials used in some cookware cannot withstand high heat.
NOTE!
For water with a hardness greater than 10–12 °dH, you ought to use
rinse aid with citric acid (known as acid rinse aid).
5
Fragile dishes
Some cookware is not dishwasher safe. This can be for several reasons.
Some materials cannot withstand strong heat, others can be damaged
by dishwashing detergent.
Exercise caution with, for example, handmade items, fragile decoration,
crystal/glassware, silver, copper, tin, aluminium, wood and plastic.
Look for the "Dishwasher safe" marking.
Fragile decoration
Porcelain with decoration on top of the glazing (the items feel rough)
should not be washed in a dishwasher.
Crystal/Glass
Wash fragile items made of crystal/glass, such as crystal glass from
Orrefors, using the gentle dishwashing program Crystal glass. Remember to use only a small amount of detergent and to place items so that
they do not touch each other during the wash.
By using rinse aid you will improve your drying result. You will also
achieve a better dishwashing result with glassware and dishes.
Hand-painted glassware, as well as antique and very fragile items,
should not be washed in a dishwasher.
Silver
Silver and stainless steel items should not come into contact, as the
silver can become discoloured.
Aluminium
Aluminium can lose its shine if washed in adishwasher. However, good
quality aluminium pans can be washed in a dishwasher, even if some
of the shine will be lost.
Cutlery with glued handles
Some types of glue are not dishwasher safe. In suchcases, the handles
may loosen.
Points to consider
• All dirty surfaces should face inwards and downwards!
• Dishes should not be placed in or on each other.
• Angle dishes with hollows, such as cups, so that the rinse water
will run off. This is also important for plastic items.
• Make sure small items cannot fall through the dishwasher basket;
place them in the top cutlery tray.
NOTE!
Check that the spray arms can rotate freely.
The dishwasher's baskets
The dishwasher is equipped with a top cutlery tray, an upper basket,
a middle basket and a lower basket with a cutlery basket.
The appearance of the baskets may differ depending on the dishwasher
setup.
Top cutlery tray
The top cutlery tray has space for cutlery, ladles, whisks, serving cutlery
and similar items.
Raising the top cutlery tray
1 Pull out the top cutlery tray.
2 Pull the two locking handles on either side forward to raise the top
cutlery tray.
Lowering the top cutlery tray
1 Make sure the upper basket is in the lowest position.
2 Pull out the top cutlery tray.
3 Slide the two locking handles on either side downwards and back-
wards to lower the top cutlery tray.
Upper basket
Place glasses, cups, bowls, side plates and saucers in the upper
basket. All dirty surfaces should face inwards and downwards! Wine
glasses are placed on the wine glass shelf and knives are placed in
the knife stand on the right (if fitted).
6
Foldable tines
Wire basket
Utensils basket
The foldable tines can be folded up or down to make it easier to load
pots, bowls and glasses. Release the foldable tines by pressing the
catch inwards before adjusting their position.
Raising the upper basket
1 Pull out the upper basket.
2 Grab the sides of the upper basket with both hands and lift it up.
Lowering the upper basket
1 Pull out the upper basket.
2 Pull out the two locking handles on either side to lower the upper
basket.
Washing larger items
The two baskets in the middle basket can be removed, or the entire
middle basket can be removed to create more space between the
upper and lower baskets if larger items are being washed.
Lower basket
Place plates, side plates, serving dishes, pots and cutlery (in the cutlery
basket) in the lower basket.
Place pots and pans in the rear right part of the lower basket to achieve
the best dishwashing results from the rear of the two spray nozzles
(WideSpray™), which are intended for these types of dishes.
Foldable tines
Lower the foldable tines (plate supports) when washingpots and pans.
Release the foldable tines by pressing thecatch inwards before adjusting their position. In the right-hand rear part of the lower basket, half
the foldable tines can be lowered for washing stoneware or a deep
pan, for example.
Vase and bottle holder
Middle basket
The middle basket's wire basket with spray pipes is suitable for low
objects. The middle basket's utensils basket has space for ladles,
whisks, serving cutlery and similar items.
Washing large plates
Move the foldable tines and their mounts to widen the distancebetween
the tine rows to adapt the lower basket to plates with a diameter greater
than 25 cm.
Cutlery basket
Place cutlery with the handles facing down, except for knives, and
spread them out as much as possible. Ensure that spoons do not stack
inside each other.
The cutlery basket is best placed in the middle at the front of the lower
basket to achieve the best dishwashing performance from the unique
spray nozzle (Power Zone Cutlery™), which is intended for the cutlery
basket.
WARNING!
Knives and other pointed items must be placed with the points down
in the cutlery basket or horizontally in other baskets.
7
2
1
Using the dishwasher
Press to open
Fold-down section for small items
The cutlery basket has a fold-down section in the middle for small
items, or small shafts, such as electric whisk attachments.
Cutlery basket with lid
The cutlery basket lid can be removed and used, for example, as an
extra cutlery basket in the upper basket (see below).
Add detergent
1 Prewash detergent compartment
2 Main wash detergent compartment
Detergent is added according to water hardness.
Follow the instructions on the detergent packaging.
Too much detergent can result in less effective dishwashing and also
entails greater environmental impact.
The detergent compartment must be dry when adding detergent. There
is one compartment for the prewash and one for the main wash. If
powder or liquid dishwasher detergent is used, add a small amount
of the detergent to the prewash compartment. Contact the detergent
manufacturer if you have questions about the detergent.
NOTE!
Use only dishwasher detergent! Washing up liquid must not be used
as the foam that forms prevents thedishwasher from operating effectively.
Accessory
Buy an extra cutlery basket. The extra cutlery basket is flexible and
can be dismantled and attached to thelower basket or the large cutlery
basket to make an extra large cutlery basket. This accessory is available where you purchased your dishwasher.
Dishwasher tablets
Halve the tablet if it is difficult to close the dispenser lid. There is a risk
that the detergent will not be released properly if the lid is tight and
will not open correctly.
NOTE!
Dishwasher tablets are not recommended for short programs (less
than 75 minutes). Use powder or liquid dishwasher detergent instead.
All-in-one detergent
There are many types of all-in-one detergents on the market. Read the
directions for these products carefully.
NOTE!
Optimal washing and drying results are achieved by using regular
dishwashing powder or liquid detergent with separately dispensed
rinse aid.
8
Eco
Speed mode
2:00
START
STOP
Select a program mode Select any options
Press and hold the main power switch until the display lights up.
Select the program
Starting the dishwasher
The main power switch
Press and hold the main power switch until the display turns on. Also
check that the water tap is on.
Select a program
To select a program, press the Navigation button or until the desired
program is shown on the display.
Choose a programme to suit the type of dishes and how dirty they are.
ECO wash
Use when you want to save water andenergy. For normally soiled load,
such as plates, serving dishes, cups, glasses and so on.
Heavy wash
Use to wash normally soiled load, suchas plates, serving dishes, cups,
glasses and so on.
Auto wash
The dishwasher can measure how dirty the dishes are andadjust water
consumption and temperature accordingly. When newly installed, the
program needs to be run five times before it is fully adapted and can
provide the best results.
Sanitation wash
Program for very dirty dishes, such as pans, casserole dishes and
oven dishes. If these dishes do not completely fill the dishwasher, you
can add plates and the like.
Time program
The program adapts to the specified running time or finish time. With
this program it is important to choose a time suited to how dirty the
dishes are.
Slightly dirty dishes0:15-0:45
Normally dirty dishes1:00-1:30
Remember to use only a small amount of detergent and to place items
so that they do not touch each other during the wash. See also Fragile
dishes in the chapter Loading the dishwasher. Porcelain that has just
been used without dried-on leftovers can also be washed using this
program.
Quick Pro wash
Shorten the dishwashing program by preheating the water. This program is not intended for dried-on leftovers. Remember to scrape off
larger food particles before loading the dishwasher.
1 To prepare the program, press and hold Start/Stop until the display
shows "Preheating". Close the door. Wait until the display shows
"Preheating ready".
You can load the dishes while the water is being preheated.
2 To start the program, press and hold Start/Stop until the display
shows "Program started, close door". This indicates that the dishwasher is ready to start. Close the door properly, otherwise the
dishwasher will not start.
Self-cleaning
Self-cleaning programme for hygienic cleaning of the dishwasher tub,
spray arms and spray pipes.
This programme can be run (with no dishes in the machine) using
normal dishwasher detergent or citric acid. Special dishwasher
cleaners are also available on the market. For the removal of limescale
deposits, see The dishwasher tub in the chapter Care and cleaning.
Upper half wash
You can use this program if you only have cups and glasses that need
washing in the upper basket. Slightly dirty dishes can also be placed
in the lower basket.
Lower half wash
You can use this program when you only want to wash plates and
cutlery in the lower basket. Slightly dirty dishes can also be placed in
the upper basket.
Very dirty dishes2:00-2:30
– To set the desired program time, press and hold the option
button.
Rinse and hold
Used to rinse dishes while you wait for the dishwasher to become fully
loaded.
Plastic wash
A program intended for washing plastic items thatare dishwasher safe.
This program has an extra long drying cycle. Porcelain and glasses
can also be washed.
Hygiene wash
This program is designed to meet strict hygiene demands.
Crystal glass
A gentle dishwashing program with a low temperature for washing
fragile items made of crystal/glass, such as crystal glass from Orrefors.
Select a program mode
To select a program mode, press the program mode selector until the
desired mode is shown on the display. The available program modes
vary between programs.
For a brief description, press and hold the program mode button.
Green mode
The dishwasher uses less energy and water. The program time is extended.
Speed mode
The program time is shortened, but the dishwasher uses more energy
and water.
Night mode
Lower noise level during the dishwashing program. The program time
is extended.
9
Intensive mode
START
STOP
0:21
Time remaining
Improves the dishwashing results, but the dishwasher uses more energy
and water. The program time is extended.
Select an Option
To select an option, press the option button until the desired option is
shown on the display. The available options vary between programs.
Extra Dry
A higher temperature in the final rinse and a longer drying cycle improve the drying results if you activate this option. Energy consumption
is slightly increased.
For a brief description, press and hold the button for Extra Dry.
Delayed Start
When you select Delayed Start, the dishwasher will start in 1-24 hours
after you have pressed the button Start/Stop and closed the door.
1 Press the button once to activate Delayed Start. Press the button
several times – or hold it in – to set the desired number of hours.
2 Press Start/Stop and close the door. The timer counts down and
the dishwasher starts after the selected delay.
If you want to cancel the Delayed Start option, open the door and press
and hold the main power switch until the display turns off.
TIP!
Activate the setting High temperature to improve the dishwashing
results. Energy consumption is slightly increased.
Starting the dishwasher
Press and hold Start/Stop until the display shows “Program started,
close door”. This indicates that the dishwasher is ready to start. Close
the door properly, or the dishwasher will not start.
If the dishwasher is not started or the door is not closedwithin 2 minutes
of the last button press, the machine switches off.
Time remaining
Once you have chosen a program, a program mode and options, the
time the program took when last used is displayed.
Once you have started the dishwasher, the display shows the remaining
program time. The remaining time isupdated after the water for the final
rinse has been heated.
This may differ somewhat from time to time depending on the temperature of the water supply, the amount of dishes, the ambient temperature and other factors.
During the first run of each program, the remaining time displayed can
be slightly misleading, as the dishwasher is estimating the time. When
you run the program a second time, the dishwasher will calculate the
remaining time based on the previous duration of the program.
Status indicator
The status indicator on the front display provides information by means
of different colours.
Blue - Load more
The program has started, but you can still load more dishes.
Red - Do not load
You should not load any more dishes (risk of poorerdishwashing result).
Flashing red indicates a problem. See also Chapter Troubleshooting.
Green - Unload
The dishwashing program is finished. Standby light for 60 minutes.
Stopping or changing a program
If you want to change program after starting the dishwasher, open the
door then press and hold Start/Stop for three seconds. Add more detergent if the lid of the detergent dispenser has opened. Then choose
a new program, press Start/Stop and close the door.
If you want to load more dishes
Open the door. The dishwasher stops automatically. Add the dishes
and close the door. After a while, the dishwasher continues the program.
If the dishwasher is turned off due to a power failure
If the dishwashing program was not finished, the interrupted program
continues when power is restored.
NOTE!
During drying, the program is interrupted if the power is cut or the
door is open for more than 2 minutes.
Once the program has finished
Once the program has finished, “Ready” appears on the display.
At the end of the program, you will hear ashort beep. Chapter Settings
describes how to change this function.
The dishwasher switches off automatically after the program ends.
Turn off the water tap after each use.
How to get the best drying results
• Fully load the dishwasher.
• Angle dishes with hollows, such as cups, so that the rinse water
will run off. This is also important for plastic items.
• Top up with rinse aid or increase the rinse aid dosage level.
• Activate the Extra Dry option.
• Open the door a little once the program has finished.
• Allow the dishes to cool before unloading the dishwasher.
Unloading the dishwasher
Hot porcelain is more fragile. Leavethe dishes to cool in the dishwasher
before unloading them.
Unload the lower basket first to avoid any water drops from the upper
basket falling onto the dishes in the lower basket.
10
1)
Consumption values
Water cons.
(liter)
3)
Energy
Hot water
Dishwashing
2)
Energy
Cold water
Dishwashing
(approx. kWh)
time
(approx.
(approx. kWh)
time
(approx.
10.70.52:380.92:5847°C347 °C225
hrs:min)
hrs:min)
130.62:051.22:2565 °C260 °C225Heavy wash
11-200.5-1.02:20-3:000.9-1.52:40-3:2065 °C2-350-65 °C1-325Auto wash
150.61:351.21:5565 °C260 °C225Sanitation wash
11-190.4-1.20:15-2:300.5-1.60:15-2:30<65 °C2-3<65 °C0-225Time program
30.010:070.010:07--- °C1Rinse and hold
120.62:101.12:3063 °C250 °C125Plastic wash
100.91:001.41:1070 °C270 °C25Hygiene wash
90.51:200.81:4050 °C245 °C20Crystal glass
100.60:20 + 0:200.90:30 + 0:2055 °C260 °C20Quick Pro wash
120.61:501.02:1060 °C260 °C120Upper half wash
120.61:501.02:1060 °C260 °C120Lower half wash
Final rinseNumber of rins-
es
Main washPrewashesDetergent, com-
partment 2
(ml)
Program
Program chart
4)
ECO wash
Consumption values vary depending on the temperature of the incoming water, room temperature, load size, selected additional functions and more.2)Connection to cold water, approx. 20 °C.3)Connection to hot water, approx. 60 °C.4)The energy label performance figures are based on this program which is recommended for normally soiled load (no options).
1)
11
Settings
START
STOP
1� Language
English
Mode selector to confirm current setting
Settings Current setting
Navigation buttons for choosing setting
Open the dishwasher's Settings menu
To open the dishwasher's Settings menu, press the Navigation button or until Settings menu is shown on the display and confirm your selection
using the mode selector .
To exit the dishwasher's Settings menu, select Exit and confirm your selection using the mode selector .
OptionsSettings
Language1.
You can choose the language used for the display.English GB/English AU/English US/
Svenska/Dansk/Norsk/Suomi/Deutsch
/Italiano/Nederlands/Français/Español
Select programs2.
Heavy wash On/Off
ECO wash On/Off
Programs can be shown or hidden in the menu. Choose between
On and Off.
Auto wash On/Off
Sanitation wash On/Off
Time program On/Off
Rinse and hold On/Off
Plastic wash On/Off
Hygiene wash On/Off
Crystal glass On/Off
Quick Pro wash On/Off
Self-cleaning On/Off
Lower half wash On/Off
Upper half wash On/Off
On/OffChild lock3.
You can activate the child lock (button lock) to prevent children
from starting the dishwasher.
To temporarilydeactivate or activate the child lock, press and
hold the left Navigation button and the option button Delayed Start
for 3 seconds.
For adjusting the contrast of the top display.Contrast top display1/2/3/4Display settings4.
Setting to hide the logo shown on the display.Logo in top display On/Off
For adjusting the contrast of the front display.Contrast front disp.1/2/3/4
You can choose what information you wish to display.Info in front display1/2
1: Time left
2: Time left+Status
This sound is used to confirm each button press.0/1/2/3Feedback sound5.
The buzzer indicates when a dishwashing program has ended.0/1/2/3Buzzer volume6.
Error messages are always indicated by a loud buzzer.
12
OptionsSettings
0/1/2/3/4/5Rinse aid7.
Setting for rinse aid dosage. Therinse aid dispenser can be adjusted between 0 (Off) and 5 (High dosage).
Increase the rinse aid dosage:
• If the dishes have water marks.
Decrease the rinse aid dosage:
• If the dishes have a sticky white/blue film.
• If the dishes are streaked.
• Build-up of foam. If you have very soft water, the rinse aid can
be diluted 50:50 with water.
Super rinse adds two extra rinses.On/OffSuper rinse8.
Activated in the following programs:
Heavy wash
ECO wash
Sanitation wash
Plastic wash
Lower half wash
Upper half wash
On/OffHigh temperature9.
Activate the setting High temperature to improve the dishwashing
results. Energy consumption is slightly increased.
Activated in the following programs:
Heavy wash
ECO wash
Sanitation wash
Plastic wash
Quick Pro wash
Lower half wash
Upper half wash
Built-in water tank.On/OffWater save10.
Before deactivating the water tank, run a self-cleaning programme.
See Self-cleaning in the chapter Using the dishwasher.
13
Care and cleaning
Coarse filter
Fine filter
Spray pipes
Coarse filter
The coarse filter traps larger food particles, which cannot get past the
drainage pump. Empty the coarse filter as necessary.
1 Lift the coarse filter by the handle.
2 Empty the coarse filter. Remember to replace it!
Fine filter
Debris that collects on the fine filter is automatically rinsed away during
each wash. Clean the fine filter when necessary.
Top spray arm
• The upper basket must be removed before the top spray arm can
be released. Pull out the upper basket and turn the basket catch
on each runner outwards (see illustration). The basket can now be
removed.
• Pull out the top cutlery tray.Press the top spray arm up and unscrew
the spray arm bearings counter-clockwise to remove the sprayarm.
Upper spray arm
1 Pull out the upper basket.
2 Unscrew the spray arm bearings counterclockwise to remove the
spray arm from the upper basket.
1 Turn the handle anticlockwise.
2 Lift the filter straight up using the handle. Free the coarse filter to
clean the fine filter.
3 Replace in reverse order. Check that the edges seal properly when
replacing the fine filter.
4 Lock the filter in place by turning the handle clockwise to the stop
position. The handle should point straight out from the dishwasher.
NOTE!
The dishwasher must not be used without the filter in place!
Diswashing efficiency can be affected if the course filter is incorrectly
fitted. After cleaning ensure that filter handle is fully locked with the
handle pointing out of the dishwasher.
Spray arms and spray pipes
Holes and bearings can sometimes become blocked. Remove any
debris using a pin or something similar. The spray arms also have
holes on their undersides.
The middle basket's spray pipes
• Pull out the middle basket.
• Check the holes in the spray pipes.
Lower spray arm
• Pull the lower spray arm straight up to release it.
To facilitate cleaning, you can remove the spray arms. Remember to
fit them firmly back into place after cleaning.
14
The door and the door seal
Regularly clean the sides of the door and the door seal. Use a slightly
damp cloth (with a little cleaner if necessary).
Front panel
Drainage pump stop
Outer filter on inlet
hose
Gasket
Keep the buttons clean and free from grease. Wipe them clean with a
dry or slightly damp cloth. Never use cleaners – they can scratch the
surface. Use the main power switch to turn off the dishwasher before
cleaning the buttons to avoid activating any buttons unintentionally.
The dishwasher tub
The dishwasher tub is made of stainlesssteel and is kept clean through
normal use.
Limescale deposits
If you have hard water, limescale deposits may build up in the dishwasher. If this happens, run the Self-cleaning program with two tablespoons of citric acid in the detergent compartment (with no dishes in
the machine). Special dishwasher cleaners are also available on the
market.

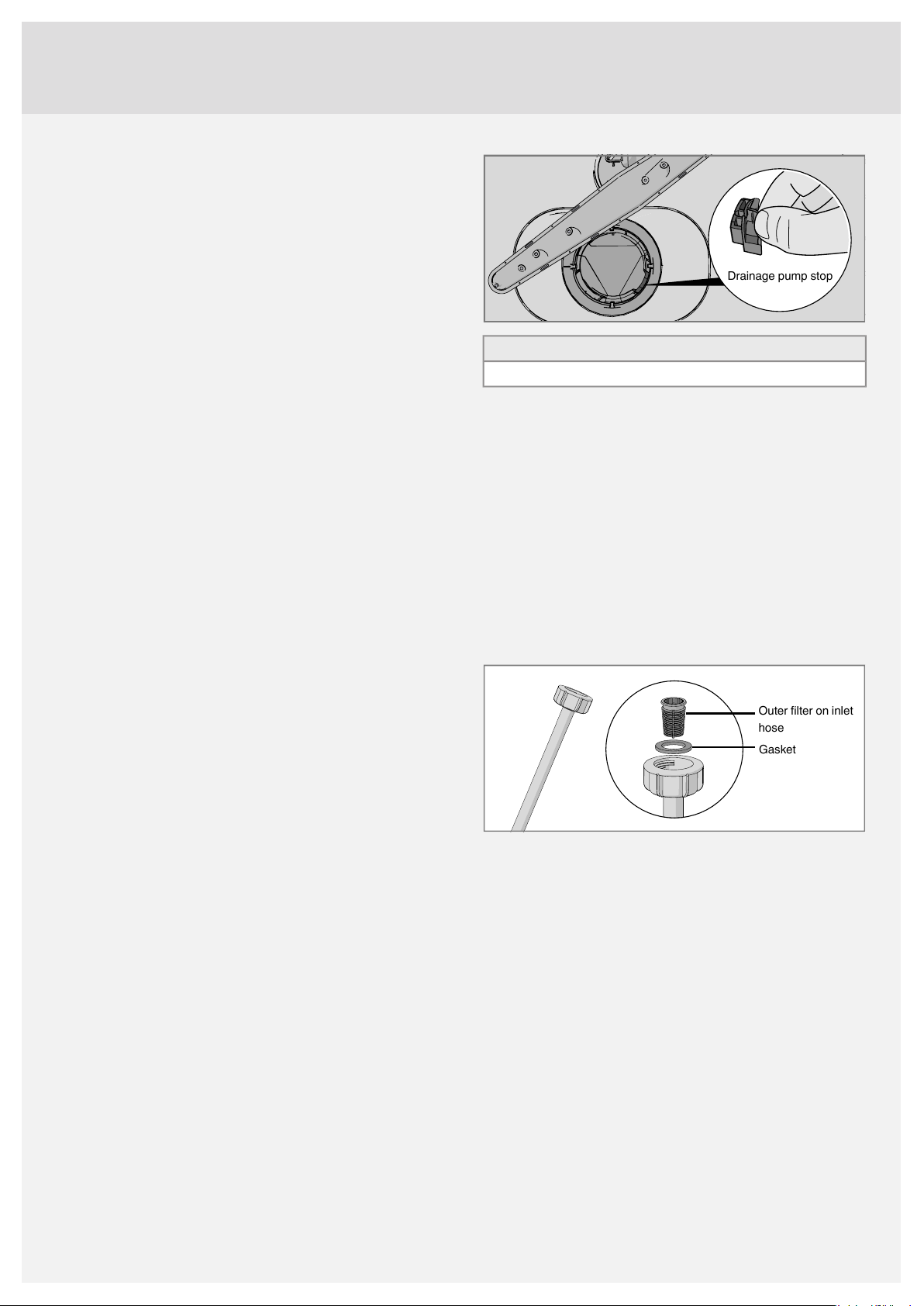

Unblocking the drainage pump
If the dishwasher still containswater after the programme has finished,
something may be blocking the drainage pump. Such items are easily
removed.
1 Turn off the machine using the main power switch and unplug it
from the wall socket.
2 Remove the coarse filter and the fine filter.
3 Scoop out the water from the dishwasher tub.
4 In order to inspect the drainage pump, remove the coloured stop
on the right in the bottom drain.
5 Turn the pump wheel located behind the drainage pump stop by
hand. Carefully remove any items.
6 Replace the drainage pump stop along with the fine and coarse
filters.
7 Plug the machine in again.
If the dishwasher still does not start and a whirring sound is heard,
the overflow protection has been activated.
• Shut off the water.
• Remove the plug from the wall socket.
• Call the service department.
NOTE!
Do not forget to replace the drainage pump stop.
Unblocking the inlet hose filter
If the water supply contains small particles, the outer filter on the inlet
hose may become blocked, which results in Water inlet fault.
1 Turn off the machine using the main power switch and unplug it
from the wall socket.
2 Turn off the water tap.
3 Unscrew the inlet hose.
4 Carefully remove the outer filter from the inlet hose and clean it.
5 Replace the filter and check that the gasket is correctly positioned.
6 Screw the inlet hose firmly into place.
7 Plug the machine into the wall socket and turn on the water tap.
Allow the pressure to settle fora while and check that the connection
is watertight.
15
Troubleshooting
ActionType of fault on the display
Overfilling water 1F10
Water outlet faultF11
Water inlet faultF12
Press any button to clear the error message.
The buttons do not react when pressed.
Clear the drainage pump. See the chapter Care and cleaning. If the problem persists, call the
service department.
See “Water remains in the dishwasher” in the table “Problem” below. If the problem persists, call
the service department.
Check whether dishwasher inlet hose is connected to a pressure limiting valve (some pressure
limiting valves may restrict the supply of water to the dishwasher).
Check that the water tap is on. Check that the outer filter on the inlet hose is not blocked. See
Unblocking the inlet hose filter in the chapter Care and cleaning. If the problem persists, call for
service.
Check that the water tap is on. If the problem persists, call the service department.
Turn off the water tap and call the service department.Inlet valve leakageF40
Call the service department.Water level faultF52
Turn off the water tap and call the service department.Overfilling water 2F54
Call the service department.Circ. pump faultF56
ActionPossible causesProblem
Wait a moment then try again.You have pressed the buttons too soon after
opening the door.
See the chapter Settings.Child lock (button lock) activated.
The dishwasher does not start.
The door is closed.
The baskets are not correctly positioned.Cannot close door.
The Start/Stop start button has not been pressed
for long enough.
You have opened the dishwasher to add more
dishes while a program is in progress.
A whirring sound (the drainage pump) is heard
from thedishwasher and does not stop when the
main power switch is turned off.
Open the door. The buttons only react to use
when the door is open.
Clean with a dry or slightly damp cloth.The buttons are dirty.
Check that the baskets are correctly positioned
horizontally, and that the middle basket's water
connector is in line with its spray pipe.
Check that the dishes are not blocking the baskets from sliding properly into place.
Press and hold Start/Stop until the display shows
"Program started, close door".
Check.The door is not properly closed.
Close the door and wait. After a while, the dishwasher continues the program.
Check.A fuse/circuit breaker has been tripped.
Check.The plug is not plugged into the wall socket.
Check.The water tap is turned off.
Check.Overflow/leaks
Turn off the water tap. Pull out the plug and call
the service department.
Check that the Delayed Start option has not been
selected.
16
Press and hold Start/Stop for three seconds if
you want to cancel the Delayed Start option.
ActionPossible causesProblem
Spots on stainless steel or silver.
The spray arms do not rotate.The dishes are not clean.
Spray arm holes or bearings blocked.
Incorrect detergent dosage.
Dishes loaded incorrectly.
program.
The filters are not fitted correctly.
Some foodstuffs, such as mustard, mayonnaise,
lemon, vinegar, salt and dressings, can mark
stainless steel if left for too long.
Check that the dishes are not blocking the spray
arms.
Clean the spray arms and the middle basket's
spray pipe. See Chapter Care and cleaning.
Choose a longer programme.Unsuitable dishwashing program.
Dose according to water hardness. Far too much
or far too little detergent results in poorer dishwashing results.
Avoid large packages.Old detergent. Detergent is a perishable product.
Do not cover porcelain with large bowls or the
like. Avoid placing very tall glasses in the corners
of the baskets.
Place dishes to sit steady.Glasses and cups have toppled over during the
Check that the filter handle is locked in the stop
position. The handle should point towards the
back of the dishwasher.
Rinse off these types of foodstuffs if not starting
the dishwasher immediately. Use the Rinse and
hold program.
Detergent residue in the detergent compartment
after dishwashing.
Rattling sound when dishwashing.
All stainless steel can cause spots on silver if
they come into contact during dishwashing.
Aluminium can also cause spots on dishes.
Too high temperature and/or too much detergent
can cause etching on crystal. Unfortunately, this
cannot be repaired, only prevented.
Rinse aid dosage setting too high.The dishes have a sticky white/blue film.
The detergent compartment was damp when
adding detergent.
The detergent compartment is blocked.
The dishes are not correctly placed or the spray
arms are not rotating.
The program is taking longer than estimated.1 minute appears in the display.
In order to avoid marks and tarnishing, separate
dishes made from different metals, such as silver,
stainless steel and aluminium.
See the chapter Settings.Incorrect rinse aid dosage setting.Spots or films on the dishes.
Wash crystal at a low temperature and with a
conservative amount of detergent. Contact the
detergent manufacturer.
Reduce the dosage. See the chapter Settings.
If you have very soft water,you may want to dilute
the rinse aid 50:50 with water.
Use a detergent with a bleaching agent.Lipstick and tea can be difficult to wash off.Spots left after washing.
The detergent compartment must be dry when
adding detergent.
Check that the dishes are not preventing the
detergent compartment from opening.
Check that the dishes are placed securely. Spin
the spray arms to make sure they can rotate.
No action. The programme time is stored and
next time the programme is run the corrected
time will be displayed.
"Run Self-cleaning program" is shown on the
display.
The dishwasher tub, spray arms and spray pipes
need to be cleaned.
Run a self-cleaning programme. See Self-cleaning in the chapter Using the dishwasher.
17
ActionPossible causesProblem
Clean the coarse and fine filters.The filters are blocked.Water remains in the dishwasher.
The dishes are not dry enough.
The filters are not fitted correctly.
Debris in the drainage pump.
Kink in drainage hose.
Blocked drainage hose.
Dirt around the seals and in corners.Bad odour in dishwasher.
Low temperature programs have been selected
for a prolonged period.
The dishwasher has not been used for a while.
cycle may be insufficient.
Check that the filter handle is locked in the stop
position. The handle should point towards the
back of the dishwasher.
Clean the drainage pump. See the chapter Care
and cleaning.
Check that the hose is free from kinks and sharp
bends.
Disconnect thedrainage hose where it connects
to the sink unit's water trap. Check that no debris
has fastened and that the connection has an inner diameter of at least 14 mm.
Clean with washing-up brush and low foaming
cleaner.
Run a program with a higher temperature once
or twice a month. Or run a self-cleaningprogram.
See Self-cleaning in Chapter Using the dishwasher.
Run a self-cleaning programme. See Self-cleaning in the chapter Using the dishwasher.
Activate the Extra Dry option.Depending on the load, the programme's drying
Rinse aid needs topping up or dosage is set too
low.
Fully load the dishwasher.The dishwasher is not fully loaded.
Top up with rinse aid or increase the rinse aid
dosage level. See the chapter Settings.
Open the door a little once the program has finished.
18
Technical information
Information on energy labelling
Energy labelling
AS/NZS 2007Australian standard:
16Number of place settings:
ECO wash1), no optionsDishwashing programs:
2:58 hours:minutesProgram time:
Cold water 20 °CConnection:
IEC 60704-2-3Test method for noise measurement:
1)
This dishwashing program is the standard cleaning cycle used to compile the energy labelling information. It is intended for washing normally
dirty dishes and is the most effective program in terms of combined energy and water consumption.
Technical data
859-912 mmHeight:
596 mmWidth:
574 mmDepth:
1)
Weight:
1)
Weight can vary due to different specifications.
50 kg
0.03–1.0 MPaWater pressure:
See compliance plateElectrical connection:
See compliance plateRated power:
19
Installation
859*- 912
559
714
596
131-186
50
30-94
1238
740
1213
574
[mm]
Nominal dimensions. Actual measurements may vary.
*Remove locking nuts for an installed height of 860-861 mm.
REMOVE
Safety instructions
• Connections to electricity, water and drainage must be performed
by a qualified professional.
• Always follow applicable regulations for water, drainage and electricity.
• Take care during installation! Wear protective gloves! There must
always be two people!
• Before screwing the dishwasher into place, test the dishwasher by
running the Rinse and hold program. Check that the dishwasher
fills with water and drains. Check also that none of the connections
leak.
WARNING!
The ventilation opening in the lower part of the door must not be
blocked by a rug, carpet or similar furnishing.
WARNING!
Turn off the water supply when installing the dishwasher!
The plug must be disconnected or power to the socket turned off
while the work is carried out!
Transport protection for the door
Do not forget to remove the transport protection for the door when unpacking the dishwasher.
20

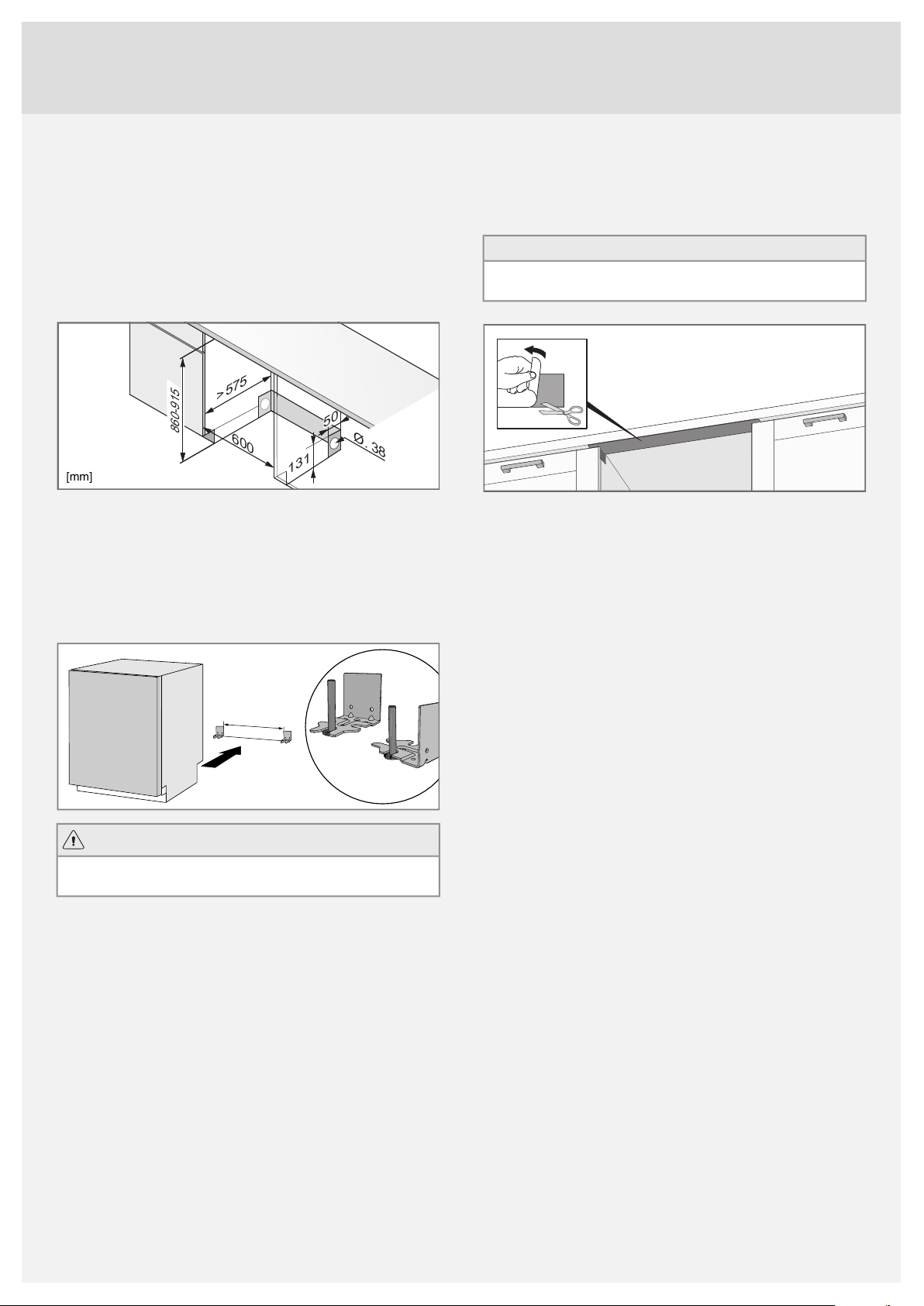

Placing the dishwasher
Ø. 38
600
50
131
860-915 860-915
> 575
[mm]
413
The dishwasher can be installed built-in, completely freestanding or
partially built-in.
A. Built-in
The dishwasher is intended for installation under a worktop. The recess
dimensions are illustrated. Holes for wires/cables need not be larger
than 38 mm in diameter. Make sure the edges of such holes are even
to prevent damage to the drainage and inlet hoses and the power cable.
B. Freestanding
A freestanding dishwasher must be fitted with anti-tip brackets. This
comprises two brackets, which are screwed into place as illustrated.
The dishwasher is then pushed in so that the brackets engage the rear
feet. Now the dishwasher will not topple if pressure is put on the open
door. If the dishwasher is installed completely on its own, side panels
and a worktop must both be fitted. Accessories can be purchased
where you bought the dishwasher.
Affix the protective film
Attach the protective film (packed in the document bag) to the underside of the worktop. The protective film is to protect the worktop from
moisture.
NOTE!
The surface to which the protective film is affixed must be clean and
dry.
WARNING!
A completely freestanding dishwasher must be fitted with anti-tip
brackets.
C. Partially built-in
If the dishwasher is located so that one of its sides is visible, a side
panel must be fitted. Accessories can be purchased where you bought
the dishwasher.
21

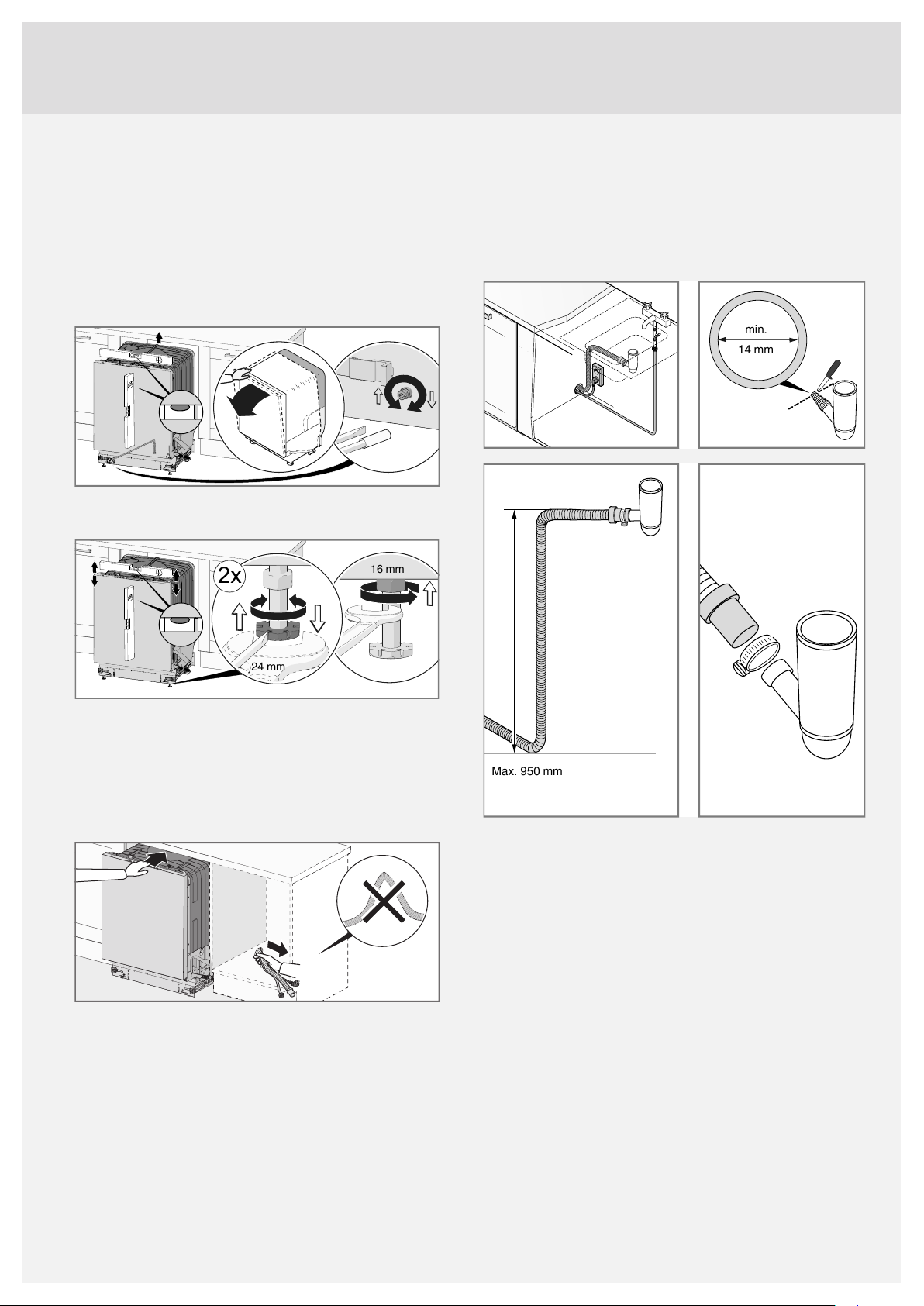

Adjust the height and slide the
2x
24 mm
16 mm
min.
14 mm
Max. 950 mm
dishwasher into place
1 Start by measuring the height from the floor to the bottom edge of
the worktop.
2 Measure the height from the floor to the top edge of the dishwasher.
3 Lean the dishwasher forwards a little and roughly adjust the rear
foot by turning the adjustment screw at the front clockwise to raise
and anticlockwise to lower the dishwasher (see illustration below).
Use a broad screwdriver or a socket screwdriver.
4 Adjust the front feet by turningthem clockwise to raise and anticlock-
wise to lower the dishwasher.
Drainage connection
This dishwasher is suitable for installing in a raised recess (to attain
an ergonomic working height). This means that the dishwasher can be
placed so that the drainage hose runs to a lower level than the bottom
of the dishwasher, such as by routing it directly to a floor drain. The
dishwasher is fitted with an integrated anti-siphon device to prevent
the machine from being emptied of water during the wash cycle.
5 Check that there is an air gap of at least 3 mm between the under-
side of the worktop and the top edge of the dishwasher.
6 Slide the dishwasher into place.
• Pull through the drainage and supply hoses when the machine
is slid into place.
• Check that the hoses have no kinks or sharp bends, and check
that there is nothing that can damage the hoses.
7 Make any final adjustments to the feet (the dishwasher may lean
no more than 5 mm) and tighten the lock nuts on the front feet.
The drainage hose can also be connected to a connection nipple on
the sink unit’s water trap. The connection nipple must have an internal
diameter of at least 14 mm.
The drainage hose may be extended by a maximum of 2.5 m (the total
length of the drainage hose must not exceed 4.5 m). Any joins and
connecting pipes must have an internal diameter of at least 14 mm.
However, the drainage hose should ideally be replaced with a new
hose without joins.
No part of the drainage hose may be more than 950 mm above the
bottom of the dishwasher.
Ensure that the drainage hose has no kinks.
Connection to water supply
Use only the inlet hose supplied with the dishwasher. Do not re-use
old or other spare hoses.
The supply pipe must be fitted with a water tap (stopcock). The water
tap must be easily accessible, so that the water can be shut off if the
dishwasher has to be moved.
Once the installation is complete, turn on the water tap and allow the
pressure to settle for a while. Check that all connections are watertight.
Connection to cold water supply
Connect the dishwasher to the cold water supply if the building is
heated using oil, electricity or gas.
22

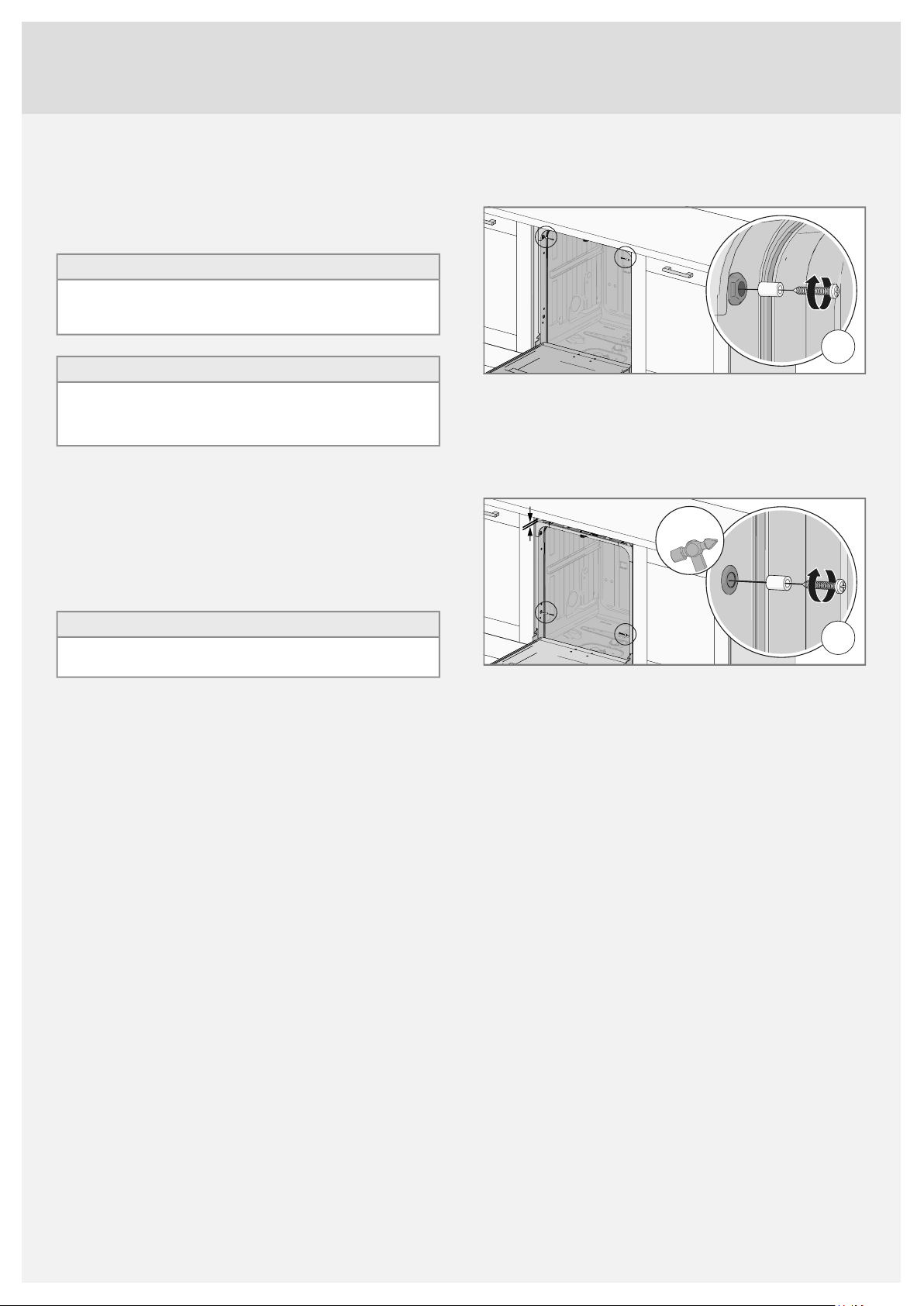

Connection to hot water supply
2x
2x
KNOCK
OUT
Connect the dishwasher to the hot water supply (max. 70 °C) if the
building is heated using an energy-efficient means such as district
heating, solar power or geothermal power. Choosing a hot water connection cuts dishwashing times and reduces the dishwasher's energy
consumption.
NOTE!
Do not exceed the permitted water supply temperature. Certain materials used in some cookware cannot withstand high heat. See
Fragile dishes in the chapter Loading the dishwasher.
NOTE!
Connecting a dishwasher to the water supply via certain types of
pressure limiting valves may restrict the water supply!
This may cause the error message Water inlet fault to be displayed.
Electrical connection
Information about the electrical connection can be found on the compliance plate. This specification must match the electricity supply.
The dishwasher must be connected to an earthed wall socket.
The electric wall socket must be placed outside of the installation area
to be easily accessible after installing the dishwasher. Do not use an
extension cord!
Screwing the dishwasher into place
(Applicable only to built-in dishwashers.)
After fastening the machine, check that the front feet still touch the
floor.
Screw the dishwasher into place with two extra screws
If there is an air gap of more than 3 mm between the underside of the
worktop and the top of the dishwasher, the dishwasher should be
screwed into place with two extra screws.
NOTE!
Repairs and maintenance must be carried out by a qualified professional.
23

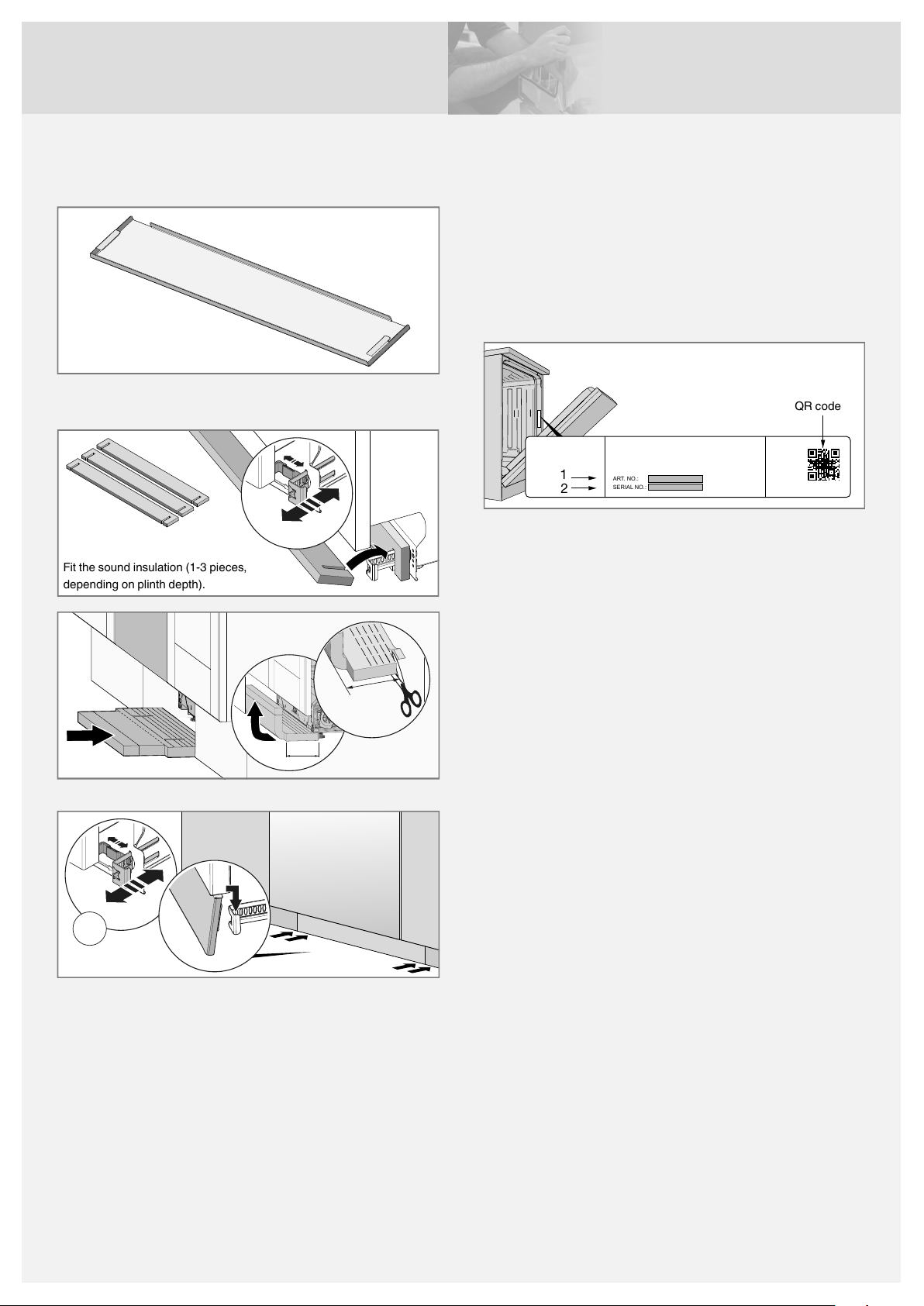

Fit the sound insulation (1-3 pieces,
depending on plinth depth).
x
x
x
2x
ASKO Service
SERIAL NO.:
ART. NO.:
1
2
QR code
Dishwasher kick panel
The dishwasher is supplied with a kick panel.
Install the sound insulation
(only certain models)
Information about your product
There is a QR code on the compliance plate. Scan the code to view
information about your product.
Contact the service department
Read the chapter Troubleshooting before contacting the service department. If you have encountered a problem that you cannot resolve,
please contact your nearest dealer, see www.asko.com.
When making contact, provide the details on the serial number plate.
Include the article number (1) and the serial number (2).
Install the kick panel
24

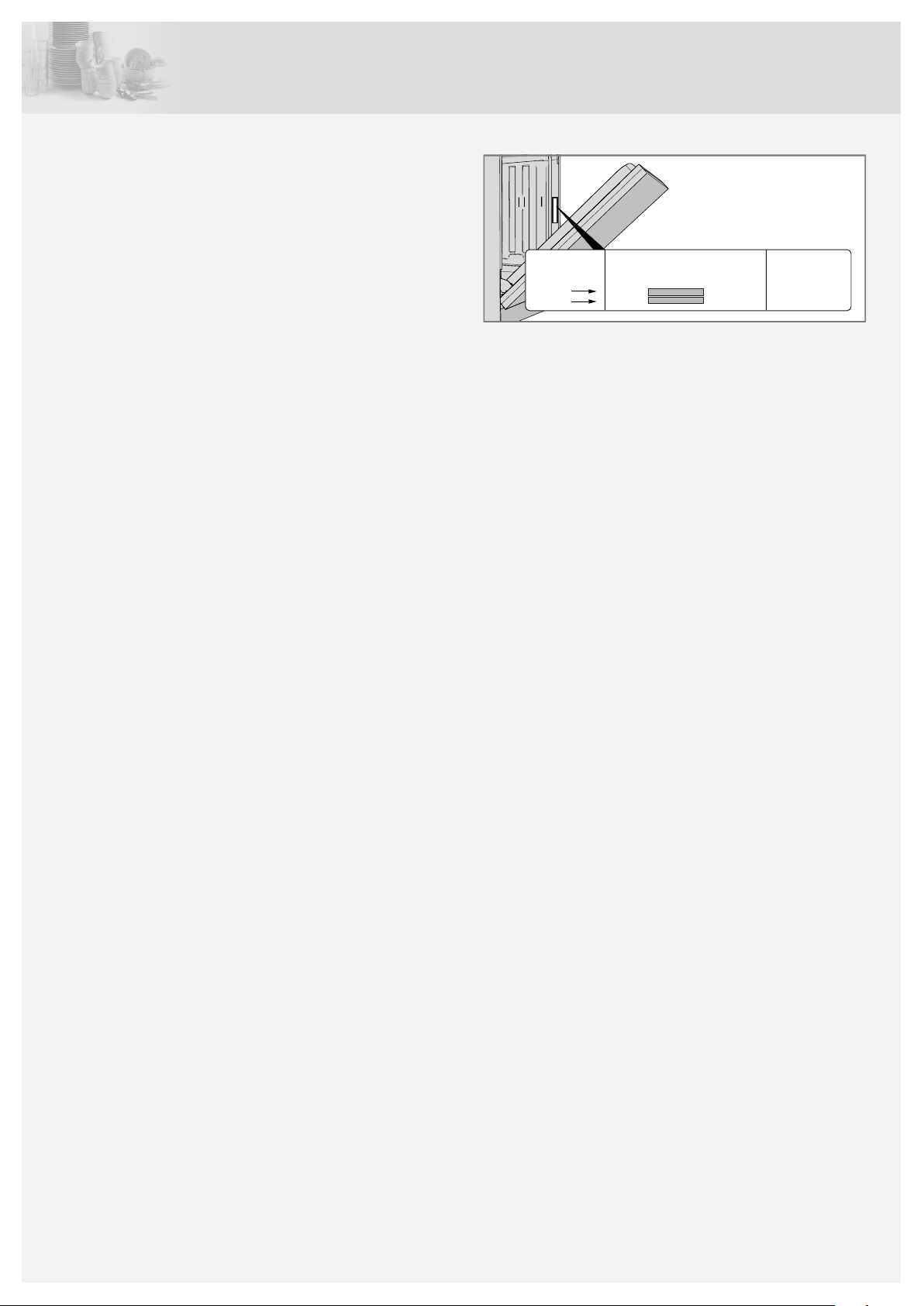

Information for test
SERIAL NO.:
ART. NO.:
1
2
institute
Request test institute information via e-mail dishwashers@appliancedevelopment.com.
The request should include the details on the product’s serial number
plate. Include the article number (1) and the serial number (2).
25
Your notes
26
Your notes
27
Quick guide
START
STOP
1.
2.
3.
Load the baskets
(See page 5.)
Do not rinse dishes under running water before loading them in the dishwasher. Simply scrape off
large food particles before loading the dishwasher.
Check that the spray arms can rotate freely
Check also that the water tap is on.
Don't forget! Empty the coarse filter and clean the fine filter when necessary. (See page 14.)
Add detergent
The detergent compartment has one smaller compartment for the prewash and one for the main
wash. (See page 8.)
4.
5.
6.
Press and hold the main power switch until the display
lights up
Check/Add rinse aid
Use rinse aid to achieve good washing and drying results. (See page 4.)
Refill rinse aid indicator.
Select a program, a program mode and any options
(See page 9.)
Press Start/Stop, close the door
28
7.
ASKO APPLIANCES • SOCKERBRUKSGATAN 3, SE-531 40 LIDKÖPING, SWEDEN • WWW.ASKO.COM
en (10-17)
Art. No.: 666947. Rev. 03. We reserve the right to make changes.
Loading...
