Ashly VCM-88C User Manual
VCM-88C
Eight Channel Matrixing Level Controller
Operating Manual
Ashly Audio Inc.
847 Holt Road, Webster, NY 14580-9103
Toll Free (800) 828-6308, Telephone (585) 872-0010, FAX (585) 872-0739
www.ashly.com
All Trademarks referred to herein, are the property of their respective owners. R-051807
All Rights Reserved
Page - 2 Operator Manual – VCM-88C Controller
This page intentionally left blank
Copyright© 2007 – Ashly Audio Inc.
Operator Manual – VCM-88C Controller Page - 3
A
L
p
Important Safety Instructions
Consignes de sécurité à lire attentivement
Safety Instructions – 3
Introduction - 4
VCM-88C Controller – 5
Connectors & Cables – 5
Physical Description - 6
Installation – 7
pplications - 8
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons. The exclamation point within an equilateral
triangle is intended to alert the user to the presence of important operating and
maintenance instructions in the literature accompanying the device.
1. Read these instructions.
Keep these instructions.
2.
Heed all warnings.
3.
Follow all instructions.
4.
To reduce the risk of fire or electric shock, do not expose
5.
this apparatus to rain or moisture.
Do not use this apparatus near water.
6.
Clean only with dry cloth.
7.
Do not block any ventilation openings. Install in
8.
accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat
9.
registers, stoves, or other apparatus that produce heat.
Do not defeat the safety purpose of the polarized or
10.
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has
two blades and a third grounding prong. The wide blade
or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched
11.
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
Only use attachments/accessories specified by the
12.
manufacturer.
Use only with the cart, stand, tripod, bracket, or table
13.
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury
from tip-over.
Unplug this apparatus during lightning storms or when
14.
unused for long periods of time.
Refer all servicing to qualified service personnel.
15.
Servicing is required when the apparatus has been
e symbole de la flèche dans un triangle équilateral symbolisant la foudre est
révu pour sensibiliser l’utilisateur à la présence de tension de voltage non isolée
à l’intérieur de l’appareil. Elle pourrait constituer un danger de risque de
décharge électrique pour les utilisateurs. Le point d’exclamation dans le triangle
équilatérale alerte l’utilisateur de la présence de consignes qu’il doit d’abord
consulter avant d’utiliser l’appareil.
Lisez ces instructions.
1.
Conservez ces instructions.
2.
Observez les avertissements.
3.
Suivez ces instructions.
4.
Pour réduire le risque de feu ou la décharge électrique,
5.
ne pas exposer cet appareil pour pleuvoir ou l'humidité.
Ne pas utiliser l’appareil près de l’eau.
6.
Le nettoyer à l’aide d’un tissus sec.
7.
Ne pas bloquer les ouvertures de ventilation, installer
8.
selon les consignes du fabricant.
Eloigner des sources de chaleur tel: radiateurs,
9.
fourneaux ou autres appareils qui produisent de la
chaleur.
Ne pas modifier ou amputer le système de la mise à
10.
terre. Une prise avec mise à terre comprend deux lames
dont une plus large ainsi qu’une mise à terre: ne pas la
couper ou la modifier. Si la prise murale n’accepte pas
la fiche, consulter un électricien pour qu’il remplace la
prise désuète.
Protéger le cordon de secteur contre tous bris ou
11.
pincement qui pourraient l’endommager, soit à la fiche
murale ou à l’appareil.
N’employer que les accessoires recommandés par le
12.
fabricant.
N’utiliser qu’avec les systèmes de fixation,chariots,
13.
trépied ou autres, approuvés par le fabricant ou vendus
avec l’appareil.
Débrancher l’appareil lors des orages électriques ou si
14.
inutilisé pendant une longue période de temps.
Un entretient effectué par un centre de service accrédité
15.
est exigé si l’appareil a été endommagé de quelque
façon: si il a été exposé à la pluie,, l’humidité ou s’il ne
fonctionne pas normalement ou qu’il a été échappé.
Data Connections – 9
Troubleshooting – 11
Dimensions - 11
Specifications - 12
Warranty - 13
This manual uses a
Perpetual Table Of
Contents. Each page
has a copy of the
manual’s contents in a
gray box just like this
one. The section you are
in will always be bold
with the other sections
“grayed out.” The feature
allows you to jump
directly to another
section without having to
return to a Table Of
Contents page.
damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been
dropped.
All Rights Reserved
Page - 4 Operator Manual – VCM-88C Controller
A
Safety Instructions – 3
Introduction - 4
VCM-88C Controller – 5
Connectors & Cables – 5
Physical Description - 6
Installation – 7
pplications - 8
Data Connections – 9
Troubleshooting – 11
Dimensions - 11
Specifications - 12
Warranty - 13
Introduction
Congratulations on your purchase of an Ashly VCM-88C matrixing level controller. In one
compact rack-mount package we have combined features, reliability, and sonic performance
you have come to expect from Ashly. Features of this unit include:
VCA Based Circuitry
Master level range of -75dB to +20dB.
Eight fully-independent VCA channels with:
o Limiting
o Remote level control
o Mixing

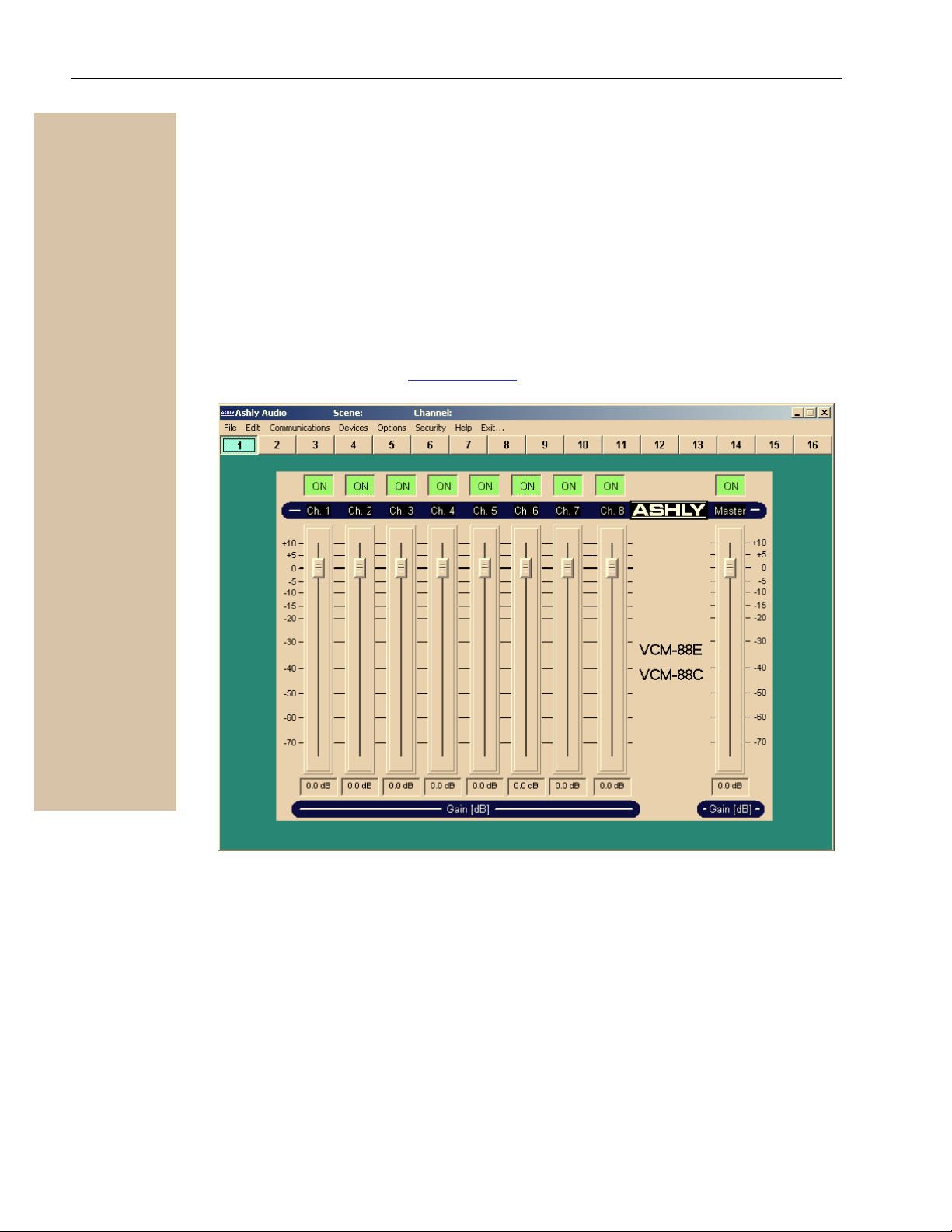

Optional control via the Ashly RD-8C (desktop) or RW-8C (wall-mount) remote
controller or Ashly's Protea System Software,
Each VCA channel provides;
o Separate input and output jacks for patching into line-level signal paths
o “pass-through” configuration for daisy chaining multiple units together
About Ashly
Ashly Audio was founded in 1974 by a group of recording engineers, sound professionals,
and electronics designers. The first products were custom consoles for friends and
associates, but business quickly grew. The philosophy established from the very beginning
holds true today: to offer only the highest quality audio tools at an affordable cost to the
professional user – ensuring reliability and long life. More than thirty years later, Ashly
remains committed to these principles.
Copyright© 2007 – Ashly Audio Inc.
Operator Manual – VCM-88C Controller Page - 5
A
Safety Instructions – 3

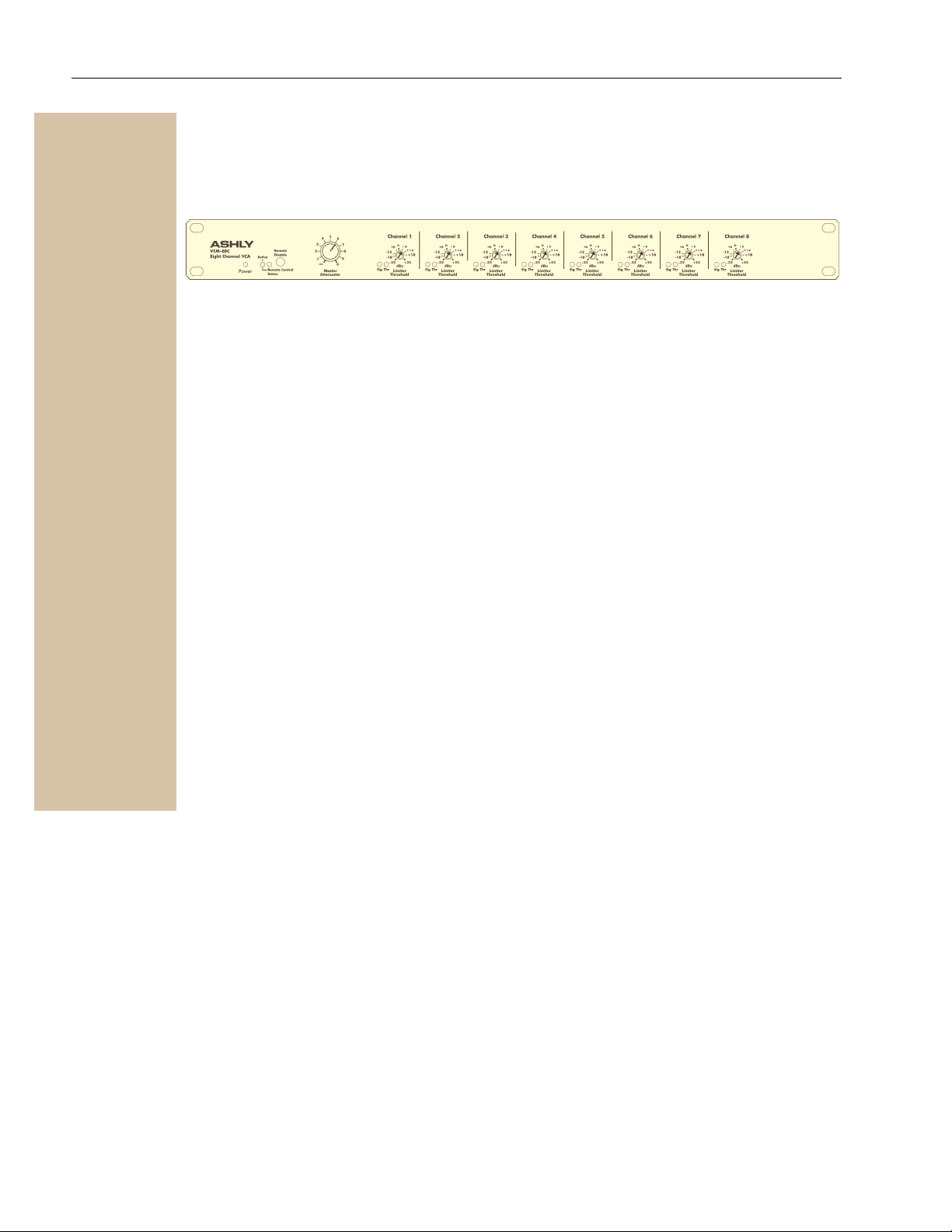

VCM-88C Controller
The VCM-88C allows for accurate, low distortion level control without signal degradations
encountered when using mechanical controls or long signal paths. This unit adds
functionality and control in any system or installation where remote control or fast automatic
system response is required. Specific applications are discussed in detail on Page 8.
Connectors & Cables
Your VCM-88C is provided with a single connector type for audio signals in and out. All
connections are made via 1/4” stereo phone jacks (TRS), which can be used to connect,
balanced or unbalanced signals to the unit. Whenever possible, balanced connections are
recommend between all components in your system, as this eliminates ground-loop induced
hum and noise.
Introduction - 4
VCM-88C Controller – 5
Connectors & Cables - 5
Grounding
Physical Description - 6
Installation – 7
pplications - 8
Data Connections – 9
Troubleshooting – 11
Dimensions - 11
Specifications - 12
Warranty - 13
VCM-88C Audio Connector Polarities
All inputs are 20K ohm active balanced and 10K ohm unbalanced.

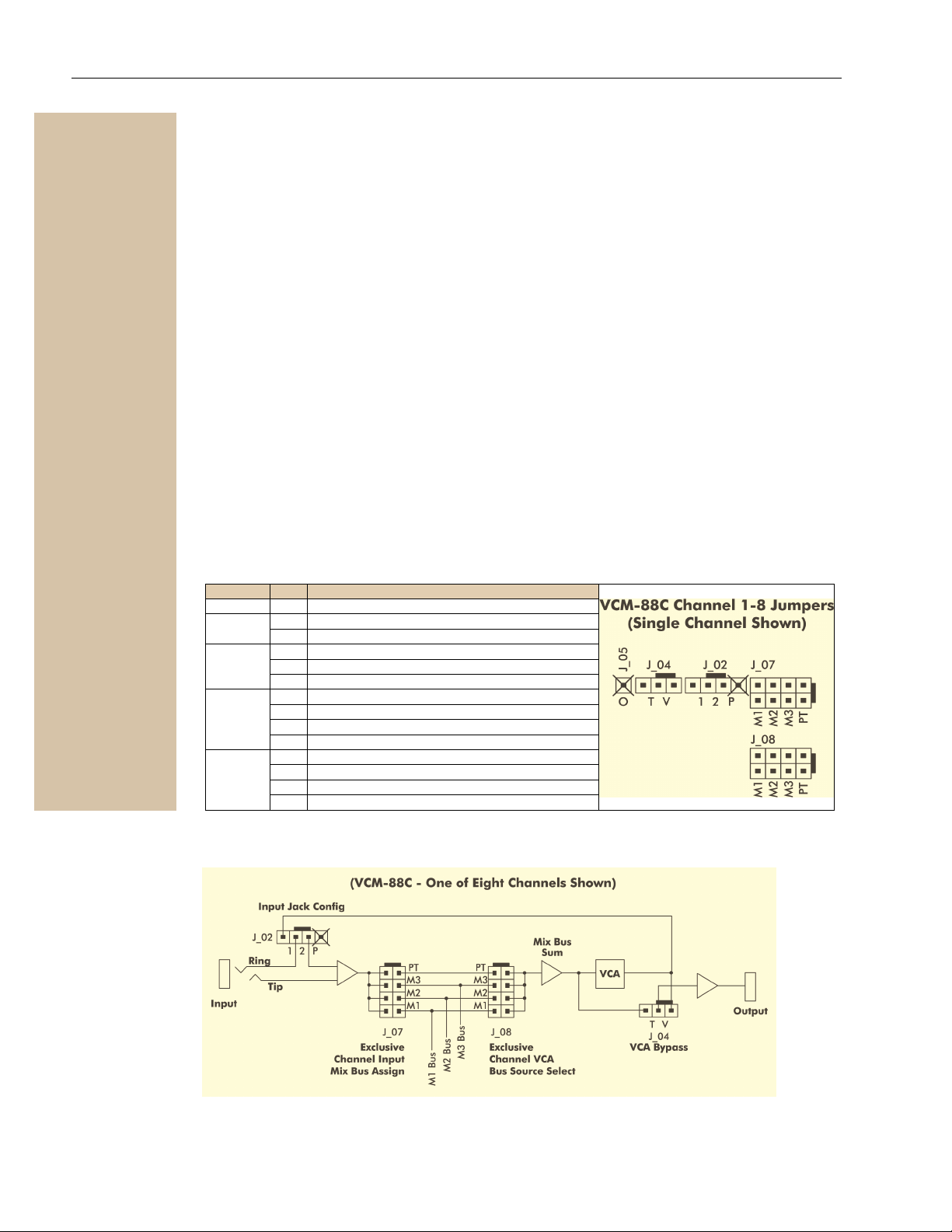

Note: The VCM-88C can be connected using a “single connector insert mode.” In this
configuration, the In jack functions as a TRS insert with the Tip receiving the input, the ring
the output and the sleeve acting as a common ground.
Remote control connections are made via Euroblock connectors. Polarities and other details
for those connectors are provided on the chassis.
Unbalanced Connections and Grounding
If you must use unbalanced connectors, the negative lead of the connector (ring) should be
tied to the ground lead (sleeve). Using unbalanced connections could result in chassis
ground-loop noise. Altering the signal/chassis ground relationship in equipment connected
to your unit may eliminate the noise.
