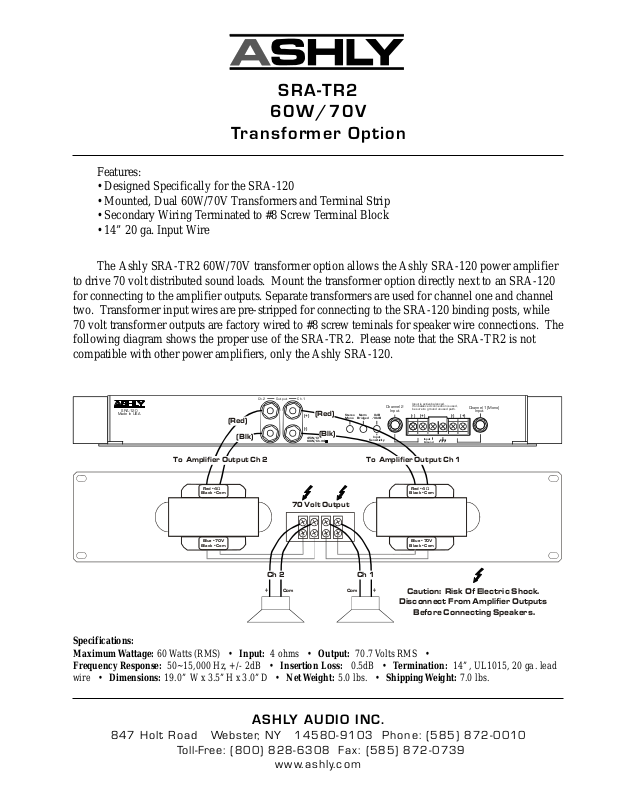

Ashly SRA-TR2 User Manual
SRA-TR2
(+)
(-)
(+)
(-)
(+)
(-)
p
g
)
60W/70V
Transformer Option
Features:
• Designed Specifically for the SRA-120
• Mounted, Dual 60W/70V Transformers and Terminal Strip
• Secondary Wiring Terminated to #8 Screw Terminal Block
• 14” 20 ga. Input Wire
The Ashly SRA-TR2 60W/70V transformer option allows the Ashly SRA-120 power amplifier
to drive 70 volt distributed sound loads. Mount the transformer option directly next to an SRA-120
for connecting to the amplifier outputs. Separate transformers are used for channel one and channel
two. Transformer input wires are pre-stripped for connecting to the SRA-120 binding posts, while
70 volt transformer outputs are factory wired to #8 screw teminals for speaker wire connections. The
following diagram shows the proper use of the SRA-TR2. Please note that the SRA-TR2 is not
compatible with other power amplifiers, only the Ashly SRA-120.
SRA-120
Made In USA
(Red)
(Blk)
Ch.2 Output Ch.1
(Red)
45W/Ch.@8
60W/Ch.@4
(Blk)
Stereo
Mono
Norm
Bridged
0dB
-10dB
Input
Sensitivity
Channel 2
In
ut
Input is active balanced.
If unbalanced conn ection is used,
round unused path.
be sure to
Input
Ground
Channel 1 (Mono
Input
To Amplifier Output Ch 2 To Amplifier Output Ch 1
Red = 4
Ω
Black = Com
Red = 4
Ω
Black = Com
70 Volt Output
Blue = 70V
Black = Com
Ch 2
Com Com
+
Ch 1
+
Blue = 70V
Black = Com
Caution: Risk Of Electric Shock.
Disconnect From Amplifier Outputs
Before Connecting Speakers.
Specifications:
Maximum W attage: 60 Watts (RMS) • Input: 4 ohms • Output: 70.7 Volts RMS •
Frequency Response: 50~15,000 Hz, +/- 2dB • Insertion Loss: 0.5dB • Termination: 14”, UL1015, 20 ga. lead
wire • Dimensions: 19.0” W x 3.5”H x 3.0”D • Net W eight: 5.0 lbs. • Shipping Weight: 7.0 lbs.
ASHLY AUDIO INC.
847 Holt Road Webster, NY 14580-9103 Phone: (585) 872-0010
Toll-Free: (800) 828-6308 Fax: (585) 872-0739
www.ashly.com
