Protea ne24.24M Matrix Processor|
Connecting and controlling an audio processor for networked systems has now been simplified with Ashly’s NE-Series Protea ne24.24M digital signal processor. This Network Enabled (NE) processor offers ease of use, setup and control using standard 10/100 Ethernet protocol and Protea NE Software. No special outboard control units are needed.
The ne24.24M Matrix Processor uses modular expansion cards to provide up to twenty-four channels of audio matrixing and processing. The base unit of­fers a four-input/four-output configuration. Each input and output expansion card has an individual DSP processor allowing you to expand the base unit’s total inputs or outputs four channels at a time. These cards are easily installed in the field without the need to reprogram the device.
Matrixing allows you to route any input to any output and control individual levels once they have been assigned. Fixed path architecture and extensive processing power per channel will reduce the amount of time it takes to set up your system. All programming is accomplished using Ashly’s Protea NE Software on a PC platform. No front panel controls and multi-level software security assures you a tamperproof audio system. Input channel processing blocks include Mic Preamp with Phantom Power, Gain, Delay, fifteen EQ Filters, Gate, Autoleveler and Ducker. Inputs may be configured as either mic or line level. Output channel processing blocks consist of a Cross Point Mixer, HPF/LPF, Delay, fifteen EQ Filters, Gain and Limiter. The cross point mixer in the output section allows you to route any input to any output at any level and mute any input at any output without affecting the true input configuration. The HPF/LPF block offers Bessel, Butterworth and Linkwitz-Riley filters with 12, 18, 24 and 48dB/octave slopes.
Whether you are designing or installing a system for corporate boardrooms, restaurants, courtrooms, houses of worship, left/center/right theatres, audi­toriums or conference centers, the Protea ne24.24M will more than satisfy your requirements for any zoned system requiring input/output matrixing with signal processing.
NE Series specifications
Preliminary Data 03/08
Features:
• 10/100 Ethernet and RS-232 com- puter interface Is standard
Extensive DSP Available
• Easy and intuitive user interface
• Mic/Line inputs
• 24-bit A/D–D/A audio resolution
• Up to 24 channels of audio processing
• 4x4 base unit configuration
• Expand inputs or outputs 4 channels per module
• Modules easily field installable
• Euroblock connectors for audio, preset recall, DC remote level control and data in/out
• 31 preset locations
• Four dedicated remote controls for Level, Preset Recall and Program mable Functions
• Third Party Control Friendly
• Input and output metering viewable in dBu
• Multi-level Security
• Five year worry-free warranty
• Safety/Compliance: (cTUVus, FCC, CE pending), RoHS
Rear panel:
10/100 Ethernet port
• RS-232 Port
Euroblock inputs
Euroblock outputs
• Remote level control
Preset Recall
Data in and out ports
Accessories
Four Channel Input Module Four Channel Output Module WR-1 2-ch Level Control WR-2 Four Position Switch WR-5 Programmable Selector RD/RW8 8-ch Level Control
SRA Series specifications
NE Series specifications

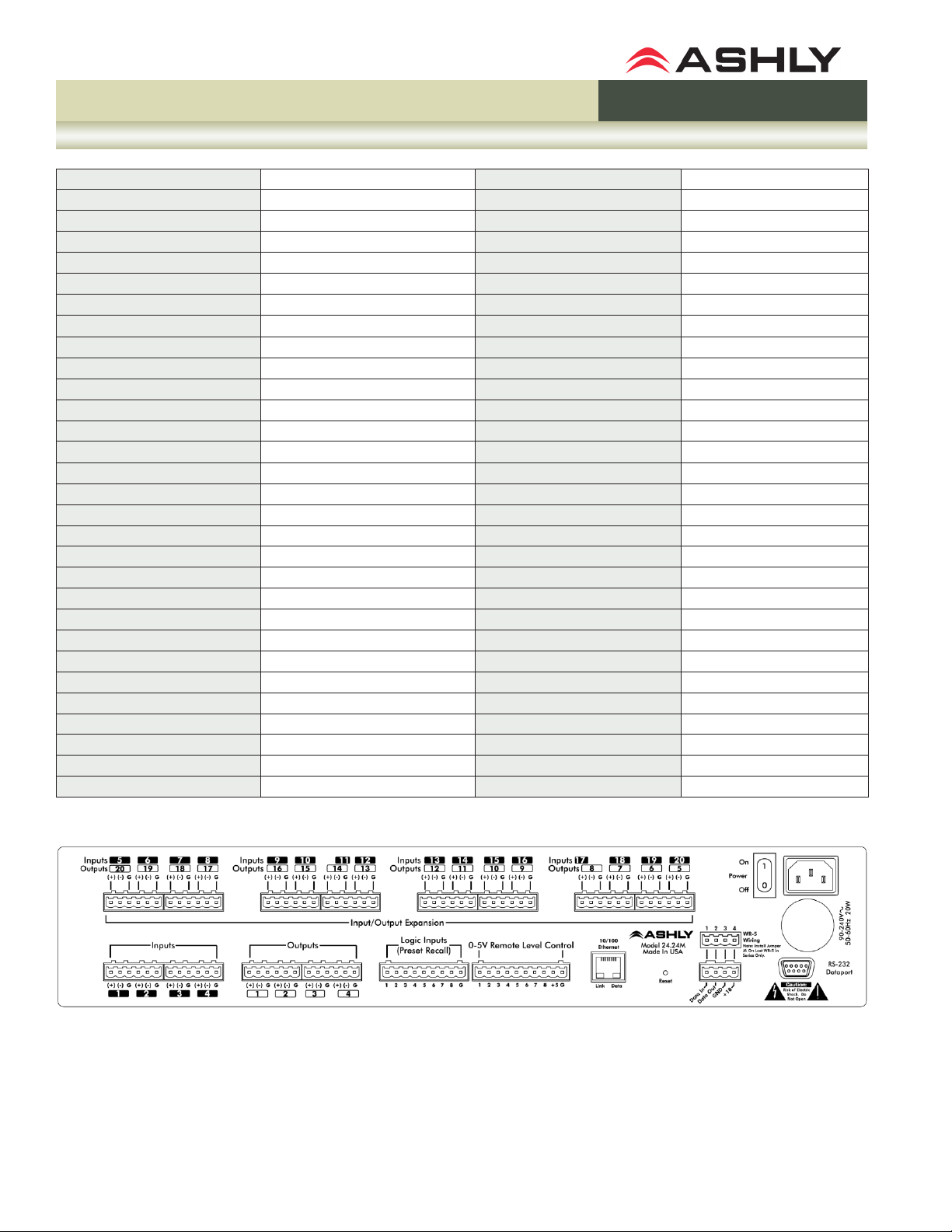

Protea ne24.24M Matrix Processor
Input Active Balanced, 18 kohms Crossover High Pass Filter Type Linkwitz-Riley, Bessel, Butterworth
Max Input Level +20dBu Crossover High Pass Filter Slope 12, 18, 24 and 48dB/Octave
Input Gain Range -50dB to +12dB, selectable polarity Crossover High Pass Filter Range Off to 20KHz, 1Hz incr
Output Active Servo Balanced, 112 ohms Crossover Low Pass Filter Type Linkwitz-Riley, Bessel, Butterworth
Max Output Level +20dBu Crossover Low Pass Filter Slope 12, 18, 24 and 48dB/Octave
Output Gain Range -50dB to +12dB, selectable polarity Crossover Low Pass Filter Range Linkwitz-Riley, Bessel, Butterworth
Frequency Response 20 Hz-20kHz, ±0.25 dB Maximum Input Delay 682.5ms, 20uS incr
THD <0.01% @1 kHz, +20 dBu Maximum Output Delay 682.5ms, 20uS incr
Dynamic Range >110 dB (20 Hz-20 kHz) unweighted Gate Threshold -80 to +20dBu, 1dBu incr
Output Noise <-90 dBu unweighted Gate Floor Off, -80 to 0dBu, 1dBu incr
Power Requirements 90 - 240VAC, 40W Gate Attack .2, .5, 1, 2, 5, 10, 20, 50ms/dB
Shipping Weight 13lbs (Maximum) Gate Release 5, 10, 20 50, 100, 200, 500, 1000ms/dB
Dimensions 19.0”L x 3.5”H x 8.5”D Autoleveler Target Level -40 to +20dBu, 1dBu incr
Connections Euroblock Autoleveler Ratio 1.2:1, 1.5:1, 2:1, 3:1, 4:1, 6:1, 10:1
Environmental 40-120 deg. F, (4-49 deg, C) noncondensing Autoleveler Hold Time 0, 1, 2, 3, 4, 5, 6Sec
Mic Preamp Gain 0dB, +20dB, +40dB, +60dB Autoleveler Threshold Below Target -30 to 0dB, 1dB incr
Mic Preamp Phantom Power +48VDC (9.6ma/input) Autoleveler Gain Increase Rate 5, 10, 20 50, 100, 200, 500, 1000ms/dB
Mic Preamp EIN -128dBu, 20-20KHz, 50 ohm source Autoleveler Gain Decrease Rate 5, 10, 20 50, 100, 200, 500, 1000ms/dB
Parametric EQ Bandwidth 1/64th Octave to 4 Octave Ducker Trigger Threshold -80 to +20dBu, 1dBu incr
Parametric EQ Range +15/-30dB, 0.1 dB incr Ducker Depth -30 to 0dBu, 1dBu incr
Parametric EQ Resolution
Low-Shelf EQ Slope 6 or 12dB/Octave Cross Point Mixer Gain -50 to +12dB, 1dB incr with Mute
Low-Shelf EQ Frequency Range 20Hz to 2KHz Compressor/Limiter Threshold -20dBu to +20dBu, 1dB incr
Low-Shelf EQ Range +/-15dB, 0.1dB incr Compressor/Limiter Ratio 1.2, 1.5, 2., 3, 4, 6, 10, 20,:1
High-Shelf EQ Slope 6 or 12dB/Octave Compressor/Limiter Atack 0.5ms to 50ms per dB
High-Shelf EQ Frequency Range 3.886KHz to 20KHz Compressor/Limiter Release 10ms to 1sec. per dB
High-Shelf EQ Range +/-15 dB, 0.1 dB incr Input A/D | Output D/A 24 bit
All Pass Filter Type
All Pass Filter
Frequency Range 20Hz to 20KHz Sample Rate 48kHz
1Hz
Second-Order (-180 degrees) DSP 24-bit Freescale
Ducker Release: 5, 10, 20 50, 100, 200, 500, 1000ms/dB
Propagation Delay 1.46ms
Notes: 0dBu = 0.775 VRMS All features and specifications are preliminary and subject to change before release
Ashly Audio, Inc. 847 Holt Road Webster, New York USA 14580-9103 P: 800-828-6308, +1-585-872-0010 F: +1-585-872-0739 www.ashly.com info@ashly.com
Specifications subject to change without prior notice. Latest information available at www.ashly.com. © 2008 Ashly Audio, Inc. Printed in U.S.A. 03/08
