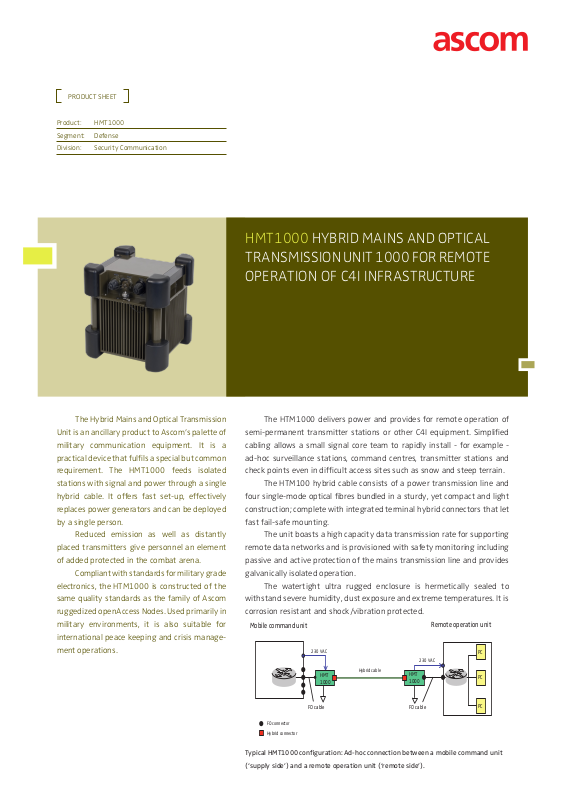

Ascom HMT1000 DATASHEET

PRODUCT SHEET

Hybrid cable

230 VAC

230 VAC

HMT
1000

HMT
1000

PC

PC

PC

FO connector

Hybrid connector

FO cable

FO cable

Mobile command unit

Remote operation unit

Product: HMT1000

Segment: Defense

Division: Security Communication

HMT1000 HYBRID MAINS AND OPTICAL

TRANSMISSION UNIT 1000 FOR REMOTE
OPERATION OF C4I INFRASTRUCTURE

The Hybrid Mains and Optical Transmission

Unit is an ancillary product to Ascom’s palette of

military communication equipment. It is a

practical device that fulfils a special but common

requirement. The HMT1000 feeds isolated

stations with signal and power through a single

hybrid cable. It offers fast set-up, effectively

replaces power generators and can be deployed

by a single person.

Reduced emission as well as distantly

placed transmitters give personnel an element

of added protected in the combat arena.

Compliant with standards for military grade

electronics, the HTM1000 is constructed of the

same quality standards as the family of Ascom

ruggedized openAccess Nodes. Used primarily in

military environments, it is also suitable for

international peace keeping and crisis manage-

ment operations.

The HTM1000 delivers power and provides for remote operation of

semi-permanent transmitter stations or other C4I equipment. Simplified

cabling allows a small signal core team to rapidly install - for example -

ad-hoc surveillance stations, command centres, transmitter stations and

check points even in difficult access sites such as snow and steep terrain.

The HTM100 hybrid cable consists of a power transmission line and

four single-mode optical fibres bundled in a sturdy, yet compact and light

construction; complete with integrated terminal hybrid connectors that let

fast fail-safe mounting.

The unit boasts a high capacity data transmission rate for supporting

remote data networks and is provisioned with safety monitoring including

passive and active protection of the mains transmission line and provides

galvanically isolated operation.

The watertight ultra rugged enclosure is hermetically sealed to

withstand severe humidity, dust exposure and extreme temperatures. It is

corrosion resistant and shock/vibration protected.

Typical HMT1000 configuration: Ad-hoc connection between a mobile command unit

(‘supply side’) and a remote operation unit (‘remote side’).

PRODUCT SHEET: HMT1000

Technical Specification

Mechanical data

Size (LxHxD)/mm 280x280x258

Weight approx. 25.5 kg

Power supply

Input voltage 230 VAC/50 Hz ± 10%

Outpu t voltag e 230 VAC/50 Hz ± 10% (regula ted)

Max. output power 1 kVA

Max. transmission

length

Environment

Operation temperature

Storage tempera ture

Relative humidity

(closed interfaces)

Waterproof IP65

Shock (device in trans-

port c ase)

Vibration (device in

transport cas e)

External I/O

Optical connectors

Hybrid e connec tor

EOW Microtel connection

3 km

-20... +55 °C MIL-STD-810F, 502.4, procedure II, 501.4,

procedure II

-30... +60 °C MIL-STD-810F, 502.4,

procedure I, 501.4, procedure I

95% MIL-STD-810E, 507.3, procedure I, cycle 3

MIL-STD-810F, method 516.5, proce dure I, impulse (20

g, 11ms, saw tooth)

MIL-STD-810F, method 514.5 (1.04 g RMS according to

514.5C-1, 5 - 500 Hz)

FO-4 (4 x single-mode FO, 1310 nm); HMT1000 to

exernal device

1 x pair copper, 4 x single -mode FO

(1310 nm; HMT1000 to HMT1000)

Control 1x RS232, 1x 10base-T

230 VAC In Binder plug, series 693, 7pol pin

230 VAC Out Binder plug, series 693, 7pol socket

User Interface

230 VAC switch On/Of f

EOW call

Status indication

Protection

Isolation to ground 3 kVAC

Power Transmission

Overload protection Electronic protection circuit

Approvals

EMC emissions MIL-STD 461E

EMC immuni ty

Tra nsp ort

Case Stock s absorbing carrying case

Hook on/of f button and

indicator

LEDs for

Status 230 VAC 
link 
local error 
remote error 
overload 

Mains power transmission galvanically isolated and

monito red with supervision sig nal

MIL-STD 461E

IEC 61000-4-2

IEC 61000-4-4

IEC 61000-6-2
