FIPS 140-2 Non-Proprietary Security Policy

for Aruba AP-120 Series and Dell W-AP120 Series

Wireless Access Points

Version 1.4

February 2012

Aruba Networks™

1322 Crossman Ave.

Sunnyvale, CA 94089-1113

1 INTRODUCTION .................................................................................................................................. 5

1.1 ARUBA DELL RELATIONSHIP ............................................................................................................. 5

1.2 ACRONYMS AND ABBREVIATIONS ..................................................................................................... 5

2 PRODUCT OVERVIEW ....................................................................................................................... 7

2.1 ARUBA AP-120 SERIES ..................................................................................................................... 7

2.1.1 Physical Description .................................................................................................................. 7

2.1.1.1 Dimensions/Weight ............................................................................................................ 8

2.1.1.2 Interfaces ............................................................................................................................. 8

2.1.1.3 Indicator LEDs .................................................................................................................... 8

3 MODULE OBJECTIVES .................................................................................................................... 10

3.1 SECURITY LEVELS ............................................................................................................................10

3.2 PHYSICAL SECURITY ........................................................................................................................10

3.2.1 Applying TELs ..........................................................................................................................10

3.2.2 Aruba AP-124 TEL Placement ..................................................................................................11

3.2.2.1 To detect opening of the chassis cover: .............................................................................11

3.2.2.2 To detect access to restricted ports ....................................................................................11

3.2.3 Aruba AP-125 TEL Placement ..................................................................................................13

3.2.3.1 To detect opening of the chassis cover: .............................................................................13

3.2.3.2 To detect access to restricted ports ....................................................................................13

3.2.4 Inspection/Testing of Physical Security Mechanisms ...............................................................16

3.3 MODES OF OPERATION .....................................................................................................................17

3.3.1 Configuring Remote AP FIPS Mode .........................................................................................17

3.3.2 Configuring Control Plane Security (CPSec) protected AP FIPS mode ..................................18

3.3.3 Configuring Remote Mesh Portal FIPS Mode ..........................................................................19

3.3.4 Configuring Remote Mesh Point FIPS Mode ............................................................................20

3.3.5 Verify that the module is in FIPS mode ....................................................................................21

3.4 OPERATIONAL ENVIRONMENT ..........................................................................................................21

3.5 LOGICAL INTERFACES ......................................................................................................................22

4 ROLES, AUTHENTICATION, AND SERVICES ............................................................................ 23

4.1 ROLES...............................................................................................................................................23

4.1.1 Crypto Officer Authentication ...................................................................................................23

4.1.2 User Authentication ..................................................................................................................24

4.1.3 Wireless Client Authentication .................................................................................................24

4.1.4 Strength of Authentication Mechanisms ...................................................................................24

4.2 SERVICES ..........................................................................................................................................26

4.2.1 Crypto Officer Services .............................................................................................................26

4.2.2 User Services ............................................................................................................................27

4.2.3 Wireless Client Services ............................................................................................................28

4.2.4 Unauthenticated Services..........................................................................................................29

5 CRYPTOGRAPHIC ALGORITHMS ................................................................................................ 30

6 CRITICAL SECURITY PARAMETERS .......................................................................................... 31

7 SELF TESTS ......................................................................................................................................... 35

1 Introduction

Aruba Part Number

Dell Corresponding Part Number

AP-124-F1

W-AP124-F1

AP-125-F1

W-AP125-F1

This document constitutes the non-proprietary Cryptographic Module Security Policy for the AP-120 series Wireless Access Points with FIPS 140-2 Level 2 validation from Aruba Networks. This security policy describes how the AP meets the security requirements of FIPS 140-2 Level 2, and how to place and maintain the AP in a secure FIPS 140-2 mode. This policy was prepared as part of the FIPS 140-2 Level 2 validation of the product.

FIPS 140-2 (Federal Information Processing Standards Publication 140-2, Security Requirements for Cryptographic Modules) details the U.S. Government requirements for cryptographic modules. More information about the FIPS 140-2 standard and validation program is available on the National Institute of Standards and Technology (NIST) Web-site at:

http://csrc.nist.gov/groups/STM/cmvp/index.html

This document can be freely distributed.

1.1 Aruba Dell Relationship

Aruba Networks is the OEM for the Dell PowerConnect W line of products. Dell products are identical to the Aruba products other than branding and Dell firmware is identical to Aruba firmware other than branding.

Table 1 - Corresponding Aruba and Dell Part Numbers

NOTE: References to Aruba, ArubaOS, Aruba AP-120 Series wireless access points apply to both the Aruba and Dell versions of these products and documentation.

1.2 Acronyms and Abbreviations

AES Advanced Encryption Standard AP Access Point CBC Cipher Block Chaining CLI Command Line Interface CO Crypto Officer

CPSec Control Plane Security protected

CSEC Communications Security Establishment Canada CSP Critical Security Parameter ECO External Crypto Officer EMC Electromagnetic Compatibility EMI Electromagnetic Interference FE Fast Ethernet GE Gigabit Ethernet GHz Gigahertz HMAC Hashed Message Authentication Code Hz Hertz IKE Internet Key Exchange IPSec Internet Protocol security KAT Known Answer Test KEK Key Encryption Key L2TP Layer-2 Tunneling Protocol

LAN Local Area Network LED Light Emitting Diode SHA Secure Hash Algorithm SNMP Simple Network Management Protocol SPOE Serial & Power Over Ethernet TEL Tamper-Evident Label TFTP Trivial File Transfer Protocol WLAN Wireless Local Area Network

2 Product Overview

Aruba Part Number

Dell Corresponding Part Number

AP-124-F1

W-AP124-F1

AP-125-F1

W-AP125-F1

This section introduces the various Aruba Wireless Access Points, providing a brief overview and summary of the physical features of each model covered by this FIPS 140-2 security policy.

2.1 Aruba AP-120 Series

This section introduces the Aruba AP-120 series Wireless Access Points (APs) with FIPS 140-2 Level 2 validation. It describes the purpose of the AP, its physical attributes, and its interfaces.

Figure 1 – Aruba AP-120 Series Wireless Access Points

The Aruba AP-124 and AP -125 are high-performance 802.11n (3x3) MIMO, dual-radio (concurrent

802.11a/n + b/g/n) indoor wireless access points capable of delivering combined wireless data rates of up to 600Mbps. These multi-function access points provide wireless LAN access, air monitoring, and wireless intrusion detection and prevention over the 2.4-2.5GHz and 5GHz RF spectrum. The access points work in conjunction with Aruba Mobility Controllers to deliver high-speed, secure user-centric network services in education, enterprise, finance, government, healthcare, and retail applications.

2.1.1 Physical Description

The Aruba AP-120 series Access Point is a multi-chip standalone cryptographic module consisting of hardware and firmware, all contained in a hard plastic case. The module contains IEEE 802.11a, 802.11b,

802.11g, and 802.11n transceivers, and up to 3 integrated or external omni-directional multi-band dipole antenna elements may be attached to the module.

The plastic case physically encloses the complete set of hardware and firmware components and represents the cryptographic boundary of the module.

The Access Point configuration tested during the cryptographic module testing included:

The exact firmware versions tested were:

 ArubaOS_6xx_6.1.2.3-FIPS  Dell_PCW_6xx_6.1.2.3-FIPS

2.1.1.1 Dimensions/Weight

Label

Function

Action

Status

PWR

AP power / ready status

Off

No power to AP

Red

Power applied, bootloader starting

Flashing - Green

Device booting, not ready

On - Green

Device ready

ENET 0

Ethernet Network Link Status / Activity

Off

Ethernet link unavailable

On - Amber

10/100Mbs Ethernet link negotiated

On - Green

1000Mbs Ethernet link negotiated

Flashing

Ethernet link activity

ENET 1 (Dual radio

only)

Ethernet Network Link Status / Activity

Off

Ethernet link unavailable

On - Amber

10/100Mbs Ethernet link negotiated

On - Green

1000Mbs Ethernet link negotiated

Flashing

Ethernet link activity

WLAN 2.4Ghz

2.4GHz Radio Status

Off

2.4GHz radio disabled

On - Amber

2.4GHz radio enabled in WLAN mode

On – Green

2.4GHz radio enabled in 802.11n mode

The AP has the following physical dimensions:

 4.9” x 5.13” x 2.0” (124mm x 130mm x 51mm)  15oz (0.42 Kgs)

2.1.1.2 Interfaces

The module provides the following network interfaces:

 2 x 10/100/1000 Base-T Ethernet (RJ45) Auto-sensing link speed and MDI/MDX  Antenna (model Aruba AP-124 only)

o 3 x RP-SMA antenna interfaces (supports up to 3x3 MIMO with spatial diversity)

 1 x RJ-45 console interface

The module provides the following power interfaces:

 48V DC 802.3af or 802.3at or PoE + interoperable Power-over-Ethernet (PoE) with intelli-source

PSE sourcing intelligence

 5V DC for external AC supplied power (adapter sold separately)

2.1.1.3 Indicator LEDs

There are 5 bicolor (power, ENET 0, 1, and WLAN) LEDs which operate as follows:

Table 1- Indicator LEDs

Label

Function

Action

Status

Flashing

2.4GHz Air monitor

WLAN 5Ghz

5GHz Radio Status

Off

5GHz radio disabled

On - Amber

5GHz radio enabled in WLAN mode

On – Green

5GHz radio enabled in 802.11n mode

Flashing

2.4GHz Air monitor

3 Module Objectives

Section

Section Title

Level

Cryptographic Module Specification

2 2 Cryptographic Module Ports and Interfaces

2 3 Roles, Services, and Authentication

Finite State Model

Physical Security

2 6 Operational Environment

N/A 7 Cryptographic Key Management

2 8 EMI/EMC

2 9 Self-tests

Design Assurance

Mitigation of Other Attacks

N/A

This section describes the assurance levels for each of the areas described in the FIPS 140-2 Standard. In addition, it provides information on placing the module in a FIPS 140-2 approved configuration.

3.1 Security Levels

3.2 Physical Security

The Aruba Wireless AP is a scalable, multi-processor standalone network device and is enclosed in a robust plastic housing. The AP enclosure is resistant to probing (please note that this feature has not been tested as part of the FIPS 140-2 validation) and is opaque within the visible spectrum. The enclosure of the AP has been designed to satisfy FIPS 140-2 Level 2 physical security requirements.

3.2.1 Applying TELs

The Crypto Officer is responsible for securing and having control at all times of any unused tamper evident labels. The Crypto Officer should employ TELs as follows:

 Before applying a TEL, make sure the target surfaces are clean and dry.  Do not cut, trim, punch, or otherwise alter the TEL.  Apply the wholly intact TEL firmly and completely to the target surfaces.  Ensure that TEL placement is not defeated by simultaneous removal of multiple modules.  Allow 24 hours for the TEL adhesive seal to completely cure.  Record the position and serial number of each applied TEL in a security log.

For physical security, the AP requires Tamper-Evident Labels (TELs) to allow detection of the opening of the device, and to block the serial console port (on the bottom of the device). To protect the device from tampering, TELs should be applied by the Crypto Officer as pictured below:

3.2.2 Aruba AP-124 TEL Placement

This section displays all the TEL locations on the Aruba AP-124. The AP124 requires a minimum of 3 TELs to be applied as follows:

3.2.2.1 To detect opening of the chassis cover:

1. Spanning the left chassis cover and the top and bottom chassis covers

2. Spanning the right chassis cover and the top and bottom chassis covers

3.2.2.2 To detect access to restricted ports

3. Spanning the serial port

The tamper-evident labels shall be installed for the module to operate in a FIPS approved mode of operation.

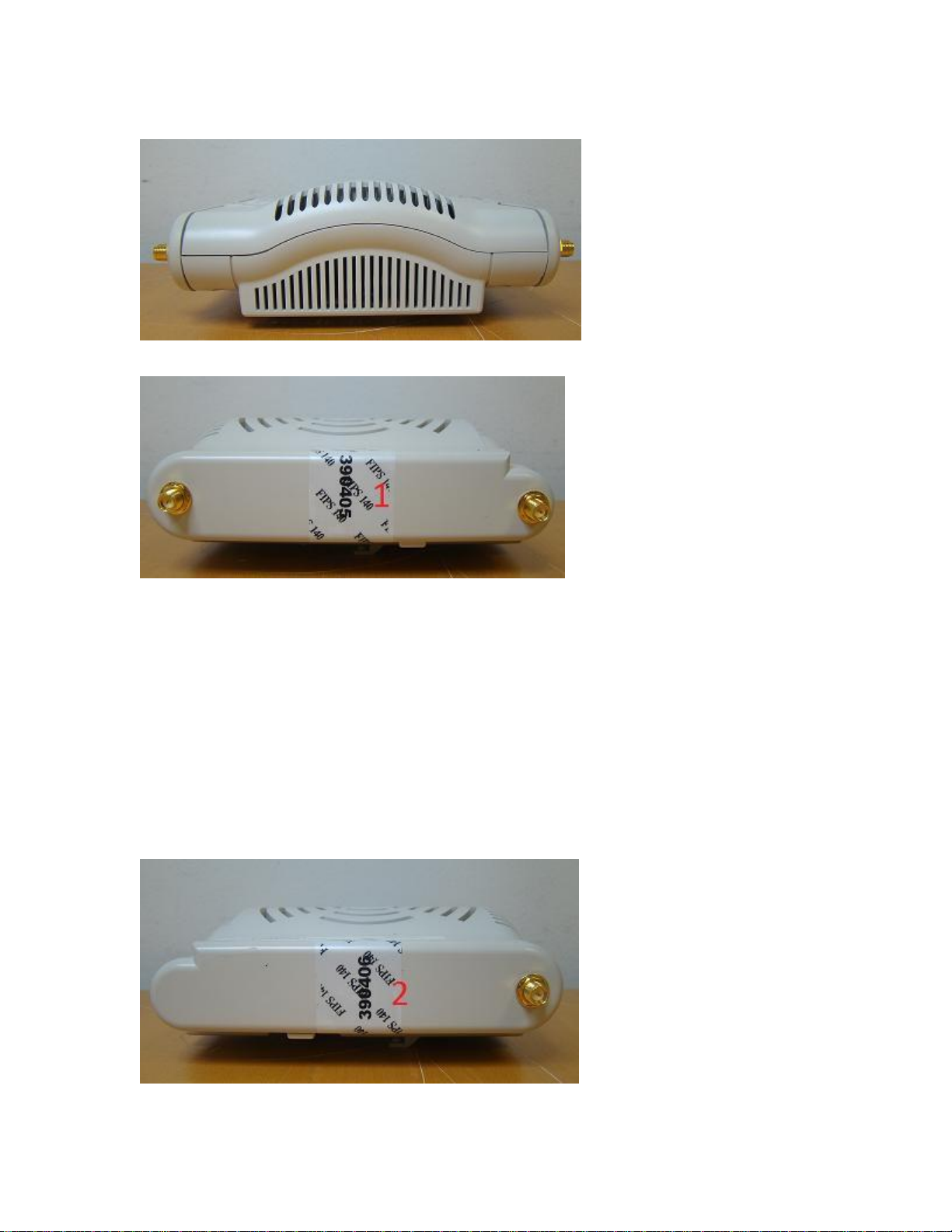

Following is the TEL placement for the Aruba AP-124:

Figure 1: AP-124 Front view

Figure 2: AP-124 Back view

Figure 3: AP-124 Left view

Figure 4: AP-124 Right view

Figure 5: AP-124 Top view

Figure 6: AP-124 Bottom view

3.2.3 Aruba AP-125 TEL Placement

This section displays all the TEL locations on the Aruba AP-125. The AP125 requires a minimum of 3 TELs to be applied as follows:

3.2.3.1 To detect opening of the chassis cover:

1. Spanning the top and bottom covers on the left side

2. Spanning the top and bottom covers on the right

3.2.3.2 To detect access to restricted ports

3. Spanning the serial port

The tamper-evident labels shall be installed for the module to operate in a FIPS approved mode of operation.

Following is the TEL placement for the Aruba AP-125:

Figure 7: AP-125 Front view

Figure 8: AP-125 Back view

Figure 9: AP-125 Left view

Figure 10: AP-125 Right view

Figure 11: AP-125 Top view

Physical Security Mechanism

Recommended Test Frequency

Guidance

Tamper-evident labels (TELs)

Once per month

Examine for any sign of removal, replacement, tearing, etc. See images above for locations of TELs

Opaque module enclosure

Once per month

Examine module enclosure for any evidence of new openings or other access to the module internals.

Figure 12: AP-125 Bottom view

3.2.4 Inspection/Testing of Physical Security Mechanisms

3.3 Modes of Operation

The module has the following FIPS approved modes of operations:

• Remote AP (RAP) FIPS mode – When the module is configured as a Remote AP, it is intended to

be deployed in a remote location (relative to the Mobility Controller). The module provides cryptographic processing in the form of IPSec for all traffic to and from the Mobility Controller.

• Control Plane Security (CPSec) protected AP FIPS mode – When the module is configured as a

Control Plane Security protected AP it is intended to be deployed in a local/private location (LAN, WAN, MPLS) relative to the Mobility Controller). The module provides cryptographic processing in the form of IPSec for all Control traffic to and from the Mobility Controller.

• Remote Mesh Portal FIPS mode – When the module is configured in Mesh Portal mode, it is

intended to be connected over a physical wire to the mobility controller. These modules serve as the connection point between the Mesh Point and the Mobility Controller. Mesh Portals communicate with the Mobility Controller through IPSec and with Mesh Points via 802.11i session. The Crypto Officer role is the Mobility Controller that authenticates via IKEv1/IKEv2 pre-shared key or RSA certificate authentication method, and Users are the "n" Mesh Points that authenticate via 802.11i preshared key.

• Mesh Point FIPS MODE – an AP that establishes all wireless path to the Remote Mesh portal in

FIPS mode over 802.11 and an IPSec tunnel via the Remote Mesh Portal to the controller.

This section explains how to place the module in FIPS mode in either Remote AP FIPS mode, Control Plane Security AP FIPS Mode, Remote Mesh Portal FIPS mode or Mesh Point FIPS Mode. How to verify that it is in FIPS mode. An important point in the Aruba APs is that to change configurations from any one mode to any other mode requires the module to be re-provisioned and rebooted before any new configured mode can be enabled.

The access point is managed by an Aruba Mobility Controller in FIPS mode, and access to the Mobility Controller’s administrative interface via a non-networked general purpose computer is required to assist in placing the module in FIPS mode. The controller used to provision the AP is referred to below as the “staging controller”. The staging controller must be provisioned with the appropriate firmware image for the module, which has been tested to FIPS 140-2, prior to initiating AP provisioning.

After setting up the Access Point by following the basic installation instructions in the module User Manual, the Crypto Officer performs the following steps:

3.3.1 Configuring Remote AP FIPS Mode

1. Apply TELs according to the directions in section 3.2

2. Log into the administrative console of the staging controller

3. Deploying the AP in Remote FIPS mode configure the controller for supporting Remote APs, For

detailed instructions and steps, see Section “Configuring the Secure Remote Access Point Service” in Chapter “Remote Access Points” of the Aruba OS User Manual.

4. Enable FIPS mode on the controller. This is accomplished by going to the Configuration > Network

> Controller > System Settings page (this is the default page when you click the Configuration tab), and clicking the FIPS Mode for Mobility Controller Enable checkbox.

5. Enable FIPS mode on the AP. This accomplished by going to the Configuration > Wireless > AP

Configuration > AP Group page. There, you click the Edit button for the appropriate AP group, and then select AP > AP System Profile. Then, check the “Fips Enable” box, check “Apply”, and save the configuration.

6. If the staging controller does not provide PoE, either ensure the presence of a PoE injector for the

LAN connection between the module and the controller, or ensure the presence of a DC power supply appropriate to the particular model of the module.

7. Connect the module via an Ethernet cable to the staging controller; note that this should be a direct

connection, with no intervening network or devices; if PoE is being supplied by an injector, this represents the only exception. That is, nothing other than a PoE injector should be present between the module and the staging controller.

8. Once the module is connected to the controller by the Ethernet cable, navigate to the

Configuration > Wireless > AP Installation page, where you should see an entry for the AP. Select

that AP, click the “Provision” button, which will open the provisioning window. Now provision

the AP as Remote AP by filling in the form appropriately. Detailed steps are listed in Section

“Provisioning an Individual AP” of Chapter “The Basic User-Centric Networks” of the Aruba OS User Guide. Click “Apply and Reboot” to complete the provisioning process.

a. During the provisioning process as Remote AP if Pre-shared key is selected to be the

Remote IP Authentication Method, the IKE pre-shared key (which is at least 8 characters in length) is input to the module during provisioning. Generation of this key is outside the scope of this policy. In the initial provisioning of an AP, this key will be entered in plaintext; subsequently, during provisioning, it will be entered encrypted over the secure IPSec session. If certificate based authentication is chosen, AP’s RSA key pair is used to authenticate AP to controller during IPSec. AP’s RSA private key is contained in the AP’s non volatile memory and is generated at manufacturing time in factory.

9. Via the logging facility of the staging controller, ensure that the module (the AP) is successfully

provisioned with firmware and configuration

10. Terminate the administrative session

11. Disconnect the module from the staging controller, and install it on the deployment network; when

power is applied, the module will attempt to discover and connect to an Aruba Mobility Controller on the network.

3.3.2 Configuring Control Plane Security (CPSec) protected AP FIPS mode

1. Apply TELs according to the directions in section 3.2

2. Log into the administrative console of the staging controller

3. Deploying the AP in CPSec AP mode, configure the staging controller with CPSec under

Configuration > Controller > Control Plane Security tab. AP will authenticate to the controller using certificate based authentication to establish IPSec. AP is configured with RSA key pair at manufacturing. AP’s certificate is signed by Aruba Certification Authority (trusted by all Aruba

controllers) and the AP’s RSA private key is stored in non-volatile memory. Refer to “Configuring Control Plane Security” Section in ArubaOS User Manual for details on the steps.

4. Enable FIPS mode on the controller. This is accomplished by going to the Configuration > Network

> Controller > System Settings page (this is the default page when you click the Configuration tab), and clicking the FIPS Mode for Mobility Controller Enable checkbox.

5. Enable FIPS mode on the AP. This accomplished by going to the

Configuration > Wireless > AP Configuration > AP Group page. There, you click the Edit button for the appropriate AP group, and then select AP > AP System Profile. Then, check the “Fips Enable” box, check

“Apply”, and save the configuration.

6. If the staging controller does not provide PoE, either ensure the presence of a PoE injector for the

LAN connection between the module and the controller, or ensure the presence of a DC power supply appropriate to the particular model of the module

7. Connect the module via an Ethernet cable to the staging controller; note that this should be a direct

8. Once the module is connected to the controller by the Ethernet cable, navigate to the

Configuration > Wireless > AP Installation page, where you should see an entry for the AP. Select

that AP, click the “Provision” button, which will open the provisioning window. Now provision

the CPSec Mode by filling in the form appropriately. Detailed steps are listed in Section

“Provisioning an Individual AP” of Chapter “The Basic User-Centric Networks” of the Aruba OS User Guide. Click “Apply and Reboot” to complete the provisioning process.

a. For CPSec AP mode, the AP always uses certificate based authentication to establish

IPSec connection with controller. AP uses the RSA key pair assigned to it at manufacturing to authenticate itself to controller during IPSec. Refer to “Configuring Control Plane Security” Section in Aruba OS User Manual for details on the steps to provision an AP with CPSec enabled on controller.

9. Via the logging facility of the staging controller, ensure that the module (the AP) is successfully

provisioned with firmware and configuration

10. Terminate the administrative session

11. Disconnect the module from the staging controller, and install it on the deployment network; when

power is applied, the module will attempt to discover and connect to an Aruba Mobility Controller on the network.

3.3.3 Configuring Remote Mesh Portal FIPS Mode

1. Apply TELs according to the directions in section 3.2

2. Log into the administrative console of the staging controller

3. Deploying the AP in Remote Mesh Portal mode, create the corresponding Mesh Profiles on the

controller as described in detail in Section “Mesh Profiles” of Chapter “Secure Enterprise Mesh” of the Aruba OS User Manual.

a. For mesh configurations, configure a WPA2 PSK which is 16 ASCII characters or 64

hexadecimal digits in length; generation of such keys is outside the scope of this policy.

4. Enable FIPS mode on the controller. This is accomplished by going to the Configuration > Network

> Controller > System Settings page (this is the default page when you click the Configuration tab), and clicking the FIPS Mode for Mobility Controller Enable checkbox.

5. Enable FIPS mode on the AP. This accomplished by going to the Configuration > Wireless > AP

6. If the staging controller does not provide PoE, either ensure the presence of a PoE injector for the

LAN connection between the module and the controller, or ensure the presence of a DC power supply appropriate to the particular model of the module.

7. Connect the module via an Ethernet cable to the staging controller; note that this should be a direct

connection, with no intervening network or devices; if PoE is being supplied by an injector, this

represents the only exception. That is, nothing other than a PoE injector should be present between the module and the staging controller.

8. Once the module is connected to the controller by the Ethernet cable, navigate to the

Configuration > Wireless > AP Installation page, where you should see an entry for the AP. Select

that AP, click the “Provision” button, which will open the provisioning window. Now provision

the AP as Remote Mesh Portal by filling in the form appropriately. Detailed steps are listed in Section “Provisioning an Individual AP” of Chapter “The Basic User-Centric Networks” of the Aruba OS User Guide. Click “Apply and Reboot” to complete the provisioning process.

a. During the provisioning process as Remote Mesh Portal, if Pre-shared key is selected to

be the Remote IP Authentication Method, the IKE pre-shared key (which is at least 8 characters in length) is input to the module during provisioning. Generation of this key is outside the scope of this policy. In the initial provisioning of an AP, this key will be entered in plaintext; subsequently, during provisioning, it will be entered encrypted over the secure IPSec session. If certificate based authentication is chosen, AP’s RSA key pair is used to authenticate AP to controller during IPSec. AP’s RSA private key is contained in the AP’s non volatile memory and is generated at manufacturing time in factory.

b. During the provisioning process as Remote Mesh Portal, the WPA2 PSK is input to the

module via the corresponding Mesh cluster profile. This key is stored on flash encrypted.

9. Via the logging facility of the staging controller, ensure that the module (the AP) is successfully

provisioned with firmware and configuration

10. Terminate the administrative session

11. Disconnect the module from the staging controller, and install it on the deployment network; when

power is applied, the module will attempt to discover and connect to an Aruba Mobility Controller on the network.

To verify that the module is in FIPS mode, do the following:

1. Log into the administrative console of the Aruba Mobility Controller

2. Verify that the module is connected to the Mobility Controller

3. Verify that the module has FIPS mode enabled by issuing command “show ap ap-name <ap-

name> config”

4. Terminate the administrative session

3.3.4 Configuring Remote Mesh Point FIPS Mode

1. Apply TELs according to the directions in section 3.2

2. Log into the administrative console of the staging controller

3. Deploying the AP in Remote Mesh Point mode, create the corresponding Mesh Profiles on the

controller as described in detail in Section “Mesh Points” of Chapter “Secure Enterprise Mesh” of the Aruba OS User Manual.

a. For mesh configurations, configure a WPA2 PSK which is 16 ASCII characters or 64

hexadecimal digits in length; generation of such keys is outside the scope of this policy.

4. Enable FIPS mode on the controller. This is accomplished by going to the Configuration > Network

> Controller > System Settings page (this is the default page when you click the Configuration tab), and clicking the FIPS Mode for Mobility Controller Enable checkbox.

5. Enable FIPS mode on the AP. This accomplished by going to the Configuration > Wireless > AP

Configuration > AP Group page. There, you click the Edit button for the appropriate AP group, and then

select AP > AP System Profile. Then, check the “Fips Enable” box, check “Apply”, and save the configuration.

6. If the staging controller does not provide PoE, either ensure the presence of a PoE injector for the

LAN connection between the module and the controller, or ensure the presence of a DC power supply appropriate to the particular model of the module.

7. Connect the module via an Ethernet cable to the staging controller; note that this should be a direct

8. Once the module is connected to the controller by the Ethernet cable, navigate to the

Configuration > Wireless > AP Installation page, where you should see an entry for the AP. Select

that AP, click the “Provision” button, which will open the provisioning window. Now provision

the AP as Remote Mesh Portal by filling in the form appropriately. Detailed steps are listed in

Section “Provisioning an Individual AP” of Chapter “The Basic User-Centric Networks” of the Aruba OS User Guide. Click “Apply and Reboot” to complete the provisioning process.

a. During the provisioning process as Remote Mesh Point, if Pre-shared key is selected to

b. During the provisioning process as Mesh Point, the WPA2 PSK is input to the module via

the corresponding Mesh cluster profile. This key is stored on flash encrypted.

9. Via the logging facility of the staging controller, ensure that the module (the AP) is successfully

provisioned with firmware and configuration

10. Terminate the administrative session

11. Disconnect the module from the staging controller, and install it on the deployment network; when

power is applied, the module will attempt to discover and connect to an Aruba Mobility Controller on the network.

3.3.5 Verify that the module is in FIPS mode

For all the approved modes of operations in either Remote AP FIPS mode, Control Plane Security AP FIPS Mode, Remote Mesh Portal FIPS mode or Mesh Point FIPS Mode do the following to verify the module is in FIPS mode:

1. Log into the administrative console of the Aruba Mobility Controller

2. Verify that the module is connected to the Mobility Controller

3. Verify that the module has FIPS mode enabled by issuing command “show ap ap-name <ap-

name> config”

4. Terminate the administrative session

3.4 Operational Environment

The operational environment is non-modifiable. The Operating System (OS) is Linux, a real-time multithreaded operating system that supports memory protection between processes. Access to the underlying

Linux implementation is not provided directly. Only Aruba-provided Crypto Officer interfaces are used.

FIPS 140-2 Logical Interface

Module Physical Interface

Data Input Interface

10/100/1000 Ethernet Ports

802.11a/b/g/n Radio Transceiver

Data Output Interface

10/100/1000 Ethernet Ports

802.11a/b/g/n Radio Transceiver

Control Input Interface

10/100/1000 Ethernet Ports (PoE)

Status Output Interface

10/100/1000 Ethernet Ports

802.11a/b/g/n Radio Transceiver LEDs

Power Interface

Power Supply PoE

There is no user interface provided.

3.5 Logical Interfaces

The physical interfaces are divided into logical interfaces defined by FIPS 140-2 as described in the following table.

Table 2 - FIPS 140-2 Logical Interfaces

Data input and output, control input, status output, and power interfaces are defined as follows:

 Data input and output are the packets that use the networking functionality of the module.  Control input consists of manual control inputs for power and reset through the power interfaces

(5V DC or PoE). It also consists of all of the data that is entered into the access point while using the management interfaces.

 Status output consists of the status indicators displayed through the LEDs, the status data that is

output from the module while using the management interfaces, and the log file.

o LEDs indicate the physical state of the module, such as power-up (or rebooting),

utilization level, and activation state. The log file records the results of self-tests, configuration errors, and monitoring data.

 A power supply may be used to connect the electric power cable. Operating power may also be

provided via Power Over Ethernet (POE) device when connected. The power is provided through the connected Ethernet cable.

 Console port is disabled by covering TEL when operating in each of FIPS modes.

The module distinguishes between different forms of data, control, and status traffic over the network ports by analyzing the packet headers and contents.

4 Roles, Authentication and Services

4.1 Roles

The module supports the roles of Crypto Officer, User, and Wireless Client; no additional roles (e.g., Maintenance) are supported. Administrative operations carried out by the Aruba Mobility Controller map to the Crypto Officer role. The Crypto Officer has the ability to configure, manage, and monitor the module, including the configuration, loading, and zeroization of CSPs.

Defining characteristics of the roles depend on whether the module is configured as a Remote AP, CPSec AP or as a Mesh AP:

 Remote AP:

o Crypto Officer role: the Crypto Officer is the Aruba Mobility Controller that has the

ability to configure, manage, and monitor the module, including the configuration, loading, and zeroization of CSPs.

o User role: in the standard configuration, the User operator shares the same services and

authentication techniques as the Mobility Controller in the Crypto Officer role.

o Wireless Client role: in Remote AP configuration, a wireless client can create a

connection to the module using WPA2 and access wireless network access/bridging services. In advanced Remote AP configuration, when Remote AP cannot communicate with the controller, the wireless client role authenticates to the module via WPA2-PSK only.

 CPSec AP:

o Crypto Officer role: the Crypto Officer is the Aruba Mobility Controller that has the

ability to configure, manage, and monitor the module, including the configuration, loading, and zeroization of CSPs.

o User role: in the standard configuration, the User operator shares the same services and

authentication techniques as the Mobility Controller in the Crypto Officer

o Wireless Client role: in CPSec AP configuration, a wireless client can create a connection

to the module using WPA2 and access wireless network access services.

 Mesh AP (Mesh Point or Remote Mesh Portal configuration):

o Crypto Officer role: the Crypto Officer role is the Aruba Mobility Controller that has the

ability to configure, manage, and monitor the module, including the configuration, loading, and zeroization of CSPs.

o User role: the second (or third, or nth) AP in a given mesh cluster o Wireless Client role: in Mesh AP configuration, a wireless client can create a connection

to the module using WPA2 and access wireless network access services.

4.1.1 Crypto Officer Authentication

The Aruba Mobility Controller implements the Crypto Officer role. Connections between the module and the mobility controller are protected using IPSec. Crypto Officer authentication is accomplished via either proof of possession of the IKE preshared key or AP’s RSA key pair, which occurs during the IKE key exchange. In CPSec AP mode, AP can only authenticate using RSA key (stored in non-volatile memory).

4.1.2 User Authentication

Authentication Mechanism

Mechanism Strength

IKE shared secret (CO role)

For IKE, there are a 95^8 (=6.63 x 10^15) possible preshared keys. In order to test the guessed key, the attacker must complete an IKE aggressive mode exchange with the module. IKE aggressive mode consists of a 3 packet

exchange, but for simplicity, let’s ignore the final packet sent from the AP to

the attacker. An IKE aggressive mode initiator packet with a single transform, using

Diffie-Hellman group 2, and having an eight character group name has an IKE packet size of 256 bytes. Adding the eight byte UDP header and 20 byte IP header gives a total size of 284 bytes (2272 bits).

The response packet is very similar in size, except that it also contains the HASH_R payload (an additional 16 bytes), so the total size of the second packet is 300 bytes (2400 bits).

Assuming a link speed of 1Gbits/sec (this is the maximum rate supported by the module), this gives a maximum idealized guessing rate of 60,000,000,000 / 4,672 = 12,842,466 guesses per minute. This means the odds of guessing a correct key in one minute is less than 12,842,466/(6.63x10^15) = 1.94 x 10^9, which is much less than 1 in 10^5.

Authentication for the User role depends on the module configuration. When the module is configured as a Mesh AP, the User role is authenticated via the WPA2 preshared key. When the module is configured as a Remote AP, the User role is authenticated via the same IKE pre-shared key/RSA key pair that is used by the Crypto Officer. In CPSec AP mode, User authentication is accomplished via same RSA key pair that is used by the Crypto Officer.

4.1.3 Wireless Client Authentication

The wireless client role, in the Remote AP, Mesh AP or CPSec AP configuration authenticates to the module via WPA2. WEP and/or Open System configurations are not permitted in FIPS mode. In advanced Remote AP configuration, when Remote AP cannot communicate with the controller, the wireless client role authenticates to the module via WPA2-PSK only.

4.1.4 Strength of Authentication Mechanisms

The following table describes the relative strength of each supported authentication mechanism.

Authentication Mechanism

Mechanism Strength

Wireless Client WPA2-PSK (Wireless Client Role)

For WPA2-PSK there are at least 95^16 (=4.4 x 10^31) possible combinations. In order to test a guessed key, the attacker must complete the 4-way handshake with the AP. Prior to completing the 4-way handshake, the attacker must complete the 802.11 association process. That process involves the following packet exchange:

 Attacker sends Authentication request (at least 34 bytes)  AP sends Authentication response (at least 34 bytes)  Attacker sends Associate Request (at least 36 bytes)  AP sends Associate Response (at least 36 bytes)

Total bytes sent: at least 140. Note that since we do not include the actual 4way handshake, this is less than half the bytes that would actually be sent, so the numbers we derive will absolutely bound the answer.

The theoretical bandwidth limit for IEEE 802.11n is 300Mbit, which is 37,500,000 bytes/sec. In the real world, actual throughput is significantly less than this, but we will use this idealized number to ensure that our estimate is very conservative.

This means that the maximum number of associations (assume no delays, no inter-frame gaps) that could be completed is less than 37,500,000/214 = 267,857 per second, or 16,071,429 associations per minute. This means that an attacker could certainly not try more than this many keys per second (it would actually be MUCH less, due to the added overhead of the 4-way handshake in each case), and the probability of a successful attack in any 60 second interval MUST be less than 16,071,429/(4.4 x 10^31), or roughly 1 in 10^25, which is much less than 1 in 10^5.

Mesh AP WPA2 PSK (User role)

Same as Wireless Client WPA2-PSK above

Certificate based authentication –RSA key pair (CO role)

The module supports RSA 2048-bit keys, which has at least 112-bits of equivalent strength. The probability of a successful random attempt is 1/(2^112), which is less than 1/1,000,000. The probability of a success with multiple consecutive attempts in a one-minute period is 5.6e7/(2^112), which is less than 1/100,000.

4.2 Services

Service

Description

CSPs Accessed (see section 6

below for complete description of CSPs)

FIPS mode enable/disable

The CO selects/de-selects FIPS mode as a configuration option.

None.

Key Management

The CO can configure/modify the IKE shared secret (The RSA private key is protected by nonvolatile memory and cannot be modified) and the WPA2 PSK (used in advanced Remote AP configuration). Also, the CO/User implicitly uses the KEK to read/write configuration to nonvolatile memory.

 IKE shared secret  WPA2 PSK  KEK

Remotely reboot module

The CO can remotely trigger a reboot

KEK is accessed when configuration is read during reboot. The firmware verification key and firmware verification CA key are accessed to validate firmware prior to boot.

Self-test triggered by CO/User reboot

The CO can trigger a programmatic reset leading to self-test and initialization

KEK is accessed when configuration is read during reboot. The firmware verification key and firmware verification CA key are accessed to validate firmware prior to boot.

Update module firmware

The CO can trigger a module firmware update

The firmware verification key and firmware verification CA key are accessed to validate firmware prior to writing to flash.

Configure non-security related module parameters

CO can configure various operational parameters that do not relate to security

None.

The module provides various services depending on role. These are described below.

4.2.1 Crypto Officer Services

The CO role in each of FIPS modes defined in section 3.3 has the same services.

Service

Description

CSPs Accessed (see section 6

below for complete description of CSPs)

Creation/use of secure management session between module and CO

The module supports use of IPSec for securing the management channel.

 IKE Preshared Secret  DH Private Key  DH Public Key  IPSec session encryption

keys

 IPSec session

authentication keys

 RSA key pair

Creation/use of secure mesh channel

The module requires secure connections between mesh points using 802.11i

 WPA2-PSK  802.11i PMK  802.11i PTK  802.11i EAPOL MIC

Key

 802.11i EAPOL

Encryption Key

 802.11i AES-CCM key  802.11i GMK  802.11i GTK  802.11i AES-CCM key

System Status

CO may view system status information through the secured management channel

See creation/use of secure management session above.

Service

Description

CSPs Accessed (see section 6

below for complete description of CSPs)

Generation and use of 802.11i cryptographic keys

When the module is in mesh configuration, the inter-module mesh links are secured with

802.11i.

 802.11i PMK  802.11i PTK  802.11i EAPOL MIC

Key

 802.11i EAPOL

Encryption Key

4.2.2 User Services

The User services defined in Remote AP FIPS mode and CPSec protected AP FIPS mode shares the same services with the Crypto Officer role, please refer to Section 4.2.1, “Crypto Officer Services”. The following services are provided for the User role defined in Remote Mesh Portal FIPS mode and Remote Mesh Point FIPS mode.

Service

Description

CSPs Accessed (see section 6

below for complete description of CSPs)

 802.11i AES-CCM key  802.11i GMK  802.11i GTK

Use of WPA preshared key for establishment of IEEE 802.11i keys

When the module is in mesh configuration, the inter-module mesh links are secured with

802.11i. This is authenticated with a shared secret

 WPA2 PSK

Service

Description

CSPs Accessed (see section 6

below for complete description of CSPs)

Generation and use of 802.11i cryptographic keys

In all modes, the links between the module and wireless client are secured with 802.11i.

 802.11i PMK  802.11i PTK  802.11i EAPOL MIC

Key

 802.11i EAPOL

Encryption Key

 802.11i AES-CCM key  802.11i GMK  802.11i GTK

Use of WPA preshared key for establishment of IEEE 802.11i keys

When the module is in advanced Remote AP configuration, the links between the module and the wireless client are secured with

802.11i. This is authenticated with a shared secret only.

 WPA2 PSK

Wireless bridging services

The module bridges traffic between the wireless client and the wired network.

None

4.2.3 Wireless Client Services

The following module services are provided for the Wireless Client role in each of FIPS approved modes.

4.2.4 Unauthenticated Services

The module provides the following unauthenticated services, which are available regardless of role. No CSPs are accessed by these services.

 System status – SYSLOG and module LEDs  802.11 a/b/g/n  FTP  TFTP  NTP  GRE tunneling of 802.11 wireless user frames (when acting as a “Local AP”)  Reboot module by removing/replacing power  Self-test and initialization at power-on

5 Cryptographic Algorithms

FIPS-approved cryptographic algorithms have been implemented in hardware and firmware. The firmware supports the following cryptographic implementations.

 ArubaOS OpenSSL AP Module implements the following FIPS-approved algorithms:

o AES (Cert. #1851) o HMAC (Cert. #1099) o RNG (Cert. #970) o RSA (Cert. #934) o SHS (Cert. #1628) o Triple-DES (Cert. #1199)

 ArubaOS Module implements the following FIPS-approved algorithms:

o AES (Cert. #1850) o HMAC (Cert. #1098) o RNG (Cert. #969) o RSA (Cert. #933) o SHS (Cert. #1627) o Triple-DES (Cert. #1198)

 ArubaOS UBOOT Bootloader implements the following FIPS-approved algorithms:

o RSA (Cert. #935) o SHS (Cert. #1629)

Hardware encryption acceleration is provided by Cavium Octeon 5010 for bulk cryptographic operations for the following FIPS-approved algorithms:

 AES (Cert. #861)  HMAC (Cert. #478)  SHS (Cert. #856)  Triple-DES (Cert. #708)

Non-FIPS Approved Algorithms

The cryptographic module implements the following non-approved algorithms that are not permitted for use in the FIPS 140-2 mode of operations:

 MD5

In addition, within the FIPS Approved mode of operation, the module supports the following allowed key establishment schemes:

Diffie-Hellman (key agreement; key establishment methodology provides 80 bits of encryption strength)

6 Critical Security Parameters

CSP

CSP TYPE

GENERATION

STORAGE

And

ZEROIZATI

USE

Key Encryption Key (KEK)

Triple-DES 168-bits key

Hard-coded

Stored in flash, zeroized by the

‘ap wipe out

flash’

command.

Encrypts IKEv1/IKEv2 preshared keys and configuration parameters

IKEv1/IKEv2 Pre-shared secret

64 character preshared key

CO configured

Encrypted in flash using the KEK; zeroized by updating through administrative interface, or by

the ‘ap wipe out flash’

command.

Module and crypto officer authentication during IKEv1/IKEv2; entered into the module in plaintext during initialization and encrypted over the IPSec session subsequently.

IPSec session encryption keys

168-bit Triple-DES, or 128/192/256 bit AES keys;

Established during Diffie-Hellman key agreement

Stored in plaintext in volatile memory; zeroized when session is closed or system powers off

Secure IPSec traffic

IPSec session authentication keys

HMAC SHA-1 keys

Established during Diffie-Hellman key agreement

Stored in plaintext in volatile memory; zeroized when session is closed or system powers off

Secure IPSec traffic

The following Critical Security Parameters (CSPs) are used by the module:

CSP

CSP TYPE

GENERATION

STORAGE

And

ZEROIZATI

USE

IKEv1/IKEv2 DiffieHellman Private key

1024-bit DiffieHellman private key

Generated internally during IKEv1/IKEv2 negotiation

Stored in plaintext in volatile memory; zeroized when session is closed or system is powered off

Used in establishing the session key for IPSec

IKEv1/IKEv2 DiffieHellman shared secret

128 bit Octet

Generated internally during IKEv1/IKEv2 negotiation

Stored in plaintext in volatile memory; zeroized when session is closed or system is powered off

IKEv1/IKEv2 payload integrity verification

ArubaOS OpenSSL RNG Seed for FIPS compliant ANSI X9.31, Appendix A2.4 using AES-128 Key algorithm

Seed (16 Bytes)

Derived using NONFIPS approved HW RNG (/dev/urandom)

Stored in plaintext in volatile memory only; zeroized on reboot

Seed ANSI X9.31 RNG

ArubaOS OpenSSL RNG Seed key for FIPS compliant ANSI X9.31, Appendix A2.4 using AES-128 Key algorithm

Seed key (16 bytes, AES128 Key algorithm)

Derived using NONFIPS approved HW RNG (/dev/urandom)

Stored in plaintext in volatile memory only; zeroized on reboot

Seed ANSI X9.31 RNG

ArubaOS Cryptographic Module RNG Seed for FIPS compliant 186-2 General Purpose (X change Notice); SHA-1 RNG

Seed (64 bytes)

Derived using NONFIPS approved HW RNG (/dev/urandom)

Stored in plaintext in volatile memory only; zeroized on reboot

Seed 186-2 General Purpose (X change Notice); SHA1 RNG

ArubaOS Cryptographic Module RNG Seed key for FIPS compliant 186-2 General Purpose (X change Notice); SHA-1 RNG

Seed Key (64 bytes)

Derived using NONFIPS approved HW RNG (/dev/urandom)

Stored in plaintext in volatile memory only; zeroized on reboot

Seed 186-2 General Purpose (X change Notice); SHA1 RNG

CSP

CSP TYPE

GENERATION

STORAGE

And

ZEROIZATI

USE

WPA2 PSK

16-64 character shared secret used to authenticate mesh connections and in remote AP advanced configuration

CO configured

Encrypted in flash using the KEK; zeroized by updating through administrative interface, or by

the ‘ap wipe out flash’

command.

Used to derive the PMK for

802.11i mesh connections between APs and in advanced Remote AP connections; programmed into AP by the controller over the IPSec session.

802.11i Pairwise Master Key (PMK)

512-bit shared secret used to derive

802.11i session keys

Derived from WPA2 PSK

In volatile memory only; zeroized on reboot

Used to derive

802.11i Pairwise Transient Key (PTK)

512-bit shared secret from which Temporal Keys (TKs) are derived

Derived during 802.11i 4-way handshake

In volatile memory only; zeroized on reboot

All session encryption/dec ryption keys are derived from the PTK

802.11i EAPOL MIC Key

128-bit shared secret used to protect 4way (key) handshake

Derived from PTK

In volatile memory only; zeroized on reboot

Used for integrity validation in 4way handshake

802.11i EAPOL Encr Key

128-bit shared secret used to protect 4way handshakes

Derived from PTK

In volatile memory only; zeroized on reboot

Used for confidentiality in 4-way handshake

802.11i data AES-CCM encryption/MIC key

128-bit AESCCM key

Derived from PTK

Stored in plaintext in volatile memory; zeroized on reboot

Used for

802.11i packet encryption and integrity verification (this is the CCMP or AES-CCM key)

CSP

CSP TYPE

GENERATION

STORAGE

And

ZEROIZATI

USE

802.11i Group Master Key (GMK)

256-bit secret used to derive GTK

Generated from approved RNG

Stored in plaintext in volatile memory; zeroized on reboot

Used to derive Group Transient Key (GTK)

802.11i Group Transient Key (GTK)

256-bit shared secret used to derive group (multicast) encryption and integrity keys

Internally derived by AP which assumes

“authenticator” role in

handshake

Stored in plaintext in volatile memory; zeroized on reboot

Used to derive multicast cryptographic keys

802.11i Group AES-CCM Data Encryption/MIC Key

128-bit AES-CCM key derived from GTK

Derived from 802.11 group key handshake

Stored in plaintext in volatile memory; zeroized on reboot

Used to protect multicast message confidentiality and integrity (AES-CCM)

RSA private Key

1024/2048bit RSA private key

Generated on the AP (remains in AP at all times)

Stored in and protected by AP’s nonvolatile memory. zeroized by the

‘ap wipe out flash’

command

Used for IKEv1/IKEv2 authentication when AP is authenticating using certificate based authentication

7 Self Tests

The module performs the following Self Tests after being configured into either Remote AP mode or Remote Mesh Portal mode. The module performs both power-up and conditional self-tests. In the event any self-test fails, the module enters an error state, logs the error, and reboots automatically.

The module performs the following power-up self-tests:

 Aruba Hardware known Answer tests:

o AES KAT o HMAC-SHA1 KAT o Triple-DES KAT

 ArubaOS OpenSSL AP Module

o AES KAT o HMAC (HMAC-SHA1, HMAC-SHA256 and HMAC SHA384) KAT o RNG KAT o RSA KAT o SHA (SHA1, SHA256 and SHA384) KAT o Triple-DES KAT

 ArubaOS Cryptographic Module

o AES KAT o HMAC (HMAC-SHA1, HMAC-SHA256, HMAC SHA384, and HMAC512) KAT o FIPS 186-2 RNG KAT o RSA (sign/verify) o SHA (SHA1, SHA256, SHA384, and SHA512) KAT o Triple-DES KAT

 ArubaOS Uboot Bootloader Module

o Firmware Integrity Test: RSA 2048-bit Signature Validation

The following Conditional Self-tests are performed in the module:

 Continuous Random Number Generator Test–This test is run upon generation of random data by

the module's random number generators to detect failure to a constant value. The module stores the first random number for subsequent comparison, and the module compares the value of the new random number with the random number generated in the previous round and enters an error state if the comparison is successful. The test is performed for the approved as well as nonapproved RNGs.

 RSA pairwise Consistency Test  Firmware load test

These self-tests are run for the Cavium hardware cryptographic implementation as well as for the Aruba OpenSSL AP and ArubaOS cryptographic module implementations.

Self-test results are written to the serial console. In the event of a KATs failure, the AP logs different messages, depending on the error.

For an ArubaOS OpenSSL AP module and ArubaOS cryptographic module KAT failure:

AP rebooted [DATE][TIME] : Restarting System, SW FIPS KAT failed

For an AES Cavium hardware POST failure:

Starting HW SHA1 KAT ...Completed HW SHA1 AT

Starting HW HMAC-SHA1 KAT ...Completed HW HMAC-SHA1 KAT

Starting HW DES KAT ...Completed HW DES KAT

Starting HW AES KAT ...Restarting system.

Aruba Networks FIPS 140-2 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
