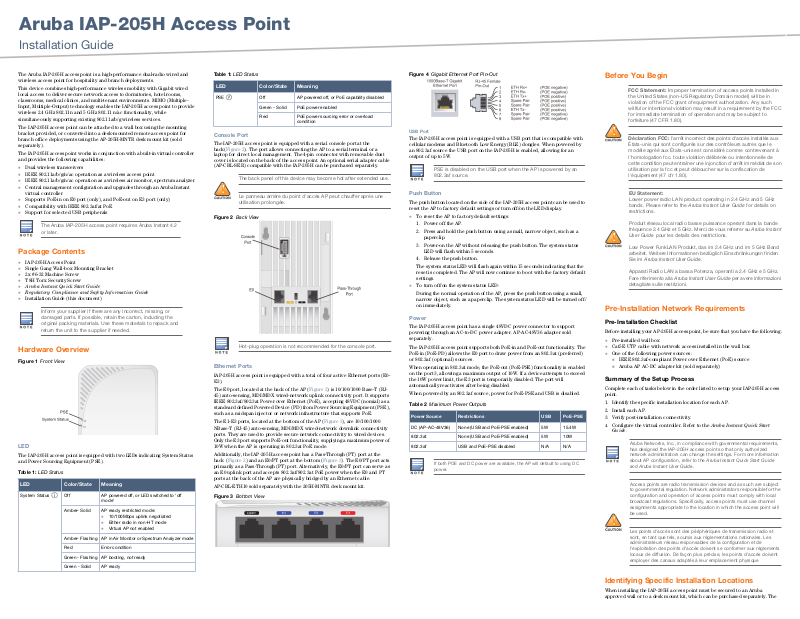

Aruba IAP-205H User Manual

Aruba IAP-205H Access Point

Installation Guide

The Aruba IAP-205H access point is a high-performance dual-radio wired and
wireless access point for hospitality and branch deployments.

This device combines high-performance wireless mobility with Gigabit wired
local access to deliver secure network access to dormitories, hotel rooms,
classrooms, medical clinics, and multi-tenant environments. MIMO (Multiple­Input, Multiple-Output) technology enables the IAP-205H access point to provide
wireless 2.4 GHz 802.11n and 5 GHz 802.11 n/ac functionality, while
simultaneously supporting existing 802.11a/b/g wireless services.

The IAP-205H access point can be attached to a wall box using the mounting
bracket provided, or converted into a desk-mounted remote access point for
branch office deployments using the AP-205H-MNTR desk mount kit (sold
separately).

The IAP-205H access point works in conjunction with a built-in virtual controller
and provides the following capabilities:

 Dual wireless transceivers
 IEEE 802.11a/b/g/n/ac operation as a wireless access point
 IEEE 802.11a/b/g/n/ac operation as a wireless air monitor, spectrum analyzer
 Central management configuration and upgrades through an Aruba Instant

virtual controller

 Supports PoE-in on E0 port (only), and PoE-out on E3 port (only)
 Compatibility with IEEE 802.3af/at PoE
 Support for selected USB peripherals

Package Contents

 IAP-205H Access Point
 Single Gang Wall-box Mounting Bracket
 2x #6-32 Machine Screw
 T8H Torx Security Screw
 Aruba Instant Quick Start Guide
 Regulatory Compliance and Safety Information Guide
 Installation Guide (this document)

Hardware Overview

Figure 1 Front View

LED

The IAP-205H access point is equipped with two LEDs indicating System Status
and Power Sourcing Equipment (PSE).

Console Port

The IAP-205H access point is equipped with a serial console port at the
back(Figure 2). The port allows connecting the AP to a serial terminal or a
laptop for direct local management. The 4-pin connector with removable dust
cover is located on the back of the access point. An optional serial adapter cable
(AP-CBL-SER) compatible with the IAP-205H can be purchased separately.

Figure 2 Back View

Ethernet Ports

IAP-205H access point is equipped with a total of four active Ethernet ports (E0­E3).

The E0 port, located at the back of the AP (Figure 2) is 10/100/1000 Base-T (RJ-

45) auto-sensing, MDI/MDX wired-network uplink connectivity port. It supports
IEEE 802.3af/802.3at Power over Ethernet (PoE), accepting 48VDC (nomial) as a
standeard defined Powered Device (PD) from Power Sourcing Equipment (PSE),
such as a midspan injector or network infrastructure that supports PoE.

The E1-E3 ports, located at the bottom of the AP (Figure 3), are 10/100/1000
NBase-T (RJ-45) auto-sensing, MDI/MDX wired-network downlink connectivity
ports. They are used to provide secure network connectivity to wired devices.
Only the E3 port supports PoE-out functionality, supplying a maximum power of
10W when the AP is operating in 802.3at PoE mode.

Additionally, the IAP-205H access point has a Pass-Through (PT) port at the
back (Figure 2) and an E0/PT port at the bottom (Figure 3). The E0/PT port acts
primarily as a Pass-Through (PT) port. Alternatively, the E0/PT port can serve as
an E0 uplink port and accepts 802.3af/802.3at PoE power when the E0 and PT
ports at the back of the AP are physically bridged by an Ethernet cable.

AP-CBL-ETH10 sold separately with the 205H-MNTR desk mount kit.

Figure 3 Bottom View

Figure 4 Gigabit Ethernet Port Pin-Out

USB Port

The IAP-205H access point is equipped with a USB port that is compatible with
cellular modems and Bluetooth Low Energy (BLE) dongles. When powered by
an 802.3af source the USB port on the IAP-205H is enabled, allowing for an
output of up to 5W.

Push Button

The push button located on the side of the IAP-205H access point can be used to
reset the AP to factory default settings or turn off/on the LED display.

 To reset the AP to factory default settings:

1. Power off the AP.

2. Press and hold the push button using a small, narrow object, such as a
paperclip.

3. Power-on the AP without releasing the push button. The system status
LED will flash within 5 seconds.

4. Release the push button.

The system status LED will flash again within 15 seconds indicating that the
reset is completed. The AP will now continue to boot with the factory default
settings.

 To turn off/on the system status LED:

During the normal operation of the AP, press the push button using a small,
narrow object, such as a paperclip. The system status LED will be turned off/
on immediately.

Power

The IAP-205H access point has a single 48VDC power connector to support
powering through an AC-to-DC power adapter. AP-AC-48V36 adapter sold
separately.

The IAP-205H access point supports both PoE-in and PoE-out functionality. The
PoE-in (PoE-PD) allows the E0 port to draw power from an 802.3at (preferred)
or 802.3af (optional) sources.

When operating in 802.3at mode, the PoE-out (PoE-PSE) functionality is enabled
on the port 3, allowing a maximum output of 10W. If a device attempts to exceed
the 10W power limit, the E3 port is temporarily disabled. The port will
automatically reactivates after being disabled.

When powered by an 802.3af source, power for PoE-PSE and USB is disabled.

Before You Begin

Pre-Installation Network Requirements

Pre-Installation Checklist

Before installing your AP-205H access point, be sure that you have the following:

 Pre-installed wall box
 Cat5E UTP cable with network access installed in the wall box
 One of the following power sources:

 IEEE 802.3af-compliant Power over Ethernet (PoE) source
 Aruba AP AC-DC adapter kit (sold separately)

Summary of the Setup Process

Complete each of tasks below in the order listed to setup your IAP-205H access
point.

1. Identify the specific installation location for each AP.

2. Install each AP.

3. Verify post-installation connectivity.

4. Configure the virtual controller. Refer to the Aruba Instant Quick Start

Guide.

Identifying Specific Installation Locations

When installing the IAP-205H access point must be secured to an Aruba
approved wall or to a desk mount kit, which can be purchased separately. The

The Aruba IAP-205H access point requires Aruba Instant 4.2
or later.

Inform your supplier if there are any incorrect, missing, or
damaged parts. If possible, retain the carton, including the
original packing materials. Use these materials to repack and
return the unit to the supplier if needed.

Table 1: LED Status

LED Color/State Meaning

System Status Off AP powered off, or LED switched to ‘off

mode’

Amber- Solid AP ready, restricted mode:

 10/100Mbps uplink negotiated
 Either radio in non-HT mode
 Virtual AP not enabled

Amber- Flashing AP in Air Monitor or Spectrum Analyzer mode

Red Error condition

Green - Flashing AP booting, not ready

Green - Solid AP ready

PSE Off AP powered off, or PoE capability disabled

Green - Solid PoE power enabled

Red PoE power sourcing error or overload

condition

!

The back panel of this device may become hot after extended use.

Le panneau arrière du point d'accès AP peut chauffer après une
utilisation prolongée.

Hot-plug operation is not recommended for the console port.

Table 1: LED Status

LED Color/State Meaning

PSE is disabled on the USB port when the AP is powered by an

802.3af source.

Table 2 Maximum Power Outputs

Power Source Restrictions USB PoE-PSE

DC (AP-AC-48V36) None (USB and PoE-PSE enabled) 5W 15.4W

802.3at None (USB and PoE-PSE enabled) 5W 10W

802.3af USB and PoE-PSE disabled N/A N/A

If both POE and DC power are available, the AP will default to using DC
power.

!

FCC Statement: Improper termination of access points installed in
the United States (non-US Regulatory Domain model) will be in
violation of the FCC grant of equipment authorization. Any such
willful or intentional violation may result in a requirement by the FCC
for immediate termination of operation and may be subject to
forfeiture (47 CFR 1.80).

Déclaration FCC: l'arrêt incorrect des points d'accès installés aux
États-unis qui sont configurés sur des contrôleurs autres que le
modèle agréé aux États-unis est considéré comme contrevenant à
l'homologation fcc. toute violation délibérée ou intentionnelle de
cette condition peut entraîner une injonction d'arrêt immédiat de son
utilisation par la fcc et peut déboucher sur la confiscation de
l'équipement (47 cfr 1.80).

!

EU Statement:
Lower power radio LAN product operating in 2.4 GHz and 5 GHz
bands. Please refer to the Aruba Instant User Guide for details on
restrictions.

Produit réseau local radio basse puissance operant dans la bande
fréquence 2.4 GHz et 5 GHz. Merci de vous referrer au Aruba Instant
User Guide pour les details des restrictions.

Low Power FunkLAN Produkt, das im 2.4 GHz und im 5 GHz Band
arbeitet. Weitere Informationen bezlüglich Einschränkungen finden
Sie im Aruba Instant User Guide.

Apparati Radio LAN a bassa Potenza, operanti a 2.4 GHz e 5 GHz.
Fare riferimento alla Aruba Instant User Guide per avere informazioni
detagliate sulle restrizioni.

Aruba Networks, Inc., in compliance with governmental requirements,
has designed the IAP-205H access point so that only authorized
network administrators can change the settings. For more information
about AP configuration, refer to the Aruba Instant Quick Start Guide
and Aruba Instant User Guide.

!

Access points are radio transmission devices and as such are subject
to governmental regulation. Network administrators responsible for the
configuration and operation of access points must comply with local
broadcast regulations. Specifically, access points must use channel
assignments appropriate to the location in which the access point will
be used.

Les points d'accès sont des périphériques de transmission radio et
sont, en tant que tels, soumis aux réglementations nationales. Les
administrateurs réseau responsables de la configuration et de
l'exploitation des points d'accès doivent se conformer aux règlements
locaux de diffusion. De façon plus précise, les points d'accès doivent
employer des canaux adaptés à leur emplacement physique

Aruba IAP-205H Access

Point

Installation Guide

www.arubanetworks.com
1344 Crossman Avenue
Sunnyvale, California 94089
Phone: [phone]

Fax [phone]

Aruba IAP-205H Access Point | Installation Guide
Part Number 0511744-03| March 2015

Contacting Aruba Networks

Web Support

Main Site http://www.arubanetworks.com

Support Site https://support.arubanetworks.com

Airheads Social Forums and Knowledge Base community.arubanetworks.com

North American Telephone [phone] (Toll Free)

1-408-754-1200

International Telephones arubanetworks.com/support-services/aruba-support-

program/contact-support/

Software Licensing Site licensing.arubanetworks.com/login.php

Wireless Security Incident
Response Team (WSIRT)

arubanetworks.com/support/wsirt.php

Support Email Addresses

Americas and APAC [e-mail]

EMEA [e-mail]

Americas and APAC Support Email [e-mail]

WSIRT Email
Please email details of any security
problem found in an Aruba product.

[e-mail]

Copyright

© 2015 Aruba Networks, Inc. AirWave®, Aruba Networks®, Aruba Mobility Management System®, Bluescanner,
For Wireless That Works®, Mobile Edge Architecture, People Move. Networks Must Follow., RFProtect®, The All
Wireless Workplace Is Now Open For Business, and The Mobile Edge Company® are trademarks of Aruba
Networks, Inc. All rights reserved. All other trademarks are the property of their respective owners.

Open Source Code

Certain Aruba products include Open Source software code developed by third parties, including software code
subject to the GNU General Public License ("GPL"), GNU Lesser General Public License ("LGPL"), or other Open
Source Licenses. The Open Source code used can be found at this site:

http://www.arubanetworks.com/open_source

Legal Notice

The use of Aruba Networks, Inc. switching platforms and software, by all individuals or corporations, to terminate
other vendors' VPN client devices constitutes complete acceptance of liability by that individual or corporation for
this action and indemnifies, in full, Aruba Networks, Inc. from any and all legal actions that might be taken against
it with respect to infringement of copyright on behalf of those vendors.

Warranty

This hardware product is protected by an Aruba warranty. For details, see Aruba Networks standard warranty
terms and conditions.

AP should be oriented vertically, with Ethernet ports facing downward to
facilitate maximum antenna gain.

Use the AP placement map generated by Aruba’s RF Plan software application to
determine the proper installation location(s). Each location should be as close as
possible to the center of the intended coverage area and should be free from
obstructions or obvious sources of interference. These RF absorbers/reflectors/
interference sources will impact RF propagation and should be accounted for
during the planning phase and adjusted for in RF plan.

Identifying Known RF Absorbers/Reflectors/Interference
Sources

Identifying known RF absorbers, reflectors, and interference sources while in the
field during the installation phase is critical. Make sure that these sources are
taken into consideration when you attach an AP to its fixed location.

RF absorbers include:

 Cement/concrete—Old concrete has high levels of water dissipation, which

dries out the concrete, allowing for potential RF propagation. New concrete
has high levels of water concentration in the concrete, blocking RF signals.

 Natural Items—Fish tanks, water fountains, ponds, and trees
 Brick

RF reflectors include:

 Metal Objects—Metal pans between floors, rebar, fire doors, air conditioning/

heating ducts, mesh windows, blinds, chain link fences (depending on
aperture size), refrigerators, racks, shelves, and filing cabinets.

 Do not place an AP between two air conditioning/heating ducts. Make sure

that APs are placed below ducts to avoid RF disturbances.

RF interference sources include:

 Microwave ovens and other 2.4 or 5 GHz objects (such as cordless phones)
 Cordless headset such as those used in call centers or lunch rooms

Installing the AP

The IAP-205H is designed to mount into a variety of electrical gang boxes.

1. Remove the existing data wall plate (if applicable).

2. Remove any existing RJ-45 connectors (typically snap-in) or cut/remove the
UTP cable.

Figure 5 Removing Wall Plate (US Single Gang Outlet Box Shown)

3. Use a short Ethernet cable (sold separately) to connect the E0 port to an RJ45
connector or crimp an RJ-45 plug (not supplied) on the cable and insert in the
E0 port. Do the same for the PT port, if used.

4. Align the mounting holes of the IAP-205H mounting bracket with mounting
holes in the gang box, as shown in Figure 6 and Figure 7. For worldwide
single gang outlet box, the mounting bracket has two sets of mounting holes
to meet the individual installation position requirement. See Figure 7 for
details.

The applicable standards for the wall boxes are:

 IEC 60670-1, GB17466, BS4662 and DIN49073 for Worldwide

 ANSI/NEMA OS 1 and OS 2 for US

5. Insert the two included machine screws and tighten them to secure the
mounting bracket.

Figure 6 Bracket to Gang Box (US Single Gang Outlet Box Shown)

Figure 7 Bracket to Gang Box (Worldwide Single Gang Outlet Box Shown)

6. Connect cables to the back of the AP.

7. Align the mounting slots on the back of the AP with the corresponding
mounting posts on the wall mount as shown in Figure 8.

8. Push the AP against the posts and downward until the posts engage the slots
at the top of the slots.

Figure 8 Attaching AP to Wall Mount

9. Once the AP is fastened onto the wall mount, insert the T8H Torx security
screw into the hole located on the upper-right edge of the wall mount and
tighten.

10. If not using PoE, connect the AC-DC power adapter (sold separately) to the
DC power socket located on the bottom of the IAP-205H.

Verifying Post-Installation Connectivity

The System Status LED on the AP can be used to verify that the AP is receiving
power and initializing successfully (see Figure 1). Refer to the Aruba Instant
Quick Start Guide for further details on verifying post-installation network
connectivity.

Product Specifications

Electrical

 Ethernet:

 4x 10/100/1000 Base-T auto-sensing Ethernet RJ-45 interface (E0-E3)
 2x passive RJ-45 Pass-Through interface (E0/PT and PT)
 MDI/MDX
 IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-T). IEEE 802.3ab

(1000Base-T)

 Power over Ethernet (IEEE 802.3af and 802.3at compliant), 48VDC

(nominal) and 56VDC (maximum)/350mA (see Figure 4 for pin
configuration)





Power:

 48VDC power interface, supports powering through an AC-to-DC power

adapter

 PoE support on Ethernet ports: 802.3af-compliant PoE sourcing device

Environmental

 Operating:

 Temperature: 0° C to +50° C (+32° F to +122° F)

 Humidity: 5% to 95% non-condensing

 Storage and transportation:

 -Temperature: -40° C to +70° C (-40° F to +158°)

For additional specifications on this product, please refer to the data sheet. The
data sheet can be found at www.arubanetworks.com.

If a power adapter other than the one provided by Aruba is used in US or
Canada, it should be NRTL Listed, with an output rated 48VDC, minimum

0.75A, marked “LPS” and “Class 2”, and suitable for plugging into a
standard power receptacle in the US and Canada.
