Aruba AP-AC-12V30B Data sheet

PART SPECIFICATION FOR APPROVAL

CUSTOMER Aruba Networks, Inc.

MODEL SDI30-12-U-P209-C1

DESCRIPTION ac-dc power supply

DATE 04/17/2018

# OF PAGES 10

rev. description date

1.0 initial release 09/24/2015

1.01~

1.08

1.09 changed font on individual packaging label 12/16/2016

1.10 added dimensions to dc plug overmold 04/19/2017

1.11 updated BSMI safety mark 07/06/2017

1.12 updated NOM safety mark 04/17/2018

The revision history provided is for informational purposes only and is believed to be accurate.

see page 10 for full revision history --

Please sign below.

approved by ________________________________________________________________

signature __________________________________________________________________

date ______________________________________________________________________

Specication sign-o veries that you have reviewed the entire specication and tested this product and that it meets
your requirements. This specication reects the part as it is to be ordered. Orders will not be processed until the
specication approval page has been signed and returned to CUI Inc. This specication is condential and is not to be
distributed without prior approval from CUI Inc.

(please print)

cui.com

CUI Inc │ MODEL: SDI30-12-U-P209-C1 │ DESCRIPTION: AC-DC POWER SUPPLY date 04/17/2018 │ page 2 of 10

MODEL

SDI30-12-U-P209-C1 12 2.5 30 120 VI

Notes: 1. At full load, 100 ~ 240 Vac input, 20 MHz bandwidth oscilloscope, each output terminated with 47 µF and 0.1 µF capacitors.

2. ErP Tier 2 compliant.

output

voltage

typ

(Vdc)

output

current

max

(A)

output

power

max

(W)

ripple

and noise

max

(mVp-p)

1

eciency

level

2

INPUT

parameter conditions/description min typ max units

voltage 90 264 Vac

frequency 47 63 Hz

current 1.0 A

leakage current 3.5 mA

no load power consumption

Level VI
ErP Tier 2

0.1

0.075

W
W

OUTPUT

parameter conditions/description min typ max units

load regulation ±5 %

PROTECTIONS

parameter conditions/description min typ max units

over voltage protection 16 Vdc

over current protection 4 A

short circuit protection output shut down and auto restart

SAFETY & COMPLIANCE

parameter conditions/description min typ max units

isolation voltage input to output at 10 mA for 1 minute 1,500 Vac

insulation resistance input to output at 500 Vdc 100 MΩ

UL/cUL (North America), GS (Europe), PSE (Japan), BSMI

safety approvals

EMI/EMC FCC Part 15 Class B, CE

surge L-N: 4 kV/2 Ω; L-PE: 4 kV/2 Ω; N-PE: 4 kV/2 Ω

RoHS 2011/65/EU

(Taiwan), CCC (China), PSB (Singapore), RCM (Australia),
SASO (Arabia), SABS (South Africa), UkrSEPRO (Ukraine), EAC
(Russia), NOM (Mexico), KC (Korea)

ENVIRONMENTAL

parameter conditions/description min typ max units

operating temperature 0 40 °C

storage temperature -10 70 °C

operating humidity non-condensing 20 80 %

storage humidity non-condensing 10 90 %

cui.com

CUI Inc │ MODEL: SDI30-12-U-P209-C1 │ DESCRIPTION: AC-DC POWER SUPPLY date 04/17/2018 │ page 3 of 10

IJijĴıƲIJıı

ijķƲĴ

ŐŅĻġ

ĤIJķłŘňřijńġġġŖōijĵķĹġġġġ

LABEL

material: metalized polyester
color: silver on black base

remarks: YYWW X
YY=production year
WW=production week
X=production location

DC CORD

ĺįĶƲıįĶ

11.4

ġ܍ijįķīĶįij

ĶıƲIJı

ōıĵ

܍

܍

9.6

23.5

ĶįĶƲıįIJ

ijįIJƲıįIJ

ĺĶƲIJı

ŇŦųųŪŵŦġŤŰųŦġŸŪŵũġŰůŦġŵŶųůŴġŸŪųŦ
ĴijįĶřijĶįĶřijĴįĶġĩōņŕŐŏňĻŔńœńġIJııŃĪ

ŕŶůŪůŨġŧŰųŬġŤŢůůŦŭŶųŦġŦůŵŪųŦġ
ŪůŴŶŭŢŵŪŰůġŵźűŦ

ŇŦųųŪŵŦġŤŰųŦġŸŪŵũġŰůŦġŵŶųůŴġŸŪųŦ
IJĵįijřijĹįĶřĹįijĩııĵĪ

6.8

ŘŐœŅŊŏňġŐŏġŘŊœņġĩĮĪĭġŏŐġŘŐœŅŊŏňġŐŏġŘŊœņġĩĬĪį

ĶıƲIJı

ijįĹſĵįıŮŮ

59C

Ŕħŕ

cui.com

CUI Inc │ MODEL: SDI30-12-U-P209-C1 │ DESCRIPTION: AC-DC POWER SUPPLY date 04/17/2018 │ page 4 of 10

DC PLUG

cui.com

CUI Inc │ MODEL: SDI30-12-U-P209-C1 │ DESCRIPTION: AC-DC POWER SUPPLY date 04/17/2018 │ page 5 of 10

FERRITE BEAD

cui.com

CUI Inc │ MODEL: SDI30-12-U-P209-C1 │ DESCRIPTION: AC-DC POWER SUPPLY date 04/17/2018 │ page 6 of 10

FERRITE BEAD (CONTINUED)

(/)

C( Co re ID)

B

A

D

1. Q-METER:

HP 4342A MQ-172

2. L.C.R . METER:

HP 4284A

3. IMPEDANCE ANALYZER:

HP 4192A AG4396B HP4192B

4. L -METER:

TH 2775B

5. DIGITAL MINI-OHM METER:

VP2941A

cui.com

CUI Inc │ MODEL: SDI30-12-U-P209-C1 │ DESCRIPTION: AC-DC POWER SUPPLY date 04/17/2018 │ page 7 of 10

MECHANICAL DRAWING

input plug IEC320/C14

case size

111 L x 52 W x 32.3 H mm
tolerance: ±1 mm

52 ±1

32.30 ±1

111 ±1

cui.com

CUI Inc │ MODEL: SDI30-12-U-P209-C1 │ DESCRIPTION: AC-DC POWER SUPPLY date 04/17/2018 │ page 8 of 10

16pt

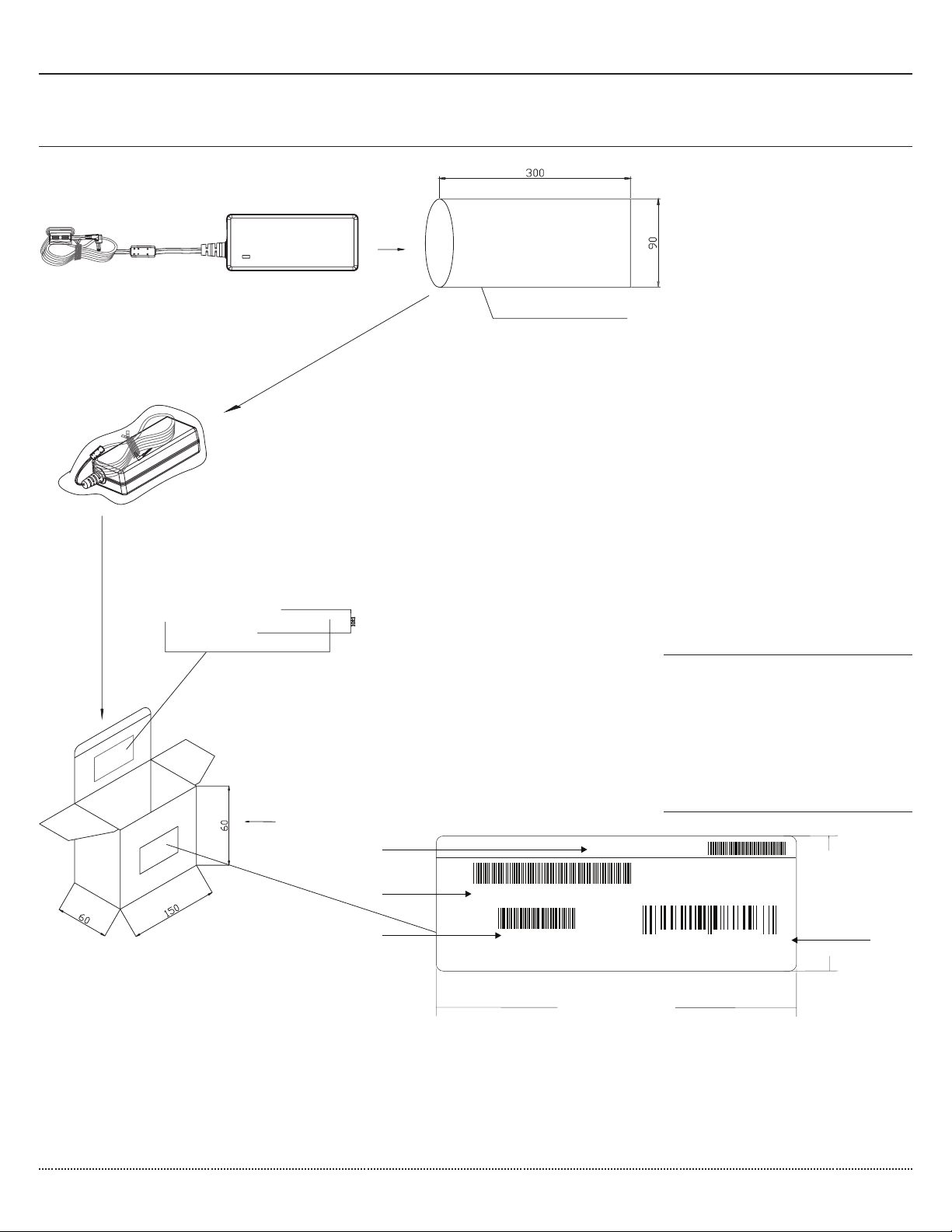

IND PACKAGING

PE烉90X300X0.045mm

SpIT!Dpnqmjbou

ĶıƲIJ

White Box: #195

16pt

16pt

16pt

PN;

AP-AC-12V30B

PROD:

JX990A

DESC:

AP-AC-12V30B 12V 30W POWERADAPTER

MM/DD/YY

UPC:

1

90017

101.6+0/-0.3

material: bond paper
color: black on white base
dimension: 101.6 x 38.1 mm
barcode type: code 39

remarks: MM/DD/YY
MM=production month
DD=production day
YY=production year

QTY:1
MADE IN CHINA

3.0-/0+1.83

08816

7

cui.com

CUI Inc │ MODEL: SDI30-12-U-P209-C1 │ DESCRIPTION: AC-DC POWER SUPPLY date 04/17/2018 │ page 9 of 10

PACKAGING

External Carton Material: A=B (6 mm)
Internal Carton Material: B3B (3 mm)
Carton Size: 481 x 393 x 225 mm
QTY: 54 pcs (18 x 3)
N.W: 15.1 KGS
G.W: 17.1 KGS
G.W: 17.9 KGS

tolerance +7/-0 mm

material: bond paper
color: black on white base
dimension: 101.6 x 152.4 mm
barcode type: code 39

cui.com

CUI Inc │ MODEL: SDI30-12-U-P209-C1 │ DESCRIPTION: AC-DC POWER SUPPLY date 04/17/2018 │ page 10 of 10

REVISION HISTORY

rev. description date

1.0 initial release 09/24/2015

1.01 changed to right angle plug 10/15/2015

1.02 updated plug drawing 11/11/2015

1.03 changed part number 11/25/2015

1.04 added dc plug and ferrite bead drawings 04/13/2016

1.05 added ferrite bead 05/10/2016

1.06 added safety approvals, updated dc cord drawing 05/13/2016

1.07 removed Brazil and Argentina safety approvals 06/16/2016

1.08 updated safety label, added packaging labels 08/03/2016

1.09 changed font on individual packaging label 12/16/2016

1.10 added dimensions to dc plug overmold 04/19/2017

1.11 updated BSMI safety mark 07/06/2017

1.12 updated NOM safety mark 04/17/2018

The revision history provided is for informational purposes only and is believed to be accurate.
