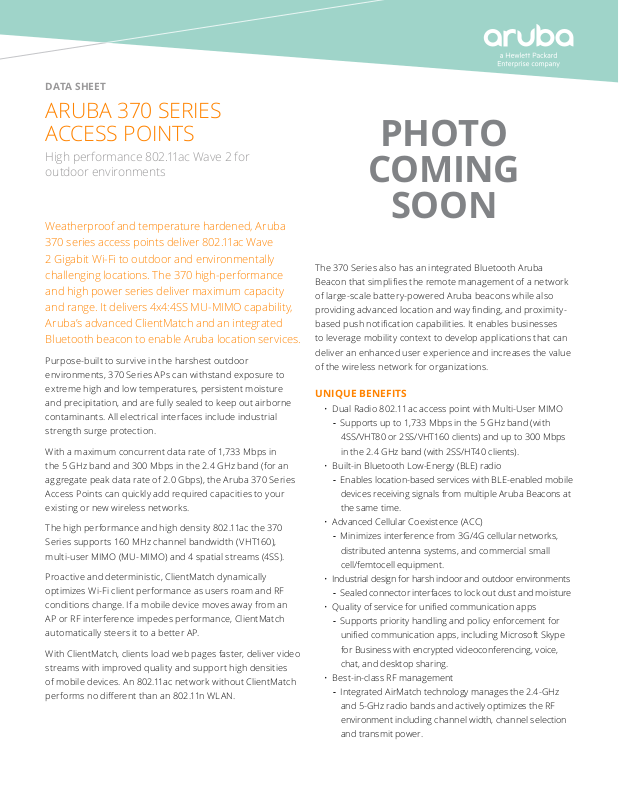

Page 1
DATA SHEET
ARUBA 370 SERIES
ACCESS POINTS
High performance 802.11ac Wave 2 for
outdoor environments
Weatherproof and temperature hardened, Aruba
370 series access points deliver 802.11ac Wave
2 Gigabit Wi-Fi to outdoor and environmentally
challenging locations. The 370 high-performance
and high power series deliver maximum capacity
and range. It delivers 4x4:4SS MU-MIMO capability,
Aruba’s advanced ClientMatch and an integrated
Bluetooth beacon to enable Aruba location services.
Purpose-built to survive in the harshest outdoor
environments, 370 Series APs can withstand exposure to
extreme high and low temperatures, persistent moisture
and precipitation, and are fully sealed to keep out airborne
contaminants. All electrical interfaces include industrial
strength surge protection.
With a maximum concurrent data rate of 1,733 Mbps in
the 5 GHz band and 300 Mbps in the 2.4 GHz band (for an
aggregate peak data rate of 2.0 Gbps), the Aruba 370 Series
Access Points can quickly add required capacities to your
existing or new wireless networks.
The high performance and high density 802.11ac the 370
Series supports 160 MHz channel bandwidth (VHT160),
multi-user MIMO (MU-MIMO) and 4 spatial streams (4SS).
Proactive and deterministic, ClientMatch dynamically
optimizes Wi-Fi client performance as users roam and RF
conditions change. If a mobile device moves away from an
AP or RF interference impedes performance, ClientMatch
automatically steers it to a better AP.
With ClientMatch, clients load web pages faster, deliver video
streams with improved quality and support high densities
of mobile devices. An 802.11ac network without ClientMatch
performs no dierent than an 802.11n WLAN.
COMING
SOON
The 370 Series also has an integrated Bluetooth Aruba
Beacon that simplies the remote management of a network
of large-scale battery-powered Aruba beacons while also
providing advanced location and way nding, and proximity-
based push notication capabilities. It enables businesses
to leverage mobility context to develop applications that can
deliver an enhanced user experience and increases the value
of the wireless network for organizations.
UNIQUE BENEFITS
• Dual Radio 802.11ac access point with Multi-User MIMO
- Supports up to 1,733 Mbps in the 5 GHz band (with
4SS/VHT80 or 2SS/VHT160 clients) and up to 300 Mbps
in the 2.4 GHz band (with 2SS/HT40 clients).
• Built-in Bluetooth Low-Energy (BLE) radio
- Enables location-based services with BLE-enabled mobile
devices receiving signals from multiple Aruba Beacons at
the same time.
• Advanced Cellular Coexistence (ACC)
- Minimizes interference from 3G/4G cellular networks,
distributed antenna systems, and commercial small
cell/femtocell equipment.
• Industrial design for harsh indoor and outdoor environments
- Sealed connector interfaces to lock out dust and moisture
• Quality of service for unied communication apps
- Supports priority handling and policy enforcement for
unied communication apps, including Microsoft Skype
for Business with encrypted videoconferencing, voice,
chat, and desktop sharing.
• Best-in-class RF management
- Integrated AirMatch technology manages the 2.4-GHz
and 5-GHz radio bands and actively optimizes the RF
environment including channel width, channel selection
and transmit power.
Page 2
DATA SHEET
ARUBA 370 SERIES ACCESS POINTS
• Spectrum analysis
- Capable of part-time or dedicated air monitoring,
the spectrum analyzer remotely scans the
2.4-GHz and 5-GHz radio bands to identify sources
of RF interference.
• Wireless mesh
- Wireless mesh connections are convenient where
Ethernet drops are not available.
• Intelligent app visibility and control
- AppRF technology leverages deep packet inspection
to classify and block, prioritize, or limit bandwidth for
thousands of applications in a range of categories.
• Aruba Secure Core
- Device assurance: Use of Trusted Platform Module
(TPM) for secure storage of credentials and keys as well
as secure boot
- Integrated wireless intrusion protection oers threat
protection and mitigation and eliminates the need for
separate RF sensors and security appliances.
- IP reputation and security services identify, classify,
and block malicious les, URL and IPs, providing
comprehensive protection against advanced
online threats.
- Encrypted IPsec VPN tunnels securely connect remote
users to corporate network resources.
CHOOSE YOUR OPERATING MODE
As unied APs, the Aruba 370 Series can be deployed
with or without a controller and can be readily switched to
accommodate changing network needs.
• Spectrum analyzer, dedicated or hybrid, for identifying
sources of RF interference
• Secure enterprise mesh
• Hybrid AP serves Wi-Fi clients and provides wireless
intrusion protection and spectrum analysis
For large installations across multiple sites, the Aruba
Activate service signicantly reduces deployment time by
automating device provisioning, rmware upgrades, and
inventory management. With Aruba Activate, Unied APs are
factory-shipped to any site and congure themselves when
powered up.
ARUBA 370 SERIES SPECIFICATIONS
• AP-374
- 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate)
» Four Nf connectors for external antenna operation
- 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios
» Two Nf connectors for external antenna operation
at 2.4 GHz.
• AP-375
- 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate)
» Internal Omni Antennas 4.6 dBi
- 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios
» Internal Omni Antennas 4.0 dBi
• AP-377
- 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate)
» Internal 80°H x 80°V Directional Antennas 6.3 dBi
- 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios
» Internal 80°H x 80°V Directional Antennas 6.4 dBi
• Controller mode: When managed by Aruba Mobility
Controllers, Aruba 370 Series APs oer centralized
conguration, data encryption, policy enforcement and
network services, as well as distributed and centralized
trac forwarding or,
• Controllerless (Instant) mode: In Aruba Instant mode,
a single AP automatically distributes the network
conguration to other Instant APs in the WLAN. Simply
power-up one Instant AP, congure it over the air, and
plug in the other APs – Instant Network.
Other functional modes include:
• Remote AP (RAP) mode for branch deployments
• Air monitor (AM) for wireless IDS, rogue detection
and containment
WI-FI RADIO SPECIFICATIONS
• AP type: Outdoor hardened, dual radio, 5 GHz 802.11ac
4x4 MIMO and 2.4 GHz 802.11n 2x2 MIMO
• Software-congurable dual radio supports 5 GHz (Radio 0)
and 2.4 GHz (Radio 1)
• 5 GHz: Four spatial stream Multi User (MU) MIMO for up
to 1,733 Mbps wireless data rate to up to three MU-MIMO
capable client devices simultaneously
• 5 GHz: Four spatial stream Single User (SU) MIMO for up
to 1,733 Mbps wireless data rate to individual 4x4 VHT80
or 2x2 VHT160 client devices
• 2.4 GHz: Two spatial stream Single User (SU) MIMO for
up to 300 Mbps wireless data rate to individual 2x2 HT40
client devices
• Support for up to 256 associated client devices per radio,
and up to 16 BSSIDs per radio
Page 3
DATA SHEET
ARUBA 370 SERIES ACCESS POINTS
• Supported frequency bands (country-specic
restrictions apply):
- 2.400 to 2.4835 GHz
- 5.150 to 5.250 GHz
- 5.250 to 5.350 GHz
- 5.470 to 5.725 GHz
- 5.725 to 5.850 GHz
• Available channels: Dependent on congured
regulatory domain.
• Dynamic frequency selection (DFS) maximizes the use of
available RF spectrum.
• Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division
multiplexing (OFDM)
• Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
• Transmit power: Congurable in increments of 0.5 dBm
• Maximum (conducted) transmit power (limited by local
regulatory requirements):
- 2.4 GHz band: +22 dBm per chain, +25dBm aggregate (2x2)
- 5 GHz band: +22 dBm per chain, +28dBm aggregate (4x4)
- Note: conducted transmit power levels exclude
antenna gain.
• Maximum EIRP (limited by local regulatory requirements):
- 2.4 GHz band:
» 374: 25 + Antenna Gain
» 375: 29 dBm EIRP
» 377: 31.4 dBm EIRP
- 5 GHz band:
» 374: 28 + Antenna Gain + TxBF Gain
» 375: 35.6 dBm EIRP
» 377: 36 dBm EIRP
• Advanced Cellular Coexistence (ACC) minimizes
interference from cellular networks.
• Maximum ratio combining (MRC) for improved
receiver performance.
• Cyclic delay/shift diversity (CDD/CSD) for improved
downlink RF performance.
• Short guard interval for 20-MHz, 40-MHz, 80-MHz and
160-MHz channels.
• Space-time block coding (STBC) for increased range and
improved reception.
• Low-density parity check (LDPC) for high-eciency error
correction and increased throughput.
• Transmit beam-forming (TxBF) for increased signal
reliability and range.
• Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15)
- 802.11n (5GHz): 6.5 to 600 (MCS0 to MCS31)
- 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for
VHT20/40/80, NSS = 1 to 2 for VHT160)
• 802.11n high-throughput (HT) support: HT 20/40
• 802.11ac very high throughput (VHT) support:
VHT 20/40/80/160
• 802.11n/ac packet aggregation: A-MPDU, A-MSDU
POWER
• Worst-case power consumption from the AP: 23W
• Power sources sold separately
• Power over Ethernet (PoE+): 802.3at-compliant
• AC Power: 100-240 Volt 50/60Hz AC
OTHER INTERFACES
• One 10/100/1000BASE-T Ethernet network interfaces (RJ-45)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Ecient Ethernet (EEE)
• One 1000BASE-X SFP Port
• Bluetooth Low Energy (BLE) radio
- Up to 4 dBm transmit power (class 2) and -91 dBm
receive sensitivity
• Visual indicator (multi-color LED): For system and
radio status
• Reset button: Factory reset (during device power up)
• Micro USB console interface
• Kensington security slot
MOUNTING
• AP-270-MNT-V1
• AP-270-MNT-V2
• AP-270-MNT-H1
• AP-270-MNT-H2
Page 4
DATA SHEET
ARUBA 370 SERIES ACCESS POINTS
MECHANICAL
AP-374
Dimensions/weight (excluding mount):
• 23 cm (W) x 24 cm (D) x 19 cm (H) with aesthetic cover
• 9.0” (W) x 9.4” (D) x 7.5” (H)
• 2.7 kg/6 lbs
• 23 cm (W) x 24 cm (D) x 14 cm (H) without aesthetic cover
• 9.0” (W) x 9.4” (D) x 5.5” (H)
• 2.4 kg/5.3 lbs
AP-375
Dimensions/weight (excluding mount):
• 23 cm (W) x 24 cm (D) x 27 cm (H)
• 9.0” (W) x 9.4” (D) x 10.6” (H)
• 2.4 kg/5.3 lbs
AP-377
Dimensions/weight (excluding mount):
• 23 cm (W) x 22 cm (D) x 13 cm (H)
• 9.0” (W) x 8.7” (D) x 5.1” (H)
• 2.1 kg/4.6 lbs
REGULATORY MODEL NUMBERS
• AP-374: APEX0374
• AP-375: APEX0375
• AP-377: APEX0377
CERTIFICATIONS
• CB Scheme Safety, cTUVus
• UL2043 plenum rating
• Wi-Fi Alliance certied 802.11a/b/g/n
• Wi-Fi CERTIFIED™ ac (with wave 2 features)
WARRANTY
• Limited lifetime warranty
MINIMUM OPERATING SYSTEM SOFTWARE
• ArubaOS & Aruba InstantOS 8.3.0.0
ENVIRONMENTAL
• Operating:
- Temperature: -40° C to +65° C (-40° F to +149° F)
- Humidity: 5% to 95% non-condensing
• Storage and transportation:
- Temperature: -40° C to +70° C (-40° F to +158° F)
• Operating Altitude: 3,000 m
• Water and Dust
- IP66/67
• Salt Tolerance
- Tested to ASTM B117-07A Salt Spray 200hrs
• Wind Survival: Up to 165 Mph
• Shock and Vibration ETSI 300-19-2-4
REGULATORY
• FCC/ISED
• CE Marked
• RED Directive 2014/53/EU
• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• UL/IEC/EN 60950
• EN 60601-1-1, EN60601-1-2
For more country-specic regulatory information and
approvals, please see your Aruba representative.
Page 5
RF PERFORMANCE TABLE
DATA SHEET
ARUBA 370 SERIES ACCESS POINTS
Maximum transmit power (dBm)
per transmit chain
802.11b 2.4 GHz
1 Mbps 22 -95
2 Mbps 22 -93
5.5 Mbps 22 -90
11 Mbps 22 -88
802.11g 2.4 GHz and 802.11a 5 GHz 2.4 GHz and 802.11a 5 GHz
6 Mbps 22 -93
54 Mbps 19 -75
802.11n HT20 2.4 GHz and 5 GHz
MCS0/8 22 -93
MCS7/15 18 -71
802.11n HT40 2.4 GHz and 5 GHz
MCS0/8 22 -90
MCS7/15 18 -68
802.11ac VHT20 5 GHz
MCS0 22 -93
MCS9 16 -68
802.11ac VHT40 5 GHz
MCS0 22 -90
MCS9 15 -63
802.11ac VHT80 5 GHz
MCS0 22 -87
MCS9 15 -61
802.11ac VHT160 5 GHz
MCS0 22 -86
MCS9 15 -57
Receiver sensitivity (dBm)
per receive chain
Maximum capability of the hardware provided (excluding antenna gain). Maximum transmit power is limited by local regulatory settings.
Page 6
DATA SHEET
ARUBA 370 SERIES ACCESS POINTS
ORDERING INFORMATION
Part Number Description
Aruba 370 Series Unied Outdoor Access Points
JZ162A Aruba AP-374 (RW) 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xNf Connectors Outdoor AP
JZ163A Aruba AP-374 (US) 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xNf Connectors Outdoor AP
JZ159A Aruba AP-374 (EG) 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xNf Connectors Outdoor AP
JZ160A Aruba AP-374 (IL) 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xNf Connectors Outdoor AP
JZ161A Aruba AP-374 (JP) 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xNf Connectors Outdoor AP
JZ172A Aruba AP-375 (RW) 802.11n/ac Dual 2x2:2/4x4:4 Radio Integrated Omni Antenna Outdoor AP
JZ173A Aruba AP-375 (US) 802.11n/ac Dual 2x2:2/4x4:4 Radio Integrated Omni Antenna Outdoor AP
JZ169A Aruba AP-375 (EG) 802.11n/ac Dual 2x2:2/4x4:4 Radio Integrated Omni Antenna Outdoor AP
JZ170A Aruba AP-375 (IL) 802.11n/ac Dual 2x2:2/4x4:4 Radio Integrated Omni Antenna Outdoor AP
JZ171A Aruba AP-375 (JP) 802.11n/ac Dual 2x2:2/4x4:4 Radio Integrated Omni Antenna Outdoor AP
JZ182A Aruba AP-377 (RW) 802.11n/ac Dual 2x2:2/4x4:4 Radio Integrated Directional Antenna Outdoor AP
JZ183A Aruba AP-377 (US) 802.11n/ac Dual 2x2:2/4x4:4 Radio Integrated Directional Antenna Outdoor AP
JZ179A Aruba AP-377 (EG) 802.11n/ac Dual 2x2:2/4x4:4 Radio Integrated Directional Antenna Outdoor AP
JZ180A Aruba AP-377 (IL) 802.11n/ac Dual 2x2:2/4x4:4 Radio Integrated Directional Antenna Outdoor AP
JZ181A Aruba AP-377 (JP) 802.11n/ac Dual 2x2:2/4x4:4 Radio Integrated Directional Antenna Outdoor AP
Aruba 370 Series Unied Outdoor Access Points FIPS/TAA
JZ167A Aruba AP-374 (RW) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xNf Connectors Outdoor AP
JZ168A Aruba AP-374 (US) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xNf Connectors Outdoor AP
JZ164A Aruba AP-374 (EG) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xNf Connectors Outdoor AP
JZ165A Aruba AP-374 (IL) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xNf Connectors Outdoor AP
JZ166A Aruba AP-374 (JP) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xNf Connectors Outdoor AP
JZ177A Aruba AP-375 (RW) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio Integrated Omni Antenna Outdoor AP
JZ178A Aruba AP-375 (US) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio Integrated Omni Antenna Outdoor AP
JZ174A Aruba AP-375 (EG) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio Integrated Omni Antenna Outdoor AP
JZ175A Aruba AP-375 (IL) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio Integrated Omni Antenna Outdoor AP
JZ176A Aruba AP-375 (JP) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio Integrated Omni Antenna Outdoor AP
JZ187A Aruba AP-377 (RW) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio Integ Directional Antenna Outdoor AP
JZ188A Aruba AP-377 (US) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio Integ Directional Antenna Outdoor AP
JZ184A Aruba AP-377 (EG) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio Integ Directional Antenna Outdoor AP
JZ185A Aruba AP-377 (IL) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio Integ Directional Antenna Outdoor AP
JZ186A Aruba AP-377 (JP) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio Integ Directional Antenna Outdoor AP
3333 SCOTT BLVD | SANTA CLARA, CA 95054
www.arubanetworks.com DS_AP370Series_121117
Loading...
