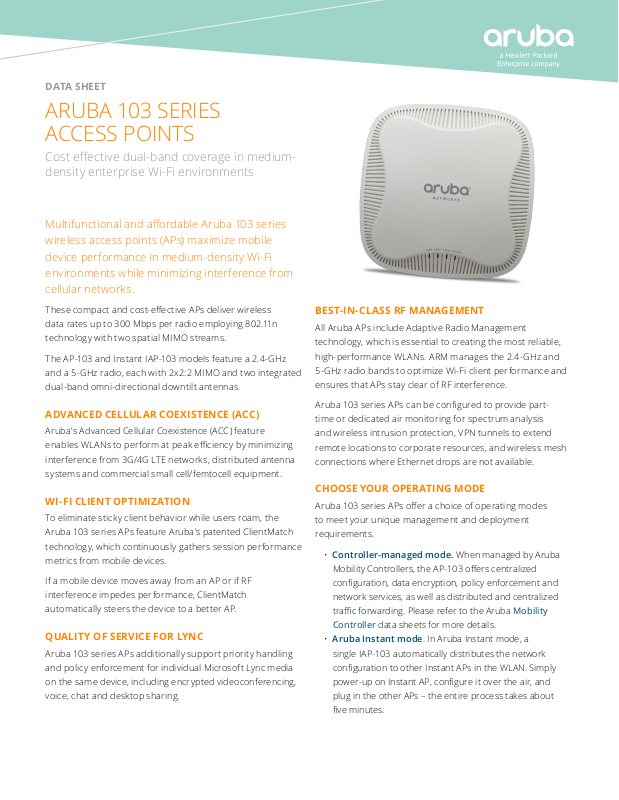

Page 1
DATA SHEET
ARUBA 103 SERIES
ACCESS POINTS
Cost eective dual-band coverage in mediumdensity enterprise Wi-Fi environments
Multifunctional and aordable Aruba 103 series
wireless access points (APs) maximize mobile
device performance in medium-density Wi-Fi
environments while minimizing interference from
cellular networks.
These compact and cost-eective APs deliver wireless
data rates up to 300 Mbps per radio employing 802.11n
technology with two spatial MIMO streams.
The AP-103 and Instant IAP-103 models feature a 2.4-GHz
and a 5-GHz radio, each with 2x2:2 MIMO and two integrated
dual-band omni-directional downtilt antennas.
ADVANCED CELLULAR COEXISTENCE (ACC)
Aruba’s Advanced Cellular Coexistence (ACC) feature
enables WLANs to perform at peak eciency by minimizing
interference from 3G/4G LTE networks, distributed antenna
systems and commercial small cell/femtocell equipment.
WI-FI CLIENT OPTIMIZATION
To eliminate sticky client behavior while users roam, the
Aruba 103 series APs feature Aruba’s patented ClientMatch
technology, which continuously gathers session performance
metrics from mobile devices.
If a mobile device moves away from an AP or if RF
interference impedes performance, ClientMatch
automatically steers the device to a better AP.
QUALITY OF SERVICE FOR LYNC
Aruba 103 series APs additionally support priority handling
and policy enforcement for individual Microsoft Lync media
on the same device, including encrypted videoconferencing,
voice, chat and desktop sharing.
BEST-IN-CLASS RF MANAGEMENT
All Aruba APs include Adaptive Radio Management
technology, which is essential to creating the most reliable,
high-performance WLANs. ARM manages the 2.4-GHz and
5-GHz radio bands to optimize Wi-Fi client performance and
ensures that APs stay clear of RF interference.
Aruba 103 series APs can be congured to provide part-
time or dedicated air monitoring for spectrum analysis
and wireless intrusion protection, VPN tunnels to extend
remote locations to corporate resources, and wireless mesh
connections where Ethernet drops are not available.
CHOOSE YOUR OPERATING MODE
Aruba 103 series APs oer a choice of operating modes
to meet your unique management and deployment
requirements.
• Controller-managed mode. When managed by Aruba
Mobility Controllers, the AP-103 oers centralized
conguration, data encryption, policy enforcement and
network services, as well as distributed and centralized
trac forwarding. Please refer to the Aruba Mobility
Controller data sheets for more details.
• Aruba Instant mode. In Aruba Instant mode, a
single IAP-103 automatically distributes the network
conguration to other Instant APs in the WLAN. Simply
power-up on Instant AP, congure it over the air, and
plug in the other APs – the entire process takes about
ve minutes.
Page 2
DATA SHEET
ARUBA 103 SERIES ACCESS POINTS
For large installations across multiple sites, the Aruba Activate
service signicantly reduces deployment time by automating
device provisioning, rmware upgrades, and inventory
management. With Aruba Activate, Instant APs are factory-
shipped to any site and congure themselves when powered up.
If WLAN and network requirements change, a built-in
migration path allows Aruba Instant APs to become part of a
WLAN that is centrally managed by a Mobility Controller.
ADVANCED FEATURES
• Spectrum analysis
- Capable of part-time or dedicated air monitoring, the
spectrum analyzer remotely scans the 2.4-GHz and
5-GHz radio bands to identify sources of RF interference
• Security
- With an OpenDNS service subscription, Aruba Instant
RAPs deliver integrated web ltering, malware and botnet
protection to every device connected to the WLAN
- Integrated Trusted Platform Module (TPM) for secure
storage of credentials and keys
- SecureJack-capable for secure tunneling of wired
Ethernet trac
OPERATING MODES
• 802.11a/b/g/n Aruba Instant AP
• 802.11a/b/g/n Mobility Controller-managed AP
• Air monitor (AM) for wireless IDS, rogue detection
and containment
• Spectrum analyzer
• Secure enterprise mesh
• Remote AP (RAP) when used with a Mobility Controller
WIRELESS RADIO SPECIFICATIONS
• AP type: Indoor, dual radio, 5-GHz and 2.4-GHz 802.11n 2x2:2
• Software-congurable dual radio supports 5-GHz (Radio 0)
and 2.4-GHz (Radio 1)
• 2x2 MIMO with two spatial streams and up to 300 Mbps
wireless data rate
• Supported frequency bands (country-specic
restrictions apply):
- 2.4000 to 2.4835 GHz
- 5.150 to 5.250 GHz
- 5.250 to 5.350 GHz
- 5.470 to 5.725 GHz
- 5.725 to 5.850 GHz
• Support for up to 255 associated client devices per radio,
and up to 16 BSSIDs per radio
• Available channels: Dependent on congured
regulatory domain
• Dynamic frequency selection (DFS) optimizes the use of
available RF spectrum
• Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n: Orthogonal frequency-division
multiplexing (OFDM)
• Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
• Transmit power: Congurable in increments of 0.5 dBm
• Maximum (aggregate, conducted total) transmit power
(limited by local regulatory requirements):
- 2.4-GHz band: +21 dBm (18 dBm per chain)
- 5-GHz band: +21 dBm (18 dBm per chain)
• Advanced Cellular Coexistence (ACC) minimizes
interference from cellular networks
• Maximum ratio combining (MRC) for improved
receiver performance
• Cyclic delay/shift diversity (CDD/CSD) for improved
downlink RF performance
• Short guard interval for 20-MHz and 40-MHz channels
• Space-time block coding (STBC) for increased range and
improved reception
• Low-density parity check (LDPC) for high-eciency error
correction and increased throughput
• Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n: 6.5 to 300 (MCS0 to MCS15)
• 802.11n high-throughput (HT) support: HT 20/40
• 802.11n packet aggregation: A-MPDU, A-MSDU
POWER
• Maximum power consumption: 9.5W (POE) or 8W (DC)
• Power sources sold separately
• Direct DC source: 12 Vdc nominal, +/- 5%
• Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af or
802.3at-compliant source
ANTENNAS
• Two integrated dual-band downtilt omni-directional
antennas for 2x2 MIMO with maximum antenna gain of
4.0 dBi in 2.4 GHz and 4.5 dBi in 5 GHz. Built-in antennas
are optimized for horizontal ceiling mounted orientation
of the AP. The downtilt angle for maximum gain is
approximately 30 degrees.
Page 3
DATA SHEET
ARUBA 103 SERIES ACCESS POINTS
OTHER INTERFACES
• 10/100/1000BASE-T Ethernet network interface (RJ-45)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Ecient Ethernet (EEE)
- PoE-PD: 48 Vdc (nominal) 802.3af PoE or 802.3at PoE+
• DC power interface, accepts 1.7/4.0-mm center-positive
circular plug with 9.5-mm length
• Serial console interface (proprietary; optional adapter
cable available)
• Visual indicators (LEDs):
- Power/system status
- Ethernet link status (ENET)
- Radio status (two; RAD0, RAD1)
• Kensington security slot
• Reset button
MOUNTING
• Included with AP:
- Mounting brackets (2) for attaching to 9/16-inch or
15/16-inch T-bar drop-tile ceiling
• Spare mounting kit:
- AP-220-MNT-C1: Aruba AP mount kit contains two
ceiling-grid rail adapters for at rails
• Optional mounting kits:
- AP-220-MNT-C2: Aruba AP mount kit contains two
ceiling-grid rail adapters for Interlude and Silhouette
style rails
- AP-220-MNT-W1: Aruba AP mount kit contains one basic
at-surface wall/ceiling mount bracket
- AP-200-MNT-W2: Aruba AP mount kit contains one
secure at-surface wall/ceiling mount cradle
REGULATORY
• FCC/Industry of Canada
• CE Marked
• R&TTE Directive 1995/5/EC
• Low Voltage Directive 72/23/EEC
• EN 300 328
• EN 301 489
• EN 301 893
• UL/IEC/EN 60950
• EN 60601-1-1 and EN 60601-1-2
For more country-specic regulatory information and
approvals, please see your Aruba representative.
REGULATORY MODEL NUMBER
• AP-103 and IAP-103: APIN0103
CERTIFICATIONS
• CB Scheme Safety, cTUVus
• UL2043 plenum rating
• Wi-Fi Alliance (WFA) certied 802.11a/b/g/n
WARRANTY
• Limited lifetime warranty
MINIMUM SOFTWARE VERSIONS
• ArubaOS 6.4.0.0
• Aruba InstantOS 4.1.0.0 (planned availability mid 2014)
MECHANICAL
• Dimensions/weight (unit, excluding mount accessories):
- 150 mm (W) x 150 mm (D) x 41.5 mm (H)
- 5.9” (W) x 5.9” (D) x 1.63” (H)
- 300 g (0.66 lbs)
• Dimensions/weight (shipping):
- 192 mm (W) x 178 mm (D) x 68 mm (H)
- 7.6” (W) x 7.0” (D) x 2.68” (H)
- 500 g (1.10 lbs)
ENVIRONMENTAL
• Operating:
- Temperature: 0° C to +40° C (+32° F to +104° F)
- Humidity: 5% to 95% non-condensing
• Storage and transportation:
- Temperature: -40° C to +70° C (-40° F to +158° F)
Page 4
RF PERFORMANCE TABLE
DATA SHEET
ARUBA 103 SERIES ACCESS POINTS
Maximum transmit power (dBm)
per transmit chain
Receiver sensitivity (dBm)
per receive chain
2.4 GHz
802.11b
1 Mbps 18.0 -93.0
11 Mbps 18.0 -91.0
802.11g
6 Mbps 18.0
54 Mbps 16.0 -76.0
802.11n HT20
MCS0/8
MCS7/15
802.11n HT40
MCS0/8 18.0 -86.0
MCS7/15 14.0
18.0 -88.0
14.0 -73.0
-88.0
-70.0
5 GHz
802.11a
6 Mbps 18.0
54 Mbps 16.0 -76.0
802.11n HT20
MCS0/8
MCS7/15
802.11n HT40
MCS0/8 18.0 -89.0
MCS7/15 14.0
18.0 -92.0
14.0 -73.0
-92.0
-69.0
Maximum capability of the hardware provided. Maximum transmit power is limited by local regulatory settings.
Page 5

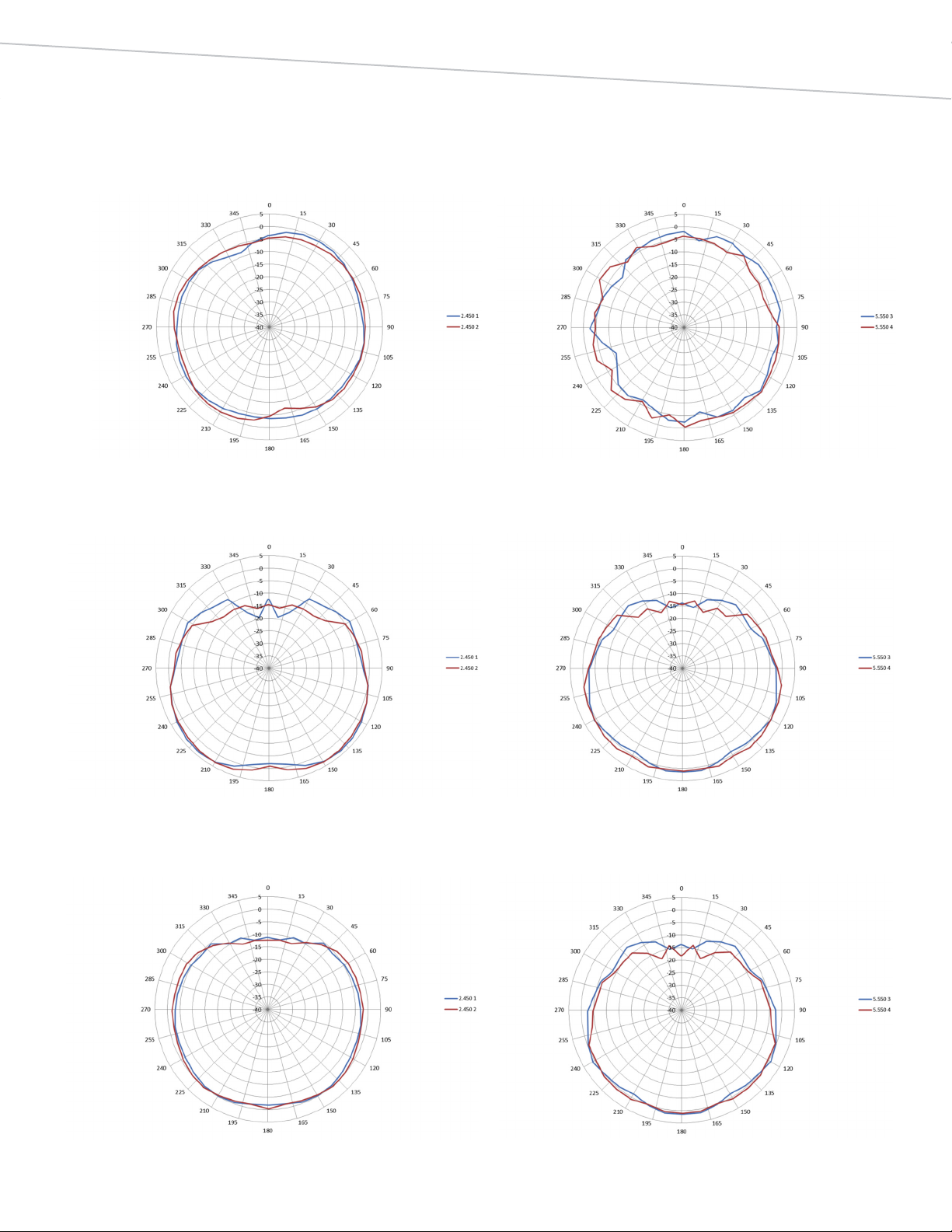

ARUBA AP-103 AND IAP-103 ANTENNA PATTERN PLOTS
Horizontal or Azimuth plane (top view)
2.450 GHz 5.550 GHz
DATA SHEET
ARUBA 103 SERIES ACCESS POINTS
Elevation plane (side view, 0 degrees angle)
2.450 GHz 5.550 GHz
Elevation plane (side view, 90 degrees angle)
2.450 GHz 5.550 GHz
Page 6
DATA SHEET
ARUBA 103 SERIES ACCESS POINTS
ORDERING INFORMATION
Part Number Description
AP-103 Series Access Points
AP-103 Aruba AP-103 Wireless Access Point, 802.11n, 2x2:2, dual radio, integrated antennas
IAP-103-RW Aruba Instant IAP-103 Wireless Access Point, 802.11n, 2x2:2, dual radio, integrated antennas – Restricted
regulatory domain: Rest of world
IAP-103-US Aruba Instant IAP-103 Wireless Access Point, 802.11n, 2x2:2, dual radio, integrated antennas – Restricted
regulatory domain: United States
IAP-103-JP Aruba Instant IAP-103 Wireless Access Point, 802.11n, 2x2:2, dual radio, integrated antennas – Restricted
regulatory domain: Japan
IAP-103-IL Aruba Instant IAP-103 Wireless Access Point, 802.11n, 2x2:2, dual radio, integrated antennas – Restricted
regulatory domain: Israel
Mounting Accessories
AP-220-MNT-C1 Aruba Access Point Mount Kit (ceiling grid). Contains 2x ceiling grid rail adapters (for at rails). Color: black.
Spare.
AP-220-MNT-C2 Aruba Access Point Mount Kit (ceiling grid). Contains 2x ceiling grid rail adapters (for Interlude and
silhouette style rails). Color: black
AP-220-MNT-W1 Aruba Access Point Mount Kit (basic, at surface). Contains 1x at surface wall/ceiling mount bracket.
Color: black
AP-200-MNT-W2 Aruba Access Point Mount Kit (secure, at surface or wall-box, small). Contains 1x mount cradle.
Color: white
Generic Indoor AP Accessories
AP-AC-12V30A 12V/30W AC-to-DC Desktop Style Power Adapter with Type A DC plug (1.7/4.0/9.5mm circular,
90-degree angled).
AP-AC-UN 12V/18W Indoor Access Point AC power adapter. Universal, ships with 8 country-specic plug inserts
(US, EU, UK, Australia, China, Korea, Argentina, Brazil), covering all Aruba core countries
AP-AC-12V18 12V/18W Indoor Access Point AC power adapter. Does not include country-specic power cord
(order separately)
AP-CBL-SER AP console port adapter cable (proprietary to DB9 female RS232)
PD-3501G-AC 15.4W 802.3af PoE midspan injector, 10/100/1000BASE-T Ethernet
1344 CROSSMAN AVE | SUNNYVALE, CA 94089
www.arubanetworks.com DS_AP103Series_040716
Loading...
