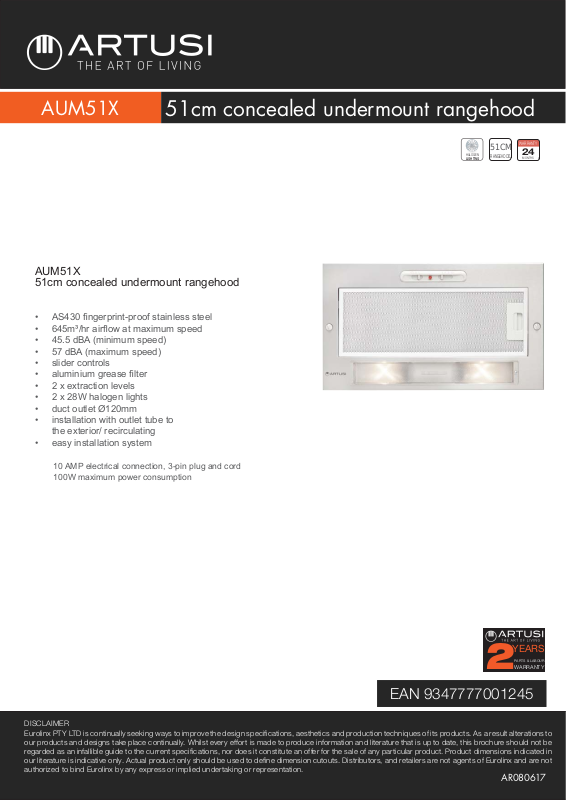

Artusi AUM51X Specifications Sheet
AUM51X
51cm concealed undermount rangehood
AUM51X
51cm concealed undermount rangehood
• AS430 fi ngerprint-proof stainless steel
• 645m³/hr airfl ow at maximum speed
• 45.5 dBA (minimum speed)
• 57 dBA (maximum speed)
• slider controls
• aluminium grease fi lter
• 2 x extraction levels
• 2 x 28W halogen lights
• duct outlet Ø120mm
• installation with outlet tube to
the exterior/ recirculating
• easy installation system
HALOGEN
LIGHTING
51CM
RANGEHOOD
WARRANTY
24
MONTHS
10 AMP electrical connection, 3-pin plug and cord
100W maximum power consumption
YEARS
PARTS & LABOUR
2
WARRANTY
EAN 9347777001245
DISCLAIMER
Eurolinx PT Y LTD is continually seeking ways to improve the design specifi cations, aesthetics and production techniques of its products. As a result alterations to
our products and designs take place continually. Whilst every effort is made to produce information and literature that is up to date, this brochure should not be
regarded as an infallible guide to the current specifi cations, nor does it constitute an of fer for the sale of any particular product. Product dimensions indicated in
our literature is indicative only. Actual product only should be used to defi ne dimension cutouts. Distributors, and retailers are not agents of Eurolinx and are not
authorized to bind Eurolinx by any express or implied undertaking or representation.
AR080617
AUM51X
51cm concealed undermount rangehood
)
(
•
650–750mm
650/750 minimum
•
Ø120
•
75
•
453
218
478
510
••
••
••
•
••
170
12
•
•
•
•
225
•
•
275
•
•
302
•
INSTALLATION:
650mm minimum height above electric cooktop
750mm minimum height above gas cooktop
NB: drawings are not to scale — they are to be used as a guide only. For detailed
installation instructions, please refer to user guide.
