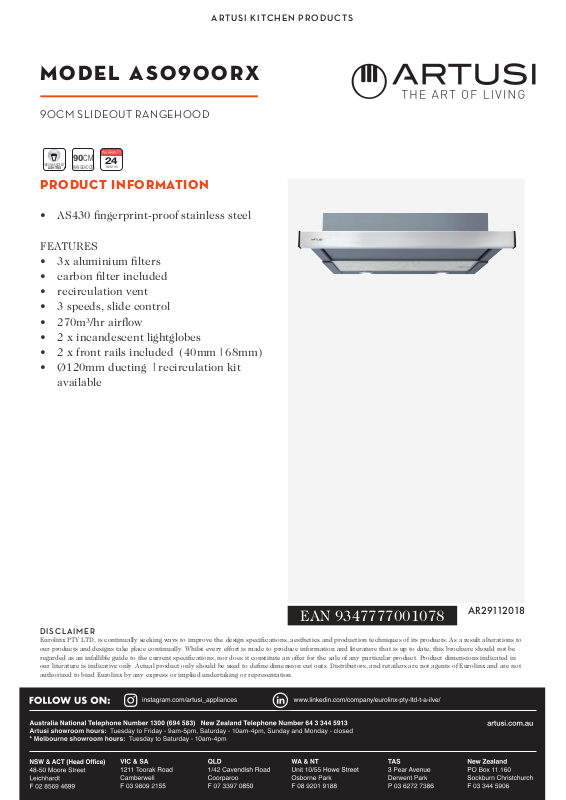

Artusi ASO900RX Specifications Sheet
ARTUSI KITCHEN PRODUCTS
MODEL ASO900RX
90CM SLIDEOUT RANGEHOOD
WARRANTY
24
MONTHS
INCANDESCENT
LIGHTING
90CM
RANGEHOOD
PRODUCT INFORMATION
• AS430 fingerprint-proof stainless steel
FEATURES
• 3x aluminium filters
• carbon filter included
• recirculation vent
• 3 speeds, slide control
• 270m³/hr airflow
• 2 x incandescent lightglobes
• 2 x front rails included (40mm | 68mm)
• Ø120mm ducting | recirculation kit
available
EAN 9347777001078
DISCLAIMER
Eurolinx PTY LTD, is continually seeking ways to improve the design specifications, aesthetics and production techniques of its products. As a result alterations to
our products and designs take place continually. Whilst every effort is made to produce information and literature that is up to date, this brochure should not be
regarded as an infallible guide to the current specifications, nor does it constitute an offer for the sale of any particular product. Product dimensions indicated in
our literature is indicative only. Actual product only should be used to define dimension cut outs. Distributors, and retailers are not agents of Eurolinx and are not
authorized to bind Eurolinx by any express or implied undertaking or representation.
A R 2 9112 01 8
ARTUSI KITCHEN PRODUCTS
MODEL ASO900RX
90CM SLIDEOUT RANGEHOOD
WARRANTY
24
MONTHS
INCANDESCENT
LIGHTING
90CM
RANGEHOOD
TECHNICAL DIAGRAM
•
•
•
68 (or 40)
•
•
•
•
•
•
•
•
•
115
•
158
•
•
650–750mm
•
NB: drawings are not to scale — they are to be used for detailed installation instructions, please refer to user guide.
ASO900RX 90cm slideout rangehood
EAN 9347777001078
A R 2 9112 01 8
DISCLAIMER
Eurolinx PTY LTD, is continually seeking ways to improve the design specifications, aesthetics and production techniques of its products. As a result alterations to
our products and designs take place continually. Whilst every effort is made to produce information and literature that is up to date, this brochure should not be
regarded as an infallible guide to the current specifications, nor does it constitute an offer for the sale of any particular product. Product dimensions indicated in
our literature is indicative only. Actual product only should be used to define dimension cut outs. Distributors, and retailers are not agents of Eurolinx and are not
authorized to bind Eurolinx by any express or implied undertaking or representation.
10 AMP electrical connection, 3-pin plug and cord
input power: 120W
