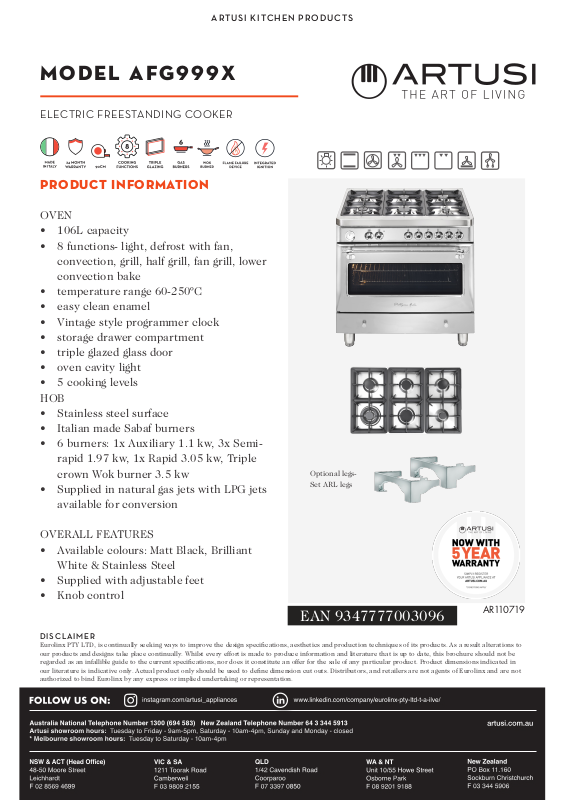

Artusi AFG999X Specifications Sheet
ARTUSI KITCHEN PRODUCTS
MODEL AFG999X
ELECTRIC FREESTANDING COOKER
PRODUCT INFORMATION
OVEN
• 106L capacity
• 8 functions- light, defrost with fan,
convection, grill, half grill, fan grill, lower
convection bake
• temperature range 60-250ºC
• easy clean enamel
• Vintage style programmer clock
• storage drawer compartment
• triple glazed glass door
• oven cavity light
• 5 cooking levels
HOB
• Stainless steel surface
• Italian made Sabaf burners
• 6 burners: 1x Auxiliary 1.1 kw, 3x Semirapid 1.97 kw, 1x Rapid 3.05 kw, Triple
crown Wok burner 3.5 kw
• Supplied in natural gas jets with LPG jets
available for conversion
OVERALL FEATURES
• Available colours: Matt Black, Brilliant
White & Stainless Steel
• Supplied with adjustable feet
• Knob control
Optional legsSet ARL legs
EAN 9347777003096
AR110719
DISCLAIMER
Eurolinx PTY LTD, is continually seeking ways to improve the design specifications, aesthetics and production techniques of its products. As a result alterations to
our products and designs take place continually. Whilst every effort is made to produce information and literature that is up to date, this brochure should not be
regarded as an infallible guide to the current specifications, nor does it constitute an offer for the sale of any particular product. Product dimensions indicated in
our literature is indicative only. Actual product only should be used to define dimension cut outs. Distributors, and retailers are not agents of Eurolinx and are not
authorized to bind Eurolinx by any express or implied undertaking or representation.
ARTUSI KITCHEN PRODUCTS
860-910
15
MODEL AFG999X
ELECTRIC FREESTANDING COOKER
TECHNICAL DIAGRAM
40
766
(feet height = 95-150)
60
625
895
ARL optional feet
H 135-150mm
NB: drawings are not to scale — they are to be used for detailed installation instructions, please refer to user guide.
AFG999X Electric Freestanding Cooker
Size: 90 x 60 H=860 - 910
EAN 9347777003096
AR110719
DISCLAIMER
Eurolinx PTY LTD, is continually seeking ways to improve the design specifications, aesthetics and production techniques of its products. As a result alterations to
our products and designs take place continually. Whilst every effort is made to produce information and literature that is up to date, this brochure should not be
regarded as an infallible guide to the current specifications, nor does it constitute an offer for the sale of any particular product. Product dimensions indicated in
our literature is indicative only. Actual product only should be used to define dimension cut outs. Distributors, and retailers are not agents of Eurolinx and are not
authorized to bind Eurolinx by any express or implied undertaking or representation.
electric voltage 220/240V 50-60Hz
Electric cable
15 AMP plug & lead
Total MJ/H 49 N/G, 49.1 MJ/H LPG
555
