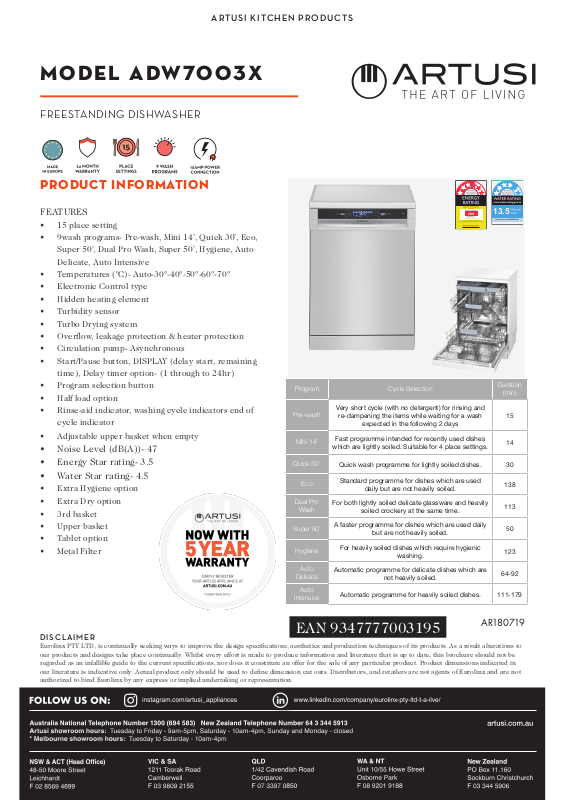

Artusi ADW7003X Specifications Sheet
ARTUSI KITCHEN PRODUCTS
ARTUSI ADW7003X
294
MODEL ADW7003X
FREESTANDING DISHWASHER
PRODUCT INFORMATION
FEATURES
• 15 place setting
• 9wash programs- Pre-wash, Mini 14’, Quick 30’, Eco,
Super 50’, Dual Pro Wash, Super 50’, Hygiene, Auto
Delicate, Auto Intensive
• Temperatures (ºC)- Auto-30°-40°-50°-60°-70°
• Electronic Control type
• Hidden heating element
• Turbidity sensor
• Turbo Drying system
• Overflow, leakage protection & heater protection
• Circulation pump- Asynchronous
• Start/Pause button, DISPLAY (delay start, remaining
time), Delay timer option- (1 through to 24hr)
• Program selection button
• Half load option
• Rinse-aid indicator, washing cycle indicators end of
cycle indicator
• Adjustable upper basket when empty
• Noise Level (dB(A))- 47
• Energy Star rating- 3.5
• Water Star rating- 4.5
• Extra Hygiene option
• Extra Dry option
• 3rd basket
• Upper basket
• Tablet option
• Metal Filter
Program Cycle Selection
Pre-wash
Mini 14’
Quick 30’
Eco
Dual Pro
Wash
Super 50’
Hygiene
Auto
Delicate
Auto
Intensive
Very short cycle (with no detergent) for rinsing and
re-dampening the items while waiting for a wash
expected in the following 2 days
Fast programme intended for recently used dishes
which are lightly soiled. Suitable for 4 place settings.
Quick wash programme for lightly soiled dishes. 30
Standard programme for dishes which are used
daily but are not heavily soiled.
For both lightly soiled delicate glassware and heavily
soiled crockery at the same time.
A faster programme for dishes which are used daily
but are not heavily soiled.
For heavily soiled dishes which require hygienic
washing.
Automatic programme for delicate dishes which are
not heavily soiled.
Automatic programme for heavily soiled dishes. 111-179
ARTUSI ADW7003X
294
13.5
Duration
(min)
15
14
138
113
50
123
64-92
DISCLAIMER
Eurolinx PTY LTD, is continually seeking ways to improve the design specifications, aesthetics and production techniques of its products. As a result alterations to
our products and designs take place continually. Whilst every effort is made to produce information and literature that is up to date, this brochure should not be
regarded as an infallible guide to the current specifications, nor does it constitute an offer for the sale of any particular product. Product dimensions indicated in
our literature is indicative only. Actual product only should be used to define dimension cut outs. Distributors, and retailers are not agents of Eurolinx and are not
authorized to bind Eurolinx by any express or implied undertaking or representation.
EAN 9347777003195
AR180719
ARTUSI KITCHEN PRODUCTS
MODEL ADW7003X
FREESTANDING DISHWASHER
TECHNICAL DIAGRAM
•
•
•
•
845 min - 870 max
•
•
•
Note: For built-in installation, please remove the lid of the appliances. Refer to the installation manual
NB: drawings are not to scale — they are to be used for detailed installation instructions, please refer to user guide.
ADW7003X Freestanding Dishwasher
Built-in height without plastic lid 82cm
EAN 9347777003195
AR180719
DISCLAIMER
Eurolinx PTY LTD, is continually seeking ways to improve the design specifications, aesthetics and production techniques of its products. As a result alterations to
our products and designs take place continually. Whilst every effort is made to produce information and literature that is up to date, this brochure should not be
regarded as an infallible guide to the current specifications, nor does it constitute an offer for the sale of any particular product. Product dimensions indicated in
our literature is indicative only. Actual product only should be used to define dimension cut outs. Distributors, and retailers are not agents of Eurolinx and are not
authorized to bind Eurolinx by any express or implied undertaking or representation.
Power cord 175mm
Drain hose 180mm, Water hose 150mm
10 AMP plug & lead
