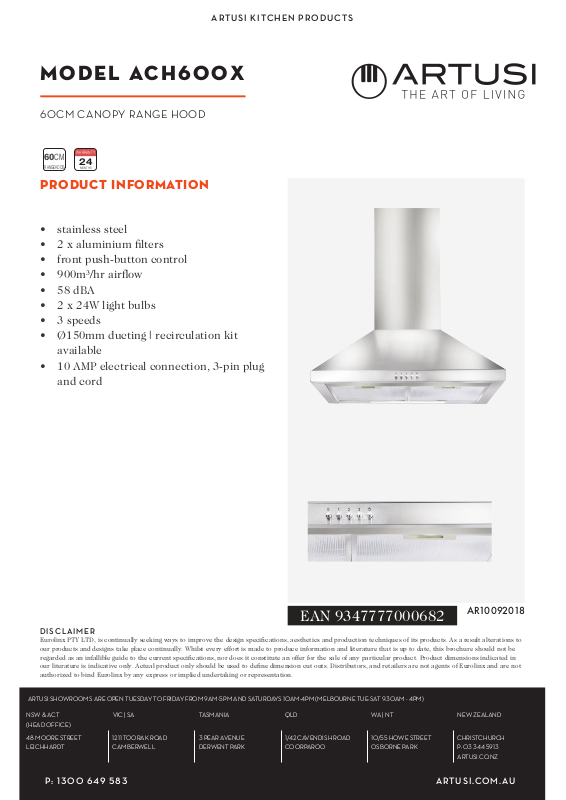

Artusi ACH600X Specifications Sheet
ARTUSI KITCHEN PRODUCTS
MODEL ACH600X
60CM CANOPY RANGE HOOD
60CM
RANGEHOOD
WARRANTY
24
MONTHS
PRODUCT INFORMATION
• stainless steel
• 2 x aluminium filters
• front push-button control
• 900m³/hr airflow
• 58 dBA
• 2 x 24W light bulbs
• 3 speeds
• Ø150mm ducting | recirculation kit
available
• 10 AMP electrical connection, 3-pin plug
and cord
EAN 9347777000682
DISCLAIMER
Eurolinx PTY LTD, is continually seeking ways to improve the design specifications, aesthetics and production techniques of its products. As a result alterations to
our products and designs take place continually. Whilst every effort is made to produce information and literature that is up to date, this brochure should not be
regarded as an infallible guide to the current specifications, nor does it constitute an offer for the sale of any particular product. Product dimensions indicated in
our literature is indicative only. Actual product only should be used to define dimension cut outs. Distributors, and retailers are not agents of Eurolinx and are not
authorized to bind Eurolinx by any express or implied undertaking or representation.
ARTUSI SHOWROOMS ARE OPEN TUESDAY TO FRIDAY FROM 9AM-5PM AND SATURDAYS 10AM-4PM (MELBOURNE TUE-SAT 9:30AM - 4PM)
NSW & ACT
(HEAD OFFICE)
48 MOORE STREET
LEICHHARDT
VIC | SA TASMANIA QLD WA | NT NEW ZEAND
1211 TOORAK ROAD
CAMBERWELL
3 PEAR AVENUE
DERWENT PARK
1/42 CAVENDISH ROAD
COORPAROO
10/55 HOWE STREET
OSBORNE PARK
AR10 0 9 2018
CHRISTCHURCH
P: 03 344 5913
ARTUSI.CO.NZ
ARTUSI.COM.AUP: 1300 649 583
ARTUSI KITCHEN PRODUCTS
MODEL ACH600X
60CM CANOPY RANGE HOOD
60CM
RANGEHOOD
WARRANTY
24
MONTHS
TECHNICAL DIAGRAM
•
•
•
1146(max)
746
•
•
•
•
246
•
•
•
•
•
650–750mm
•
•
•
•
NB: drawings are not to scale — they are to be used for detailed installation instructions, please refer to user guide.
ACH600X Canopy Range Hood
EAN 9347777000682
AR10 0 9 2018
DISCLAIMER
Eurolinx PTY LTD, is continually seeking ways to improve the design specifications, aesthetics and production techniques of its products. As a result alterations to
our products and designs take place continually. Whilst every effort is made to produce information and literature that is up to date, this brochure should not be
regarded as an infallible guide to the current specifications, nor does it constitute an offer for the sale of any particular product. Product dimensions indicated in
our literature is indicative only. Actual product only should be used to define dimension cut outs. Distributors, and retailers are not agents of Eurolinx and are not
authorized to bind Eurolinx by any express or implied undertaking or representation.
ARTUSI SHOWROOMS ARE OPEN TUESDAY TO FRIDAY FROM 9AM-5PM AND SATURDAYS 10AM-4PM (MELBOURNE TUE-SAT 9:30AM - 4PM)
NSW & ACT
(HEAD OFFICE)
48 MOORE STREET
LEICHHARDT
VIC | SA TASMANIA QLD WA | NT NEW ZEAND
1211 TOORAK ROAD
CAMBERWELL
3 PEAR AVENUE
DERWENT PARK
240W input power
160W maximum motor power
Electrical connection: 10AMP GPO
1/42 CAVENDISH ROAD
COORPAROO
10/55 HOWE STREET
OSBORNE PARK
CHRISTCHURCH
P: 03 344 5913
ARTUSI.CO.NZ
ARTUSI.COM.AUP: 1300 649 583
