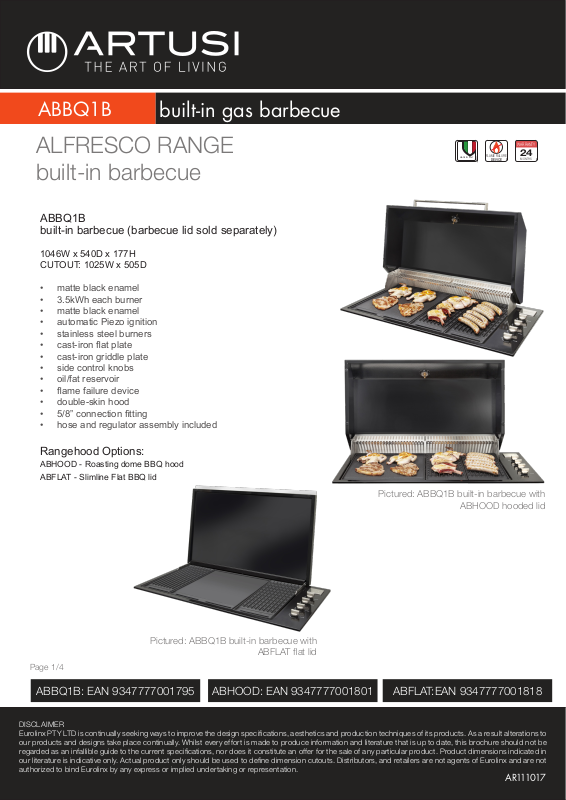

Artusi ABFLAT, ABHOOD, ABBQ1B Datasheet
ABBQ1B
built-in gas barbecue
ALFRESCO RANGE
built-in barbecue
ABBQ1B
built-in barbecue (barbecue lid sold separately)
1046W x 540D x 177H
CUTOUT: 1025W x 505D
• matte black enamel
• 3.5kWh each burner
• matte black enamel
• automatic Piezo ignition
• stainless steel burners
• cast-iron at plate
• cast-iron griddle plate
• side control knobs
• oil/fat reservoir
• ame failure device
• double-skin hood
• 5/8” connection tting
• hose and regulator assembly included
MADE IN ITALY
FLAME FAILURE
DEVICE
WARRANTY
24
MONTHS
Rangehood Options:
ABHOOD - Roasting dome BBQ hood
ABFLAT - Slimline Flat BBQ lid
Pictured: ABBQ1B built-in barbecue with
ABHOOD hooded lid
Pictured: ABBQ1B built-in barbecue with
ABFLAT flat lid
Page 1/4
ABBQ1B: EAN 9347777001795
DISCLAIMER
Eurolinx PTY LTD is continually seeking ways to improve the design specifications, aesthetics and production techniques of its products. As a result alterations to
our products and designs take place continually. Whilst every effort is made to produce information and literature that is up to date, this brochure should not be
regarded as an infallible guide to the current specifications, nor does it constitute an offer for the sale of any particular product. Product dimensions indicated in
our literature is indicative only. Actual product only should be used to define dimension cutouts. Distributors, and retailers are not agents of Eurolinx and are not
authorized to bind Eurolinx by any express or implied undertaking or representation.
ABHOOD: EAN 9347777001801
ABFLAT:EAN 9347777001818
A R111 017
ABBQ1B
•
177
•
•
BACK VIEW ABBQ1BH
•
1046
built-in gas barbecue dimensions
1008
1025
•
540
•
•
••
•
•
•
•
•
•
135
•
•
25
•
•
•
•
•
TOP VIEW ABBQ1BH
NB: drawings are not to scale — they are to be used as a guide only. For detailed
installation instructions, please refer to user guide.
