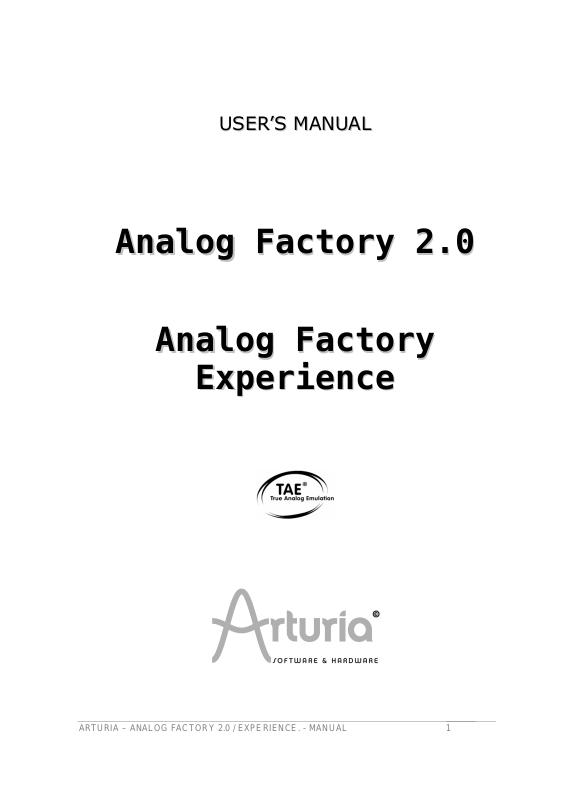

Arturia Analog Factory User's Manual

UUSSEERR’’SS MMAANNUUAALL

ARTURIA – ANALOG FACTORY 2.0 / EXPERIENCE. - MANUAL

PROGRAMMING :

Nicolas Bronnec Fabrice Bourgeois Jean–Michel Blanchet Christian De Jong

INDUSTRIALIZATION :

Frédéric Brun (Arturia) Zhao Yitian (CME)

MANUAL : Nicolas Bronnec (French version 2.0)

Franck Blaszczyk (French version) Jean-Michel Blanchet (French version 2.0) Christian De Jong (English version 2.0)

Houston Haynes (English version) Mitsuru Sakaue (Japanese version) Yuji Sano (Japanese version) Scott Stafiej (English version) Katsunori Ujiie (Japanese version) Nori Ubukata (Japanese version)

Kenta Sasano - Dirigent Corp. (Japanese version version 2.0)

DESIGN :

Yannick Bonnefoy (Beautifulscreen) Elisa Noual

Information contained in this manual is subject to change without notice and does not represent a commitment on the part of Arturia. The software described in this manual is provided under the terms of a license agreement or non-disclosure agreement. The software license agreement specifies the terms and conditions for its lawful use. No part of this manual may be produced or transmitted in any form or by any purpose other than purchaser’s personal use, without the express written permission of ARTURIA S.A. All other products, logos or company names quoted in this manual are trademarks or registered trademarks of their respective owners.

ARTURIA – ANALOG FACTORY 2.0 / EXPERIENCE. - MANUAL

TThhaannkk yyoouu ffoorr ppuurrcchhaassiinngg tthhee AARRTTUURRIIAA’’ss AANNAALLOOGG

FFAACCTTOORRYY 22..00 // AANNAALLOOGG FFAACCTTOORRYY EEXXPPEERRIIEENNCCEE!!

This manual concerns two distinctive products:

- Analog Factory 2.0, a Software allowing to play and modify 3500 synthesizer sounds

- Analog Factory Experience, a bundle of Analog Factory 2.0 along with a dedicated

control keyboard, the Analog Factory Keyboard.

In this package you will find:

 a CD-ROM containing the ANALOG FACTORY 2.0 installer for MAC OSX and Windows

XP/3500

 A registration card (credit card format)

and Arturia’s online registration code.

 The User’s Manual for the Analog Factory 2.0 software and the Analog Factory

Keyboard.

 An Analog Factory Keyboard (Analog Factory Experience only)  A USB cable (Analog Factory Experience only)

Carefully store your card holding the Syncrosoft software activation code. Your Syncrosoft activation code is required to run ANALOG FACTORY 2.0, so this code is the real value of your product. See chapter two for more information about how Syncrosoft works.

We recommend that you register your product. By registering, you identify yourself as the legitimate owner and will be sure to receive the latest news and updates for your product. After registration, you will receive a user ID and password in order to access a protected area on our site. It also puts you on our user notification list, so that you can be the first to know when there are updates or new product offers.

including

the Syncrosoft software activation code

ARTURIA – ANALOG FACTORY 2.0 / EXPERIENCE. - MANUAL

SSppeecciiaall MMeessssaaggee SSeeccttiioonn

The MIDI keyboard uses USB or an external power adapter. Do not connect this product with any power supply or adapter than the one described on this manual, specially recommended by Arturia. (See chapter # 5.2.2 for more details)

WARNING:

Do not place this product in a place or position where one might walk on, trip over or roll anything over power or connecting cords.

The use of an extension cord is not recommended! If you must use one, make sure that the cord has the ability to handle maximum current needed by this product. Please consult a local electrician for more information on your power requirements.

This product should be used only with the components supplied or recommended by Arturia. When used with any components, please observe all safety markings and instructions that accompany the accessory products.

SPECIFICATIONS SUBJECT TO CHANGE:

The information contained in this manual is believed to be correct at the time of printing. However, Arturia reserves the right to change or modify any of the specifications without notice or obligation to update existing units.

IMPORTANT:

Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, damages, fire or other risks.

The product used either alone or in combination with an amplifier, headphones or speakers, may be able to produce sound levels that could cause permanent hearing loss. DO NOT operate for long periods of time at a high level or at a level that is uncomfortable. If you encounter any hearing loss or ringing in the ears, you should consult an audiologist.

NOTICE:

Service charge incurred due to a lack of knowledge relating to how to how a function or feature works (when the unit is operating as designed) are not covered by the manufacturer’s warranty, and are therefore the owners responsibility. Please study this manual carefully and consult your dealer before requesting service.

PRECAUTIONS INCLUDE, BUT ARE NOT LIMITED TO, THE FOLLOWING:

1. Read and understand all the instructions.

2. Always follow the instruction on the instrument.

3. Before cleaning the instrument, always remove the electrical plug from the outlet, as

well as the USB cable. When cleaning, use a soft and dry cloth. Do not use gasoline,

alcohol, acetone, turpentine or any other organic solutions; do not use liquid cleaner,

spray or too wet cloth.

ARTURIA – ANALOG FACTORY 2.0 / EXPERIENCE. - MANUAL

4. Do not use the instrument near water or moisture, such as bathtub, sink, swimming

pool, or similar place.

5. Do not place the instrument in an unstable position where it might accidentally fall

over.

6. Do not place heavy objects on the instrument. Do not block sinks or holes of the

instrument; those locations are used for air circulation to prevent the instrument

from overheating. Do not place the instrument near heat sink or any place of poor

air circulation.

7. Only use the recommended specified AC adaptor (12V DC 1500mA)

8. Make sure the line voltage in your location matches the input voltage specified on

the AC power adaptor.

9. Do not open and insert anything on the instrument, witch may cause fire or electrical

shock.

10. Do not splash any kind of liquid onto the instrument.

11. Always take the instrument to a qualified service center. You will invalidate your

warranty if you open and remove the cover, and improper assembly may cause

electrical shock or other malfunction.

12. Do not use the instrument with thunder and lightening present; otherwise it may

cause long distance electrical shock.

13. Do not expose the instrument to hot sunlight.

14. Do not use the instrument when there is a gas leak nearby.

15. Arturia is not responsible for any damage or data loss caused by improper operations

to the instrument.

HANDING CD-ROMS:

Avoid touching or scratching the shiny underside (encoded surface) of the disc. Damaged or dirty CD-ROM disc may not be read properly. Keep your CD-ROMs clean, using a commercially available CD cleaner.

ARTURIA – ANALOG FACTORY 2.0 / EXPERIENCE. - MANUAL

TABLE OF CONTENT

Introduction 8

1.1

History 8

1.2

Here and Now 9

1.3

TAE® 10

1.3.1 Aliasing-free oscillators 10

1.3.2 A better reproduction of analog oscillator waveforms 11

1.3.3 Direct Filter Circuit Modeling 12

Installation 13

2.1

Notes about the Syncrosoft’s software protection 13

2.2

Windows - PC Installation 14

2.3

Mac OSX installation 15

2.4

Syncrosoft software activation code installation for Analog Factory 2.0 16

2.5

Using Analog Factory 2.0 on a different machines 18

2.6

Registration 19

Using Analog Factory 2.0 20

3.1

Preferences 20

3.2

Tool Bar 20

3.3

Using the Preset Manager 21

3.3.1 Instrument 22

3.3.2 Type 23

3.3.3 Characteristics 23

3.3.4 Entries Found 24

3.3.5 Filter Options 24

3.3.6 Current Preset Information 25

3.3.7 Organization 26

3.4

Keyboard View 26

3.4.1 Virtual Keyboard 26

3.4.2 The Wheels 27

3.4.3 Filter 27

3.4.4 LFO 28

3.4.5 Key Parameters 28

3.4.6 FX MIX (Effects Mix) 29

3.4.7 ADSR faders 29

3.4.8 SNAPSHOT Buttons 30

3.4.9 MIDI control 30

Modes of Operation 32

4.1

Stand-alone and Midi-Configuration 32

4.1.1 Launching the Stand-alone application 32

4.1.2 Preference Configuration 32

4.2

VST 33

4.2.1 Installation 33

4.2.2 Instrument use in the VST mode 33

4.3

Audio Unit (Max OSX only) 34

4.3.1 Installation 34

4.3.2 Use in Logic Audio 35

4.3.3 Use in Digital Performer 35

4.4

Pro Tools 36

4.4.1 Installation 36

ARTURIA – ANALOG FACTORY 2.0 / EXPERIENCE. - MANUAL

4.4.2 Utilization of the plug-in 36

Analog Factory Keyboard (Analog Factory Experience only) 38

5.1

Front panel Overview of the Analog Factory Keyboard 38

5.1.1 The keyboard 39

5.1.2 Shift button 39

5.1.3 Level/search rotary encoder 39

5.1.4 Preset/octave buttons 39

5.1.5 Snapshot/save buttons 40

5.2

Wheels 40

5.2.1 Pitch wheel 40

5.2.2 Modulation wheel 40

5.3

Synthesis section 40

5.3.1 Filter setting rotary encoders 40

5.3.2 LFO setting rotary encoders 41

5.3.3 Key Parameter rotary encoders 41

5.3.4 FX Mix rotary encoders 41

5.3.5 Envelope Sliders 41

5.4

Rear panel overview the Analog Factory Keyboard 41

5.4.1 Midi connections 42

5.4.2 Power supply 42

5.5

Basic midi control with the Analog Factory Keyboard 42

Midi implementation (Analog Factory Experience only) 43

6.1

Using the keyboard 43

6.2

What is MIDI? 43

6.3

Midi Implementation Chart 44

6.4

Midi Controllers List 45

6.5

System Exclusive Message Detail 46

ARTURIA ANALOG FACTORY 2.0 – LEGAL INFORMATION 47

7.1

SOFTWARE LICENSE AGREEMENT 47

7.2

FFC INFORMATION (USA) 49

7.3

CANADA 49

7.4

EUROPE 49

ARTURIA – ANALOG FACTORY 2.0 / EXPERIENCE. - MANUAL

1 Introduction

1.1 History

In early 2001, Arturia began working on advanced algorithms for the digital emulation of analog circuit’s audio characteristics. They are known as TAE®, standing for True Analog Emulation. In non-technical language, this is an unprecedented way of creating the very unique sound one finds in a synthesizer such as the Moog Modular. Nearly a year after they began work on the algorithms, Arturia was ready for feedback. At the 2002 NAMM show in California, Arturia shared an early version of what would later be the Moog Modular V with the renowned maker of the original Moog synthesizer, Doctor Bob Moog.

In seeking insight from sound production experts, such as Dr. Moog, as well as avid synthesizer users, Arturia was able to ensure the quality of the instruments they made; so well in fact the Dr. Moog himself endorsed the Moog Modular V. The launch of this sound powerhouse was an instant success, winning awards from several top magazines, and leading to the development of other synth recreations.

Shortly thereafter, Arturia started receiving many requests from musicians, producers and bands. Many of them explained how they were planning to replace their original hardware synthesizers by virtual instruments. Artists around the globe were beginning to see the advantages of a software alternative to hardware-based synthesizers.

The CS-80V emulated the legendary Yamaha CS-80, considered by many as "the ultimate polyphonic" synthesizer, was launched at the AES 2003 in New York. Imagine some of your favorite music from diverse artists such as Keith Emerson or Stevie Wonder, and you will have a mental glimpse of the sonic capabilities of the CS-80V.

Released at the NAMM 2004, the minimoog V was our recreation of the Minimoog, quite possibly the most famous synthesizer ever. The original Minimoog has been big on the music scene since the 70’s; still today the Minimoog has a large following for its many sound capabilities.

The ARP 2600 V was launched at the NAMM 2005 in Anaheim. This is a faithful reproduction of the ARP 2600 and is great for just about any sound one might wish to create: everything from drum n’ bass stabs to Star Wars’ R2-D2 have been made with the Arp.

At the Winter NAMM Show 2006, ARTURIA announced the release of its seventh product: the Prophet V. This powerful hybrid gives you two instruments in one: it combines the warmth of the legendary Prophet 5 programmable analog synth with the unique Vector Synthesis textures of the digital Prophet VS.

At last, at the summer 2007 NAMM Show, Arturia launched the Jupiter-8V. In terms of sonic possibilities, it complemented its “Arturia siblings” by bringing something different. The Jupiter-8 V was capable of creating very versatile sounds. You could easily make 'fat' or ‘Crystal’ sounds with it. In fact, the Jupiter-8 sounded the way it looked, ‘sleek and polished’.

The electro-pop community became quickly convinced by the qualities of the original Jupiter-8. 'Relax', by Frankie Goes to Hollywood was produced incorporating a Jupiter 8, and players such Vince Clarke, John Foxx, and Martyn Ware were also using it. The path to classic status of the Jupiter started there.

ARTURIA – ANALOG FACTORY 2.0 / EXPERIENCE. - MANUAL

Other artists that have used The Jupiter-8 include: Howard Jones, Tangerine Dream, Underworld, Jean Michel Jarre, Depeche Mode, Prince, Gary Wright, Adrian Lee, Heaven 17, Kitaro, Elvis Costello, Tears for Fears, Huey Lewis and the News, Journey, Moog Cookbook, Yes, Devo, Freddy Fresh, Simple Minds, Jan Hammer, and BT.

1.2 Here and Now

Analogue Factory 2.0 brings you the full spectrum of sounds from all of the above instruments in an easy to use, no-hassle interface. As you will soon see in exploring the instrument yourself, a single instrument gives you your pick from the most complete synthesis sound palette one could ask for: the great bass of the Moog Modular, the brass and strings of the Prophet, the pads and FX of the ARP 2600, etc…

If you have never played a real synth, or even if you don’t know what a synthesizer is, it is not important; you will be glad to have invested in such a powerful instrument once you hear the difference Analog Factory 2.0 makes in your studio.

ARTURIA – ANALOG FACTORY 2.0 / EXPERIENCE. - MANUAL

1.3 TAE

Aliasing

TAE®, True Analog Emulation, is Arturia's outstanding technology dedicated to the digital reproduction of analog circuits used in vintage synthesizers.

When implemented in software code, TAE®’s algorithms guarantee authentic emulation of hardware specifications. This is why the Analog Factory 2.0, and all of Arturia’s virtual synthesizers, do offer an unparalleled quality of sound.

TAE® combines three major advances in the domain of synthesis:

1.3.1 Aliasing-free oscillators

Standard digital synthesizers produce aliasing in high frequencies, and also when using Pulse Width Modulation or FM.

TAE® allows the production of totally aliasing-free oscillators in all contexts (PWM, FM…), and at no extra CPU cost.

Linear

frequency spectrum of an existing well-known software synthesizer

Linear frequency spectrum of the Analog Factory 2.0 oscillator made with TAE®

ARTURIA – ANALOG FACTORY 2.0 / EXPERIENCE. - MANUAL

1.3.2 A better reproduction of analog oscillator waveforms

The waveforms produced by the oscillators in analog synthesizers are marked by the presence of a capacitor in the circuits. The discharge of the capacitor results in a light bend in the original waveform (notably for saw tooth, triangular and square waveforms). TAE® reproduces the result of this capacitor discharge in software. This is the analysis of a waveform from one of the 5 original instruments that Arturia’s software emulates, and that of the Analog Factory 2.0. They are both equally deformed by the low-pass and high—pass filtering.

Temporal representation of a “saw tooth” waveform of an hardware Synthesizer

Temporal representation of a “saw tooth” waveform reproduced by TAE®

ARTURIA – ANALOG FACTORY 2.0 / EXPERIENCE. - MANUAL

What’s more, the hardware analog oscillators were unstable. In fact, their waveform varies slightly from one period to another. If we add to this the fact that the starting point for each period (in Trigger mode) can vary with the temperature and other environmental conditions, we find one of the characteristics that contributed to the typical sound of vintage synthesizers.

TAE® reproduces the instability of oscillators, bringing a fatter and “bigger” sound.

1.3.3 Direct Filter Circuit Modeling

Due to advances in computer processing power, the Analog Factory 2.0 can now employ direct filter modeling techniques to achieve unprecedented accuracy in the emulation of a hardware synthesizer’s filter. By modeling the operation of the individual hardware components of the filter circuit, the warm nuances synonymous with analog sounds are recreated. This graph is a frequency domain plot as just a single example of direct circuit modeling in action; it shows the generation of harmonics at multiples of the resonant frequency when the filter is in self oscillation mode, for both one of Arturia’s virtual instruments and what it is emulating. These harmonics are characteristic of hardware synthesizer’s filters and are due to the non-linear behavior inherent in its analog circuitry. The harmonics generated add to the richness and warmth of the sound produced by the filter. As a result of the direct recreation of this analog circuitry, the same characteristics of the sound are present, thus giving the user a truly analog sound.

Comparison of Harmonics generated by the filter circuits of the Analog Factory 2.0 and a hardware

synthesizer when in self oscillation

ARTURIA – ANALOG FACTORY 2.0 / EXPERIENCE. - MANUAL

2 Installation

2.1 Notes about the Syncrosoft’s software protection

The Analog Factory application is delivered with a card. This card holds both your Analog Factory 2.0 license and the Syncrosoft software activation code that authorizes the software to function.

The activation code is related to the Syncrosoft Copy-protection system. In order to function correctly, the Syncrosoft drivers must be installed on your system.

The installation program for the Syncrosoft License Control Center is available on the Analog Factory 2.0 CD-Rom and will be launched automatically when the installation of the Analog Factory is completed.

You can also download the latest version at this address:

http://syncrosoft.com/downloads/

Once you have installed the driver, an application called <<License Control Center>> allows you to manage the installed licenses on your card.

On Windows, this application and its documentation are available via the menu Start-> Programs -> Syncrosoft.

On Macintosh, this application is installed in the Application folder of your system and the documentation is available from the Help menu of this particular application.

As for the license number also available on the plastic card, it relates to the Arturia license management and will allow you to register your product with the company.

Important Note:

Your Syncrosoft license number represents the true value of your software. Losing the E-Licenser is loosing the use of the software on which the licenses are installed. Take special care of your plastic card.

ARTURIA – ANALOG FACTORY 2.0 / EXPERIENCE. - MANUAL

2.2 Windows - PC Installation

 Insert the CD-ROM into the driver

Explore the contents of the CD-ROM and double click

on the icon called <<Analog Factory Setup.exe >>.



After having accepted the license agreement, you can choose the folder in which the

Analog Factory will be installed.

Choose the Installation Folder

 Next, select the protocol(s) that you wish to install. The available options are:

• The VST plug-in

• The RTAS plug-in

Choose your protocol

 For the installation of the VST and RTAS protocols, you should select the installation

folder of these plug-ins to allow the host application to use them. If you don’t know how to do this, go to the Protocol Chapter (Ch. 4).

ARTURIA – ANALOG FACTORY 2.0 / EXPERIENCE. - MANUAL

Select installation folder for plug-ins

 A dialog box will ask you if you wish to have a shortcut on your desktop. This will give

you access to the standalone application.

Shortcut of the stand alone application to your desktop

 The installation program will then ask to install the Syncrosoft drivers. These drivers are

compulsory to use your software and are intended at protecting it. For the Analog Factory

2.0 to function properly the latest version of Syncrosoft must be installed. If you are sure that your system possesses the most recent Syncrosoft drivers, you can click on the “Cancel” button. Otherwise, click “OK”.

2.3 Mac OSX installation

 Insert the CD-ROM into the drive. Explore the contents of the CD-ROM, and double

click on the icon called <<Analog Factory.pkg>>.

 The installation program, requiring administrative rights, may have the system ask

you to enter the login of an administrative user of the system. In this case, enter your login and administrative password, and click on OK to continue the installation.

 After the software license has been validated, the installation program will select the

system disc as target by default. It’s not possible to install Analog Factory on another disc. Click on continue to proceed with the installation.

ARTURIA – ANALOG FACTORY 2.0 / EXPERIENCE. - MANUAL

+ 34 hidden pages
