Aviano 20 CCT
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Product code: A0720116
USER MANUAL
ENGLISH
V1
Page 2
1
Aviano 20 CCT
Product code: A0720116
Preface
Thank you for purchasing this Artecta product.
The purpose of this user manual is to provide instructions for the correct and safe use of this product.
Keep the user manual for future reference as it is an integral part of the product. The user manual shall be
stored at an easily accessible location.
This user manual contains information concerning:
● Safety instructions
● Intended and non-intended use of the device
● Installation and operation of the device
● Maintenance procedures
● Troubleshooting
● Transport, storage and disposal of the device
Non-observance of the instructions in this user manual may result in serious injuries and damage of
property.
©2022 Artecta. All rights reserved.
No part of this document may be copied, published or otherwise reproduced without the prior written
consent of Highlite International.
Design and product specifications are subject to change without prior notice.
For the latest version of this document or other language versions, please visit our website
Highlite International and its authorized service providers are not liable for any injury, damage, direct or
indirect loss, consequential or economic loss or any other loss arising from the use of, or inability to use or
reliance on the information contained in this document.
Page 3
2
Aviano 20 CCT
Product code: A0720116
Table of contents
1. Introduction .......................................................................................................................................................... 3
Before Using the Product .................................................................................................................................. 3
Intended Use ....................................................................................................................................................... 3
Product Lifespan ................................................................................................................................................. 3
LEDs Lifespan ....................................................................................................................................................... 3
Text Conventions ................................................................................................................................................ 3
Symbols and Signal Words ................................................................................................................................ 4
Symbols on the Information Label .................................................................................................................. 4
2. Safety .................................................................................................................................................................... 5
Warnings and Safety Instructions .................................................................................................................... 5
Requirements for the User ................................................................................................................................. 7
3. Description of the Device ................................................................................................................................... 8
Front ...................................................................................................................................................................... 8
Back ...................................................................................................................................................................... 8
Product Specifications ...................................................................................................................................... 9
Dimensions ........................................................................................................................................................... 9
4. Installation and Operation ............................................................................................................................... 10
Safety Instructions .............................................................................................................................................10
Personal Protective Equipment .....................................................................................................................10
Installation Site Requirements ........................................................................................................................10
Mounting ............................................................................................................................................................11
Installation on a Truss with a Clamp ........................................................................................................11
Installation on a Wall ..................................................................................................................................12
Drilling into Wood ...............................................................................................................................13
Drilling into Concrete .........................................................................................................................13
Minimum Screw Length .....................................................................................................................13
Angle Adjustment .......................................................................................................................................14
Connecting to Power Supply .........................................................................................................................15
5. Troubleshooting ................................................................................................................................................. 15
6. Maintenance ..................................................................................................................................................... 15
Safety Instructions for Maintenance .............................................................................................................15
Preventive Maintenance ................................................................................................................................16
Basic Cleaning Instructions .......................................................................................................................16
Corrective Maintenance ................................................................................................................................16
7. Deinstallation, Transportation and Storage .................................................................................................... 16
Instructions for Deinstallation ..........................................................................................................................16
Instructions for Transportation ........................................................................................................................17
Storage ...............................................................................................................................................................17
8. Disposal .............................................................................................................................................................. 17
9. Approval ............................................................................................................................................................. 17
Page 4
3
Aviano 20 CCT
Product code: A0720116
1. Introduction
Before Using the Product
Important
Read and follow the instructions in this user manual before installing, operating or
servicing this product.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual.
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your
Highlite International dealer.
Your shipment includes:
● Artecta Aviano 20 CCT with fixed Schuko power cable (6 m)
● User manual

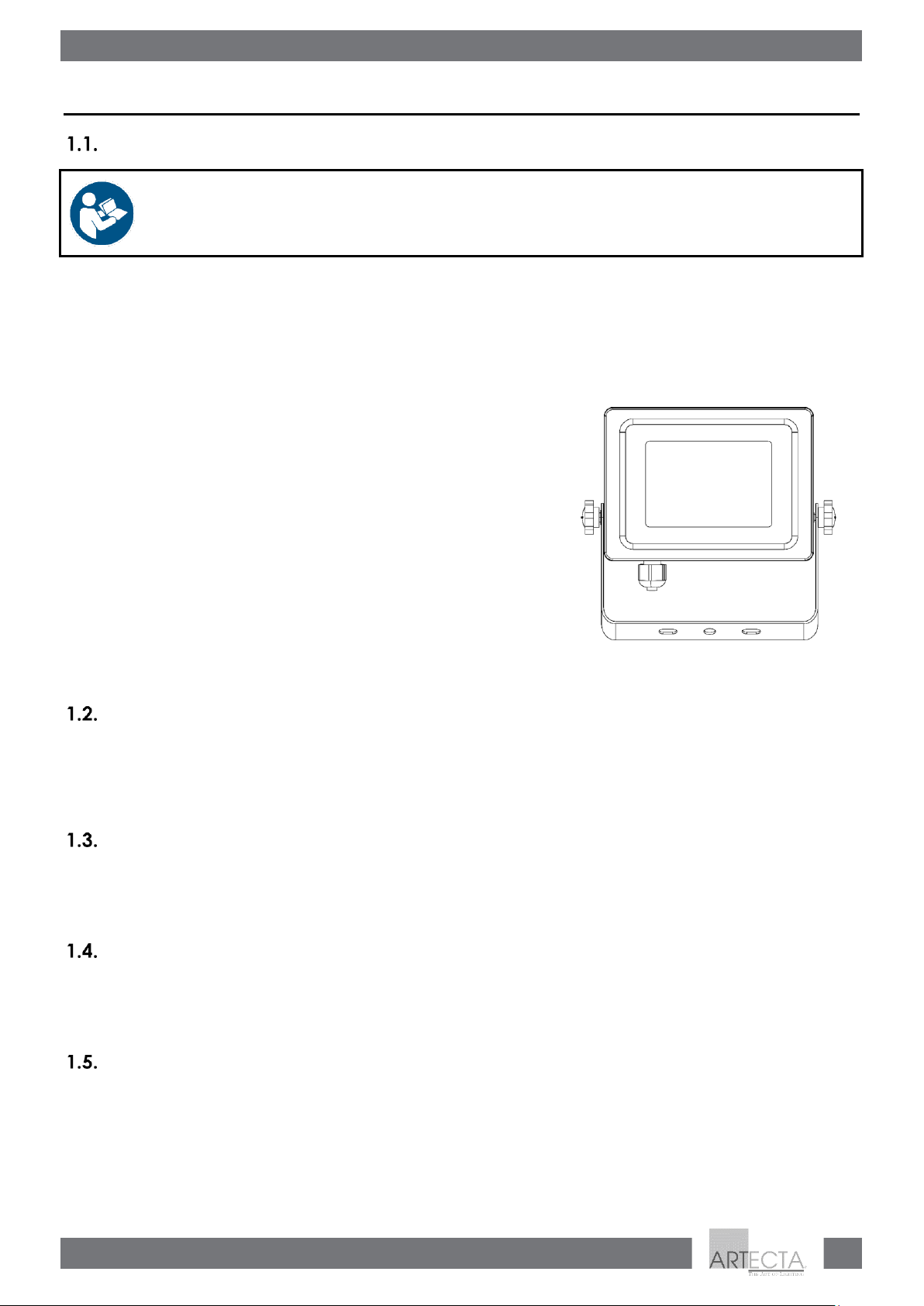

Fig. 01
Intended Use
This device is intended for professional use as an outdoor flood light. It is not suitable for households and
for general lighting.
Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use.
Product Lifespan
This device is not designed for permanent operation. Disconnect the device from the electrical power
supply when the device is not in operation. This will reduce the wear and will improve the device’s
lifespan.
LEDs Lifespan
The light output of the LEDs gradually decreases over time (lumen depreciation). High operating
temperatures contribute to this process. You can extend the lifespan of the LEDs by providing adequate
ventilation and operating the LEDs at the lowest possible brightness.
Text Conventions
Throughout the user manual the following text conventions are used:
● Buttons: All buttons are in bold lettering, for example “Press the UP/DOWN buttons”
● References: References to chapters and parts of the device are in bold lettering, for example:
“Refer to 2. Safety”, “turn the adjustment screw (02)”
● 0–255: Defines a range of values
● Notes: Note: (in bold lettering) is followed by useful information or tips
Page 5
4
Aviano 20 CCT
Product code: A0720116
Symbols and Signal Words
Safety notes and warnings are indicated throughout the user manual by safety signs.
Always follow the instructions provided in this user manual.
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
Attention
Indicates important information for the correct operation and use of the
product.
Important
Read and observe the instructions in this document.
Electrical hazard
Provides important information about the disposal of this product.

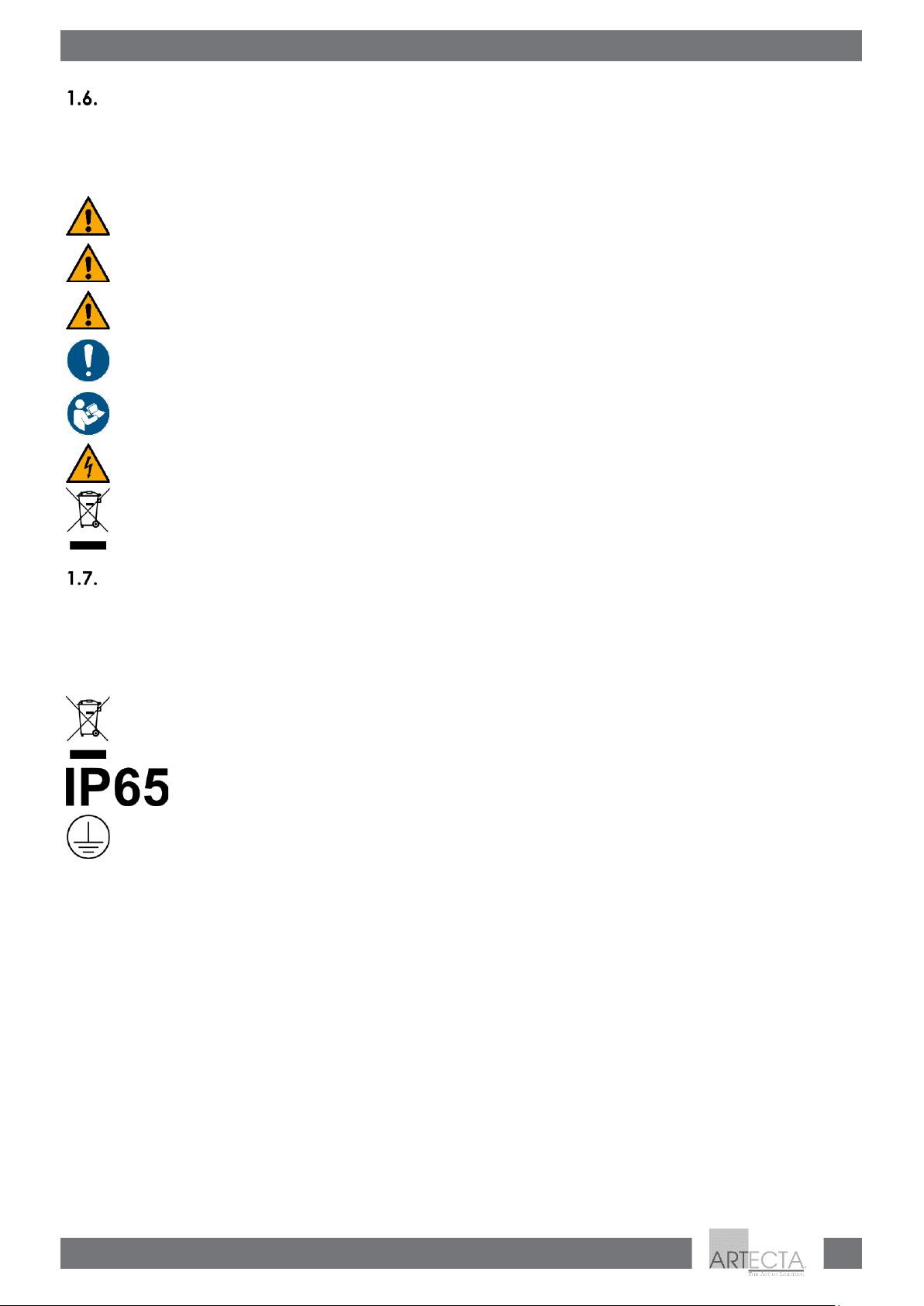

Symbols on the Information Label
This product is provided with an information label. The information label is located on the backside of the
device.
The information label contains the following symbols:
This device shall not be treated as household waste.
This device is rated IP65.
This device falls under IEC protection class I.
Page 6
5
Aviano 20 CCT
Product code: A0720116
2. Safety
Important
Read and follow the instructions in this user manual before installing, operating or
servicing this product.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual.
Warnings and Safety Instructions
DANGER
Danger for children
For adult use only. The device must be installed beyond the reach of children.
● Do not leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within
children’s reach. Packaging material is a potential source of danger for children.
DANGER
Electric shock caused by dangerous voltage inside
There are areas within the device where dangerous touch voltage may be present.
● Do not open the device or remove any covers.
● Do not operate the device if the covers or the housing are open. Before operation, check if the
housing is firmly closed and all screws are tightly fastened.
● Disconnect the device from electrical power supply before service and maintenance, and when the
device is not in use.
DANGER
Electric shock caused by short-circuit
This device falls under IEC protection class I.
● Make sure that the device is electrically connected to ground (earth). Connect the device only to a
socket-outlet with ground (earth) connection.
● Do not cover the ground (earth) connection.
● Do not let the power cable come into contact with other cables. Handle the power cable and all
connections with the mains with caution.
● Do not modify, bend, mechanically strain, put pressure on, pull or heat up the power cable.
● Make sure that the power cable is not crimped or damaged. Examine the power cable periodically
for any defects.
● Do not immerse the device in water or other liquids. Do not install the device in a location where
flooding may occur.
● Do not use the device during thunderstorms. Disconnect the device from the electrical power supply
immediately.
Page 7
6
Aviano 20 CCT
Product code: A0720116
Attention
Power supply
● Before connecting the device to the power supply, make sure that the current, voltage and
frequency match the input voltage, current and frequency specified on the information label on the
device.
● Make sure that the cross-sectional area of the extension cords and power cables is sufficient for the
required power consumption of the device.
Attention
General safety
● Do not connect the device to a dimmer pack.
● Do not switch the device on and off in short intervals. This decreases the device’s life.
● Do not shake the device. Avoid brute force when installing or operating the device.
● Change the lens or the LEDs if they are visibly damaged to such an extent that their effectiveness is
impaired, for example by cracks or deep scratches. Contact your Highlite International dealer for
more information, as servicing can be performed only by instructed or skilled persons.
● If the device is dropped or struck, disconnect the device from the electrical power supply
immediately.
● If the device is exposed to extreme temperature variations (e.g. after transportation), do not switch it
on immediately. Let the device reach room temperature before switching it on, otherwise it may be
damaged by the formed condensation.
● If the device fails to work properly, discontinue the use immediately.
Attention
For professional use only
This device shall be used only for the purposes it is designed for.
This device is designed to be used as an outdoor flood light. Any incorrect use may lead to hazardous
situations and result in injuries and material damage.
● This device is not suitable for households and for general lighting.
● This device is not designed for permanent operation.
● This device contains a non-user-replaceable light source.
● This device does not contain user-serviceable parts. Unauthorized modifications to the device will
render the warranty void. Such modifications may result in injuries and material damage.
Page 8
7
Aviano 20 CCT
Product code: A0720116
Attention
Before each use, examine the device visually for any defects.
Make sure that:
● All screws used for installing the device or parts of the device are tightly fastened and are not
corroded.
● The safety devices are not damaged.
● There are no deformations on housings, fixations and installation points.
● The lens is not cracked or damaged.
● The power cables are not damaged and do not show any material fatigue.
Attention
Do not expose the device to conditions that exceed the rated IP class conditions.
This device is IP65 rated. IP (Ingress Protection) 65 class means that the device is dust-tight and protected
against harmful effect of water jets.
Requirements for the User
This product may be used by ordinary persons. Maintenance may be carried by ordinary persons.
Installation and service shall be carried out only by instructed or skilled persons. Contact your Highlite
dealer for more information.
Instructed persons have been instructed and trained by a skilled person, or are supervised by a skilled
person, for specific tasks and work activities associated with the installation, service and maintenance of
this product, so that they can identify risks and take precautions to avoid them.
Skilled persons have training or experience, which enables them to recognize risks and to avoid haz ards
associated with the installation, service and maintenance of this product.
Ordinary persons are all persons other than instructed persons and skilled persons. Ordinary persons
include not only users of the product but also any other persons that may have access to the device or
who may be in the vicinity of the device.
Page 9
8
Aviano 20 CCT
Product code: A0720116
3. Description of the Device
The Artecta Aviano 20 CCT is a 30 W LED floodlight with a 110° beam angle and a color temperature
switch. The device can be installed with a clamp or can be mounted to a wooden or concrete wall.

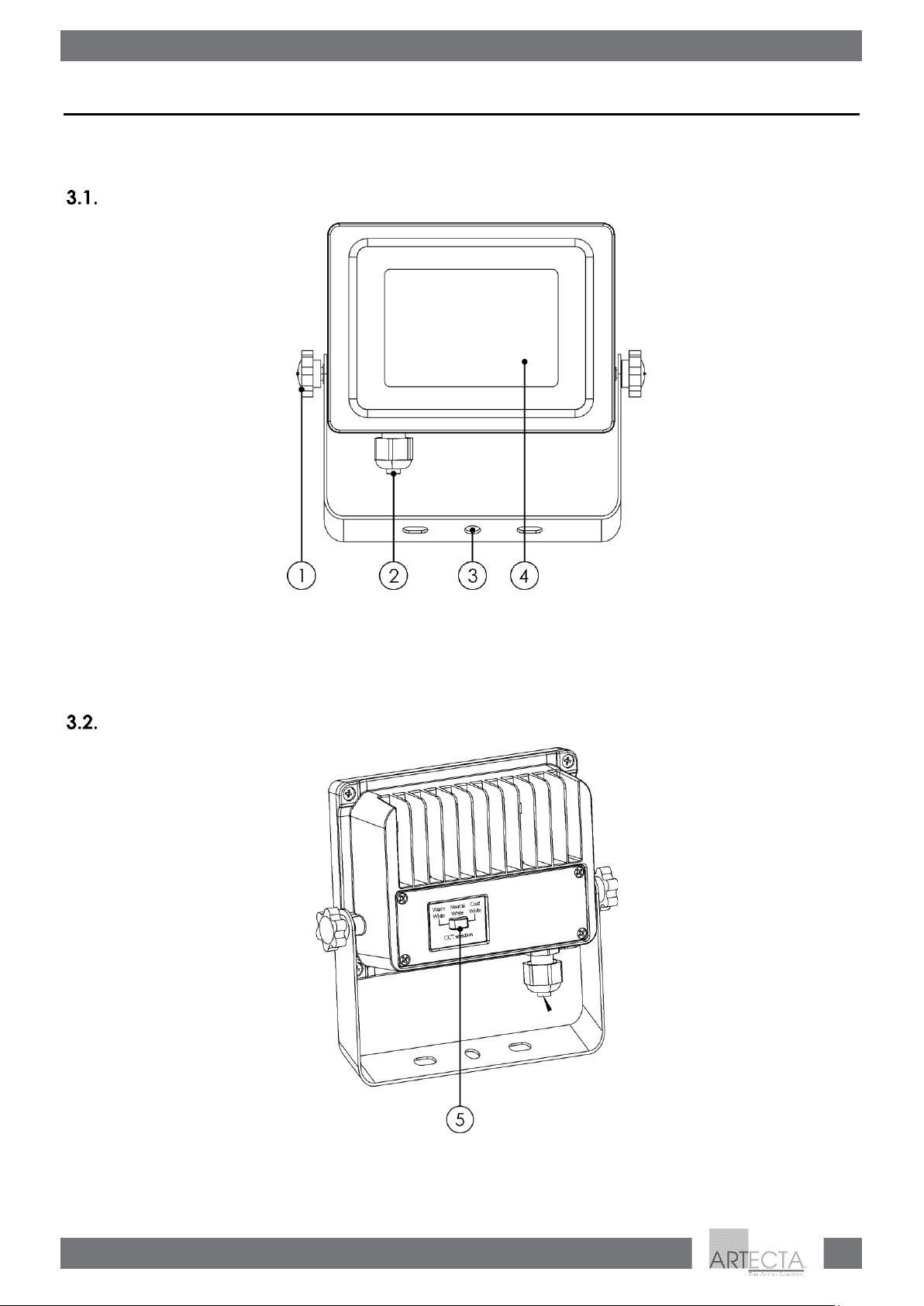

Front
Fig. 02
01) 2 x adjustment screws
02) Power cable with Schuko plug (6 m)
03) Mounting bracket
04) 48 x WW/NW/CW (0,4 W) LEDs
Back
Fig. 03
05) Color temperature switch
Page 10
9
Aviano 20 CCT
Product code: A0720116
Product Specifications
Model:
Aviano 20 CCT
Electrical:
Input voltage:
220–240 V AC, 50/60 Hz
Power consumption:
21 W
Physical:
Dimensions:
179 x 47 x 164 mm (LxWxH)
Weight:
1,2 kg
Optics:
Light source:
48 x WW/NW/CW (0,4 W) LEDs
Lumen:
1800 lm
CRI:
80
CCT:
3000 K/4200 K/6000 K
Beam angle (circular):
110°
Operation and control:
Control:
Manual (3-way switch): WW/NW/CW
Connections:
Power connections:
IP65 power cable with Schuko plug (6 m)
Construction:
Housing:
Aluminum die-cast
Color:
Black
IP rating:
IP65
Thermal:
Maximum ambient temperature ta:
45 °C
Minimum distance:
Minimum distance from flammable surfaces:
0,5 m

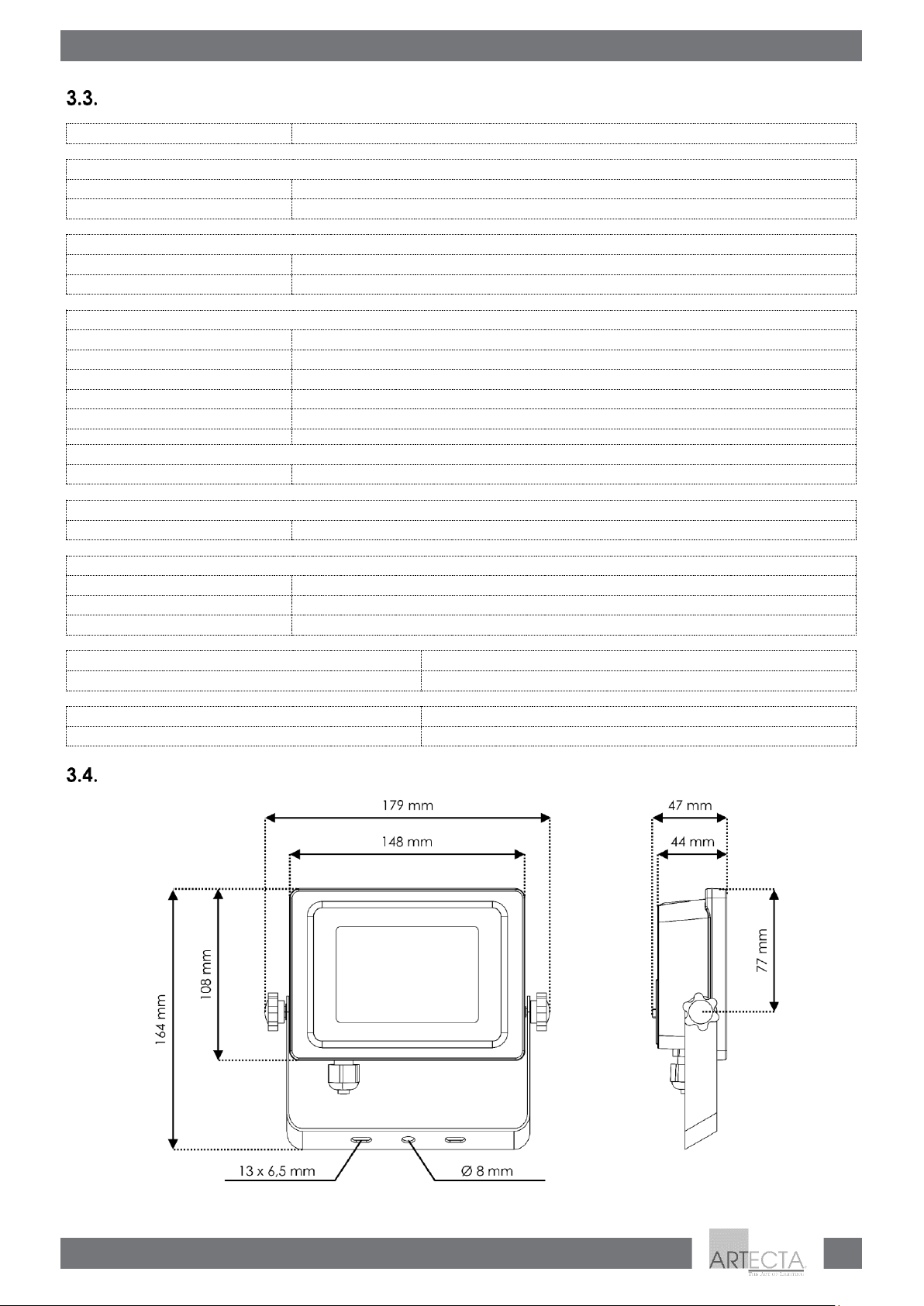

Dimensions
Fig. 04
Page 11
10
Aviano 20 CCT
Product code: A0720116
4. Installation and Operation
Safety Instructions
WARNING
Incorrect installation can cause serious injuries and damage of property.
If trussing systems are used, installation must be carried out only by instructed or skilled persons.
Follow all applicable European, national and local safety regulations concerning rigging and trussing.
Attention
Power supply
Before connecting the device to the power supply, make sure that the current, voltage and frequency
match the input voltage, current and frequency specified on the information label on the device.
Personal Protective Equipment
During installation and rigging wear personal protective equipment in compliance with the national and
site-specific regulations.

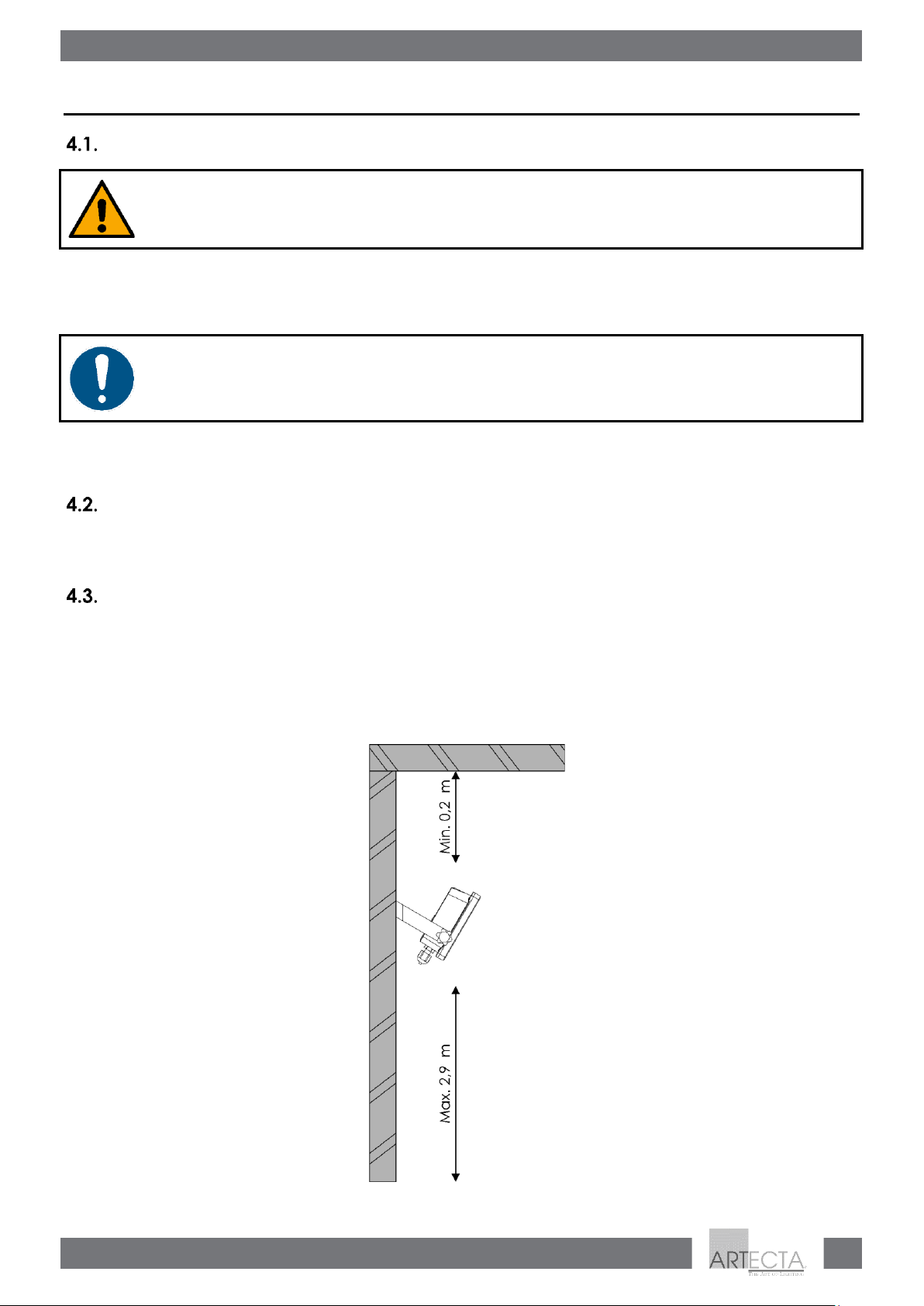

Installation Site Requirements
● The device can be used outdoors.
● The device can be mounted to a truss or directly to a wall in any orientation.
● The minimum distance to other objects must be bigger than 0,2 m.
● The maximum installation height shall not exceed 2,9 m.
● The maximum ambient temperature ta = 45 °C must never be exceeded.
● The relative humidity must not exceed 50 % with an ambient temperature of 45 °C.
Fig. 05
Page 12
11
Aviano 20 CCT
Product code: A0720116
Mounting
The device can be mounted to a truss or other rigging structure in any orientation or can be mounted to
a wall. Make sure that all loads are within the pre-determined limits of the supporting structure.
CAUTION
Restrict the access under the work area during rigging and/or derigging.

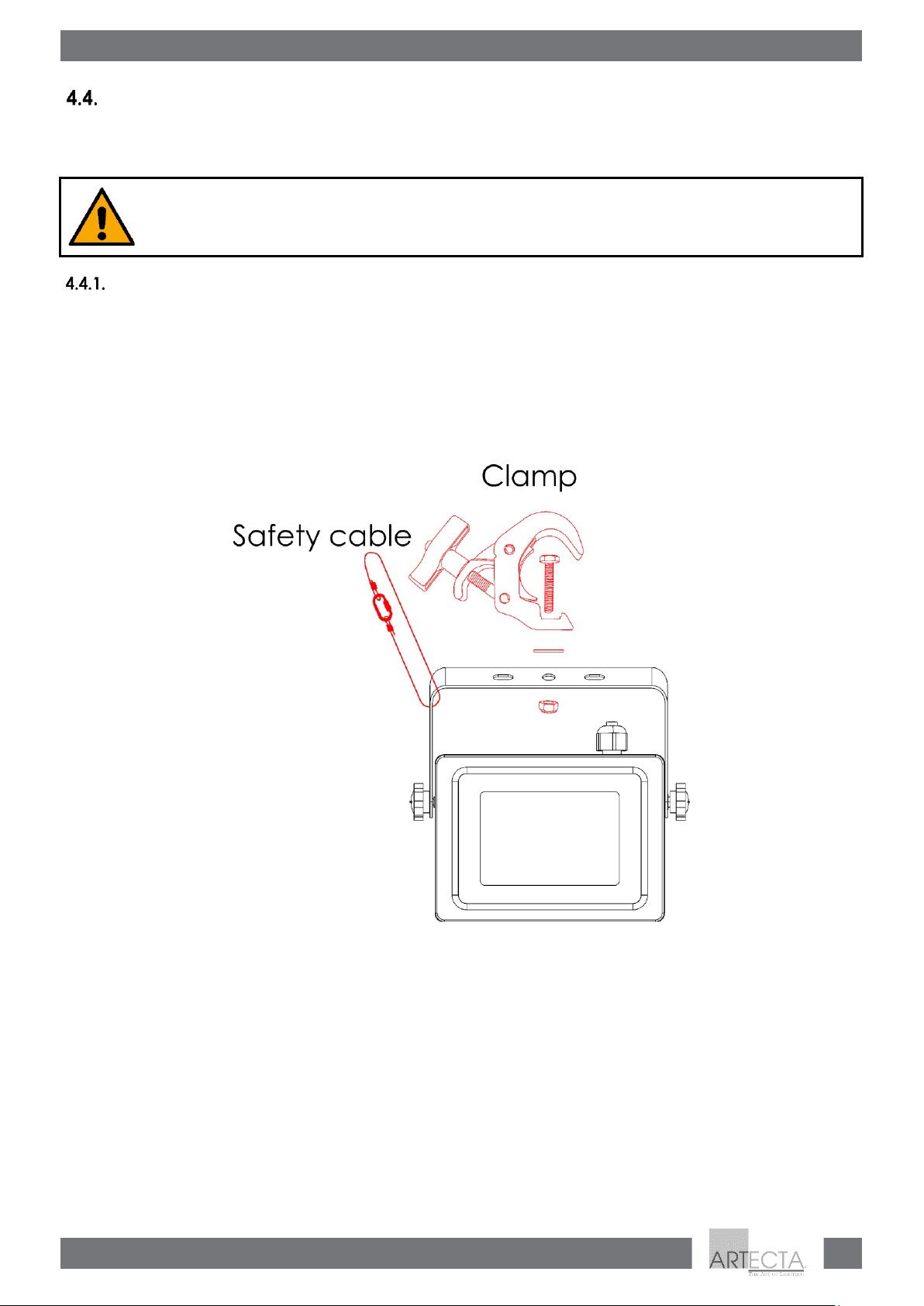

Installation on a Truss with a Clamp
To install the device on a truss, follow the steps below:
01) Use a clamp to attach the device to the supporting structure, as shown in Fig. 06. Make sure that the
device cannot move freely.
02) Secure the device with a secondary suspension, for example a safety cable. Make sure that the
secondary suspension can hold 10 times the weight of the device. If possible, the secondary
suspension should be attached to a supporting structure independent of the primary suspension. Put
the safety cable through the mounting bracket (03), as shown in Fig. 06.
Fig. 06
Page 13
12
Aviano 20 CCT
Product code: A0720116
Installation on a Wall

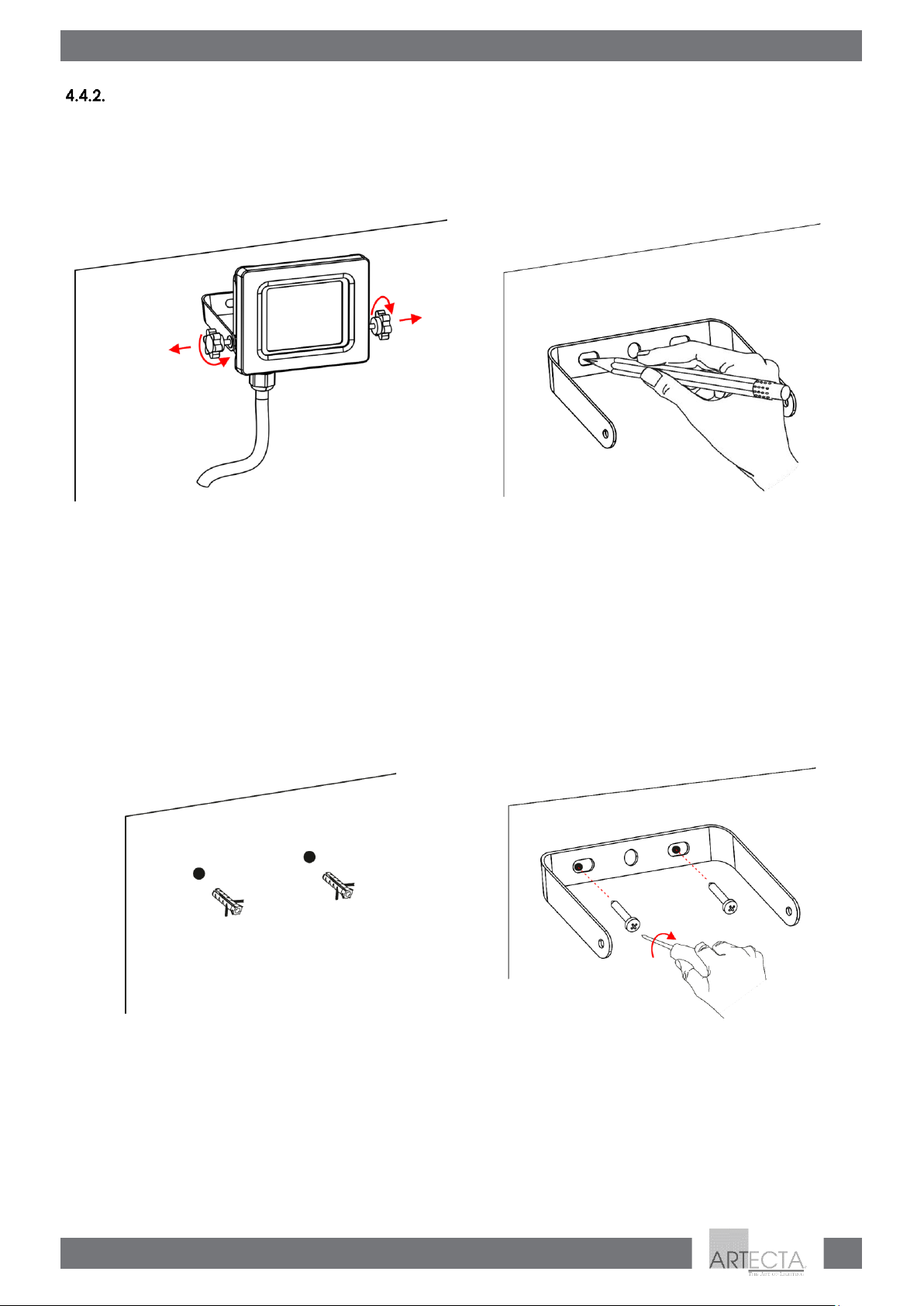

To install the device, follow the steps below:
01) Turn the 2 adjustment screws (01) counterclockwise to loosen them (Fig. 07).
02) Remove the 2 adjustment screws (01). The device and the mounting bracket (03) will disconnect.
03) Hold the mounting bracket (03) against the wall and mark the mounting locations (Fig. 08).
Fig. 07
Fig. 08
04) Drill holes at marked locations. See 4.4.2.1. Drilling into Wood or 4.4.2.2. Drilling into Concrete on page
13 for more information.
05) Insert anchors into the drilled holes (Fig. 09). Do not perform this step when mounting the device to a
wooden wall.
06) Insert and tighten the screws to install the mounting bracket (03) (Fig. 10).
Notes:
● Use screws of the correct length. See 4.4.2.3. Minimum Screw Length on page 13 for more
information.
● Do not overtighten the screws as this can damage the mounting bracket. The damaged
mounting bracket cannot support the weight of the device and can break easily.
Fig. 09
Fig. 10
07) Use the color temperature switch (05) to select one of the 3 color temperature options:
● Warm White
● Neutral White
● Cold White
Page 14
13
Aviano 20 CCT
Product code: A0720116
08) Insert the 2 adjustment screws (01) to connect the device to the mounting bracket (03).
09) Turn the 2 adjustment screws (01) clockwise to tighten them (Fig. 11).
Fig. 11

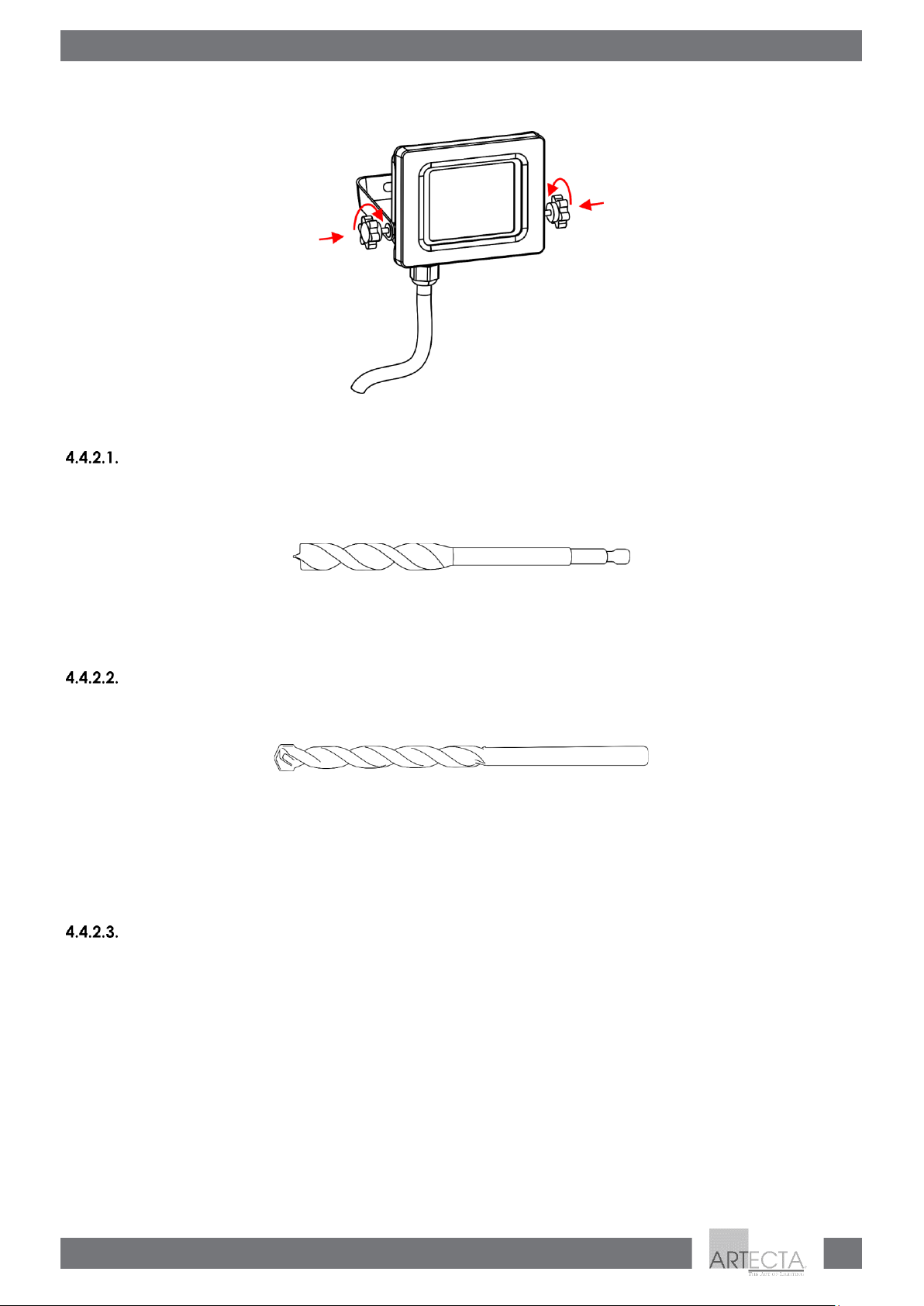

Drilling into Wood
If you drill into wood, use hardwood drill bits. Predrill before inserting screws, to remove drill dust and to
avoid damaging of the wood.
Fig. 12
Note: Use hardwood drill bits of the diameter slightly smaller than the screws used (e.g. for Ø 5 mm
screws, use a Ø 3,5 mm hardwood drill bit).
Drilling into Concrete
If you drill into a concrete wall, use drill bits for concrete.
Fig. 13
Notes:
● Use drill bits of the same diameter as the anchors used.
● Do not drill into mortar joints. Screws installed in mortar joints cannot safely support the weight of the
device.
Minimum Screw Length
The minimum screw length depends on the diameter of the mounting holes on the device. Multiply the
mounting hole diameter (mm) by 2,5. The result is the minimum screw length.
The mounting holes on this device are Ø 6,5 mm.
6,5 mm x 2,5 = 16,25 mm.
The screws used for mounting shall be at least 16,25 mm long.
Page 15
14
Aviano 20 CCT
Product code: A0720116

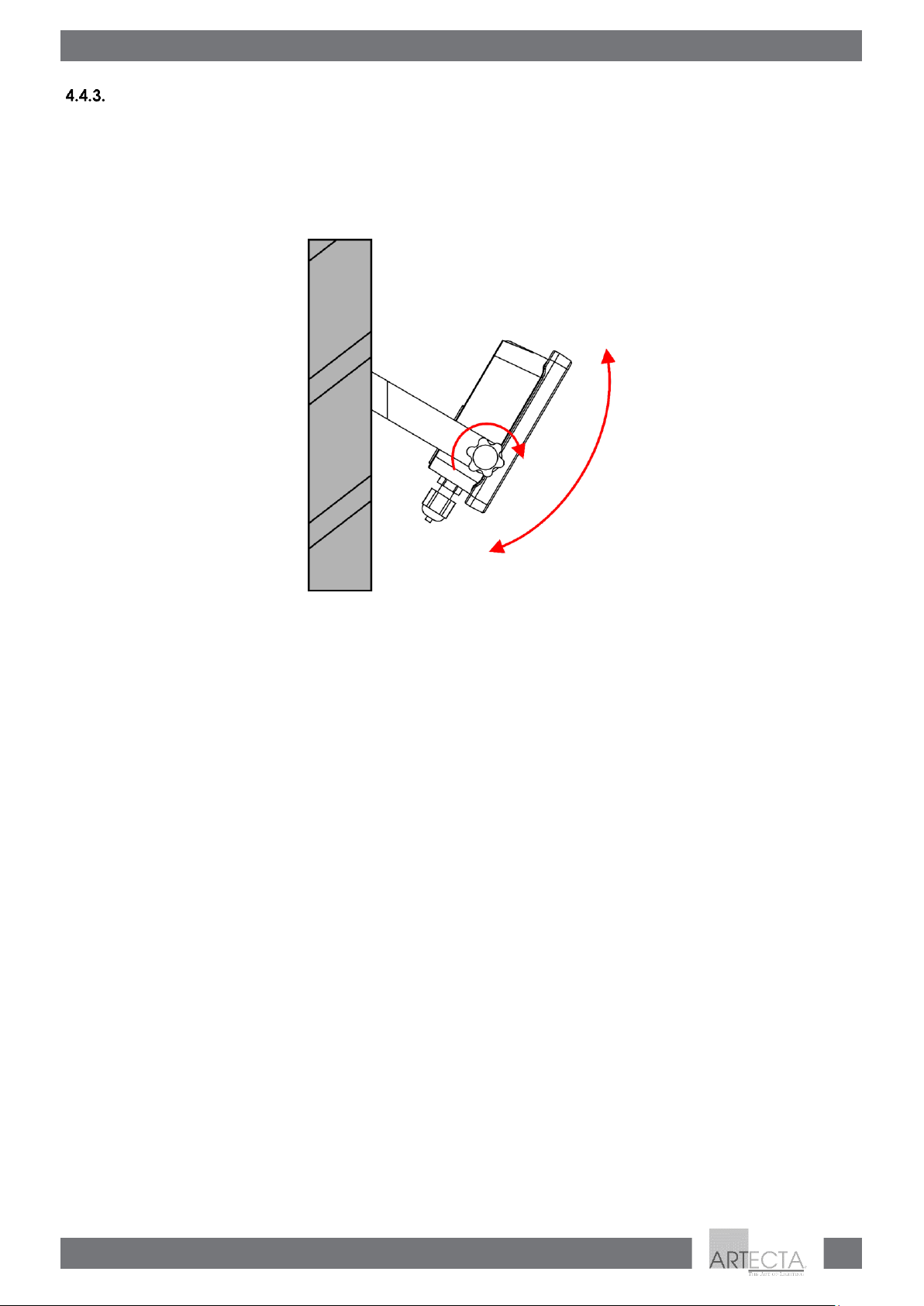

Angle Adjustment
You can adjust the angle of the device with the adjustment screws (01).
01) Turn the adjustment screws (01) counterclockwise to release them.
02) Tilt the device to the desired angle (Fig. 14).
03) Turn the adjustment screws (01) clockwise to tighten them. Make sure that the device cannot move
freely.
Fig. 14
Page 16
15
Aviano 20 CCT
Product code: A0720116
Connecting to Power Supply
DANGER
Electric shock caused by short-circuit
The device accepts AC mains power at 220–240 V and 50/60 Hz. Do not supply power at any other
voltage or frequency to the device.
This device falls under IEC protection class I. Make sure that the device is always electrically connected
to the ground (earth).
Before connecting the device to the socket-outlet:
● Make sure that the power supply matches the input voltage specified on the information label on
the device.
● Make sure that the socket-outlet has ground (earth) connection.
Connect the device to the socket-outlet with the power plug. Do not connect the device to a dimmer
circuit, as this may damage the device.
5. Troubleshooting
This troubleshooting guide contains solutions to problems which can be carried out by an ordinary
person. The device does not contain user-serviceable parts.
Unauthorized modifications to the device will render the warranty void. Such modifications may result in
injuries and material damage.
Refer servicing to instructed or skilled persons. Contact your Highlite International dealer in case the
solution is not described in the table.
Problem
Probable cause(s)
Solution
The device does not
function at all
No power to the device
● Check if power is switched on and
cables are plugged in
Main fuse is blown
● Disconnect the device and contact
your Highlite International dealer
No light or LEDs cut
out intermittently
LEDs are damaged
● Disconnect the device and contact
your Highlite International dealer
The power supply settings do not
match local AC voltage and
frequency
● Disconnect the device. Check the
settings and correct, if necessary
6. Maintenance
Safety Instructions for Maintenance
DANGER
Electric shock caused by dangerous voltage inside
Disconnect power supply before servicing or cleaning.
Page 17
16
Aviano 20 CCT
Product code: A0720116
Preventive Maintenance
Attention
Before each use, examine the device visually for any defects.
Make sure that:
● All screws used for installing the device or parts of the device are tightly fastened and are not
corroded.
● The safety devices are not damaged.
● There are no deformations on housings, fixations and installation points.
● The lens is not cracked or damaged.
● The power cables are not damaged and do not show any material fatigue.
Basic Cleaning Instructions
To clean the device, follow the steps below:
01) Disconnect the device from the electrical power supply.
02) Allow the device to cool down for at least 15 minutes.
03) Clean the device with a damp cloth.
04) Dry the lens carefully with a lint-free cloth.
Attention
● Do not immerse the device in liquid.
● Do not use alcohol or solvents.
Corrective Maintenance
The device does not contain user-serviceable parts. Do not open the device and do not modify the
device.
Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for
more information.
7. Deinstallation, Transportation and Storage
Instructions for Deinstallation
WARNING
Incorrect deinstallation can cause serious injuries and damage of property.
● Let the device cool down before dismounting.
● Disconnect power supply before deinstallation.
● Always observe the national and site-specific regulations during deinstallation and derigging of the
device.
● Wear personal protective equipment in compliance with the national and site-specific regulations.
Page 18
17
Aviano 20 CCT
Product code: A0720116
Instructions for Transportation
● Use the original packaging to transport the device, if possible.
● Always observe the handling instructions printed on the outer carton box, for example: “Handle with
care”, “This side up”, “Fragile”.
Storage
● Clean the device before storing. Follow the cleaning instructions in chapter 6.2.1. Basic Cleaning
Instructions on page 16.
● Store the device in the original packaging, if possible.
8. Disposal
Correct disposal of this product
Waste Electrical and Electronic Equipment
This symbol on the product, its packaging or documents indicates that the product
shall not be treated as household waste. Dispose of this product by handing it to the
respective collection point for recycling of electrical and electronic equipment. This is
to avoid environmental damage or personal injury due to uncontrolled waste
disposal. For more detailed information about recycling of this product contact the
local authorities or the authorized dealer.
9. Approval
Check the respective product page on the website of Highlite International (www.highlite.com) for an
available declaration of conformity.
Page 19
18
Aviano 20 CCT
Product code: A0720116
Page 20
©2022 Artecta
Loading...
