Page 1
IPF2002PoE User’s Manual
V1.0
Version
www.artdio.com.tw
Page 2
IPF2002PoE User’s Manual/使用手冊
Safety Instructions
• Do not attempt to service the product by yourself. Any servicing of this product should be referred to qualified
service personnel.
• To avoid electrical shock, do not put your finger, any pin, wire, or other metal objects into the vents and gaps.
• To avoid accidental fire or electrical shock, do not twist power cord or place it under heavy objects.
• The product should be connected to a power supply of the type described in the operating instructions or as
marked on the product.
• To avoid hazard to children, dispose of the product’s plastic packaging carefully.
Please read all the instructions before using this product.
2
Page 3
IPF2002PoE User’s Manual/使用手冊
Contents
Ⅰ. PRODUCT FEATURES..............................................................................................................................................................................7
1.1 SOFTWARE FEATURES ..............................................................................................................................................................................7
1.2 HARDWARE FEATURES.............................................................................................................................................................................7
1.3 PRODUCT OVERVIEW ............................................................................................................................................................................... 8

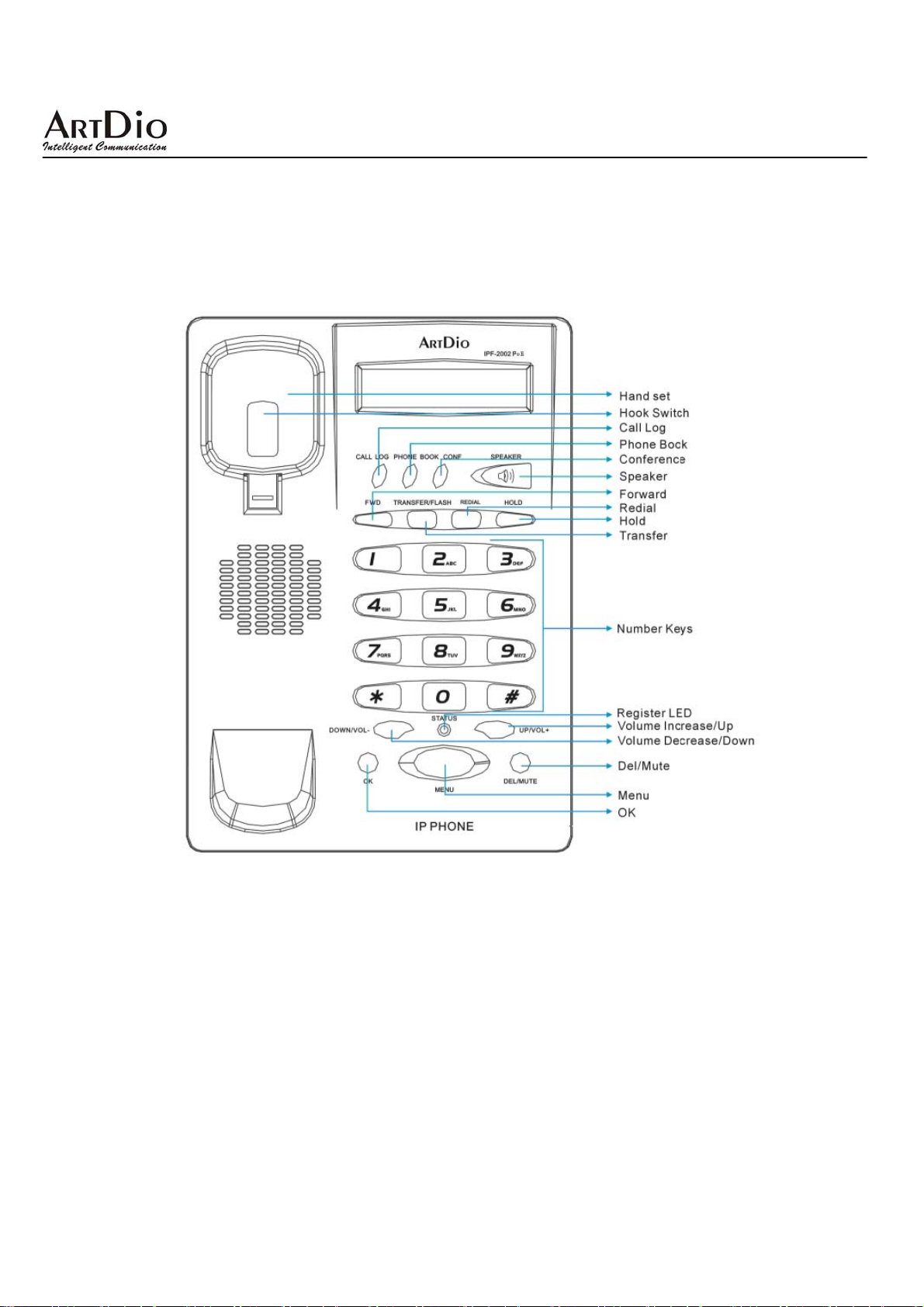

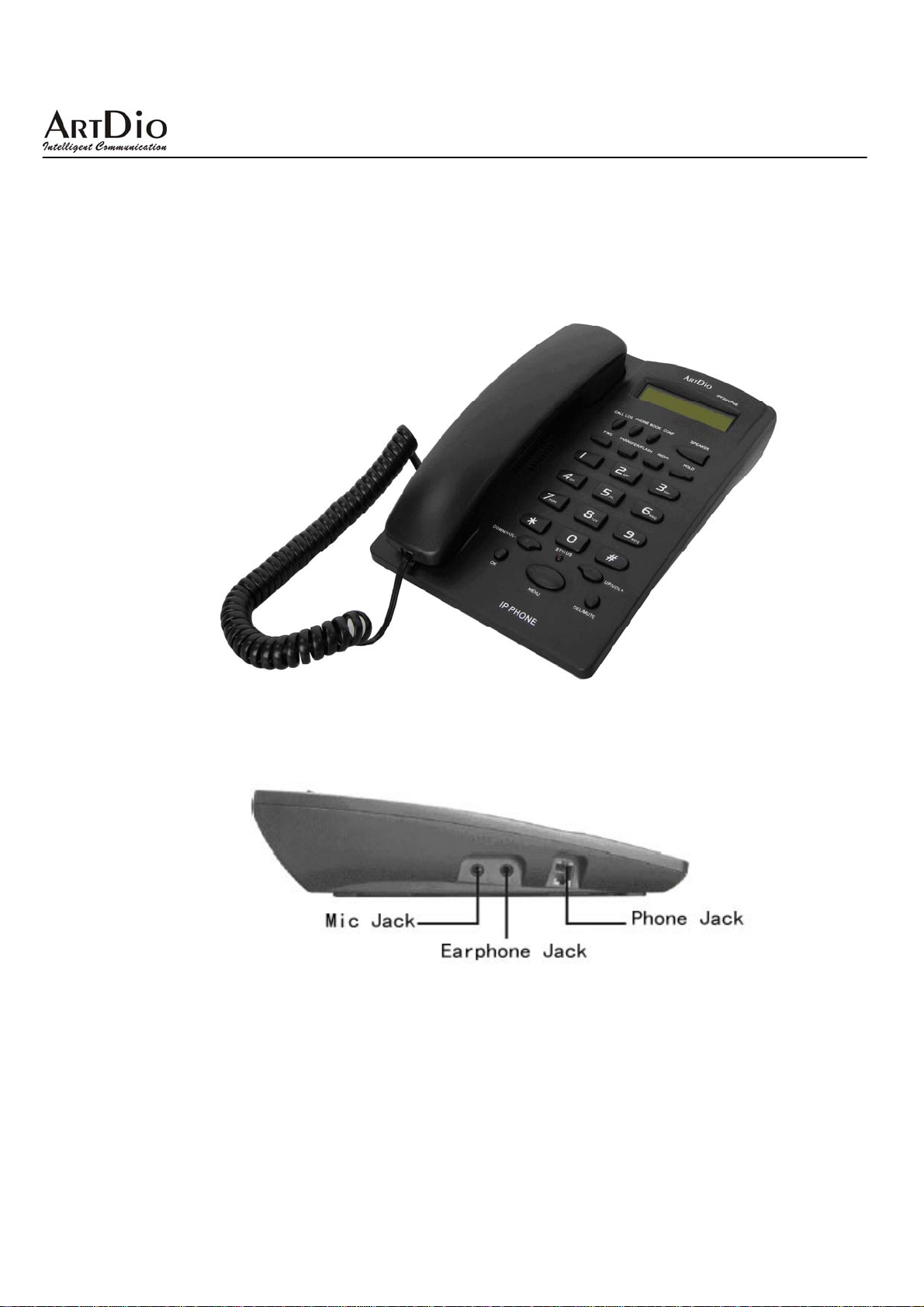

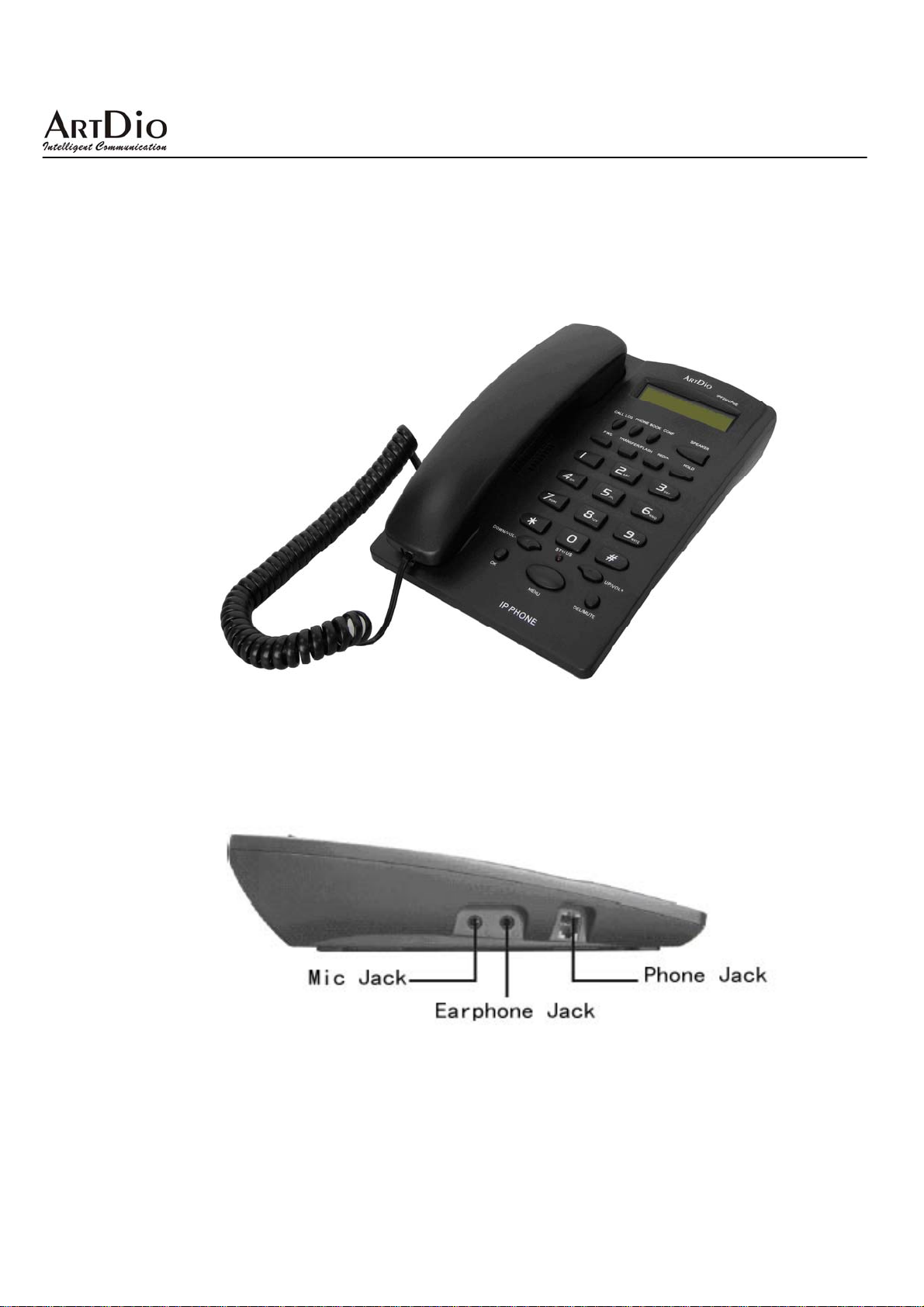

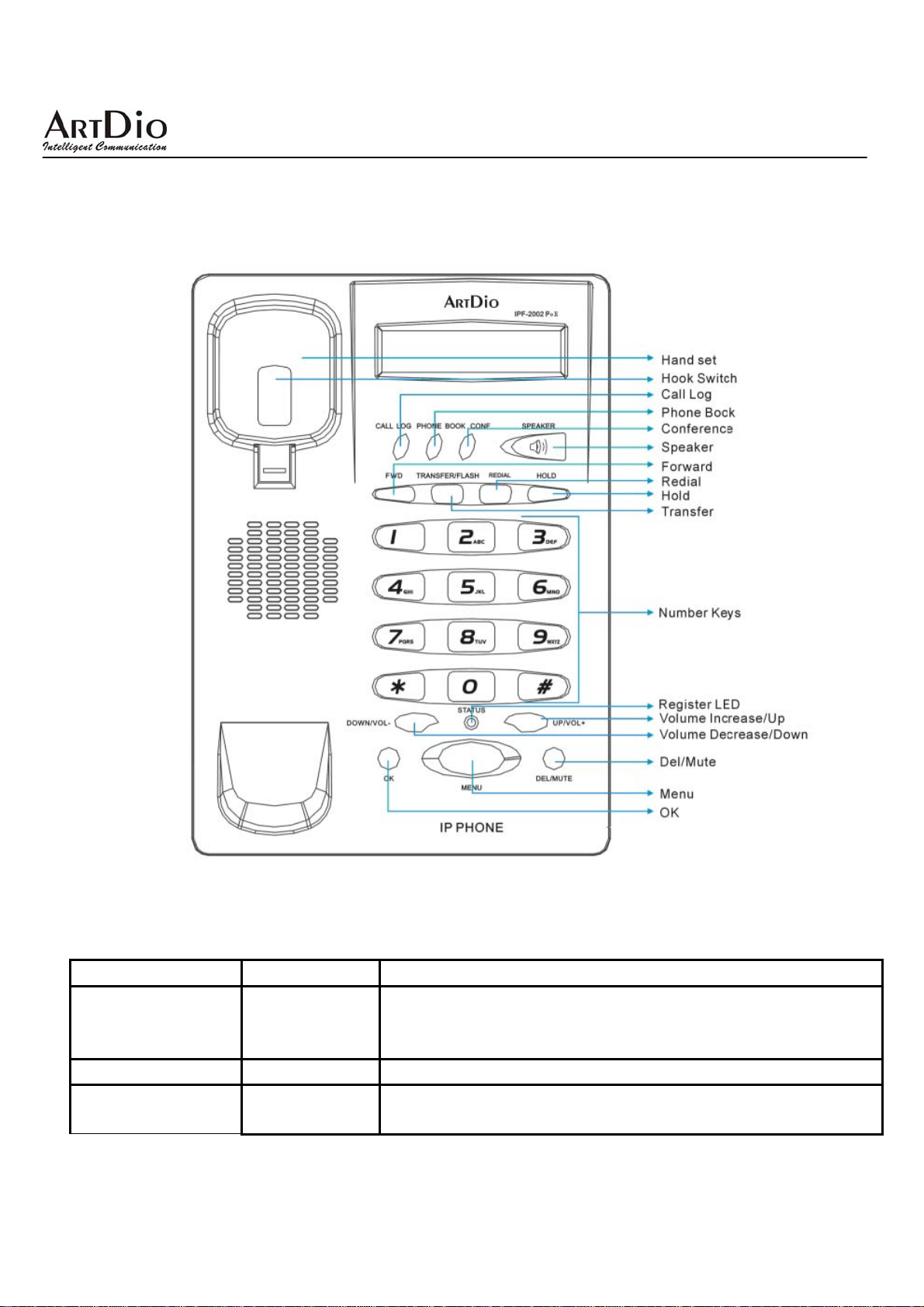

1. Phone Front View..................................................................................... ....... ...................................................................................8
2. Phone Side View................................................................................................................................................................................. 8

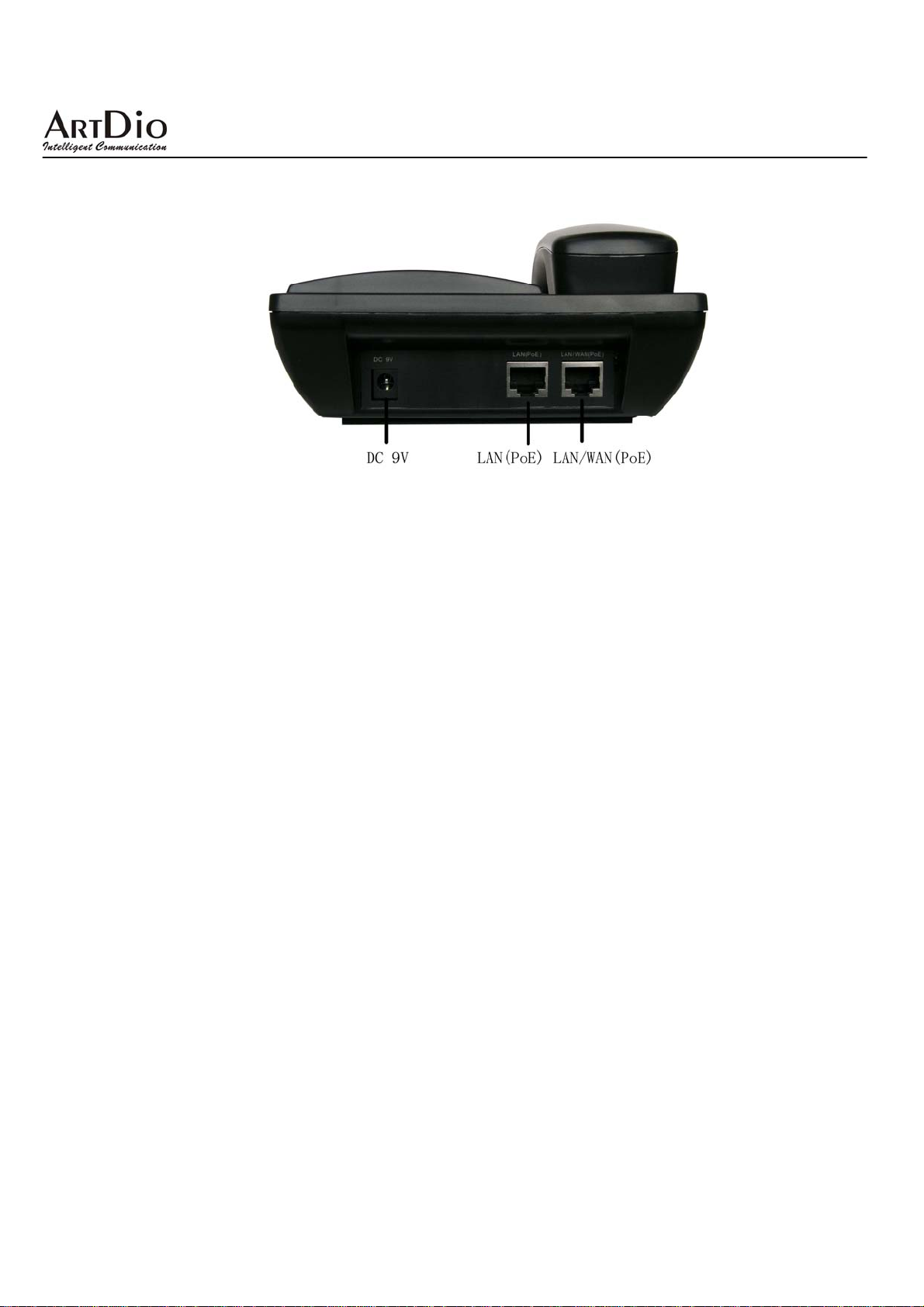

3. Phone Rear View.......................................................................... ......................................................................................................9
Ⅱ. INSTALLATION........................................................................................................................................................................................9
2.1 PACKAGE CONTENT .................................................................................................................................................................................9
2.2 HARDWARE INSTALLATION ...................................................................................................................................................................... 9

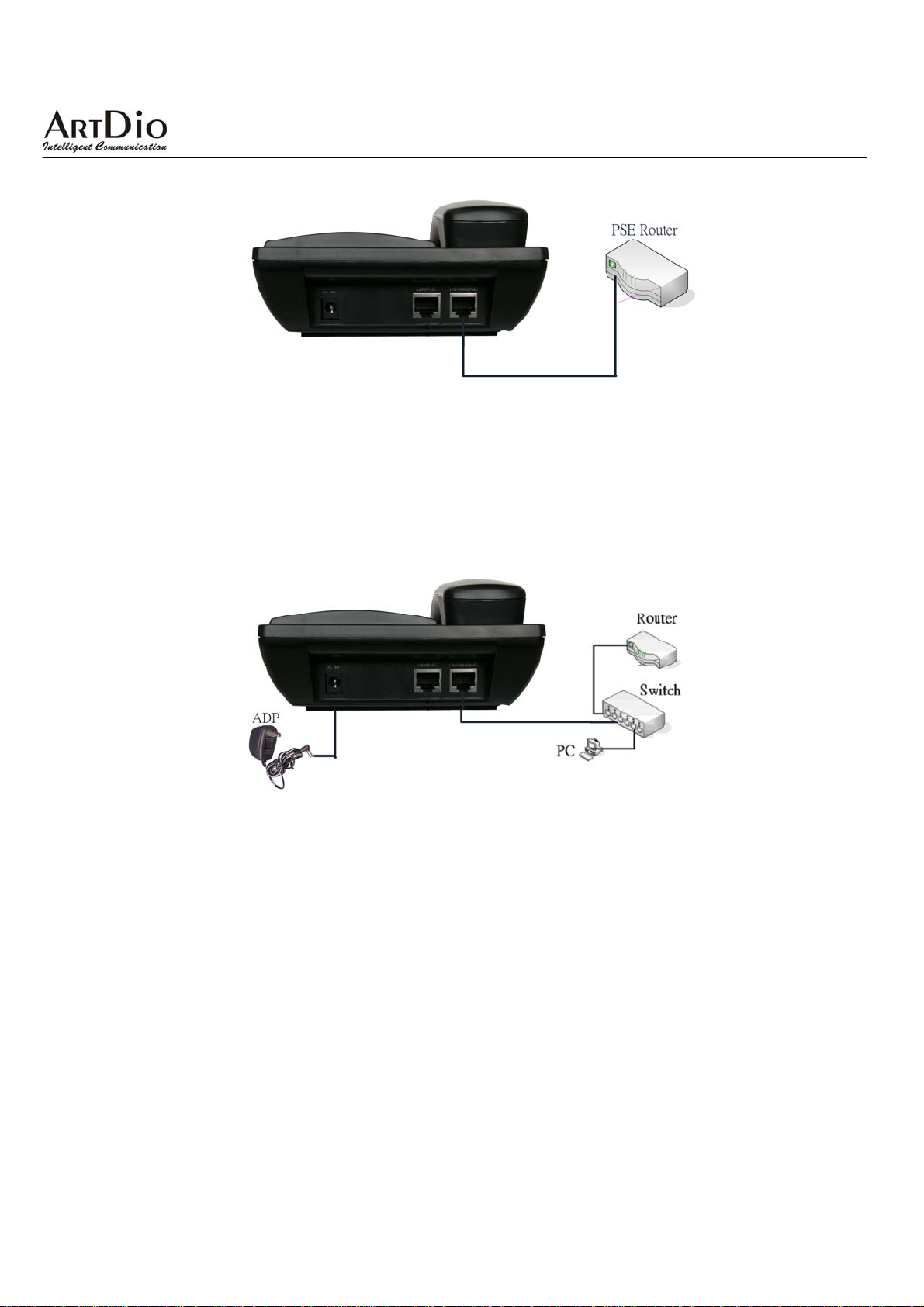

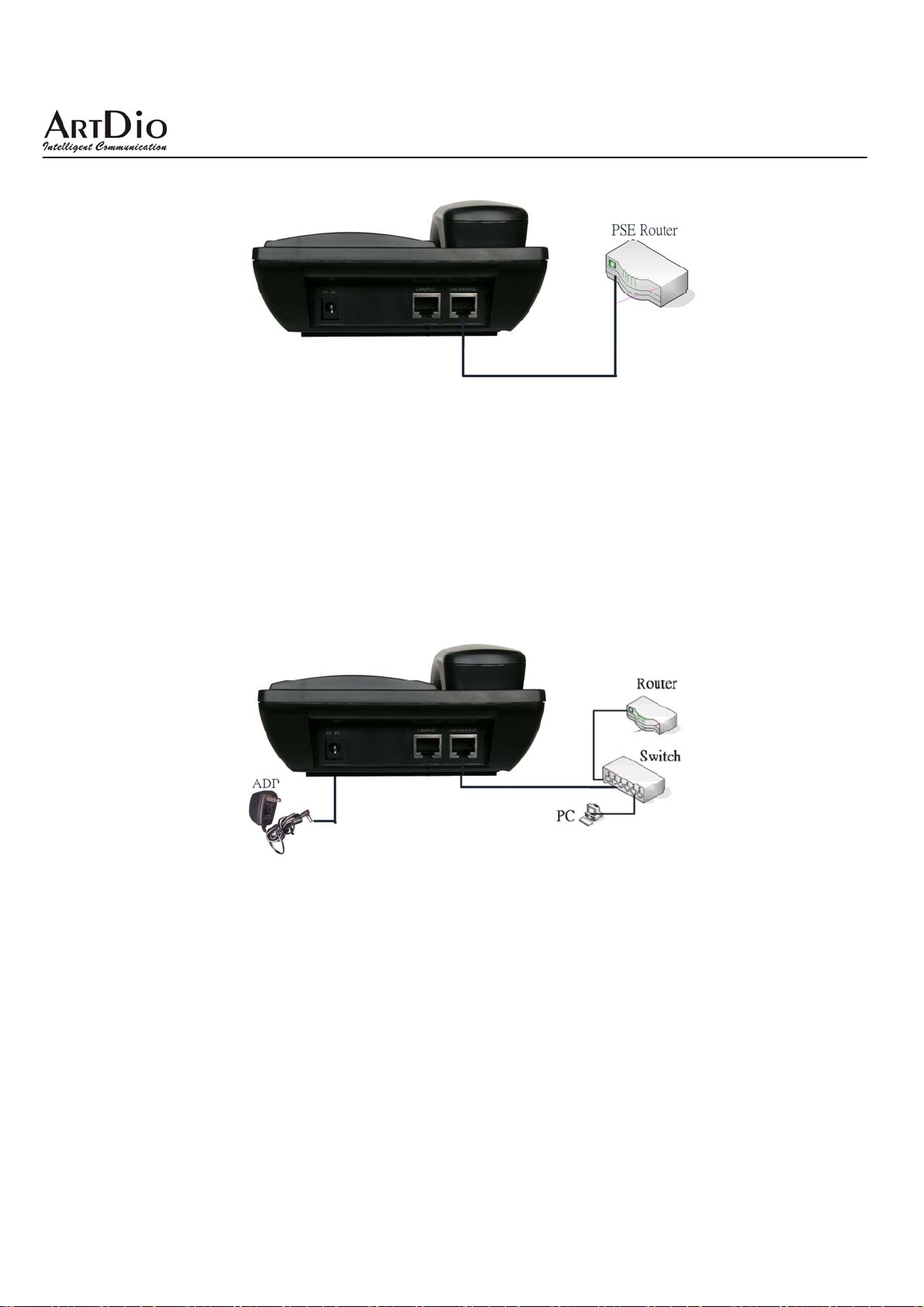

2.2.1 Installation without PSE Router....................................................................................................................................................9
2.2.2 Installation with IP Router..........................................................................................................................................................10

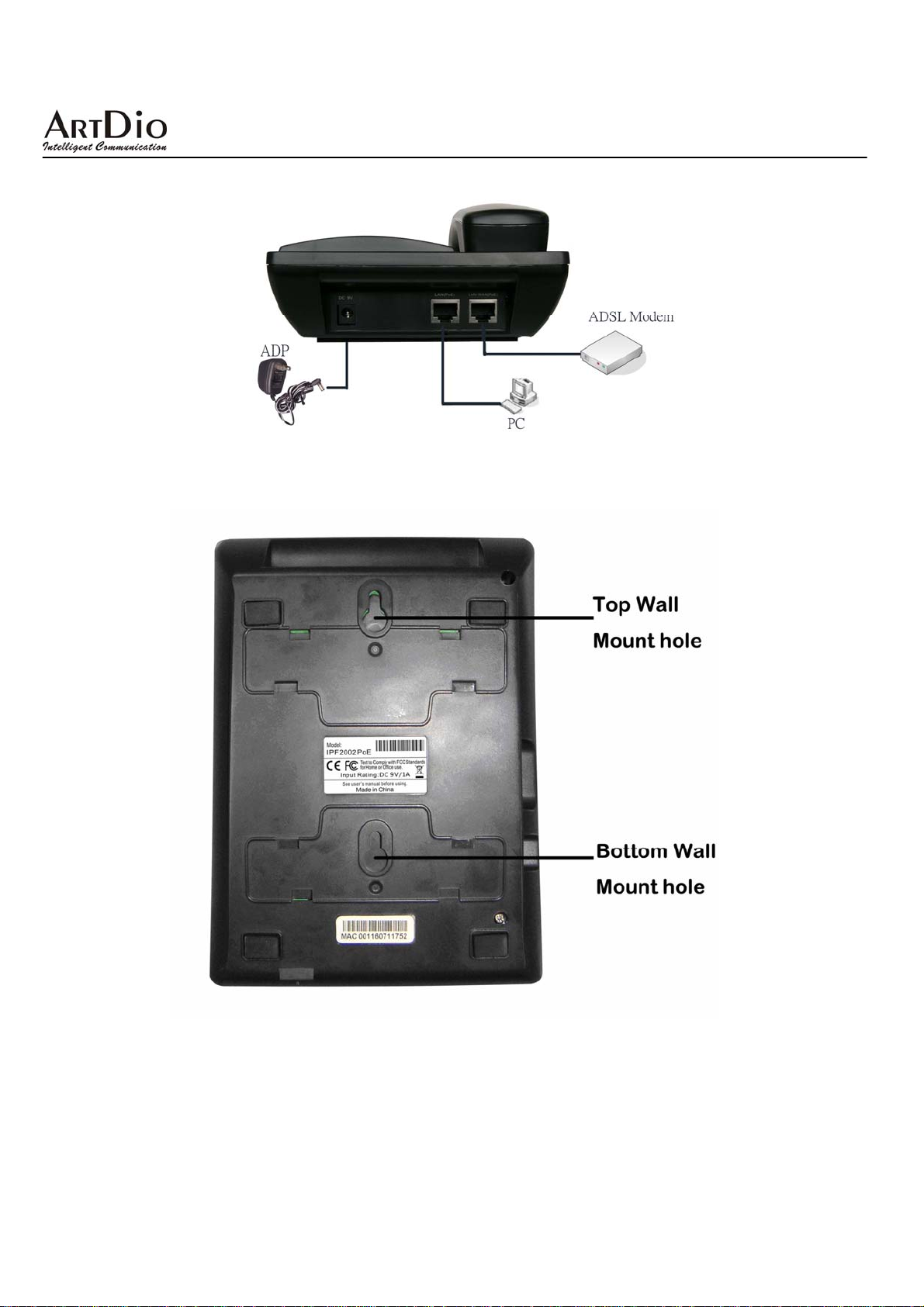

2.2.3 Installation without IP Router.....................................................................................................................................................10

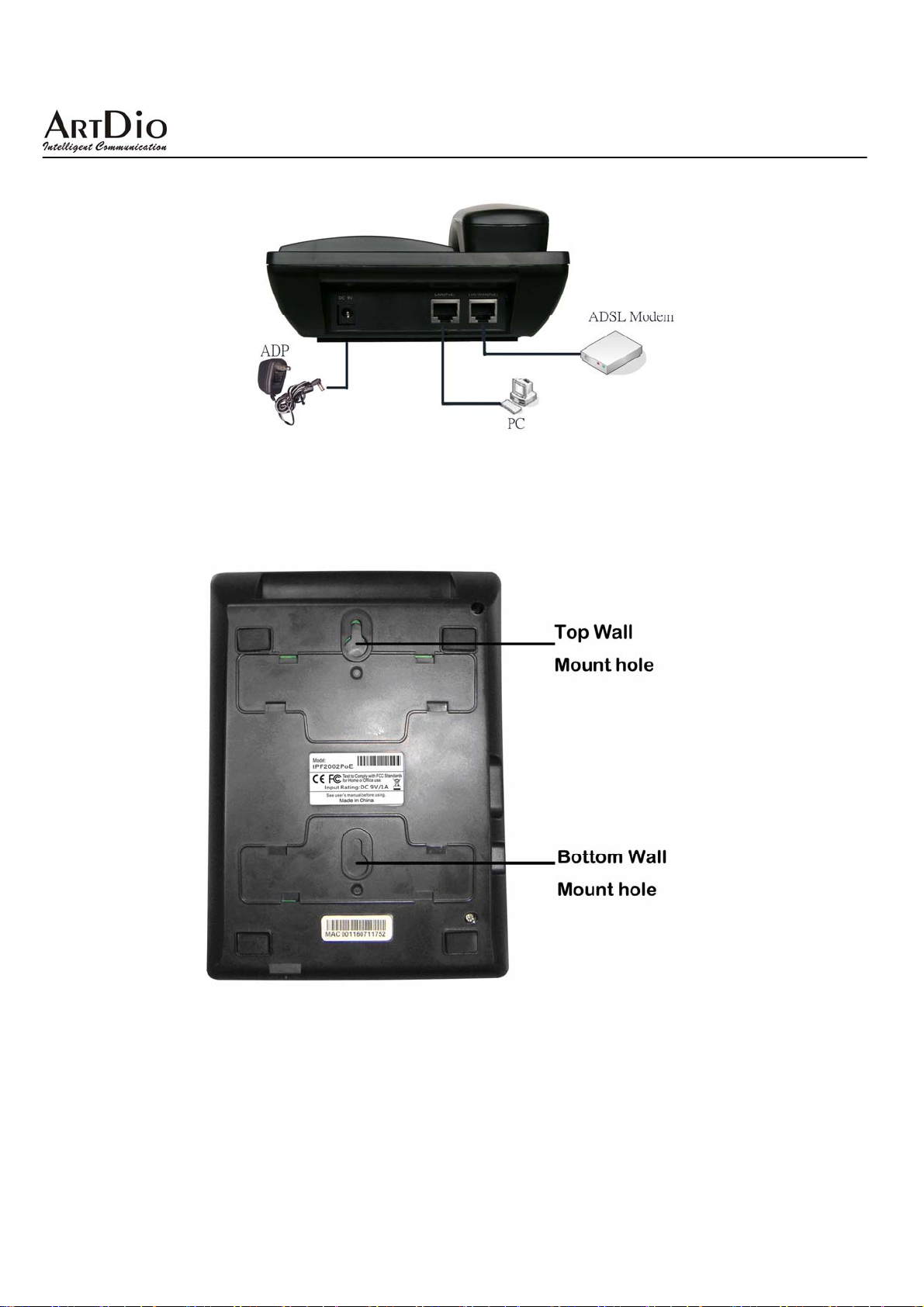

2.2.4.Wall mount...................................................................................................................................................................................11

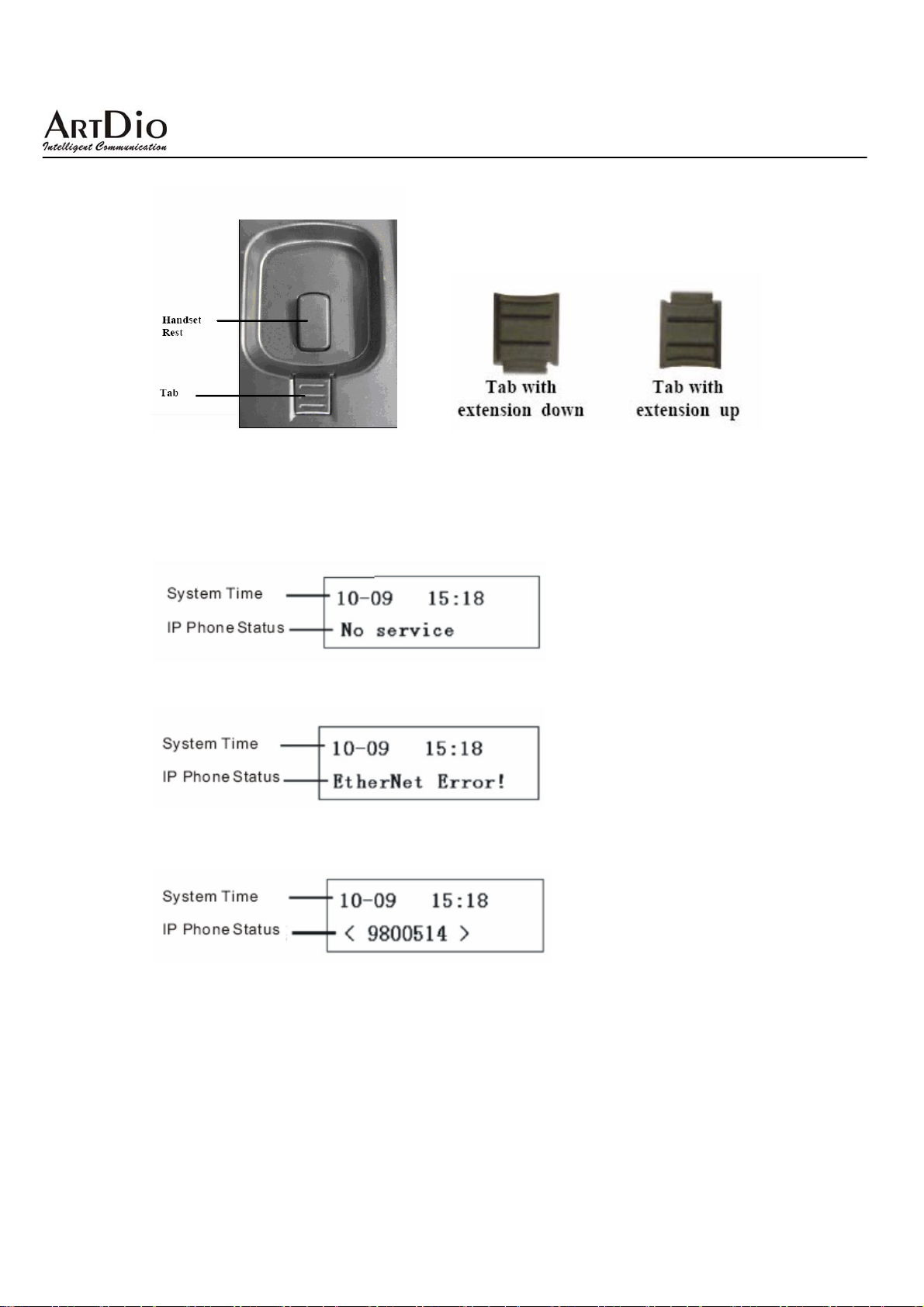

2.3 LCD STATUS DISPLAY ........................................................................................................................................................................... 12
Ⅲ.BASIC OPERATION.................................................................................................................................................................................13
3.1 KEYPAD DISPLAY .................................................................................................................................................................................. 13
3.2 KEYPAD FUNCTIONS INTRODUCTION....................................................................................................................................................... 14
Ⅳ.CONFIGURATION SETTINGS.................................................................................................................................................................15
4.1 PHONE BOOK.........................................................................................................................................................................................15
4.2 CALL HISTORY.......................................................................................................................................................................................15
4.3 PHONE SETTING ..................................................................................................................................................................................... 15
4.3.1 Call forward ................................................................................................................................................................................15
4.3.2 Do not Disturb.............................................................................................................................................................................16
4.3.3 Alarm setting ...............................................................................................................................................................................16
4.3.4 Date/Time setting.........................................................................................................................................................................16

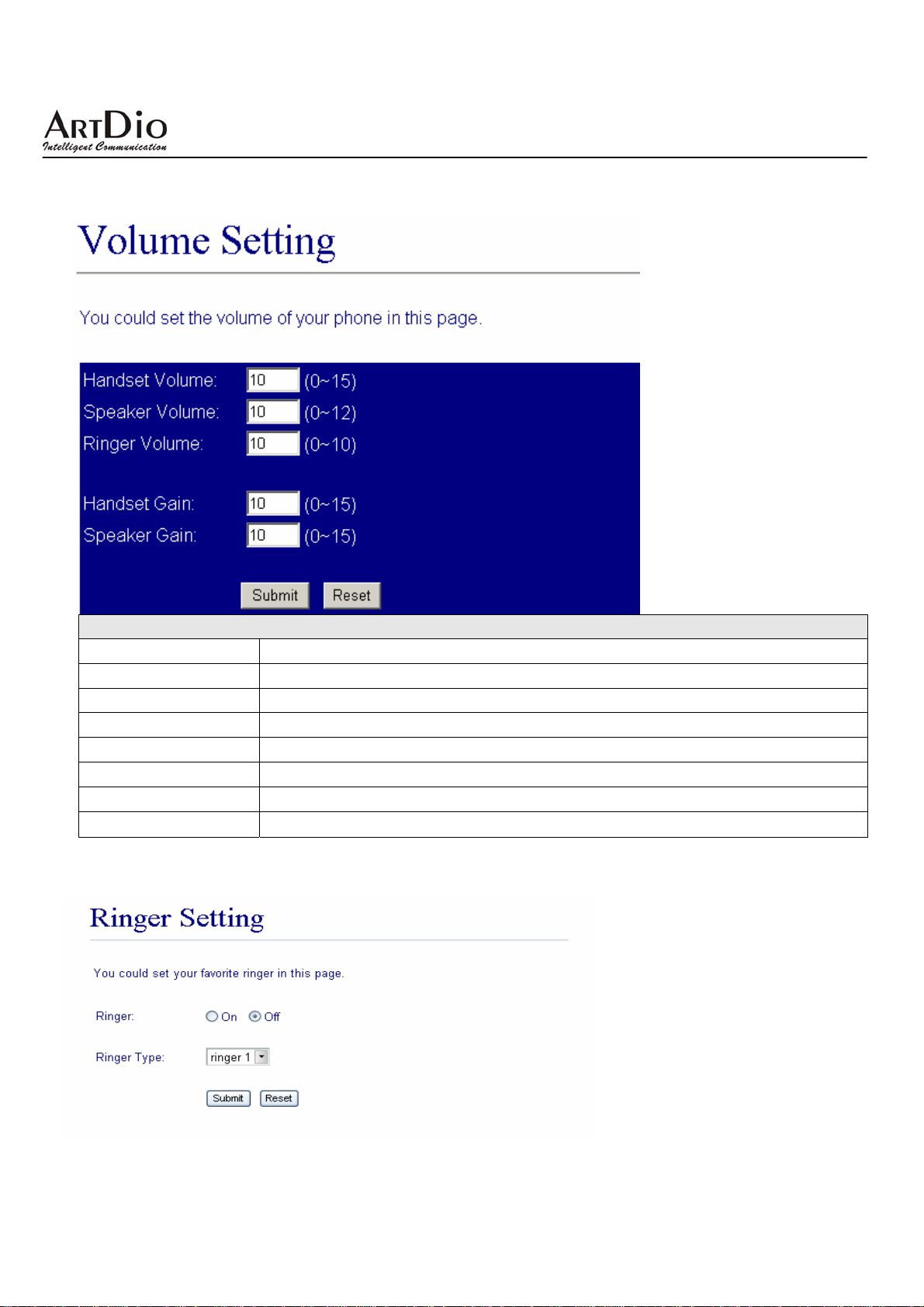

4.3.5 Volum e&Gain............................................................................................. ................. ................................................................16
4.3.6 Ringer..........................................................................................................................................................................................16
4.3.7 Other............................................................................................................................................................................................16
4.4 NETWORK..............................................................................................................................................................................................16
4.4.1 WAN Setup........................................................................................... .................... .................................................................... 16
4.4.2 LAN Setup....................................................................................................................................................................................17
4.4.3 DNS.............................................................................................................................................................................................17
4.4.4 VLAN...........................................................................................................................................................................................17
4.4.5 Status ...........................................................................................................................................................................................17
4.4.6 LAN Speed...................................................................................................................................................................................17
4.5 SIP SETTING .......................................................................................................................................................................................... 17
4.5.1 Service domain............................................................................................................................................................................18
4.5.2 Codec...........................................................................................................................................................................................18
4.5.3 RTP setting..................................................................................................................................................................................18
4.6 NAT TRANSVERSAL............................................................................................................................................................................... 18
4.7 ADMINISTRATOR.................................................................................................................................................................................... 18
Ⅴ. CONFIGURATION USING WEB BROWSER..........................................................................................................................................19

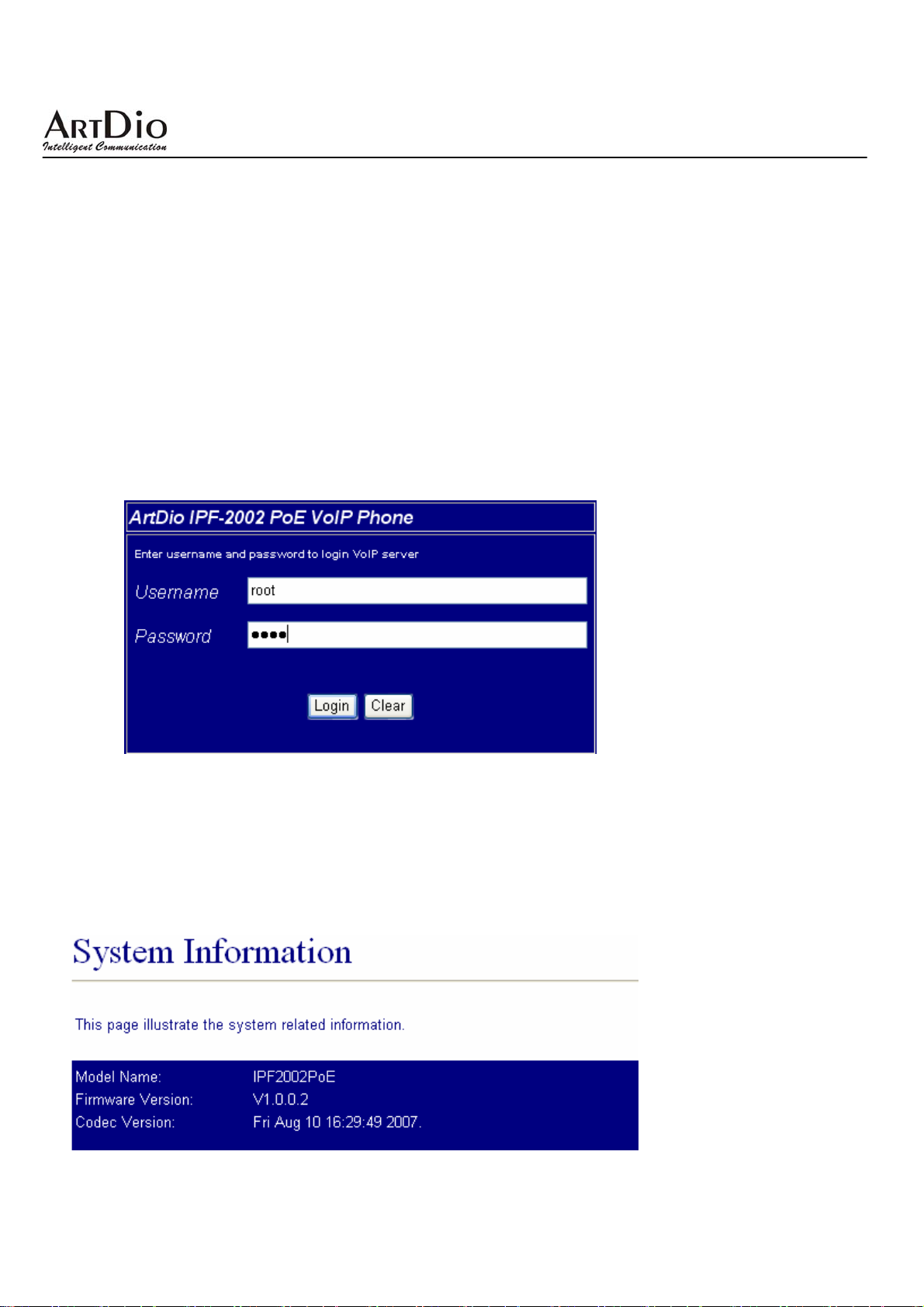

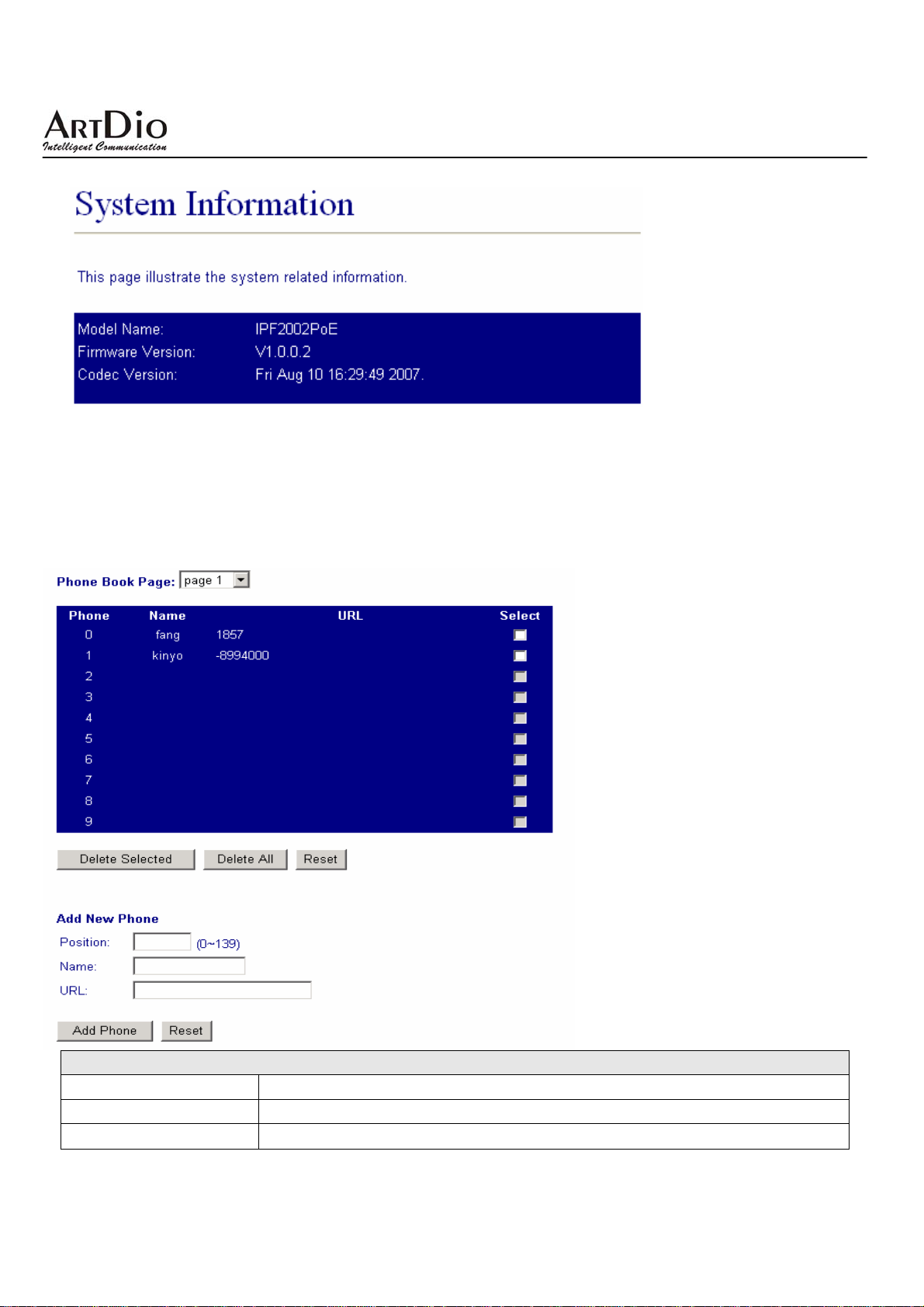

5.1 INFORMATION........................................................................................................................................................................................ 19
3
Page 4
IPF2002PoE User’s Manual/使用手冊
5.2 PHONE SETTING..................................................................................................................................................................................... 20

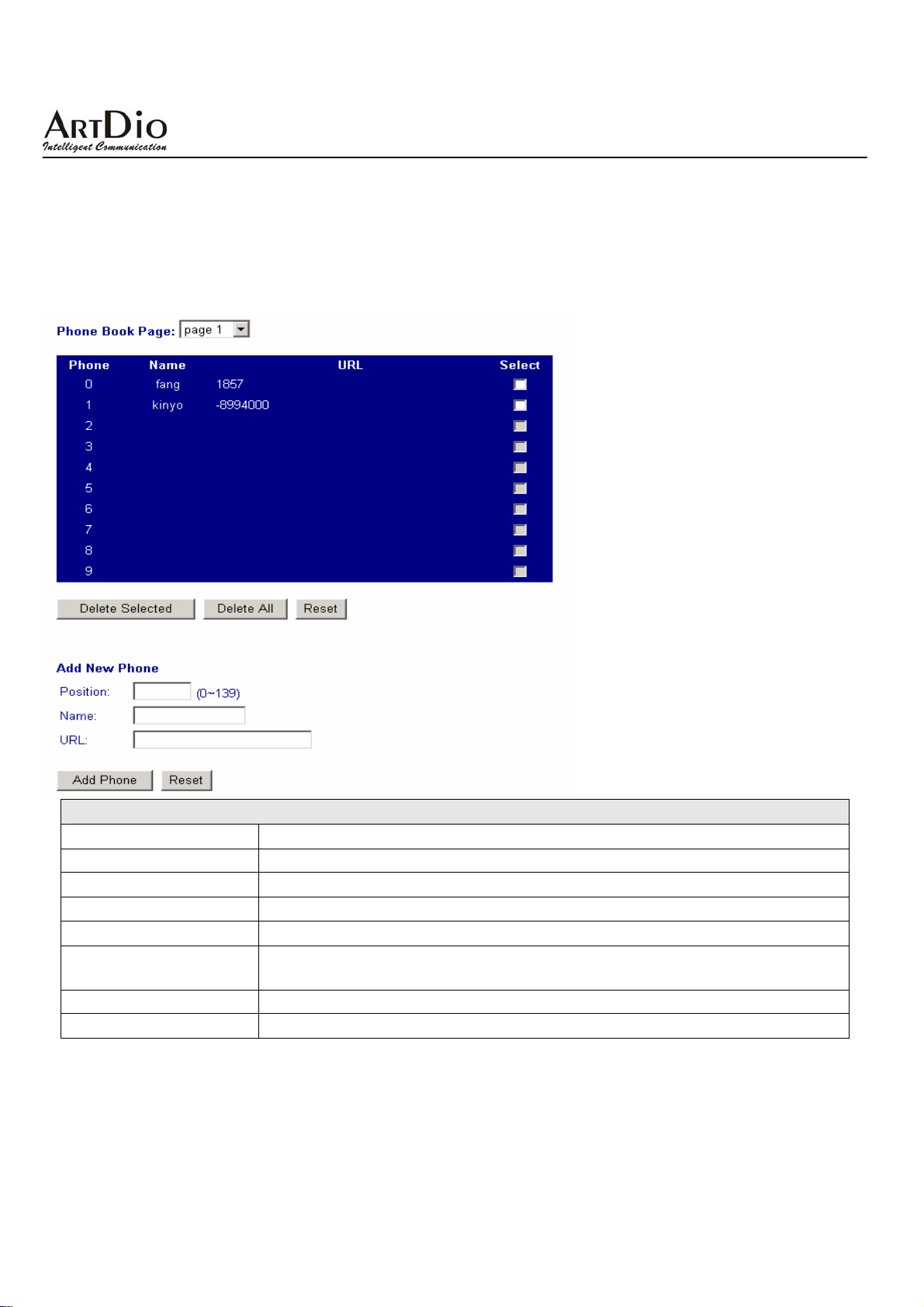

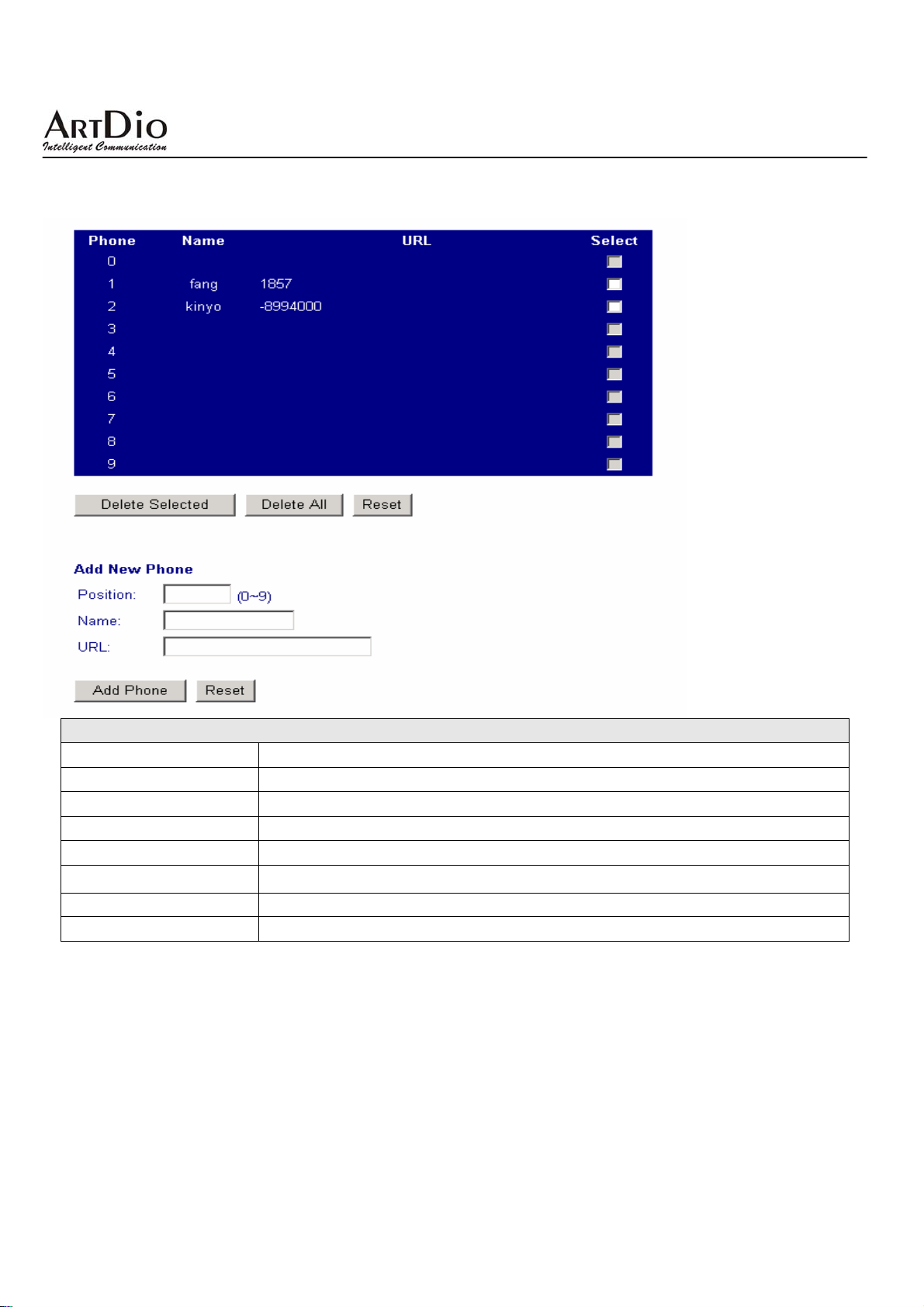

5.2.1 Phone Book..................................................................................................................................................................................20

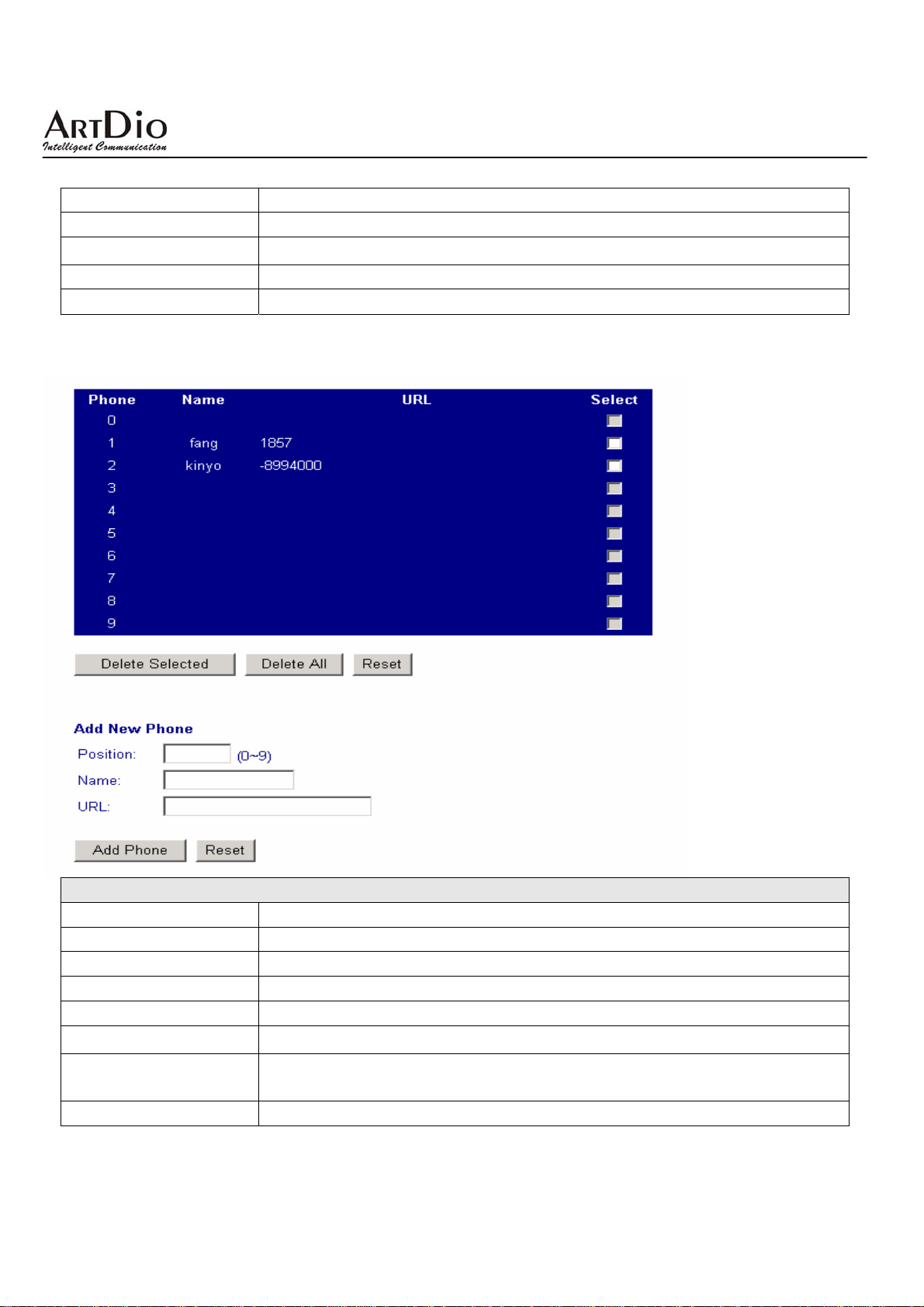

5.2.2 Speed Dial...................................................................................................................................................................................21

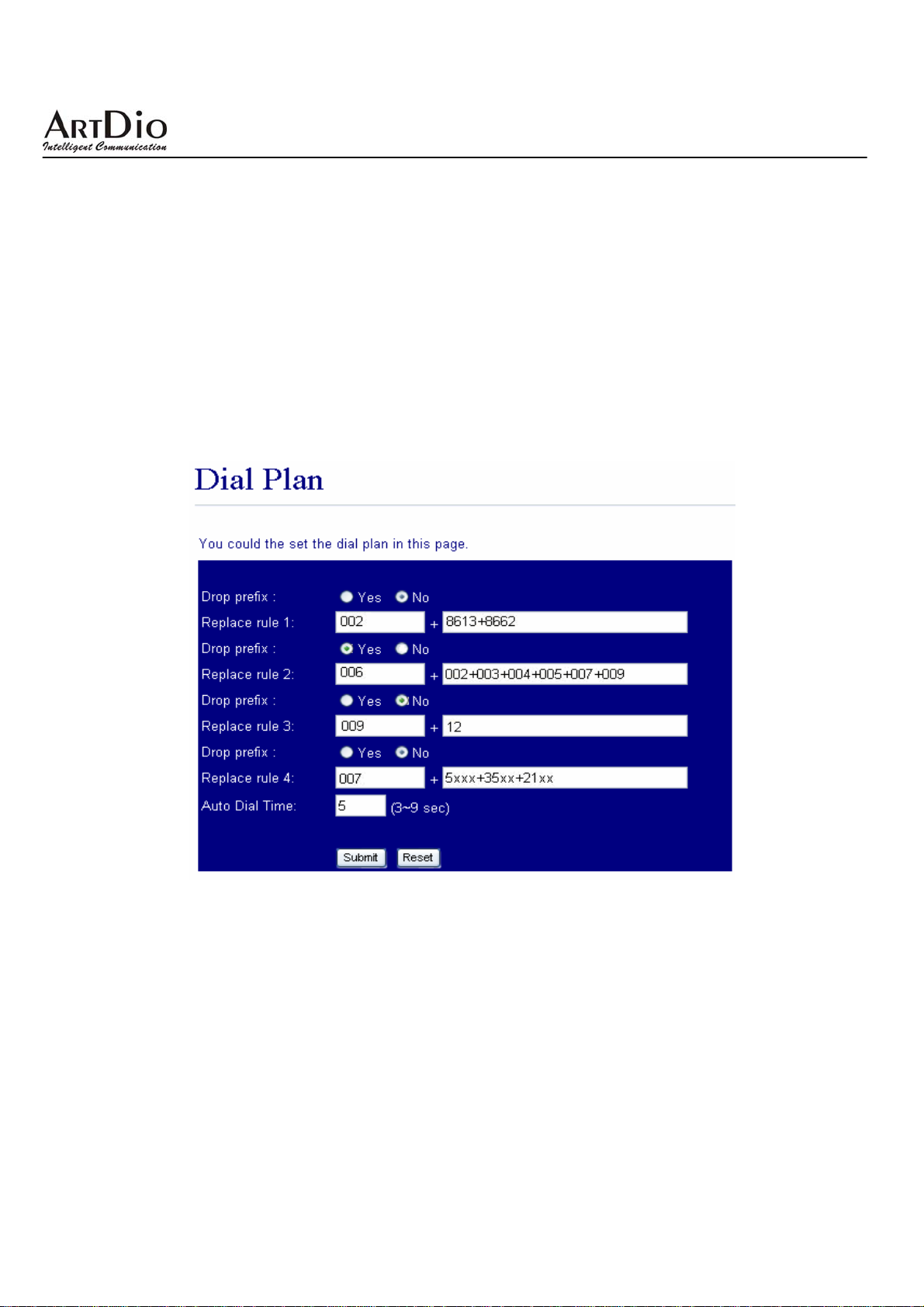

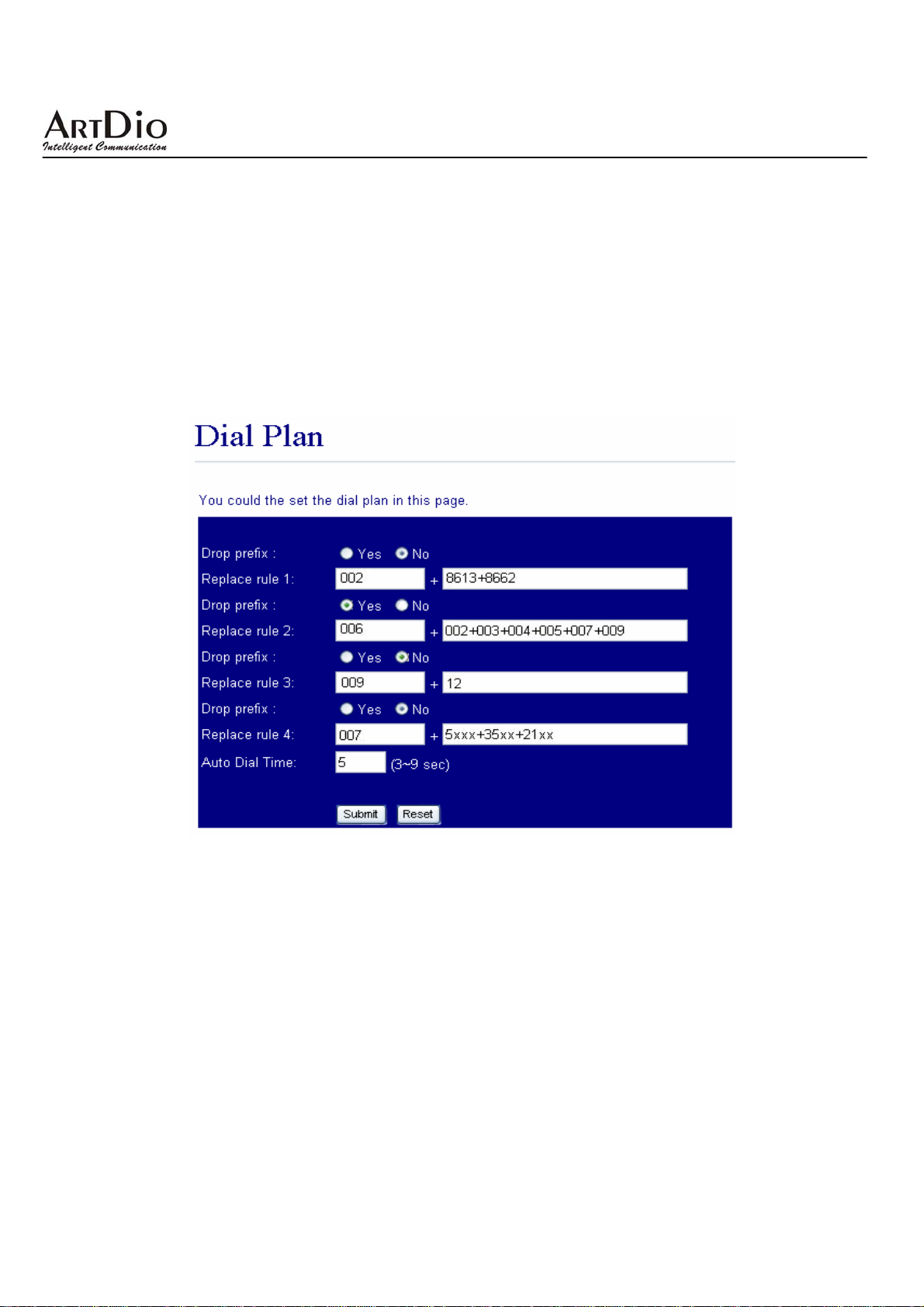

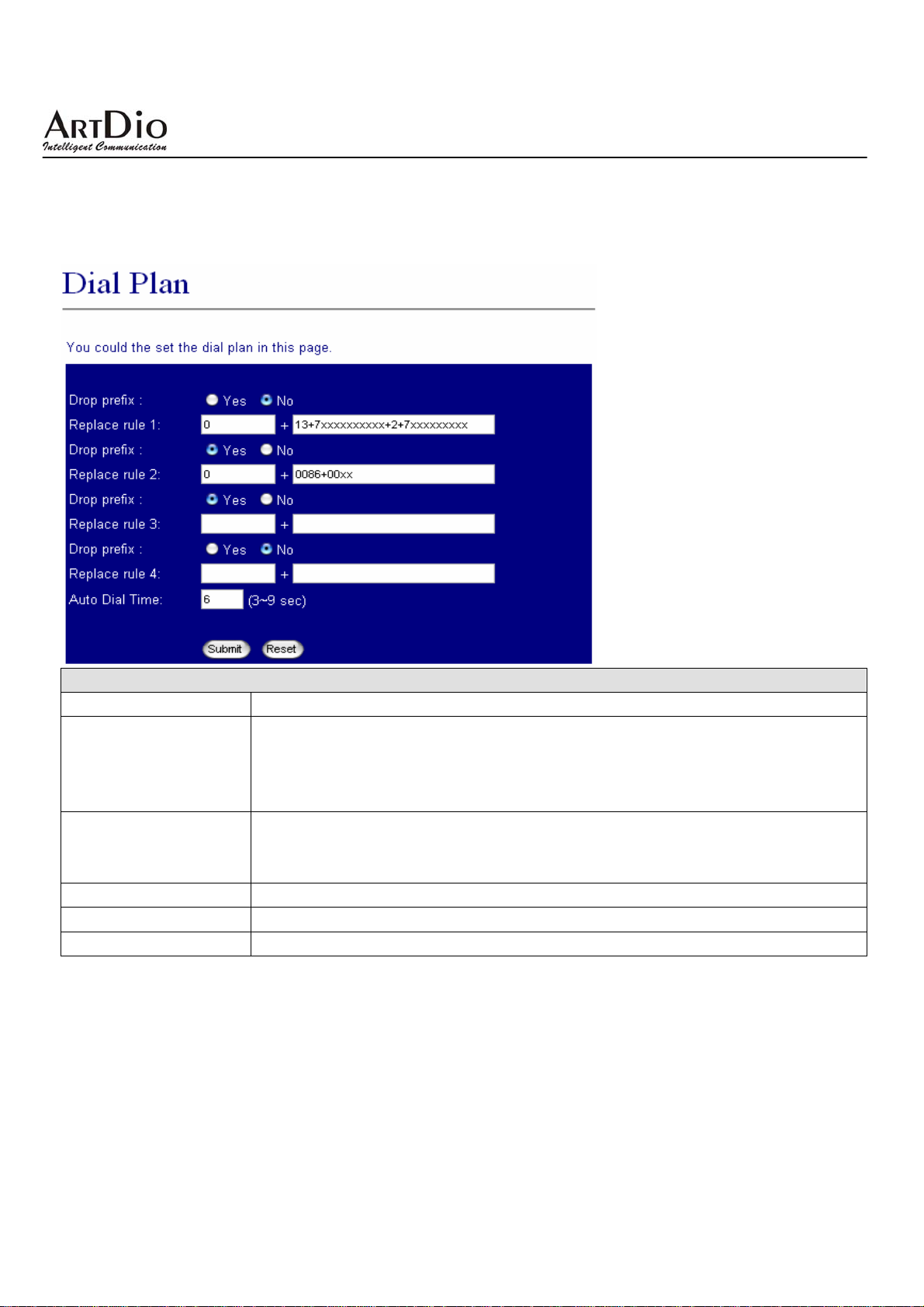

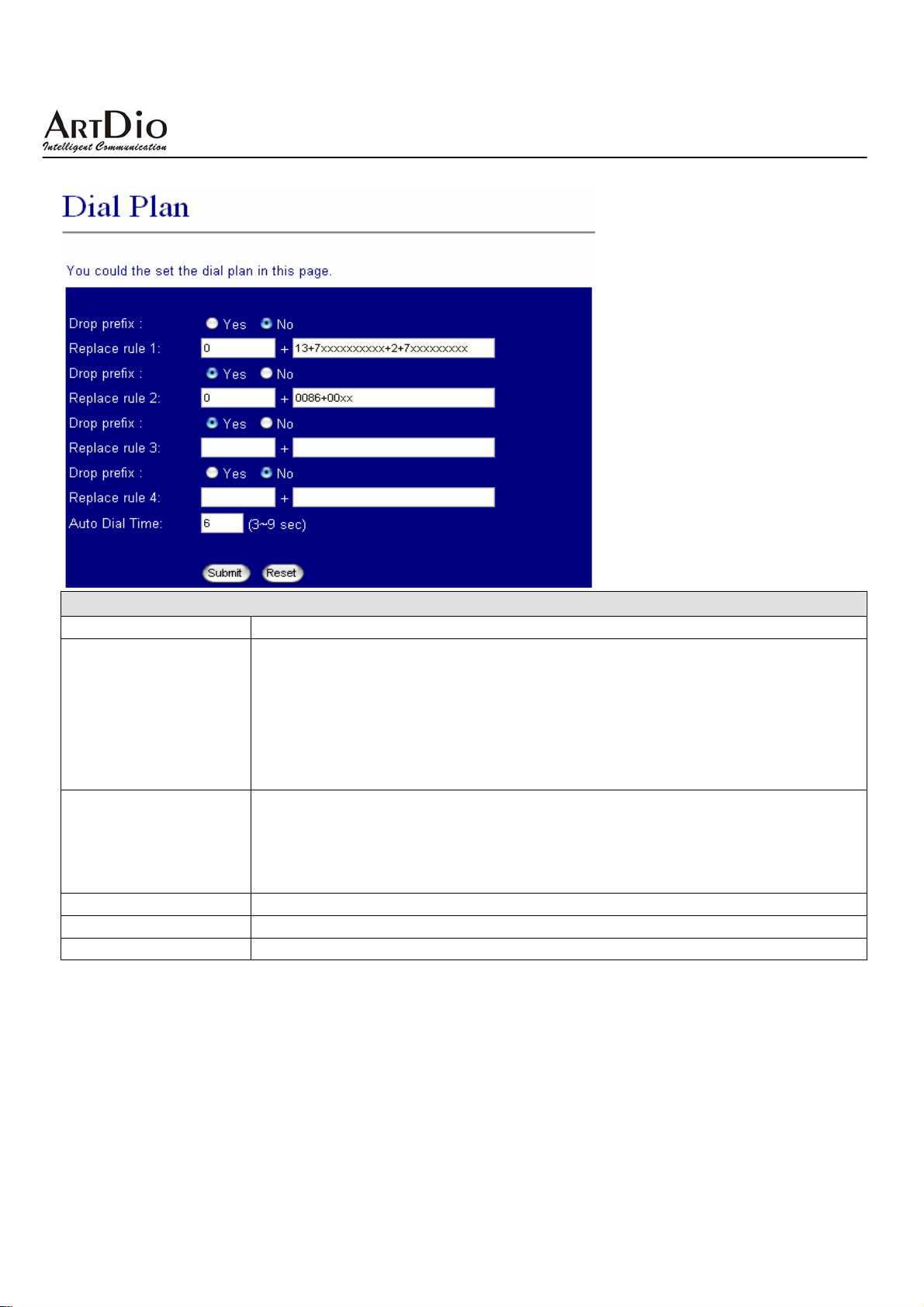

5.2.3 Dial Plan Setting.........................................................................................................................................................................21

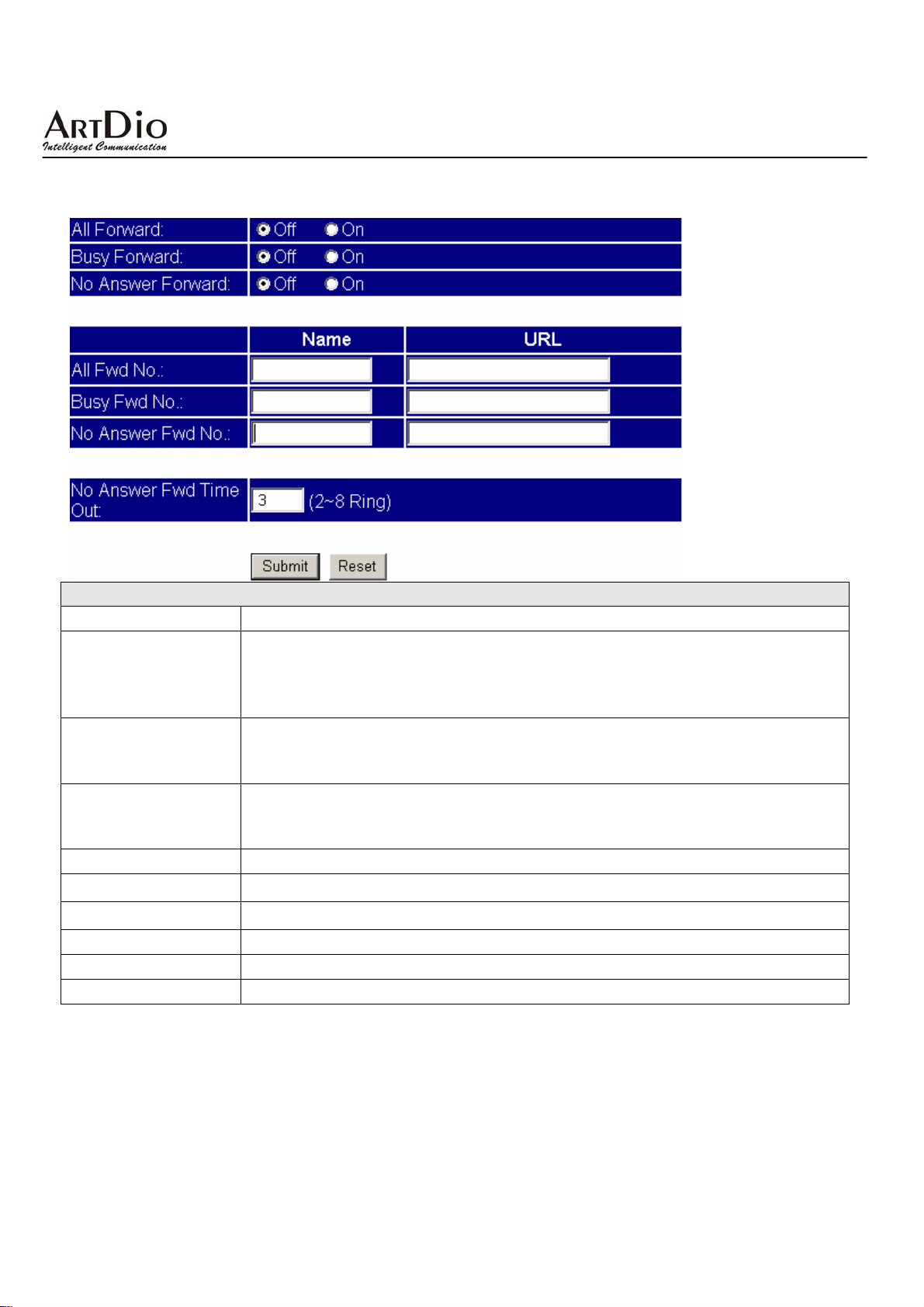

5.2.4 Call Forward...............................................................................................................................................................................23

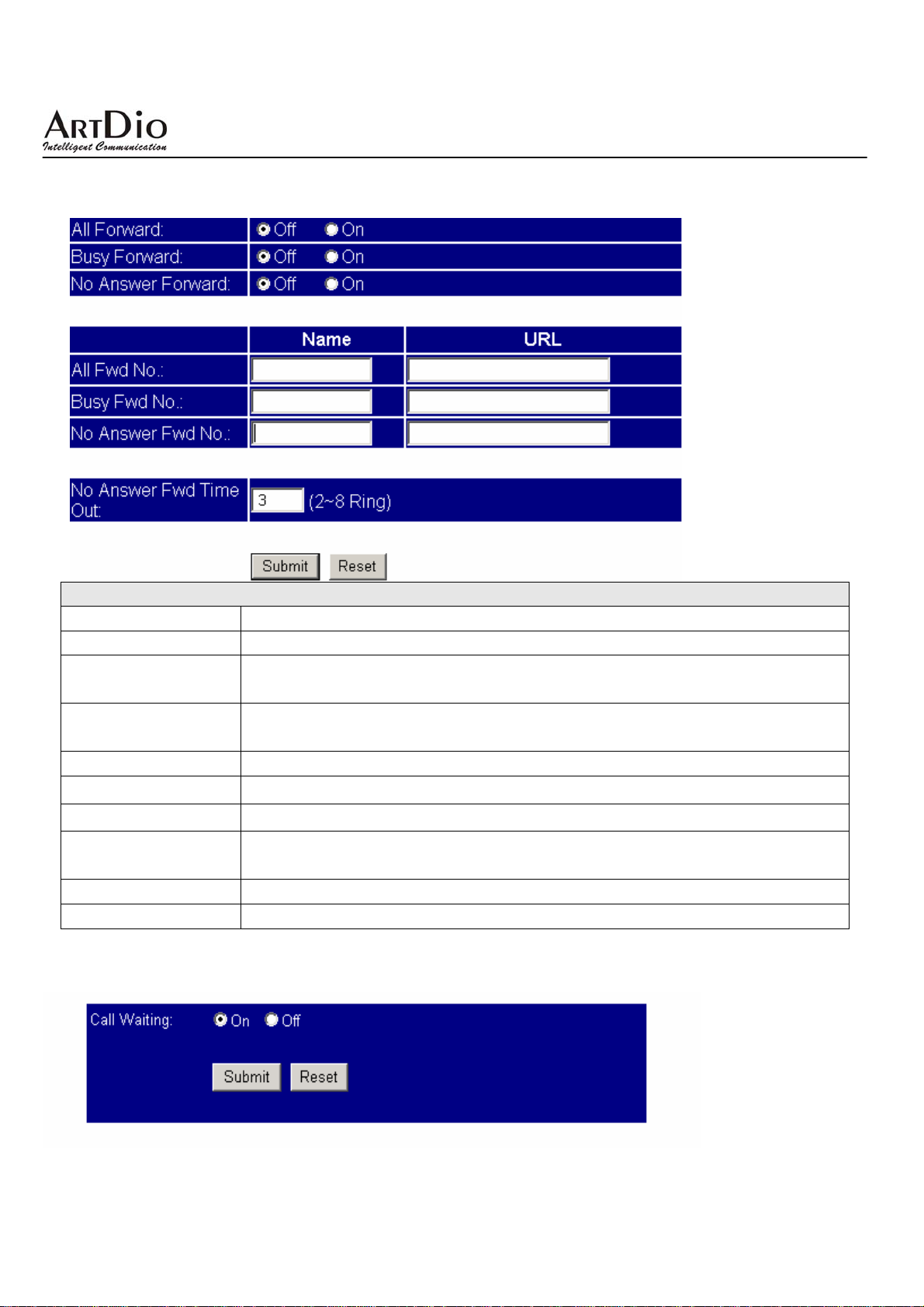

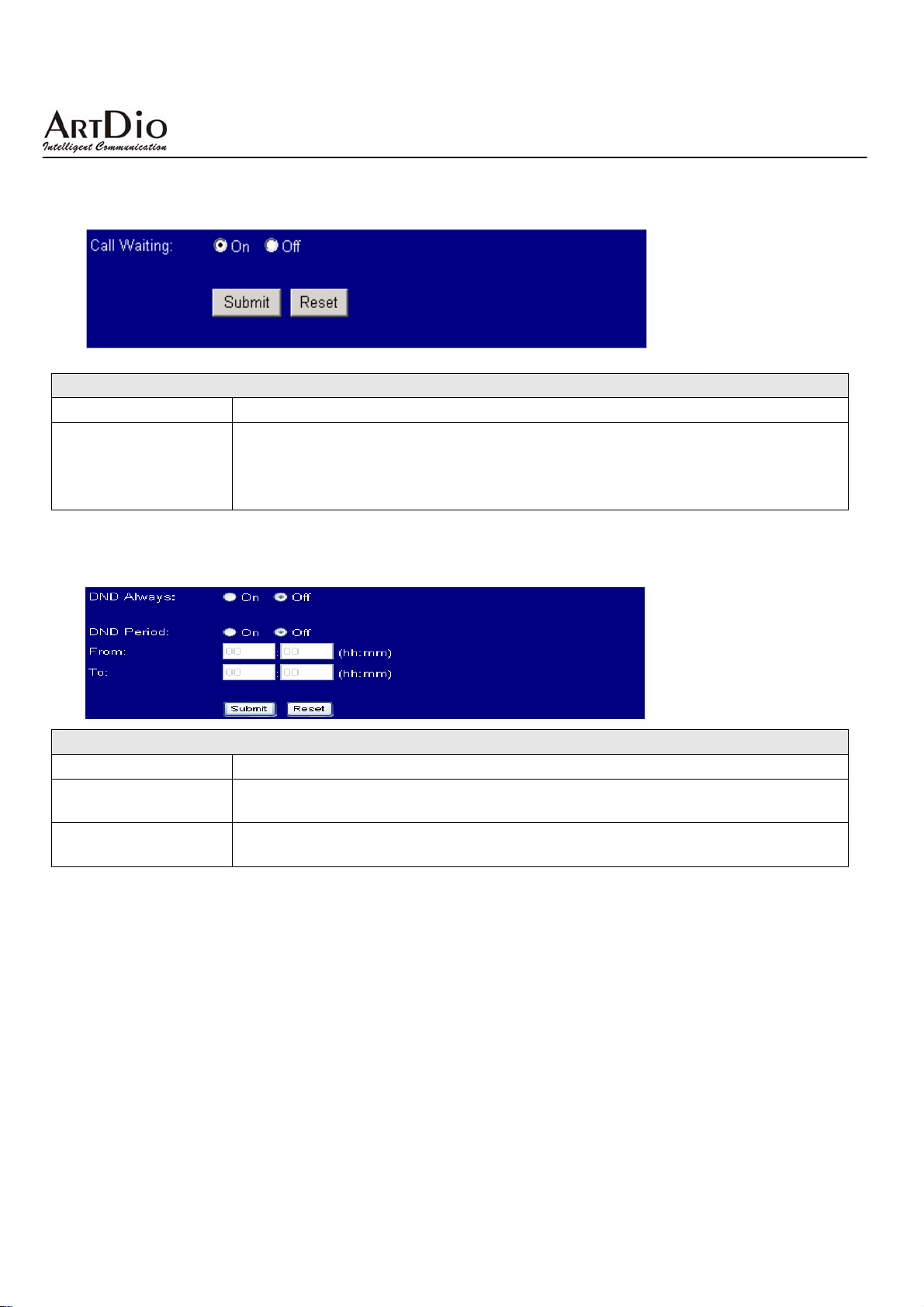

5.2.5 Call Waiting.................................................................................................................................................................................24

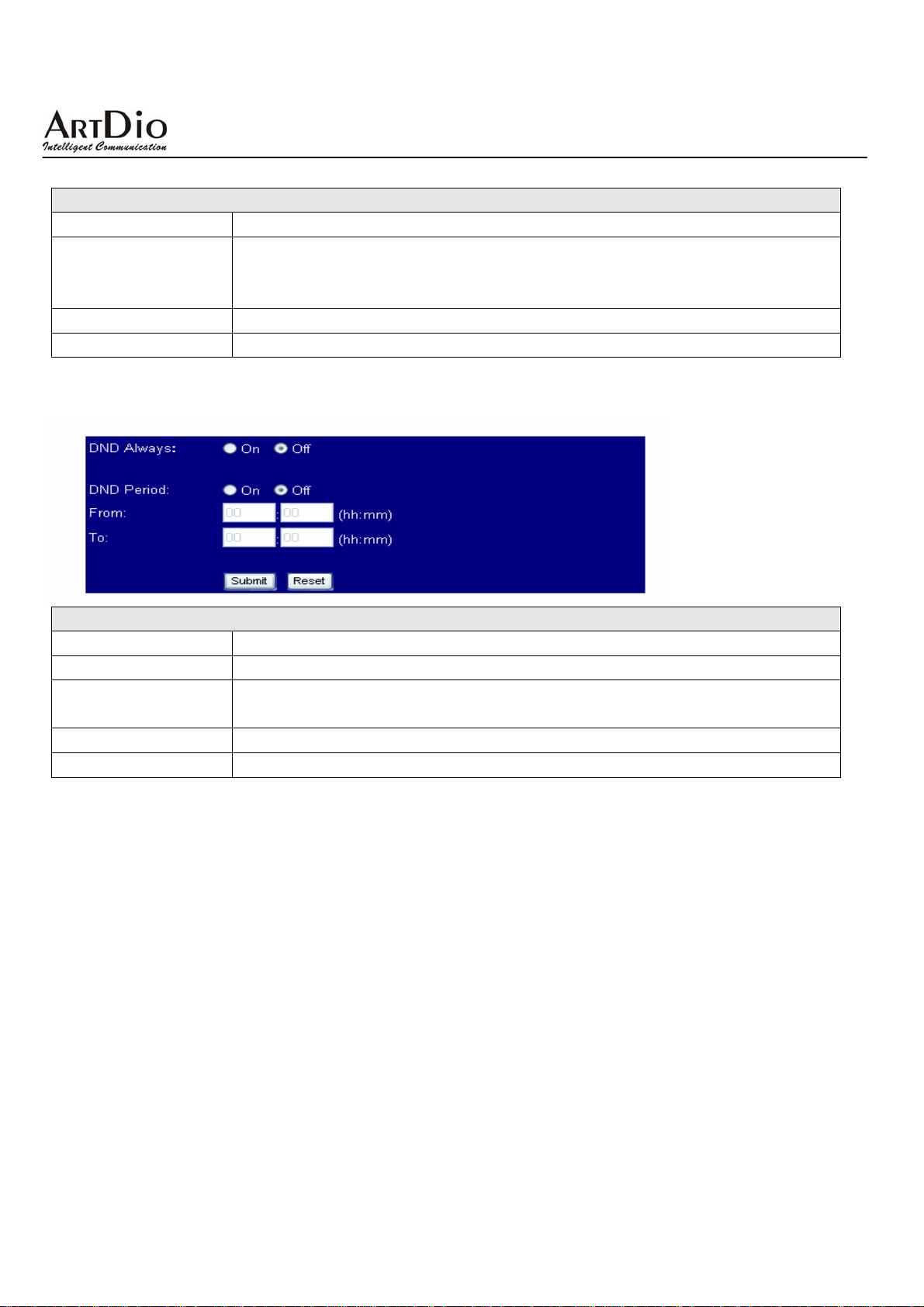

5.2.6 DND Setting ................................................................................................................................................................................24
5.2.7 Volum e Setting......................................................................................................... ....................................................................25
5.2.8 Melody Setting.............................................................................................................................................................................25
5.3 NETWORKING ........................................................................................................................................................................................26

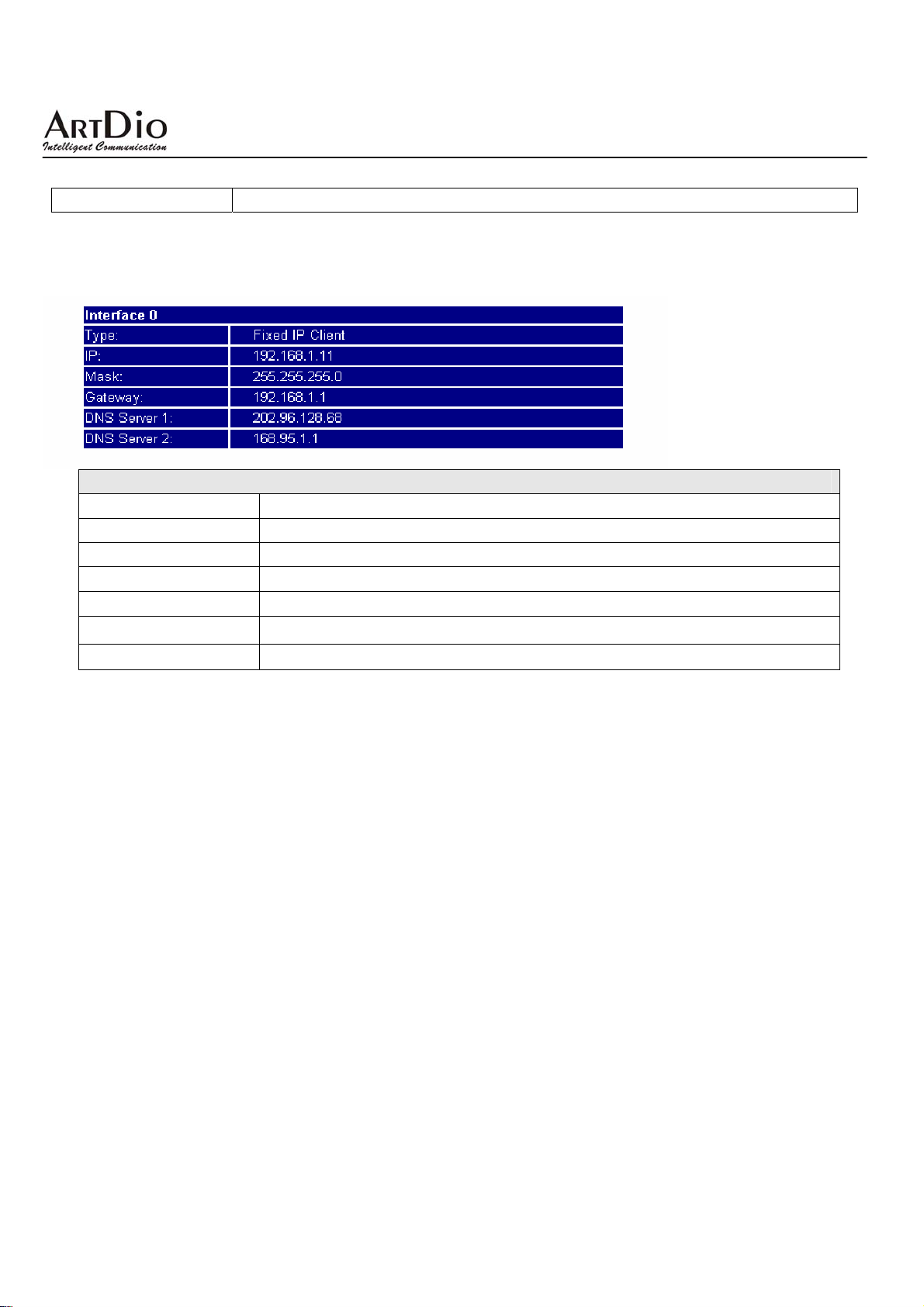

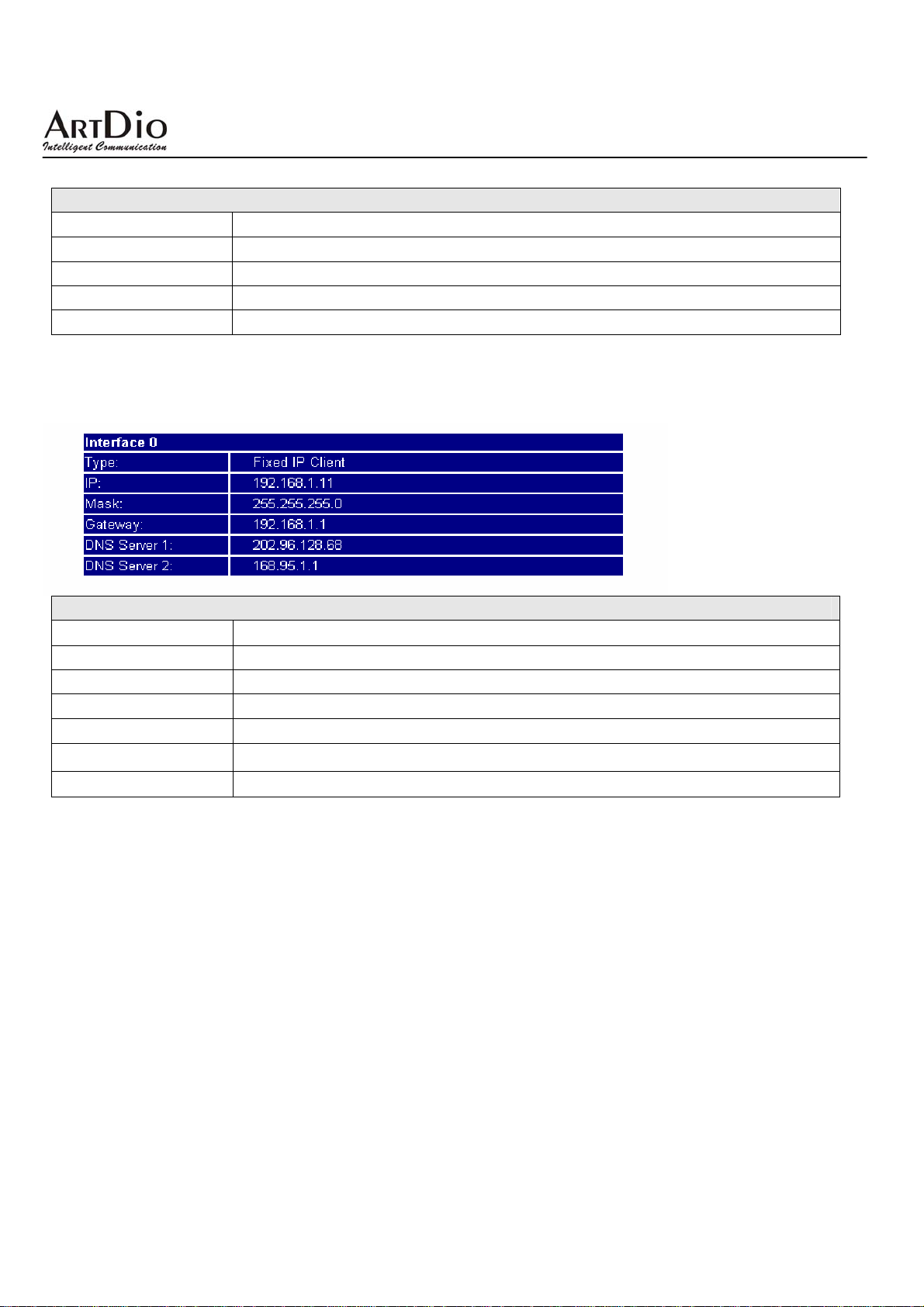

5.3. 1 Status ..........................................................................................................................................................................................26

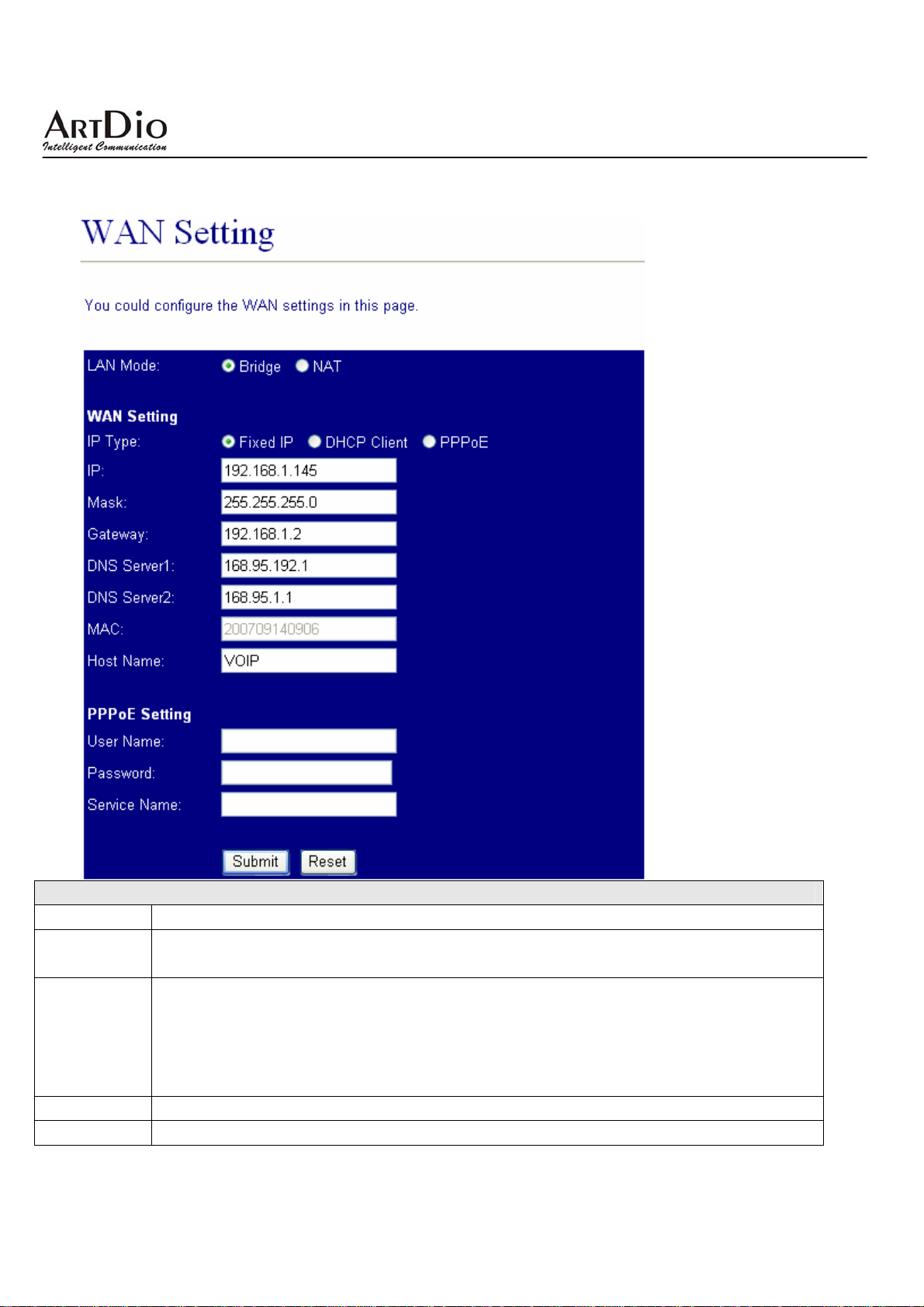

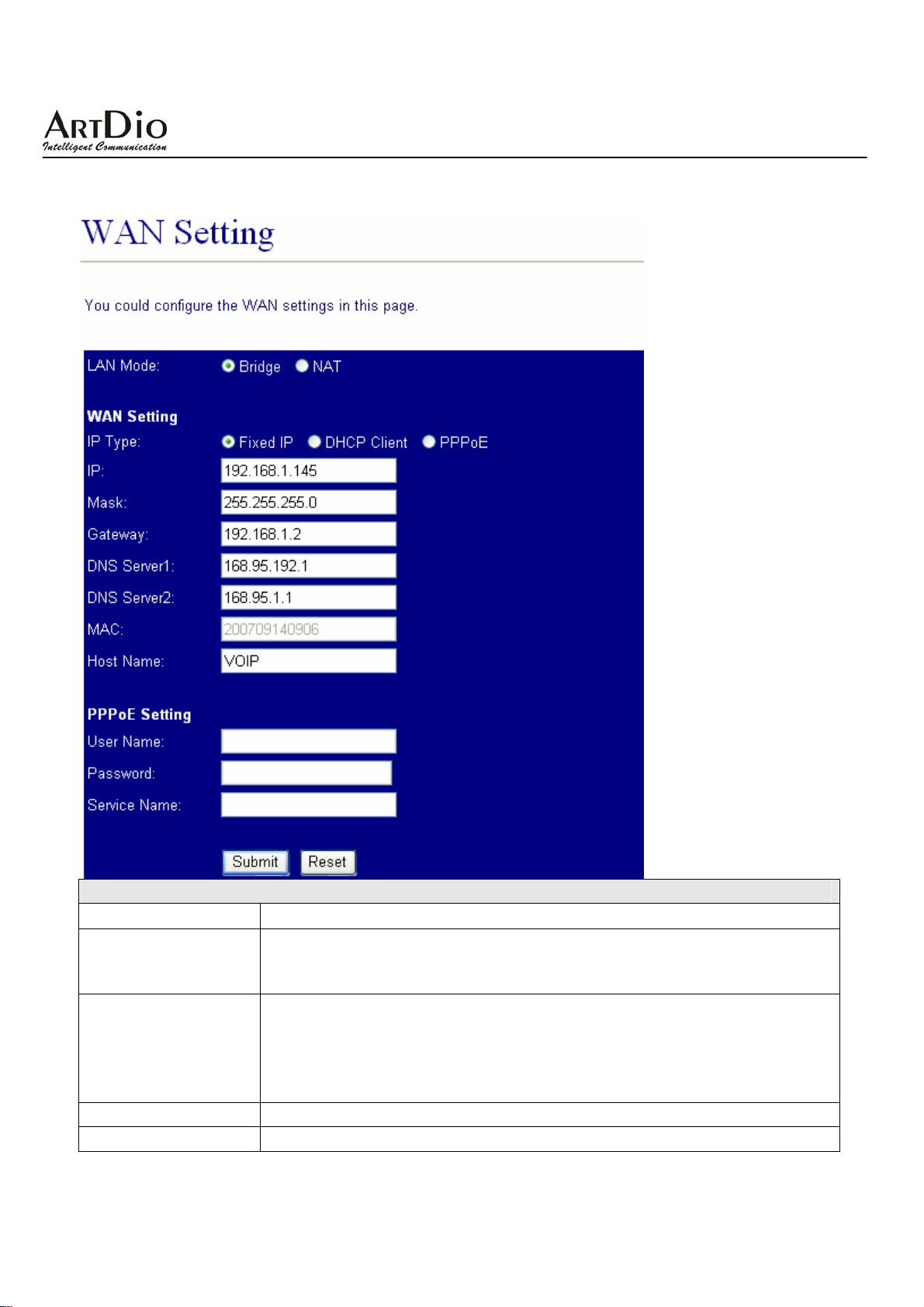

5.3. 2 WAN Setting................................................................................................................................................................................27

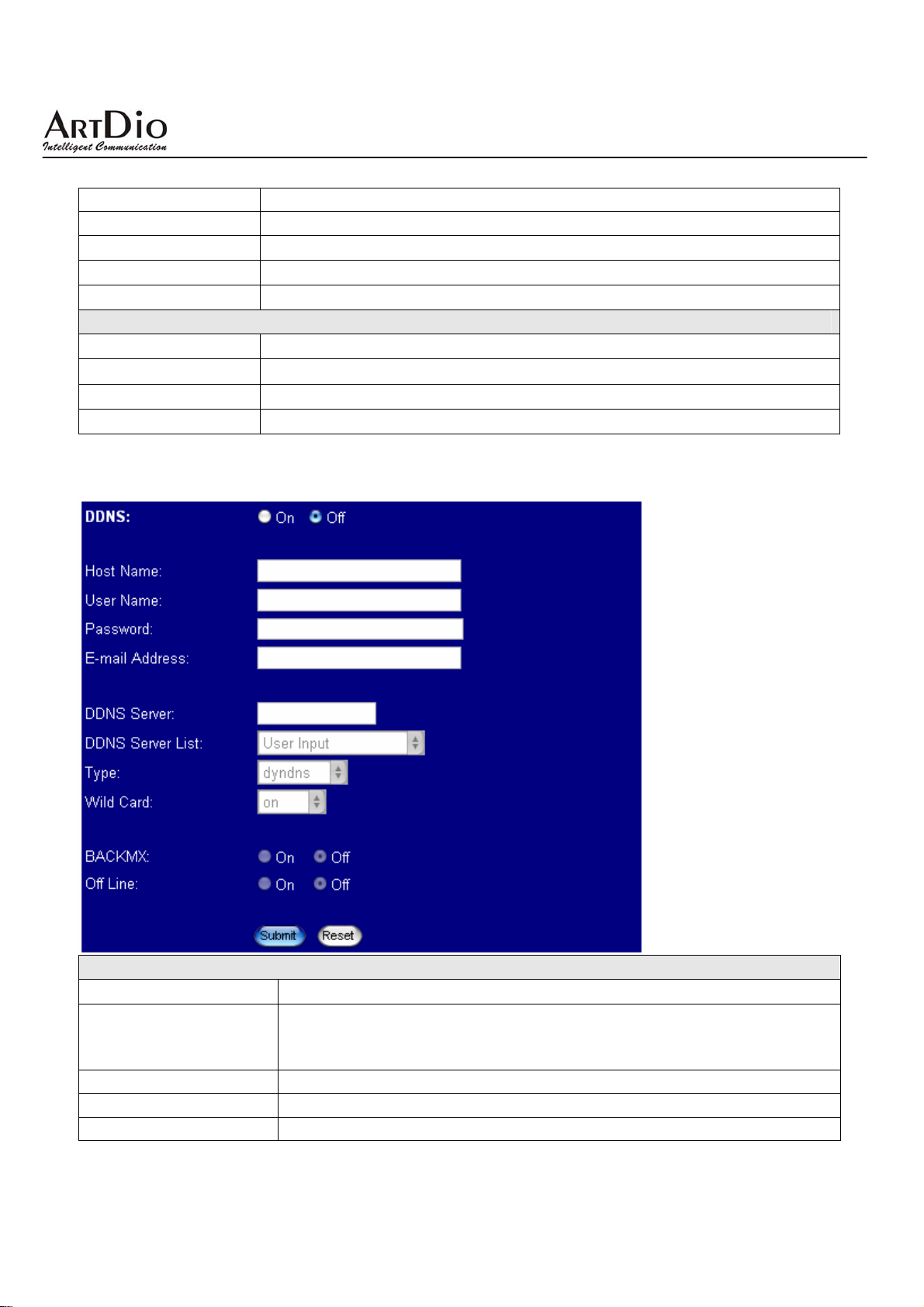

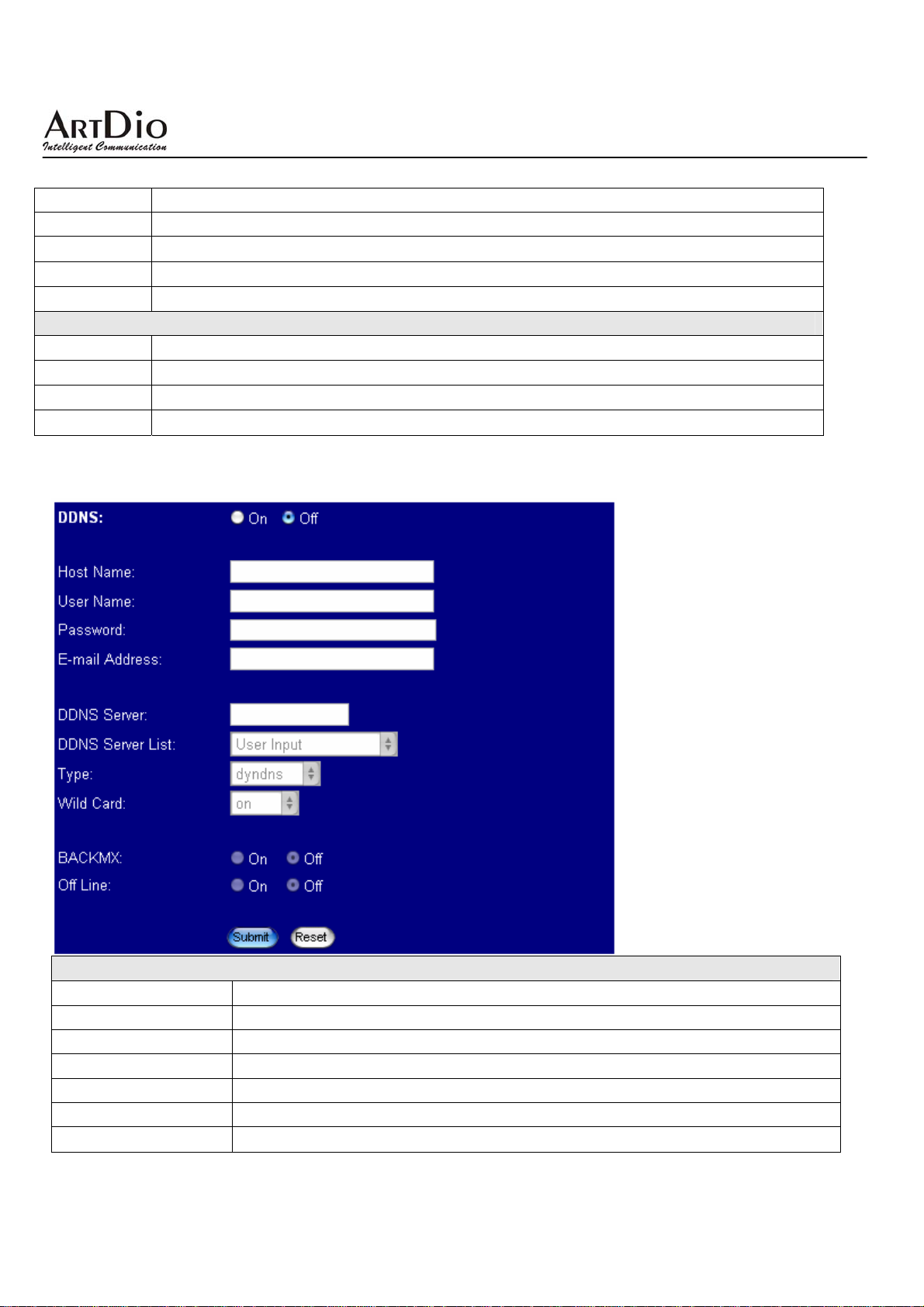

5.3. 3 DDNS Setting .............................................................................................................................................................................28

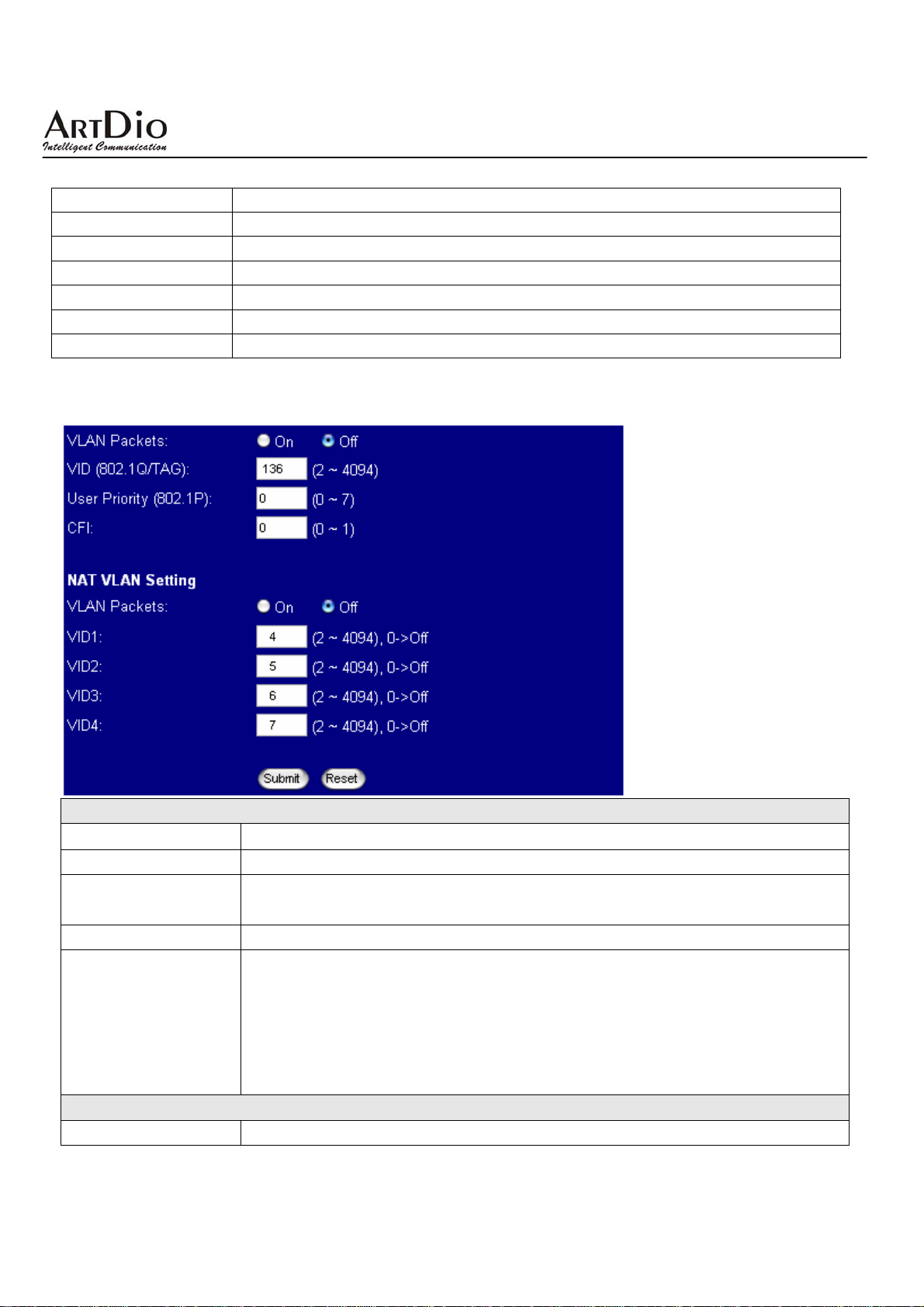

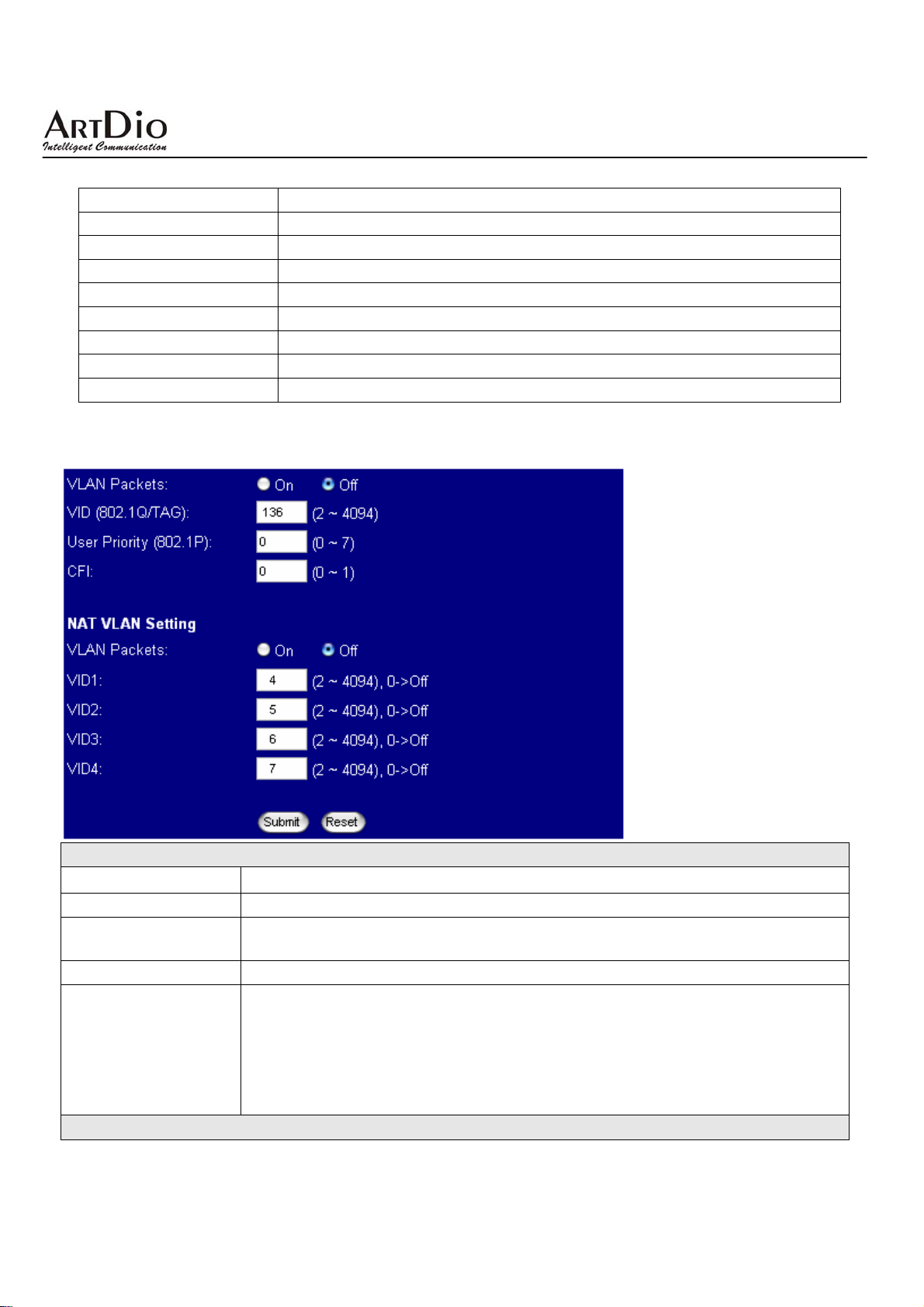

5.3. 4 VLAN Setting..............................................................................................................................................................................29

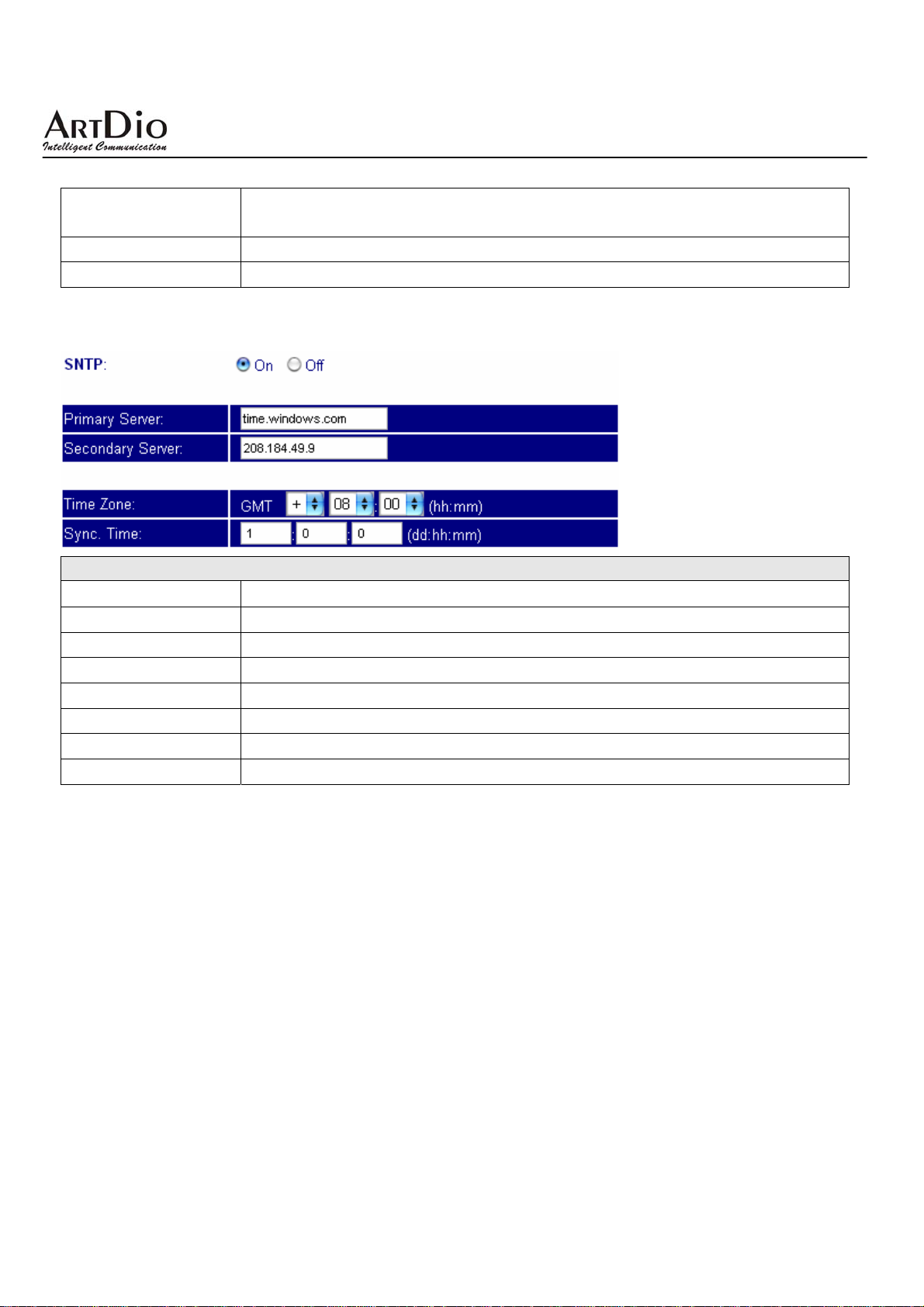

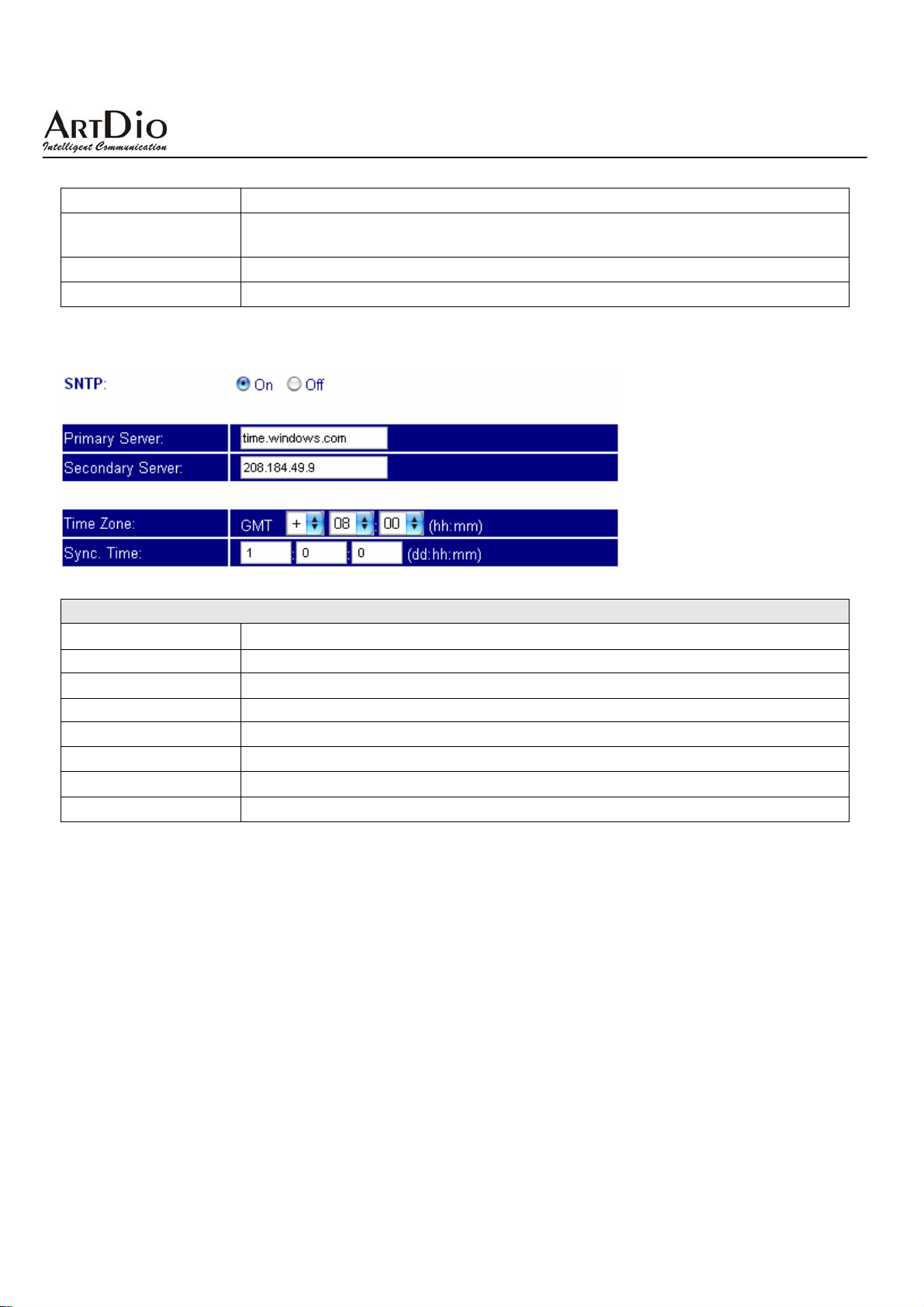

5.3. 5 SNTP Setting...............................................................................................................................................................................30
5.4 NAT ROUTER........................................................................................................................................................................................ 31

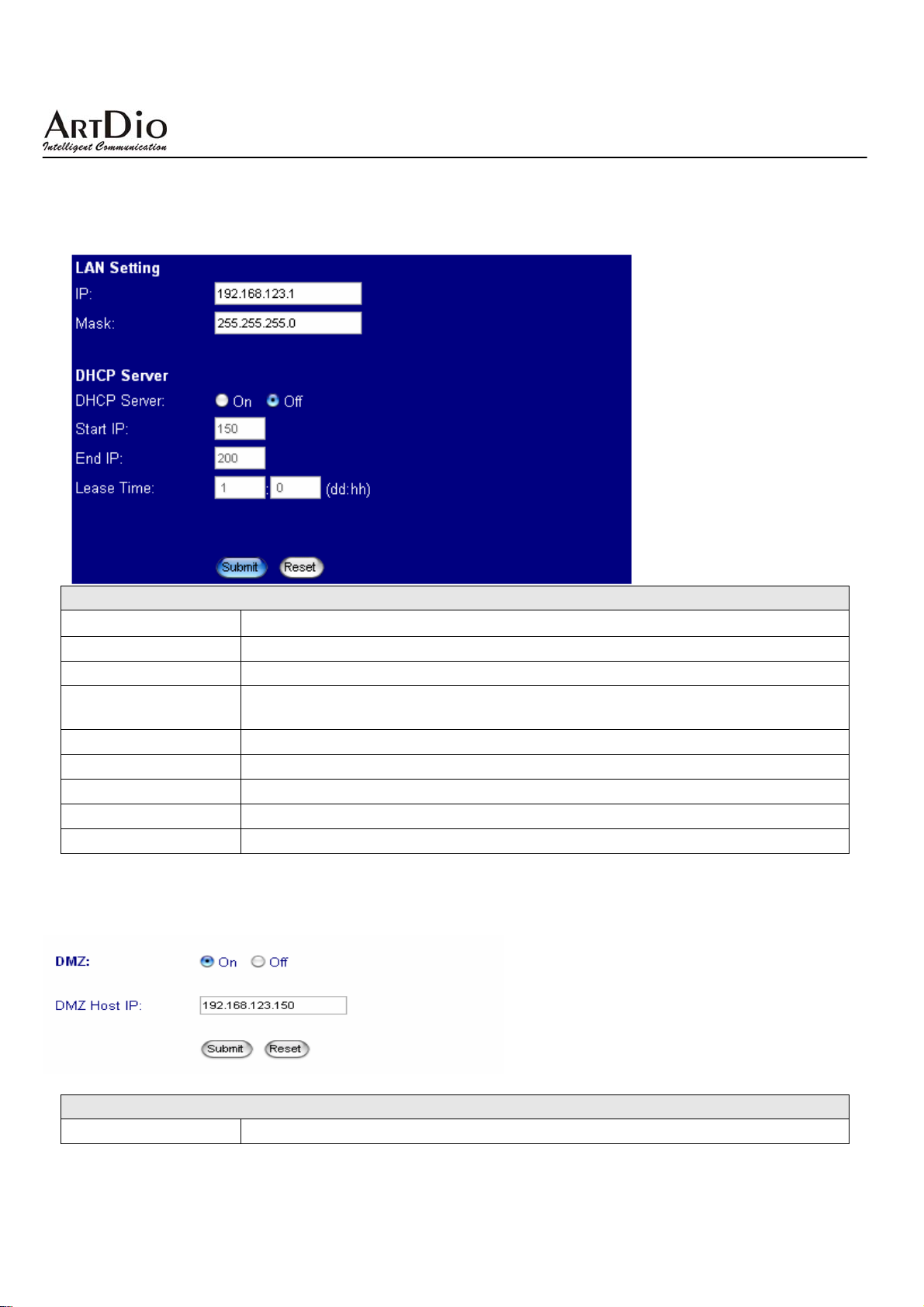

5.4. 1 LAN Setting.................................................................................................................................................................................31
5.4. 2 DMZ Setting ...............................................................................................................................................................................31
5.5 SIP SETTING .......................................................................................................................................................................................... 32

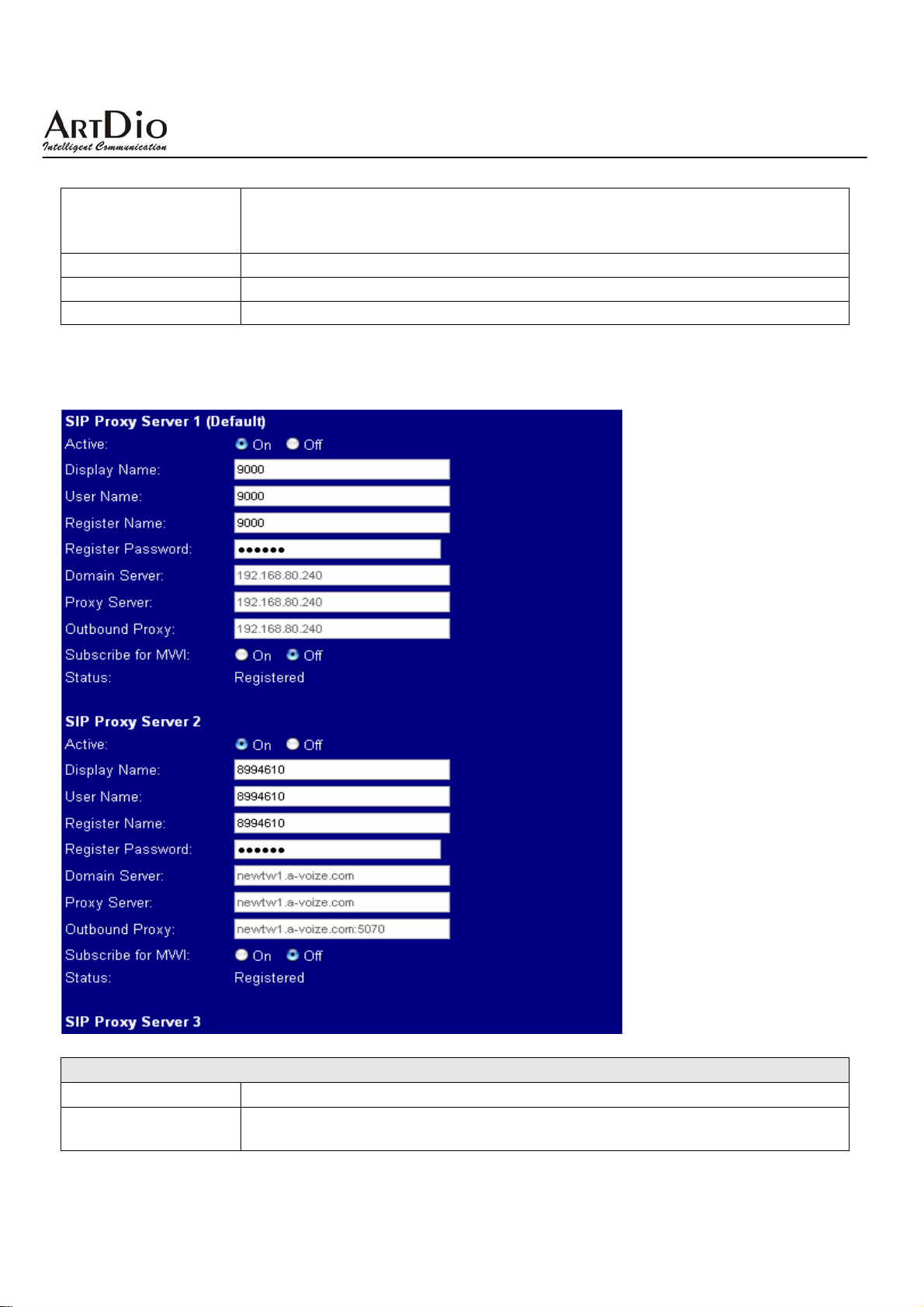

5.5. 1 Service Domain..........................................................................................................................................................................32

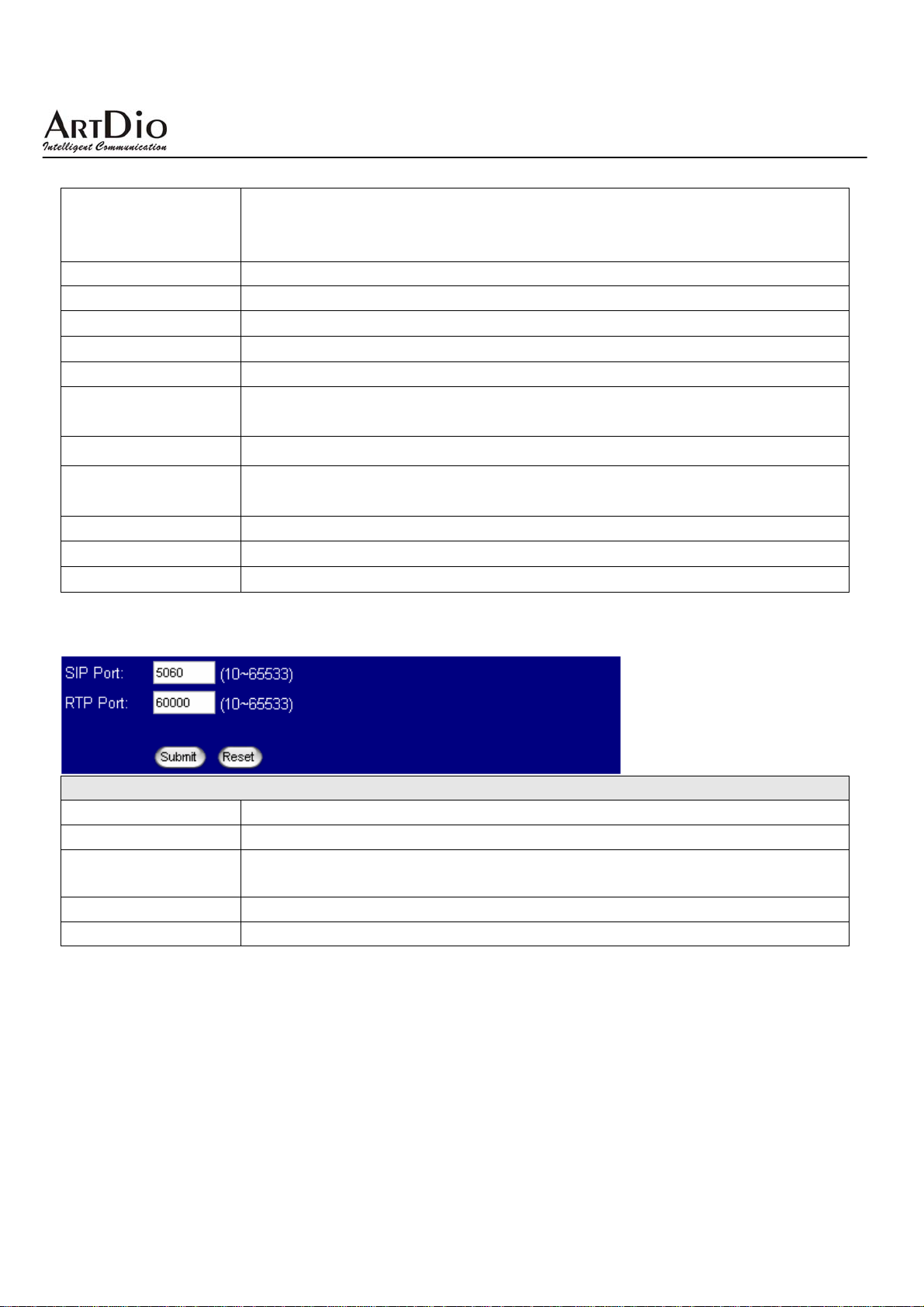

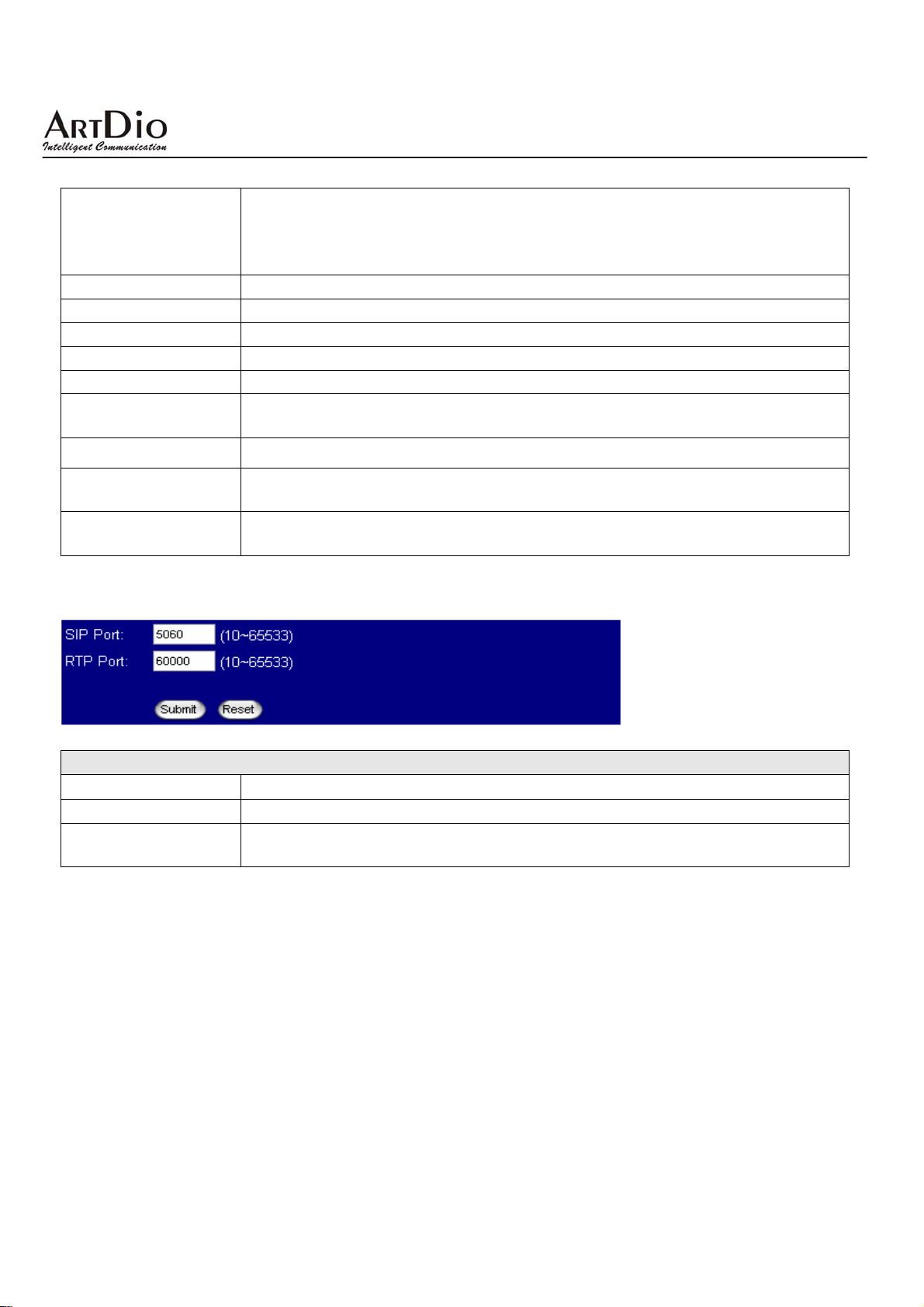

5.5. 2 Port Setting.................................................................................................................................................................................33

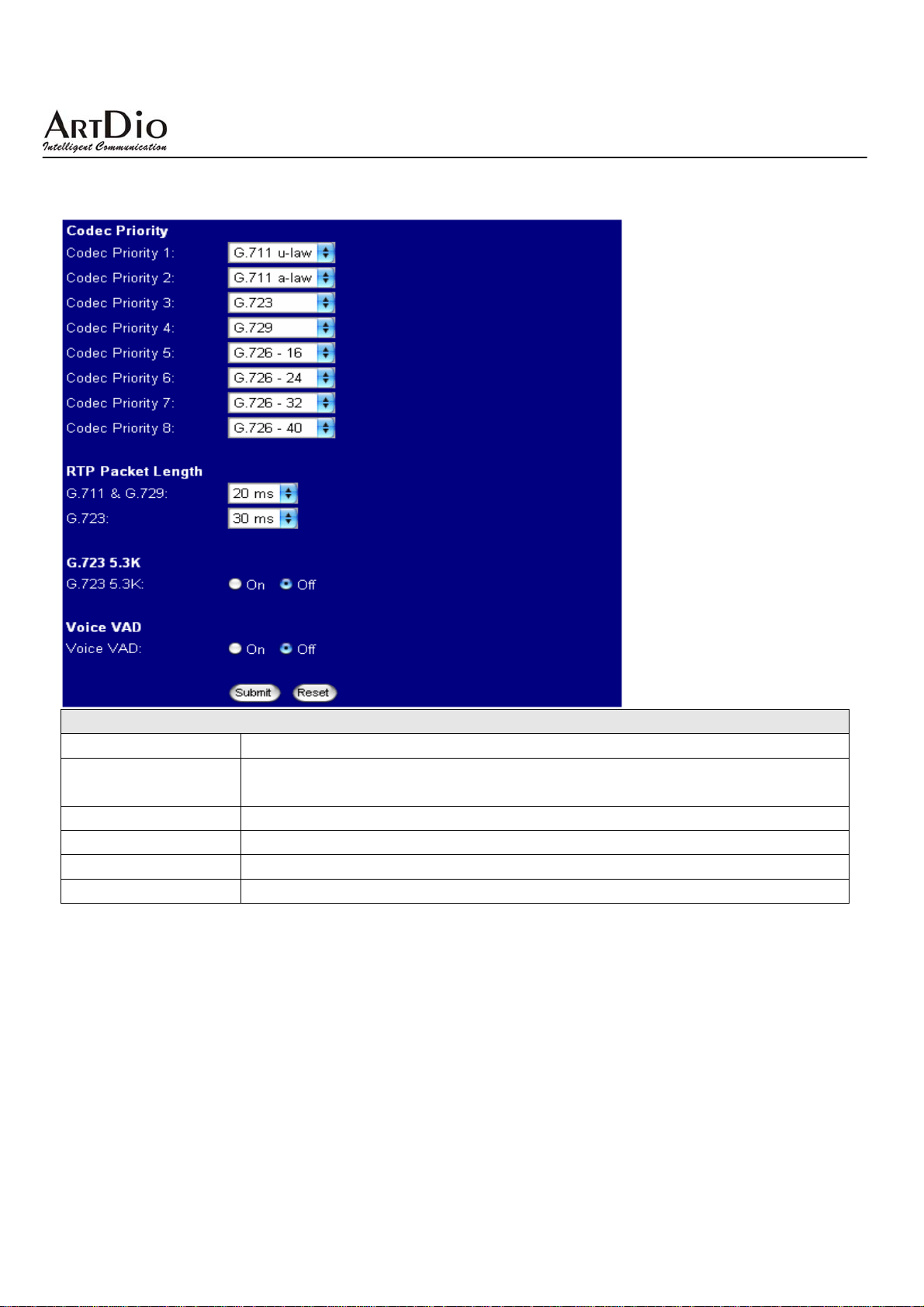

5.5. 3 Codec Setting..............................................................................................................................................................................34

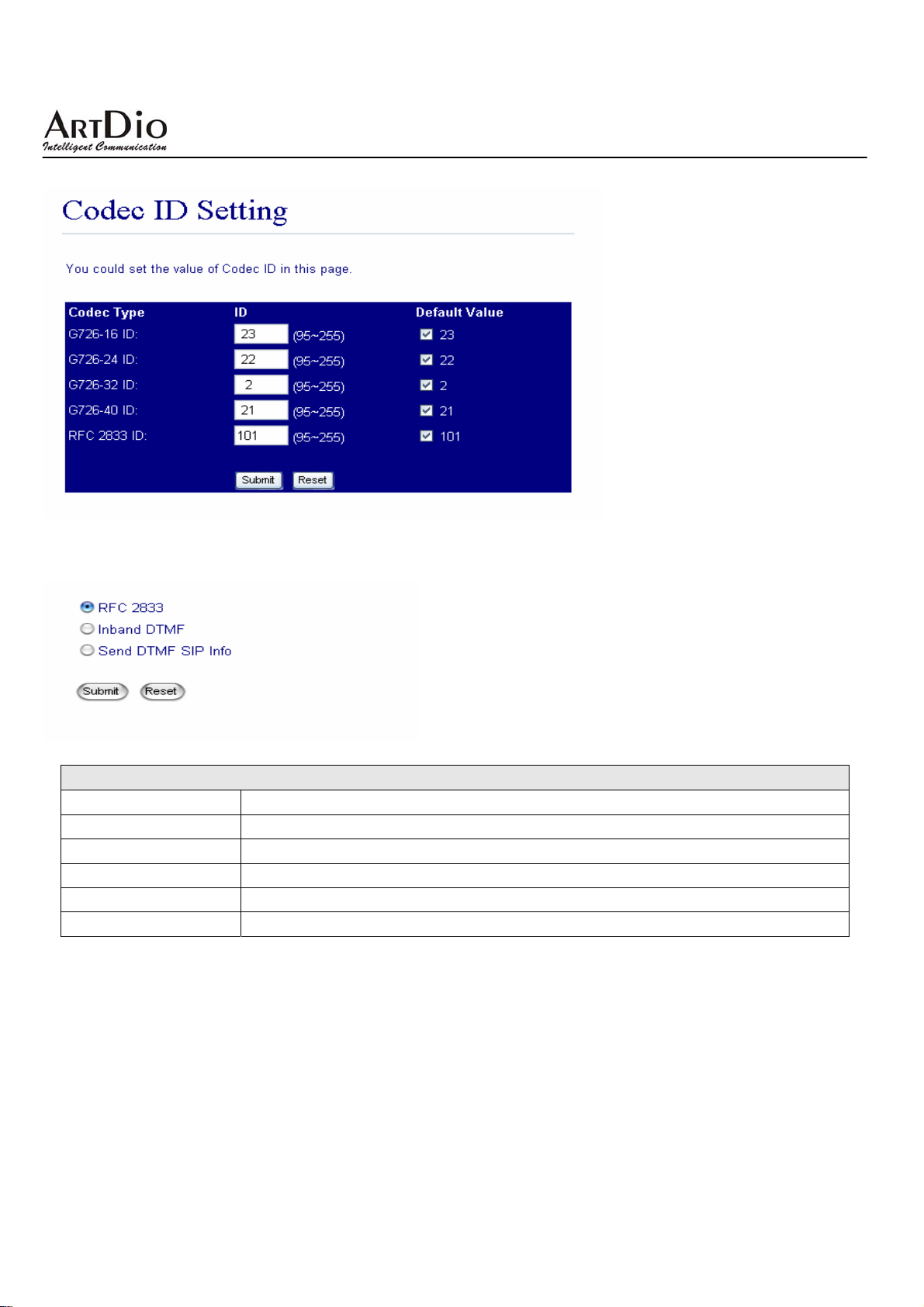

5.5. 4 Codec ID ....................................................................................................................................................................................34
5.5. 5 DTMF Setting.............................................................................................................................................................................35

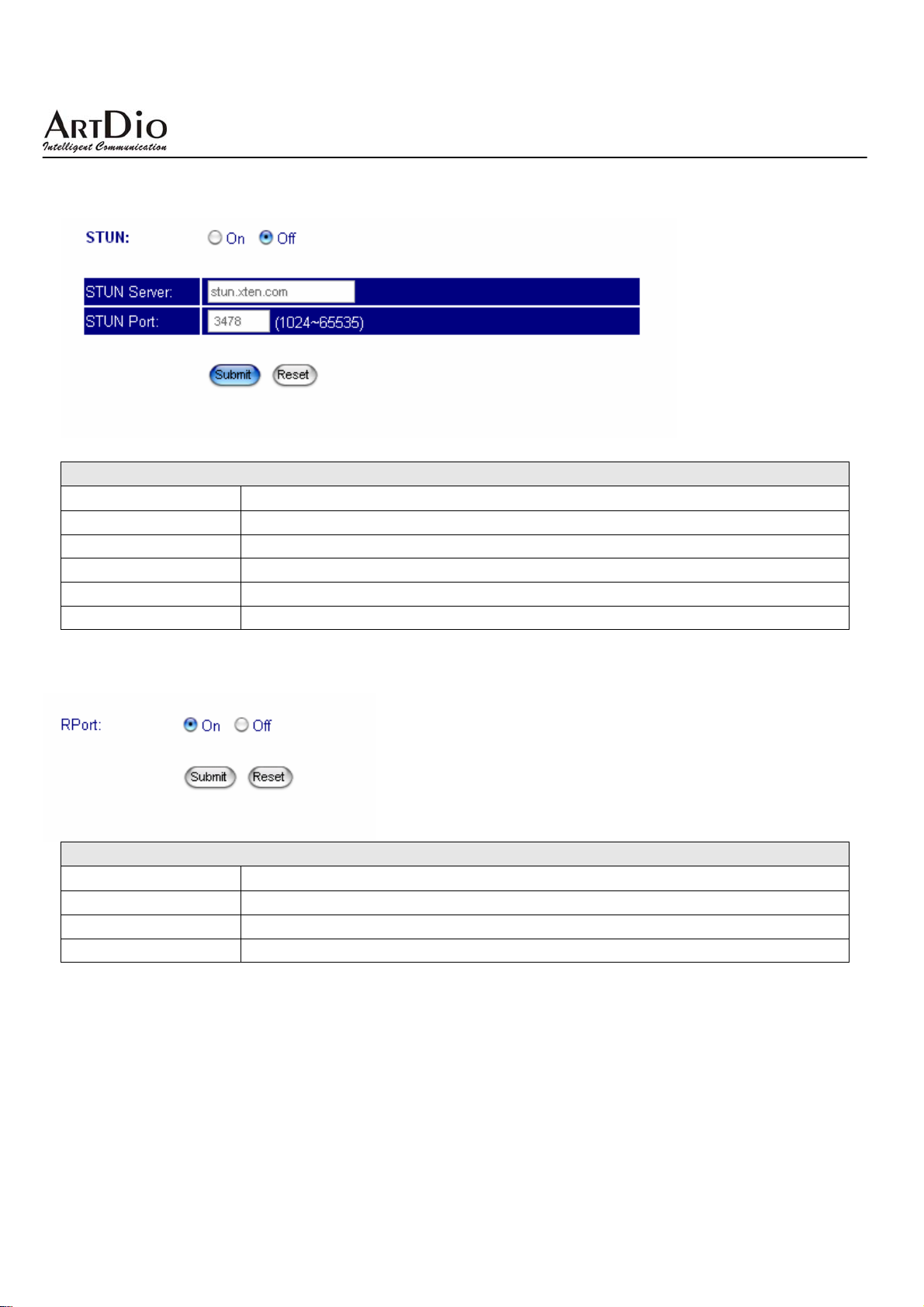

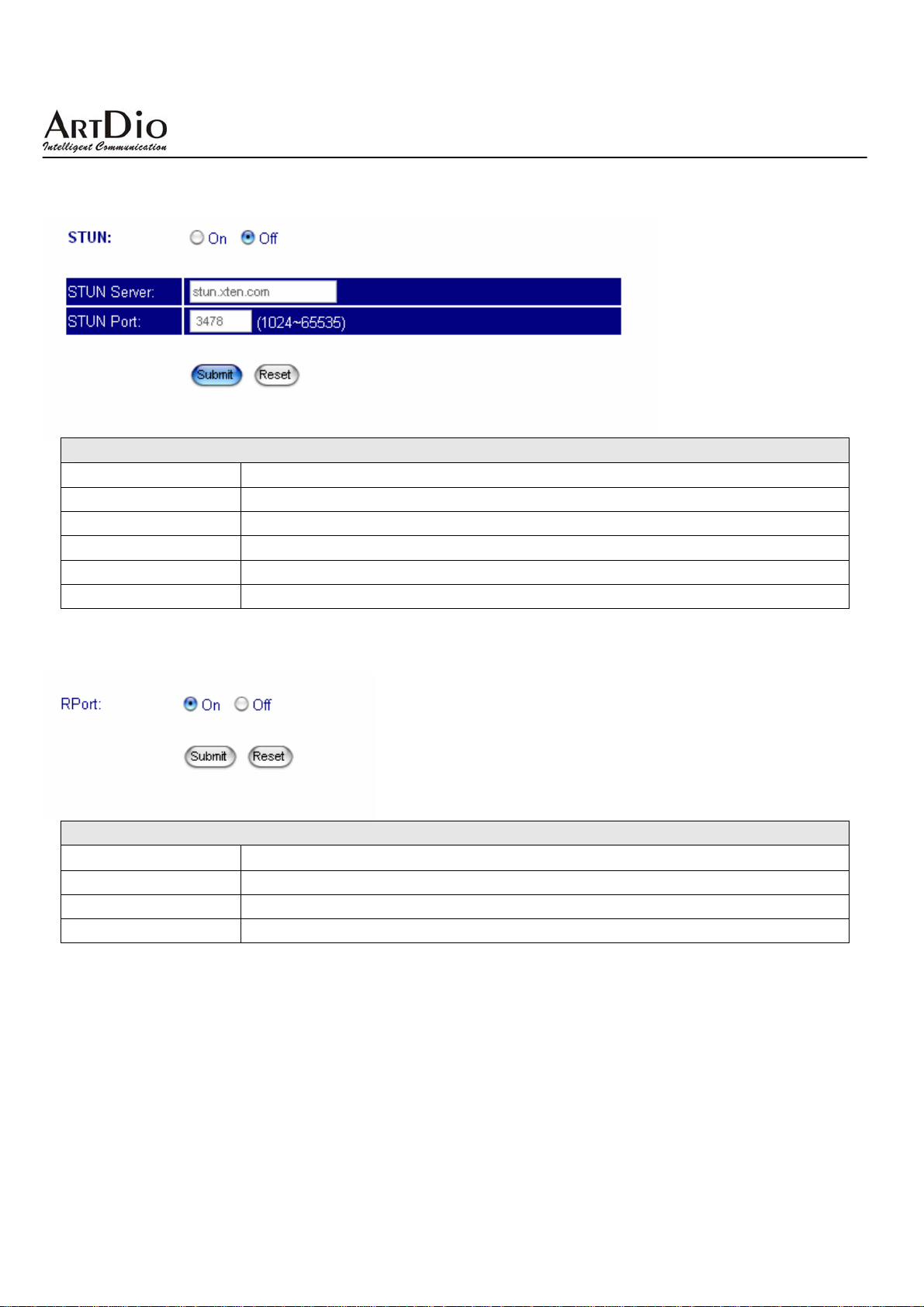

5.5. 6 STUN Setting..............................................................................................................................................................................36
5.5 .7 RPort Setting..............................................................................................................................................................................36
5.5. 8 Other Setting...............................................................................................................................................................................37
5.6 OTHERS.................................................................................................................................................................................................37

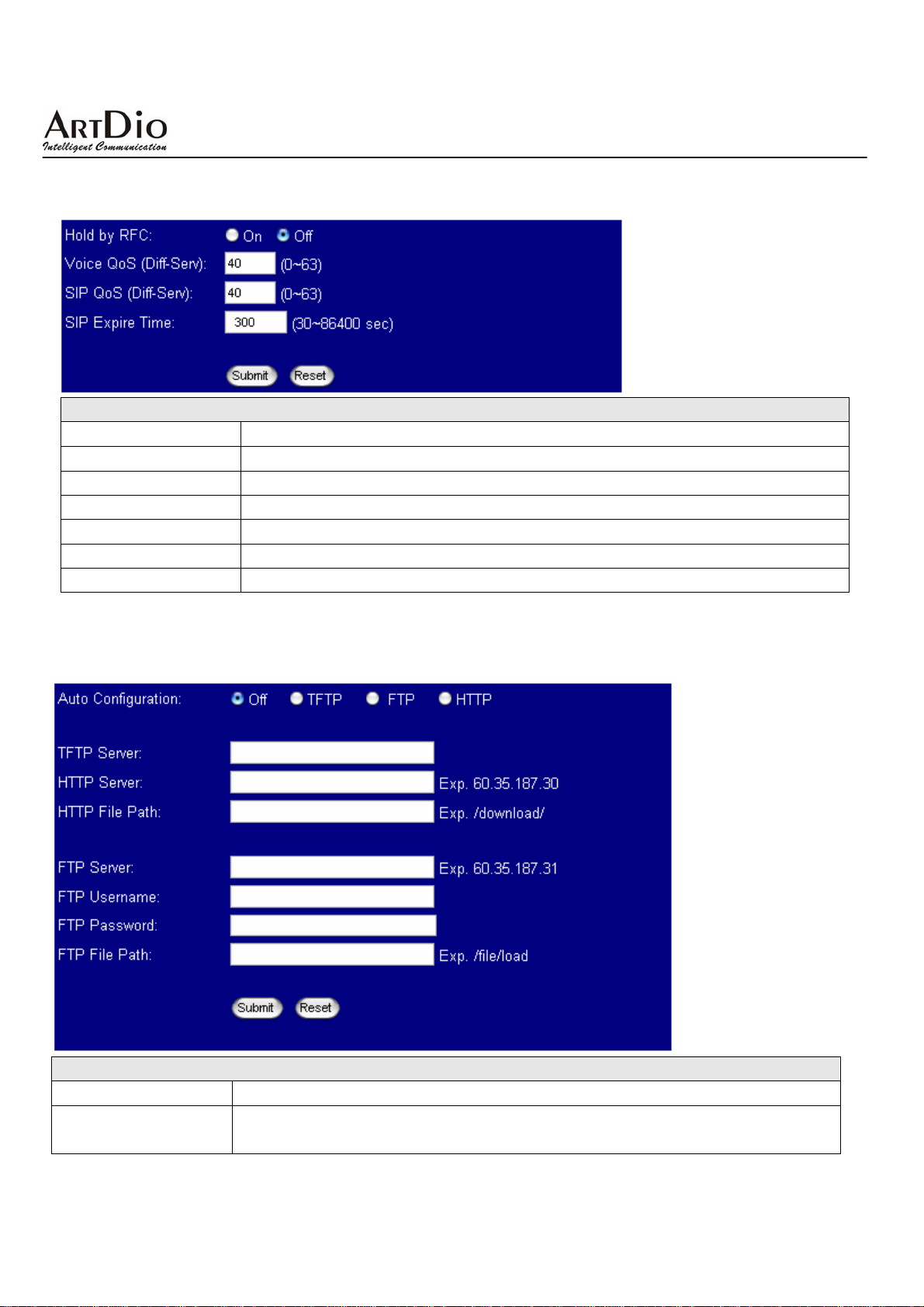

5.6. 1 Auto Config.................................................................................................................................................................................37

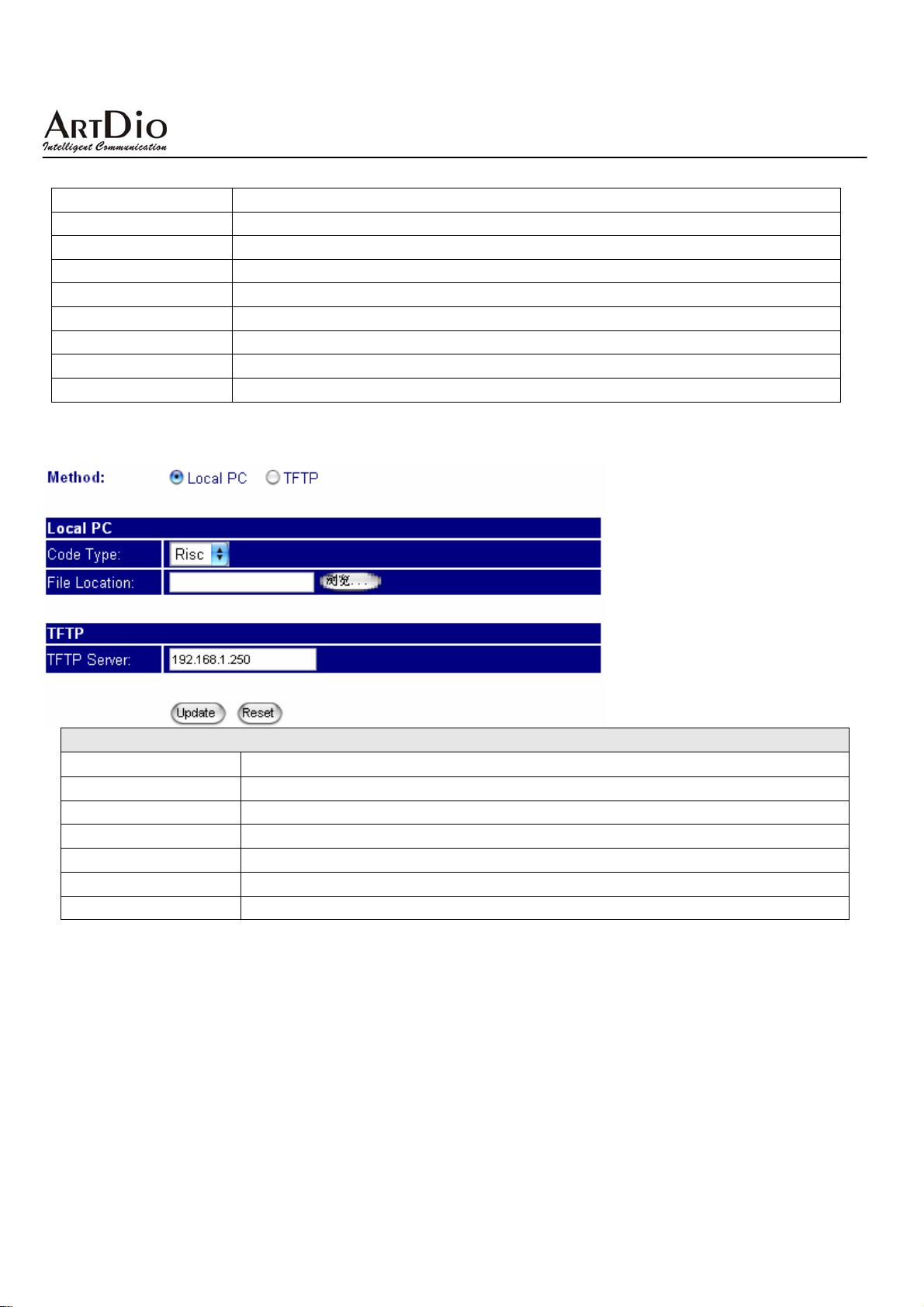

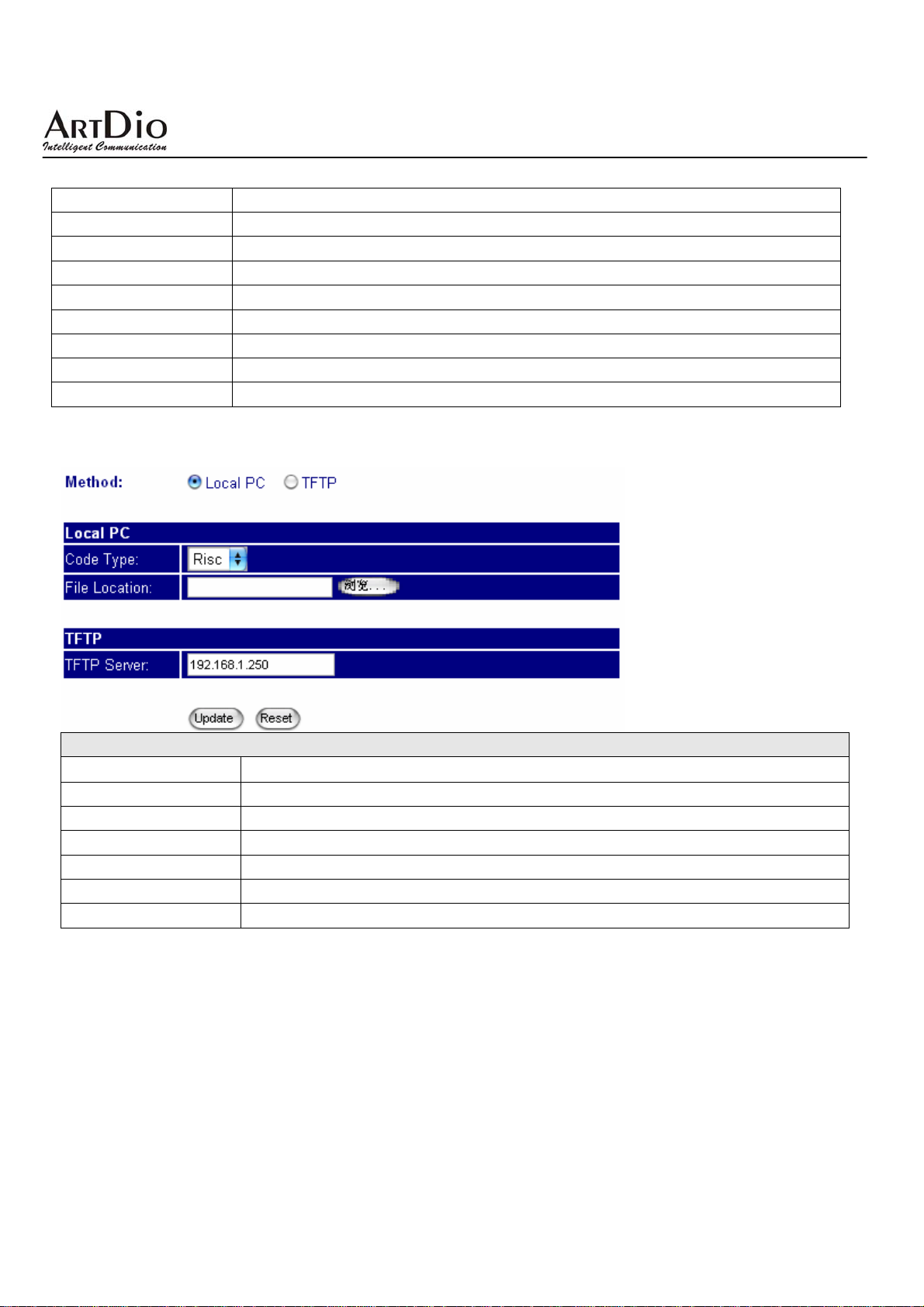

5.6. 2 Firmware Upgrade.....................................................................................................................................................................38

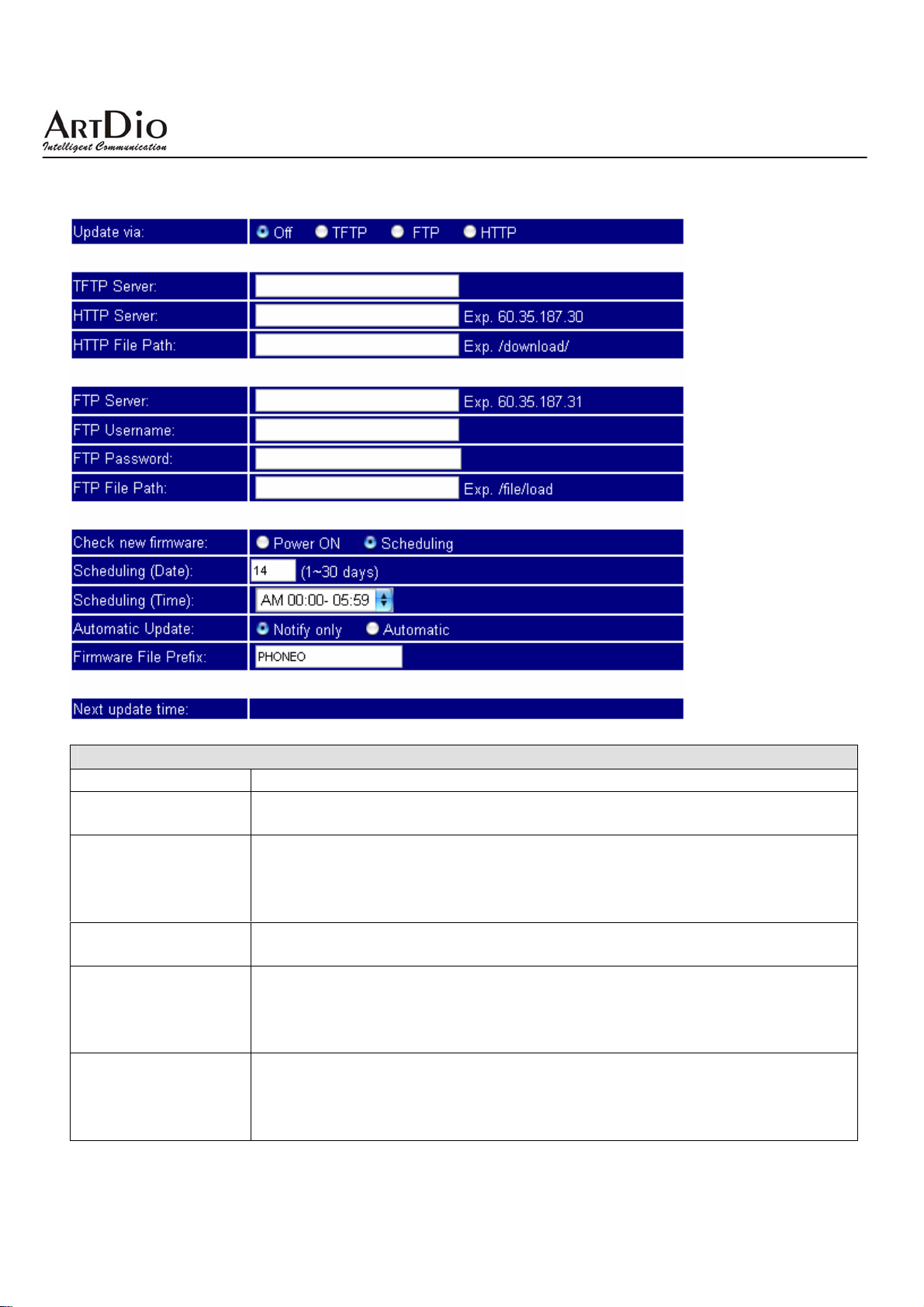

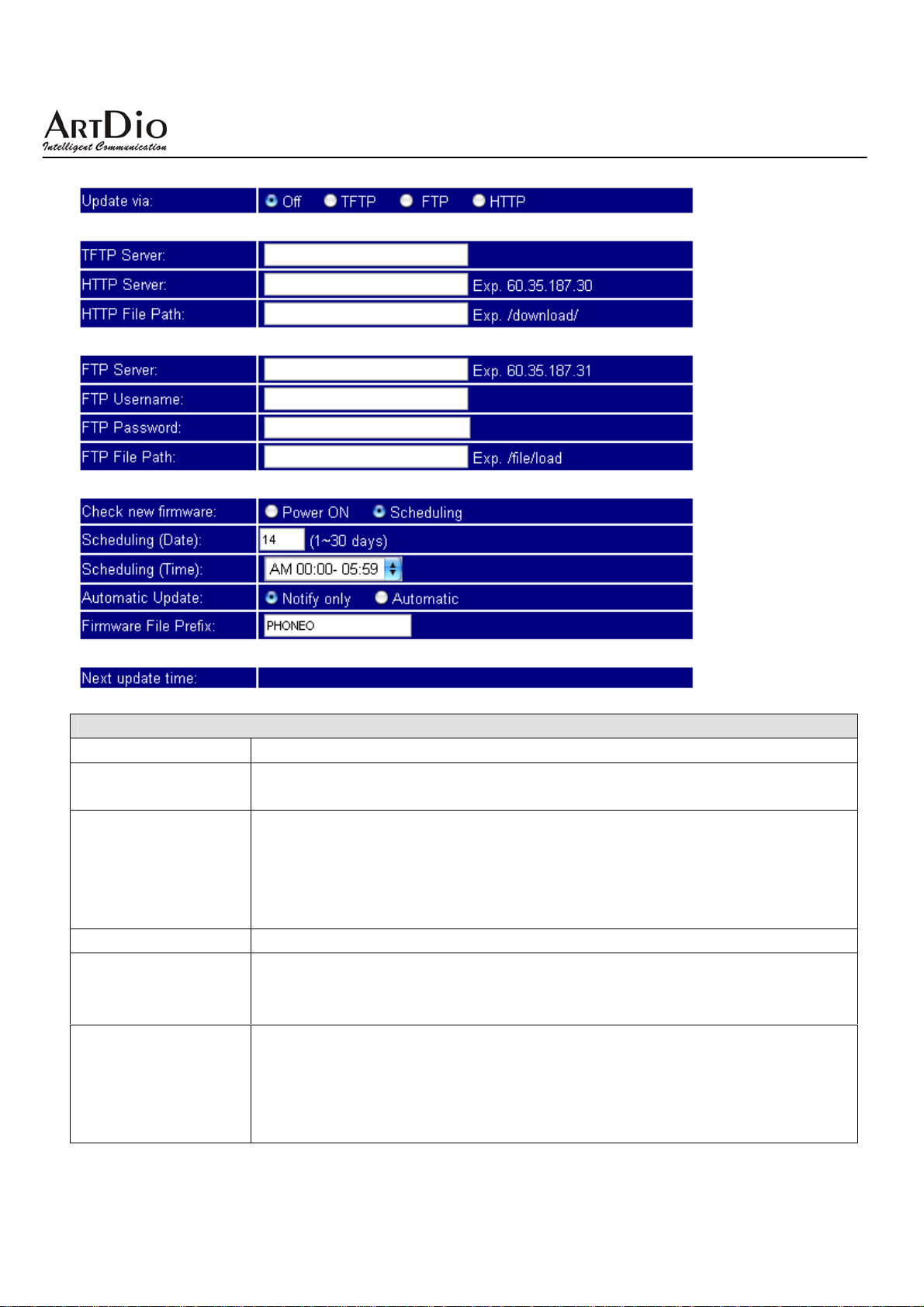

5.6. 3 Auto Update................................................................................................................................................................................39

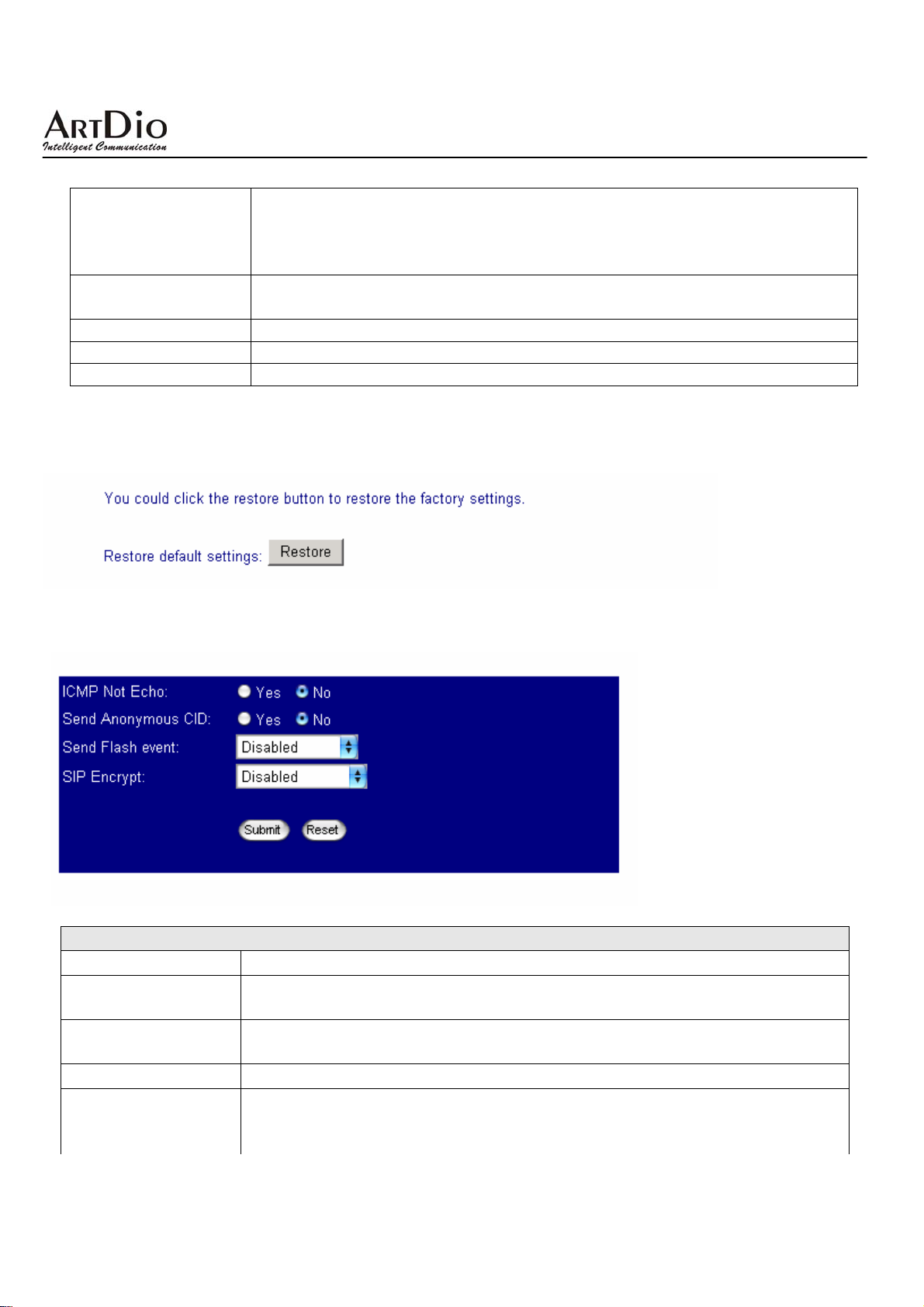

5.6. 4 Default Setting............................................................................................................................................................................40
5.6. 5 Advanced Setting........................................................................................................................................................................40

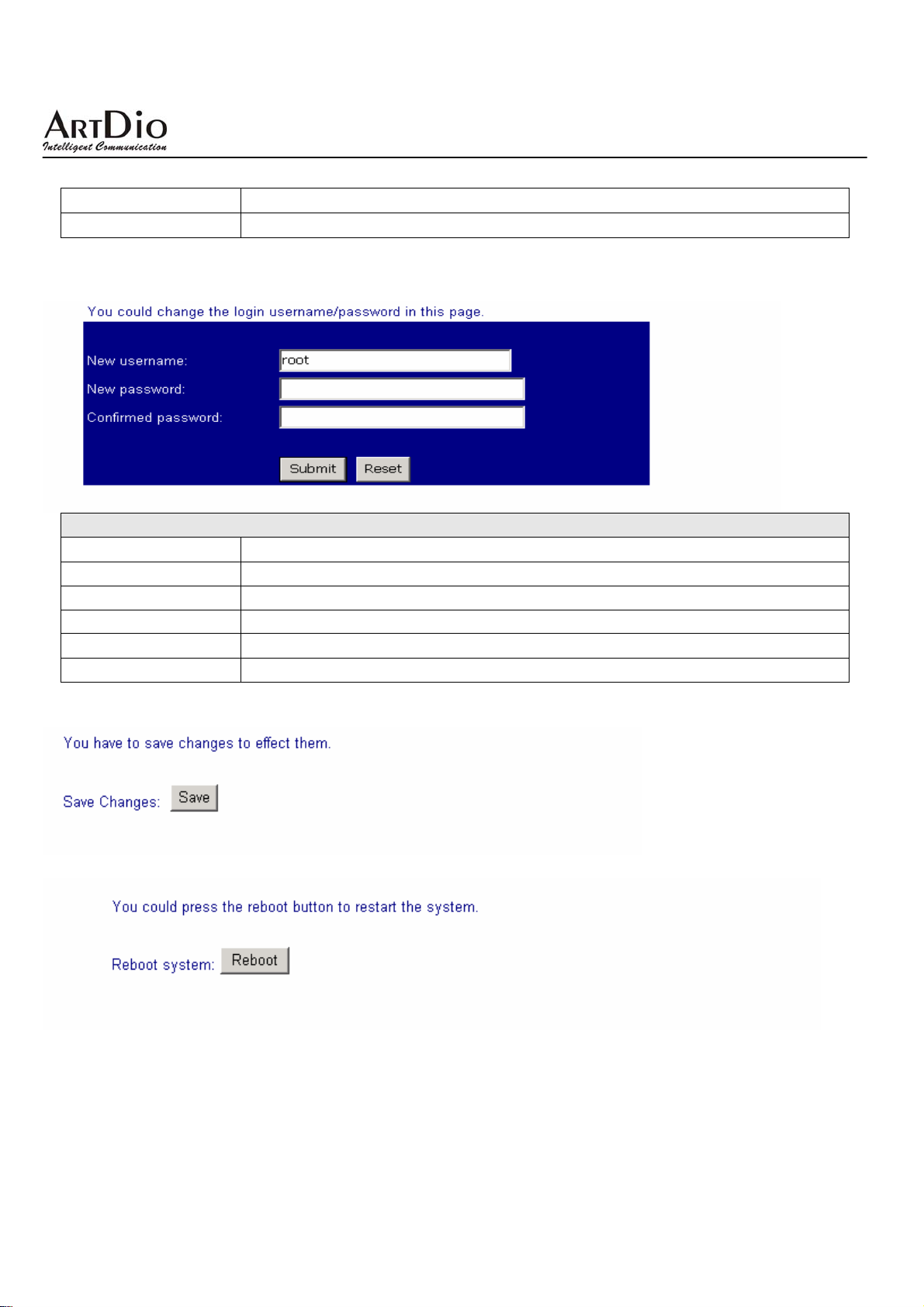

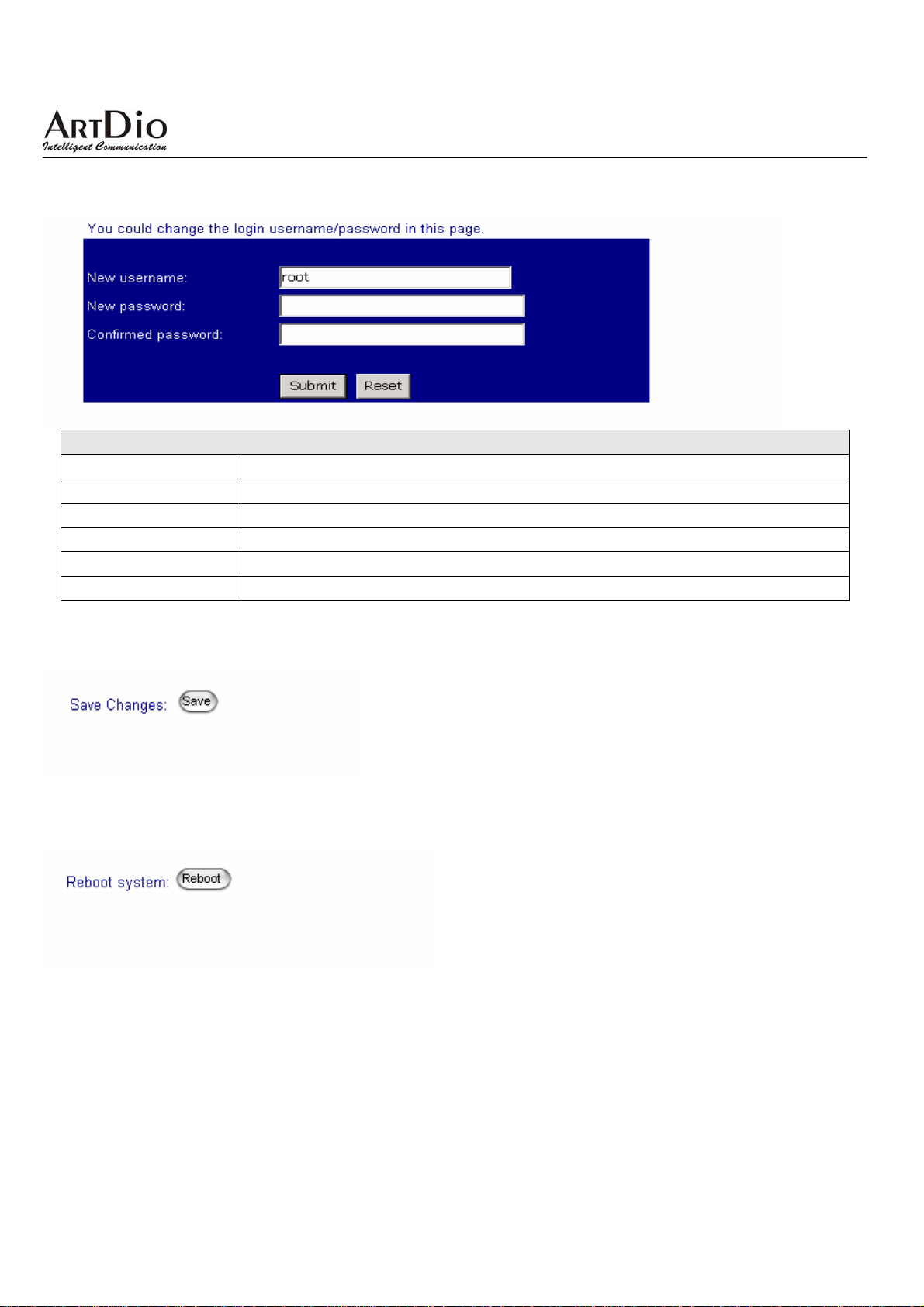

5.6. 6 System Auth................................................................................................................................................................................41
5.7 SAVE CHANGE .......................................................................................................................................................................................41
5.8 REBOOT.................................................................................................................................................................................................41
Ⅵ. PRODUCT SPECIFICATIONS .................................................................................................................................................................42
Ⅶ. FREQUENTLY ASKED QUESTIONS (Q&A)..........................................................................................................................................43
4
Page 5
IPF2002PoE User’s Manual/使用手冊
目 錄
一．產品介紹 ...............................................................................................................................................................................................47
1.1 軟體功能............................................................................................................................................................................................. 47
1.2 硬體功能............................................................................................................................................................................................. 47
1.3 產品外觀............................................................................................................................................................................................. 48
1.
話機正面
2.
話機側面
3.
話機背面
二．產品安裝 ...............................................................................................................................................................................................49
2.1 包裝內容............................................................................................................................................................................................. 49
2.2 設備連接............................................................................................................................................................................................. 49
2.2.1有PSE
2.2.2 有IP
2.2.3
2.2.4
2.3 設備接入狀態顯示.............................................................................................................................................................................52
三．話機按鍵設定 .......................................................................................................................................................................................53
.........................................................................................................................................................................................48
.........................................................................................................................................................................................48
.........................................................................................................................................................................................49
供電路由器的接法
分享器（路由器）的接法
沒有IP分享器的接法
牆面安裝
....................................................................................................................................................................................51
:.......................................................................................................................................................49
..............................................................................................................................................50
..............................................................................................................................................................50
3.1 話機按鍵示意圖.................................................................................................................................................................................53
3.2 話機按鍵功能說明.............................................................................................................................................................................53
四．話機選單設定 .......................................................................................................................................................................................55
4.1 PHONE BOOK ......................................................................................................................................................................................... 55
4.2 CALL HISTORY.......................................................................................................................................................................................55
4.3 PHONE SETTING ..................................................................................................................................................................................... 55
4.3.1 Call forward ................................................................................................................................................................................55
4.3.2 Do not Disturb.............................................................................................................................................................................56
4.3.3 Alarm setting ...............................................................................................................................................................................56
4.3.4 Date/Time setting.........................................................................................................................................................................56
4.3.5 Volum e&Gain............................................................................................. ................. ................................................................56
4.3.6 Ringer..........................................................................................................................................................................................56
4.3.7 Other............................................................................................................................................................................................57
4.4 NETWORK..............................................................................................................................................................................................57
4.4.1 WAN Setup........................................................................................... .................... .................................................................... 57
4.4.2 LAN Setup....................................................................................................................................................................................57
4.4.3 DNS.............................................................................................................................................................................................57
4.4.4 VLAN...........................................................................................................................................................................................57
4.4.5 Status ...........................................................................................................................................................................................57
4.4.6 LAN Speed...................................................................................................................................................................................57
4.5 SIP SETTING .......................................................................................................................................................................................... 58
4.5.1 Service domain............................................................................................................................................................................58
4.5.2 Codec...........................................................................................................................................................................................58
4.5.3 RTP setting..................................................................................................................................................................................58
4.6 NAT TRANSVERSAL............................................................................................................................................................................... 58
4.7 ADMINISTRATOR.................................................................................................................................................................................... 58
五．網頁設定 ...............................................................................................................................................................................................59
5
Page 6
IPF2002PoE User’s Manual/使用手冊
5.1 INFORMATION........................................................................................................................................................................................ 59
5.2 PHONE SETTING..................................................................................................................................................................................... 60
5.2.1 Phone Book.................................................................................................................................................................................. 60
5.2.2 Speed Dial...................................................................................................................................................................................61
5.2.3 Dial Plan Setting.........................................................................................................................................................................62
5.2.4 Call Forward...............................................................................................................................................................................63
5.2.5 Call Waiting Setting.....................................................................................................................................................................63
5.2.6 DND Setting ................................................................................................................................................................................64
5.2.7 Volum e Setting......................................................................................................... ....................................................................65
5.2.8 Melody Setting.............................................................................................................................................................................65
5.3 NETWORKING ........................................................................................................................................................................................66
5.3. 1 Status ..........................................................................................................................................................................................66
5.3. 2 WAN Setting................................................................................................................................................................................67
5.3. 3 DDNS Setting .............................................................................................................................................................................68
5.3. 4 VLAN Setting..............................................................................................................................................................................69
5.3. 5 SNTP Setting...............................................................................................................................................................................70
5.4 NAT ROUTER........................................................................................................................................................................................ 71
5.4. 1 LAN Setting.................................................................................................................................................................................71
5.4. 2 DMZ Setting ...............................................................................................................................................................................71
5.5 SIP SETTING .......................................................................................................................................................................................... 72
5.5. 1 Service Domain..........................................................................................................................................................................72
5.5. 2 Port Setting.................................................................................................................................................................................73
5.5. 3 Codec Setting..............................................................................................................................................................................74

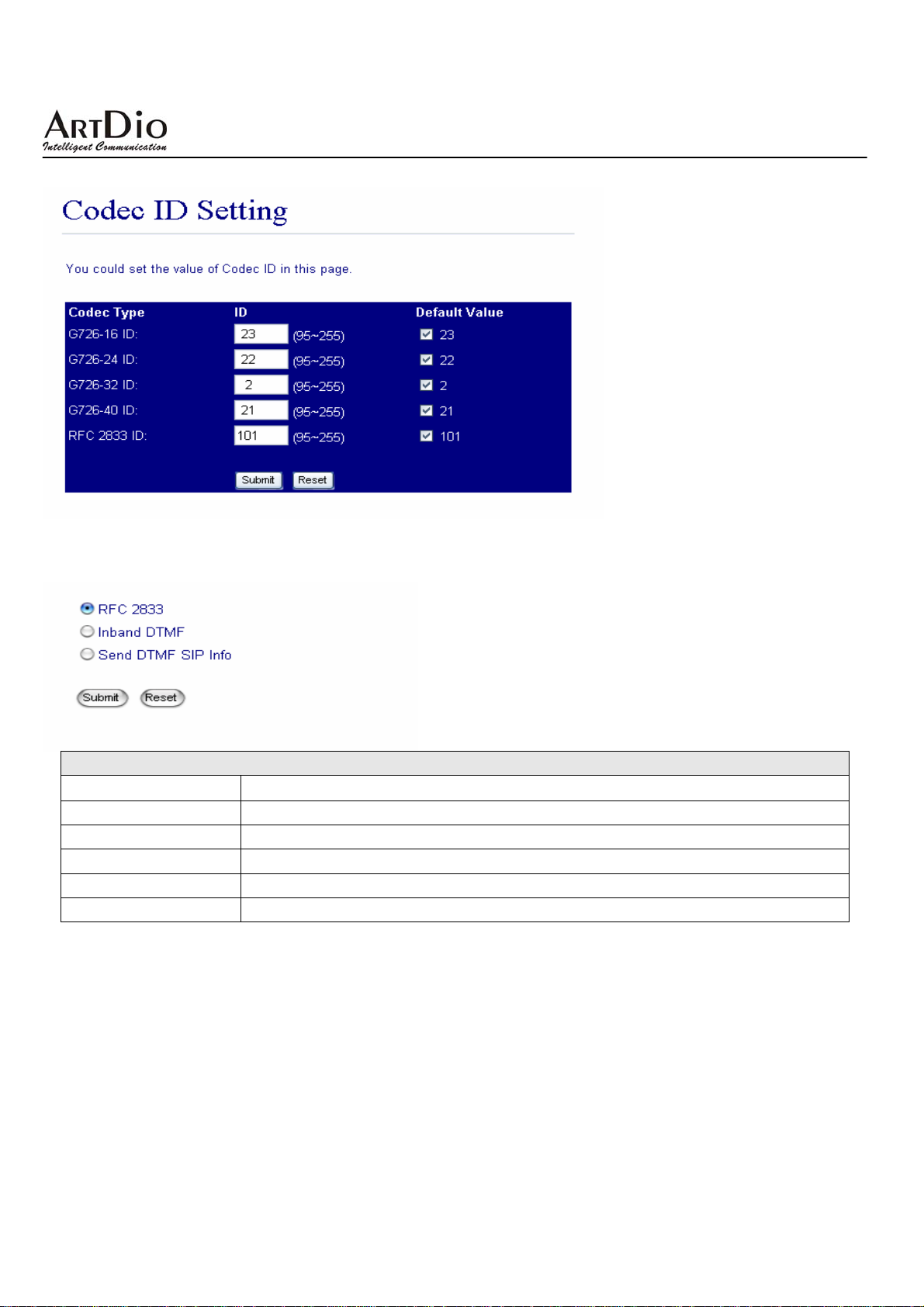

5.5. 4 Codec ID Setting ........................................................................................................................................................................74
5.5. 5 DTMF Setting.............................................................................................................................................................................75
5.5. 6 STUN Setting..............................................................................................................................................................................76
5.5 .7 RPort Setting..............................................................................................................................................................................76
5.5. 8 Other Setting...............................................................................................................................................................................77
5.6 OTHERS.................................................................................................................................................................................................77
5.6. 1 Auto Config.................................................................................................................................................................................77
5.6. 2 Firmware Upgrade.....................................................................................................................................................................78
5.6. 3 Auto Update................................................................................................................................................................................78
5.6. 4 Default Setting............................................................................................................................................................................80
5.6. 5 Advanced Setting........................................................................................................................................................................80
5.6. 6 System Auth................................................................................................................................................................................81
5.7 SAVE CHANGE .......................................................................................................................................................................................81
5.8 REBOOT.................................................................................................................................................................................................81
六．產品規格 ...............................................................................................................................................................................................82
七．常見問題與排解（Q&A） ...................................................................................................................................................................83
6
Page 7
IPF2002PoE User’s Manual/使用手冊
Ⅰ. Product Features
The ArtDio IPF2002PoE is the latest generation of Enterprise IP Phone that supports SIP (Session Initiation Protocol）, the
innovative technology and excellencies in engineering deliver the best voice quality and multiple control functionality.
1.1 Software Features
¾ Support SIP v1.0 (RFC 2543),SIP v2.0(RFC 3261),TCP/UDP/IP, RTP/RTCP,
HTTP,ICMP,ARP/RARP,DNS,DHCP（include DHCP client and DHCP server）,SNTP,PPPoE,STUN,TFTP
protocols.
¾ Support multiple audio codecs, including G.711 (64k bit/s, PCM), G.723.1 (6.3k / 5.3k bit/s), G.726 (16k / 24k /
32k / 40k bit/s, ADPCM), G.729A and G.729B .
¾ Support VAD (Voice Activity Detection）,CNG (Comfort Noise Generation),LEC （Line Echo Cancellation）,Packet
Loss Compensation and Adaptive Jitter Buffer control.
¾ Support standard calling functions, such as Caller ID Display and Block,Call Waiting,Call Hold,Call Transfer
(attended /blind),Call Forwarding and 3-way Conference.
¾ Support in-band and out-of band DTMF (RFC2833) and SIP INFO.
¾ Support for Layer 3 QoS（Tos Field）settings.
¾ Support HTTP1.1 website settings,MD5 For SIP certification（RFC2069/RFC2617）, to ensure security level.
¾ Support up to 3 SIP accounts,supports Outbound Proxy and up to 11 media channels concurrently.
¾ Support configuration settings using phone keypad, through the website, Console control and Telnet settings, or
provide automated provisioning by downloading encrypted configuration file via HTTP/TFTP for enterprise users.
¾ Built-in different ring tones allow for user-customization on ring tone settings.
¾ Support firmware upgrade via HTTP or TFTP/FTP.
1.2 Hardware Features
¾ 2 x RJ-45 10/100M Base-T Ethernet ports, which enable to connect to WAN or LAN settings.
¾ MIC & Line-Out jack,support headset which will auto switch to headset when plugged in.
¾ Support functions of Speakerphone, Redial, Incoming/Dialed Call, Volume up and down, address book, Call
Transfer, 3-way Conference, DND (Do-Not-Disturb), Microphone Mute
¾ Phone keypad supports switching between 2 lines, and 10 speed dial keys (0～9）.
7
Page 8
IPF2002PoE User’s Manual/使用手冊
1.3 Product Overview
1. Phone Front View
2. Phone Side View
8
Page 9
IPF2002PoE User’s Manual/使用手冊
3. Phone Rear View
Note: You also can use a power adaptor with rated 9Vdc @ 1A output, center positive for non-PoE environment.
Ⅱ. INSTALLATION
2.1 Package Content
1 x IPF2002PoE IP Phone
1 x handset
1 x power adapter(Option)
1 x RJ-45 Cable
User＇s Guide
2.2 Hardware Installation
2.2.1 Installation without PSE Router
As a PD (powered device) IPF2002PoE supports IEEE 802.3af Power-over-Ethernet industrial standard, which allows
powering from a PSE (power sourcing equipment) router or equipment. You can only connect WAN or LAN interface
of IPF2002PoE with PSE Router directly, shown as following figure:
9
Page 10
IPF2002PoE User’s Manual/使用手冊
2.2.2 Installation with IP Router
You also can use a power adaptor with rated 9Vdc @ 1A output, center positive for non-PoE environment. If there is
IP router in use, please connect one end of RJ-45 network cable with IP router (or network switching device under IP
router) LAN interface and the other end with WAN interface of IPF2002PoE. You may also connect LAN interface of
IPF2002PoE with IP router directly, shown as following figure:
2.2.3 Installation without IP Router
You also can use a power adaptor with rated 9Vdc @ 1A output, center positive for non-PoE environment. And if there
is no IP router in use, you may install IPF2002PoE between ADSL Modem and PC (or between network switching
device) to act ADSL dialing equipment. Connect IPF2002PoE WAN interface into the network interface of ADSL
Modem, LAN interface into PC or network switching device. The connecting is shown below:
10
Page 11
IPF2002PoE User’s Manual/使用手冊
2.2.4.Wall mount
（1）IPF2002PoE can be wall mounted. There are two wall mount holes on the bottom of the main body
（2）User can simply place the device against the wall with two holes placed to the fixed hanger position on the wall
11
Page 12
IPF2002PoE User’s Manual/使用手冊

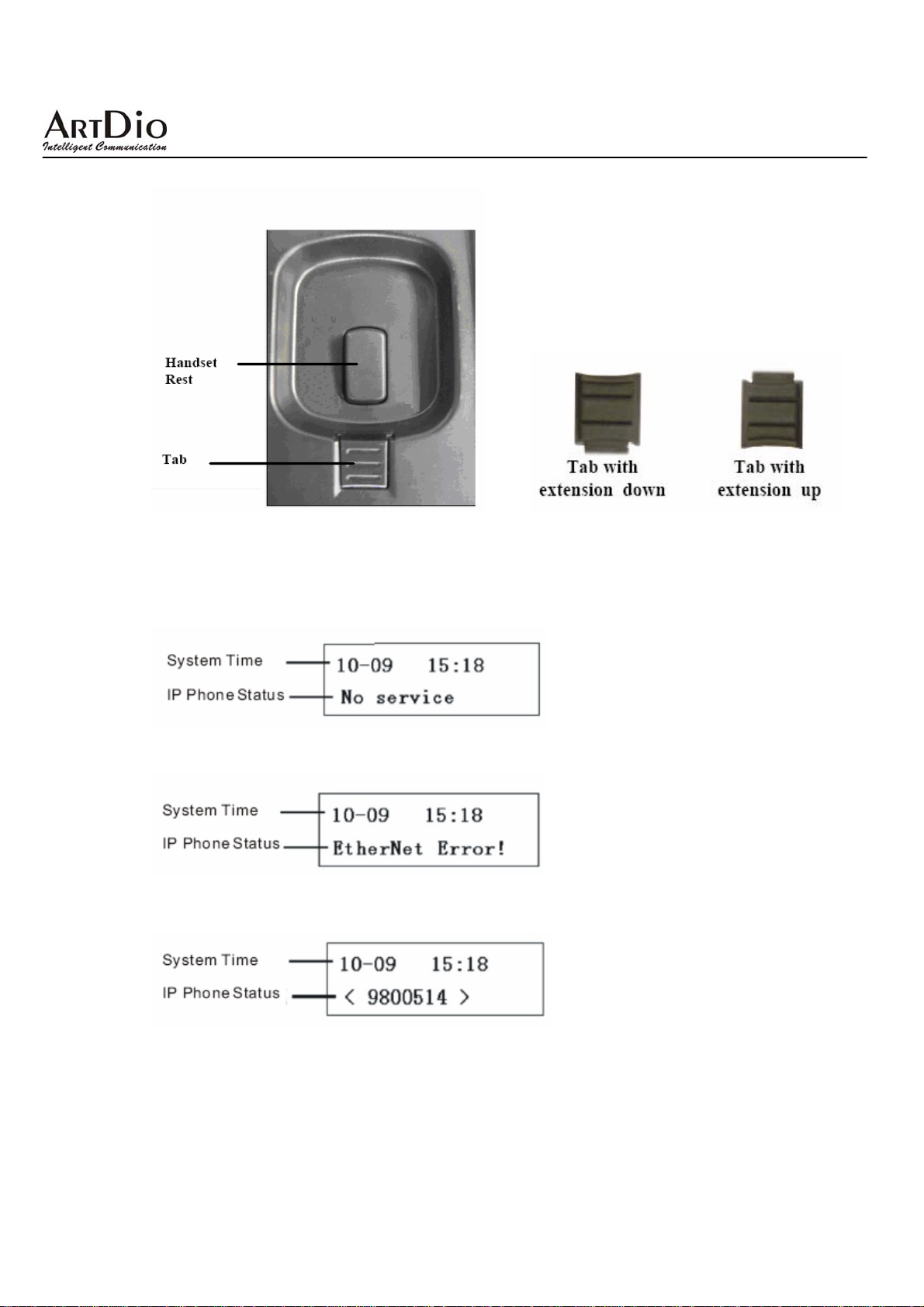

After wall mounting the main body of IPF2002PoE, user will need to pull out the tab (extension downward) from handset cradle on
the top of the handset rest, and rotate the tab and plug it into the slot with the extension up for handset holding.
2.3 LCD Status Display
After the device is connected and started, it will display in LCD for user to check
1. It means the Phone has not successfully registered in platform
2. It means the Phone network connection is wrong.
3. It means the Phone is under normal use state.
12
Page 13
IPF2002PoE User’s Manual/使用手冊
Ⅲ.Basic operation
3.1 Keypad Display
13
Page 14
IPF2002PoE User’s Manual/使用手冊
3.2 Keypad Functions Introduction
Key Series Key Name Description
Selection Key
Calls Record Key CALL LOG Retrieve incoming Calls History and dialed Calls History, press 【UP】/
Call Forwarding Key FWD Turn on and off Call Forward Function.
Number Keys
（After entering setting
mode, it will enter
matching symbol if you
press the key quickly
and continuously）
Function Key
MENU Press to enter【MENU】 mode to make changes on setting and then press
【MENU】 to previous or exit 【MENU】 mode.
OK To confirm the settings
【Down】 key to navigate the selection. If the speakerphone is turned on
or the handset is picked up, the list of incoming Calls History will
automatically display.
1 “1＂, “-＂ , “٫＂ , “!＂ , “?＂
2 “2＂, “a＂, “b＂, “c＂, “A＂, “B＂, “C＂
3 “3＂, “d＂, “e＂, “f＂, “D＂, “E＂, “F＂
4 “4＂, “g＂, “h＂, “i＂, “G＂, “H＂, “I＂
5 “5＂, “j＂, “k＂, “l＂, “J＂, “K＂, “L＂
6 “6＂, “m＂, “n＂, “o＂, “M＂, “N＂, “O＂
7 “7＂, “p＂, “q＂, “r＂, “s＂, “P＂, “Q＂, “R＂, ｀S＂
8 “8＂, “t＂, “u＂, “v＂, “T＂, “U＂, “V＂
9
0 “0＂, “space＂
* “*＂, “‧＂, “:＂, “@＂
＃ During IP line mode, press “#＂ key before dialing a call.
PHONE BOOK Press the key to search the phone book entries.
CONF Press the key to bring calling/called party into conference.
SPEAKER Press the key to enter hand-free mode.
TRANS/FLASH
REDIAL Press the key to automatically redial the latest number.
HOLD Keep current phone connecting.
DEL/MUTE Press to delete digitals and calls history, and to set or cancel mute mode.
UP/VOL+ Press to navigate up, shift cursor to right and turn up.
DOWN/VOL- Press to navigate down, shift cursor to left and turn down.
“9＂, “w＂, “x＂, “y＂, “z＂, “W＂, “X＂, “Y＂,
“Z＂
Press the key, enter phone number, and the active call will be transferred
to the number.
14
Page 15
IPF2002PoE User’s Manual/使用手冊
Ⅳ.Configuration Settings
The IPF2002PoE IP phone supports multiple configuration settings. In this section, it mainly explains configuring using the phone
keypad, and through the website. When the phone is connected properly, press the “Menu＂ button to enter the Menu mode to
make changes on settings. Press the “Menu＂ button again to exit from the Menu. If no action is made after entering the Menu
mode for more than 10 seconds, it will exit automatically.
4.1 Phone Book
1．Search
2．Add entry
3．Speed dial
4．Erase all
4.2 Call history
1．Incoming calls
2．Dialed numbers
3．Erase record
4.3 Phone setting
Search the phone book entries, to make a call or edit the entries.
Add a new phone book entry
Set speed dial numbers.IPF2002PoE support 10 speed dial numbers, codes can choose
from among 0-9, if the code had previously stockpiled numbers New numbers will be
covered.
Delete all phone entries
Enter to retrieve Incoming Calls history, press OK for options, select “Save＂ to save
the changes or “Erase＂ to delete.
Enter to retrieve Dialed Calls history, press OK for options, select “Save＂ to save the
changes or “Erase＂ to delete.
Enter to erase record of call history. Press “OK＂ for options, select between
“Incoming＂、“Dialed＂、“All＂ to erase records.
4.3.1 Call forward
1．All forward
2．Busy forward
3．No answer forward
4．Ring Timeout
forward
Forward all calls – go to Activation and select the options of “Enable＂ to turn on or
“Disable＂ to turn off the function. Go to “Number＂ option to enter the phone
number for call forwarding.
Busy calls forward - go to Activation and select the options of “Enabled＂ to turn on or
“Disable＂ to turn off the function. Go to “Number＂ option to enter the phone
number for busy forwarding.
No answer call forward - go to Activation and select the options of “Enable＂ to turn
on or “Disable＂ to turn off the function. Go to “Number＂ option to enter the phone
number for no answer forwarding.
Ring time out call forwarding – enter the number of ring times before a call times out,
then enter the phone number for call forwarding.
15
Page 16
IPF2002PoE User’s Manual/使用手冊
4.3.2 Do not Disturb
1．Always
2．By Period
3．Period Time
4.3.3 Alarm setting
1．Activation
2．Alarm time
4.3.4 Date/Time setting
1．Date&Time
2．SNTP setting

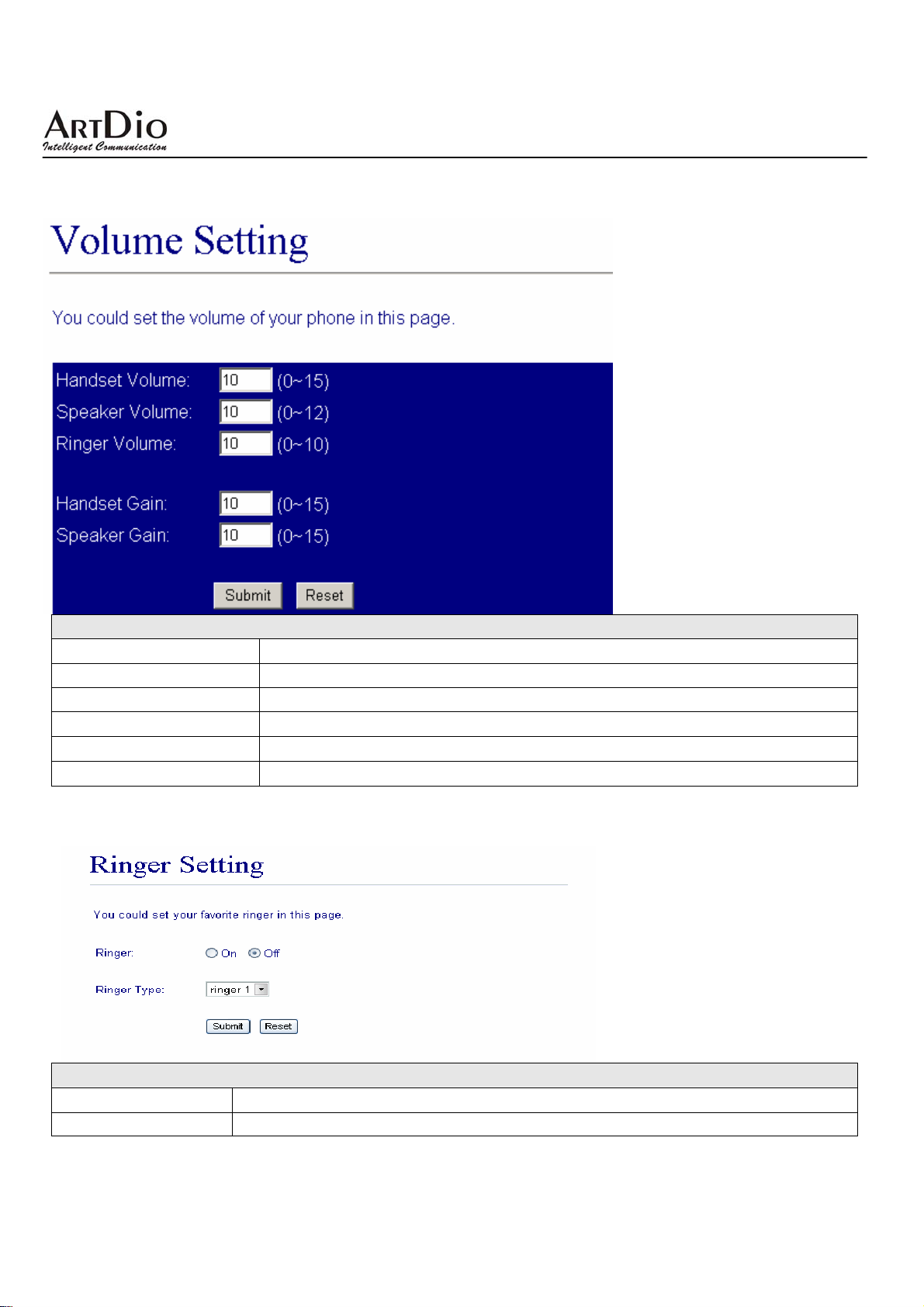

4.3.5 Volume&Gain
1．Handset volume
2．Speaker volume
3．Handset gain
4．Speaker gain
Block all calls
Block calls by certain time setting
Block calls by certain time duration setting
On/Off clock Alarm
Set Alarm time, IPF2002PoE automatic Alarm when at the preset time.
Date and time setting
SNTP：Turn on the SNTP to automatically update the time
Primary SNTP：Primary SNTP address
Secondary SNTP：secondary SNTP address
Time Zone：Time Zone setting
Adjustment time：Time adjustment setting
Adjust handset volume, the maximum volume is 15.
Adjust speakerphone volume, the maximum volume is12.
Adjust handset gain, the maximum gain is 15.
Adjust speakerphone gain, the maximum gain is 15.
4.3.6 Ringer
1．Ringer volume
2．Ringer type
4.3.7 Other
1．Auto Dial
4.4 Network
4.4.1 WAN Setup
1．IP Type
Adjust ringer volume, the maximum is 10.
Select between 4 different types of Ring tones
Auto dial setting – set the time interval in seconds for auto dial function. After the
phone number is entered and without pressing the “#＂ sign, it will auto dial out based
on the time set. Time interval setting is between 3 – 9 seconds.
Fixed IP client：set fixed IP address
DHCP client：Obtain IP address automatically from DHCP server
PPPoE client：PPPoE dial-up setting
16
Page 17
IPF2002PoE User’s Manual/使用手冊
2．Fixed IP setting
3．PPPoE setting
4.4.2 LAN Setup
IP address：set fixed IP address
Network mask: set subnet mask IP address
Default Gateway IP：set gateway IP address
PPPoE setting：
User name：Enter PPPoE user ID
Password：Enter PPPoE password
1．Bridge
2．NAT
ON/OFF Bridge function
ON/OFF Router function
4.4.3 DNS
1．Primary DNS
2．Secondary DNS
Mostly DNS Setting
Secondary DNS Setting
4.4.4 VLAN
1．Activation
2．VID
ON/OFF VLAN function
Default is 136, Virtual LAN Server setting , VLAN Identifier (Virtual LAN ID. Name
VLAN ID or VID).
4.4.5 Status
To check the IP phone for the IP address and MAC number.
4.4.6 LAN Speed
1．Auto
2．100M Full
3．100M Half
4．10M Full
5．10M Half
Automatically adjust LAN speed
Set up 100M full LAN speed
Set up 100M half LAN speed
Set up 10M full LAN speed
Set up 10M half LAN speed
4.5 SIP setting
If the need for the Setting ,Please firstly Enter “System Authent＂ Submenu of ＂Administrator＂, Input Password (pre-set
value is the test) if the incorrect password, LCD display "incorrect", correct password LCD display "Correct." When the password
was confirmed and then user could SIP set.
17
Page 18
IPF2002PoE User’s Manual/使用手冊
4.5.1 Service domain
1．First realm
2．Second realm
3．Third realm

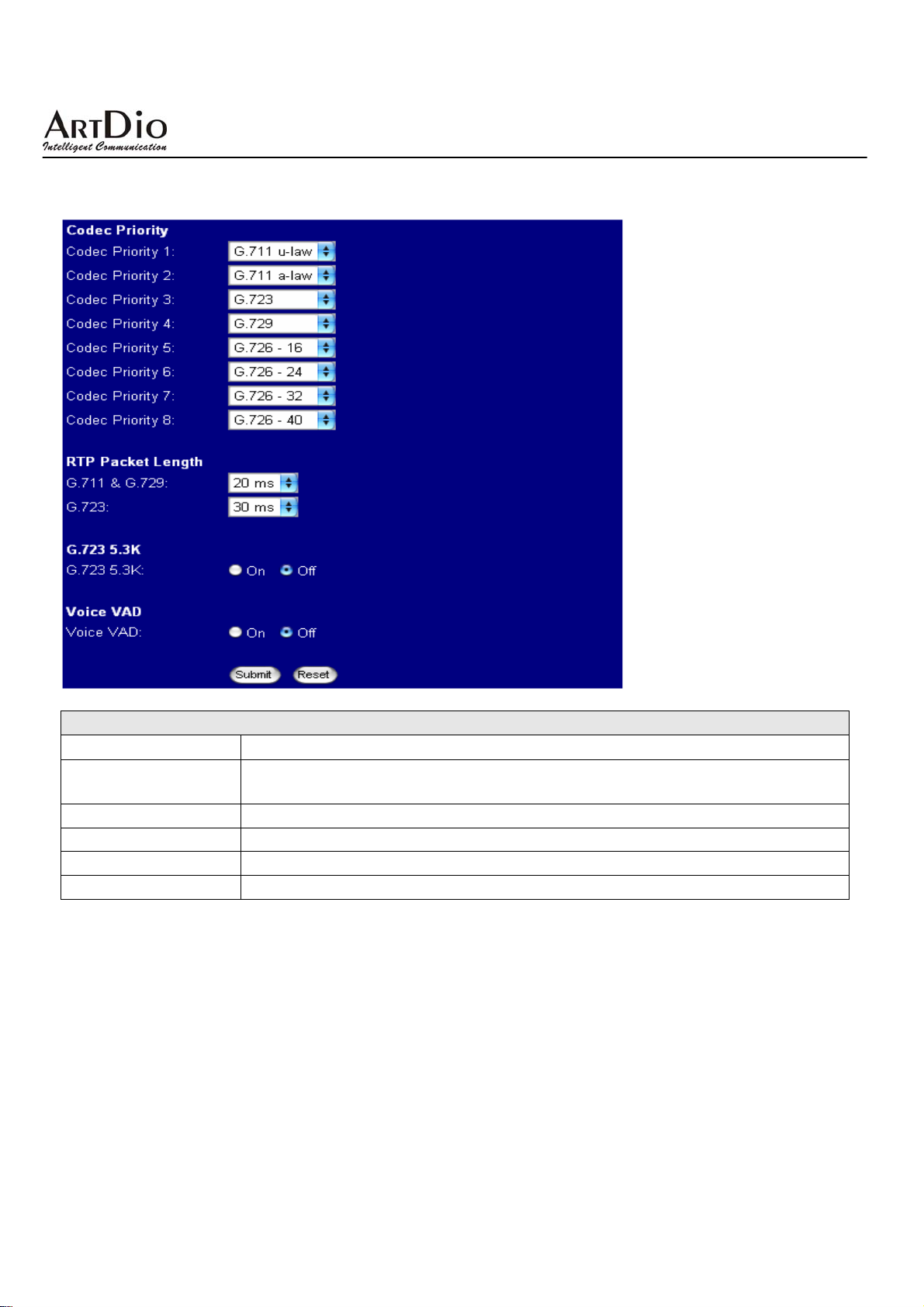

4.5.2 Codec
1．Codec type
2．VAD
4.5.3 RTP setting
Register the first SIP account:
Activation: Enable Register the SIP account
Disable Not Register the SIP account
Display name: LCD Display Name
User name: User name
Register name: register the account name
Register Password: register the account＇s Password
Domain server: Net domain names
Proxy Server: Voice Gateway for a landing on the heads of the IP address or
Net domain names
Outbound proxy: Speech Proxy
Register Secondary SIP account, like as up.
Register third SIP account, like as up.
Set Speech Coding format
Enable :Voice Activity detection ON
Disable: Voice Activity detection OFF
1．Outband DTMF
2．Duplicate RTP
4.6 NAT transversal
STUN setting
4.7 Administrator
1．Auto config
2．Default setting
3．System Authent
4．Version
5．Watch dog
6．Restart
ON/OFF Out band DTMF setting
Retransmission number of voice packets
STUN：Confirm to use STUN setting
STUN server：STUN server address

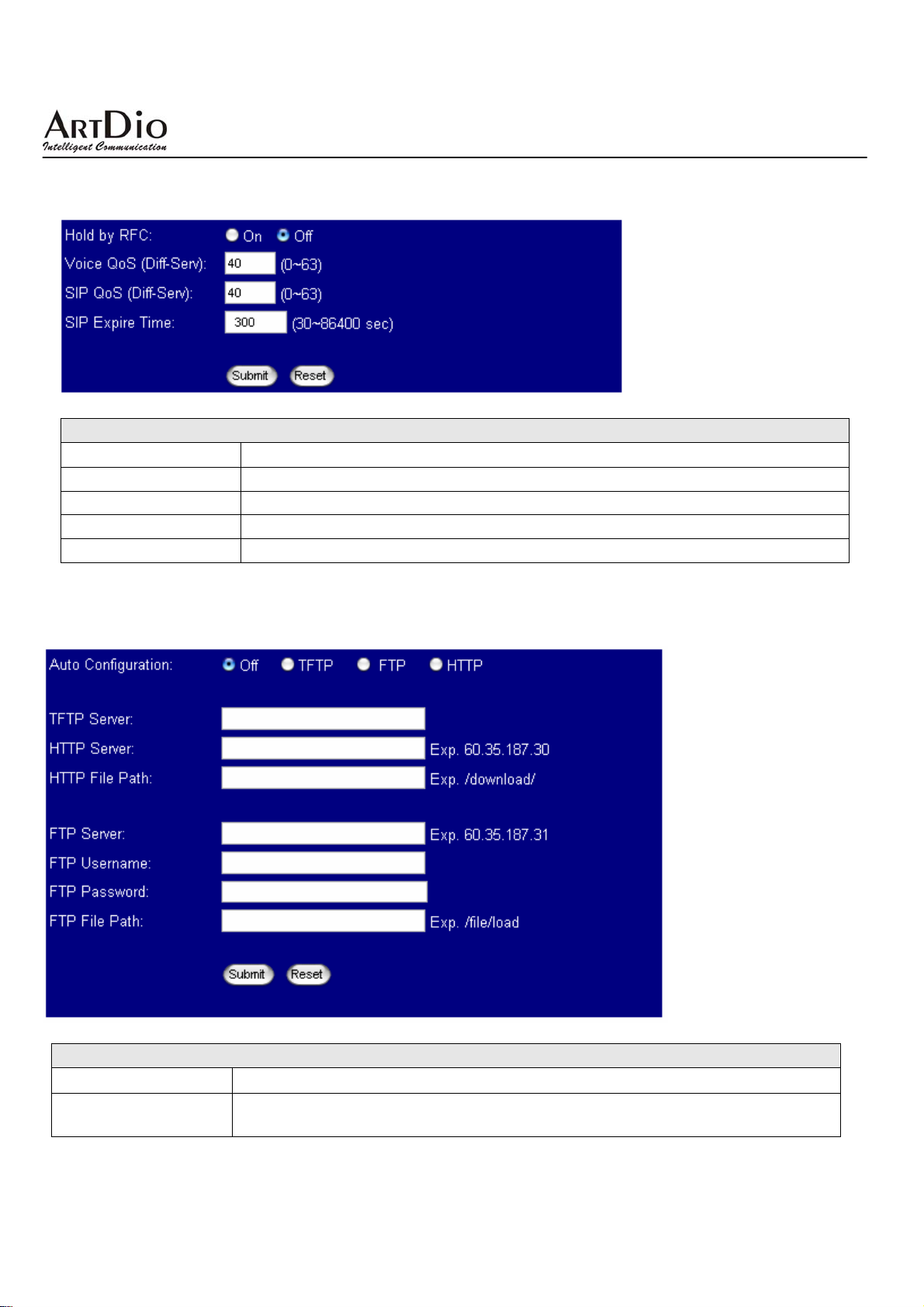

Auto configuration：Config mode：select configuration mode（Disable/TFTP/FTP）
TFTP server：TFTP server address
FTP server：FTP server address
FTP login name：FTP server login name
FTP password：FTP server password。

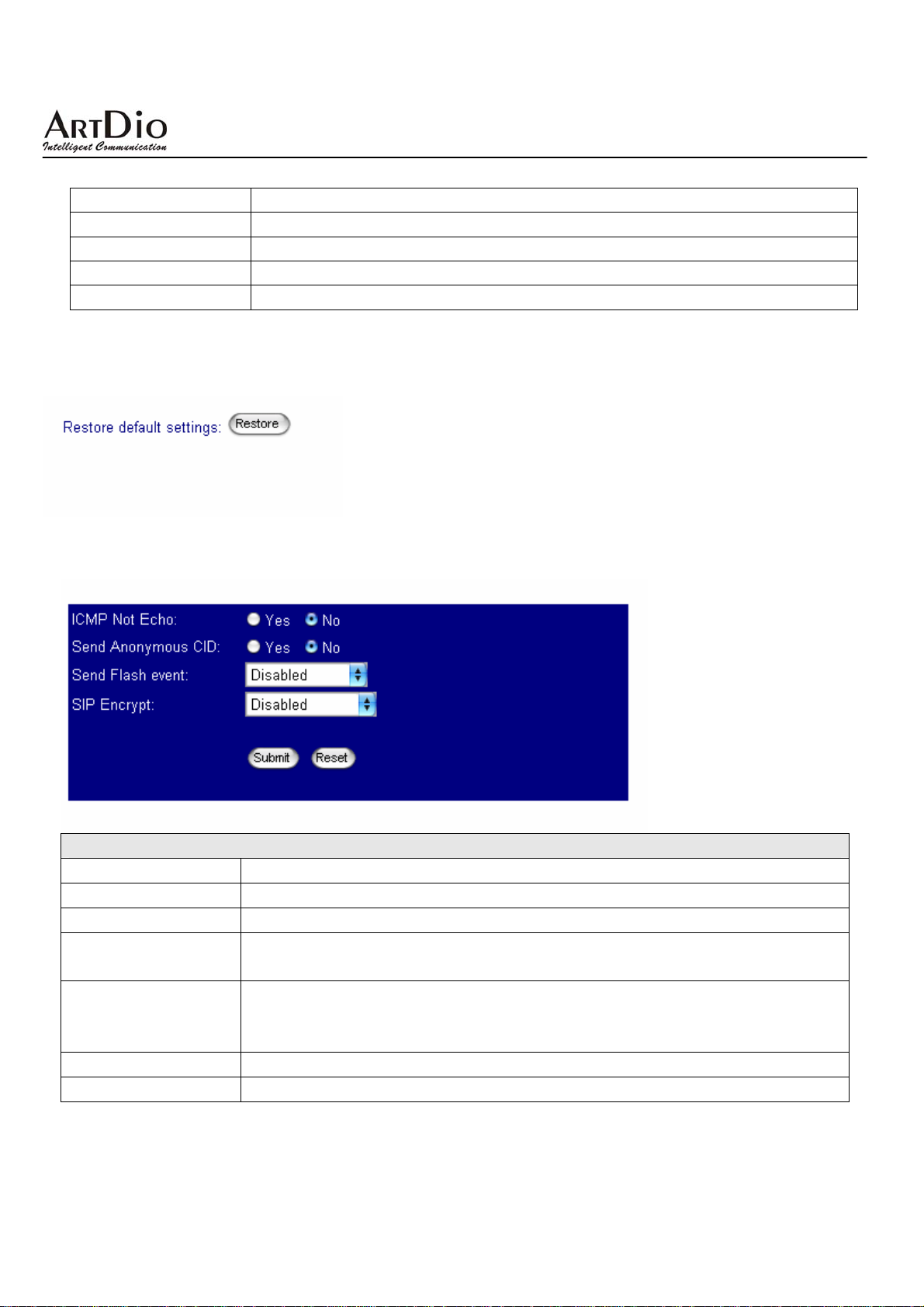

Default setting：Load default：restore default setting
Abort：abort the process
System authentication setting
Display software version
IP phone main control
Restart the IP phone
18
Page 19
IPF2002PoE User’s Manual/使用手冊

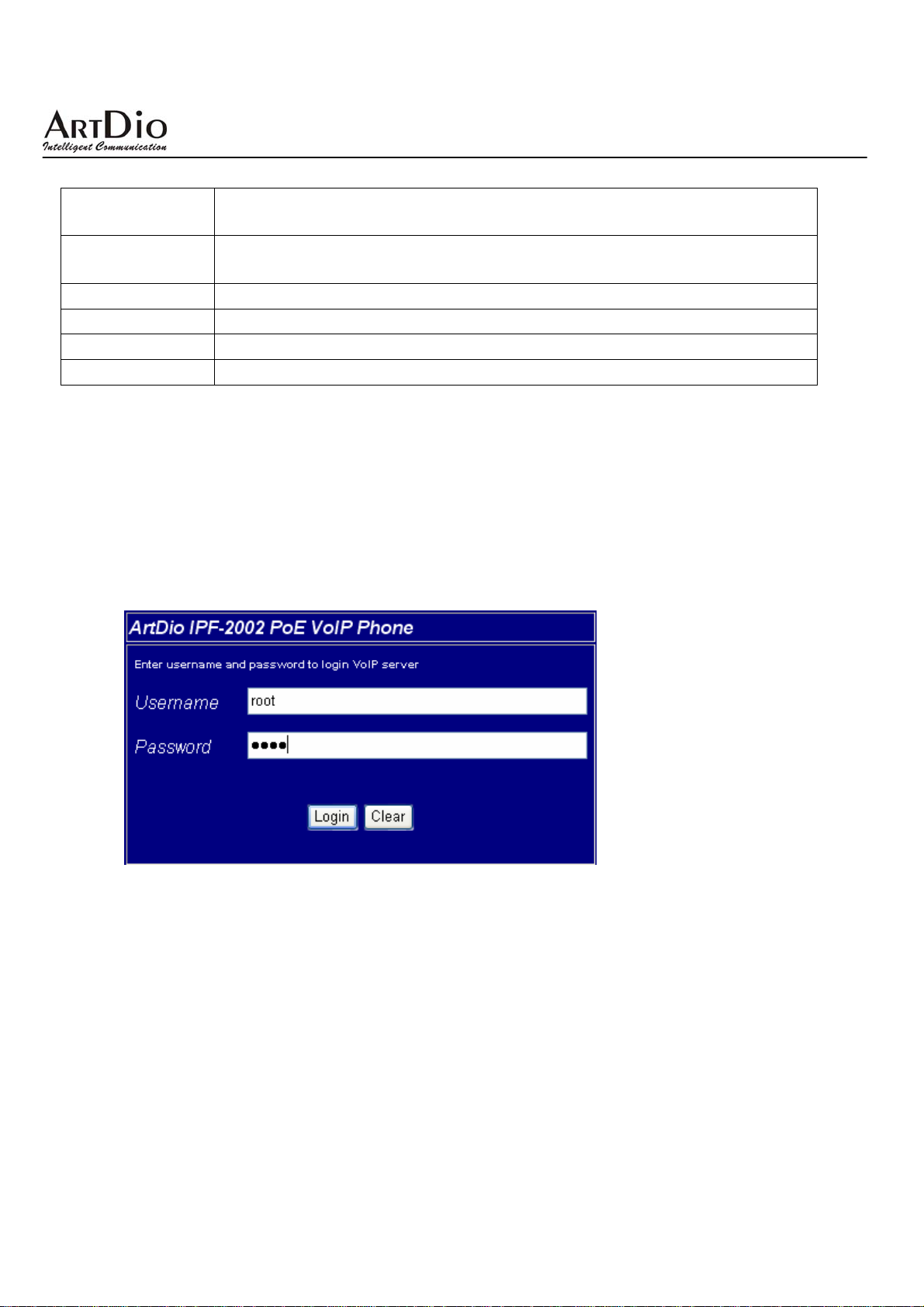

Ⅴ. Configuration using Web Browser
Enter the Menu on the IP phone, go to Network/status to retrieve the IP address, then check on the IP address on the
connected computer system (make sure that the address of the IP Phone and the computer are in the same network segment), Then,
type the address http:// Phone-IP-address:9999 in the browser URL address, and login with the user name and password to enter the
configuration setting page. The three default users are “root＂, ＂system＂, ＂user＂. The password is “test＂(user may
change the password).
To save the configuration settings through the website, press “submit＂ after configuring on each page. Then, press the
“save change＂ on the left-hand side column, click on “save＂. After the IP phone restart, it will save all the changes made
through the website.
The following display shows the on-screen instructions for the configuration using the web browser
5.1 Information
Display the IP phone system information, including the firmware version.
Model Name
Firmware Version
Codec Version
Product mode
Firmware Version
Codec Version Date
19
Page 20
IPF2002PoE User’s Manual/使用手冊
5.2 Phone Setting
5.2.1 Phone Book
If you need to add a phone number into the Speed Dial list, you need to input the position,the [Name],and the phone number(by
URL type).When you finish a new phone list, just click the “Add phone＂button.
PHONE Book
Item Description
Delete Selected
Delete All
Position
Name Enter the name for the phone entries.
URL
Add Phone
Reset
Delete the selected entries.
Delete all entries.
Select the position to add phone entries.
Enter the phone number. Add “-“ Symbol for an IP phone number to differentiate
between the PSTN number.
Press to confirm to add phone entries. Maximum phone book entries are 140.
Reset the phone book entries
20
Page 21
IPF2002PoE User’s Manual/使用手冊
5.2.2 Speed Dial
Speed Dial
Item Description
Delete Selected
Delete All
Position
Name
URL
Add Phone
Reset
Delete selected entries
Delete all entries
Select the position to add phone entries.
Enter the name for the speed dial entries
Enter the speed dial number. Only support IP(SIP)
Press to confirm to add phone entries. Maximum speed dial entries are 10.
Clear the data that set just now
5.2.3 Dial Plan Setting
Dial plans provide Add Prefix and Substract Prefix function.
21
Page 22
IPF2002PoE User’s Manual/使用手冊
Dial Plan Setting
Item Description
Drop Prefix Default No( Add Prefix).When set Yes (subtract Prefix from dialed number), subtract Prefix
from dialed number.
Group 4 data set
- No (add Prefix): When the rule matches ,directly add Prefix Before dialed number.Replace
Item could be set seven number.
- Yes (minus Prefix): When the rule matches, Then subtract compatible code top from Dialed
number, Can import 39 number.
Replace rule1 Set dial rule:
Add or Subtract
xxx: Designated code length.
Auto Dial Time Default Value is 5S.After long wait automatically dial .
Submit Changes in the implementation of storage set.
Reset Clear the data which have set.
22
Page 23
IPF2002PoE User’s Manual/使用手冊
5.2.4 Call Forward
Forward Setting
Item Description
Forward all calls to another phone number. Capable to forward all calls to IP or PSTN
All Forward
Busy Forward
No Answer Forward
All Fwd No.
Busy Fwd No
No Answer Fwd No
Time Out
Reset
Item Description
telephone lines If All forward ON, FWD LED light up ,LCD display “AF XXXXXX＂,
“AF＂ Show ALL Forward ,＂XXXXXX＂ Show destination number, user could select to
forward to IP Phone.
Forward busy calls to another phone number (this function is limited to IP incoming call) , If
Busy forward ON, FWD LED light up, LCD Display “BF XXXXX＂.
“BF＂ Show Busy Forward ,＂XXXXX＂ Show destination number
When Ring Time out, Forward no answer calls to another number. If No Answer forward ON
FWD LED light up, LCD Display “NF XXXXXX＂ , user could select to forward to IP
Phone.
Set the name and phone number for All Forward calls.
Set the name and phone number for Busy Forward calls.
Set the name and phone number for No Answer Forward calls.
Set the ring time for call forwarding.
Reset call forwarding setting
23
Page 24
IPF2002PoE User’s Manual/使用手冊
5.2.5 Call Waiting
Call Waiting
Item Description
Call Waiting – While talking to A party, B is calling in, at this time there will be beeping
Call Waiting
5.2.6 DND Setting
sound every 3 seconds to indicate a call waiting, press “hold＂ key button to put caller A
on hold and switch to caller B. You can press “hold＂ key button to put caller B on hold and
switch back to caller A.
DND Setting
Item Description
DND Always
DND Period
Always block incoming IP calls – Select “On＂ to enable the function, all incoming IP calls
will hear a busy tone. Select “Off＂ to disable the function.
Block period setting – set the time to block IP calls. Enter start time at the “From＂ column,
and enter end time at the “To＂ column.
24
Page 25
IPF2002PoE User’s Manual/使用手冊
5.2.7 Volume Setting
Volume Setting
Item Description
Handset Volume
Speaker Volume
Ringer Volume
Handset Gain
Speaker Gain
Adjust handset volume.
Adjust Speaker volume.
Adjust Ringer volume
Adjust handset gain (suggested not to exceed 13)
Adjust Speaker Gain.
5.2.8 Melody Setting
Ringer Setting
Item Description
Ringer
Select “On＂ to enable ringer setting, select “off＂ to turn off.
25
Page 26
IPF2002PoE User’s Manual/使用手冊
Ringer Type
5.3 Networking
5.3. 1 Status
Status
Item Description
Type
IP
Mask
Gateway
DNS Server 1
DNS Server 2
Select between the 4 different types of ringer
IP address type show
Show IP address
Show network shielding
Show the Set Gateway＇s IP address
Show the Set Primary DNS address
Show the Set Secondary DNS address
26
Page 27
IPF2002PoE User’s Manual/使用手冊
5.3. 2 WAN Setting
Network Setting
Item Description
LAN Mode Setting LAN mode
Bridge : Select whether turn on/turn off Bridge function
NAT: Select whether turn on/turn off Router function
IP Type. Select a proper connection for network setting:
z Input Local IP, Subnet Mask, Gateway IP, DNS after Fixed IP is selected.
IP Type
IP
Mask
z DHCP server received IP information after DHCP Client is selected. (Suitable for
Cable Modem users)
z PPPoE User Should set this item.
Set up IP Address
Set up Subnet Mask Address
27
Page 28
IPF2002PoE User’s Manual/使用手冊
Gateway
DNS Server 1
DNS Server 2
MAC
Host Name
PPPoE Setting
PPPoE
User Name
Password
PPPoE
5.3. 3 DDNS Setting
Set up Gateway Address
Set up Primary DNS IP Address
Set up Secondary DNS IP Address
Set up MAC Address
Set up Host name. Displayed the host name in Network Name Service equipment.
ADSL User Options
When selecting PPPoE for IP Type, set up a user name for ADSL account.
When selecting PPPoE, set up password for ADSL account.
ADSL User Options
DDNS Setting
Item Description
DDNS setting. Account and password for DDNS service. The status of Gateway is
DDNS
Host Name
User Name
Password:
under SIP operation. If you need any help, please refer DDNS instruction for more
detail, Set On/Off DDNS function
DDNS Server Name
DDNS Server Registration Account
Account Password
28
Page 29
IPF2002PoE User’s Manual/使用手冊
E-mail Address
DDNS Server
DDNS Server List
Type
Wild card
Back MX
Off Line
Submit
Reset
5.3. 4 VLAN Setting
E-mail Address
DDNS the IP address or domain name
DDNS service provider list.
DDNS mode of choice.
DDNS Wild card function ON/OFF
DDNS Back MX function ON/OFF
DDNS Off Line function ON/Off
Changes in the implementation of storage set.
Clear the data which have set just now.
VLAN Setting
Item Description
VLAN Packets Default Off.When set “On＂, turn on receive VALN Packets function
VID Default is 136, Virtual LAN Server setting, VLAN Identifier (Virtual LAN ID. Name VLAN
ID or VID).
User Priority Default is 0, user priority Setting, user priority(0-7).
CFI Default is 1, Canonical Format Indicator (CFI).
CFI=1: head of the packet contains spaces RIF , And the NCFI Flag which inside RIF
decision information is carried by MAC address. "Standard format" (Canonical Format) or
"non-standard format" (Non-Canonical Format )
CFI=0: head of the packet Do Not contains spaces RIF, information is carried by MAC
address is "Standard format" (Canonical Format)
NAT VLAN Setting
29
Page 30
IPF2002PoE User’s Manual/使用手冊
VLAN Packets Default Off.When set “On＂, turn on receive “VALN Packets＂ function.
VID1 ~ 4 Default is 136, Virtual LAN Server setting, VLAN Identifier (Virtual LAN ID. Name VLAN
ID or VID).
Submit Changes in the implementation of storage set.
Reset Clear the data which have set just now.
5.3. 5 SNTP Setting
SNTP Setting
Item Description
SNTP
Primary Server
Secondary Server:
Time Zone
Sync. Time
Submit Submit
Reset Reset Default Settings
When setting the use time for a server, On is “in use＂, Off is “not in use＂.
Primary Server. Input the Primary Time Server Address.
Secondary Server. Input the Secondary Time Server Address.
Time Zone. Input the local time.
Sync. Time. Input the Sync. Time.
30
Page 31
IPF2002PoE User’s Manual/使用手冊
5.4 NAT Router
5.4. 1 LAN Setting
LAN Setting
Item Description
IP
Mask
DHCP Server
Start IP
End IP
Lease Time
Submit
Reset
LAN port will become a virtual domain When the IPF2002POE Router function turn on
Set up LAN Subnet Mask Address
Set to Open and Close DHCP Server. To retrieve IP address automatically from Start IP and
End IP server when Client End is open.
Set Start IP of DHCP
Set End IP of DHCP
Lease Time is the available use time for designated IP assigned by server.
Submit
Reset Default Settings
5.4. 2 DMZ Setting
DMZ Setting
Item Description
31
Page 32
IPF2002PoE User’s Manual/使用手冊
DMZ. DMZ is to set a domain server outside of the firewall, it allows to designate a host to
DMZ
On
Off
DMZ Host IP
5.5 SIP setting
5.5. 1 Service Domain
have mutual communication with external network without protections, so that it can function
for other required applications with an external host.
Open DMZ Function
Close DMZ Function
DMZ Host IP

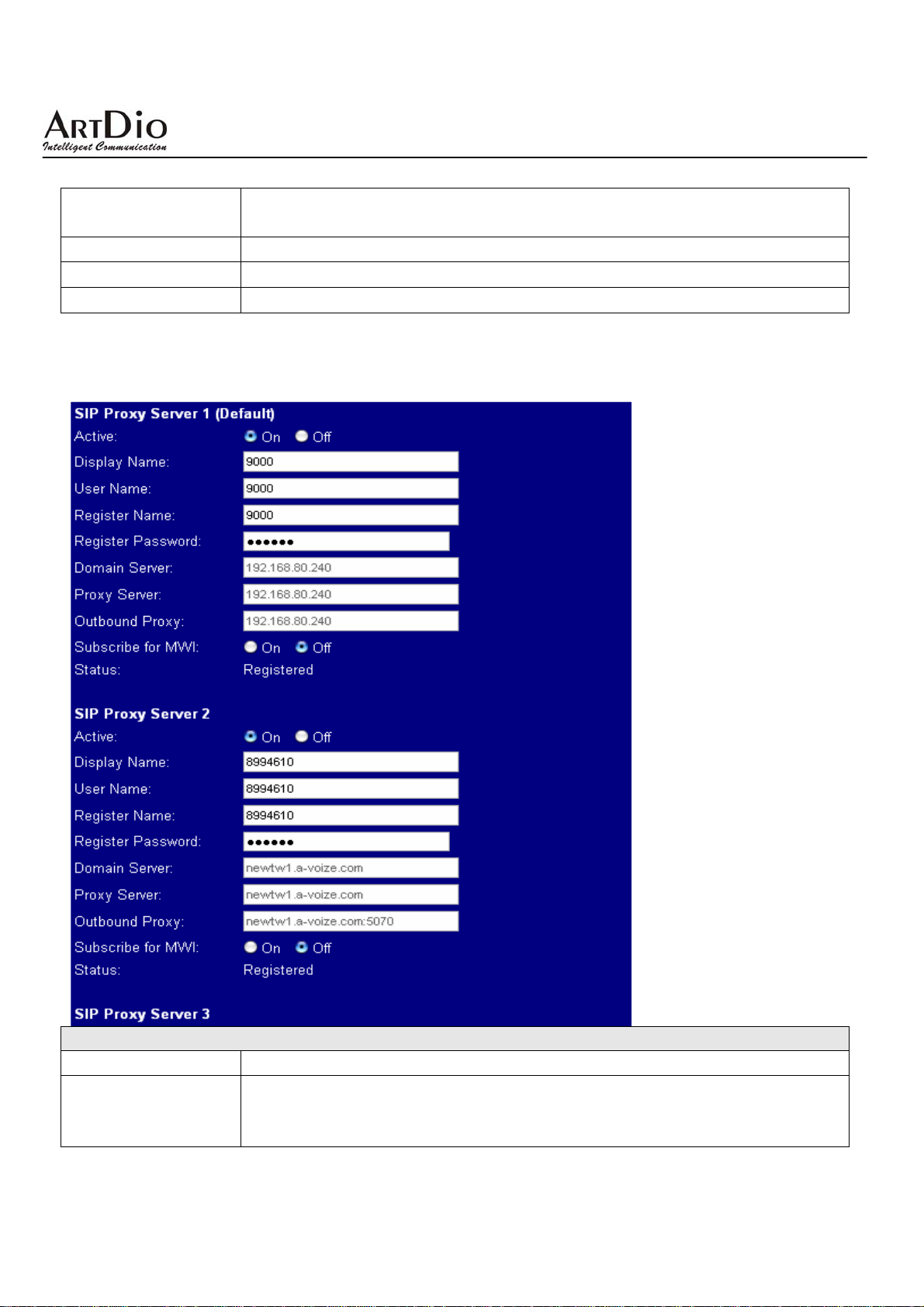

Service Domain
Item Description
Active
Account Options
z You can register 3 different accounts at the same time. When selecting “On＂ at the
32
Page 33
IPF2002PoE User’s Manual/使用手冊
current field, input corresponding register number in the tab.
z Dial-out number is the first number registered (the first pick is the number with “On＂
option). IF the first accounts could not be registered automatically Switch to the next
registered account. Any of 3 registered numbers can receive incoming calls.
Display Name
User Name
Register Name
Register Password
Domain Server
Proxy Server
Outbound Proxy
Subscribe of MWI Default Off. When set to On (Enforcement), the cyclical transmission "to the message left,
Status
Account Label
User Name. the number in use is the phone number of the device.
Registered Name
Registered Password
SIP server domain name or IP address
z Please input registered Gateway IP address or domain name after “On＂ is selected.
z Please input registered Gateway IP address or domain name
Outbound Proxy Server
then to detect" movement.
Registered Status. “Registered＂ indicates that register process is completed, “Not
Registered＂ indicates that Registration process is failed.
5.5. 2 Port Setting
Port Setting
Item Description
SIP Port
RTP Port
SIP Protocol port, the default setting is 5060.
RTP port number is the number for Vocal sending and receiving setting. It can be arranged
from 1024 to 65533 but it must be even numbers.
33
Page 34
IPF2002PoE User’s Manual/使用手冊
5.5. 3 Codec Setting
Codec Setting
Item Description
Codec Priority
G.723 5.3K:
Voice VAD
Submit
Reset
Codec Options. Select the Codec Priority( Codec Priority 1 as the first choice), and Voice
Codec format
When selecting g.723 5.3K as Voice Codec, set up to “On＂ for Codec of 5.3K/S.
Voice Activity detection ON/OFF
Submit
Reset Default Settings.
5.5. 4 Codec ID
For the settings of G726 Codec and RFC 2833, we suggest setting them up with default value unless the Registration platform
has other requirements.
34
Page 35
IPF2002PoE User’s Manual/使用手冊
5.5. 5 DTMF Setting
DTMF Setting
Item
RFC2833
Inband DTMF
Send DTMF SIP Info
Submit
Description
transmission DTMF signals Using RFC2833
transmission DTMF signals Using Inband DTMF
transmission DTMF signals Using SIP Info
Changes in the implementation of storage set.
Reset Reset Default Settings.
35
Page 36
IPF2002PoE User’s Manual/使用手冊
5.5. 6 STUN Setting
STUN Setting
Item Description
STUN
STUN Server
STUN Port
Submit
Reset
Check whether the setting uses STUN Protocol
STUN Server Address
STUN Port Number
Changes in the implementation of storage set.
Reset Default Settings.
5.5 .7 RPort Setting
RPort Setting
Item Description
RPort
Submit
Reset
Set whether using RPort Protocol
Changes in the implementation of storage set.
Reset Default Settings.
36
Page 37
IPF2002PoE User’s Manual/使用手冊
5.5. 8 Other Setting
Ohter Setting
Item Description
Hold by RFC
Voice QoS
Sip QoS
SIP Expire Time
5.6 Others
The RFC option is provided by ISP.
Set up the size of Voice QoS. Higher number is larger than lower number.
Set up the size of SIP QoS.
SIP Expire Time
5.6. 1 Auto Config
Auto Config
Item Description
Auto Configuration Default Is Off, Automatically Configuration environmental setting, with TFTP, FTP and
HTTP three ways.
37
Page 38
IPF2002PoE User’s Manual/使用手冊
TFTP Server TFTP Server IP address or Domain Name.
HTTP Server HTTP Server IP address or Domain Name.
HTTP File Path Set File Path in Http Server, for example: /123/.
FTP Server Set FTP Server IP address or Domain Name.
FTP Username FTP Username
FTP Password FTP Password
FTP File Path Set File Path in FTP Server, for example: /123/.
Submit
Reset
5.6. 2 Firmware Upgrade
Changes in the implementation of storage set.
Reset Default Settings.
Ohter Setting
Item Description
Method
Code Type
File Location
TFTP Server
Submit
Reset
Select HTTP or TFTP to update software.
Select Risc and DSP type to update Program Code Type
Select Upgrade File Location
Set TFTP server address.
Changes in the implementation of storage set.
Reset Default Settings.
38
Page 39
IPF2002PoE User’s Manual/使用手冊
5.6. 3 Auto Update
Auto Update
Item Description
Update via Default is Off(Do not Auto Update). Automatically update environmental setting, with TFTP,
FTP and HTTP three ways
Check new Firmware Default Scheduling( In accordance with schedules ).Ways of Checking whether have new
Version for the IP Phone
Power ON: Check whether have new Version for the IP Phone at Power ON
Scheduling: Check whether have new Version for the IP Phone In accordance with schedules.
Scheduling (Date) Default is 14 days, Every once in the days when the IP Phone check whether have new
firmware Version for it Auto Update, the shortest one day, the Longest thirty days
Scheduling (Time) Set Every time going to check the time span, Each section to check the time, a detailed time
randomly generated. Section 4 provides for AM 00:00-05:59,AM 06:00-11:59, AM 12 :
00-17:59 AM 18:00 - 23:59.
Default is AM00:00-05:59
Automatic Update Updated automatically, providing Notify only (notification messages). Automatic
(automatically updated)
Default is Notify Only
-Notify only: Does not automatically update the implementation of the action ,Phone : LCD
39
Page 40
IPF2002PoE User’s Manual/使用手冊
Display the message "Found new Firmware", users can choose whether update to the new
software
-Automatic: If Scheduling has set ,IP Phone could automatically update New Firmware
version .But POWER ON ,need user to choose whether update the new Firmware .
Firmware File Prefix Default Product model
Inspection Firmware version of the product model data
Next update time Next checking or Updating date and time
Submit Submit
Reset Reset Default Settings
5.6. 4 Default Setting
5.6. 5 Advanced Setting
Advanced Setting
Item Description
ICMP Not Echo Default No, responding to the message of ping, if select “Yes＂do not responding to the
message of ping.
Send Anonymous CID Default No, Have no Call out security function, send information of the IP Phone, if Select
“Yes＂do not send information of the IP Phone
Send Flash event Default Disable , User could Select DTMF Event or SIP Info to Send flash event.
SIP Encrypt Default Disable , IPF2002PoE have INFINET, AVS, WALKERSUN1. WALKERSUN2 four
format for SIP encryption.
This service is provided by use environment
40
Page 41
IPF2002PoE User’s Manual/使用手冊
Submit Submit
Reset Reset Default Settings
5.6. 6 System Auth
System Auth
Item Description
New username
New password
Confirmed password
Submit Submit
Reset Reset Default Settings
5.7 Save Change
Username. Set up a New Username for Registration.
Set up a New Password
Confirm Password
5.8 Reboot
41
Page 42
IPF2002PoE User’s Manual/使用手冊
Ⅵ. Product Specifications
Voice Interface
Call Control Protocol SIP v1 (RFC 2543), v2 (RFC 3261)
Voice Compression
Delayed (Point to Point) < 100ms
Echo Cancellation
Flow of the Average 5.3K(G.723.1) ~ 64K(G.711) bps
Other Support In-Band DTMF, Out-of Band DTMF, SIP Info
LAN Interface
Interface Spec 10/100Mbps Fast Ethernet
Interface Connector RJ-45 Connector（Supports IEEE 802.3af Power-over-Ethernet）
Management Web Browser
IP Address
Firmware Update HTTP / TFTP / FTP
Call Features
Other Specs.
Input AC/DC Range 100 – 240VAC, 50 – 60Hz, 9VDC（Option）
Power Consumption 6W
Operation Environment
Weight 0.60kg
Certificates CE / FCC
Dimensions 219mm *155 mm *75 mm
Others
G.711 (64k bit/s, PCM), G.723.1 (6.3k / 5.3k bit/s), G.726 (16k / 24k / 32k / 40k bit/s,
ADPCM), G.729A (8k bit/s, CS-ACELP), G.729B (adds VAD & CNG to G.729)
Packet Loss Compensation, Adaptive Jitter Buffer, VAD (Voice activity detection), CNG
(Comfortable noise generator), AEC (Acoustic echo canceller), G.165 (LEC, Line echo
canceller), G.168 (EC, Digital network echo canceller)
Static IP / DHCP Client / PPPoE Client / TFTP Client / HTTP Server / DNS Client / Telnet /
SNTP / RTP / RTCP / DDNS
Call Hold / Call Waiting / Call Forward / Call Transfer / Caller ID / Call Block / 3-way
Conference
Working Temporature : 0 ~ 40℃ (32° ~ 104°F)
Storage Temporature : -30 ~ 65℃ (-22° ~ 149°F)
Relative Humidity: 10 ~ 95% Non-Condensing
140 Phone Contacts
NAT Pass-through ( STUN / uPnP / R-Port )
Networking Status, Firmware Update, No-Answer, Call Forward, Busy Call Forward, Call
Forward, Missed Call Forward, Web Management, LED indicators
42
Page 43
IPF2002PoE User’s Manual/使用手冊
Ⅶ. Frequently Asked Questions (Q&A)
1. How do I know that IPF2002PoE Registration is complete?
A: If IPF2002PoE is registered successfully; the Registration number will be displayed on LCD. If “No Service＂ is
displayed on LCD that means the Registration is not complete. System requires 2 minutes to complete Registration for
IPF2002PoE.
2．After connecting to power source and activating phone device, why do I see “ETHERNET ERROR＂ on my LCD?
A: Check if Ethernet Cable is correctly connected. If it is connected, please check your network connection.
3．Can I dial the phone if a blackout occurs?
A: At this point of time, powering from any of PSE (power sourcing equipment) routers or equipments,
IPF2002PoE will normally work.
4．How to make a phone call?
A: Pick up the handset, after a dial tone, you can dial or make an internet call.
5．How to use “Call Hold＂ function?
A: When you are on a call, press the “Hold＂ key or “Swap＂ key to put the caller on hold; to retrieve
the call, press the “hold＂ key or swap key again.
How to use “Call Waiting＂ Function?
6．
A: When you are on a call, if you hear a dial tone twice that means there is another incoming call for you. If you want to
answer it, press “hold＂ key to pick up the call.
7．How to make a “3-way Conference＂ call?
A: “3-way Conference＂ call
When you are on a phone with party A and you want to invite party B to join your conversation,
Press “hold ＂ key to put party A on hold, and dial Party B＇s number after you hear a dial tone. When party B is
connected, inform party B that there is a “3-way Conference＂ call you like to invite him/her to participate.
a. If party B accepts your invitation, press “Conf＂ key to enter the 3-way conference call
b. If party B rejects your invitation or call forwarding is failed, press “hold＂ key to cancel call forwarding and retrieve the
call back to party A.
8. How to make “Call Transfer＂?
Blind Transfer
A:
Connect a call with party A, press [Hold] to hold party A and press
When the line is connected, “Call Transfer＂ is complete.
Attendant Transfer
B:
Connect a call with party A, press “TRANSFER/FLASH＂ key and input party B＇s number. When the line is connected,
“Call Transfer＂ is complete.
[Transfer/Flash] key and input party B＇s number.
43
Page 44
IPF2002PoE User’s Manual/使用手冊
9．
How to use Speed Dial?
Step1. Store the phone numbers in the speed dial list
A:
Step2. Pick up the handset or press “Speak＂ key
Step3. Press “*＂ key to switch to IP line
Step4. Press speed dial number
Step5. Press “#＂ key to complete
10．If you hear a lot of noise to how do?
A: Please lower the volume, the proposed 10 or use default value.
11．
Dial plan Set Example
Example:
1: Drop prefix: No, Replace rule 1: 002, 8613+8662
1: When input numbers include 8613, as long as the numbers begin with 8613, 002 will be automatically added in front of all
the numbers, the actual number is [002+8613+xxx].
2: When input numbers include 8662, as long as the numbers begin with 8662, 002 will be automatically added in front of all
the numbers, the actual number is [002+8662+xxx].
2: Drop prefix: Yes, Replace rule 2: 006, 002+003+004+005+007+009；
1: When input numbers include 002, as long as the numbers begin with 002, 006 will automatically instead of 002, the actual
number is
2: When input numbers include 003, as long as the numbers begin with 003, 006 will automatically instead of 003, the actual
number is [006+xxx].
[006+xxx].
44
Page 45
IPF2002PoE User’s Manual/使用手冊
3: Drop prefix: No, Replace rule 3: 009, 12.
1: When input numbers include 12, as long as the numbers begin with12, 009 will be automatically added in front of all the
numbers, the actual number is [009+12+xxx].
4: Drop prefix: No, Replace rule 4: 007, 5xxx+35xx+21xx.
1: When input number include 5XXX, as long as the numbers begin with 5, followed by three numbers;
007 will be automatically added in front of all the numbers, the actual number is [007+5xxx]
2: When input number include 534, the numbers begin with 5, follower by two numbers, it is unfit to add
Prefix rule, the actual number is [534].
3: When input numbers include 358822, the numbers begin with 35, followed by four numbers, it is unfit to add Prefix rule, the
actual number is [358822].
12．How to switch with Multiple SIP Platform?
If the Phone is already set with 2-3 SIP platform accounts at the same time, you may operate as following ways to switch to the
one you want.
1. For example, if the Phone is set with 3 SIP platforms of A, B, C: A is preset platform and LCD will display the phone number
of A platform. If you want to switch A to B, you may just take up the handset or press speaker key.
Press 2*.
Put down the handset or press speaker key to make it in standby state, and Phone LCD will display platform B＇s phone
number.
And you can use platform B to make call.
2. If you want to use platform C, you may just take up the handset or press speaker key.
Press 3*.
Put down the handset or press speaker key to make it in standby state, and LCD will display platform C＇s phone number.
And you can use platform C to make call.
3. If you want to use platform A, you may just take up the handset or press speaker key.
Press 1*.
Put down the handset or press speaker key to make it in standby state, and LCD will display platform A＇s phone number.
And you can use platform A to make call.
4. The preset platform will be platform A after the Phone is restarted.
45
Page 46
IPF2002PoE User’s Manual/使用手冊
Taiwan Head Quarter
NO.476,Ming Hu Road,HsinChu 30065,Taiwan,R.O.C.
Tel: +886-3-5202121 Fax: +886-3-5202129 KINYO/
Tel: +886-3-5295000 Fax: +886-3-5295005 ARTDio/
E-mail: [email protected]
E-mail: [email protected]
http://www.kinyo.com.tw/
http://www.artdio.com.tw/
U.S.A. Branch 美國分公司 /
14235 Lomitas Avenue,La Puente,CA91746, U.S.A.
Tel：+1-626-333-3711 KINYO/
Tel：+1-626-336-0369 ARTDio/
Fax：+1-626-961-9114
Japan Branch
Kinyo Bldg,7F,1-6-13,Kyobashi,Chuo-Ku,
Tokyo,104-0031,Japan
Tel：+81-3-3538-2272
Fax：+81-3-3538-2276
Fance Branch
Rue Freycint 77400 LAGNY sur MARNE FRANCE
Tel：+33-1-6412-4460
Fax：+33-1-6412-4461
Shanghai Branch
8,775 Nong,Hang Dong Rd.,Shanghai,China
Tel：+86-21-64216757
Fax：+86-21-64206680
ShenZhen Plant
No.5,Tianwan Road,Tianliao Village,
Gongming Town,Baoan District,ShenZhen City,
Guangdong Province 518132,China.
SuZhou Plant
No.1268 jiaotong Road,Wujiang Economic
Development Zone,Wujiang City,jiangsu
215200,China
The company reserves the rights to continuously improve the product at any time and support will be based upon the latest release of
the product.
Please visit our website at www.artdio.net
KINYO/
ARTDio/
KINYO/
ARTDio/
to download the latest driver and user＇s manual.
46
Page 47
IPF2002PoE User’s Manual/使用手冊
一．產品介紹
ArtDio IPF2002PoE 是基於 SIP（Session Initiation Protocol）協議的新一代企業級 IP 電話解決方案,
創新的技術工藝使其擁有絕佳的音質表現和豐富的功能。
1.1 軟體功能
1. 支 持 SIP v1 (RFC 2543),SIP v2(RFC 3261),TCP/UDP/IP, RTP/RTCP,
HTTP,ICMP,ARP/RARP,DDNS,DHCP Client,DHCP Server,SNTP,PPPoE,STUN,TFTP 等網路協定。
2.支持多種編解碼協定,如：G.711 (64k bit/s, PCM), G.723.1 (6.3k / 5.3k bit/s), G.726 (16k / 24k / 32k / 40k bit/s,
ADPCM), G.729A, G.729B。
3.支援 VAD 動態語音檢測（Voice Activity Detection）,CNG 舒適噪音生成(Comfortable Noise Generator),LEC 線
性回音消除（Line Echo Canceller）,語音封包丟失補償（Packet Loss Compensation）,語音抖動緩衝（Adaptive
Jitter Buffer）。
4.支援來電顯示及回撥功能（Caller ID Display or Redial）,來電等待(Call Waiting),通話保留 (Call Hold),來電轉
移(Call Transfer (attended /blind)),來電轉接(Call Forward),三方會議(3-way Conference) 。
5.支持 In-Band 和 Out-Of Band DTMF(RFC2833),Sip Info。
6.支援第三層 QoS（Tos Field）協定。
7.支援 HTTP1.1 網頁驗證,MD5 驗證（RFC2069/RFC2617）話機使用更安全。
8.可以同時註冊三個不同 SIP 平臺,支援 Outbound Proxy。
9.提供從頭到尾的手動電話按鍵設定、網頁設定、Console 控制臺和 Telnet 設定或提供 HTTP/TFTP/FTP 自動
10.支持 HTTP,TFTP,FTP 自動更新軟體。
1.2 硬體功能
1.RJ-45 *2 10/100Mps 乙太網路介面。
2.MIC & Line Out 耳麥介面,支援接入時自動切換到耳麥。
3.全方位免持喇叭擴音器（SPEAKER）、重撥(REDIAL)、來電日誌(CALL LOG)、音量控制（VOL-/+）、電話
4.擁有一個兩行背光 LCD 顯示器,一個 LED 指示燈共同完成話機狀態顯示。
5.按鍵支援兩路電話切換,支援十個預設號碼快速撥號（0－9）。
下載設定檔,支援 4 種鈴聲。
簿（PHONE BOOK）、來電轉移（TRANS）、三方會議（CONF）、勿打擾（DND）、MIC 靜音（MUTE）。
47
Page 48
IPF2002PoE User’s Manual/使用手冊
1.3 產品外觀
1. 話機正面
2. 話機側面
48
Page 49
IPF2002PoE User’s Manual/使用手冊
3. 話機背面
注意：如果您使用的環境沒有 PoE 供電，您也可以接入 DC 9V @ 1A 的外接電源給 IPF2002PoE 提供電源
二．產品安裝
2.1 包裝內容
1.IPF2002PoE 話機一台
2.電話手持聽筒一隻
3.電源供應器一隻(選配)
4.RJ-45 網路線一條
5.產品使用說明書一份
2.2 設備連接
2.2.1 有 PSE 供電路由器的接法:
IPF2002PoE 採用基於乙太網供電的 IEEE 802.3af 標準（Power-over-Ethernet），它可以通過帶標準 PSE
(power sourcing equipment)的路由器或設備提供動力。您可以直接連接 IPF2002PoE 的 WAN 或者 LAN埠到
PSE Router 上，如下圖所示：
49
Page 50
IPF2002PoE User’s Manual/使用手冊
2.2.2 有 IP 分享器（路由器）的接法
如果您使用的環境沒有 PoE 提供電能時，您也可以接入 DC 9V @ 1A 的外接電源給 IPF2002PoE 提供電能。
當你的使用環境有 IP 分享器時,將 RJ-45 網路線一端接入 IP 分享器（或 IP 分享器下網路交換設備）LAN
介面,另一端接入 IPF2002PoE 的 WAN 介面。如下圖所示：
2.2.3 沒有 IP 分享器的接法
如果您使用的環境沒有 PoE 提供電能時，您也可以接入 DC 9V @ 1A 的外接電源給 IPF2002PoE 提供電能。
當使用環境沒有IP 分享器,可以將IPF2002PoE安裝在 ADSL Modem和 PC（或網路交換設備）之間充當ADSL
撥號設備。連接方法即 IPF2002PoE 的 WAN 介面接入 ADSL Modem 的網路介面,LAN 介面連接 PC 或網路
交換設備。連接示意圖如下：
50
Page 51
IPF2002PoE User’s Manual/使用手冊
2.2.4 牆面安裝
（1）IPF2002PoE可以安裝在牆上,電話主機背部有兩個掛牆孔：
（2）將電話的掛牆孔掛在牆壁的掛鈎上,使用者可以容易地將電話安裝在牆面上
51
Page 52
IPF2002PoE User’s Manual/使用手冊
2.3 設備接入狀態顯示
當設備連接啟動後,會在 LCD 上顯示狀態,方便使用者檢查：
1. 此狀態表示話機未成功註冊平臺。
2. 此狀態表示話機網路連接錯誤。
3. 此狀態表示話機狀態正常,能正常使用。
52
Page 53
IPF2002PoE User’s Manual/使用手冊
三．話機按鍵設定
3.1 話機按鍵示意圖
3.2 話機按鍵功能說明
按鍵分類 按鍵名 功能/操作
選單鍵
確認鍵 OK 進入選中的選單項,確認選中的設定,確認設定值。
功能鍵
MENU
UP/VOL+
進入“MENU＂模式,按下後出現功能設定功能表,進行相關設
定,在進入功能表後按“MENU＂鍵會退回上一層選單或退出
“MENU＂模式,進入待機模式。
功能表向上選擇,向右移動遊標,向上預覽所顯示的清單,
通話狀態中音量調大。
53
Page 54
IPF2002PoE User’s Manual/使用手冊
DOWN/VOL-
通話記錄鍵 CALL LOG
功能表向下選擇,向左移動遊標,向下預覽所顯示的清單,通話狀
態中音量調小。
查詢撥入記錄和撥出記錄,用 Up/Down 鍵上下選擇通話記錄,按
下免持鍵或拿起聽筒會自動撥出此條記錄。
來電轉接功能鍵 FWD 開啟與關閉來電轉接功能。
1 “1＂, “-“ , “٫＂ , “!＂ , “?＂
2 “2＂, “a＂, “b＂, “c＂, “A＂, “B＂, “C＂
3 “3＂, “d＂, “e＂, ＂f＂, “D＂, “E＂, “F＂
4 “4＂, “g＂, “h＂, “i＂, “G＂, “H＂, “I＂
5 “5＂, “j＂, “k＂, “l＂, “J＂, “K＂, “L＂
數字鍵
（在進入設定模式
後連續快速的按鍵
會輸入相應字元）
6 “6＂, “m＂, “n＂, “o＂, “M＂, “N＂, “O＂
7
“7＂, “p＂, “q＂, “r＂, “s＂, “P＂, “Q＂, “R＂,
｀S＂
8 “8＂, “t＂, “u＂, “v＂, “T＂, “U＂, “V＂
9
“9＂, “w＂, “x＂, “y＂, “z＂, “W＂, “X＂, “Y＂,
“Z＂
0 “0＂, “space＂
* “*＂, “‧＂, “:＂, “@＂
特殊撥號命令碼,輸入號碼按下該鍵開始撥號。
＃
電話簿查詢使用鍵 PHONE BOOK
三方會議鍵 CONF
電話簿功能鍵,按下此鍵可以調出已設定的連絡人的電話和姓
名進行編輯或使用。
三方會議功能鍵,在已接通 2 路電話的情況下按下此鍵使用者
進入三方會議模式。
免持鍵 SPEAKER 免持通話鍵,按下此鍵話機進入免持通話狀態。
來電轉移鍵 TRANS/FLASH
來電轉移功能鍵,按下此鍵後,輸入號碼,此通電話會被轉移至輸
入的號碼上。
重撥鍵 REDIAL 重撥鍵,按下此鍵會自動撥出最近使用者撥出的號碼。
通話保留鍵 HOLD 通話可保留當前一路電話。
靜音/刪除鍵 DEL/MUTE
在撥號時刪除號碼,查詢電話記錄時刪除電話記錄；通話時設定
靜音或取消靜音。
54
Page 55
IPF2002PoE User’s Manual/使用手冊
四．話機選單設定
IPF2002PoE 支援多種設定模式,這裏主要講解如何使用話機按鍵進行手動設定,和如何通過 PC 進入
網頁介面進行設定。
當話機啟動完成後,按下“MENU＂鍵進入“MENU＂模式,出現設定功能表進行相關設定,如果再按
一次“MENU＂鍵會退出“MENU＂模式,進入待機模式。如果進入“MENU＂模式後,不進行操作 10 秒後
也會自動退出。
4.1 Phone book
1．Search
2．Add entry
3．Speed dial
4．Erase all
4.2 Call history
1．Incoming calls
2．Dialed numbers
3．Erase record
4.3 Phone setting
進行號碼查詢,以便進行快速撥號和編輯。選擇此項目,第一次按下「OK」進
入快速查詢模式,用戶可以輸入 Name 或 Number 進行快速查詢；連續兩次按
下「OK」鍵進入瀏覽查詢模式。在此模式下選擇項目後按下「OK」鍵進入
編輯模式,對 Name 和 Number 進入編輯。查詢模式中選中號碼後舉起聽筒或
按下免持鍵會撥出此號碼。
增加 Phone Book 記錄。選擇此項目後,第一次按下「OK」在 Name 輸入要儲
存號碼的使用者名稱或代號。按下「OK」儲存並進入 Number 項目輸入號碼
然後按下「OK」鍵儲存並退出電話簿編輯。
設定快速撥號號碼。選擇此項目後,按下「OK」進入 Name 欄輸入速撥號碼
的使用者名稱或代號,按下「OK」鍵進入 Number 項目輸入速撥號碼後按下
「OK」輸入速撥代碼完成該筆速撥號碼的輸入。話機支援九筆速撥號碼,代
碼可以從 0－9 之間選擇,如果該代碼以前已儲存過號碼,將會被新號碼覆蓋。
清除所有 Phone Book 記錄。
來電記錄,進入功能表後,再次按下“OK＂鍵會出現儲存或清除選項,選擇
“save＂或“erase＂進行相關操作。
已撥記錄,進入功能表後,再次按下“OK＂鍵會出現儲存或清除選項,選擇
“save＂或“erase＂進行相關操作。
清除記錄,進入功能表後,再次按下“OK＂鍵會出現清除選項：“Incoming＂
刪除來電記錄、“Dialed＂刪除已撥電話記錄、“All＂刪除來電和已撥的所
有記錄。
4.3.1 Call forward
1．All forward
2．Busy forward
無條件轉接,進入功能表後,在“Activation＂選項中選擇“Enabled＂或
“Disable＂確認開啟與關閉該功能。在“Number＂選項中輸入轉接號碼。
遇忙轉接,進入功能表後,在“Activation＂選項中選擇“Enabled＂或
“Disable＂確認開啟與關閉該功能。在“Number＂選項中輸入轉接號碼。
55
Page 56
IPF2002PoE User’s Manual/使用手冊
3．No answer
forward
4．Ring Timeout
forward
4.3.2 Do not Disturb
無應答轉接,進入功能表後,在“Activation＂選項中選擇“Enabled＂或
“Disable＂確認開啟與關閉該功能。在“Number＂選項中輸入轉接號碼。
若要啟用震鈴逾時轉接功能,請先進入功能表。進入功能表後,先輸入所要求
之震鈴次數,然後輸入轉接號碼。
1．Always
2．By Period
3．Period Time
4.3.3 Alarm setting
1．Activation
2．Alarm time
4.3.4 Date/Time setting
1．Date&Time
2．SNTP setting
拒接所有來電,如果已設定來電拒絕,話機將聽不到來電鈴聲,而撥號端則聽
到忙線音。
部分時間拒接來電,如果已設定來電拒絕,在該時間話機將聽不到來電鈴聲,
而撥號端則聽到忙線音。
設定拒接來電持續的起止時間,如果已設定在該時間話機將聽不到來電鈴聲,
而撥號端則聽到忙線音。
設定是否啟用鬧鐘功能。
設定鬧鐘時間,當該時間到時話機會自動震鈴。
手動設定時間
SNTP：開啟時間伺服器,自動更新時間。
Primary SNTP：主要時間伺服器地址。
Secondry SNTP：備用時間伺服器地址。
Time zone：時區設定,輸入“*＂號為設定負時區。例如：按下 8 鍵後再按下
“*＂鍵,話機 LCD 此時將顯示－8 時區。
Adjustment Time：自動對時週期設定。
4.3.5 Volume&Gain
1．Handset volume
2．Speaker volume
3．Handset gain
4．Speaker gain
4.3.6 Ringer
1．Ringer volume
2．Ringer type
話筒輸出音量調整,最大值 15。
免持輸出音量調整,最大值 12。
話筒輸入音量調整,最大值 15。
免持輸入音量調整,最大值 15。
鈴聲音量調整,最大值 10。
鈴聲模式設定,有 4 種模式。
56
Page 57
IPF2002PoE User’s Manual/使用手冊
4.3.7 Other
1．Auto Dial
4.4 Network
4.4.1 WAN Setup
1．IP Type
2．Fixed IP setting
3．PPPoE setting
4.4.2 LAN Setup
此項設定在號碼輸入完成後,沒有按＃號確認撥出時,話機自動撥出的等待時
間,設定範圍 3-9 秒。
IP 模式選擇：
Fixed IP client：指定 IP 地址,
DHCP client：DHCP 自動獲取 IP,
PPPoE client：PPPoE 撥號模式。
指定 IP 地址：
IP Address：主機 IP 位址。
Subnet mask：子網路遮罩。
Default Gateway：預設閘道地址。
PPPoE 撥號設定：
User name：輸入 PPPoE 帳號。
Password：PPPoE 密碼。
1．Bridge
2．NAT
開啟橋接器功能。
開啟 IP 分享器功能。
4.4.3 DNS
1．Primary DNS
2．Secondary DNS
主要 DNS 設定。
備用 DNS 設定。
4.4.4 VLAN
1．Activation
2．VID
設定 VLAN 是否開啟。
設定本機的虛擬網路識別碼。
4.4.5 Status
可以用 UP/Down 查看話機的 IP 位址及 MAC 號碼。
4.4.6 LAN Speed
1．Auto
2．100M Full
自動調節局域網速度
設定 100M 速度
57
Page 58
IPF2002PoE User’s Manual/使用手冊
3．100M Half
4．10M Full
5．10M Half
設定相當於 100M 速度
設定 10M 速度
設定相當於 10M 速度
4.5 SIP setting
如果需要對該項進行設定,請先進 Administrator 子目錄 System authent 項輸入密碼（預設值為 test）。
如果密碼不正確 LCD 會顯示“Incorrect＂,密碼正確 LCD 顯示“Correct＂,當密碼被確認後再進入 SIP
setting.
4.5.1 Service domain
1．First realm
2．Second realm
3．Third realm
4.5.2 Codec
1．Codec type
2．VAD
4.5.3 RTP setting
1．Outband DTMF
2．Duplicate RTP
4.6 NAT transversal
STUN setting
4.7 Administrator
1．Auto config
註冊第一個 SIP 帳號。
Activation：選擇是否註冊本帳號。
Display name：LCD 顯示名稱。
User name：用戶名,使用的號碼,在此設定本話機之電話號碼。
Register name：註冊帳號名。
Register password：註冊密碼。
Domain server：網域功能變數名稱。
Proxy server：要登錄的語音匝道器的 IP位地址或者網域功能變數名稱。
Outbound proxy：語音代理伺服器。
註冊第二個 SIP 帳號,設置項功能同上。
註冊第三個 SIP 帳號,設置項功能同上。
設置語音編碼格式。
設置是否開啟動態語音檢查功能。
Outband DTMF 啟動、停止設置。
語音封包重傳次數設置。
STUN：是否採用 STUN 協議。
STUN server：STUN 伺服器地址。
話機自動控制：Config mode：選擇控制模式（Disable/TFTP/FTP）。
TFTP server：TFTP控制伺服器位址。
FTP server：FTP控制伺服器位址。
58
Page 59
IPF2002PoE User’s Manual/使用手冊
FTP Login Name：FTP服務器登錄名。
FTP Password：FTP服務器登錄密碼 。
2．Default setting
3．System Authent
4．Version
5．Watch dog
6．Restart
話機預設值設定：Load default：載入預設值。
Abort：放棄操作。
供“root＂用戶輸入密碼登錄話機以具有權限進入 SIP Setting 功能表項。
查看話機軟體版本。
話機監控。
重新啟動話機。
五．網頁設定
進入話機 Network/Status 項取得話機 IP 位址,然後在要與之連接的電腦上設定相同網段的 IP 位址,
設定 IPF2002PoE 的 IP 與電腦處於同一網段（IP 位址前三段一樣,最後一段主機位址不同即可）然後在
電腦的網路瀏覽器的位址欄輸入“http：//IPF2002PoE IP：9999 ＂進入網頁設定登錄介面,輸入 username
和 password。話機出廠預設的三個使用者是“root＂,“system＂和“user＂,密碼均為“test＂（使用者可
以自行更改）。輸入完密碼後,按 Login 便可以進入 IPF2002PoE 的網頁設定畫面。
網頁設定中,每頁設定完後按下 submit鍵後,方可送出該設定值,然後按下左邊欄位的 save change鍵
後,按下彈出 save 按鍵,待話機重新啟動完畢後,方可儲存全部修改頁面。
5.1 Information
系統基本資訊,可以看到軟體的版本資訊。
Model Name 產品型號
Firmware Version Firmware 軟體的版本
Codec Version Codec 軟體的編譯日期
59
Page 60
IPF2002PoE User’s Manual/使用手冊
5.2 Phone Setting
5.2.1 Phone Book
當使用者輸入之號碼後,隨即進入[Phone Book]內之[Name]欄位比對是否有符合之號碼,如果有找到符合
之資料,則依照[URL]欄位設定去執行撥號；如果在[Name]欄位沒有找到符合之資料,就直接送出該撥號的號
碼。
PHONE Book
欄位名稱 說明
Delete Selected 刪除按鈕。刪除所選擇項內容。
Delete All
刪除按鈕。刪除所有內容。
60
Page 61
IPF2002PoE User’s Manual/使用手冊
Position 在填入欄裏填寫所對應的序號,隨後填入的號碼將寫到對應欄位裏。
Name
URL
Add Phone 新增此筆資料。（可填入 140 個電話號碼）
Reset
5.2.2 Speed Dial
輸入撥號代碼。
輸入外撥號碼或 IP 位置資料。
清除已設定之資料。
Speed Dial
欄位名稱 說明
Delete Selected 刪除按鈕。刪除所選擇項內容。
Delete All
Position 在填入欄裏填寫所對應的序号,隨後填入的號碼將寫到對應欄位裏。
Name
URL
Add Phone
Reset
刪除按鈕。刪除所有內容。
輸入撥號代碼。
輸入外撥號碼或 IP 位置資料。
填寫完後按下此鍵,名字和號碼將填入到對應的欄位中。（可填入 10 個快
速撥號號碼）
清除已設定之資料。
61
Page 62
IPF2002PoE User’s Manual/使用手冊
5.2.3 Dial Plan Setting
撥號計畫,提供加碼與減碼功能。
Dial Plan Setting
欄位名稱 說明
Drop Prefix 預設為 No (加碼)。當設定為 Yes (減碼)時,則執行減碼的動作。
設定 4 組資料
- No (加碼): 當 rule 符合時,則直接加碼。可輸入 7 位數。
- Yes (減碼): 當 rule 符合時,則減掉符合之代碼再加碼。可輸入 39 位數。
Replace rule1 設定撥號規範。
+: 或。
xxx: 指定碼長。
Auto Dial Time 預設為 5(秒)。等待多久後自動執行撥號。
Submit 執行儲存變更設定。
Reset 清除已設定之資料。
62
Page 63
IPF2002PoE User’s Manual/使用手冊
5.2.4 Call Forward
Forward Setting
欄位名稱 說明
All Forward 全部轉接。打進來的所有電話都轉撥到指定號碼。
Busy Forward
No Answer Forward
All Fwd No
Busy Fwd No
No Answer Fwd No
No Answer Fwd Time
Out
Submit 執行儲存變更設定。
Reset
遇忙轉接。電話忙線時,啟用轉撥功能。即當電話打進來後,若電話占線,則將
轉撥到指定號碼。
無應答轉接。電話無人應答時,啟用轉撥功能。即當電話打進來後,在震鈴逾
時後,則將轉撥到指定號碼。
全部轉接號碼。填入開啟全部轉接後對應的轉撥姓名和電話號碼。
遇忙轉接號碼。填入開啟遇忙轉接後對應的轉撥姓名和電話號碼。
無應答轉接號碼。填入對應的無人接聽電話時轉拨的姓名和電話號碼。
設定無應答響鈴時長,超過此響鈴次數,話機會進入無應答轉接狀態。
清除已設定之資料。
5.2.5 Call Waiting Setting
63
Page 64
IPF2002PoE User’s Manual/使用手冊
Call Waiting
欄位名稱 說明
來電等待。設定當前話機使用來電等待功能。本機和 A 通話時, B 撥入,本機
Call Waiting
Submit 執行儲存變更設定。
Reset 清除已設定之資料。
5.2.6 DND Setting
會每隔 3 秒聽到“嘟,嘟＂兩聲,此時按下“HOLD＂鍵來保留 A 並接聽 B 的
電話,並且可以按 “hold ＂鍵在 A 和 B 之間切換通話。
DND Setting
欄位名稱 說明
DND Always 拒接所有撥入電話,選擇 on 後所有打入的電話將聽到忙線音,off 為不使用。
DND Period
Submit
Reset
某時段拒接設定。阻止某段時間打入的電話。From 中填入開始時間,To 為截
至時間。
執行儲存變更設定。
清除已設定之資料。
64
Page 65
IPF2002PoE User’s Manual/使用手冊
5.2.7 Volume Setting
Volume Setting
欄位名稱 說明
Handset Volume 設定聽筒輸出音量大小
Speaker Volume 設定免持輸出音量大小
Ringer Volume
Handset Gain
Speaker Gain
Submit
Reset
設定震鈴音量大小
設定話筒輸入音量大小
設定免持輸入音量大小
執行儲存變更設定。
清除已設定之資料。
5.2.8 Melody Setting
65
Page 66
IPF2002PoE User’s Manual/使用手冊
Ringer Setting
欄位名稱 說明
Ringer 是否開啟使用者設定鈴聲,On 開啟,Off 為關閉。選擇 off 為默認第一種鈴聲。
Ringer Type 選擇鈴聲模式,一共有四種模式可供選擇。
Submit 執行儲存變更設定。
Reset 清除已設定之資料。
5.3 Networking
5.3. 1 Status
Status
欄位名稱 說明
Type 顯示 IP 地址類型
IP 顯示 IP 地址
Mask
Gateway
DNS Server 1
DNS Server 2
顯示子網路遮罩
顯示已設定的預設閘道的 IP 地址
顯示已設定的主要的網路功能變數名稱地址
顯示已設定的備用的網路功能變數名稱地址
66
Page 67
IPF2002PoE User’s Manual/使用手冊
5.3. 2 WAN Setting
Network Setting
欄位名稱 說明
LAN Mode Bridge:開啟橋接器功能。
NAT:開啟路由器功能
IP 類型。依實際網路環境選擇適當的網路型態:
z Fixed IP 選擇後需將 Local IP、Subnet Mask、Gateway IP、DNS 等欄位填入相關資
IP Type
IP 設定 WAN 的 IP 位址。
Mask
料。
z DHCP Client 選取後會由 DHCP server 取得相關 IP 資料。
z PPPoE ADSL 上网方式用戶選擇。
設定 WAN 的子網路遮罩位址
67
Page 68
IPF2002PoE User’s Manual/使用手冊
Gateway 設定 WAN 的預設閘道的 IP 地址
DNS Server 1 設定 WAN 的主要 DNS 的 IP 位址
DNS Server 2
MAC
Host Name
PPPoE Setting
User Name
Password
Submit
Reset
5.3. 3 DDNS Setting
設定 WAN 的備用 DNS 的 IP 位址
本機網路卡號
設定主機名。在網路伺服器上訪問設備所顯示的主機名。
選取 PPPoE 時,設定用戶的 ADSL 帳戶名。
選取 PPPoE 時,設定用戶的 ADSL 帳戶的密碼。
執行儲存變更設定。
清除已設定之資料。
DDNS Setting
欄位名稱 說明
DDNS 設定使用 DDNS。
Host Name DDNS 伺服器主機名。
User Name DDNS 伺服器註冊帳戶。
Password: 帳戶密碼。
E-mail Address 電子郵件位址。
DDNS Server
DDNS 的 IP 位址或功能變數名稱。
68
Page 69
IPF2002PoE User’s Manual/使用手冊
DDNS Server List DDNS 服務提供者列表。
Type 選擇 DDNS 工作模式。
Wild card 選擇是否啟用 Wild Card 功能
Back MX 選擇是否啟用 Back MX 功能
Off Line 選擇是否啟用 DDNS 的 Off Line 功能
Submit 執行儲存變更設定。
Reset 清除已設定之資料。
5.3. 4 VLAN Setting
VLAN Setting
欄位名稱 說明
VLAN Packets
VID
User Priority
CFI
NAT VLAN Setting
VLAN Packets
預設為 Off(不執行)。當設定為 On (執行)時,則啟動接收 VALN Packets 功能。
預設為 136。設定 VLAN Server 提供之虛擬區域網路識別碼 (Virtual LAN ID,
簡稱 VLAN ID 或 VID)。
預設為 0。設定使用者優先權(user priority),優先權範圍為 0~7。
預設為 1。設定一個位元之「制式格式指示」Canonical Format Indicator (CFI)。
CFI ＝ 1表示標籤頭中包含 RIF 欄位,而且 RIF 中的 NCFI旗標值決定訊框資
料中所攜帶的 MAC 位址是「制式格式」(Canonical Format)或「非制式格式」
(Non-Canonical Format)。
CFI＝0 則表示此標籤標頭不含 RIF 欄位,而且訊框中所包裝的 MAC 位址是
「制式格式」。
預設為 Off(不執行)。當設定為 On (執行)時,則啟動接收 VALN Packets 功能。
69
Page 70
IPF2002PoE User’s Manual/使用手冊
VID1 ~ 4 預設為 136。設定 VLAN Server 提供之虛擬區域網路識別碼 (Virtual LAN ID,
簡稱 VLAN ID 或 VID)。
Submit
Reset
5.3. 5 SNTP Setting
SNTP Setting
欄位名稱 說明
執行儲存變更設定。
清除已設定之資料。
SNTP
Primary Server
Secondary Server:
Time Zone
Sync. Time
Submit
Reset
設定使用時間伺服器,on 為使用,off 不使用。
主伺服器,填寫主時間伺服器地址。
次伺服器,填寫副時間伺服器地址。
時區,填入當地時區。
自動對時週期設定。
執行儲存變更設定。
清除已設定之資料。
70
Page 71
IPF2002PoE User’s Manual/使用手冊
5.4 NAT Router
5.4. 1 LAN Setting
LAN Setting
欄位名稱 說明
IP
Mask
DHCP Server
Start IP
End IP
Lease Time
Submit
Reset
5.4. 2 DMZ Setting
提供設定 DMZ 功能。
DMZ Setting
欄位名稱 說明
在開啟 NAT 功能後,LAN 埠將自己成為另一個虛擬網域。
設定 LAN 端子網路遮罩。
開啟 DHCP 伺服器服務。
設定 DHCP 分配的起始 IP 其數據不能大於 255。
設定 DHCP 分配的終止 IP 其數據不能大於 255。
租約時間。由 DHCP 伺服器提供,指定 IP 位址可以使用的時間。
執行儲存變更設定。
清除已設定之資料。
71
Page 72
IPF2002PoE User’s Manual/使用手冊
DMZ 預設為 Off(不執行)。當設定為 On (執行)時,所有的封包(除了 SIP 相關)都會往
該IP位置傳送。
DMZ Host IP
Submit
Reset
輸入指定的 IP Address。
執行儲存變更設定。
清除已設定之資料。
5.5 SIP setting
5.5. 1 Service Domain
Service Domain
欄位名稱 說明
帳號選擇。
Active
此頁中可填入3個不同帳號,並且同時註冊上,當選擇on時為使用當前欄,再在
當前欄填入對應註冊帳號。
72
Page 73
IPF2002PoE User’s Manual/使用手冊
撥出的號碼以註冊的第一個號碼為主(以選取 on 選項的第一個選項欄為首
選)。第一個帳號註冊不上將自動跳轉到第二個註冊上的帳號,撥入到註冊上
的任一號碼都可以接聽到電話。
Display Name LCD 顯示名稱
User Name
Register Name
Register Password
Domain Server
Proxy Server
Outbound Proxy
用户名,使用的號碼,在此設定本話機之電話號碼。
註冊帳號名。
註冊密碼。
網域功能變數名稱。
要登錄的語音閘道器的 IP 位地址或者網域功能變數名稱。如果特殊埠號則
加 :埠號。
語音代理伺服器。如果特殊埠號則加 :埠號。
Subscribe of MWI
Status
Submit
Reset
5.5. 2 Port Setting
Port Setting
欄位名稱 說明
SIP Port SIP 協定註冊埠,預設值為 5060。
RTP Port
Submit 執行儲存變更設定。
Reset 清除已設定之資料。
預設為 Off(不執行)。當設定為 On (執行)時,週期性的傳送“來話訊息留言偵
測＂的動作。
註冊狀態,Registered 為註冊成功,Not Registered 為註冊失敗。
執行儲存變更設定。
清除已設定之資料。
RTP 埠號指語音傳送與接收的埠號。埠號可在 10-65533 的範圍內選用,但一
定為偶數。
73
Page 74
IPF2002PoE User’s Manual/使用手冊
5.5. 3 Codec Setting
Codec Setting
欄位名稱 說明
Codec Priority
編解碼選擇。選擇編解碼的優先權（以 Codec Priority 1 為首選）,及語音編解
碼格式。
G.723 5.3K: 使用 g.723 語音編解碼時,設定 on 為使用 5.3K/S 之 Codec。
Voice VAD 使用動態語音檢測。
Submit 執行儲存變更設定。
Reset 清除已設定之資料。
5.5. 4 Codec ID Setting
G726 各編解碼的設定及 RFC 2833 的設定,建議使用預設值,除非註冊平臺有其他要求。
74
Page 75
IPF2002PoE User’s Manual/使用手冊
5.5. 5 DTMF Setting
DTMF Setting
欄位名稱 說明
RFC2833 使用 rfc2833 方式傳送 DTMF 訊號。
Inband DTMF 使用 Inband DTMF 方式傳送 DTMF 訊號。
Send DTMF SIP Info 使用 SIP Info 方式。
Submit 執行儲存變更設定。
Reset 清除已設定之資料。
75
Page 76
IPF2002PoE User’s Manual/使用手冊
5.5. 6 STUN Setting
STUN Setting
欄位名稱 說明
STUN 設定是否使用 STUN 協定。
STUN Server STUN 服務器位址。
STUN Port STUN 埠號。
Submit 執行儲存變更設定。
Reset 清除已設定之資料。
5.5 .7 RPort Setting
RPort Setting
欄位名稱 說明
On/Off 設定是否使用 RPort 協定。
Submit 執行儲存變更設定。
Reset 清除已設定之資料。
76
Page 77
IPF2002PoE User’s Manual/使用手冊
5.5. 8 Other Setting
Ohter Setting
欄位名稱 說明
Hold by RFC RFC 選擇使用。此資訊由服務商提供。
Voice QoS 語音服務品質。
Sip QoS SIP 服務品質。
SIP Expire Time SIP 包傳送時間。
Submit 執行儲存變更設定。
Reset 清除已設定之資料。
5.6 Others
5.6. 1 Auto Config
Auto Config
欄位名稱 說明
Auto Configuration 預設為 Off(不執行)。自動更新環境設定方式,提供 TFTP,FTP 及 HTTP 等三種
方式。
77
Page 78
IPF2002PoE User’s Manual/使用手冊
TFTP Server 設定 TFTP Server 位置,可以輸入 IP 或 Domain Name 資料。
HTTP Server 設定 HTTP Server 位置,可以輸入 IP 或 Domain Name 資料。
HTTP File Path 設定路徑名稱,例如: /123/。
FTP Server 設定 FTP Server 位置,可以輸入 IP 或 Domain Name 資料。
FTP Username 登入 FTP Server 之使用者(User name)帳號資料。
FTP Password 登入 FTP Server 之密碼(Password)帳號資料。
FTP File Path 設定路徑名稱,例如: /123/。
Submit 執行儲存變更設定。
Reset 清除已設定之資料。
5.6. 2 Firmware Upgrade
Ohter Setting
欄位名稱 說明
Method 選擇使用 Local PC 方式或 TFTP 升級方式更新軟體。
Code Type 選擇更新程式編碼類型,可選擇 Risc 和 DSP 類型。
File Location 選擇升級程式位址。
TFTP Server 填寫升級的 tftp server 的 IP 位址。
Submit 執行儲存變更設定。
Reset 清除已設定之資料。
5.6. 3 Auto Update
自動版本更新的功能,供提供更新 gz或 ds 檔案格式；
78
Page 79
IPF2002PoE User’s Manual/使用手冊
Auto Update
欄位名稱 說明
Update via 預設為 Off(不執行更新)。版本自動更新方式,提供 TFTP,FTP 及 HTTP 等三種
方式。
Check new Firmware 預設為 Scheduling(依照時間排程)。檢查是否有新的版本提供,提供 Power ON
(每次開機)或 Scheduling(按照排程)。
- Power On(開機檢查): Power on + Scheduling,即每次開機時及依照時間排程檢
查是否有新的版本可供更新。
- Scheduling: 依照時間排程檢查是否有新的版本可供更新。
Scheduling (Date) 預設為 14 天。每隔幾天去檢查一次,提供最短為 1 天,最長為 30 天。
Scheduling (Time) 預設為 AM 00:00 – 05:59。每次去檢查的時間區段,詳細的時間為隨機產生。
提供四個區段分別為 AM 00:00 – 05:59, AM 06:00 – 11:59, AM 12:00 –
17:59, AM 18:00 – 23:59。
Automatic Update 預設為 Notify only (發送訊息通知)。自動更新的方式,提供 Notify only(發送訊
息通知),Automatic(自動執行更新)。
- Notify only: 發訊息通知有新的版本,但不執行自動更新的動作；Phone: LCD
會有提示訊息“Found new S/W＂,用户可以選擇是否更新為新的軟件。
- Automatic: 在 Scheduling 已設定的條件下自動執行版本更新的動作,在
79
Page 80
IPF2002PoE User’s Manual/使用手冊
POWER ON 時需用户自己選擇是否更新為新的軟件。
Firmware File Prefix 預設為產品型號。檢查符合產品型號之版本資料。
Next update time 下次檢查或更新之日期與時間資料。
Submit 執行儲存變更設定。
Reset 清除已設定之資料。
5.6. 4 Default Setting
所有設定值將會恢復出廠之設置
5.6. 5 Advanced Setting
Advanced Setting
欄位名稱 說明
ICMP Not Echo 啟動不回應 ping 的訊息。預設為 No (不執行)。
Send Anonymous CID 啟動去電保密功能,不送本機之號碼資料。預設為 No (不執行)。
Send Flash event 送 flash event 格式,提供 DTMF Event 及 SIP Info 二種格式。預設為 Disable (不
執行)。
SIP Encrypt SIP 加密方式,提供 INFINET, AVS, WALKERSUN1, WALKERSUN2 四種格式。
預設為 Disable (不執行)。
僅提供有此服務之環境使用。
Submit 執行儲存變更設定。
Reset 清除已設定之資料。
80
Page 81
IPF2002PoE User’s Manual/使用手冊
5.6. 6 System Auth
System Auth
欄位名稱 說明
New username 使用者名。
New password 設定新使用者密碼。
Confirmed password 確認密碼。
Submit 執行儲存變更設定。
Reset 清除已設定之資料。
5.7 Save Change
儲存所有設定並重新啟動
5.8 Reboot
不儲存更改的設定並重新啟動
81
Page 82
IPF2002PoE User’s Manual/使用手冊
六．產品規格
語音介面
來電控制協定 SIP v1 (RFC 2543), v2 (RFC 3261)
語音壓縮
延遲 (點對點) < 100ms
回音抵消
通話平均流量 5.3K(G.723.1) ~ 64K(G.711) bps
其他支援 In-Band DTMF, Out-of Band DTMF, SIP Info
區域網路介面
介面規格
介面連接器 RJ-45 Connector
管理工具 網頁瀏覽器 / LCD 選單
支援網路協定
韌體更新 HTTP / TFTP / FTP
來電支援
其他規格
電源 100 – 240VAC, 50 – 60Hz, 9VDC（選配）
耗電量 6W
工作環境
重量 0.60kg
認證 CE / FCC
尺寸 219mm *155 mm *75 mm
其他
G.711 (64k bit/s, PCM), G.723.1 (6.3k / 5.3k bit/s), G.726 (16k / 24k / 32k / 40k bit/s,
ADPCM), G.729A (8k bit/s, CS-ACELP), G.729B (adds VAD & CNG to G.729)
Packet Loss Compensation, Adaptive Jitter Buffer, VAD (Voice activity detection),
CNG (Comfortable noise generator), AEC (Acoustic echo canceller), G.165 (LEC,
Line echo canceller), G.168 (EC, Digital network echo canceller)
10/100Mbps Fast Ethernet （採用基於乙太網供電的 IEEE 802.3af 標準
（Power-over-Ethernet）
Static IP / DHCP Client / PPPoE Client / TFTP Client / HTTP Server / DNS Client /
Telnet / SNTP / RTP / RTCP / DDNS
Call Hold / Call Waiting / Call Forward / Call Transfer / Caller ID / Call Block /
3-way Conference
工作溫度：0 ~ 40℃ (32° ~ 104°F)
儲存溫度：-30 ~ 65℃ (-22° ~ 149°F)
相對濕度：10 ~ 95% Non-Condensing
140 筆資料的電話薄
NAT 穿透 ( STUN / uPnP / R-Port )
網路狀況顯示、韌體更新、無應答轉接、忙線轉接、來電直接轉接、網頁式
管理設定介面等等,LED 指示燈(未注冊時閃爍,注冊成功後常亮)。
82
Page 83
IPF2002PoE User’s Manual/使用手冊
七.常見問題與排解（Q&A）
1. 怎樣確定 IPF2002PoE 註冊成功？
答：如果 IPF2002PoE 帳號註冊成功,IPF2002PoE LCD 會正確顯示您註冊的帳號。如果 LCD 顯示幕顯示
No Service 則表時註冊不成功。一般 IPF2002PoE 在 2 分鐘內能註冊成功。
2 . 接上電源後,話機啟動後 LCD 顯示幕顯示 ETHERNET ERROR,這是為什麼？
答：這時請您檢查連接線路是否有鬆動,是否有連接網路線。如果連接正常,請檢查您的網路是否正常。
3. 如果停電了是否會影響正常打電話？
答：停電後,IPF2002PoE 通過 PSE 設備供電，話機還能保持正常工作。
4. 如何正確撥打電話？
答:拿起話筒,聽到撥號音後,即可撥打網路電話。
5．保留通話(HOLD)如何使用?
答：當正在接聽電話時,通過按一下 Hold 鍵可以保留對方,再按下一次將恢復通話。
6．如何使用來電等待(Call Waiting)?
答: 當正在通話時,從話機聽筒傳出“嘟嘟＂兩聲,表示有插撥進來, 若想接聽插撥, 可以按 <HOLD> 鍵,
就可以接聽插撥了。以後按<HOLD>鍵可以在兩通電話之間切換。
7．怎樣實現電話轉接？
答：（1）三方會談：
z 與使用者 A 建立通話。
z 通話中按下<HOLD>鍵將 A 通話保留,待聽到撥號音後撥打欲轉接之目標號碼（B）。
z 接通 B 後,告知有來電並詢問接聽意願。
z 如果 B 不願意接聽,或轉接（諮詢）B 失敗,請按下<hold>鍵取消轉接並取回與 A 之通話。
z 如果 B 願意接聽,按下<CONF>鍵,進入三方會談。
( 2 )來電轉移：
Blind Transfer (直接轉移)
B 來電 A, A 與 B 在通話的過程中,A 執行轉接給第三方,A 先按[Hold]鍵 Hold住與 B 的通話,再按
[Transfer/Flash]鍵接著輸入第三方的號移碼,結束加"#"字鍵；即可將電話轉給第三方。
Attendant Transfer(間接轉移)
B 來電 A,A 與 B 在通話的過程中,A 執行轉接給第三方,A 按[Transfer/Flash]鍵接著輸入第三方的號碼,
結束加"#"字鍵；則第三方開始響鈴,A 與 C 通話後,A 掛斷電話,則 B 與 C 可以互相通話。
8．速撥鍵(SPEED DIAL) 要怎麼用?
83
Page 84
IPF2002PoE User’s Manual/使用手冊
答：先在網頁“Phone Setting—Speed Dial Setting＂裏或者話機選單“Phone book—Speed dial＂裏設定您
需要快速撥號的號碼,然後拿起聽筒或者按下免持鍵後,按下對應的快速撥號號碼,接著按下＃號鍵
後速撥完畢。
9．如果你聽到有雜音要怎麼辦？
答：請把音量降低,建議用 10 或用預設值
10．Dial plan 設定範例
範例 1: Drop prefix: No, Replace rule 1: 002, 8613+8662。
說明 1：當撥號時有輸入 8613 時,只要符合 8613 開頭的號碼,全部在前面自動加上 002；則實際號碼為
[002+8613+xxx]。
說明 2：當撥號時有輸入 8662 時,只要符合 8662 開頭的號碼,全部在前面自動加上 002；則實際號碼為
[002+8662+xxx]。
範例 2：Drop prefix: Yes, Replace rule 2: 006, 002+003+004+005+007+009；
說明 1：當撥號時有輸入 002 時,只要符合 002 開頭的號碼,全部將 002 開頭的號碼,置換成 006；則實際
號碼為[006+xxx]。
說明 2：當撥號時有輸入 003 時,只要符合 003 開頭的號碼,全部將 003 開頭的號碼,置換成 006；則實際
號碼為[006+xxx]。
範例 3:Drop prefix: No, Replace rule 3: 009, 12。
84
Page 85
IPF2002PoE User’s Manual/使用手冊
說明 1：當撥號時有輸入 12 時,只要符合 12 開頭的號碼,全部在前面自動加上 009；則實際號碼為
[009+12+xxx]。
範例 4:Drop prefix: No, Replace rule 4: 007, 5xxx+35xx+21xx。
說明 1：當撥號時有輸入 5xxx 時,要符合 5 開頭,後面接著 3 碼的資料；全部在前面自動加上 007；則實
際號碼為[007+5xxx]。
說明 2：當撥號時有輸入 534 時,符合 5 開頭,後面接著 2 碼的資料；不符合加碼規則;實際號碼為[534]。
說明 3：當撥號時有輸入 35xx 時,要符合 35 開頭,後面接著 2 碼的資料；全部在前面自動加上 007；則實
際號碼為[007+35xx]。
說明4：當撥號時有輸入358822時,符合35開頭,後面接4碼的資料；不符合加碼規則;實際號碼為[358822]。
11.如何多個 SIP 平臺切換?
如果話機已同時設定好 2-3 個 SIP 平臺帳號,若要切換到想使用的平臺則請照下列方法操作。
例如話機同時設定有ABC 三個SIP 平臺,A為預設平臺,此時話機 LCD會顯示 A平臺的電話號碼;要由 A平臺
切換到 B 平臺則:
1.舉起話筒或按下免持鍵切換到 IP 撥號模式。
按2*。
掛上話筒或按免持鍵保持話機待機狀態此時話機 LCD 會顯示 B 平臺的電話號碼。
現在即可以使用 B 平臺撥打電話。
2.如果要使用 C 平臺則
舉起話筒或按下免持鍵切換到 IP 撥號模式
按3*。
掛上話筒或按免持鍵保持話機待機狀態此時話機 LCD 會顯示 C 平臺的電話號碼。
現在即可以使用 C 平臺撥打電話。
3.如果又要使用 A 平臺則
舉起話筒或按下免持鍵切換到 IP 撥號模式
按1*。
掛上話筒或按免持鍵保持話機待機狀態此時話機 LCD 會顯示 A 平臺的電話號碼。
現在即可以使用 A 平臺撥打電話。
4.若話機重新啟動後則預設平臺為 A 平臺。
85
