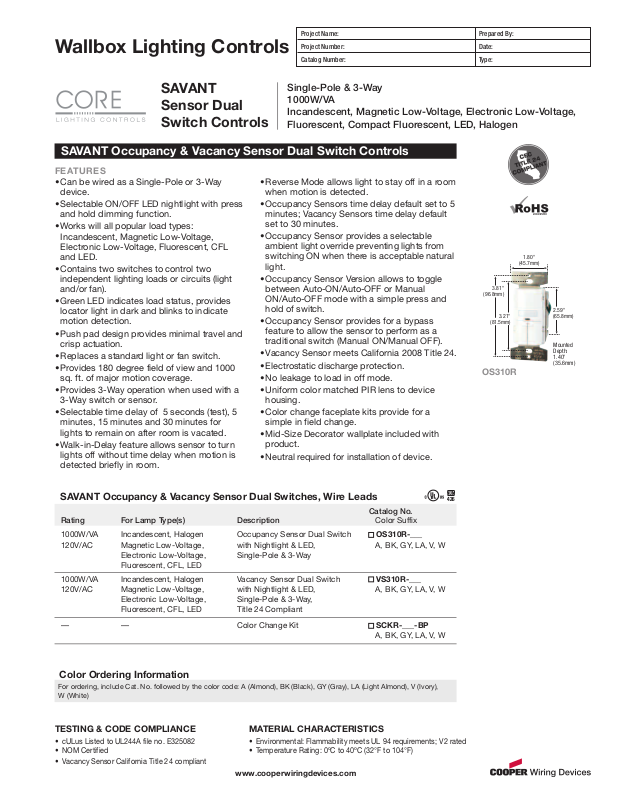

Arrow Hart - Cooper Wiring Devices Wallbox Lighting Controls Data Sheet

Wallbox Lighting Controls

426

3.21"

(81.5mm)

1.80"

(45.7mm)

2.59"
(65.8mm)

3.81"

(96.8mm)

Mounted
Depth:

1.40"
(35.6mm)

roject Name: Prepared By:

P

Project Number: Date:

atalog Number: Type:

C

SAVANT
Sensor Dual
Switch Controls

Single-Pole & 3-Way
1000W/VA
Incandescent, Magnetic Low-Voltage, Electronic Low-Voltage,

luorescent, Compact Fluorescent, LED, Halogen

F

SAVANT Occupancy & Vacancy Sensor Dual Switch Controls

FEATURES

• Can be wired as a Single-Pole or 3-Way
device.

• Selectable ON/OFF LED nightlight with press
and hold dimming function.

• Works will all popular load types:
Incandescent, Magnetic Low-Voltage,
Electronic Low-Voltage, Fluorescent, CFL
and LED.

• Contains two switches to control two
independent lighting loads or circuits (light
and/or fan).

• Green LED indicates load status, provides
locator light in dark and blinks to indicate
motion detection.

• Push pad design provides minimal travel and
crisp actuation.

• Replaces a standard light or fan switch.

• Provides 180 degree field of view and 1000
sq. ft. of major motion coverage.

• Provides 3-Way operation when used with a
3-Way switch or sensor.

• Selectable time delay of 5 seconds (test), 5
minutes, 15 minutes and 30 minutes for
lights to remain on after room is vacated.

• Walk-in-Delay feature allows sensor to turn
lights off without time delay when motion is
detected briefly in room.

• Reverse Mode allows light to stay off in a room
when motion is detected.

• Occupancy Sensors time delay default set to 5

inutes; Vacancy Sensors time delay default

m
set to 30 minutes.

• Occupancy Sensor provides a selectable
ambient light override preventing lights from
switching ON when there is acceptable natural
light.

• Occupancy Sensor Version allows to toggle
between Auto-ON/Auto-OFF or Manual
ON/Auto-OFF mode with a simple press and
hold of switch.

• Occupancy Sensor provides for a bypass
feature to allow the sensor to perform as a
traditional switch (Manual ON/Manual OFF).

• Vacancy Sensor meets California 2008 Title 24.

• Electrostatic discharge protection.

• No leakage to load in off mode.

• Uniform color matched PIR lens to device
housing.

• Color change faceplate kits provide for a
simple in field change.

• Mid-Size Decorator wallplate included with
product.

• Neutral required for installation of device.

OS310R

SAVANT Occupancy & Vacancy Sensor Dual Switches, Wire Leads

Rating For Lamp Type(s) Description Color Suffix

1000W/VA Incandescent, Halogen Occupancy Sensor Dual Switch
120V/AC Magnetic Low-Voltage, with Nightlight & LED, A, BK, GY, LA, V, W

Electronic Low-Voltage, Single-Pole & 3-Way
Fluorescent, CFL, LED

1000W/VA Incandescent, Halogen Vacancy Sensor Dual Switch
120V/AC Magnetic Low-Voltage, with Nightlight & LED, A, BK, GY, LA, V, W

Electronic Low-Voltage, Single-Pole & 3-Way,
Fluorescent, CFL, LED Title 24 Compliant

–– –– Color Change Kit

Catalog No.

■■

OS310R-___

■■

VS310R-___

■■

SCKR-___-BP

A, BK, GY, LA, V, W

Color Ordering Information

For ordering, include Cat. No. followed by the color code: A (Almond), BK (Black), GY (Gray), LA (Light Almond), V (Ivory),
W (White)

TESTING & CODE COMPLIANCE

• cULus Listed to UL244A file no. E325082

• NOM Certified

• Vacancy Sensor California Title 24 compliant

MATERIAL CHARACTERISTICS

• Environmental: Flammability meets UL 94 requirements; V2 rated

• Temperature Rating: 0ºC to 40ºC (32°F to 104°F)

www.cooperwiringdevices.com

Wallbox Lighting Controls

HOT #2

YELLOW

Specification & Performance Data

Project Name: Prepared By:

Project Number: Date:

Catalog Number: Type:

SAVANT
Sensor Dual
Switch Controls

Single-Pole & 3-Way
1000W/VA
Incandescent, Magnetic Low-Voltage, Electronic Low-Voltage,
Fluorescent, Compact Fluorescent, LED, Halogen

Application

SAVANT Occupancy/Vacancy Sensor Dual Switches use advanced PIR technology to sense the movement of heat-emitting bodies.
Occupancy Sensors provide Auto-ON/Auto-OFF or Manual-ON/Auto-OFF operation while Vacancy Sensors provide Manual­ON/Auto-OFF operation only (Title 24 Compliant). The sensors automatically turn lights off after a space becomes vacant and a
preset time delay elapses. The dual switch feature allows for control of two different loads from a single location. Both versions
provide Single-Pole (single-location) and 3-Way (multi-location) wiring and work with all lighting load types (INC, MLV, ELV, FLR,
CFL, LED). A selectable and dimmable LED nightlight is provided. All sensors are compatible with any decorator-style or decorator
screwless wallplate.

Device Type

Wiring Type

Testing & Code
Compliance

Flammability

Temperature Rating

Environmental

Specifications:

Rating

Surge Protection

Radio Frequency
Interference

Electrical

Power-failure Memory

Specifications:

Lamp Ratings

Wiring Types

LED Indicators

Mechanical

Voltage Ratings

Specifications:

Top Housing

Bottom Housing

Strap

Form Factor

Materials:

Finish

SAVANT Occupancy & Vacancy Sensor Dual
Switches: OS310R, VS310R Series

6" pre-stripped wire leads, #14 AWG

• cULus Listed to UL244A file no. E325082

• NOM Certified

• California Title 24 Compliant

Meets UL 94 requirements; V2 rated

0ºC to 40ºC (32°F to 104°F)

120V/AC 60Hz, 1/2 HP

Meets ANSI/IEEE Std. C62.41-1980, tested to
withstand voltage surges up to 6000V and
current surges of up to 200A without damage

Designed to reduce interference with radio,
audio and video equipment

Light or fan returns to same level prior to
power interruption

Incandescent, Halogen, Magnetic Low­Voltage, Electronic Low-Voltage, Fluorescent,
Compact Fluorescent, LED

Single-Pole & 3-Way

Load status indicator, light level & locator

Permanently marked on device

Polycarbonate

Polycarbonate

Aluminum

Decorator

Gloss

Single-Pole Wiring Diagram, All Load Types

3-Way Wiring Diagram, All Load Types

NOTE: 3-Way switch or OS310R/VS310R must be at the other location.

Specifications subject to
change without notice.
