Taps and Adapters
Cooper Wiring Devices offers a
full line of surge protection devices,
grounded and ungrounded outlet
taps, and grounding and lampholder
adapters.
Available surge protection designs
include cord-connected circuitbreaker switched devices, and plug-in
adapters, all manufactured from
high-impact-resistant thermoplastics
for durability and long-term
performance. Each complies with
the relevant UL 1449 requirements.
S
Surge Protection Adapters S-1
Power Strips S-2
Outlet Taps S-3, S-4
Grounding Adapters S-5
Lampholder Adapters S-6, S-7
Page 2
TESTING & CODE
COMPLIANCE
• Meet UL 1449 &
498 requirements,
file E111219
MATERIAL
CHARACTERISTICS
Flammability
rating: VO
Temperature Rating:
-20°C to 60°C.
S-1
TAPS AND
ADAPTERS
COMMERCIAL
RESIDENTIAL
Surge Protection
Adapters
■
Coaxial protection provided with “F”
styled connectors.
■
Telephone/fax/modem protection
provided with RJ11-styled telephone
ports (4 wire protection).
FEATURES
■
Provides full three mode surge protection for
hot to neutral, hot to ground and neutral to
ground (except 1156).
■
Center mounting screw provided for permanent
attachment to receptacle.
■
EMI/RFI filtering minimizes line noise.
■ Made of high impact-resistant thermoplastic
for long-term durability.
Six Outlet Surge Adapters – Plug-In
2 Pole, 3 Wire Grounding
15A 125V
Plug-In
Six Outlet Surge Adapters – Plug-In
Rating Clamping Joules Maximum
WV Description Voltage Total Surge Current Color Catalog No.
15 125 Full 400V 510 30,000 amps Computer 1177CG
Protection (10kA per mode) Gray
15 125 Full 400V 510 30,000 amps Computer 1161CG
Protection (10kA per mode) Gray
w/Coaxial
Jacks
15 125 Full 400V 510 30,000 amps Computer 1162CG
Protection (10kA per mode) Gray
w/Telephone
Jacks
15 125 Basic 400V 170 10,000 amps Computer 1156CG
Protection Gray
1177CG
1161CG
Page 3
TESTING & CODE
COMPLIANCE
• Meet UL 1449 &
498 requirements,
file E111219,
UL 498 requirements
MATERIAL
CHARACTERISTICS
Flammability
rating: VO
Temperature Rating:
-20°C to 60°C
S-2
TAPS AND
ADAPTERS
COMMERCIAL
RESIDENTIAL
Power Strips
Surge Protection Power Strip
FEATURES
■ Portable strip provides 7 surge-protected
outlets anywhere for stereos,TVs, computers
or other electronic-based equipment.
■ Full mode surge protection for hot to neutral,
hot to ground and neutral to ground.
■ Made of high impact-resistant thermoplastic
for long-term durability.
2 Pole, 3 Wire Grounding
15A 125V
Cord-Connected
■ Comes complete with 14/3 SJT 4-ft
portable cord.
■ Pilot light on/off switch indicates power
to unit.
■ Resettable 15 amp circuit breaker.
Surge Protection Power Strips
Rating Clamping Joules
WV Description Voltage Total Color Catalog No.
15 125 Full Protection 400V 70 Ivory 1176V
7 Outlet w/
Circuit Breaker
Circuit Breaker Switch Power Strip
FEATURES
■ Portable strip converts single outlet to multiple
outlets (1875W maximum).
■ Made of high impact-resistant thermoplastic
for long-term durability.
■ Circuit breaker with reset feature shuts
off power if overloaded.
Circuit Breaker Switch Power Strip
Rating
WV Description Cord Type Cord Length Color Catalog No.
15 125 7 Outlet 14/3 SJT 4' (1.22m) Ivory 1126V
15 125 6 Outlet 14/3 SJT 3' (0.91m) Ivory 1136V
1176
1126
1136
Page 4
S-3
TAPS AND
ADAPTERS
COMMERCIAL
RESIDENTIAL
TESTING & CODE
COMPLIANCE
• UL Listed, file
E15054,
Meets all UL498
requirements,
CSA certified, file
2054 (6224-01),
Meet CSA
requirements,
C22.2 no. 42
• NOM Certified
MATERIAL
CHARACTERISTICS
Flammability
rating: VO
Temperature Rating:
-20°C to 60°C
1146
1147
4402
1482

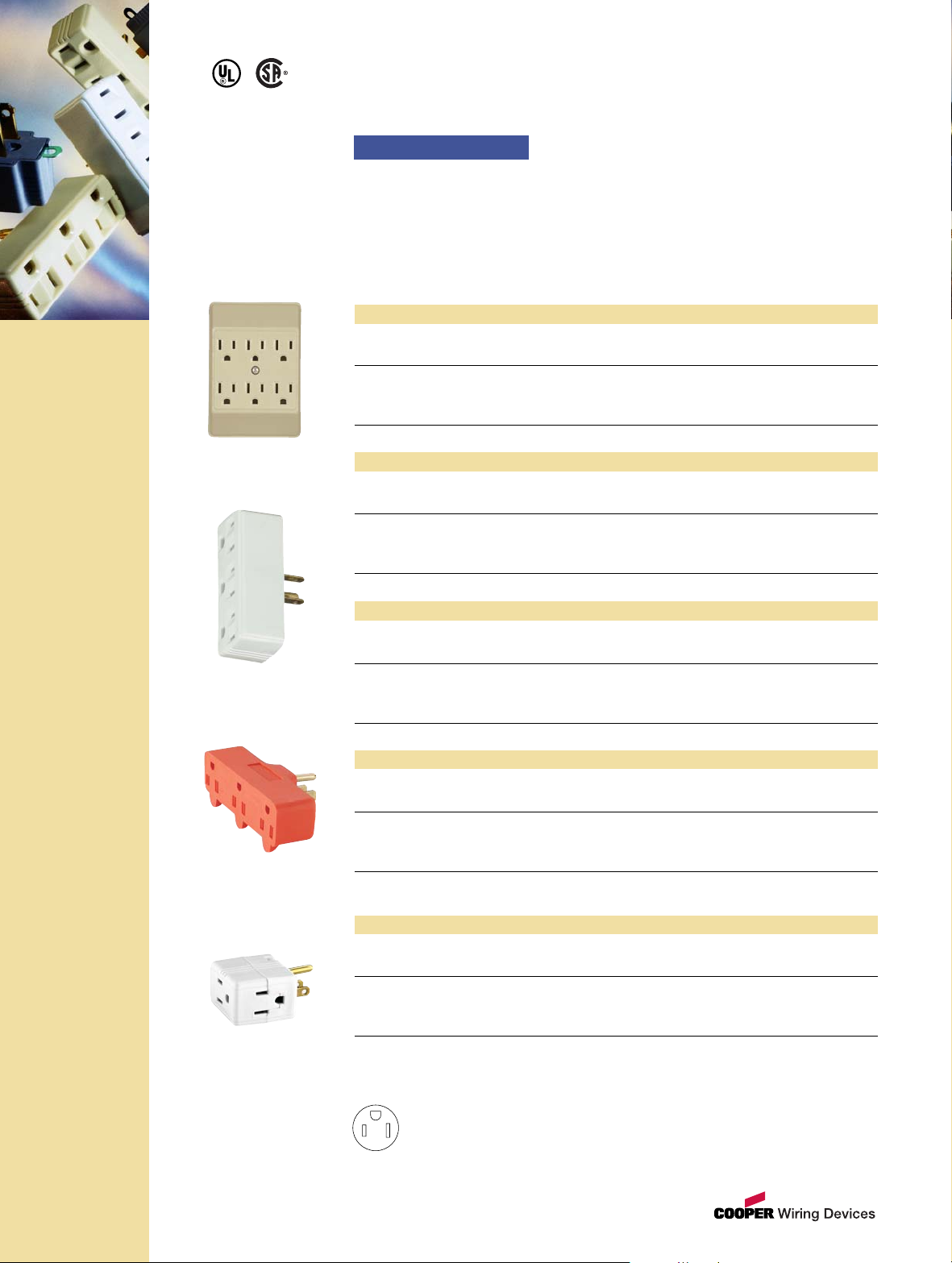

Outlet Taps
■ Lighted tap has long-life neon bulb built
into body that lights when plugged in.
FEATURES
■ Molded of high impact-resistant plastic
for long-term durability
■ Six outlet taps provide center mounting
screw for permanent attachment to receptacle
(1146 only).
Plug-In Outlet Taps
2 Pole, 3 Wire Grounding
15A 125V
Rating
WV NEMA Description Color Catalog No.
15 125 5-15R Duplex Receptacle Brown 1146B
to 6 Outlets Ivory 1146V
White 1146W
Six Outlet Taps – Grounding
Three Outlet Taps – Grounding
Rating
WV NEMA Description Color Catalog No.
15 125 5-15R Single Receptacle Brown 1147B
to 3 Outlets Ivory 1147V
White 1147W
Rating
WV NEMA Description Color Catalog No.
15 125 5-15R Lighted – Single Ivory 1147LTV
Receptacle White 1147LTW
to 3 Outlets
Lighted Three Outlet Taps – Grounding
Heavy Duty Three Outlet Taps – Grounding
Rating
WV NEMA Description Color Catalog No.
15 125 5-15R Heavy Duty Orange 4402RN
Single Receptacle
to 3 Outlets
Not for use in wet locations.
Three Outlet Cube Taps – Grounding
Rating
WV NEMA Description Color Catalog No.
15 125 5-15R Single Receptacle Brown 1482B
to 3 Outlets Ivory 1482V
White 1482W
G
W
5-15R
Page 5
TESTING & CODE
COMPLIANCE
• UL Listed,
file E15054,
Meets all UL498
requirements,
CSA certified,
file 2054 (6224-01),
Meet CSA
requirements,
C22.2 no. 42
• NOM Certified
MATERIAL
CHARACTERISTICS
Flammability
rating: VO
Temperature Rating:
-20°C to 60°C
S-4
TAPS AND
ADAPTERS
COMMERCIAL
RESIDENTIAL

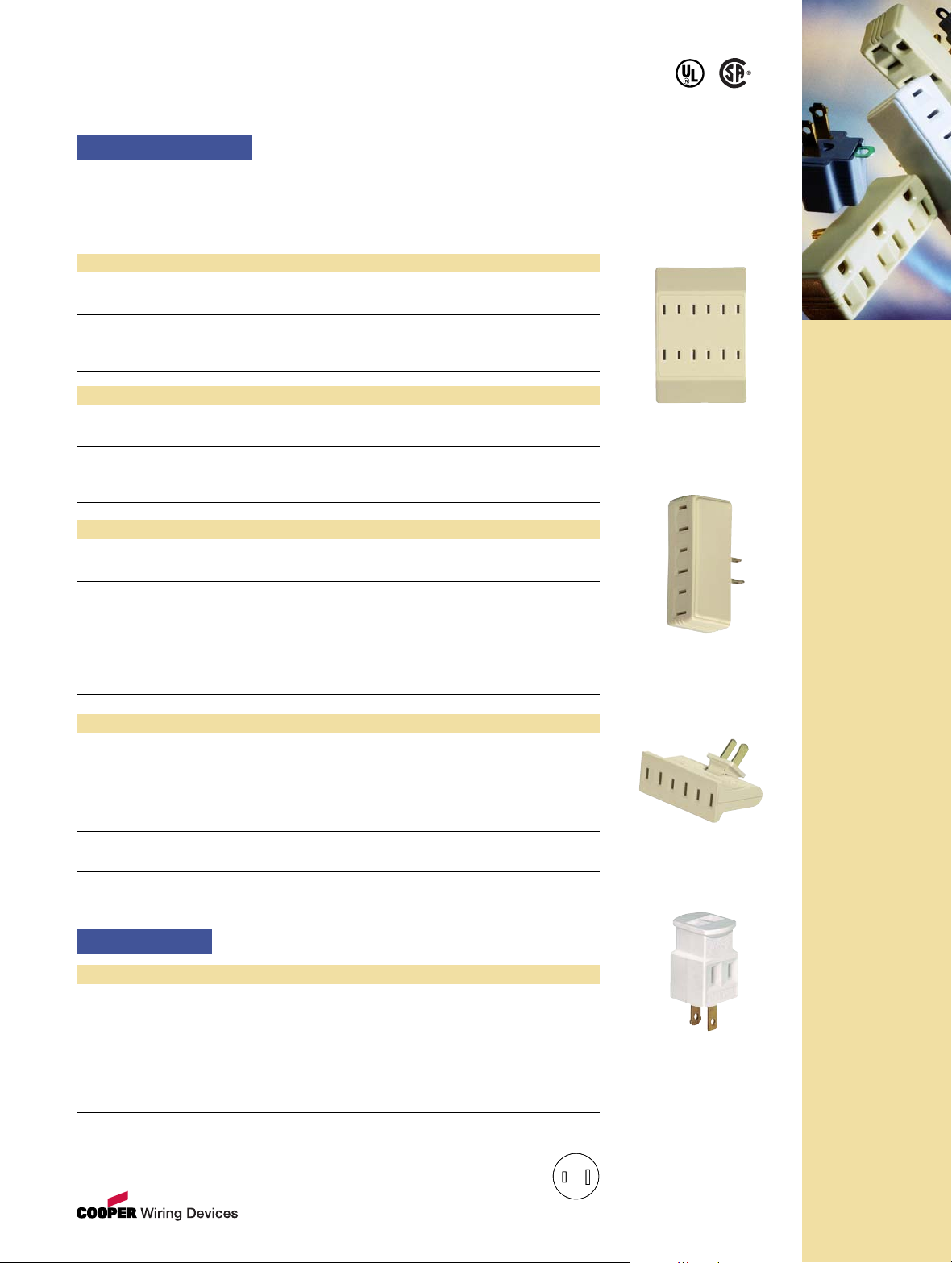

Outlet Taps
■ Swivel adapters hug cords close to wall in
tight-fitting places such as behind furniture
and office equipment.
FEATURES
■ Molded of high impact-resistant plastic
for long-term durability
Plug-In Outlet Taps
2 Pole, 3 Wire
15A 125V
Non-Grounding
Rating
WV NEMA Description Color Catalog No.
15 125 1-15R Duplex Receptacle Brown 1746B
to 6 Outlets Ivory 1746V
White 1746W
Six Outlet Taps
Three Outlet Taps
Rating
WV NEMA Description Color Catalog No.
15 125 1-15R Single Receptacle Brown 1747B
to 3 Outlets Ivory 1747V
White 1747W
Rating
WV NEMA Description Color Catalog No.
15 125 1-15R Swivel – Single Ivory 1792V
Receptacle White 1792W
to 3 Outlets
Swivel – Single Ivory 792V*
Receptacle
to 3 Outlets
Swivel Three Outlet Taps
Three Outlet Cube
Rating
WV NEMA Description Color Catalog No.
15 125 1-15R Polarized – Brown 4400B
†
Single Receptacle White 4400W
†
to 3 Outlets
15 125 1-15R Single Receptacle Brown 780B
to 3 Outlets Ivory 780V
15 125 1-15R Single Receptacle Brown 400B*
†
to 3 Outlets White 400W*
†
Outlet Flasher
Rating
W V/AC NEMA Description Color Catalog No.
100 125 1-15R Polarized – Brown 471
Single Receptacle
to 1 Outlet
(14 to 20 flashes
per minute)
Outlet Flasher
1746
1747
1792
4400
*Not UL Listed
†
Not CSA Listed
WW
1-15R
Page 6

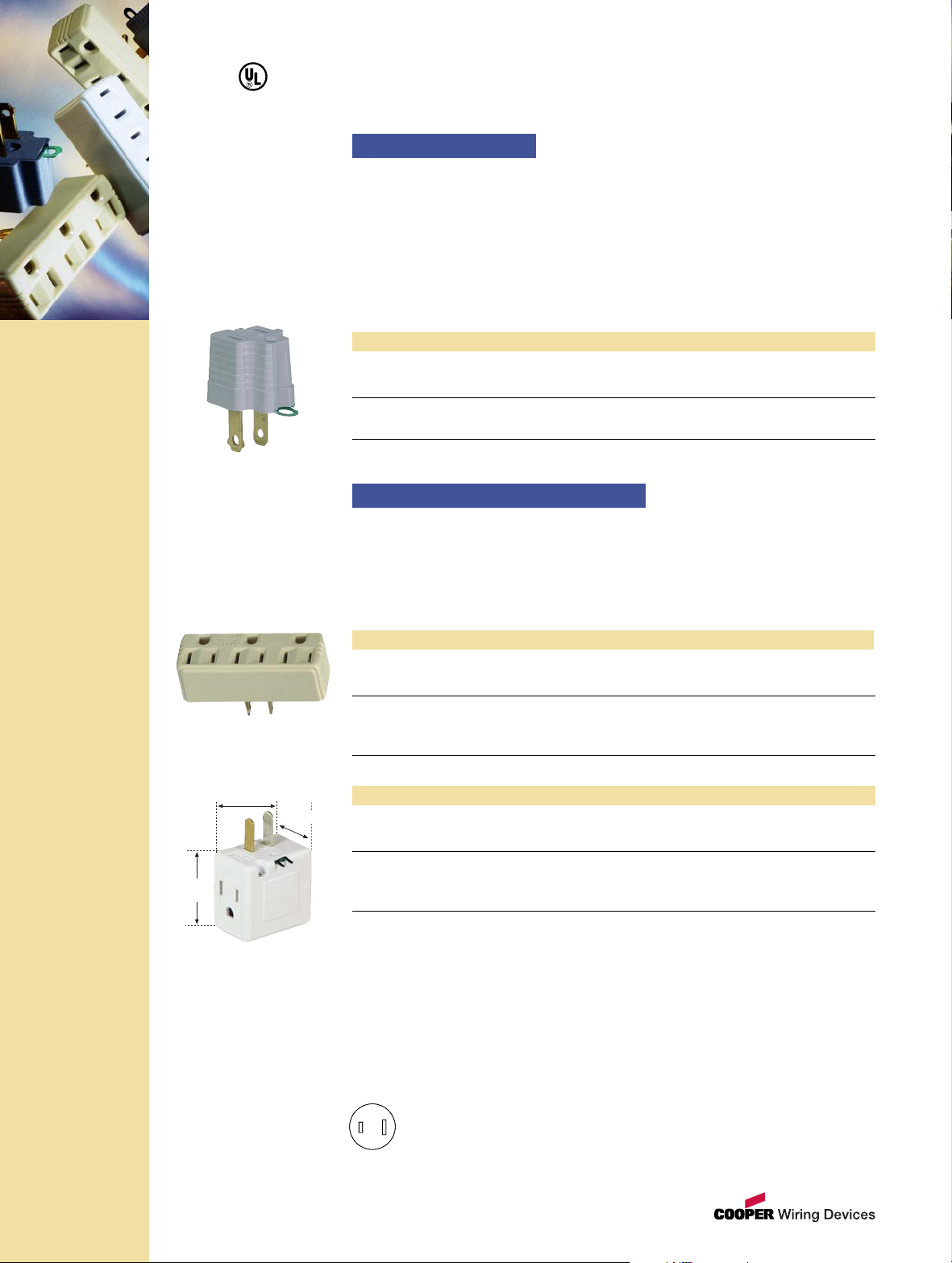

Grounding Adapters
■ Polypropylene body resists dirt and marring.
■ Ribbed body for sure insertion and removal.
■ Solid brass blades for long life and low
heat rise at full load.
FEATURES
■ Converts 2 pole polarized outlet to 3 wire
grounding outlet.
■ Grounding lug fastens to wall plate mounting
screw for excellent ground connection.
■ Safety tab extends face on adapter to
assure grounding plugs cannot be plugged
in incorrectly.
Grounding Adapters
2 Pole, 2 Wire
with Grounding Lug
15A 125V
Rating
WV NEMA Description Color Catalog No.
15 125 1-15R 2 Pole Polarized Gray 419GY
to 3 Wire Grounding White 419W
Grounding Adapters
■ Molded of high impact-resistant thermo-
plastic for long term durability.
■ Solid brass blades for long life and low
heat rise at full load.
FEATURES
■ Converts 2 pole polarized outlet to 3 wire
grounding outlets.
■ Grounding lug fastens to wall plate mounting
screw for excellent ground connection.
Three Outlet Grounding Adapters
Rating
WV NEMA Description Color Catalog No.
15 125 1-15R Single Receptacle Brown 1219B
to 3 Outlets with Ivory 1219V
Grounding Lug
Three Outlet Grounding Adapter
Rating
WV NEMA Description Color Catalog No.
15 125 1-15R Single Receptacle Brown SA483B*
to 3 Outlets with White SA483W*
Grounding Lug
Three Outlet Cube Grounding Adapter
419
1219
SA483
TESTING & CODE
COMPLIANCE
• UL Listed,
file E15054
except file E15012
for 419,
Meet all UL498
requirements
• NOM Certified
MATERIAL
CHARACTERISTICS
Flammability
rating: VO
Temperature Rating:
-20°C to 60°C
S-5
TAPS AND
ADAPTERS
COMMERCIAL
RESIDENTIAL
*Not NOM certified
WW
1-15R
1.66"
(42.2mm)
1.72"
(43.7mm)
1.18"
(30.0mm)
Page 7
TESTING & CODE
COMPLIANCE
• UL Listed, file 15055
Meet all UL 496 &
498 requirements,
CSA certified, file
1739 (6231-04),
file 2054 (6224-01)
for 700, Meet CSA
requirements,
C22.2 no. 42 & 43
• NOM Certified
MATERIAL
CHARACTERISTICS
Temperature Rating:
-40°C to 65°C
S-6
TAPS AND
ADAPTERS
COMMERCIAL
RESIDENTIAL
Lampholder Adapters
■ Pull chains for 718 control lampholder.
Side outlets are always on.
FEATURES
■ 715 and 718 have threaded husk for
clamps, shades or guards.
■ Outlets on adapters are 2-wire polarized.
Lampholder Adapters and Accessories
2 Pole, 2 Wire
Rating
W V/AC Socket to Switch Color Catalog No.
250 125 One Socket & Pull Chain Brown 718B**
Two Outlets Ivory 718V**
660 125 One Socket & Keyless Brown 715B**
Two Outlets Ivory 715V**
660 250 Two Sockets Keyless Brown 700B
Ivory 700V
660 125 Outlet Keyless Brown 758B
†
Ivory 758V†**
660 125 Outlet Keyless Brown 808**
††
Polarized Medium Base Socket Adapters
Rating
W V/AC Outlet to Switch Color Catalog No.
660 250 Socket Keyless Brown 738B
Ivory 738V
White 738W
Polarized Medium Base Outlet Adapters
Rating
W V/AC Description Switch Color Catalog No.
660 250 Medium Base Keyless Brown 362*
†
to Mogul
Polarized Medium Base Adapters
718
715
700
758
738
362
808
*Not UL Listed
**UL498 w/outlet
†
Not CSA
††
Not NOM
Page 8

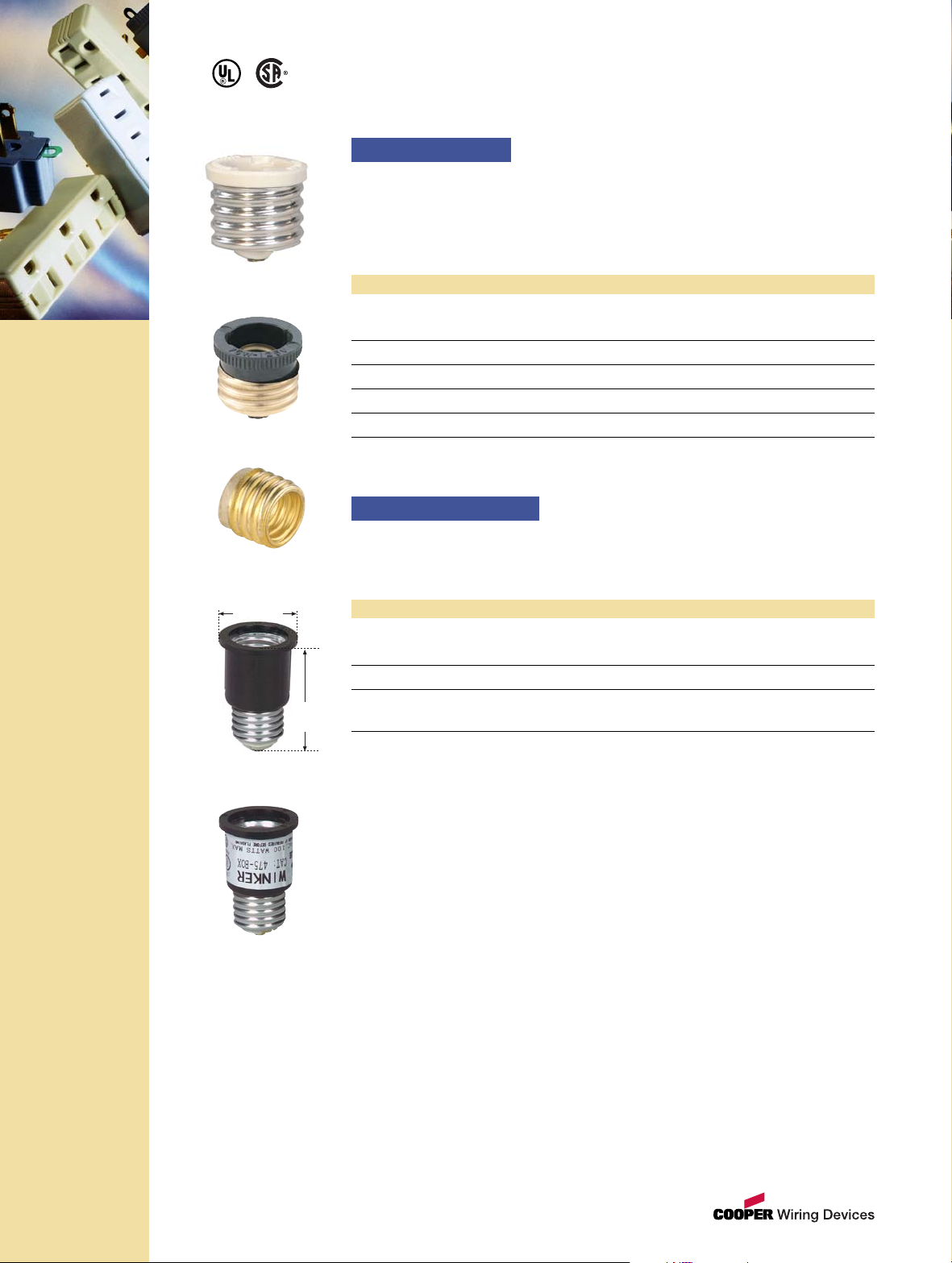

Lampholder Adapters
FEATURES
■ Mogul reducer has porcelain body, balance
of reducer bodies are molded of heat and
impact-resistant material.
Socket Reducers
Socket Reducers
Socket Extensions
Rating
W V/AC Description Switch Color Catalog No.
660 250 Mogul to Medium Keyless Brown 332
75 125 Medium to Candelabra Keyless Brown 313
†
75 125 Medium to Intermediate Keyless Brown 322*
†
75 125 Intermediate to Candelabra Keyless Brown 341*
†
Socket Reducers
■ 475 winker flashes 14 to 20 times
per minute.
FEATURES
■ One-piece screwshells with porcelain bases.
Socket Extensions
Rating
W V/AC Description Base Extends Catalog No.
660 250 Phenolic Medium 1.375" (34.9mm) 1054
15-100 125 Phenolic Winker Medium 1.25" (31.8mm) 475
(14 - 20 flashes per minute)
Socket Extensions
332
313
341
1054
475
TESTING & CODE
COMPLIANCE
• UL Listed, file
E15055,
CSA certified, file
1739 (6231-04),
Meet all UL 496
requirements,
Meet CSA requirements, C22.2 no. 43
• NOM certified
MATERIAL
CHARACTERISTICS
Temperature Rating:
-40°C to 65°C
S-7
TAPS AND
ADAPTERS
COMMERCIAL
RESIDENTIAL
*Not UL Listed, Not CSA certified
†
Not NOM Listed
1.50"
(38.1mm)
2.36"
(59.9mm)
Loading...
