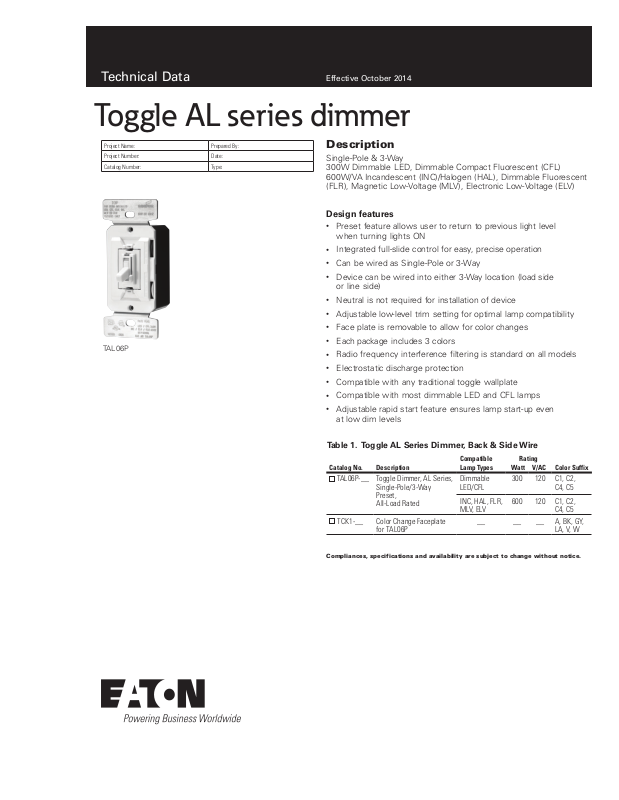

Arrow Hart - Cooper Wiring Devices Toggle AL series dimmer Technical Data

Technical Data
Effective October 2014
Toggle AL series dimmer
Project Name: Prepared By:
Project Number: Date:
Catalog Number: Type:
TAL06P
Description
Single-Pole & 3-Way 300W Dimmable LED, Dimmable Compact Fluorescent (CFL) 600W/VA Incandescent (INC)/Halogen (HAL), Dimmable Fluorescent (FLR), Magnetic Low-Voltage (MLV), Electronic Low-Voltage (ELV)
Design features
•
Preset feature allows user to return to previous light level when turning lights ON
•
Integrated full-slide control for easy, precise operation
•
Can be wired as Single-Pole or 3-Way
•
Device can be wired into either 3-Way location (load side or line side)
•
Neutral is not required for installation of device
•
Adjustable low-level trim setting for optimal lamp compatibility
•
Face plate is removable to allow for color changes
•
Each package includes 3 colors
•
Radio frequency interference filtering is standard on all models
•
Electrostatic discharge protection
•
Compatible with any traditional toggle wallplate
•
Compatible with most dimmable LED and CFL lamps
•
Adjustable rapid start feature ensures lamp start-up even at low dim levels
Table 1. Toggle AL Series Dimmer, Back & Side Wire
Catalog No. Description
TAL06P-__ Toggle Dimmer, AL Series,
Single-Pole/3-Way Preset, All-Load Rated
TCK1-__ Color Change Faceplate
for TAL06P
Compliances, specifications and availability are subject to change without notice.
Compatible Lamp Types
Dimmable LED/CFL
INC, HAL, FLR, MLV, ELV
__ __ __ A, BK, GY,
Rating
Watt V/AC Color Suffix
300 120 C1, C2,
C4, C5
600 120 C1, C2,
C4, C5
LA, V, W
Technical Data
Toggle AL series dimmer
Effective October 2014
Project Name: Prepared By:
Project Number: Date:
Catalog Number: Type:
Applications
The Toggle AL series dimmer offers traditional toggle look with integrated full-range dimming for 300W dimmable LED and CFL as well as 600W incandescent, halogen, dimmable fluorescent, electronic low-voltage & magnetic low-voltage light sources. These units are ideal for residential and light commercial applications and are compatible with Eaton’s wiring devices’ traditional toggle style devices and wallplates. Preset units feature a preset “ON/OFF” switch that automatically returns controlled light(s) to a preset level without disturbing the brightness level. The device is designed for both single-pole (one location) and 3-way (multi-location) applications, and features an adjustable rapid-start setting which provides additional power for a brief time period to ensure lamp start-up at low dim settings.
Table 2. Specifications
Catalog No. TAL06P, TCK1 Series
Device Type Toggle AL Dimmer Wiring Type Back & side wire Testing & Code Compliance • cULus Listed to UL1472, file no. E47967
Environmental Specifications Flammability: Meets UL 94 requirements; V2 rated
Electrical Specifications Rating: 120V/AC 60 Hz
Mechanical Specifications Wiring Types: Single-Pole & 3-Way
• NOM Certified
Temperature Rating: -20ºC to 70ºC (-4°F to 158°F)
Light Intensity Control: Full-range, continuously variable dimming Dimming Performance: Solid State Dimming Radio Frequency Interference: Designed to reduce interference with radio, audio and video
equipment
Power-failure Memory: Light returns to same level prior to power interruption Lamp Ratings: 300W Dimmable LED/CFL 600W Incandescent, Halogen, Dimmable
Fluorescent, Electronic Low-Voltage, Magnetic Low-Voltage
Voltage Ratings: Permanently marked on device
Table 3. Materials
Catalog No. TAL06P, TCK1 Series
Top Housing Polycarbonate
Bottom Housing Polycarbonate Strap Aluminum Form Factor Decorator Finish Gloss
Table 4. De-Rating Chart - 600W Models
Lamp Type 1-Gang 2-Gang 3-Gange +
LED/CFL 300W max. 300W max. 300W max. INC, HAL, ELV 600W max. 600W max. 600W max. MLV 600VA max. 600VA max. 600VA max. FLR See Ballast Performance Data pages
Table 5. Color Ordering Information
For ordering devices, include Cat. No. followed by the color code: A (Almond), BK (Black), GY (Gray) LA (Light Almond), V (Ivory), W (White)
A BK GY LA V W
Almond Black Gray Lt. Almond Ivory White
Color Kit Color Combinations and Ordering Suffixes (for select models):
A W V
C1 Color Kit
A (Almond), W (White), V (Ivory)
LA W V
C2 Color Kit
LA (Light Almond), W (White),V (Ivory)
BK W V
C4 Color Kit
BK (Black), W (White), V (Ivory)
BK W GY
C5 Color Kit
BK (Black), W (White), GY (Gray)
2
EATON www.arrowhart.com
Compliances, specifications and availability are subject to change without notice.
Toggle AL series dimmer
Project Name: Prepared By:
Project Number: Date:
Catalog Number: Type:
Product Dimensions
1.80”
(45.7mm)
3.28”
(83.3mm)
Technical Data
Effective October 2014
4.20”
(106.6mm)
Figure 1. TAL06P Line Art with Dimensions
Wiring Diagrams
Single-Pole Wiring Diagram INC, HAL, LED/CFL, FLR, MLV, ELV
Green
YL
LED CFL INC
Black
Line
120V AC - 60 Hz
1.25”
(31.6mm)
Hot
Neutral
ote:N Location of terminal screws are color-coded with “BK” or “YL”.
Compliances, specifications and availability are subject to change without notice.
EATON www.arrowhart.com
3
Technical Data
Effective October 2014
Project Name: Prepared By:
Project Number: Date:
Catalog Number: Type:
Table 6. Listed Dimmable CFL Bulb List
Make Catalog Number Make Catalog Number
Ecosmart ES5M814DIM
ES5M10123 ES5R214DIM50K ES5CCDF052 ES5R315DIM
Feit BPESL15T/DM
LBP13TC/DM BPESL23T/DIM ESL15R30/DM BPESL15R30/DM
GE FLE15/2/DV/R30
FLE15HT3/2/DV/ FLE26/2/DV/R40 FLE26HT3/2/DV/
Globe CCFL R20
CCFL VANITY CCFL A-TYPE CCFL PAR20
Phillips EL/ES Dim 20 Alto
EL/A R30 DIM 16W EL/A R40 DIM 20W
EL/A PAR38 DIM 20W EL/A R40 Dim 20W (150725)
EL/mDT DIM 20W EL/Dt dim 32W EL/mdT Dim 15W
EL/A R30 DIM 16W (150417)
Neptune 24514-ADIM
32016-ADIM
Sylvania CF5EL/B10/C/DIM/827
CF5EL/A15/DIM/827 CF5EL/DECO/DIM CF24EL/TWIST/827/DIM CF19EL/BR40/827/DIM CF15EL/BR30/DIM/827 CF14EL/TWIST/827/DIM CF14EL/R20/827/DIM
TCP 40114
40123 2R2014DIM 2R3016DIM 2R4019DIM 10123
8T03CL 8T05CL 8T08CL 8TC05F 8A08WH 8TF05F
2G2514DIM
Toggle AL series dimmer

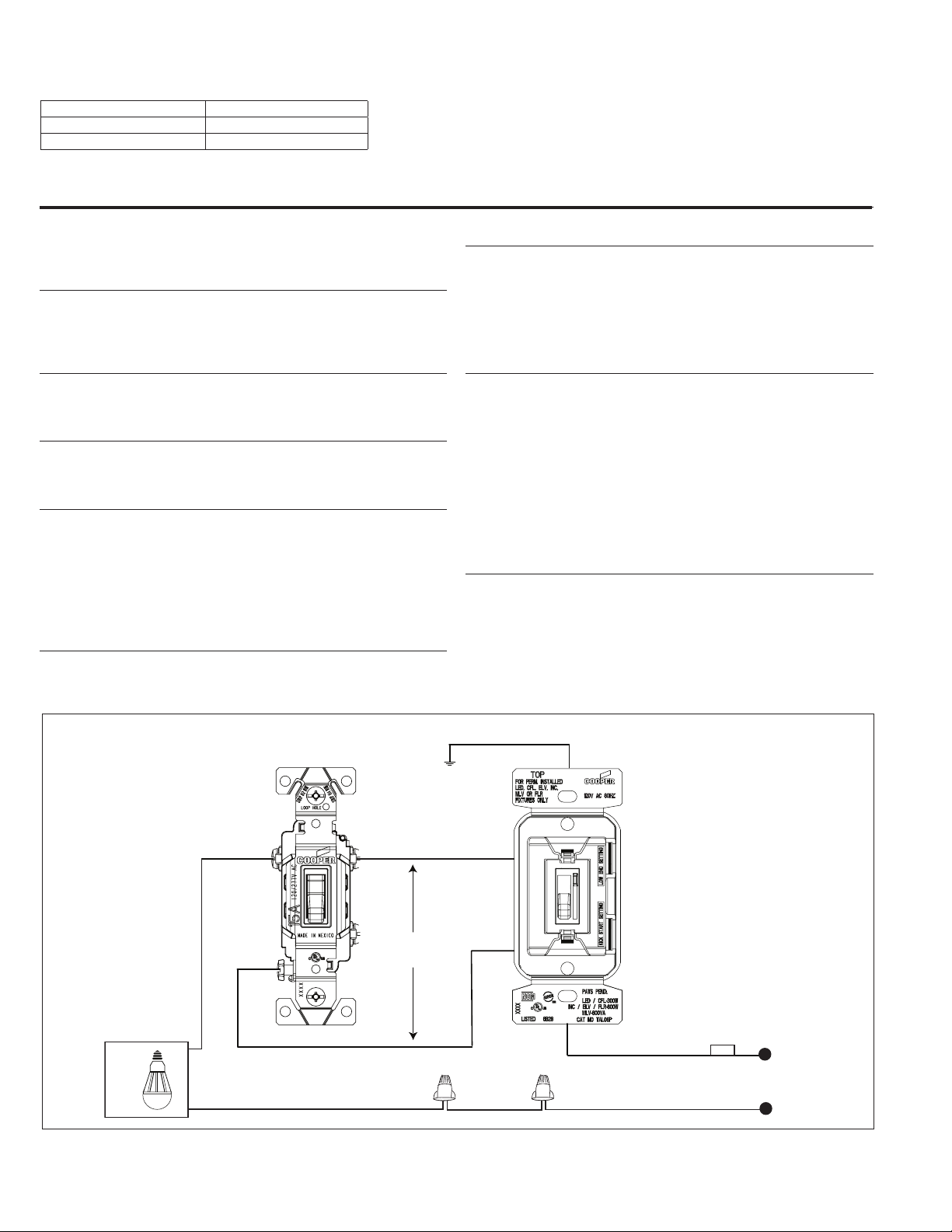

3-way Single-Pole Wiring Diagram INC, HAL, LED/CFL, FLR, MLV, ELV
BK
YL
LED CFL INC
3-WAY SWITCH
YL
Travellers
Green
YL
YL
TOGGLE DIMMER
Black
Hot
Tag
Neutral
4
EATON www.arrowhart.com
Compliances, specifications and availability are subject to change without notice.
Toggle AL series dimmer
Project Name: Prepared By:
Project Number: Date:
Catalog Number: Type:
Table 7. Listed Dimmable LED Bulb List
Make Catalog Number Make Catalog Number
Cooper Lighting H455ICAT120D
H455RICAT120D
ML706827 ML706830 ML706835 ML706840 ML709827ICAT120D ML709830ICAT120D ML709835ICAT120D ML709840ICAT120D RL706830E26WBS RL706830WBS
Cree BA19-08027OMF-12DE26-1U100
BA21-16050OMF-12DE26-1U110 BBR30-06527FLF
LR6 LR6-DR650 LR6-DR1000 LE6 CR6 LR4E-15 LR4E-30
Ecosmart (Home Depot)
ECO-575L ECS19WW120 ECS20WWFL120 ECS30WWFL120 ECS38WWFL120 ECS25WW120
Feit BPAG1100DM/5K/LED
BPCEBR30/DM/LED BPCEBR30/LED (not compatible with AAL06P) BPCEG25/LED/3
BPCEPAR38/930/LED
G7 Power G7BR301527D
HitLights/Dura HL-LED_5WWW_GU10
Lighting Ever 200039 (not compatible with AAL06P)
200055-WW-US 600026-WW-US
Lighting Science DFN20NWFL120
DFN38NWFL120 DFN30NWFL120 DFN19NW120 DFN25NWFL120
Philips EnduraLED 7A 2700 A19 Dimm (407956)
EnduraLED 11W 2700K PAR30S Dimmable (408096) EnduraLED 11W 3000K PAR30S Dimmable (408104) EnduraLED 11W 4200K PAR30S Dimmable (408112) EnduraLED 11W 2700K PAR30L Dimmable (408120) EnduraLED 11W 3000K PAR30L Dimmable (408138 ) EnduraLED 11W 4200K PAR30S Dimmable (408146) EnduraLED 11W 4200K PAR30S Dimmable (410134) EnduraLED 11W 2700K PAR30L Dimmable (410142) EnduraLED 16W 2700K 120V PAR38 Dimmable (408153) EnduraLED 16W 3000K 120V PAR38 Dimmable (408161) EnduraLED 16W 4200K 120V PAR38 Dimmable (408179) EnduraLED 6W 3000K R20 Dimm (408203) 423400 (9290002192 on bulb) with 2+ lamps 423798 (9290002544 on bulb) 424382 (9290002268A on bulb) 425264 (9290002296A on bulb) 432195 (9290002596 on bulb) 433227 (9290002707 on bulb) 433235 (9290002709 on bulb)
Satco S873X (PAR20)
S874X, S877X (PAR30) S875X (PAR 38)
Solaris LR30/10/30/750
LR30/25/30/750 LR30LN/10/30/850 LR30LN/25/30/850 LR38/10/30/1000 LR38/25/30/1000
Sylvania LED15PAR30LN/DIM/830/FL40
LED15PAR30LN/DIM/830/NFL25 LED15PAR30LN/DIM/827/NFL25 LED15PAR30LN/DIM/827/FL40 LED18PAR38/DIM/830/NFL25 LED18PAR38/DIM/830/FL40 LED18PAR38/DIM/827/NFL25 LED18PAR38/DIM/827/FL40 LED8A/DIM/F/830 LED8A/DIM/F/827 LED8G25/DIM/F/830 LED8G25/DIM/827 LED8PAR20/DIM/830/NFL25 LED8PAR20/DIM/830/FL36 LEDPAR20/DIM/827/NFL25 LEDPAR20/DIM/827/FL36
Triangle 55961
Technical Data
Effective October 2014
Compliances, specifications and availability are subject to change without notice.
EATON www.arrowhart.com
5
Technical Data
Toggle AL series dimmer
Effective October 2014
Project Name: Prepared By:
Project Number: Date:
Catalog Number: Type:
Table 8. Maximum Fluorescent Lamp Wattage
The following table lists the maximum number of Mark 10® or AmbiStar® ballasts that can be connected to a dimmer for single and multi­device installations in a wallbox.
Ballast Cast# Lamp Type # of Lamps Lamp Watts One Gang Two Gang Three Gange
Max # of Ballasts per Dimmer for Multiganging
REB-2S26 CFQ26W/G24q 1 26 20 18 16 REB-2S26 CFQ26W/G24q 2 26 10 9 8 REB-2S26 CFTR32W/GX24q 1 32 15 14 12 REB-2S26 CFTR42W/GX24q 1 42 11 10 9
REZ-1Q18 CFQ18W/G24q 1 18 26 23 21 REZ-1Q18 CFTR18W/GX24q 1 18 26 23 21 REZ-2Q18 CFQ18W/G24q 2 18 13 11 10 REZ-2Q18 CFTR18W/GX24q 2 18 13 11 10
REZ-2Q26 CFQ26W/G24q 2 26 9 8 8 REZ-2Q26 CFTR26W/GX24q 2 26 9 8 8 REZ-1T42 CFQ26W/G24q 1 26 18 16 14 REZ-1T42 CFTR26W/GX24q 1 26 18 16 14 REZ-1T42 CFTR32W/GX24q 1 32 14 13 12 REZ-1T42 CFTR42W/GX24q 1 42 11 10 9 REZ-2T42 CFTR32W/GX24q 2 32 7 6 6 REZ-2T42 CFTR42W/GX24q 2 42 5 5 4 REZ-2T42 CFTR57W/GX24q 1 57 8 7 7 REZ-2T42 CFTR70W/GX24q 1 70 7 6 5 IEZ-2S24 FT24W/2G11 2 24/27 9 8 8 IEZ-2S24 F24T5/HO 2 24 9 8 8 REZ-1TTS40 FT36W/2G11 1 36/39 14 13 12 REZ-1TTS40 FT40W/2G11/RS 1 40 14 13 12 REZ-2TTS40 FT36W/2G12 2 36/40 7 6 6 REZ-2TTS40 FT40W/2G11/RS 2 41 6 6 5 REZ-154 F54T5/HO 1 54 8 8 7 REZ-154 FC12T5/HO 1 55 9 8 7 REZ-154 FT55W/2G11 1 55 9 8 7 REZ-2S54 F54T5/HO 2 54 4 4 3 REZ-2S54 FC12T5/HO 2 55 4 4 4 REZ-2S54 FT55W/2G12 2 55 4 4 4 REZ-132 F17T8, FBO16T8 1 17 23 21 19 REZ-132 F25T8, FBO24T8 1 25 18 16 14 REZ-132 F32T8, FBO31T8 1 32 16 14 13 REZ-2S32 F17T8, FBO16T9 2 17 14 13 12 REZ-2S32 F25T8, FBO24T9 2 25 10 9 8 REZ-2S32 F32T8, FBO31T9 2 32 8 7 6 REZ-3S32 F17T8, FBO16T10 3 17 10 9 8 REZ-3S32 F25T8, FBO24T10 3 25 7 6 5 REZ-3S32 F32T8, FBO31T10 3 32 5 4 4
Lutron Tu-Wire® ballast. The total of all line currents for the ballasts connected to the dimmer should be less than: 4-70A for one gang; 4-30A for two gang and 3-90A for three gang installations.
Certifications & Compliances
Catalog No.
TAL06P
TCK1
KEY:
6
cULus NOM
EATON www.arrowhart.com
Compliances, specifications and availability are subject to change without notice.
Toggle AL series dimmer
Technical Data
Effective October 2014
Electrical Sector 203 Cooper Circle Peachtree City, GA 30269 United States Eaton.com Cooperwiringdevices.com
Eaton
1000 Eaton Boulevard Cleveland, OH 44122 United States Eaton.com
© 2014 Eaton All Rights Reserved Printed in USA Publication No. E125-0161-14 October 2014
Electrical Sector Canada Operations 5925 McLaughlin Road Mississauga, Ontario, L5R 1B8 Canada EatonCanada.ca Cooperwiringdevices.com
Eaton is a registered trademark.
All other trademarks are property of their respective owners.
Electrical Sector Mexico Operations Carr. Tlalnepantla ­Cuautitlan Km 17.8 s/n Col. Villa Jardin esq. Cerrada 8 de Mayo Cuautitlan, Mexico CP 54800 Mexico Eaton.mx Cooperwiringdevices.com
