Arrow Hart - Cooper Wiring Devices Taps, Adapters Catalog

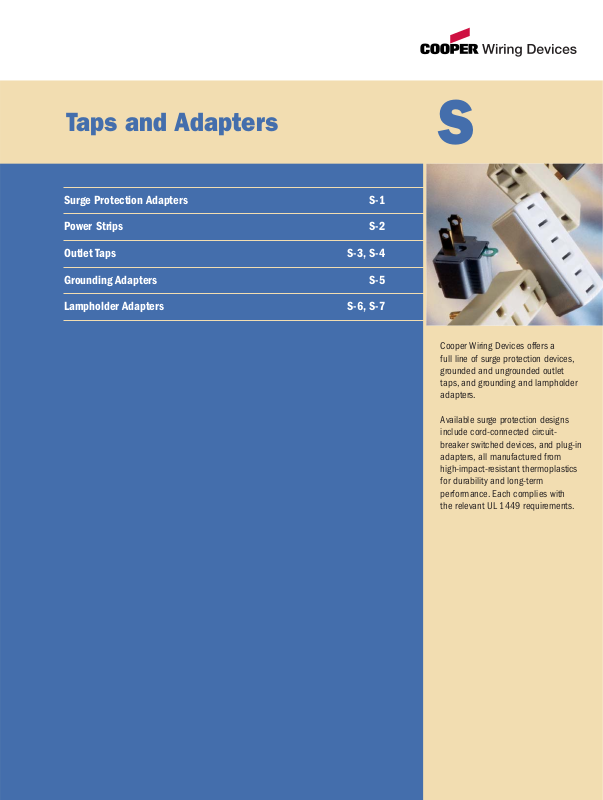

Taps and Adapters
Cooper Wiring Devices offers a
full line of surge protection devices,
grounded and ungrounded outlet
taps, and grounding and lampholder
adapters.
Available surge protection designs
include cord-connected circuitbreaker switched devices, and plug-in
adapters, all manufactured from
high-impact-resistant thermoplastics
for durability and long-term
performance. Each complies with
the relevant UL 1449 requirements.
S
Surge Protection Adapters S-1
Power Strips S-2
Outlet Taps S-3, S-4
Grounding Adapters S-5
Lampholder Adapters S-6, S-7
TESTING & CODE
COMPLIANCE
• Meet UL 1449 &
498 requirements,
file E111219
MATERIAL
CHARACTERISTICS
Flammability
rating: VO
Temperature Rating:
-20°C to 60°C.
S-1
TAPS AND
ADAPTERS
COMMERCIAL
RESIDENTIAL
Surge Protection
Adapters
■
Coaxial protection provided with “F”
styled connectors.
■
Telephone/fax/modem protection
provided with RJ11-styled telephone
ports (4 wire protection).
FEATURES
■
Provides full three mode surge protection for
hot to neutral, hot to ground and neutral to
ground (except 1156).
■
Center mounting screw provided for permanent
attachment to receptacle.
■
EMI/RFI filtering minimizes line noise.
■ Made of high impact-resistant thermoplastic
for long-term durability.
Six Outlet Surge Adapters – Plug-In
2 Pole, 3 Wire Grounding
15A 125V
Plug-In
Six Outlet Surge Adapters – Plug-In
Rating Clamping Joules Maximum
WV Description Voltage Total Surge Current Color Catalog No.
15 125 Full 400V 510 30,000 amps Computer 1177CG
Protection (10kA per mode) Gray
15 125 Full 400V 510 30,000 amps Computer 1161CG
Protection (10kA per mode) Gray
w/Coaxial
Jacks
15 125 Full 400V 510 30,000 amps Computer 1162CG
Protection (10kA per mode) Gray
w/Telephone
Jacks
15 125 Basic 400V 170 10,000 amps Computer 1156CG
Protection Gray
1177CG
1161CG
TESTING & CODE
COMPLIANCE
• Meet UL 1449 &
498 requirements,
file E111219,
UL 498 requirements
MATERIAL
CHARACTERISTICS
Flammability
rating: VO
Temperature Rating:
-20°C to 60°C
S-2
TAPS AND
ADAPTERS
COMMERCIAL
RESIDENTIAL
Power Strips
Surge Protection Power Strip
FEATURES
■ Portable strip provides 7 surge-protected
outlets anywhere for stereos,TVs, computers
or other electronic-based equipment.
■ Full mode surge protection for hot to neutral,
hot to ground and neutral to ground.
■ Made of high impact-resistant thermoplastic
for long-term durability.
2 Pole, 3 Wire Grounding
15A 125V
Cord-Connected
■ Comes complete with 14/3 SJT 4-ft
portable cord.
■ Pilot light on/off switch indicates power
to unit.
■ Resettable 15 amp circuit breaker.
Surge Protection Power Strips
Rating Clamping Joules
WV Description Voltage Total Color Catalog No.
15 125 Full Protection 400V 70 Ivory 1176V
7 Outlet w/
Circuit Breaker
Circuit Breaker Switch Power Strip
FEATURES
■ Portable strip converts single outlet to multiple
outlets (1875W maximum).
■ Made of high impact-resistant thermoplastic
for long-term durability.
■ Circuit breaker with reset feature shuts
off power if overloaded.
Circuit Breaker Switch Power Strip
Rating
WV Description Cord Type Cord Length Color Catalog No.
15 125 7 Outlet 14/3 SJT 4' (1.22m) Ivory 1126V
15 125 6 Outlet 14/3 SJT 3' (0.91m) Ivory 1136V
1176
1126
1136
