Eaton’s Arrow Hart
Arrow Hart
Color coded locking devices
Eaton’s Arrow Hart
Color Coded
Locking Devices
Eaton’s color coded locking devices are an industry-first
solution that adds six voltage rating color codes to
locking plugs, connectors, inlets, outlets and receptacles.
Page 2
The superior safety of Eaton’s Arrow Hart locking devices has been enhanced with
color coding to provide you a quick, clear and easy way to identify your circuit voltage.
Designed to provide the long lasting, dependable service you’ve come to expect from
Arrow Hart plugs and connectors, our color coded locking devices are the perfect solution
for your commercial and industrial applications.
Features & benefits
• Six color codes consistent with IEC 60309 standard
to identify voltage ratings at a glance
• Voltage ratings are printed on device in a location
which is visible even when devices are mated
• Ergonomic ultra grip design on plugs and connectors
are easier to handle during use
• Double dovetail
cord grip provides
superior cord
alignment and
clamp force for
wire retention
Connect with Color
Find your voltage. Find your NEMA.
Find your color.
Use the chart below to find the color for your devices.
See our NEMA selector guide for our full product offering.
Voltage NEMA Color
125 V/AC L5
125/250 V/AC L10, L14, Non-NEMA
250 V/AC L6
3Ø 250 V/AC L11, L15
3ØY 120/208 V/AC L18, L21, Non-NEMA
V/AC L7
277
480 V/AC L8
3Ø 480 V/AC L16
3ØY 277/480 V/AC L19, L22
3Ø 600 V/AC L17
3ØY 347/600 V/AC L20, L23
Perfect for: Welding, generators, power distribution units, stage and entertainment equipment,
trade shows, conventions, temporary power, industrial machinery and equipment
Arrow Hart color coded ultra grip locking devices
Plug
Connector
20A Industrial grade locking devices
Pole-Wire NEMA V/AC Color Plug Connector Receptacle
L5-20 125
L5-20R L5-20P
L6-20 250
L6-20R L6-20P
2P-3W
L7-20 277
L7-20R L7-20P
L8-20 480
L8-20R L8-20P
Yellow
& black
Blue
& black
Gray
& black
Red
& black
AHCL520P AHCL520C AHCL520R AHCL520FI AHCL520FO
AHCL620P AHCL620C AHCL620R AHCL620FI AHCL620FO
AHCL720P AHCL720C AHCL720R AHCL720FI AHCL720FO
AHCL820P AHCL820C AHCL820R AHCL820FI AHCL820FO
Flanged
Inlet
Flanged
Outlet
2
Page 3

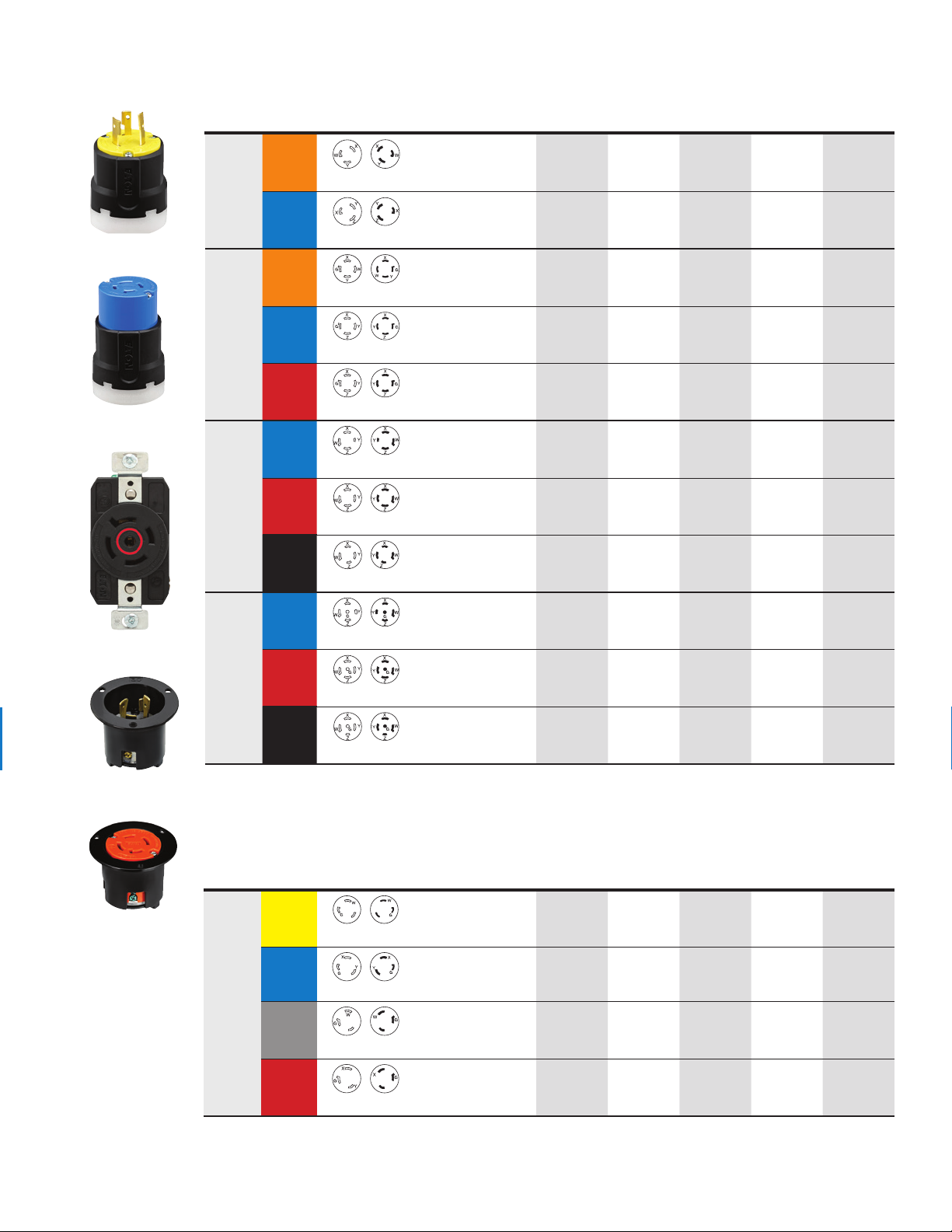

Arrow Hart color coded ultra grip locking devices
20A Industrial grade locking devices
Pole-Wire NEMA V/AC Color Plug Connector Receptacle
Flanged
Inlet
Flanged
Outlet
Plug
Connector
L10-20 125/250
L10-20R L10-20P
3P-3W
L11-20
L11-20R L11-20P
L14-20 125/250
L14-20R L14-20P
L15-20
3P-4W
L15-20R L15-20P
L16-20
L16-20R L16-20P
L18-20
L18-20R L18-20P
L19-20
4P-4W
L19-20R L19-20P
L20-20
L20-20R L20-20P
3ØY
250
3ØY
250
3ØY
480
3ØY
12Ø/208
3ØY
277/480
3ØY
347/600
Orange
& black
Blue
& black
Orange
& black
Blue
& black
Red
& black
Blue
& black
Red
& black
Black
& black
AHCL1020P AHCL1020C AHCL1020R AHCL1020FI AHCL1020FO
AHCL1120P AHCL1120C AHCL1120R AHCL1120FI AHCL1120FO
AHCL1420P AHCL1420C AHCL1420R AHCL1420FI AHCL1420FO
AHCL1520P AHCL1520C AHCL1520R AHCL1520FI AHCL1520FO
AHCL1620P AHCL1620C AHCL1620R AHCL1620FI AHCL1620FO
AHCL1820P AHCL1820C AHCL1820R AHCL1820FI AHCL1820FO
AHCL1920P AHCL1920C AHCL1920R AHCL1920FI AHCL1920FO
AHCL2020P AHCL2020C AHCL2020R AHCL2020FI AHCL2020FO
Receptacle
Flanged inlet
Flanged outlet
Blue
& black
Red
& black
Black
& black
AHCL2120P AHCL2120C AHCL212R AHCL2120FI AHCL2120FO
AHCL2220P AHCL2220C AHCL2220R AHCL2220FI AHCL2220FO
AHCL2320P AHCL2320C AHCL2320R AHCL2320FI AHCL2320FO
4P-5W
L21-20
L22-20
L23-20
L21-20R L21-20P
L22-20R L22-20P
L23-20R L23-20P
3ØY
120/208
3ØY
277/480
3ØY
347/600

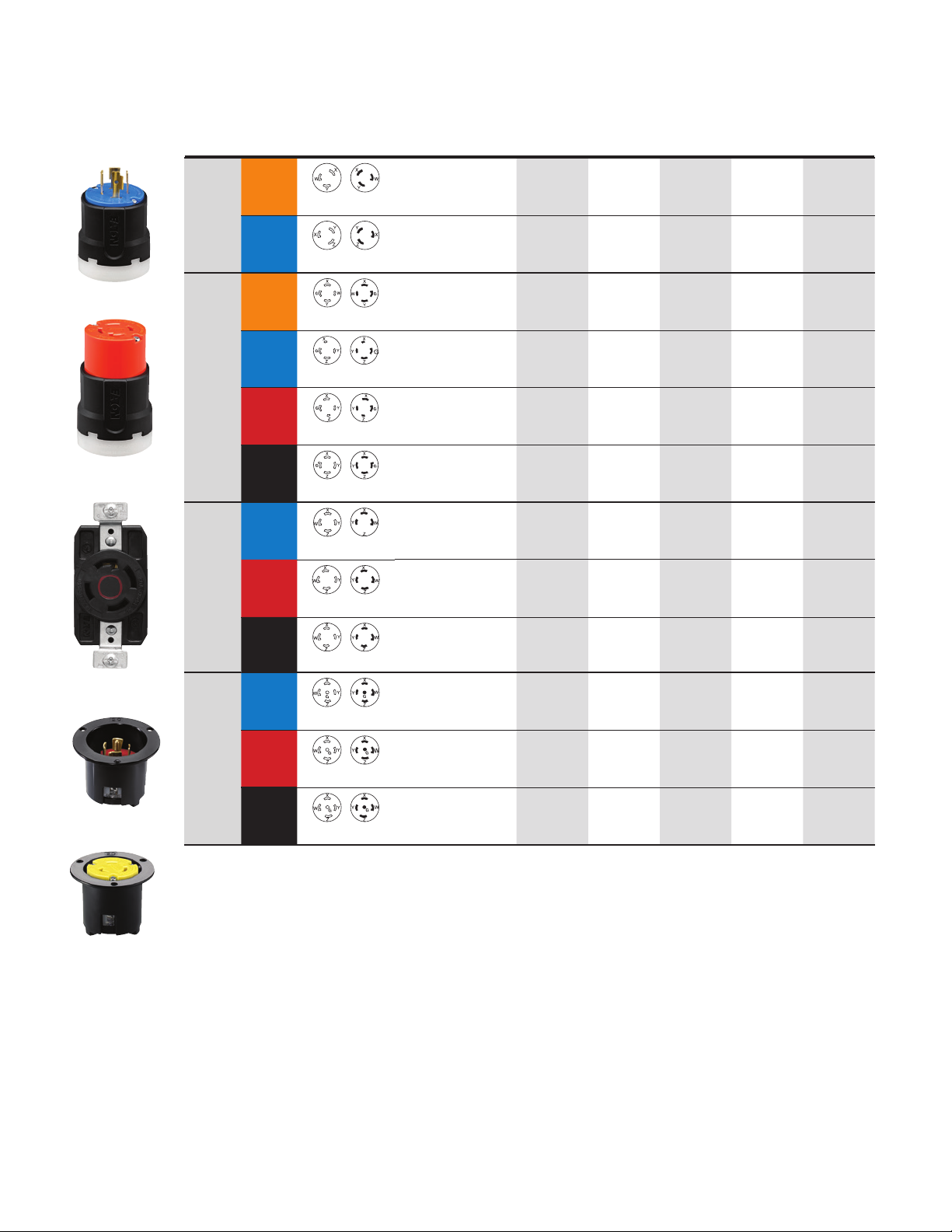

30A Industrial grade locking devices
Pole-Wire NEMA V/AC Color Plug Connector Receptacle
L5-30 125
L5-30R L5-30P
L6-30 250
L6-30R L6-30P
2P-3W
L7-30 277
L7-30R L7-30P
Yellow
& black
Blue
& black
Gray
& black
AHCL530P AHCL530C AHCL530R AHCL530FI AHCL530FO
AHCL630P AHCL630C AHCL630R AHCL630FI AHCL630FO
AHCL730P AHCL730C AHCL730R AHCL730FI AHCL730FO
Flanged
Inlet
Flanged
Outlet
L8-30 480
L8-30R L8-30P
Red
& black
AHCL830P AHCL830C AHCL830R AHCL830FI AHCL830FO
Page 4
Arrow Hart color coded ultra grip locking devices
Plug
Connector
30A Industrial grade locking devices
Pole-Wire NEMA V/AC Color Plug Connector Receptacle
L10-30 125/250
L10-30R L10-30P
3P-3W
L11-30
L11-30R L11-30P
L14-30 125/250
L14-30R L14-30P
L15-30
L15-30R L15-30P
3P-4W
L16-30
L16-30R L16-30P
L17-30
L17-30R L17-30P
L18-30
L18-30R L18-320P
3ØY
250
3ØY
250
3ØY
480
3ØY
600
3ØY
120/208
Orange
& black
Blue
& black
Orange
& black
Blue
& black
Red
& black
Black
& black
Blue
& black
AHCL1030P AHCL1030C AHCL1030R AHCL1030FI AHCL1030FO
AHCL1130P AHCL1130C AHCL1130R AHCL1130FI AHCL1130FO
AHCL1430P AHCL1430C AHCL1430R AHCL1430FI AHCL1430FO
AHCL1530P AHCL1530C AHCL1530R AHCL1530FI AHCL1530FO
AHCL1630P AHCL1630C AHCL1630R AHCL1630FI AHCL1630FO
AHCL1730P AHCL1730C AHCL1730R AHCL1730FI AHCL1730FO
AHCL1830P AHCL1830C AHCL1830R AHCL1830FI AHCL1830FO
Flanged
Inlet
Flanged
Outlet
Receptacle
Flanged inlet
Flanged outlet
L19-30
4P-4W
L20-30
L21-30
L22-30
4P-5W
L23-30
L19-30R L19-30P
L20-30R L20-30P
L21-30R L21-30P
L22-30R L22-30P
L23-30R L23-30P
3ØY
277/480
3ØY
347/600
3ØY
120/208
3ØY
277/480
3ØY
347/600
Red
& black
Black
& black
Blue
& black
Red
& black
Black
& black
AHCL1930P AHCL1930C AHCL1930R AHCL1930FI AHCL1930FO
AHCL2030P AHCL2030C AHCL2030R AHCL2030FI AHCL2030FO
AHCL2130P AHCL2130C AHCL2130R AHCL2130FI AHCL2130FO
AHCL2230P AHCL2230C AHCL2230R AHCL2230FI AHCL2230FO
AHCL2330P AHCL2330C AHCL2330R AHCL2330FI AHCL2330FO
