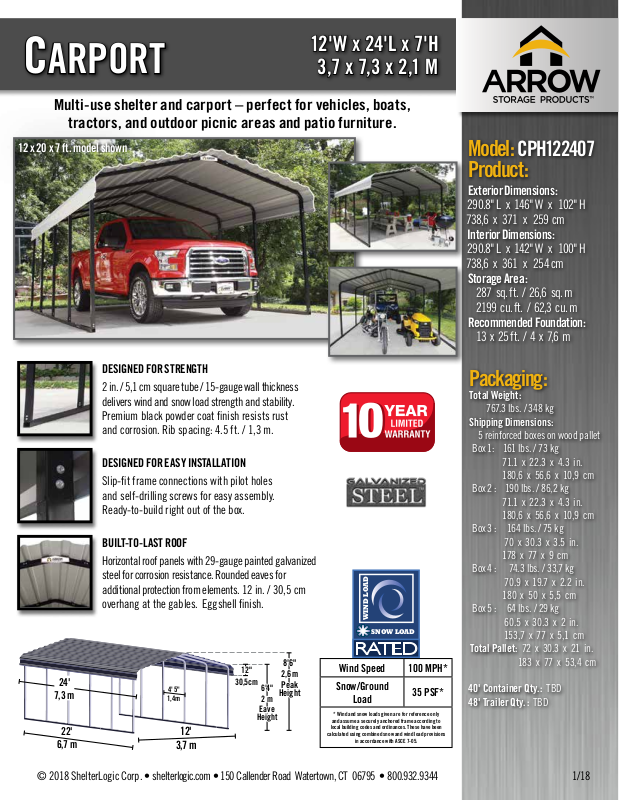

Page 1
12'W x 24'L x 7'H
CARPORT
Multi-use shelter and carport – perfect for vehicles, boats,
tractors, and outdoor picnic areas and patio furniture.
12 x 20 x 7 ft. model shown
3,7 x 7,3 x 2,1 M
Model: CPH122407
Product:
Exterior Dimensions:
290.8" L x 146" W x 102" H
738,6 x 371 x 259 cm
Interior Dimensions:
290.8" L x 142" W x 100" H
738,6 x 361 x 254 cm
Storage Area:
287 sq. ft. / 26,6 sq. m
2199 cu. ft. / 62,3 cu. m
Recommended Foundation:
13 x 25 ft. / 4 x 7,6 m
24'
7,3 m
22'
6,7 m
DESIGNED FOR STRENGTH
2 in. / 5,1 cm square tube / 15-gauge wall thickness
delivers wind and snow load strength and stability.
Premium black powder coat finish resists rust
and corrosion. Rib spacing: 4.5 ft. / 1,3 m.
DESIGNED FOR EASY INSTALLATION
Slip-fit frame connections with pilot holes
and self-drilling screws for easy assembly.
Ready-to-build right out of the box.
BUILT-TO-LAST ROOF
Horizontal roof panels with 29-gauge painted galvanized
steel for corrosion resistance. Rounded eaves for
additional protection from elements. 12 in. / 30,5 cm
overhang at the gables. Eggshell finish.
4' 5"
1,4m
12"
30,5cm
12'
3,7 m
6'4"
2 m
Eave
Height
8'6"
2,6 m
Peak
Height
WIND LOAD
SNOW LOAD
Wind Speed 100 MPH*
Snow/Ground
Load
* Wind and snow loads given are for reference only
and assume a securely anchored frame according to
local building codes and ordinances. These have been
calculated using combined snow and wind load provisions
in accordance with ASCE 7-05.
35 PSF*
Packaging:
Total Weight:
767.3 lbs. / 348 kg
Shipping Dimensions:
5 reinforced boxes on wood pallet
Box 1: 161 lbs. / 73 kg
71.1 x 22.3 x 4.3 in.
180,6 x 56,6 x 10,9 cm
Box 2 : 190 lbs. / 86,2 kg
71.1 x 22.3 x 4.3 in.
180,6 x 56,6 x 10,9 cm
Box 3 : 164 lbs. / 75 kg
70 x 30.3 x 3.5 in.
178 x 77 x 9 cm
Box 4 : 74.3 lbs. / 33,7 kg
70.9 x 19.7 x 2.2 in.
180 x 50 x 5,5 cm
Box 5 : 64 lbs. / 29 kg
60.5 x 30.3 x 2 in.
153,7 x 77 x 5,1 cm
Total Pallet: 72 x 30.3 x 21 in.
183 x 77 x 53,4 cm
40' Container Qty.: TBD
48' Trailer Qty.: TBD
© 2018 ShelterLogic Corp. • shelterlogic.com • 150 Callender Road Watertown, CT 06795 • 800.932.9344 1/18
