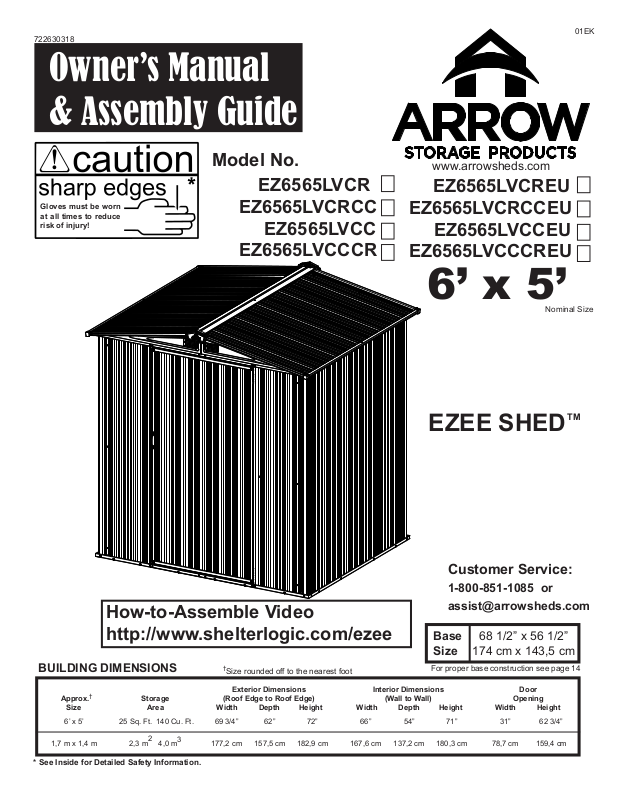

Arrow NK1382 Installation & Assembly

722630318

Owner’s Manual
& Assembly Guide

01EK

Gloves must be worn
at all times to reduce
risk of injury!

Model No.

EZ6565LVCR
EZ6565LVCRCC
EZ6565LVCC
EZ6565LVCCCR

EZ6565LVCREU
EZ6565LVCRCCEU
EZ6565LVCCEU
EZ6565LVCCCREU

www.arrowsheds.com

6’ x 5’

Nominal Size

TM

EZEE SHED

How-to-Assemble Video
http://www.shelterlogic.com/ezee

BUILDING DIMENSIONS

†

Approx.

Size

6’ x 5’ 25 Sq. Ft. 140 Cu. Ft. 69 3/4” 62” 72” 66” 54” 71” 31” 62 3/4”

1,7 m x 1,4 m 2,3 m2 4,0 m

* See Inside for Detailed Safety Information.

Storage

Area

3

Customer Service:

1-800-851-1085 or

[e-mail]

Base
Size

†

Size rounded off to the nearest foot

Exterior Dimensions

(Roof Edge to Roof Edge)

Width Depth Height

177,2 cm 157,5 cm 182,9 cm 167,6 cm 137,2 cm 180,3 cm 78,7 cm 159,4 cm

Interior Dimensions

(Wall to Wall)

Width Depth Height

For proper base construction see page 14

68 1/2” x 56 1/2”

174 cm x 143,5 cm

Door

Opening

Width Height

GB: Assembly manual in additional languages available online.

P/N 6PP722621216

Scan QR code below to access.

FR: Manuel de montage disponible en ligne dans d’autres langues.
Pour y accéder, scannez le code QR ci-dessous.

SP: Manual de montaje en idiomas adicionales disponible online.
Escanee el código QR a continuación para acceder.

DE: Montageanleitung in zusätzlichen Sprachen online verfügbar.
Scannen Sie den QR-Code unten, um darauf zuzugreifen.

I T: Manuale dell’assemblea in altre lingue disponibile online.
Per accedere effettua la scansione del codice QR in basso.

P T: Manual de montagem disponível em outros idiomas online.
Digitalize o código QR abaixo para obter acesso.

D T: Samlingshåndbog i yderligere sprog til rådighed online.
Scan QR kode nedenunder for at få adgang.

SK:Nainternetejekdispozíciinávodnazostavenievďalšíchjazykoch.

Dostanete sa k nemu naskenovaním kódu QR.

CZ:Návodkmontáživdalšíchjazycíchjekdispozicivonlineverzi.
 PřístupzískáteponaskenováníQRkóduníže.

HU: Azösszeszerelésiútmutatótovábbinyelvekeniselérhetőonline.

A hozzáféréshez olvassa be az alábbi QR-kódot.

GR: Υπάρχειδιαθέσιμοστοδιαδίκτυοτοεγχειρίδιοσυναρμολόγησης
 σεπερισσότερεςγλώσσες.Σαρώστετονπαρακάτωκώδικα 
 QRγιανααποκτήσετεπρόσβαση.

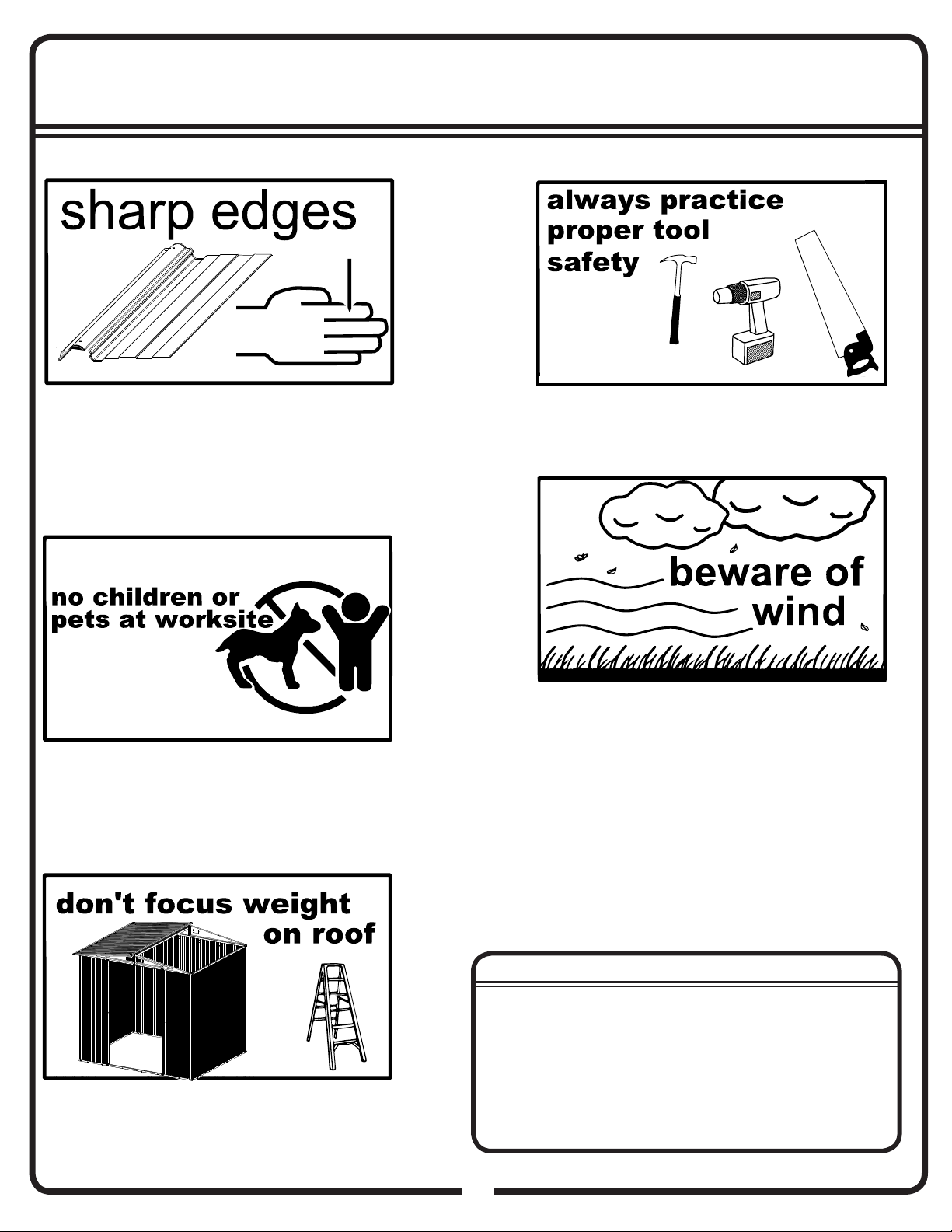

SAFETY PRECAUTIONS...

Safety precautions MUST be followed at all times throughout the construction of your building!

02BA

Care must be taken when handling various
pieces of your building since many contain
sharp edges. Please wear work gloves,
eye protection and long sleeves when
assembling or performing any maintenance
on your building.

Keep children and pets away from the
worksite during construction and until the
building is completely assembled. This will
help avoid distractions and any accidents
which may occur.

Practice caution with the tools being used in
the assembly of this building. Be especially
familiar with the operation of all power tools.

Do NOT attempt to assemble your building
on a windy day. The large panels can catch
the wind like a “sail”, causing them to be

whipped around making construction diffi cult

and unsafe.

Do NOT attempt to assemble your building
before double checking that you have all the
parts indicated in the parts lists (page 9) as
well as all hardware (page 8). Any building
left partially assembled may be seriously
damaged by even light winds.

NEVER concentrate your weight on the
roof of the building. When using a step
ladder make sure that it is fully open and
on even ground before climbing on it.

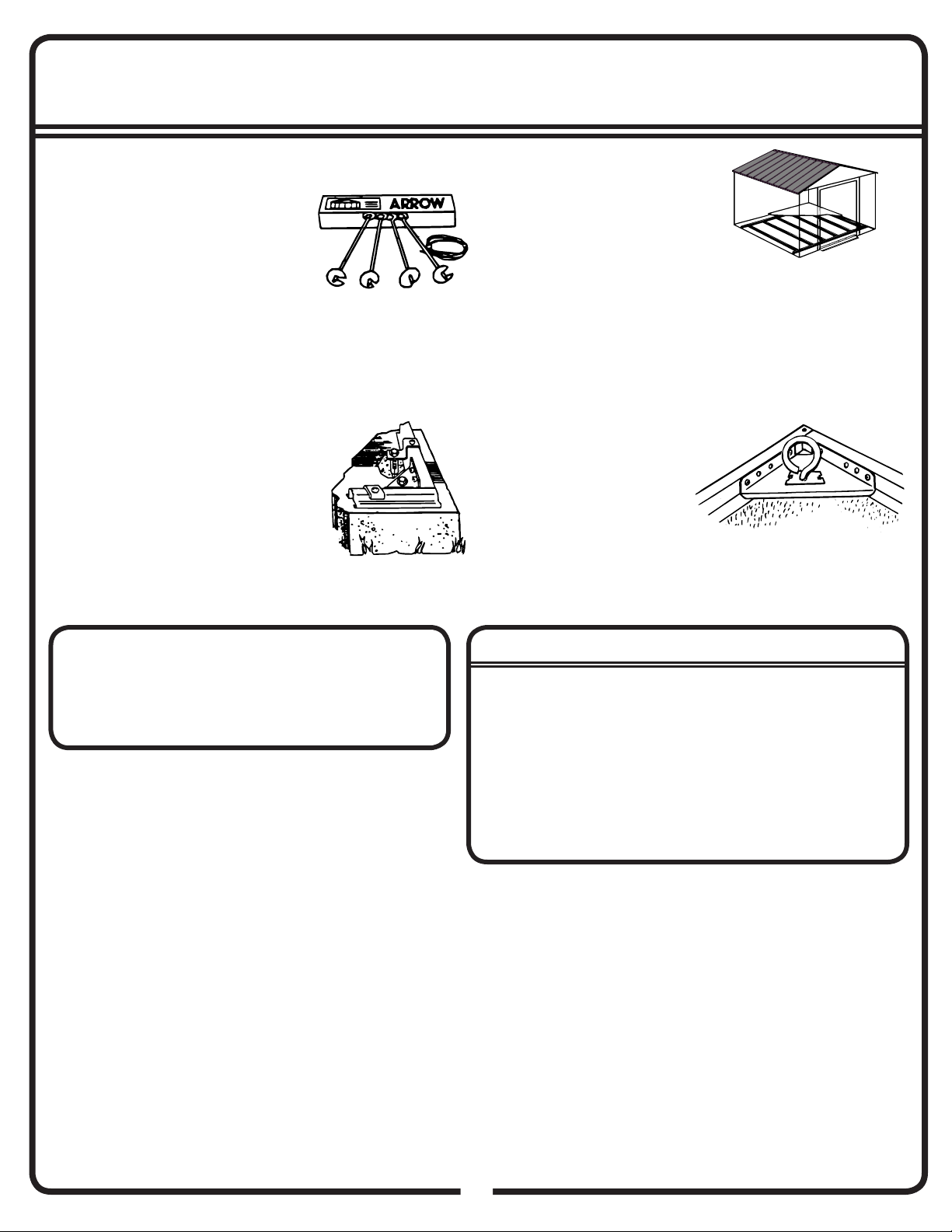

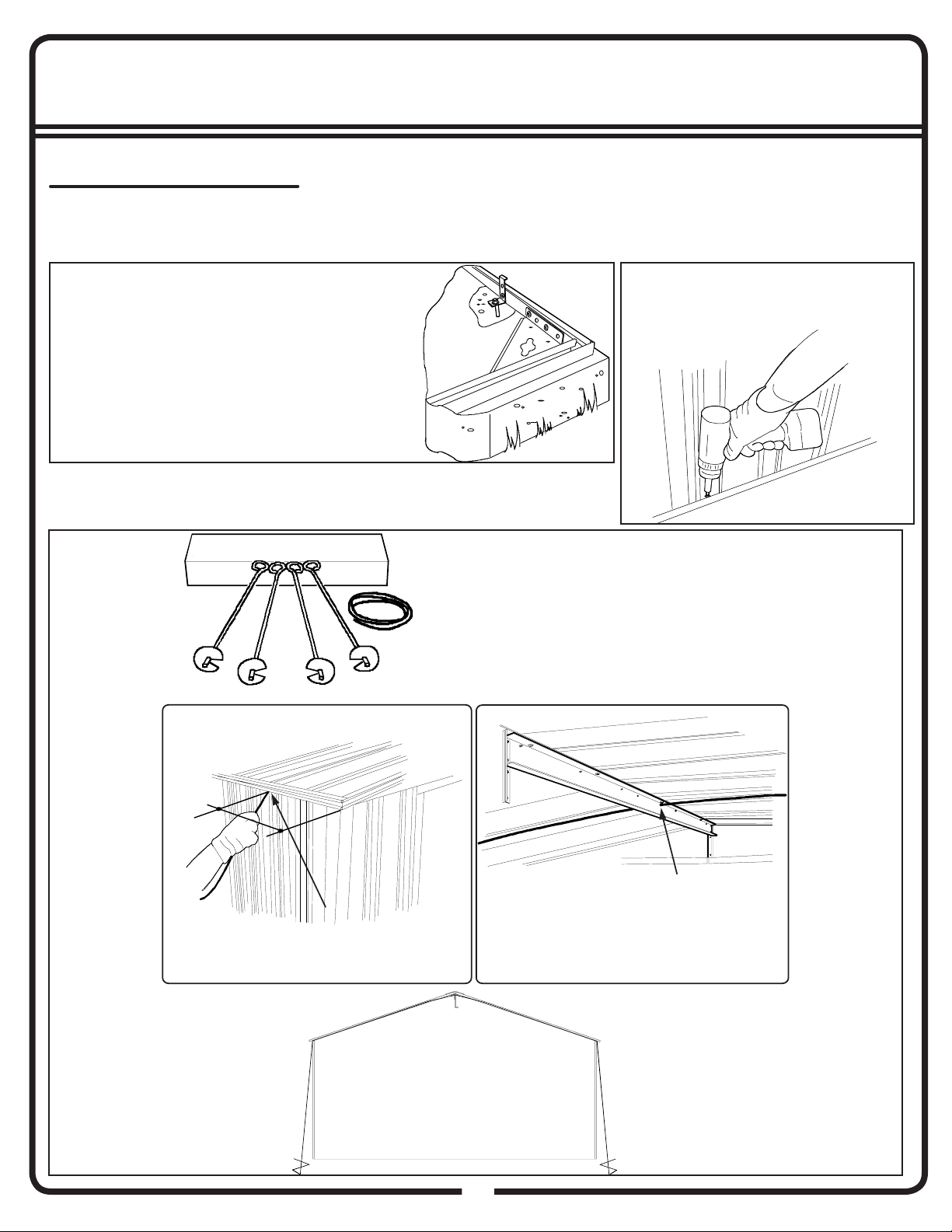

IMPORTANT NOTE ON ANCHORING

• Your building MUST be anchored to prevent wind
damage. An anchoring kit is not supplied with your
building and you have many options when it comes to
anchoring. See anchoring page for more info.

• You must also have a temporary anchoring system in
place in case you need to take a break from assembly.
See page 4 for more info.

2

ASSEMBLY TIPS & TOOLS

Watch the Weather Closely: Be sure the day you choose to install your building is dry and calm.

Do NOT attempt to assemble your building on a windy day. Be careful on wet or muddy ground.

Use Teamwork: Two or more people are required to assemble your building. One person can hold

the parts or panels in place while the other person fastens them together and handles the tools. This
makes the process of assembling your building faster and safer.

Tools and Materials: Here is a list of some basic tools and materials you will need to assemble

your building. Decide which method of anchoring and the type of base you will use to make a complete
list of the materials you will need.

03A

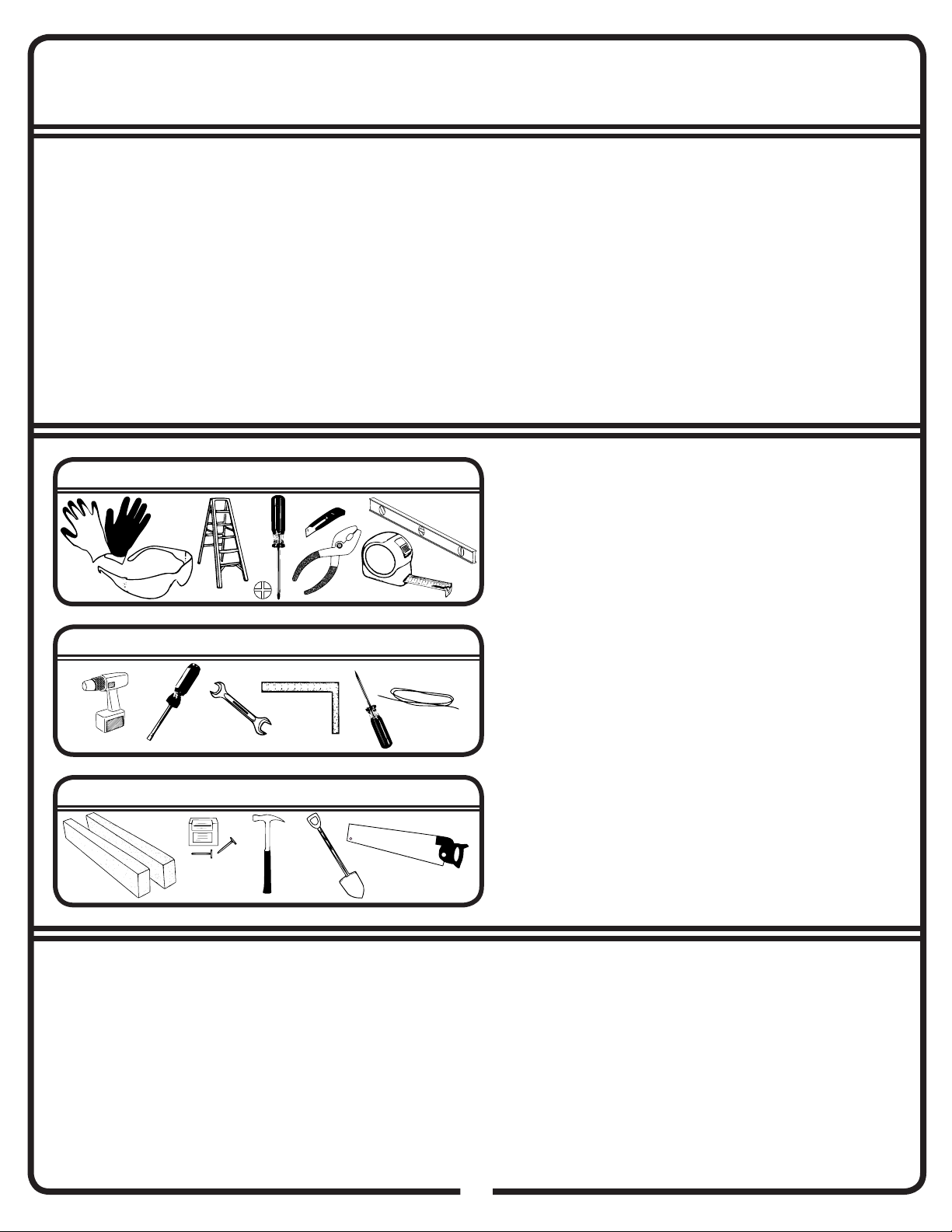

WHAT YOU NEED

RECOMMENDED TIME SAVERS

BASE PREPARATION TOOLS

• Work Gloves

• Safety Glasses

• Step Ladder

• No. 2 Phillips Screwdriver (Magnetic Tip Preferred)

• Utility Knife or Scissors

• Pliers

• Carpenter’s Level

• Tape Measure

• Power Drill (Cordless, Variable Speed)

• Nut Driver or Wrench

• Square

• String (for squaring the frame)

• Awl (to align holes)

• Lumber and/or Concrete

• Hammer and Nails

• Spade or Shovel

• Hand Saw or Power Saw

How to Select and Prepare Your Building Site: Before you start to assemble your

building, you will want to decide on a good location. The best location is a level area with good drainage.

• Allow enough working space so it is not diffi cult to move parts into position for assembly. Be sure there will be enough

space at the entrance for the doors to completely open. Also, there needs to be enough space outside the building to be
able to fasten the panel screws from the outside.

• Before assembling any parts, your base should be constructed and an anchoring system should be ready to use.

3

04BA

FREQUENTLY ASKED QUESTIONS

Q. How long will it take to assemble the building?
A. Assembly time depends on a variety of factors, including roof design, tools available, DIY skill and the pace

at which you work. Guidelines for each shed assembly are approximate AFTER completion of the base, and
assume two or more people working on the assembly. Generally, you should plan on at least one day working with
someone who can assist you; again, after constructing the base. Refer to the clock icons on each product page

on the website for specifi c time estimates.

Q . How do I decide where to put my shed?
A. The key to a successful assembly is to make sure the shed will be square and level when built. The shed can

be assembled directly onto level ground (grass or dirt). If you have location options, choose one that is already

fl at, with good drainage to control moisture. If you don’t have a fl at, well-drained area, you need to prepare the

space. Level the area using cinder blocks, concrete, crushed gravel or other sturdy materials. Once level with good
drainage, construct your base. Using a carpenter’s level, make sure your base is level and free of bumps or ridges
to provide good support for your building.

Q. What if I can’t fi nish my building in one session?
A. If weather conditions change so that it becomes windy or rainy, it is recommended that you stop assembly until

conditions improve. This is for your safety and for protection of the shed. However, do not leave your unfi nished
construction without fi rst temporarily anchoring the walls of the shed and placing weights, such as patio blocks or

sandbags, around the walls. Failure to anchor the building if you leave it while partially assembled could result in
irreparable damage or personal injury if the building collapses.

Q. Do I need to anchor my building?
A. Yes! Fully assembled buildings should be anchored using a permanent anchoring system. If you need to leave

your building before it is completely assembled, you will need to place weights, such as patio blocks or sandbags,

around the fl oor channel.

Q. How do I temporarily anchor my building before it’s fully assembled?
A. An incomplete building must be anchored before breaking for any period of time to prevent possible damage.

•If the building is on a wood base, secure the frame with wood screws in the corners

•If the building is on a concrete base, temporarily anchor the frame in the corners

•Use patio blocks or sandbags along side of the fl oor channel as weights

•Secure the fl oor channel to the ground with ground augers or rope the frame in the corners to the ground

Q. How do I control condensation and prevent water from leaking in?
A. To minimize condensation, install a continuous, unbroken plastic vapor barrier with a thickness of 6 mil. between

exposed ground surface and the building’s base. Make sure that washers are used throughout the assembly

process. Ensure that all washers are fl ush with the panels and do not over-tighten screws, as this can crack the

washers. Silicone caulking may be used to create watertight seals at the washers and throughout the building.

4

05BA

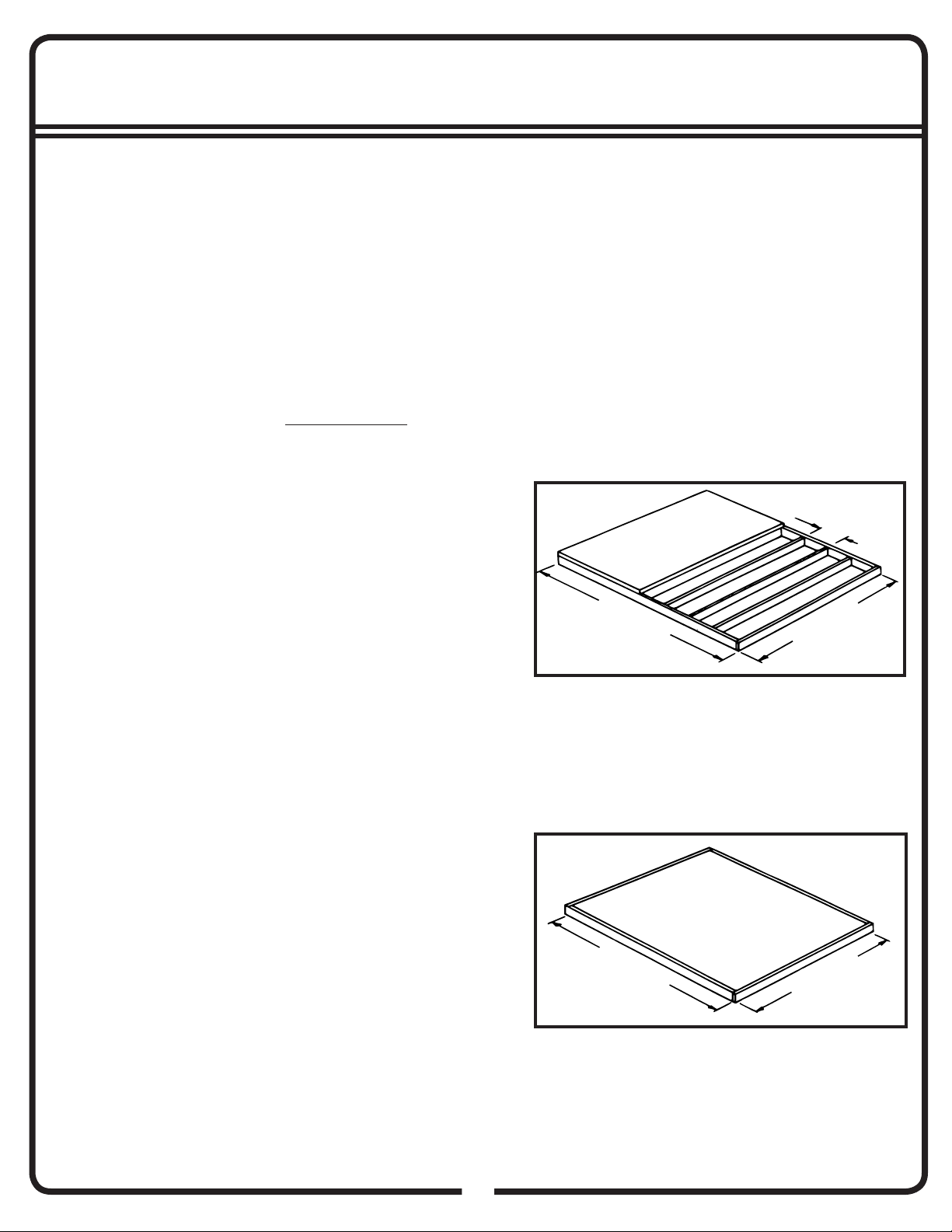

What kind of base do I use?

Q.
A. You can:

•Pour a concrete slab

•Build a wood deck/fl oor (use exterior-grade plywood)

•Use patio blocks

•Build on crushed gravel, dirt or grass

If you are building a wood deck/fl oor, an Arrow fl oor frame kit on top of your deck/fl oor assembles in minutes and
provides a fl oor frame suitable for a 5/8” exterior-grade plywood fl oor (not included). A continuous unbroken plastic

vapor barrier with a thickness of 6 mil. between the ground and the building’s base is also recommended.

Q. How should I measure for my base?
A. Shed dimensions are provided in “nominal” size. Nominal sizes are roof-edge measurements rounded to the

nearest foot and are not the measurements to use for constructing the shed base. So, carefully check the exact,

recommended base size in the specifi cations for your shed model.

Note: If you have to stop assembly for any reason before it is complete, do not leave your unfi nished construction

without fi rst temporarily anchoring the corners of the shed to your base and placing weights, such as patio blocks
or sandbags, along side the fl oor channels.

Q. Can the building be painted?
A. The buildings can be painted with an exterior-grade paint designed for use on steel. Contact your local paint

supplier for recommendations.

Q. I heard that rust might be an issue with steel; is it?
A. While bare steel can rust, with proper care this should not be an issue. For a long-lasting fi nish, periodically clean

the exterior surface and apply spray-on car wax. Touch up scratches as soon as you notice them by immediately
cleaning the area with a wire brush or emery paper, washing it and applying touch-up paint. This will minimize rust

and maintain your shed’s attractive appearance for years.

Q. How do I take care of dents in my shed?
A. Proper selection of shed size, including a suffi cient door-opening width, and proper placement of your shed

should minimize the possibility of damage. If a dent does occur, carefully push the dent out from the opposite side.
If the paint has been scratched or removed, touch up the area as soon as you notice it. Immediately clean the area

with a wire brush or emery paper, wash it and apply touch-up paint. This will minimize rust and maintain your shed’s

attractive appearance for years.

5

06BA

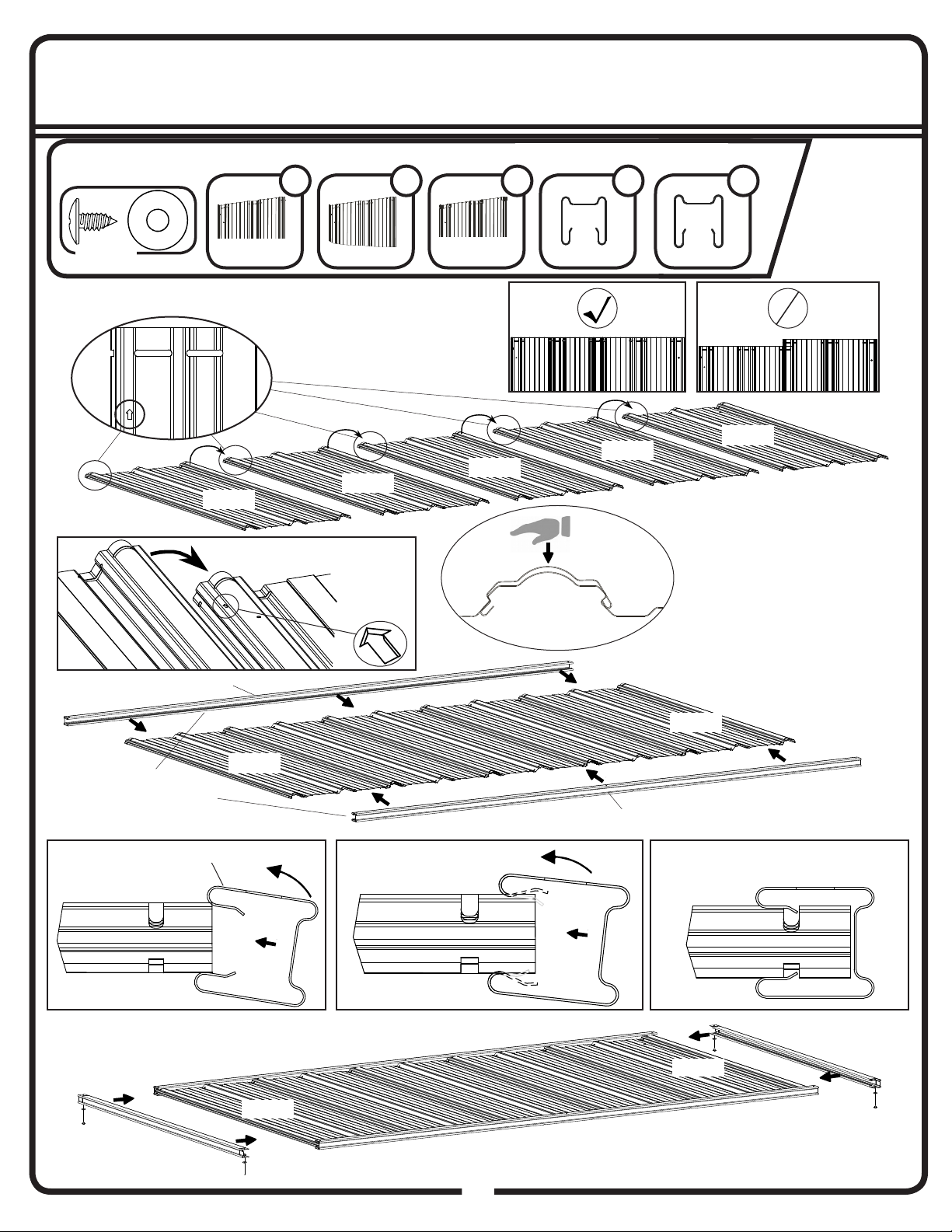

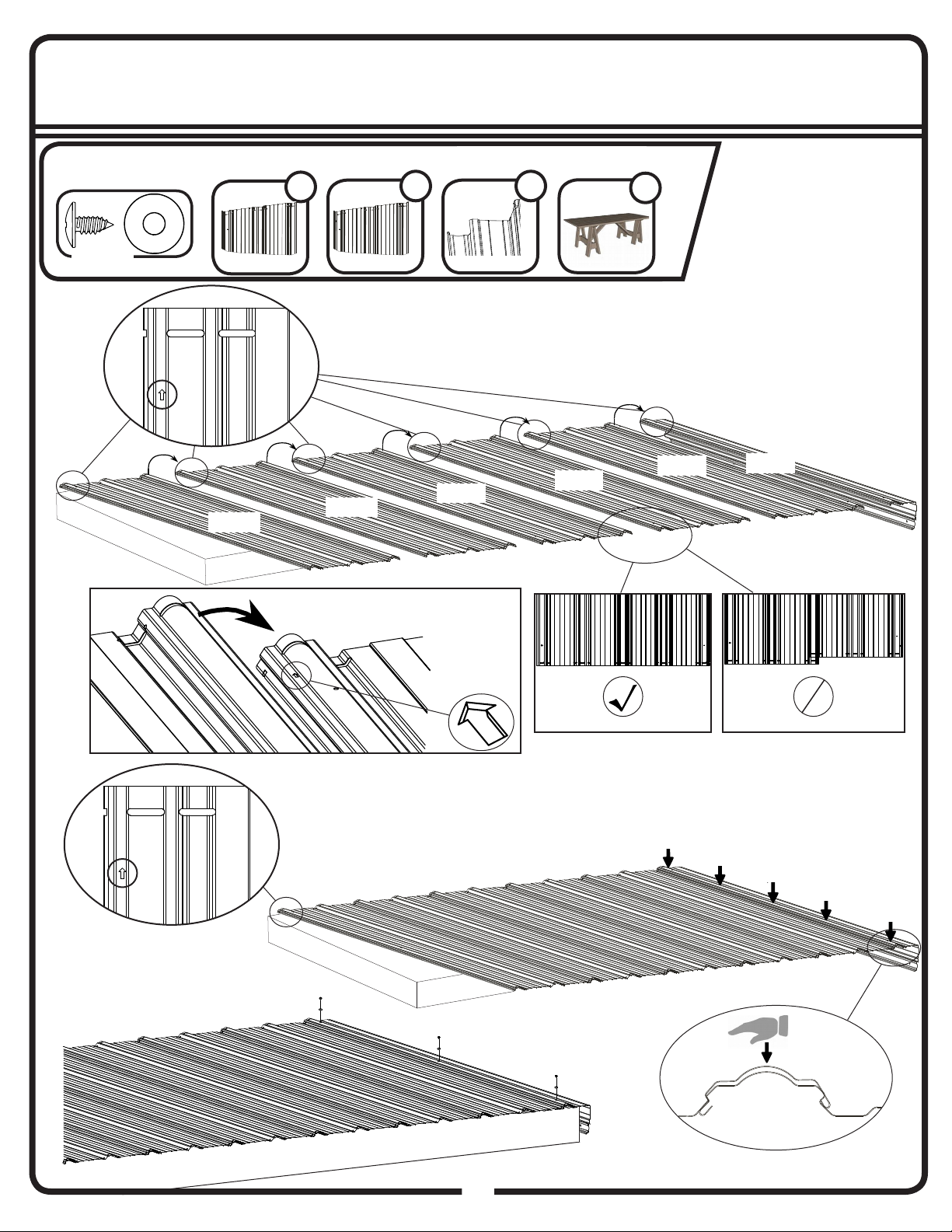

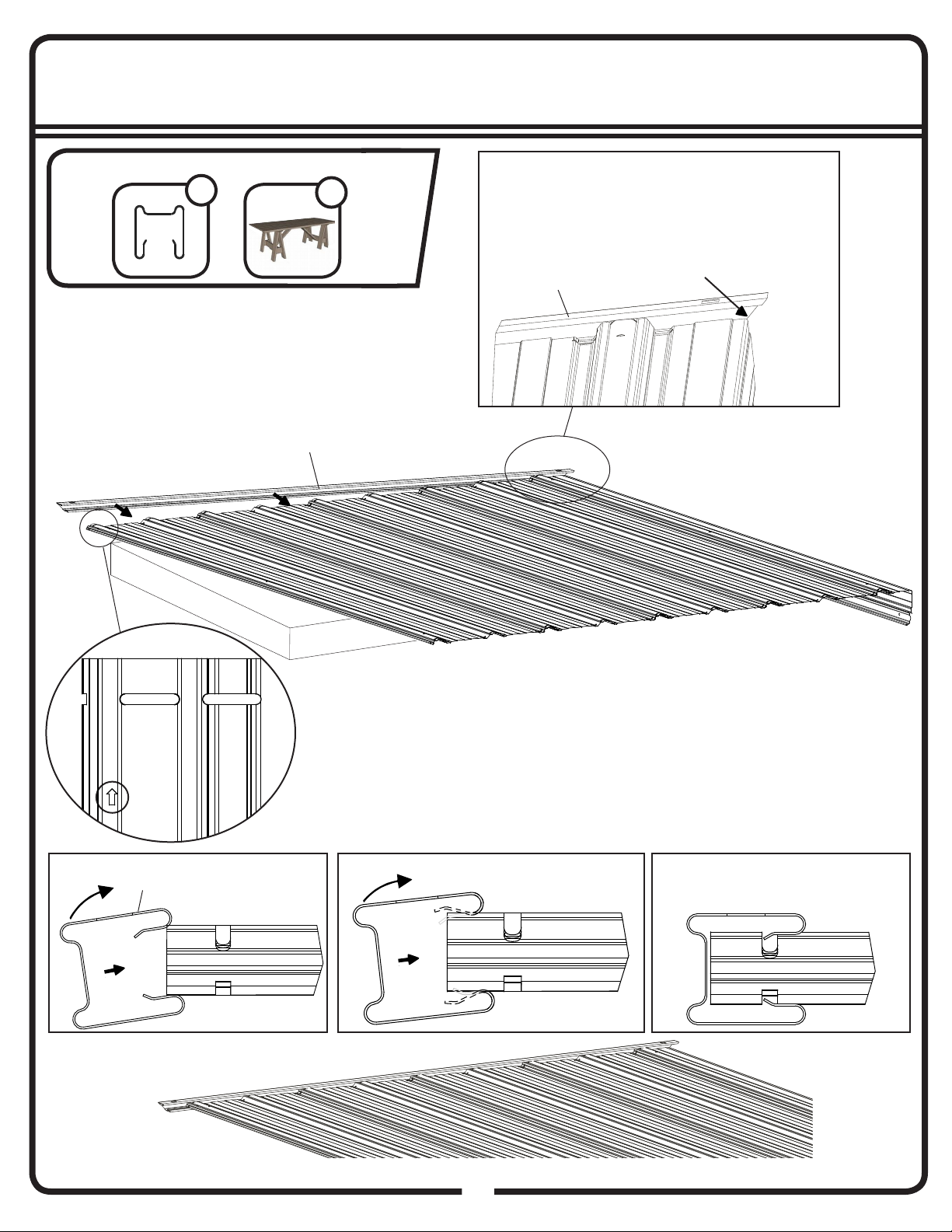

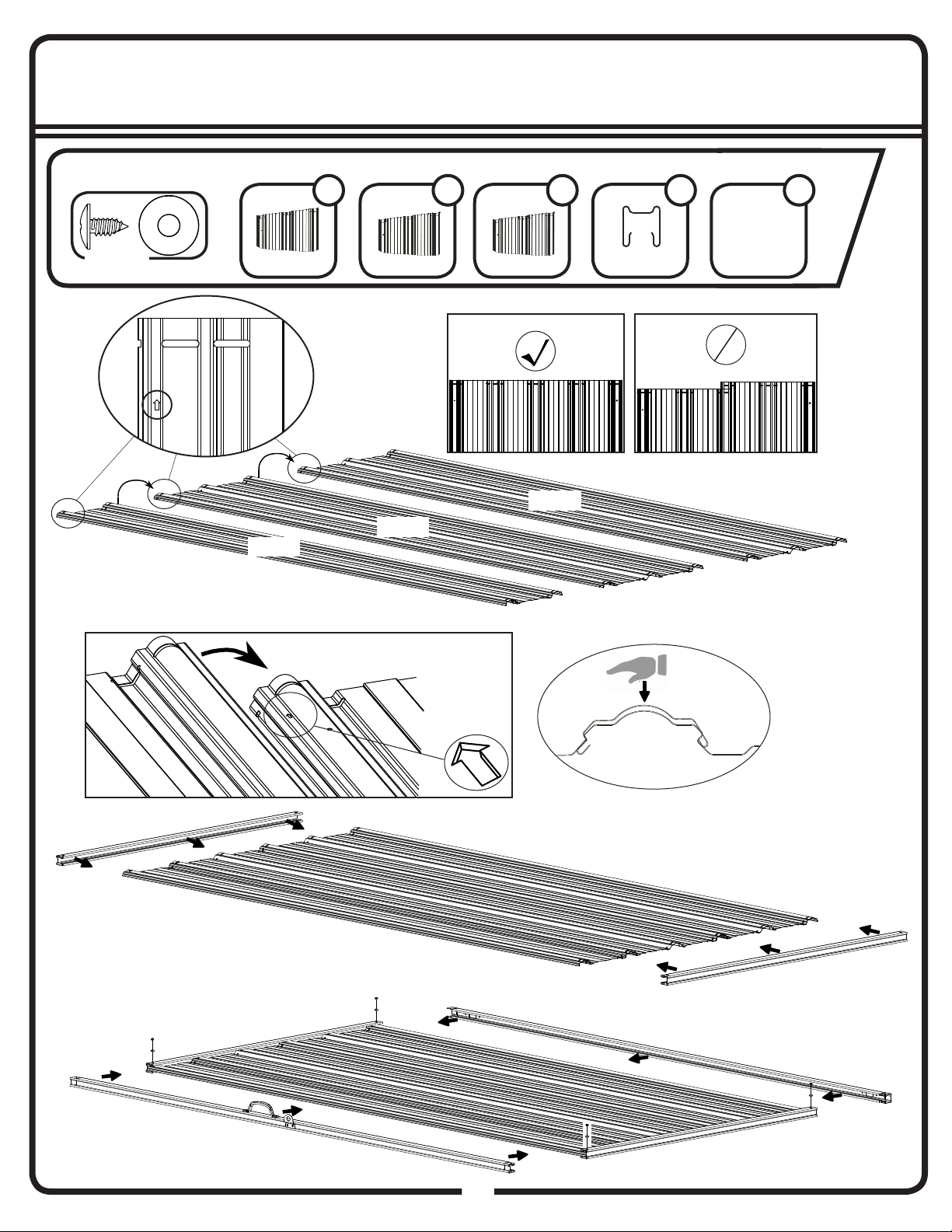

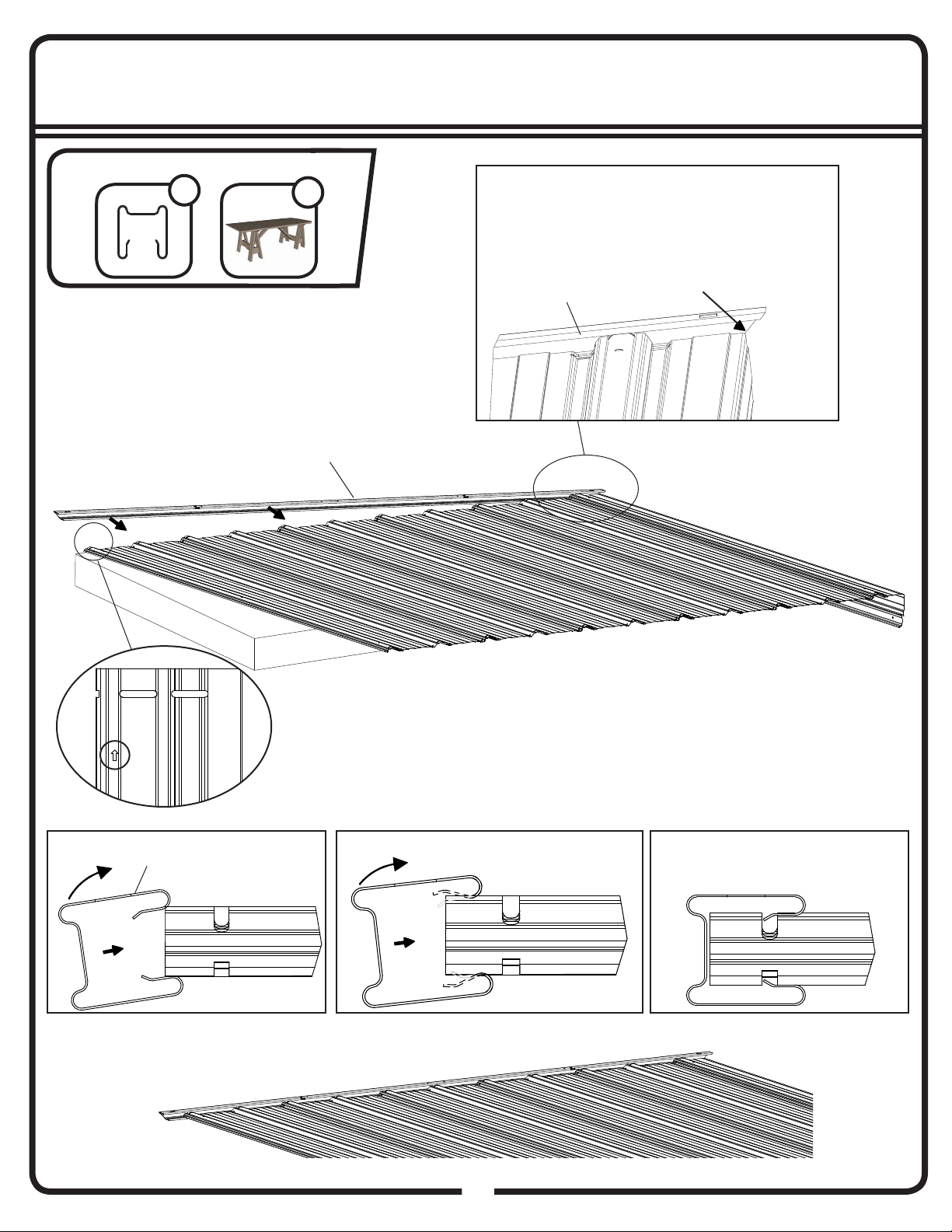

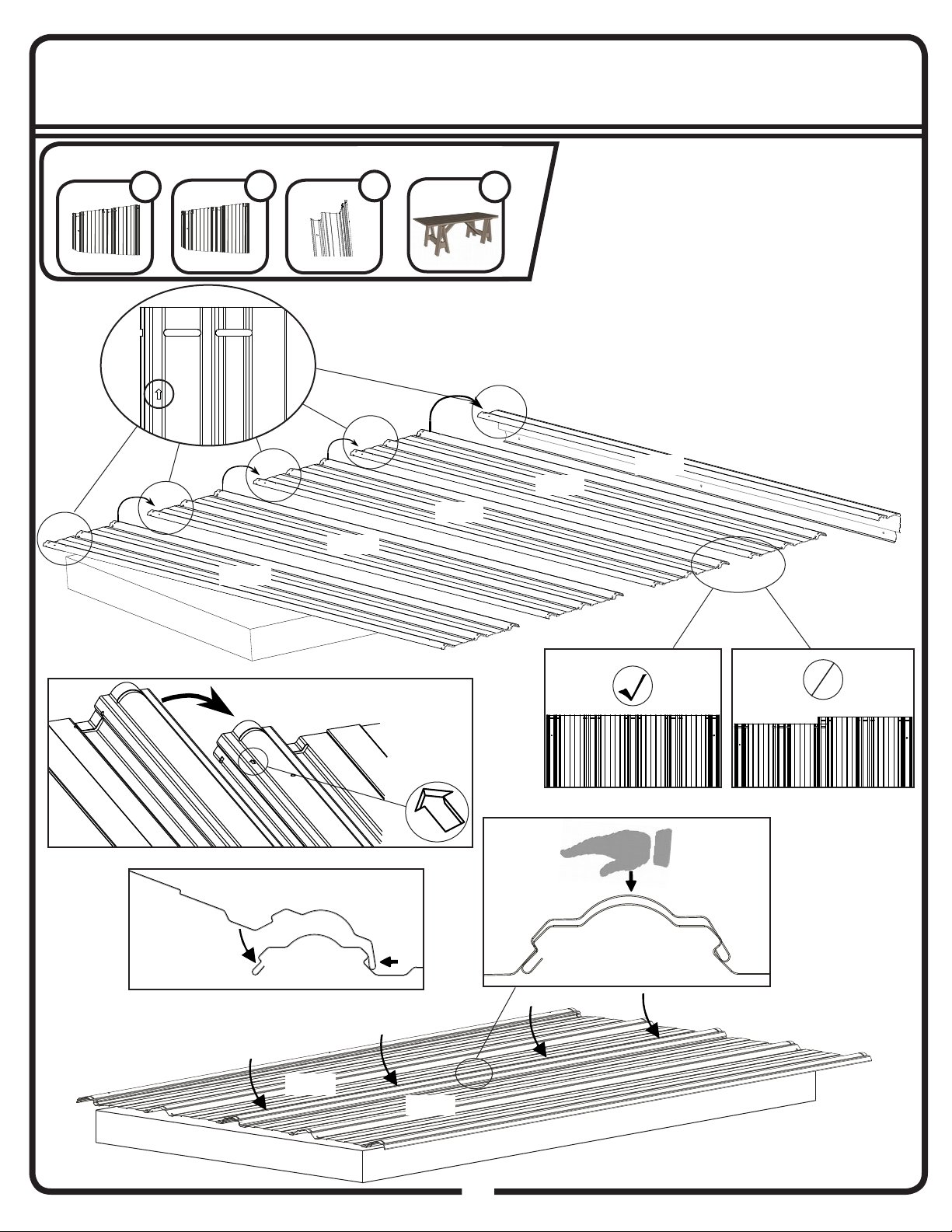

PANEL & CHANNEL ASSEMBLY TIPS

PANEL

1. Recommend a large table or sawhorses with plywood for working surface.

2. Corners will need to hang off of work surface, so an elevated fl at surface is important.

3. Arrows always point up, and always get covered.

4. Start from middle and work your way out to push together panels.

5. Panels can be pulled apart if not aligned properly. Once channels are applied, the wall assembly will be “fi nal”.

CHANNEL

6. Work from one end and angle the channel. Line up a section and then tap the channel to work it into place.

Continue working your way down the channel.

7. To watch the How-to-Assemble Video, go to: http://www.shelterlogic.com/ezee

Still have questions? Visit us online at www.arrowsheds.com to view lots of helpful tips and information
regarding all of our available products. You can also contact our Customer Service team at 1-800-851-1085
(press 1), or via e-mail at [e-mail].

Part No.

End View

Part Name

#####

Part Name

5

Quantity Needed

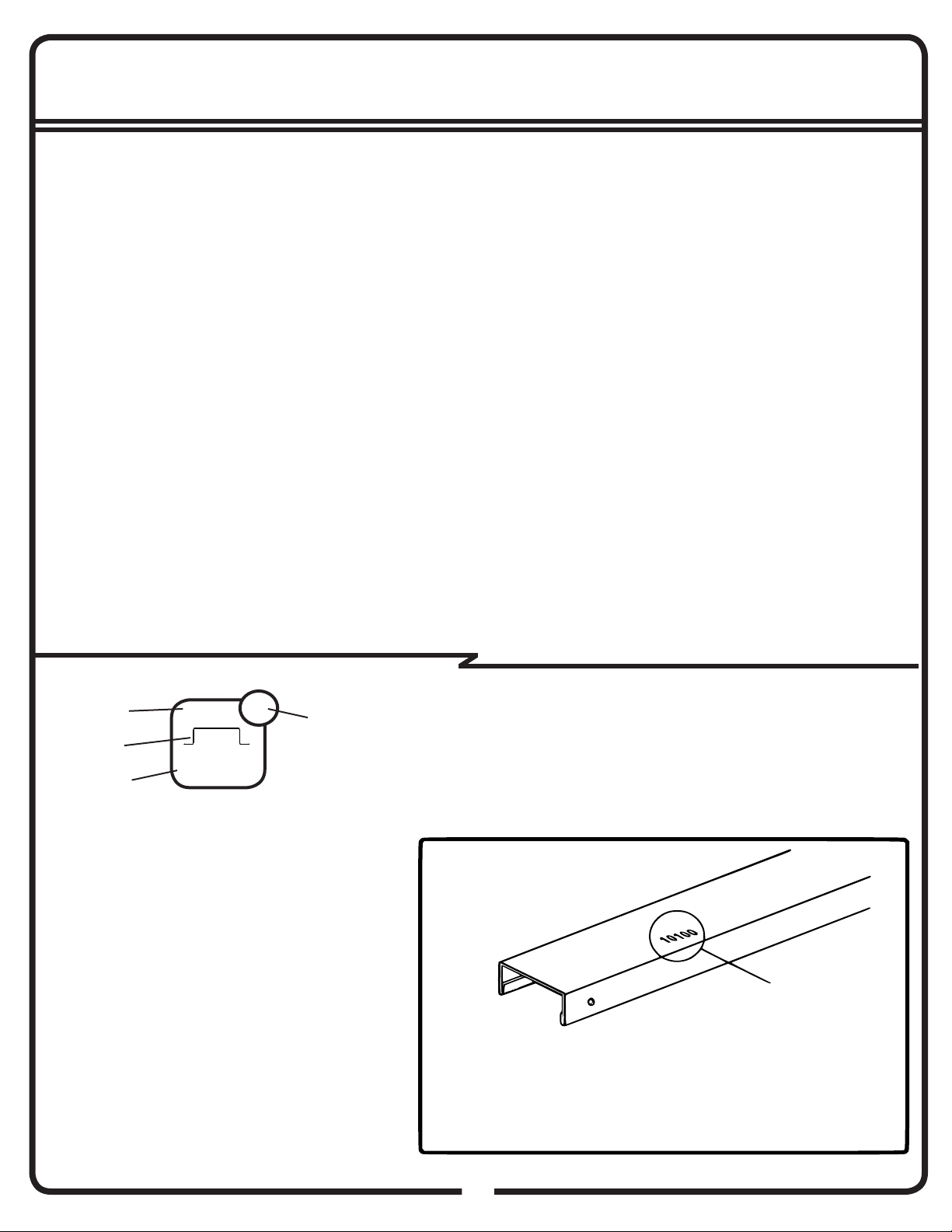

At the top of each page you will see one or more Part
Cues like the one to the left. These Part Cues are

designed to help you quickly identify the parts needed
for each step.

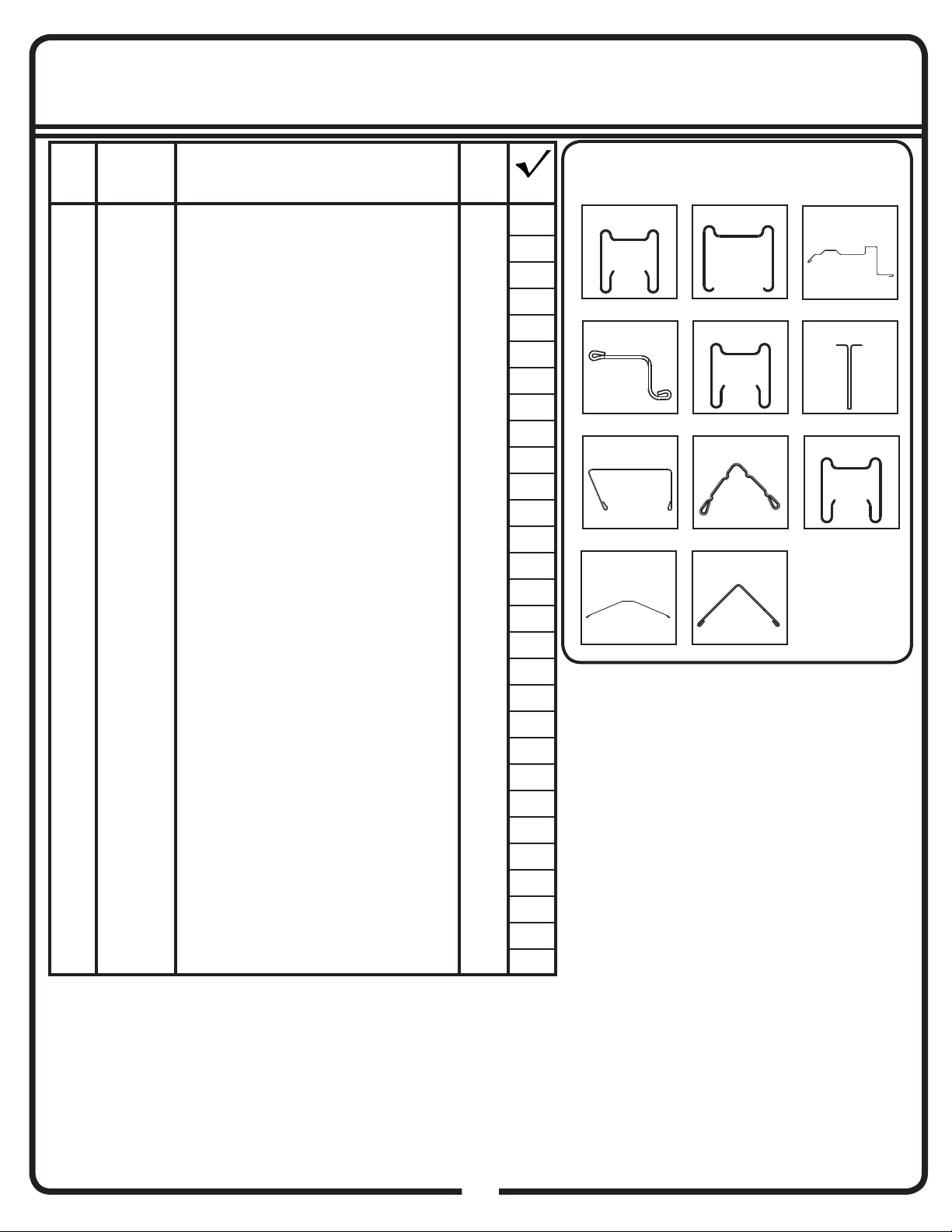

Part Numbers

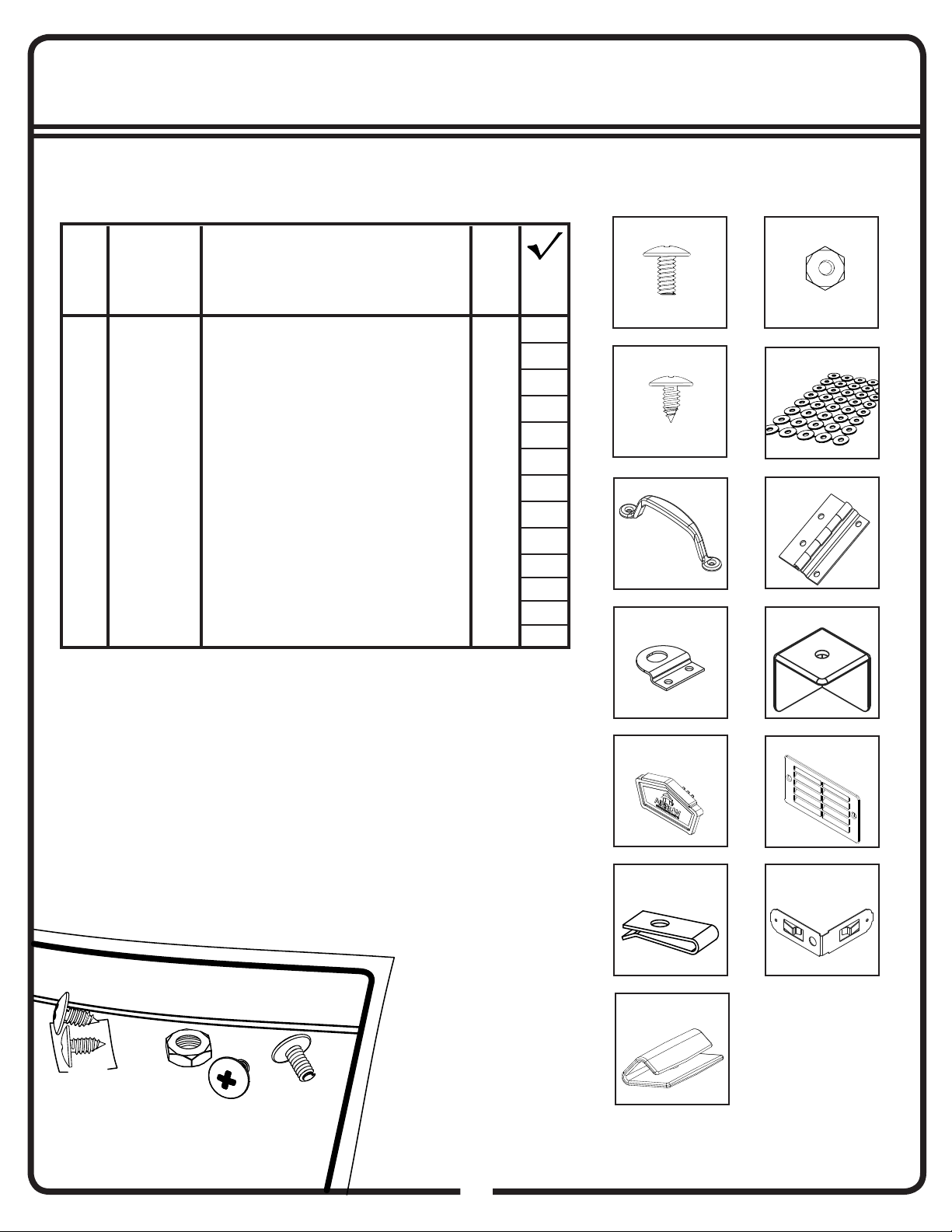

Confi rm that all hardware and parts are

present before attempting to assemble
your building.

For missing or damaged parts contact
Customer Service. Do not return to store.

Part Number

Customer Service:

1-800-851-1085 or
[e-mail]

1. Each part has an identifying part number on it.

2. Part Numbers are referenced in each step.

3. Unpainted parts have a stamped in number and painted
parts have a number that is inked on.

Remove inked on numbers with soap and water after assembly.

6

07BA

CARE & MAINTENANCE...

Exterior Care:

For a long lasting fi nish, clean and wax the exterior surface. We recommend washing with a mild soap solution. DO

NOT use power washing to clean your shed. Using a spray automotive type wax periodically on the exterior is highly
recommended if you are in a high humidity or coastal climate region.

Combustibles and corrosives must be stored in air tight containers designed for chemical and/or combustible
storage. Corrosive chemicals such as fertilizers, pesticides and herbicides should be cleaned off the interior and
exterior surfaces immediately. Rust caused by chemical damage is not covered by the warranty.

DO NOT STORE POOL CHEMICALS IN YOUR SHED - THIS VOIDS YOUR WARRANTY

Rust protection precautions may help to stop rust from developing, or stop it quickly as soon as it appears.

• Avoid nicking or scraping the coating surface, inside and out.

• Keep roof, base perimeter and door free of debris and leaves which may accumulate and retain moisture. These
can do double damage since they give off acid as they decay.

• Touch up scrapes or nicks and any area of visible rust as soon as possible. Make sure the surface is free of

moisture, oils, dirt or grime and then apply an even fi lm of high quality touch-up paint.

• Various paint manufacturers provide products for rust treatment and coverage. If surface rust does appear on
your shed we recommend treating those areas as soon as possible, following the paint supplier of your choice
instructions.

• Our customer service department can provide the paint tinting formula for matching the color of your shed. We also

have touch-up paint available for repairing small nicks and scratches.

Roof:

Keep the roof clear of leaves and snow. Heavy amounts of snow on the roof can damage the building making it
unsafe to enter.

Fasteners:

Use all washers supplied to protect against weather infi ltration and to protect the metal from being scratched by

the screws. Regularly check screws, bolts, nuts, etc., and retighten as necessary.

General:

• A plastic sheet (vapor barrier) placed under the entire fl oor area may reduce condensation.

• Wash off inked part numbers on coated panels with soap and water.

• Silicone caulking may be used for watertight seals throughout the building.

Please note, Manufacturer cannot be held responsible for any consequences due to buildings that are not installed
per these instructions, or for damage due to weather conditions or acts of God.

Keep these assembly instructions and owner’s manual for future reference.

7

HARDWARE LIST...

Hardware Views by Key No.

08BY

Key Part Part Qty.
No. No. Description List

1 65923 Bolt (#8-32 x 3/8) (10 mm) 15
2 65103 Hex Nut (#8-32) 15
3 65004 Screw (#8AB x 5/16) (8 mm) 132
4 66646 Washer Sheet 2
5 66715 Door Handle 1
6 66718 Hinge 2
7 66720 Padlock Eyelet 2
8 60H Corner Cap 4
9 66860 Peak Cap 2

10 66847 Vent Gable 4
11 66721 U-Nut (Door Clip) 4
12 10280 Corner Clip 8

13 66866 Door Closure Clip 2

1

3

5

7

2

4

6

8

The fasteners used in each step are shown
actual size at the top of each page. If you
are unsure which fastener to use, hold it up
to the picture and use the one that matches.

9

11 12

13

10

8

PARTS LIST...

Key Part Part Qty.
No. No. Description List

09BY

Selected End Views by Key No.

1 10256 Floor Channel (unpainted) 2
2 10264 Ramp (unpainted) 1
3 10275 Horizontal Door Brace (painted) 2
4 10369 Vertical Door Brace (painted) 1
5 10361 Vertical Door Brace (painted) 1
6 11052 Door Jamb 2
7 10288 Door Brace Diagonal 2
8 10262 Wall Channel (painted) 2

9 10263 Header Trim (painted) 1
10 10261 Wall Channel (painted) 2
11 10255 Floor Channel (unpainted) 2
12 10278 Gable Brace 2
13 10269 Ridge Beam 1
14 10312 Ridge Beam Angle 1
15 10267 Roof Channel (painted) 4
16 10320 Fascia Trim (painted) 4
17 10270 Ridge Cap 1
18 11048 Header Angle 1
19 10308 Door Panel 1
20 10309 Door Panel 1
21 10276 Door Panel 1
22 10316 Panel Wall 5
23 10268 Corner Panel 4
24 10307 Panel Wall 10
25 10990 Gable Right 2
26 80111 Gable Left 2
27 10252 Roof Panel 6
28 10251 Roof Panel Left 2
29 10250 Roof Panel Right 2

2 & 91,3,4,5,8

7

13 14 16

17

10,11,15 12

18

6

6

9

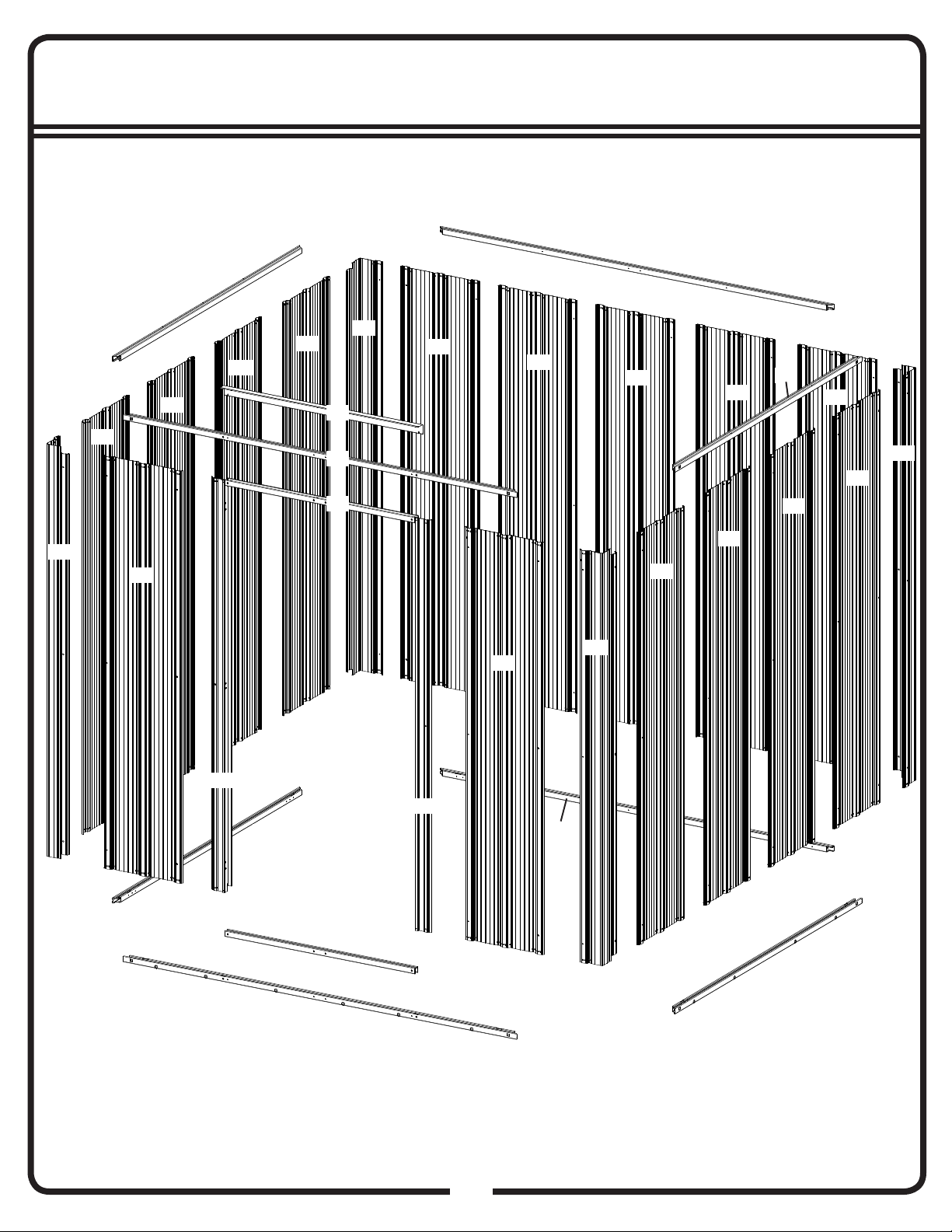

ASSEMBLY BY KEY NO.

8

10

23

22

24

24

24

18

8

9

22

24

24

24

10BY

10

24

23

22

24

23

22

24

24

23

22

6

6

11

2

1

11

1

10

ASSEMBLY BY KEY NO.

16

28

27

11BY

16

16

15

29

27

27

12

13

15

16

17

28

14

15

29

27

27

27

15

25

26

12

26

25

11

3

7

4

21

20

3

19

7

5

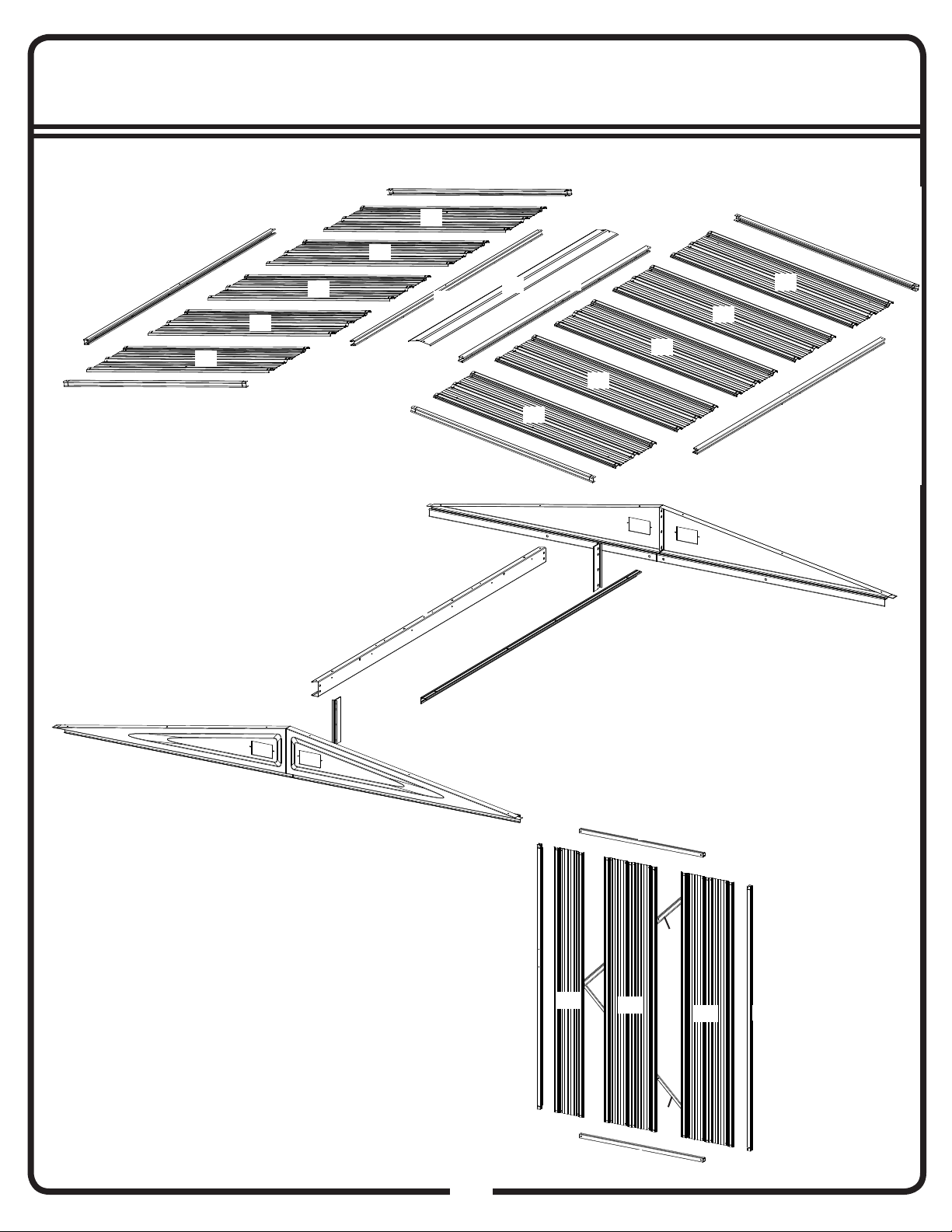

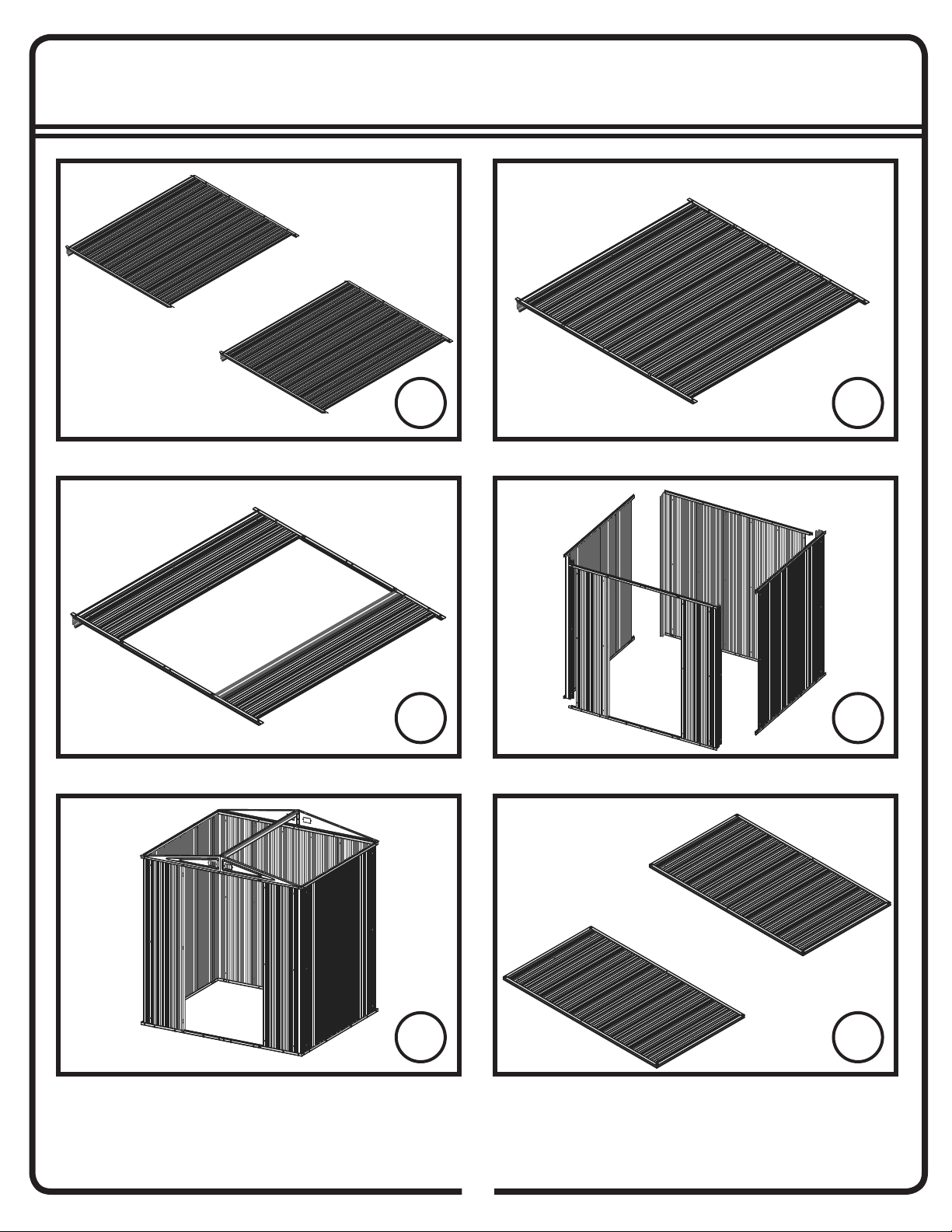

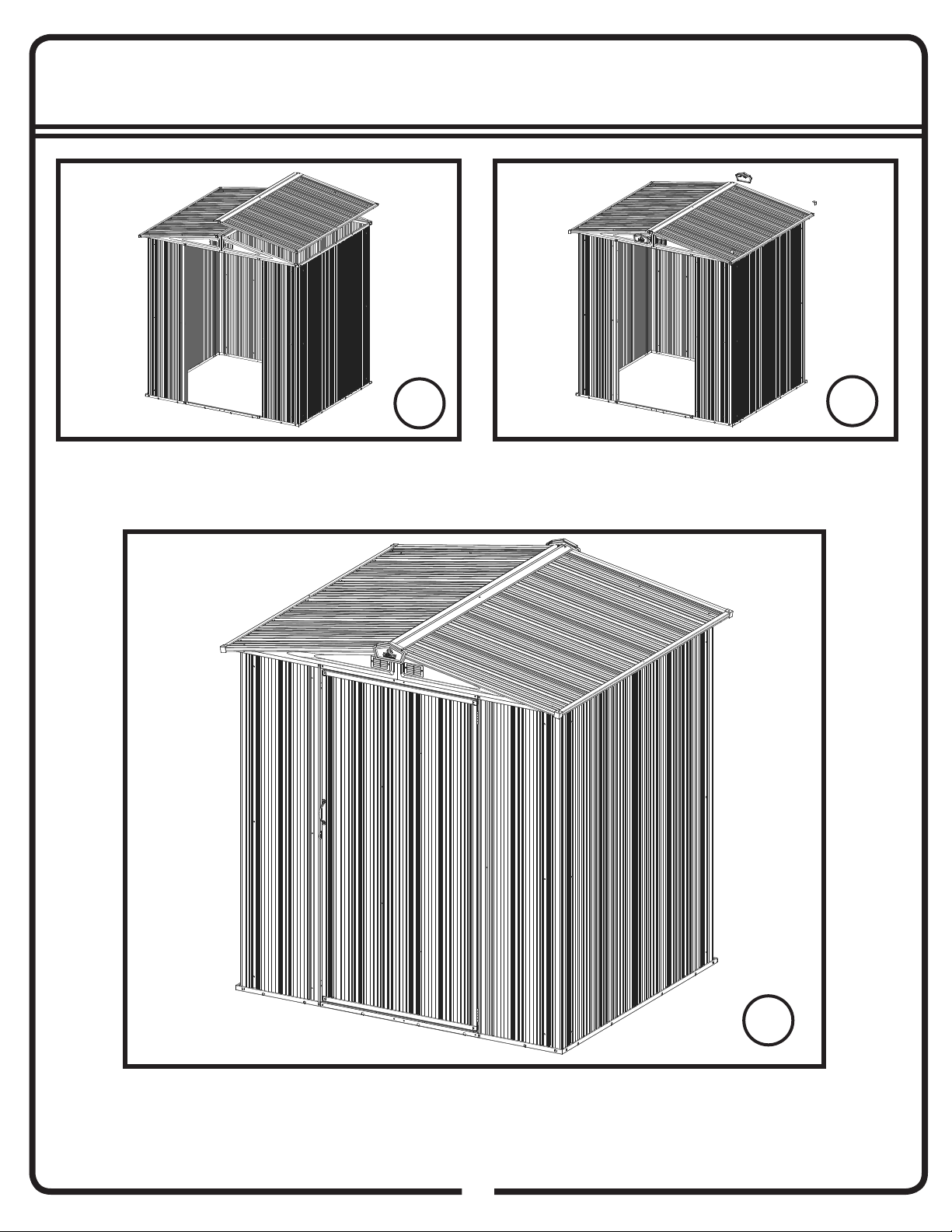

ASSEMBLY OVERVIEW

2

3

4

5

6

1

12BA

12

ASSEMBLY OVERVIEW

7

7

8

9

13BA

13

14BA

CONSTRUCTING A BASE...

OPTION 1: Directly on ground (earth)

Assemble your building directly on level ground (grass, dirt, rock, sand, etc.).

OPTION 2: Wood Platform

If you decide to build your own base, be sure to select the appropriate materials.

These are the recommended materials for your base:

• 2 x 4's (38 mm x 89 mm) Pressure Treated Lumber • 5/8" (15,5 mm) 4 x 8 (1220 mm x 2440 mm) Plywood-exterior grade

• 10 & 4 penny Galvanized Nails • Concrete Blocks (optional)
NOTE: Pressure Treated Lumber must not be used where it will make contact with your storage building. The properties of
Pressure Treated Lumber will cause accelerated corrosion. If Pressure Treated Lumber comes in contact with your storage

building your warranty will be voided.

The platform should be level and fl at (free of bumps, ridges etc.)

to provide good support for the building. The necessary materials
may be obtained from your local lumber yard.

To construct the base follow instructions and diagram.

Construct frame (using 10 penny galvanized nails)
Measure 16"/24" (40,6 cm/61,0 cm) sections to construct
inside frame (see diagram)
Secure plywood to frame (using 4 penny galvanized nails)

OPTION 3: Concrete Slab

The slab should be at least 4" (10,2 cm) thick. It must be level

and fl at to provide good support for the frame.

The following are the recommended materials for your base.

• 1 x 4's (19 mm x 89 mm) (will be removed once the concrete cures)

• Concrete • Sheet of 6 mil plastic

Prepare the Site/Construct a Base

1. Dig a square, 6" (15,2 cm) deep into the ground (remove grass).

2. Fill up to 4" (10,2 cm) in the square with gravel and tamp fi rm.

3. Cover gravel with a sheet of 6 mil plastic.

4. Construct a wood frame using four planks of 1x4 (19 mm x 89 mm)
lumber.

5. Pour in concrete to fi ll in the hole and the frame giving a

total of 4" (10,2 cm) thick concrete. Be sure surface is level.

16"/24"

40,6 cm/61,0 cm

68 1/2”

174 cm

FRONT

(DOOR)

Note: Platform/Slab will extend 9/16" (1,4 cm) beyond

fl oor frame on all four sides. Seal this 9/16" (1,4 cm)
of wood with a roofi ng cement (not included), or bevel

this 9/16" (1,4 cm) of concrete when pouring, for good
water drainage.

68 1/2"

174 cm

FRONT

(DOOR)

Note: Finished Slab dimensions, with lumber removed.

56 1/2"

143,5 cm

56 1/2"

143,5 cm

14

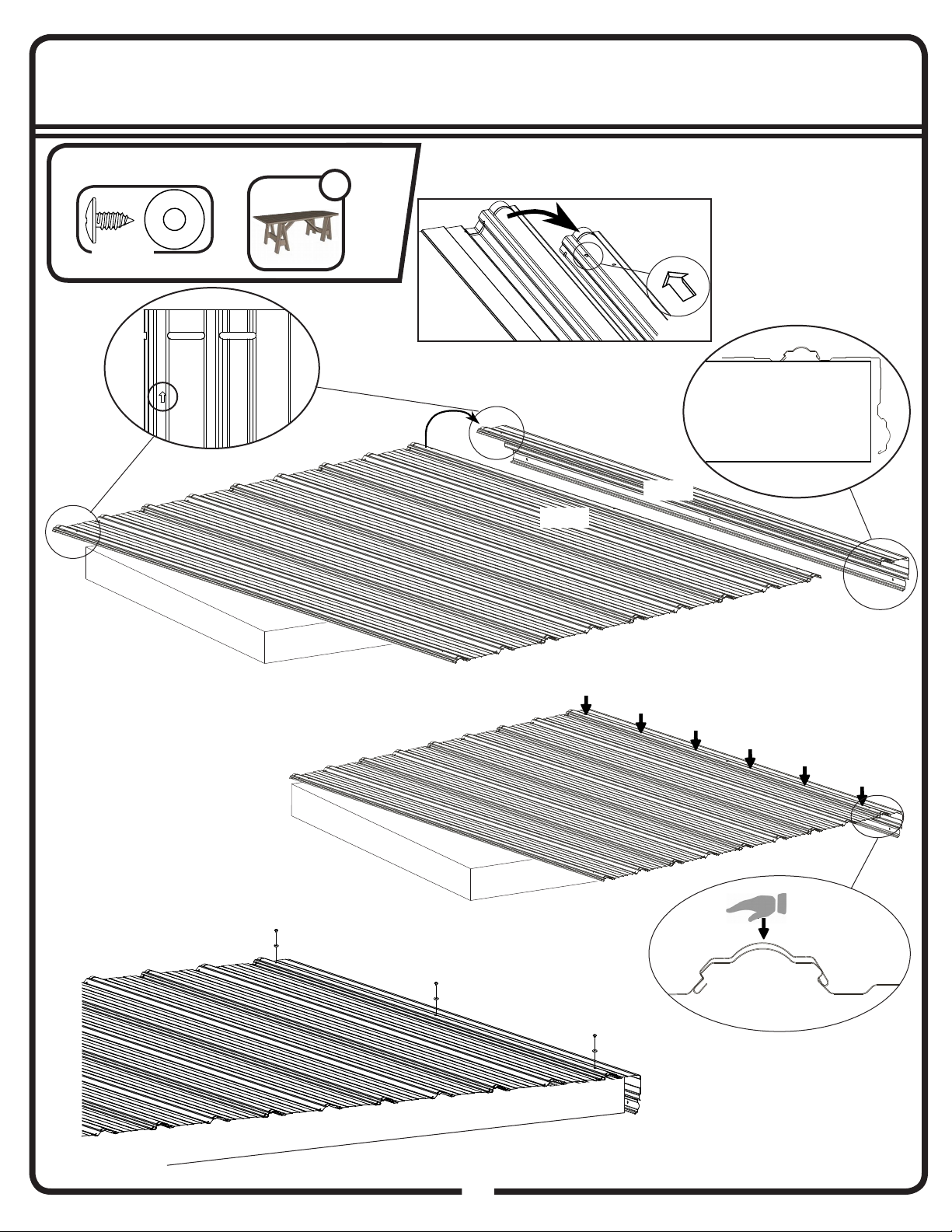

Step 1: Side Walls (2X)

You will need for this page:

15BA

10307

Panel Wall

6

10316

Panel Wall

2

10307

10268

Corner Panel

10307

2

10307

A

10268

10316

A

A

2

1

10307

10316

15

Step 1: Side Walls (2X)

You will need for this page:

A

(QTY: 6)

A

10268

16BA

A

10316

A

A

16

Step 1: Side Walls (2X)

You will need for this page:

IMPORTANT

10261

2

A

START ASSEMBLY AT CORNER PANEL

17BA

Wall Channel

A

CORNER MUST BE AGAINST
45 DEGREE CUT ON CHANNEL

10261

10261

10261

17

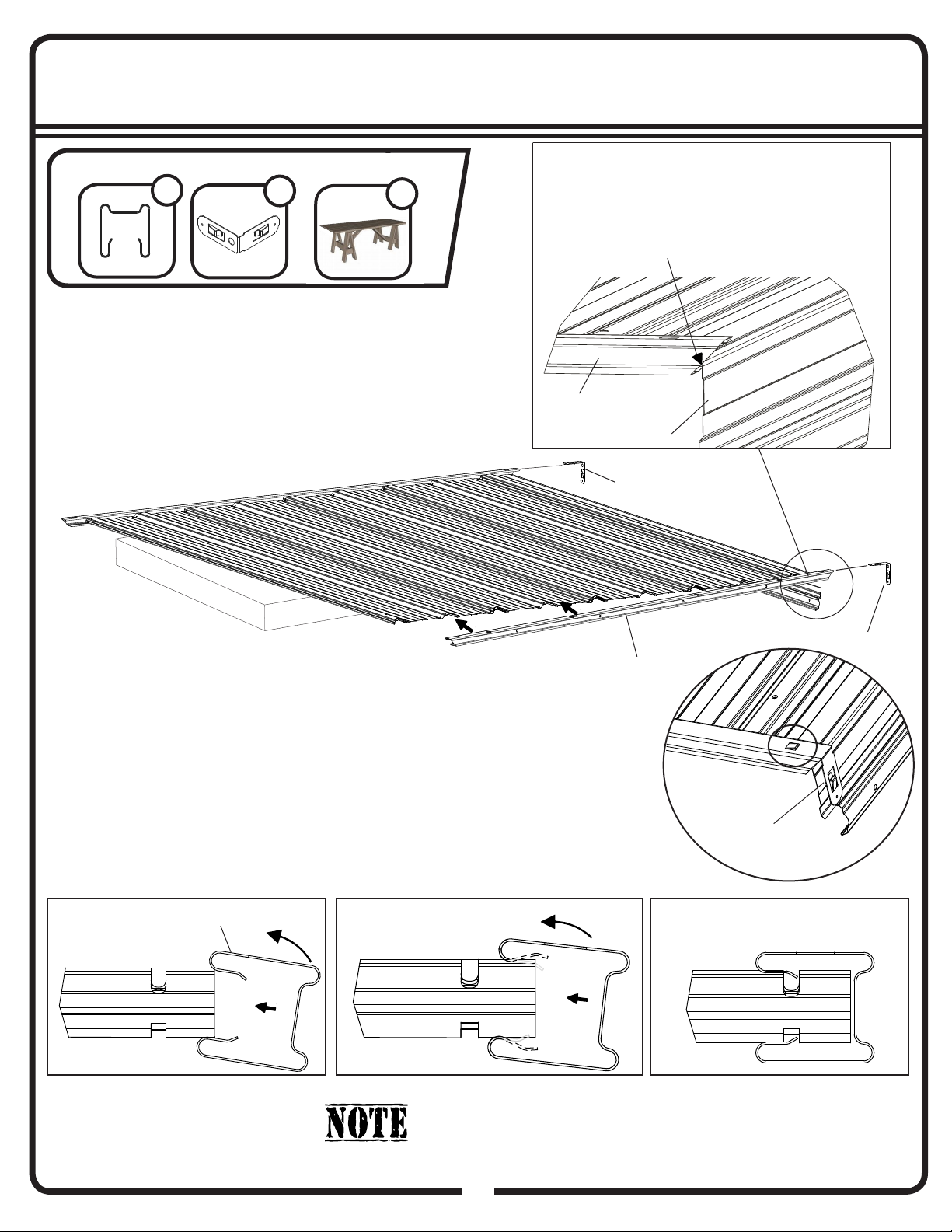

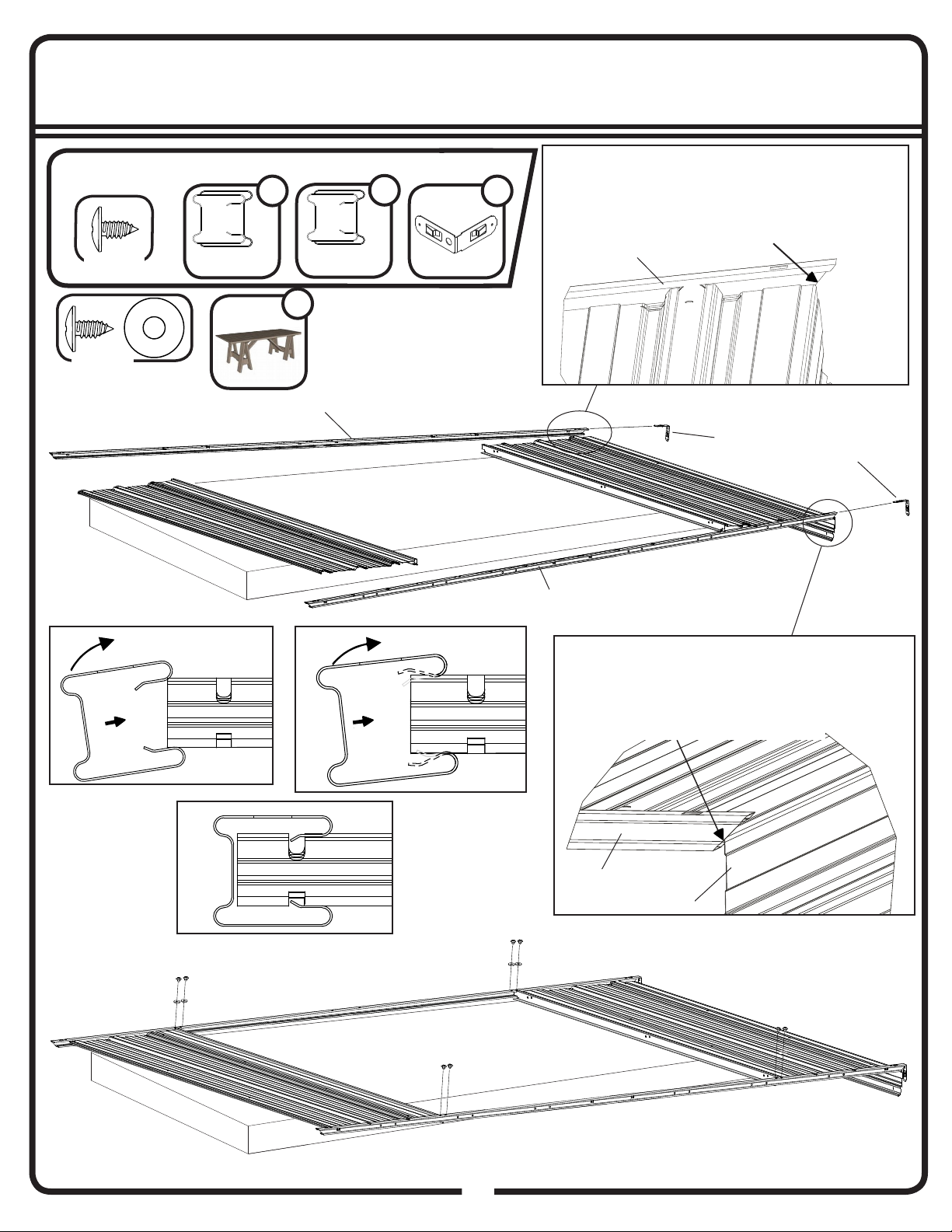

Step 1: Side Walls (2X)

18BA

You will need for this page:

10255

Floor Channel

2

10280

Corner Clip

4

A

IMPORTANT

A

START ASSEMBLY AT CORNER PANEL

CORNER MUST BE AGAINST
45 DEGREE CUT ON CHANNEL

10255

10268

10280

10255

10280

10255

10280

BE SURE TO MAKE TWO (2)
SIDE WALL SECTIONS.

18

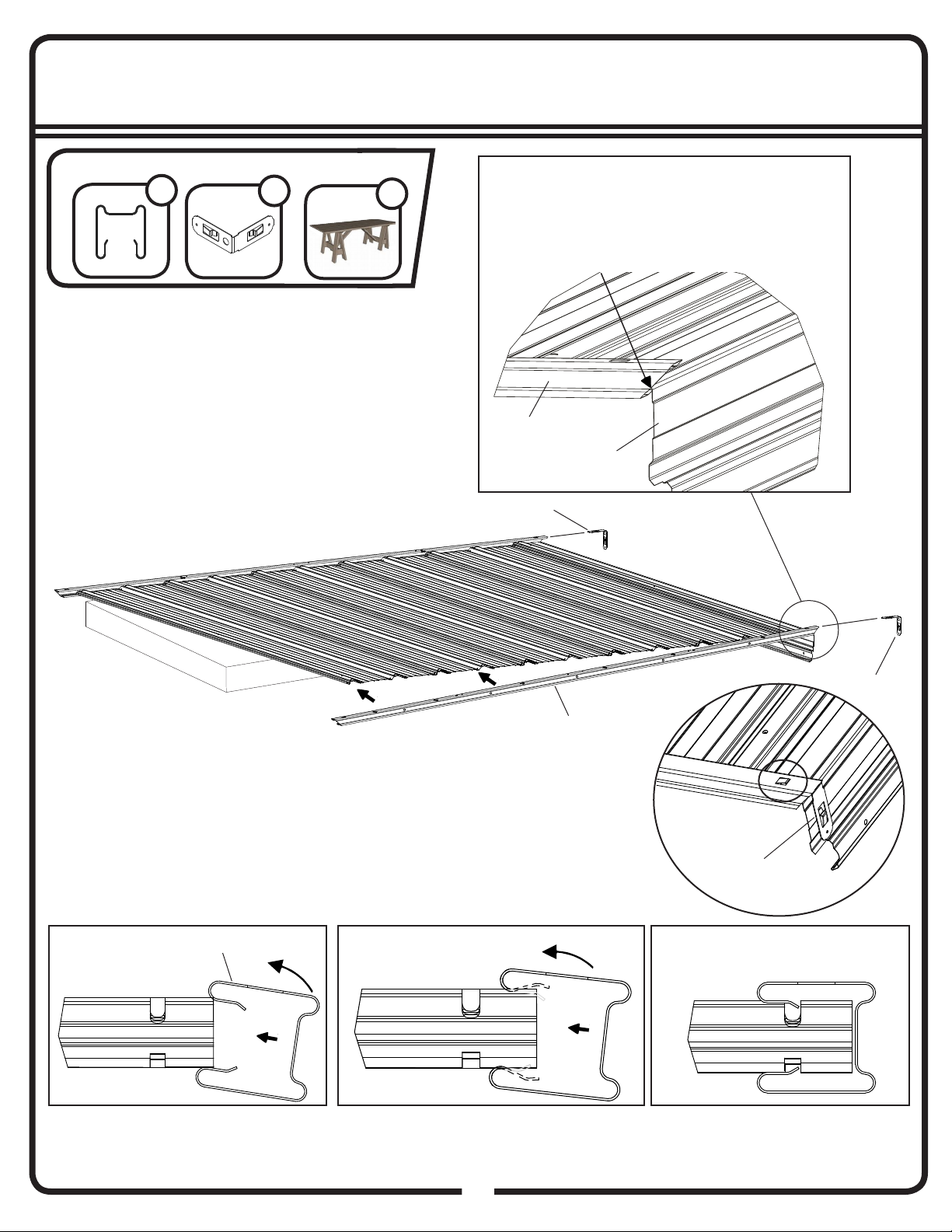

Step 2: Rear Wall

You will need for this page:

19BA

(QTY: 3)

A

10307

Panel Wall

10307

4

10316

Panel Wall

10307

1

10307

10268

Corner Panel

1

10307

A

10316

10268

A

A

19

Step 2: Rear Wall

You will need for this page:

20BA

10262

Wall Channel

A

1

A

START ASSEMBLY AT CORNER PANEL

10262

IMPORTANT

CORNER MUST BE AGAINST
45 DEGREE CUT ON CHANNEL

10262

10262

20

Step 2: Rear Wall

You will need for this page:

10256

Floor Channel

1

10280

Corner Clip

2

A

START ASSEMBLY AT CORNER PANEL

10256

IMPORTANT

CORNER MUST BE AGAINST
45 DEGREE CUT ON CHANNEL

10268

21BA

A

10280

10280

10256

10280

10256

21

Step 3: Front Wall

You will need for this page:

11052

2

10316

2

10268

22BA

1

A

(QTY: 1)

(QTY: 4)

11052

10316

LEFT

Door Jamb

Panel Wall

Corner Panel

11052

10316

RIGHT

RIGHT

RIGHT

10268

A

A

22

Step 3: Front Wall

You will need for this page:

23BK

(QTY: 4)

10262

(QTY: 2)

Wall Channel

10263

10262

1

10256

Floor Channel

10262

1

10263

Header Trim

10263

1

10264

Ramp

1

10256

10256

10264

10264

23

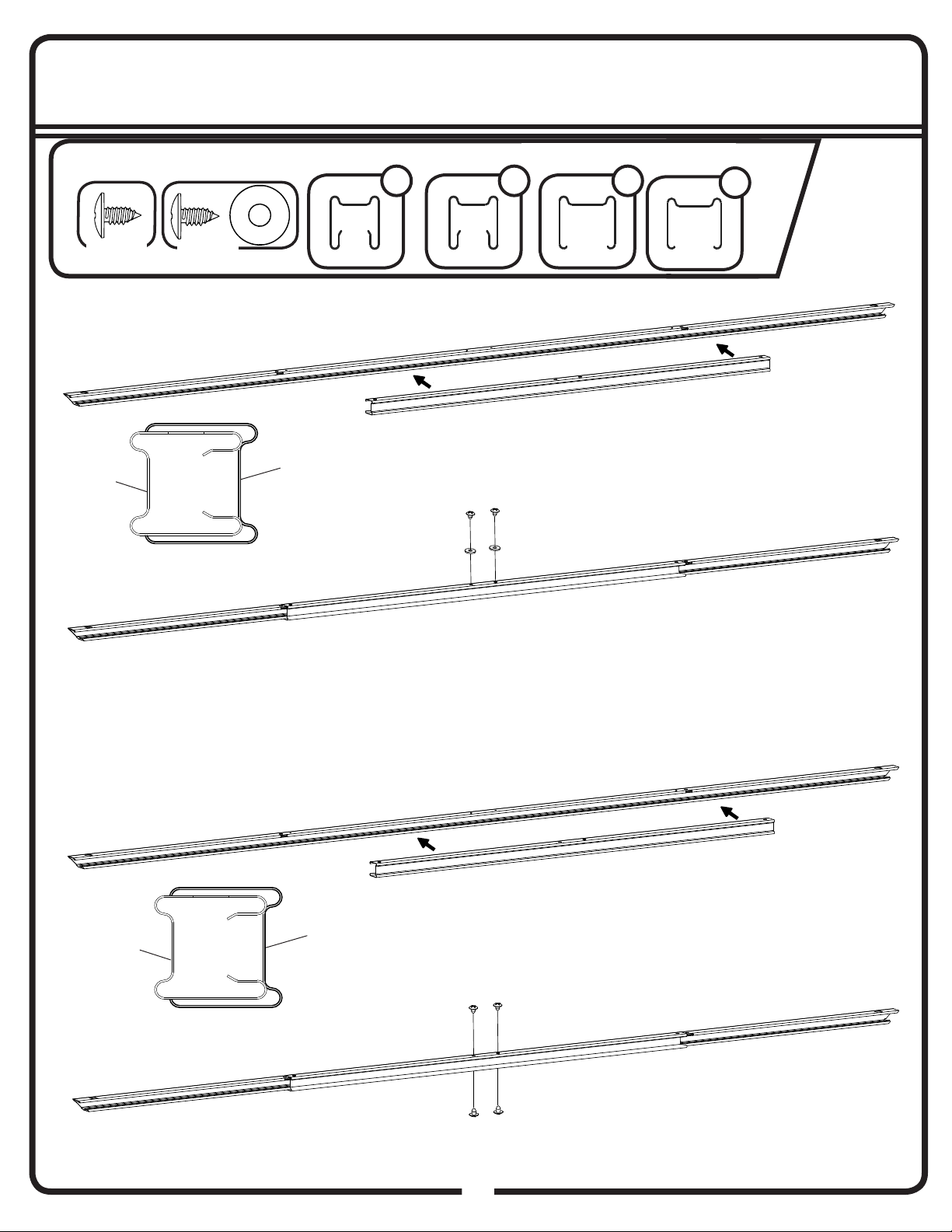

Step 3: Front Wall

24BA

You will need for this page:

1

(QTY: 4)

Wall Channel

Assembly

A

(QTY: 4)

WALL CHANNEL ASSEMBLY
(Painted)

A

Floor Channel

Assembly

1

10280

Corner Clip

IMPORTANT

2

FLOOR CHANNEL ASSEMBLY
(UNPAINTED)

START ASSEMBLY AT CORNER PANEL

CORNER MUST BE AGAINST
45 DEGREE CUT ON CHANNEL

Channel

10280

10280

A

IMPORTANT

START ASSEMBLY AT CORNER PANEL

CORNER MUST BE AGAINST
45 DEGREE CUT ON CHANNEL

Channel

10268

24

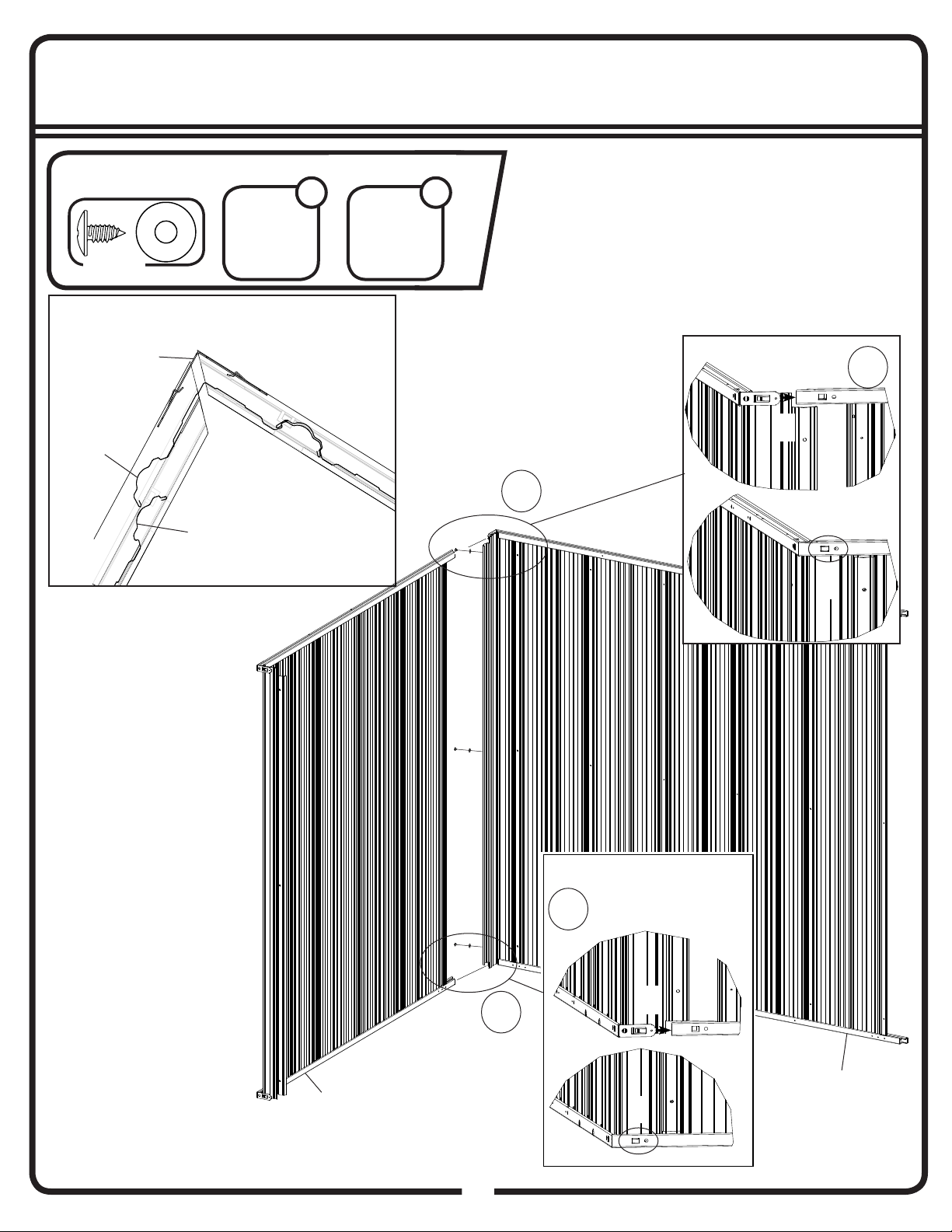

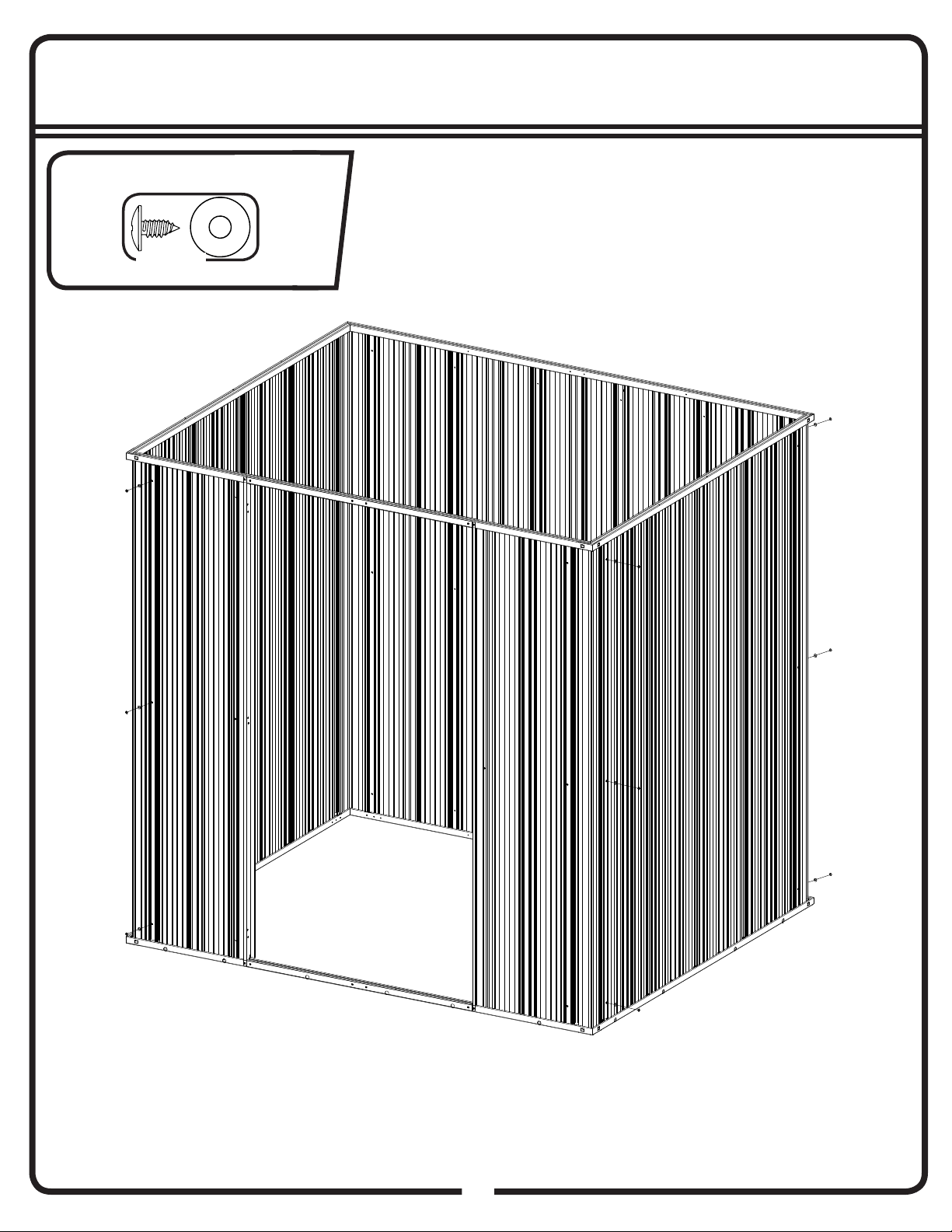

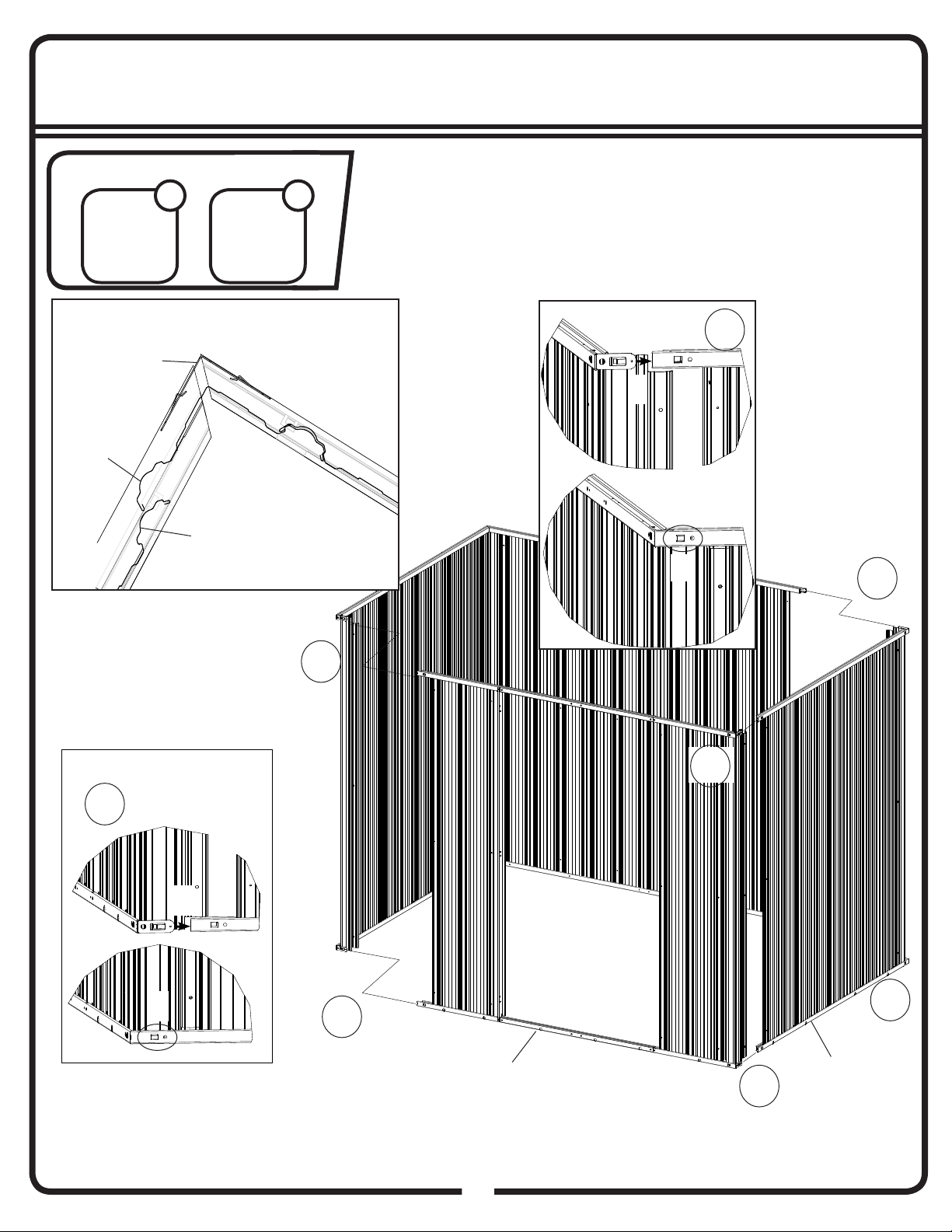

Step 4: Wall Assembly

You will need for this page:

25BA

Side Wall
Assembly

(QTY: 3)

CORNER PANEL ON TOP
OF WALL PANEL

Corner Clip

Corner
Panel

Wall
Panel

1

Rear Wall
Assembly

1

A

1

A

2

B

SIDE WALL ASSEMBLY

25

B

2

1

REAR WALL
ASSEMBLY

Step 4: Wall Assembly

You will need for this page:

26BA

1

Side Wall

Assembly

CORNER PANEL ON TOP
OF WALL PANEL

Corner Clip

Corner
Panel

Front Wall

Assembly

Wall
Panel

1

C

1

2

C

D

2

1

C

D

FRONT WALL ASSEMBLY

C

D

D

SIDE WALL
ASSEMBLY

26

Step 4: Wall Assembly

You will need for this page:

(QTY: 9)

27BA

27

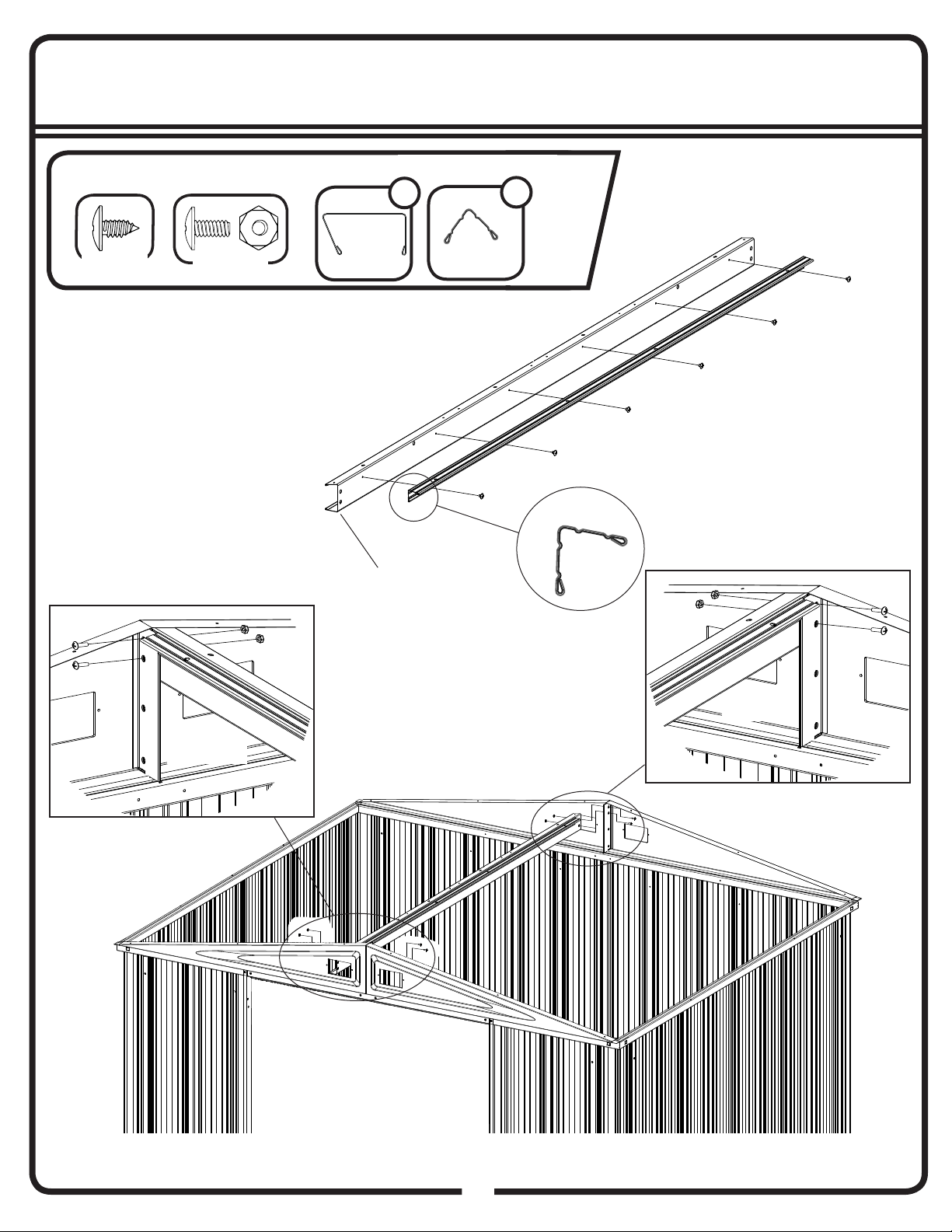

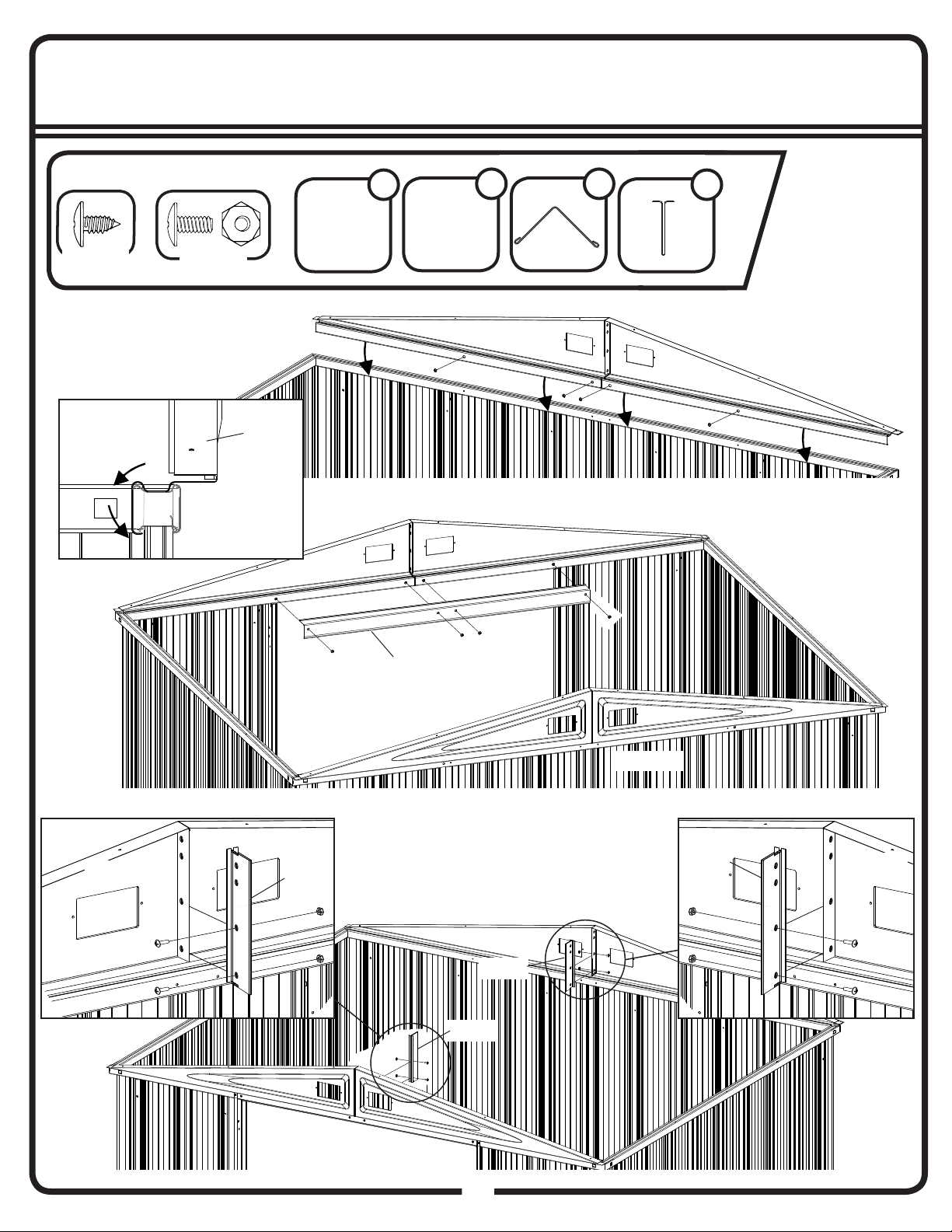

Step 5: Gable & Beam Assy

You will need for this page:

10990

2

80111

2

11048

1

10278

2

28BA

(QTY: 8)

(QTY: 4)

10990
or
80111

SIDE VIEW

Gable Right

10990

11048

Gable Left

10990

FRONT

80111

Header Angle

Gable Brace

BACK

80111

FRONT

10278

FRONT

BACK

10278

28

10278

BACK

10278

BACK

Step 5: Gable & Beam Assy

You will need for this page:

29BA

(QTY: 6)

(QTY: 4)

10269

Ridge Beam

Large holes
face down

1

10312

Ridge Beam

Angle

10269

1

10312

10312

FRONT

BACK

BACK

FRONT

29

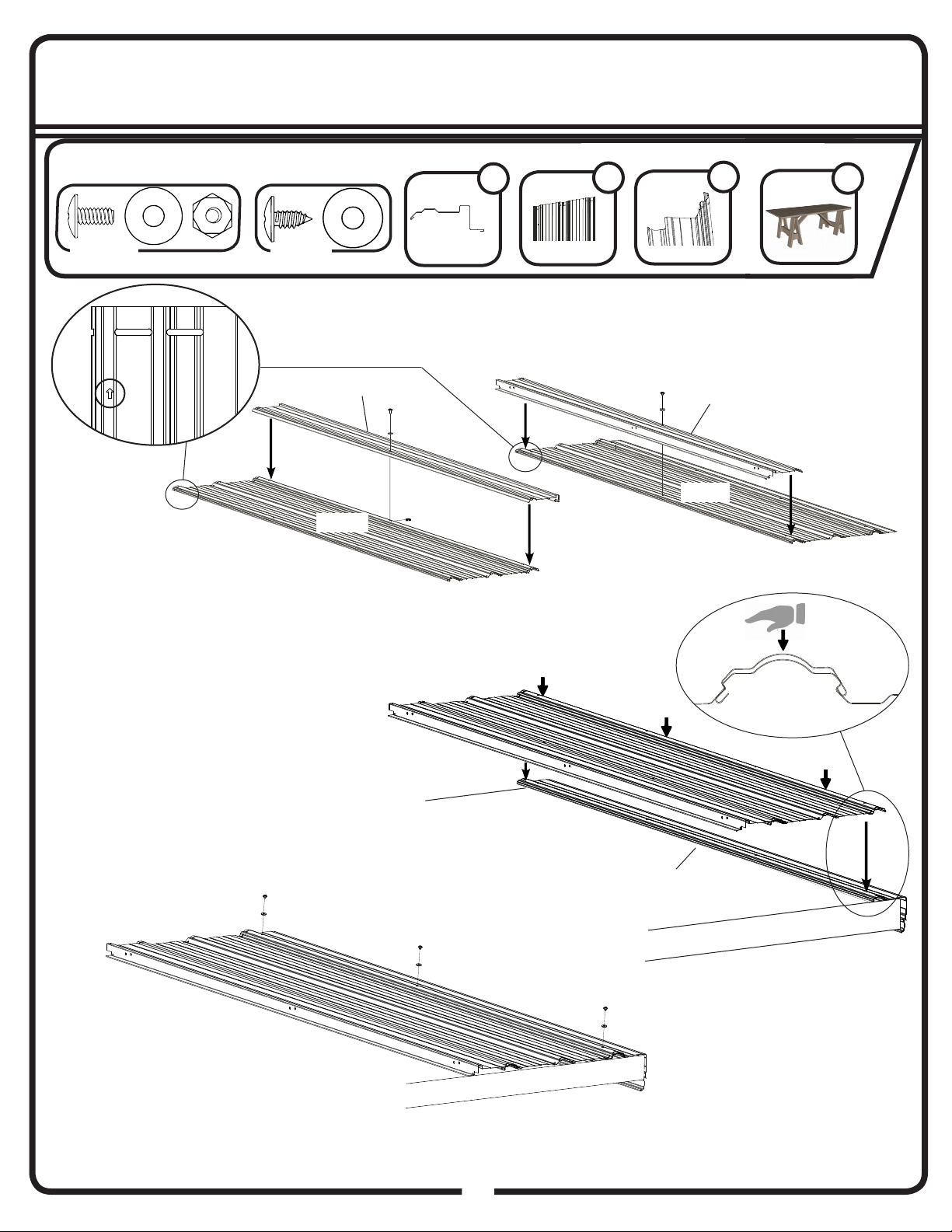

30BA

Step 6: Roof pre-assy (2X)

You will need for this page:

(QTY: 8)

10251

Roof Panel

Left

10251

2

10252

Roof Panel

10252

6

10250

Roof Panel

Right

10252

2

10267

Roof Channel

4

10252

10320

Fascia Trim

4

10250

10267

LARGE HOLES IN
CHANNELS FACE
DOWN

10267

10250

10251

10267

10320

10250

10251

10320

30

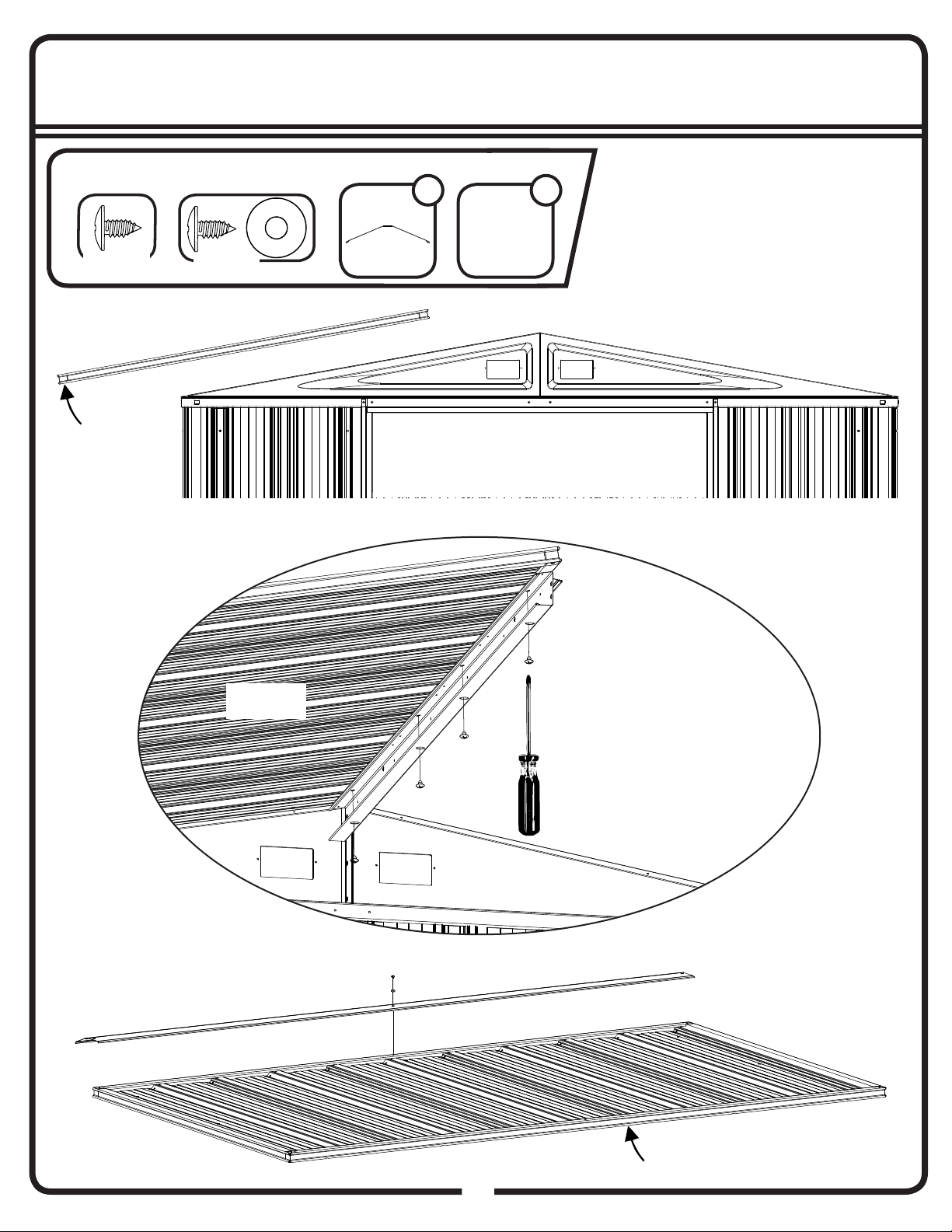

Step 7: Roof Assembly

You will need for this page:

31BA

(QTY: 4)

LEFT

Large holes
face down

(QTY: 1)

10270

Ridge Cap

1

Roof

Assembly

FRONT

1

FRONT

LEFT

BACK

10270

31

RIGHT

INSIDE OF
BUILDING

Large holes
face down

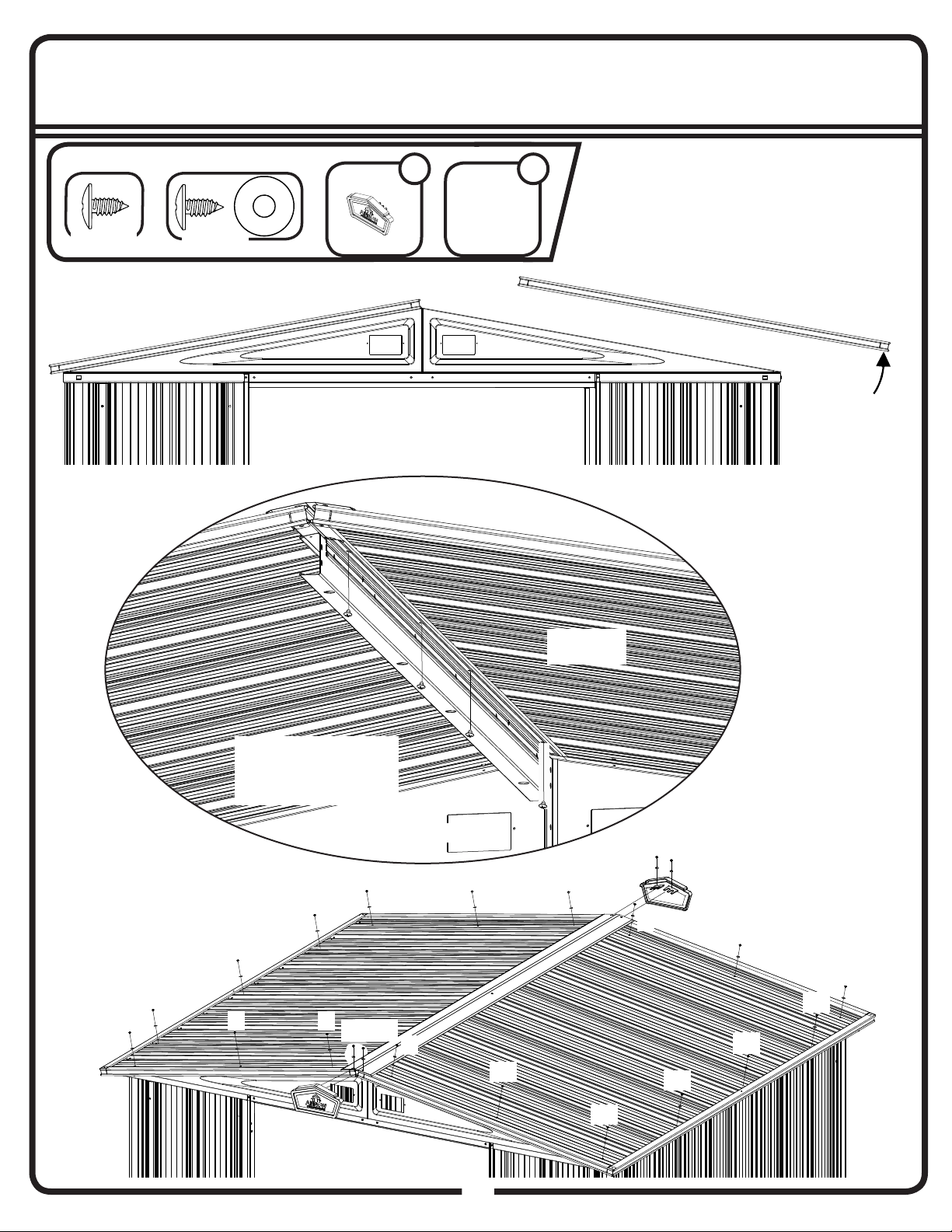

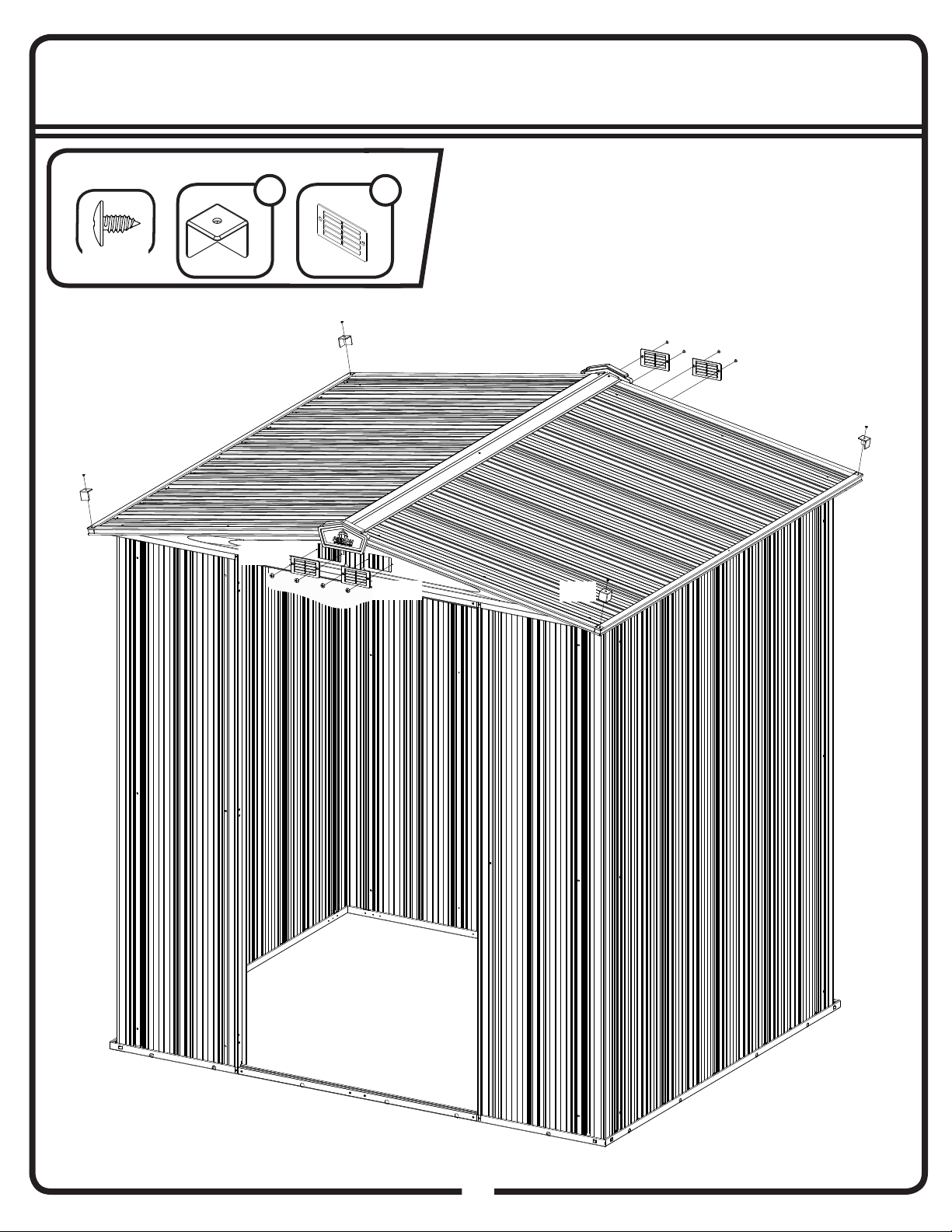

Step 7: Roof Assembly

32BA

You will need for this page:

(QTY: 4)

(QTY: 22)

66860

Peak Cap

FRONT

2

FRONT

1

Roof

Assembly

RIGHT

Large holes
face down

RIGHT

INSIDE OF
BUILDING

BACK

6

17

18

16

5

34

19,20

9

10

12

21,22

66860

7

8

12

13

15

14

66860

11

FRONT

32

Step 7: Roof Assembly

You will need for this page:

33BA

(QTY: 12)

60H

60H

Corner Cap

4

66847

66847

Vent

60H

4

66847

66847

66847

60H

60H

33

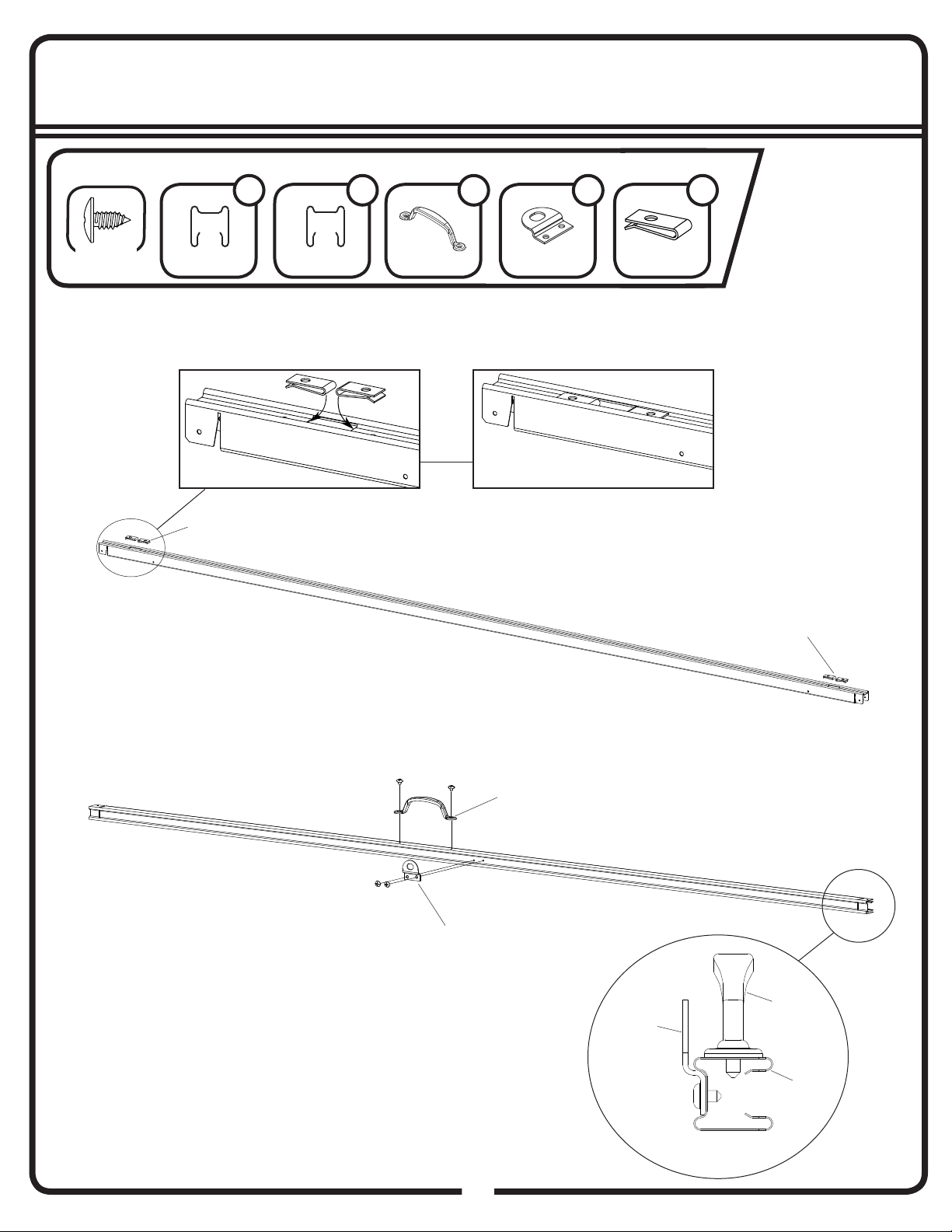

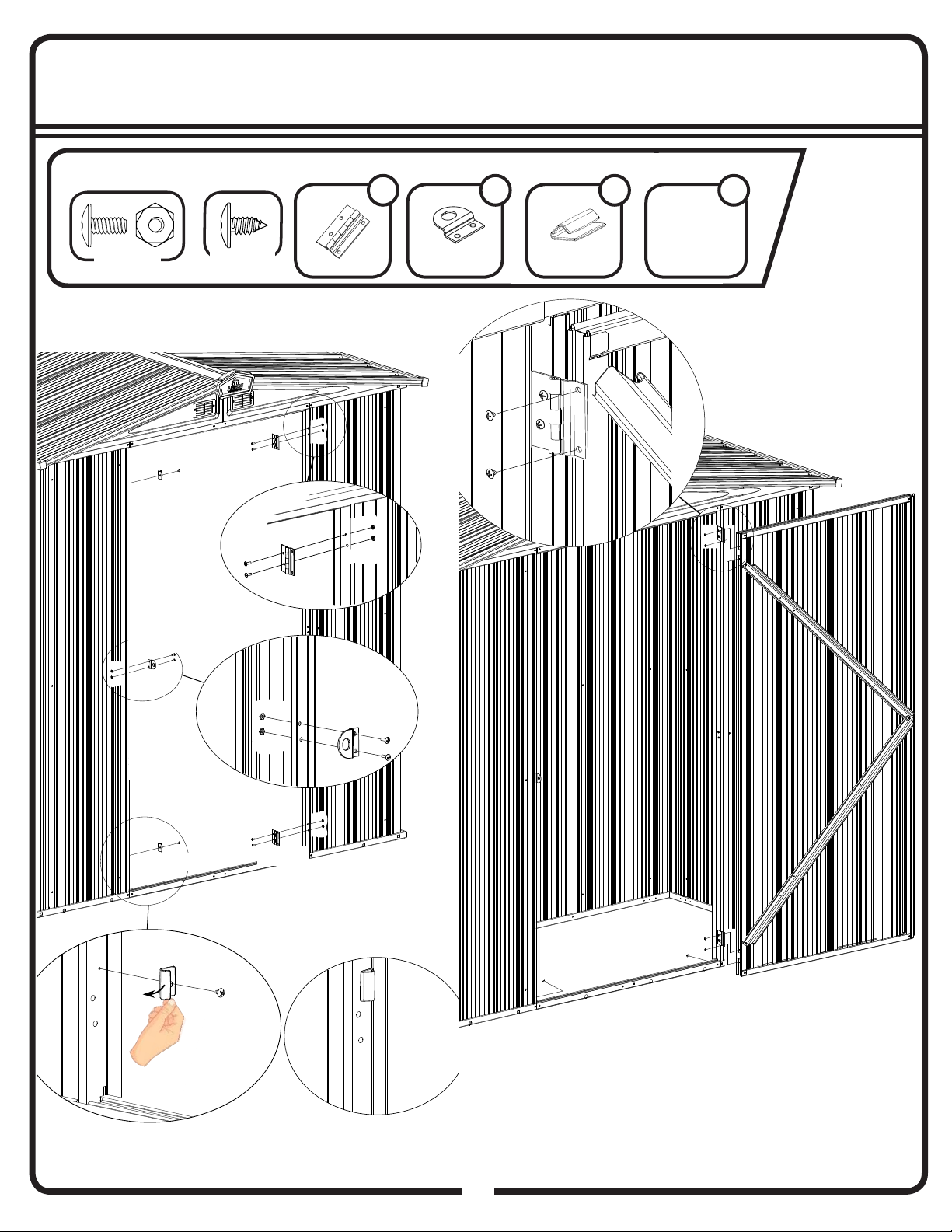

Step 8: Door Assembly

You will need for this page:

34BK

(QTY: 4)

10361

Vertical Door

Brace

66721 (2X)

1

10369

Vertical Door

Brace

1

66715

Door Handle

10361

1

66720

Padlock

Eyelet

1

66721

U-Nut

(Door Clip)

4

66721 (2X)

66720

34

66715

10369

66715

66720

10369

SIDE VIEW

Step 8: Door Assembly

You will need for this page:

35BK

(QTY: 4)

10276

Door Panel

10276

1

10309

Door Panel

10309

1

10308

Door Panel

10308

1

10275

Horizontal

Door Brace

2

Vertical Door

Brace Assy

2

10275

10275

35

Step 8: Door Assembly

You will need for this page:

36BK

(QTY: 9)

(QTY: 3)

10288

Door Brace

10288

Diagonal

2

BACK

10288

36

FRONT

Step 8: Door Assembly

You will need for this page:

37BK

(QTY: 6)

66866

(QTY: 8)

66718

66718

66718

Hinge

2

66720

Padlock

Eyelet

1

66866

Door Closure

Clip

2

Door Assembly

1

66720

66866

66866

66720

66718

37

ARROW ACCESSORIES...

ANCHOR KITS

Model No. AK4

Anchor Kit contains heavy-duty steel

augers, 60' (18 m) of steel cable and
4 cable clamps. No digging or concrete
pouring, just insert cable under roof,
over roof beams, into augers and twist
augers into the ground. For buildings
larger than 10'x9' (3,0 m x 2,6 m), use 2 kits.

See Page. 39

Model No. AK100

New concrete anchor system permits
anchoring any size Arrow building
directly to a concrete slab. Each kit

contains heavy-duty, hot-dipped

galvanized steel corner gussets and

perimeter clips which fi t over the fl oor

frame and lag bolt into a concrete slab.
Full assembly instructions and a 1/4"
masonry drill bit are included.
See Page. 39

FLOOR FRAME KITS

MODELS FKEZEE and FKEZ65

A simple fl oor frame system made of heavy-duty, hot-dipped

galvanized steel. Use as base for plywood, sand or stone.

Model No. AK600

Earth Anchor Kit anchors any size
Arrow building to the ground.
Each kit contains heavy duty,

hot-dipped galvanized steel

corner gussets and 4 earth anchors.

38BA

SPECIAL NOTICE ON DELIVERY:

If your accessory is shipped via truck line a day time
phone number is required to arrange delivery. If no one
is available to sign for the delivery, you may be subject

to a re-delivery charge assessed by the carrier.

HOW TO ORDER

We recommend that you purchase accessory items from your
local storage building dealer whenever possible; however,
because the full line of accessories is not always available
from all dealers, Arrow is offering them to you on a direct basis.

Purchase Online at www.arrowsheds.com

Purchase over the phone by calling 1-800-851-1085

Most major credit cards accepted. Allow 2 weeks for Delivery.

38

39BA

ANCHORING OPTIONS...

IMPORTANT:

It is important that building be anchored after construction. These are recommended
ways of anchoring.

Arrow Anchoring Kit: (Model No. AK100)

Recommended for use with the concrete base.
Contains: Corner gussets, perimeter clips, hardware,

1/4" masonry drill bit and installation instructions.

Anchor into Wood or Concrete

For wood platform. Use Decking Screws.
For concrete slab. Use Lag Screws.

Arrow Anchoring Kit: (Model No. AK4)

Recommended for use with any suggested base.
Contains: 4 Anchors with Cable, Clamps and

installation instructions.

13”
(33cm)

Feed Cable through hole
in Ridge Beams

Insert Cable

Turn Anchors into ground
close to building and
attach Cable

39
