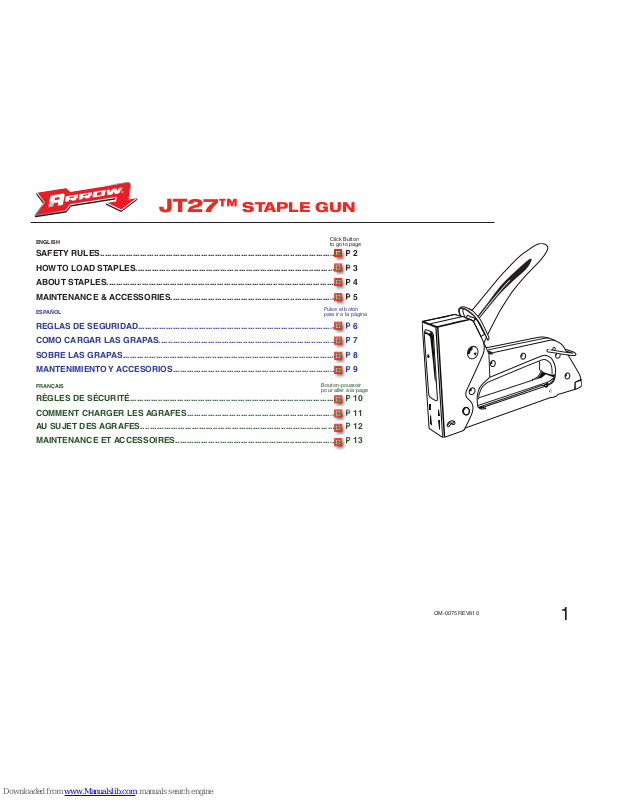

Arrow JT27 User Manual

JT27™ STAPLE GUN

1

SAFETY RULES.................................................................................................... P 2

HOWTO LOAD STAPLES....................................................................................... P 3

ABOUT STAPLES.................................................................................................. P 4

MAINTENANCE & ACCESSORIES........................................................................ P 5

REGLAS DE SEGURIDAD...................................................................................... P 6

COMO CARGAR LAS GRAPAS............................................................................. P 7

SOBRE LAS GRAPAS........................................................................................... P 8

MANTENIMIENTOY ACCESORIOS..................................................................... P 9

RÈGLES DE SÉCURITÉ........................................................................................ P 10

COMMENT CHARGER LES AGRAFES............................................................... P 11

AU SUJET DES AGRAFES.................................................................................... P 12

MAINTENANCE ET ACCESSOIRES....................................................................... P 13

Click Button
to go to page

Pulse el botón
para ir a la página

Bouton-poussoir
pour aller à la page

ENGLISH

FRANÇAIS

ESPAÑOL

OM-0075 REV810

SAFETY RULES

2

BACKTO

INDEX

• Always be cautious of potential hazards such as electrical wiring, slippery footing, damp or wet conditions, etc.

• Make sure you know what you are fastening — look for hidden hazards.

• Keep work area clean. Cluttered areas and benches invite accidents.

• Keep children away. All visitors should be kept a safe distance from work area.

• Store idle tools.When not in use, tools should be stored in high or locked-up place — out of reach of children.

• Use safety glasses.

• Do not overreach. Keep proper footing and balance at all times.

• Maintain tools with care. Follow instructions with care.

• For service, use only approved service centers.

• Use only original parts provided by the supplier.

• Stay alert — watch what you are doing. Use common sense.

• Do not staple into electrical wires. Be cautious of wires that may be hidden from view. Disconnect circuits.

HOW TO LOAD STAPLES

3

BACKTO

INDEX

LOADING STAPLES:

Hold staple gun upside down as shown in fig 1.
Release magazine latch squeeze release and pull open as shown in fig 2.
Pull magazine open as shown in fig 3.
TO LOAD STAPLES… Insert strip of staples into magazine with points up
as shown in fig 4.
Push magazine closed and with finger making sure magazine latches
closed fig 5.

TOLOAD :SQUEESE TRACK RELEASE
P

ULLBACK AND DROP IN STAPLES WITH POINTS UP.

Fig1.

Fig5.

Fig3.

Fig4.

Fig2.

4

BACKTO

INDEX

ABOUT STAPLES

HOWTO DETERMINE PROPER STAPLE LEG SIZE

In choosing the proper staple leg length for a job there are two basic things
to consider:

1. Thickness of material to be stapled.

2. Hardness of the wood.
As a general rule, in hardwood, approximately 3/16" to 1/4" penetration
into the wood is sufficient...and for softwood – up to approximately 3/8"
should be sufficient. However, if the staple used “stands away” from the
work – this means that too long a leg length has been used. In that case
we recommend the next shorter leg length for desired results.

STAPLE PENETRATION

For best penetration with any gun tacker, raise the rear of the gun slightly off the work and bear down on the front end to prevent recoil
when operating.The power spring on the JT27™ will drive well into all ordinary woods. A shorter staple leg will hold better in hard wood
than a long leg in soft wood. Stronger springs can be supplied for special situations but they are not recommended as they shorten the life
of the gun.

A WORD ABOUT ARROW

®

STAPLES

Only Arrow

®

knows the proper staple tolerances required for best performance of the JT27™ Staple Gun. Only Genuine Arrow®JT21

®

Staples are made to these exact tolerances to insure top fastening performance. Accept no substitutes.Always insist on Genuine Arrow

®

Staples.
