ARRI MaxMover DayLight User Manual

M a x M o v e r

Name MaxMover

Applicable: ARRI daylight fixtures from 6kW to 18kW
ARRI tungsten fixtures from 12kW to 24kW
Adapts to other lampheads due to an
extensionable construction (width is adjustable!)
and a Universal Adapter Plate
Functions: 3 axis motor driven stirrup
PAN&TILT: brushless AC servo motors (24V/30W)
FOCUS (optional): DC servo motor (12V/18W)
Pivoting range in PAN: Infinite, stop point given by a slipping
clutch (0-80Nm)
Pivoting range in TILT: Infinite, stop point given by a slipping
clutch (0-80Nm)
Pivoting range in FOCUS: Infinite, stop point given by a current overload
protection at 5Nm / focus calibration
Min. speed PAN&TILT: 12,6°/min (0,035rpm)
Max. speed PAN&TILT: 360°/min (1rpm)
Speed FOCUS: 16rpm
Weight of stirrup: 33kg/72,75lbs with focus unit
Max. weight load: 80kg/176lb
Lamphead attaches with: Universal Adapter Plate
Operation: ARRI analog controller for PAN, TILT and FOCUS
(standard); optional DMX-512 interfaces
Protective rating: Max. IP54 / protection class I
Dimensions (wxhxd): Max. 1160x965x300mm / 45,67x38,99x11,81”
DMX 512 support: USITT DMX-512 / DIN56930-2
DMX 512 address setup: Up&Down push buttons
Power specification: 90-265V 50/60Hz, max. 100VA

The ARRI automated stirrup, MaxMover, offers remote pan, tilt
and focus for large daylight and tungsten fixtures. It eliminates
safety and cost concerns of placing an operator in a Condor bucket
as large fixtures can now be mounted on boom arms, tall plat­forms or in hard-to-reach locations and operated conveniently
from the ground using simple analog control or via wired or wire­less DMX.

A unique snap-in mounting system allows fixtures up to 176 lb.
(80kg) to be converted quickly and easily from stand to remote
operation. Equipped with a variable width adjustment, the Max­Mover will accommodate a wide range of fixtures such as 6k or
12kW HMI PARs, 12/18kW HMI Fresnels, T12 and T24 Fresnels.

At a Glance

•

Adjustable Width for 6kW – 24kW Lampheads

•

Universal Adapter Plate with Quick Snap In

•

80kg / 176lb weight load

•

Remote Control incl. (analog)

•

DMX Converter Optional

•

Wireless Operation (W-DMX)

•

Hanging & Standing Operation

•

Very Precise Movement Control

•

Adjustable Slipping Clutches (0-80Nm)

•

90-265VAC 50/60Hz

•

IP54 / Protection Class I

width

width

min

min

=0,54m/21,3“, width

=0,85m/33,5“, width

depth=0,3m/11,8“

=0,88m/34,6“

max

=1,16m/45,7“

max

What fits with the Universal Adapter Plate?
ARRIMAX 18/12
ARRI DAYLIGHT 18/12 PLUS
ARRI COMPACT 12000
ARRI COMPACT 6000
ARRI COMPACT 6000 Theater
ARRISUN 120
ARRISUN 60 (also requires 563720!)
ARRI X 60
ARRI T 24
ARRI T 12
ARRI T 12 Theater

UNIVERSAL ADAPTER Plate with Quick Snap in & Mega ClawTM Attachement

Universal Adapter Plate for:

ARRIMAX 18/12
ARRI DAYLIGHT 18/12 PLUS
ARRI COMPCAT 12000
ARRI COMPACT 6000
ARRI COMPACT 6000 Theater
ARRISUN 120
ARRISUN 60 (requires: 563720)
ARRI X 60
ARRI T24

A R R I M a x M o v e r

ARRI T12
ARRI T12 Theater

*

*

* included in all MaxMovers

Attachement Example of the Universal Adapter Plate

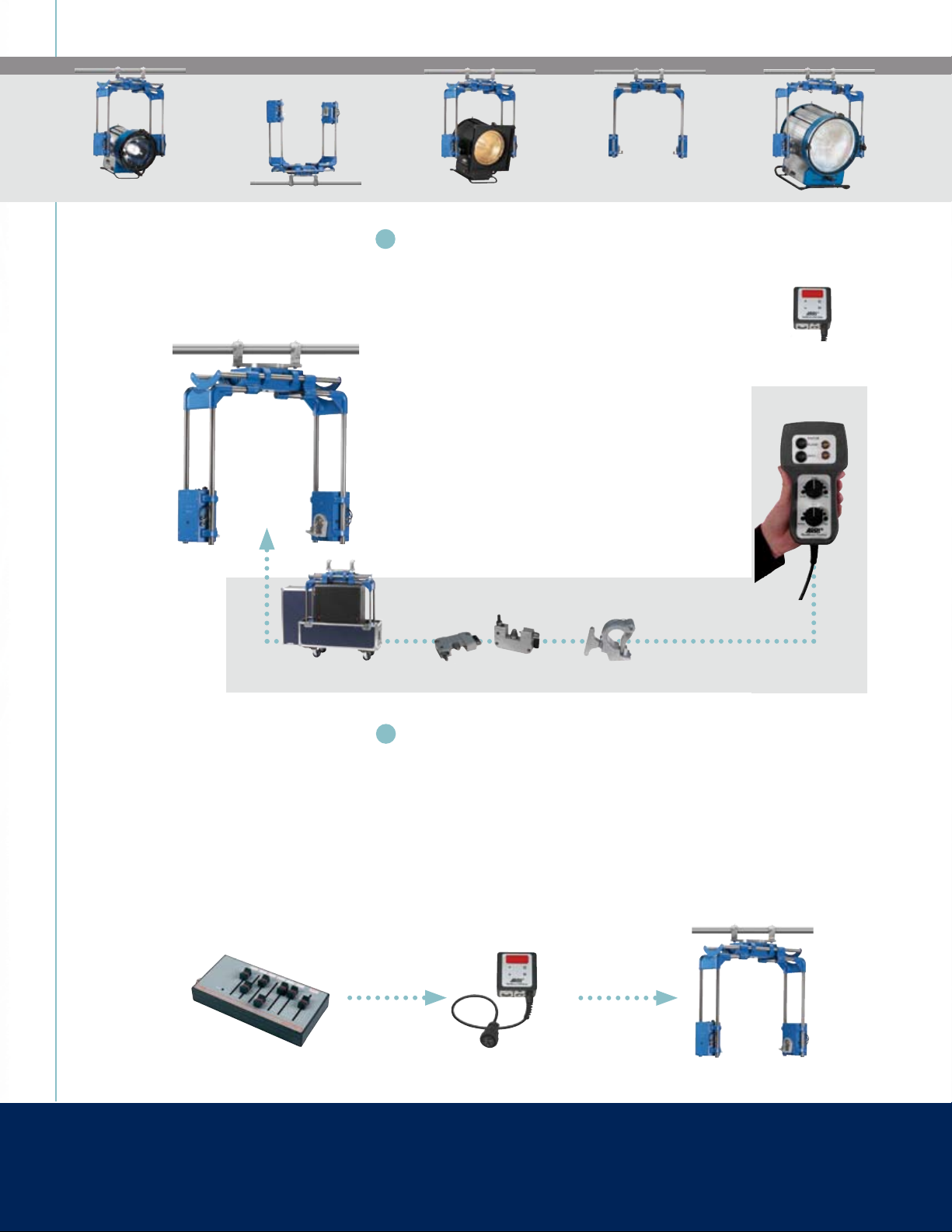

System Overview - Setup 1 (typical location setup)

MaxMover Standard (analog)

563700

Road Case

Possible Accessories

Ident.-No. Description
563705 Focus Unit
563720 Adapter for ARRISUN 60
563740 Mitchell Adapter
563716 130‘ Ext. Cable (analog, shielded)

Already included in 563700

2 x Universal Adapter Plate

2 x Mega Claw

TM

Control

Analog Controller

Cable
Length 130‘

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

System Overview - Setup 2 (Basic Operation with DMX, Location Setup)

MaxMover Standard (analog)

563700

Road Case

Possible Accessories

Ident.-No. Description
563710 Basic DMX Converter
563705 Focus Unit
563720 Adapter for ARRISUN 60
563740 Mitchell Adapter
563716 130‘ Ext. Cable (analog, shielded)

Already included in 563700

2 x Universal Adapter Plate

2 x Mega Claw

Control

Basic DMX Converter
(optional 563710)

OR

Analog Controller

Cable
Length 130‘

TM

System Overview - Setup 2 (Basic Operation with DMX, Location Setup)

How does the Basic Operation with DMX work?

This option uses the “Basic” DMX Converter (control box) 563710.
It translates the function of the analog hardwired hand-controller
into DMX. Simple DMX controllers, as used in typical location
“applications” may be used with this option of the MaxMover.

The working principle is described as follows (3 DMX channels will
be used by the Basic DMX converter):

(not an ARRI product)

563710 Basic DMX Converter

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

The position of the slider (PAN / TILT / FOCUS) equals the direction
and speed. “Center” or 50% position of the slider means no move­ment. Due to saftey reasons the operation must be released initially
after switching on or loosing the DMX signal! The “Basic” DMX
converter may also be used with wireless DMX systems.

Note: For operating 563710 additonal equipment such as DMX
controller and DMX cable is required!

563700 MaxMover (Standard, analog)Example DMX Pocket Console

System Overview - Setup 3 (Fully Programmable Operation with DMX,
stage & location setup)

MaxMover FP
(fully programmable DMX)

563701

OR
MaxMover analog

563700
+

FP DMX Upgrade

563704

Possible Accessories

Ident.-No. Description
563705 Focus Unit
563720 Adapter for ARRISUN 60
563740 Mitchell Adapter

Already included in 563700

Control

FP DMX Converter

Analog Controller

Cable
Length 130‘

Road Case

2 x Universal Adapter Plate

2 x Mega Claw

TM

System Overview - Setup 3 (Fully Programmable Operation withDMX,
stage & location setup)

How does the fully programmable (FP) operation with DMX work?

This option provides full DMX functionality as found on most
moving lights. Therefore, in order to work in an enviroment with
other moving light applications where larger professional control
consoles are used, the fully programmable option is needed.

The option is either available as an upgrade 563704 for the
standard, analog MaxMover or under 563701 the MaxMover will
already come with the installed fully programmable DMX option.

The working principle is described as follows (Note: The FP DMX
controller may be switched to Basic DMX operation as well):

Example DMX Console

(not an ARRI product)

FP (fully programmable) DMX Converter

The position of the slider (PAN / TILT / FOCUS) equals an actual
position of the MaxMover. The speed of movement is usually
achieved by a “cue” executed by the control console. Therefore
the ‘FP Operation with DMX‘ offers a control channel for speed as
typical of many other DMX controllable units.

DMX channel setup: CH1-coarse Pan; CH2-fine Pan; CH3-speed
Pan; CH4-coarse Tilt; CH5-fine Tilt; CH6-speed Tilt;
CH7-Focus; CH8-movement release (50% +/-10%) and home
position (90-100%)

563701 MaxMover (FP DMX) OR
563700 + 563704

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

System Overview – Setup 4 (Wireless DMX setup)

Wireless DMX systems may be used with Basic and FP operation with DMX!

Example DMX Console

(not an ARRI product)

Example DMX Pocket Console

(not an ARRI product)

Example Wireless DMX

(not an ARRI product)

Added value - ARRI MaxMover

Function overview

• Adjustable width design (6-24kW ARRI Lampheads)

• Max. weight load 80kg/176lb

• Universal adapter with quick snap in function

• Adjustable slipping clutches (Pan, Tilt) 0-80Nm

• Calibration-free, absolute position determination

• Calibration function for focus drive to realise a dynamic resolution

of the focus travel, allows the operation of various lampheads

• Position sensor (hanging or standing operation)

• 0,35° movement resolution, 10 bit (mechanical)

• 16 bit D/A-converter (8 bit/16 bit DMX control)

• DMX profiles available (download www.arri.com)

• Control options:

- Analog control (standard)

- Basic DMX control (optional), incl. DMX testing functions

- Fully programmable DMX position control (optional),
incl. DMX testing functions

- Fully programmable wireless DMX position control (optional)

• CE conformity

• Control options: IP54

• Control options: Protection class 1

• Control options: Electrically isolated control interfaces

• Control options: Independent mechanical stress testing certificate

• Wide range line input (90-265VAC 50/60Hz)

FP DMX Converter

563701 MaxMover (FP DMX)
OR
563700 + 563704

563710 Basic DMX Converter

563700 MaxMover
(Standard analog)

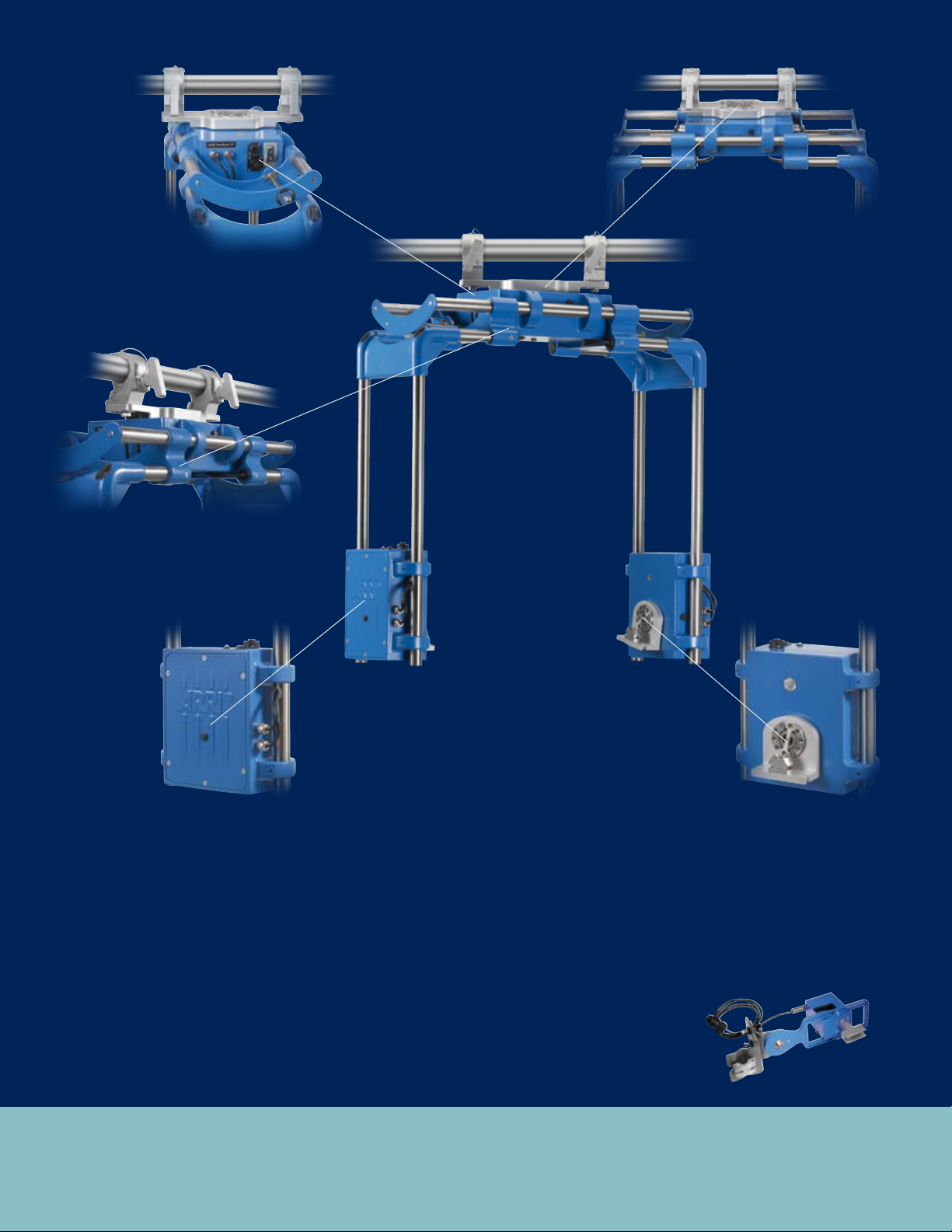

Added value - ARRI MaxMover

Design features

• High quality industry standard servo motors (brushless)

• Separable bearings (Pan / Tilt) for extreme axial mechanical stress

• 35mm axial drive

• High quality special aluminium castings, high precise milled

• High precision grinded stainless steel pipes (supporting

structure)

• High precision worm gear transmission (Pan / Tilt)

• High precision ginded, hardened worm gear transmissions

• High precision milled aluminium attachements

• High precision trapezoidal thread spindle (adjustable width

function)

• Self-lubricating maintenance free brass bearings (Pan / Tilt)

• Polymeric bush bearing (adjustable width function)

• Seamless high precision stainless steel pipe (adjustable width

function)

Connection panel with IP54 sockets

Polymeric bush beaning (adjustable width function)

High precision milled
aluminium attachements

Access to the adjustable tilt slipping clutch

MaxMover product overview
Ident.-No. Product
563700 MaxMover; motorized stirrup (for 6kW-24kW ARRI Lamp-

heads), includes Universal ARRI Adapter Plate, Mega­ClawTM mount and ARRI Analog Controller for Pan, Tilt &
Focus with 130‘ (40m) control cable. Includes Roadcase

563701 MaxMover FP (Fully Programmable); motorized stirrup

(for 6kW-24kW ARRI Lampheads), includes Universal
ARRI Adapter Plate, Mega-ClawTM mount, ARRI Analog
Controller for Pan, Tilt & Focus with 130‘ (40m) control
cable. Includes DMX 512 FP Converter Box & Roadcase

563705 MaxMover Focus Unit; for 6kW-24kW ARRI Lampheads

35mm axial drive, separable bearings (Pan/Tilt)
for extreme axial mechanical stress

Accessories
563704 MaxMover Upgrade Kit to FP
563790 Roadcase for MaxMover and Accessories

(incl. in 563700 + 563701)
563720 Adapter plate for ARRISUN 60
563740 Mitchell Adapter Mount Plate
563710 DMX 512 „Basic“ Conver

-

ter Box for 563700
563716 Extension Cable for

Analog Controller

130‘ (40m, shielded)

MaxMover FocusUnit
