Arri L5-DT, L5-TT, L5-C User manual

L5-Series

User Manual

As of June 2014

© 2014 Arnold & Richter Cine Technik GmbH & Co. Betriebs KG. All rights reserved.
No part of this document may be used for distribution, reproduction, transmission, transcription, storage in a data retrieval sys-

tem, or translated into any language in any form by any means without the prior written permission of ARRI®. If you are down­loading files from our web pages for your personal use, make sure to check for updated versions. ARRI® cannot take any
liability whatsoever for downloaded files, as technical data are subject to change without notice.

L5.0002357, Rev. A

Dimensions

Dimensions

3

Content

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Explanations of Warning Signs and Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

General Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Specific Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Maintenance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Legal disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Physical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

To adjust the stirrup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

To mount the spigot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Basic features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Control options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Connector Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

AC power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

To use a battery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Fixture menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Overview of the fixture menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Features of the fixture menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

To read out fixture information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Short cuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

DMX control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

DMX mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

DMX data link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Tips for reliable data transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

To connect the data link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Fixture Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Status Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Fixture Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

RDM commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Required RDM command extensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Manufacturer commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

LSeries Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

DMX protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

ARRI L5-TT (Tungsten Tuneable) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

ARRI L5-DT (Daylight Tuneable) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

ARRI L5-C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Photometric data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

ARRI L5-C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

ARRI L5-TT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

ARRI L5-DT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Safety Information

Always follow these instructions to protect against
injury to yourself and damage to the product or other
objects.

Explanations of Warning Signs and Indications

Safety Information

Possible risk of injury or damage to equipment.
Risk of fire or electric shock. Possible risk of injury or

damage to equipment.
Caution! Hot surface. Possible high surface tempera-

ture. Risk of injury through burns.
Caution! High intensity light emission. Risk of eye

injury.

Note: Indicates further information.

General Notes

• This document contains important instructions and notes to
handle the product safe.

• Always follow all safety information for your own protection.

• Please follow the user manual of accessories and third party
accessories for the L5-series such as battery packs and bat­tery chargers. They contain important safety and security in­formation.

• Retain this user manual for further reference and possible
new owners of this product.

®

• ARRI

• Help protecting the environment by disposing the package

• All components comply to the guidelines li sted below:

L-series products are intended for professional use
and may only be operated by qualified persons. They are not
for household use.

material at your local recycling center.

Low voltage directive 2006/95/EG
EMC directive 2004/108/EG
RoHS directive 2002/95/EG

6

General Safety Information

Read and understand all safety information and oper­ation instructions before you operate or install the
product.

Use only genuine spare parts or accessories that
have been recommended or approved by ARRI.
Other accessories or spare parts may cause hazards,
damage the product or invalidate the warranty.

Check all cables and devices for visible damage
before you work with the system. Defective electric or
electronic devices must not be used. Take special
care of the following components:

Component Possible damage

Housing,lens Cracks,cuts,deformation

Cables Cuts,deformation,burns

Connectors Cracks,deformation,burns

Cableconnectors Damaged

Innerthreads Overwound

In the event of visible damage to the product or
accessory, the product or accessory must no longer
be used. Replace or repair the respective part. In
case of repairs, please contact an authorized ARRI
service center.

Never attempt to repair any part of the product on
your own. Maintenance and repair work is only to be
carried out by authorized ARRI service centers.

Do not operate the product if the ambient tempera­ture exceeds 45° C (113° F). Do not expose the prod­uct to rain or moisture. Observe all information given
in chapter “Specifications” on page 48.

Do not bypass any safety feature of the product.
Do not open the product. There are no user service-

able parts inside. The housing is sealed with an adhe­sive seal that will break immediately when trying to
open the housing. Doing so will invalidate the war­ranty.

In addition to regular visible checks ARRI recom­mends that all electric components are checked for
electrical safety by a professional every 12 month.
Keep the protocol of the check.

Safety Information

7

Specific Safety Information

Intensive use can cause the surface and the heat sink
to become hot. Let the product cool down complete
before you handle it.

Never cover air vents and the heat sink during opera-

Safety Information

tion. Keep a minimum clearance around the product
of 0.5 m (1.65 ft).

WARNING: Intense light. The product is equipped
with high intensity LEDs which emit at high luminance
levels. Never look direct into the light source.

Never point a light beam from another luminaire into
the light source. Do not place the product on heat
sources. Intense heat cause automatic power off dur­ing operation.

Devices and accessories must be secured against fall
when mounted above floor level. Always observe
common and local safety regulations.

Never use the cables for transportation. Never hang
the product on its cables. Do not hang a battery pack
on its connection cable to the product.

CAUTION: High voltage! Always disconnect the prod­uct complete from mains voltage before you connect
or disconnect a cable or replace the fuse of the prod­uct.

Always check that the local AC power matches the
voltage and frequency range printed on the type label
of the product before use. Never use the product
when the AC power does not match.

Always check that the supply voltage of the battery
pack matches the voltage range printed on the type
label of the product before use.

Never connect the product to a dimmer-system or a
dimmer-channel in non-dim mode. To do so will dam­age the electronics. Damages caused by connecting
the product to a not suitable power source are not
covered by the warranty.

Never bypass any fuse.
Always keep cables away from the product during

operation. Do not tilt the power cable directly after the
connector. Water could immerse and cause short cir­cuits and damage the connector.

Disconnect all cables prior to transport.

8

Not to observe these safety information or to ignore common
sense may cause serious injury or even death. Damage to the
product or other devices is possible.

Please observe the information given in the „Safety leaflet
ARRI lampheads“ (L5.40731.E). The leaflet is available for
download on our web site www.arri.com.

Maintenance Information

• Do not clean the surface of the product with solvents or strong
detergents.

• Clean the product with a soft cloth wetted with a mild deter­gent. Do not rub the surface: lift stuck particles off with a soft
repeated press.

• Clean soiled electric contacts with cotton swabs wetted with
isopropyl alcohol.

• Keep electric contacts clean and replace corroded parts.

Legal disclaimer

© 2014 Arnold & Richter Cine Technik & Co. KG Betriebs KG
(ARRI). All rights reserved. Information subject to change with­out notice. ARRI and all affiliated companies disclaim liability
for any injury, damage, direct or indirect loss, consequential or
economic loss or any other loss occasioned by the use of, in­ability to use or reliance on the information contained in this
document. The ARRI logo, the ARRI name and all other trade­marks in this document pertaining to services or products by
ARRI or its affiliates and subsidiaries are trademarks or li­censed by ARRI or its affiliates or subsidiaries.

ARRI and the ARRI logo are registered trademarks of the Ar­nold & Richter Cine Technik GmbH & Co. Betriebs KG.

Safety Information

9

Introduction

Thank you for selecting a LED luminaire of the L5-series from

Introduction

ARRI. The products of the L5-series are fresnel-luminaires
equipped with a high precision, micro-processor controlled
LED light source. The L5-series is a perfect and easy replace­ment for conventional fresnel-luminaires with tungsten lamps.

The L5-series combines the advantages of the LED technology
with the ease of use of a traditional fresnel-luminaire. The
L5-series integrates seamless into established working prac­tice. LED luminaires are much more efficient than light sources
with conventional tungsten lamps. The optical system offers
real fresnel characteristics with an extreme smooth beam and
clean shadows. The half peak angle can be adjusted continu­ously from 15° - 50°.

The products of the L5-series emit white or colored light with
adjustable color temperature and adjustable green / magenta
saturation. Please find more detailed information in chapter
“Specifications” on page 48. The light spectrum is optimized for
excellent color rendition and fulfills perfect the demands of
modern, digital cameras. All models of the L5-series can be
controlled using the common DMX512-A protocol or the fixture
menu.

The products of the L5-series can be powered by AC power,
low voltage DC power sources and battery packs. Please find
more detailed information about the use of battery packs in the
section “Power” on page 17.

Features

Focus

Traditional fresnel-luminaires are able to spot and flood the
beam as needed. Whether it is a flood field for a pullback or a
tight spot for a bright highlight, the continuous focusability of
the ARRI L5 performs just as expected.

Versatile beam characteristics

The ARRI L5 provides the same ability as conventional fresnel­luminaires to cut set elements and shape the beam with barn­doors and flags.

Even light field

Clean, defined shadows have traditionally been a trait only of
single source tungsten and daylight fixtures. ARRI L5 fresnel­luminaires provide the same single shadow properties lighting
designers expect, delivering natural results.

Vibrant colors, full spectrum lighting

True-to-life color rendition i s an o ut s ta nd i ng feature of the
L5-series, comparable to a full spectrum tungsten source. The
fully tuneable white light of the ARRI L5-C can be adjusted for
different skin tones, camera sensors and mixed light environ­ments. Full gamut color mixing enables the rendition of all color
shades, making color filters dispensible.

Cool light beam

Like all LED light sources the ARRI L5 does not emit infrared
or UV radiation and thus does not forward heat, making actors
feel comfortable in the light beam.

10

Properties

Focus knob

The TRUE BLUE style focus knobs provides precise adjust­ment and rapid flood-to-spot with only three turns. Knobs on
both sides of the fixture ensure easy access from all positions.

Sliding stirrup

The sliding stirrup design enables precise compensation for
front end accessories.

Yoke

With an extreme slim profile, the extruded aluminum yoke pro­vides high strength without added weight. An optional, pole op­erated yoke allows full operation of pan and tilt from the floor
and is therefore a popular choice for many studios.

Tilt-lock

The high strength tilt-lock provides extreme secure locking. It
eliminates movement and slippage and ensures that the fix­tures will stay where you put them.

DMX-control

All functions of the ARRI L5 are controllable through DMX. The
ARRI L5 is also fully RDM compatible and is equipped with a
feedback channel for reporting all set parameters including
system status.

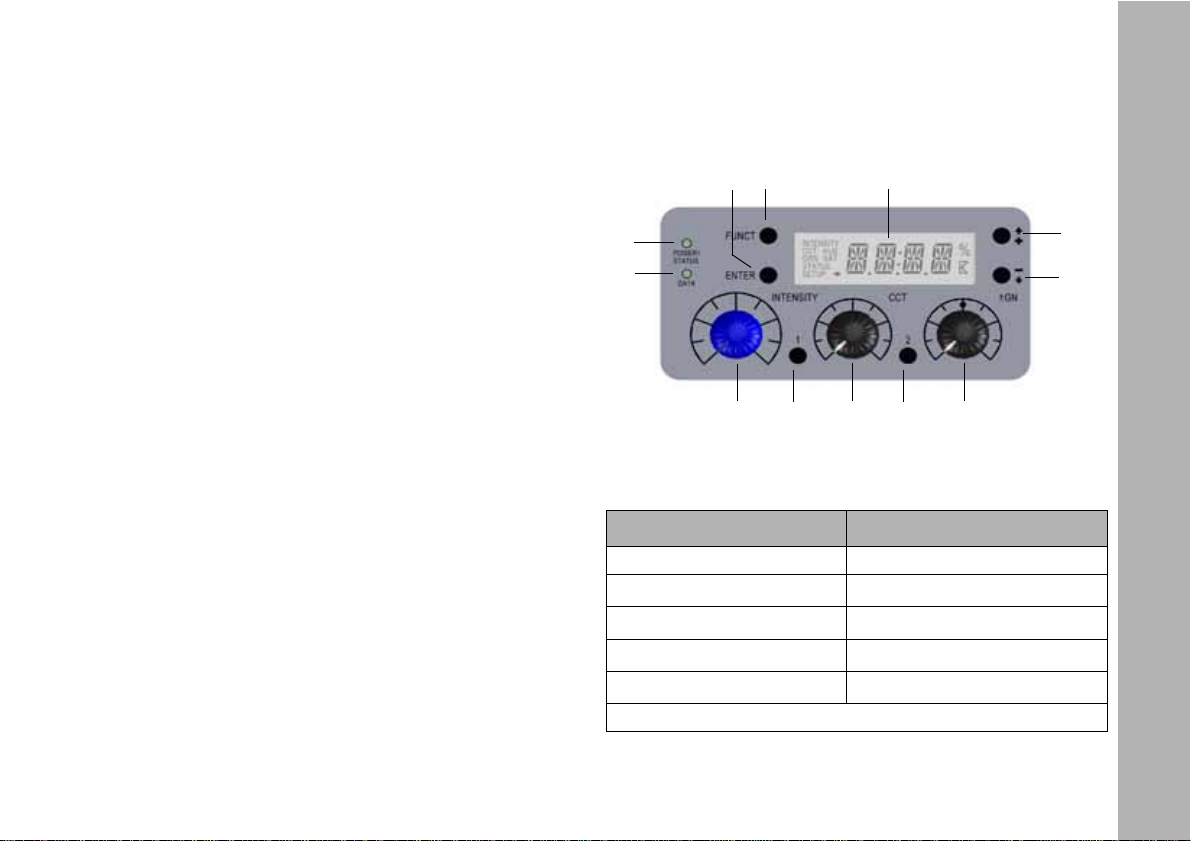

Fixture menu

For location applications the ARRI L5 is equipped with a fixture
menu for manual adjustment of intensity, color temperature
and plus/minus green as well as hue and saturation (functions
available depending on type).

Unpacking

The ARRI L5 is supplied with:

• Power cable with power plug or bare ends

• Stirrup

• Short 28 mm spigot with 16 mm hole (mounted on
p.o. stirrups)

• Short instructions

Please refer to chapter “Accessories” on page 49 for more in­formation about optional accessories.

Introduction

11

Overview

Overview

12

Toplatch

Latch

Safetycatch

Focosknob

Spigot

Stirrupbracket

Connectors

Stirrup

Tiltlock

Tiltlock

lever

Focsknob

Fixturemenu

Pan

Tilt

Focus

Overview

13

Physical Installation

WARNING! Attach an approved safety-cable to
secure the product against clamp or bracket failure.
Lead the safety-cable through the stirrup and keep it
as short as possible. The safety-cable needs to be
approved at least 10 times the weight of the product

Physical Installation

including all accessories mounted at the product.
Secure all accessories mounted at the product with
additional safety-cables to protect them from fall
down and cause injuries and damages.

WARNING! The rigging structure needs to be
approved for at least 10 times the weight of all
devices, equipment and cables installed on it.

IMPORTANT! Do not illuminate the display and the
fresnel-lens by high power light beams from a short
distance. The display and the light engine are dam­aged by high brightness and heat radiation within
very short time.

To adjust the stirrup

You need

• a Torx20 screw driver,

• a 10 mm allen key and

• a torque wrench (37 ft-lbs)

to adjust the stirrup.
On delivery the stirrup is in the basic position (tilted back).

Loosen the Torx20 screws on both sides of the stirrup bracket
slightly and pull the stirrup bracket towards the rear of the pro­duct. Loosen the lever of the tilt-lock and tilt the stirrup
upwards.

Slide the stirrup to the point of balance. The point of balance is
dependent on the accessories mounted at the product. Tighten
both Torx20 screws of the stirrup brackets. Do not overtighten
the screws. Tilt the stirrup to the desired position and tighten
the tilt-lock by using the lever. For better leverage, press the
knob on the tilt-lock-lever and turn the lever to the desired po­sition.

To mount the spigot

Place the spigot and the distance plate on the 13 mm hole in
the middle of the stirrup. Insert the allen screw with washer and
spring washer and tighten it with a torque wrench to 37 ft-lbs
torque.

14

To mount the device

Always observe all safety information listed in chapter “Physi­cal Installation” on page 14 when you mount the product and
accessories:

Be aware of the maximum tilt angle 90° upwards and 90° down­wards.

Ensure that you install all accessories correct when you mount
the product above floor level:

• Top latched locked, safety catch snapped in.

• Set up tripods in a stable position. Tripods need to be ap­proved for the load they need to carry.

• Always observe the additional load of cables and accesso­ries!

ATTENTION! Lateral load can cause deformation or
breaking of the spigot and the stirrup!

Please observe the information given in the „Safety
leaflet ARRI lampheads“ (L5.40731.E), which is available for
download on our web site www.arri.com.

To mount the safety cable at the p.o. stirrup

Lead the safety-cable through the eye bolt at the p.o. stirrup as
shown in the illustration below.

Keep the safety-cable as short as possible. Do not limit the
range of movement of the product.

Physical Installation

15

Basic features

Pan and tilt

Loose the mounting screw of the tripod or the appropriate fixing
screw of the mounting clamp to pan the product. Tighten the

Basic features

screw to avoid unintended movement. Loose the tilt-lock to tilt
the product to the desired angle. Tighten the tilt-lock-lever to
avoid unintended movement.

To adjust the beam angle

Turn one of the focus knobs beneath the lens tube to adjust the
beam angle continuously. The entire lens tube moves in and
out. Two mechanisms protect the product from being dam­aged:

• A predetermined braking point prevents the product from

damage, when the focus knob is turned with too high torque
at either end of the focus range.

• The self-impeding focus gear prevents the lens tube to move

itself in or out when the product is operated in a tilted position.

Use of accessories for beam shaping and light design

You can mount accessories such as a barndoor, filter holder or
scrim on the front side of the product:

• Firmly press the button at the side of the top latch to open the

top latch.

• Insert the accessory from the upside into the brackets until the

safety catch engages. Slightly tilt the safety catch with your
finger for support.

• Close the top latch. Make sure that the hook of the top latch
engages into the holding ring of the accessory.

DMX/RDM-interface

The product has a DMX/RDM-interface. It has 5-pin XLR con­nectors for DMX/RDM data input and output. Please find more
detailed information to establish a DMX/RDM data-link in chap­ter “DMX data link” on page 26.

USB-interface

The product has a mini-USB connector to upload firmware and
set parameters. The USB-interface can be used for service
purpose like download error reports and set certain data. To do
so you need a software tool, the „L-Series manager“. Down­load it free of charge from the ARRI web site www.arri.com.

Please find more detailed information to work with the L-Series
manager in the user manual of the software. The manual is in­cluded in the download package.

Turn on and use the product

Turn on the power switch or connect the product to AC power.
The product initializes for some seconds and is ready for oper­ation. The product will operate with the settings made on the
fixture menu or received by DMX. Please observe the following
section to use the product.

16

Control options

You can set up or control the product with the options listed in
the table below:

Option Control Configuration Information
Fixture menu yes yes page 19

DMX yes no page 25
RDM yes yes page 30
LS Manager no yes page 33

Connector Panel

1

2

1Fuseholder

2ACpowerin
3Connectorforbatterypack

3

4

56

4DMXinput
5DMXoutput

6USBconnector

Power

WARNING! For protect ion from electric sho ck, always
connect the product electrically to ground (earth)
when connected to AC power. The AC mains power
supply must be fitted with a fuse or circuit breaker
and ground-fault (earth-fault) protection.

IMPORTANT! Ensure that persons do not look at the
light emission aperture when the product is con­nected to AC power or a battery pack. The product
can light up suddenly. The high intensity of the
ARRI L5 can cause eye irritation or injury when not
respecting the safety distance.

IMPORTANT! Always connect the ARRI L5 direct to
AC power. Do not connect it to a dimmer-system.
Doing so will damage the product.

AC power

The products of the L5 series have an auto-sensing switch­mode power supply that automatically adapts to AC power
at 90 - 264 V ~, 45 - 65 Hz (nom.).

Before you connect the product to AC power or a battery pack,
check that:

• the dimmer knob at the fixture menu is set to 0%, and

• no DMX signal is present at the DMX-input of the ARRI L5.

Power

17
