CEILING SYSTEMS
3´ 11-1/2˝ – 4´ 11-1/2˝
4´ (48˝) – 5´ (60˝)
Lamp
2 1/8˝
2 1/16˝
6˝
5 3/8˝
6˝
1 1/8˝
4 7/8˝
6˝
4 9/16˝
27/32˝
1 1/2˝
15/16˝
4 27/32˝
5 13/16˝
2 17/32˝
47 25/32˝
46 31/32˝
48˝
Lamp A
Lamp B
TECHZONE™Ceiling System
Recessed and Pendant Fixtures
Armstrong®TechZone™Compatible
RECESSED LENSED (RL)
Catalog No.s:
RL-I-MPO-64-lamping-U RL-I-MPO-65-lamping-U
RL-I-OLP-64-lamping-U RL-I-OLP-65-lamping-U
48″ or 60″ Tegular Fixture for 9/16″ Grid
The RECESSED LENSED 6″ x 4′ (48″) or 6″ x 5′ (60″) is a
narrow aperture recessed direct lensed luminaire for individual
and continuous row mounting. A wireway channel running down
the length of the housing on one side on the top makes it easy
to connect fixtures for continuous runs. The lens options include
either an MPO (MICRO-PYRAMIDAL OPTIC) LENS for a more
focused distribution that directs light energy away from the
high-angle glare zone, or an OPAL LENS for a softer, more
diffused light distribution. Both lens options provide a continuous
line of light in the ceiling while hiding the lamps from view.
Lamp Options: 1 or 2, 4′ or 5′ T5 / T5HO lamps
The best combination of energy efficiency and lighting performance can be created by a simple 8′ x 8′ spacing pattern that
works perfectly with the TechZone
linear continuous runs are very common.
Suggested applications: Offices, lobbies, galleries, retail spaces,
corridors and reception areas.
TM
ceiling system, although
Recessed Lensed (RL)
End view
Side view
RECESSED BIVERGENCE
Catalog No.s:
RBIC-64-lamping-U RBIC-65-lamping-U
48″ and 60″ Lay-in Fixture for 9/16″ and 15/16″ Grid
The RECESSED BIVERGENCE 6″ x 4′ (48″) or 6″ x 5′ (60″) is a
narrow aperture recessed direct louvered luminaire for individual
and continuous row mounting. BIVERGENCE louver technology
improves on the “Parabolic Louver” by directing light energy away
from the glare zone to create pleasant working environments.
Lamp Options: 1 and 2 T5 / T5HO lamps; 1 and 2 T8 Lamps
BIVERGENCE Lay-in Recessed Fixture
End view (1) Lamp
T5/T5 HO fixture
Zumtobel Lighting Inc.
3300 Route 9W
Highland, NY 12528-2630
Technical Support: (845) 691-6262
www.zumtobel.us/armstrongtechzone
Side view (2) Lamp T5/T5 HO fixture
TECHZONE™Ceiling System
Recessed and Pendant Fixtures
RECESSED LOUVER WITH LIGHT CHAMBER (RLLC)
Catalog No.s:
RLLC-I-64-lamping-U
RLLC-I-64-lamping-end panel options-U
RLLC-I-65-lamping-end panel options-U
RLLC-I-65-AR-lamping-center panel options-U
RLLC-I-65-COV-lamping-center panel options-U
48″ or 60″ Fixture for 9/16″ Tegular or
15/16″ Lay-In Grid
The RECESSED LLC 6″ x 4′ (48″) or 6″ x 5′ (60″) is a narrow
aperture recessed direct luminaire with a matte white center
louver and frosted acrylic side diffusers, for individual and
continuous row mounting. A wireway channel running down
the length of the housing on one side on the top makes it easy
to connect fixtures for continuous runs. This is a highly versatile
product range with a variety of sizes, lamping and other options.
These include:
4′ luminaire with a continuous louver.
Lamp Options: 1 or 2, 4′ 28W T5 or 54W T5 HO lamps.
4′ or 5′ luminaire with a louver running down the center, and
a panel at each end that can accommodate a variety of options
including a blank cover, air return panel, sprinkler, speaker,
daylight/occupancy sensor, or an MR16 halogen downlight.
Lamp Options: 1 or 2, 3′ or 4′ T5 or T5 HO lamps.
5′ luminaire with a 3″ blank cover (COV) or Air Return (AR)
panel at each end, 2′ louvers on either side, and a center
feature that can accommodate a variety of options including
a blank cover, air return panel, sprinkler, speaker, daylight/
occupancy sensor, or an MR16 halogen downlight.
Lamp Options: 1 or 2, 2′ 14W T5 or 24W T5 HO lamps
The 5′ luminaire with the center options and the 2’ lamps was
originally developed for (with over 20,000 luminaires successfully
installed) a major high-profile New York City office tower project.
Suggested applications: Open and private offices, retail
spaces and institutions.
Recessed Louver with Light Chamber (RLLC)
4 7/8˝
End view – 15/16˝ Lay-In grid
1 1/8˝
5 3/8˝
1 1/8˝
6˝
2 1/8˝
6˝
1 3/4˝
6˝
2 1/8˝
Zumtobel Lighting Inc.
3300 Route 9W
Highland, NY 12528-2630
Technical Support: (845) 691-6262
www.zumtobel.us/armstrongtechzone
4 7/8˝
End view – 9/16˝ Tegular grid
6˝
2 1/16˝
5 3/8˝
TECHZONE™Ceiling System
Recessed and Pendant Fixtures
RECESSED LOUVER WITH LIGHT CHAMBER (RLLC)
Side Views
Lamp
3´ 11-1/2˝ – 4´ 11-1/2˝
4´ (48˝) – 5´ (60˝)
Lamp
3´ 11-1/2˝ – 4´ 11-1/2˝
4´ (48˝) – 5´ (60˝)
Lamp
4´ 11-1/2˝
5´ (60˝)
Detail of Middle and End Panel Options
Panel to integrate
architectural system
(see detail)
Top Views
Panel to integrate
architectural system
(see detail)
Sprinkler cover plate w/hole
size and shape may vary
(sprinkler by others)
Perforated
insert
white finish
to match
plate
Speaker plate w/hole
size and shape may vary
(speaker by others)
Zumtobel Lighting Inc.
3300 Route 9W
Highland, NY 12528-2630
Technical Support: (845) 691-6262
www.zumtobel.us/armstrongtechzone
Photo sensor plate w/hole
size and shape may vary
(sensor by others)
MR-16 downlight
cover plate w/hole
Occupancy sensor plate w/hole
size and shape may vary
(sensor by others)
Blank cover plate
or
air return
TECHZONE™Ceiling System
Recessed and Pendant Fixtures

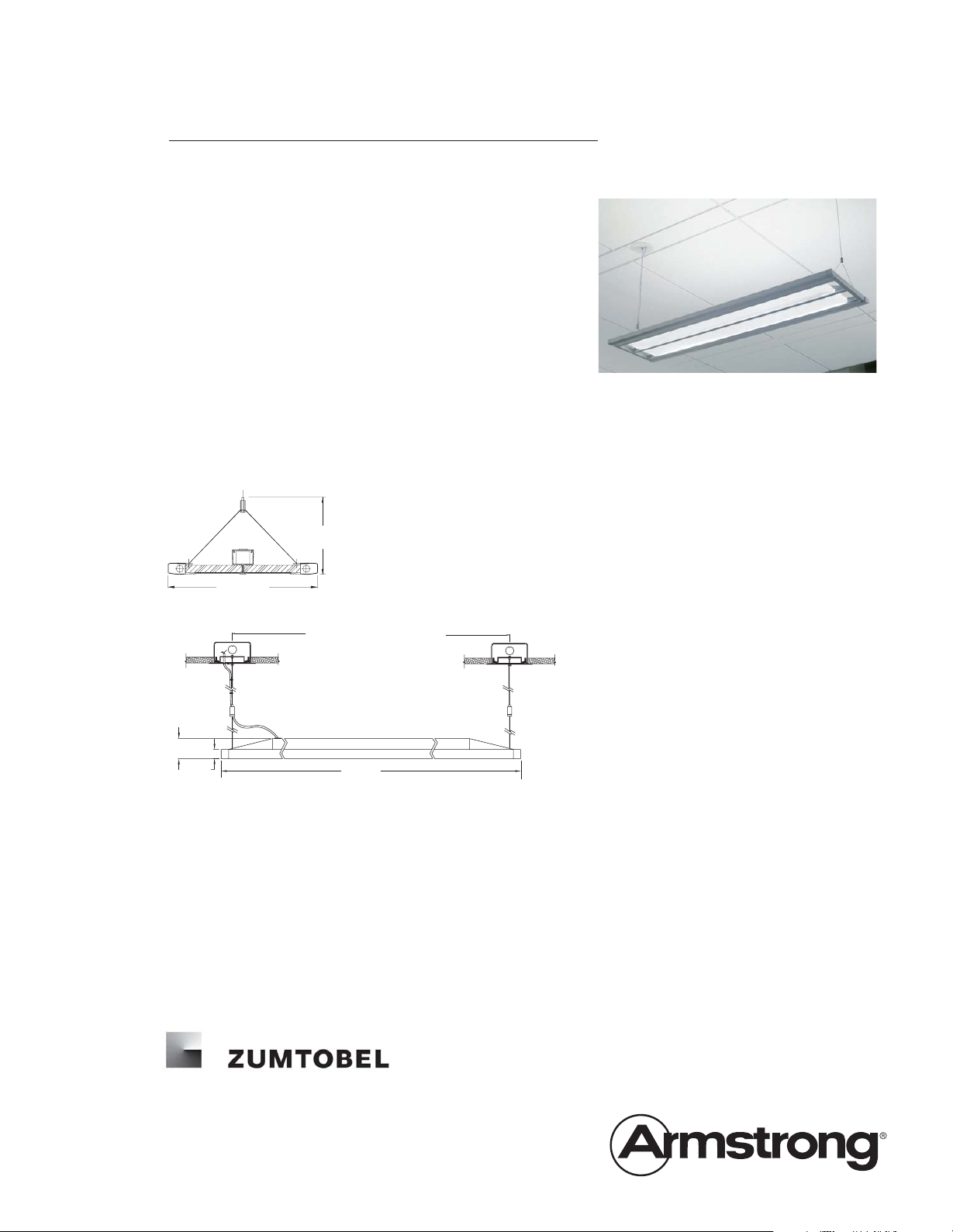

ARIA Pendant
Catalog Number:
AQ-lamping-4-T-DE-U-suspension length
ARIA is an indirect / direct pendant luminaire that combines
precision optics with modern styling ideal for cutting edge
architectural spaces. ARIA’s light distribution is predominantly
indirect to create pleasant glowing spaces with bright ceiling
and wall surfaces.
Lamp Options: (2) 28W T5 or 54W T5 HO lamps
Typical continuous row layouts may be spaced 8′ to 10′ on
center. For more energy conscious layouts the ARIA may
be spaced on an 8′ x 8′ pattern.
Note: Fixtures must be independently supported.
6 3/8"
(typ.)
ARIA Pendant Fixture
13 5/16"
46 7/8" between mounting points
2 3/16"
7/8"
All Zumtobel Lighting pendant fixtures are compatible with
TechZone Ceiling Systems.
4'-1 1/4"
J-box mounting shown
Zumtobel Lighting Inc.
3300 Route 9W
Highland, NY 12528-2630
Technical Support: (845) 691-6262
www.zumtobel.us/armstrongtechzone
CS-3739-0107
