ARISTON LIE2C19 Daily Reference Guide

DAILY REFERENCE

0000 000 00000

Service:

1 2 3 45

GUIDE

THANK YOU FOR BUYING A ARISTON PRODUCT.

In order to receive a more complete assistance, please register your appliance on: www.aristonbrand.com

Before using the appliance carefully read Health and Safety guide.

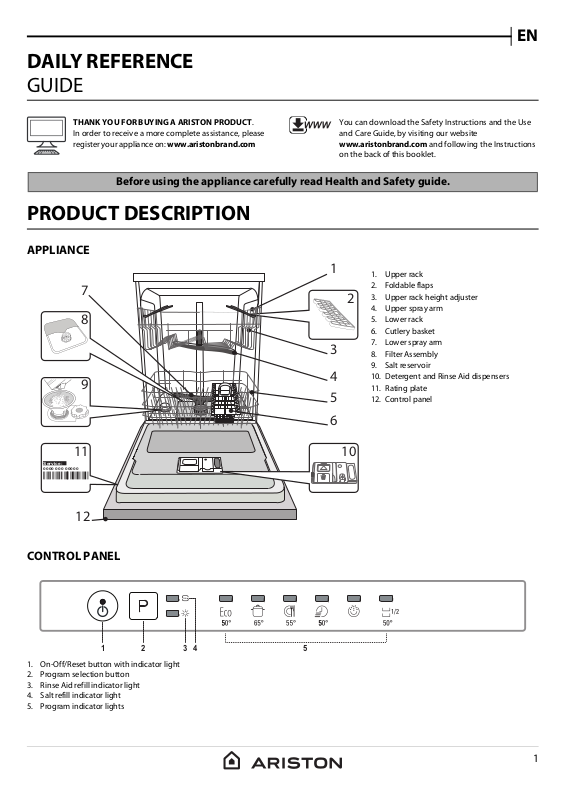

PRODUCT DESCRIPTION

APPLIANCE

You can download the Safety Instructions and the Use and Care Guide, by visiting our website

www.aristonbrand.com and following the Instructions on the back of this booklet.

1. Upper rack

2. Foldable flaps

3. Upper rack height adjuster

4. Upper spray arm

5. Lower rack

6. Cutlery basket

7. Lower spray arm

8. Filter Assembly

9. Salt reservoir

10. Detergent and Rinse Aid dispensers

11. Rating plate

12. Control panel

CONTROL PANEL

1. On-Off/Reset button with indicator light

2. Program selection button

3. Rinse Aid refill indicator light

4. Salt refill indicator light

5. Program indicator lights

FIRST TIME USE

SALT, RINSE AID AND DETERGENT

ADVICE REGARDING THE FIRST TIME USE

After installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack.

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on the machine’s functional components.

• It is important that the salt reservoir be never empty.

• It is important to set the water hardness. The salt reservoir is located in the lower part of the dishwasher (see

PROGRAMS DESCRIPTION) and should be filled when the SALT REFILL indicator light

Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash program (this could damage the water softener beyond repair).

Whenever you need to add salt, it is mandatory to complete the procedure before the beginning of the washing cycle.

SETTING THE WATER HARDNESS

To allow the water softener to work in a perfect way, it is essential that the water hardness setting is based on the actual water hardness in your house. This information can be obtained from your local water supplier. The factory setting is for average (3) water hardness.

• Switch on the appliance by pressing the ON/OFF button.

• Switch off the appliance by pressing the ON/OFF button.

• Hold down button P for 5 seconds, until you hear a beep.

• Switch on the appliance by pressing the ON/OFF button.

•

The program indicator light of the current set level flashes.

• Press button P to select the desired hardness level (see WATER

HARDNESS TABLE).

Level

1 Soft 0 - 6 0 - 10

2 Medium 7 - 11 11 - 20

3 Average 12 - 17 21 - 30

4 Hard 18 - 34 31 - 60

5 Very hard 35 - 50 61 - 90

• Switch off the appliance by pressing the ON/OFF button. Setting is complete!

As soon as this procedure is complete, run a program without loading.

Only use salt that has been specifically designed for dishwashers.

After the salt has been poured into the machine, the SALT REFILL indicator light switches off.

If the salt container is not filled, the water softener and the heating element may be damaged as a result.

in the control panel is lit.

1.Remove the lower rack and unscrew the reservoir cap (anticlockwise).

2.Only the first time you do this: fill the salt reservoir with water.

3.Position the funnel reservoir right up to its edge (approximately 1 kg); it is not unusual for a little water to leak out.

4.Remove the funnel and wipe any salt residue away from the opening.

Water Hardness Table

°dH

German degrees

(see figure)

and fill the salt

°fH

French degrees

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be filled when the RINSE AID REFILL indicator light panel is lit.

35 25

1. Open the dispenser B by pressing and pulling up the tab on the lid.

2. Carefully introduce the rinse aid as far as the maximum (110 ml) reference notch of the filling space - avoid spilling it. If this happens, clean the spill immediately with a dry cloth.

3. Press the lid down until you hear a click to close it.

NEVER pour the rinse aid directly into the tub.

in the control

ADJUSTING THE DOSAGE OF RINSE AID

If you are not completely satisfied with the drying results, you can adjust the quantity of rinse aid used.

• Switch the dishwasher on using the ON/OFF button.

• Switch it off using the ON/OFF button.

• Press button P three times - a beep will be heard.

• Switch it on using the ON/OFF button. The program indicator light of the current set level flashes.

•

• Press button P to select the level of rinse aid quantity to be supplied.

• Switch it off using the ON/OFF button

Setting is complete!

If the rinse aid level is set to ZERO (ECO), no rinse aid will be supplied. The LOW RINSE AID indicator light will not be lit if you run out of rinse aid. A maximum of 5 levels can be set according to the dishwasher model. The factory setting is specific to the model, please follow instruction above to check this for your machine.

• If you see bluish streaks on the dishes, set a low number (1-2).

• If there are drops of water or limescale marks on the dishes, set a high number (3-4).

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser use the opening device A. Introduce the detergent into the dry dispenser

2. Remove detergent residues from the edges of the dispenser and close the cover until it clicks.

3. Close the lid of the detergent dispenser by pulling it up until the closing device is secured in place.

The detergent dispenser automatically opens up at the right time according to the program.

B only. Place the amount of detergent for pre-washing directly inside the tub.

1.When measuring out the detergent refer to the mentioned earlier information to add the proper

quantity. Inside the dispenser are indications to help the detergent dosing.

there

PROGRAMS TABLE

Program

Drying

Detergent

dispenser

Tub B

phase

Duration of wash

program

(h:min)

Wat er

consumption

(litres/cycle)

Energy

consumption

(kWh/cycle)

1. Eco 50° 2:40 12.0 0.86

2. Intensive 65° - 2:30 16.5 1.65

3. Everyday 55° - 2:00 16.0 1.35

4. Express 40’ 50° - - 0:40 9.0 0.90

5. Soak - - - - 0:10 4.0 0.01

6. Half Load 50° - 1:20 12.0 1.10

The Eco 50° wash cycle adheres to the regulation standard AS/NZS 2007. Although it has a longer duration than other wash cycles it uses less energy and is less harmful to the environment.

*) The duration of the program shown on the display or in the booklet is an estimate calculated on standard conditions. The actual time may vary depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration up to 20 min.

Standby consumption: Left-on mode consumption: 5 W - Off mode consumption: 0.5 W

WARNING: Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open. Check that the detergent receptacle is empty after completion of the wash cycle.

PROGRAMS DESCRIPTION

Instructions on wash cycle selection.

ECO

Normally soiled crockery. Standard program, the most efficient in terms of its combined energy and water consumption.

INTENSIVE

Program recommended for heavily soiled crockery, especially suitable for pans and saucepans (not to be used for delicate items).

EVERYDAY

Everyday cycle, that ensures optimal cleaning performance in shorter time.

EXPRESS 40’

Program to be used for lightly-soiled dishes with no dried food residues.

SOAK

Crockery to be washed later. No detergent to be used with this program.

HALF LOAD

Ideal for washing a half load of lightly or normally soiled crockery.

Notes:

Please note that cycles like Express or Fast are most effective for lightly soiled dishes.

To reduce consumption even further, only run the dishwasher when it is full.
