Contents

Installation, 2-3

Positioning and levelling Connecting the water and electricity supplies Technical data

Description of the appliance, 4

Overall view Control panel

Loading the racks, 5

Lower rack Cutlery basket Upper rack

Start-up and use, 6

Starting the dishwasher Loading the detergent Washing options*

Wash cycles, 7

Wash cycle table

Rinse aid and refined salt, 8

Loading the rinse aid Loading the refined salt

Care and maintenance, 9

Shutting off the water and electricity supplies Cleaning the dishwasher Preventing unpleasant odours Cleaning the sprayer arms Cleaning the filters Leaving the machine unused for extended periods

Precautions and advice, 10

General safety Disposal Saving energy and respecting the environment

Troubleshooting, 11

Assistance, 12

Before calling for Assistance

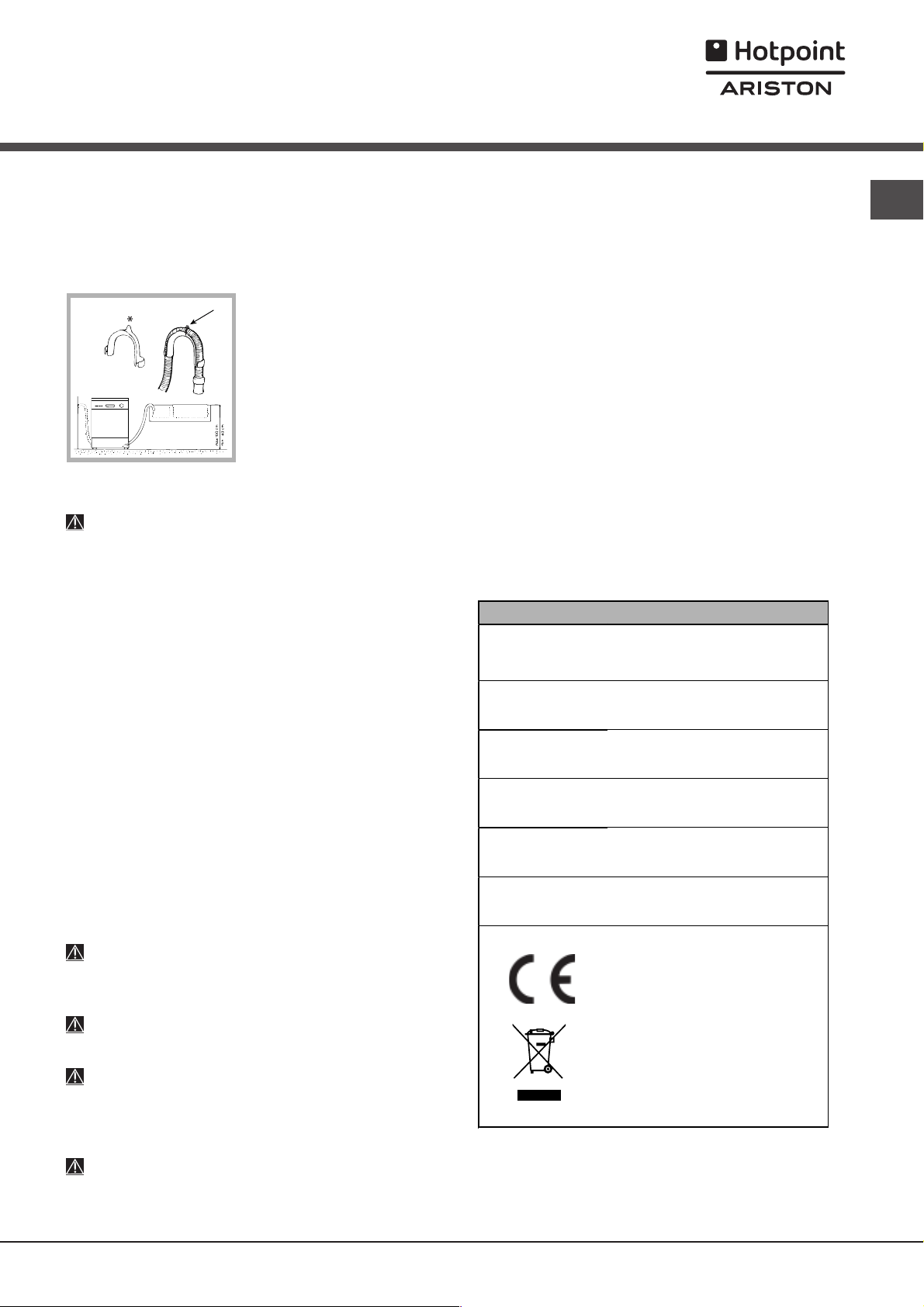

Installation

Keep this instruction manual in a safe place for

future reference. If the appliance is sold, given away or moved, please ensure the manual is kept with the machine, so that the new owner may benefit from the advice contained within it.

Please read this instruction manual carefully: it contains important information regarding the safe installation, use and maintenance of the appliance.

If the appliance must be moved at any time, keep it in an upright position; if absolutely necessary, it may be tilted onto its back.

Positioning and levelling

1. Remove the appliance from all packaging and check that it has not been damaged during transportation. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

2. Check the dishwasher by placing it so that its sides or back panel are in contact with the adjacent cabinets or even with the wall. This appliance can also be recessed under a single worktop* (

sheet

3. Position the dishwasher on a level and sturdy floor. If the floor is uneven, the front feet of the appliance may be adjusted until it reaches a horizontal position (the angle of inclination must not exceed 2 degrees). If the appliance is levelled correctly, it will be more stable and much less likely to move or cause vibrations and noise while it is operating.

4. Adjust the height of the rear feet from the front of the appliance*: use a screwdriver to tighten or loosen the screws on the lower part of the dishwasher.

see the Assembly instruction

Connecting the water and electricity supplies

Connection to the water and electricity supplies should only be performed by a qualified technician.

The dishwasher should not stand on top of the water hoses or the electricity supply cable.

The appliance must be connected to the water supply network using new piping.

- Do not use old piping.

The water inlet (A) and outlet (B) hoses and the electricity supply cable may be positioned towards the right or the left in order to achieve the best possible installation (

see figure

Connecting the water inlet hose

• To a suitable cold water connection point: before attaching the hose, run the water until it is perfectly clear so that any impurities that may be present in the water do not clog the appliance; after performing this operation, screw the inlet hose tightly onto a tap with a ¾ gas threaded connection.

• To a suitable hot water connection point: your dishwasher may be provided with hot water from the mains supply (if you have a central heating system with radiators) provided that it does not exceed a temperature of 60°C. Screw the hose to the tap as described for connection to a cold water supply.

If the inlet hose is not long enough, contact a

specialist store or an authorised technician (

Assistance

The water pressure must be within the values

indicated in the Technical data table (

The hose should not be bent or compressed.

see

see below

Anti-flooding protection

To ensure floods do not occur, the dishwasher:

- is provided with a special system which blocks the

water supply in the event of anomalies or leaks from inside the appliance.

- is provided with a

words it has a water inlet hose that consists of a transparent hose on the outside and a red hose on the inside: both the hoses can withstand extremely high pressure. If the internal hose breaks, the external hose becomes a bright red colour and carries the water instead, thus avoiding any leakage.

It is very important to check the external hose regularly: if it is a bright red colour, it must be replaced by an authorised technician as soon as possible (

Assistance

Water Stop

* safety device, in other

see

WARNING: HAZARDOUS VOLTAGE!

Under no circumstance should the water inlet hose be cut as it contains live electrical parts.

* Only available in selected models.

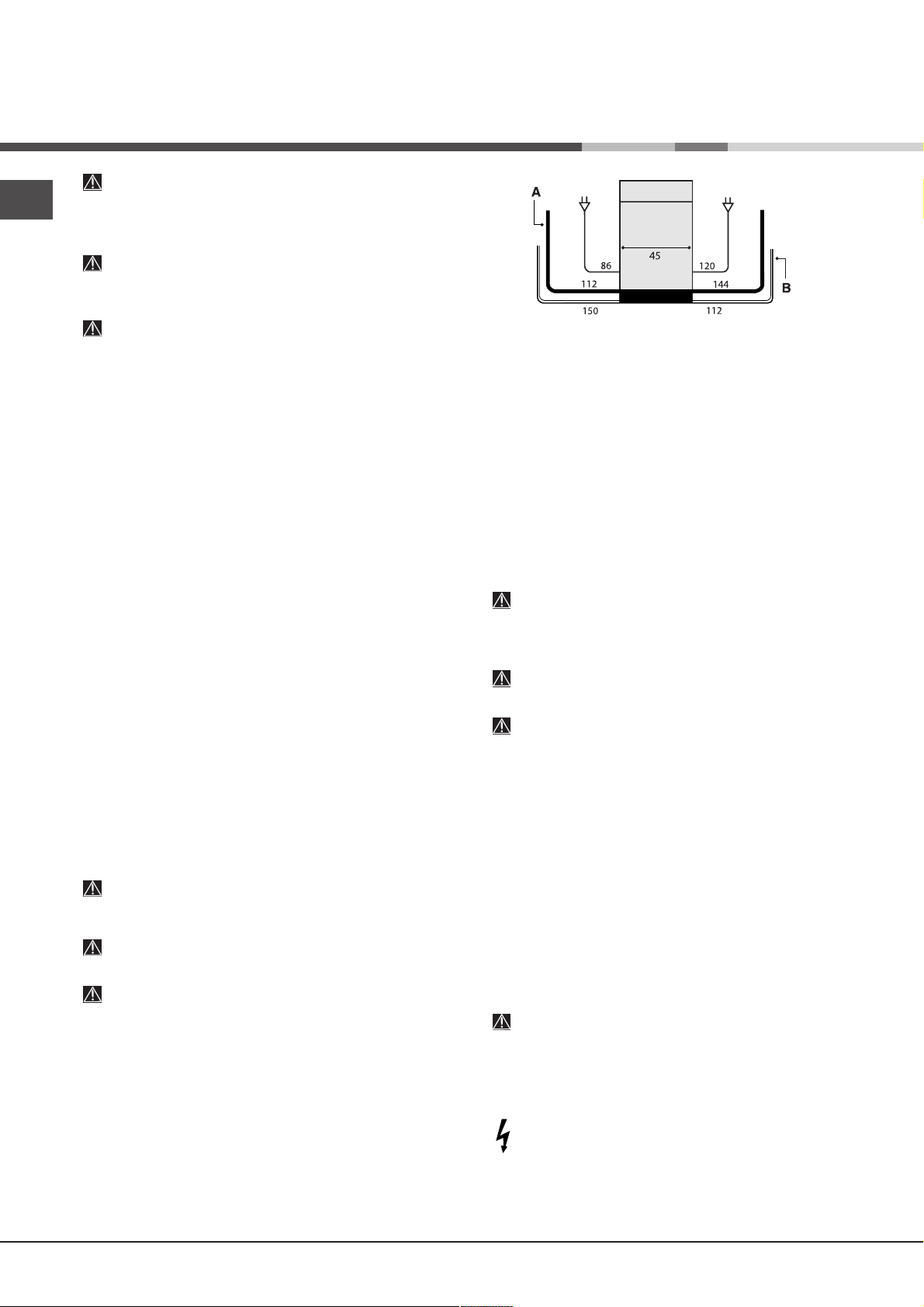

Connecting the water outlet hose

Connect the outlet hose (without bending it) to a drain duct with a minimum diameter of 4 cm. Alternatively, rest it over a sink or tub; the free end of the hose should not remain immersed in water.

The special plastic elbow*

makes it easier to find the best layout: fix the elbow to the wall securely in order to prevent the outlet hose from moving and spilling the dirty water. The part of the hose marked with the letter A should be between 40 and 100 cm above the ground (

figure

We advise against the use of hose extensions.

see

Advice regarding the first wash cycle

After the appliance has been installed, immediately before running the first wash cycle, completely fill the salt dispenser with water and add approximately 2 kg of

see Rinse aid and refined salt

salt ( overflow: this is normal and is not a cause for concern. It is also normal that the LOW SALT* indicator light continues to flash for a few cycles after the salt has been loaded.

). The water may

Anti-condensation strip*

After installing the dishwasher, open the door and stick the adhesive transparent strip under the wooden shelf in order to protect it from any condensation that may form.

Technical data

Electrical connection

Before inserting the plug into the electrical socket, make sure that:

• the socket is earthed and complies with current regulations;

• the socket can withstand the maximum load of the appliance, which is indicated on the data plate located on the inside of the door (

the appliance

• the power supply voltage falls within the values indicated on the data plate on the inside of the door;

• the socket is compatible with the plug of the appliance. If this is not the case, ask an authorised technician to replace the plug ( not use extension cables or multiple sockets.

Once the appliance has been installed, the power supply cable, the electrical plug and socket should remain accessible.

If the power supply cable is damaged, it must be replaced by the manufacturer or its Technical Assistance Service in order to prevent all potential hazards. (See Assistance)

);

see Description of

see Assistance

); do

Dimensions

Capacity

Water supply pressure

Power supply voltage

Total absorbed power

Fuse

width 44.5 cm height 82 cm depth 57 cm

9 standard place-settings

0,05 ÷ 1MPa (0.5 ÷ 10 bar)

4.3 psi – 145 psi

See appliance data plate

This dishwasher conforms to the following European Community Directives:

-73/23/EEC dated 19/02/73 (Low Voltage) and subsequent modifications

-89/336/EEC dated 03/05/89 (Electromagnetic Compatibility) and subsequent modifications

-97/17/EC (Labelling)

-2002/96/ CE (

Waste Electrical and Electronic Equipment WEEE)

The cable should not be bent or compressed.

The Company shall not be held responsible for any incidents that occur if these regulations are not observed.

* Only available in selected models.

Description of the appliance

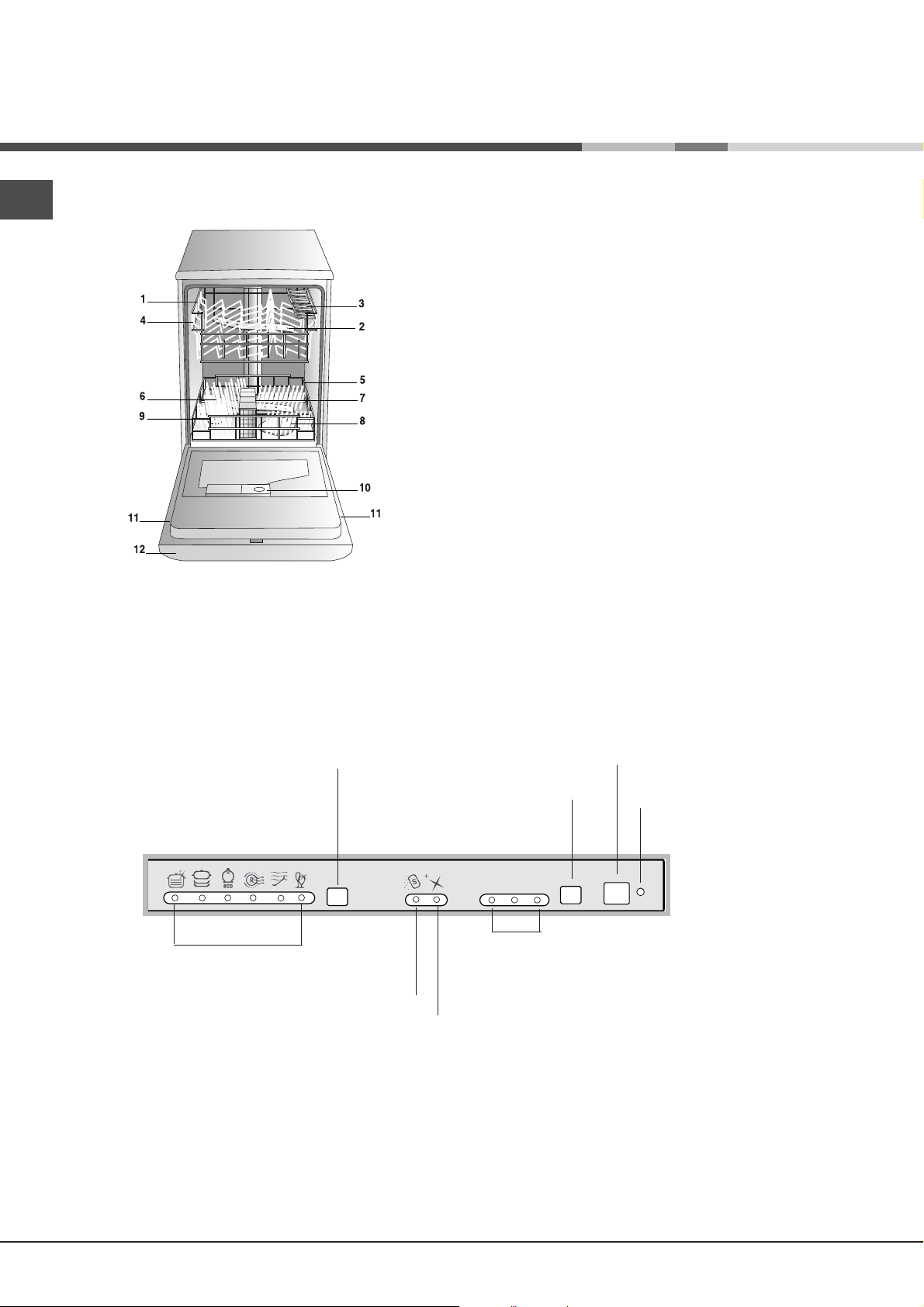

Overall view

1. Upper rack

2. Upper sprayer arm

3. Tip-up compartments

4. Rack height adjuster

5. Lower rack

6. Lower sprayer arm

7. Cutlery basket

8. Washing filter

9. Salt dispenser

10. Detergent and rinse aid dispensers

11. Data plate

12. Control panel***

Control panel

WASH CYCLE SELECT

button

WASH CYCLE

indicator lights

LOW SALT

indicator light*

LOW RINSE AID indicator light*

DELAYED START indicator light*

ON/OFF button

ON/OFF indicator light

DELAYED START button*

*** Only in completely built-in models. * Only available in selected models.

Loading the racks

Before loading the racks, remove all food residues from the crockery and empty liquids from glasses and cups.

After loading the appliance, check that the sprayer arms can rotate freely.

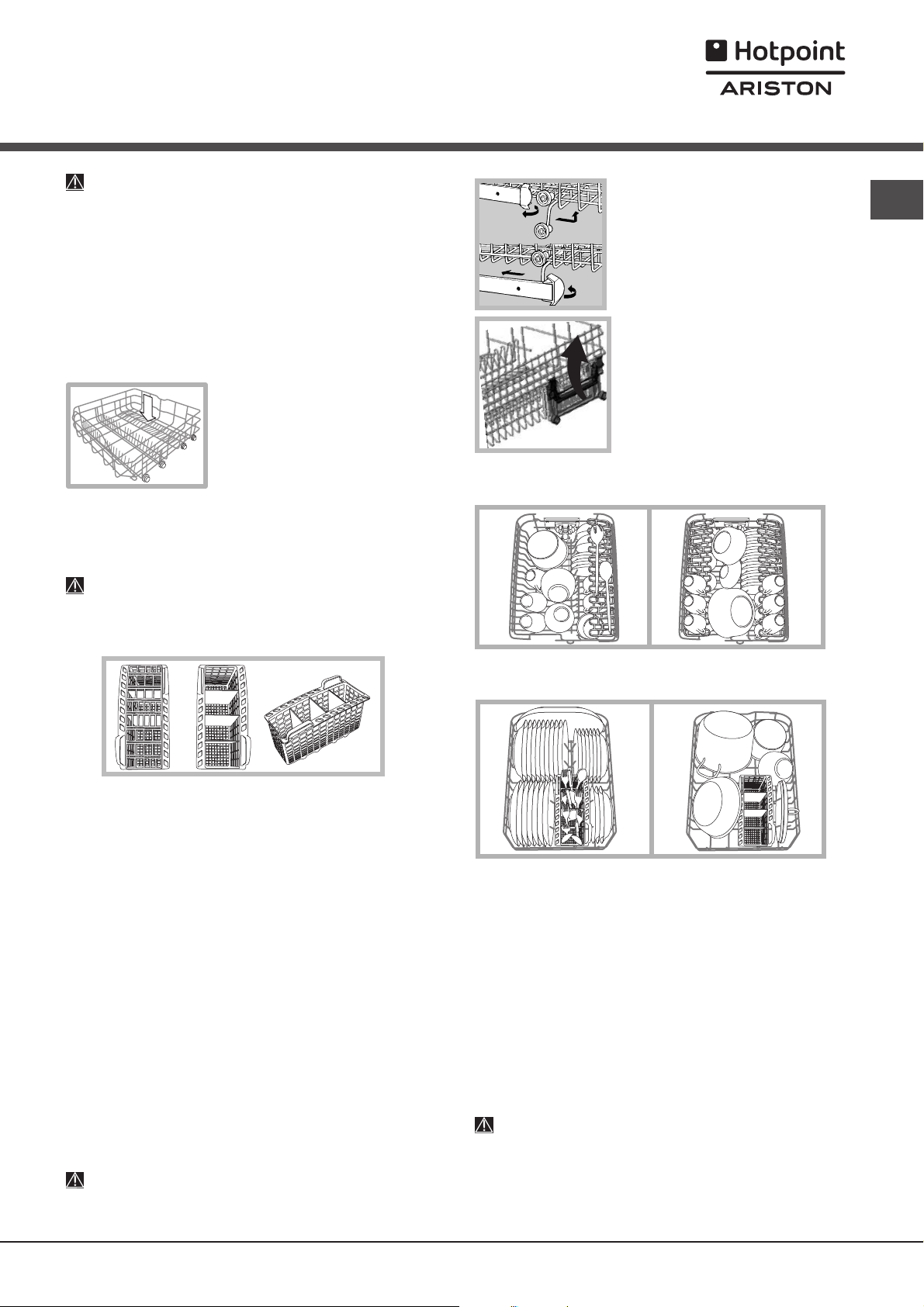

Lower rack

The lower rack can hold pans, lids, plates, salad bowls, cutlery, etc. as seen in the Plates and large covers should be placed at the sides of the rack, ensuring that they do not block the rotation of the upper sprayer arm.

Loading examples.

Some dishwasher models are fitted with tip-up sections, which can be used in a vertical position when arranging plates or in a horizontal position when arranging pans and salad bowls.

Cutlery basket

The type of cutlery basket may vary according to the dishwasher model.

Knives and other utensils with sharp edges must be placed in the cutlery basket with the points facing downwards, or they must be positioned horizontally in the tip-up compartments on the upper rack.

Open the left and right guide rail

stops and pull out the rack; position

it higher or lower as required, slide it along the guide rails until the front wheels are in place and close the stops (

see figure

If the rack is equipped with the click clack handles* ( them upwards or downwards to adjust the height.

see figure

Loading examples for the upper rack

), pull

The grille element* may be positioned in the basket to separate the cutlery: place the pieces of cutlery into the appropriate compartments with the handles at the bottom.

Upper rack

Load this rack with delicate and lightweight crockery: glasses, tea and coffee cups, saucers, small salad bowls, saucepans and small saucepans that are not too soiled, using the

examples

• Lightweight crockery: position these dishes so that they

• Mugs and cups: place these on the tip-up

• Long sharp knives and serving utensils: place these on

as a guide.

will not be moved by the jets of water.

compartments**.

the tip-up compartments**.

Adjusting the height of the upper rack

In order to make it easier to arrange the crockery, the upper rack may be moved to a higher or lower level.

Loading examples for the lower rack

Items that should not be washed in the dishwasher

• Wooden items, objects with wooden or horn handles or glued-on parts.

• Items made from aluminium, copper, brass, pewter or tin.

• Items made from plastic that is not heat-resistant.

• Antique or hand-painted porcelain.

• Antique silver. Silver that is not antique may, however, be washed in the dishwasher using a delicate wash cycle, provided that it does not come into contact with other metals.

We recommend the use of crockery which is dishwasher

safe.

The height of the upper rack should ideally be adjusted WHEN THE RACK IS EMPTY.

Never lift or lower the rack on one side only.

* Only available in selected models. ** The number and position may vary.

Start-up and use

Starting the dishwasher

1. Turn the water tap on.

2. Open the door and press the ON/OFF button: the indicator light will illuminate.

3. Measure out the detergent (see below).

4. Load the racks (see Loading the racks).

5. Select the programme by pressing the WASH CYCLE SELECT button; the corresponding indicator light will illuminate.

6. Select the wash options (see below).

7. Start the wash cycle by shutting the door: the machine will emit a confirmation beep.

8. At the end of the cycle two short beeps will sound and the WASH CYCLE indicator light will flash. Open the door, switch off the appliance by pressing the ON/OFF button, shut off the water tap and unplug the appliance from the electricity socket.

9. Wait for a few minutes before removing the crockery, in order to avoid burns. Unload the racks, beginning with the lower level.

Modifying a wash cycle in progress

If a mistake was made during the wash cycle selection process it is possible to change the cycle, provided that it has only just begun: open the door, taking care to avoid the escaping steam, and press the WASH CYCLE SELECT button, holding it for 4 seconds. After one long beep and three short beeps, the WASH CYCLE indicator light will switch off: select the new wash cycle and start the programme by shutting the door.

Adding extra crockery

Open the door, taking care to avoid the escaping steam, and place the crockery inside the dishwasher. Close the door: the cycle starts from the point at which it was interrupted.

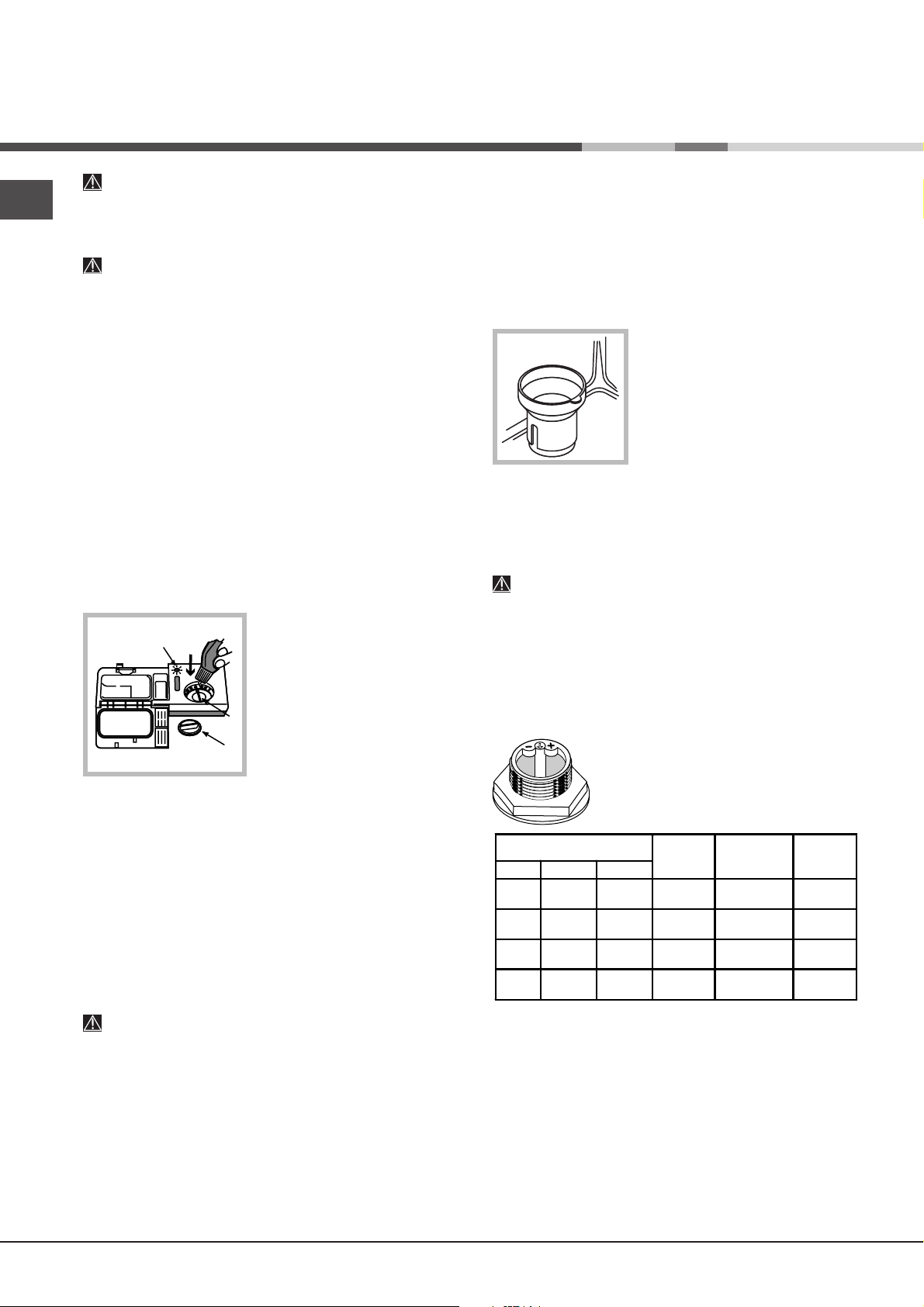

Loading the detergent

A successful wash also depends on the correct amount of detergent being used, as recommended by the manufacturer. Exceeding the recommended amount does not result in a more effective wash and pollutes the environment.

Only use detergent which has been

specifically designed for dishwashers.

DO NOT USE washing up liquid.

To obtain the best results from each washing and drying cycle, powder detergent, rinse aid liquid and salt should be used.

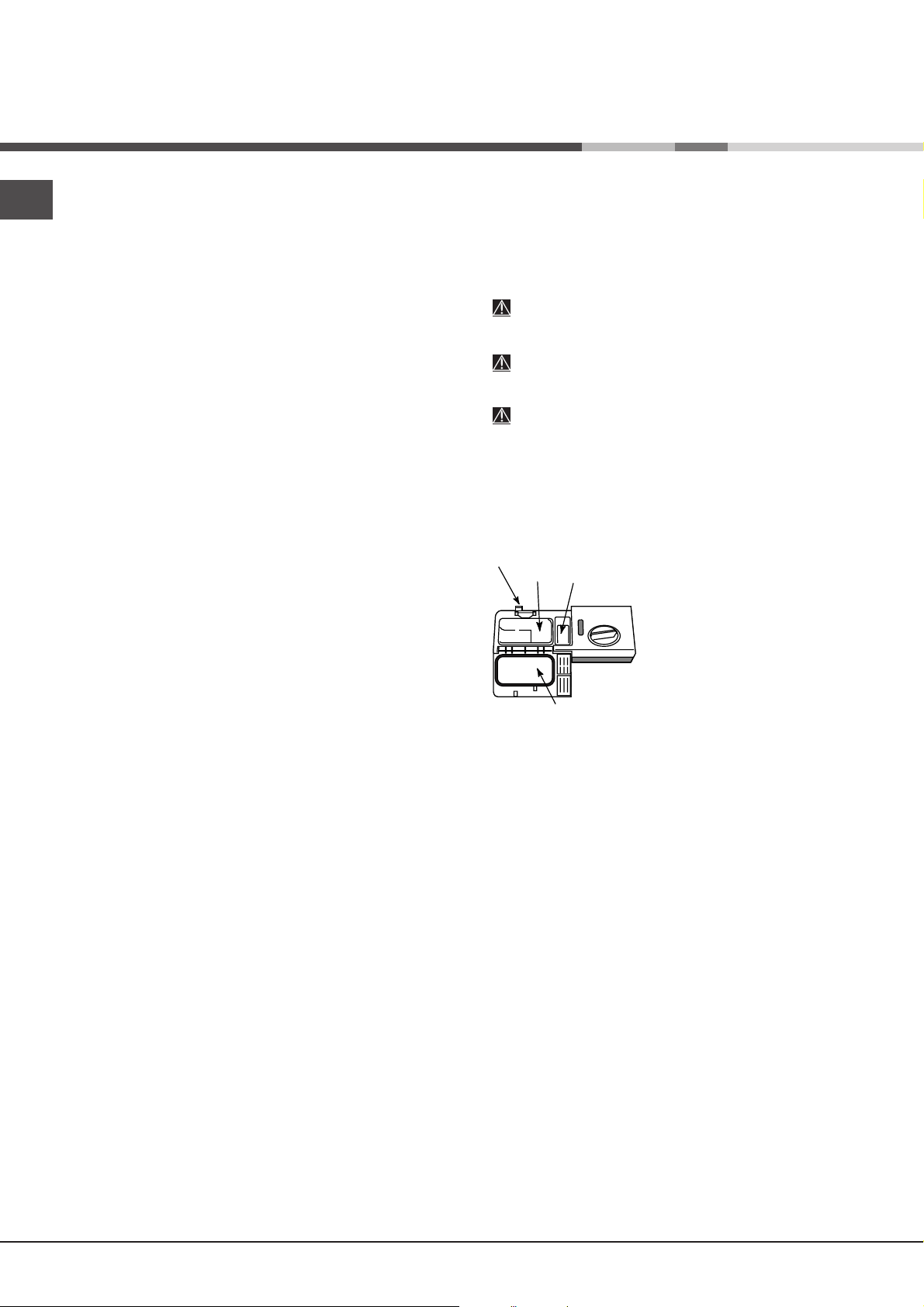

compartment A: Washing detergent compartment B: Pre-wash detergent

tablet at the bottom of the appliance.

3. Remove detergent residues from the edges of the compartment and close the cover until it clicks.

1. Open cover C by pressing button D.

2. Pour in the detergent after consulting the

• for powder detergent use compartments A and B

• for tablets, when the cycle requires 1 tablet, place it in compartment A and close the cover; when it requires 2, place the second

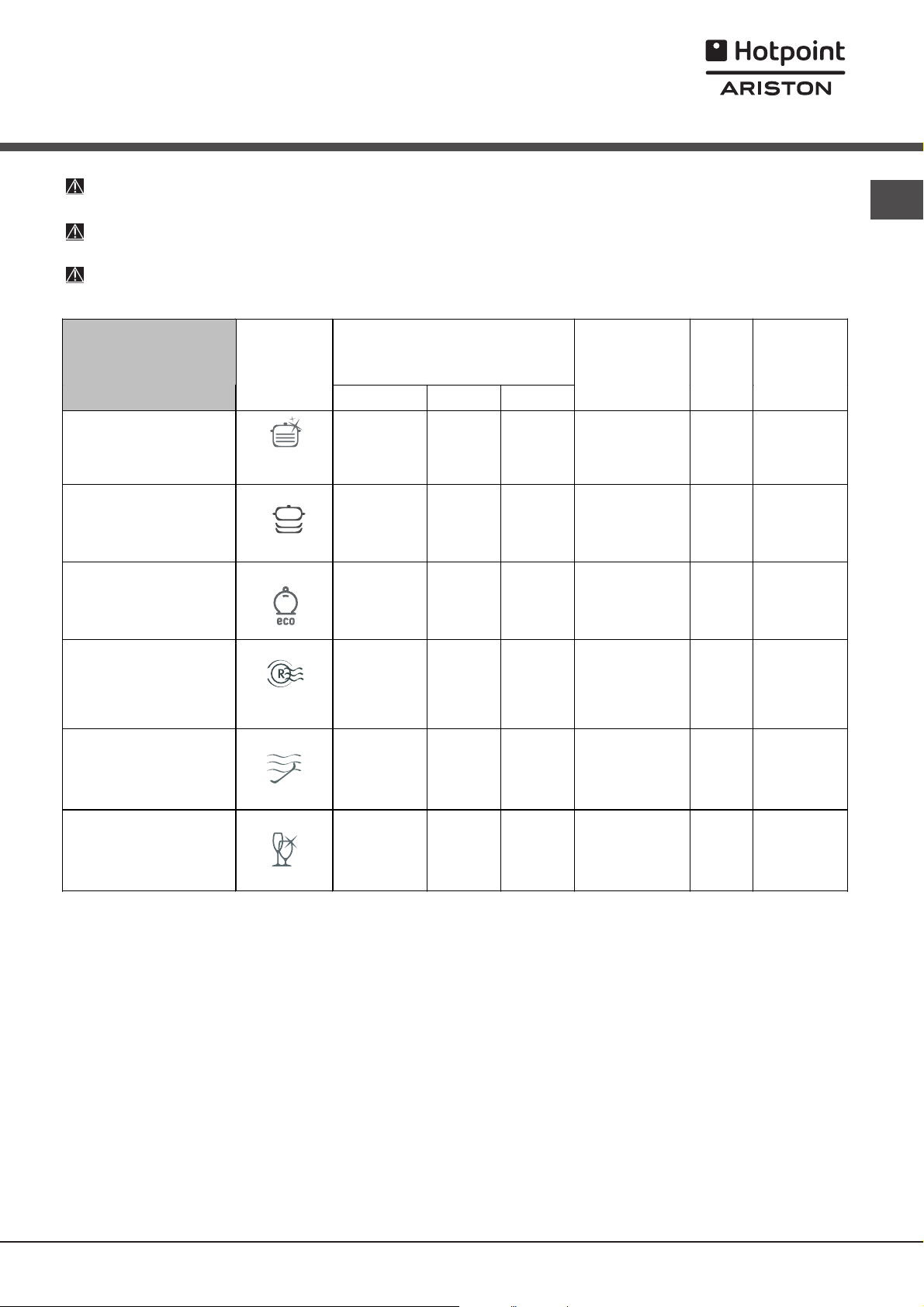

Wash cycle table

Washing options

Accidental interruptions

If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. It starts again from the point at which it was interrupted once the door has been shut or the electricity supply is restored.

Delayed start

It is possible to delay the start time of the cycle by 2, 4 or 6 hours.

1. Press the DELAYED START button: every time the button is pressed, a beep is emitted and the selected delayed start indicator light illuminates.

2. Select the wash cycle and shut the door: after the beep sounds, the timer begins counting down.

3. Once this time has elapsed, the indicator light switches off and the wash cycle begins. To adjust the delay time and select a smaller period of time, press the DELAYED START button. To cancel it, press the button repeatedly until the selected delayed start indicator light switches off. The wash cycle will start automatically as soon as the door is shut.

* Only available in selected models.

Wash cycles

Ariston dishwashers are fitted with an automatic filter cleaning system that may increase the cycle duration.

If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount

of detergent used accordingly.

The number and type of wash cycles and options may vary depending on the dishwasher model.

Wash cycle

duration

(tolerance

±10%)

Hrs. Min.

1:30’

Detergent

Wash cycle selection

instructions

Extremely soiled dishes and pans (not to be used for delicate items).

Normally soiled pans and dishes. Standard daily wash cycle.

Environmentallyfriendly* wash cycle with low energy consumption levels, suitable for pans and dishes.

Economic and fast wash cycle to be used for lightly soiled dishes. (Run cycle immediately after use.)

Preliminary wash cycle for dishes while the load is awaiting completion with the dishes from the next meal. Soak

Special cycle to be used for more delicate items which are sensitive to high temperatures. Run cycle immediately after use. Crystal

Wash cycle

Powder Liquid Tablets

24 g (A)

Super Wash

27 g (A) 27 ml (A) No No Yes 1:33’

Normal

24 g (A)

20 g (A) 20 ml (A) No No Yes 0:44’

Rapid & Dry

20 g (A) 20 g (A) no

(A) = compartment A (B) = compartment B

24 ml (A)

3 g (B)

No No No Yes No 0:12'

3 ml (B)

24 ml (A)

3 ml (B)

Pre-wash Drying

No Yes Yes 2.00’

No Yes Yes 2:25’

yes

Note

To make it easier to measure out the detergent, it is worth remembering that: 1 tablespoon = 15 grams of powder = approximately 15 ml of liquid 1 teaspoon = 5 grams of powder = approximately 5 ml of liquid

* The Eco wash cycle adheres to the regulation EN-50242. Although it has a longer duration than other wash cycles it uses less energy and is les harmful to the environment.

Rinse aid and refined salt

Only use products which have beenOnly use products which have been

Only use products which have been

Only use products which have beenOnly use products which have been

specifically designed for dishwashers.specifically designed for dishwashers.

specifically designed for dishwashers.

specifically designed for dishwashers.specifically designed for dishwashers. Do not use table salt or industrial salt, orDo not use table salt or industrial salt, or

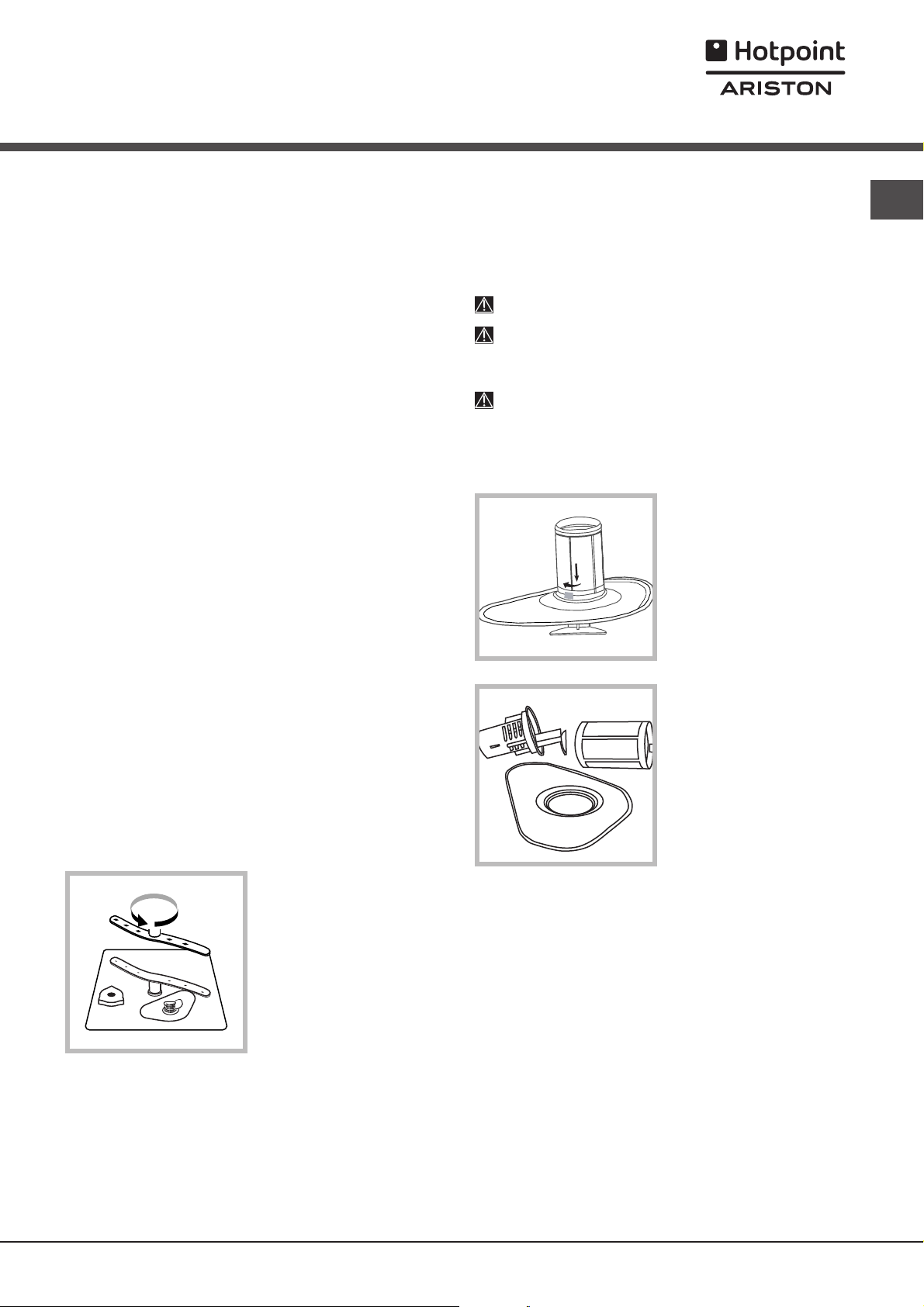

Do not use table salt or industrial salt, or

Do not use table salt or industrial salt, orDo not use table salt or industrial salt, or washing up liquid.washing up liquid.

washing up liquid.

washing up liquid.washing up liquid.

If using a multi-functional product it is not necessary to add

rinse aid; however, we recommend that you add salt,

especially if you live in an area where the water is hard or very hard. If you do not add salt or rinse aid, the LOW SALT*

and LOW RINSE AID* indicator lights will flash continuously.

Loading the rinse aid

Rinse aid makes it easier for the crockery to dry, as water runs off surfaces more readily and therefore does not leave streaks or marks. The rinse aid dispenser should be filled:

• whenever the indicator light (H) signals that it is empty. Illuminated light: add rinse aid; unlit light: there is no shortage of rinse aid in the dispenser.

• when the LOW RINSE AID* indicator light on the panel flashes;

1. Open the dispenser by

turning the lid (G) in an anticlockwise direction.

2. Pour in the rinse aid, making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth.

3. Screw the lid back on.

NEVER pour the rinse aid directlyNEVER pour the rinse aid directly

NEVER pour the rinse aid directly

NEVER pour the rinse aid directlyNEVER pour the rinse aid directly into the appliance tub.into the appliance tub.

into the appliance tub.

into the appliance tub.into the appliance tub.

green float: approximately every 30 wash cycles;

1. Remove the lower rack and unscrew the cap of the dispenser (in an anti-clockwise direction).

2. For the first wash cycle only: fill the dispenser up to the edges with water.

3. Position the funnel* provided

correctly ( dispenser up to the edges (approximately 2 kg); it is normal for a little water to leak out.

4. Remove the funnel*, wipe away any salt residue from the thread and screw the cap on tightly, so that detergent does not leak into the dispenser during the wash cycle (this could damage the water softening system beyond repair).

When necessary, measure out the salt before a wash cycle so that any saline solution which has leaked out of the salt dispenser is removed.

see figure

) and fill the salt

Adjusting the amount of salt*

It is possible to adjust the amount of salt used according to the hardness of the water in your area (this information is available from your local water board).

1. Unscrew the dispenser cap.

2. Turn the arrow on the neck of the dispenser ( symbols, using the table below as a guide.

see figure

) towards the + or -

Adjusting the amount of rinse aid

If you are not completely satisfied with the washing or drying results, you may adjust the quantity of rinse aid used. Use a screwdriver to turn the dosage adjuster to one of the 6 pre-set positions (the default position is set to 4):

• if there are bluish streaks on the crockery, set the adjuster to a lower number (1-3).

• if drops of water remain on the crockery or there are limescale marks present after the cycle has finished, set the adjuster to a higher number (4-6).

If you are using multi-functional tablets and you wish to

further improve the drying performance of the appliance, fill the dispenser and set the dosage adjuster to 2.

Loading the refined salt

In order to obtain the best possible results from a wash cycle, make sure that the dispenser is never empty. Refined salt removes limescale from the water, thus avoiding the formation of deposits on crockery. The salt dispenser is located in the lower part of the dishwasher ( filled:

• when the green float* cannot be seen by simply looking at the cap of the salt dispenser;

• when the LOW SALT* indicator light on the panel flashes;

• if your machine is not equipped with an indicator light or a

see Description

) and should be

Hardness of the water

°dH °fH °mmol/l

0 - 10 0 - 17 0 - 1.7 / 0 /

10 – 25 18 – 44 1.8 – 4.4

25 – 50 45 – 89 4.5 – 8.9 MED 40 40

> 50 > 89 > 8.9 + 60 25

The default setting of the water softening system is +.

- If using multi-functional tablets fill the salt dispenser and set the adjuster to -; if the hardness of the water is greater than 60°fH, set it to +.

* Only available in selected models.

Selector

knob

position

- 20 60

Salt consumption (grams/cycle)

Autonomy (cycles/2 kg)

+ 16 hidden pages
