WELCOME
Figure 1
Model & Serial Number Decal
Congratulations on your purchase and welcome to the Ariens family! Every machine in the
Ariens lineup is designed for long-lasting and unsurpassed performance. We are confident your
machine will be part of your family for many years to come.
Have Questions or Need Assistance?
www.ariens.com
A parts manual and service manual for your unit is available for free download
or purchase at www.ariens.com.
REGISTER YOUR PRODUCT!
It is extremely important to register your
product at time of purchase. Product
registration activates the warranty and
establishes a communication link from
AriensCo.
Locate the model and serial number decal on
your unit and register those numbers online at
www.ariens.com. See Figure 1 for decal
location. Be aware that the original selling
dealer may have already completed product
registration on behalf of the original
purchaser.
MANUALS
Before operating or servicing the unit, carefully
and completely read the manuals provided with
the unit. They contain safety instructions and
important information about unit controls.
The engine on this unit is covered by a
separate manual. Refer to the engine manual
for engine service recommendations. Contact
the engine manufacturer for a replacement
manual if necessary.
Your dealer must review important information
in this manual with you before or upon delivery
of the unit. It is your responsibility to read and
understand all safety precautions and
instructions in the manuals. If you do not
understand or have difficulty following the
instructions, contact your Ariens dealer for
assistance. To locate your nearest Ariens
dealer, go to www.ariens.com.
DISCLAIMER
Ariens reserves the right to discontinue, make
changes to, and add improvements upon its
products at any time without public notice or
obligation. The descriptions and specifications
contained in this manual were in effect at
printing. Equipment described in this manual
may be optional. Some illustrations may not be
applicable to your unit.
Record model number here.
Record serial number here.
© 2022 • AriensCo • Brillion, WI 54110
EN - 1
SAFETY
Read these safety rules and follow them
closely. Failure to follow these rules could
lead to loss of control of unit, severe personal
injury or death to you or bystanders, or result
in damage to property or the machine.
PRACTICES & LAWS
Practice usual and customary safe working
precautions. Learn applicable rules and laws
in your area. Always follow the practices set
forth in this manual.
EMISSION CONTROL SYSTEM
This equipment and/or its engine may include
exhaust and evaporative emissions control
system components required to meet U.S.
Environmental Protection Agency (EPA)
and/or California Air Resources Board
(CARB) regulations. Tampering with emission
controls and components by unauthorized
personnel may result in severe fines or
penalties. Emission controls and components
can only be adjusted by an Ariens dealer or
an authorized engine manufacturer's service
center. Contact your Ariens Equipment
Retailer concerning emission controls and
component questions.
REQUIRED OPERATOR TRAINING
Read and understand the
Operator's Manual and decals
on the unit. This information is
for your safety and the proper
use of your equipment.
Failure to follow these
instructions and warnings may cause death
or serious injury. If you have purchased this
product from an Ariens dealer, the dealer can
provide you with training.
Familiarize yourself and any other operators
with all controls and the safe use of the
features of this unit. If you loan, rent or sell
this product to others, provide them with all
manuals.
If you have any questions, please call our
customer support line at 920-756-4688 or
contact us at www.ariens.com. Do not use
this equipment if, after reading the Operator's
Manual and the on-board decals, you have
any questions about the safe use of this
product.
WARNING: AVOID INJURY.
This cutting machine is capable
of amputating hands and feet
and throwing objects. Failure to
observe the safety instructions
in the manuals and on decals
could result in serious injury or
death.
SAFETY ALERT SYMBOL
This is the safety alert symbol. It
means:
• ATTENTION!
• YOUR SAFETY IS
INVOLVED!
When you see this symbol:
• BECOME ALERT!
• OBEY THE MESSAGE!
SIGNAL WORDS
The safety alert symbol above and signal
words below are used on decals and in this
manual. Read and understand all safety
messages.
1. Danger
DANGER: Indicates an
IMMINENTLY HAZARDOUS
SITUATION! If not avoided,
WILL RESULT in death or
serious injury.
2. Warning
WARNING: Indicates a
POTENTIALLY HAZARDOUS
SITUATION! If not avoided,
COULD RESULT in death or
serious injury.
3. Caution
CAUTION: Indicates a
POTENTIALLY HAZARDOUS
SITUATION! If not avoided, MAY
RESULT in minor or moderate injury. It may also be used to alert
against unsafe practices.
4. Notice
NOTICE: Indicates information or procedures
that are considered important but not hazard
related. If not avoided property damage could
result.
EN - 2
5. Important
MAX. FILL
07801735
07801735
KEEP HANDS and FEET AWAY
P
07801836
07801836
Figure 2
1
3
4
5
7
6
2
2
6
IMPORTANT: Indicates general reference
information worthy of special attention.
SAFETY DECALS
The safety decals on your machine are visual
reminders of the important safety information
in this manual. All messages on your unit
must be fully understood and carefully
followed. Safety decals on the machine are
explained below.
Safety Decal Locations
ALWAYS replace missing or damaged safety
decals. Replacement decal part numbers are
found in the parts manual for your machine
and may be ordered from your dealer.
See Figure 2 for safety decal locations.
EN - 3
Safety Decal Descriptions
1. DANGER!
3. DANGER!
2. DANGER!
Discharge Hazard - NEVER
operate unit without
discharge chute in operating
position. Thrown objects can
cause injury or damage.
DO NOT operate mower
unless all guards are in
operating position or bagger
is attached.
Discharge Hazard - NEVER
direct discharge toward
people, pets or property.
Thrown objects can cause
injury or damage.
Amputation Hazard NEVER stick hands or feet
under deck or shielded
areas.
Shut off engine, remove key,
and read manual before
servicing or making
adjustments to unit.
Keep children and others
away from unit while unit is
in operation.
DANGER!
Read and understand the
operator’s manual before
operating unit.
3. Amputation Hazard
To avoid amputation hazard
DO NOT put hands near
rotating blades.
To avoid amputation hazard
DO NOT put hands near
moving belts.
Keep hands away from all
rotating or moving parts.
Keep all guards and shields
in place.
3. Discharge Hazard
Keep feet and hands away
from all rotating or moving
parts.
DO NOT step or stand in
this area.
EN - 4
Discharge Hazard - NEVER
direct discharge toward
people, pets or property.
Thrown objects can cause
injury or damage.
DO NOT operate mower
unless all guards are in
operating position or bagger
is attached.
Keep children and people
away from unit during
operation.
3. Tipping Hazard
Avoid tipping hazard.
Look behind when operating
the unit in reverse.
3. Loss of Traction Hazard
15
DO NOT operate on slopes
over 15°.
15
DO NOT operate on slopes
over 15°.
3. Service Hazard
Before servicing unit do the
following:
Read owners manual before
servicing or making
adjustments to unit.
P
Set parking brake.
Remove key and disconnect
spark plug before servicing
or making adjustments to
unit.
4. DANGER!
If loss of traction is
experienced do the
following:
Disengage PTO.
Proceed off slope slowly.
DO NOT try to turn or speed
up.
To avoid amputation hazard
do not put hands near
moving belts.
Keep hands away from all
rotating or moving parts.
3. Bystander Hazard
DO NOT operate the unit in
the presence of bystanders.
DO NOT carry passengers.
5. DANGER!
EN - 5
ALWAYS keep hands and
feet away from discharge
chute.
6. HOT PARTS!
DO NOT touch parts which
are hot from operation.
ALWAYS allow parts to cool.
7. CAUTION!
CAUTION!
No smoking.
MAX. FILL
IMPORTANT: DO NOT
overfill. Fill fuel tank to
below bottom of filler neck.
WARNING: Overfilling may cause severe
damage to evaporative system!
• NEVER fill fuel tank when engine is
running, hot or unit is indoors. NEVER
overfill fuel tank.
• Replace fuel cap securely and clean up
spilled fuel.
SAFETY INSTRUCTIONS
The following safety instructions are based
on B71.1, B71.4 specifications of the
American National Standards Institute and
ISO 5395 in effect at the time of production.
Safe Practices for Ride-On Mowers
If used improperly, this machine is capable of
amputating hands and feet and throwing
objects. Failure to observe the following
safety instructions could result in serious
injury or death. Use only for purposes
intended as set forth in the Operator's
Manual. Other use is improper and may
cause serious injury or death.
General Information
Read, understand, and follow instructions
and warnings in this manual and on the
machine, engine and attachments.
Only allow operators, who are responsible,
trained, familiar with the instructions, and
physically capable to operate the machine.
DO NOT carry passengers and keep people
or pets away from the mowing area.
DO NOT operate the machine while
physically or mentally impaired, feeling tired,
ill or under the influence of alcohol or drugs.
Follow the manufacturer’s recommendation
for wheel weights or counterweights.
DO NOT touch parts which are hot. Allow
parts to cool.
Preparation Before Operating
Inspect unit before each use for missing or
damaged decals and shields, correctly
operating safety interlock system, ROPS
and deterioration of grass catchers. Replace
or repair as needed.
Clear the operating area of all objects which
could be thrown by or interfere with
operation of the machine.
Keep the area of operation clear of all
bystanders, particularly small children. Stop
the machine and attachment(s) if anyone
enters the area
DO NOT operate the machine without the
entire grass catcher, discharge chute, or
other safety devices in place and functioning
properly. Check frequently for signs of
damage, wear or deterioration and replace
as needed.
EN - 6
NEVER tamper with safety devices. Check
their proper operation regularly. NEVER do
anything to interfere with the intended
function of a safety device or to reduce the
protection provided by the safety device.
Check parking brake operation frequently.
Adjust and service as required.
Wear appropriate personal protective
equipment such as safety glasses, hearing
protection, and substantial footwear. DO
NOT mow barefoot or while wearing
sandals.
Operating
Improper use of power equipment can cause
serious permanent injury or death to the
operator or a bystander. Understand:
• How to operate all controls
• The functions of all controls
• How to STOP in an emergency
• Braking and steering characteristics
• Turning radius and clearances
If the operator or the mechanic cannot read
the manual, it is the owner’s responsibility to
explain it to them. Manuals are available in
other languages at www.ariens.com.
Only run the engine in well ventilated areas.
Exhaust gases contain carbon monoxide, an
odorless deadly poison.
Only operate the machine in daylight or
good artificial light.
Avoid holes, ruts, bumps, rocks and other
hazards. Uneven terrain could overturn the
machine, or cause operator to lose their
balance, footing and/or control of the mower.
DO NOT put hands or feet near rotating
parts or under the machine. Keep clear of
the discharge opening at all times.
Avoid slippery surfaces. ALWAYS be sure of
your footing.
Stop engine before removing grass catcher
or unclogging chute.
DO NOT direct discharge material toward
anyone. Avoid discharging material against
a wall or obstruction. Material may ricochet
back toward the operator. Stop the blade(s)
when crossing gravel surfaces. DO NOT
mow into roads or across sidewalks.
DO NOT leave a running machine
unattended. ALWAYS park on level ground,
disengage the attachment, set parking
brake, stop engine and remove key (if
applicable) before leaving the operator's
position.
DO NOT mow in reverse unless absolutely
necessary. ALWAYS look down and behind
before and while backing.
Lightning can cause severe injury or death.
If lightning is seen or thunder is heard in the
area, DO NOT operate the machine; seek
shelter.
If you strike a foreign object, stop and
inspect the machine. Repair, if necessary,
before restarting.
ALWAYS check overhead and side
clearances carefully before operation. Keep
in mind that your mower deck may be wider
than your track width.
Children Specific
Tragic accidents can occur if the operator is
not alert to the presence of children.
Children are often attracted to the machine
and the mowing activity. NEVER assume
that children will remain where you last saw
them.
Keep children out of the operating area and
under the watchful care of a responsible
adult other than the operator.
Do not carry children, even with the blade(s)
shut off. Children could fall off and be
seriously injured or interfere with safe
machine operation. Children who have been
given rides in the past could suddenly
appear in the mowing area for another ride
and be run over or backed over.
DO NOT allow children under the age of 18
to operate any outdoor power equipment.
Slope Specific
Slopes are a major factor related to
accidents. Operation on slopes requires
extra caution. If you feel uneasy on a slope
DO NOT mow it. Use the parking brake for
emergency stops.
DO Not operate on slopes of more than 15°.
Do not mow within 1.2 M (4 feet) of a drop
off. Do not mow within 1.2 M (4 feet) of a
pond or other waterway.
The primary hazard of slope operation is
loss of control and/or roll over.
EN - 7
Mow up and down slopes, NEVER across.
Exercise caution when changing direction
on slopes. Use caution while operating near
dropoffs.
Avoid mowing wet grass. Wet surfaces can
cause a loss of traction and control.
DO NOT operate machine under any
condition where traction, steering, or stability
is in question. Tires could slide even if the
wheels are stopped.
Always keep the machine in gear when
going down slopes. Do not coast downhill.
Avoid starting and stopping on slopes. Avoid
making sudden changes in speed or
direction. Make turns slowly and gradually.
Use extra care while operating machine with
a grass catcher or other attachment(s). They
can affect the stability of the machine.
Fire and Fuel Specific
Extinguish all cigarettes, cigars, pipes and
other sources of ignition.
Use only an approved fuel container.
DO NOT remove fuel cap or add fuel with
the engine running or while hot.
DO NOT refuel indoors or in enclosed
spaces.
DO NOT store the machine or fuel container,
or refuel, where there is an open flame,
spark, or pilot light such as on a water
heater or other appliance.
If fuel is spilled, DO NOT attempt to start the
engine and avoid creating any source of
ignition until fuel vapors have dissipated.
To help prevent fires: keep machine free of
grass, leaves, or other debris build up; clean
up oil or fuel spillage and remove any fuel
soaked debris; allow engine to cool before
storing.
Use extra care in handling gasoline and
other fuels. They are flammable and vapors
are explosive.
Service
Keep machine in good working order.
Replace worn or damaged parts.
Use caution when servicing blades. Wrap
the blade(s) or wear gloves. Replace
damaged blades. DO NOT repair or alter
blade(s).
Disconnect spark plug wire(s) and the
negative battery cable before making any
repairs.
Use only attachments recommended by
AriensCo that are appropriate to your use
and can be used safely in your application.
The use of non-genuine replacement parts
or accessories could adversely affect
machine operation and safety.
DO NOT change engine governor setting or
overspeed the engine.
Hauling
Use a single full-width ramp for loading and
unloading a machine for transport. Secure
with appropriate straps.
Tow ing
Follow the manufacturer’s recommendation
for weight limits for towed equipment and
towing on slopes.
EN - 8
CONTROLS AND FEATURES
Figure 3
14
4
1
13
17
16
5
2
15
18
3
19
11
7
9
8
12
6
20
Models 915281, 915283
Model 915285
10
5
4
6
3
1. Fuel Tank and Cap
2. Fuel Level Window
3. Oil Filter
4. Oil Drain
5. Engine Oil Dipstick
6. Air Filter
7. Ignition Key
8. Choke Control Knob (Model 915285)
9. Throttle / Choke Control Lever (Models
10. Throttle Control Lever (Model 915285)
915281, 915283)
11. Power Take-off (PTO) Knob
12. Hour Meter
13. Height-of-Cut Adjustment System
14. Deck Lift Pedal
15. Parking Brake Lever
16. Belt Cover (2)
17. Steering Lever (2)
18. Discharge Chute
19. Transaxle Bypass Lever (2)
20. Battery (Under Seat)
EN - 9
WAR NING: AVOID INJURY.

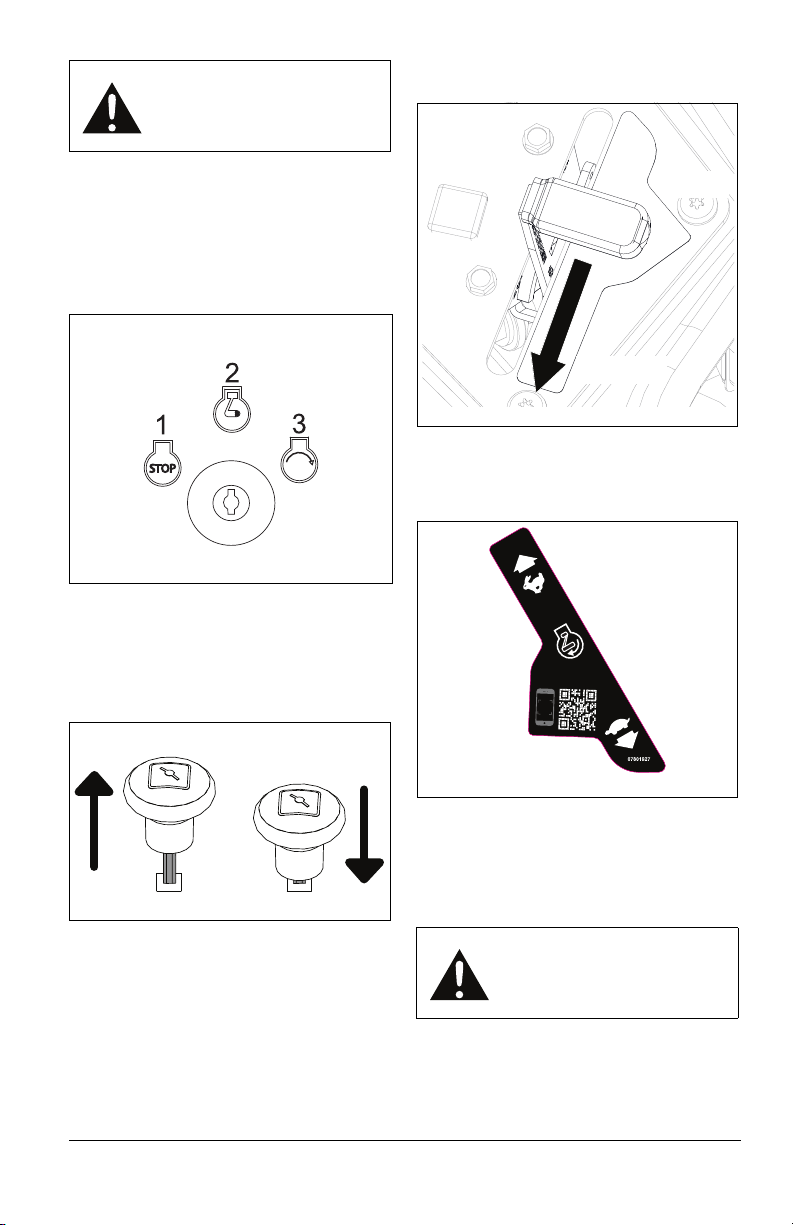

Figure 4
Off
Start
On
Figure 5
Choke On
Choke Off
Figure 6
Choke Off
Choke On
Figure 7
Fast
Slow
Read and understand the
entire Safety section before
proceeding.
See Figure 3 for all controls and features
locations.
IGNITION KEY
See Figure 4.
Controls power to the engine. The key cannot
be removed when in run position.
CHOKE CONTROL KNOB / LEVER
Model 915285
See Figure 5.
Controls airflow to the engine.
Models 915281, 915283
See Figure 6.
THROTTLE CONTROL LEVER
See Figure 7.
Controls engine speed.
POWER-TAKE-OFF (PTO) KNOB
See Figure 8.
Controls power to mower blades. The engine
will not start with the PTO knob in the on
position.
WARNING: AVOID INJURY.
Blades will not immediately
stop after pushing PTO knob
down to off position.
EN - 10
HOUR METER

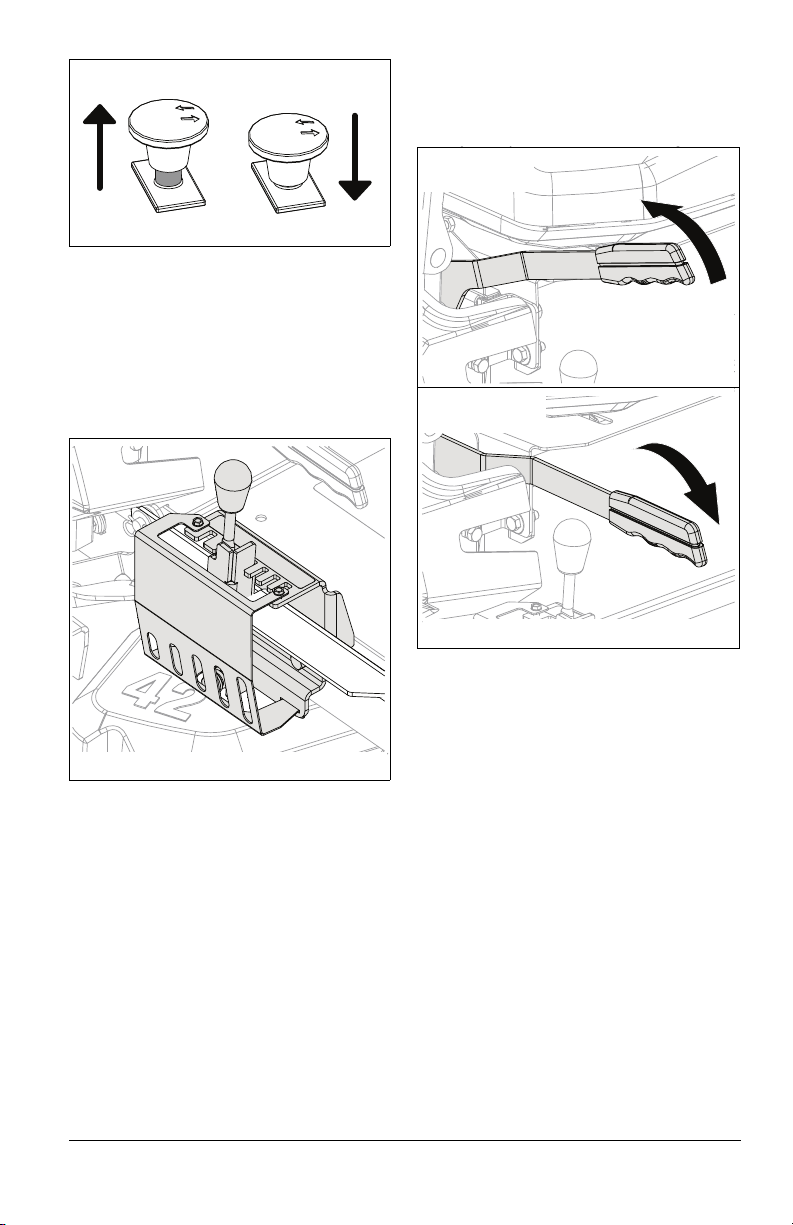

Figure 8
Blades Off
Blades On
Figure 9
Parking Brake
Engaged (On)
Brake Released
(Off)
Figure 10
Hour meter measure engine runtime and
cannot be reset.
HEIGHT-OF-CUT ADJUSTMENT SYSTEM
See Figure 9.
Sets the height of cut.
PARKING BRAKE LEVER
See Figure 10.
Controls the parking brake. The engine will
not start with brake in the off position.
DECK LIFT PEDAL
Raises mower deck to change height-of-cut
setting.
SEAT ADJUSTMENT LEVER
Unlocks seat to allow operator to move seat
forward or backward and then lock in desired
position.
SAFETY INTERLOCK SYSTEM
Monitors the interaction of various unit
features for operator safety.
STEERING LEVERS
Control the direction and speed of unit. To
stop unit, return both steering levers to
neutral.
TRANSAXLE BYPASS LEVERS
Control the transaxles so unit may be moved
with the engine off.
EN - 11
OPERATION
Figure 11
1. Deck Lift Pedal
2. Height-of-Cut Adjustment System
2
1
WAR NING: AVOID INJURY.
Read and understand the
Safety section before
proceeding.
IMPORTANT: All references to left, right, front
or rear are given from the perspective of
operator in operator’s position, facing the
direction of forward travel.
EMERGENCY STOPPING
1. Move steering levers to neutral position.
2. Engage parking brake.
3. Push PTO knob down to off position.
4. Turn ignition key to off position and
remove key from ignition.
BEFORE OPERATING UNIT
1. Check fuel level and add fuel if needed.
IMPORTANT: Use fresh unleaded fuel with
an octane rating of at least 87. DO NOT use
E85 blended fuels; the engine is not E20 /
E30 / E85 compatible. The maximum
recommended ethanol content is 10%. Ariens
recommends using a quality fuel stabilizer in
See Short-Term Storage on page 21.
all fuel.
2. Check engine oil level and add oil if
needed. Refer to engine manual.
3. Check condition of air cleaner. Refer to
engine manual.
4. Check function of the Safety Interlock
System by performing the tests in Check
Safety Interlock System on page 16.
Contact your Ariens dealer for repair if
any of the tests fail.
5. Set cutting height. See Figure 11.
a. Depress and hold deck lift pedal in
forward position.
b. Position height of cut selector lever at
the desired setting in the height of cut
bracket.
c. Slowly return deck lift pedal to resting
position.
START THE ENGINE
1. Push PTO knob down to off position.
2. Move steering levers to neutral position.
3. Engage parking brake.
4. If the engine is cold, move the choke to
the on position. If engine is warm or hot,
turn choke off.
5. Set throttle to slow speed.
6. Insert ignition key and turn to start
position. Release key when engine starts.
IMPORTANT: Do not operate the starter for
more than 10 seconds at a time. If the engine
does not start, allow a 60-second cool down
period between starting attempts.
7. If choke is on, wait a few seconds after
engine starts and then turn choke off.
IMPORTANT: Make sure choke is completely
off. Engine will not run smoothly using partial
choke.
OPERATE UNIT
1. Release parking brake.
2. Set throttle control lever to fast position.
IMPORTANT: Engaging the PTO knob with
the throttle lever set lower than fast position
can cause excessive belt wear. ALWAYS use
fast position when engaging the PTO.
3. Pull PTO knob up to on position.
IMPORTANT: Never engage the PTO if the
mower is plugged with grass or other
material. This may cause damage to the
electric clutch.
EN - 12
WAR NING: AVOID INJURY.
Figure 12
Move the steering levers
slowly and keep the throttle at
slow speed until you learn how
to operate the unit.
4. Move steering levers to begin mowing.
Direction
of Travel
Forward Push both levers
Reverse Pull both levers
Lever Position
forward from
neutral position.
backward from
neutral position.
• Do not allow grass or debris to collect
inside of mower deck. Clean after each
use.
STOP THE ENGINE
WARNING: AVOID INJURY.
Wait for all moving parts to
stop before leaving operator’s
position.
1. Move steering levers to neutral position
and rotate outward.
2. Engage parking brake.
3. Push PTO knob down to off position.
4. Set throttle to slow speed.
5. Turn ignition key to off position and
remove key from ignition.
Right
Turn
Left Turn Push right lever
Stop Return both
IMPORTANT: Aggressive turning can scuff or
damage lawns. Always keep both wheels
rotating when making sharp turns. DO NOT
make turns with inside wheel completely
stopped. For minimum turning radius, slowly
reverse inside wheel while moving outside
wheel slowly forward.
Push left lever
farther forward
than the right
lever.
farther forward
than the left lever.
levers to neutral
position.
For Best Mowing Results
• Cut grass when it is dry.
• Keep mower blades sharp.
• Keep mower deck properly leveled.
• Do not set height of cut too low. For very
tall grass, mow twice.
• Do not travel too fast.
• Mow with the engine set at full throttle.
• When mulching, only remove 1/3 of grass
length per cutting. Do not cut more than
2.5 cm (1") at any one time.
• Discharge clippings into areas already cut.
• Vary cutting pattern with each mowing.
MOVE UNIT MANUALLY
Bypass the transaxles to move the unit with
the engine off.
IMPORTANT: There is one transaxle bypass
lever on each side of unit. Ensure that both
levers are fully in front or rear position.
1. Stop engine, remove key and wait for
moving parts to stop and for hot parts to
cool.
2. Pull both transaxle bypass levers out into
bypass position.
3. Release parking brake and push unit to
desired location.
4. Engage parking brake.
5. Return transaxle bypass levers to
operating position. See Figure 13.
See Figure 12.
EN - 13
TRANSPORT UNIT
Figure 13
1. Push deck lift pedal completely forward to
engage transport lock. Release pedal.
2. Move unit to transport vehicle.
3. Stop engine, engage parking brake and
remove key from ignition.
4. Secure mower frame to transport vehicle.
NOTICE: NEVER secure unit to vehicle from
rods or linkages that could be damaged.
MAINTENANCE
WARNING: AVOID INJURY.
Read and understand the
Safety section before
proceeding.
Your Ariens dealer can provide service and
adjustments to keep your unit operating at
peak efficiency.
Contact an authorized engine manufacturer’s
service center for engine service.
MAINTENANCE SCHEDULE
Service Performed
Clean Engine of any Grass
or Debris
Check Safety Interlock
System
Check Parking Brake •
Check Engine Oil * •
Change Engine Oil *
Check Tire Pressure •
Check Mower Blades •
Check Battery •
Clean Battery •
Check Air Filter *
Change Air Filter *
Check Fasteners •
Lubricate Unit •
Clean Engine Cooling
System*
Check Belts •
* Refer to engine manual for instructions
Each Use
Every 25 hrs.
Every 50 hrs.
•
•
•
Every 100 hrs.
EN - 14
SERVICE PARTS
Figure 14
See your Ariens dealer to purchase service
parts for your unit.
Description Qty. Part No.
HA Raw Laminated Belt –
Hydraulic Drive
Front Wheel 2 07101127
Mower Blade – 34" 2 03971900
Mower Blade – 42" 2 04965000
Mower Blade – 52" 3 04771200
Mower Belt – 34" 1 07200116
Mower Belt – 42" 1 07226700
Mower Belt – 52" 1 07241600
Mulching Blade – 34" 2 03797300
Mulching Blade – 42" 2 05027400
Mulching Blade – 52" 3 04794400
Spindle Assembly – 34" 2 51519500
Spindle Assembly – 42" 2 51530700
Spindle Assembly – 52" 3 51528000
Fuel Filter (Models 915281,
915283)
Fuel Filter (Model 915285) 1 21538400
Engine Oil Filter
(Models 915281, 915283)
Engine Oil Filter
(Model 915285)
Air Filter
(Models 915281, 915283)
Air Filter (Model 915285) 1 21548000
Muffler Gasket
(Models 915281, 915283)
Muffler Gasket
(Model 915285)
Fuel Stabilizer – 118 ml
(4 oz.)
1 07200010
1 00682500
1 21573600
1 21548100
1 21557300
1 05600519
1 M136651
AR 04730400
SERVICE POSITION
Before starting any of the following
maintenance procedures:
1. Park unit on a flat, level surface.
2. Stop engine, remove key and wait for all
moving parts to stop and for hot parts to
cool.
3. Engage parking brake.
4. Chock wheels. Strap and clamp unit onto
lift, if used.
5. Disconnect spark plug wires.
6. Place steering levers in neutral position
and rotate outward.
7. Rotate seat forward. See Figure 14.
IMPORTANT: Reconnect spark plug wires
after maintenance.
EN - 15
CHECK SAFETY INTERLOCK
Figure 15
SYSTEM
Check function of the Safety Interlock System
by performing the tests below. Contact your
Ariens dealer for repair if any of the tests fail.
Test Steering
Levers
1 Neutral Off On Engine
2 Forward,
Neutral,
Reverse
3 Forward,
Neutral,
Reverse
Operating Interlock (Engine On)
4 * Forward,
Neutral,
Reverse
5 * Forward,
Neutral,
Reverse
* When operator lifts off seat.
PTO Parking
Brake
Starting Interlock
On On or
Off
On
Off Engine does
or
Off
On On or
Off
On
Off Engine
or
Off
Result
starts.
Engine does
not start.
not start.
Engine
shuts off.
shuts off.
CHECK PARKING BRAKE
1. Place unit in service position. See
Service Position on page 15.
2. Bypass transaxles. See Move Unit
Manually on page 13.
3. Push unit forward.
• If unit does not move forward, no further
action is needed.
• If unit easily moves forward, adjust the
brake lever. Refer to your unit’s Service
Manual.
CHECK TIRE PRESSURE
See Specifications on page 22 for
recommended tire pressure.
WARNING: AVOID INJURY.
Explosive separation of tire
and rim parts is possible.
• DO NOT inflate tires above
the recommended pressure.
• DO NOT inflate tires with a
compressor; use a hand
pump.
• DO NOT stand in front of
tire assembly when
inflating. Use a clip-on
chuck and extension hose
long enough to allow you to
stand to one side.
CHECK FASTENERS
Check for loose or missing hardware.
LUBRICATE UNIT
1. Apply oil to all pivot points and pin
connections.
Lubricate Seat
See Figure 15.
1. Place unit in service position.
2. Apply grease to seat tracks through slots
under seat plate.
CHECK ENGINE OIL
NOTICE: Engine oil level must be maintained
at correct level or engine damage may occur.
Refer to engine manual.
3. Return seat to operating position and
slide seat back and forth to spread
grease along tracks.
EN - 16
CHECK MOWER BLADES
Figure 16
Check blades for wear and damage. Replace
or sharpen as needed.
CAUTION: AVOID INJURY. Use
sturdy gloves or padding to
protect hands when working with
mower blades.
Rotation of one blade rotates the
other blades.
CAUTION: Unbalanced blades
cause excessive vibration and
eventual damage to unit.
Balance blades before
reinstalling on unit.
NEVER weld or straighten
blades.
CHECK BATTERY
WARNING: Battery posts,
terminals and related
accessories contain lead. Wash
hands after handling.
Clean Battery
CAUTION: AVOID DAMAGE.
DO NOT allow tools to contact
metal surfaces when removing
positive battery cable.
ADJUSTMENTS
WARNING: AVOID INJURY.
Read and understand the
Safety section before
proceeding.
ADJUST SEAT
1. Tip the seat forward.
2. Loosen the two wing knobs located
toward the front of the seat plate. See
Figure 16.
1. Disconnect battery cables, negative cable
first.
2. Clean terminals and battery cable ends
with a wire brush.
3. Coat terminals with dielectric grease or
petroleum jelly.
4. Reinstall battery cables, positive first.
CHECK MOWER BELTS
Check belts for wear and replace as needed.
CAUTION: Keep body parts
away from idler when
releasing idler spring tension.
3. Move seat to desired position.
4. Tighten wing knobs.
5. Return seat to operating position.
ADJUST STEERING LEVERS
Adjust Steering Lever Height
See Figure 17.
1. Remove hardware securing steering
lever to upper control arm.
2. Place steering lever in desired adjusting
hole.
• Use upper and middle holes for highest
lever position.
• Use middle and lower holes for lowest
lever position.
3. Reinstall hardware in upper control arm.
4. Align levers side to side. See Adjust
Steering Level Reach on page 18.
5. Fully tighten hardware.
EN - 17
See Figure 18.
Figure 17
3
4
2
1
1. Adjusting Hole
2. Mounting Hole
3. Steering Lever
4. Upper Control Arm
Figure 18
1
2
1. Lock Nut
2. Height-adjuster Bolt
2
3
1
1. Steering Lever
2. Upper Control Arm
3. Hardware
Figure 17
6. Loosen lock nut on height-adjustment
bolt.
7. Turn bolt in or out until levers are at the
same height.
8. Tighten lock nut.
Adjust Steering Level Reach
See Figure 19.
1. Loosen hardware securing steering lever
to upper control arm.
2. Pivot steering lever to desired position.
3. Ensure levers are aligned with each
other.
4. Tighten hardware.
EN - 18
TROUBLESHOOTING
Problem Probable Cause Correction
Check Safety Interlock System. See
Check Safety Interlock System on
page 16.
Fill fuel tank. See Before Operating Unit
on page 12.
Charge battery. Refer to your unit’s
Service Manual.
Tighten and/or clean battery and battery
cables. See Clean Battery on page 17.
Connect spark plug wire(s) or replace
spark plug(s). Refer to engine manual.
Clean or replace air filter cartridge. Refer
to engine manual.
Engage levers. See Move Unit Manually
on page 13.
Activate switch by sitting on operator
seat.
Contact your Ariens dealer.
Replace belt. Refer to your unit’s Service
Manual.
Contact your Ariens dealer.
Adjust parking brake lever. Refer to your
unit’s Service Manual.
on page 22.
Contact your Ariens dealer.
Engine does
not start.
Engine runs
rough.
Engine
overheats.
Unit does not
drive.
PTO
malfunctions.
Unit moves
with engine off
and parking
brake engaged.
Unit does not
drive straight.
Unit creeps
when steering
levers are in
neutral
position.
Safety Interlock System is not
engaged or is faulty.
Fuel tank is empty.
Fuel supply is contaminated. Replace with clean fuel.
Battery is discharged.
Connection between battery and
battery cables is poor.
Spark plug wire(s) are loose or
spark plug(s) are faulty.
Electrical system is faulty. Contact your Ariens dealer.
Engine is faulty. Contact your Ariens dealer.
Choke is in the on position. Move choke to the off position.
Air filter cartridge is plugged.
Engine is faulty. Contact your Ariens dealer.
Engine oil level is low. Add engine oil. Refer to engine manual.
Cooling fins are plugged. Clean engine. Refer to engine manual.
Engine is faulty. Contact your Ariens dealer.
The transaxles are bypassed.
Transaxle drive belt is faulty. Contact your Ariens dealer.
Transaxles are faulty. Contact your Ariens dealer.
Operator presence switch is not
engaged.
Operator presence switch is
faulty.
PTO belt is faulty.
PTO switch, wiring, connectors
or clutch are faulty.
Parking brake needs adjustment.
Parking brake is faulty. Contact your Ariens dealer.
Tire pressure is incorrect. Check tire pressure. See Specifications
Steering levers need adjustment. Refer to your unit’s Service Manual.
Transmission and/or linkage
need adjustment.
EN - 19
TROUBLESHOOTING
Problem Probable Cause Correction
Poor cutting
quality.
Mower blades not level or mower
deck pitch is incorrect.
Mower blades are dull or faulty.
Mowing speed is too fast. Drive slower when cutting grass.
Belt tension or condition is poor.
Cutting height is too low.
Level and adjust pitch of mower deck.
Refer to your unit’s Service Manual.
Sharpen or replace mower blades. Refer
to your unit’s Service Manual.
Replace mower belts. Refer to your unit’s
Service Manual.
Do not set height of cut too low. For very
tall grass, mow twice.
EN - 20
STORAGE
SHORT-TERM STORAGE
IMPORTANT: NEVER wash unit with high-
pressure water or store outdoors.
1. Allow unit to cool and clean with mild
soap and water.
2. Tighten all hardware to correct
specifications.
3. Inspect unit for visible signs of wear or
damage. Repair as needed.
4. Prepare fuel system for storage.
NOTICE: Ariens recommends using a quality
fuel stabilizer in all fuel. Gasoline left in the
fuel system without a stabilizer, even for short
periods of time, deteriorates and leaves
gummy deposits in the system that may
damage the carburetor and fuel hoses, filter
and tank. For the best effectiveness, add
stabilizer to all fuel containers whenever
purchasing fuel. Add the stabilizer to the
container before adding fuel.
a. Add fuel stabilizer (see Service Parts
on page 15) or equivalent according
to manufacturer's instructions to the
fuel tank and any fuel containers with
remaining fuel.
b. Run engine outdoors for at least
5 minutes to allow stabilizer to reach
the carburetor.
5. Turn ignition key to off position and
remove from ignition.
6. Store unit in a cool, dry, protected area.
DO NOT store unit outdoors.
START-OF-SEASON PREPARATION
1. Before adding fuel for the first time after
long-term storage, add fresh, stabilizertreated fuel to fuel tank and any fuel
containers with remaining fuel.
2. Charge and install the battery.
ACCESSORIES
See your Ariens dealer for a complete list of
compatible accessories and attachments for
your unit.
Description Part No.
36" Roller 71503300
48" Dethatcher 71503400
Spreader 71503600
48" Aerator 71508200
34" – Mulch Kit 71510800
Non-Powered Bagger – 34" 81513400
Non-Powered Bagger – 42" 81504600
Non-Powered Bagger – 52" 81504700
Hub Caps 71508800
Arm Rest Kit 71508400
Universal Flextend Arm Rest 79102300
Trailer Hitch Kit 71502800
LONG-TERM STORAGE
1. Perform short-term storage procedures.
2. Lubricate as directed in Maintenance on
page 14.
3. Touch-up all scratched painted surfaces.
4. Remove and charge battery. Refer to
your unit’s Service Manual. Store battery
in a cool, dry, protected area.
5. Store unit in a cool, dry, protected area.
Do not store unit outdoors.
EN - 21
SPECIFICATIONS
Model Number 915281 915283 915285
Description Edge 34 Edge 42 Edge 52
Engine Briggs & Stratton Kawasaki FR651
Engine Displacement – cm3 (in3)
Maximum RPM – No Load 3600 ± 100
Oil Capacity Refer to engine manual.
Liquid or Air Cooled Air
Transmission
Typ e Hydrostatic Drive
Oil
Drive
Forward Maximum – km/h (mph) 9.6 (6.0)
Reverse Maximum – km/h (mph) 4.8 (3.0)
Turning Radius Zero
Brakes Parking
Electrical
Starter Electric
Battery 12 Volt 12A-190 CCA (U1 Replaceable)
PTO (Power Take-off) Electric PTO Clutch / Brake
Fuel
Fuel Tank Capacity – Liter (gal) 9.5 (2.5)
Typ e See Engine Manual
Size and Weight
Length – cm (in) 172.7 (68)
Width – cm (in) 113.8 (44.8) 139.2 (54.8) 155.2 (61.1)
Height – cm (in) 102.9 (40.5)
Weight – kg (lbs) 202.8 (447) 231.3 (510) 254.0 (560)
Tires
Front Tire Size – in 11 x 4-5
Rear Tire Size – in 18 x 6.5-8 18 x 8.5-8 18 x 9.5-8
Recommended Front Tire
Pressure – kPa (psi)
Recommended Rear Tire
Pressure – kPa (psi)
Mower Deck
Cutting Height – cm (in) 3.8 – 11.4 (1.5 – 4.5)
Cutting Width – cm (in) 86 (34) 106.7 (42) 132.1 (52)
Mower Deck Lift Foot Operated
15W-50 Full-Synthetic Hydraulic Fluid (P/N 00057100)
656 (40) 726 (44.3)
or equivalent
262.0 – 317.2 (38 – 46)
62.1 – 75.8 (9 – 11)
EN - 22
Warran
ty
Outdoor Power
Equipment
Limited Warranty
AriensCo warrants to the original purchaser that Ariens brand products purchased on or after 09/01/2022
will be free from defects in material and workmanship for the time period noted in the chart below. Equipment
put to personal use around a single household or residence is considered “Residential Use.” Equipment put
to any business use (agricultural, commercial, or industrial) or used at multiple locations is considered
“Commercial Use.” If any product is rented or leased, then the duration of these warranties shall be 90 days
after the date of purchase.
An authorized Ariens dealer will repair any defect in material or workmanship, and repair or replace any
defective part, subject to the conditions, limitations and exclusions set forth herein. Such repair or
replacement will be free of charge (labor and parts) to the original purchaser; except as noted below. Pick-up
and delivery are at the owner’s expense.
The warranty code is found on the model and serial number identification label on the unit.
Warranty
Code
AA Serialized Attachments 1 Year.
CH, CQ Zenith Mowers 4 Years or 750 Hours.*
HD Razor Walk-Behind Mowers 3 Years Residential Use. 90 Days Commercial Use.
HE Edge Mowers 2 Years or 150 Hours.*
HF Ikon-XD Mowers 3 Years or 300 Hours.*
HH Apex Mowers 4 Years or 500 Hours.*
HI Razor Walk-Behind Mowers 4 Years Residential Use. 90 Days Commercial Use.
PA 921-Series Brushes 3 Years Residential Use. 90 Days Commercial Use.
PB 926-Series Brushes 3 Years Residential Use. 1 Year Commercial Use.
SA Professional Sno-Thro 3 Years Residential Use. 1 Year Commercial Use.
Compact, Deluxe and Platinum Sno-Thro
SB
and Path-Pro
SC S18 2 Years Residential Use. 90 Days Commercial Use.
SD Deluxe and Platinum EFI Sno-Thro 3 Years Residential Use. 90 Days Commercial Use.
SE 920-Series Classic Sno-Thro, Crossover 3 Years Residential Use. 90 Days Commercial Use.
SF Mammoth Tractor 2 Years or 500 Hours.*
* Whichever comes first.
Product Group Warranty Period
3 Years Residential Use. 90 Days Commercial Use.
Special Extensions
The chart below details special extensions to warranty terms. Warranty terms are total time periods
covered. If any product is rented or leased, there are no extensions to the 90-day warranty.
Warranty
SB, SD Cast Iron Auger Gear Case
Warranty Term Extension Warranty Period
Code
SA Cast Iron Auger Gear Case 5 Years.
5 Years Residential Use.
1 Year Commercial Use.
EN - 23
12/22 • 05299800J
Exclusions and Limitations
The charts below detail special exclusions and limitations to this warranty.
Warranty Term Exclusions Warranty Period
Air filters, auger paddles, brake arms, brake linings, brake shoes,
brushes, cutters, fuel filters, halogen headlights, knives, halogen light
bulbs, lubricants, mower blades, oil, oil filters, spark plugs, scraper
blades, shear bolts and skid shoes.
Hydro-Gear Transaxle Limitation
See Hydro-Gear warranty. The warranty is administrated by AriensCo. Refer to www.ariens.com for
warranty statement.
Warranty Term Limitations Warranty Period
Cloth, Plastic and Rubber Components.
Mufflers, Tires and Belts.
Parker Actuators 1 Year.
Exclusions – Items Not Covered by This Warranty
• Parts that are not genuine Ariens service parts are not covered by this warranty and may void the warranty if the parts result in premature wear or damage to the product.
• Damages resulting from the installation or use of any part, accessory, or attachment which is not approved
by AriensCo for use with product(s) identified herein are not covered by this warranty.
• Any misuse, alteration, improper assembly, improper adjustment, neglect, or accident which requires
repair is not covered by this warranty.
• Repairs or adjustments required due to failure to use fresh fuel or failure to properly prepare the unit for
periods of non-use.
• Use of gasoline blends exceeding 10% ethanol voids any and all warranties.
• Any tampering with the hour meter voids any and all warranties.
• Products are designed to the specifications in the area that the product was originally distributed. Different areas may have significantly different legal and design requirements. This warranty is limited to the
requirements in the area in which the unit was originally distributed. AriensCo does not warrant this product to the requirements of any other area. Warranty service is limited to service within the area originally
distributed.
• In countries other than the United States and Canada, contact the AriensCo dealer for
warranty policies that govern within your country. Rights may vary from country to country and within any
one country.
Evaporative Emissions Control Warranty Exception
As required by the California Air Resources Board (CARB) and the US Environmental Protection Agency
(EPA) the evaporative emissions control system is warranted to the ultimate purchaser, and any subsequent
owner, for two years.
The CARB and EPA evaporative emissions control system warranty is described in a separate evaporative
emission control warranty statement.
Components are covered for manufacturer’s defect only, not
Components are not covered
under warranty.
wear.
Battery Warranty
Battery warranty is one year. Units used for rental or lease have no exceptions to the 90-day warranty. Total
battery claim reimbursement will not exceed 45.00 USD.
EN - 24
12/22 • 05299800J
Engines
The chart below details engine warranty information. Engine warranty terms may vary from the specific terms
of this warranty. If inconsistent, the terms of the engine warranty shall apply to the engine and its component
parts.
Engine Manufacturer Detail
Ariens AX
Briggs & Stratton, Kawasaki, Kohler
Ariens-branded engines are warranted by the manufacturer
and the warranty is administrated by AriensCo
engine manual or www.ariens.com for warranty statements.
Covered by the engine manufacturer’s warranty.
Refer to the engine manufacturer’s warranty statements.
. Refer to the
Parts and Accessories
Service replacement parts and non-serialized accessories are warranted for 90 days from date of purchase.
Labor is not included.
Customer Responsibilities
Register the product immediately at the time of sale. If the dealer does not register the product, the
customer must register the unit on-line at www.ariens.com.
To obtain warranty service, the original purchaser must:
• Ensure that the maintenance and adjustments explained in the Operator’s Manual are routinely
completed.
• Promptly notify AriensCo or an authorized Ariens service representative of the need for warranty service.
• Transport the product to and from the place of warranty service at owner’s expense.
• Have the warranty service performed by an authorized Ariens service representative.
To find an authorized dealer use the dealer locator on our websites, or contact us by mail or phone.
Globally (Except Australia or
New Zealand):
AriensCo
655 W. Ryan Street
Brillion, WI 54110
Phone: (920) 756 - 4688
www.ariensco.com
Australia: New Zealand:
Roy Gripske & Sons Pty Ltd
11 Sodium Street
Narangba
Queensland 4504
Australia
Phone: (61130) 036 3004
www.rgs.com.au
Masport Ltd
320 Ti Rakau Drive
East Tamaki
Auckland 2013
New Zealand
Phone: 0800 627 7678
www.masport.co.nz
EN - 25
12/22 • 05299800J
Disclaimer
AriensCo may from time to time change the design of its products. Nothing contained in this warranty shall be
construed as obligating the AriensCo to incorporate such design changes into previously manufactured
products, nor shall such changes be construed as an admission that previous designs were defective.
Limitation of Remedy and Damages
AriensCo liability under this warranty, and under any implied warranty that may exist, is limited to repair of
any defect in workmanship, and repair or replacement of any defective part. AriensCo shall not be liable for
incidental, special, or consequential damages (including lost profits). Some states do not allow the exclusion
of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
AriensCo shall not be held liable for damages, including premature wear and tear, or injuries caused by
installation of unauthorized parts and accessories or for parts and accessories not installed by an authorized
Ariens dealer.
Australian Consumer Law
The following applies solely to warranties subject to Subsection 102(1) of the Australian Consumer Law: Our
goods come with guarantees that cannot be excluded by the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and failure does not amount to a major failure.
Disclaimer of Further Warranty
AriensCo makes no warranty, express or implied, other than what is expressly made in this warranty. If the
law of your state provides that an implied warranty of merchantability, or an implied warranty of fitness for
particular purpose, or any other implied warranty, applies to AriensCo, then any such implied warranty is
limited to the duration of this warranty. Some states do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from region to
region.
EN - 26
12/22 • 05299800J
P
R
I
N
T
E
D
655 West Ryan Street
Brillion, WI 54110
www.ariens.com
parts.ariens.com
Loading...
